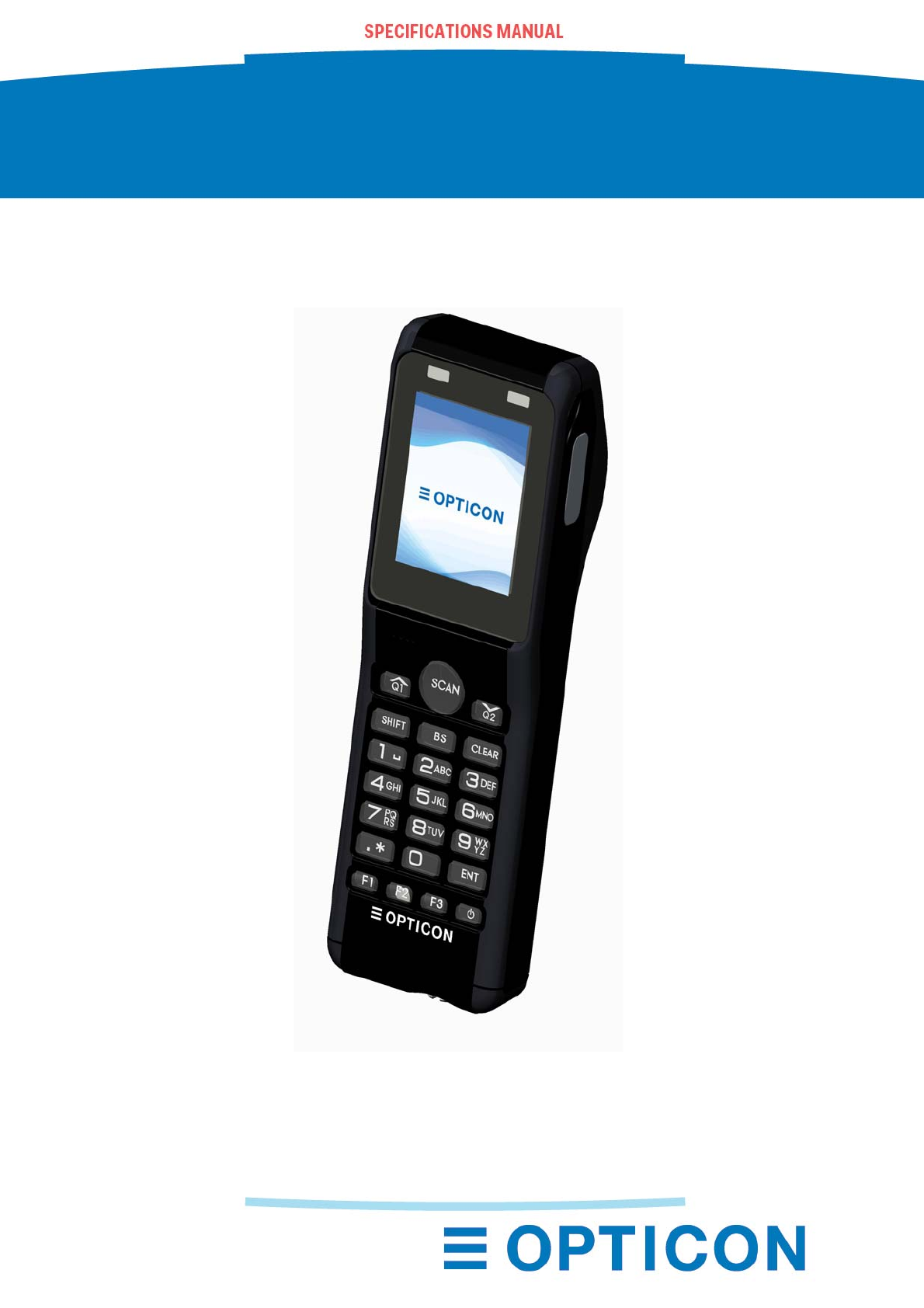

OPTOELECTRONICS OPH5000I Handy Terminal with Bluetooth User Manual
OPTOELECTRONICS Co., Ltd. Handy Terminal with Bluetooth Users Manual
Users Manual
OPH-5000i
1st
1
OPH-5000i
Handy Terminal with Bluetooth
This manual provides specifications for the OPH-5000i Wireless
LAN Handy Terminal with imager scanner.
1st
OPH-5000i
1st
2
The information in this document is subject to change without notice.
Document History
Model Number: OPH-5000i Specification Number: SS16051
Edition: 1st Original Spec Number: (SS16003)
Date: 01-September-2016
2016 Copyright Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted
to any electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING
OR USING THE PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to
the device purchased. Do not remove the serial number from your Opticon device. Removing the
serial number voids the warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in
materials and workmanship for two years after purchase excluding batteries. Opticon will repair or, at
its option, replace products that are defective in materials or workmanship with proper use during the
warranty period. Opticon is not liable for damages caused by modifications made by a customer. In
such cases, standard repair charges will apply. If a product is returned under warranty and no defect is
found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should
you need to transport your data collector or send it for service. Damage caused by improper
packaging during shipment is not covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of
OPTOELECTRONICS Co., Ltd., 12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002.
TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
OPH-5000i
1st
3
Revision History
Product Name : OPH-5000i
Edition Date Page Section Description of Changes
1st 2016/09/01 - - -
OPH-5000i
1st
4
Contents
1 Abstract ............................................................................................................................ 6
2 Overview .......................................................................................................................... 6
3 Basic Specifications ....................................................................................................... 7
4 Detailed View ................................................................................................................. 10
5 Electrical Specifications ............................................................................................... 13
5.1 Electrical Specifications .......................................................................................................... 13
5.2 Wireless Charging .................................................................................................................. 13
6 Interface Specifications ................................................................................................ 13
6.1 USB Interface ......................................................................................................................... 13
6.1.1 Connector ....................................................................................................................... 13
6.1.2 USB Interface Circuit ...................................................................................................... 13
6.2 Bluetooth ................................................................................................................................ 14
6.3 Wireless LAN .......................................................................................................................... 14
6.3.1 IEEE 802.11b .................................................................................................................. 14
6.3.2 IEEE 802.11g .................................................................................................................. 14
6.3.3 IEEE 802.11n .................................................................................................................. 14
6.4 Built-in NFC Tag ..................................................................................................................... 14
7 Optical Specifications ................................................................................................... 15
7.1 Basic Specifications ............................................................................................................... 15
7.2 Aiming Pattern ........................................................................................................................ 16
8 Technical Specifications .............................................................................................. 17
8.1 Barcode Test Sample ............................................................................................................. 17
8.2 Scan Area and Depth of Field ................................................................................................ 19
8.3 Printed Contrast Signal (PCS) ............................................................................................... 20
8.4 Minimum Resolution ............................................................................................................... 20
8.5 Barcode Width ........................................................................................................................ 20
8.6 Pitch, Skew and Tilt ................................................................................................................ 21
8.7 Curvature ................................................................................................................................ 21
8.8 Motion Tolerance .................................................................................................................... 22
9 Environmental Specifications ...................................................................................... 23
9.1 Temperature ........................................................................................................................... 23
9.2 Humidity .................................................................................................................................. 23
9.3 Ambient Light Immunity .......................................................................................................... 23
9.4 Dust and Drip Proof ................................................................................................................ 24
9.5 Vibration Strength (without packing) ...................................................................................... 24
9.6 Vibration Strength (in individual packing) ............................................................................... 24
9.7 Drop Impact Strength (without packaging) ............................................................................. 24
9.8 Drop Impact Strength (in individual packaging) ..................................................................... 25
9.9 Electrostatic Discharge Immunity ........................................................................................... 25
10 Regulatory Compliance ................................................................................................ 26
OPH-5000i
1st
5
10.1 LED Safety ............................................................................................................................. 26
10.2 Product Safety ........................................................................................................................ 26
10.3 EMC ........................................................................................................................................ 26
10.4 Other ....................................................................................................................................... 28
11 RoHS .............................................................................................................................. 28
12 Reliability ....................................................................................................................... 28
13 Precautions .................................................................................................................... 28
13.1 Radio Law............................................................................................................................... 29
13.2 Bluetooth ................................................................................................................................ 29
13.3 Frequency Baud ..................................................................................................................... 29
13.4 Usage Note ............................................................................................................................ 29
14 Product Labels .............................................................................................................. 30
15 Packaging Specifications ............................................................................................. 31
15.1 Individual Packaging .............................................................................................................. 31
15.2 Collective Packaging .............................................................................................................. 33
16 Physical Features .......................................................................................................... 34
16.1 Dimensions ............................................................................................................................. 34
16.2 Weight .................................................................................................................................... 34
16.3 Mechanical Drawing ............................................................................................................... 34
17 Supported Symbologies ............................................................................................... 35
17.1 Default Setting ........................................................................................................................ 35
17.2 Supported Symbologies ......................................................................................................... 35
17.2.1 1D Barcodes ................................................................................................................... 35
17.2.2 GS1 Databar, Composite Code ...................................................................................... 36
17.2.3 2D Codes ........................................................................................................................ 36
Table of Figures
Figure 1: Detailed View ......................................................................................................................... 11
Figure 2: micro USB B Connector ......................................................................................................... 13

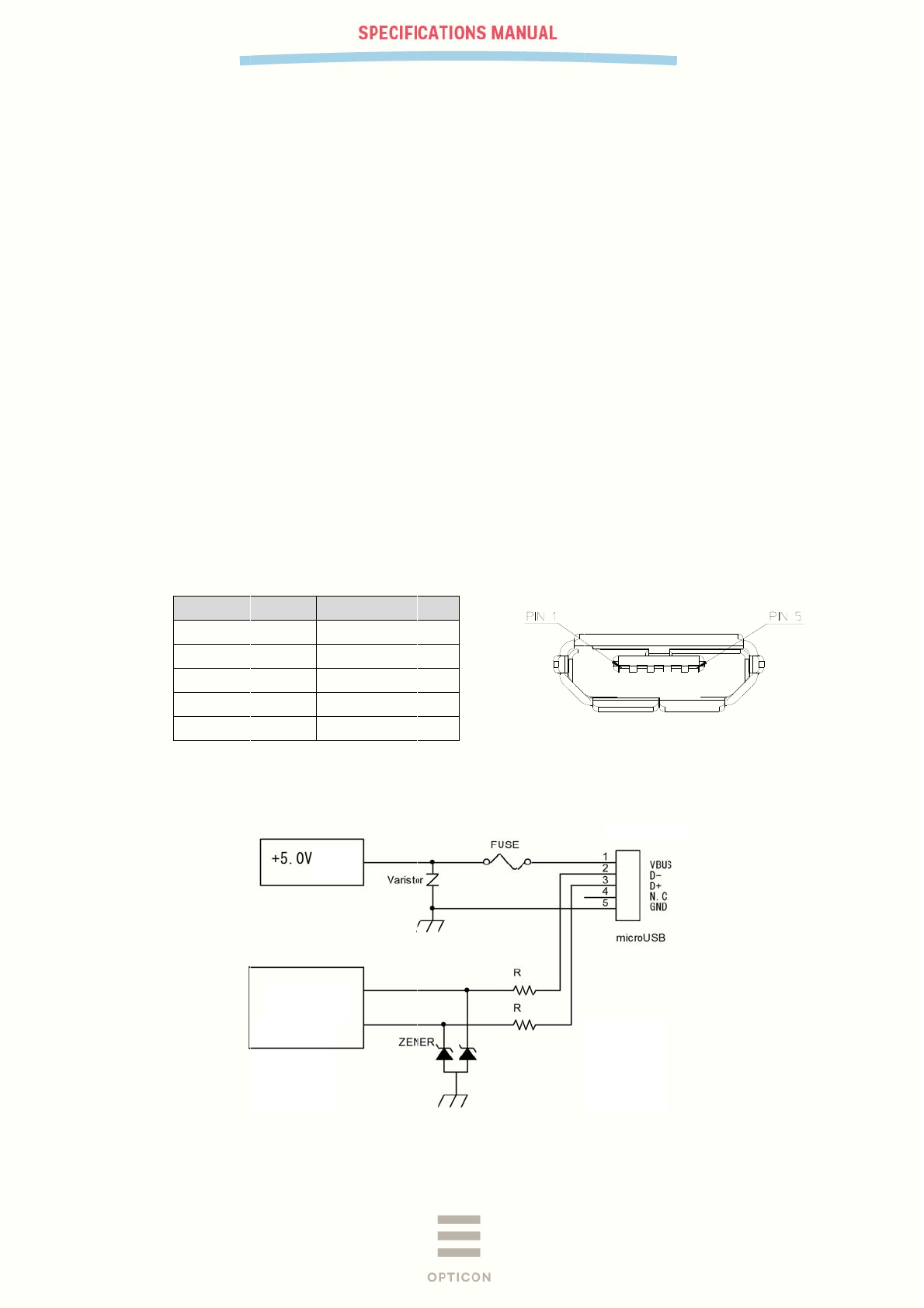

Figure 3: Interface Circuit (USB) ........................................................................................................... 13

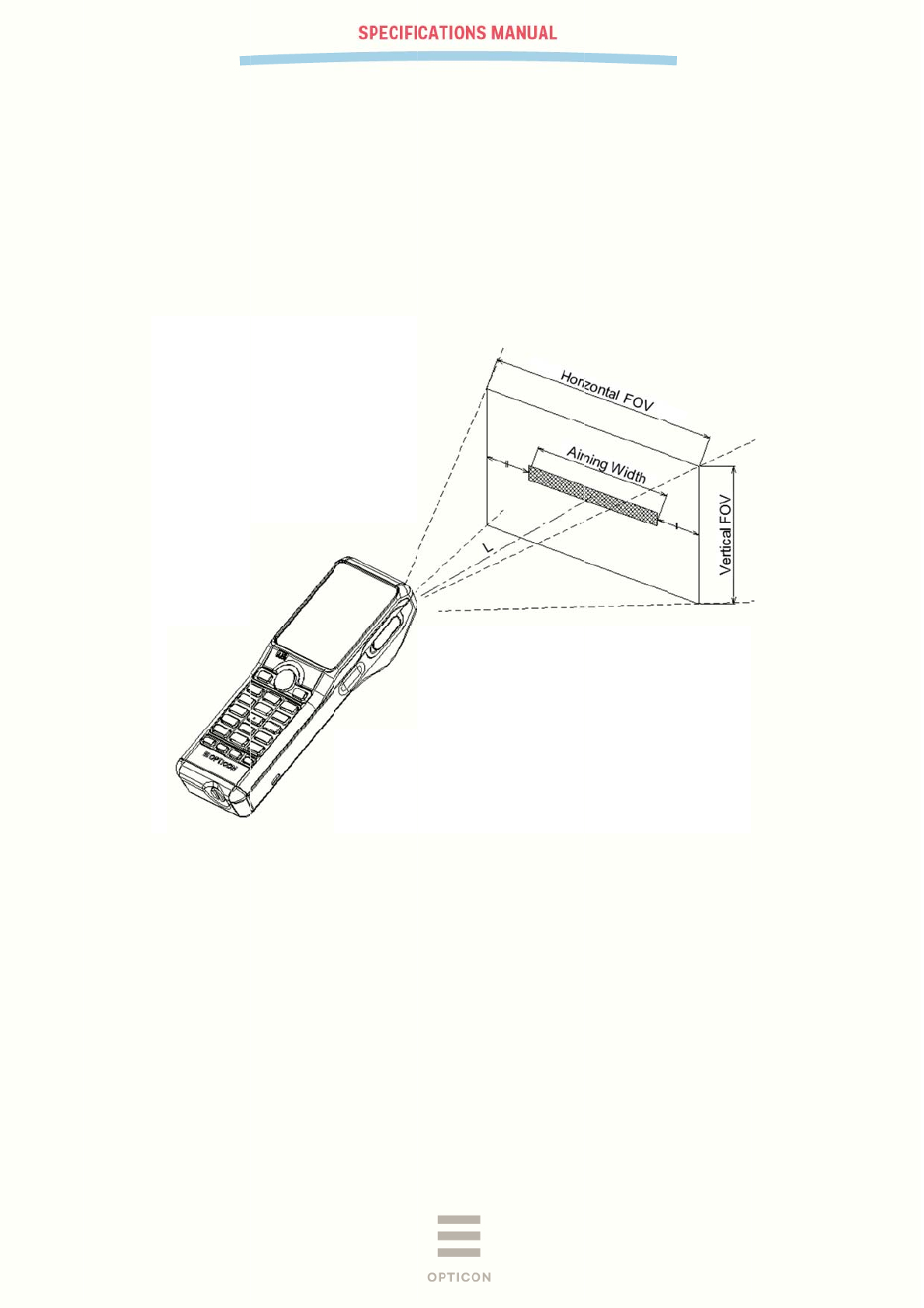

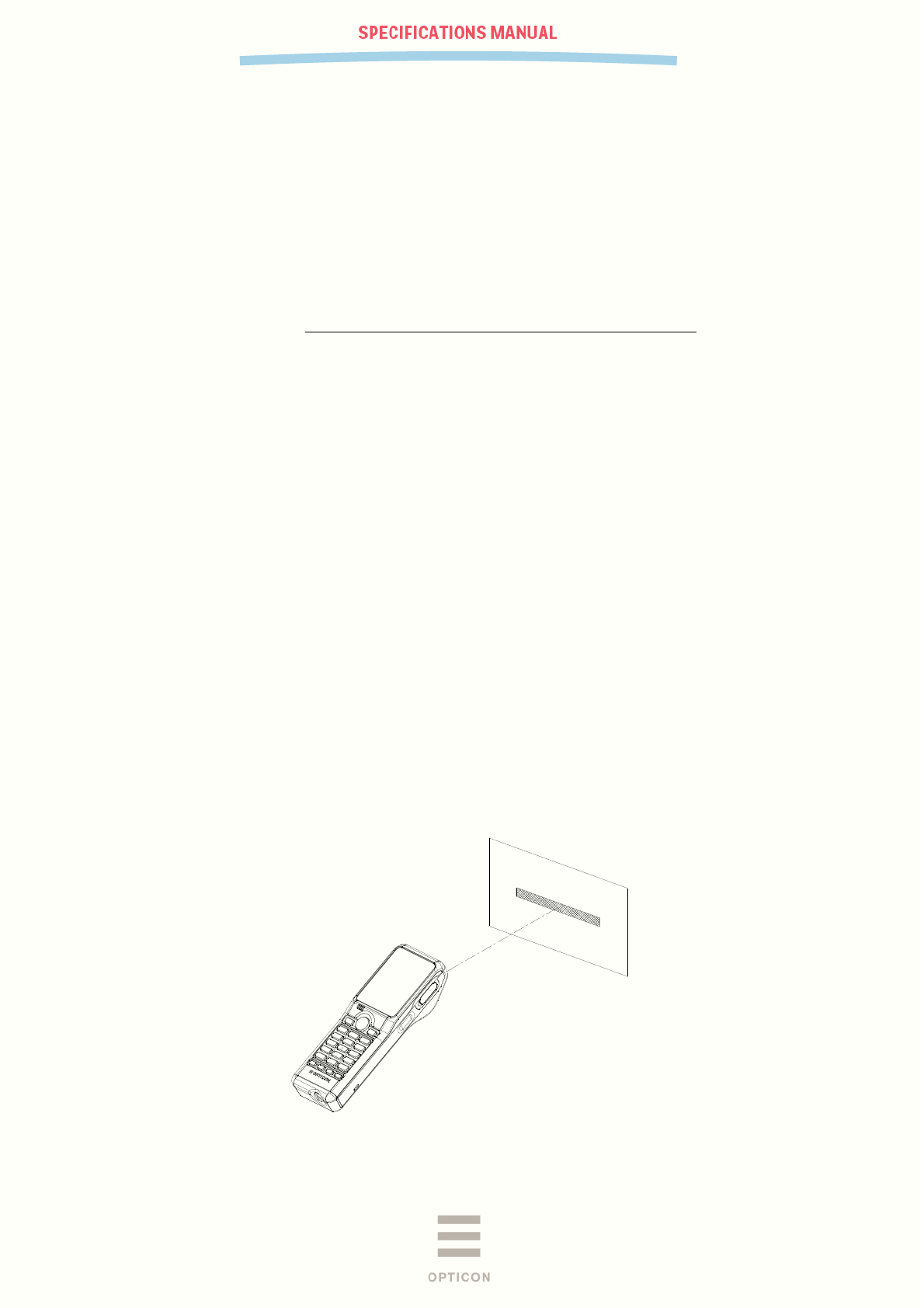

Figure 4: Aiming Pattern and Imaging Range ....................................................................................... 16

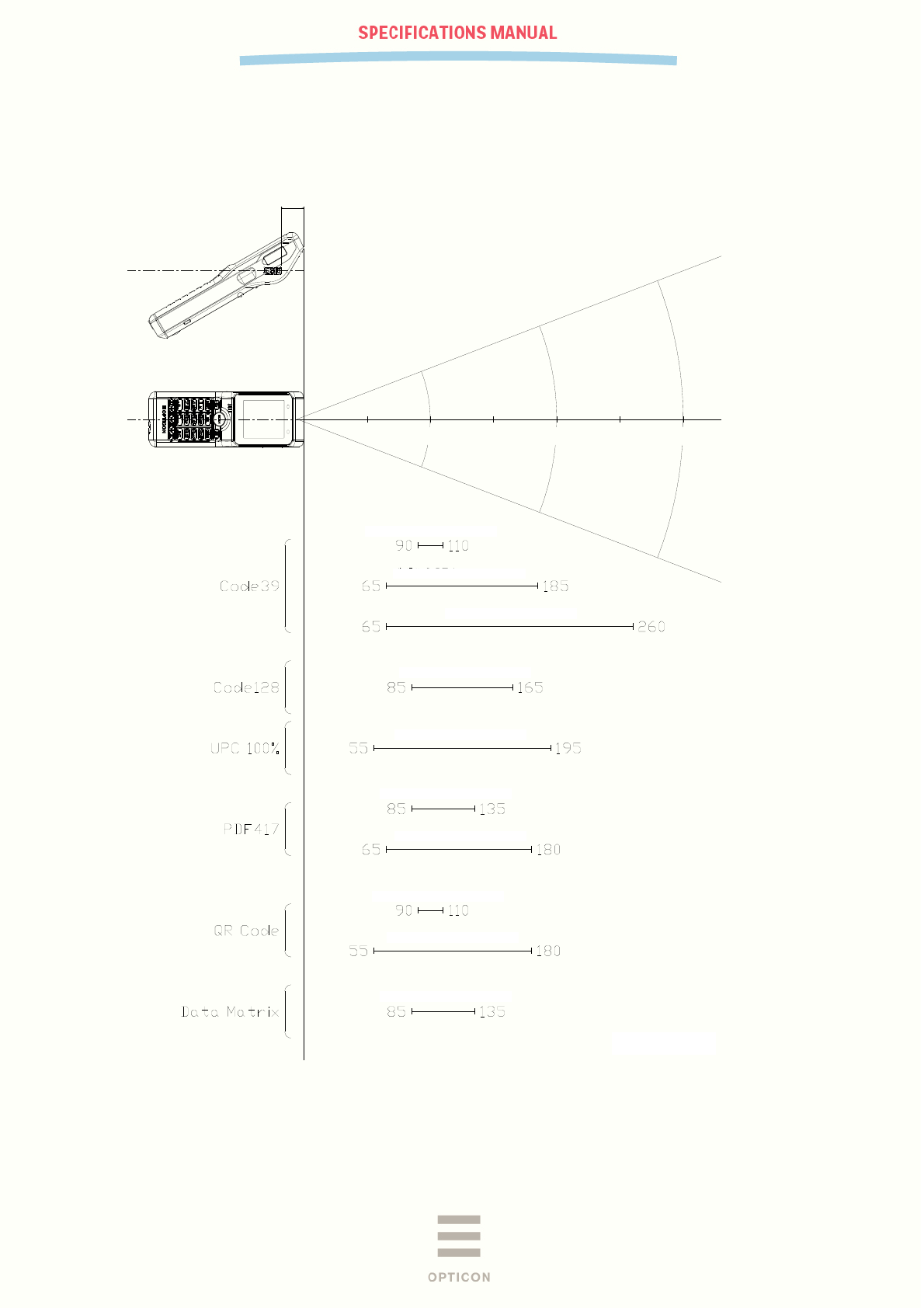

Figure 5: Scan Area and Depth of Field ................................................................................................ 19
Figure 6: Wide Barcode ......................................................................................................................... 20

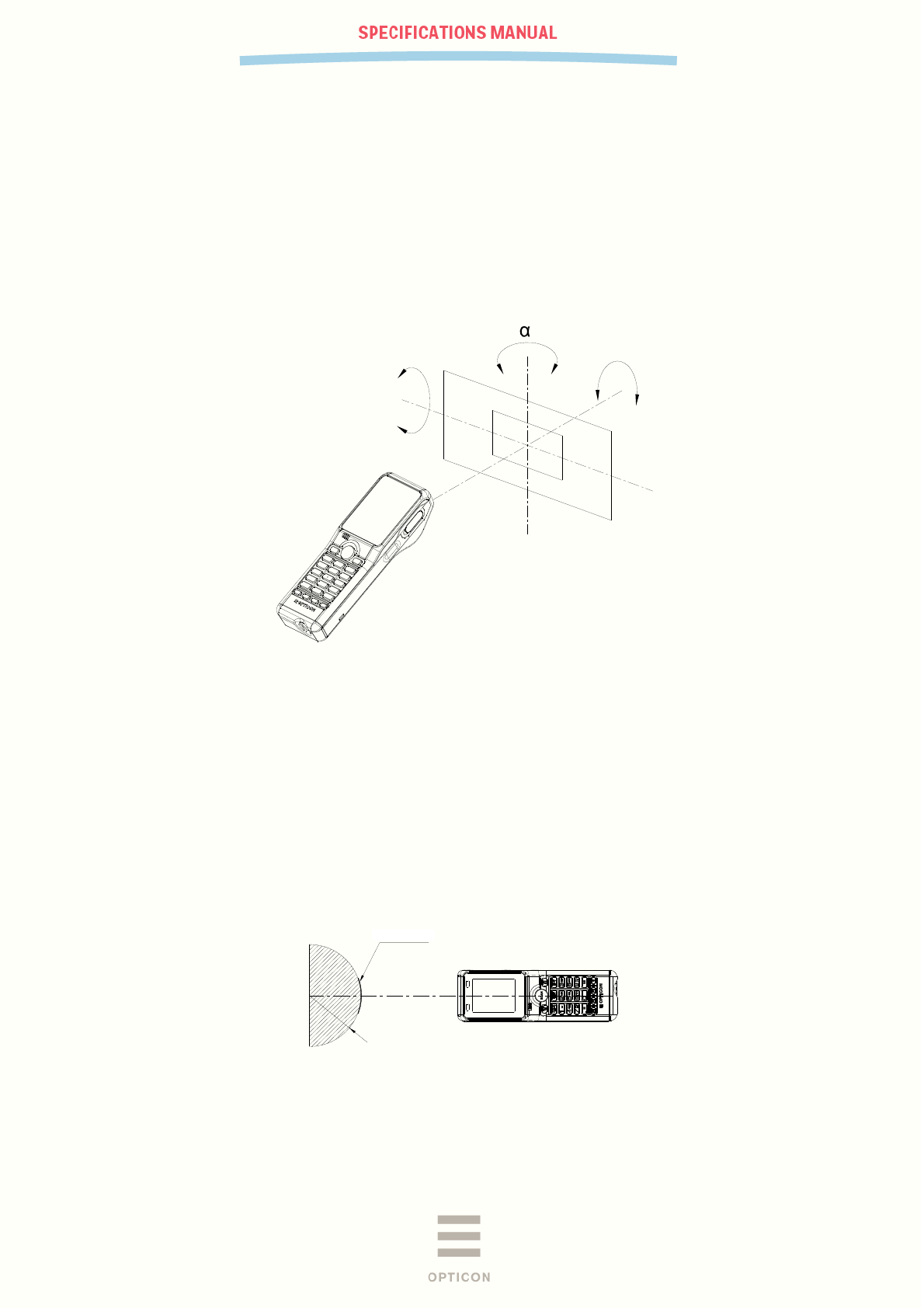

Figure 7: Pitch, Skew and Tilt ................................................................................................................ 21
Figure 8: Curvature ................................................................................................................................ 21
Figure 9: Motion Tolerance .................................................................................................................... 22

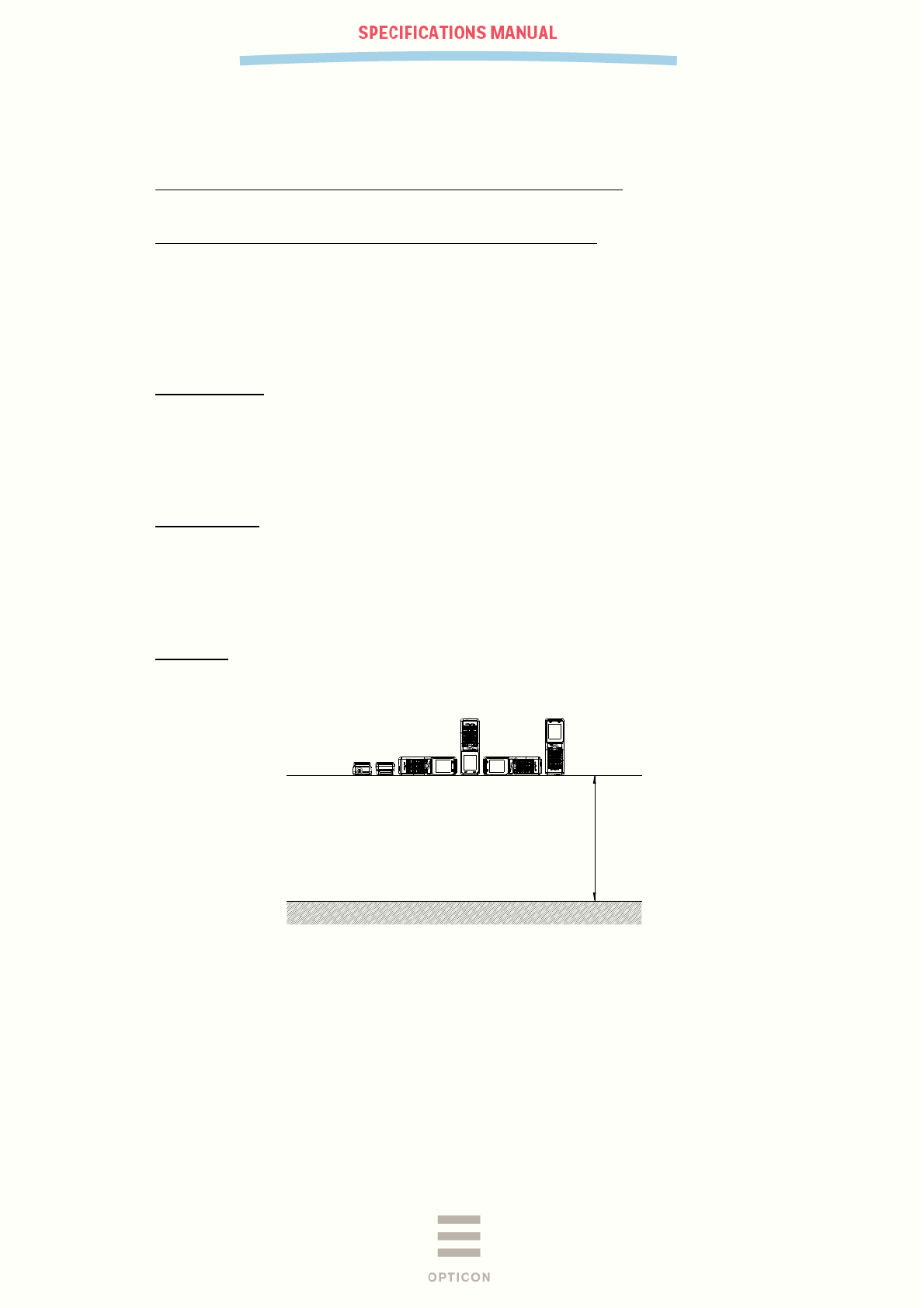

Figure 10: Drop Test .............................................................................................................................. 24

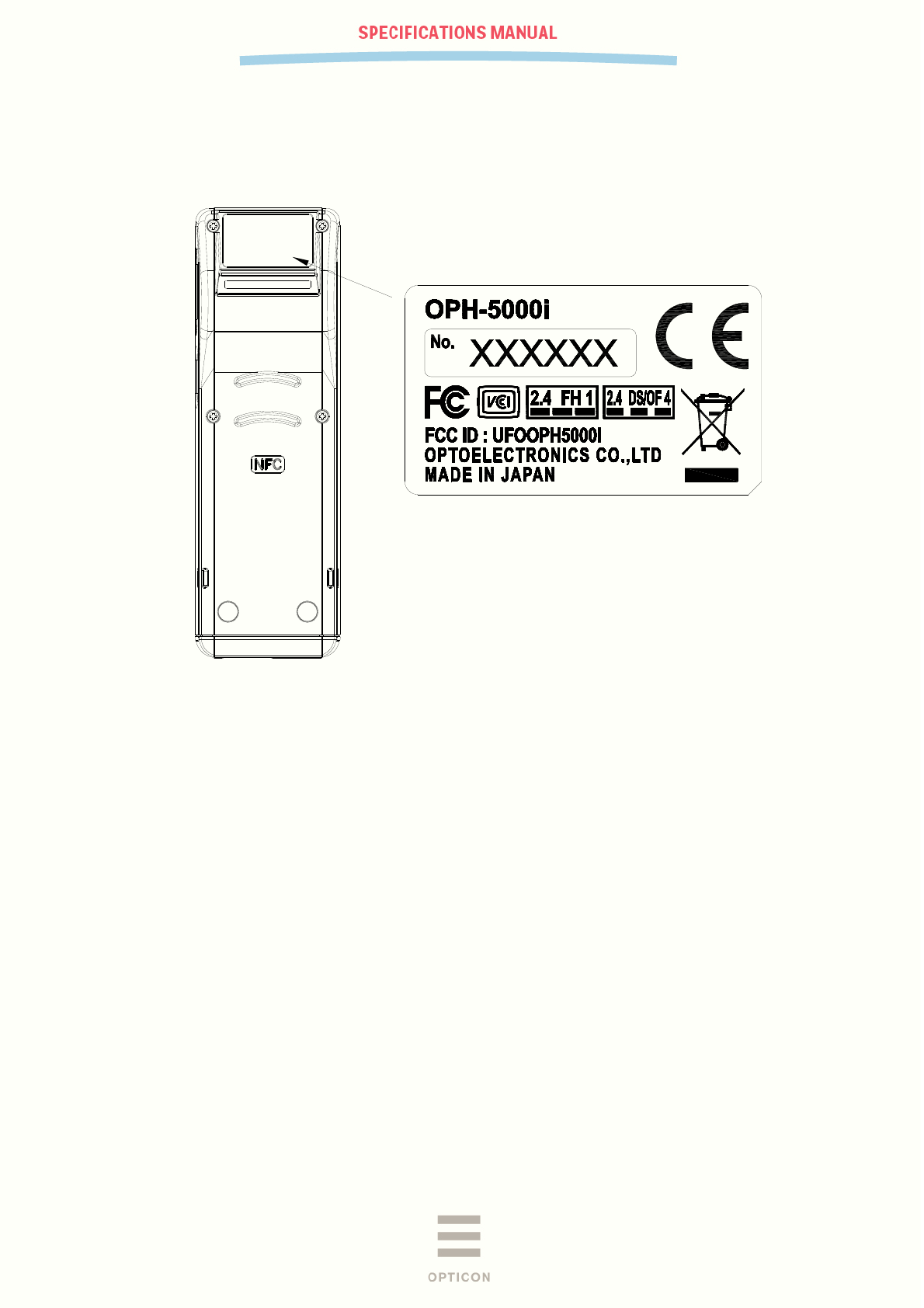

Figure 11: Product Label Position ......................................................................................................... 30

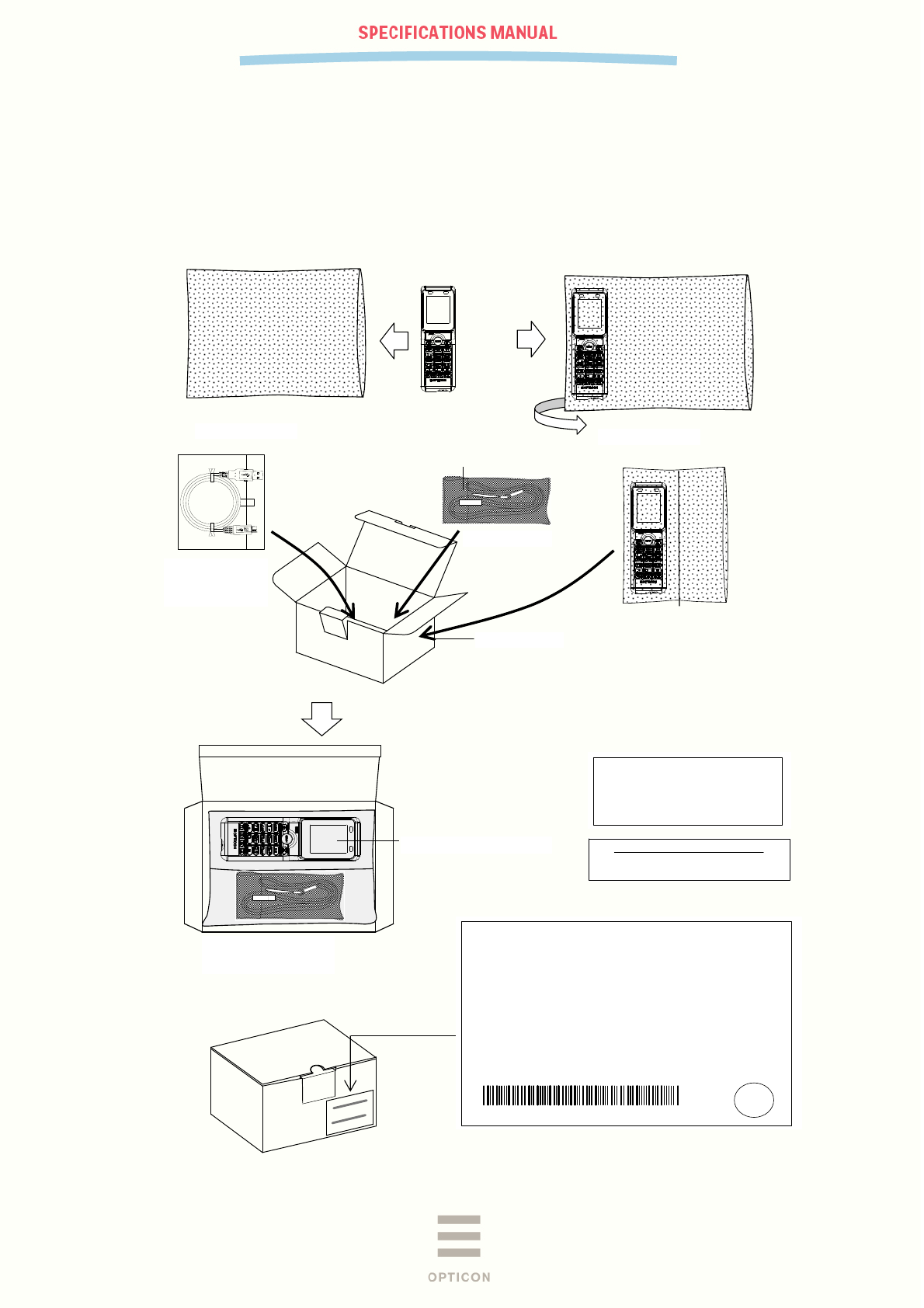

Figure 12: Individual Packaging ............................................................................................................ 31

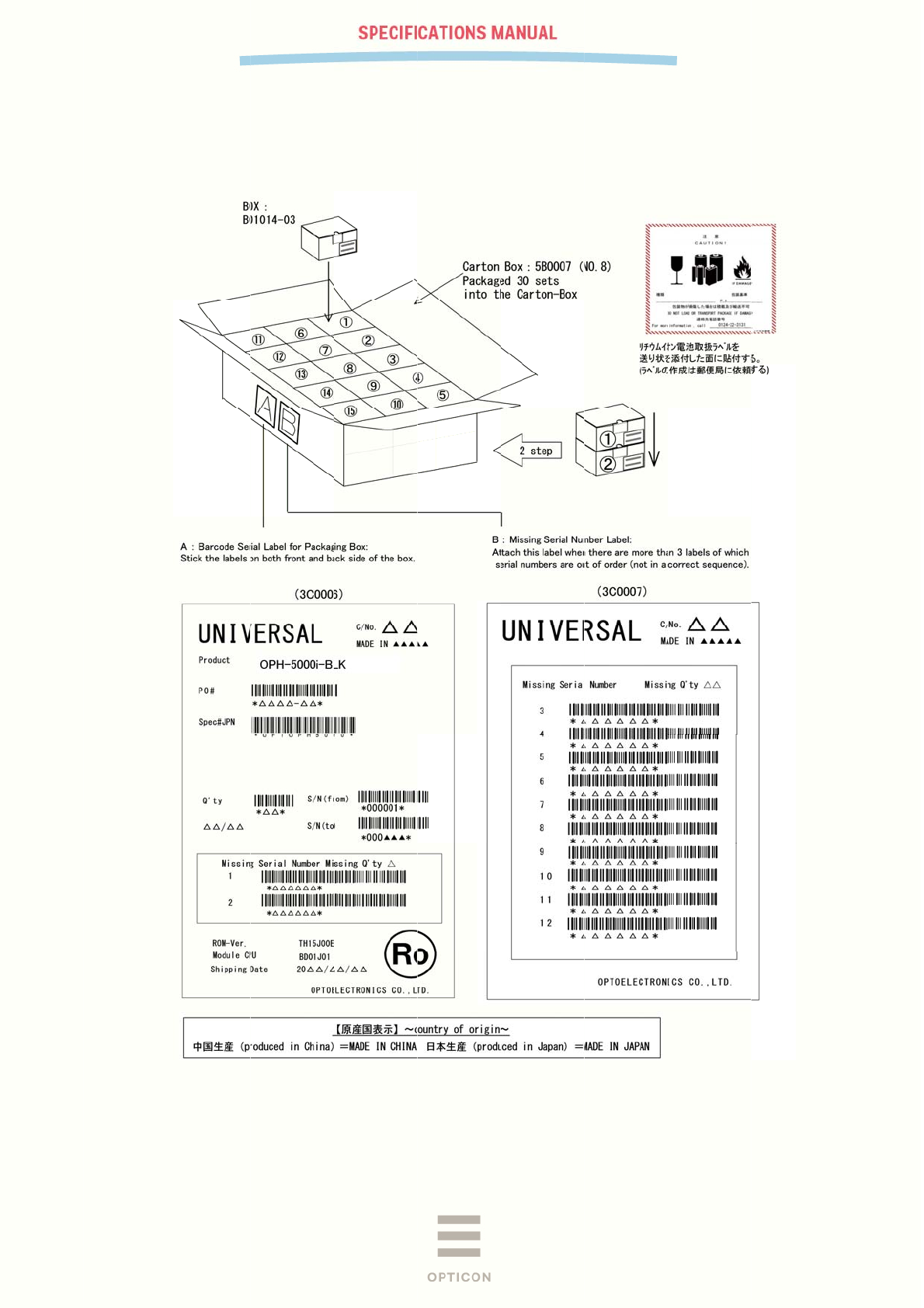

Figure 13: Collective Packaging ............................................................................................................ 33

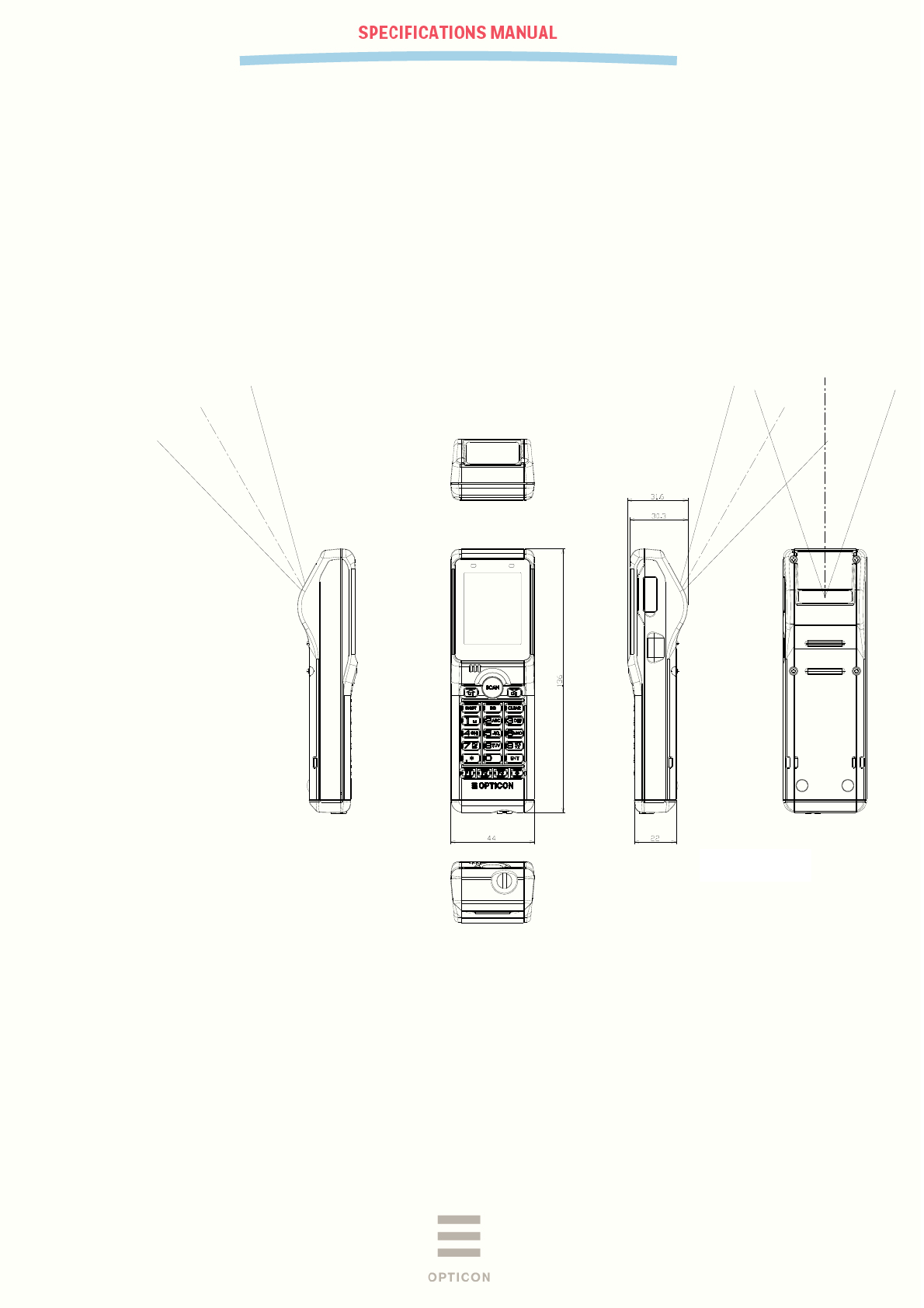

Figure 14: Mechanical Drawing ............................................................................................................. 34
OPH-5000i
1st
6
1 Abstract
This manual provides specifications for the OPH-5000i 2D Handy Terminal with built-in Wireless LAN
and Bluetooth.
2 Overview
The OPH-5000i is compact imager scanner built-in and output scanned barcode and 2D code data to
hostdevice conected by TCP/IP via wiress LAN. Bluetooth is also aveliable for output.
・ OPH-5000i is handy terminal with a numeric keypad and TFT color LCD display.
・ All barcode data scanned is transmitted to a host device through the Wireless LAN, Bluetooth or
USB interface interface.
・ Wireless LAN supports IEEE 802.11 b/g/n.
・ Bluetooth SPP (Serial Port Profile) and HID (Human Interface Device Profile) are implemented.
・ In addition to the current buzzer sound and LED display, vibration function is also equipped.
・ A green LED aiming line toward a target barcode can help the users find the appropriate scanning
position.
・ Alcohol can be used to wipe the scanner clean
・ The power source is 3.7 V 1100 mAh (typ.) Li-ion battery.
・ The charging is done through a dedicated charging cradle or USB interface.
・ The scanner is Apple MFi certified.
OPH-5000i
1st
7
3 Basic Specifications
Item Specification Note
Control Section
CPU 32bit CISC/96MHz
FROM 2Mbyte + 32KByte System area
FROM 1Mbyte Application area
RAM 16Mbyte
It may be cleared by
the removal of the
main battery.
FROM (storage) 128Mbyte For data area only
Input Section
Key type
Number 10 key
F1~F3 3 key
Power 1 key
Up, down, SCAN (Placed on top
panel) 3 key
SHIFT, BS, CLEAR, decimal point,
ENT 5 key
Side touch sensor 1 sensor for scan
Backlight White
Display Section
Display element TFT color LCD display
Backlight White, brightness adjustable
Display size 1.77 inch, (W)128× (L)128 dots
Font size 12/16/24 dot
Type of characters JIS Standard No.1 and 2, ANK
Structure of Characters
When in 12 dot Font mode
(digit × row)
Reduced-size ANK: 21×21
Half-size character: 21×10
Kanji character: 10×10
When in 16 dot Font mode
(digit × row)
Reduced-size ANK: 16×16
Half-size character: 16×8
Kanji character: 8×8
When in 24dot Font mode
(digit × row)
Reduced-size ANK: 10×10
Half-size character: 10×5
Kanji character: 5×5
LED red, green one place, and blue 1 place
Buzzer Loudness (3-level) / tone adjustable
Vibration motor Strength (3-level) / duration adjustable
RTC
Contents Year, month, date, hour, minute, second
Data and time are lost
when the main battery
is removed.
Accuracy ± 90 seconds per month
Interface
Wireless LAN
Specification IEEE 802.11 b/g/n compliant
Frequency 2412~2472MHz (1~13ch)
Maximum output 0.0026W/MHz IEEE 802.11b
Access method Infrastructure mode (STA)
Security WEP,WPA,WPA2
OPH-5000i
1st
8
Item Specification Note
Network stack TCP/IP, UDP, DHCP, ARP,
SSL, DNS
Bluetooth
Frequency 2402 ~ 2480 MHz
Specification Bluetooth Ver 2.1 compliant
Communication
distance 10 m Not guaranteed.
Output level Class 2 Max output 4 dBm
Profile SPP / HID
Built-in NFC tag ISO/IEC 14443 TYPE A, TYPE B
JISX6319-4
USB ・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered supported
Optical Section
Scanning method VGA CMOS area sensor
Scanning light source 1 Warm-White LED
Aiming light source 1 green LED
Effective pixels 0.30 million pixels
View angle Horizontal: about 38.0°
Vertical: about 28.9°
Supported 1D Symbologies
Symbologies
UPC-A, UPC-A Add-on, UPC-E,
UPC-E Add-on, EAN-13, EAN-13 Add-on, EAN-8,
EAN-8 Add-on, JAN-8, JAN-13, Code 39, Tri-Optic,
NW-7, Industrial 2 of 5,
Interleaved 2 of 5, S-Code, IATA, Code 93,
Code 128, MSI/Plessey, UK/Plessey, TELEPEN,
Matrix 2 of 5, Chinese Post Matrix 2 of 5,
Code 11, Korean Postal Authority code, Postal
Code
Refer to Chapter 17.
for details
Minimum resolution Code 39 : 0.1 mm PCS 0.9
Curvature R ≥ 16 mm ( 9-digit JAN)
R ≥ 20 mm (13-digit JAN) PCS 0.9
Barcode width 100 mm wide 0.2 mm resolution Code 39 (DOF 150
mm) is readable:
Motion Tolerance UPC 100% moving at 2m/sec (DOF 100 mm)
is readable:
Depth of Field
Code 39
Resolution (0.127) 90 ~ 110
Resolution (0.254) 65 ~ 185
Resolution (0.508) 65 ~ 260
Code 128 Resolution (0.2) 85 ~ 165
UPC Resolution (0.33) 55 ~ 195
GS1/Composite
Symbologies
GS1 DataBar , GS1 DataBar Limited,
GS1 DataBar Expanded,
Composite GS1 DataBar, Composite GS1-128,
Composite EAN, Composite UPC
GS1 DataBar:
formerly called
“RSS”
Minimum resolution GS1 DataBar : 0.169mm
Composite Code: 0.169mm
S
uppor
t
e
d
2D
Symbologies
Symbologies
PDF417 , MicroPDF417 , Codablock F ,
QR Code , MicroQR Code ,
Data Matrix ( ECC 0 - 140 / ECC 200 ) ,
MaxiCode( Modes 2 to 5 ) , Aztec Code ,
Chinese-sensible code
Disable Code 128
when Codablock F is
enabled.
OPH-5000i
1st
9
Item Specification Note
Minimum resolution (mm)
PDF417 : 0.169 mm
QR Code : 0.169 mm
DataMatrix : 0.169 mm
PCS 0.9
Depth of
field
(mm)
PDF417
Resolution (0.169) 85~ 135
PCS 0.9
Resolution (0.254) 65 ~ 180
QR Code
Resolution (0.212) 90 ~ 110
Resolution (0.381) 55 ~ 180
DataMatrix Resolution (0.254) 85 ~ 135
Common
Scan angle
Pitch : ±70°
Skew : ±70°
Tilt : ±360°
Minimum PCS 0.2 or more MRD 32% or more
Power Section
Main battery Lithium-ion 1100 mAh (typ.)
Up-time 20 hours or more *1
Charging time Less than 3 hour
Using dedicated
cradle.
Room temperature
25℃
Feeding system Electromagnetic guidance wireless charging,
microUSB
Operating (charging) voltage 4.5 ~ 5.5V Charging with USB
Current
consumption Charging Less than 500 mA
Environmental Specifications
Temperature
Operating -10 ~ 50°C
Storage -20 ~ 60°C
Humidity
Operating 20 ~ 85% No condensing
No frost
Storage 20 ~ 85%
Ambient light
immunity
Fluorescent 10,000 lx or less UPC 100%
Optical axis angle 75°
Distance: 100mm
Sunlight 100,000 lx or less
Vibration
10 Hz ~ 100 Hz, acceleration of 19.6 m/s
2
, 60
minutes per cycle, repeat in each X, Y and Z-
direction
Drop Drop the scanner 18 times (6 faces x 3) from a
height of 150 cm onto a concrete floor
Dust and drip proof IP54 equivalent
Regulatory Compliance
LED safety
JIS C 6802：2011 Class2
IEC 60825-1 Ed.2: 2007 Class 2
CDRH Class Ⅱ
Product safety EN60950-1:2005
IEC60950-1:2006
EMC
EN 55024:2010
EN 55032:2012+AC: 2013
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
EN 300 328 V1.9.1
EN 302 291-2 V1.1.1
FCC Part 15 Subpart C, Subpart B Class A
VCCI Class A
For residential,
commercial and light-
industrial
environments
European conformity CE Marking
OPH-5000i
1st
10
Item Specification Note
Certification for Construction Design of Specified
Radio Equipment
Other Bluetooth logo certification
MFi license
Immunity
Test
ESD
No
distraction Air discharge (direct): ±15 kV Conditions:
IEC61000-4-2
compliant
No
malfunction Air discharge (direct): ±8 kV
Physical
Features
Dimensions 136 × 44 × 30.3(22) (WDH mm) () is grip dimension
Not include projection
Weight Approx. 120 g Excluding accessories
Including main battery
*1: When a barcode is read twice every 10 seconds at room temperature 25℃.
4 Detailed View
9
3
4
5
6
7
8
1
2
10
11
6
12
13
14
15
16
OPH-5000i
1st
11
Figure 1: Detailed View
OPH-5000i
1st
12
No Name Description
1 LED
Indicates operational status, such as scanning and
communication.
It is able to be controlled b
y
user’s pro
g
rams.
2 LCD Indicates scanned barcodes and operational items.
3 MicroUSB Connecter Cap MicroUSB connector is stored.
4 Buzzer Orifice Holes for buzzer.
5 Strap Orifice Holes for attaching a hand strap.
6 Scan Window LED illumination is emitted from this window to read barcodes.
7 Battery Cover Rechargeable battery is stored.
8 Battery Cover Lock Used to lock / open the battery cover.
9 Charging Coil The charging coil is located here with which the dedicated cradle
can su
pp
l
y
p
ower to the scanner.
10 NFC This is the location of the NFC tag. Hold an NFC reader close to
this area when the ta
g
has to be read.
11 Side Trigger Sensor Start an operation of reading code by touching.
12 Trigger Key Press when reading code.
13 Up and Down Key Key use for selecting item and moving cursor.
14 Numeric Keypad Numeric, enter, decimal point key and the key’s to support these
inputs.
15 F1, F2, F3 Function key.
16 Power Key Power On/Off key.
5 El
e
5.1 E
S
u
B
u
C
u
5.2
W
F
e
P
o
6 In
t
The OP
H
6.1 U
In
6.1.1
C
6.1.2
e
ctrical
S
lectrical
S
u
pply Voltag
u
s-power (C
l
u
rrent cons
u
W
ireless C
e
eding syste
o
wer consu
m
t
erface
S
H
-5000i inte
r
U
SB Interf
a
terface is F
u
C
onnecto
r
Signal
N
VC
DAT
A
DAT
A
(N
C
GN
USB Interf
a
S
pecific
a
S
pecificat
i
e
l
ass)
u
mption
harging
m
m
ption
S
pecific
a
r
face is sele
c
a
ce
u
ll Speed US
r
N
ame
C
C
A
(-)
A
(+)
C
)
D
a
ce Circui
t
Po
w
Su
p
Micro-
controller
a
tions
i
ons
: 4.5-5.5
V
: Hi-Pow
e
: Less th
a
: Electro
m
: Less th
a
a
tions
c
table from t
h
B interface.
C
ontact Nu
m
1
2
3
4
5
t
Figure 3:
w
er
pp
l
y
V
e
r ( 500mA
m
a
n 500m
A
m
agnetic ind
u
a
n 5W
h
ree types;
U
m
ber
:
Interface Cir
c
m
ax )
u
ction
U
SB / Bluet
o
Fig
u
c
uit (USB)
o
oth and Wir
e
re 2: micro U
S
USB Connec
t
O
e
less LAN.
S
B B Connec
t
c
to
r
O
PH-5000i
1st
13
t
or
OPH-5000i
1st
14
6.2 Bluetooth
The specifications of the OPH-5000i Bluetooth interface are as follows:
Specification : Bluetooth Ver 2.1 compliant
Frequency : 2402 MHz ~ 2480 MHz
Communication distance : 10 m
Output level : Class 2 (max 4 dBm)
Implemented profile : SPP / HID
Communication configuration : 1 to 1
Operating mode in communication : Master / Slave mode
Security mode : Authentication supported
Encryption : Encryption supported
6.3 Wireless LAN
The specifications of the OPH-5000i Bluetooth interface are as follows:
Specification : IEEE 802.11 b/g/n compliant
Frequency : 2412 MHz ~ 2472MHz (1~13ch)
Access method : Infrastructure mode, (STA)
Security : WEP 64/128, WPA-TKIP, 128-bit WPA2 CCMP (AES)
Network stack : IP, TCP, UDP, DHCP, ARP, SSL, DNS
6.3.1 IEEE 802.11b
Maximum output : 0.0026W/MHz
Supported data rate : 1, 2, 5.5, 11Mbps
6.3.2 IEEE 802.11g
Maximum output : 0.0013W/MHz
Supported data rate : 6, 9, 12,18, 24, 36, 48, 54Mbps
6.3.3 IEEE 802.11n
Maximum output : 0.0007W/MHz
Supported data rate : 6.5, 7.2, 13.0, 14.4, 19.5, 21.7, 26.0, 28.9, 39.0, 43.3,
52.0, 57.8, 58.5, 65.0, 72.2Mbps
6.4 Built-in NFC Tag
OPH-5000i has NFC tag built-in which record Bluetooth device address.
Frequency : 13.56MHz
Standard : ISO/IEC 14443 TYPE A, TYPE B and JISX6319-4
OPH-5000i
1st
15
Recorded Contents:
T
otal 928 byte
NDEF
Record #1
t
ype: ”application/vnd.bluetooth.ep.oob”
OOB data length: 8 Byte
MAC address: 00:12:6A:xx:xx:xx
Record #2
t
ype: ”T”
T
EXT data length: 15 Byte
T
EXT data: ”00126Axxxxxx”
Free area
Reserved area
*xx differ depending on the product.
Rewriting from external: possible
7 Optical Specifications
7.1 Basic Specifications
Item Characteristics
Scan method CMOS area sensor (white / black) -
Number of effective pixel (Column) × (Row) 640 × 480 dots
Image capture speed (*1) Frame rate 100 fps
Focal distance Distance from the front edge of scanner 109.2mm
View angle
Horizontal Approx. 38.0°
Vertical Approx. 28.9°
Diagonal Approx. 46.4°
Illumination light source
(LED × 1)
Color Warm white
Color temperature 2600～3700K
Maximum radiation output (*3) 114lm/W
Aiming light source
(LED × 1)
Color Green
Peak wavelength 535 nm
Maximum radiation output (*4) 87.4m/W
*1 The fastest seed of image capture
*2 Reference value extracted from the datasheet.
*3, *4 Reference value based on the datasheet (25°C, IF = 140 mA ).
7.2
A
T
1
2
T
-
-
A
iming Pa
t
T
he aiming i
s
1
. Fill light t
o
2
. Fill light w
T
he aiming
s
-
The horizo
n
a distance
-
The horizo
n
aiming wid
t
t
tern
s
used for t
h
o
recognize t
h
hen auto tri
g
s
pecification
s
n
tal width of
of L=85±20
n
tal imaging
t
h.
F
i
e following
p
h
e appropri
a
g
ger is used.
s
are as foll
o
the imaging
mm from th
e
field of view
i
gure 4:
A
imin
p
urpose:
a
te reading r
a
o
ws:
field of vie
w
e
front edge
o
at a distan
c
n
g Pattern an
d
a
nge.
and the hor
o
f the scann
e of L=85 m
d
Imaging Ra
n
i
zontal aimi
n
e
r.
m
is 100%±
1
ge
O
n
g width are
1
0% of the h
O
PH-5000i
1st
16
e
qual at
orizontal
OPH-5000i
1st
17
8 Technical Specifications
Aim the laser light at the center of a code to scan it. For long distance scanning, ambient light entering
the angle of view may affect the scanning performance. The conditions for technical specifications are
as follows, unless otherwise specified in each section.
<Conditions>
Ambient Temperature and Humidity Room temperature, room humidity
Ambient Light 100 ~200 lux (on the surface of a barcode)
Angles Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0°
Curvature R = ∞
Power Supply Voltage 5.0 V
PCS (1D and 2D) 0.9 or higher
Scanning Test Accept the performance with 90% or more success rate
for 10 tries of scan. One reading should be 2 seconds.
Barcode Test Sample (1D and 2D) Specified below.
< Test chart >
For 1D codes, OPTOELECTRONICS test samples
For GS1 Databar, stacked codes and 2D codes, printed by a dedicated printer for barcode
8.1 Barcode Test Sample
1D Barcodes
<Code 39>
Resolution Symbology PCS Size (mm) No. of Digits
0.1 mm (3.9 mil)
Code 39 0.9
26 × 10 16
0.127 mm (5 mil) 11 × 10 4
0.20 mm (7.9 mil) 100 × 10 31
0.254 mm (10 mil) 32.5 × 10 7
0.508 mm (20 mil) 43 × 25 4
<Code 128>
Resolution Symbology PCS Size (mm) No. of Digits
0.20 mm (7.9 mil) Code 128 0.9 52 × 10 36
<UPC>
Resolution Symbology PCS Size (mm) No. of Digits
0.330 mm (13 mil) 12-digit UPC
12-digit EAN 0.9/0.2 31.5 × 24.5 12/13
GS1 Databar/Composite
<GS1-limited>
Resolution Symbology PCS Size (mm) No. of Digits
0.169 mm (6.7 mil) Limited 0.9 12 × 1.5 14
0.169 mm (6.7 mil) Limited-Composite 0.9 12 × 3.0 26
OPH-5000i
1st
18
2D Codes
<PDF417>
Resolution Error Correction PCS Size (mm) No. of Character
0.169 mm (6.7 mil) Level-3 0.9
23 × 10 58
0.254 mm (10 mil) 35 × 15
<QR Code: Model-2>
Resolution Error Correction PCS Size (mm) No. of Character
0.212 mm (8.4 mil) M 0.9
5 × 5 44
0.381 mm (15 mil) 11 × 11
<Data Matrix>
Resolution Model PCS Size (mm) No. of Character
0.212 mm (8.4 mil) ECC200 0.9 4 × 4 40
0.254 mm (10 mil) 6 × 6
* The size is outline dimensions excluding the quiet zones.
OPH-5000i
1st
19
8.2 Scan Area and Depth of Field
The scan area is the depth of field range, measured from the front edge of the scanner, swept
over the entire scan arc.
100 200 300
50 150 250
[単位：mm]
18
Figure 5: Scan Area and Depth of Field
Resolution
0127mm
Resolution
0
254
mm
Resolution
0
508
mm
Resolution
0
2mm
Resolution
0
33
mm
Resolution
01
69
mm
Resolution
0
2
54
mm
Resolution
0
2
12
mm
Resolution
0
381
mm
Resolution
0
2
54
mm
[Unit: mm]
OPH-5000i
1st
20
8.3 Printed Contrast Signal (PCS)
0.2 or higher
<Conditions>
MRD : 32% and higher
(70% or higher reflectivity of space and quiet zone)
Distance : 125mm from the front edge of the scanner
Barcode Sample : UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3)
MRD = Minimum reflectance of white bar - Maximum reflectance of black bar
8.4 Minimum Resolution
1D Code : 0.1 mm (3.9 mil) Code 39 specified in Chapter 8.1
GS1-Databar : 0.169 mm (6.7 mil) GS1 Databar Limited specified in Chapter 8.1
Stacked Code : 0.169 mm (6.7 mil) PDF417, GS1 Databar Limited Composite specified in Chapter 8.1
2D Code : 0.169 mm (6.7 mil) QR Code, Data Matrix specified in Chapter 8.1
<Conditions>
Barcode Sample : The above codes specified in Chapter 8.1
Distance : 95 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
8.5 Barcode Width
Code 39 with width of 100 mm and resolution of 0.2 mm can be read
<Conditions>
Barcode Sample : 0.20 mm Code 39 / PCS 0.9 specified in Chapter 8.1
Distance : 155 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Figure 6: Wide Barcode
PCS = Reflectance of white space – Reflectance of black bar
Reflectance of white space
OPH-5000i
1st
21
8.6 Pitch, Skew and Tilt
Pitch : α = ±50°
Skew : β = ±50°
Tilt : γ = ±180°
<Conditions>
Barcode Sample : 0.33 mm Code 39 specified in Chapter 7.1
Distance : 125 mm from the front edge of the scanner
Curvature : R = ∞
* For the pitch angle and tilt angle measurement, set the skew angle β = +15°
β
γ
+
+
+
-
-
-
Figure 7: Pitch, Skew and Tilt

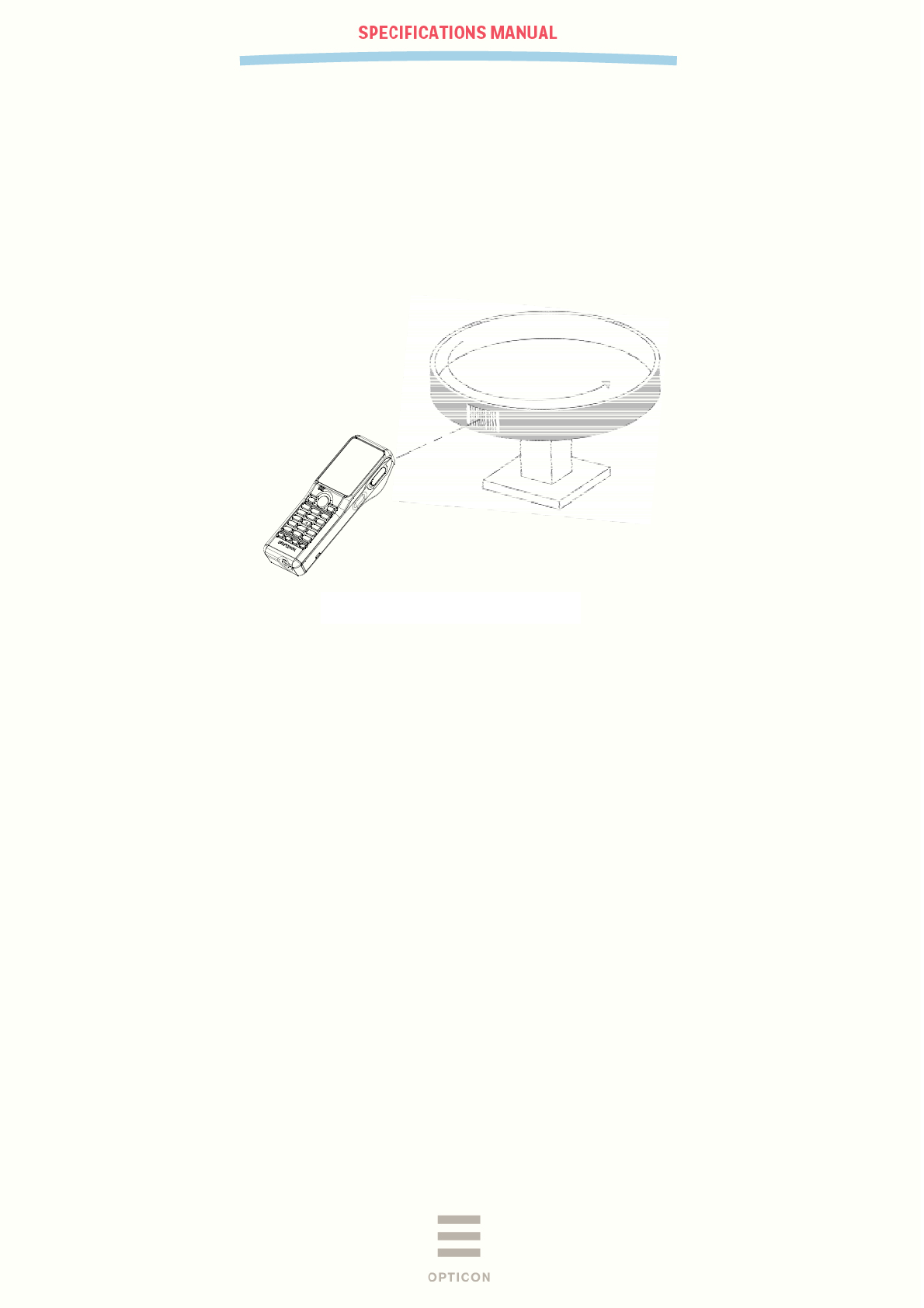

8.7 Curvature
0.33 mm 12-digit UPC : R ≧ 20 mm
0.15 mm 10-digit Codabar(NW-7) : R ≧ 16 mm
<Conditions>
Barcode Sample 0.33 mm UPC, 0.15 mm Codabar specified in Chapter 8.1
Distance 105 mm from the edge of the scan engine
Angle Skew angle β = +15°
R
バーコード
Figure 8: Curvature
Note: Scanning may fail due to the specular reflection of the LED illumination when the reflectivity of the barcode
is high.
Barcode
OPH-5000i
1st
22
8.8 Motion Tolerance
UPC 100% can be read when it is moving at 2m/s.
<Conditions>
Ambient Temperature and Humidity : Room temperature and Room humidity
Ambient Light : 500 ~ 1000 lux
Distance : 125 mm from the front edge of the scanner
PCS (1D and 2D) : 0.9 or higher
Barcode Sample : Refer to Chapter 8.1.
* Scanning may fail due to the specular reflection of LED illumination when the reflectivity is high.
Figure 9: Motion Tolerance
OPH-5000i
1st
23
9 Environmental Specifications
9.1 Temperature
Scanning performance is guaranteed when the ambient temperature around the scanner is
within the following ranges:
Operating Temperature : -10 ~ 50 °C
Storage Temperature : -20 ~ 60 °C
Please charge when the temperature is between 0 and 40°C. When the temperature is over 40°C,
charging may stop to prevent battery breakdown.
<Conditions>
Barcode : Resolution 0.33 mm, 9-digit Code 39 specified in Section 9.1.
Distance : 125 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Scanning Test : Scan at interval 1000ms
Power consumption : 3.7V
9.2 Humidity
Scanning performance is guaranteed when the ambient humidity around the scanner is within
the following ranges:
Operating Humidity : 20 ~ 85%RH (no condensation, no frost)
Storage Humidity : 20 ~ 85%RH (no condensation, no frost)
<Conditions>
Barcode : Resolution 0.33 mm, 9-digit Code 39 specified in Section 9.1.
Distance : 125 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Scanning Test : Scan at interval 1000ms
Power consumption : 3.7V
9.3 Ambient Light Immunity
Scanning performance is guaranteed when the range of illumination on a barcode surface is
between zero and the following values:
Incandescent light: 10,000 lx
Fluorescent light: 10,000 lx
Sunlight: 100,000 lx
<Conditions>
Barcode: Resolution 0.33 mm, 9-digit Code 39 specified in Section 9.1.
Distance: 125 mm from the front edge of the scanner
Angle: α = 0°, β =＋15°, γ = 0°
Curvature: R = ∞
Power consumption: 3.7V
Avoid direct or specula reflection from the light source as it may blind the scanners optical receiver.
OPH-5000i
1st
24
9.4 Dust and Drip Proof
IEC IP54 equivalent
Protection against solid objects: Level 5 equivalent (Dust proof type)
Prevent dust ingress to inside. Even if slight dust intrusion will not inhibit normal operation.
Protection against liquids: Level 4 equivalent (Splash proof type)
Protected against water splash from any direction.
* () is JIS drip-proof type.
9.5 Vibration Tolerance (without packing)
There shall be no malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an acceleration
velocity of 19.6m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in the non-operating state.
Repeat this of each X, Y and Z direction.
9.6 Vibration Tolerance (in individual packing)
There shall be no malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerattion
velocity of 19.6 m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this of each X, Y and Z direction.
9.7 Drop Impact Tolerance (without packaging)
There shall be no malfunction after the following drop test.
Drop test: Drop the scanner 18 times in total (3 times at each 6 face), from a height of 150 cm
onto a concrete floor as shown below.
150cm
Figure 10: Drop Test
OPH-5000i
1st
25
9.8 Drop Impact Tolerance (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges,
and 6 faces, from a height of 150 cm onto a concrete floor.
9.9 Electrostatic Discharge Immunity
Air discharge ±8 kV max. (No malfunction)
±15 kV max. (No destruction)
Measurement environment An electrostatic testing device compliant with IEC 61000-4-2
is used.
Discharge resistance 330 Ω
Charging capacitor 150 pF
OPH-5000i
1st
26
10 Regulatory Compliance
10.1 LED Safety
IEC 62471:2006 Exempt_Group
10.2 Product Safety
EN60950-1:2005
IEC60950-1:2006
10.3 EMC
・EN 55024:2010
・EN 55032:2012+AC: 2013
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.2.1
・EN 300 328 V1.9.1
・EN 302 291-2 V1.1.1
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose of
used batteries according to the manufacturer’s instructions
OPH-5000i
1st
27
FCC Part 15 Subpart C, Subpart B Class A
VCCI Class A
Federal Communications Commission Notices
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case users will be required
to correct the interference at their own expense.
Harmful Interference Notice
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with FCC SAR exposure limits set forth for an uncontrolled
environment. SAR compliance for using the equipment in close proximity to the human
body has been evaluated at 0mm.
This equipment must not be co-located or operating in conjunction with any other antenna
or transmitter. End-users and installers must be provide with antenna installation
instructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This is a Class A product based on the standard of the Voluntary Control Council for Interference
(VCCI). If this equipment is used in a domestic environment, radio interference may occur, in
which case the user may be required to take corrective actions.
OPH-5000i
1st
28
10.4 Other
・Bluetooth logo certification
・MFi license
・Certification for Construction Design of Specified Radio Equipment
・Classification of Specified
Radio Equipment Article 2 Paragraph 1, Item 19 Low power data
communication system in 2.4 GHz band
・Model Name OPA-26X1
・Certificate Number 201-125603
・Classification of Specified
Radio Equipment Article 2 Paragraph 1, Item 19 Low power data
communication system in 2.4 GHz band
・Wireless LAN Model Name ATWINC1500-MR210PB
・Certificate Number 007-AD0199
11 RoHS
RoHS compliance.
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2011/65/EU
12 Reliability
MTBF (Mean Time Between Failures) 50,000 hours
13 Precautions
Handle this product carefully. Do not deliberately subject it to any of the following.
(1) Shock:
・ Do not drop this product from a height greater than specified in this manual.
・ Do not place this product under or between any heavy items.
・ Do not swing the cable around.
(2) Temperature Conditions:
・ Do not use this product at temperatures outside the specified range.
・ Do not pour boiling water on this product.
・ Do not throw this product into a fire.
(3) Foreign Materials:
・ Do not immerse this product in water or other liquid.
・ Do not expose this product to chemicals.
(4) Others
・ Do not disassemble this product.
・ Do not use this product near a radio or a TV. It may cause reception problems.
・ This product may be affected by a momentary voltage drop caused by lightning.
・ Do not place pieces of metal such as coins, nor attach metallic foil to the area where the
charging coil is located.
Also, do not affix anything which prevent from placing OPH-5000i to cradle.
・ Although surface of LCD is tempered glass, but do not drop or hit any hard object on purpose.
OPH-5000i
1st
29
13.1 Radio Law
This product qualifies as specified radio equipment for radio stations of 2.4 GHz band data
communication system and has obtained the Certification for Construction
Design of Specified Radio Equipment. Therefore, radio station license is not required in Japan.
The following activities are prohibited under the Radio Law:
・Remodelling and disassembly
・Peeling off the certificate label
Do not use this equipment under the following environment, as radio interference may affect
other device and end up with causing physical or material damage.
・Safety apparatus and medical device for human body protection
・Environment where is concerned to cause serious damage
13.2 Bluetooth
・This product supports Bluetooth wireless communication with other Bluetooth devices that
have the same profile
・This product complies with Bluetooth standards; however, its communication performance
with untested devices is not guaranteed.
・Bluetooth devices use the 2.4 GHz frequency band that is shared among other devices. It
may affect the communication speed and distance between this product and the host device.
・The communication speed and distance vary depending on the interference and radio wave
condition between this product and the host device.
13.3 Frequency Band
This product uses the 2.4 GHz frequency band. Read carefully the followings before using this
product.
In the frequency band of this product, scientific, medical and industrial devices including
microwaves are used. Also other radio stations including local private radio station for mobile
object identification requiring license for such as manufacturing lines at factories, specific
power-saving radio station requiring no license and amateur radio station are managed.
1. Make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
using this product.
2. In case that radio interference occurs between this product and “other radio stations,” change
the service space immediately, or stop transmitting radio wave to avoid the interference.
3. If you have any questions or troubles, please contact our sales office.
13.4 Usage Note
・Do not attach metal foil or piece of metal to charging coil storage part. Also, do not insert
metal like coins between scanner and dedicated cradle when charging.
・Be careful of dust or foreign objects inserting when opening battery cover. Precisions dust
and drip proof may not be satisfied.
* This specification manual is subject to change without prior notice.
OPH-5000i
1st
30
14 Product Labels
The product labels are affixed to the scanner as shown below.
Figure 11: Product Label Position
OPH-5000i
1st
31
15 Packaging Specifications
15.1 Individual Packaging
Assembled package size: 125 × 112 × 40 (WDH mm)
Weight: Approx. xx kg
Figure 12: Individual Packaging
MADE IN
▲▲▲▲▲
Model No.
MODEL NEME
Spec No.
*ﾊﾞｰｺｰﾄﾞ*
*△△△△△△*
Serial No. Quantity 1
Ｒｏ
OPH-5000i-BLK
ｼﾘｱﾙNo.の表示について
『 123456 』
123456＝製品ｼﾘｱﾙNo.
6桁のｼﾘｱﾙNo.を表示
【国内向】 個装箱ﾊﾞｰｺｰﾄﾞﾗﾍﾞﾙ (3A0002）
【原産国表示】～country of origin～
中国生産（produced in China）＝MADE IN CHINA
日本生産（produced in Japan）＝MADE IN JAPAN
*UF1OPH5000*
Poly bag
2回、巻き付ける
梱包袋：
MicroUSBｹｰﾌﾞﾙ
イラストの向きで
一番上に入れる
ﾈｯｸｽﾄﾗｯﾌﾟ
LDCを上にして入れる
個装箱
余った梱包袋の上に
ネックストラップを入れる
Wrap twice
Packing bag
MicroUSB cable
Place as the
drawing on top.
Neck strap
Individual box
Put in with LCD upward
Place neck strap on
top of the space
OPH-5000i
1st
32
15.2
C
1
0
As
W
N
o
O
p
C
ollective
P
0
0pcs per b
o
s
sembled p
a
W
eight: Appr
o
o
te: ‘Ro mark’
p
toelectronic
s
P
ackagin
g
o
x
a
ckage size
o
x. xx kg
on the trays
a
s
Co., Ltd.
g
: 595 × 52
0
a
nd boxes ind
Figure 1
3
0
× 245 (WD
d
icates that th
e
3
: Collective
P
H mm)
e
product is R
o
P
ackagin
g
o
HS complia
n
O
n
t as is declar
e
O
PH-5000i
1st
33
e
d by
OPH-5000i
1st
34
16 Physical Features
16.1 Dimensions
136 × 44 × 30.3(22) (DWH mm) () is grip dimensions
16.2 Weight
Approx. 120 g (excluding accessories)
16.3 Mechanical Drawing
Figure 14: Mechanical Drawing
Unit: mm
OPH-5000i
1st
35
17 Supported Symbologies
17.1 Default Setting
The scanner is set to default by reading the following menu label.
Default
17.2 Supported Symbologies
17.2.1 1D Barcodes
Code type Default Minimum
length Remarks
UPC ○ -
UPC Add-on 2
UPC Add-on 5
EAN(JAN) ○ -
EAN Add-on 2
EAN Add-on 5
EAN-13 ○
EAN-13 Add-on 2
EAN-13 Add-on 5
EAN-8 ○
EAN-8 Add-on 2
EAN-8 Add-on 5
Code 39 ○ 1 Not transmit ST/SP
Tri-Optic ○ - Not transmit ST/SP
Codabar (NW7) ○ 1 Not transmit ST/SP
Industrial 2of 5 ○ 5
Interleaved 2of 5 ○ 6
S-Code 5
Code 128 ○ 1 GS1 conversion (setting required)
Code 93 ○ 1
IATA ○ 5
MSI/Plessey 3
UK/Plessey 2
Telepen 1
Code 11 1
Matrix 2 of 5 5
Chinese Post Matrix 2 of 5 -
Korean Postal Authority -
Intelligent Mail Barcode -
POSTNET -
JPN (Customer Barcode) -
@MENU
_
OPTO@ZZ@SO@ZZ@OTPO
_
UNEM@
OPH-5000i
1st
36
17.2.2 GS1 Databar, Composite Code
Code type Default Remarks
GS1 DataBar
・GS1 DataBar Omnidirectional
・GS1 DataBar Truncated
・GS1 DataBar Stacked
・GS1 DataBar Stacked Omnidirectional
○
GS1 conversion (setting required)
GS1 DataBar Limited ○
GS1 DataBar Expanded
・GS1 DataBar Expanded
・GS1 DataBar Expanded Stacked
○
Composite GS1-DataBar
・CC-A
・CC-B
・Limited CC-A
・Limited CC-B
・Expanded CC-A
・Expanded CC-B
GS1 conversion (setting required)
Composite GS1-128
・CC-A
・CC-B
・CC-C
GS1 conversion (setting required)
Composite EAN
・EAN-13 CC-A
・EAN-13 CC-B
・EAN-8 CC-A
・EAN-8 CC-B
GS1 conversion (setting required)
Composite UPC
・UPC-A CC-A
・UPC-A CC-B
・UPC-E CC-A
・UPC-E CC-B
GS1 conversion (setting required)
17.2.3 2D Codes
Code type Default Remarks
PDF417 ○
Micro PDF417
Codablock F
QR Code ○ GS1 conversion (setting required)
Micro QR ○
Data Matrix (ECC 200) ○ GS1 conversion (setting required)
Data Matrix (ECC 000-140)
Aztec Code ○
Aztec Runes
Chinese-sensible code
Maxi Code
* The supported symbologies vary depending on specifications for the application to be loaded.
