OPTOELECTRONICS OPN3102I Data Collector User Manual
OPTOELECTRONICS Co., Ltd. Data Collector Users Manual
Users Manual
1st
O
This m
OP
D
anual pro
v
dat
a
SPECIF
I
PN
D
ata Coll
e
v
ides spec
i
a
collector
I
CATIONS
M
N
-
3
e
ctor wit
h
ifications f
o
with 2D i
m
M
ANUAL
3
1
0
h
Bluetoo
t
o
r the OP
N
m
age
r
sca
n
0
2
t
h
N
-3102i Bl
u
n
ner.
O
i
u
etooth
O
PN-3102i
1st
1
OPN-3102i
1st
2
SPECIFICATIONS MANUAL
The information in this document is subject to change without notice.
Document History
Model Number: OPN-3102i Specification Number: SS16057
Edition: 1st Original Spec Number: (SS15053)
Date: 30-September-2016
2016 Copyright Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted
to any electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING
OR USING THE PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to
the device purchased. Do not remove the serial number from your Opticon device. Removing the
serial number voids the warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in
materials and workmanship for two years after purchase excluding batteries. Opticon will repair or, at
its option, replace products that are defective in materials or workmanship with proper use during the
warranty period. Opticon is not liable for damages caused by modifications made by a customer. In
such cases, standard repair charges will apply. If a product is returned under warranty and no defect is
found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should
you need to transport your data collector or send it for service. Damage caused by improper
packaging during shipment is not covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of
OPTOELECTRONICS Co., Ltd., 12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002.
TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
OPN-3102i
1st
3
SPECIFICATIONS MANUAL
Revision History
Product Name : OPN-3102i
Edition Date Page Section Description of Changes
1st 2016/09/30 - -
OPN-3102i
1st
4
SPECIFICATIONS MANUAL
Contents
1 Abstract ............................................................................................................................ 6
2 Overview .......................................................................................................................... 6
3 Basic Specifications ....................................................................................................... 7
4 Detailed View ................................................................................................................. 10
5 Electrical Specifications ............................................................................................... 11
5.1 USB ........................................................................................................................................ 11
5.2 Wireless Charging .................................................................................................................. 11
6 Interface Specifications ................................................................................................ 11
6.1 USB Interface ......................................................................................................................... 11
6.1.1 Connector ....................................................................................................................... 11
6.1.2 USB Interface Circuit ...................................................................................................... 11
6.2 Bluetooth ................................................................................................................................ 12
6.3 NFC Tag ................................................................................................................................. 12
7 Optical Specifications ................................................................................................... 13
7.1 Basic Specifications ............................................................................................................... 13
7.2 Aiming Pattern ........................................................................................................................ 14
8 Technical Specifications .............................................................................................. 15
8.1 Barcode Test Sample ............................................................................................................. 16
8.2 Scan Area and Depth of Field ................................................................................................ 17
8.3 Printed Contrast Signal (PCS) ............................................................................................... 19
8.4 Minimum Resolution ............................................................................................................... 19
8.5 Barcode Width ........................................................................................................................ 19
8.6 Pitch, Skew and Tilt ................................................................................................................ 20
8.7 Curvature ................................................................................................................................ 20
8.8 Scanning from LCD Screen.................................................................................................... 21
8.9 Motion Tolerance .................................................................................................................... 21
9 Environmental Specifications ...................................................................................... 22
9.1 Temperature ........................................................................................................................... 22
9.2 Humidity .................................................................................................................................. 22
9.3 Ambient Light Immunity .......................................................................................................... 22
9.4 Dust and Drip Proof ................................................................................................................ 22
9.5 Vibration Strength (without packing) ...................................................................................... 23
9.6 Vibration Strength (in individual packing) ............................................................................... 23
9.7 Drop Impact Strength (without packaging) ............................................................................. 23
9.8 Drop Impact Strength (in individual packaging) ..................................................................... 23
9.9 Electrostatic Discharge Immunity ........................................................................................... 23
10 Regulatory Compliance ................................................................................................ 24
10.1 LED Safety ............................................................................................................................. 24
10.2 Product Safety ........................................................................................................................ 24
10.3 EMC ........................................................................................................................................ 24
OPN-3102i
1st
5
SPECIFICATIONS MANUAL
10.4 Other ....................................................................................................................................... 25
11 RoHS .............................................................................................................................. 25
12 Reliability ....................................................................................................................... 25
13 Precautions .................................................................................................................... 25
13.1 Radio Law............................................................................................................................... 26
13.2 Bluetooth ................................................................................................................................ 26
13.3 Frequency Band ..................................................................................................................... 26
14 Product Labels .............................................................................................................. 27
15 Packaging Specifications ............................................................................................. 28
15.1 Individual Packaging .............................................................................................................. 28
15.2 Collective Packaging .............................................................................................................. 29
16 Physical Features .......................................................................................................... 30
16.1 Dimensions ............................................................................................................................. 30
16.2 Weight .................................................................................................................................... 30
16.3 Mechanical Drawing ............................................................................................................... 30
17 Supported Symbologies ............................................................................................... 31
17.1 Default Setting ........................................................................................................................ 31
17.2 Supported Symbologies ......................................................................................................... 31
17.2.1 1D Barcodes ................................................................................................................... 31
17.2.2 GS1 Databar, Composite Code ...................................................................................... 32
17.2.3 2D Codes ........................................................................................................................ 32
Table of Figures

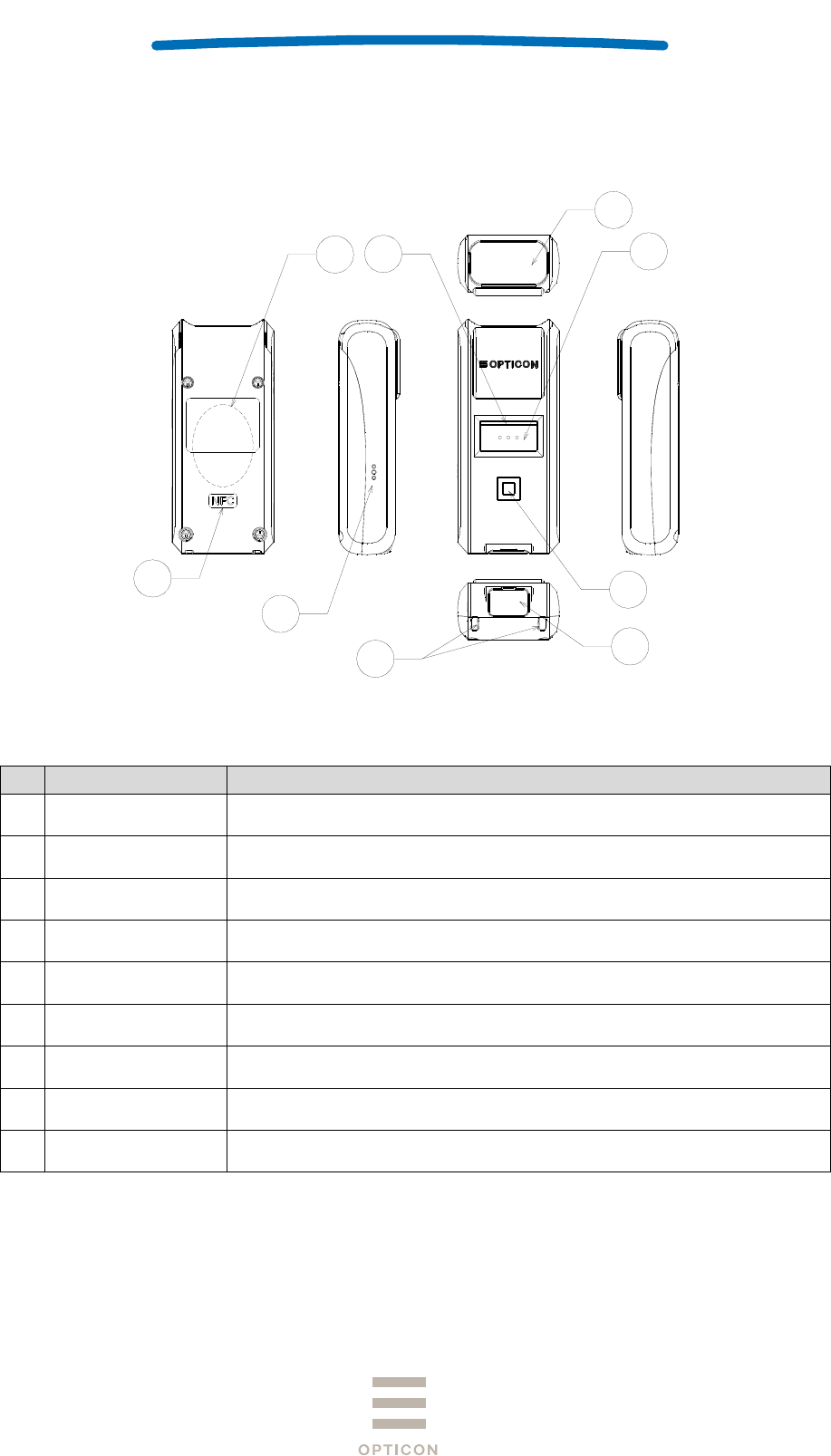

Figure 1: Detailed View ......................................................................................................................... 10

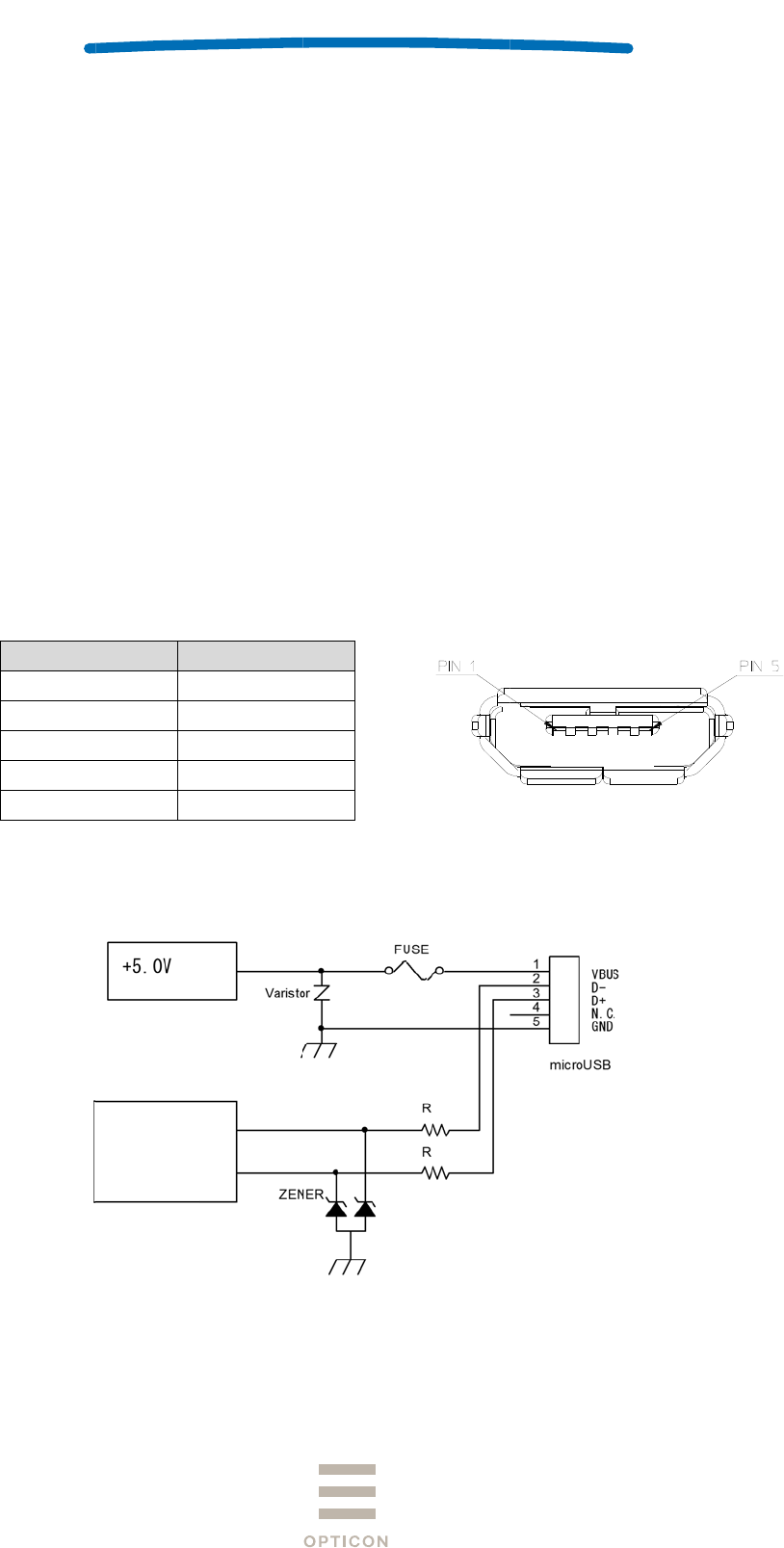

Figure 2: micro USB B Connector ......................................................................................................... 11
Figure 3: Interface Circuit (USB) ........................................................................................................... 11

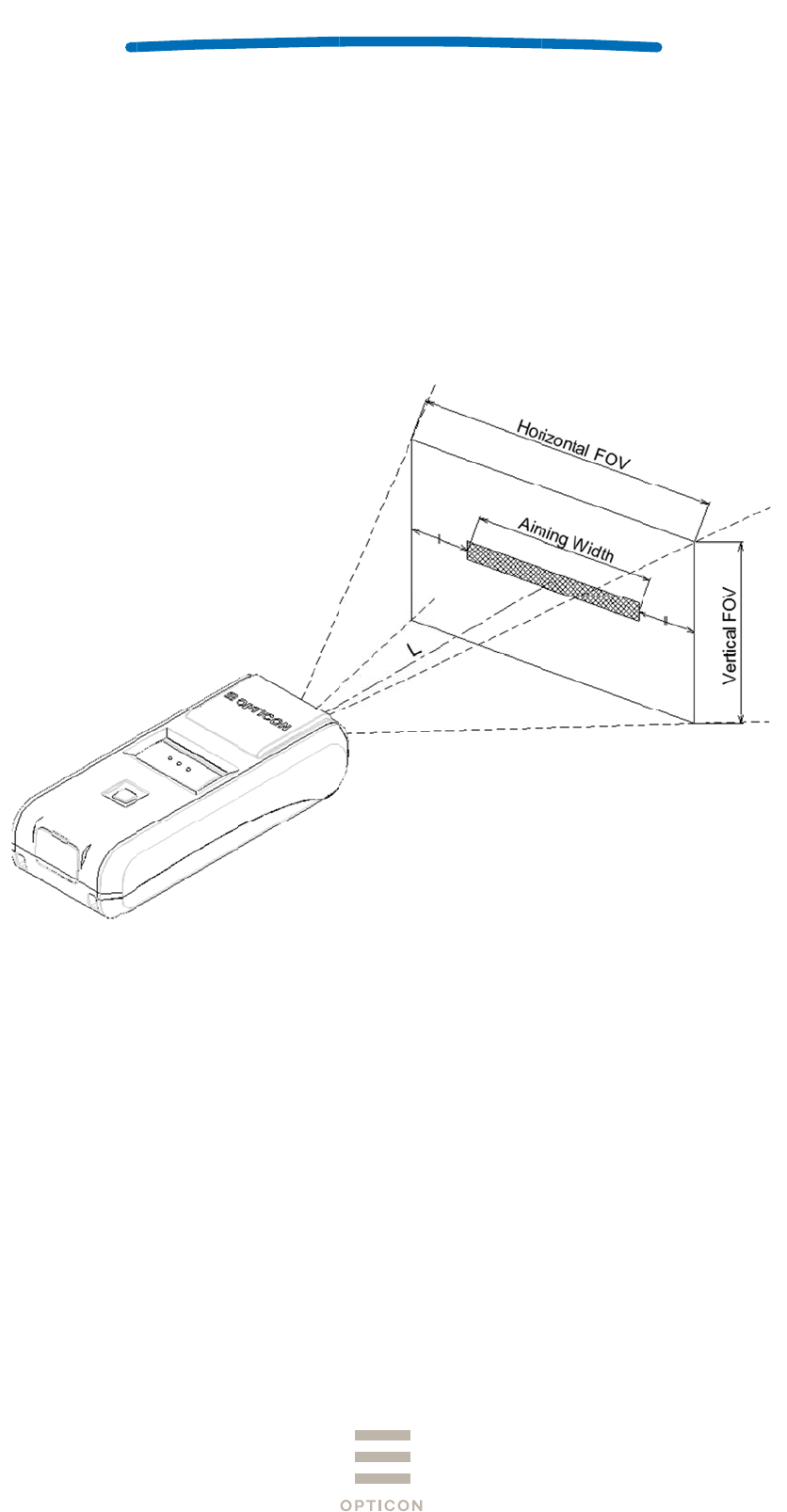

Figure 4: Aiming Pattern and Imaging Range ....................................................................................... 14

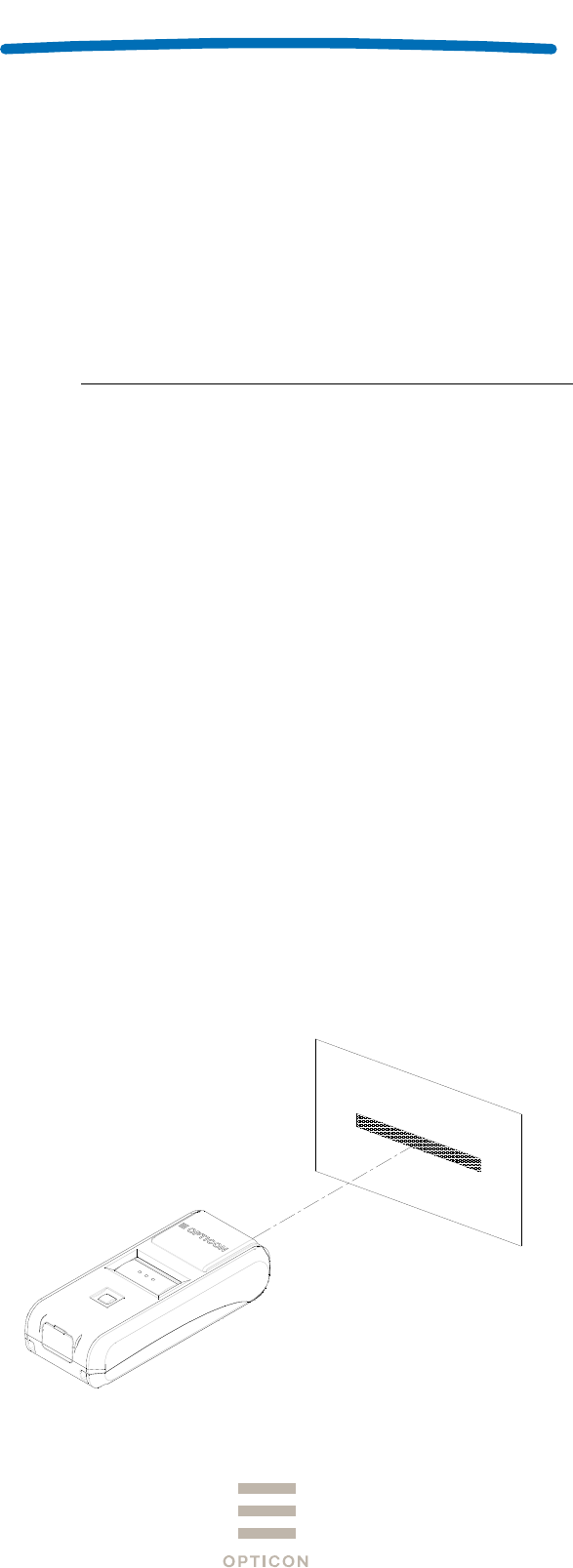

Figure 5: Scanning conditions ............................................................................................................... 15

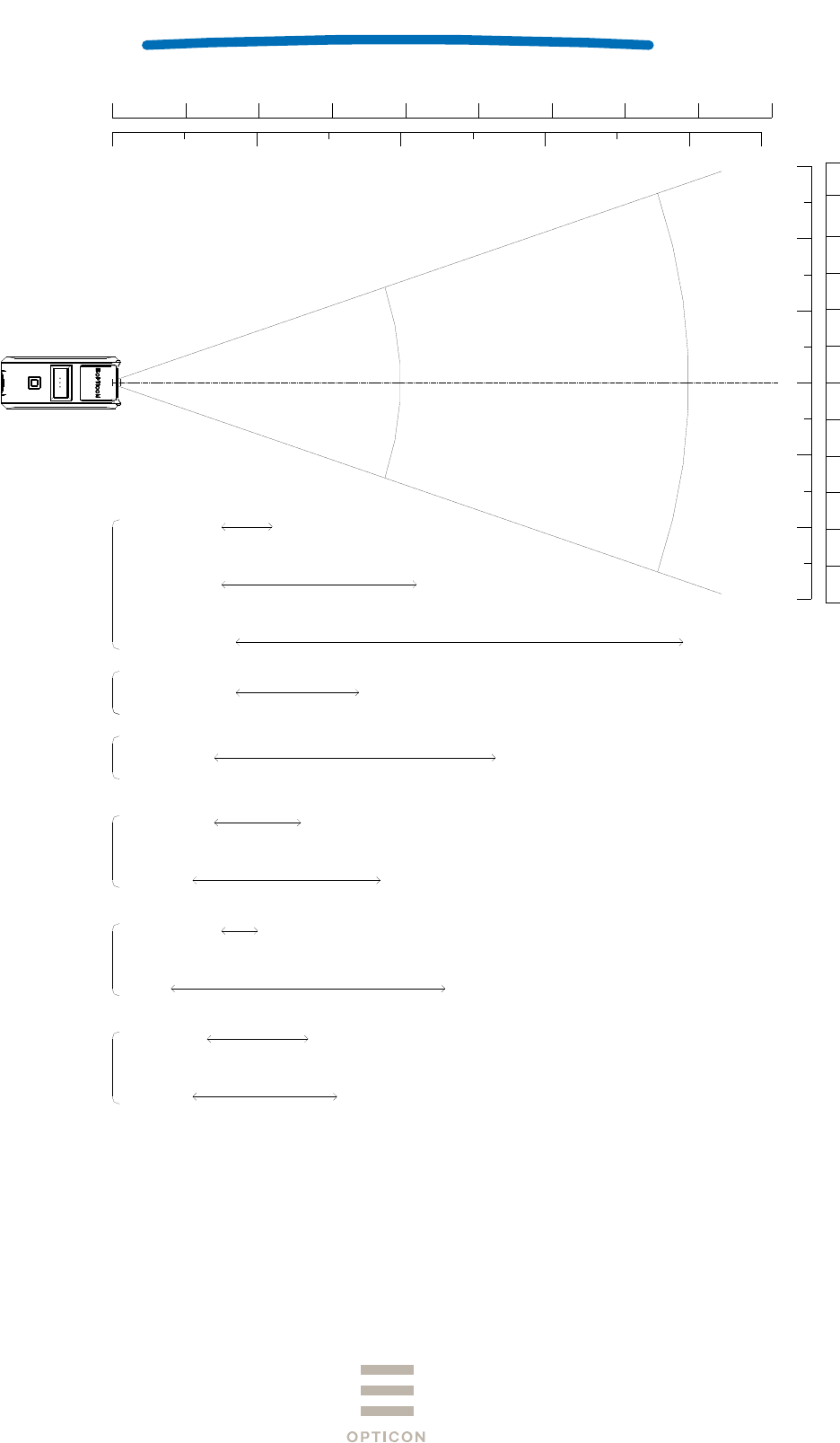

Figure 6: Scan Area and Depth of Field ................................................................................................ 18
Figure 7: Wide Barcode ......................................................................................................................... 19

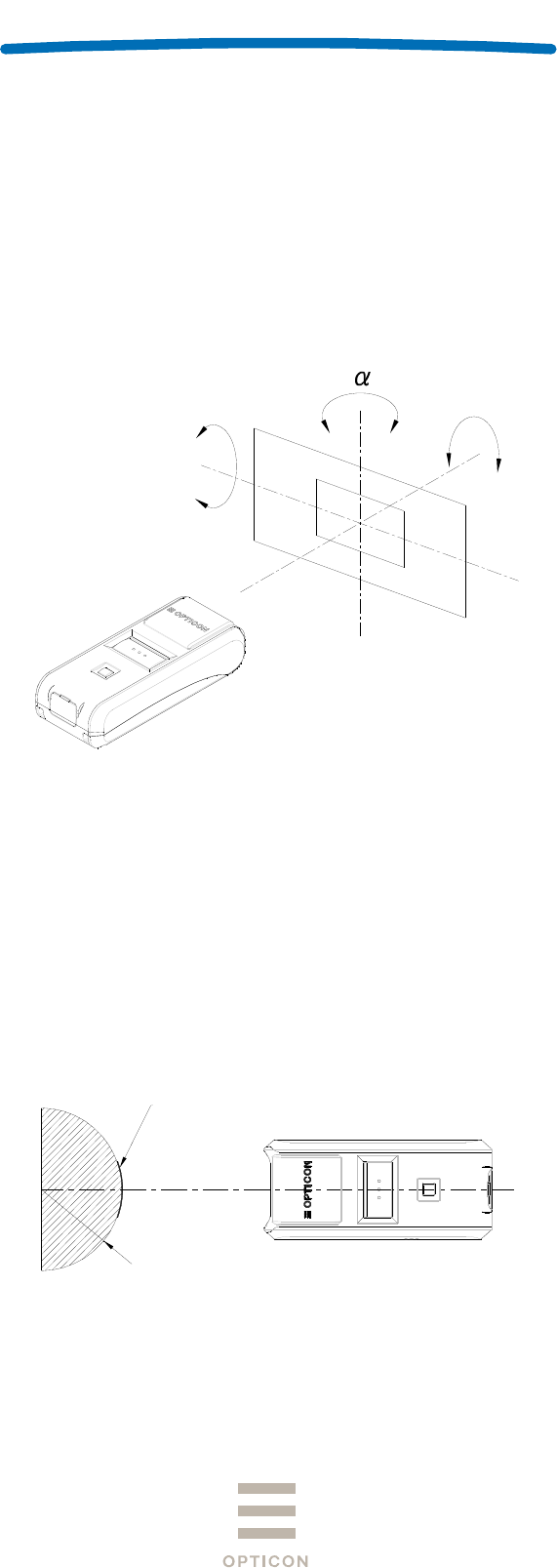

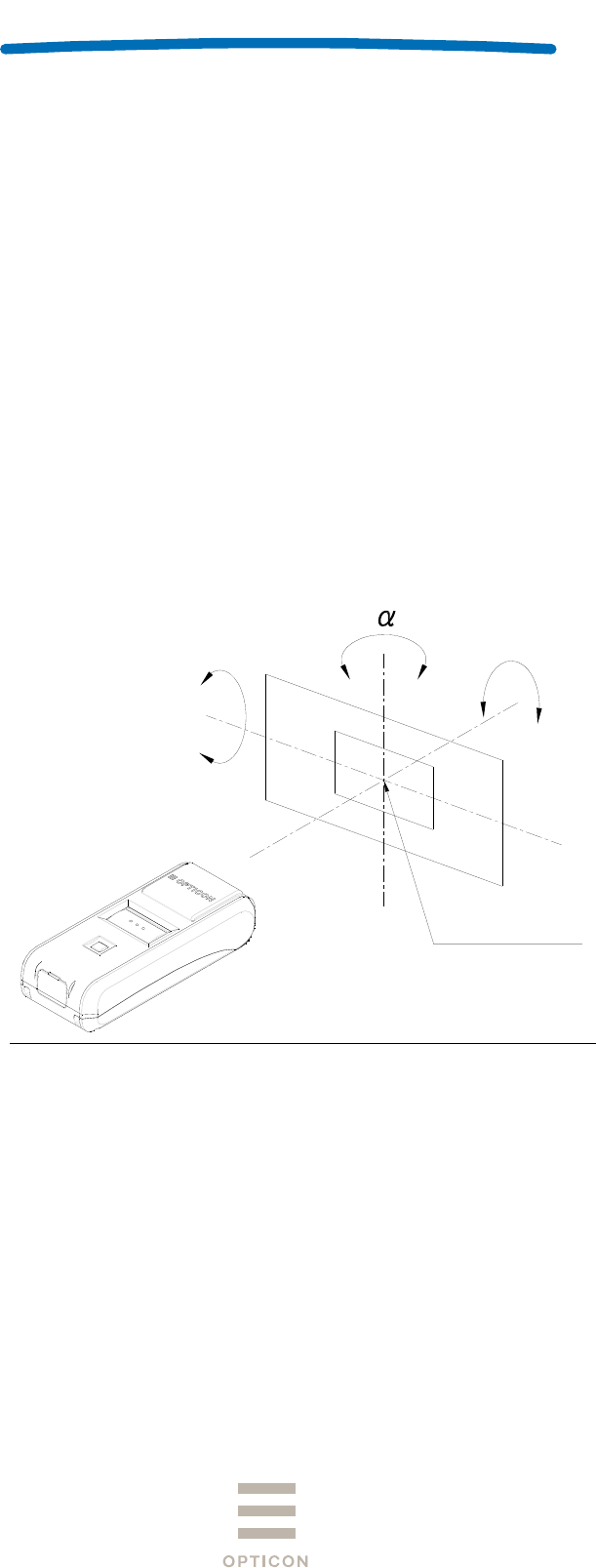

Figure 8: Pitch, Skew and Tilt ................................................................................................................ 20
Figure 9: Curvature ................................................................................................................................ 20
Figure 10: Motion Tolerance.................................................................................................................. 21

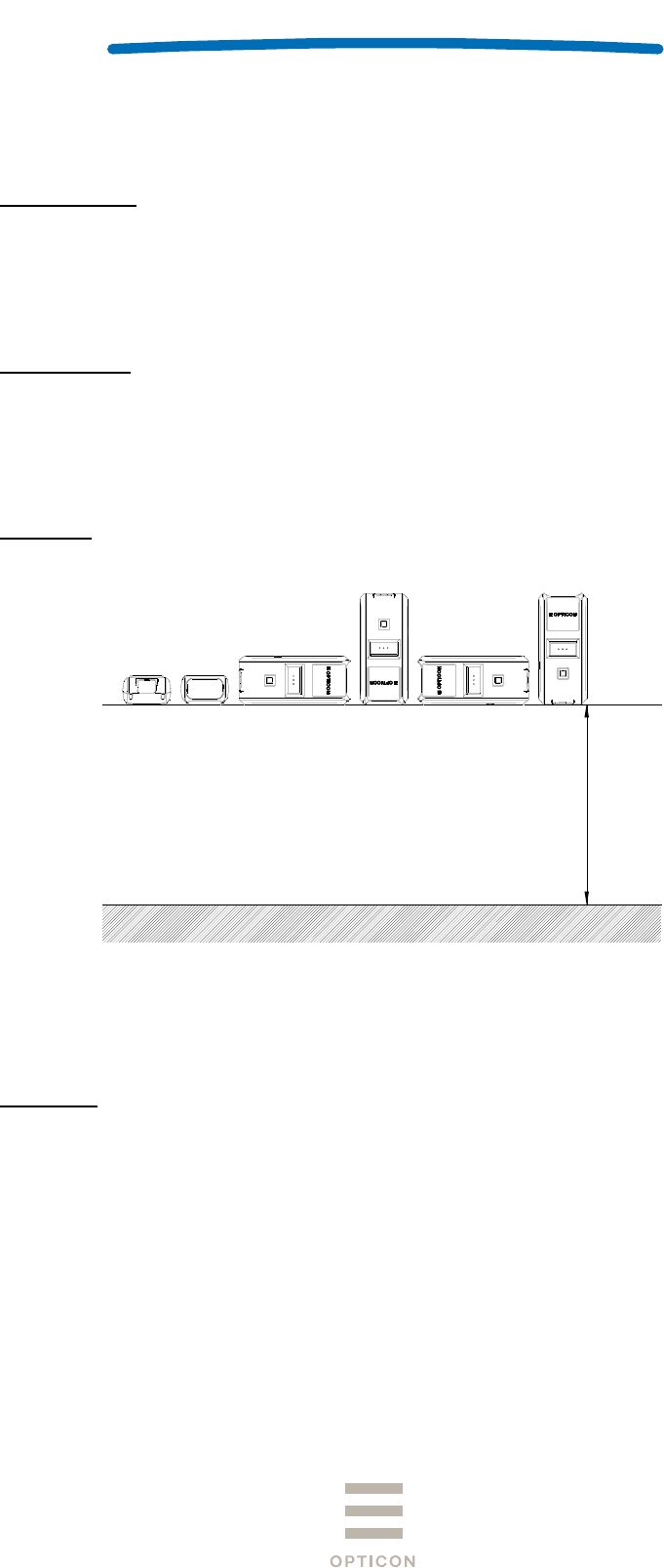

Figure 11: Drop Test .............................................................................................................................. 23

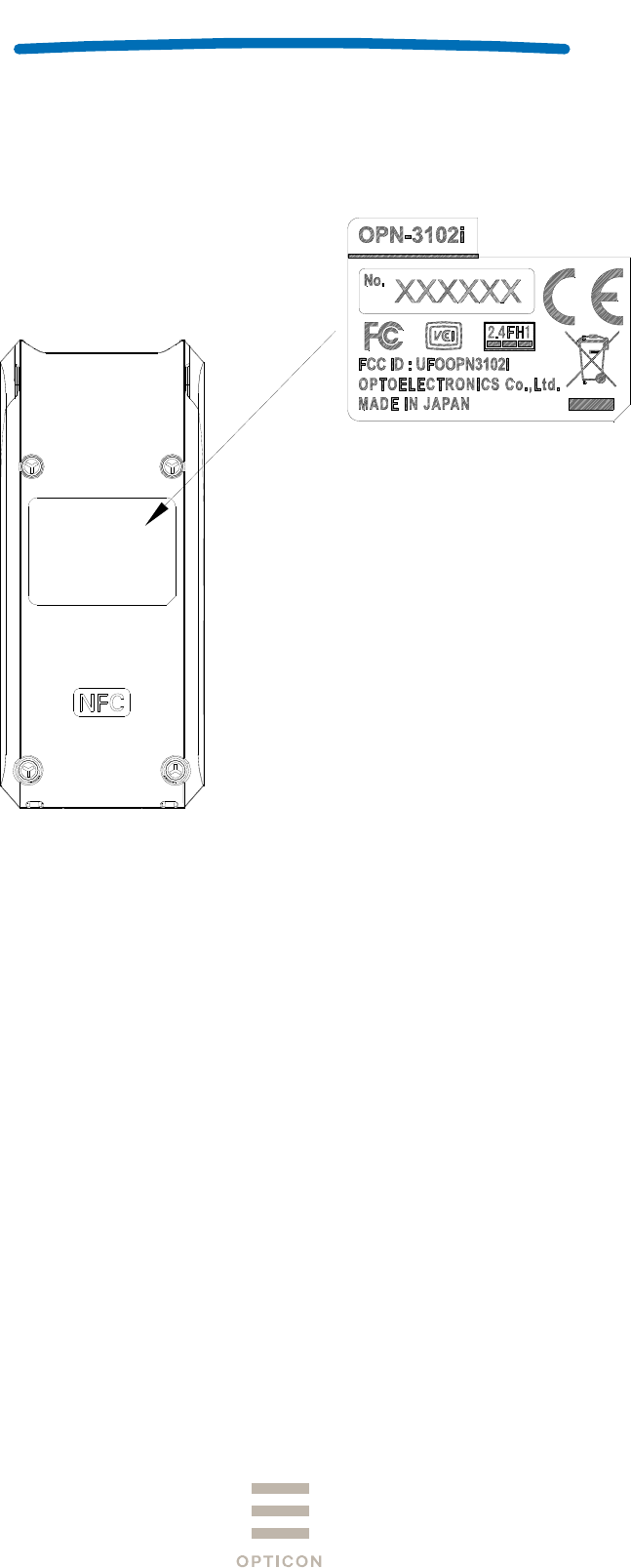

Figure 12: Product Label Position ......................................................................................................... 27

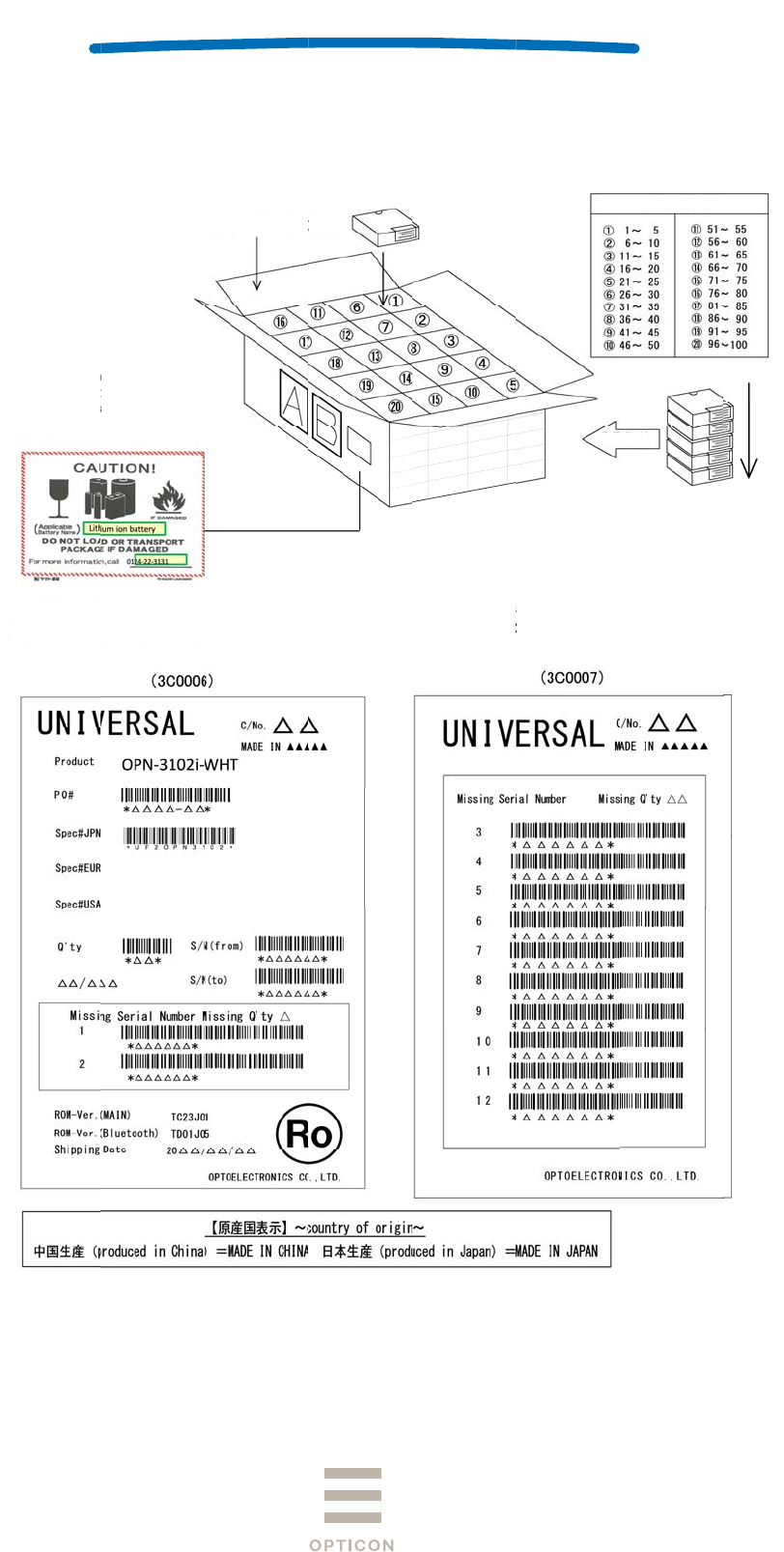

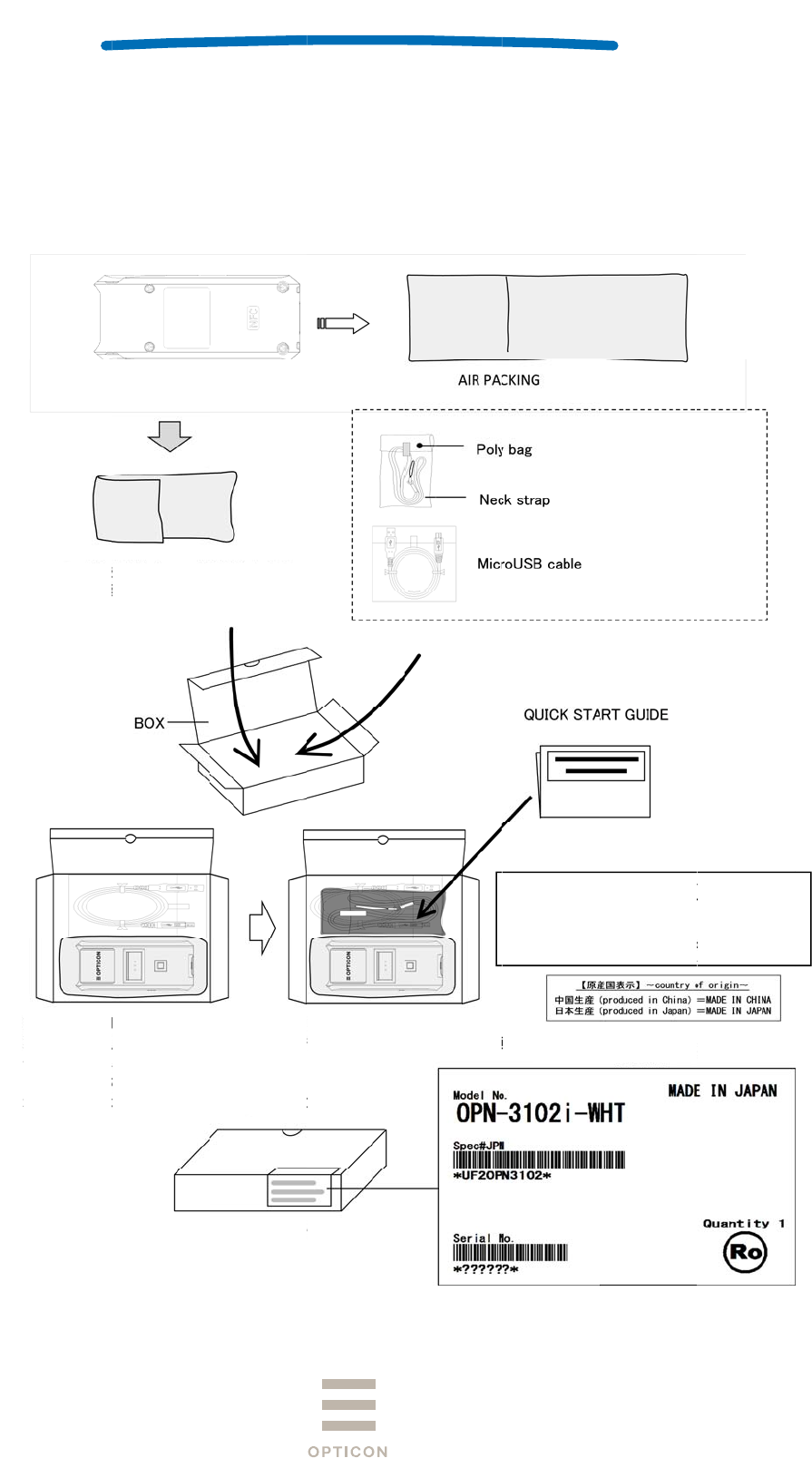

Figure 13: Individual Packaging ............................................................................................................ 28
Figure 14: Collective Packaging ............................................................................................................ 29

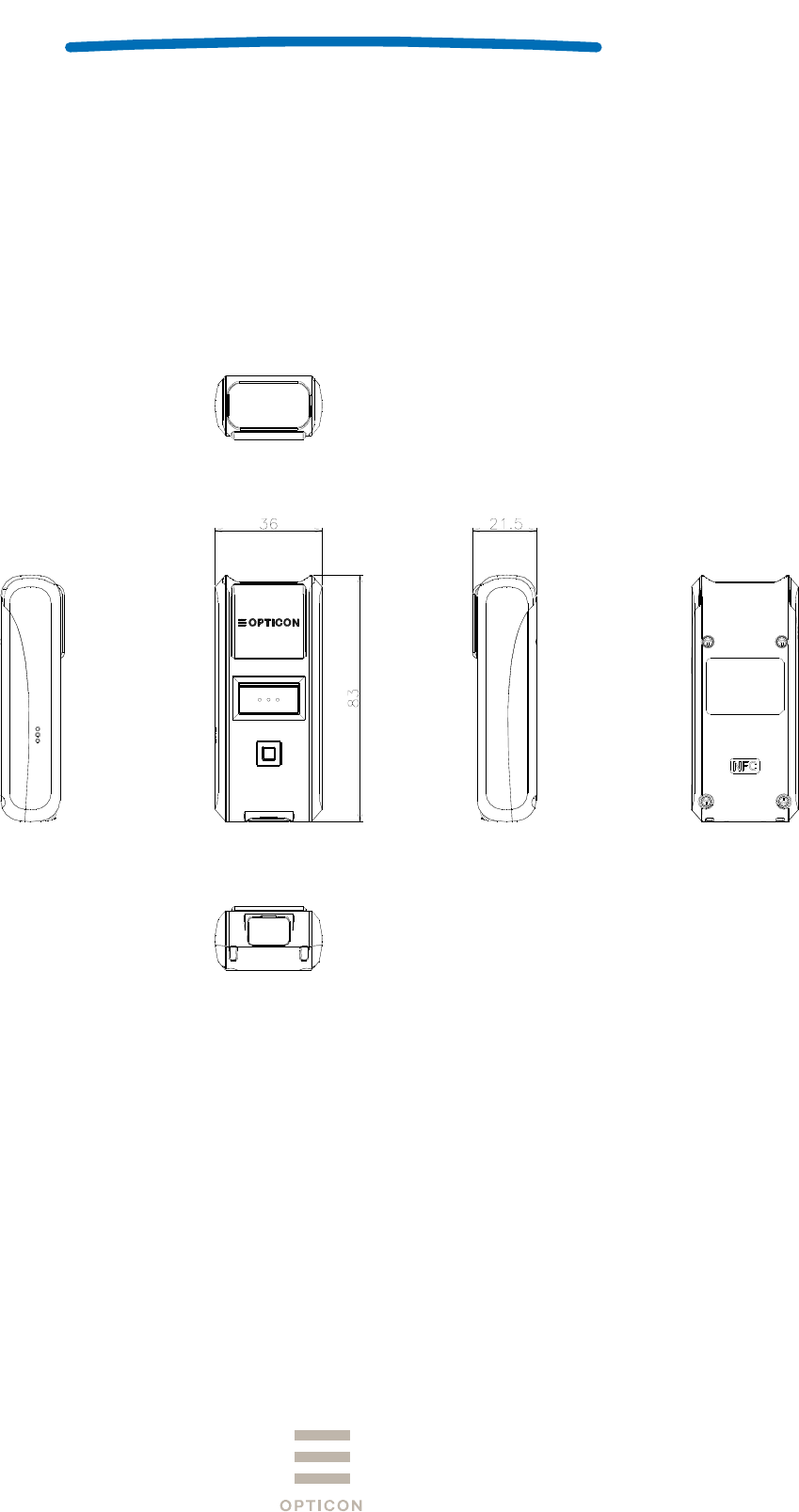

Figure 15: Mechanical Drawing ............................................................................................................. 30
OPN-3102i
1st
6
SPECIFICATIONS MANUAL
1 Abstract
This manual provides specifications for the OPN-3102i compact 2D data collector with built-in
Bluetooth.
2 Overview
The OPN-3102i is 2D imager scanner built-in and output scanned barcode data using the Bluetooth
interface.
・OPN-3102i is handy and simple data collector.
・All barcode data scanned is transmitted to a host device through the USB interface or
Bluetooth.
・The scanner can work with many Bluetooth-enabled host devices, such as PCs, tablet PCs
and smart phones.
・Bluetooth SPP (Serial Port Profile) and HID (Human Interface Device Profile) are
implemented.
・Built-in NFC tag facilitate the Bluetooth connection
・The scanner can read barcodes from LCD screens.
・A green LED aiming line toward a target barcode can help the users find the appropriate
scanning position.
・Alcohol can be used to wipe the scanner clean
・The power source is 3.7 V 600 mAh (typ.) Li-ion polymer battery.
・The charging is done through a dedicated charging cradle CRD-3000 or USB interface.
・The scanner is Apple MFi certified.
OPN-3102i
1st
7
SPECIFICATIONS MANUAL
3 Basic Specifications
Item Specification Note
Control
Section
CPU 32 bit CISC / 96 MHz
FROM 512 Kbyte + 32 Kbyte
SRAM 96 Kbyte
FROM (storage) 1 Mbyte For data area only
Input
Section
Key type 2 key: trigger, function
Indicator
LED 2 bi-colors LEDs (red, green) and 1 blue LED
Buzzer Loudness (3-level) / tone adjustable
Vibration motor Strength (3-level) / duration adjustable
RTC
Contents Year, month, date, hour, minute, second
Data and time are lost
when the main battery
is removed.
Accuracy ± 90 seconds per month
Interface
Bluetooth
Frequency 2402 ~ 2480 MHz
Specification Bluetooth Ver 2.1 compliant
Communication
distance 10 m Not guaranteed.
Output level Class 2 Max output 4 dBm
Profile SPP / HID
NFC tag ISO/IEC 14443 TYPE A, TYPE B
JISX6319-4
USB ・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered supported
Optical Section
Scanning method VGA CMOS area sensor
Scanning light source 1 Warm-White LED
Aiming light source 1 green LED
Effective pixels 0.30 million pixels
View angle Horizontal: about 38.0°
Vertical: about 26.4°
Supported 1D Symbologies
Symbologies
UPC-A, UPC-A Add-on, UPC-E,
UPC-E Add-on, EAN-13, EAN-13 Add-on, EAN-8,
EAN-8 Add-on, JAN-8, JAN-13, Code 39, Tri-Optic,
NW-7, Industrial 2 of 5,
Interleaved 2 of 5, S-Code, IATA, Code 93,
Code 128, MSI/Plessey, UK/Plessey, TELEPEN,
Matrix 2 of 5, Chinese Post Matrix 2 of 5,
Code 11, Korean Postal Authority code, Postal
Code
Refer to Chapter 17.
for details
Minimum resolution Code 39 : 0.1 mm PCS 0.9
Curvature R ≥ 16 mm (10-digit Codabar 0.15mm)
R ≥ 20 mm (12-digit UPC) PCS 0.9
Barcode width 100 mm wide 0.2 mm resolution Code 39 (DOF 150
mm) is readable:
OPN-3102i
1st
8
SPECIFICATIONS MANUAL
Item Specification Note
Motion Tolerance UPC 100% moving at 2m/sec (DOF 100 mm)
is readable:
Depth of Field
Code 39
Resolution (0.127) 90 ~ 110
Resolution (0.254) 65 ~ 185
Resolution (0.508) 65 ~ 260
Code 128 Resolution (0.2) 85 ~ 165
UPC Resolution (0.33) 55 ~ 195
GS1/Composite
Symbologies
GS1 DataBar , GS1 DataBar Limited,
GS1 DataBar Expanded,
Composite GS1 DataBar, Composite GS1-128,
Composite EAN, Composite UPC
GS1 DataBar:
formerly called
“RSS”
Minimum resolution GS1 DataBar : 0.127mm
Composite Code: 0.127 mm
Supported 2D Symbologies
Symbologies
PDF417 , MicroPDF417 , Codablock F ,
QR Code , MicroQR Code ,
Data Matrix ( ECC 0 - 140 / ECC 200 ) ,
MaxiCode( Modes 2 to 5 ) , Aztec Code ,
Chinese-sensible code
Disable Code 128
when Codablock F is
enabled.
Minimum resolution (mm)
PDF417 : 0.169 mm
QR Code : 0.169 mm
DataMatrix : 0.169 mm
PCS 0.9
Depth of
field
(mm)
PDF417
Resolution (0.169) 85~ 135
PCS 0.9
TBD
Resolution (0.254) 65 ~ 180
QR Code
Resolution (0.212) 90 ~ 110
Resolution (0.381) 55 ~ 180
DataMatrix Resolution (0.254) 85 ~ 135
Common
Scan angle
Pitch : ±70°
Skew : ±70°
Tilt : ±360°
Minimum PCS 0.2 or more MRD 32% or more
Scanning from LCD screen
White brightness 30 cd/m2 or more
Contrast ratio 100:1 or more
Power Section
Main battery Lithium-polymer 600 mAh (typ.)
Up-time 10 hours or more *1
Feeding system Electromagnetic guidance wireless charging,
microUSB
Operating (charging) voltage 4.5 ~ 5.5V Charging with USB
Current
consumption Charging Less than 500 mA
Environmental
Specifications
Temperature
Operating -10 ~ 50°C
Storage -20 ~ 60°C
Humidity
Operating 20 ~ 85% No condensing
No frost
Storage 20 ~ 85%
Ambient light
immunity
Fluorescent 10,000 lx or less
Sunlight 100,000 lx or less
OPN-3102i
1st
9
SPECIFICATIONS MANUAL
Item Specification Note
Vibration
10 Hz ~ 100 Hz, acceleration of 19.6 m/s
2
, 60
minutes per cycle, repeat once in each X, Y and Z-
direction
Drop Drop the scanner 18 times (6 faces x 3) from a
height of 150 cm onto a concrete floor
Dust and drip proof IP54 equivalent
Regulatory Compliance
LED safety IEC 62471:2006 Exempt_Group Peak Wavelength：
624 nm
Product safety EN60950-1:2005
IEC60950-1:2006
EMC
EN 55024:2010
EN 55032:2012+AC :2013
EN 301 489-1 V1.9.2
EN 301 489-17 V2.1.1
EN 300 328 V1.9.1
EN 302 291-2 V1.1.1
FCC Part 15 Subpart C, Subpart B ClassB
VCCI Class B
For residential,
commercial and light-
industrial
environments
European conformity
CE Marking
Certification for Construction Design of Specified
Radio Equipment
Other Bluetooth logo certification
MFi license
Immunity
Test
ESD
No
distraction Air discharge (direct): ±15 kV Conditions:
IEC61000-4-2
compliant
No
malfunction Air discharge (direct): ±8 kV
Physical
Features
Dimensions 83.0 × 36 × 21.5 (WDH mm)
Weight Approx. 60 g Excluding accessories
*1: When a barcode is read twice every 10 seconds at room temperature in a constant Bluetooth connection (SPP
master mode).
OPN-3102i
1st
10
SPECIFICATIONS MANUAL
4 Detailed View
1
2
3
4
5
6
7
8
9
Figure 1: Detailed View
No Name Description
1 Scan Window LED illumination is emitted from this window to read barcodes.
2 USB Cap Cap for USB connector part used to make the scanner IP54 water tight.
3 Trigger Key Press this key to enable the laser and start reading barcodes.
4 Function Key The function of this key depends on the installed application.
5 LED Indicates operating status, such as bar code reading, Bluetooth
connection, warning etc.
6 Buzzer Orifice Holes for buzzer.
7 Strap Orifice Holes for attaching a hand strap.
8 Charging Coil The charging coil is located here with which the dedicated cradle can
supply power to the scanner.
9 NFC This is the location of the NFC tag. Hold an NFC reader close to this
area when the tag has to be read.
5 El
e
5.1 U
S
u
B
u
C
u
5.2
W
F
e
P
o
6 In
t
The OP
N
6.1 U
In
6.1.1
C
6.1.2
e
ctrical
S
U
SB
u
pply Voltag
u
s-power (C
l
u
rrent cons
u
W
ireless C
e
eding syste
o
wer consu
m
t
erface
S
N
-3102i sup
p
U
SB Interf
a
terface is F
u
C
onnecto
r
Signal
N
VC
DAT
A
DAT
A
(N
C
GN
USB Interf
a
S
pecific
a
e
l
ass)
u
mption
harging
m
m
ption
S
pecific
a
p
orts two ty
p
a
ce
u
ll Speed US
r
N
ame
C
C
A
(-)
A
(+)
C
)
D
a
ce Circui
t
Po
w
Su
p
Micro-
controller
SPECIF
I
a
tions
: 4.5-5.5
V
: 500mA
m
: Less th
a
: Electro
m
: Less th
a
a
tions
p
es of interfa
c
B interface.
C
ontact Nu
m
1
2
3
4
5
t
Figure 3:
w
er
pp
l
y
I
CATIONS
M
V
m
ax (Hi-Po
w
a
n 500m
A
m
agnetic ind
u
a
n 5W
ces; USB a
n
m
ber
:
Interface Cir
c
M
ANUAL
w
er)
u
ction
n
d Bluetooth
.
Fig
u
c
u
i
t (USB)
re 2: micro U
S
USB Connec
t
O
S
B B Connec
t
c
to
r
O
PN-3102i
1st
11
t
or
OPN-3102i
1st
12
SPECIFICATIONS MANUAL
6.2 Bluetooth
The specifications of the OPN-3102i Bluetooth interface are as follows:
Frequency : 2402 ~ 2480 MHz
Specification : Bluetooth Ver 2.1 compliant
Communication distance : 10 m
Output level : Class 2 (max 4 dBm)
Implemented profile : SPP / HID
Communication configuration : 1 to 1
Operating mode in communication : Master / Slave mode
Security mode : Authentication supported
Encryption : Encryption supported
6.3 NFC Tag
OPN-3102i has NFC tag built-in which record Bluetooth device address.
Frequency: 13.56MHz
Standard : ISO/IEC 14443 TYPE A, TYPE B and JISX6319-4
Recorded Contents: :
Total 928 byte
NDEF
Record #1
t
ype: ”application/vnd.bluetooth.ep.oob”
OOB data length: 8 Byte
MAC address: 00:12:6A:xx:xx:xx
Record #2
t
ype: ”T”
TEXT data length: 15 Byte
TEXT data: ”00126Axxxxxx”
Free area
Reserved area
*xx will differ according to product.
Rewriting from external: possible
OPN-3102i
1st
13
SPECIFICATIONS MANUAL
7 Optical Specifications
7.1 Basic Specifications
Item Characteristics
Scan method CMOS area sensor (white / black) -
Number of effective pixel (Column) × (Row) 640 × 480 dots
Image capture speed (*1) Frame rate 100 fps
Focal distance Distance from the front edge of scanner 109.2 mm
View angle Horizontal Approx. 38.0°
Vertical Approx. 28.9°
Diagonal Approx. 46.4°
Illumination light source
(LED × 1)
Color Warm white
Color temperature 2600～3700K
Radiant efficiency(*2) 114lm/W
Aiming light source
(LED × 1)
Color Green
Peak wavelength 535 nm
Radiant efficiency (*2) 114lm/W
*1 The fastest seed of image capture
*2 Reference value extracted from the LED datasheet.
7.2
A
T
1
2
T
-
-
A
iming Pa
t
T
he aiming i
s
1
. Fill light t
o
2
. Fill light w
T
he aiming
s
-
The horizo
n
a distance
-
The horizo
n
horizontal
a
t
tern
s
used for t
h
o
recognize t
h
hen auto tri
g
s
pecification
s
n
tal width of
of L=144.2±
4
n
tal imaging
a
iming width
F
i
SPECIF
I
e following
p
h
e appropri
a
g
ger is used.
s
are as foll
o
the imaging
4
0 mm from
field of view
.
i
gure 4:
A
imin
I
CATIONS
M
p
urpose:
a
te reading r
a
o
ws:
field of vie
w
the front ed
g
at a distan
c
n
g Pattern an
d
M
ANUAL
a
nge.
and the hor
g
e of the sc
a
e of L=144.
2
d
Imaging Ra
n
i
zontal aimi
n
a
nner.
2
mm is 0%±
ge
O
n
g width are
±
10% of the
O
PN-3102i
1st
14
e
qual at
OPN-3102i
1st
15
SPECIFICATIONS MANUAL
8 Technical Specifications
Aim the laser light at the center of a code to scan it. The conditions for technical specifications are as
follows, unless otherwise specified in each section.
<Conditions>
Ambient Temperature and Humidity Room temperature, room humidity
Ambient Light 100 ~200 lux (on the surface of a barcode)
Angles Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0°
Curvature R = ∞
Power Supply Voltage 5.0 V (USB)
PCS (1D and 2D) 0.9 or higher
Scanning Test Accept the performance with 90% or more success rate
for 10 tries of scan. One reading should be 2 seconds.
Barcode Test Sample (1D and 2D) Specified below.
< Test chart >
For 1D codes, OPTOELECTRONICS test samples
For GS1 Databar, stacked codes and 2D codes, printed by a dedicated printer for barcode
β
γ
+
+
+
-
-
-
Figure 5: Scanning conditions
Center of image
OPN-3102i
1st
16
SPECIFICATIONS MANUAL
8.1 Barcode Test Sample
1D Barcodes
<Code 39>
Resolution Symbology PCS Size (mm) No. of Digits
0.1 mm (3.9 mil)
Code 39 0.9
8.5 × 10 4
0.127 mm (5 mil) 32 × 10 15
0.20 mm (7.9 mil) 100 × 10 31
0.254 mm (10 mil) 32.5 × 12 7
0.508 mm (20 mil) 36 × 25 4
<Code 128>
Resolution Symbology PCS Size (mm) No. of Digits
0.20 mm (7.9 mil) Code 128 0.9 42 × 10 16
<UPC>
Resolution Symbology PCS Size (mm) No. of Digits
0.330 mm (13 mil) 12-digit UPC
12-digit EAN 0.9/0.2 31.5 × 25.0 12/13
<Codabar>
Resolution Symbology PCS Size (mm) No. of Digits
0.150 mm (6 mil) Codabar(NW-7) 0.9 20 × 10 10
GS1 Databar/Composite
<GS1-limited>
Resolution Symbology PCS Size (mm) No. of Digits
0.169 mm (6.7 mil) Limited 0.9 12 × 1.5 14
0.169 mm (6.7 mil) Limited-Composite 0.9 12 × 3.0 26
2D Codes
<PDF417>
Resolution Error Correction PCS Size (mm) No. of Character
0.169 mm (6.7 mil) Level-3 0.9
23 × 10 58
0.254 mm (10 mil) 35 × 15
<QR Code: Model-2>
Resolution Error Correction PCS Size (mm) No. of Character
0.212 mm (8.4 mil) M 0.9
5 × 5 44
0.381 mm (15 mil) 11 × 11
<Data Matrix>
Resolution Model PCS Size (mm) No. of Character
0.212 mm (8.4 mil) ECC200 0.9 4 × 4 40
0.254 mm (10 mil) 6 × 6
* The size is outline dimensions excluding the quiet zones.
OPN-3102i
1st
17
SPECIFICATIONS MANUAL
8.2 Scan Area and Depth of Field
The scanner is able to read in the area between the two arcs that are centered on the scan
origin with a center line distance from the front of the scanner as indicated for each resolution.
Symbology Resolution Depth of Field (mm)
Code 39 0.127mm 60 ～ 105
0.254mm 70 ～ 205
0.508mm 80 ～ 390
Code 128 0.20mm 80 ～ 165
UPC 0.33mm 65 ～ 260
PDF417 0.169mm 65 ～ 125
0.254mm 50 ～ 180
QR Code 0.169mm 70 ～ 95
0.381mm 35 ～ 225
Data Matrix 0.212mm 60 ～ 130
0.254mm 50 ～ 150
<Conditions>
Barcode Sample The above codes specified in Chapter 8.1
Angle α = 0°, β =＋15°, γ = 0°
OPN-3102i
1st
18
SPECIFICATIONS MANUAL
050 100 150 200 250 300 350 400
2" 4" 6" 8" 10" 12" 14" 16"0"
050
50 25
25
75 75
100 100 125 150125150
0" 2"
2" 1"
1"
3" 3"
4" 4" 5" 6"5"6"
[ mm ]
[ inch ]
[ mm ]
[ inch ]
Code 39
Code 128
100%
EAN/UPC
PDF417
QR Code
Data Matrix
0.127mm ( 5mil )
0.254mm ( 10mil )
0.508mm ( 20mil )
0.20mm ( 7.9mil )
0.33mm( 13mil )
0.169mm( 10mil )
0.254mm( 10mil )
0.169mm( 6.7mil )
0.381mm( 15mil )
0.212mm( 8.4mil )
0.254mm( 10mil )
450
17"
Figure 6: Scan Area and Depth of Field
OPN-3102i
1st
19
SPECIFICATIONS MANUAL
8.3 Printed Contrast Signal (PCS)
0.2 or higher
<Conditions>
MRD : 10% and higher
(70% or higher reflectivity of space and quiet zone)
Distance : 125mm from the front edge of the scanner
Barcode Sample : UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3)
MRD = Minimum reflectance of white bar - Maximum reflectance of black bar
* Be sure to keep the optical window clean without dirt or scratches, or it may have a detrimental effect on
the reading characteristics.
8.4 Minimum Resolution
1D Code : 0.1 mm (3.9 mil) Code 39 specified in Chapter 8.1
GS1-Databar : 0.127 mm (5 mil) GS1 Databar Limited specified in Chapter 8.1
Stacked Code : 0.169 mm (6.7 mil) PDF417, GS1 Databar Limited Composite specified in Chapter 8.1
2D Code : 0.169 mm (6.7 mil) QR Code, Data Matrix specified in Chapter 8.1
<Conditions>
Barcode Sample The above codes specified in Chapter 8.1
Distance 95 mm from the front edge of the scanner
Angle α = 0°, β =＋15°, γ = 0°
Curvature R = ∞
8.5 Barcode Width
Code 39 with width of 100 mm and resolution of 0.2 mm can be read
<Conditions>
Barcode Sample 0.20 mm Code 39 / PCS 0.9 specified in Chapter 8.1
Distance 150 mm from the front edge of the scanner
Angle α = 0°, β =＋15°, γ = 0°
Curvature R = ∞
Figure 7: Wide Barcode
PCS = Reflectance of white space – Reflectance of black bar
Reflectance of white space
OPN-3102i
1st
20
SPECIFICATIONS MANUAL
8.6 Pitch, Skew and Tilt
Pitch : α = ±70°
Skew : β = ±70°
Tilt : γ = ±360°
<Conditions>
Barcode Sample : 0.33 mm UPC specified in Chapter 8.1
Distance : 125 mm from the front edge of the scanner
Curvature : R = ∞
* For the pitch angle and tilt angle measurement, set the skew angle β = +15°
β
γ
+
+
+
-
-
-
Figure 8: Pitch, Skew and Tilt
8.7 Curvature
0.33 mm 12-digit UPC: R ≧ 20 mm
0.15 mm 10-digit Codabar(NW-7): R ≧ 16 mm
<Conditions>
Barcode Sample 0.33 mm UPC, 0.15 mm Codabar specified in Chapter 8.1
Distance 105 mm from the edge of the scan engine
Angle Skew angle β = +15°
R
バーコード
Figure 9: Curvature
Note:
The reading performance may deteriorate if there is specular reflection of the laser light, this typically will occur
when the reflectivity of the barcode is high.
Barcode
OPN-3102i
1st
21
SPECIFICATIONS MANUAL
8.8 Scanning from LCD Screen
Barcodes displayed on LCD screens (brightness of white part 30 cd/m2 or more, contrast ratio
100:1 or more) can be read.
<Conditions>
Barcode : UPC, resolution 0.33 mm specified in Chapter 8.1.
Ambient light : 100 lx or less
Distance : 95 mm from the front edge of the scanner
Angle : α = 0°, β = 0°, γ = 0°
LCD screen type : Transmissive (backlight) TFT
Illumination mode : Disable
Contrast ratio = Brightness of white parts
Brightness of black parts
* The barcode resolution is the value when displayed on the LCD screen.
* The width of barcode element is an integral multiple of pixel width of LCD screen.
* The reading characteristics may deteriorate due to the specular reflection of LED illumination
when the reflectivity is high.

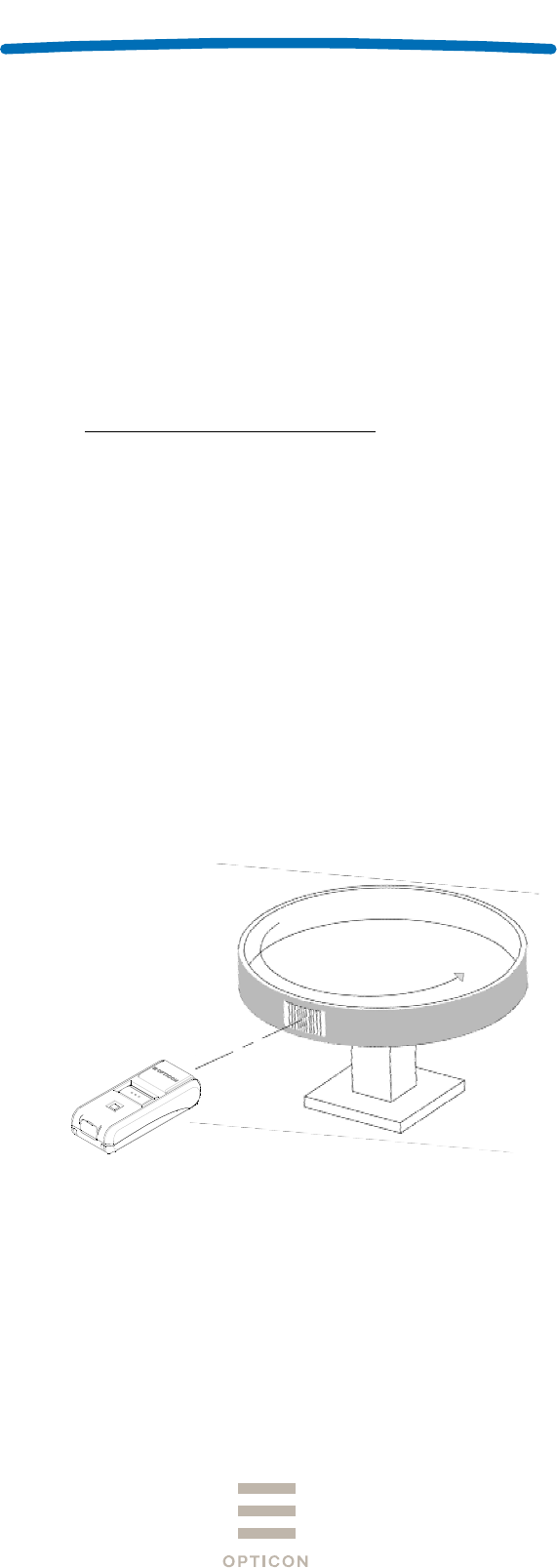

8.9 Motion Tolerance
UPC 100%/EAN can be read when it is moving at 2.54m/s.
<Conditions>
Ambient Temperature and Humidity : Room temperature and Room humidity
Ambient Light : 500 ~ 1000 lux
Distance : 125 mm from the front edge of the scanner
PCS (1D and 2D) : 0.9 or higher
Barcode Sample : UPC 0.33mm specified in Chapter 8.1.
* Scanning may fail due to the specular reflection of LED illumination when the reflectivity is high.
Figure 10: Motion Tolerance
OPN-3102i
1st
22
SPECIFICATIONS MANUAL
9 Environmental Specifications
9.1 Temperature
Scanning performance is guaranteed when the ambient temp. is within the following range:
Operating Temperature: -10 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
* Please charge when the temperature is between 0 and 40°C. When the temperature is over 40°C,
charging may stop to prevent battery breakdown.
9.2 Humidity
Scanning performance is guaranteed when the ambient humidity within following range:
Operating Humidity: 20 ~ 85%RH (no condensation, no frost)
Storage Humidity: 20 ~ 85%RH (no condensation, no frost)
9.3 Ambient Light Immunity
Scanning performance is guaranteed when the illumination on a barcode surface is between
zero and the following values:
Incandescent light: 10,000 lx
Fluorescent light: 10,000 lx
Sunlight: 100,000 lx
<Conditions>
Barcode: 0.33 mm JAN specified in Chapter 8.1.
Distance: 95 mm from the front edge of the scanner
Angle: α = 0°, β =＋15°, γ = 0°
Curvature: R = ∞
Power-supply voltage: 3.7V
* Avoid direct or specula reflection from the light source as it may blind the scanners optical receiver.
9.4 Dust and Drip Proof
IEC IP54 equivalent
Protection against solid objects: Level 5 equivalent (Dust proof type)
Prevent dust ingress to inside. Even if slight dust intrusion will not inhibit normal operation.
Protection against liquids: Level 4 equivalent (Splash proof type)
Protected against water splash from any direction.
* () is JIS drip-proof type.
OPN-3102i
1st
23
SPECIFICATIONS MANUAL
9.5 Vibration Strength (without packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in non-operating state.
Repeat this in each X, Y and Z direction.
9.6 Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6 m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this in each X, Y and Z direction.
9.7 Drop Impact Strength (without packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop the scanner 18 times in total (3 times at each 6 face), from a height of 150 cm
onto a concrete floor as shown below.
150cm
Figure 11: Drop Test
9.8 Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges,
and 6 faces, from a height of 150 cm onto a concrete floor.
9.9 Electrostatic Discharge Immunity
Air discharge ±8 kV max. (No malfunction)
±15 kV max. (No destruction)
Measurement environment An electrostatic testing device compliant with IEC 61000-4-2
Discharge resistance 330 Ω
Charging capacitor 150 pF
OPN-3102i
1st
24
SPECIFICATIONS MANUAL
10 Regulatory Compliance
10.1 LED Safety
IEC 62471:2006 Exempt_Group
10.2 Product Safety
EN60950-1:2005
IEC60950-1:2006
10.3 EMC
R & TTE Directive
・EN 55024:2010
・EN 55032:2012+AC:2013
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.1.1
・EN 300 328 V1.9.1
・EN 302 291-2 V1.1.1
FCC Part 15 Subpart C, Subpart B ClassB
VCCI Class B
Federal Communications Commission Notices
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This product complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which is found by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This is a Class B product, to be used in a domestic environment, based on the Technical
Requirement of the Voluntary Control Council for Interference from Information Technology
Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it
may cause radio interference.
10.4
O
・
・
・
11 R
o
R
o
R
o
el
e
12 R
e
MTBF (
M
13 Pr
H
a
(1
・
・
・
(
2
・
・
・
(
3
・
・
O
t
・
・
・
“Made fo
r
mean that
connect s
p
and has b
e
performan
operation
o
regulatory
accessory
performan
O
ther
Bluetooth l
o
MFi license
Certificatio
n
・Classific
a
Radio Eq
u
・Model N
a
・Certificat
e
o
HS
o
HS compli
a
o
HS: The re
s
e
ctronic equi
e
liability
M
ean Time
B
ecautio
n
a
ndle this p
r
) Shock:
Do not dro
p
Do not pla
c
Do not swi
n
2
) Temperat
u
Do not use
Do not pou
Do not thro
3
) Foreign M
a
Do not im
m
Do not exp
o
t
hers
Do not dis
a
Do not use
This produ
c
r
iPod,” “Mad
e
an electronic
p
ecifically to i
P
e
en certified
b
ce standards.
o
f this device
standards. Pl
with iPod, iP
h
ce.
o
go certificati
n
for Constru
c
a
tion of Specif
i
u
ipment
a
me
e
Number
a
nce.
s
triction of th
pment, 201
1
B
etween Fail
n
s
r
oduct caref
u
p
this produ
c
c
e this produ
n
g the cable
u
re Conditio
n
this product
r boiling wat
e
w this produ
a
terials:
m
erse this pr
o
o
se this pro
d
a
ssemble thi
s
this product
c
t may be af
f
SPECIF
I
for iPhone,”
a
accessory h
a
P
od, iPhone,
o
b
y the develo
p
Apple is not r
e
or its complia
n
ease note th
a
h
one, or iPad
on
c
tion Design
ed
A
c
O
2
e use of cer
t
1
/65/EU
ures) 50,
0
u
lly. Do not d
c
t from a hei
g
c
t under or
b
around.
n
s:
at temperat
u
e
r on this pr
o
ct into a fire.
o
duct in wat
e
d
uct to chem
s
product.
near a radi
o
f
ected by a
m
I
CATIONS
M
a
nd “Made fo
r
a
s been desig
n
o
r iPad, respe
p
er to meet A
p
e
sponsible fo
r
nce with safe
t
a
t the use of t
h
may affect wi
r
n
of Specifie
d
A
rticle 2 Par
a
c
ommunicati
o
O
PA-26X1
2
01-125603
t
ain hazardo
0
00 hours
d
eliberately
s
g
ht greater t
h
b
etween any
ures outside
o
duct.
.
e
r or other li
q
m
icals.
o
or a TV. It
m
m
omentary
v
M
ANUAL
r
iPad”
n
ed to
ctively,
p
ple
r
the
t
y and
h
is
r
eless
d
Radio Equi
a
graph 1, Ite
m
o
n system in 2
us substanc
ubject it to a
h
an specifie
d
heavy item
s
the specifie
q
uid.
m
ay cause r
e
v
oltage drop
pment
m
19 Low p
o
.4 GHz band
e
s in electri
c
ny of the foll
d
in this man
s
.
d
range.
e
ception pro
c
aused by li
g
O
o
wer data
c
al and
l
owing.
ual.
blems.
g
htning.
O
PN-3102i
1st
25
OPN-3102i
1st
26
SPECIFICATIONS MANUAL
・ Do not attach piece of metal or metal foil to the back of charging coil stored part and NFC coil
stored part. Also, do not fix anything that prevents placing to charging cradle.
・ Please securely close the USB cap to keep the waterproof.
・ Do not pull strong, fold and bend the cables.
・ Do not add shock or apply load to jack and connector.
・ When charging is completed, please remove USB cable from connector.
13.1 Radio Law
This product qualifies as specified radio equipment for radio stations of 2.4 GHz band data
communication system and has obtained the Certification for Construction
Design of Specified Radio Equipment. Therefore, radio station license is not required in Japan.
The following activities are prohibited under the Radio Law:
・Remodeling and disassembly
・Peeling off the certificate label
Do not use this equipment under the following environment, as radio interference may affect
other device and end up with causing physical or material damage.
・Safety apparatus and medical device for human body protection
・Environment where is concerned to cause serious damage
13.2 Bluetooth
・This product supports Bluetooth wireless communication with other Bluetooth devices that
have the same profile
・This product complies with Bluetooth standards; however, its communication performance
with untested devices is not guaranteed.
・Bluetooth devices use the 2.4 GHz frequency band that is shared among other devices. It
may affect the communication speed and distance between this product and the host device.
・The communication speed and distance vary depending on the interference and radio wave
condition between this product and the host device.
13.3 Frequency Band
This product uses the 2.4 GHz frequency band. Read carefully the followings before using this
product.
In the frequency band of this product, scientific, medical and industrial devices including
microwaves are used. Also other radio stations including local private radio station for mobile
object identification requiring license for such as manufacturing lines at factories, specific
power-saving radio station requiring no license and amateur radio station are managed.
1. Make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
using this product.
2. In case that radio interference occurs between this product and “other radio stations,” change
the service space immediately, or stop transmitting radio wave to avoid the interference.
3. If you have any questions or troubles, please contact our sales office.
* This specification manual is subject to change without prior notice.
OPN-3102i
1st
27
SPECIFICATIONS MANUAL
14 Product Labels
The product labels are affixed to the scanner as shown below.
Figure 12: Product Label Position
Unit: mm
15 P
a
15.1 I
n
As
W
a
ckagin
g
n
dividual
P
s
sembled p
a
W
eight: Appr
o
Place i
n
d
*Place
w
Put MicroUS
B
product side
b
Make it thinn
e
overlap on th
e
Place the con
and taped sid
e
g
Specifi
c
P
ackagin
g
a
ckage size:
o
x. kg
n
to the box wit
d
own without
t
w
ith Opticon l
o
*Do not f
o
OPN-3
B
cable and
b
y side.
e
r so as not to
e
product.
necter on right
s
e
at the back.
SPECIF
I
c
ations
g
125 × 112 ×
Figure 1
3
h folded side
t
aped.
o
go upward.
o
ld the barcode
w
1
02
s
ide
Place
conne
I
CATIONS
M
40 (WDH
m
3
: Individual
P
when pasting
neck strap on t
o
ctor, and place
M
ANUAL
m
m)
P
ackagin
g
o
p of USB cabl
e
QSG at the to
p
Displ
a
123456=Pro
d
Dis
p
e
.
Individ
O
ay for the Se
r
『123456』
d
uct serial nu
m
p
lay 6-digets
s
d
ual box label:
O
PN-3102i
1st
28
r
ial-No.
m
ber.
s
erial number.
3A0002
15.2
C
1
0
As
W
Note: ‘R
o
declared
C
ollective
P
0
0pcs per b
o
s
sembled p
a
W
eight: Appr
o
o
mark’ on the
by Optoelect
r
P
a
Enter battery
battery」and ph
o
22-31-31」. A
n
either side of t
h
A
: Barcode Se
r
Stick the label
s
P
ackagin
g
o
x
a
ckage size
o
x. kg
trays and the
r
onics Co., Lt
d
a
cking box: 5B00
0
type 「Lithium io
n
o
ne number 「01
-
n
d place 1pc next
h
e packing box la
b
r
ial Label for Pac
k
s
on both
f
ront an
d
SPECIF
I
g
: 595 × 52
0
boxes for th
e
d
.
Figure 1
4
0
8 (100pcs per b
o
n
-
24-
to
b
el.
k
ing Box
d
back side of the
I
CATIONS
M
0
× 245 (WD
e
product indi
c
4
: Collective
P
o
x)
bo
x
B: Mi
A
tta
c
seria
l
M
ANUAL
H mm)
c
ates that the
p
P
ackagin
g
ssing Serial Num
b
h this label when
l
number s are ou
p
roduct is Ro
H
b
er Label:
t
here are more th
a
t
of order (not in
a
5St
T
h
O
H
S compliant
an 3 labels of wh
i
a
correct sequenc
e
Steps
he order of serial
-
O
PN-3102i
1st
29
which is
i
ch
e
).
-
No.
OPN-3102i
1st
30
SPECIFICATIONS MANUAL
16 Physical Features
16.1 Dimensions
83.0 × 36.0 × 21.5 (DWH mm)
16.2 Weight
Approx. 60 g (excluding accessories)
16.3 Mechanical Drawing
Figure 15: Mechanical Drawing
Unit: mm
OPN-3102i
1st
31
SPECIFICATIONS MANUAL
17 Supported Symbologies
17.1 Default Setting
The scanner is set to default by reading the following menu label.
Recorded contents of the NFC tag will also return to default.
Default
17.2 Supported Symbologies
17.2.1 1D Barcodes
Code type Default Minimum
length Remarks
UPC ○ -
UPC Add-on 2
UPC Add-on 5
EAN(JAN) ○ -
EAN Add-on 2
EAN Add-on 5
EAN-13 ○
EAN-13 Add-on 2
EAN-13 Add-on 5
EAN-8 ○
EAN-8 Add-on 2
EAN-8 Add-on 5
Code 39 ○ 1 Not transmit ST/SP
Tri-Optic ○ - Not transmit ST/SP
Codabar (NW7) ○ 1 Not transmit ST/SP
Industrial 2of 5 ○ 5
Interleaved 2of 5 ○ 6
S-Code 5
Code 128 ○ 1 GS1 conversion (setting required)
Code 93 ○ 1
IATA ○ 5
MSI/Plessey 3
UK/Plessey 2
Telepen 1
Code 11 1
Matrix 2 of 5 5
Chinese Post Matrix 2 of 5 -
Korean Postal Authority -
Intelligent Mail Barcode -
POSTNET -
JPN (Customer Barcode) -
@MENU
_
OPTO@ZZ@SO@ZZ@OTPO
_
UNEM@
OPN-3102i
1st
32
SPECIFICATIONS MANUAL
17.2.2 GS1 Databar, Composite Code
Code type Default Remarks
GS1 DataBar
・GS1 DataBar Omnidirectional
・GS1 DataBar Truncated
・GS1 DataBar Stacked
・GS1 DataBar Stacked Omnidirectional
○
GS1 conversion (setting required)
GS1 DataBar Limited ○
GS1 DataBar Expanded
・GS1 DataBar Expanded
・GS1 DataBar Expanded Stacked
○
Composite GS1-DataBar
・CC-A
・CC-B
・Limited CC-A
・Limited CC-B
・Expanded CC-A
・Expanded CC-B
GS1 conversion (setting required)
Composite GS1-128
・CC-A
・CC-B
・CC-C
GS1 conversion (setting required)
Composite EAN
・EAN-13 CC-A
・EAN-13 CC-B
・EAN-8 CC-A
・EAN-8 CC-B
GS1 conversion (setting required)
Composite UPC
・UPC-A CC-A
・UPC-A CC-B
・UPC-E CC-A
・UPC-E CC-B
GS1 conversion (setting required)
17.2.3 2D Codes
Code type Default Remarks
PDF417 ○
Micro PDF417
Codablock F
QR Code ○ GS1 conversion (setting required)
Micro QR ○
Data Matrix (ECC 200) ○ GS1 conversion (setting required)
Data Matrix (ECC 000-140)
Aztec Code ○
Aztec Runes
Chinese-sensible code
Maxi Code
