Ohsung Electronics URCPIR1 Professional IR Learner User Manual G User s manual
Ohsung Electronics Co., Ltd. Professional IR Learner G User s manual
Users Manual
Order Number : GETEC-C1-10-185 FCC Part 15 subpart B
Test Report Number : GETEC-E3-10-097 Page 1 / 1
EUT Type: Professional IR Learner
FCC ID.: OZ5URCPIR1
APPENDIX G
: USER’S MANUAL
PIR-1Owners Manual
PIR-1 Owner’s Manual ©2010 URC,Inc.
The information in this manual is copyright protected.No part of this man-ual
may be copied or reproduced in any form without prior written consent
from Universal Remote Control,Inc.
UNIVERSAL REMOTE CONTROL,INC.SHALL NOT BE LIABLE FOR OPER-
ATIONAL,TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Congratulations! 1
Replacing the Batteries 1
USB Port 1
Beep On/Off Switch 2
IR Signal Indicator 2
Learning Tips 2
Specifications 2
USA Limited Warranty Statement 3
Federal Communication Commission
Interference Statement 4
Page 1
PIR-1 OWNER’SMANUAL

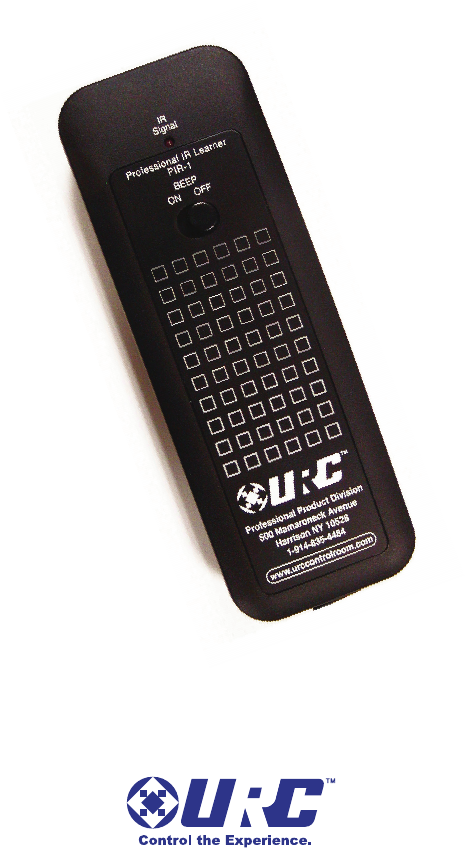

Congratulations!
You’ve purchased a unique synthesis of hardware and software engi-
neering, the PIR-1 Professional IR Learner. The PIR-1 is a power pro-
fessional install tool that combines an IR code learner, IR code
transmitter (IR Tester), and an IR code detector into one package.
When connected to a PC the PIR-1 will allow you to learn IRdata
from any IR remote control into the Complete Control Program and
Accelerator programming software. You can then test any IR code
from the IR transmitter of the PIR-1 directly to a component.
The PIR-1 can be used as a stand alone IR detector to see if IR infor-
mation is being transmitted from any IR remote control. When an IR
command is received by the PIR-1 the unit will make a beeping
sound, letting you know that IR information is actually being sent.
Replacing the Batteries
Open the battery cover by pressing the release and pulling back the
cover on the back of the unit. Please do
not forcefully pull the battery cover as it
is tethered to the PIR-1 body. Observe
the + and – polarity indicators inside the
battery compartments as well as on the
batteries. Place the two AAA batteries
into their positions. Now, replace the
battery cover by inserting the hinged and
tethered end in first, then snapping the
cover back into place.
USB Port
the back of the PIR-1 you will find the USB
port. Pull back the hinged rubber USB cover
and connect the Mini-USB side of the USB
cable into this port, and the other end of the
USB cable will connect into the computer. In
the event that there are no batteries in the PIR-
1 then the USB port from a computer can power the unit for
LEARNING and TRANSMITTING IR commands only. When the PIR
-1 is powered via USB then the IR “detecting” and all beeping
sounds will be disabled.
Page 2
PIR-1 OWNER’SMANUAL

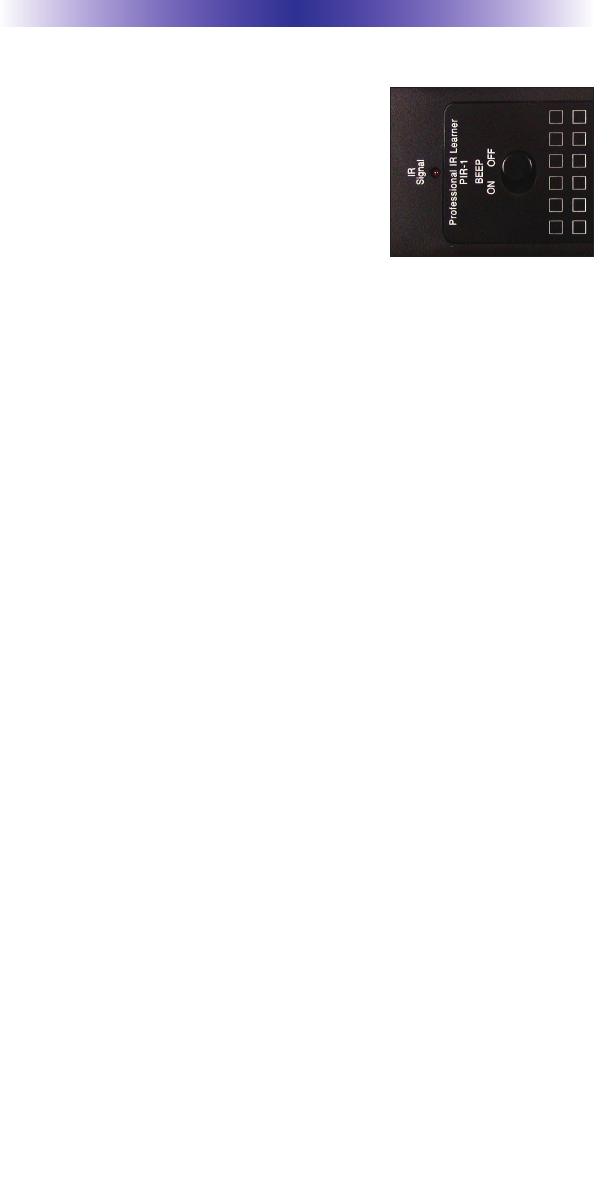

Beep On/Off Switch
When the Beep switch is set to the “On” posi-
tion, every received or transmitted IRsignal
will make a beeping sound. If you do not need
the Beep sound, move the switch to the “Off”
position. Please keep in mind that Florescent /
Incandescent Lights and Sun light can give off
IR radiation, so it is not uncommon that the
PIR-1 will beep from these sources.
IR Signal Indicator
At the top of the PIR-1 is an IR Signal Indicator. This Indicator has
two functions. When testing/detecting IR codes, the IR Signal indi-
cator will flash every time an IR signal is received provided that the
Beep switch is set to “On.” When the Beep is set to “off”, the IR sig-
nal will not flash. When the PIR-1 is connected to a PC, the IR sig-
nal indicator will turn on when the PC is ready to learn a com-
mand, and will flash once when the command was learned correct-
ly. If the command was learned incorrectly then the LED will not-
flash, and you will have to re-learn the IR code. The IR Signal indi-
cator will also flash when testing an IR code from the PC.
Learning Tips
The original remote’s distance to the PIR-1 should be between 1 to
3 inches. Please place new batteries in the original remote you are
attempting to learn to make sure the IR signal is strong.
Learning should take place in a low lit room away from windows or
florescent lighting.
If no response is received when attempting to learn, turn on the
Beep setting, and check that the original remote is transmitting IR.
The PIR-1 has an IR transmitter built in, so after a command
islearned it can be tested.
Specifications
CPU: SM88 core @ 8 MHz / 4Kbyte FLASH ROM Embedded
Learning Frequency Range: 15 kHz to 455 kHz
Transmitting IR Distance: Up to 50 feet IR line of sight (Depending
upon environment)
Power: Two AAA Alkaline Batteries, USB Input Powered (Beep
Sounds are Disabled)
Size: 5.2” x 1.8” x 0.9” (H x W x D)
Weight: 3.00 oz.
Page 3
PIR-1 OWNER’SMANUAL
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new con-
dition, is warranted against defects in materials or workmanship as
follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-
uct against defects in material or workmanship for s period of one
(1) year and as set forth below. Universal Remote Control will, at its
sole option, repair the product using new or comparable rebuilt
parts, or exchange the product for a comparable new or rebuilt
product. In the event of a defect, these are your exclusive reme-
dies.
This Limited Warranty covers only the hardware components pack-
aged with the Product. It does not cover technical assistance for
hardware or software usage and it does not cover any software
products whether or not contained in the Product; any such soft-
ware is provided “AS IS” unless expressly provided for in any
enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight
prepaid, in its original packaging or packaging affording ade-
quateprotection to Universal Remote Control at the address provided
inthe Owner’s Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have
been programmed into your unit. It is likely that such data, soft-
ware, or other materials will be lost during service and Universal
Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract
orother verifiable Proof of Purchase is required. For product support
and other important information visit Universal Remote Control’s
website: http://www.UniversalRemote.com or call the Customer
Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modifi-
cation of or to any part of the Universal Remote Control product.
This Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes prod-
ucts sold by unauthorized resellers. .
Page 4
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one more of the follow-
ing measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
PIR-1 OWNER’SMANUAL
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0096A Rev 01
