Omron 6CYSIDV6800208 ReaderWriter/ RFID System User Manual Z279 E1 01

Omron Corporation ReaderWriter/ RFID System Z279 E1 01

User Manual 2

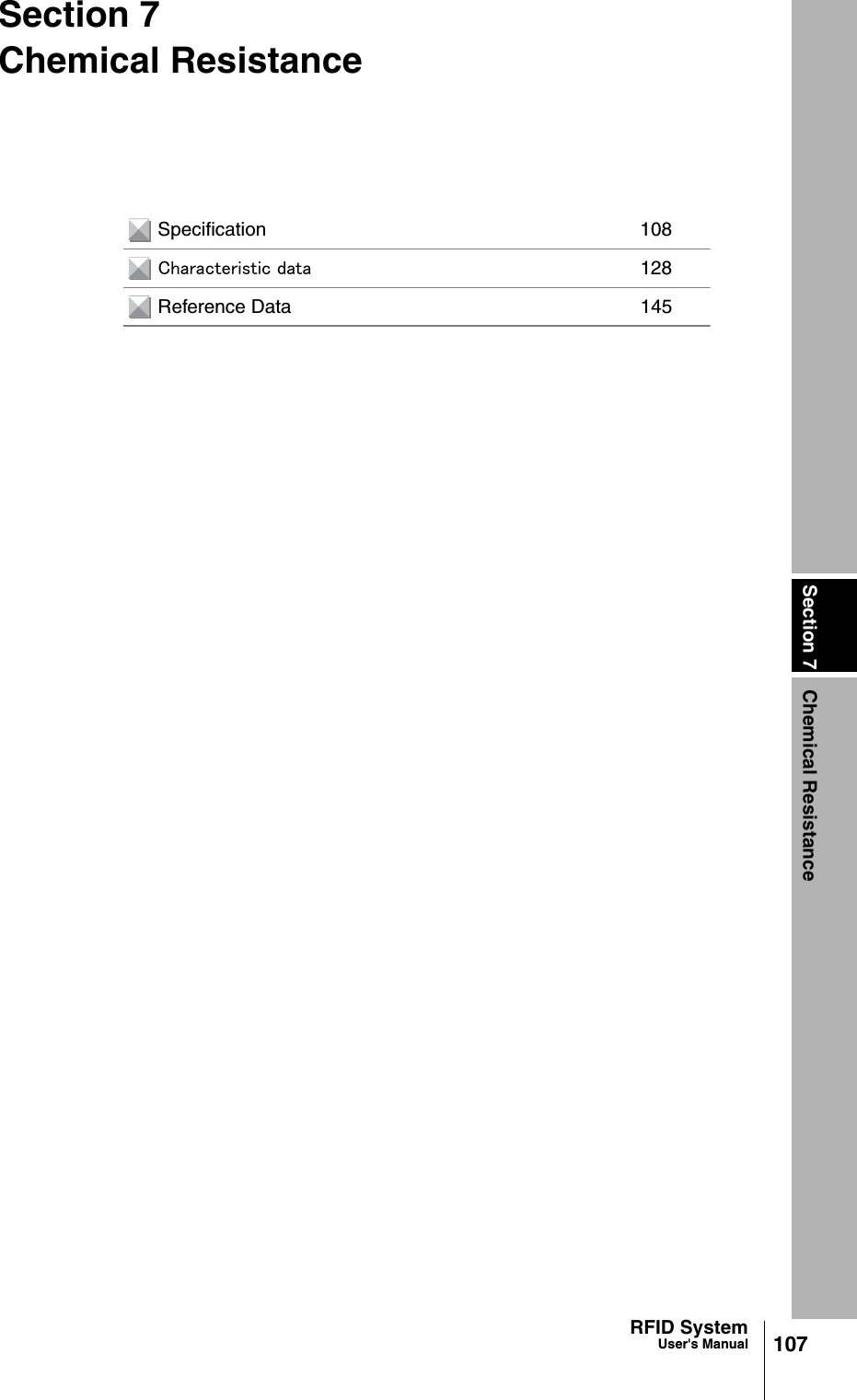

Section 7 Chemical Resistance107RFID SystemUser's ManualSection 7Chemical Resistance Specification 108 Characteristic data 128 Reference Data 145

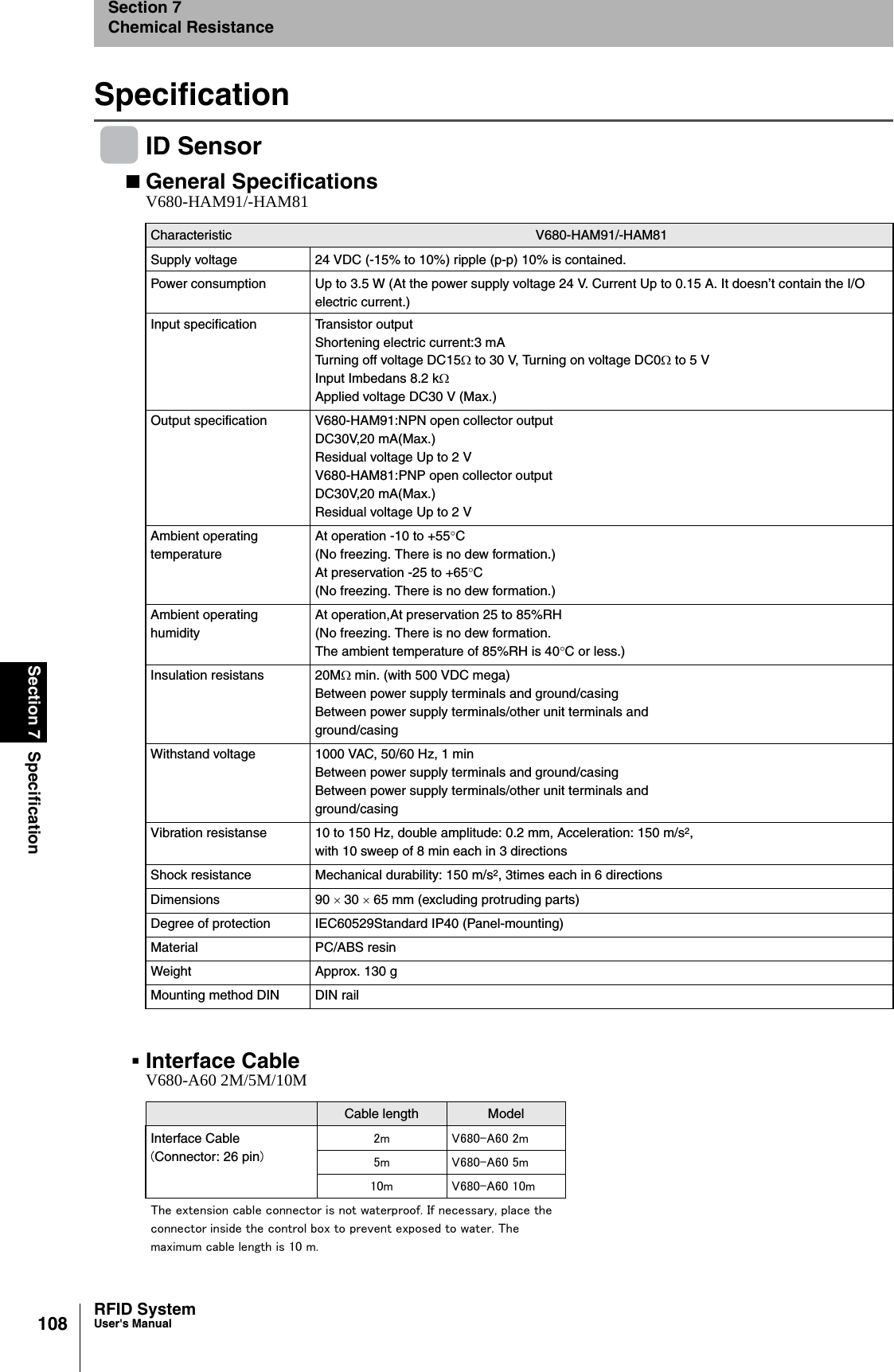

108Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceSpecificationID SensorGeneral SpecificationsInterface CableV680-HAM91/-HAM81Characteristic V680-HAM91/-HAM81Supply voltage 24 VDC (-15% to 10%) ripple (p-p) 10% is contained.Power consumption Up to 3.5 W (At the power supply voltage 24 V. Current Up to 0.15 A. It doesn’t contain the I/O electric current.)Input specification Transistor outputShortening electric current:3 mATurning off voltage DC15Ω to 30 V, Turning on voltage DC0Ω to 5 VInput Imbedans 8.2 kΩApplied voltage DC30 V (Max.)Output specification V680-HAM91:NPN open collector outputDC30V,20 mA(Max.)Residual voltage Up to 2 VV680-HAM81:PNP open collector outputDC30V,20 mA(Max.)Residual voltage Up to 2 VAmbient operatingtemperatureAt operation -10 to +55°C(No freezing. There is no dew formation.)At preservation -25 to +65°C(No freezing. There is no dew formation.)Ambient operatinghumidityAt operation,At preservation 25 to 85%RH(No freezing. There is no dew formation.The ambient temperature of 85%RH is 40°C or less.)Insulation resistans 20MΩ min. (with 500 VDC mega)Between power supply terminals and ground/casingBetween power supply terminals/other unit terminals andground/casingWithstand voltage 1000 VAC, 50/60 Hz, 1 minBetween power supply terminals and ground/casingBetween power supply terminals/other unit terminals andground/casingVibration resistanse 10 to 150 Hz, double amplitude: 0.2 mm, Acceleration: 150 m/s2,with 10 sweep of 8 min each in 3 directionsShock resistance Mechanical durability: 150 m/s2, 3times each in 6 directionsDimensions 90 × 30 × 65 mm (excluding protruding parts)Degree of protection IEC60529Standard IP40 (Panel-mounting)Material PC/ABS resinWeight Approx. 130 gMounting method DIN DIN railV680-A60 2M/5M/10MCable length ModelInterface Cable(Connector: 26 pin)2m V680-A60 2m5m V680-A60 5m10m V680-A60 10mThe extension cable connector is not waterproof. If necessary, place the connector inside the control box to prevent exposed to water. The maximum cable length is 10 m.

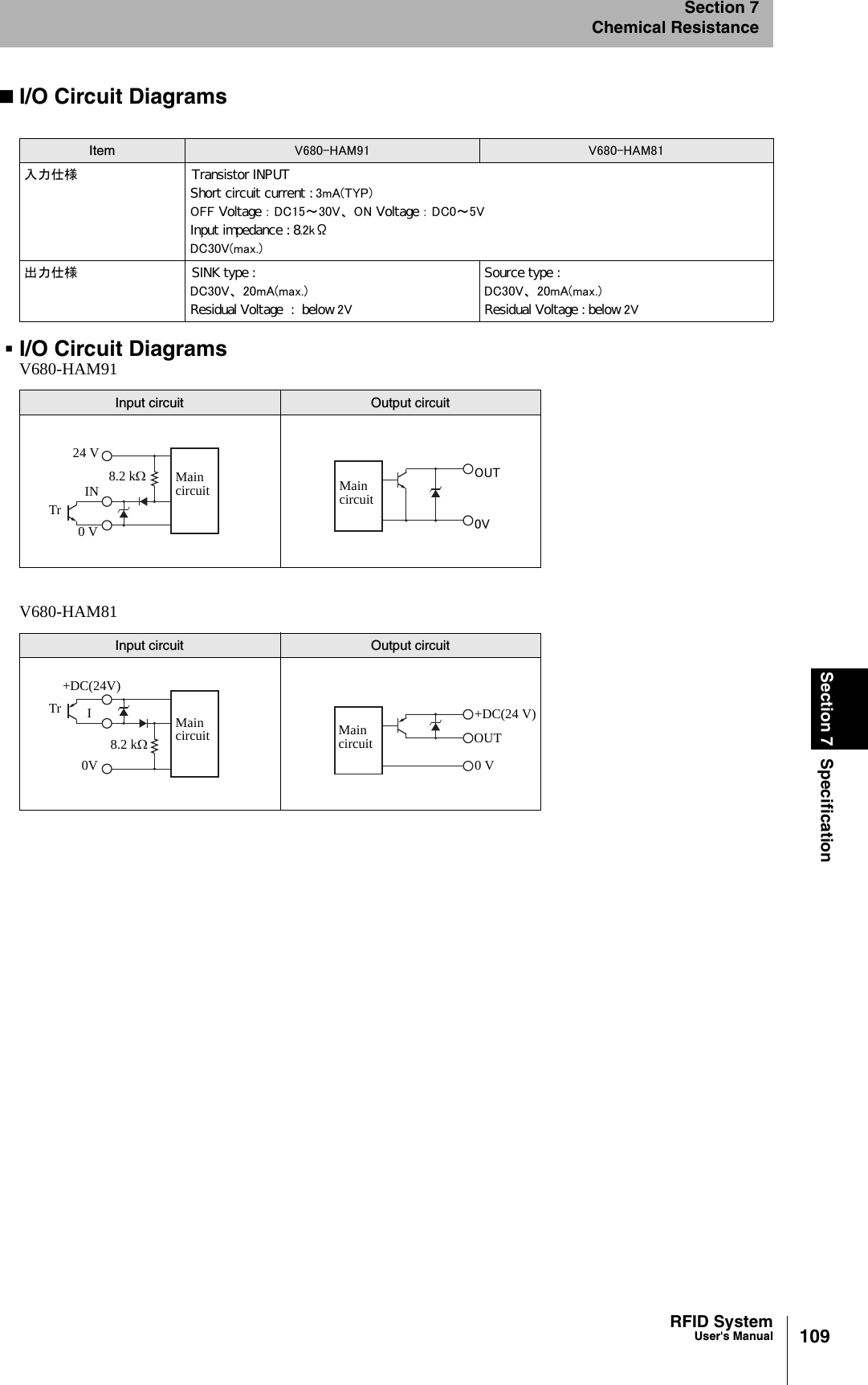

109RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceI/O Circuit DiagramsI/O Circuit DiagramsItem V680-HAM91 V680-HAM81入力仕様                            Transistor INPUTShort circuit current : 3mA(TYP)OFF Voltage : DC15~30V、 ON Voltage : DC0~5VInput impedance : 8.2kΩDC30V(max.)出力仕様                            SINK type : DC30V、 20mA(max.)Residual Voltage  :  below 2VSource type :DC30V、 20mA(max.)Residual Voltage : below 2VV680-HAM91Input circuit Output circuitV680-HAM81Input circuit Output circuit24 VINTr8.2 kΩ0 VMain circuitOUT0VMain circuit+DC(24V)ITr8.2 kΩ0VMain circuit+DC(24 V)0 VOUTMain circuit

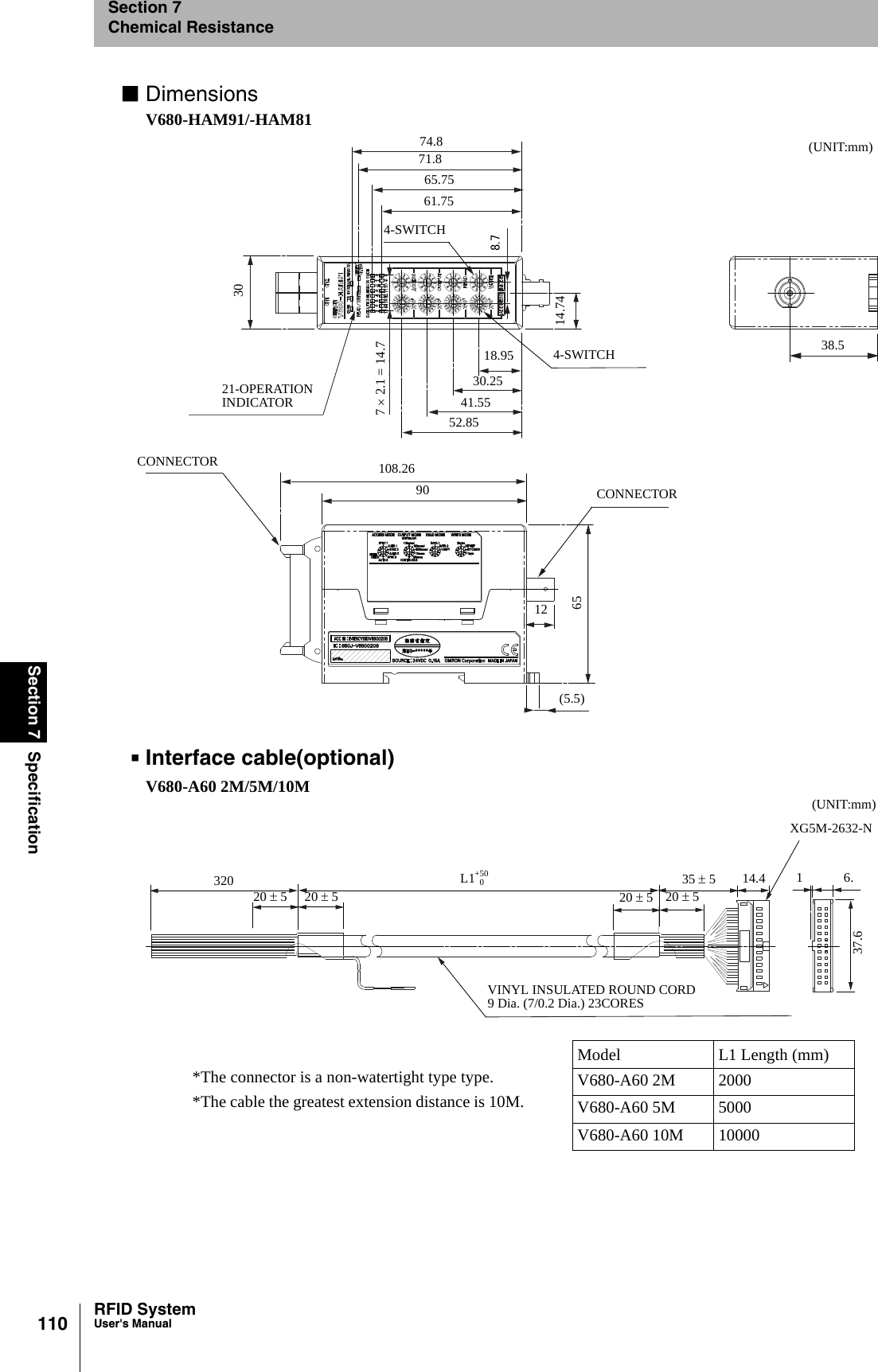

110Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical Resistance■DimensionsV680-HAM91/-HAM81Interface cable(optional)V680-A60 2M/5M/10M8.774.871.865.7561.754-SWITCH3014.7421-OPERATIONINDICATOR7 × 2.1 = 14.74-SWITCH18.9530.2541.5552.85108.2690CONNECTOR6512(5.5)38.5(UNIT:mm)CONNECTOR(UNIT:mm)320 20 ± 5 20 ± 5 20 ± 5 20 ± 535 ± 5 14.4 16.37.6XG5M-2632-NVINYL INSULATED ROUND CORD9 Dia. (7/0.2 Dia.) 23CORESL1 0+50Model L1 Length (mm)V680-A60 2M 2000V680-A60 5M 5000V680-A60 10M 10000*The connector is a non-watertight type type.*The cable the greatest extension distance is 10M.

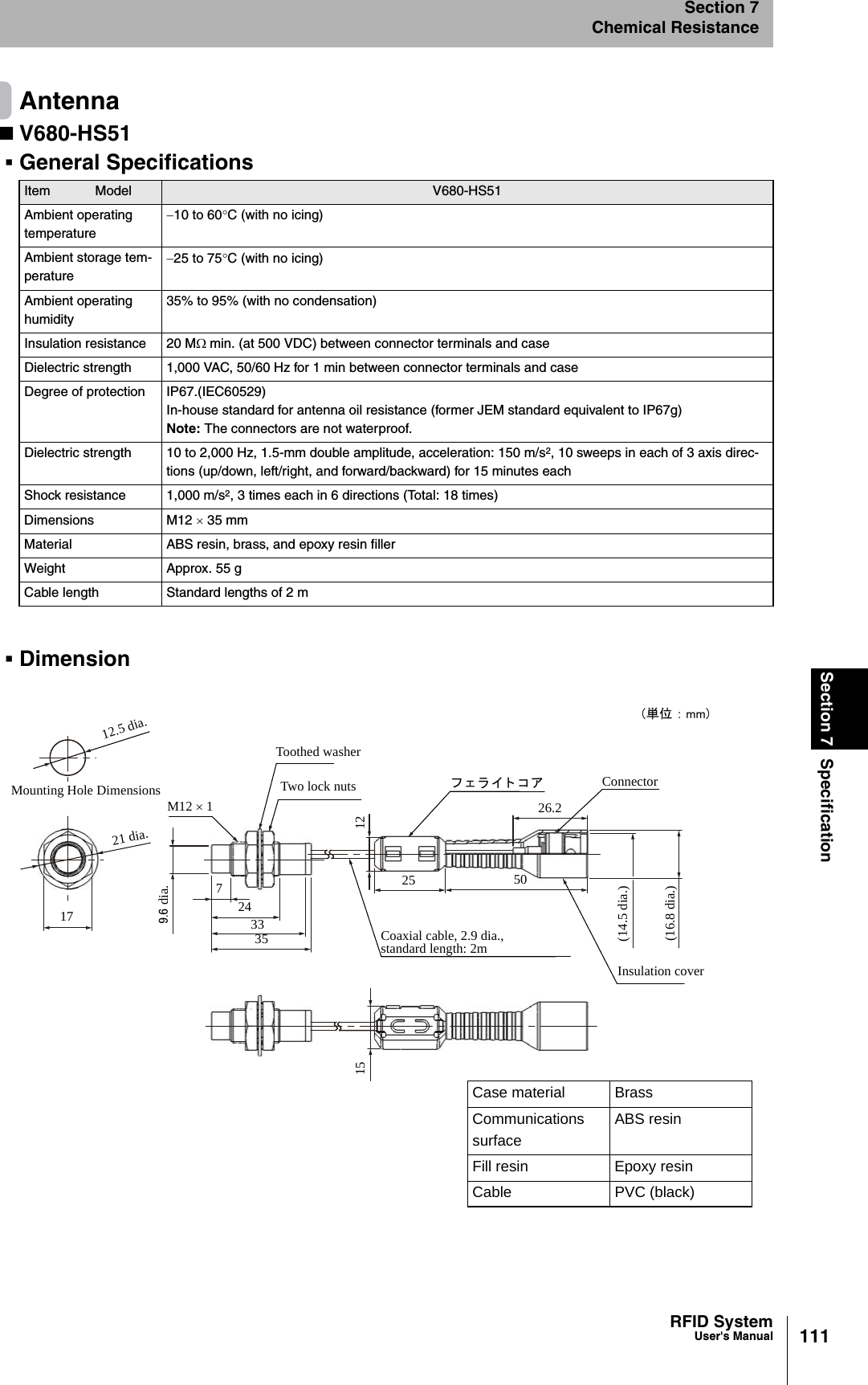

111RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceAntennaV680-HS51General SpecificationsDimensionItem Model V680-HS51Ambient operating temperature−10 to 60°C (with no icing)Ambient storage tem-perature−25 to 75°C (with no icing)Ambient operatinghumidity35% to 95% (with no condensation)Insulation resistance 20 MΩ min. (at 500 VDC) between connector terminals and caseDielectric strength 1,000 VAC, 50/60 Hz for 1 min between connector terminals and caseDegree of protection IP67.(IEC60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Note: The connectors are not waterproof.Dielectric strength 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s2, 10 sweeps in each of 3 axis direc-tions (up/down, left/right, and forward/backward) for 15 minutes eachShock resistance 1,000 m/s2, 3 times each in 6 directions (Total: 18 times)Dimensions M12 × 35 mmMaterial ABS resin, brass, and epoxy resin fillerWeight Approx. 55 gCable length Standard lengths of 2 mCase material BrassCommunicationssurfaceABS resinFill resin Epoxy resinCable PVC (black)17Mounting Hole Dimensions12.5 dia.21 dia.M12 × 1Toothed washerTwo lock nuts72433359.6 dia.1215(14.5 dia.)(16.8 dia.)フェライトコア ConnectorCoaxial cable, 2.9 dia., standard length: 2mInsulation cover25 5026.2(単位 : mm)

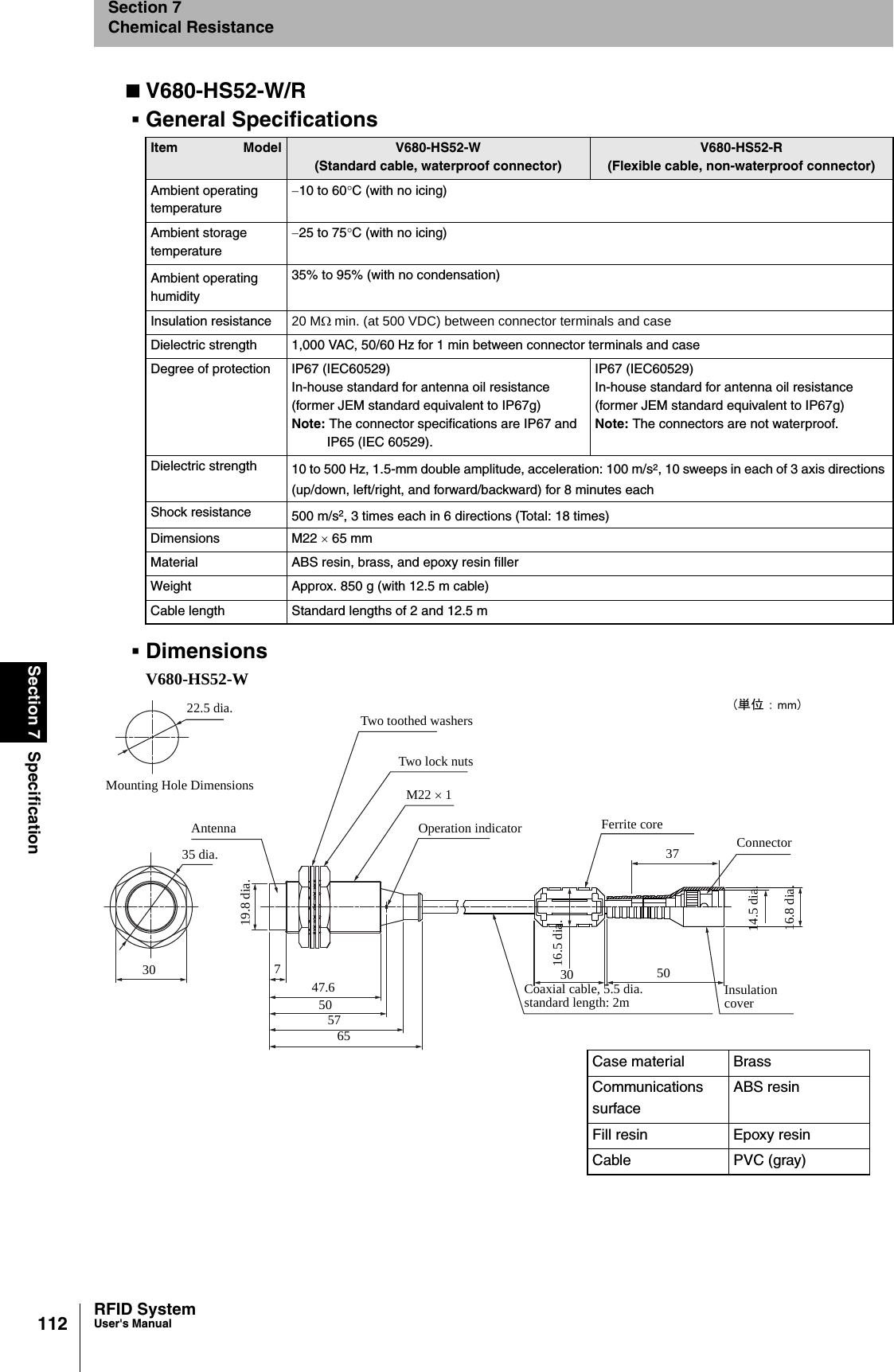

112Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceV680-HS52-W/RGeneral SpecificationsDimensionsV680-HS52-WItem Model V680-HS52-W(Standard cable, waterproof connector)V680-HS52-R(Flexible cable, non-waterproof connector)Ambient operating temperature−10 to 60°C (with no icing)Ambient storage temperature−25 to 75°C (with no icing)Ambient operatinghumidity35% to 95% (with no condensation)Insulation resistance 20 MΩ min. (at 500 VDC) between connector terminals and caseDielectric strength 1,000 VAC, 50/60 Hz for 1 min between connector terminals and caseDegree of protection IP67 (IEC60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Note: The connector specifications are IP67 and IP65 (IEC 60529).IP67 (IEC60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Note: The connectors are not waterproof.Dielectric strength 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s2, 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 8 minutes eachShock resistance 500 m/s2, 3 times each in 6 directions (Total: 18 times)Dimensions M22 × 65 mmMaterial ABS resin, brass, and epoxy resin fillerWeight Approx. 850 g (with 12.5 m cable)Cable length Standard lengths of 2 and 12.5 mCase material BrassCommunicationssurfaceABS resinFill resin Epoxy resinCable PVC (gray)22.5 dia.Mounting Hole DimensionsAntenna35 dia.30Two toothed washersTwo lock nutsM22 × 1Operation indicator Ferrite coreConnector37747.650576530 5019.8 dia.16.5 dia.14.5 dia.16.8 dia.Coaxial cable, 5.5 dia.standard length: 2m Insulationcover(単位 : mm)

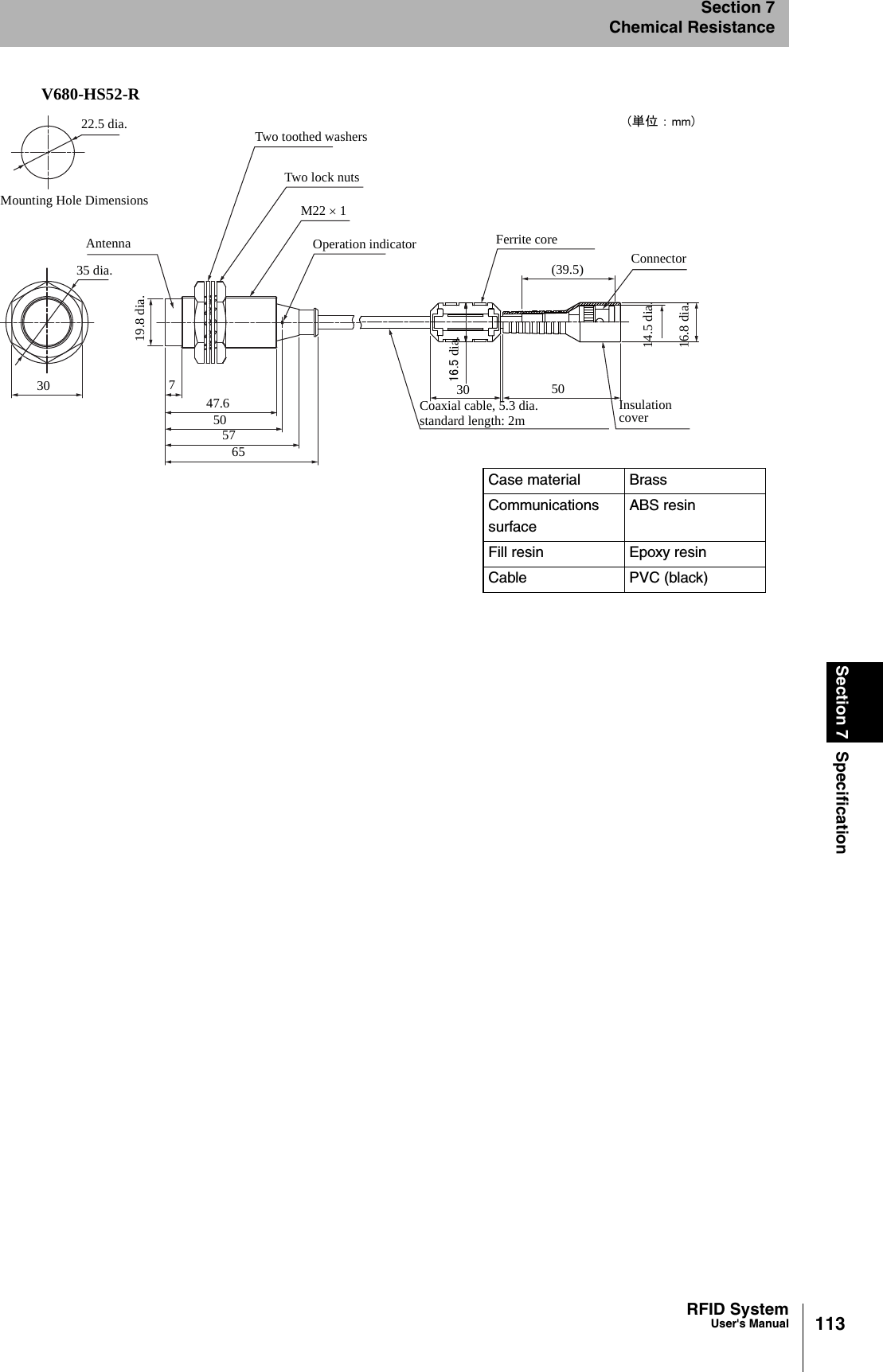

113RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceV680-HS52-RCase material BrassCommunicationssurfaceABS resinFill resin Epoxy resinCable PVC (black)22.5 dia.Mounting Hole DimensionsAntenna35 dia.30Two toothed washersTwo lock nutsM22 × 1Operation indicator Ferrite coreConnector(39.5)747.650576530 5019.8 dia.16.5 dia.14.5 dia.16.8 dia.Coaxial cable, 5.3 dia.standard length: 2m Insulationcover(単位 : mm)

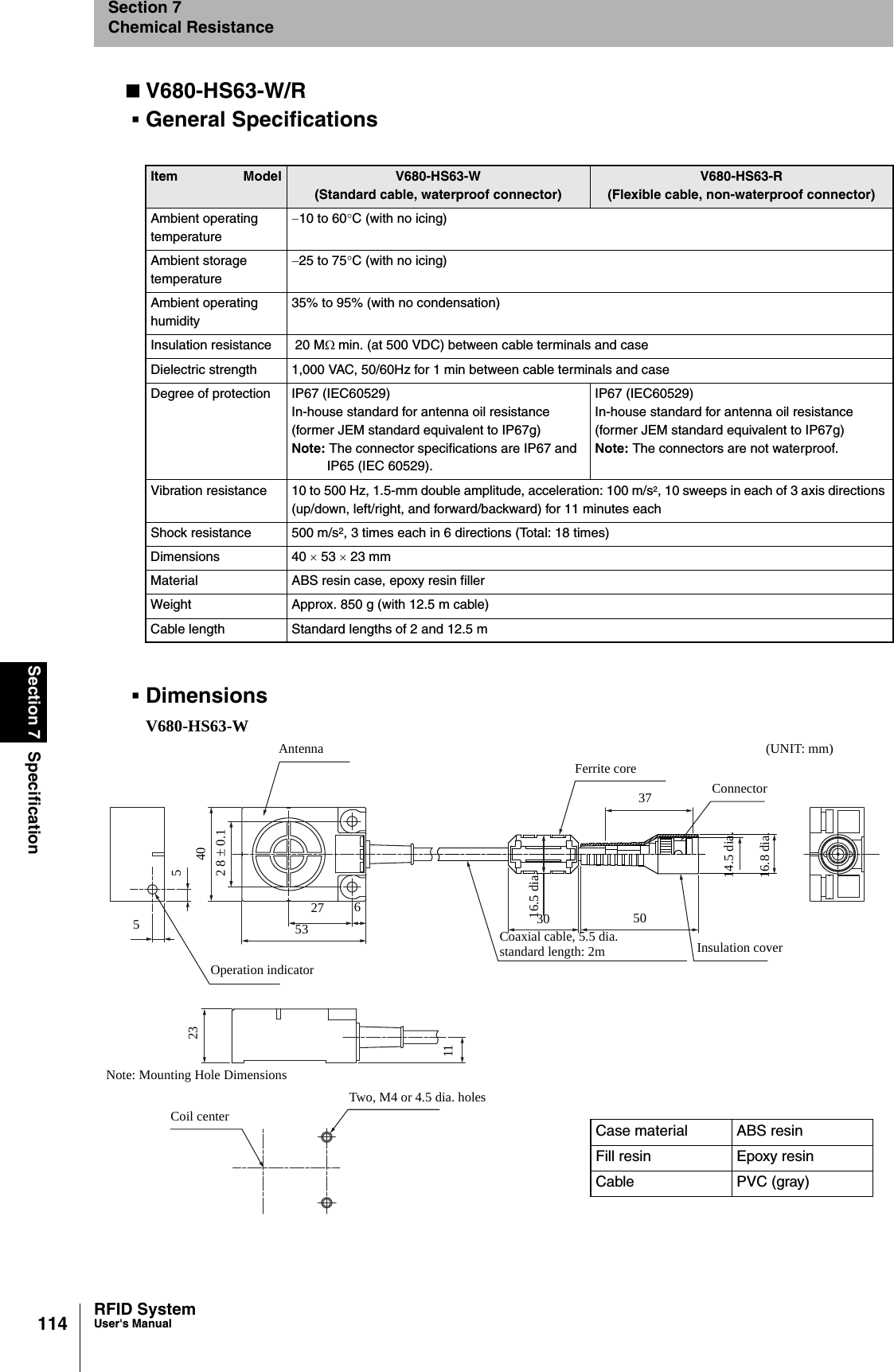

114Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceV680-HS63-W/RGeneral SpecificationsDimensionsV680-HS63-WItem Model V680-HS63-W(Standard cable, waterproof connector)V680-HS63-R(Flexible cable, non-waterproof connector)Ambient operating temperature−10 to 60°C (with no icing)Ambient storage temperature−25 to 75°C (with no icing)Ambient operating humidity35% to 95% (with no condensation)Insulation resistance  20 MΩ min. (at 500 VDC) between cable terminals and caseDielectric strength 1,000 VAC, 50/60Hz for 1 min between cable terminals and caseDegree of protection IP67 (IEC60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Note: The connector specifications are IP67 and IP65 (IEC 60529).IP67 (IEC60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Note: The connectors are not waterproof.Vibration resistance 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s2, 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes eachShock resistance 500 m/s2, 3 times each in 6 directions (Total: 18 times) Dimensions 40 × 53 × 23 mmMaterial ABS resin case, epoxy resin fillerWeight Approx. 850 g (with 12.5 m cable)Cable length Standard lengths of 2 and 12.5 mCase material ABS resinFill resin Epoxy resinCable PVC (gray)Note: Mounting Hole DimensionsAntenna406Operation indicatorFerrite coreConnector372753530 5016.5 dia.14.5 dia.16.8 dia.Coaxial cable, 5.5 dia.standard length: 2m Insulation cover52 8 ± 0.1Coil centerTwo, M4 or 4.5 dia. holes(UNIT: mm)2311

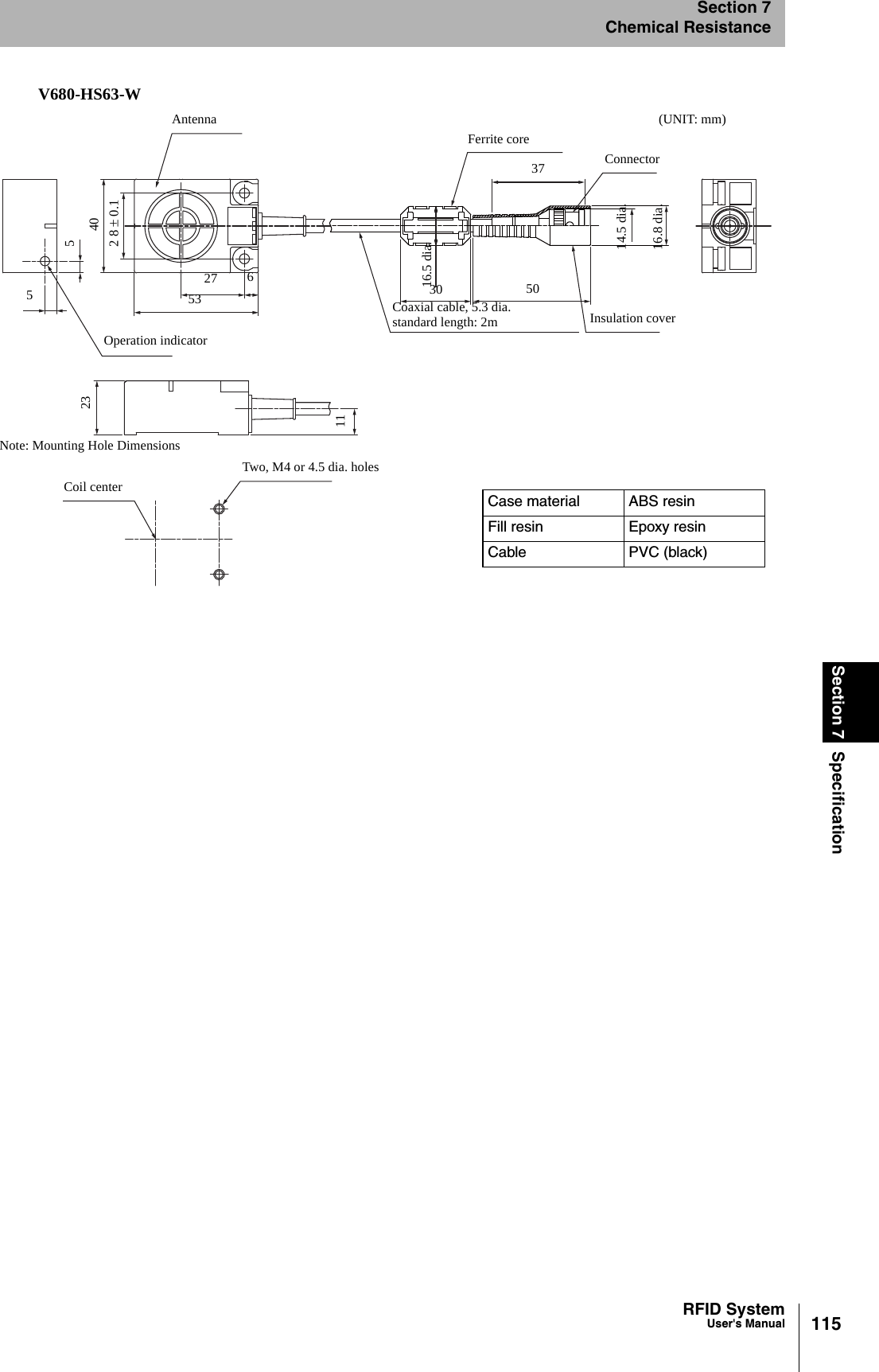

115RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceV680-HS63-WCase material ABS resinFill resin Epoxy resinCable PVC (black)Note: Mounting Hole DimensionsAntenna406Operation indicatorFerrite coreConnector372753530 5016.5 dia.14.5 dia.16.8 dia.Coaxial cable, 5.3 dia.standard length: 2m Insulation cover52 8 ± 0.1Coil centerTwo, M4 or 4.5 dia. holes(UNIT: mm)2311
116Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceV680-HS65-W/RGeneral SpecificationsDimensionsV680-HS65-WItem Model V680-HS65-W(Standard cable, waterproof connector)V680-HS65-R(Flexible cable, non-waterproof connector)Ambient operating temperature−25 to 70°C (with no icing)Ambient storage temperature−40 to 85°C (with no icing)Ambient operatinghumidity35% to 95% (with no condensation)Insulation resistance 20 MΩ min. (at 500 VDC) between connector terminals and caseDielectric strength 1,000 VAC, 50/60 Hz for 1 min between connector terminals and caseDegree of protection IP67 (IEC60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Note: The connector specifications are IP67 and IP65 (IEC 60529).IP67 (IEC60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Note: The connectors are not waterproof.Dielectric strength 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s2, 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes eachShock resistance 500 m/s2, 3 times each in 6 directions (Total: 18 times)Dimensions 100 × 100 × 30 mmMaterial ABS resin case, epoxy resin fillerWeight Approx. 1100 g (with 12.5 m cable)Cable length Standard lengths of 2 and 12.5 mCase material ABS resinFill resin Epoxy resinCable PVC (gray)100OperationindicatorFerrite coreConnector3710101430 5016.5 dia.14.5 dia.16.8 dia.Coaxial cable, 5.5 dia.standard length: 2m Insulationcover590 ± 0.2Bushing4-4.5 dia.(UNIT: mm)503020100590 ± 0.25011(Mounting holes)

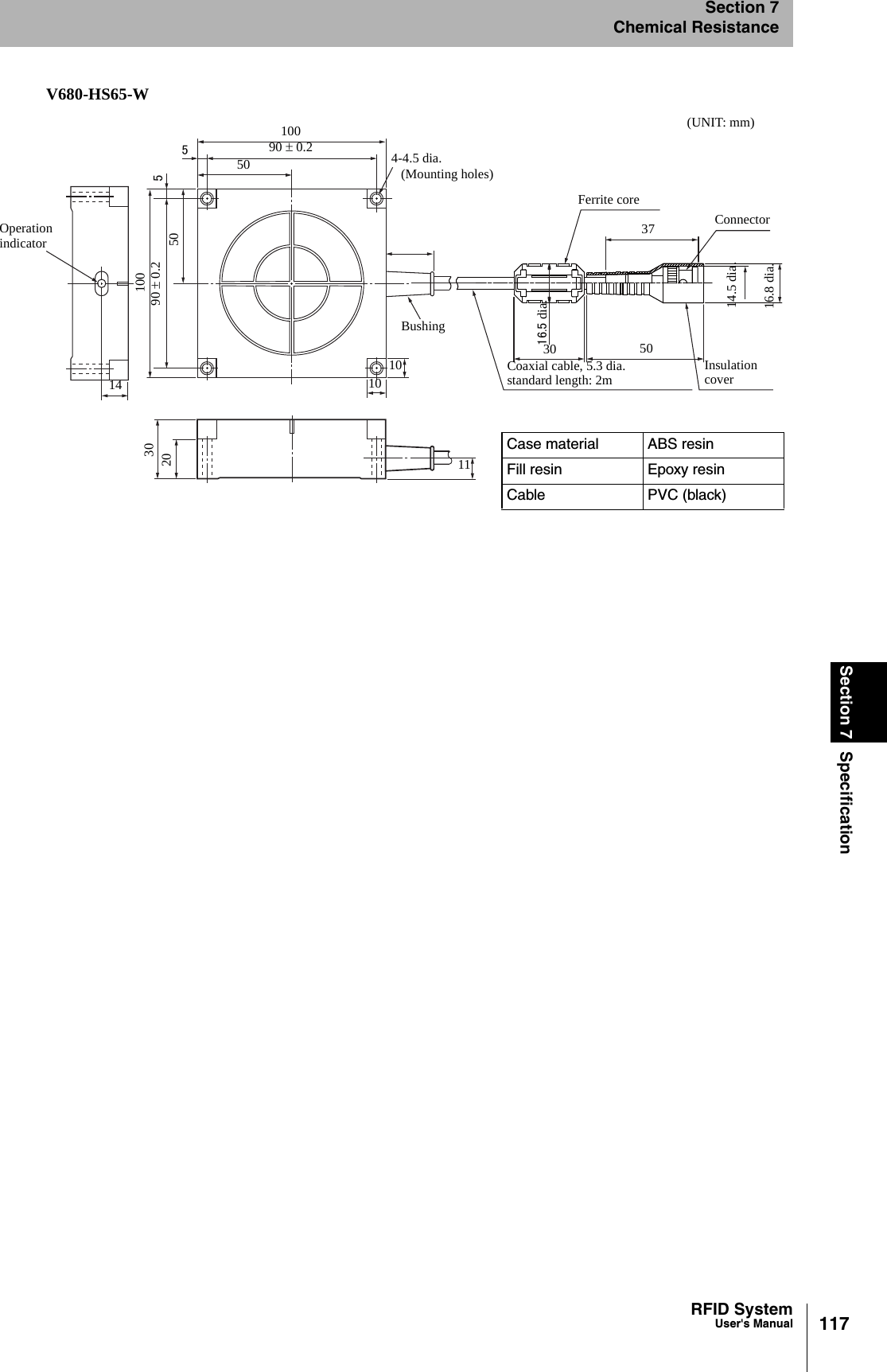

117RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceV680-HS65-WCase material ABS resinFill resin Epoxy resinCable PVC (black)100OperationindicatorFerrite coreConnector3710101430 5016.5 dia.14.5 dia.16.8 dia.Coaxial cable, 5.3 dia.standard length: 2m Insulationcover5Bushing4-4.5 dia.(UNIT: mm)503020100590 ± 0.25011(Mounting holes)90 ± 0.2

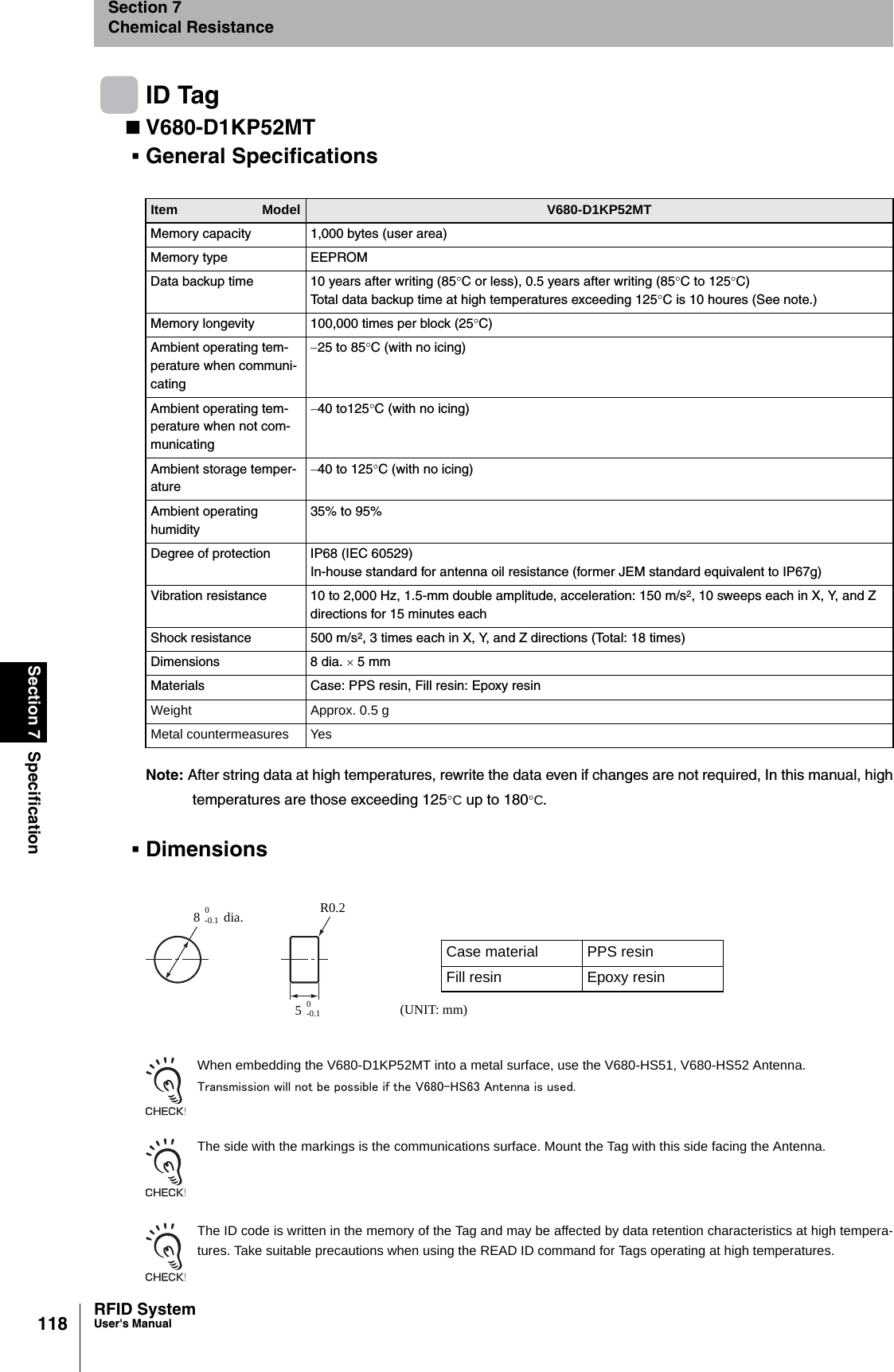

118Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceID TagV680-D1KP52MTGeneral SpecificationsNote: After string data at high temperatures, rewrite the data even if changes are not required, In this manual, hightemperatures are those exceeding 125°C up to 180°C.DimensionsWhen embedding the V680-D1KP52MT into a metal surface, use the V680-HS51, V680-HS52 Antenna.Transmission will not be possible if the V680-HS63 Antenna is used.The side with the markings is the communications surface. Mount the Tag with this side facing the Antenna.The ID code is written in the memory of the Tag and may be affected by data retention characteristics at high tempera-tures. Take suitable precautions when using the READ ID command for Tags operating at high temperatures.Item Model V680-D1KP52MTMemory capacity 1,000 bytes (user area)Memory type EEPROMData backup time 10 years after writing (85°C or less), 0.5 years after writing (85°C to 125°C)Total data backup time at high temperatures exceeding 125°C is 10 houres (See note.)Memory longevity 100,000 times per block (25°C)Ambient operating tem-perature when communi-cating−25 to 85°C (with no icing)Ambient operating tem-perature when not com-municating−40 to125°C (with no icing)Ambient storage temper-ature−40 to 125°C (with no icing)Ambient operating humidity35% to 95%Degree of protection IP68 (IEC 60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s2, 10 sweeps each in X, Y, and Z directions for 15 minutes eachShock resistance 500 m/s2, 3 times each in X, Y, and Z directions (Total: 18 times)Dimensions 8 dia. × 5 mmMaterials Case: PPS resin, Fill resin: Epoxy resinWeight Approx. 0.5 gMetal countermeasures YesCase material PPS resinFill resin Epoxy resin8R0.20-0.150-0.1 (UNIT: mm)dia.

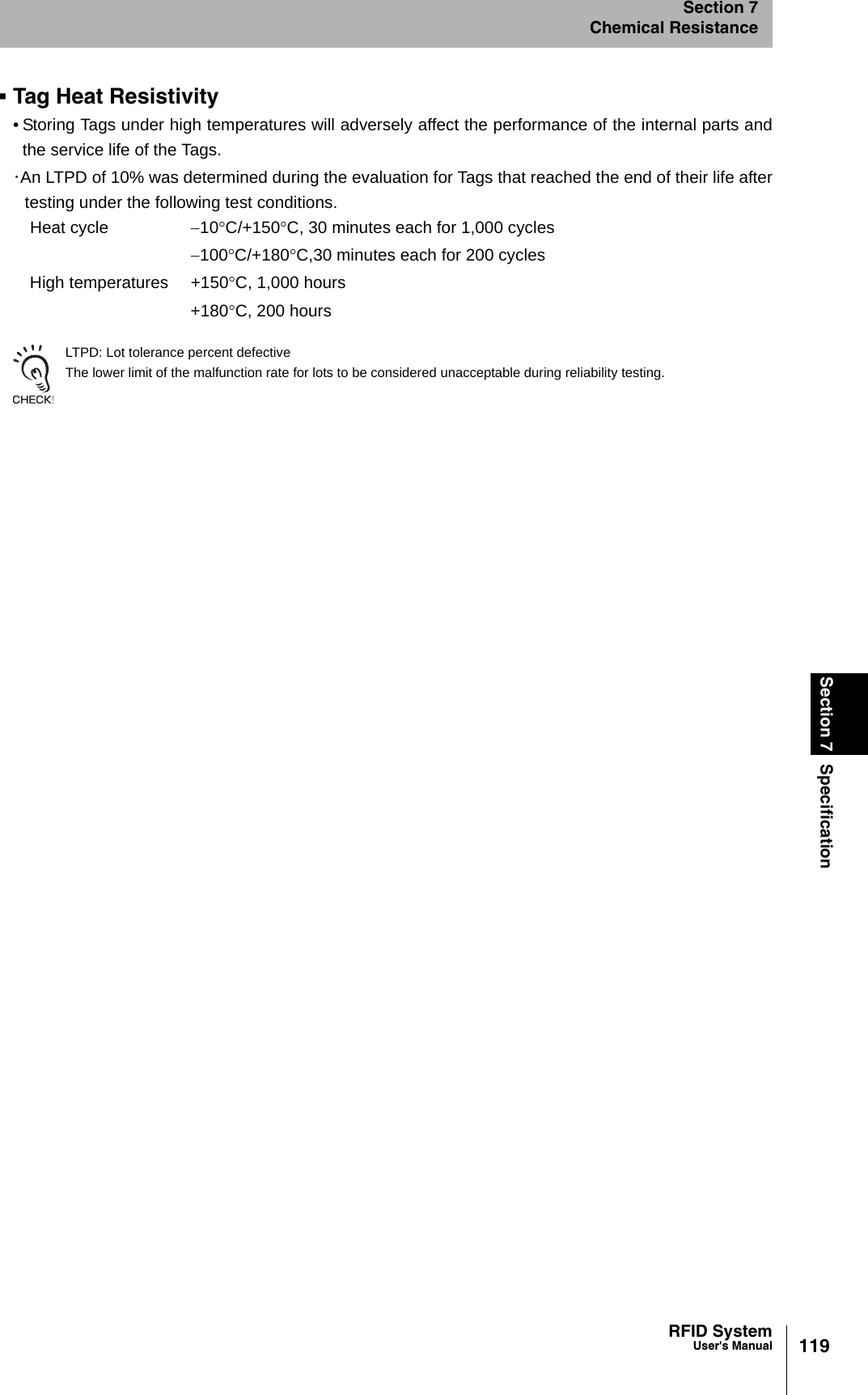

119RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceTag Heat Resistivity• Storing Tags under high temperatures will adversely affect the performance of the internal parts andthe service life of the Tags.・An LTPD of 10% was determined during the evaluation for Tags that reached the end of their life aftertesting under the following test conditions.LTPD: Lot tolerance percent defectiveThe lower limit of the malfunction rate for lots to be considered unacceptable during reliability testing.Heat cycle −10°C/+150°C, 30 minutes each for 1,000 cycles−100°C/+180°C,30 minutes each for 200 cyclesHigh temperatures +150°C, 1,000 hours+180°C, 200 hours

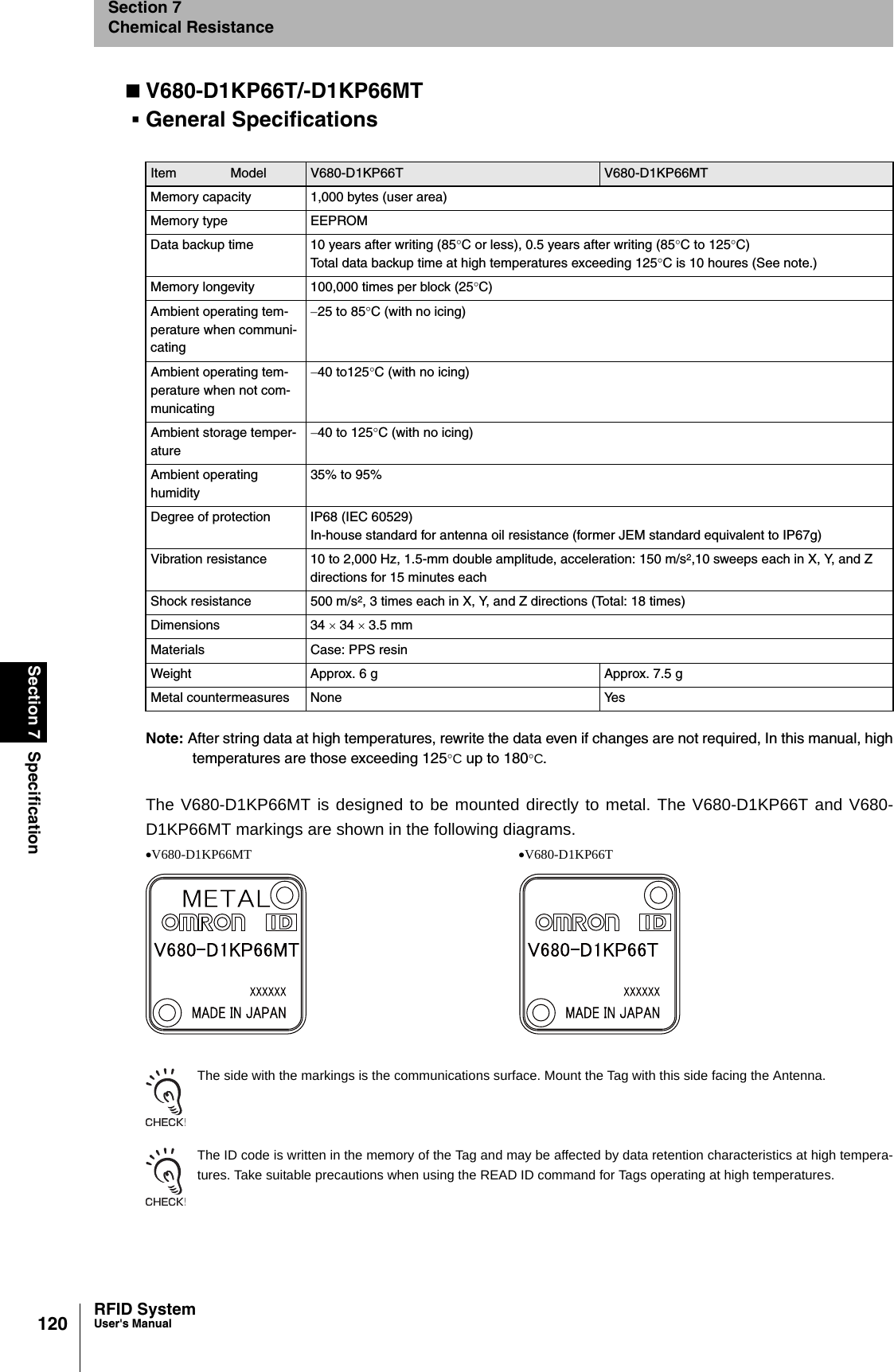

120Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceV680-D1KP66T/-D1KP66MTGeneral SpecificationsNote: After string data at high temperatures, rewrite the data even if changes are not required, In this manual, hightemperatures are those exceeding 125°C up to 180°C.The V680-D1KP66MT is designed to be mounted directly to metal. The V680-D1KP66T and V680-D1KP66MT markings are shown in the following diagrams.The side with the markings is the communications surface. Mount the Tag with this side facing the Antenna.The ID code is written in the memory of the Tag and may be affected by data retention characteristics at high tempera-tures. Take suitable precautions when using the READ ID command for Tags operating at high temperatures.Item Model V680-D1KP66T V680-D1KP66MTMemory capacity 1,000 bytes (user area)Memory type EEPROMData backup time 10 years after writing (85°C or less), 0.5 years after writing (85°C to 125°C)Total data backup time at high temperatures exceeding 125°C is 10 houres (See note.)Memory longevity 100,000 times per block (25°C)Ambient operating tem-perature when communi-cating−25 to 85°C (with no icing)Ambient operating tem-perature when not com-municating−40 to125°C (with no icing)Ambient storage temper-ature−40 to 125°C (with no icing)Ambient operating humidity35% to 95%Degree of protection IP68 (IEC 60529)In-house standard for antenna oil resistance (former JEM standard equivalent to IP67g)Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s2,10 sweeps each in X, Y, and Z directions for 15 minutes eachShock resistance 500 m/s2, 3 times each in X, Y, and Z directions (Total: 18 times)Dimensions 34 × 34 × 3.5 mmMaterials Case: PPS resin Weight Approx. 6 g Approx. 7.5 gMetal countermeasures None Yes•V680-D1KP66MT •V680-D1KP66T

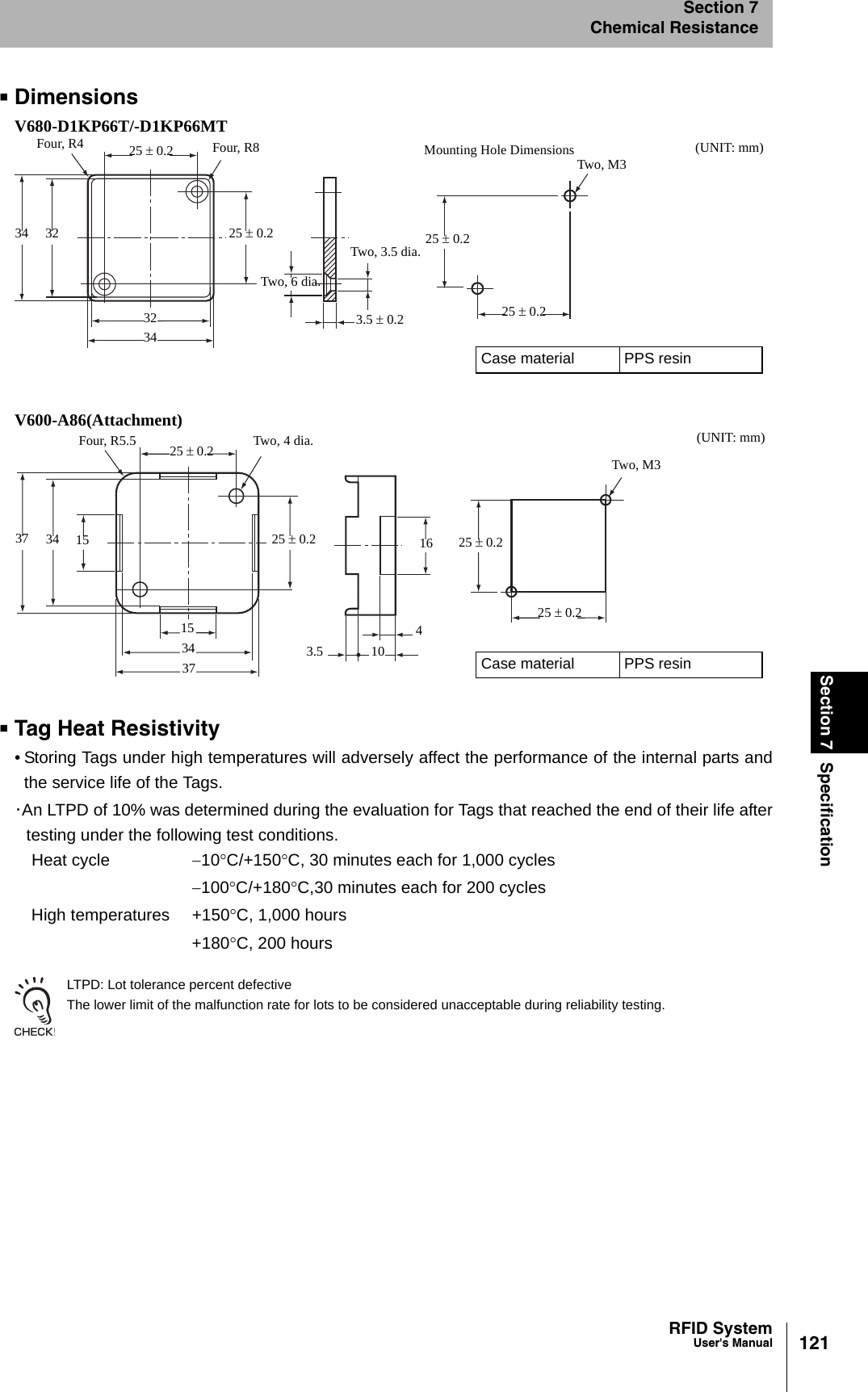

121RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceDimensionsV680-D1KP66T/-D1KP66MTV600-A86(Attachment)Tag Heat Resistivity• Storing Tags under high temperatures will adversely affect the performance of the internal parts andthe service life of the Tags.・An LTPD of 10% was determined during the evaluation for Tags that reached the end of their life aftertesting under the following test conditions.LTPD: Lot tolerance percent defectiveThe lower limit of the malfunction rate for lots to be considered unacceptable during reliability testing.Heat cycle −10°C/+150°C, 30 minutes each for 1,000 cycles−100°C/+180°C,30 minutes each for 200 cyclesHigh temperatures +150°C, 1,000 hours+180°C, 200 hoursCase material PPS resin34 323432Four, R4 25 ± 0.225 ± 0.2Four, R83.5 ± 0.2Two, 6 dia.Two, 3.5 dia. 25 ± 0.225 ± 0.2Two, M3Mounting Hole Dimensions (UNIT: mm)Case material PPS resin37 34 1537341525 ± 0.225 ± 0.2Four, R5.5 Two, 4 dia.161025 ± 0.225 ± 0.2Two, M33.54(UNIT: mm)

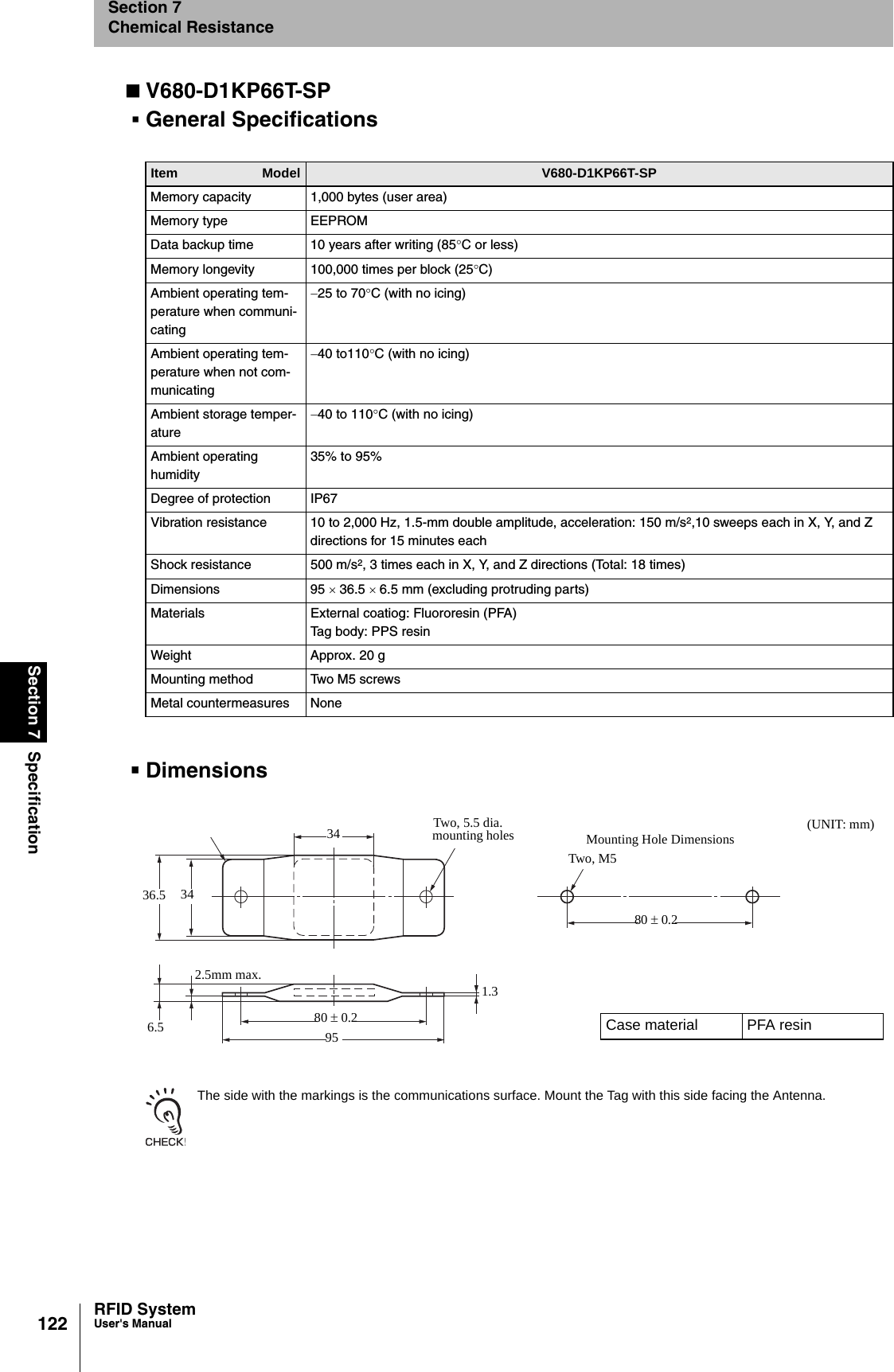

122Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceV680-D1KP66T-SPGeneral SpecificationsDimensionsThe side with the markings is the communications surface. Mount the Tag with this side facing the Antenna.Item Model V680-D1KP66T-SPMemory capacity 1,000 bytes (user area)Memory type EEPROMData backup time 10 years after writing (85°C or less)Memory longevity 100,000 times per block (25°C)Ambient operating tem-perature when communi-cating−25 to 70°C (with no icing)Ambient operating tem-perature when not com-municating−40 to110°C (with no icing)Ambient storage temper-ature−40 to 110°C (with no icing)Ambient operating humidity35% to 95%Degree of protection IP67Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s2,10 sweeps each in X, Y, and Z directions for 15 minutes eachShock resistance 500 m/s2, 3 times each in X, Y, and Z directions (Total: 18 times)Dimensions 95 × 36.5 × 6.5 mm (excluding protruding parts)Materials External coatiog: Fluororesin (PFA)Tag body: PPS resinWeight Approx. 20 gMounting method Two M5 screwsMetal countermeasures None(UNIT: mm)Case material PFA resinTwo, M580 ± 0.2Mounting Hole DimensionsTwo, 5.5 dia.mounting holes80 ± 0.295343436.56.52.5mm max.1.3

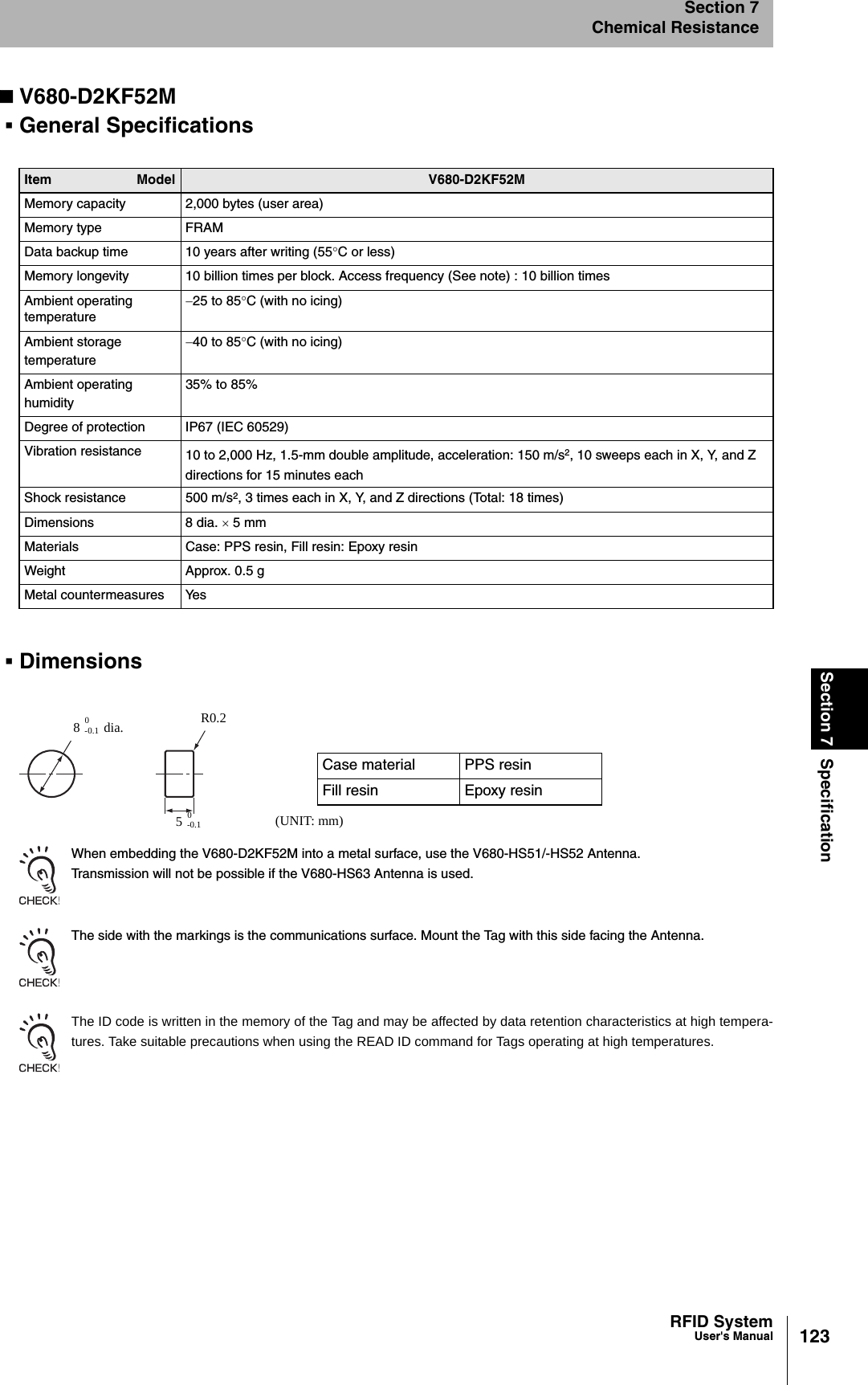

123RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceV680-D2KF52MGeneral SpecificationsDimensionsWhen embedding the V680-D2KF52M into a metal surface, use the V680-HS51/-HS52 Antenna.Transmission will not be possible if the V680-HS63 Antenna is used.The side with the markings is the communications surface. Mount the Tag with this side facing the Antenna.The ID code is written in the memory of the Tag and may be affected by data retention characteristics at high tempera-tures. Take suitable precautions when using the READ ID command for Tags operating at high temperatures.Item Model V680-D2KF52MMemory capacity 2,000 bytes (user area)Memory type FRAMData backup time 10 years after writing (55°C or less)Memory longevity 10 billion times per block. Access frequency (See note) : 10 billion timesAmbient operating temperature−25 to 85°C (with no icing)Ambient storage temperature−40 to 85°C (with no icing)Ambient operating humidity35% to 85%Degree of protection IP67 (IEC 60529)Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s2, 10 sweeps each in X, Y, and Z directions for 15 minutes eachShock resistance 500 m/s2, 3 times each in X, Y, and Z directions (Total: 18 times)Dimensions 8 dia. × 5 mmMaterials Case: PPS resin, Fill resin: Epoxy resinWeight Approx. 0.5 gMetal countermeasures YesCase material PPS resinFill resin Epoxy resin8R0.20-0.150-0.1 (UNIT: mm)dia.

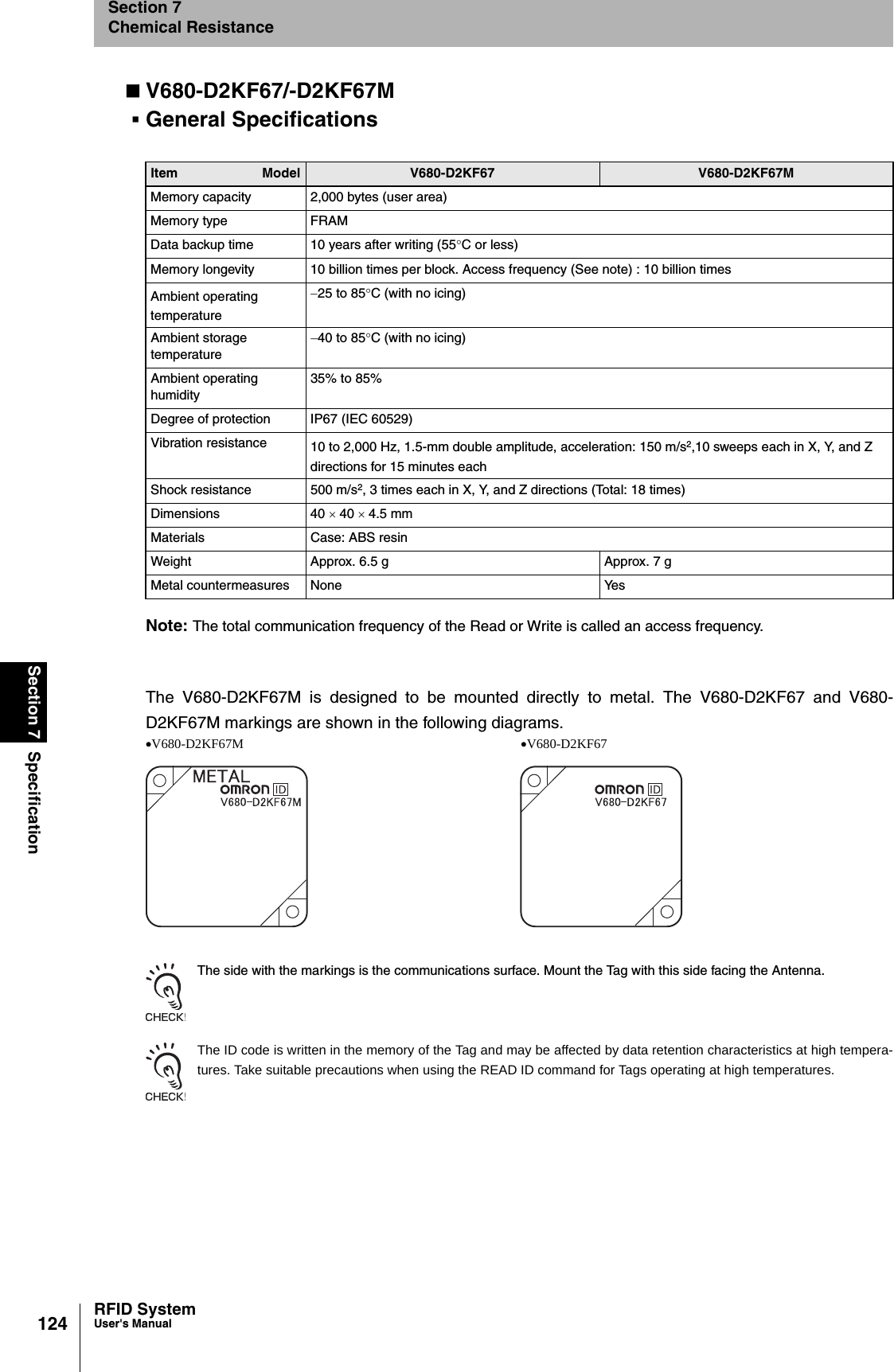

124Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceV680-D2KF67/-D2KF67MGeneral SpecificationsNote: The total communication frequency of the Read or Write is called an access frequency.The V680-D2KF67M is designed to be mounted directly to metal. The V680-D2KF67 and V680-D2KF67M markings are shown in the following diagrams.The side with the markings is the communications surface. Mount the Tag with this side facing the Antenna.The ID code is written in the memory of the Tag and may be affected by data retention characteristics at high tempera-tures. Take suitable precautions when using the READ ID command for Tags operating at high temperatures.Item Model V680-D2KF67 V680-D2KF67MMemory capacity 2,000 bytes (user area)Memory type FRAMData backup time 10 years after writing (55°C or less)Memory longevity 10 billion times per block. Access frequency (See note) : 10 billion timesAmbient operating temperature−25 to 85°C (with no icing)Ambient storage temperature−40 to 85°C (with no icing)Ambient operating humidity35% to 85%Degree of protection IP67 (IEC 60529)Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s2,10 sweeps each in X, Y, and Z directions for 15 minutes eachShock resistance 500 m/s2, 3 times each in X, Y, and Z directions (Total: 18 times)Dimensions 40 × 40 × 4.5 mmMaterials Case: ABS resin Weight Approx. 6.5 g Approx. 7 gMetal countermeasures None Yes•V680-D2KF67M •V680-D2KF67

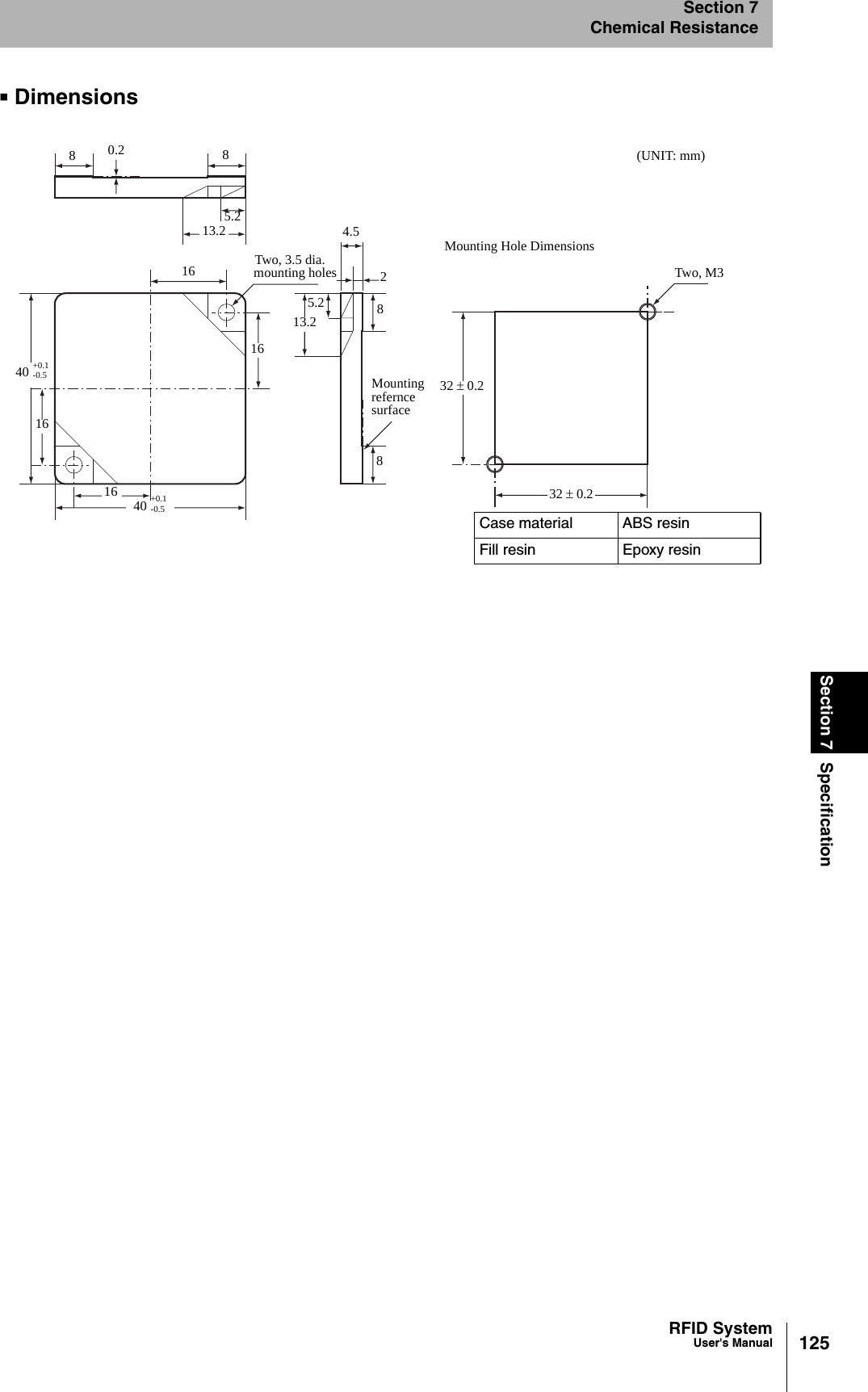

125RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceDimensionsCase material ABS resinFill resin Epoxy resin(UNIT: mm)880.25.213.21616161640 +0.1-0.540 +0.1-0.5Two, 3.5 dia.mounting holes4.5285.213.28Mountingreferncesurface32 ± 0.232 ± 0.2Mounting Hole DimensionsTwo, M3

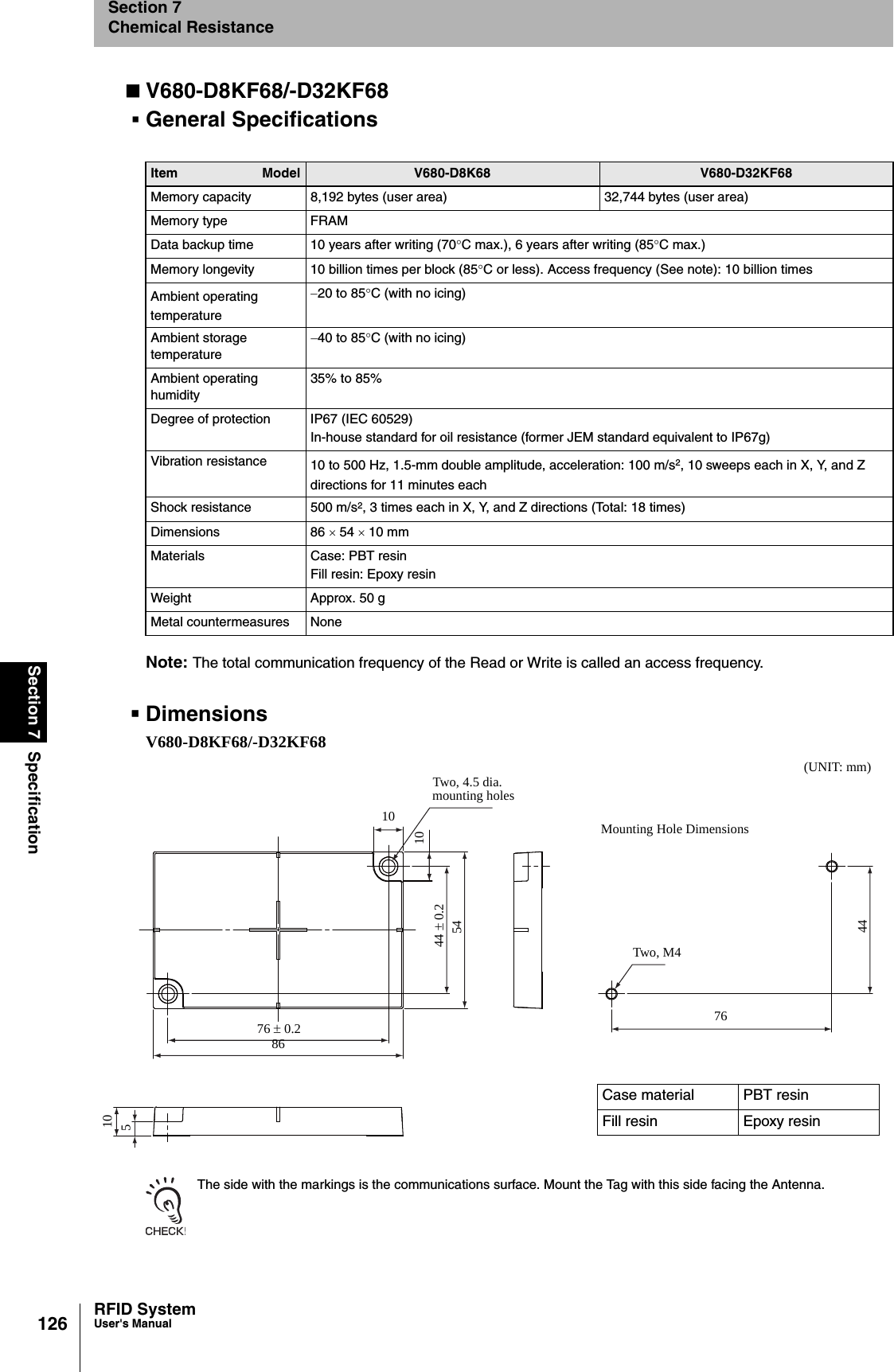

126Section 7 SpecificationRFID SystemUser's ManualSection 7Chemical ResistanceV680-D8KF68/-D32KF68General SpecificationsNote: The total communication frequency of the Read or Write is called an access frequency.DimensionsV680-D8KF68/-D32KF68The side with the markings is the communications surface. Mount the Tag with this side facing the Antenna.Item Model V680-D8K68 V680-D32KF68Memory capacity 8,192 bytes (user area) 32,744 bytes (user area)Memory type FRAMData backup time 10 years after writing (70°C max.), 6 years after writing (85°C max.)Memory longevity 10 billion times per block (85°C or less). Access frequency (See note): 10 billion timesAmbient operating temperature−20 to 85°C (with no icing)Ambient storage temperature−40 to 85°C (with no icing)Ambient operating humidity35% to 85%Degree of protection IP67 (IEC 60529)In-house standard for oil resistance (former JEM standard equivalent to IP67g)Vibration resistance 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s2, 10 sweeps each in X, Y, and Z directions for 11 minutes eachShock resistance 500 m/s2, 3 times each in X, Y, and Z directions (Total: 18 times)Dimensions 86 × 54 × 10 mmMaterials Case: PBT resinFill resin: Epoxy resinWeight Approx. 50 gMetal countermeasures NoneCase material PBT resinFill resin Epoxy resinTwo, 4.5 dia. (UNIT: mm)mounting holes101044 ± 0.25476 ± 0.286Mounting Hole DimensionsTwo, M44476105

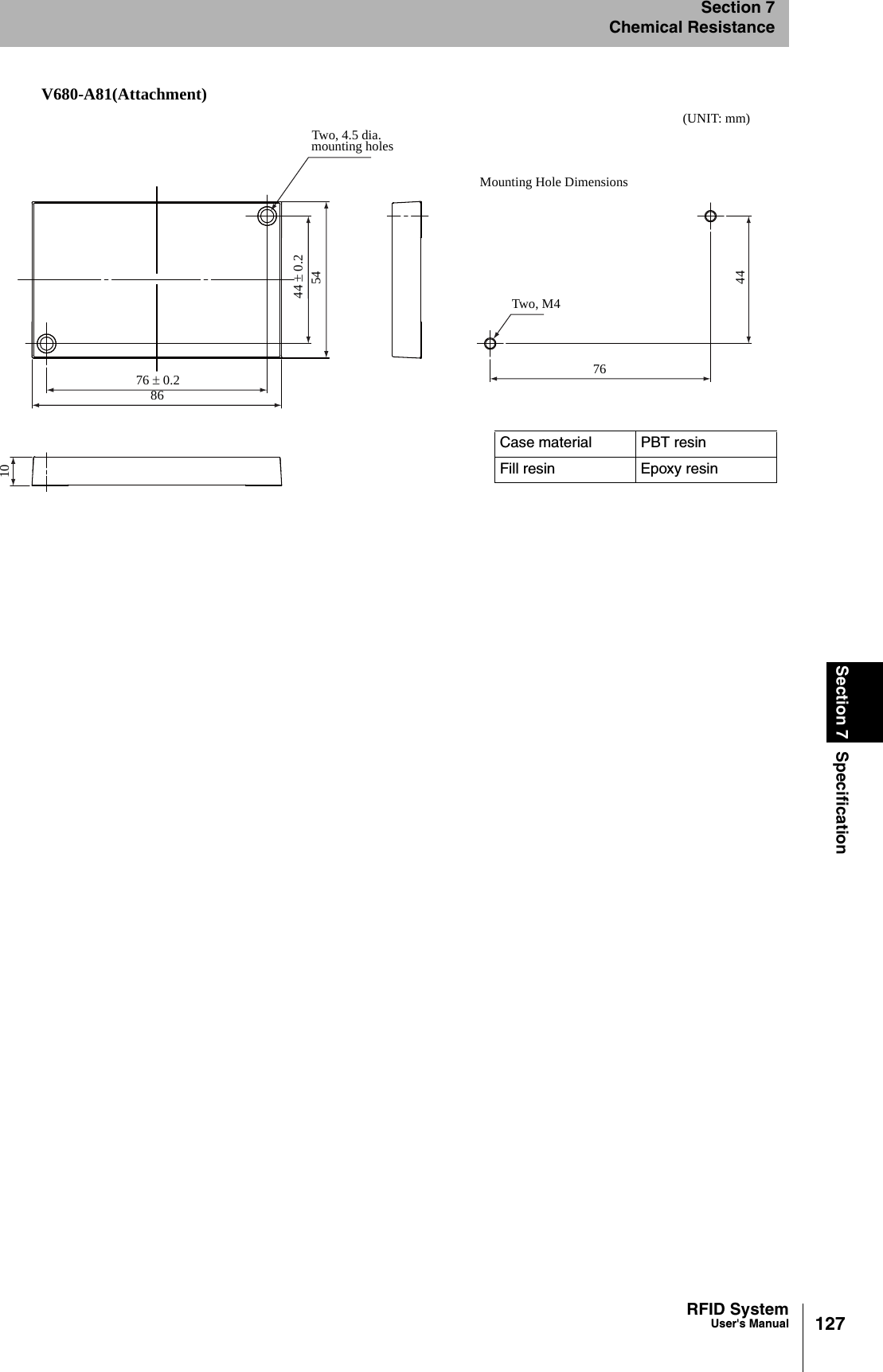

127RFID SystemUser's ManualSection 7 SpecificationSection 7Chemical ResistanceV680-A81(Attachment)Case material PBT resinFill resin Epoxy resinTwo, 4.5 dia.(UNIT: mm)mounting holes44 ± 0.25476 ± 0.286Mounting Hole DimensionsTwo, M4447610

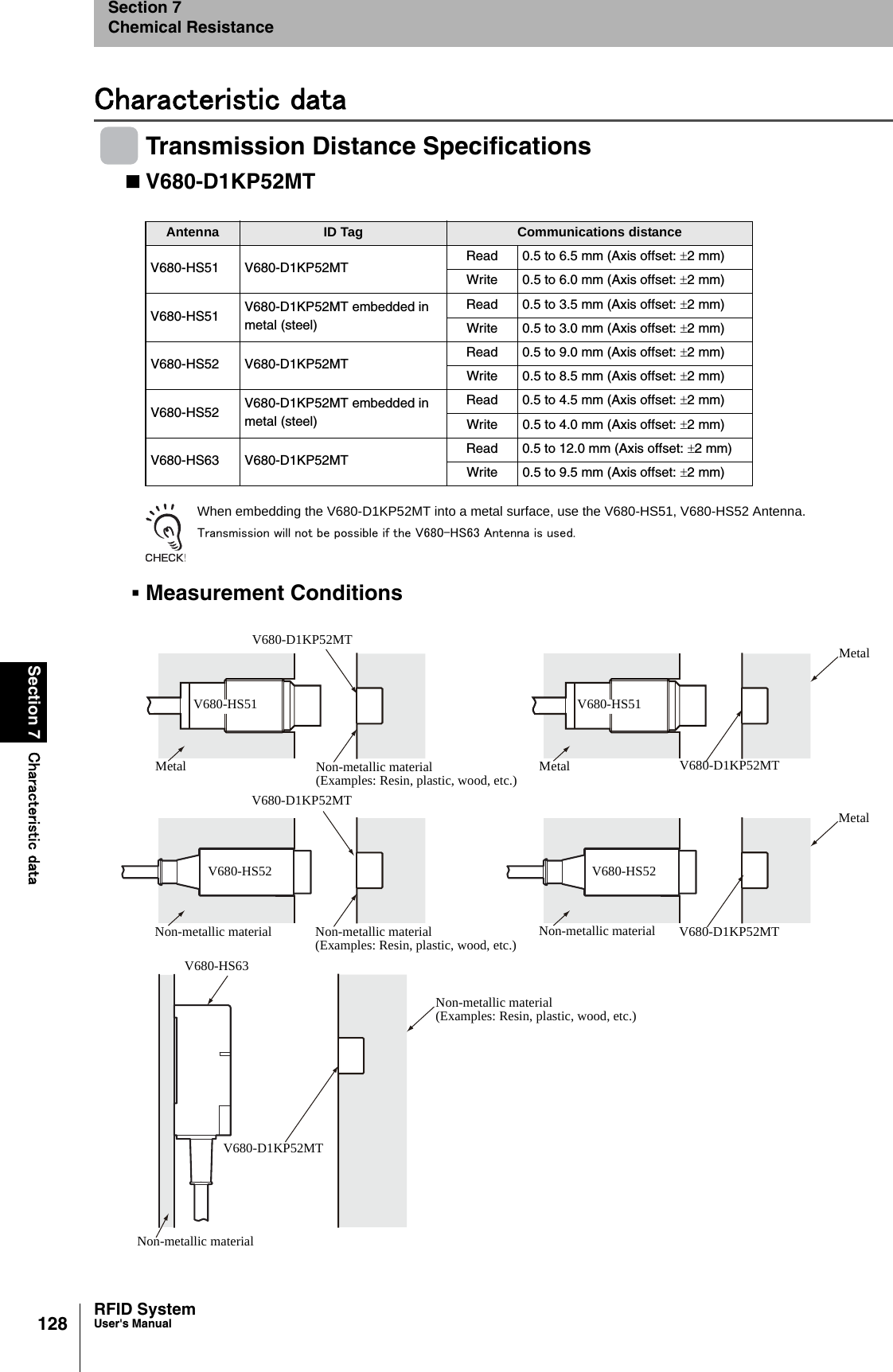

128Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceCharacteristic dataTransmission Distance SpecificationsV680-D1KP52MTWhen embedding the V680-D1KP52MT into a metal surface, use the V680-HS51, V680-HS52 Antenna.Transmission will not be possible if the V680-HS63 Antenna is used.Measurement ConditionsAntenna ID Tag Communications distanceV680-HS51 V680-D1KP52MT Read 0.5 to 6.5 mm (Axis offset: ±2 mm)Write 0.5 to 6.0 mm (Axis offset: ±2 mm)V680-HS51 V680-D1KP52MT embedded in metal (steel)Read 0.5 to 3.5 mm (Axis offset: ±2 mm)Write 0.5 to 3.0 mm (Axis offset: ±2 mm)V680-HS52 V680-D1KP52MT Read 0.5 to 9.0 mm (Axis offset: ±2 mm)Write 0.5 to 8.5 mm (Axis offset: ±2 mm)V680-HS52 V680-D1KP52MT embedded in metal (steel)Read 0.5 to 4.5 mm (Axis offset: ±2 mm)Write 0.5 to 4.0 mm (Axis offset: ±2 mm)V680-HS63 V680-D1KP52MT Read 0.5 to 12.0 mm (Axis offset: ±2 mm)Write 0.5 to 9.5 mm (Axis offset: ±2 mm)V680-HS51V680-D1KP52MTNon-metallic material(Examples: Resin, plastic, wood, etc.)MetalV680-HS52V680-D1KP52MTNon-metallic material(Examples: Resin, plastic, wood, etc.)Non-metallic materialV680-HS51V680-D1KP52MTMetalV680-HS52V680-D1KP52MTNon-metallic materialMetalMetalV680-HS63V680-D1KP52MTNon-metallic material(Examples: Resin, plastic, wood, etc.)Non-metallic material

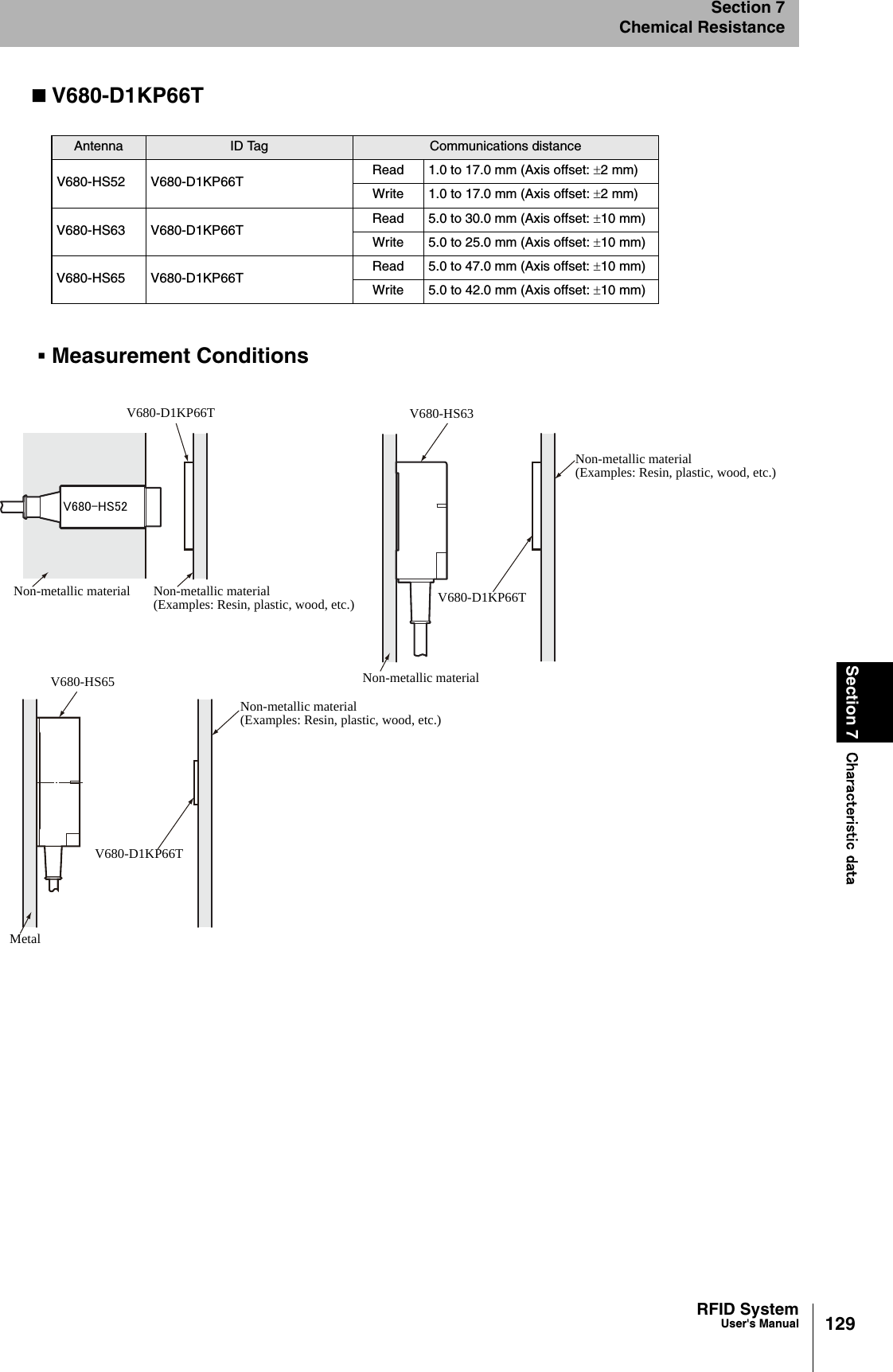

129RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D1KP66TMeasurement ConditionsAntenna ID Tag Communications distanceV680-HS52 V680-D1KP66T Read 1.0 to 17.0 mm (Axis offset: ±2 mm)Write 1.0 to 17.0 mm (Axis offset: ±2 mm)V680-HS63 V680-D1KP66T Read 5.0 to 30.0 mm (Axis offset: ±10 mm)Write 5.0 to 25.0 mm (Axis offset: ±10 mm)V680-HS65 V680-D1KP66T Read 5.0 to 47.0 mm (Axis offset: ±10 mm)Write 5.0 to 42.0 mm (Axis offset: ±10 mm)V680-D1KP66TNon-metallic material(Examples: Resin, plastic, wood, etc.)V680-HS52Non-metallic material(Examples: Resin, plastic, wood, etc.)Non-metallic materialV680-HS63Non-metallic material(Examples: Resin, plastic, wood, etc.)MetalV680-D1KP66TNon-metallic materialV680-D1KP66TV680-HS65

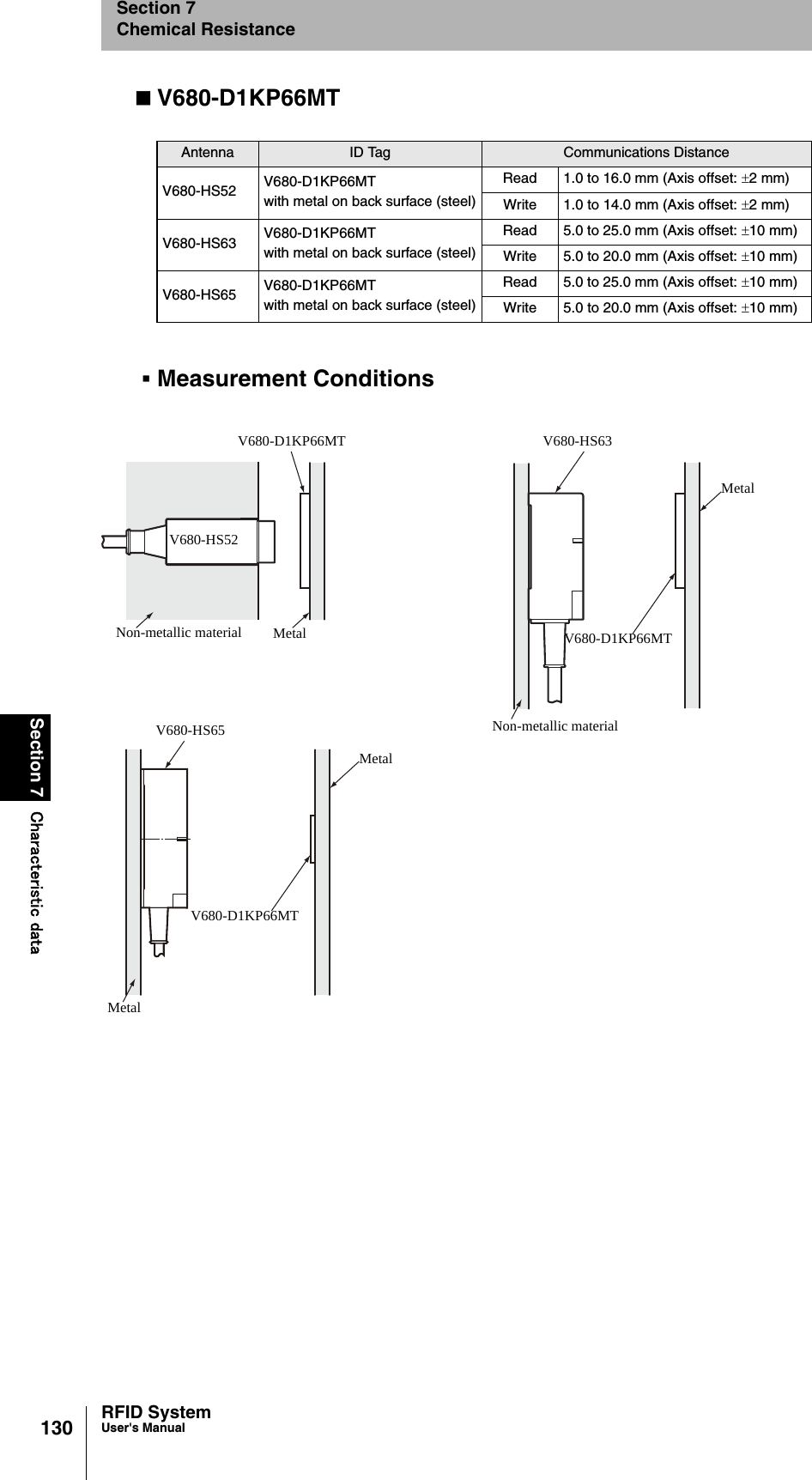

130Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D1KP66MTMeasurement ConditionsAntenna ID Tag Communications DistanceV680-HS52 V680-D1KP66MTwith metal on back surface (steel)Read 1.0 to 16.0 mm (Axis offset: ±2 mm)Write 1.0 to 14.0 mm (Axis offset: ±2 mm)V680-HS63 V680-D1KP66MTwith metal on back surface (steel)Read 5.0 to 25.0 mm (Axis offset: ±10 mm)Write 5.0 to 20.0 mm (Axis offset: ±10 mm)V680-HS65 V680-D1KP66MTwith metal on back surface (steel)Read 5.0 to 25.0 mm (Axis offset: ±10 mm)Write 5.0 to 20.0 mm (Axis offset: ±10 mm)V680-D1KP66MTV680-HS52Non-metallic materialV680-HS63MetalV680-D1KP66MTNon-metallic materialV680-D1KP66MTV680-HS65MetalMetalMetal

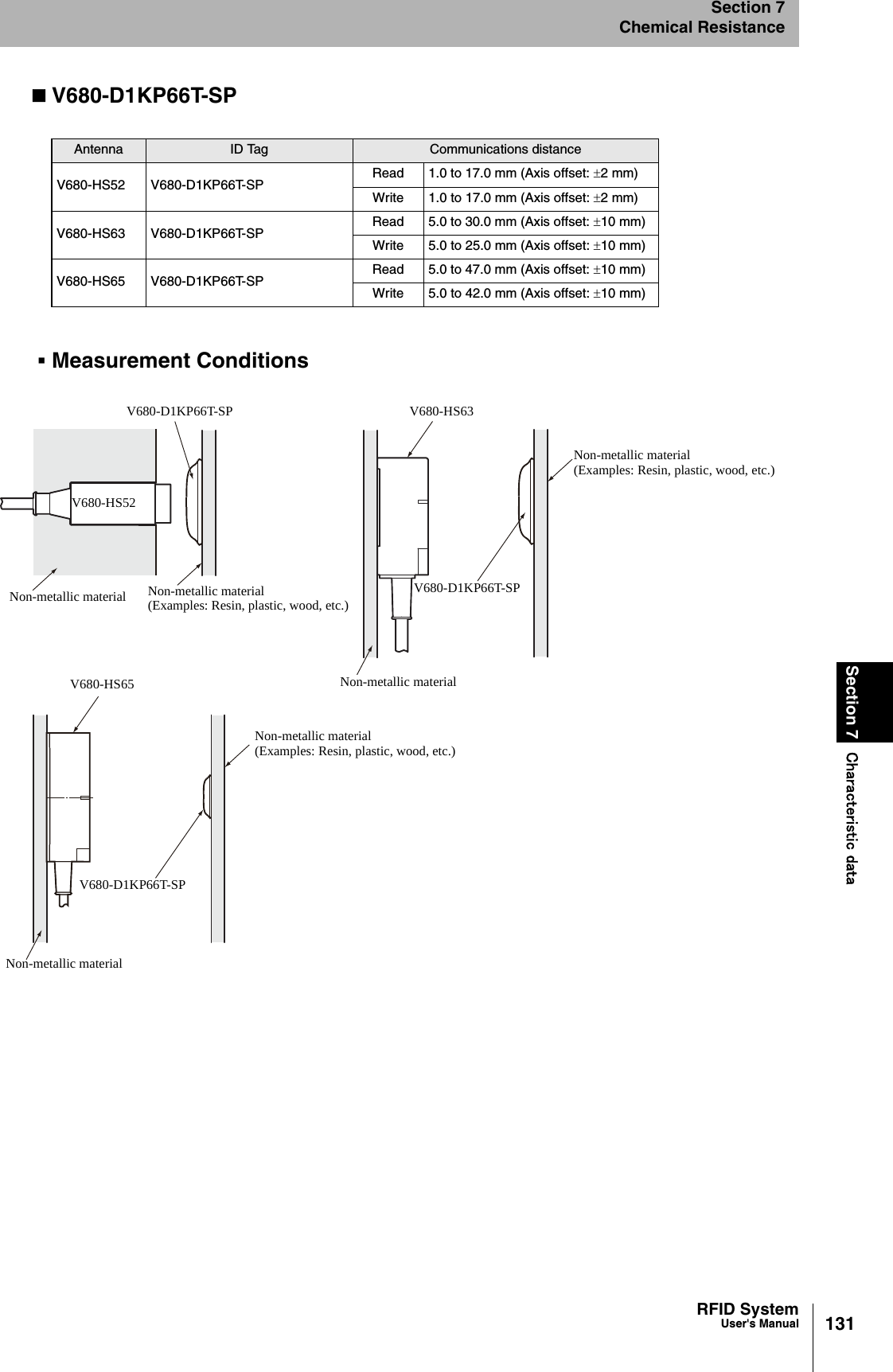

131RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D1KP66T-SPMeasurement ConditionsAntenna ID Tag Communications distanceV680-HS52 V680-D1KP66T-SP Read 1.0 to 17.0 mm (Axis offset: ±2 mm)Write 1.0 to 17.0 mm (Axis offset: ±2 mm)V680-HS63 V680-D1KP66T-SP Read 5.0 to 30.0 mm (Axis offset: ±10 mm)Write 5.0 to 25.0 mm (Axis offset: ±10 mm)V680-HS65 V680-D1KP66T-SP Read 5.0 to 47.0 mm (Axis offset: ±10 mm)Write 5.0 to 42.0 mm (Axis offset: ±10 mm)V680-D1KP66T-SPNon-metallic material(Examples: Resin, plastic, wood, etc.)V680-HS52Non-metallic material(Examples: Resin, plastic, wood, etc.)Non-metallic materialV680-HS63Non-metallic material(Examples: Resin, plastic, wood, etc.)V680-D1KP66T-SPNon-metallic materialV680-D1KP66T-SPV680-HS65Non-metallic material

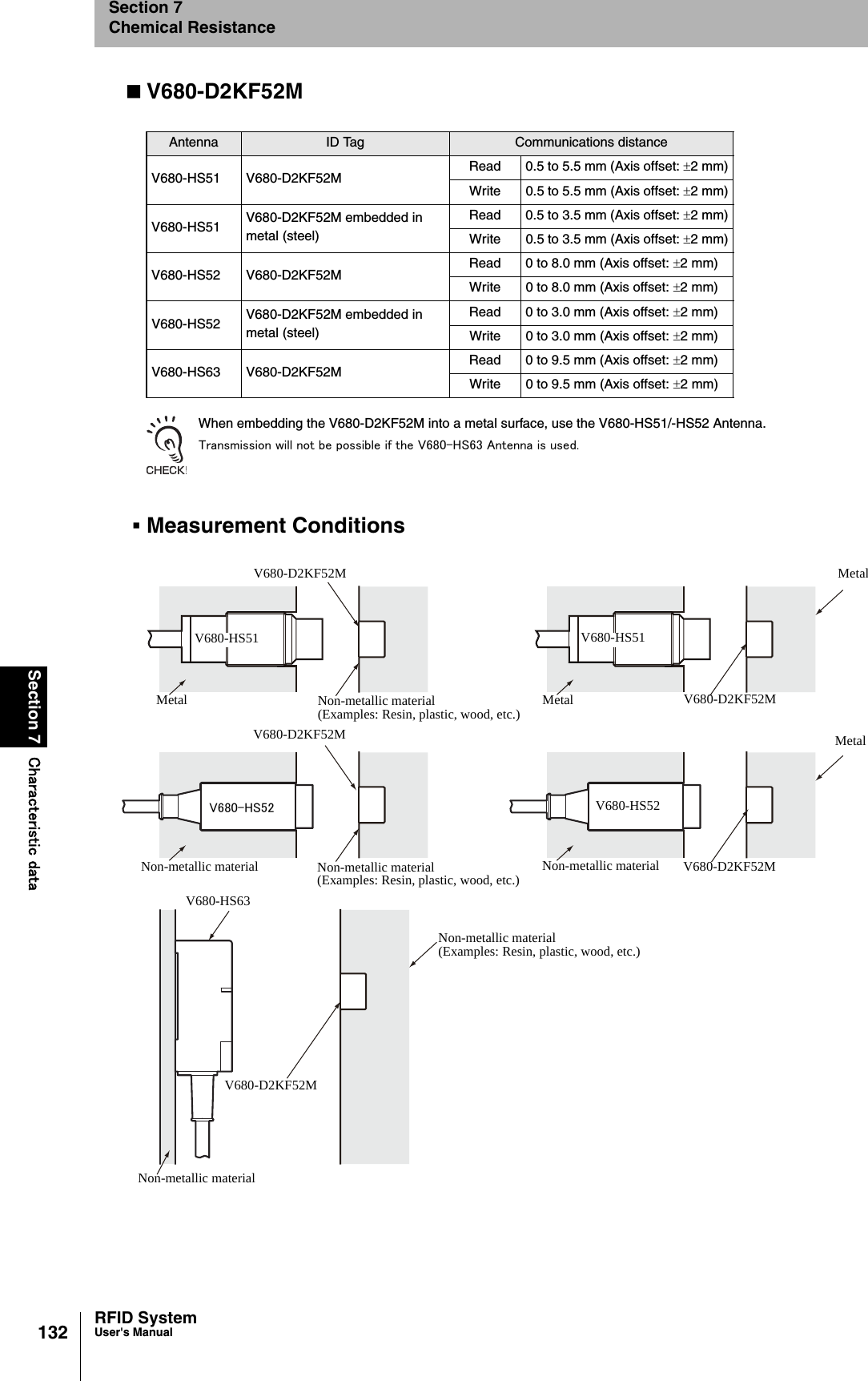

132Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D2KF52MWhen embedding the V680-D2KF52M into a metal surface, use the V680-HS51/-HS52 Antenna.Transmission will not be possible if the V680-HS63 Antenna is used.Measurement ConditionsAntenna ID Tag Communications distanceV680-HS51 V680-D2KF52M Read 0.5 to 5.5 mm (Axis offset: ±2 mm)Write 0.5 to 5.5 mm (Axis offset: ±2 mm)V680-HS51 V680-D2KF52M embedded in metal (steel)Read 0.5 to 3.5 mm (Axis offset: ±2 mm)Write 0.5 to 3.5 mm (Axis offset: ±2 mm)V680-HS52 V680-D2KF52M Read 0 to 8.0 mm (Axis offset: ±2 mm)Write 0 to 8.0 mm (Axis offset: ±2 mm)V680-HS52 V680-D2KF52M embedded in metal (steel)Read 0 to 3.0 mm (Axis offset: ±2 mm)Write 0 to 3.0 mm (Axis offset: ±2 mm)V680-HS63 V680-D2KF52M Read 0 to 9.5 mm (Axis offset: ±2 mm)Write 0 to 9.5 mm (Axis offset: ±2 mm)V680-HS51V680-D2KF52MNon-metallic material(Examples: Resin, plastic, wood, etc.)MetalV680-HS52V680-D2KF52MNon-metallic material(Examples: Resin, plastic, wood, etc.)Non-metallic materialV680-HS51V680-D2KF52MMetalV680-HS52V680-D2KF52MNon-metallic materialMetalMetalV680-HS63V680-D2KF52MNon-metallic material(Examples: Resin, plastic, wood, etc.)Non-metallic material

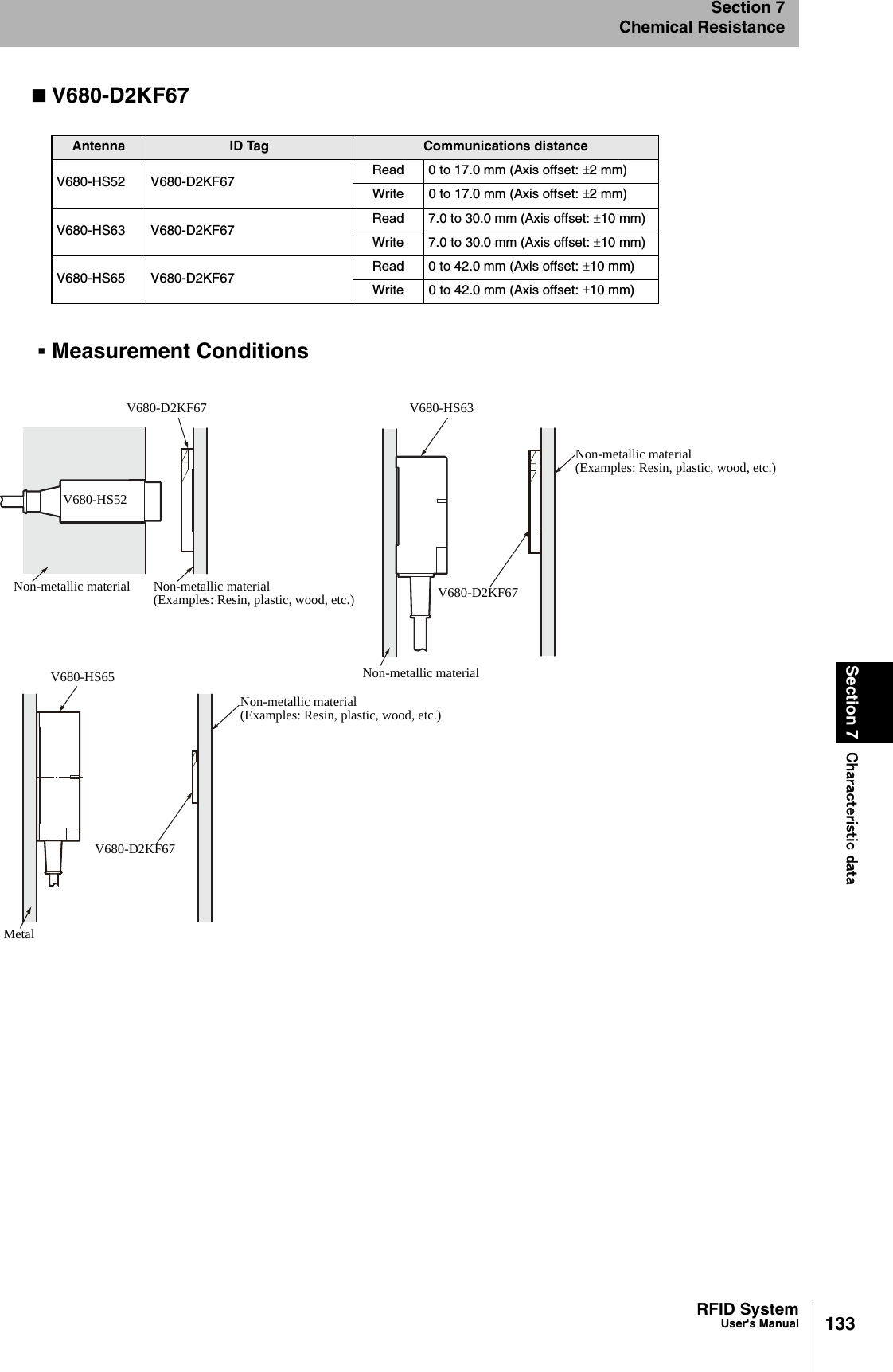

133RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D2KF67Measurement ConditionsAntenna ID Tag Communications distanceV680-HS52 V680-D2KF67 Read 0 to 17.0 mm (Axis offset: ±2 mm)Write 0 to 17.0 mm (Axis offset: ±2 mm)V680-HS63 V680-D2KF67 Read 7.0 to 30.0 mm (Axis offset: ±10 mm)Write 7.0 to 30.0 mm (Axis offset: ±10 mm)V680-HS65 V680-D2KF67 Read 0 to 42.0 mm (Axis offset: ±10 mm)Write 0 to 42.0 mm (Axis offset: ±10 mm)V680-D2KF67Non-metallic material(Examples: Resin, plastic, wood, etc.)V680-HS52Non-metallic material(Examples: Resin, plastic, wood, etc.)Non-metallic materialV680-HS63Non-metallic material(Examples: Resin, plastic, wood, etc.)MetalV680-D2KF67Non-metallic materialV680-D2KF67V680-HS65

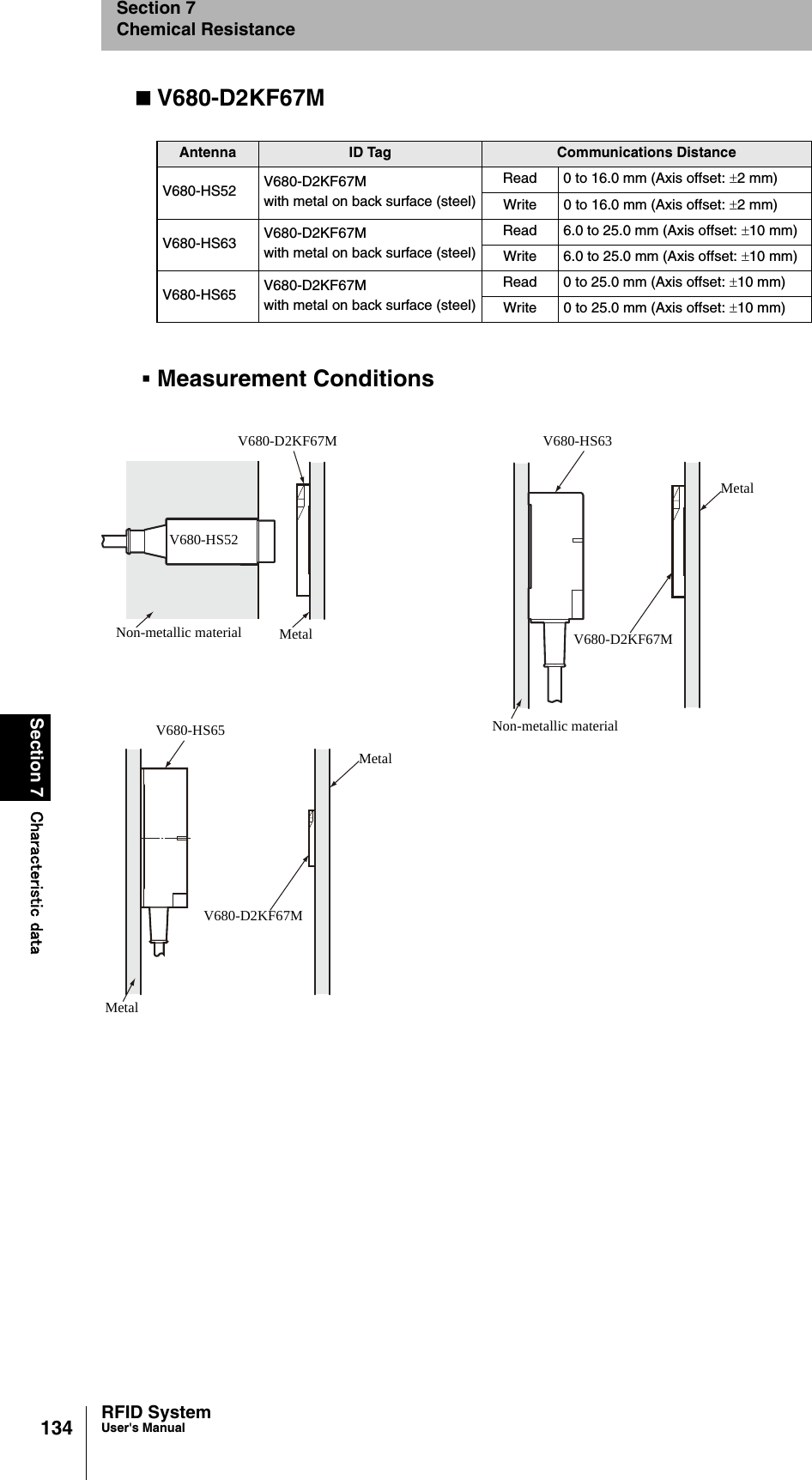

134Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D2KF67MMeasurement ConditionsAntenna ID Tag Communications DistanceV680-HS52 V680-D2KF67M with metal on back surface (steel)Read 0 to 16.0 mm (Axis offset: ±2 mm)Write 0 to 16.0 mm (Axis offset: ±2 mm)V680-HS63 V680-D2KF67M with metal on back surface (steel)Read 6.0 to 25.0 mm (Axis offset: ±10 mm)Write 6.0 to 25.0 mm (Axis offset: ±10 mm)V680-HS65 V680-D2KF67M with metal on back surface (steel)Read 0 to 25.0 mm (Axis offset: ±10 mm)Write 0 to 25.0 mm (Axis offset: ±10 mm)V680-D2KF67MV680-HS52Non-metallic materialV680-HS63MetalV680-D2KF67MNon-metallic materialV680-D2KF67MV680-HS65MetalMetalMetal

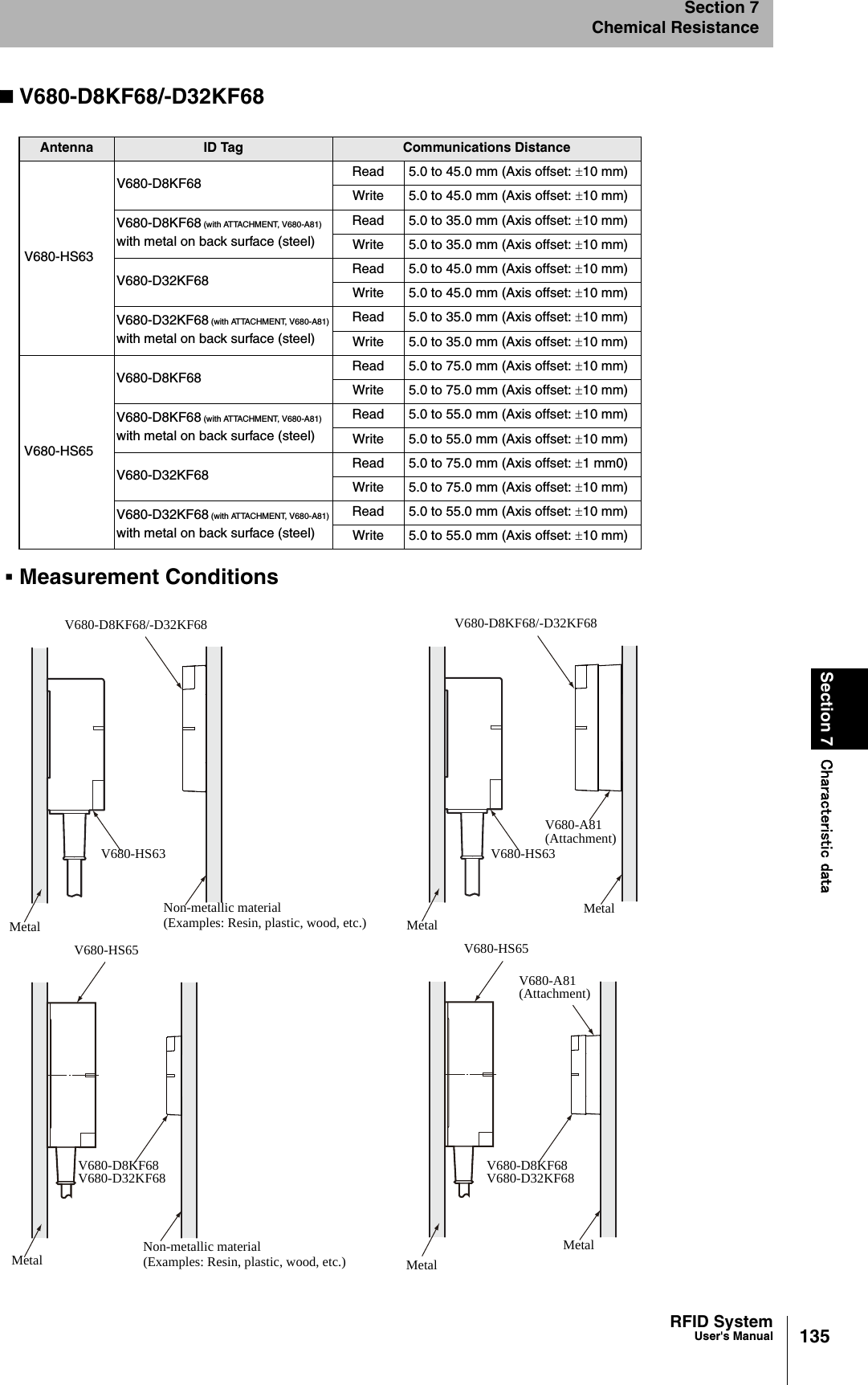

135RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D8KF68/-D32KF68Measurement ConditionsAntenna ID Tag Communications DistanceV680-HS63V680-D8KF68 Read 5.0 to 45.0 mm (Axis offset: ±10 mm)Write 5.0 to 45.0 mm (Axis offset: ±10 mm)V680-D8KF68 (with ATTACHMENT, V680-A81)with metal on back surface (steel)Read 5.0 to 35.0 mm (Axis offset: ±10 mm)Write 5.0 to 35.0 mm (Axis offset: ±10 mm)V680-D32KF68 Read 5.0 to 45.0 mm (Axis offset: ±10 mm)Write 5.0 to 45.0 mm (Axis offset: ±10 mm)V680-D32KF68 (with ATTACHMENT, V680-A81)with metal on back surface (steel)Read 5.0 to 35.0 mm (Axis offset: ±10 mm)Write 5.0 to 35.0 mm (Axis offset: ±10 mm)V680-HS65V680-D8KF68 Read 5.0 to 75.0 mm (Axis offset: ±10 mm)Write 5.0 to 75.0 mm (Axis offset: ±10 mm)V680-D8KF68 (with ATTACHMENT, V680-A81)with metal on back surface (steel)Read 5.0 to 55.0 mm (Axis offset: ±10 mm)Write 5.0 to 55.0 mm (Axis offset: ±10 mm)V680-D32KF68 Read 5.0 to 75.0 mm (Axis offset: ±1 mm0)Write 5.0 to 75.0 mm (Axis offset: ±10 mm)V680-D32KF68 (with ATTACHMENT, V680-A81)with metal on back surface (steel)Read 5.0 to 55.0 mm (Axis offset: ±10 mm)Write 5.0 to 55.0 mm (Axis offset: ±10 mm)V680-D8KF68/-D32KF68V680-HS63MetalNon-metallic material(Examples: Resin, plastic, wood, etc.)V680-HS65MetalV680-D8KF68V680-D32KF68Non-metallic material(Examples: Resin, plastic, wood, etc.)V680-D8KF68/-D32KF68V680-HS63Metal MetalV680-HS65MetalV680-D8KF68V680-D32KF68V680-A81(Attachment)V680-A81(Attachment)Metal

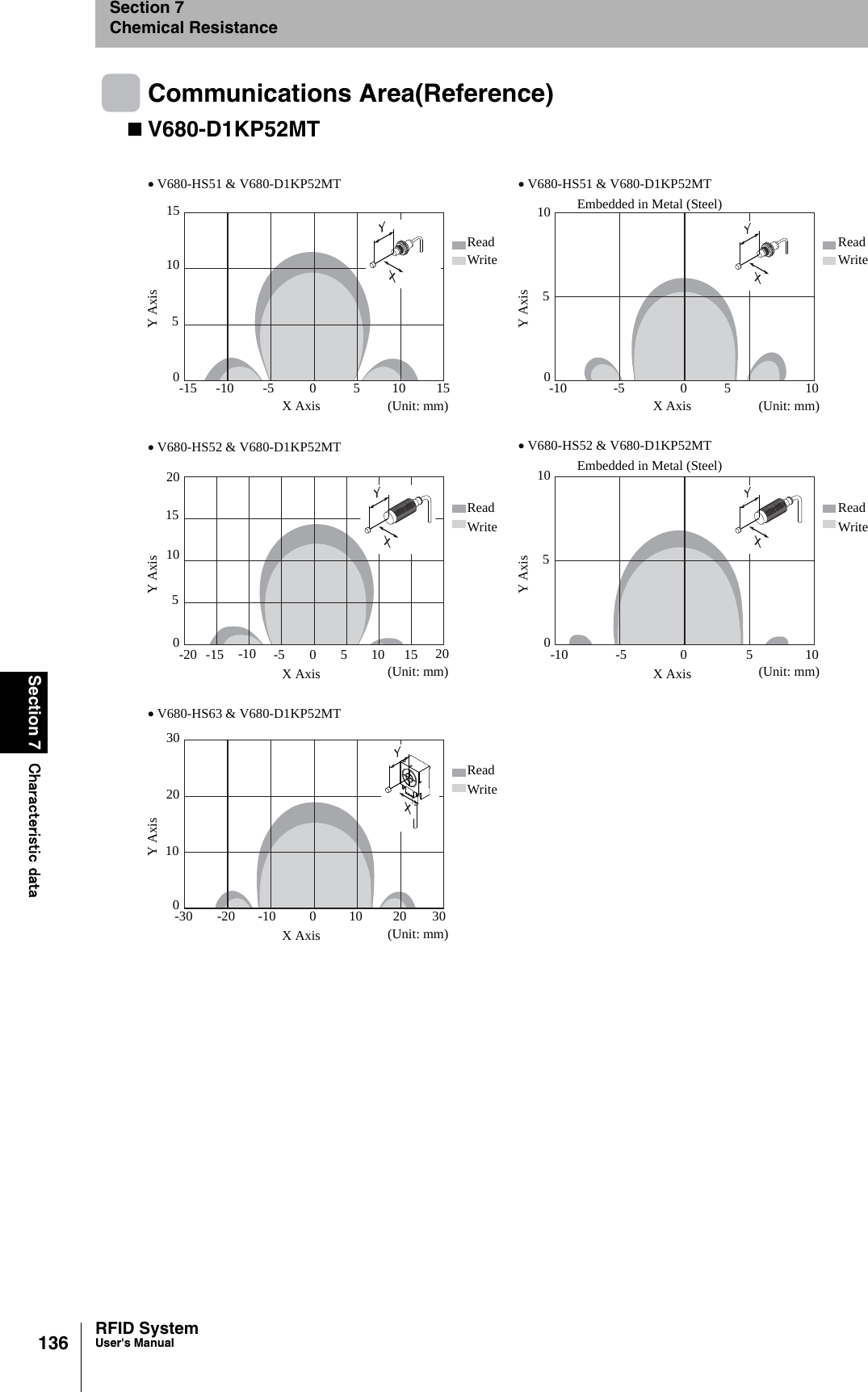

136Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceCommunications Area(Reference)V680-D1KP52MT• V680-HS51 & V680-D1KP52MT • V680-HS51 & V680-D1KP52MTEmbedded in Metal (Steel)• V680-HS52 & V680-D1KP52MT • V680-HS52 & V680-D1KP52MTEmbedded in Metal (Steel)• V680-HS63 & V680-D1KP52MTReadWrite-15 -10 -5 0 5 10 15051015X Axis (Unit: mm)Y AxisReadWrite-10 -5 0 5 100510X Axis (Unit: mm)Y AxisReadWrite-20 -15 -5 0 5 10 15051020X Axis (Unit: mm)Y AxisReadWrite-10 -5 0 5 100510X Axis (Unit: mm)Y AxisReadWrite-30 -20 -10 0 10 20 300102030X Axis (Unit: mm)Y Axis-10 2015

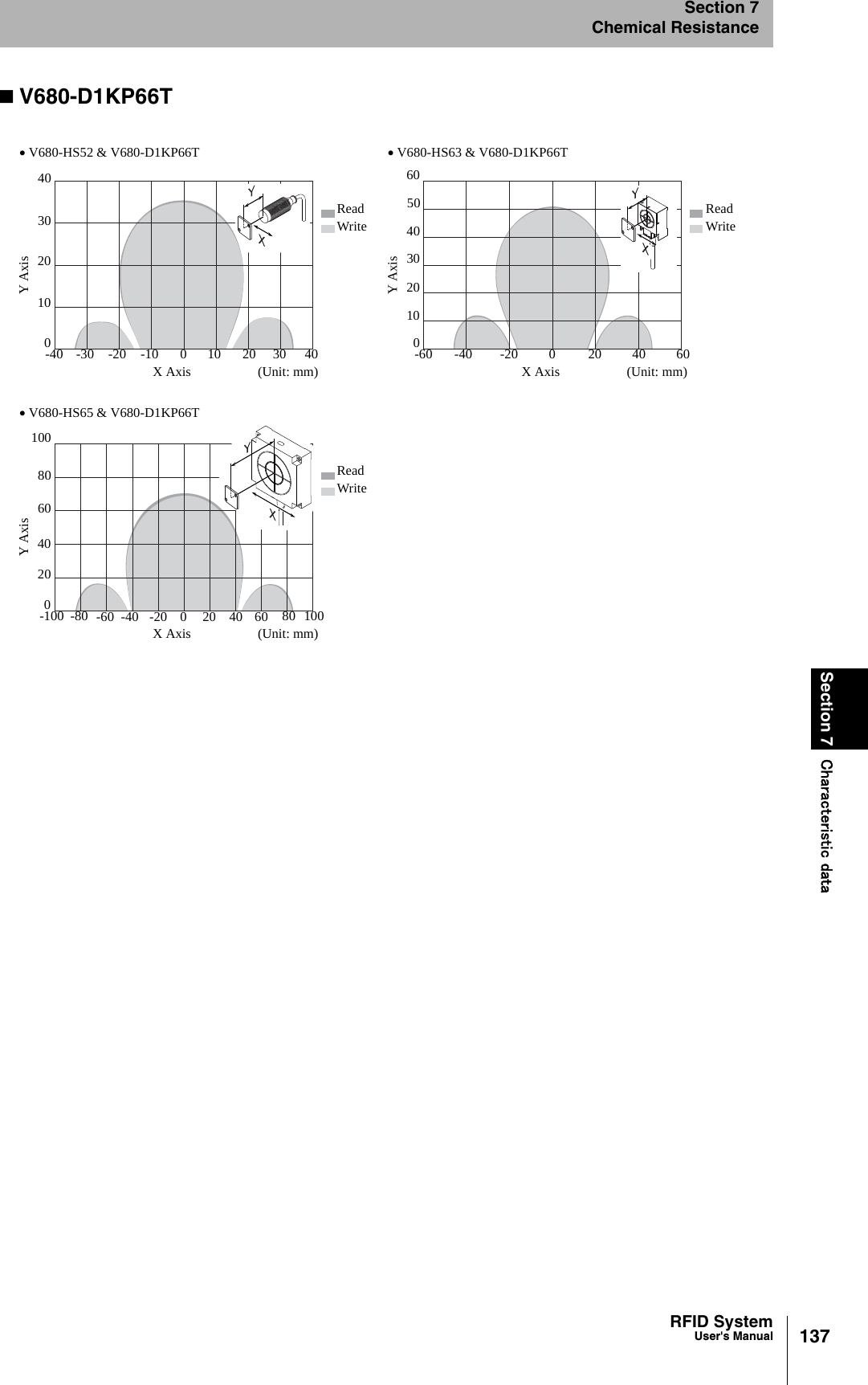

137RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D1KP66T• V680-HS63 & V680-D1KP66T• V680-HS52 & V680-D1KP66TReadWrite-30 -20 -10 0 10 20 3002030X Axis (Unit: mm)Y Axis-40 404010ReadWrite-40 -20 0 2002030X Axis (Unit: mm)Y Axis-60 40 6040506010• V680-HS65 & V680-D1KP66TReadWrite-60 -40 -20 0 20 40 6004060X Axis (Unit: mm)Y Axis-100 -80 80 1008010020

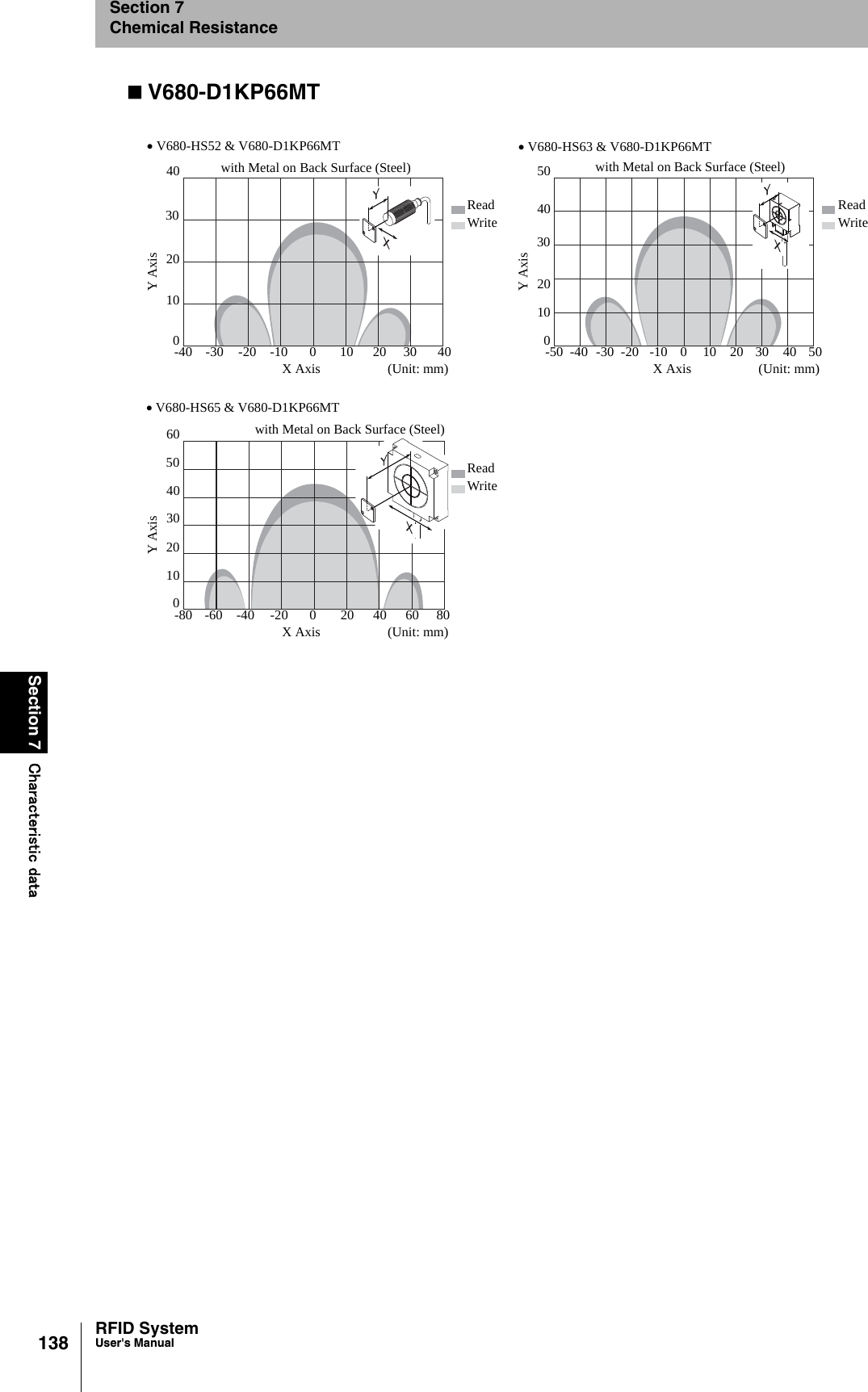

138Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D1KP66MT• V680-HS65 & V680-D1KP66MTwith Metal on Back Surface (Steel)• V680-HS52 & V680-D1KP66MTwith Metal on Back Surface (Steel)• V680-HS63 & V680-D1KP66MTwith Metal on Back Surface (Steel)ReadWrite-30 -20 -10 0 10 20 3002030X Axis (Unit: mm)Y Axis-40 404010ReadWrite-30 -20 -10 0 10 20 3002040X Axis (Unit: mm)Y Axis-50 -40 40 505010ReadWrite-60 -40 -20 0 20 40 6002030X Axis (Unit: mm)Y Axis-80 804050601030

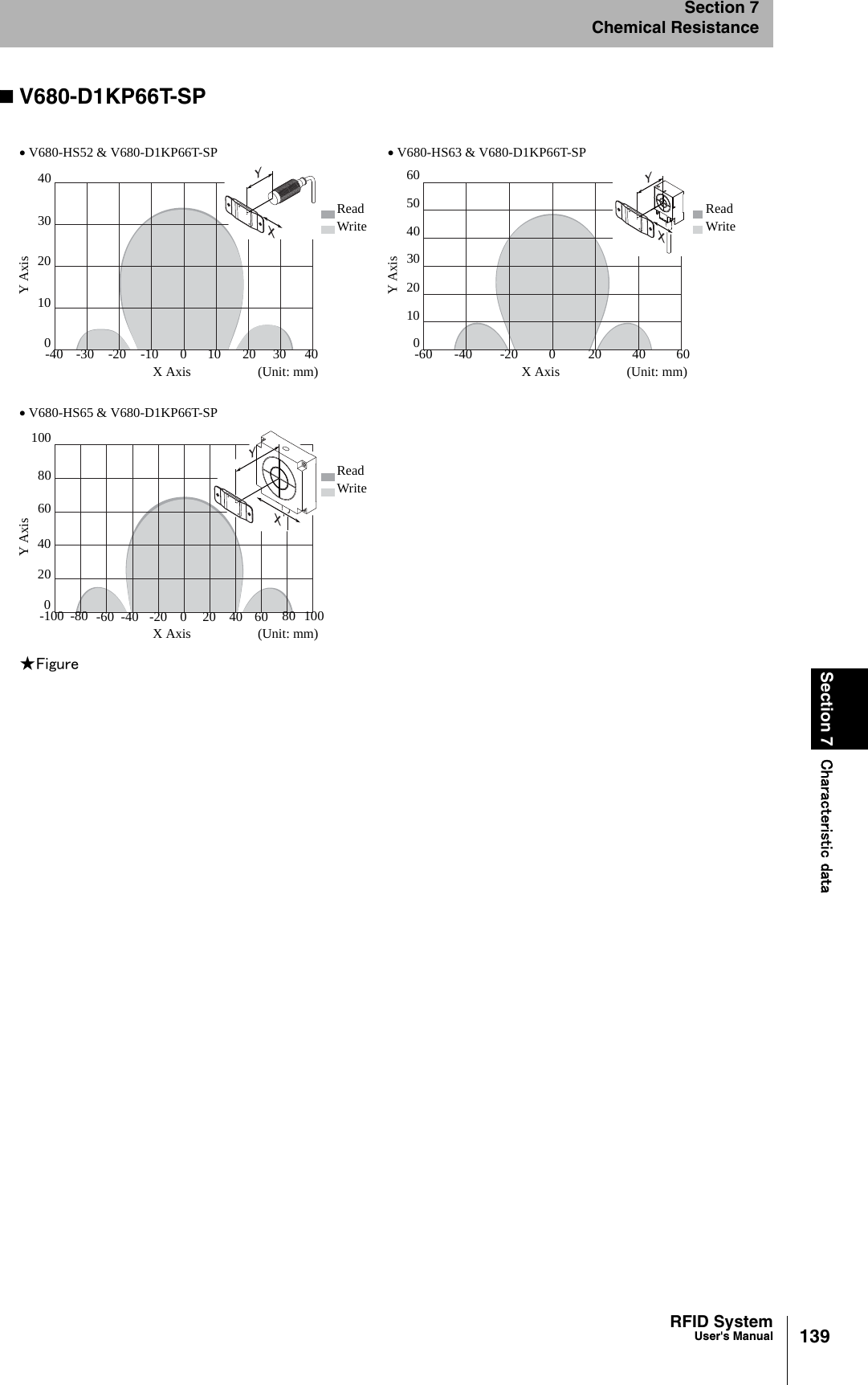

139RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D1KP66T-SP★Figure㪰㪯㪰㪯㪰㪯• V680-HS63 & V680-D1KP66T-SP• V680-HS52 & V680-D1KP66T-SPReadWrite-30 -20 -10 0 10 20 3002030X Axis (Unit: mm)Y Axis-40 404010ReadWrite-40 -20 0 2002030X Axis (Unit: mm)Y Axis-60 40 6040506010• V680-HS65 & V680-D1KP66T-SPReadWrite-60 -40 -20 0 20 40 6004060X Axis (Unit: mm)Y Axis-100 -80 80 1008010020

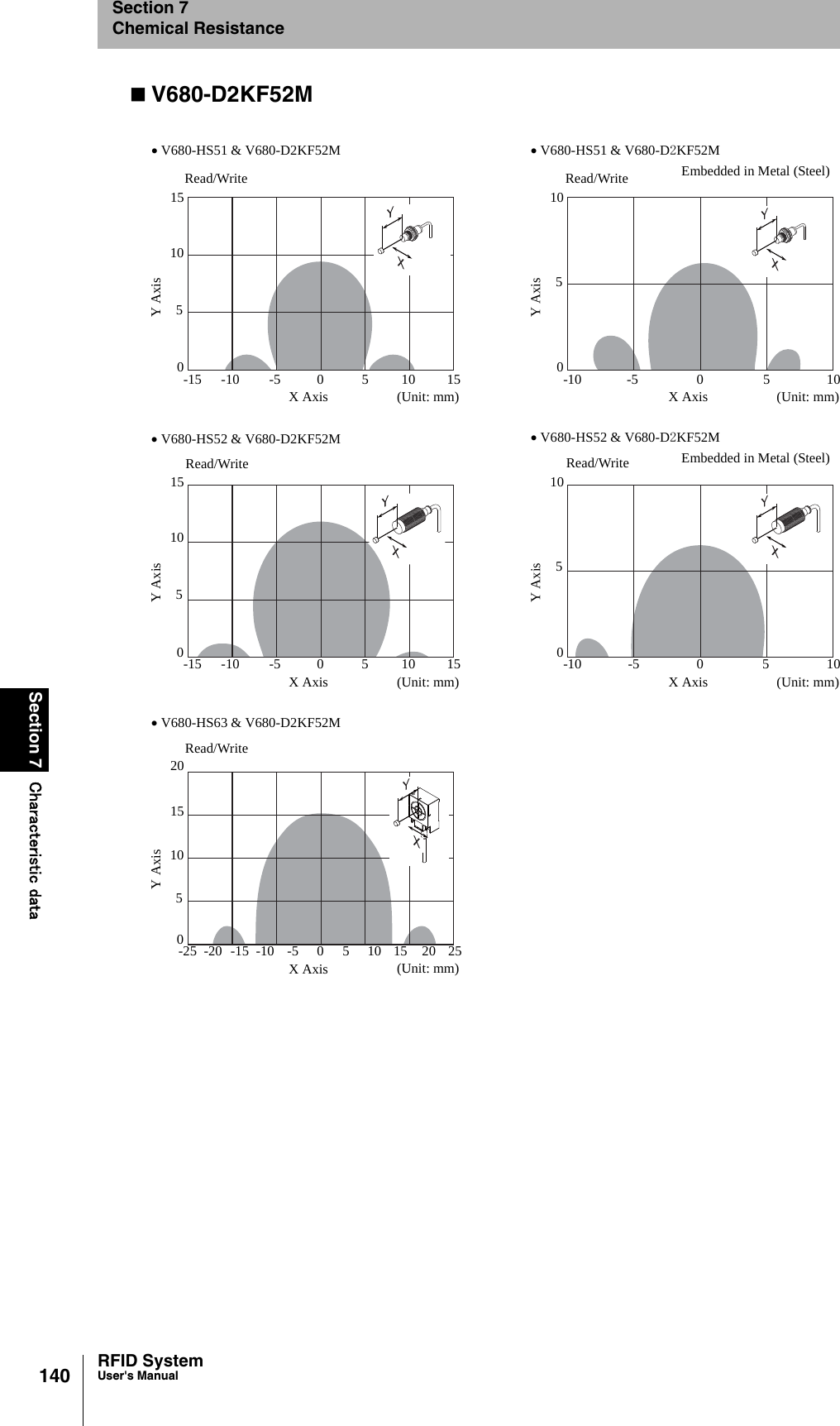

140Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D2KF52M• V680-HS51 & V680-D2KF52M • V680-HS51 & V680-D2KF52MEmbedded in Metal (Steel)• V680-HS52 & V680-D2KF52M • V680-HS52 & V680-D2KF52MEmbedded in Metal (Steel)• V680-HS63 & V680-D2KF52MRead/Write-15 -10 -5 0 5 10 15051015X Axis (Unit: mm)Y Axis-10 -5 0 5 100510X Axis (Unit: mm)Y Axis-15 -10 -5 0 5 10 15051015X Axis (Unit: mm)Y Axis-10 -5 0 5 100510X Axis (Unit: mm)Y Axis-15 -10 -5 0 5 10 15051015X Axis (Unit: mm)Y Axis-25 -20 20 2520Read/WriteRead/Write Read/WriteRead/Write

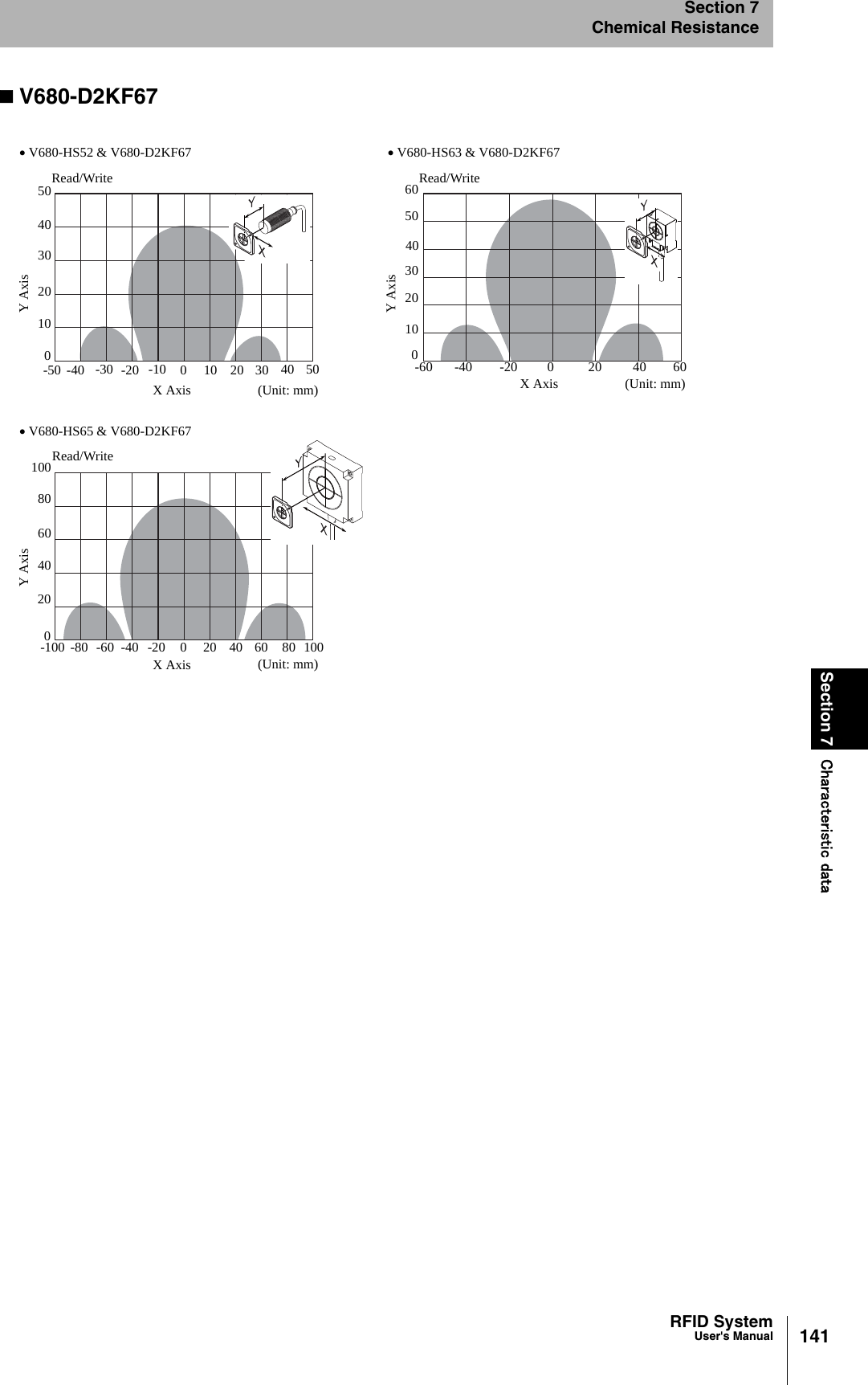

141RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D2KF67• V680-HS52 & V680-D2KF67 • V680-HS63 & V680-D2KF67• V680-HS65 & V680-D2KF67Read/Write-50 -40 -20 0 10 20 30050X Axis (Unit: mm)Y Axis-60 -40 0 20 40 6002040X Axis (Unit: mm)Y Axis-100 -80 80 1006080100Read/Write-2040302010Read/Write-60 -40 -20 0 20 40 60060X Axis (Unit: mm)Y Axis50302010-30 -10 40 5040

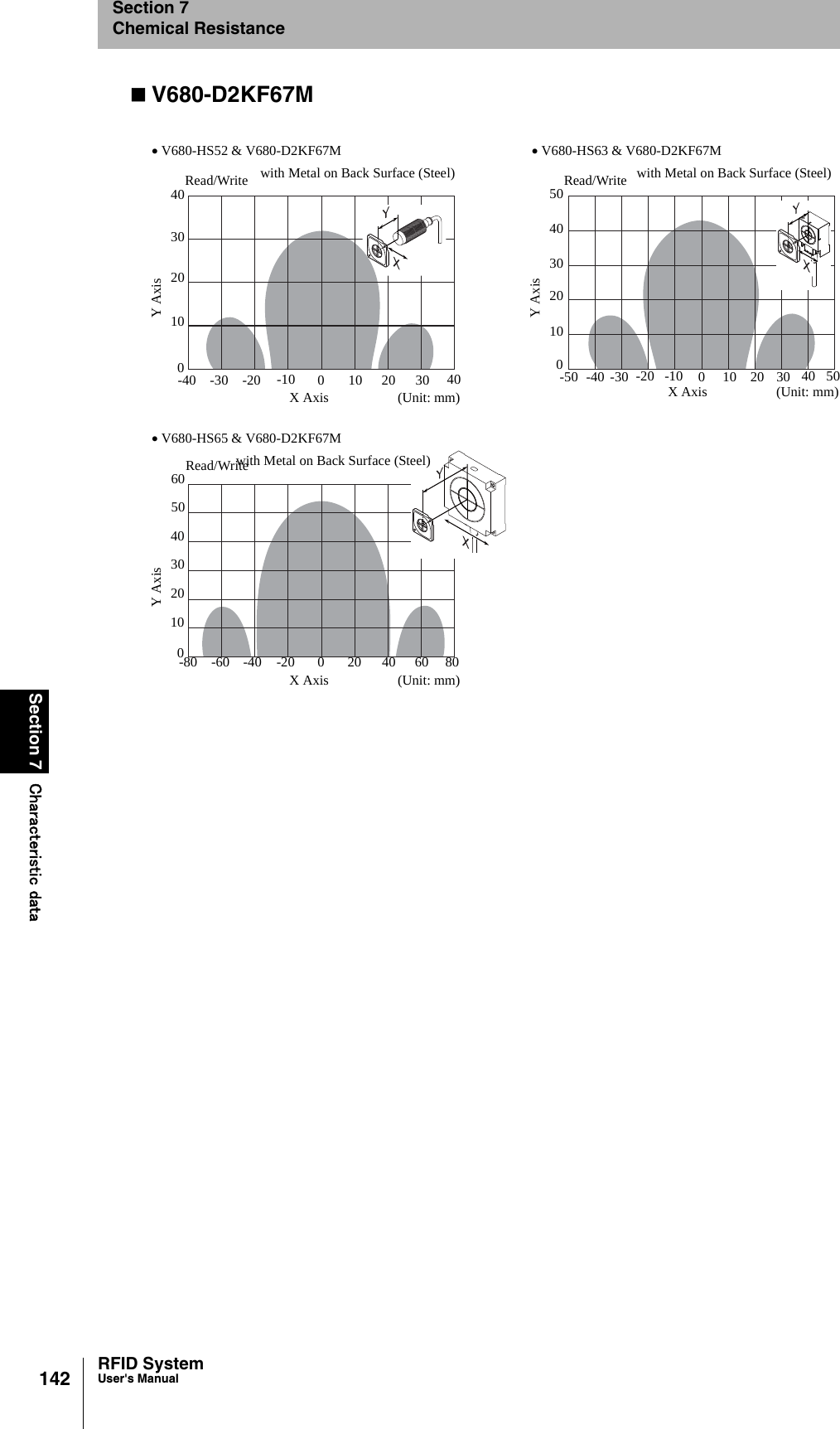

142Section 7 Characteristic dataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D2KF67M• V680-HS52 & V680-D2KF67Mwith Metal on Back Surface (Steel)• V680-HS63 & V680-D2KF67Mwith Metal on Back Surface (Steel)• V680-HS65 & V680-D2KF67Mwith Metal on Back Surface (Steel)Read/Write-40 -30 -20 0 10 20 300X Axis (Unit: mm)Y Axis-60 -40 0 20 40 6001020X Axis (Unit: mm)Y Axis-80 803040Read/Write-2040302010Read/Write-50 -40 -30 0 10 20 30050X Axis (Unit: mm)Y Axis40302010-10 40 -20 -10 50405060

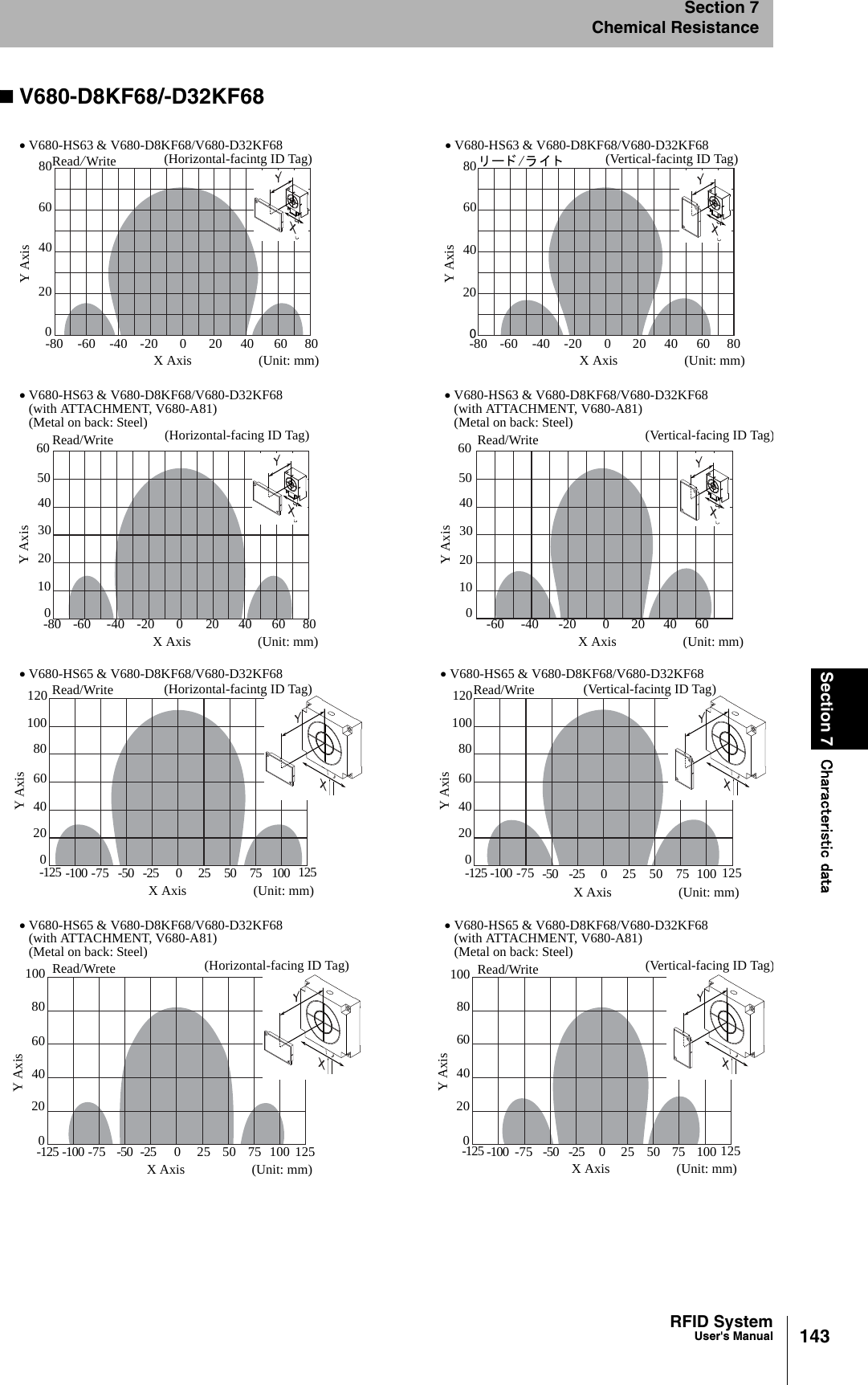

143RFID SystemUser's ManualSection 7 Characteristic dataSection 7Chemical ResistanceV680-D8KF68/-D32KF68• V680-HS63 & V680-D8KF68/V680-D32KF68(Horizontal-facintg ID Tag)-60 -40 0 20 40 6002040X Axis (Unit: mm)Y Axis-80 806080Read/Write-20• V680-HS63 & V680-D8KF68/V680-D32KF68(Vertical-facintg ID Tag)-60 -40 0 20 40 6002040X Axis (Unit: mm)Y Axis-80 806080 リード/ライ ト-20• V680-HS63 & V680-D8KF68/V680-D32KF68(with ATTACHMENT, V680-A81)(Metal on back: Steel) (Horizontal-facing ID Tag)-60 -40 0 20 40 6001020X Axis (Unit: mm)Y Axis-80 803040Read/Write-20• V680-HS63 & V680-D8KF68/V680-D32KF68(with ATTACHMENT, V680-A81)(Metal on back: Steel) (Vertical-facing ID Tag)-60 -40 0 20 40 6001020X Axis (Unit: mm)Y Axis3040Read/Write-20• V680-HS65 & V680-D8KF68/V680-D32KF68(Horizontal-facintg ID Tag)-50 0 25 5002040X Axis (Unit: mm)Y Axis-100 -75 75 1006080100Read/Write-25• V680-HS65 & V680-D8KF68/V680-D32KF68(Vertical-facintg ID Tag)Read/Write• V680-HS65 & V680-D8KF68/V680-D32KF68(with ATTACHMENT, V680-A81)(Metal on back: Steel) (Horizontal-facing ID Tag)Read/Wrete• V680-HS65 & V680-D8KF68/V680-D32KF68(with ATTACHMENT, V680-A81)(Metal on back: Steel) (Vertical-facing ID Tag)Read/Write-125 125120-50 0 25 5002040X Axis (Unit: mm)Y Axis-100 -75 75 1006080100-25-125 125120-50 0 25 5002040X Axis (Unit: mm)Y Axis-100 -75 75 1006080100-25-125 125 -50 0 25 5002040X Axis (Unit: mm)Y Axis-100 -75 75 1006080100-25-125 12550 5060 60

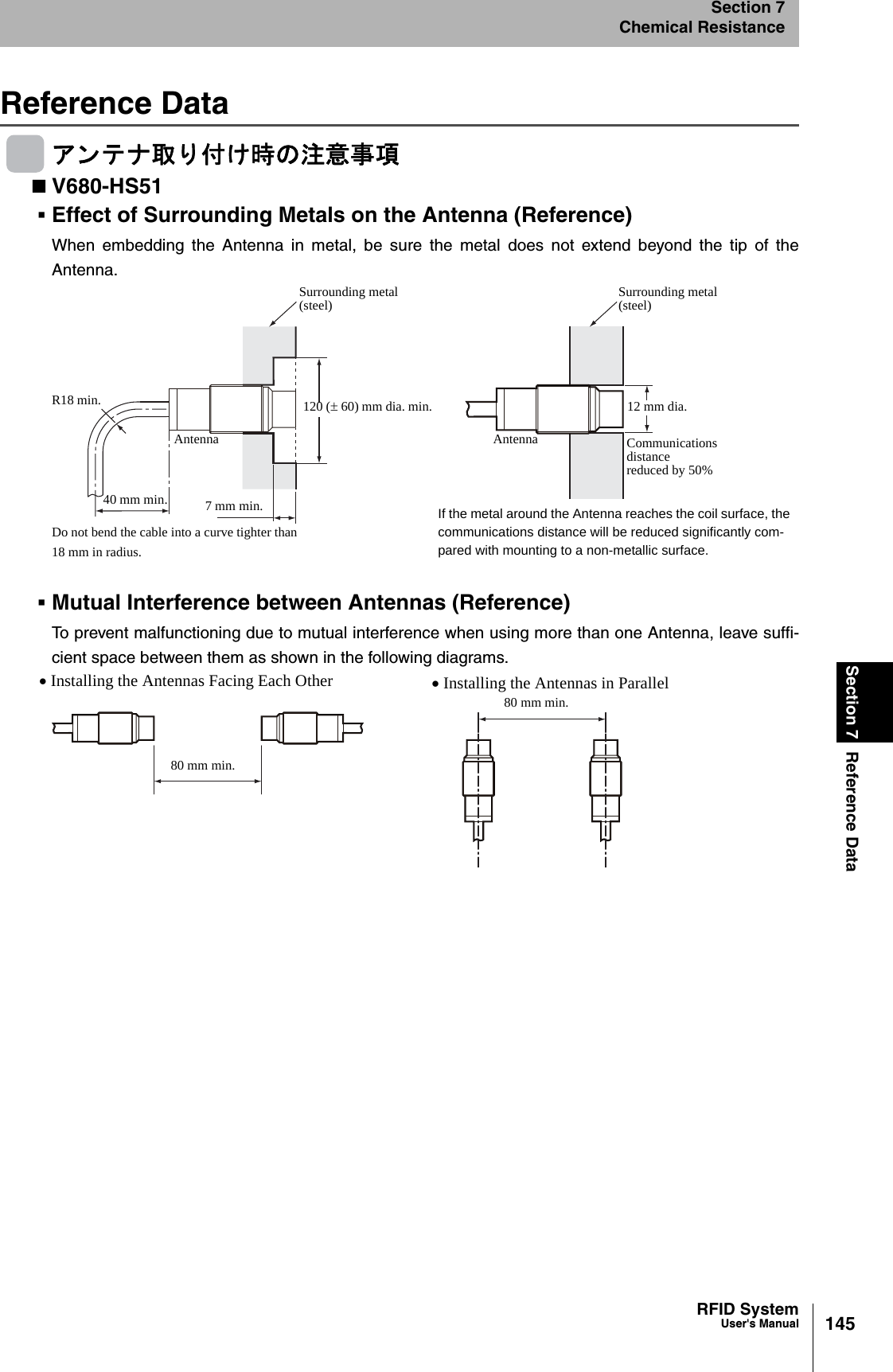

145RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceReference Dataア ン テナ取 り 付け時の注意事項V680-HS51Effect of Surrounding Metals on the Antenna (Reference)When embedding the Antenna in metal, be sure the metal does not extend beyond the tip of theAntenna.Mutual Interference between Antennas (Reference)To prevent malfunctioning due to mutual interference when using more than one Antenna, leave suffi-cient space between them as shown in the following diagrams.R18 min.40 mm min.Antenna7 mm min.Surrounding metal(steel)120 (± 60) mm dia. min.AntennaSurrounding metal(steel)12 mm dia.Communications distancereduced by 50%Do not bend the cable into a curve tighter than18 mm in radius.If the metal around the Antenna reaches the coil surface, the communications distance will be reduced significantly com-pared with mounting to a non-metallic surface.• Installing the Antennas Facing Each Other • Installing the Antennas in Parallel80 mm min.80 mm min.

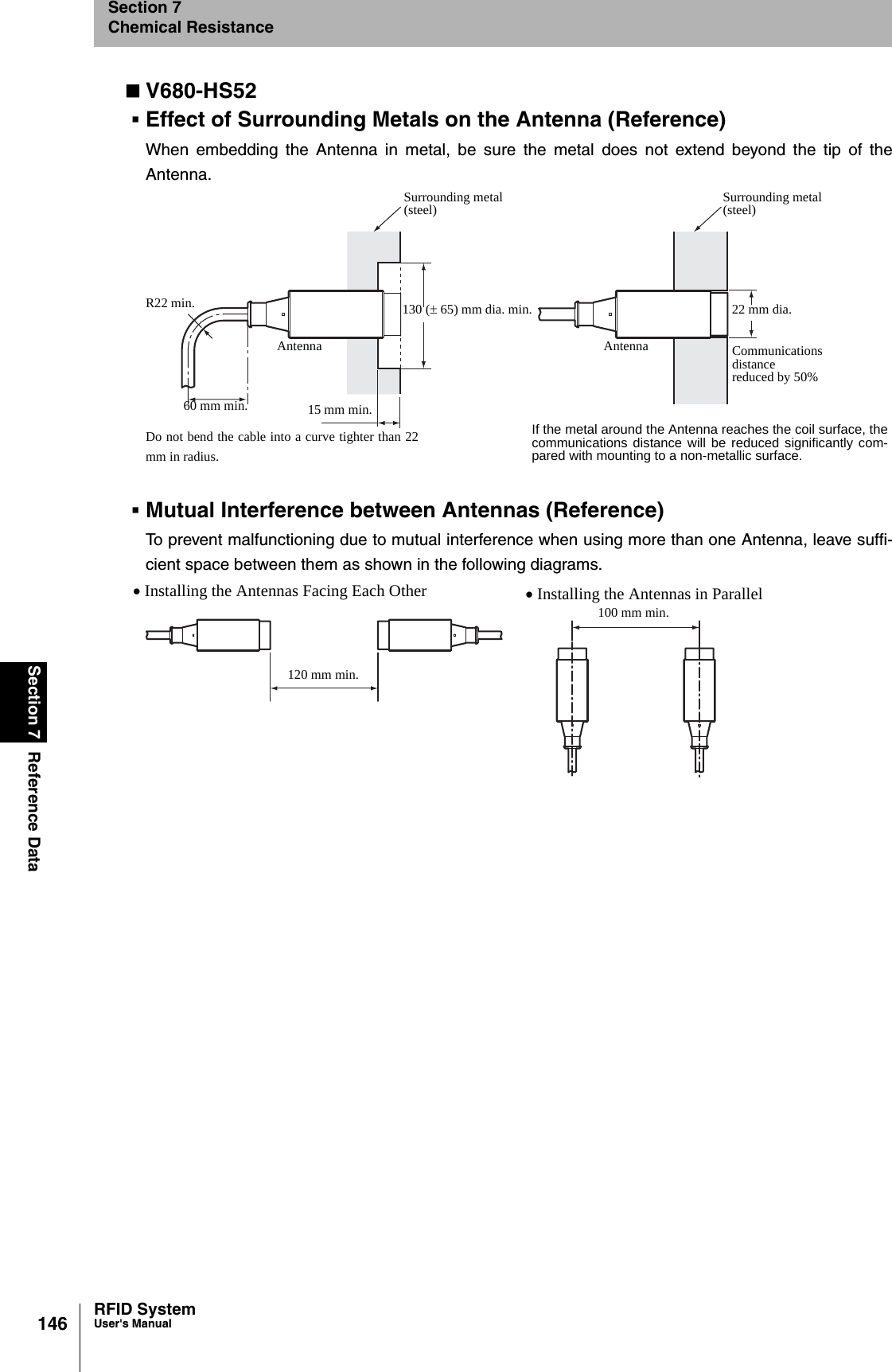

146Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistanceV680-HS52Effect of Surrounding Metals on the Antenna (Reference)When embedding the Antenna in metal, be sure the metal does not extend beyond the tip of theAntenna.Mutual Interference between Antennas (Reference)To prevent malfunctioning due to mutual interference when using more than one Antenna, leave suffi-cient space between them as shown in the following diagrams.R22 min.60 mm min.Antenna15 mm min.Surrounding metal(steel)130 (± 65) mm dia. min.AntennaSurrounding metal(steel)22 mm dia.Communications distancereduced by 50%Do not bend the cable into a curve tighter than 22mm in radius.If the metal around the Antenna reaches the coil surface, thecommunications distance will be reduced significantly com-pared with mounting to a non-metallic surface.• Installing the Antennas Facing Each Other • Installing the Antennas in Parallel120 mm min.100 mm min.

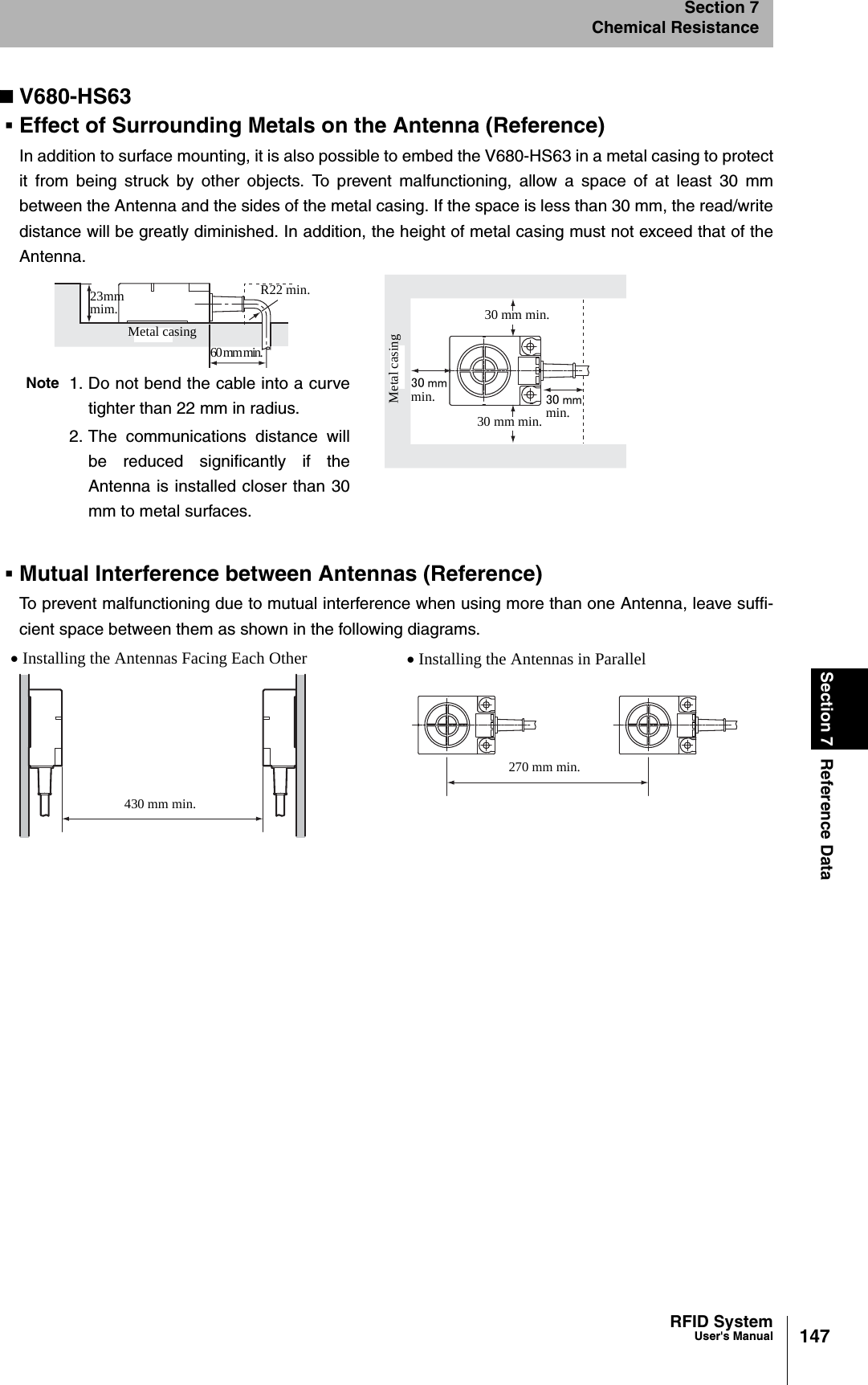

147RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceV680-HS63Effect of Surrounding Metals on the Antenna (Reference)In addition to surface mounting, it is also possible to embed the V680-HS63 in a metal casing to protectit from being struck by other objects. To prevent malfunctioning, allow a space of at least 30 mmbetween the Antenna and the sides of the metal casing. If the space is less than 30 mm, the read/writedistance will be greatly diminished. In addition, the height of metal casing must not exceed that of theAntenna.Mutual Interference between Antennas (Reference)To prevent malfunctioning due to mutual interference when using more than one Antenna, leave suffi-cient space between them as shown in the following diagrams.R22 min.60 mm min.23mmmim.Metal casing30 mmmin.30 mm min.30 mm min.Note 1. Do not bend the cable into a curvetighter than 22 mm in radius.2. The communications distance willbe reduced significantly if theAntenna is installed closer than 30mm to metal surfaces.30 mmmin.Metal casing• Installing the Antennas Facing Each Other • Installing the Antennas in Parallel430 mm min.270 mm min.

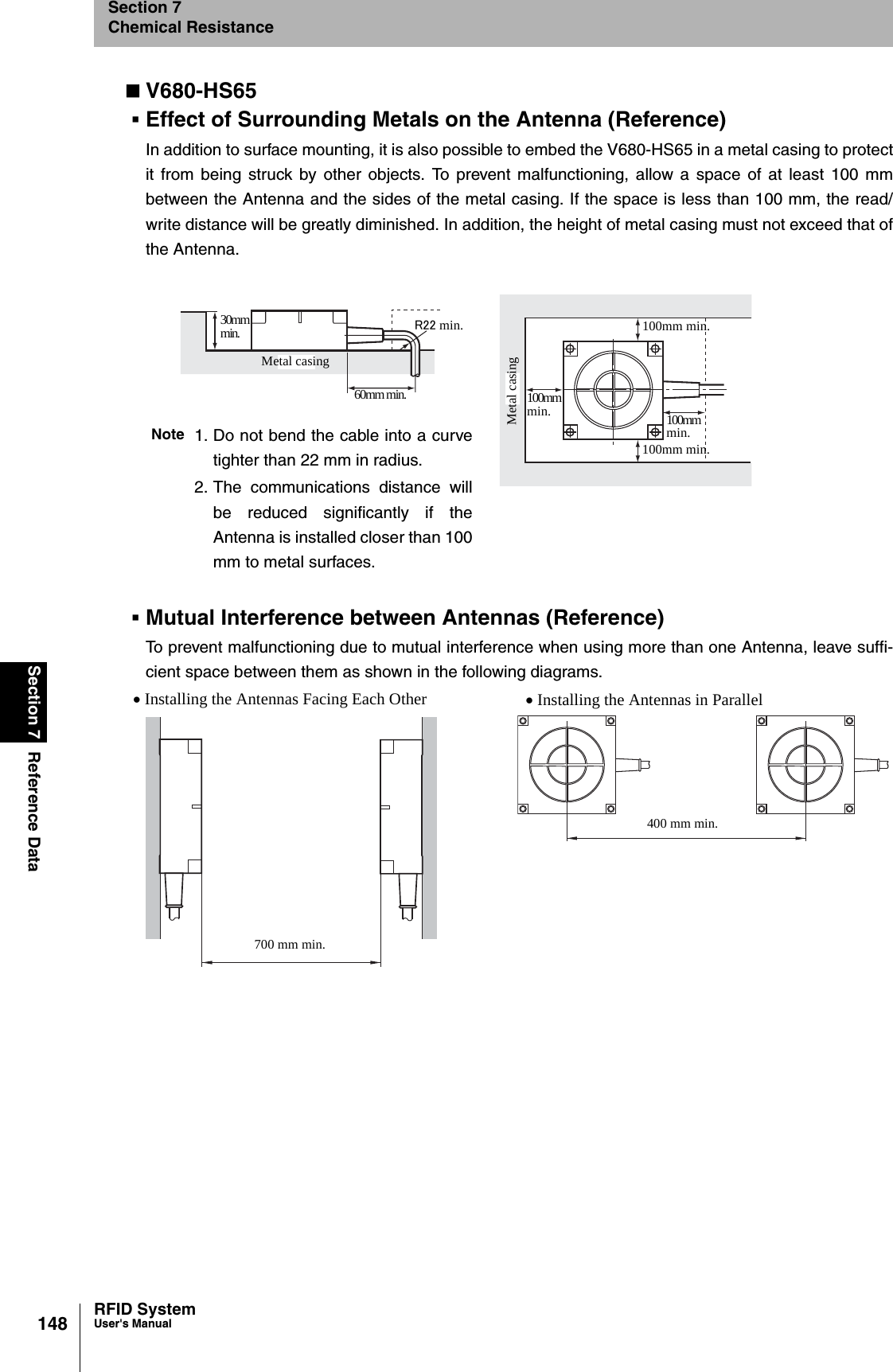

148Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistanceV680-HS65Effect of Surrounding Metals on the Antenna (Reference)In addition to surface mounting, it is also possible to embed the V680-HS65 in a metal casing to protectit from being struck by other objects. To prevent malfunctioning, allow a space of at least 100 mmbetween the Antenna and the sides of the metal casing. If the space is less than 100 mm, the read/write distance will be greatly diminished. In addition, the height of metal casing must not exceed that ofthe Antenna.Mutual Interference between Antennas (Reference)To prevent malfunctioning due to mutual interference when using more than one Antenna, leave suffi-cient space between them as shown in the following diagrams.R22 min.60mm min.30mmmin.Metal casing100mmmin.100mm min.100mm min.100mmmin.Note 1. Do not bend the cable into a curvetighter than 22 mm in radius.2. The communications distance willbe reduced significantly if theAntenna is installed closer than 100mm to metal surfaces.Metal casing• Installing the Antennas Facing Each Other • Installing the Antennas in Parallel700 mm min.400 mm min.

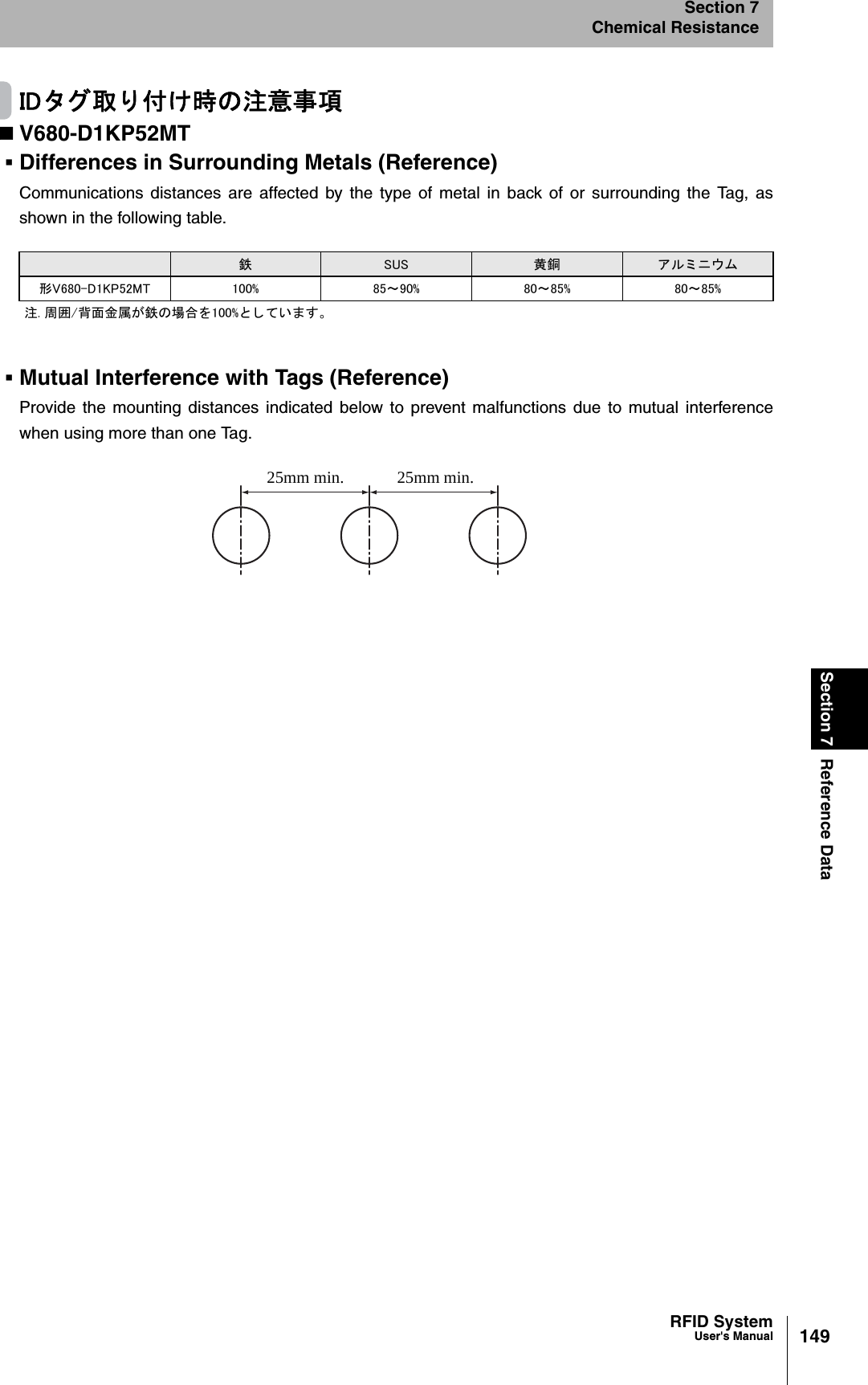

149RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceID タ グ取 り 付け時の注意事項V680-D1KP52MTDifferences in Surrounding Metals (Reference)Communications distances are affected by the type of metal in back of or surrounding the Tag, asshown in the following table.Mutual Interference with Tags (Reference)Provide the mounting distances indicated below to prevent malfunctions due to mutual interferencewhen using more than one Tag.鉄SUS 黄銅 アルミ ニウム形V680-D1KP52MT 100% 85~90% 80~85% 80~85%注. 周囲/背面金属が鉄の場合を100%と し ています。25mm min. 25mm min.

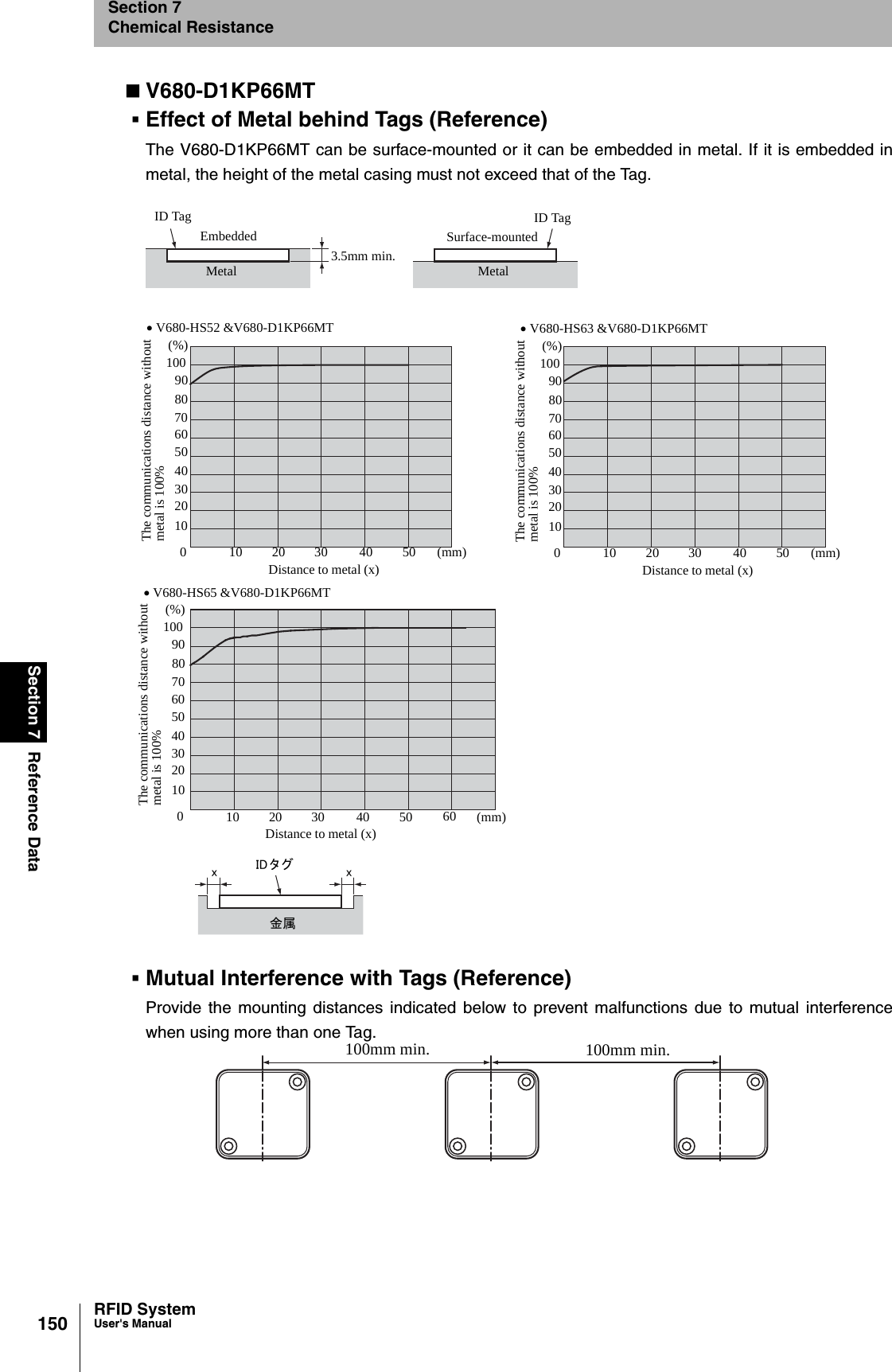

150Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D1KP66MTEffect of Metal behind Tags (Reference)The V680-D1KP66MT can be surface-mounted or it can be embedded in metal. If it is embedded inmetal, the height of the metal casing must not exceed that of the Tag.Mutual Interference with Tags (Reference)Provide the mounting distances indicated below to prevent malfunctions due to mutual interferencewhen using more than one Tag.ID Tag3.5mm min.MetalEmbeddedID TagMetalSurface-mounted金属ID タ グxx• V680-HS52 &V680-D1KP66MT10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS63 &V680-D1KP66MT10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS65 &V680-D1KP66MT10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%60100mm min. 100mm min.

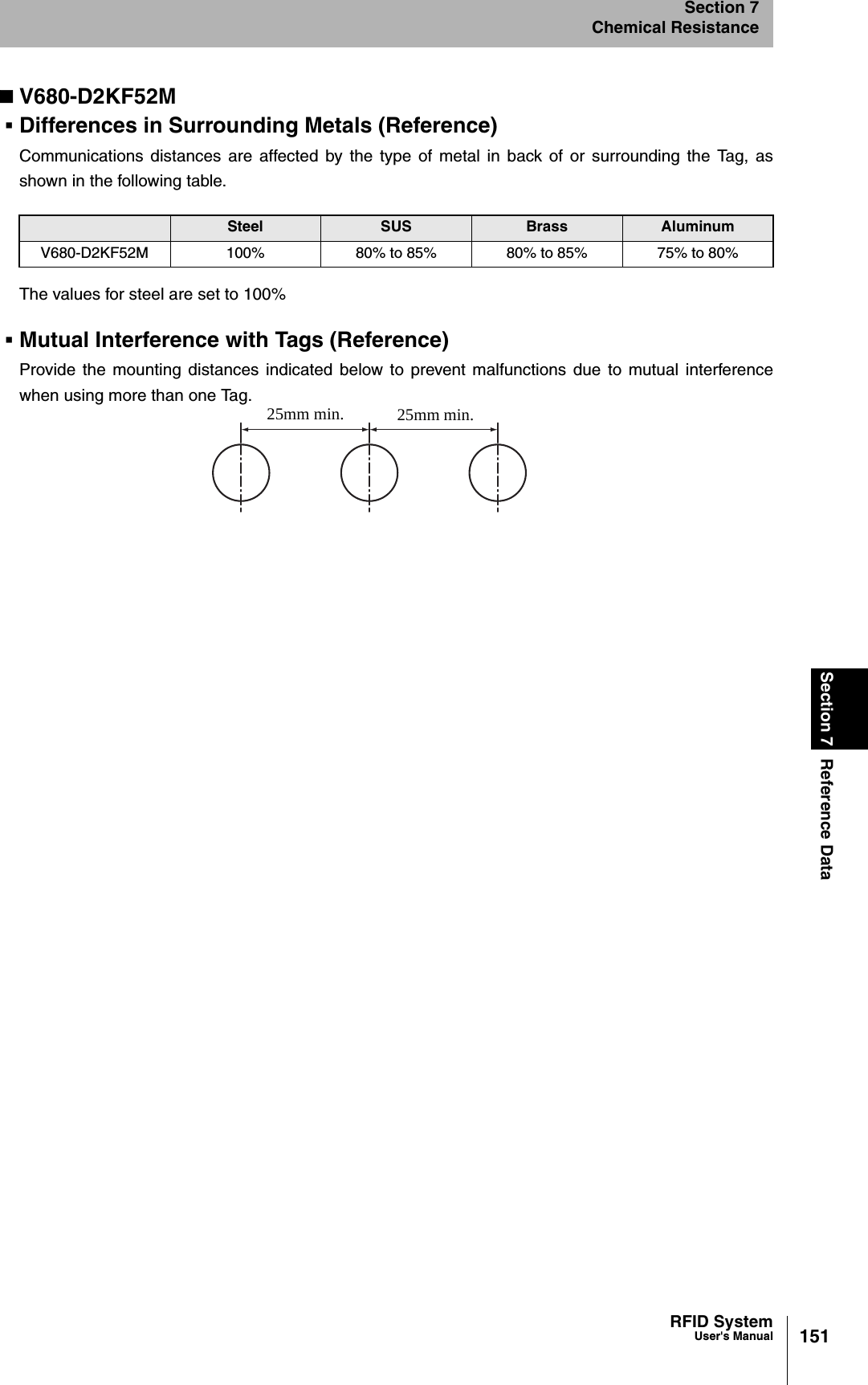

151RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceV680-D2KF52MDifferences in Surrounding Metals (Reference)Communications distances are affected by the type of metal in back of or surrounding the Tag, asshown in the following table.The values for steel are set to 100%Mutual Interference with Tags (Reference)Provide the mounting distances indicated below to prevent malfunctions due to mutual interferencewhen using more than one Tag.Steel SUS Brass AluminumV680-D2KF52M 100% 80% to 85% 80% to 85% 75% to 80%25mm min. 25mm min.

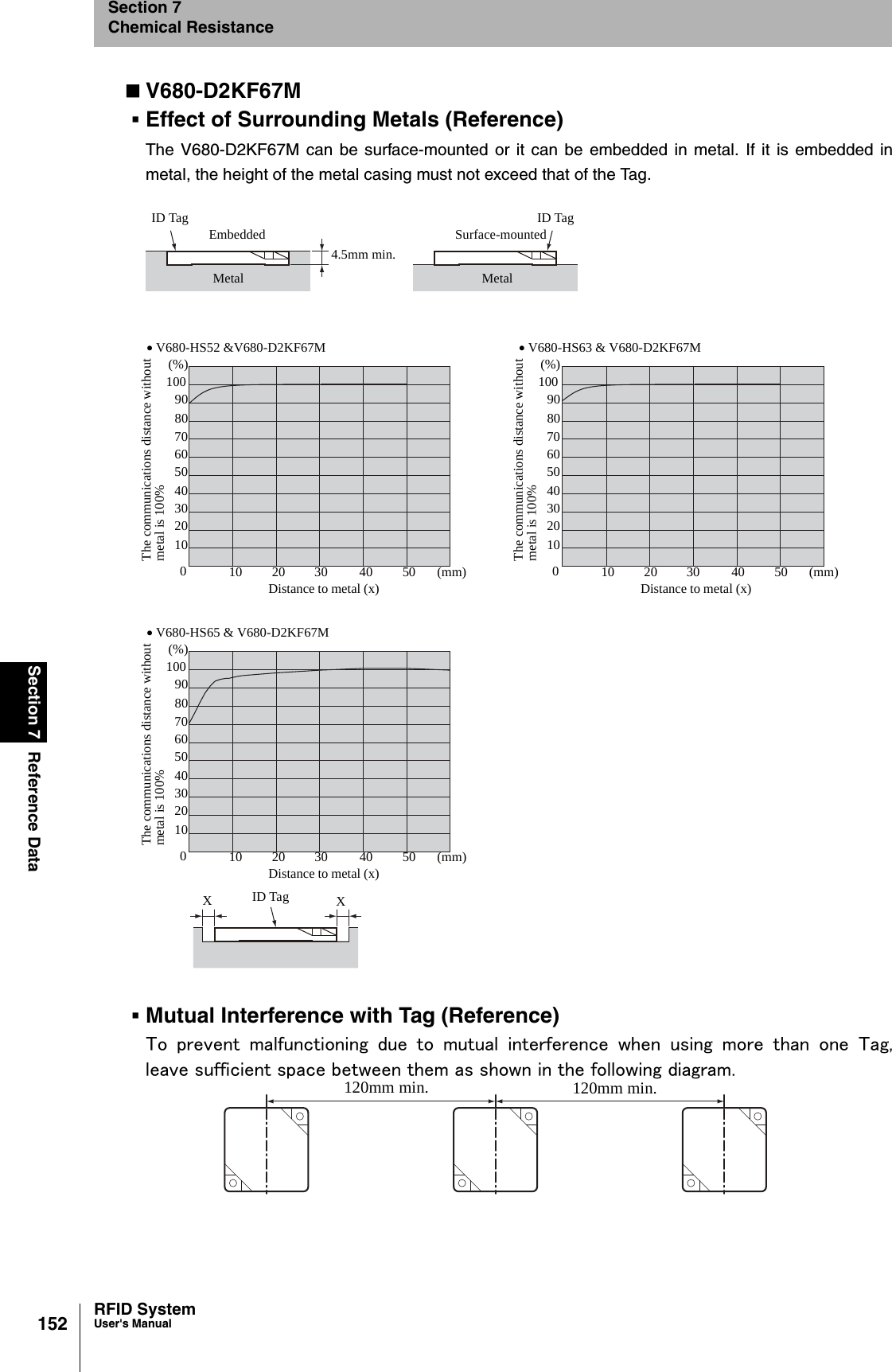

152Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D2KF67MEffect of Surrounding Metals (Reference)The V680-D2KF67M can be surface-mounted or it can be embedded in metal. If it is embedded inmetal, the height of the metal casing must not exceed that of the Tag.Mutual Interference with Tag (Reference)To  prevent  malfunctioning  due  to  mutual  interference  when  using more than one Tag,leave sufficient space between them as shown in the following diagram.ID Tag4.5mm min.MetalEmbedded ID TagMetalSurface-mounted• V680-HS52 &V680-D2KF67M10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS63 & V680-D2KF67M10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS65 & V680-D2KF67M10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%ID Tag XX120mm min. 120mm min.

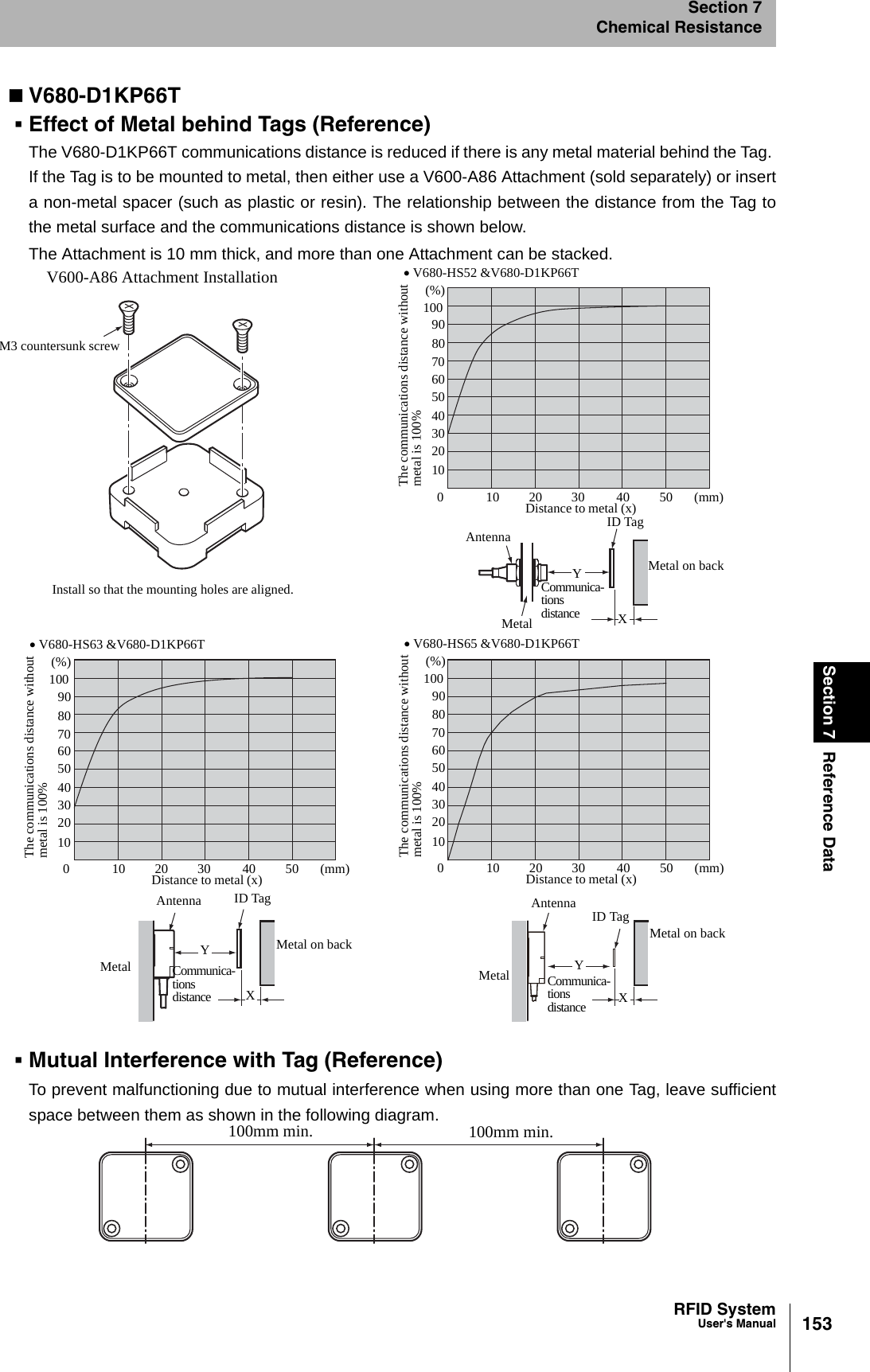

153RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceV680-D1KP66TEffect of Metal behind Tags (Reference)The V680-D1KP66T communications distance is reduced if there is any metal material behind the Tag. If the Tag is to be mounted to metal, then either use a V600-A86 Attachment (sold separately) or inserta non-metal spacer (such as plastic or resin). The relationship between the distance from the Tag tothe metal surface and the communications distance is shown below.The Attachment is 10 mm thick, and more than one Attachment can be stacked.Mutual Interference with Tag (Reference)To prevent malfunctioning due to mutual interference when using more than one Tag, leave sufficientspace between them as shown in the following diagram.M3 countersunk screwV600-A86 Attachment InstallationInstall so that the mounting holes are aligned.• V680-HS52 &V680-D1KP66T10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%ID TagMetal on backAntennaCommunica-tionsdistanceYXMetal• V680-HS63 &V680-D1KP66T10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS65 &V680-D1KP66T10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%Antenna ID TagMetal on backMetal YXCommunica-tionsdistanceAntenna ID Tag Metal on backMetal YXCommunica-tionsdistance100mm min. 100mm min.

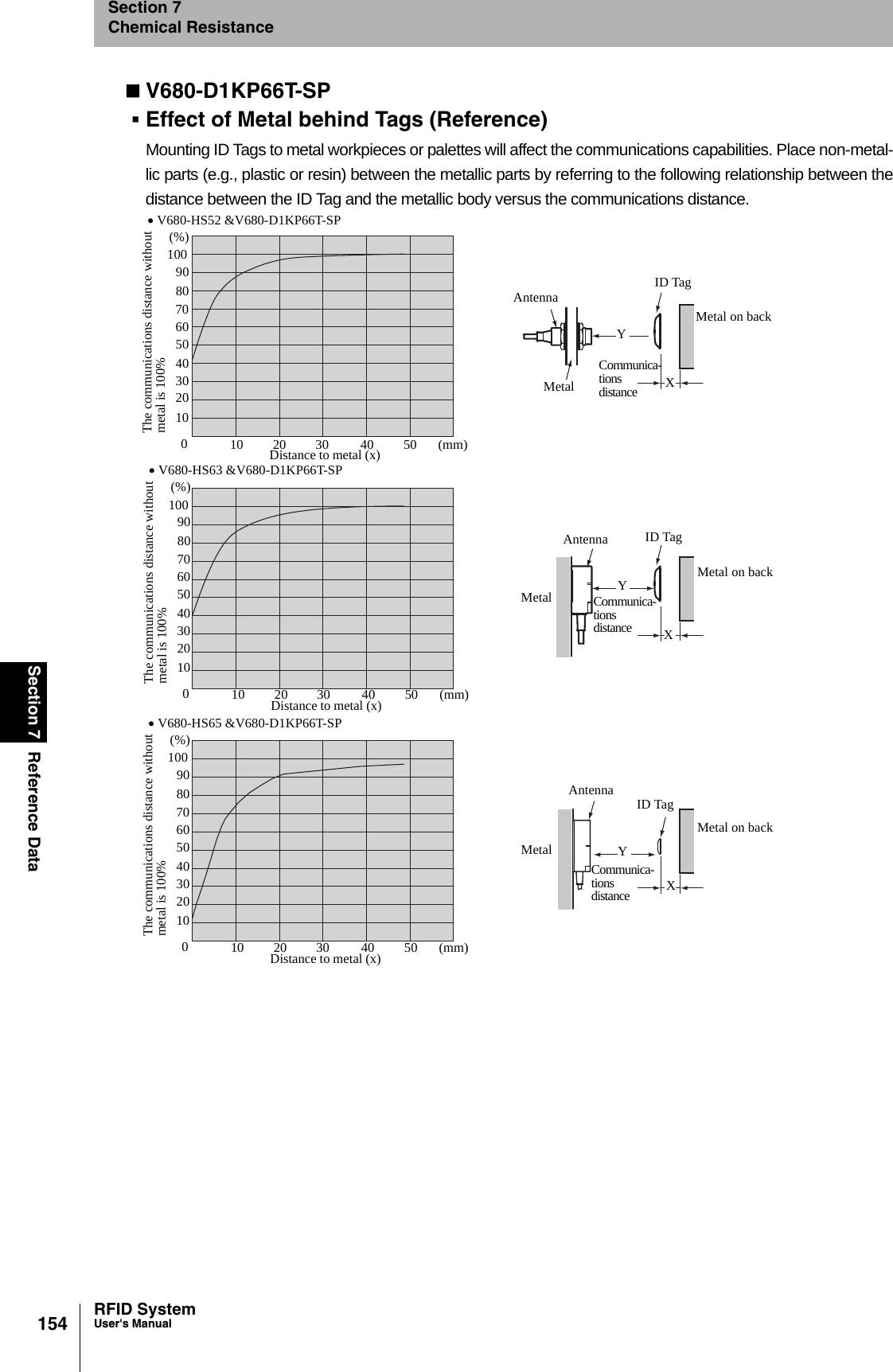

154Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D1KP66T-SPEffect of Metal behind Tags (Reference)Mounting ID Tags to metal workpieces or palettes will affect the communications capabilities. Place non-metal-lic parts (e.g., plastic or resin) between the metallic parts by referring to the following relationship between thedistance between the ID Tag and the metallic body versus the communications distance.• V680-HS52 &V680-D1KP66T-SP10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS63 &V680-D1KP66T-SP10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS65 &V680-D1KP66T-SP10 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%ID TagMetal on backAntennaYXMetalCommunica-tionsdistanceAntenna ID TagMetal on backMetal YXCommunica-tionsdistanceYXCommunica-tionsdistanceMetalAntenna ID TagMetal on back

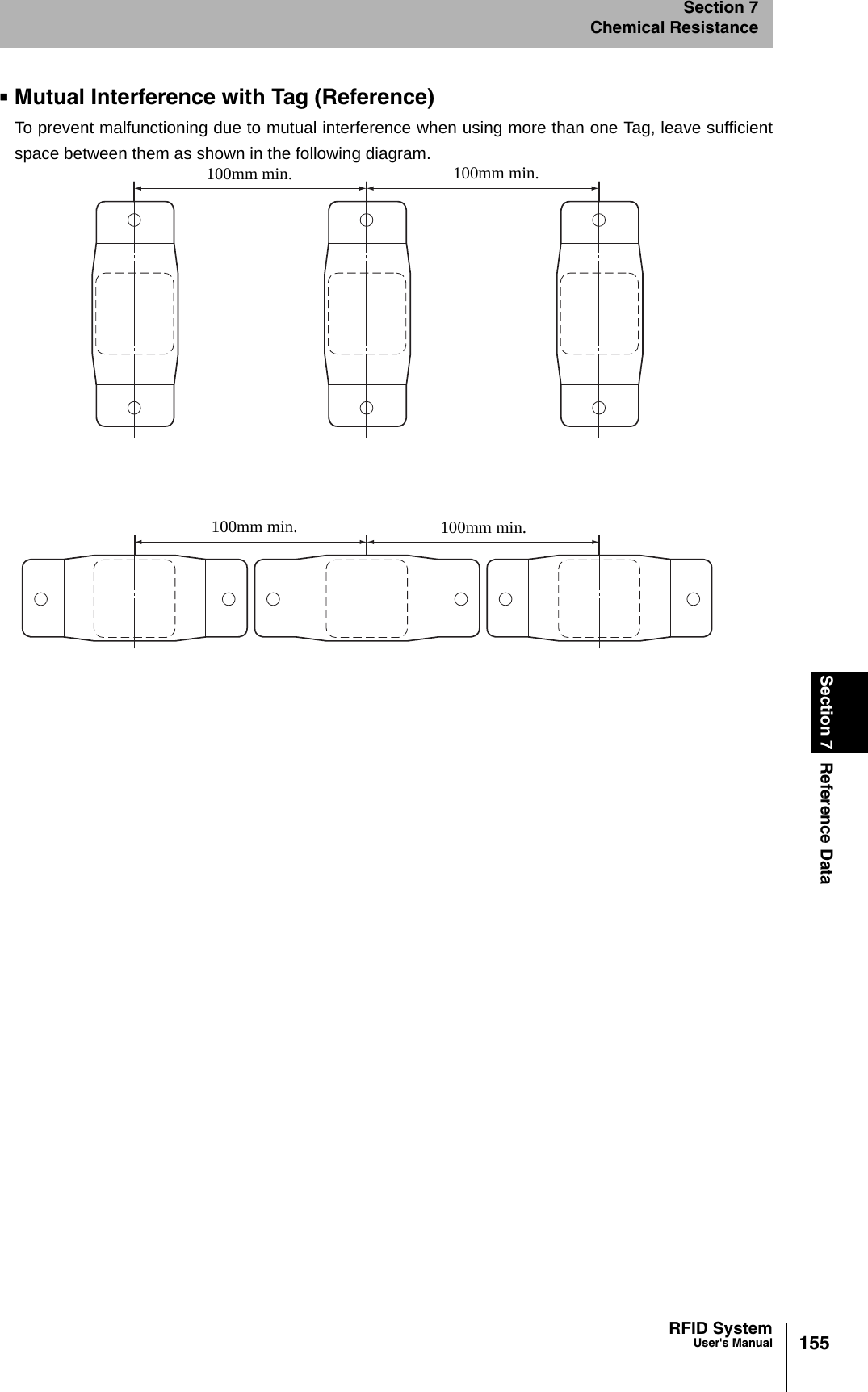

155RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceMutual Interference with Tag (Reference)To prevent malfunctioning due to mutual interference when using more than one Tag, leave sufficientspace between them as shown in the following diagram.100mm min. 100mm min.100mm min. 100mm min.

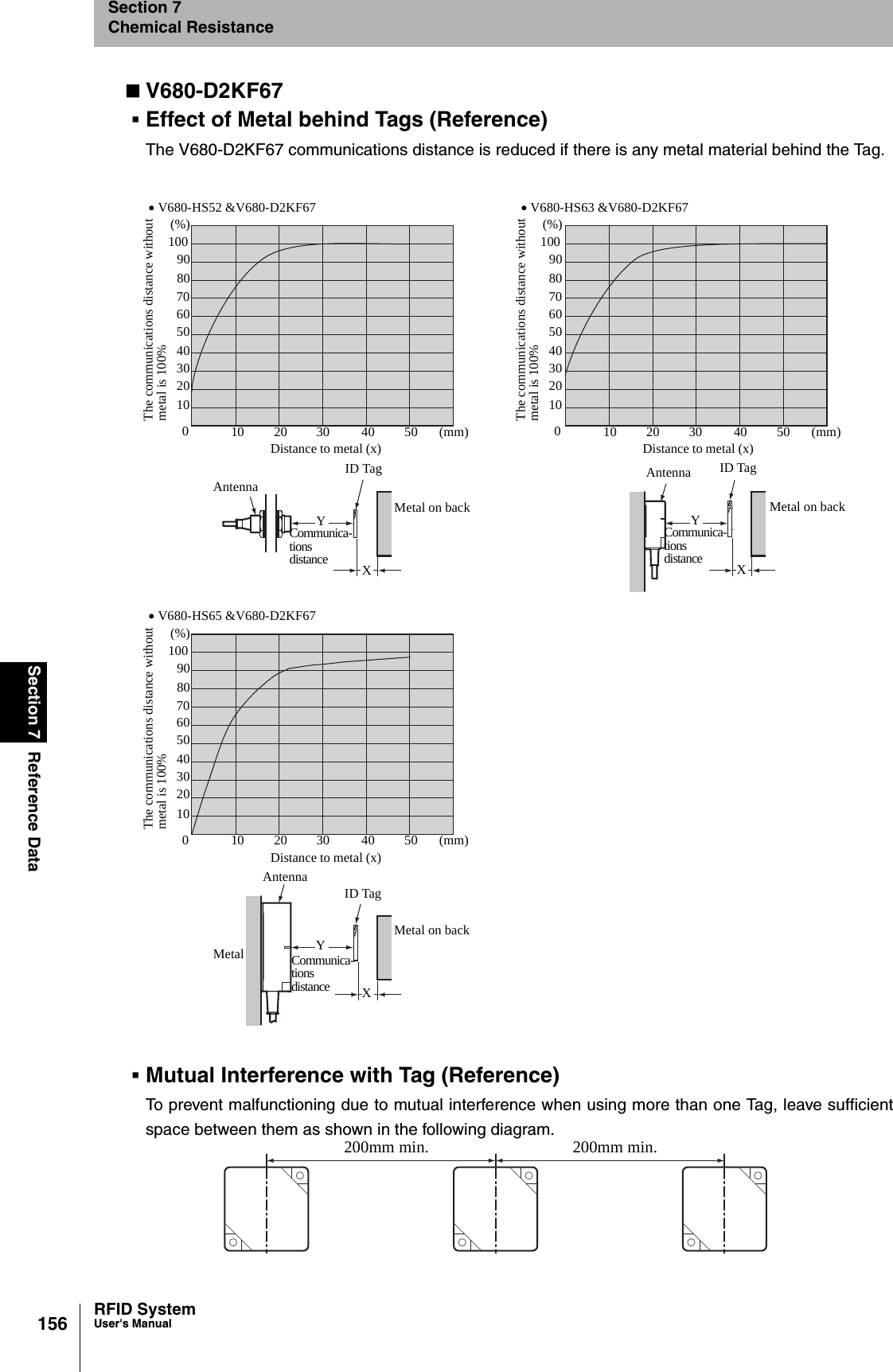

156Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistanceV680-D2KF67Effect of Metal behind Tags (Reference)The V680-D2KF67 communications distance is reduced if there is any metal material behind the Tag.Mutual Interference with Tag (Reference)To prevent malfunctioning due to mutual interference when using more than one Tag, leave sufficientspace between them as shown in the following diagram.• V680-HS52 &V680-D2KF6710 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS63 &V680-D2KF6710 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%• V680-HS65 &V680-D2KF6710 20 30 40 50 (mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%ID TagMetal on backAntennaCommunica-tionsdistanceYXID TagMetal on backAntennaCommunica-tionsdistanceYXID TagMetal on backAntennaCommunica-tionsdistanceYXMetal200mm min. 200mm min.

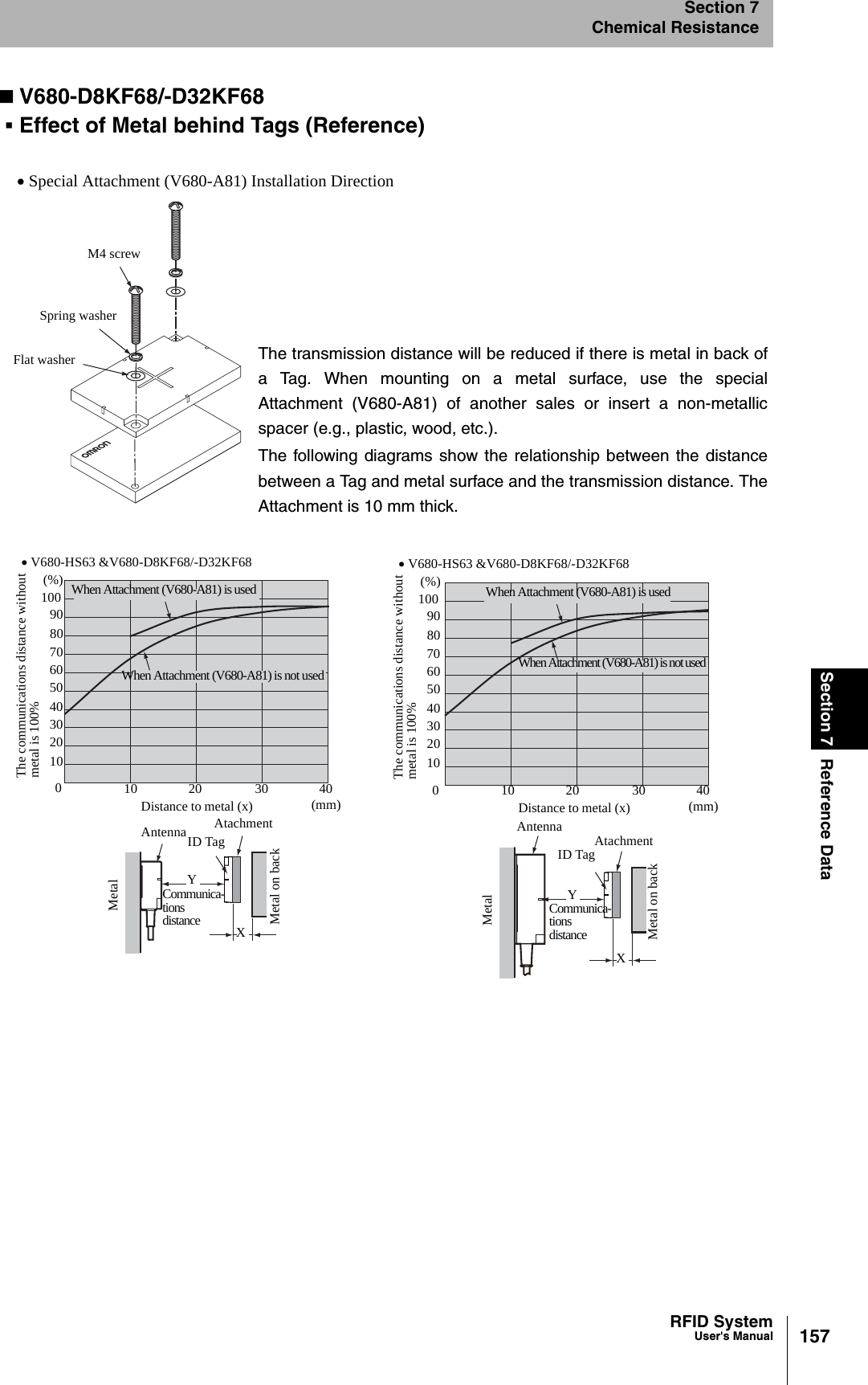

157RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceV680-D8KF68/-D32KF68Effect of Metal behind Tags (Reference)The transmission distance will be reduced if there is metal in back ofa Tag. When mounting on a metal surface, use the specialAttachment (V680-A81) of another sales or insert a non-metallicspacer (e.g., plastic, wood, etc.).The following diagrams show the relationship between the distancebetween a Tag and metal surface and the transmission distance. TheAttachment is 10 mm thick.• Special Attachment (V680-A81) Installation DirectionM4 screwSpring washerFlat washer• V680-HS63 &V680-D8KF68/-D32KF6810 20 30 40(mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%AntennaWhen Attachment (V680-A81) is not usedWhen Attachment (V680-A81) is usedAtachmentMetal on backMetal Communica-tionsdistanceYXID Tag• V680-HS63 &V680-D8KF68/-D32KF6810 20 30 40(mm)05070Distance to metal (x)604030201090(%)10080The communications distance withoutmetal is 100%When Attachment (V680-A81) is not usedWhen Attachment (V680-A81) is usedAtachmentAntennaMetal Metal on backYXCommunica-tionsdistanceID Tag

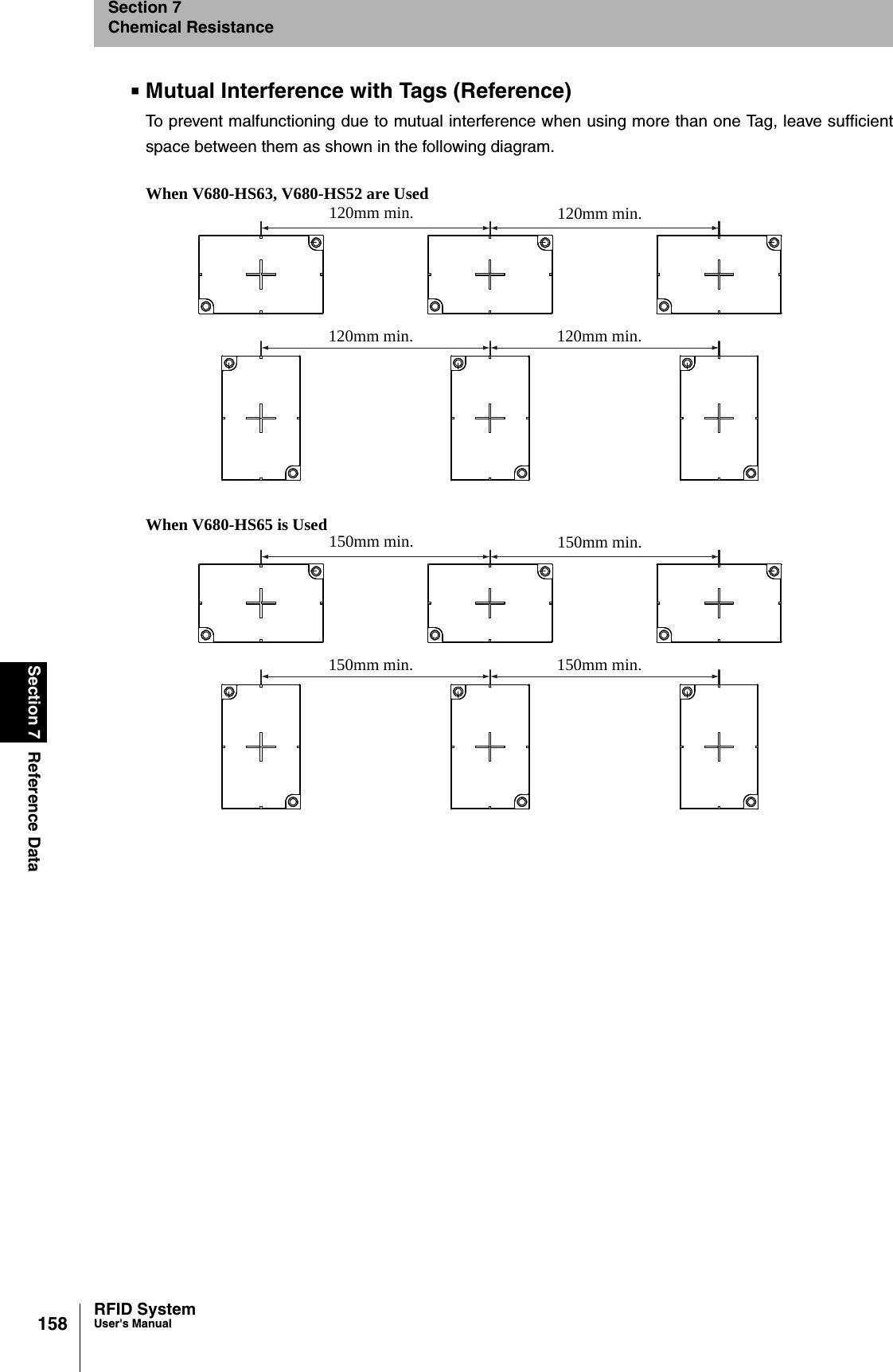

158Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistanceMutual Interference with Tags (Reference)To prevent malfunctioning due to mutual interference when using more than one Tag, leave sufficientspace between them as shown in the following diagram.When V680-HS63, V680-HS52 are UsedWhen V680-HS65 is Used120mm min. 120mm min.120mm min. 120mm min.150mm min. 150mm min.150mm min. 150mm min.

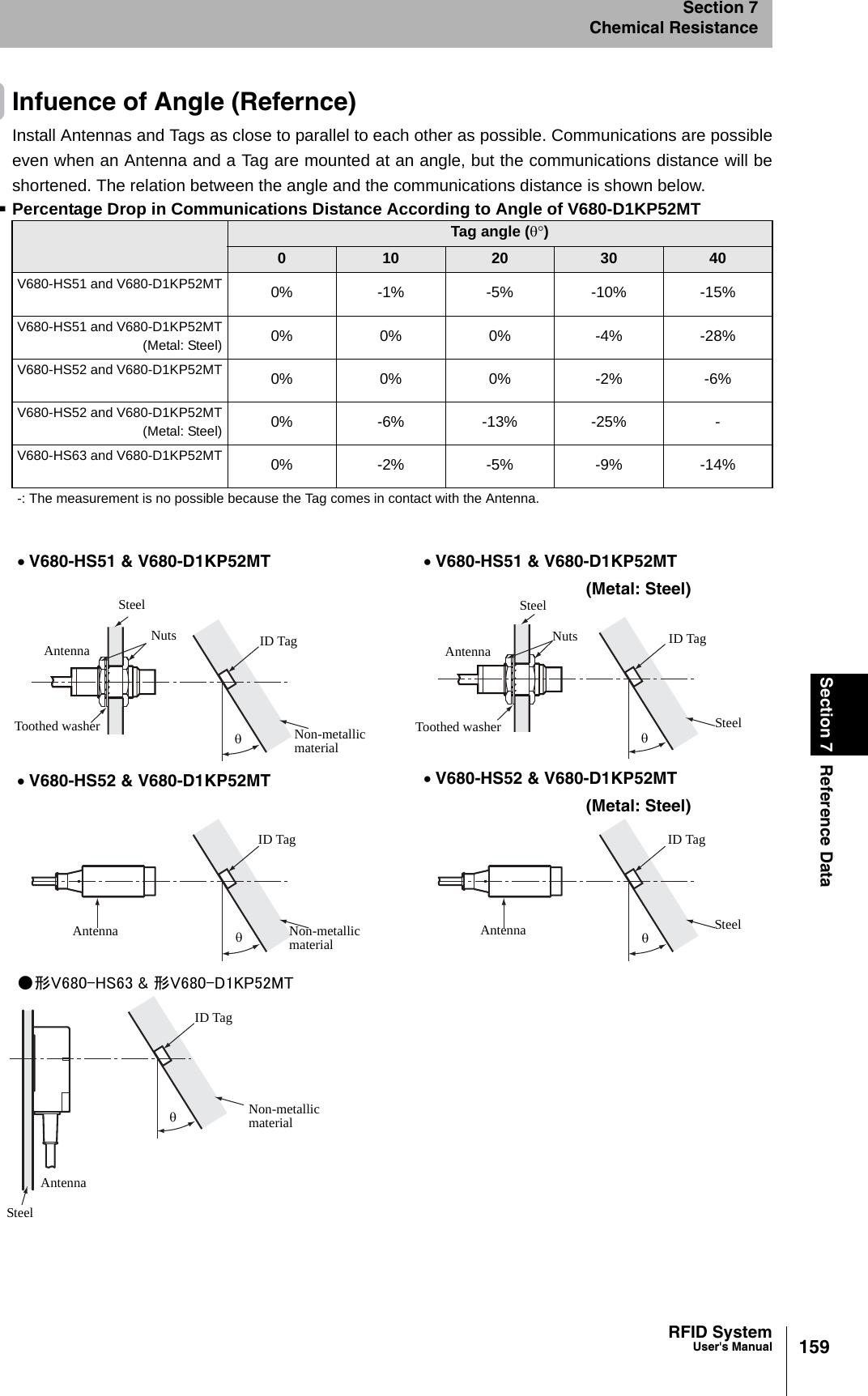

159RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistanceInfuence of Angle (Refernce)Install Antennas and Tags as close to parallel to each other as possible. Communications are possibleeven when an Antenna and a Tag are mounted at an angle, but the communications distance will beshortened. The relation between the angle and the communications distance is shown below.Percentage Drop in Communications Distance According to Angle of V680-D1KP52MT Tag angle (θ°)010 20 30 40V680-HS51 and V680-D1KP52MT 0% -1% -5% -10% -15%V680-HS51 and V680-D1KP52MT(Metal: Steel) 0% 0% 0% -4% -28%V680-HS52 and V680-D1KP52MT 0% 0% 0% -2% -6%V680-HS52 and V680-D1KP52MT(Metal: Steel) 0% -6% -13% -25% -V680-HS63 and V680-D1KP52MT 0% -2% -5% -9% -14%-: The measurement is no possible because the Tag comes in contact with the Antenna.• V680-HS51 & V680-D1KP52MT • V680-HS51 & V680-D1KP52MT(Metal: Steel)• V680-HS52 & V680-D1KP52MT • V680-HS52 & V680-D1KP52MT(Metal: Steel)●形V680-HS63 & 形V680-D1KP52MTAntenna Nuts ID TagSteelToothed washer Non-metallic materialθAntenna Nuts ID TagSteelToothed washer θSteelAntennaID TagθNon-metallic materialAntennaID TagSteelθAntennaID TagθNon-metallic materialSteel

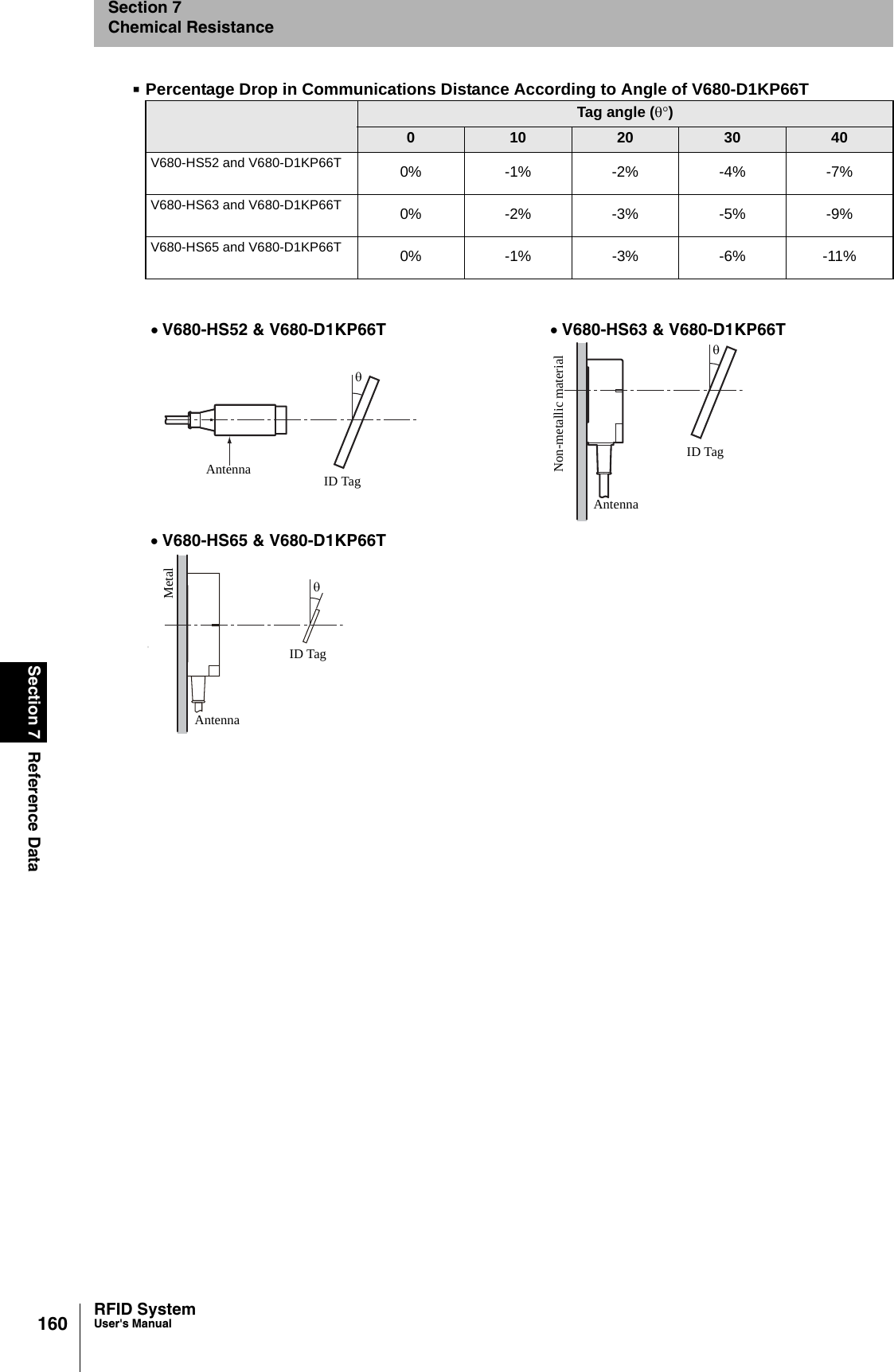

160Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistancePercentage Drop in Communications Distance According to Angle of V680-D1KP66T Tag angle (θ°)010 20 30 40V680-HS52 and V680-D1KP66T 0% -1% -2% -4% -7%V680-HS63 and V680-D1KP66T 0% -2% -3% -5% -9%V680-HS65 and V680-D1KP66T 0% -1% -3% -6% -11%• V680-HS52 & V680-D1KP66T • V680-HS63 & V680-D1KP66T• V680-HS65 & V680-D1KP66TAntenna ID TagθAntennaID TagNon-metallic materialθMetalAntennaID Tagθ

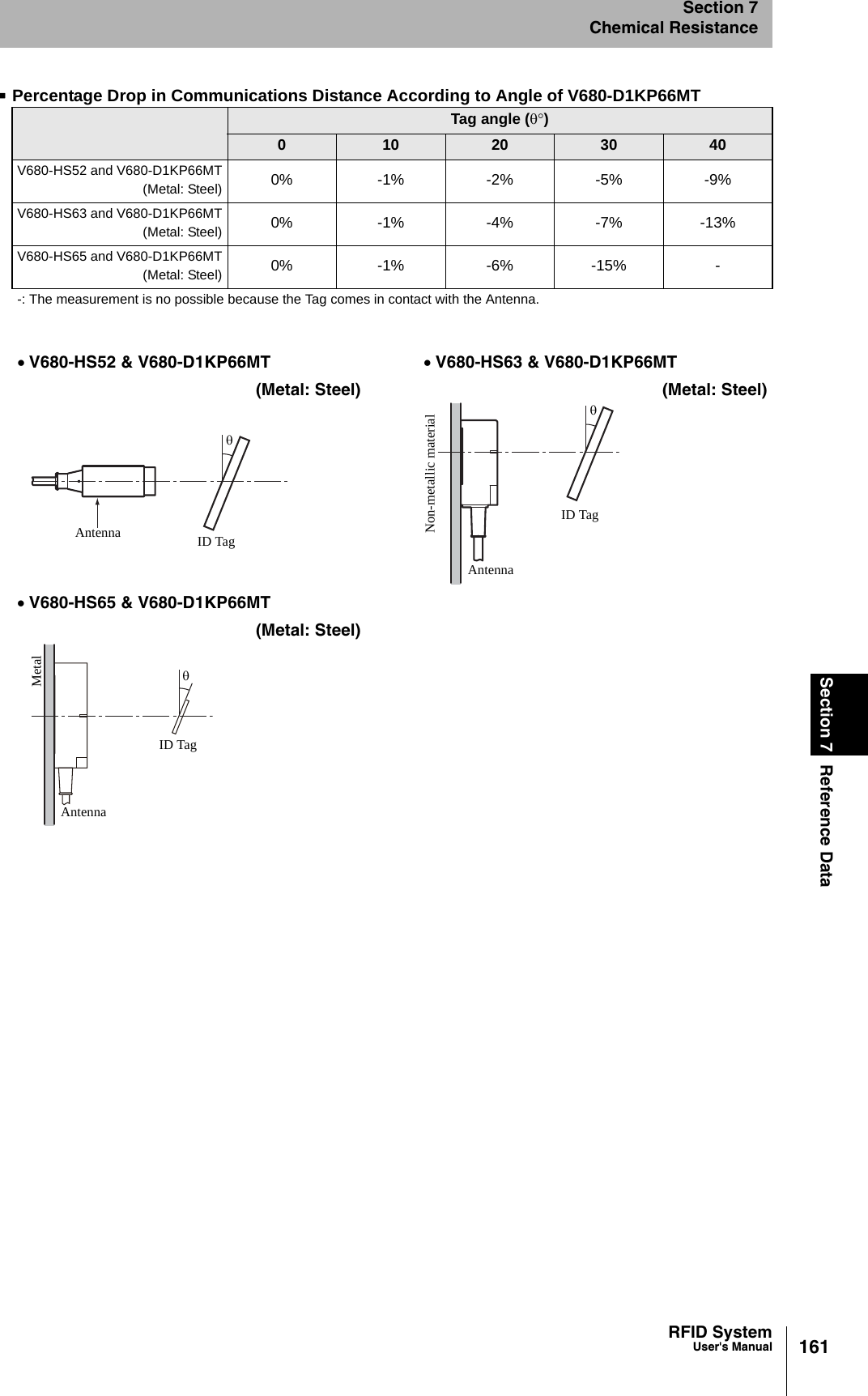

161RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistancePercentage Drop in Communications Distance According to Angle of V680-D1KP66MT Tag angle (θ°)010 20 30 40V680-HS52 and V680-D1KP66MT(Metal: Steel) 0% -1% -2% -5% -9%V680-HS63 and V680-D1KP66MT(Metal: Steel) 0% -1% -4% -7% -13%V680-HS65 and V680-D1KP66MT(Metal: Steel) 0% -1% -6% -15% --: The measurement is no possible because the Tag comes in contact with the Antenna.• V680-HS52 & V680-D1KP66MT(Metal: Steel)• V680-HS63 & V680-D1KP66MT(Metal: Steel)• V680-HS65 & V680-D1KP66MT(Metal: Steel)ID TagθAntennaAntennaID TagNon-metallic materialθAntennaID TagθMetal
162Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistancePercentage Drop in Communications Distance According to Angle of V680-D1KP66T-SP Tag angle (θ°)010 20 30 40V680-HS52 and V680-D1KP66T-SP 0% -1% -2% -4% -7%V680-HS63 and V680-D1KP66T-SP 0% -2% -3% -5% -9%V680-HS65 and V680-D1KP66T-SP 0% -1% -3% -6% -11%• V680-HS52 & V680-D1KP66T-SP • V680-HS63 & V680-D1KP66T-SP• V680-HS65 & V680-D1KP66T-SPID TagθAntennaAntennaID TagNon-metallic materialθAntennaID TagθMetal

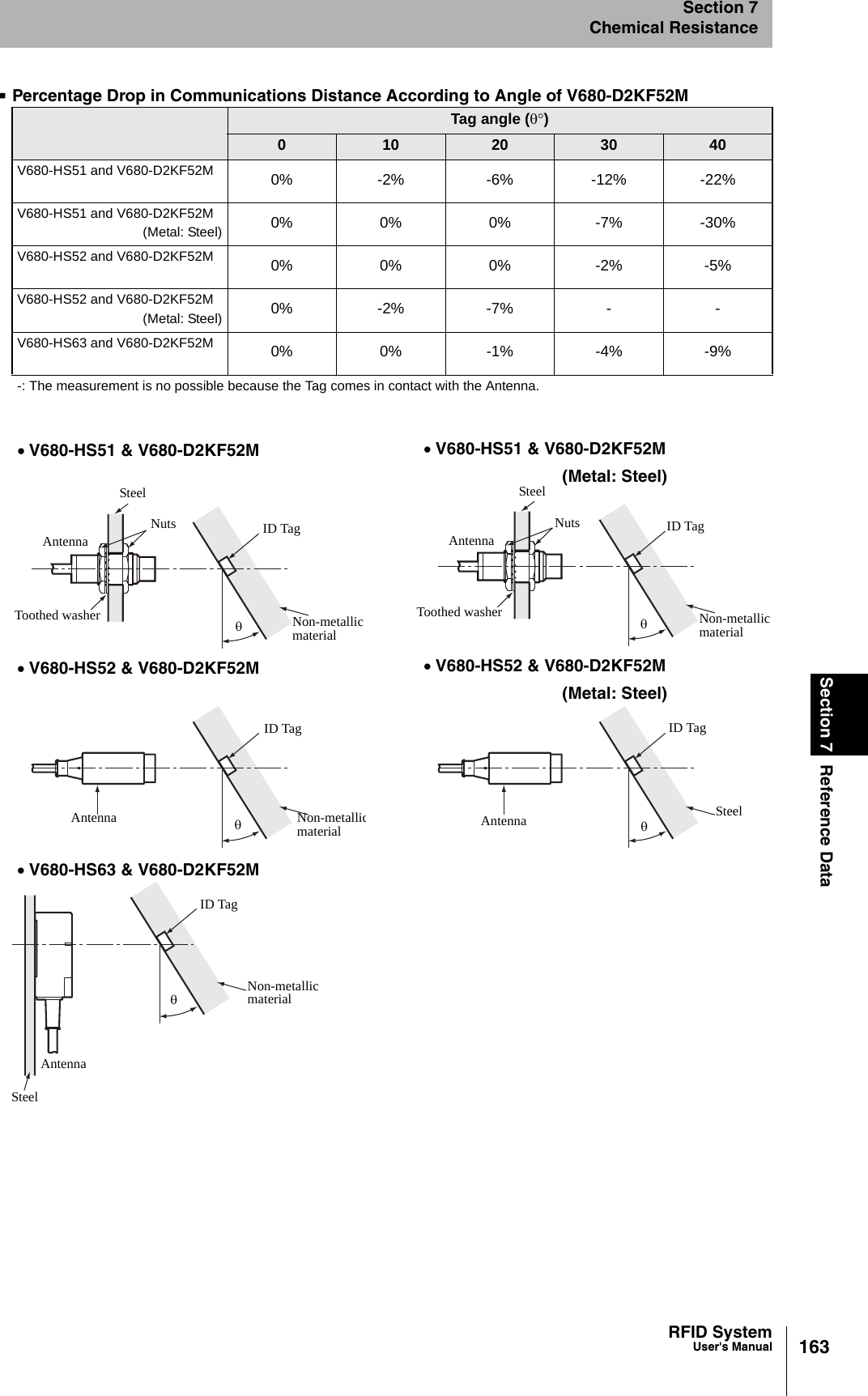

163RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistancePercentage Drop in Communications Distance According to Angle of V680-D2KF52M Tag angle (θ°)010 20 30 40V680-HS51 and V680-D2KF52M 0% -2% -6% -12% -22%V680-HS51 and V680-D2KF52M(Metal: Steel) 0% 0% 0% -7% -30%V680-HS52 and V680-D2KF52M 0% 0% 0% -2% -5%V680-HS52 and V680-D2KF52M(Metal: Steel) 0% -2% -7% - -V680-HS63 and V680-D2KF52M 0% 0% -1% -4% -9%-: The measurement is no possible because the Tag comes in contact with the Antenna.• V680-HS51 & V680-D2KF52M • V680-HS51 & V680-D2KF52M(Metal: Steel)• V680-HS52 & V680-D2KF52M • V680-HS52 & V680-D2KF52M(Metal: Steel)• V680-HS63 & V680-D2KF52MID TagθAntennaNutsSteelToothed washer Non-metallic materialID TagθAntennaNutsSteelToothed washer Non-metallic materialID TagθAntenna Non-metallicmaterialID TagAntenna SteelθID TagθNon-metallic materialAntennaSteel

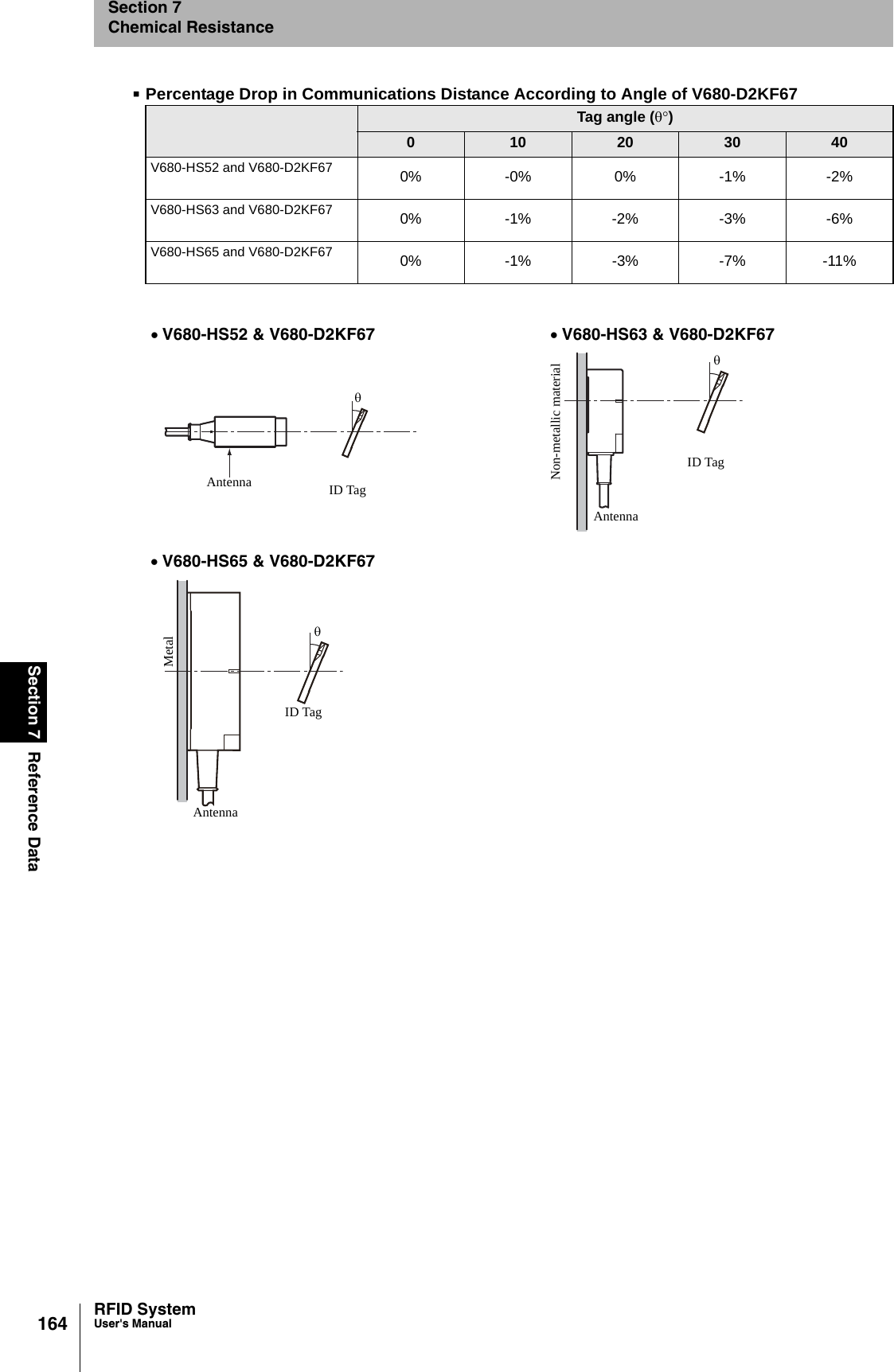

164Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistancePercentage Drop in Communications Distance According to Angle of V680-D2KF67 Tag angle (θ°)010 20 30 40V680-HS52 and V680-D2KF67 0% -0% 0% -1% -2%V680-HS63 and V680-D2KF67 0% -1% -2% -3% -6%V680-HS65 and V680-D2KF67 0% -1% -3% -7% -11%• V680-HS52 & V680-D2KF67 • V680-HS63 & V680-D2KF67• V680-HS65 & V680-D2KF67ID TagθAntennaAntennaID TagNon-metallic materialθID TagθMetalAntenna

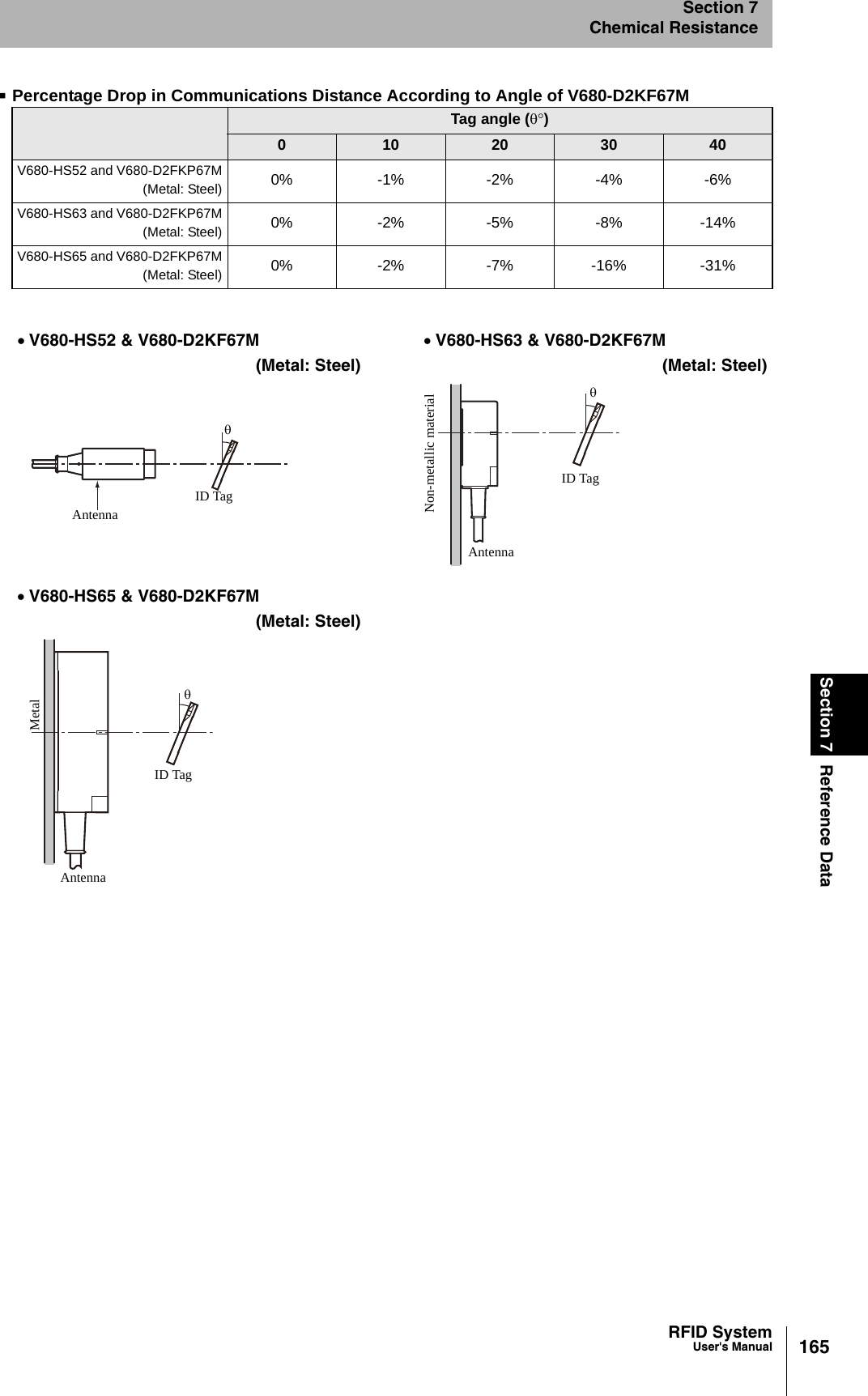

165RFID SystemUser's ManualSection 7 Reference DataSection 7Chemical ResistancePercentage Drop in Communications Distance According to Angle of V680-D2KF67M Tag angle (θ°)010 20 30 40V680-HS52 and V680-D2FKP67M(Metal: Steel) 0% -1% -2% -4% -6%V680-HS63 and V680-D2FKP67M(Metal: Steel) 0% -2% -5% -8% -14%V680-HS65 and V680-D2FKP67M(Metal: Steel) 0% -2% -7% -16% -31%• V680-HS52 & V680-D2KF67M(Metal: Steel)• V680-HS63 & V680-D2KF67M(Metal: Steel)• V680-HS65 & V680-D2KF67M(Metal: Steel)ID TagθAntennaAntennaID TagNon-metallic materialθID TagθMetalAntenna

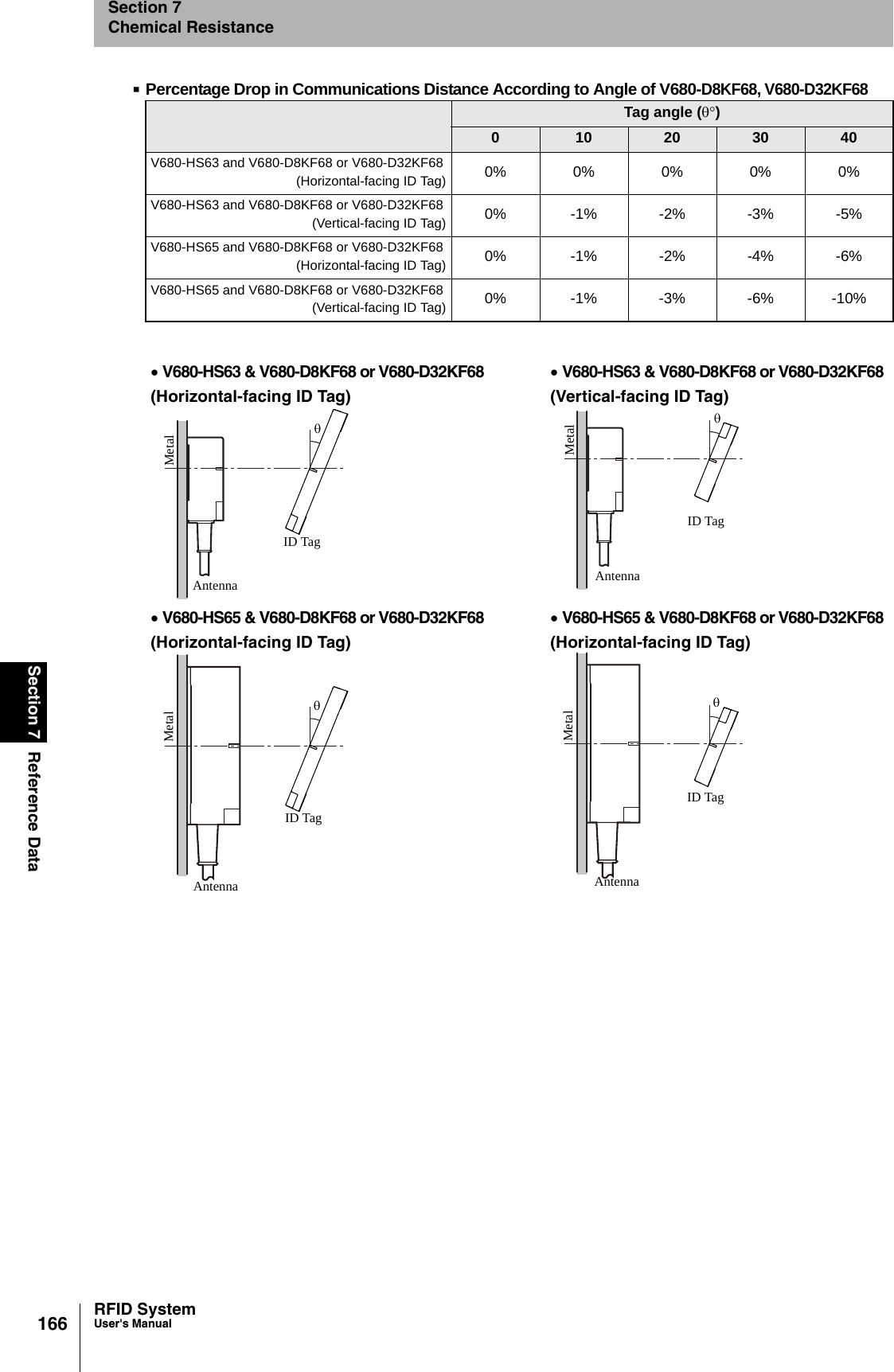

166Section 7 Reference DataRFID SystemUser's ManualSection 7Chemical ResistancePercentage Drop in Communications Distance According to Angle of V680-D8KF68, V680-D32KF68 Tag angle (θ°)010 20 30 40V680-HS63 and V680-D8KF68 or V680-D32KF68(Horizontal-facing ID Tag) 0% 0% 0% 0% 0%V680-HS63 and V680-D8KF68 or V680-D32KF68(Vertical-facing ID Tag) 0% -1% -2% -3% -5%V680-HS65 and V680-D8KF68 or V680-D32KF68(Horizontal-facing ID Tag) 0% -1% -2% -4% -6%V680-HS65 and V680-D8KF68 or V680-D32KF68(Vertical-facing ID Tag) 0% -1% -3% -6% -10%• V680-HS63 & V680-D8KF68 or V680-D32KF68(Horizontal-facing ID Tag)• V680-HS63 & V680-D8KF68 or V680-D32KF68(Vertical-facing ID Tag)• V680-HS65 & V680-D8KF68 or V680-D32KF68(Horizontal-facing ID Tag)• V680-HS65 & V680-D8KF68 or V680-D32KF68(Horizontal-facing ID Tag)ID TagθMetalAntennaID TagθMetalAntennaID TagθMetalAntennaID TagθMetalAntenna

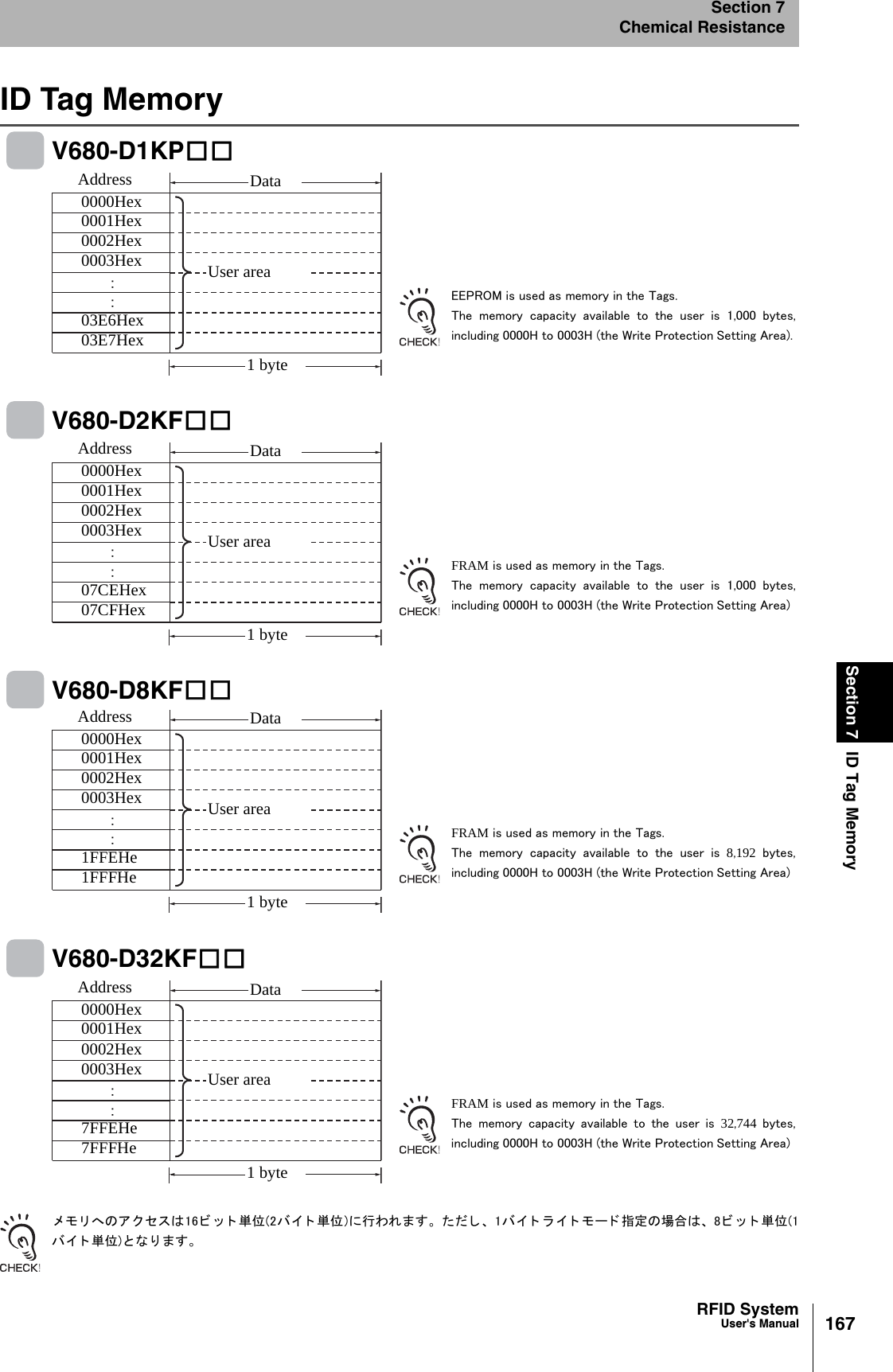

167RFID SystemUser's ManualSection 7 ID Tag MemorySection 7Chemical ResistanceID Tag MemoryV680-D1KP□□V680-D2KF□□V680-D8KF□□V680-D32KF□□メ モ リ へのア ク セスは16 ビ ッ ト 単位(2バイ ト 単位)に行われます。 ただ し、 1バイ ト ラ イ ト モー ド 指定の場合は、 8 ビ ッ ト 単位(1バイ ト単位)となります。Address Data0000Hex0001Hex0002Hex0003Hex User area03E6Hex03E7Hex::1 byteEEPROM is used as memory in the Tags.The  memory  capacity  available  to  the  user  is  1,000  bytes,including 0000H to 0003H (the Write Protection Setting Area).Address Data0000Hex0001Hex0002Hex0003Hex User area07CEHex07CFHex::1 byteFRAM is used as memory in the Tags.The  memory  capacity  available  to  the  user  is  1,000  bytes,including 0000H to 0003H (the Write Protection Setting Area)Address Data0000Hex0001Hex0002Hex0003Hex User area1FFEHe1FFFHe::1 byteFRAM is used as memory in the Tags.The  memory  capacity  available  to  the  user  is  8,192 bytes,including 0000H to 0003H (the Write Protection Setting Area)Address Data0000Hex0001Hex0002Hex0003Hex User area7FFEHe7FFFHe::1 byteFRAM is used as memory in the Tags.The  memory  capacity  available  to  the  user  is  32,744 bytes,including 0000H to 0003H (the Write Protection Setting Area)

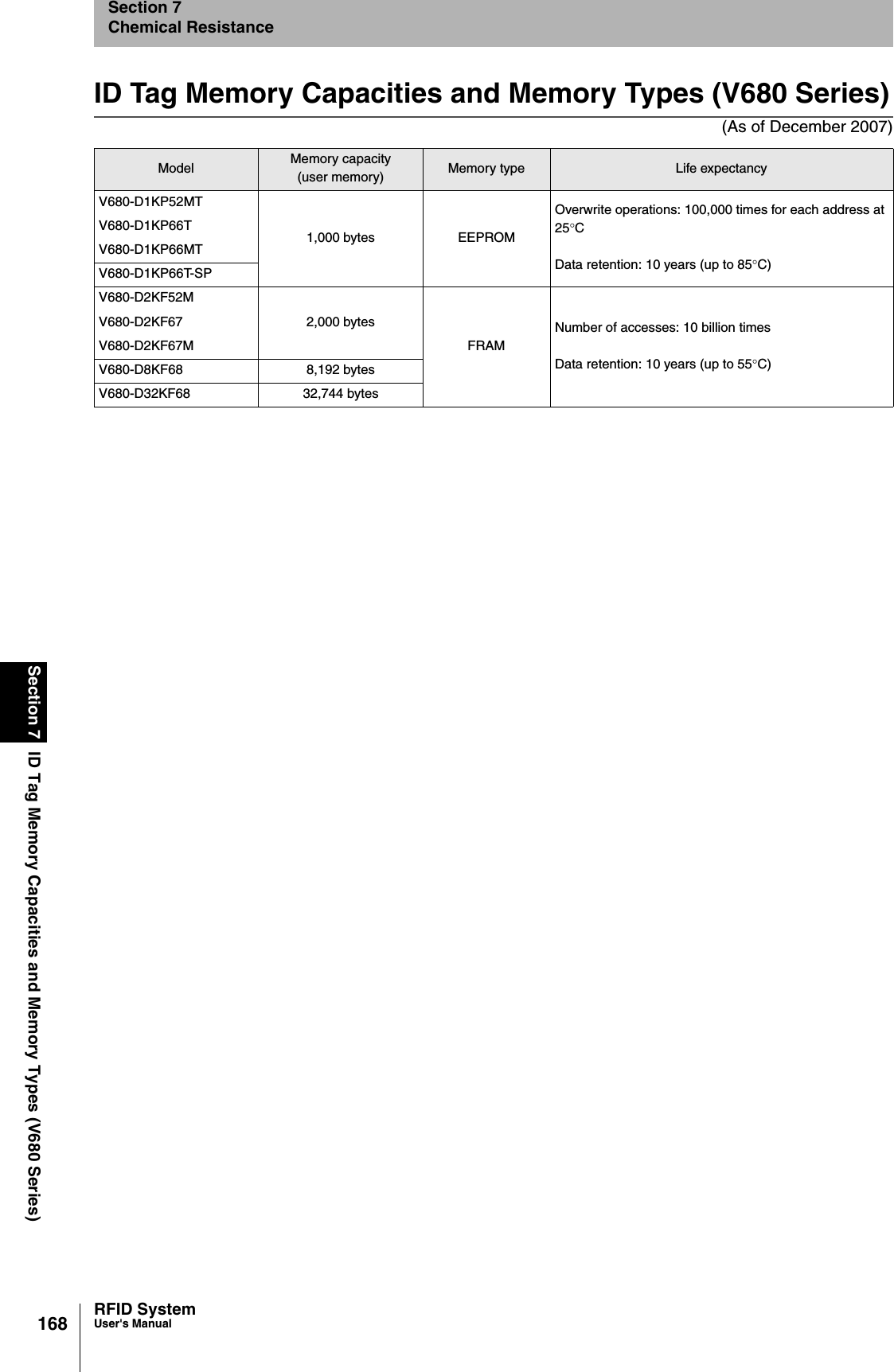

168Section 7 ID Tag Memory Capacities and Memory Types (V680 Series)RFID SystemUser's ManualSection 7Chemical ResistanceID Tag Memory Capacities and Memory Types (V680 Series)(As of December 2007)Model Memory capacity (user memory) Memory type Life expectancyV680-D1KP52MT1,000 bytes EEPROMOverwrite operations: 100,000 times for each address at 25°CData retention: 10 years (up to 85°C)V680-D1KP66TV680-D1KP66MTV680-D1KP66T-SPV680-D2KF52M2,000 bytesFRAMNumber of accesses: 10 billion timesData retention: 10 years (up to 55°C)V680-D2KF67V680-D2KF67MV680-D8KF68 8,192 bytesV680-D32KF68 32,744 bytes

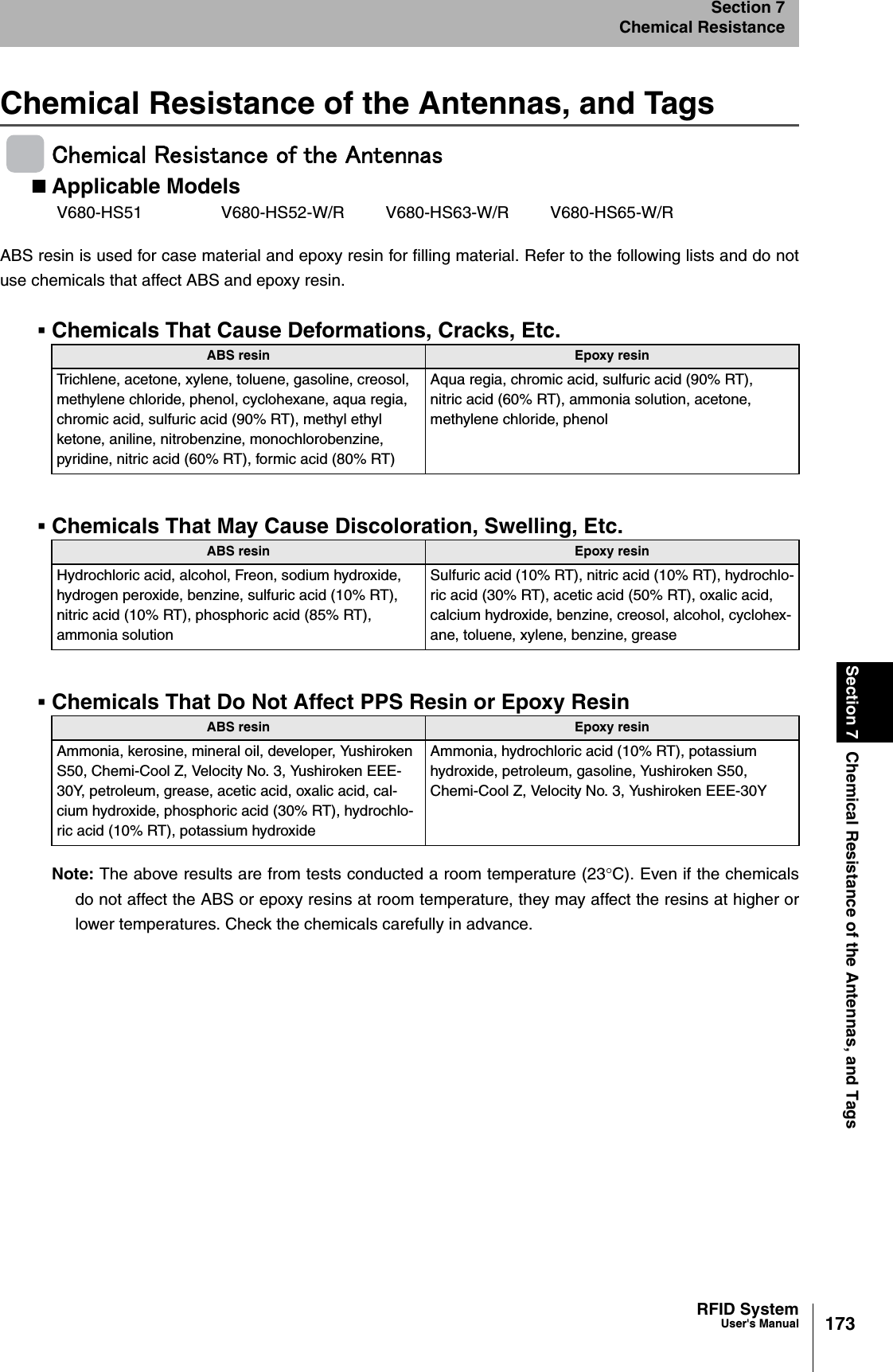

173RFID SystemUser's ManualSection 7 Chemical Resistance of the Antennas, and TagsSection 7Chemical ResistanceChemical Resistance of the Antennas, and TagsChemical Resistance of the AntennasApplicable ModelsABS resin is used for case material and epoxy resin for filling material. Refer to the following lists and do notuse chemicals that affect ABS and epoxy resin.Chemicals That Cause Deformations, Cracks, Etc.Chemicals That May Cause Discoloration, Swelling, Etc.Chemicals That Do Not Affect PPS Resin or Epoxy ResinNote: The above results are from tests conducted a room temperature (23°C). Even if the chemicalsdo not affect the ABS or epoxy resins at room temperature, they may affect the resins at higher orlower temperatures. Check the chemicals carefully in advance.V680-HS51 V680-HS52-W/R V680-HS63-W/R V680-HS65-W/RABS resin Epoxy resinTrichlene, acetone, xylene, toluene, gasoline, creosol, methylene chloride, phenol, cyclohexane, aqua regia, chromic acid, sulfuric acid (90% RT), methyl ethyl ketone, aniline, nitrobenzine, monochlorobenzine, pyridine, nitric acid (60% RT), formic acid (80% RT)Aqua regia, chromic acid, sulfuric acid (90% RT), nitric acid (60% RT), ammonia solution, acetone, methylene chloride, phenolABS resin Epoxy resinHydrochloric acid, alcohol, Freon, sodium hydroxide, hydrogen peroxide, benzine, sulfuric acid (10% RT), nitric acid (10% RT), phosphoric acid (85% RT), ammonia solutionSulfuric acid (10% RT), nitric acid (10% RT), hydrochlo-ric acid (30% RT), acetic acid (50% RT), oxalic acid, calcium hydroxide, benzine, creosol, alcohol, cyclohex-ane, toluene, xylene, benzine, greaseABS resin Epoxy resinAmmonia, kerosine, mineral oil, developer, Yushiroken S50, Chemi-Cool Z, Velocity No. 3, Yushiroken EEE-30Y, petroleum, grease, acetic acid, oxalic acid, cal-cium hydroxide, phosphoric acid (30% RT), hydrochlo-ric acid (10% RT), potassium hydroxideAmmonia, hydrochloric acid (10% RT), potassium hydroxide, petroleum, gasoline, Yushiroken S50, Chemi-Cool Z, Velocity No. 3, Yushiroken EEE-30Y

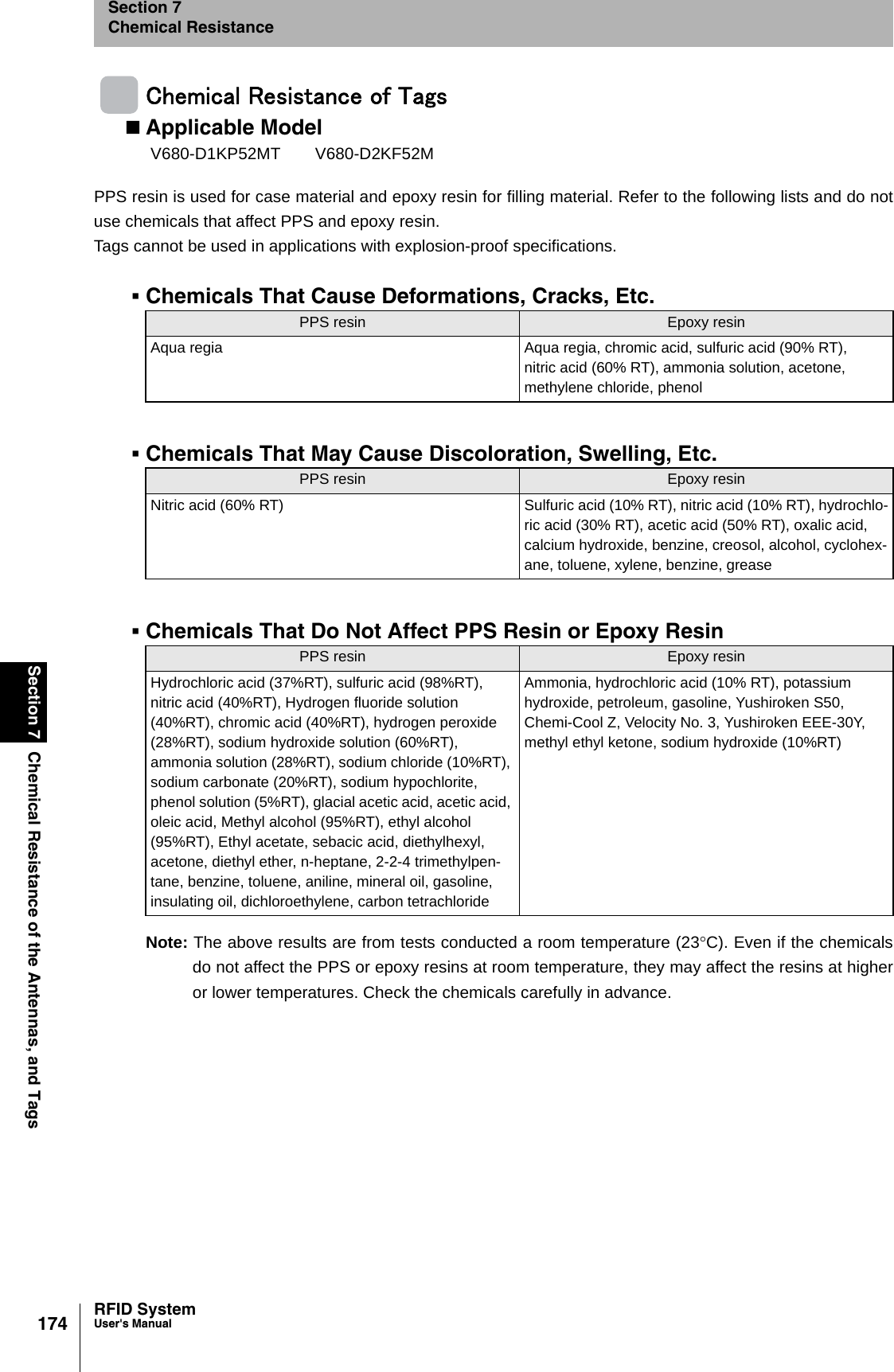

174Section 7 Chemical Resistance of the Antennas, and TagsRFID SystemUser's ManualSection 7Chemical ResistanceChemical Resistance of TagsApplicable ModelPPS resin is used for case material and epoxy resin for filling material. Refer to the following lists and do notuse chemicals that affect PPS and epoxy resin.Tags cannot be used in applications with explosion-proof specifications.Chemicals That Cause Deformations, Cracks, Etc.Chemicals That May Cause Discoloration, Swelling, Etc.Chemicals That Do Not Affect PPS Resin or Epoxy ResinNote: The above results are from tests conducted a room temperature (23°C). Even if the chemicalsdo not affect the PPS or epoxy resins at room temperature, they may affect the resins at higheror lower temperatures. Check the chemicals carefully in advance.V680-D1KP52MT V680-D2KF52MPPS resin Epoxy resinAqua regia Aqua regia, chromic acid, sulfuric acid (90% RT), nitric acid (60% RT), ammonia solution, acetone, methylene chloride, phenolPPS resin Epoxy resinNitric acid (60% RT) Sulfuric acid (10% RT), nitric acid (10% RT), hydrochlo-ric acid (30% RT), acetic acid (50% RT), oxalic acid, calcium hydroxide, benzine, creosol, alcohol, cyclohex-ane, toluene, xylene, benzine, greasePPS resin Epoxy resinHydrochloric acid (37%RT), sulfuric acid (98%RT), nitric acid (40%RT), Hydrogen fluoride solution (40%RT), chromic acid (40%RT), hydrogen peroxide (28%RT), sodium hydroxide solution (60%RT), ammonia solution (28%RT), sodium chloride (10%RT), sodium carbonate (20%RT), sodium hypochlorite, phenol solution (5%RT), glacial acetic acid, acetic acid, oleic acid, Methyl alcohol (95%RT), ethyl alcohol (95%RT), Ethyl acetate, sebacic acid, diethylhexyl, acetone, diethyl ether, n-heptane, 2-2-4 trimethylpen-tane, benzine, toluene, aniline, mineral oil, gasoline, insulating oil, dichloroethylene, carbon tetrachlorideAmmonia, hydrochloric acid (10% RT), potassium hydroxide, petroleum, gasoline, Yushiroken S50, Chemi-Cool Z, Velocity No. 3, Yushiroken EEE-30Y, methyl ethyl ketone, sodium hydroxide (10%RT)

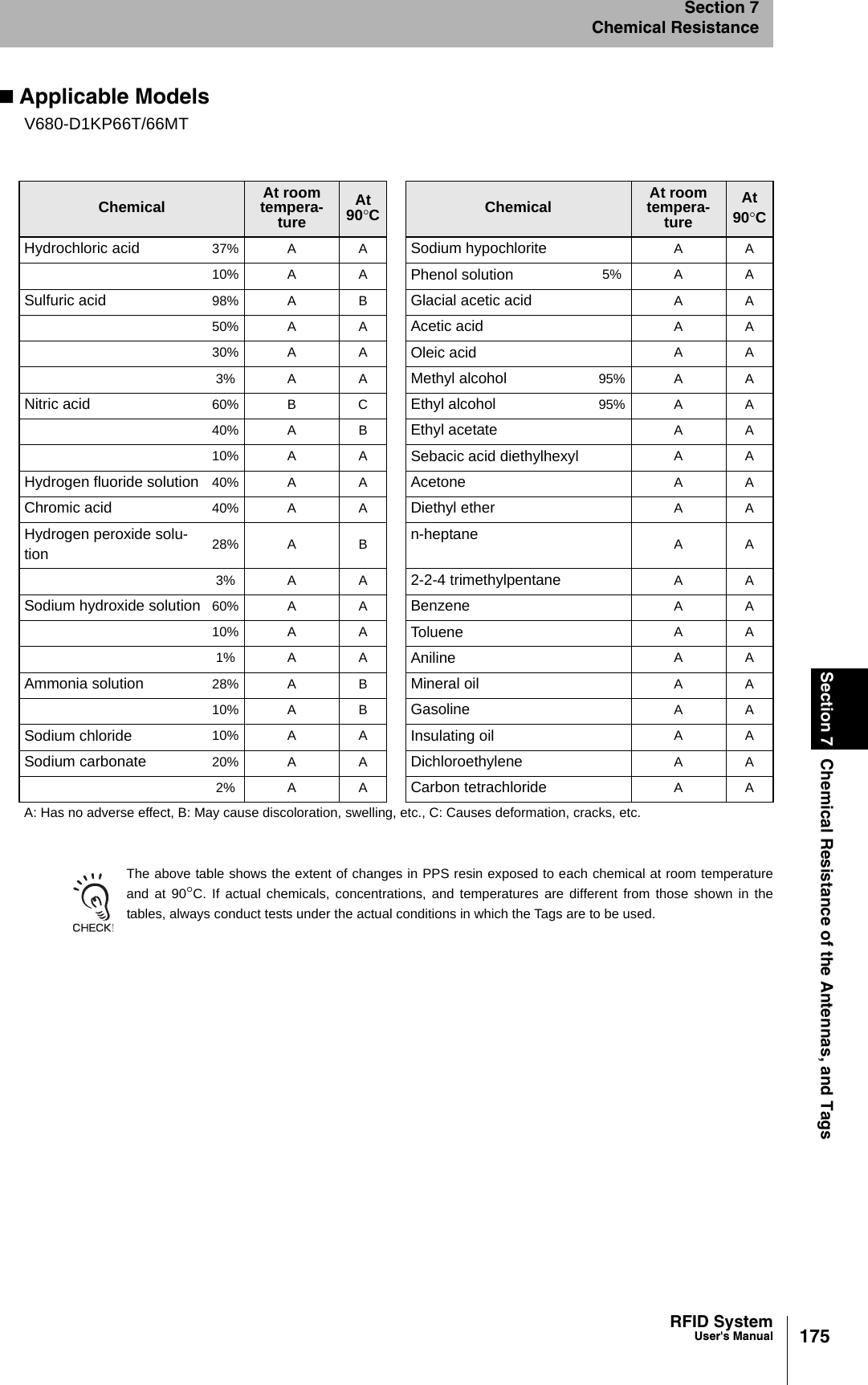

175RFID SystemUser's ManualSection 7 Chemical Resistance of the Antennas, and TagsSection 7Chemical ResistanceApplicable ModelsThe above table shows the extent of changes in PPS resin exposed to each chemical at room temperatureand at 90°C. If actual chemicals, concentrations, and temperatures are different from those shown in thetables, always conduct tests under the actual conditions in which the Tags are to be used.V680-D1KP66T/66MTChemical At room tempera-tureAt 90°CChemical At room tempera-tureAt 90°CHydrochloric acid 37% A A Sodium hypochlorite AA10% A A Phenol solution 5% A ASulfuric acid 98% A B Glacial acetic acid AA50% A A Acetic acid AA30% A A Oleic acid AA3% A A Methyl alcohol 95% A ANitric acid 60% B C Ethyl alcohol 95% A A40% A B Ethyl acetate AA10% A A Sebacic acid diethylhexyl AAHydrogen fluoride solution 40% A A Acetone AAChromic acid 40% A A Diethyl ether AAHydrogen peroxide solu-tion 28% A B n-heptane AA3% A A 2-2-4 trimethylpentane AASodium hydroxide solution 60% A A Benzene AA10% A A Toluene AA1% A A Aniline AAAmmonia solution 28% A B Mineral oil AA10% A B Gasoline AASodium chloride 10% A A Insulating oil AASodium carbonate 20% A A Dichloroethylene AA2% A A Carbon tetrachloride AAA: Has no adverse effect, B: May cause discoloration, swelling, etc., C: Causes deformation, cracks, etc.

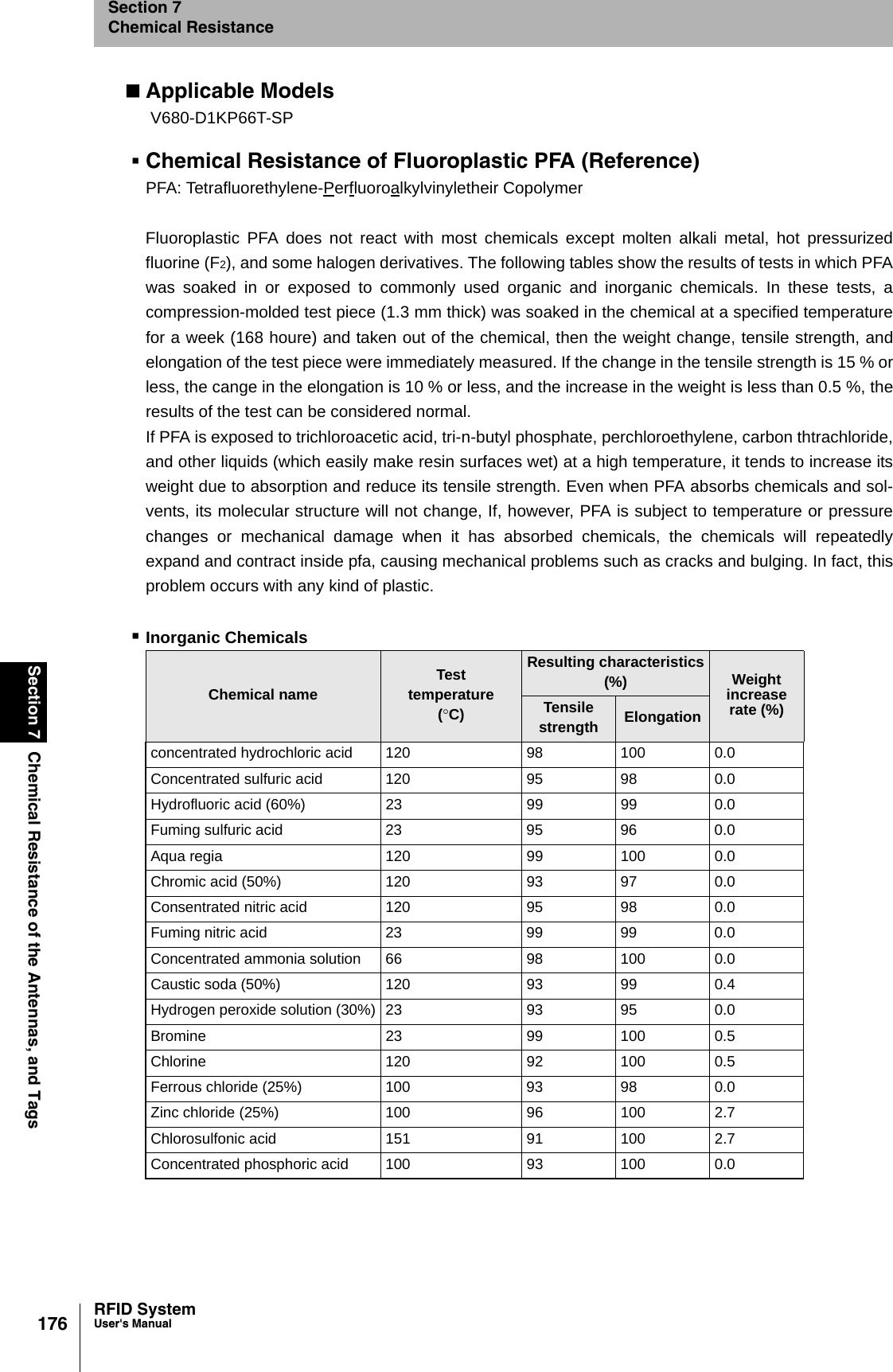

176Section 7 Chemical Resistance of the Antennas, and TagsRFID SystemUser's ManualSection 7Chemical ResistanceApplicable ModelsChemical Resistance of Fluoroplastic PFA (Reference)PFA: Tetrafluorethylene-Perfluoroalkylvinyletheir CopolymerFluoroplastic PFA does not react with most chemicals except molten alkali metal, hot pressurizedfluorine (F2), and some halogen derivatives. The following tables show the results of tests in which PFAwas soaked in or exposed to commonly used organic and inorganic chemicals. In these tests, acompression-molded test piece (1.3 mm thick) was soaked in the chemical at a specified temperaturefor a week (168 houre) and taken out of the chemical, then the weight change, tensile strength, andelongation of the test piece were immediately measured. If the change in the tensile strength is 15 % orless, the cange in the elongation is 10 % or less, and the increase in the weight is less than 0.5 %, theresults of the test can be considered normal.If PFA is exposed to trichloroacetic acid, tri-n-butyl phosphate, perchloroethylene, carbon thtrachloride,and other liquids (which easily make resin surfaces wet) at a high temperature, it tends to increase itsweight due to absorption and reduce its tensile strength. Even when PFA absorbs chemicals and sol-vents, its molecular structure will not change, If, however, PFA is subject to temperature or pressurechanges or mechanical damage when it has absorbed chemicals, the chemicals will repeatedlyexpand and contract inside pfa, causing mechanical problems such as cracks and bulging. In fact, thisproblem occurs with any kind of plastic.Inorganic ChemicalsV680-D1KP66T-SPChemical name Test temperature(°C)Resulting characteristics(%) Weight increase rate (%)Tensile strength Elongationconcentrated hydrochloric acid 120 98 100 0.0Concentrated sulfuric acid 120 95 98 0.0Hydrofluoric acid (60%) 23 99 99 0.0Fuming sulfuric acid 23 95 96 0.0Aqua regia  120 99 100 0.0Chromic acid (50%) 120 93 97 0.0Consentrated nitric acid 120 95 98 0.0Fuming nitric acid 23 99 99 0.0Concentrated ammonia solution 66 98 100 0.0Caustic soda (50%) 120 93 99 0.4Hydrogen peroxide solution (30%) 23 93 95 0.0Bromine 23 99 100 0.5Chlorine 120 92 100 0.5Ferrous chloride (25%) 100 93 98 0.0Zinc chloride (25%) 100 96 100 2.7Chlorosulfonic acid 151 91 100 2.7Concentrated phosphoric acid 100 93 100 0.0

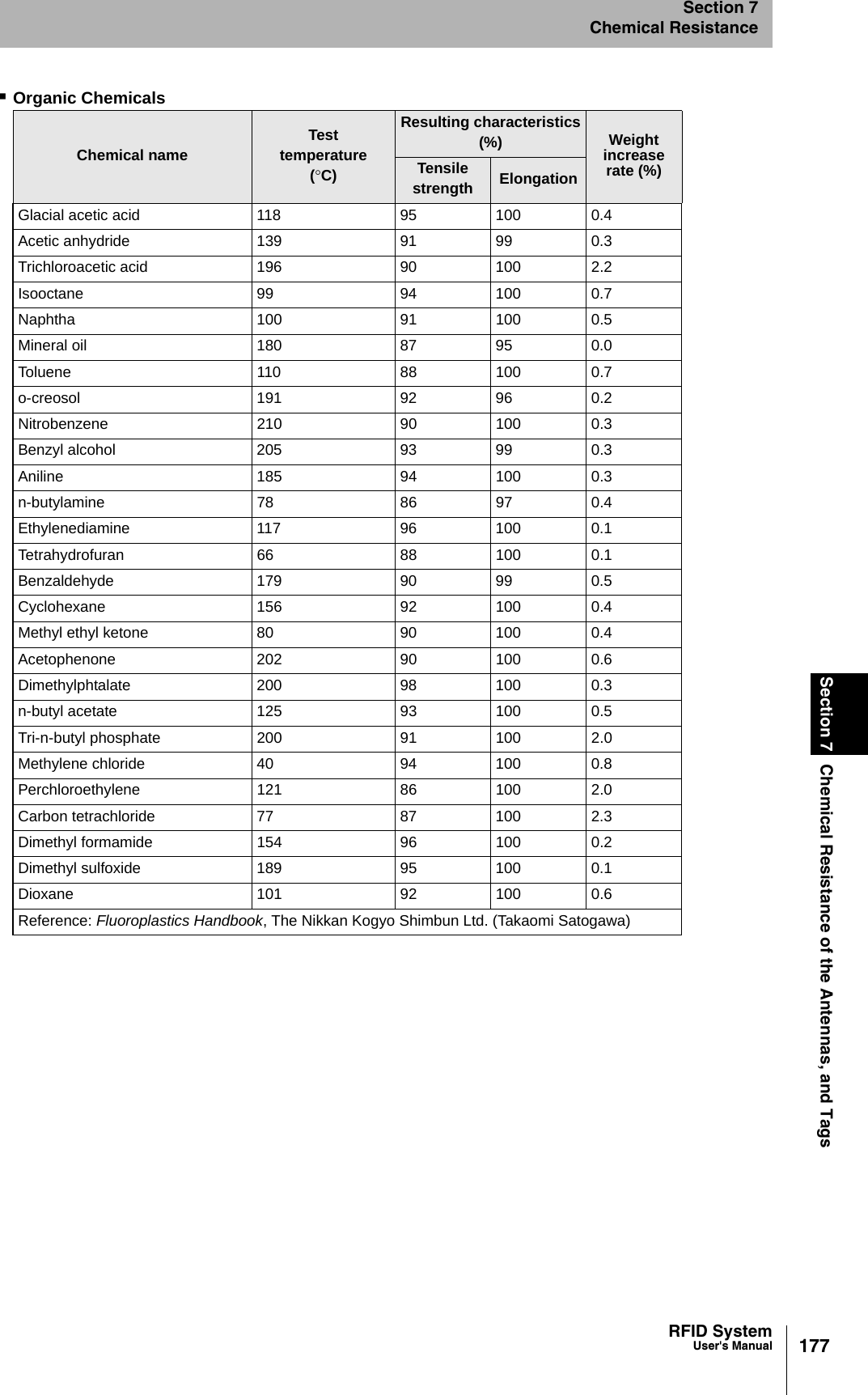

177RFID SystemUser's ManualSection 7 Chemical Resistance of the Antennas, and TagsSection 7Chemical ResistanceOrganic ChemicalsChemical name Test temperature(°C)Resulting characteristics(%) Weight increase rate (%)Tensile strength ElongationGlacial acetic acid 118 95 100 0.4Acetic anhydride 139 91 99 0.3Trichloroacetic acid 196 90 100 2.2Isooctane 99 94 100 0.7Naphtha 100 91 100 0.5Mineral oil 180 87 95 0.0Toluene 110 88 100 0.7o-creosol 191 92 96 0.2Nitrobenzene 210 90 100 0.3Benzyl alcohol 205 93 99 0.3Aniline 185 94 100 0.3n-butylamine 78 86 97 0.4Ethylenediamine 117 96 100 0.1Tetrahydrofuran 66 88 100 0.1Benzaldehyde 179 90 99 0.5Cyclohexane 156 92 100 0.4Methyl ethyl ketone 80 90 100 0.4Acetophenone 202 90 100 0.6Dimethylphtalate 200 98 100 0.3n-butyl acetate 125 93 100 0.5Tri-n-butyl phosphate 200 91 100 2.0Methylene chloride 40 94 100 0.8Perchloroethylene 121 86 100 2.0Carbon tetrachloride 77 87 100 2.3Dimethyl formamide 154 96 100 0.2Dimethyl sulfoxide 189 95 100 0.1Dioxane 101 92 100 0.6Reference: Fluoroplastics Handbook, The Nikkan Kogyo Shimbun Ltd. (Takaomi Satogawa)

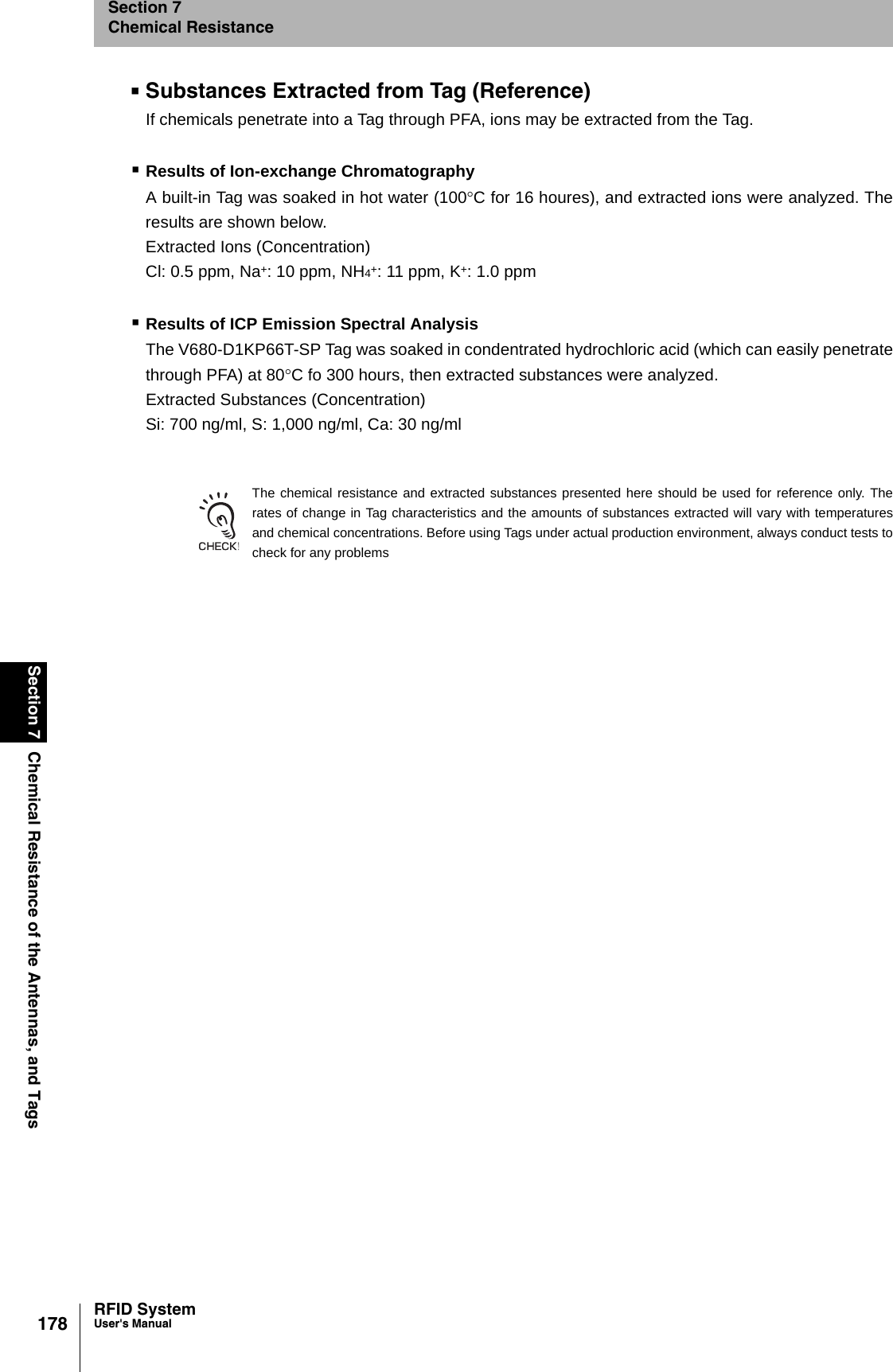

178Section 7 Chemical Resistance of the Antennas, and TagsRFID SystemUser's ManualSection 7Chemical ResistanceSubstances Extracted from Tag (Reference)If chemicals penetrate into a Tag through PFA, ions may be extracted from the Tag.Results of Ion-exchange ChromatographyA built-in Tag was soaked in hot water (100°C for 16 houres), and extracted ions were analyzed. Theresults are shown below.Extracted Ions (Concentration)Cl: 0.5 ppm, Na+: 10 ppm, NH4+: 11 ppm, K+: 1.0 ppmResults of ICP Emission Spectral AnalysisThe V680-D1KP66T-SP Tag was soaked in condentrated hydrochloric acid (which can easily penetratethrough PFA) at 80°C fo 300 hours, then extracted substances were analyzed.Extracted Substances (Concentration)Si: 700 ng/ml, S: 1,000 ng/ml, Ca: 30 ng/mlThe chemical resistance and extracted substances presented here should be used for reference only. Therates of change in Tag characteristics and the amounts of substances extracted will vary with temperaturesand chemical concentrations. Before using Tags under actual production environment, always conduct tests tocheck for any problems

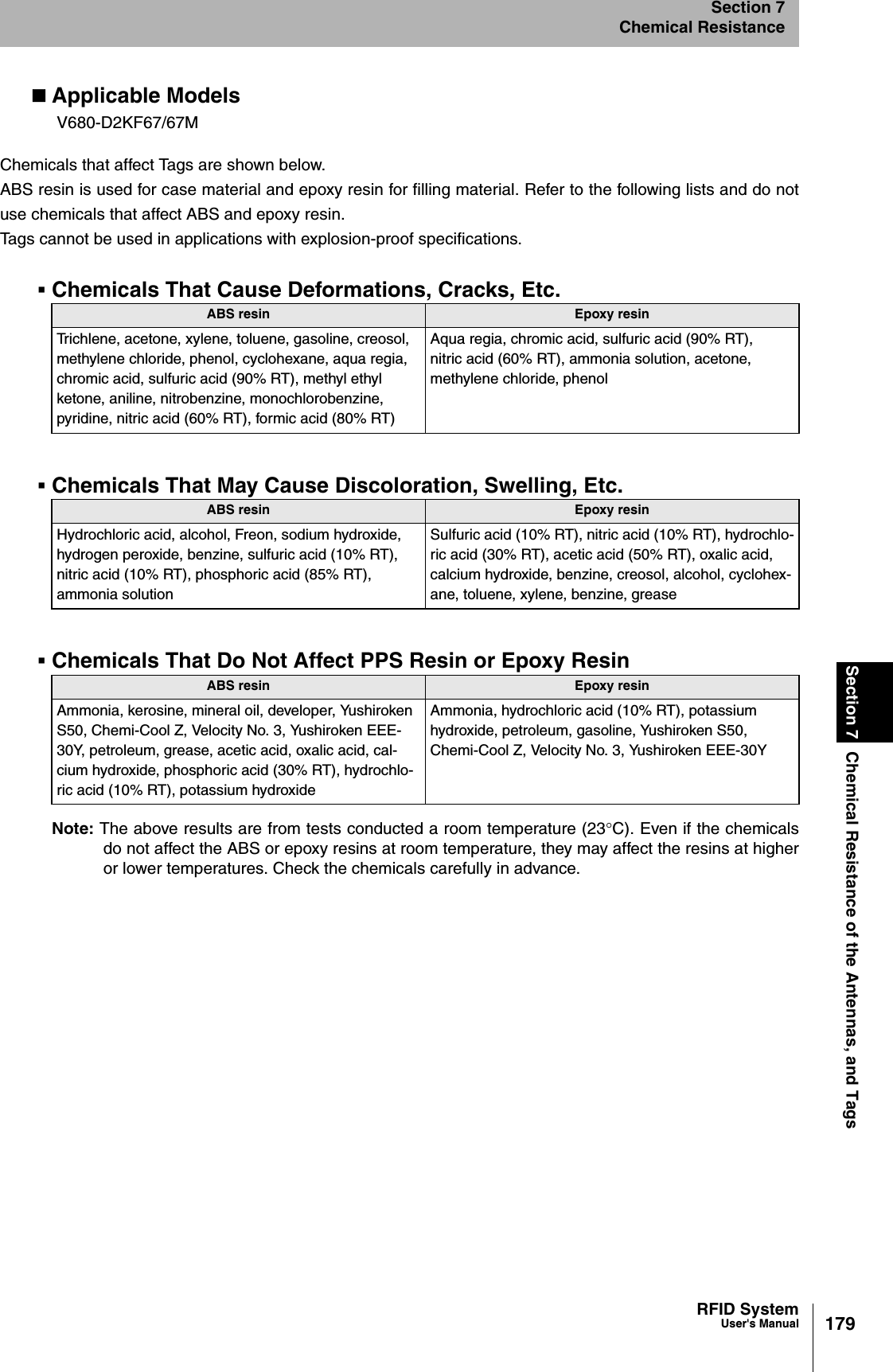

179RFID SystemUser's ManualSection 7 Chemical Resistance of the Antennas, and TagsSection 7Chemical ResistanceApplicable ModelsChemicals that affect Tags are shown below.ABS resin is used for case material and epoxy resin for filling material. Refer to the following lists and do notuse chemicals that affect ABS and epoxy resin.Tags cannot be used in applications with explosion-proof specifications.Chemicals That Cause Deformations, Cracks, Etc.Chemicals That May Cause Discoloration, Swelling, Etc.Chemicals That Do Not Affect PPS Resin or Epoxy ResinNote: The above results are from tests conducted a room temperature (23°C). Even if the chemicalsdo not affect the ABS or epoxy resins at room temperature, they may affect the resins at higheror lower temperatures. Check the chemicals carefully in advance.V680-D2KF67/67MABS resin Epoxy resinTrichlene, acetone, xylene, toluene, gasoline, creosol, methylene chloride, phenol, cyclohexane, aqua regia, chromic acid, sulfuric acid (90% RT), methyl ethyl ketone, aniline, nitrobenzine, monochlorobenzine, pyridine, nitric acid (60% RT), formic acid (80% RT)Aqua regia, chromic acid, sulfuric acid (90% RT), nitric acid (60% RT), ammonia solution, acetone, methylene chloride, phenolABS resin Epoxy resinHydrochloric acid, alcohol, Freon, sodium hydroxide, hydrogen peroxide, benzine, sulfuric acid (10% RT), nitric acid (10% RT), phosphoric acid (85% RT), ammonia solutionSulfuric acid (10% RT), nitric acid (10% RT), hydrochlo-ric acid (30% RT), acetic acid (50% RT), oxalic acid, calcium hydroxide, benzine, creosol, alcohol, cyclohex-ane, toluene, xylene, benzine, greaseABS resin Epoxy resinAmmonia, kerosine, mineral oil, developer, Yushiroken S50, Chemi-Cool Z, Velocity No. 3, Yushiroken EEE-30Y, petroleum, grease, acetic acid, oxalic acid, cal-cium hydroxide, phosphoric acid (30% RT), hydrochlo-ric acid (10% RT), potassium hydroxideAmmonia, hydrochloric acid (10% RT), potassium hydroxide, petroleum, gasoline, Yushiroken S50, Chemi-Cool Z, Velocity No. 3, Yushiroken EEE-30Y

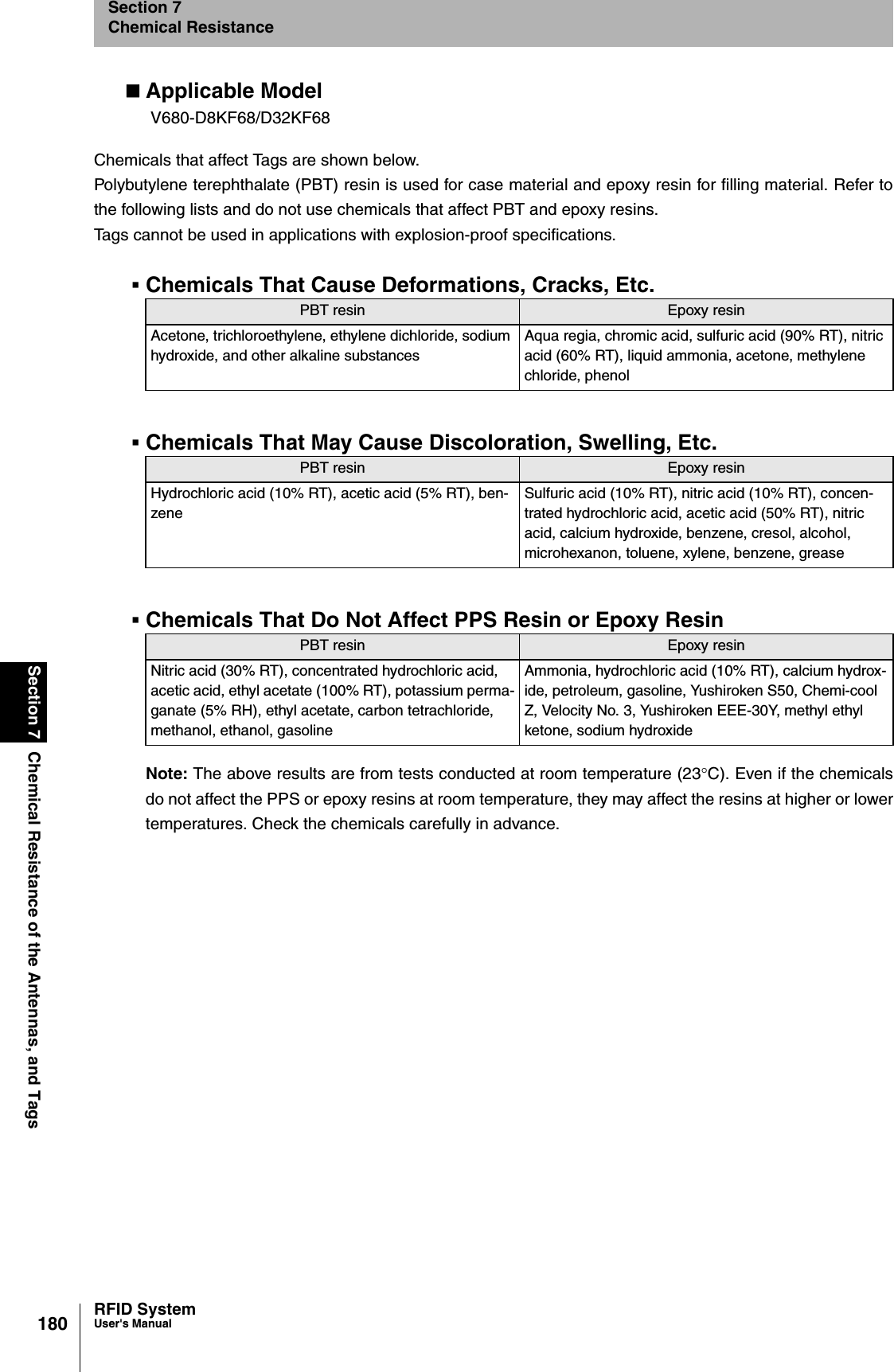

180Section 7 Chemical Resistance of the Antennas, and TagsRFID SystemUser's ManualSection 7Chemical ResistanceApplicable ModelChemicals that affect Tags are shown below.Polybutylene terephthalate (PBT) resin is used for case material and epoxy resin for filling material. Refer tothe following lists and do not use chemicals that affect PBT and epoxy resins.Tags cannot be used in applications with explosion-proof specifications.Chemicals That Cause Deformations, Cracks, Etc.Chemicals That May Cause Discoloration, Swelling, Etc.Chemicals That Do Not Affect PPS Resin or Epoxy ResinNote: The above results are from tests conducted at room temperature (23°C). Even if the chemicalsdo not affect the PPS or epoxy resins at room temperature, they may affect the resins at higher or lowertemperatures. Check the chemicals carefully in advance.V680-D8KF68/D32KF68PBT resin Epoxy resinAcetone, trichloroethylene, ethylene dichloride, sodium hydroxide, and other alkaline substancesAqua regia, chromic acid, sulfuric acid (90% RT), nitric acid (60% RT), liquid ammonia, acetone, methylene chloride, phenolPBT resin Epoxy resinHydrochloric acid (10% RT), acetic acid (5% RT), ben-zeneSulfuric acid (10% RT), nitric acid (10% RT), concen-trated hydrochloric acid, acetic acid (50% RT), nitric acid, calcium hydroxide, benzene, cresol, alcohol, microhexanon, toluene, xylene, benzene, greasePBT resin Epoxy resinNitric acid (30% RT), concentrated hydrochloric acid, acetic acid, ethyl acetate (100% RT), potassium perma-ganate (5% RH), ethyl acetate, carbon tetrachloride, methanol, ethanol, gasolineAmmonia, hydrochloric acid (10% RT), calcium hydrox-ide, petroleum, gasoline, Yushiroken S50, Chemi-cool Z, Velocity No. 3, Yushiroken EEE-30Y, methyl ethyl ketone, sodium hydroxide

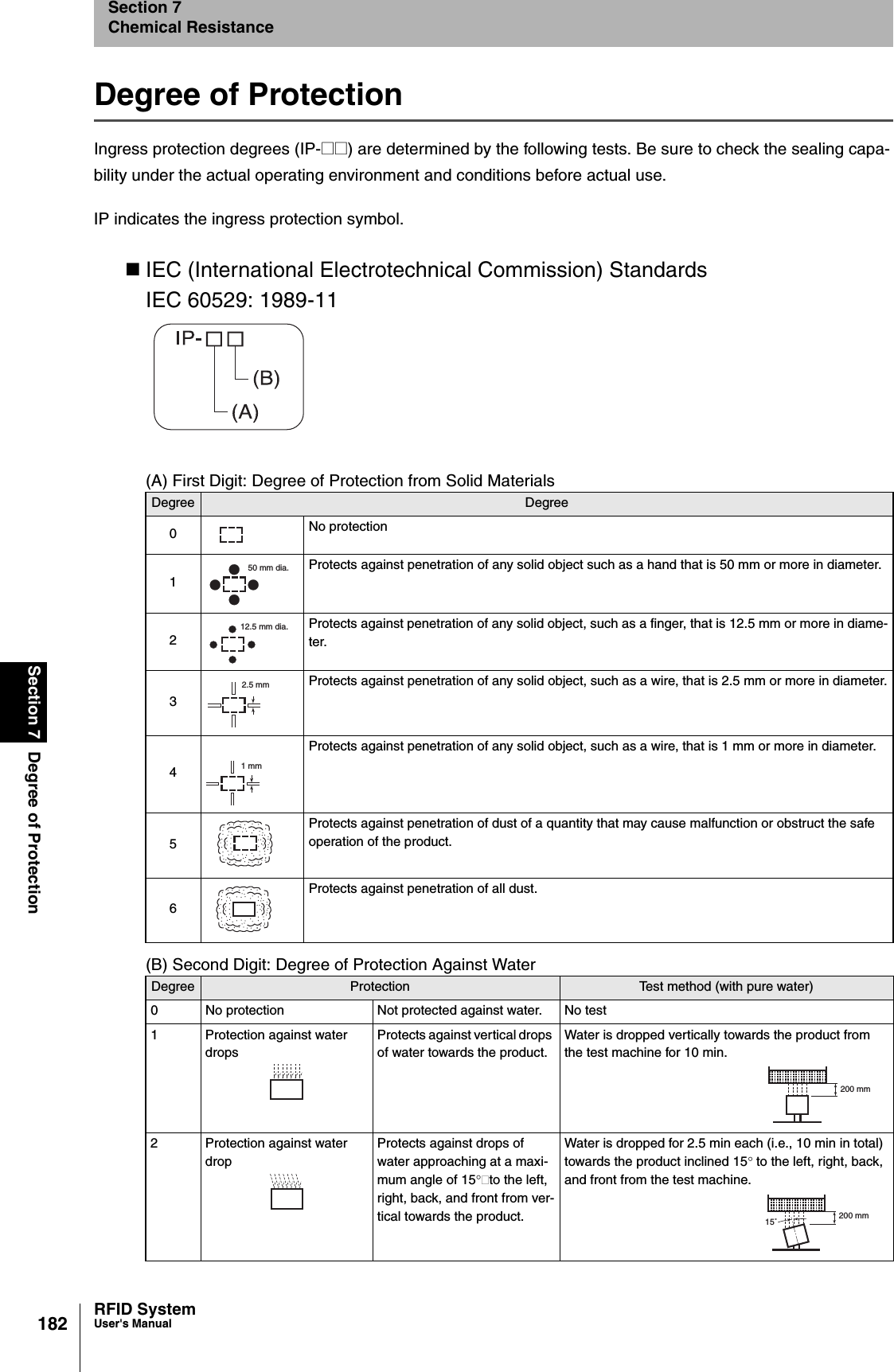

182Section 7 Degree of ProtectionRFID SystemUser's ManualSection 7Chemical ResistanceDegree of ProtectionIngress protection degrees (IP-@@) are determined by the following tests. Be sure to check the sealing capa-bility under the actual operating environment and conditions before actual use.IP indicates the ingress protection symbol.IEC (International Electrotechnical Commission) StandardsIEC 60529: 1989-11(A) First Digit: Degree of Protection from Solid Materials(B) Second Digit: Degree of Protection Against WaterDegree Degree0No protection1Protects against penetration of any solid object such as a hand that is 50 mm or more in diameter.2Protects against penetration of any solid object, such as a finger, that is 12.5 mm or more in diame-ter.3Protects against penetration of any solid object, such as a wire, that is 2.5 mm or more in diameter.4Protects against penetration of any solid object, such as a wire, that is 1 mm or more in diameter.5Protects against penetration of dust of a quantity that may cause malfunction or obstruct the safe operation of the product.6Protects against penetration of all dust.Degree Protection Test method (with pure water)0 No protection Not protected against water. No test1 Protection against water dropsProtects against vertical drops of water towards the product.Water is dropped vertically towards the product from the test machine for 10 min.2 Protection against water dropProtects against drops of water approaching at a maxi-mum angle of 15°to the left, right, back, and front from ver-tical towards the product.Water is dropped for 2.5 min each (i.e., 10 min in total) towards the product inclined 15° to the left, right, back, and front from the test machine.50 mm dia.12.5 mm dia.2.5 mm1 mm200 mm200 mm15˚

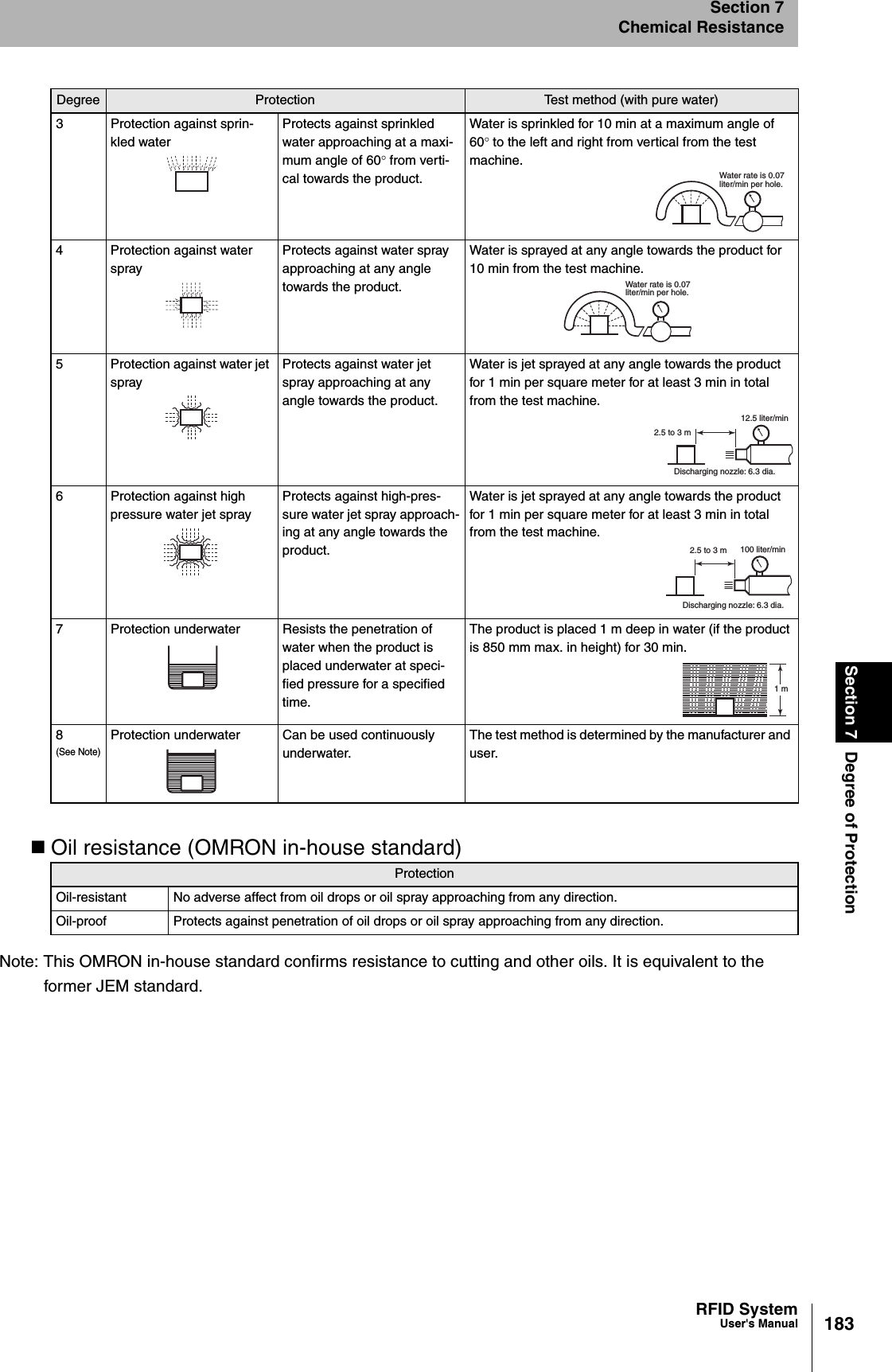

183RFID SystemUser's ManualSection 7 Degree of ProtectionSection 7Chemical ResistanceOil resistance (OMRON in-house standard)Note: This OMRON in-house standard confirms resistance to cutting and other oils. It is equivalent to the former JEM standard.3 Protection against sprin-kled waterProtects against sprinkled water approaching at a maxi-mum angle of 60° from verti-cal towards the product.Water is sprinkled for 10 min at a maximum angle of 60° to the left and right from vertical from the test machine. 4 Protection against water sprayProtects against water spray approaching at any angle towards the product.Water is sprayed at any angle towards the product for 10 min from the test machine.5 Protection against water jet sprayProtects against water jet spray approaching at any angle towards the product.Water is jet sprayed at any angle towards the product for 1 min per square meter for at least 3 min in total from the test machine.6 Protection against high pressure water jet sprayProtects against high-pres-sure water jet spray approach-ing at any angle towards the product.Water is jet sprayed at any angle towards the product for 1 min per square meter for at least 3 min in total from the test machine.7 Protection underwater Resists the penetration of water when the product is placed underwater at speci-fied pressure for a specified time.The product is placed 1 m deep in water (if the product is 850 mm max. in height) for 30 min.8(See Note)Protection underwater Can be used continuously underwater.The test method is determined by the manufacturer and user.ProtectionOil-resistant No adverse affect from oil drops or oil spray approaching from any direction.Oil-proof Protects against penetration of oil drops or oil spray approaching from any direction.Degree Protection Test method (with pure water)Water rate is 0.07  liter/min per hole.Water rate is 0.07  liter/min per hole.2.5 to 3 m12.5 liter/minDischarging nozzle: 6.3 dia.2.5 to 3 m 100 liter/minDischarging nozzle: 6.3 dia.1 m

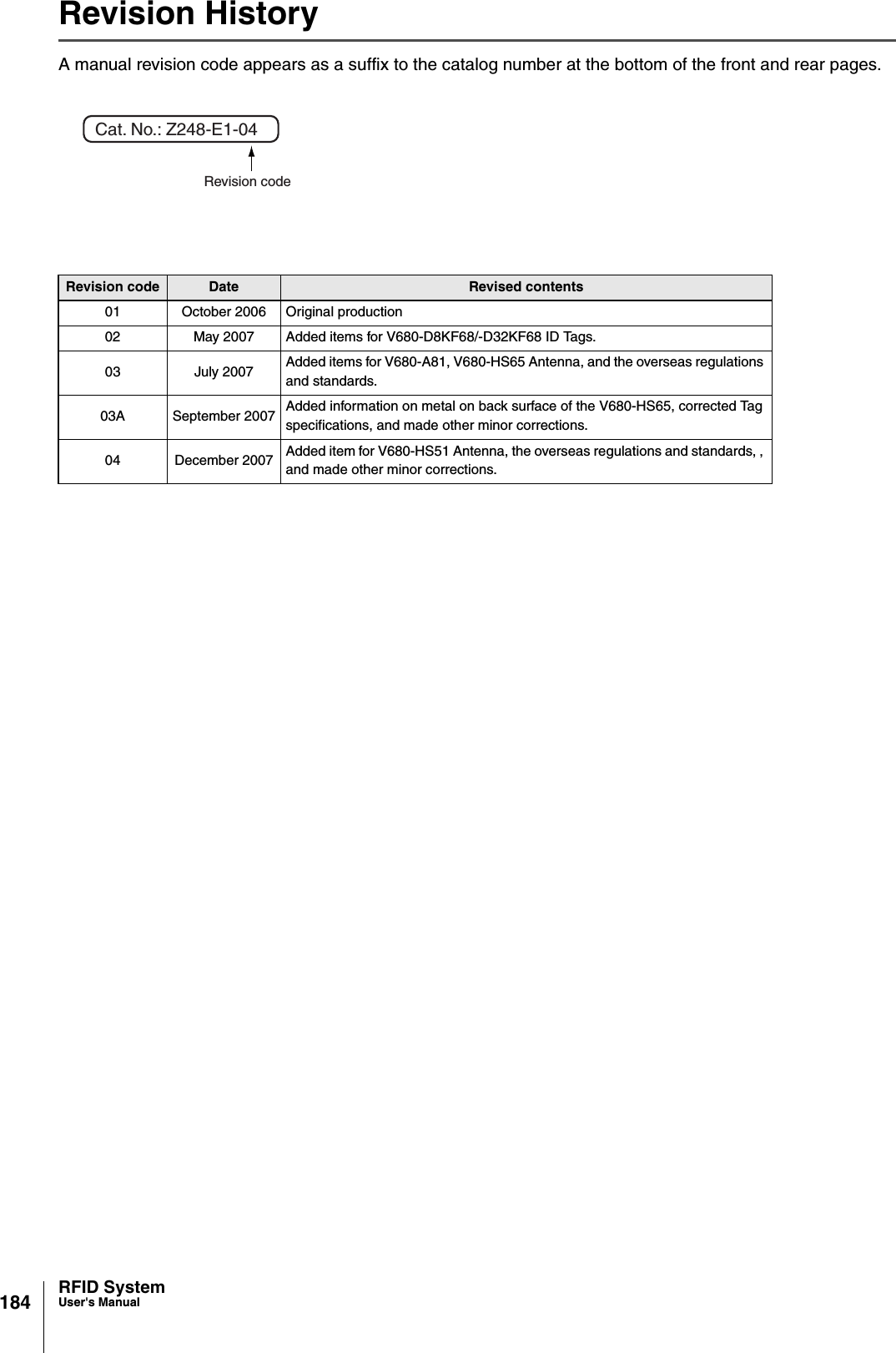

184 RFID SystemUser's ManualRevision HistoryA manual revision code appears as a suffix to the catalog number at the bottom of the front and rear pages.Revision code Date Revised contents01 October 2006 Original production02 May 2007 Added items for V680-D8KF68/-D32KF68 ID Tags. 03 July 2007 Added items for V680-A81, V680-HS65 Antenna, and the overseas regulations and standards.03A September 2007 Added information on metal on back surface of the V680-HS65, corrected Tag specifications, and made other minor corrections. 04 December 2007 Added item for V680-HS51 Antenna, the overseas regulations and standards, , and made other minor corrections.Cat. No.: Z248-E1-04Revision code

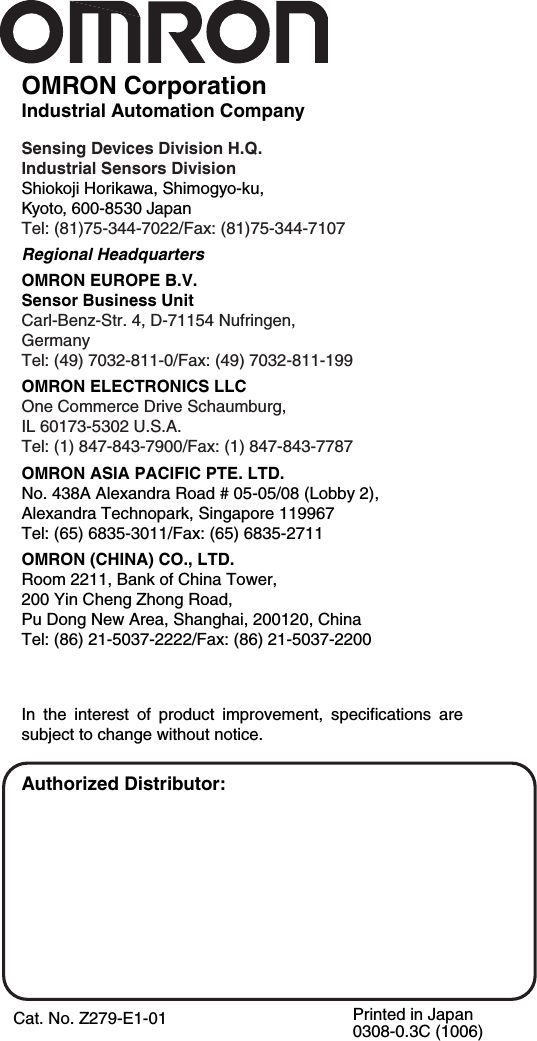

Authorized Distributor:OMRON CorporationIndustrial Automation CompanySensing Devices Division H.Q.Industrial Sensors DivisionShiokoji Horikawa, Shimogyo-ku,Kyoto, 600-8530 JapanTel: (81)75-344-7022/Fax: (81)75-344-7107Regional HeadquartersOMRON EUROPE B.V.Sensor Business UnitCarl-Benz-Str. 4, D-71154 Nufringen,GermanyTel: (49) 7032-811-0/Fax: (49) 7032-811-199OMRON ELECTRONICS LLCOne Commerce Drive Schaumburg, IL 60173-5302 U.S.A.Tel: (1) 847-843-7900/Fax: (1) 847-843-7787OMRON ASIA PACIFIC PTE. LTD.No. 438A Alexandra Road # 05-05/08 (Lobby 2), Alexandra Technopark, Singapore 119967Tel: (65) 6835-3011/Fax: (65) 6835-2711OMRON (CHINA) CO., LTD. Room 2211, Bank of China Tower, 200 Yin Cheng Zhong Road, Pu Dong New Area, Shanghai, 200120, ChinaTel: (86) 21-5037-2222/Fax: (86) 21-5037-2200Cat. No. Z279-E1-01In  the  interest  of  product  improvement,  specifications  are subject to change without notice.Printed in Japan0308-0.3C (1006)
