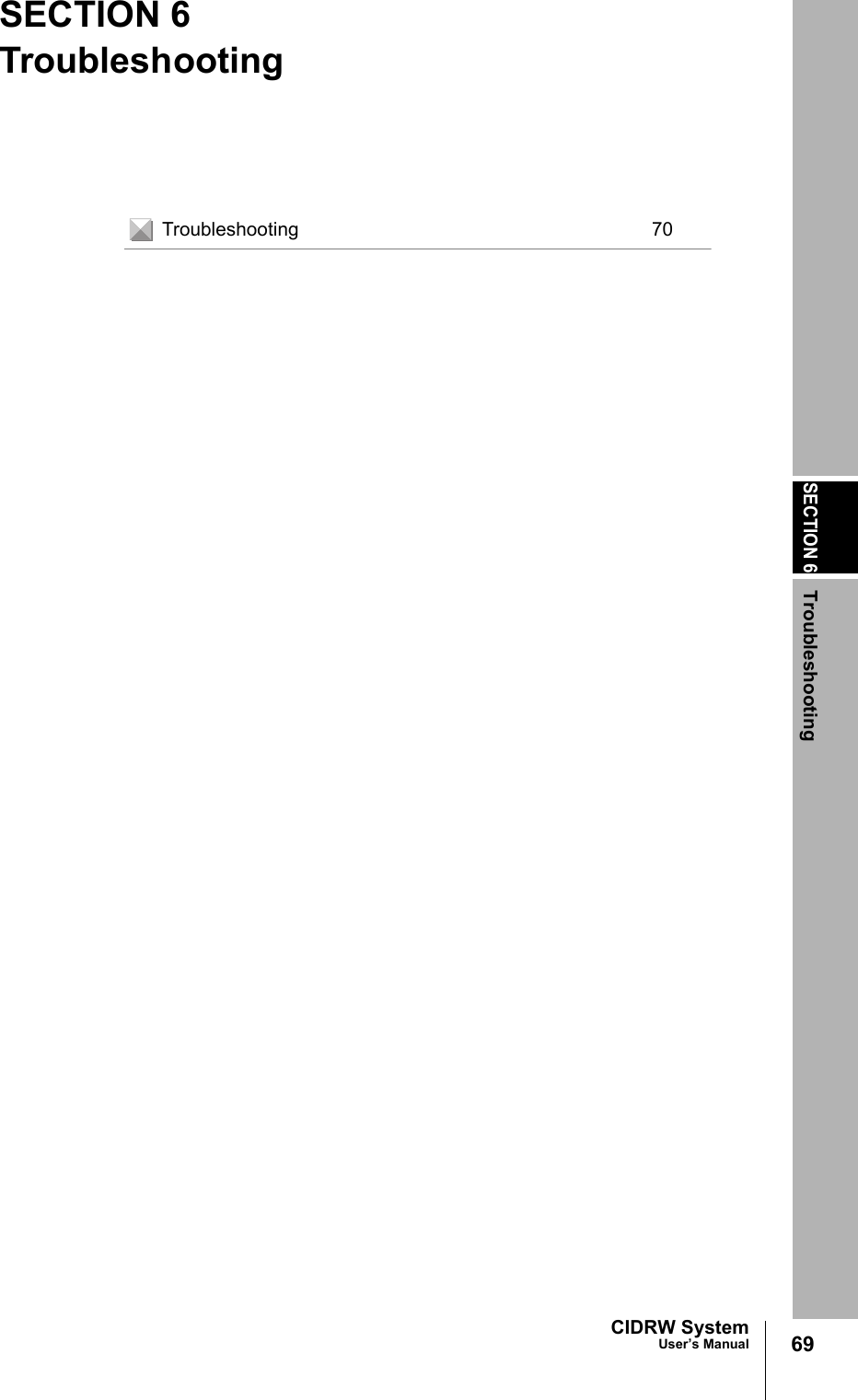

SECTION 6Troubleshooting69CIDRW SystemUser’s ManualSECTION 6TroubleshootingTroubleshooting 70

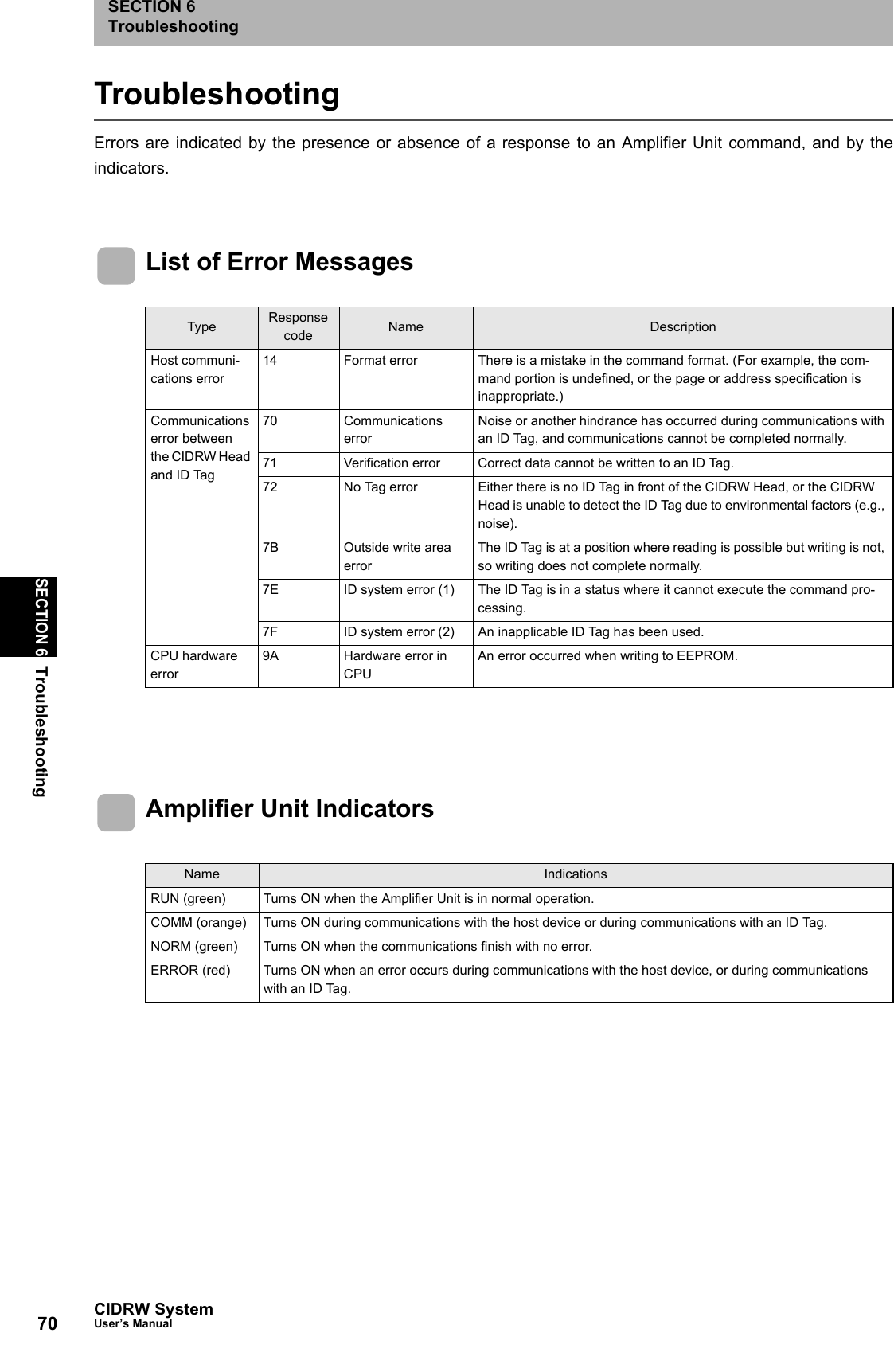

70SECTION 6TroubleshootingCIDRW SystemUser’s ManualSECTION 6TroubleshootingTroubleshootingErrors are indicated by the presence or absence of a response to an Amplifier Unit command, and by theindicators.List of Error MessagesAmplifier Unit IndicatorsType Response code Name DescriptionHost communi-cations error14 Format error There is a mistake in the command format. (For example, the com-mand portion is undefined, or the page or address specification is inappropriate.)Communications error between the CIDRW Head and ID Tag70 Communications errorNoise or another hindrance has occurred during communications with an ID Tag, and communications cannot be completed normally.71 Verification error Correct data cannot be written to an ID Tag.72 No Tag error Either there is no ID Tag in front of the CIDRW Head, or the CIDRW Head is unable to detect the ID Tag due to environmental factors (e.g., noise).7B Outside write area errorThe ID Tag is at a position where reading is possible but writing is not, so writing does not complete normally.7E ID system error (1) The ID Tag is in a status where it cannot execute the command pro-cessing.7F ID system error (2) An inapplicable ID Tag has been used.CPU hardware error9A Hardware error in CPUAn error occurred when writing to EEPROM. Name IndicationsRUN (green) Turns ON when the Amplifier Unit is in normal operation.COMM (orange) Turns ON during communications with the host device or during communications with an ID Tag.NORM (green) Turns ON when the communications finish with no error.ERROR (red) Turns ON when an error occurs during communications with the host device, or during communications with an ID Tag.

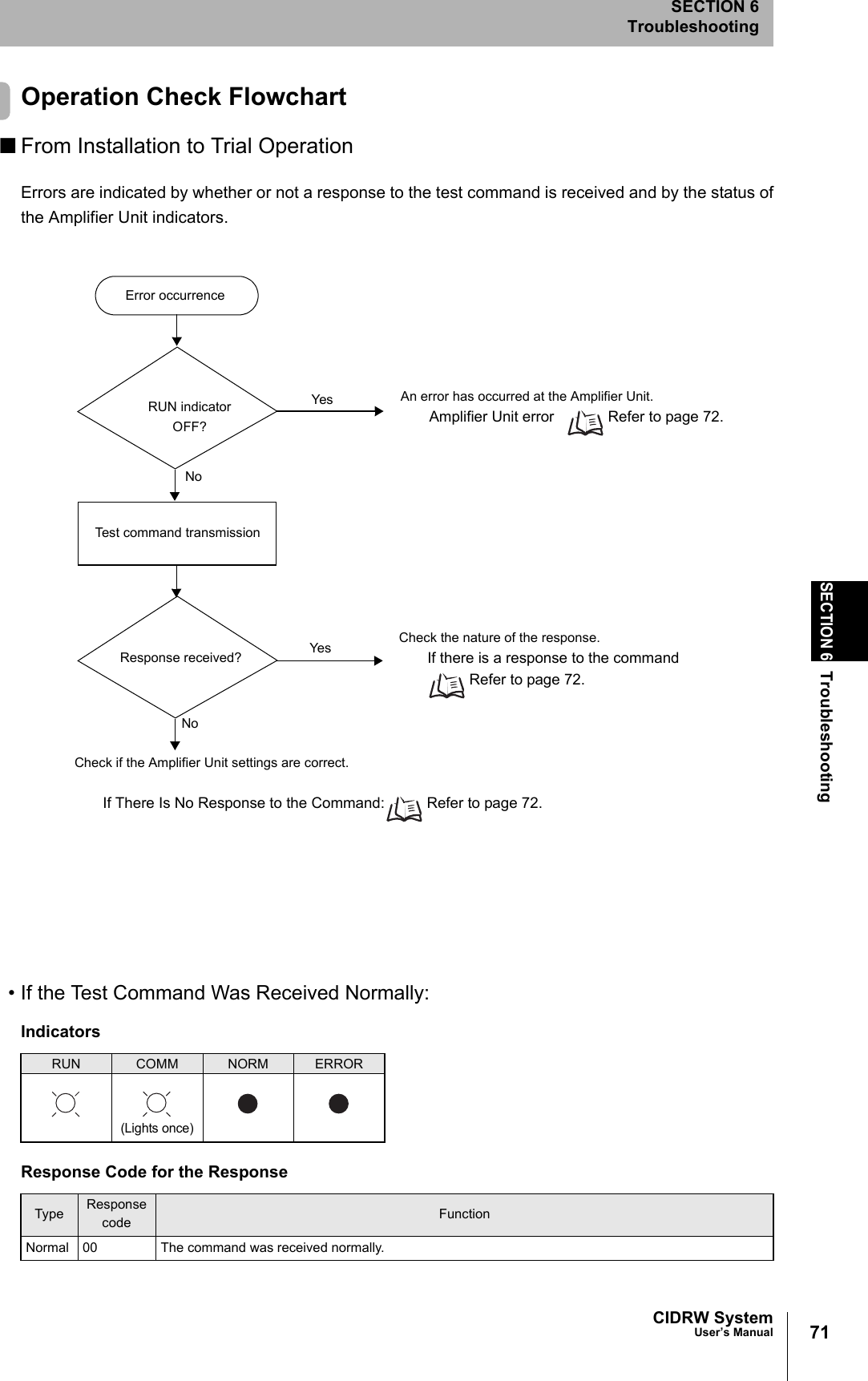

CIDRW SystemUser’s ManualSECTION 6TroubleshootingSECTION 6Troubleshooting71 Operation Check Flowchart■From Installation to Trial OperationErrors are indicated by whether or not a response to the test command is received and by the status ofthe Amplifier Unit indicators.• If the Test Command Was Received Normally:IndicatorsRUN COMM NORM ERRORResponse Code for the ResponseType Response code FunctionNormal 00 The command was received normally.Error occurrenceTest command transmissionRUN indicator OFF?NoYes An error has occurred at the Amplifier Unit.Amplifier Unit error Refer to page 72.Check if the Amplifier Unit settings are correct.If There Is No Response to the Command: Refer to page 72.Response received? Yes Check the nature of the response.If there is a response to the command Refer to page 72.No(Lights once)

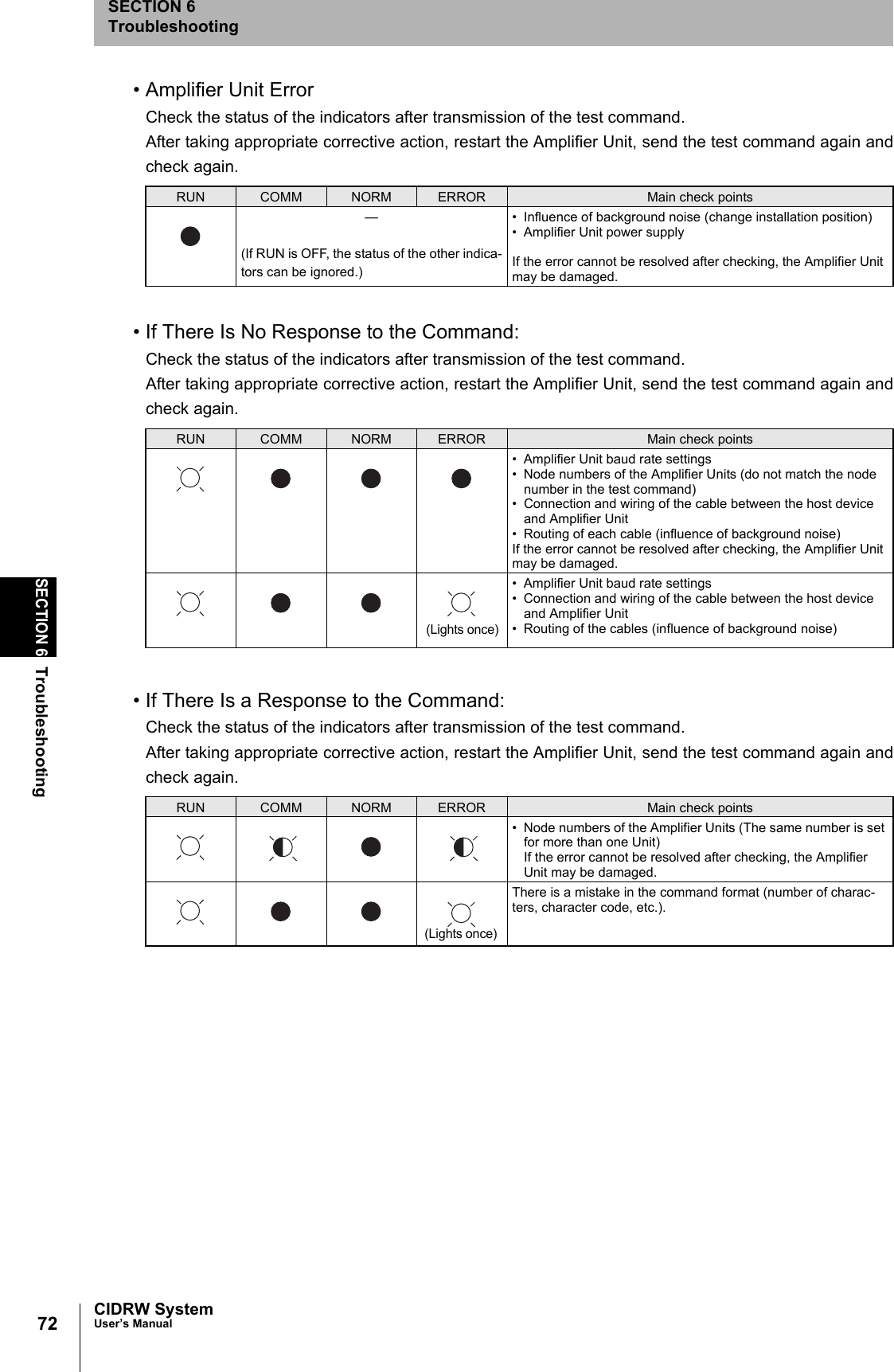

72SECTION 6TroubleshootingCIDRW SystemUser’s ManualSECTION 6Troubleshooting• Amplifier Unit ErrorCheck the status of the indicators after transmission of the test command.After taking appropriate corrective action, restart the Amplifier Unit, send the test command again andcheck again.• If There Is No Response to the Command:Check the status of the indicators after transmission of the test command.After taking appropriate corrective action, restart the Amplifier Unit, send the test command again andcheck again.• If There Is a Response to the Command:Check the status of the indicators after transmission of the test command.After taking appropriate corrective action, restart the Amplifier Unit, send the test command again andcheck again.RUN COMM NORM ERROR Main check points—(If RUN is OFF, the status of the other indica-tors can be ignored.)• Influence of background noise (change installation position)• Amplifier Unit power supplyIf the error cannot be resolved after checking, the Amplifier Unit may be damaged.RUN COMM NORM ERROR Main check points• Amplifier Unit baud rate settings• Node numbers of the Amplifier Units (do not match the node number in the test command)• Connection and wiring of the cable between the host device and Amplifier Unit• Routing of each cable (influence of background noise)If the error cannot be resolved after checking, the Amplifier Unit may be damaged.• Amplifier Unit baud rate settings• Connection and wiring of the cable between the host device and Amplifier Unit• Routing of the cables (influence of background noise)RUN COMM NORM ERROR Main check points• Node numbers of the Amplifier Units (The same number is set for more than one Unit)If the error cannot be resolved after checking, the Amplifier Unit may be damaged.There is a mistake in the command format (number of charac-ters, character code, etc.).(Lights once)(Lights once)

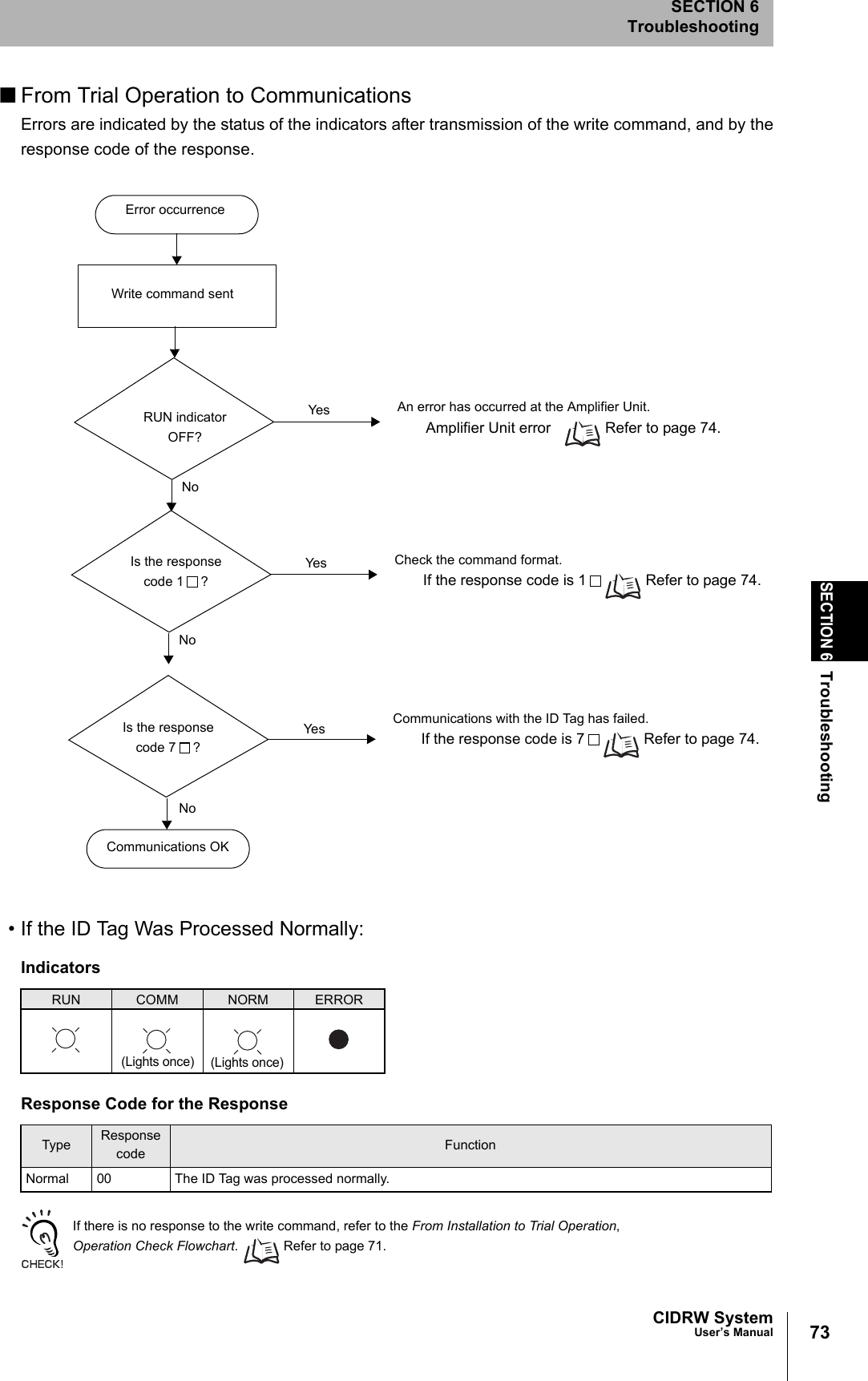

CIDRW SystemUser’s ManualSECTION 6TroubleshootingSECTION 6Troubleshooting73■From Trial Operation to CommunicationsErrors are indicated by the status of the indicators after transmission of the write command, and by theresponse code of the response.• If the ID Tag Was Processed Normally:If there is no response to the write command, refer to the From Installation to Trial Operation, Operation Check Flowchart. Refer to page 71.IndicatorsRUN COMM NORM ERRORResponse Code for the ResponseType Response code FunctionNormal 00 The ID Tag was processed normally.Error occurrenceIs the response code 1 ?NoYes Check the command format.If the response code is 1 Refer to page 74.Yes Communications with the ID Tag has failed.If the response code is 7 Refer to page 74.Write command sentRUN indicator OFF?NoYes An error has occurred at the Amplifier Unit.Amplifier Unit error Refer to page 74.Is the response code 7 ?Communications OKNo(Lights once)(Lights once)

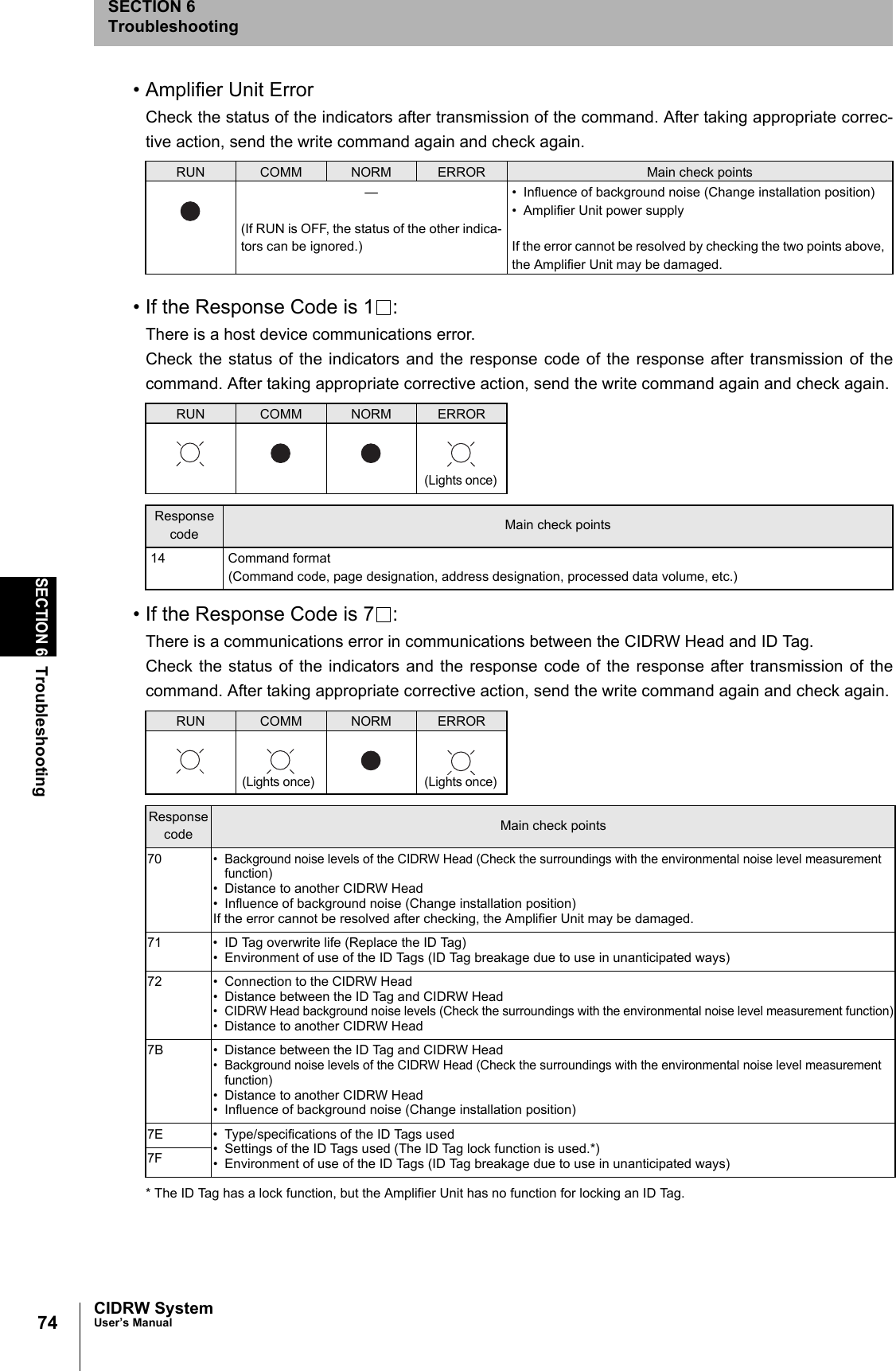

74SECTION 6TroubleshootingCIDRW SystemUser’s ManualSECTION 6Troubleshooting• Amplifier Unit ErrorCheck the status of the indicators after transmission of the command. After taking appropriate correc-tive action, send the write command again and check again.• If the Response Code is 1 :There is a host device communications error.Check the status of the indicators and the response code of the response after transmission of thecommand. After taking appropriate corrective action, send the write command again and check again.• If the Response Code is 7 :There is a communications error in communications between the CIDRW Head and ID Tag.Check the status of the indicators and the response code of the response after transmission of thecommand. After taking appropriate corrective action, send the write command again and check again.* The ID Tag has a lock function, but the Amplifier Unit has no function for locking an ID Tag.RUN COMM NORM ERROR Main check points—(If RUN is OFF, the status of the other indica-tors can be ignored.)• Influence of background noise (Change installation position)• Amplifier Unit power supplyIf the error cannot be resolved by checking the two points above, the Amplifier Unit may be damaged.RUN COMM NORM ERRORResponse code Main check points14 Command format(Command code, page designation, address designation, processed data volume, etc.)RUN COMM NORM ERRORResponse code Main check points70• Background noise levels of the CIDRW Head (Check the surroundings with the environmental noise level measurement function)• Distance to another CIDRW Head• Influence of background noise (Change installation position)If the error cannot be resolved after checking, the Amplifier Unit may be damaged.71 • ID Tag overwrite life (Replace the ID Tag)• Environment of use of the ID Tags (ID Tag breakage due to use in unanticipated ways)72 • Connection to the CIDRW Head• Distance between the ID Tag and CIDRW Head• CIDRW Head background noise levels (Check the surroundings with the environmental noise level measurement function)• Distance to another CIDRW Head7B • Distance between the ID Tag and CIDRW Head• Background noise levels of the CIDRW Head (Check the surroundings with the environmental noise level measurement function)• Distance to another CIDRW Head• Influence of background noise (Change installation position)7E • Type/specifications of the ID Tags used• Settings of the ID Tags used (The ID Tag lock function is used.*)• Environment of use of the ID Tags (ID Tag breakage due to use in unanticipated ways)7F(Lights once)(Lights once)(Lights once)

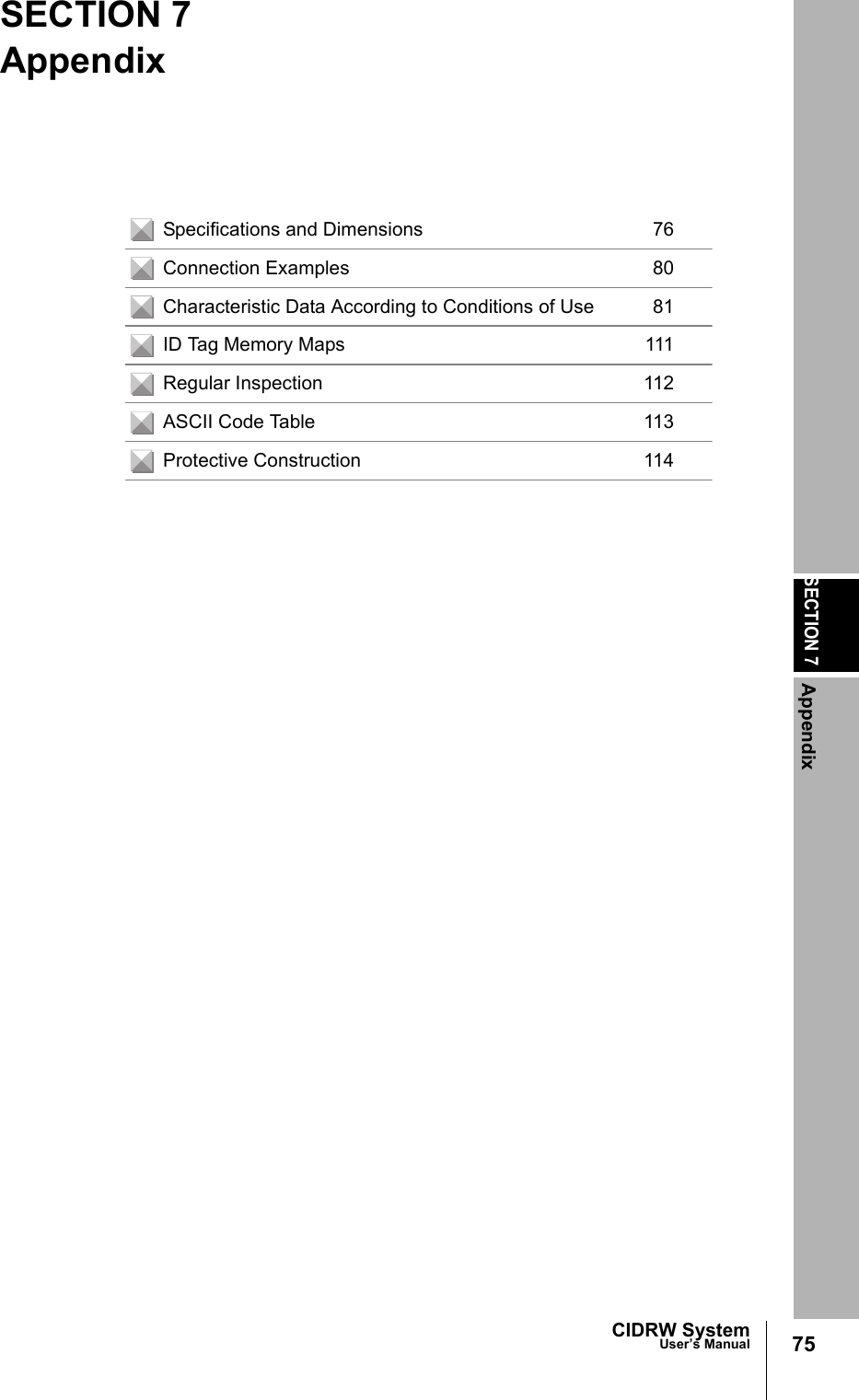

SECTION 7Appendix75CIDRW SystemUser’s ManualSECTION 7AppendixSpecifications and Dimensions 76Connection Examples 80Characteristic Data According to Conditions of Use 81ID Tag Memory Maps 111Regular Inspection 112ASCII Code Table 113Protective Construction 114

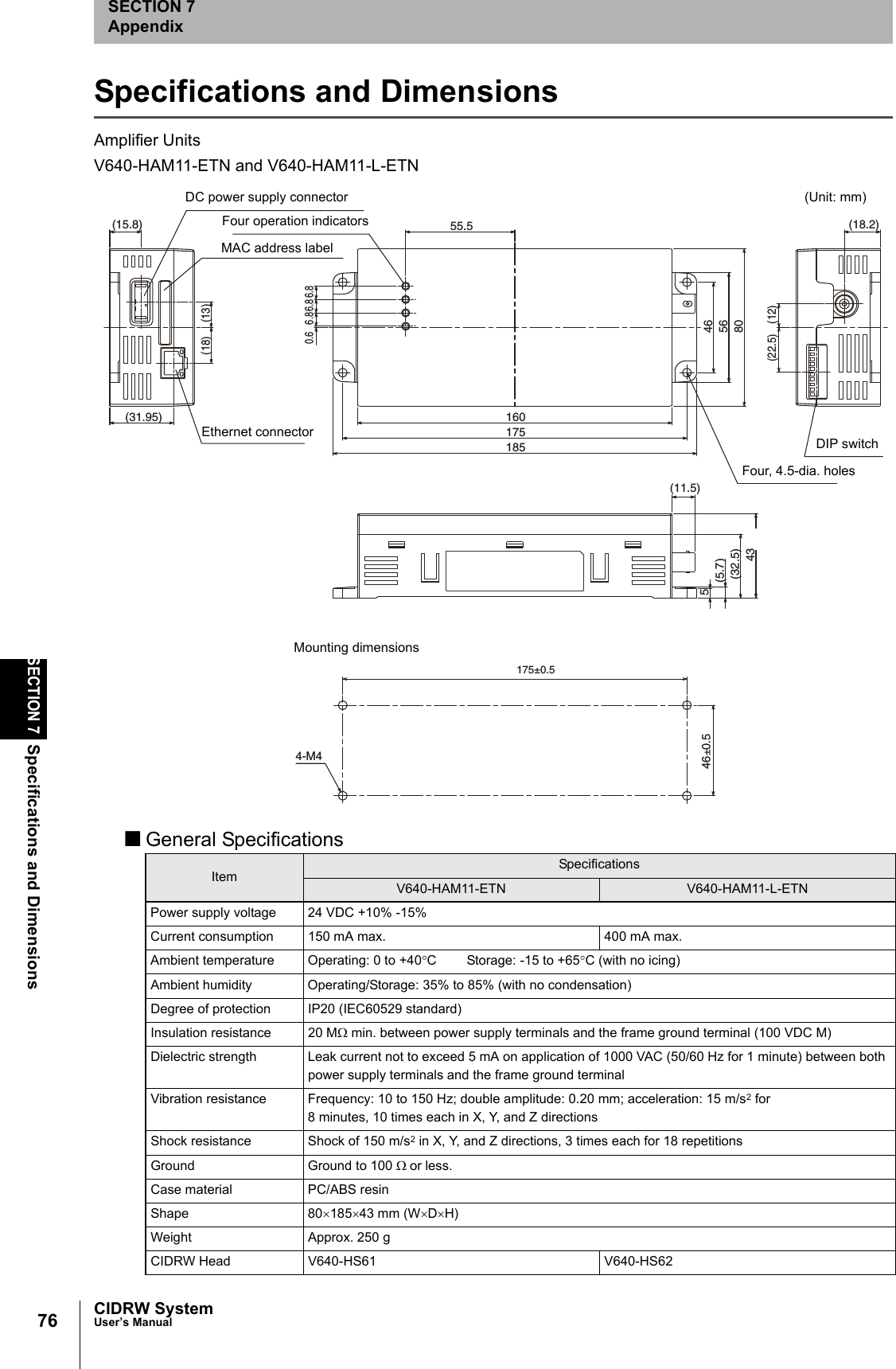

76SECTION 7Specifications and DimensionsCIDRW SystemUser’s ManualSECTION 7AppendixSpecifications and DimensionsAmplifier UnitsV640-HAM11-ETN and V640-HAM11-L-ETN■General SpecificationsItem SpecificationsV640-HAM11-ETN V640-HAM11-L-ETNPower supply voltage 24 VDC +10% -15%Current consumption 150 mA max. 400 mA max.Ambient temperature Operating: 0 to +40°C Storage: -15 to +65°C (with no icing)Ambient humidity Operating/Storage: 35% to 85% (with no condensation)Degree of protection IP20 (IEC60529 standard)Insulation resistance 20 MΩ min. between power supply terminals and the frame ground terminal (100 VDC M)Dielectric strength Leak current not to exceed 5 mA on application of 1000 VAC (50/60 Hz for 1 minute) between both power supply terminals and the frame ground terminalVibration resistance Frequency: 10 to 150 Hz; double amplitude: 0.20 mm; acceleration: 15 m/s2 for8 minutes, 10 times each in X, Y, and Z directionsShock resistance Shock of 150 m/s2 in X, Y, and Z directions, 3 times each for 18 repetitionsGround Ground to 100 Ω or less.Case material PC/ABS resinShape 80×185×43 mm (W×D×H)Weight Approx. 250 gCIDRW Head V640-HS61 V640-HS62175±0.516017518555.54656806.86.86.80.6(11.5)(32.5)435(5.7)(13)(18)(31.95)(15.8)(12)(18.2)(22.5)4-M446±0.5DIP switch(Unit: mm)Mounting dimensionsFour, 4.5-dia. holesDC power supply connectorMAC address labelEthernet connectorFour operation indicators

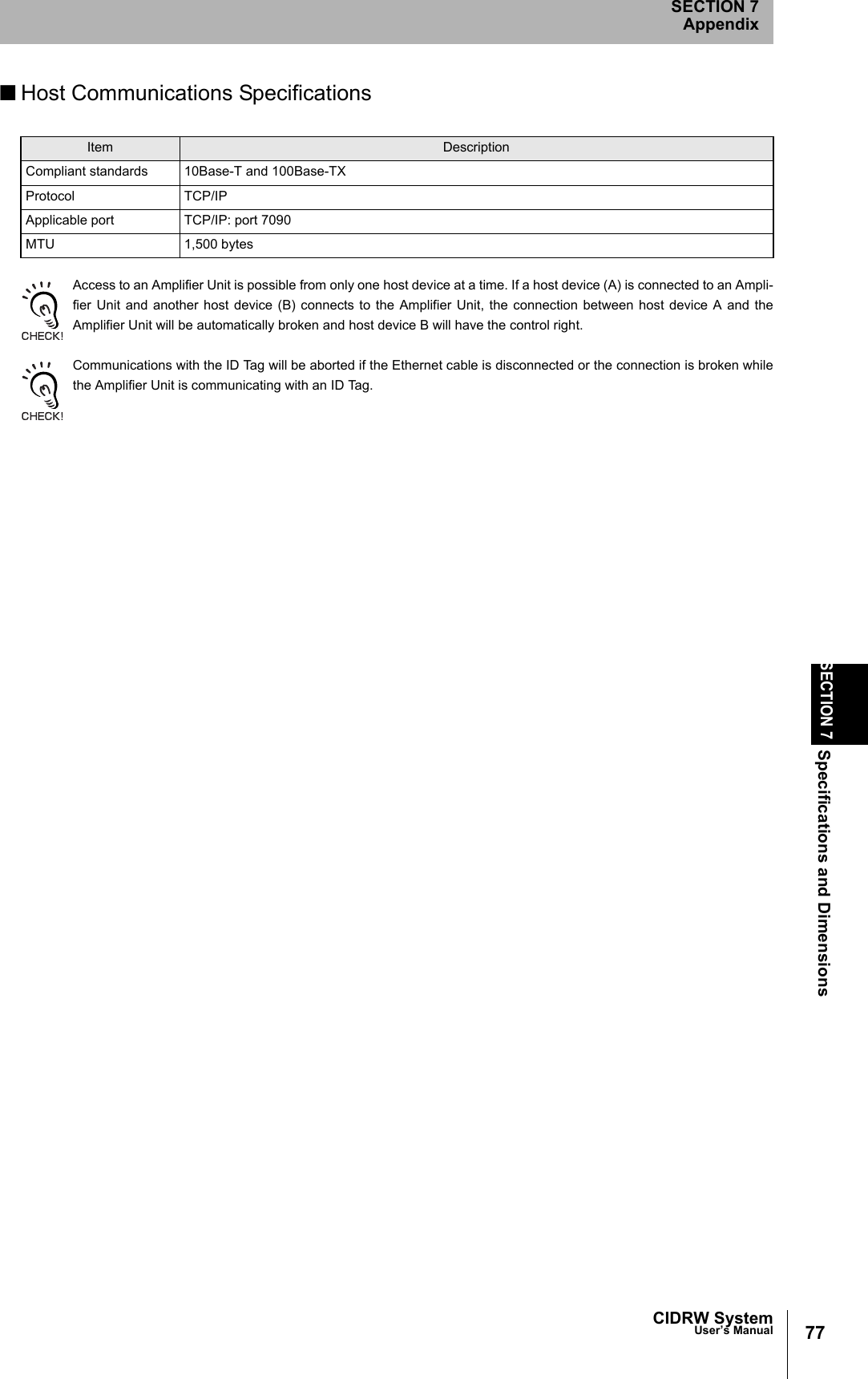

CIDRW SystemUser’s ManualSECTION 7Specifications and DimensionsSECTION 7Appendix77■Host Communications SpecificationsAccess to an Amplifier Unit is possible from only one host device at a time. If a host device (A) is connected to an Ampli-fier Unit and another host device (B) connects to the Amplifier Unit, the connection between host device A and theAmplifier Unit will be automatically broken and host device B will have the control right. Communications with the ID Tag will be aborted if the Ethernet cable is disconnected or the connection is broken whilethe Amplifier Unit is communicating with an ID Tag. Item DescriptionCompliant standards 10Base-T and 100Base-TXProtocol TCP/IPApplicable port TCP/IP: port 7090MTU 1,500 bytes

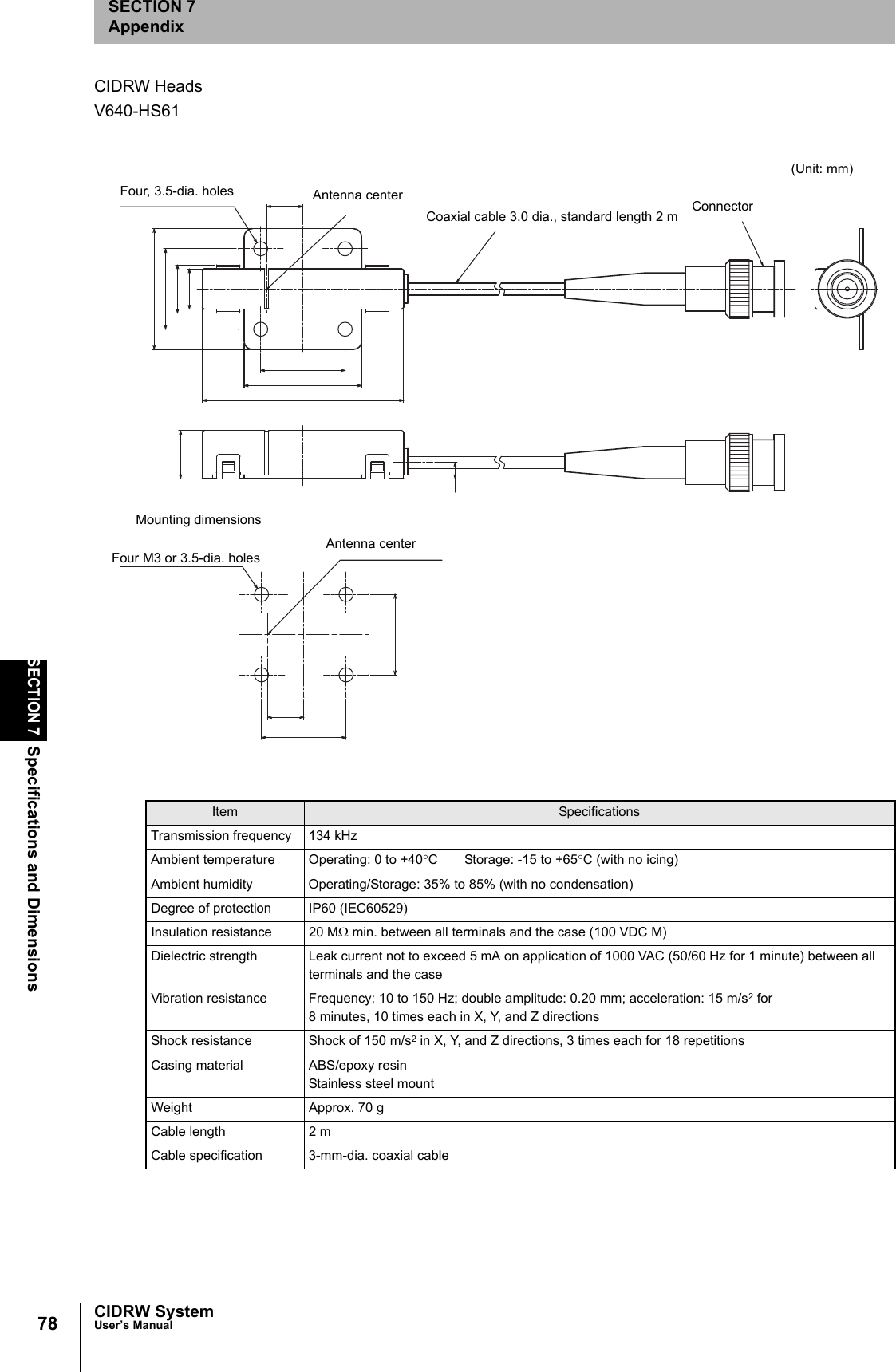

78SECTION 7Specifications and DimensionsCIDRW SystemUser’s ManualSECTION 7AppendixCIDRW HeadsV640-HS61Item SpecificationsTransmission frequency 134 kHzAmbient temperature Operating: 0 to +40°C Storage: -15 to +65°C (with no icing)Ambient humidity Operating/Storage: 35% to 85% (with no condensation)Degree of protection IP60 (IEC60529)Insulation resistance 20 MΩ min. between all terminals and the case (100 VDC M)Dielectric strength Leak current not to exceed 5 mA on application of 1000 VAC (50/60 Hz for 1 minute) between all terminals and the caseVibration resistance Frequency: 10 to 150 Hz; double amplitude: 0.20 mm; acceleration: 15 m/s2 for8 minutes, 10 times each in X, Y, and Z directionsShock resistance Shock of 150 m/s2 in X, Y, and Z directions, 3 times each for 18 repetitionsCasing material ABS/epoxy resinStainless steel mountWeight Approx. 70 gCable length 2 mCable specification 3-mm-dia. coaxial cableCoaxial cable 3.0 dia., standard length 2 m(Unit: mm)ConnectorAntenna centerAntenna centerMounting dimensionsFour M3 or 3.5-dia. holesFour, 3.5-dia. holes

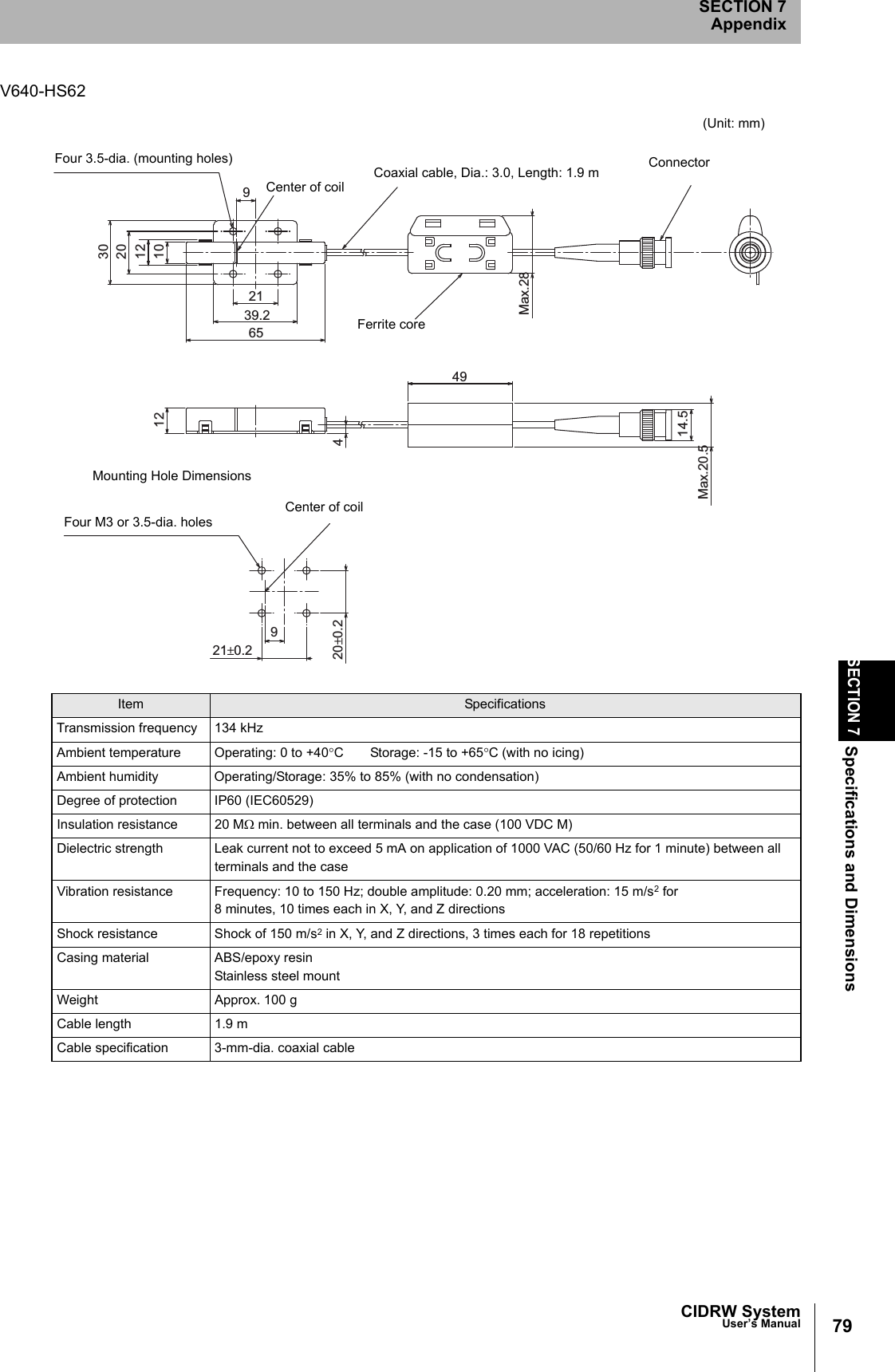

CIDRW SystemUser’s ManualSECTION 7Specifications and DimensionsSECTION 7Appendix79V640-HS62Item SpecificationsTransmission frequency 134 kHzAmbient temperature Operating: 0 to +40°C Storage: -15 to +65°C (with no icing)Ambient humidity Operating/Storage: 35% to 85% (with no condensation)Degree of protection IP60 (IEC60529)Insulation resistance 20 MΩ min. between all terminals and the case (100 VDC M)Dielectric strength Leak current not to exceed 5 mA on application of 1000 VAC (50/60 Hz for 1 minute) between all terminals and the caseVibration resistance Frequency: 10 to 150 Hz; double amplitude: 0.20 mm; acceleration: 15 m/s2 for8 minutes, 10 times each in X, Y, and Z directionsShock resistance Shock of 150 m/s2 in X, Y, and Z directions, 3 times each for 18 repetitionsCasing material ABS/epoxy resinStainless steel mountWeight Approx. 100 gCable length 1.9 mCable specification 3-mm-dia. coaxial cable3020121096539.221Max.281244914.5Max.20.5921±0.220±0.2Ferrite core(Unit: mm)ConnectorCoaxial cable, Dia.: 3.0, Length: 1.9 mCenter of coilMounting Hole DimensionsFour M3 or 3.5-dia. holesFour 3.5-dia. (mounting holes)Center of coil

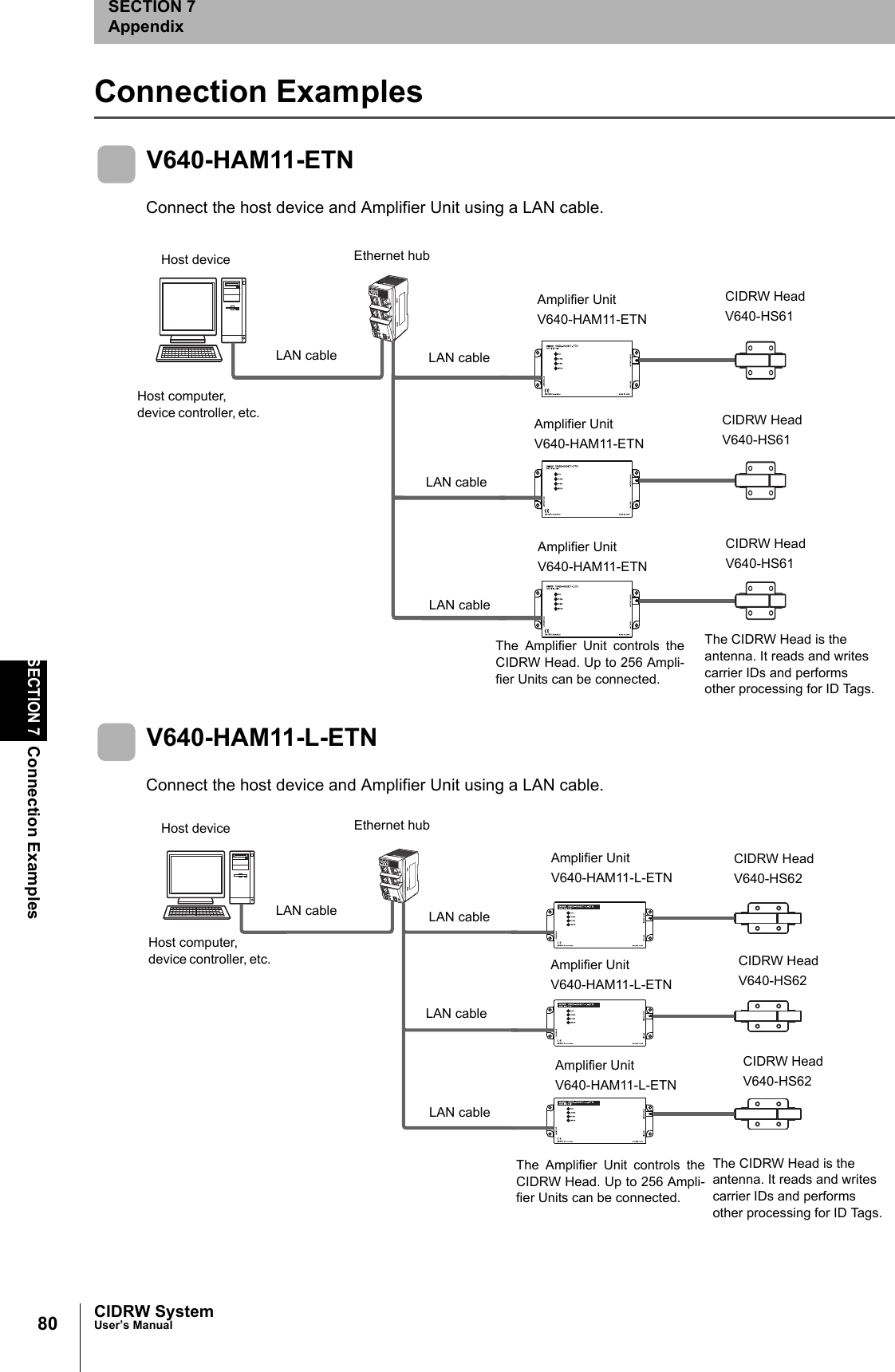

80SECTION 7Connection ExamplesCIDRW SystemUser’s ManualSECTION 7AppendixConnection Examples V640-HAM11-ETNConnect the host device and Amplifier Unit using a LAN cable. V640-HAM11-L-ETNConnect the host device and Amplifier Unit using a LAN cable. Host deviceHost computer, device controller, etc. CIDRW HeadV640-HS61Amplifier UnitV640-HAM11-ETNEthernet hubLAN cable LAN cableCIDRW HeadV640-HS61Amplifier UnitV640-HAM11-ETNLAN cableCIDRW HeadV640-HS61Amplifier UnitV640-HAM11-ETNLAN cableThe Amplifier Unit controls theCIDRW Head. Up to 256 Ampli-fier Units can be connected. The CIDRW Head is the antenna. It reads and writes carrier IDs and performs other processing for ID Tags.Host deviceHost computer, device controller, etc. CIDRW HeadV640-HS62Amplifier UnitV640-HAM11-L-ETNEthernet hubLAN cable LAN cableCIDRW HeadV640-HS62Amplifier UnitV640-HAM11-L-ETNLAN cableCIDRW HeadV640-HS62Amplifier UnitV640-HAM11-L-ETNLAN cableThe Amplifier Unit controls theCIDRW Head. Up to 256 Ampli-fier Units can be connected. The CIDRW Head is the antenna. It reads and writes carrier IDs and performs other processing for ID Tags.

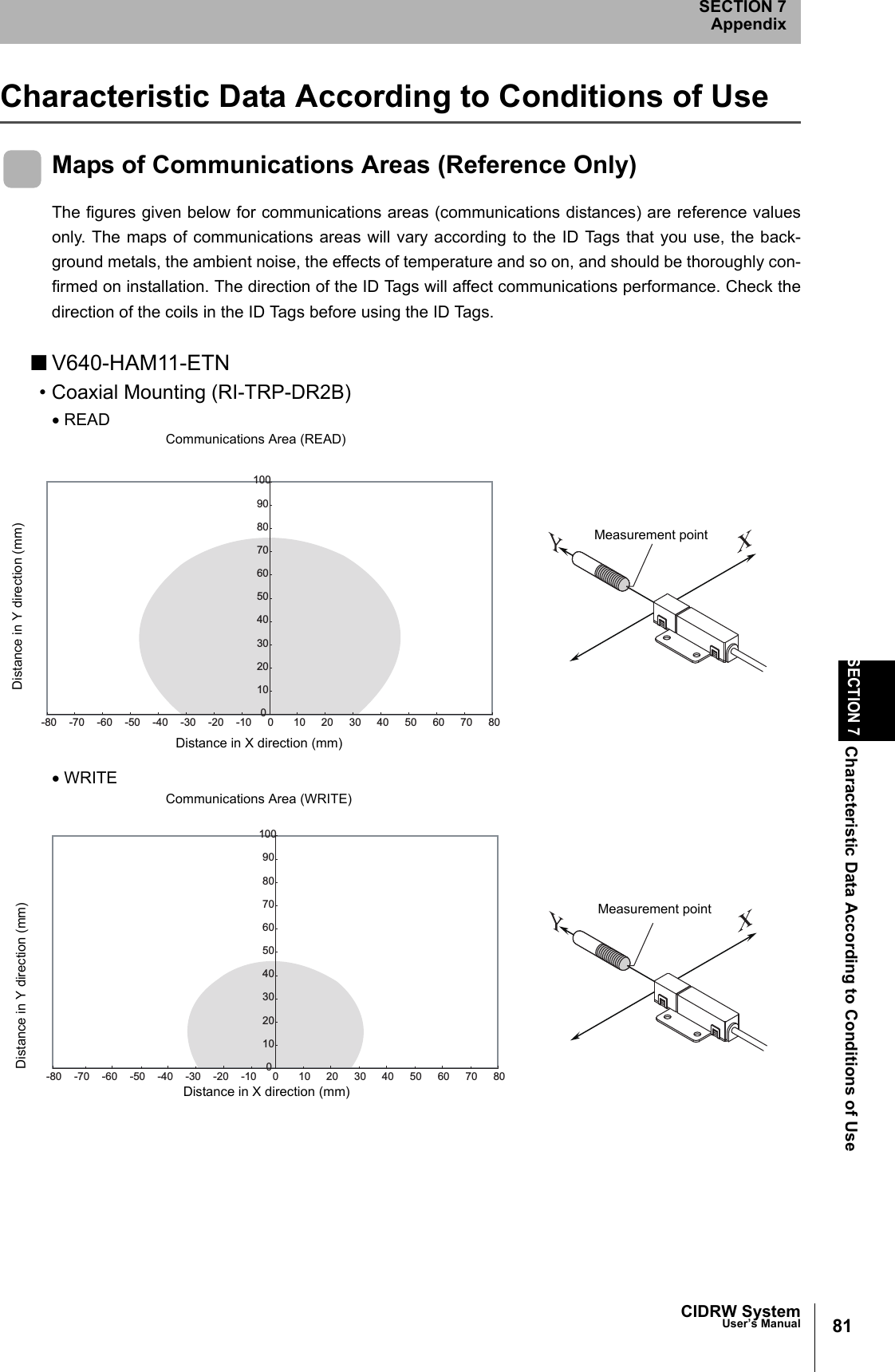

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix81Characteristic Data According to Conditions of UseMaps of Communications Areas (Reference Only)The figures given below for communications areas (communications distances) are reference valuesonly. The maps of communications areas will vary according to the ID Tags that you use, the back-ground metals, the ambient noise, the effects of temperature and so on, and should be thoroughly con-firmed on installation. The direction of the ID Tags will affect communications performance. Check thedirection of the coils in the ID Tags before using the ID Tags.■V640-HAM11-ETN• Coaxial Mounting (RI-TRP-DR2B)• READ• WRITE0102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80Communications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurement point0102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80Communications Area (WRITE)Distance in Y direction (mm)Distance in X direction (mm)Measurement point

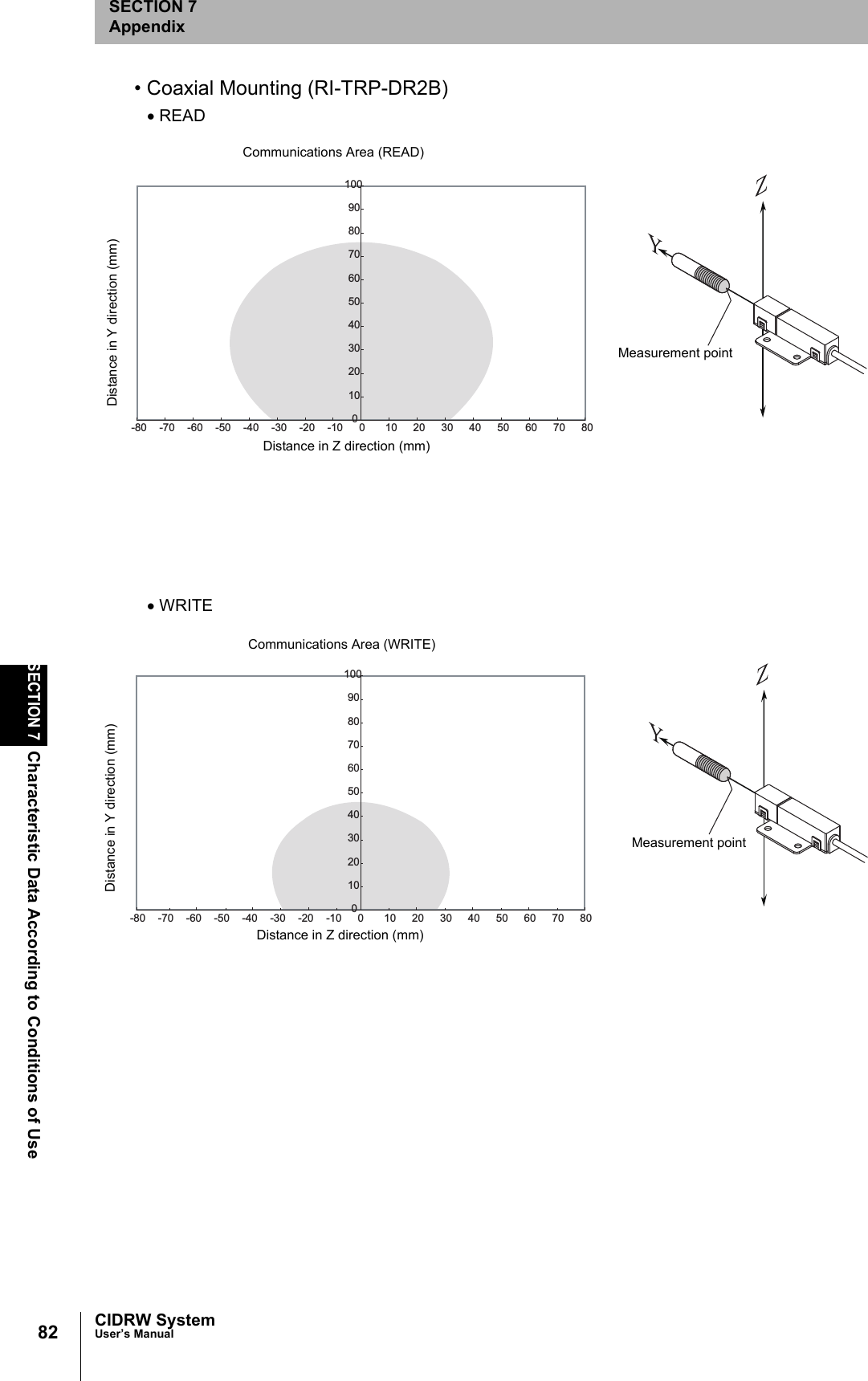

82SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Coaxial Mounting (RI-TRP-DR2B)• READ• WRITE0102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80Communications Area (READ)Distance in Z direction (mm)Measurement pointDistance in Y direction (mm)0102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80Communications Area (WRITE)Distance in Z direction (mm)Measurement pointDistance in Y direction (mm)

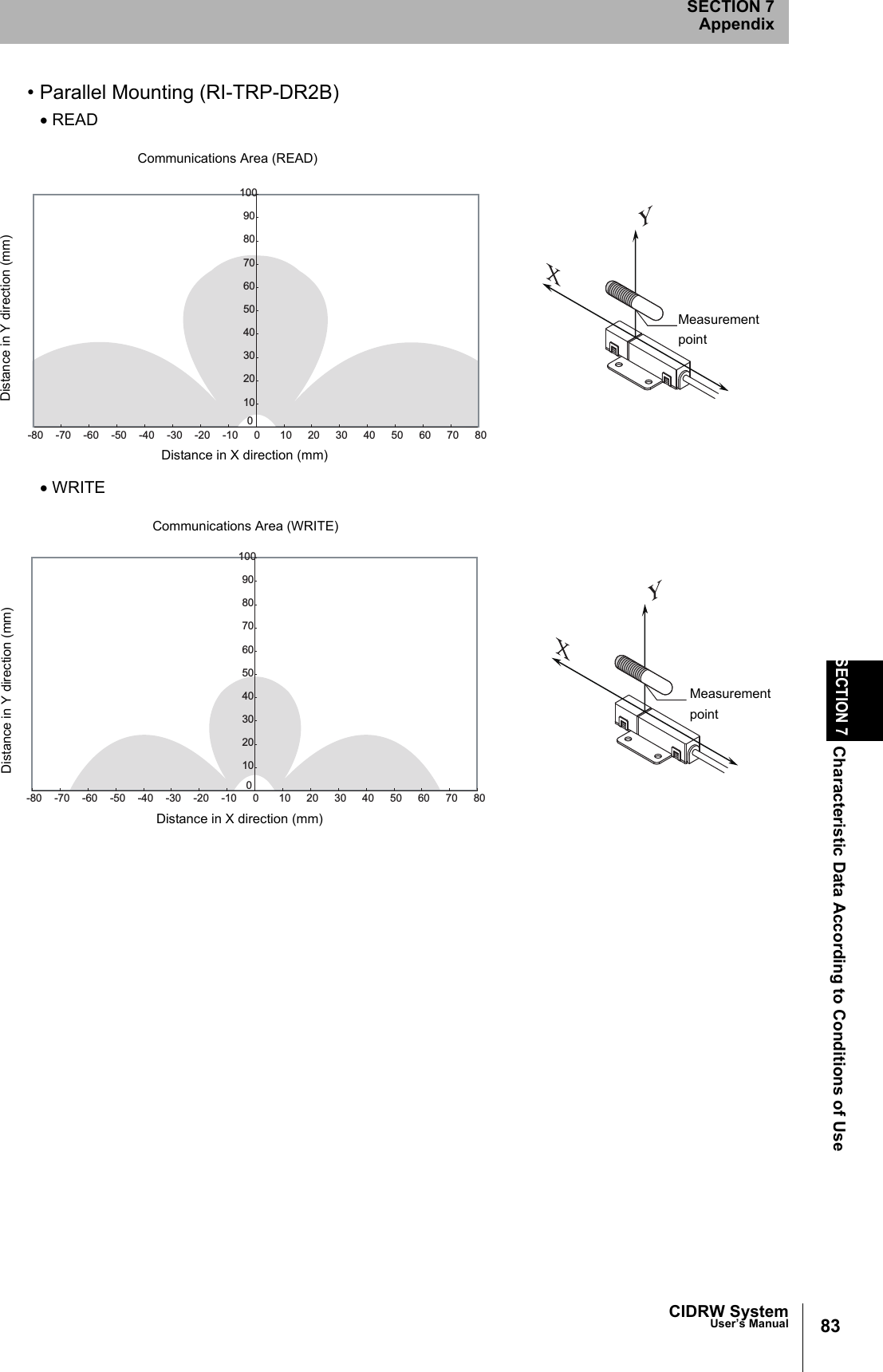

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix83• Parallel Mounting (RI-TRP-DR2B)• READ• WRITE102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 800Communications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 800Communications Area (WRITE)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint

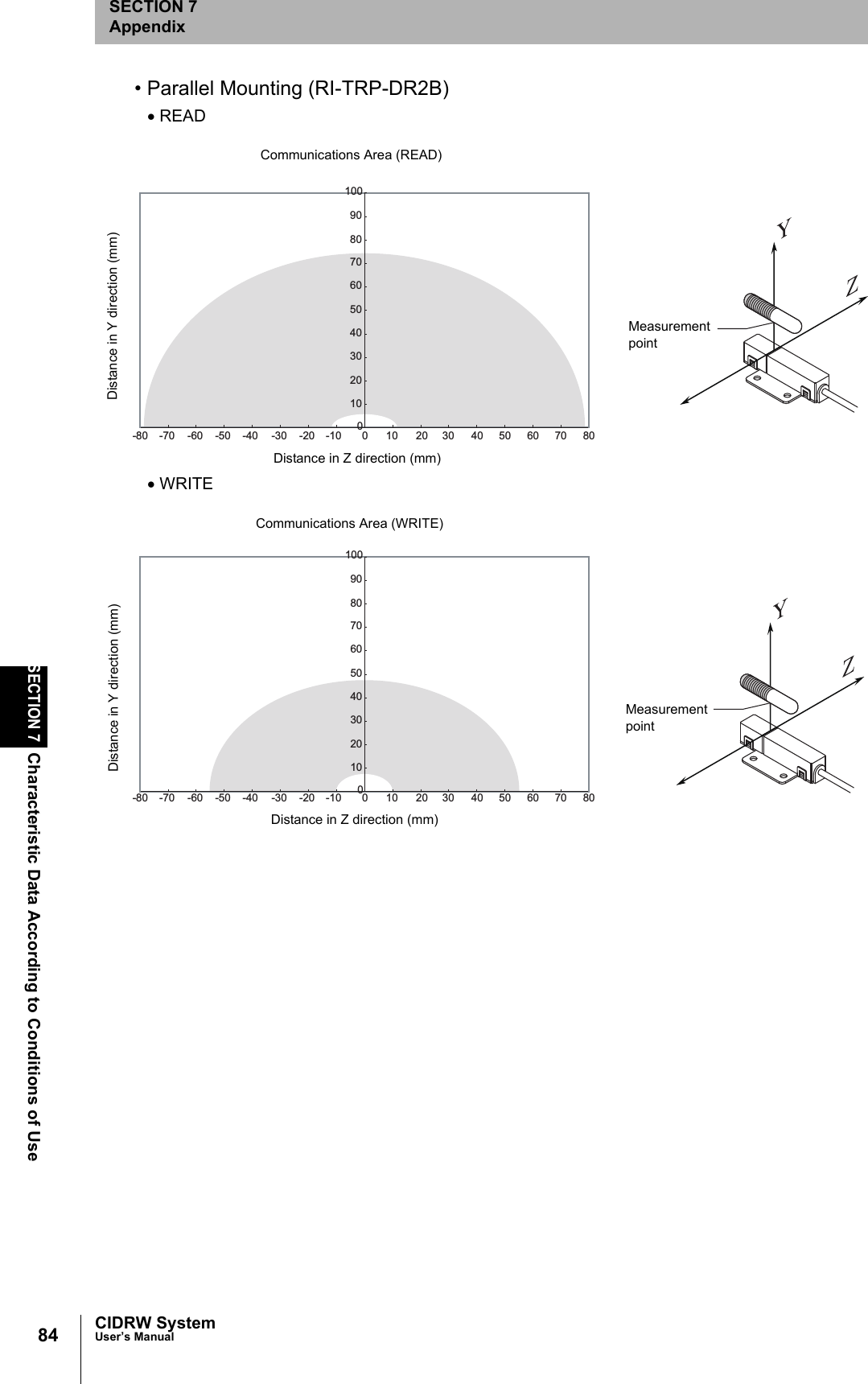

84SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Parallel Mounting (RI-TRP-DR2B)• READ• WRITE010-10 20-20-30 30 40-40-50 50-60-70-80 60 70 800102030405060708090100Communications Area (READ)Distance in Y direction (mm)Distance in Z direction (mm)Measurementpoint0102030405060708090100010-10 20-20-30 30 40-40-50 50-60-70-80 60 70 80Communications Area (WRITE)Distance in Y direction (mm)Distance in Z direction (mm)Measurementpoint

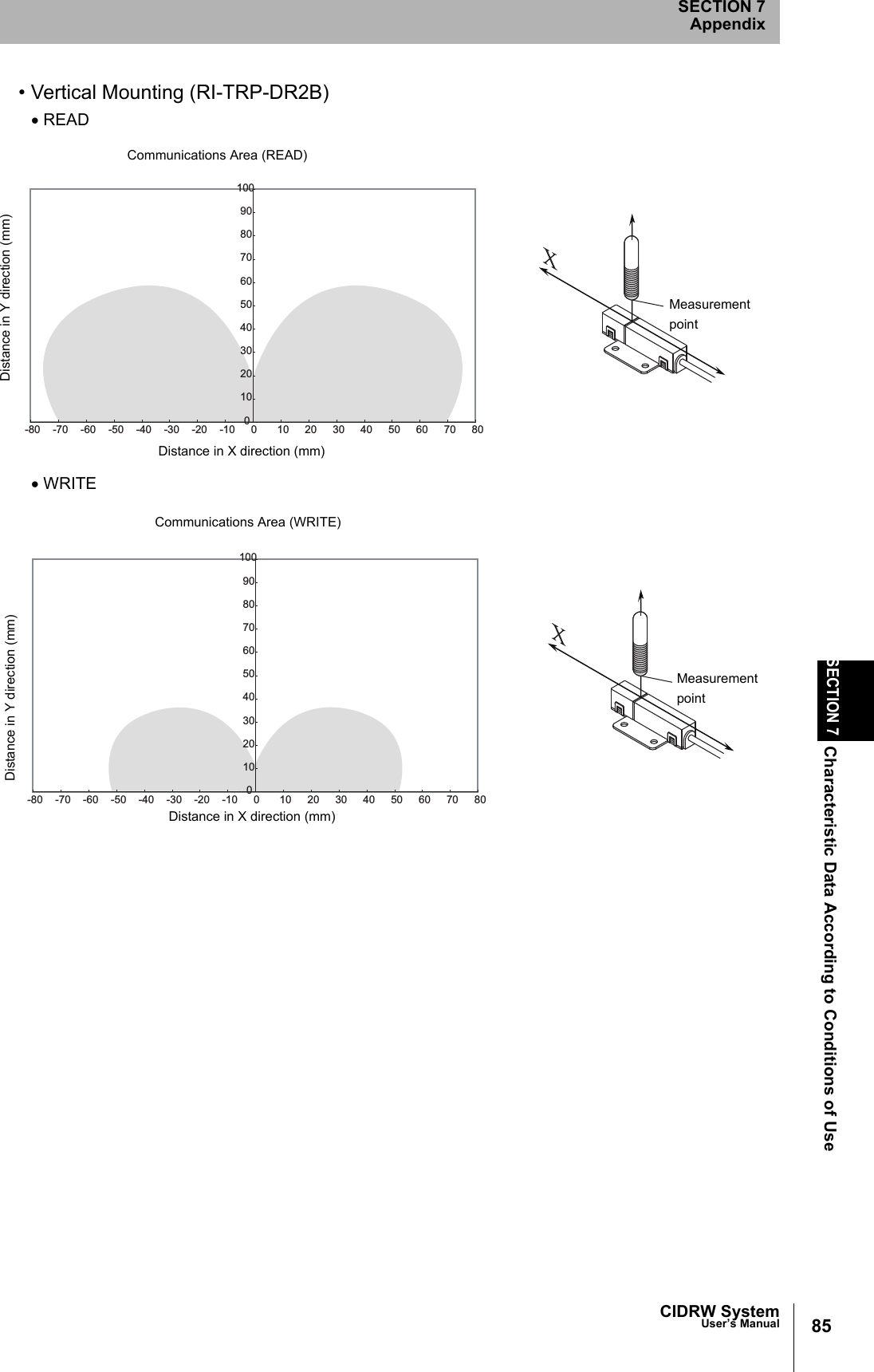

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix85• Vertical Mounting (RI-TRP-DR2B)• READ• WRITE0102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80Communications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint0102030405060708090100-80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80Communications Area (WRITE)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint

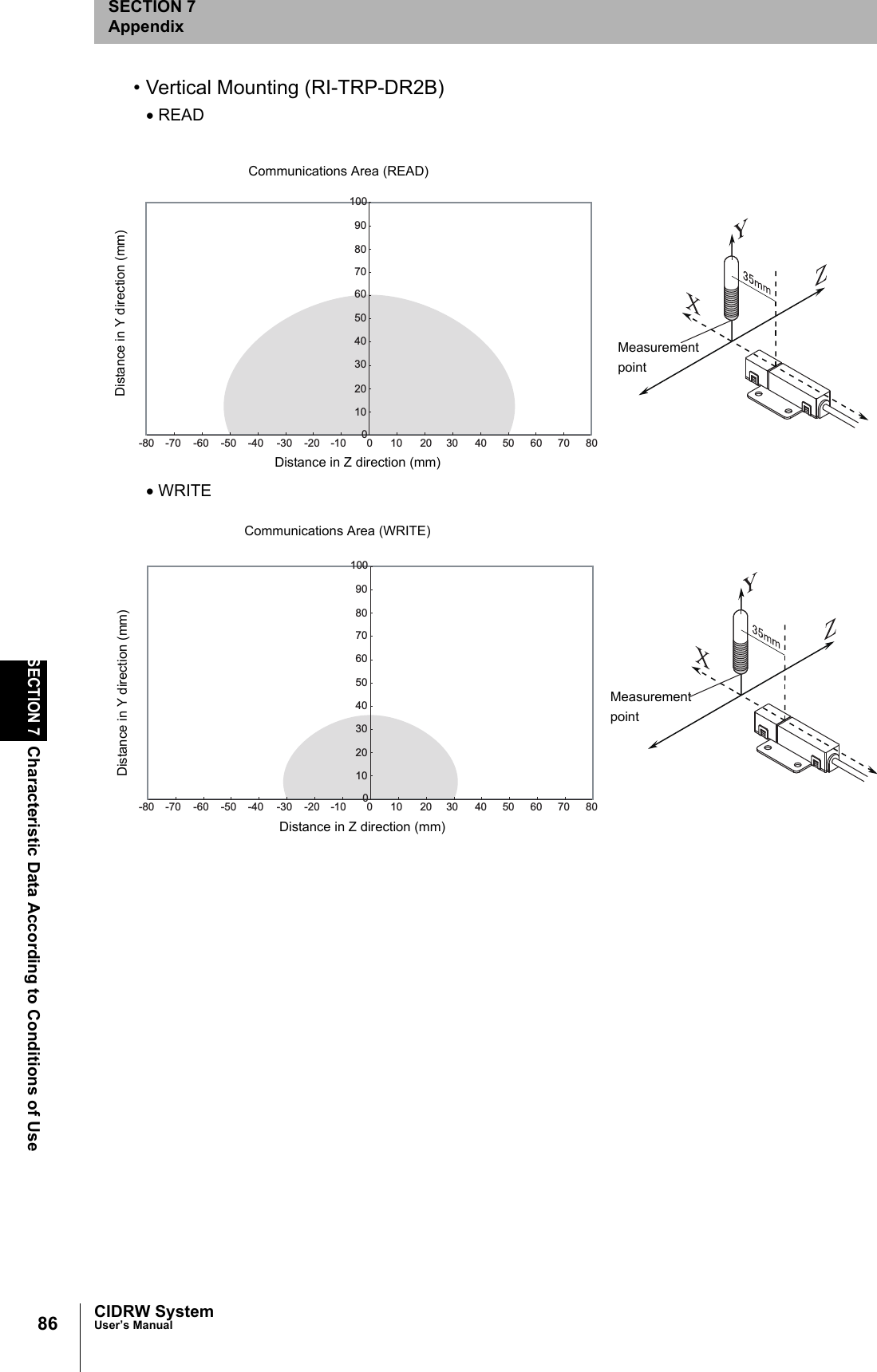

86SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Vertical Mounting (RI-TRP-DR2B)• READ• WRITE010-10 20-20-30 30 40-40-50 50-60-70-80 60 70 800102030405060708090100Communications Area (READ)Distance in Y direction (mm)Distance in Z direction (mm)Measurement point0102030405060708090100010-10 20-20-30 30 40-40-50 50-60-70-80 60 70 80Communications Area (WRITE)Distance in Y direction (mm)Distance in Z direction (mm)Measurement point

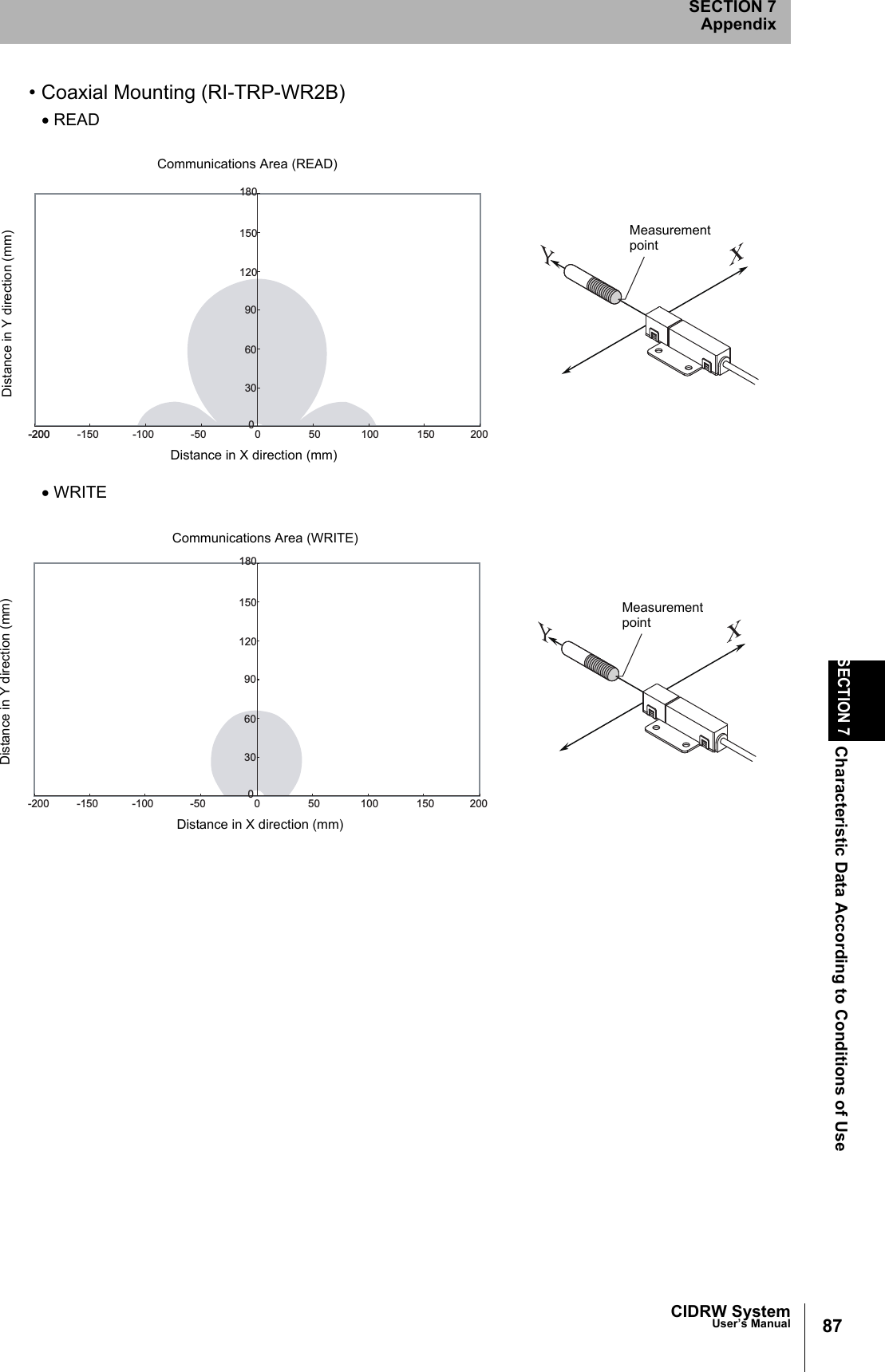

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix87• Coaxial Mounting (RI-TRP-WR2B)• READ• WRITE0306090120150180-200 0 50 100 150 200-200 -150 -100 -50Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)0306090120150180-200 0 50 100 150 200-150 -100 -50Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (WRITE)

88SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Coaxial Mounting (RI-TRP-WR2B)• READ• WRITE0306090120150180-200 0 50 100 150 200-150 -100 -50Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)0306090120150180-200 0 50 100 150 200-150 -100 -50Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (WRITE)

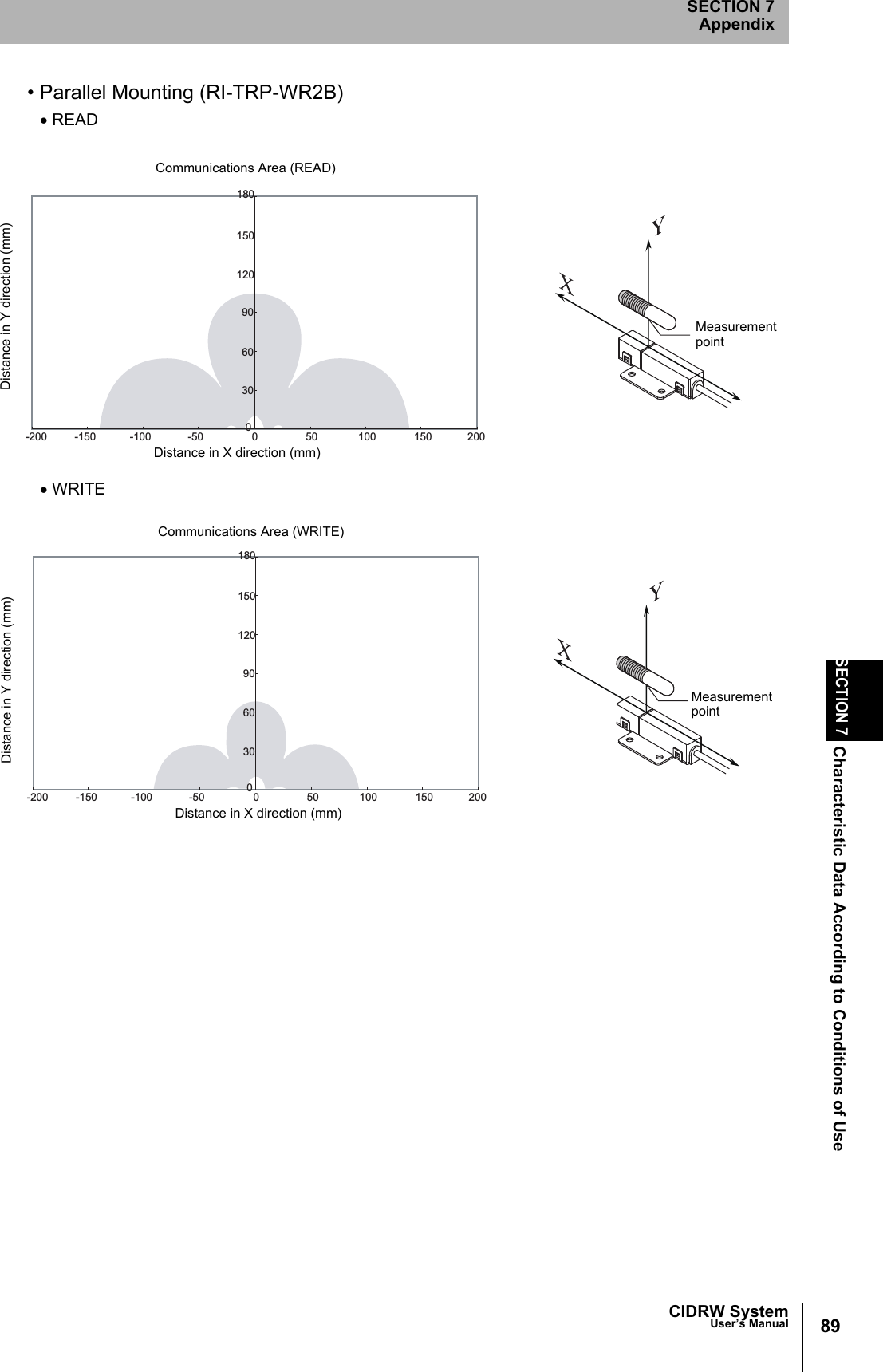

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix89• Parallel Mounting (RI-TRP-WR2B)• READ• WRITE0306090120150180-200 0 50 100 150 200-150 -100 -50Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)0306090120150180-200 0 20050 100 150-150 -100 -50Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (WRITE)

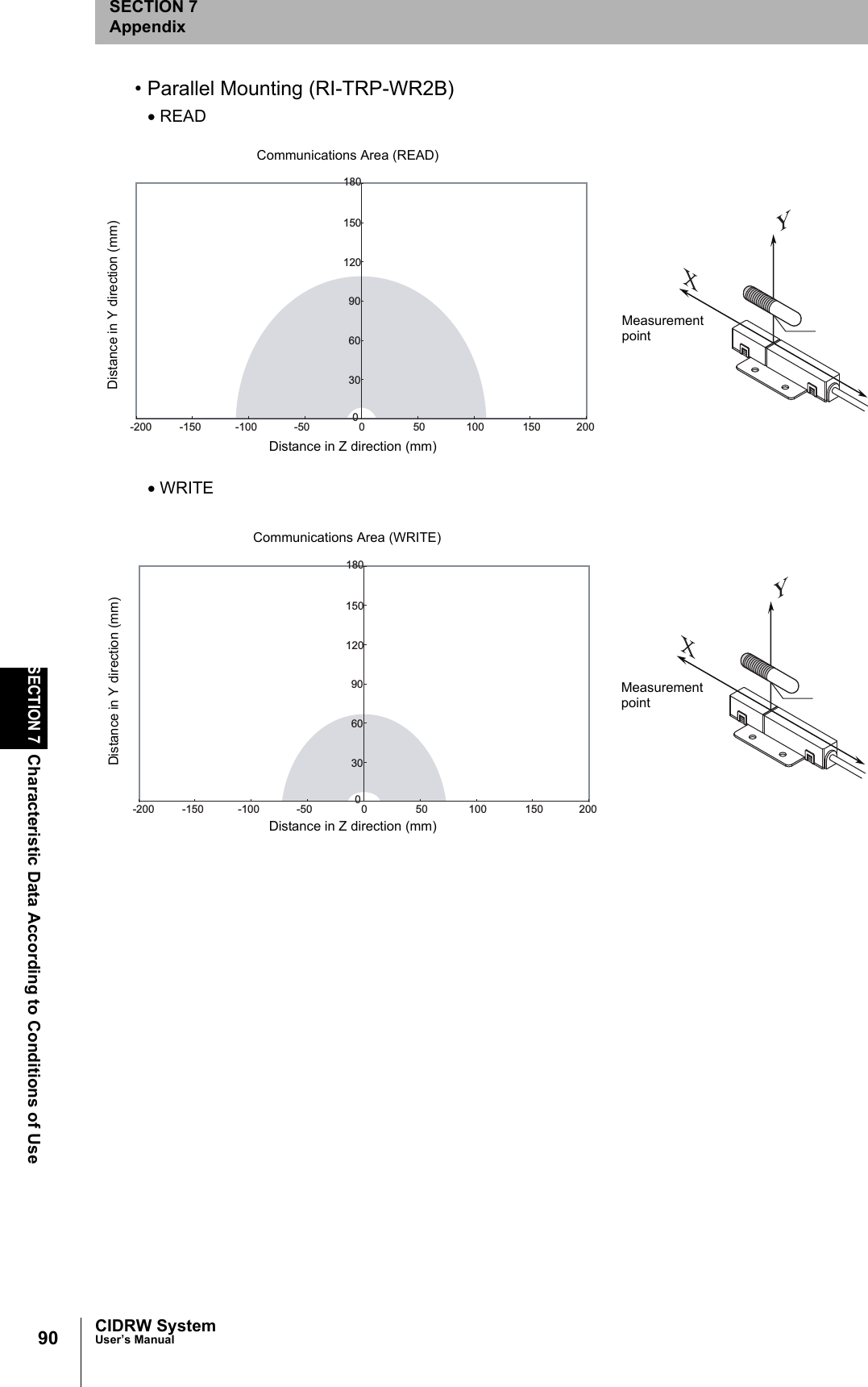

90SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Parallel Mounting (RI-TRP-WR2B)• READ• WRITE0306090120150180-200 -150 -100 -50 0 50 100 150 200Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)03060901201501800 50 100 150 200-200 -150 -100 -50Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (WRITE)

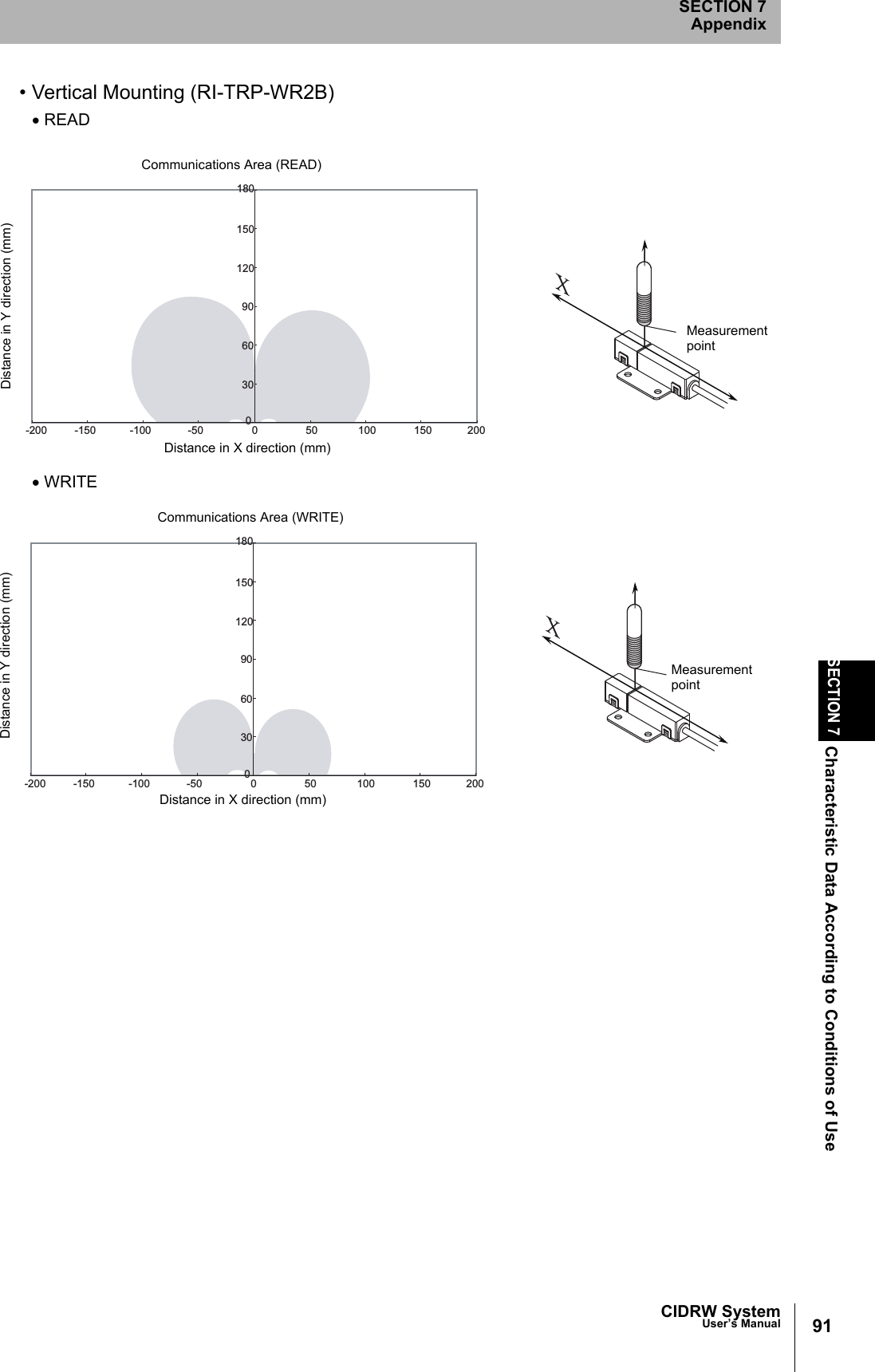

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix91• Vertical Mounting (RI-TRP-WR2B)• READ• WRITE0306090120150180-200 0 20050 100 150-150 -100 -50Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)0306090120150180-200 0 20050 100 150-150 -100 -50Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (WRITE)

92SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Vertical Mounting (RI-TRP-WR2B)• READ• WRITE0306090120150180-200 0 20050 100 150-150 -100 -50Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)0306090120150180-200 -150 -100 -50 50 100 150 2000Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)

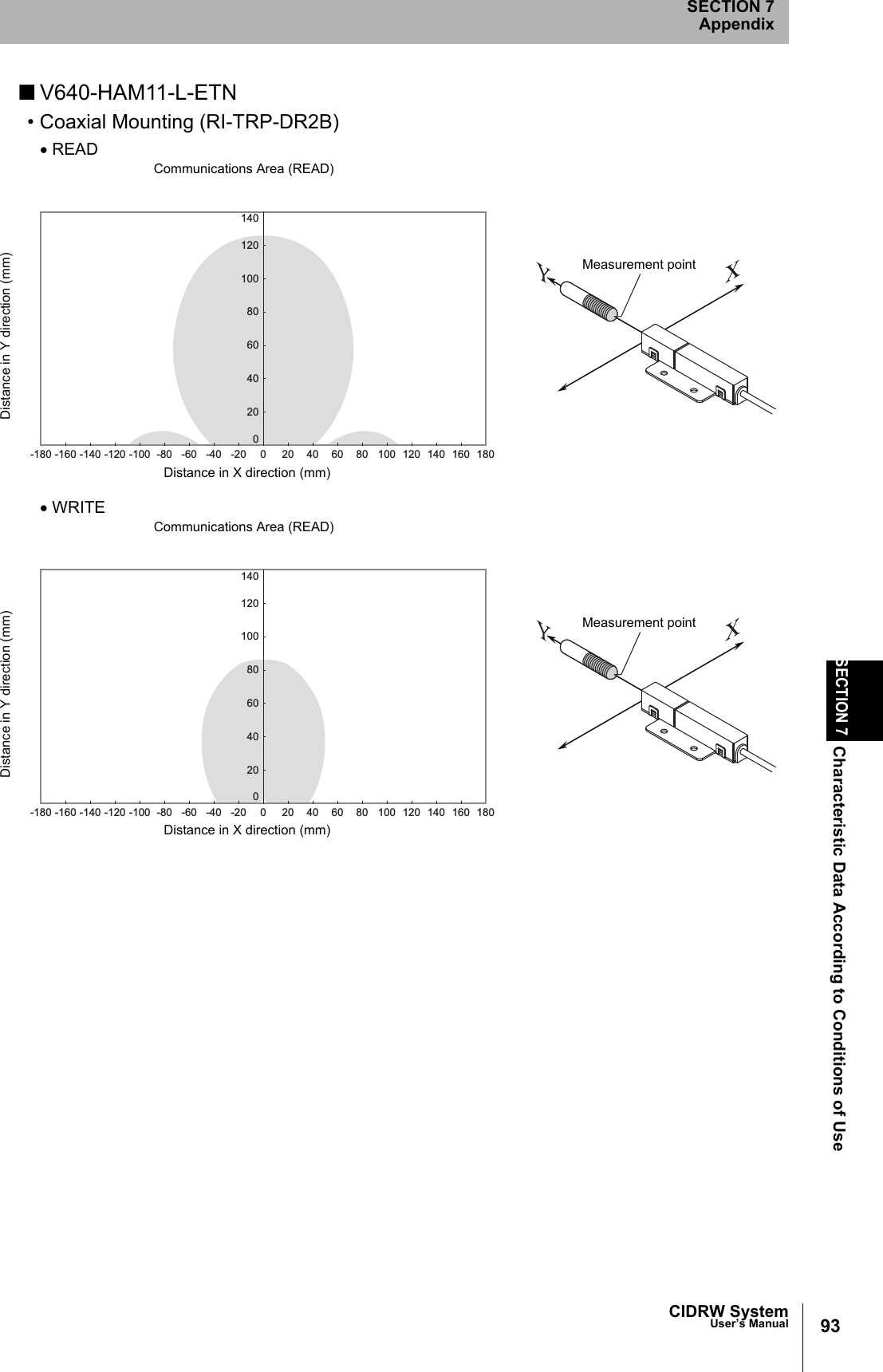

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix93■V640-HAM11-L-ETN• Coaxial Mounting (RI-TRP-DR2B)• READ• WRITECommunications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurement point0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020Communications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurement point0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020

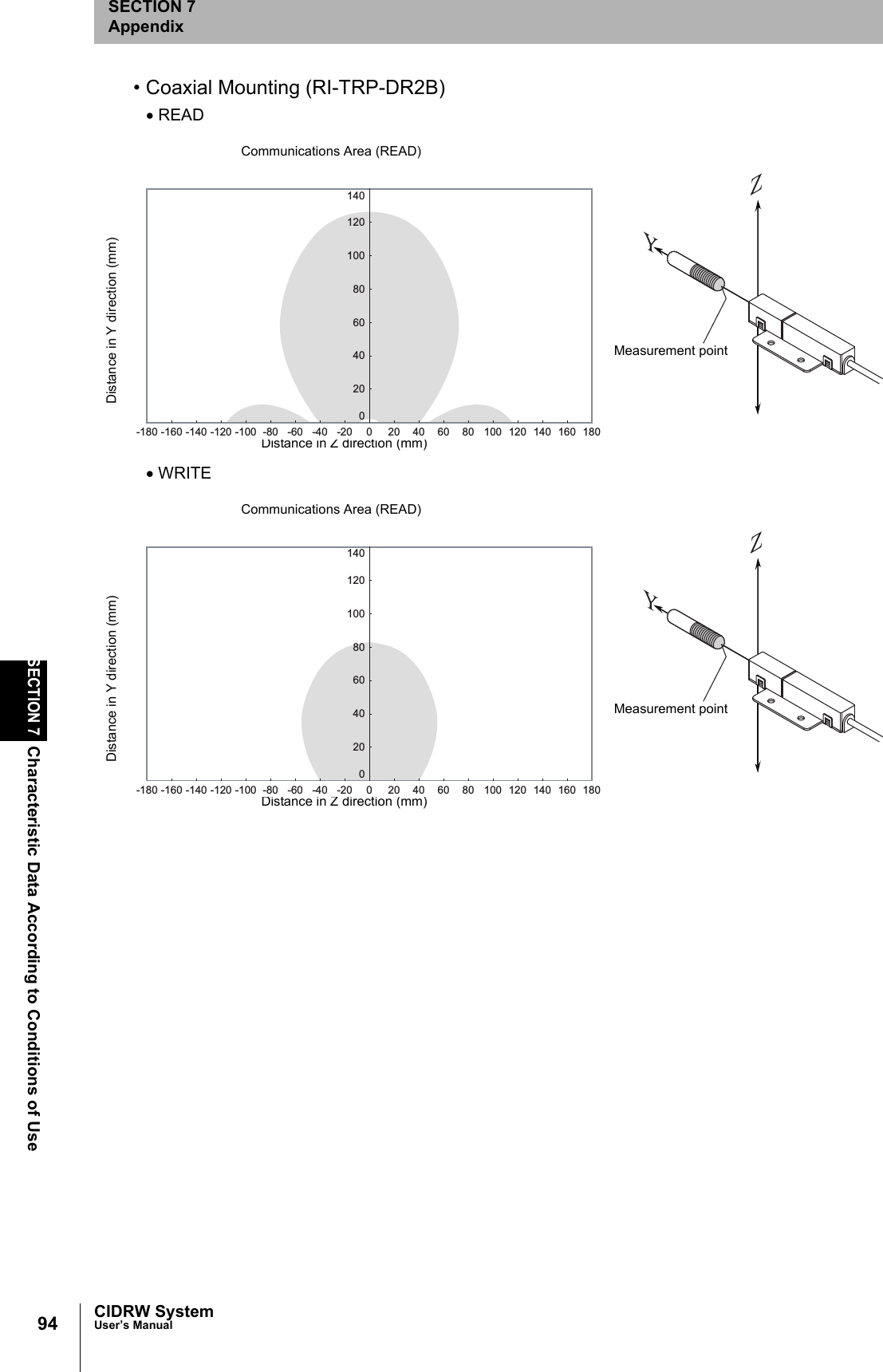

94SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Coaxial Mounting (RI-TRP-DR2B)• READ• WRITECommunications Area (READ)Distance in Z direction (mm)Measurement pointDistance in Y direction (mm)0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020Communications Area (READ)Distance in Z direction (mm)Measurement pointDistance in Y direction (mm)0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020

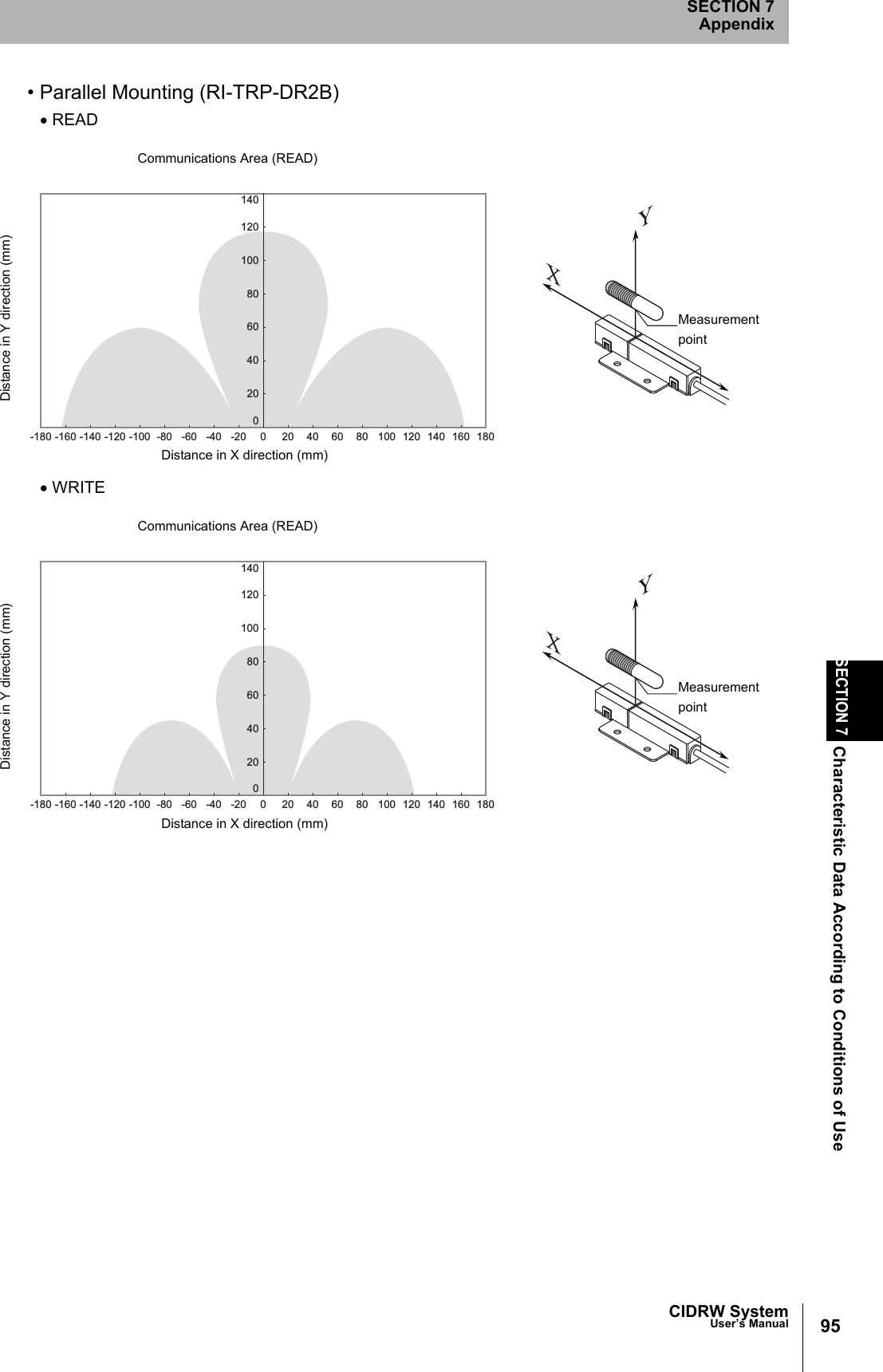

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix95• Parallel Mounting (RI-TRP-DR2B)• READ• WRITECommunications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020Communications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020

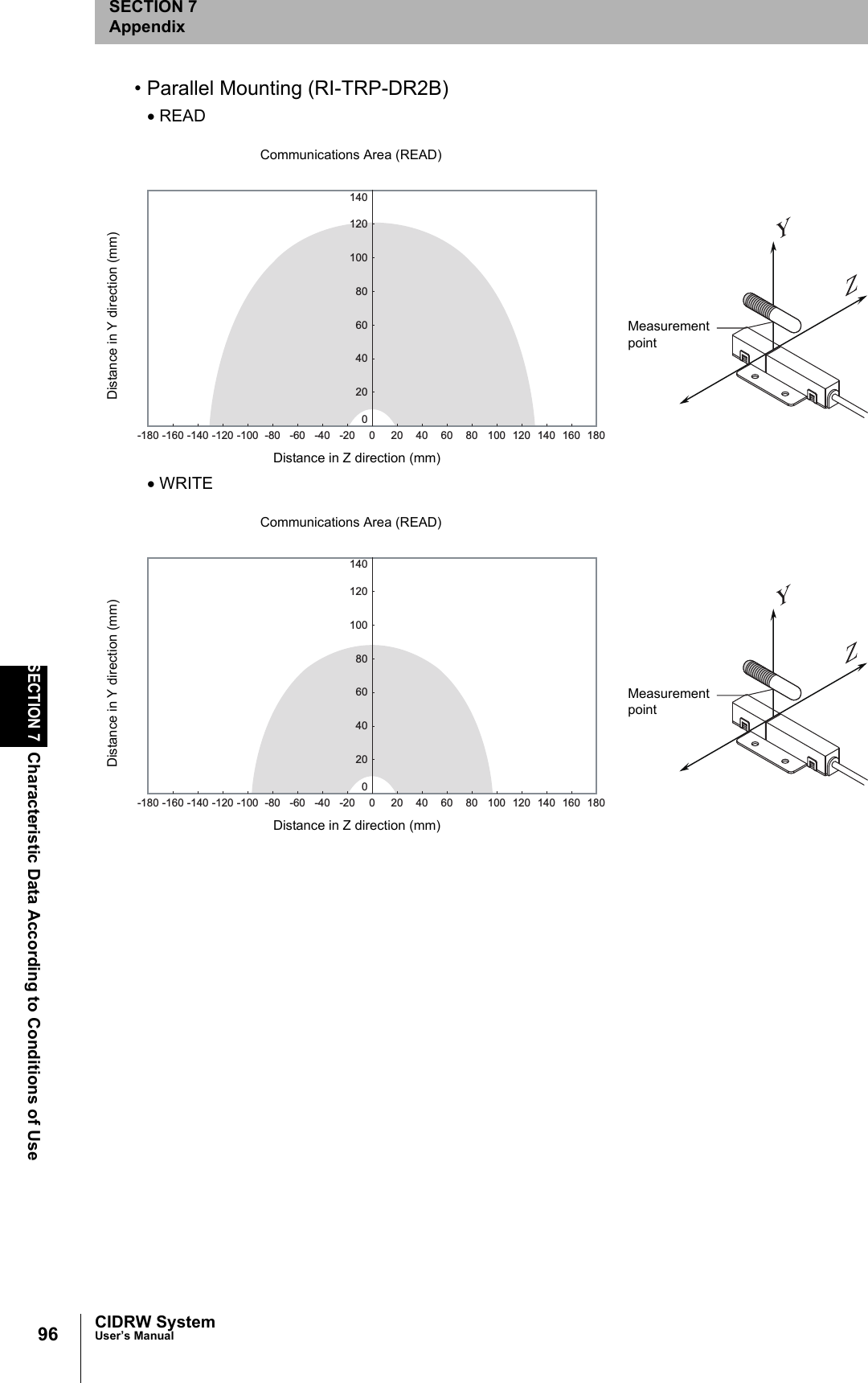

96SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Parallel Mounting (RI-TRP-DR2B)• READ• WRITECommunications Area (READ)Distance in Y direction (mm)Distance in Z direction (mm)Measurementpoint0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020Communications Area (READ)Distance in Y direction (mm)Distance in Z direction (mm)Measurementpoint0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020

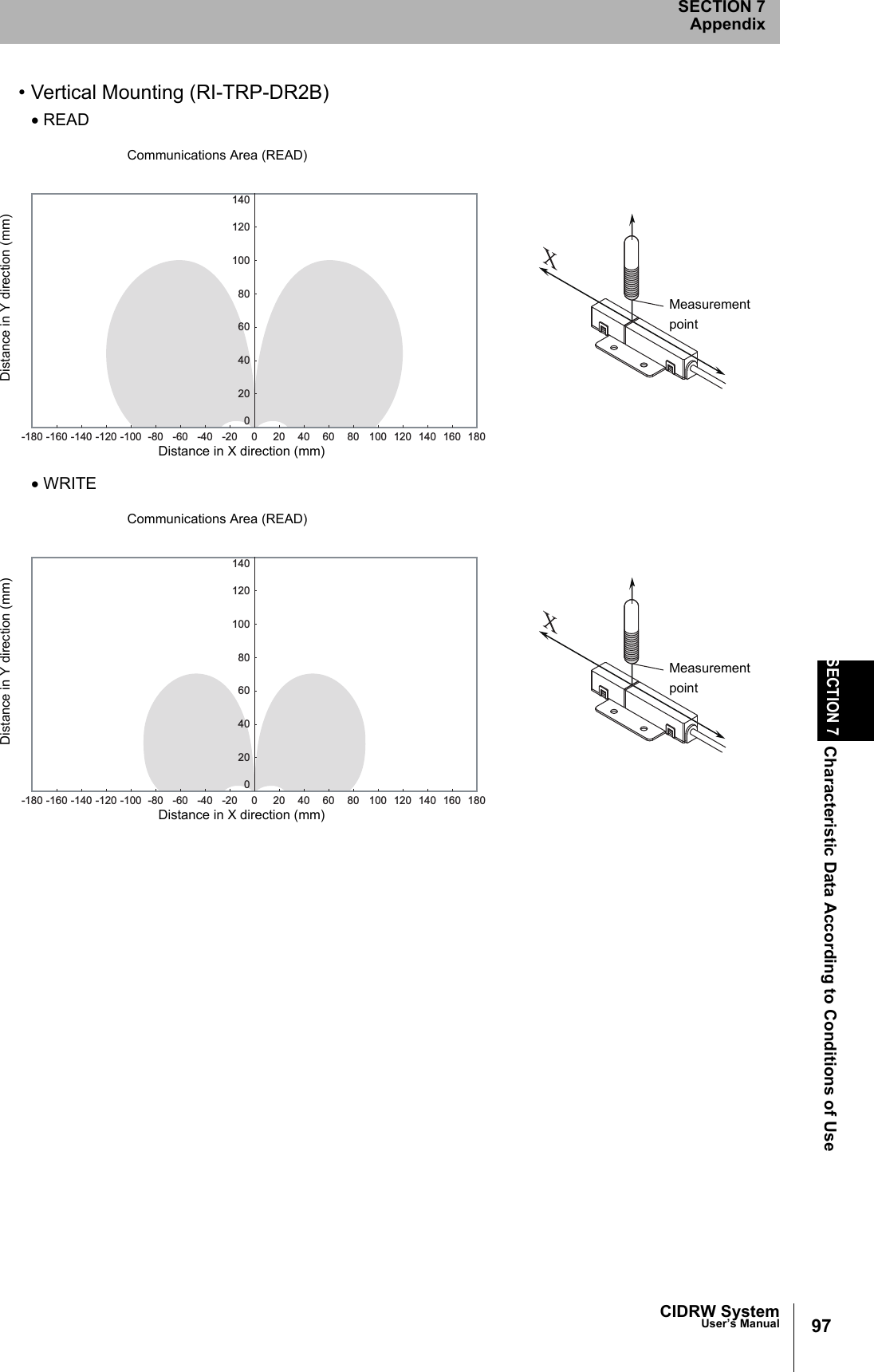

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix97• Vertical Mounting (RI-TRP-DR2B)• READ• WRITECommunications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020Communications Area (READ)Distance in Y direction (mm)Distance in X direction (mm)Measurementpoint0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020

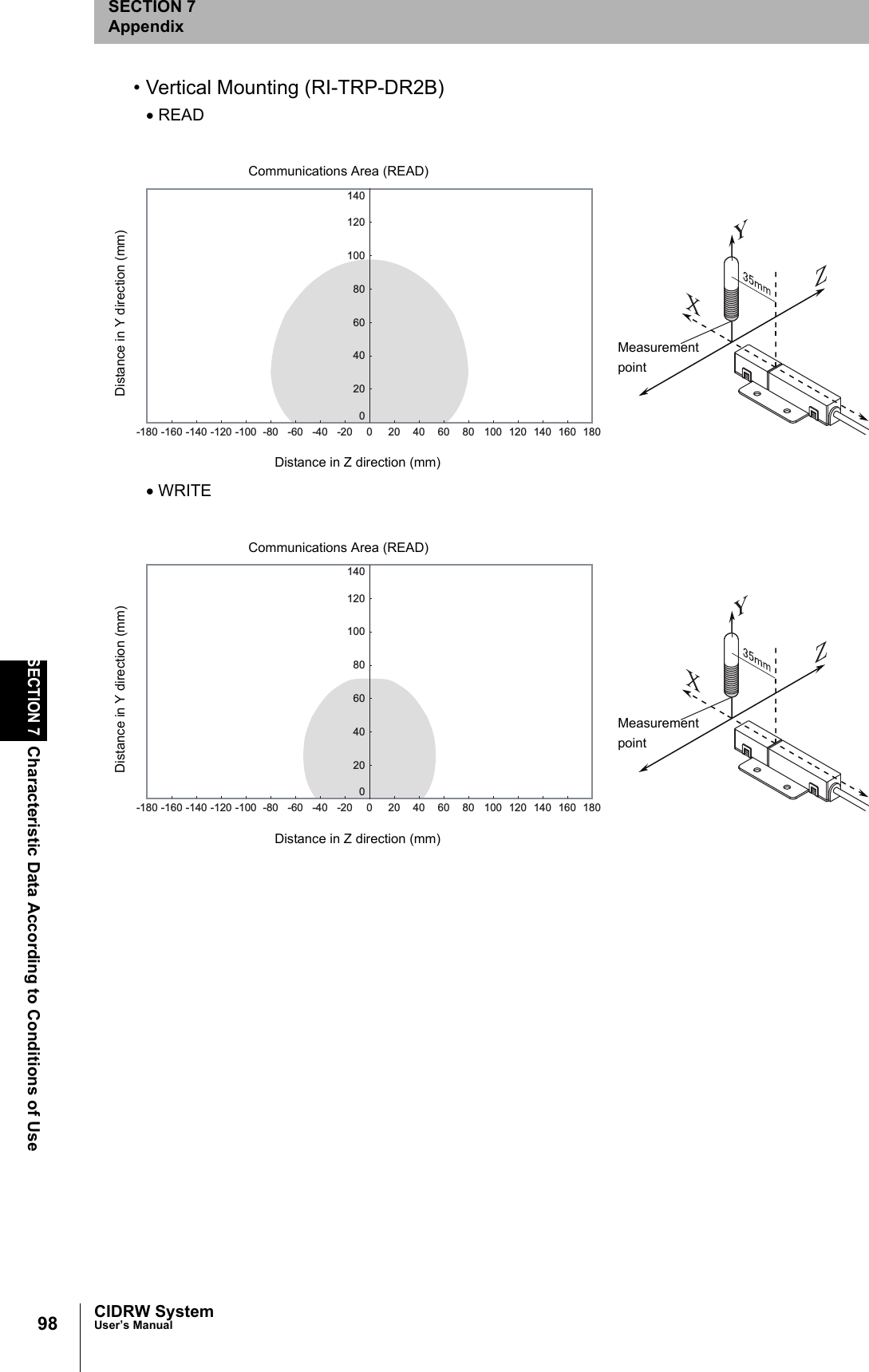

98SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Vertical Mounting (RI-TRP-DR2B)• READ• WRITECommunications Area (READ)Distance in Y direction (mm)Distance in Z direction (mm)Measurement point0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020Communications Area (READ)Distance in Y direction (mm)Distance in Z direction (mm)Measurement point0-20020406080100120140-40-60-80-100-120-140-160-180 18016014012010080604020

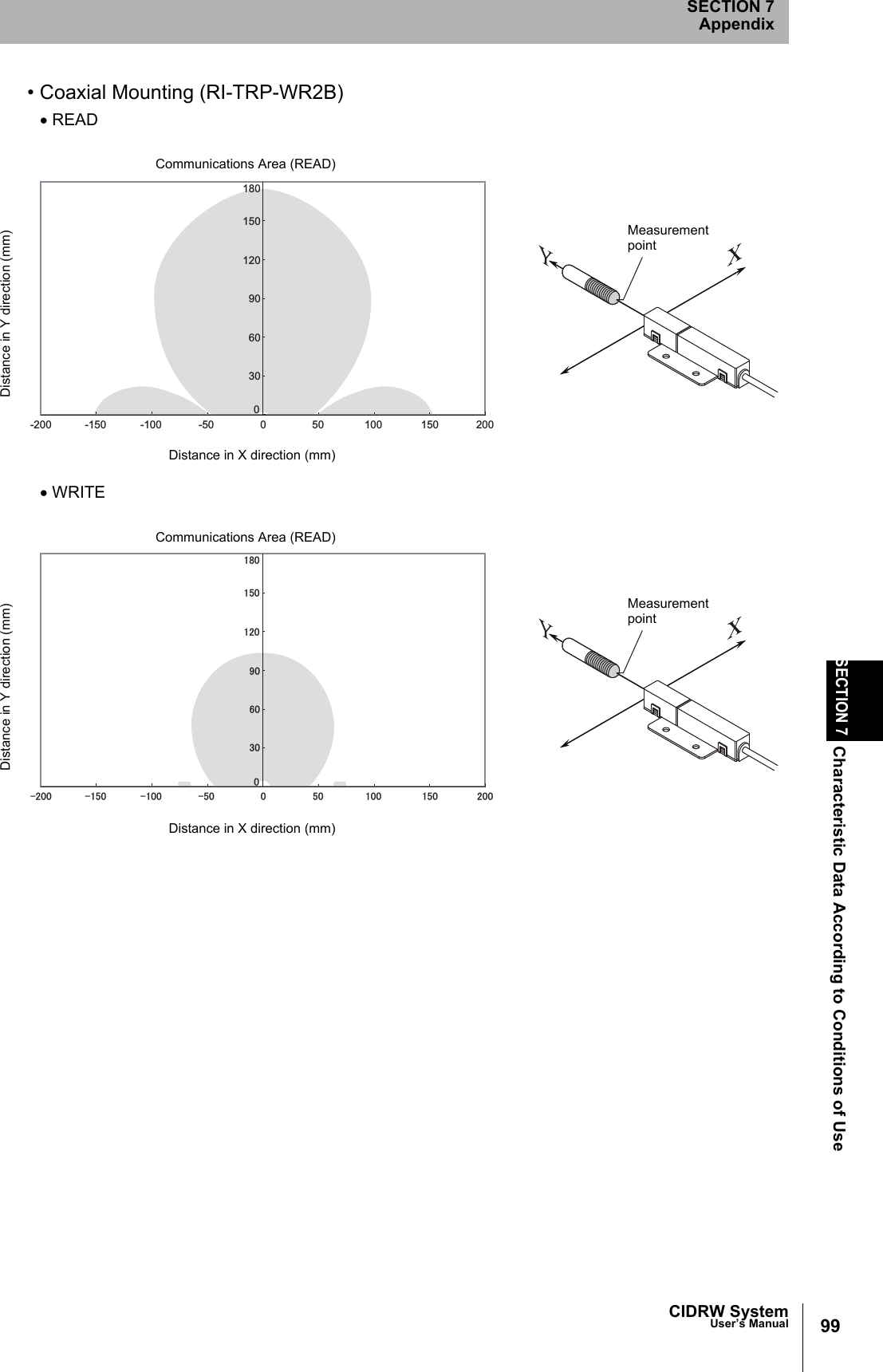

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix99• Coaxial Mounting (RI-TRP-WR2B)• READ• WRITEDistance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)㪇㪇㪄㪌㪇㪊㪇㪌㪇㪍㪇㪐㪇㪈㪉㪇㪈㪌㪇㪈㪏㪇㪄㪈㪇㪇㪈㪇㪇㪄㪈㪌㪇㪈㪌㪇㪄㪉㪇㪇㪉㪇㪇

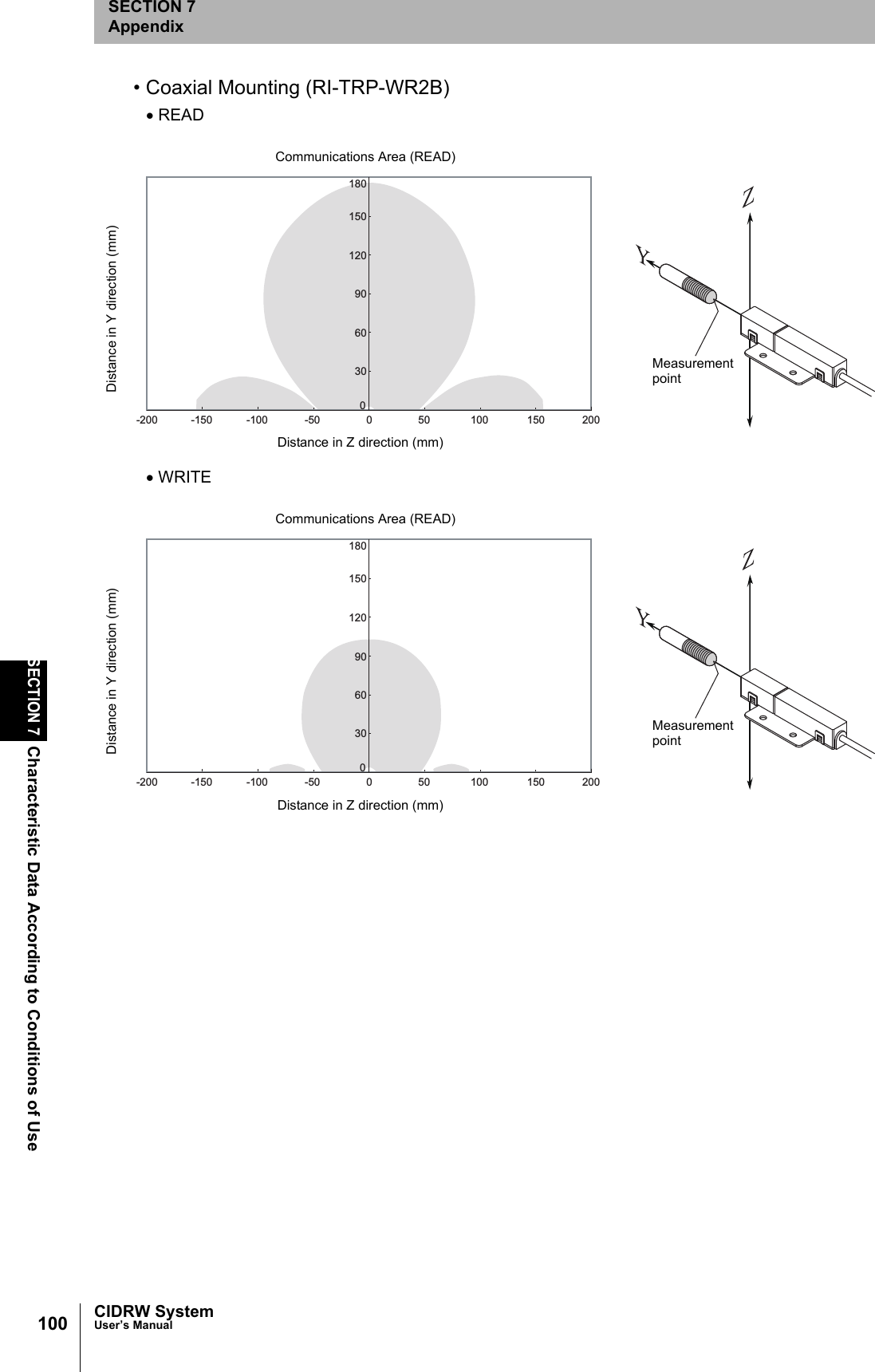

100SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Coaxial Mounting (RI-TRP-WR2B)• READ• WRITEDistance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200

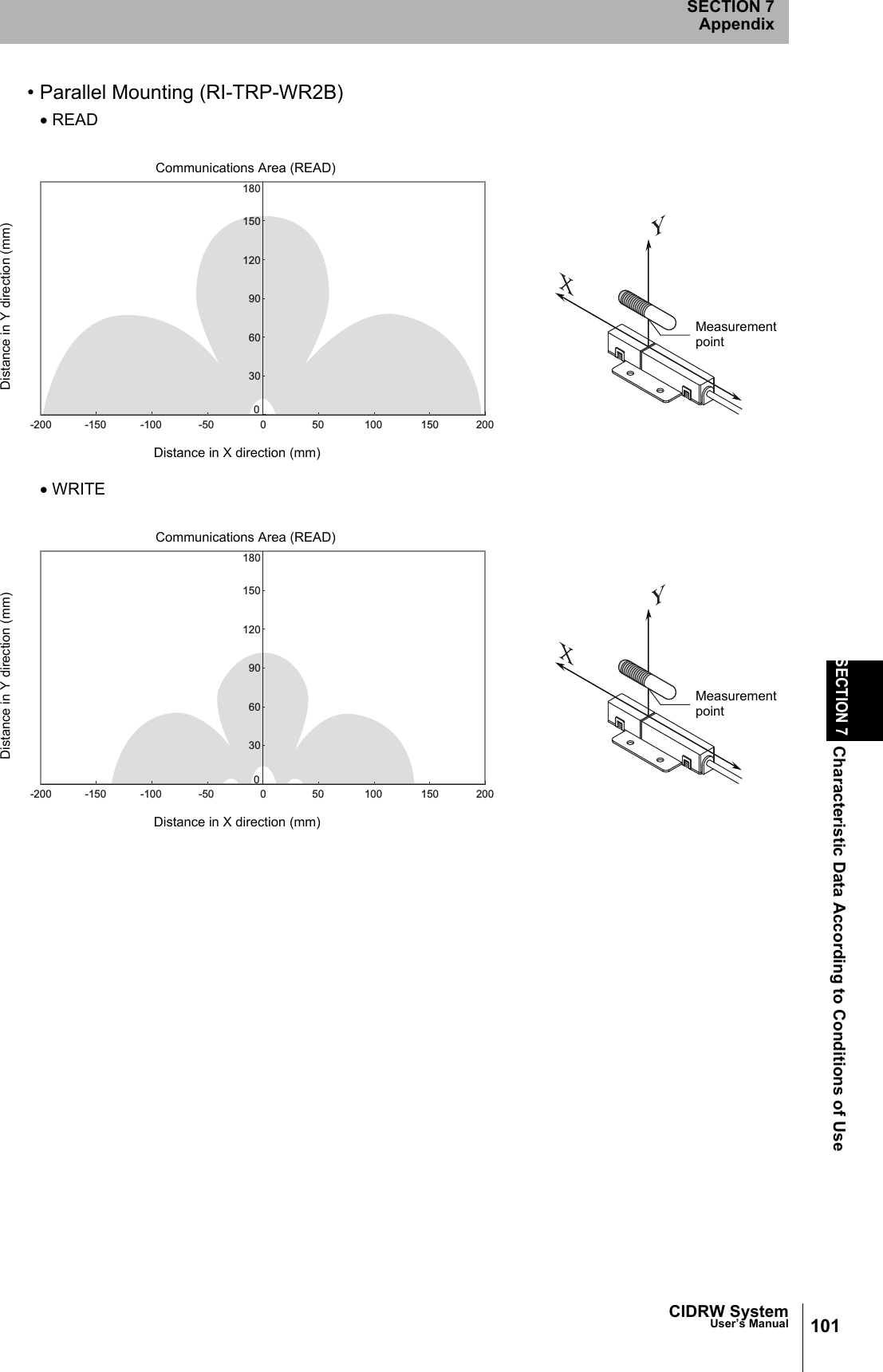

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix101• Parallel Mounting (RI-TRP-WR2B)• READ• WRITEDistance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200

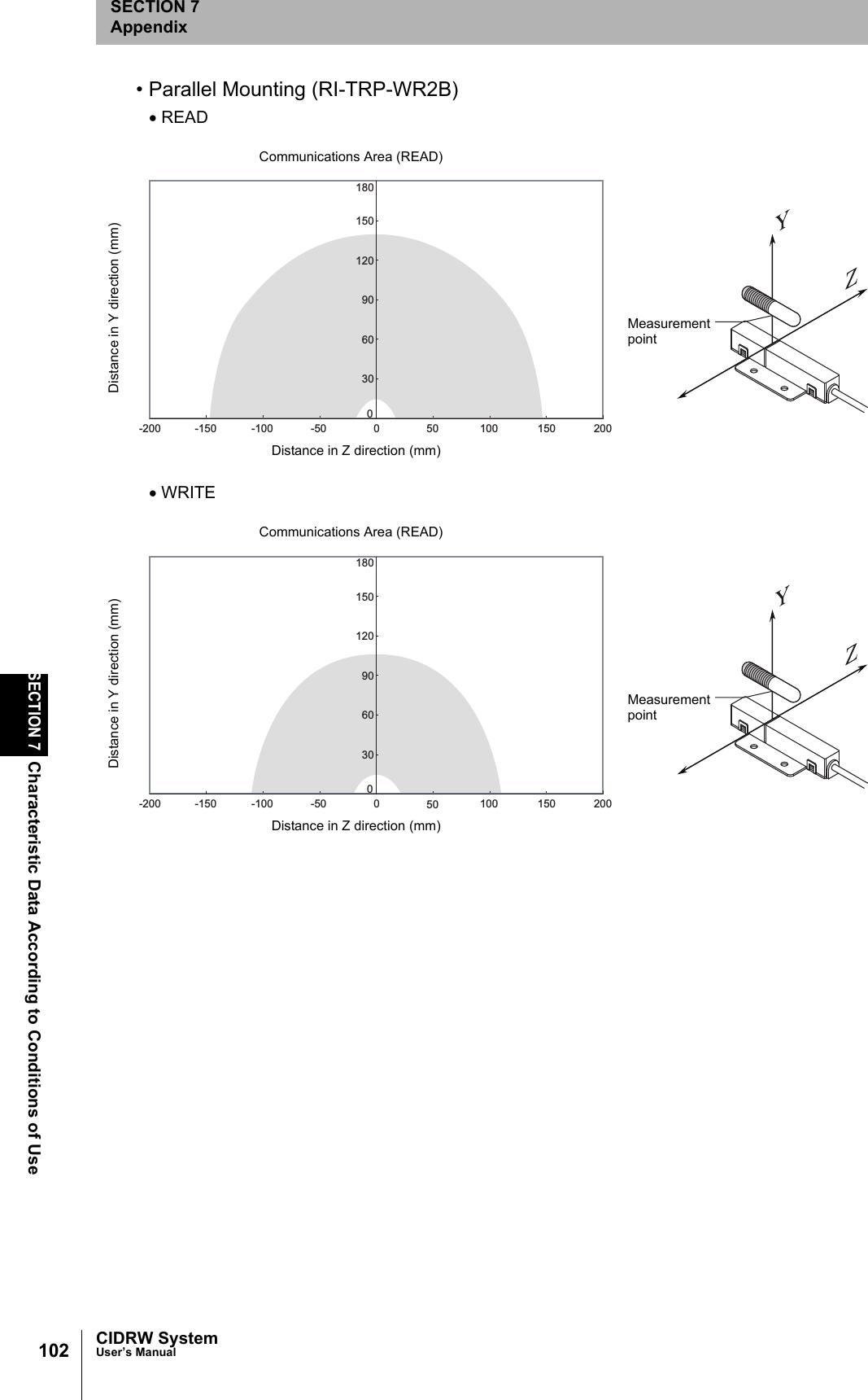

102SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Parallel Mounting (RI-TRP-WR2B)• READ• WRITEDistance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200

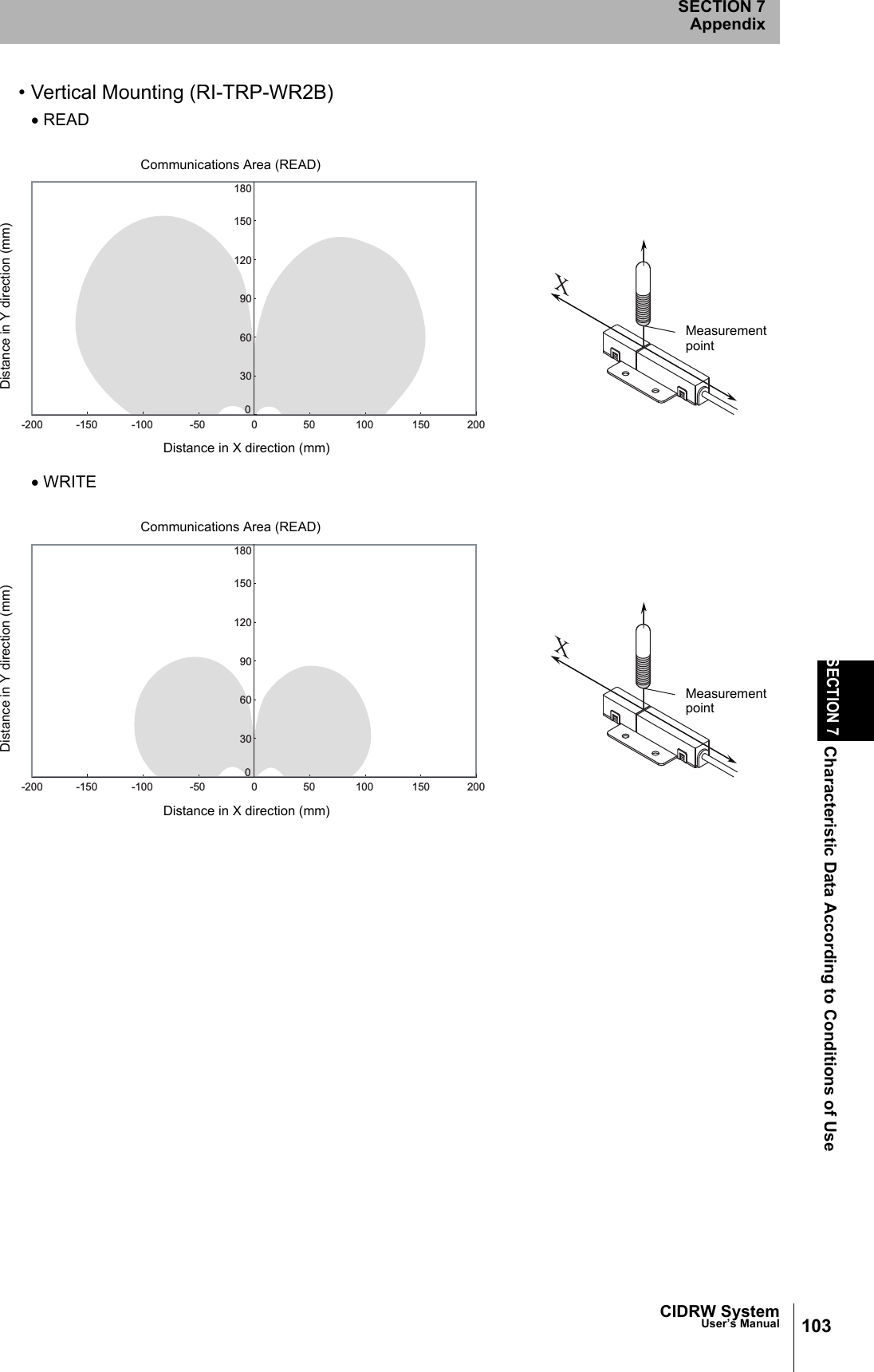

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix103• Vertical Mounting (RI-TRP-WR2B)• READ• WRITEDistance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200Distance in Y direction (mm)Distance in X direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200

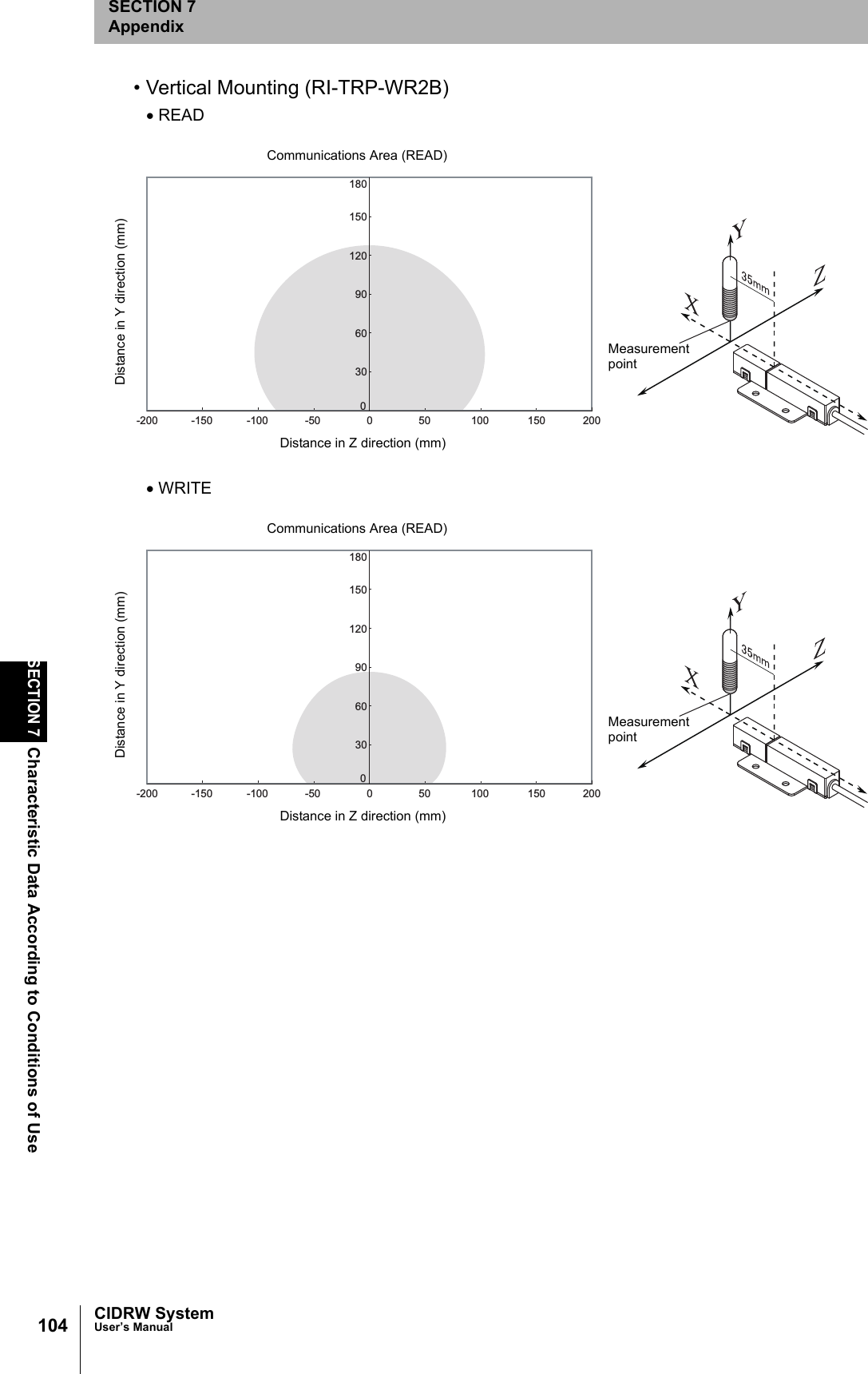

104SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7Appendix• Vertical Mounting (RI-TRP-WR2B)• READ• WRITEDistance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200Distance in Y direction (mm)Distance in Z direction (mm)MeasurementpointCommunications Area (READ)00-5030506090120150180-100 100-150 150-200 200

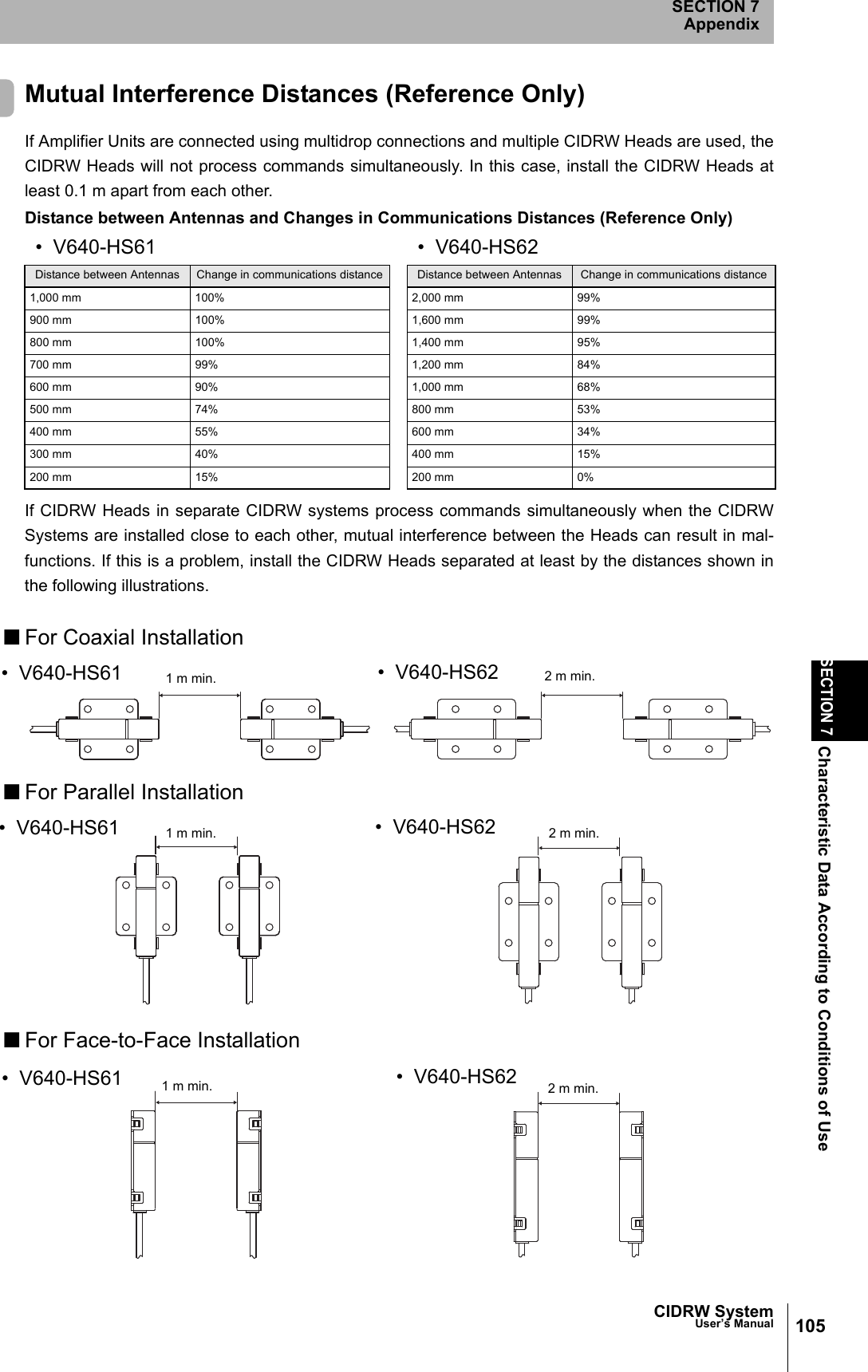

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix105Mutual Interference Distances (Reference Only)If Amplifier Units are connected using multidrop connections and multiple CIDRW Heads are used, theCIDRW Heads will not process commands simultaneously. In this case, install the CIDRW Heads atleast 0.1 m apart from each other. Distance between Antennas and Changes in Communications Distances (Reference Only)If CIDRW Heads in separate CIDRW systems process commands simultaneously when the CIDRWSystems are installed close to each other, mutual interference between the Heads can result in mal-functions. If this is a problem, install the CIDRW Heads separated at least by the distances shown inthe following illustrations. ■For Coaxial Installation■For Parallel Installation■For Face-to-Face Installation• V640-HS61 • V640-HS62Distance between Antennas Change in communications distance Distance between Antennas Change in communications distance1,000 mm 100% 2,000 mm 99%900 mm 100% 1,600 mm 99%800 mm 100% 1,400 mm 95%700 mm 99% 1,200 mm 84%600 mm 90% 1,000 mm 68%500 mm 74% 800 mm 53%400 mm 55% 600 mm 34%300 mm 40% 400 mm 15%200 mm 15% 200 mm 0%1 m min.• V640-HS61 • V640-HS62 2 m min.1 m min.• V640-HS61 • V640-HS62 2 m min.1 m min.• V640-HS61 • V640-HS62 2 m min.

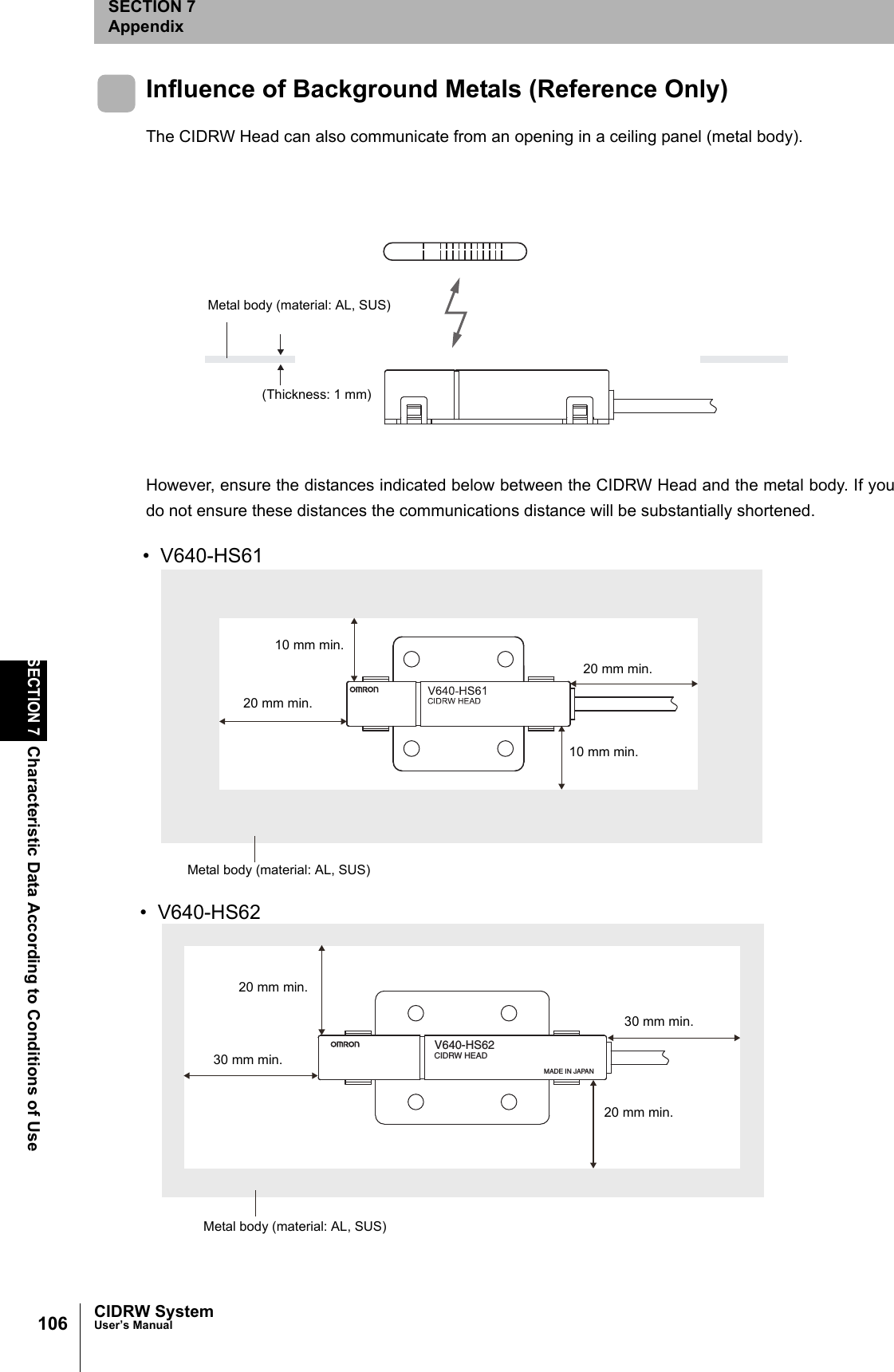

106SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7AppendixInfluence of Background Metals (Reference Only)The CIDRW Head can also communicate from an opening in a ceiling panel (metal body).However, ensure the distances indicated below between the CIDRW Head and the metal body. If youdo not ensure these distances the communications distance will be substantially shortened.Metal body (material: AL, SUS)(Thickness: 1 mm)V640-HS62CIDRW HEADMADE IN JAPAN10 mm min.10 mm min.20 mm min.20 mm min.Metal body (material: AL, SUS)• V640-HS61• V640-HS6220 mm min.20 mm min.30 mm min.30 mm min.Metal body (material: AL, SUS)

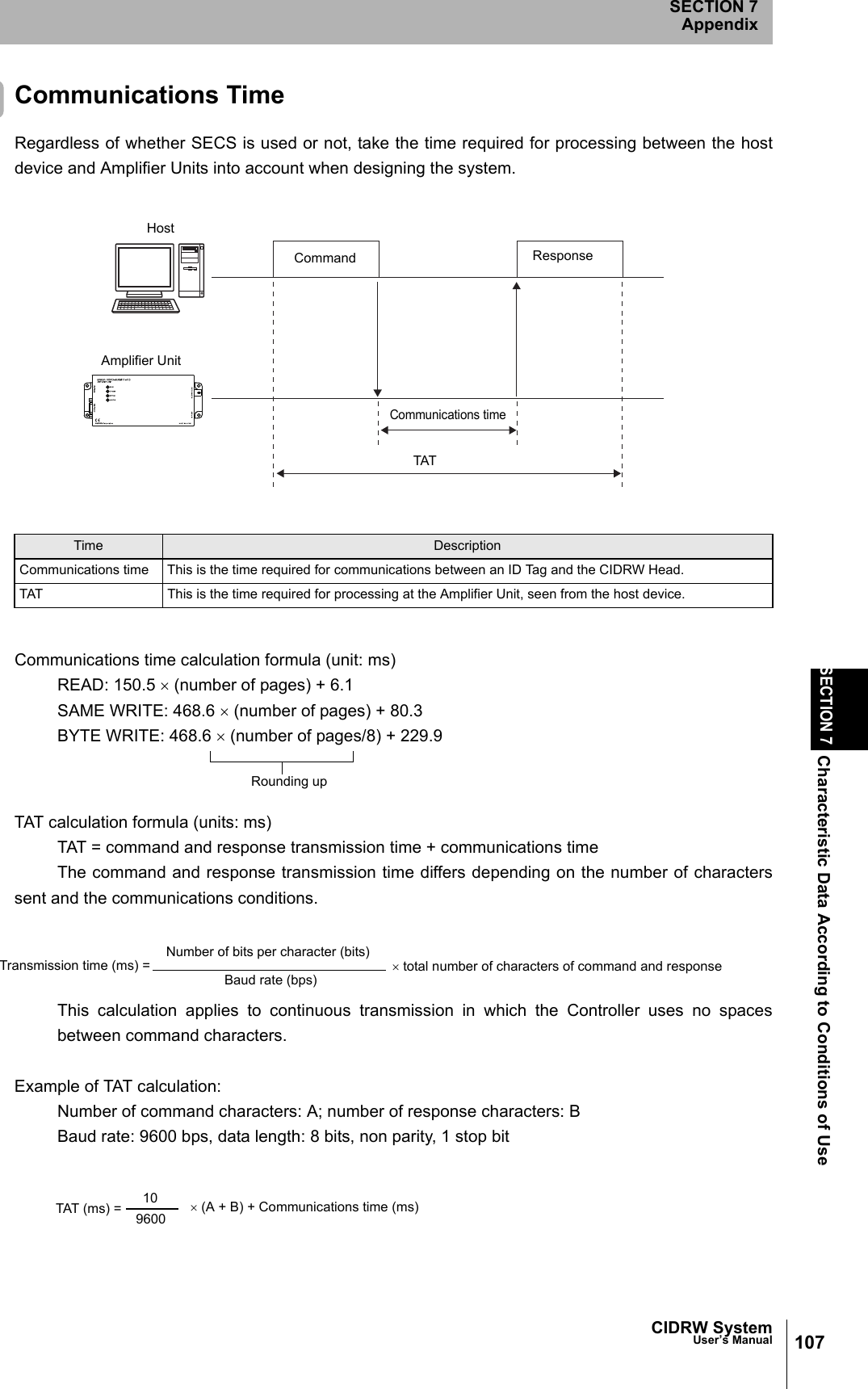

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix107Communications TimeRegardless of whether SECS is used or not, take the time required for processing between the hostdevice and Amplifier Units into account when designing the system.Communications time calculation formula (unit: ms)READ: 150.5 × (number of pages) + 6.1SAME WRITE: 468.6 × (number of pages) + 80.3BYTE WRITE: 468.6 × (number of pages/8) + 229.9TAT calculation formula (units: ms)TAT = command and response transmission time + communications timeThe command and response transmission time differs depending on the number of characterssent and the communications conditions.This calculation applies to continuous transmission in which the Controller uses no spacesbetween command characters.Example of TAT calculation:Number of command characters: A; number of response characters: BBaud rate: 9600 bps, data length: 8 bits, non parity, 1 stop bitTime DescriptionCommunications time This is the time required for communications between an ID Tag and the CIDRW Head.TAT This is the time required for processing at the Amplifier Unit, seen from the host device.HostAmplifier UnitCommand ResponseCommunications timeTATRounding upTransmission time (ms) = Number of bits per character (bits)Baud rate (bps)× total number of characters of command and responseTAT (ms) = 109600× (A + B) + Communications time (ms)

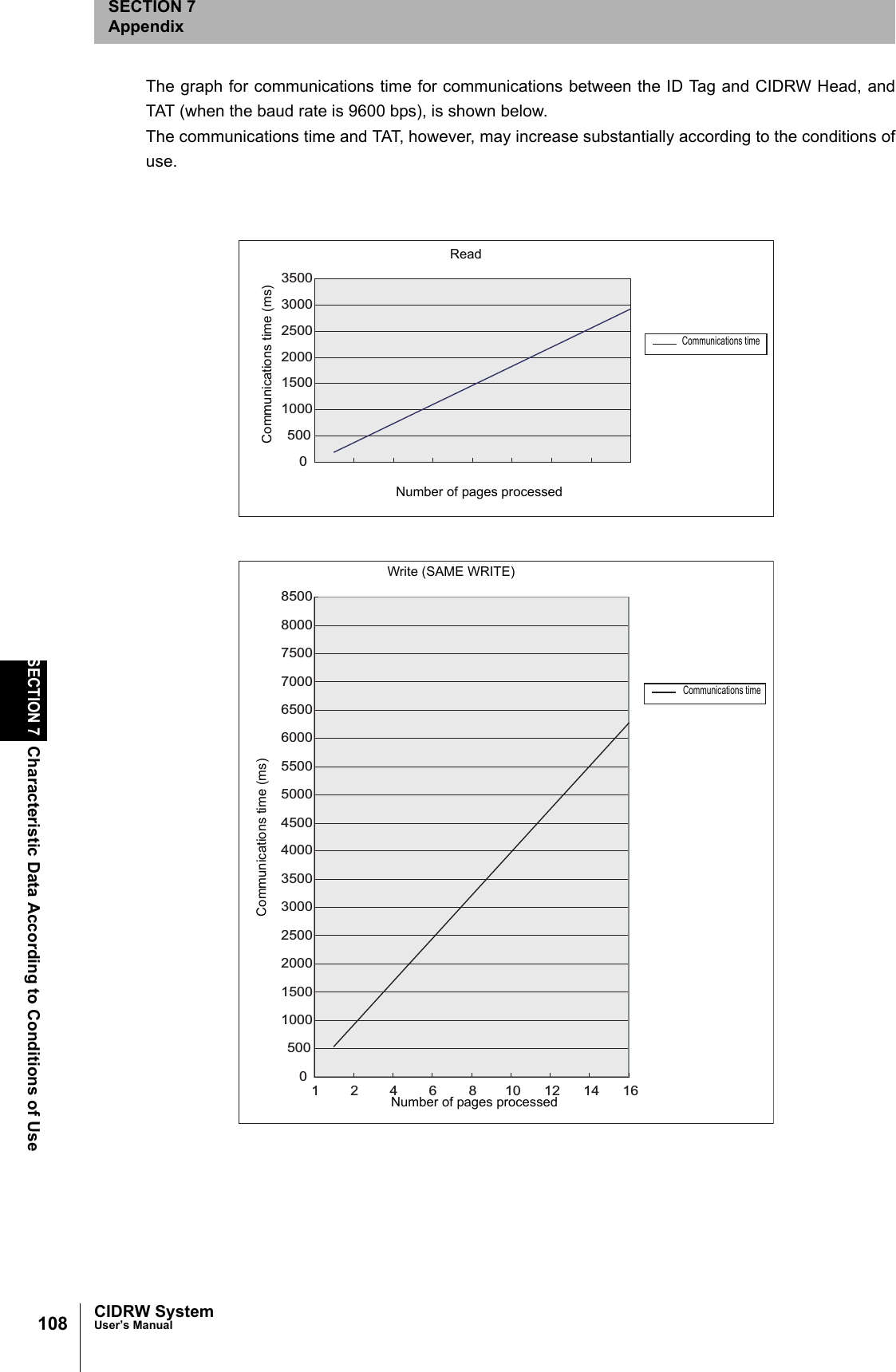

108SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7AppendixThe graph for communications time for communications between the ID Tag and CIDRW Head, andTAT (when the baud rate is 9600 bps), is shown below.The communications time and TAT, however, may increase substantially according to the conditions ofuse.0500100015002000250030003500ReadNumber of pages processedCommunications timeCommunications time (ms)050010001500200025003000350040004500500055006000650070007500800085001246810121416Communications time (ms)Write (SAME WRITE)Number of pages processedCommunications time

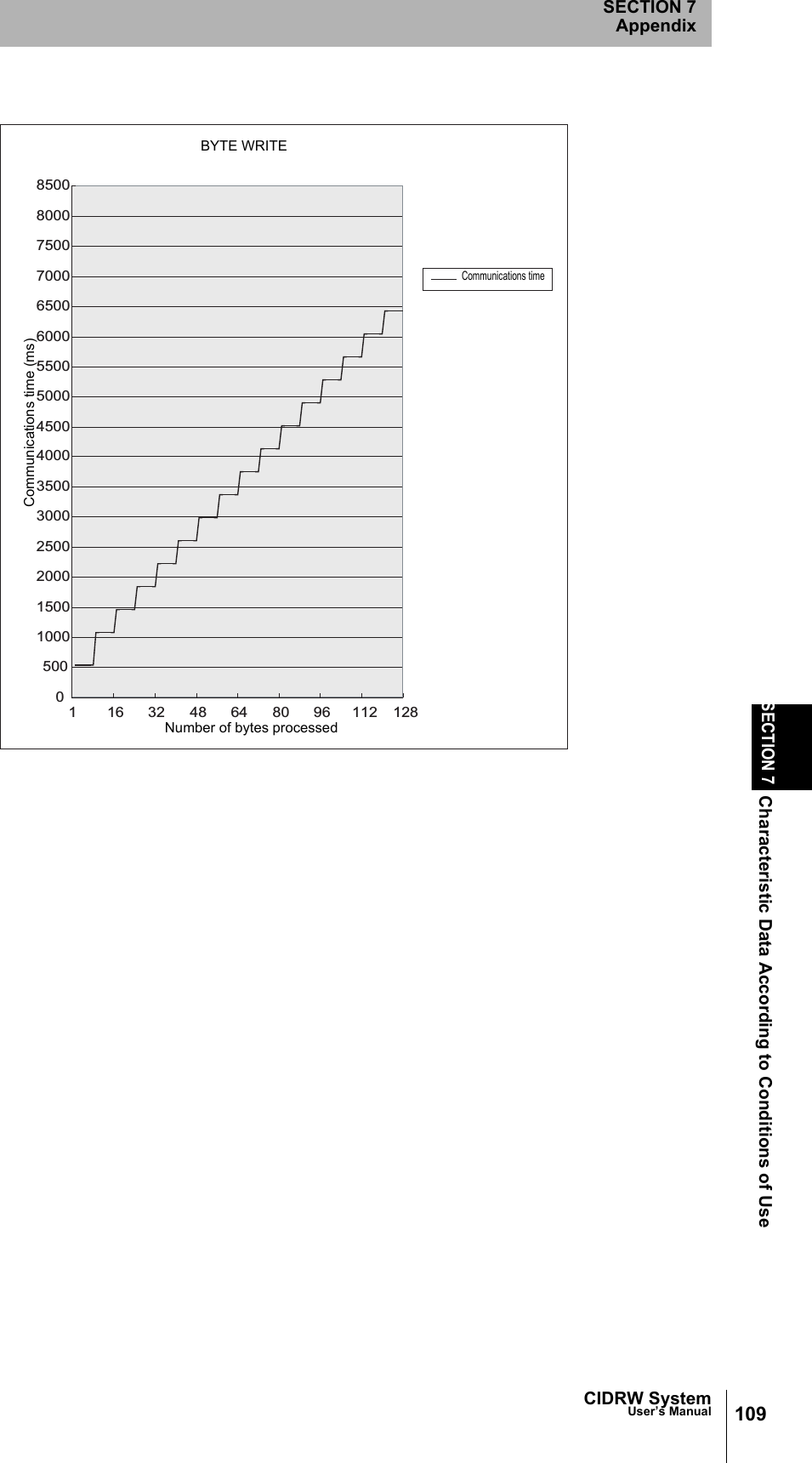

CIDRW SystemUser’s ManualSECTION 7Characteristic Data According to Conditions of UseSECTION 7Appendix109050010001500200025003000350040004500500055006000650070007500800085001 16 32 48 64 80 96 112 128Communications time (ms)BYTE WRITENumber of bytes processedCommunications time

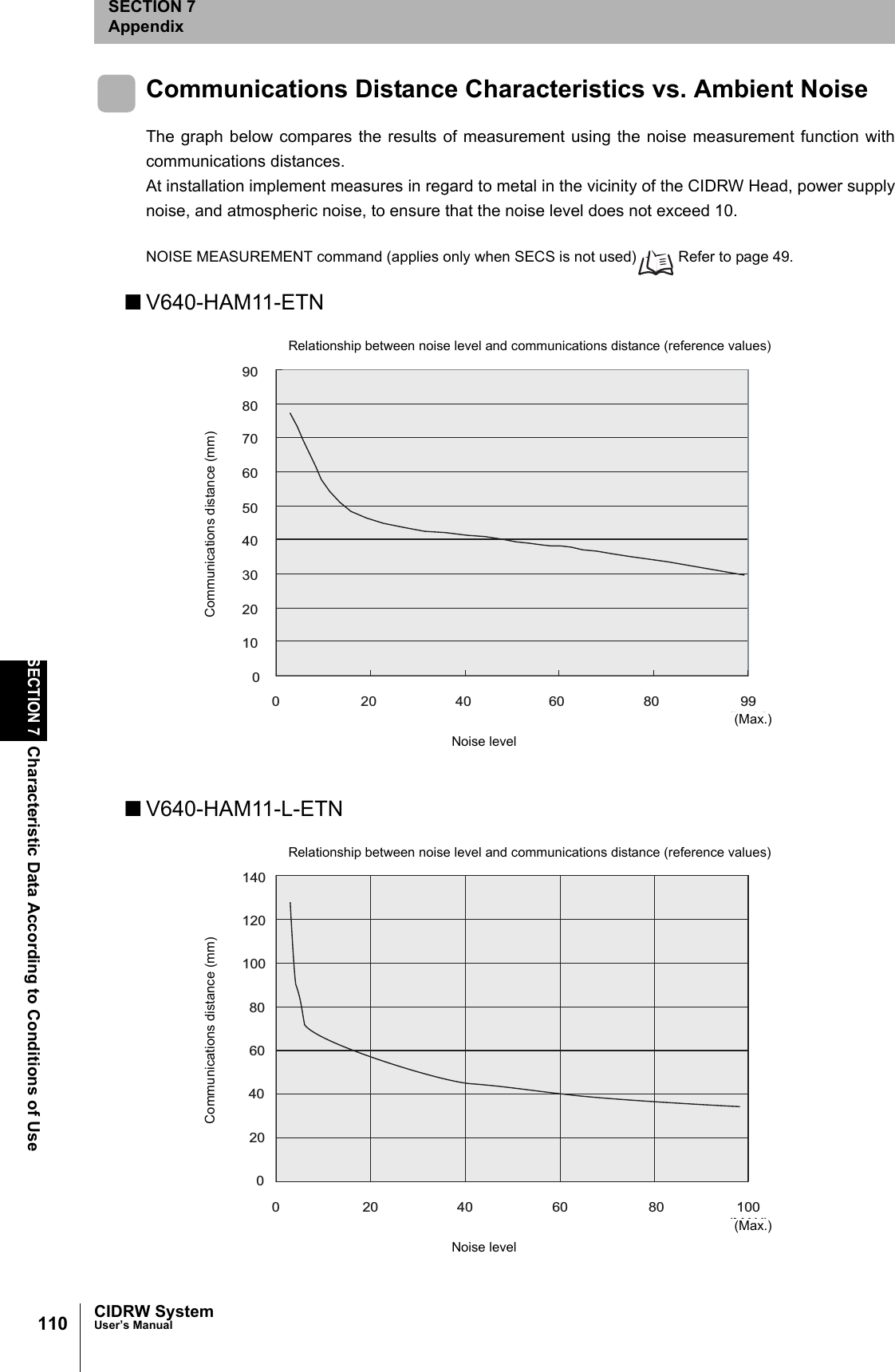

110SECTION 7Characteristic Data According to Conditions of UseCIDRW SystemUser’s ManualSECTION 7AppendixCommunications Distance Characteristics vs. Ambient NoiseThe graph below compares the results of measurement using the noise measurement function withcommunications distances.At installation implement measures in regard to metal in the vicinity of the CIDRW Head, power supplynoise, and atmospheric noise, to ensure that the noise level does not exceed 10. NOISE MEASUREMENT command (applies only when SECS is not used) Refer to page 49. ■V640-HAM11-ETN■V640-HAM11-L-ETN010203040506070809002040608099(MAX)Noise levelCommunications distance (mm)Relationship between noise level and communications distance (reference values)(Max.)0204060801001201400 20 40 60 80 100(MAX)Noise levelCommunications distance (mm)Relationship between noise level and communications distance (reference values)(Max.)

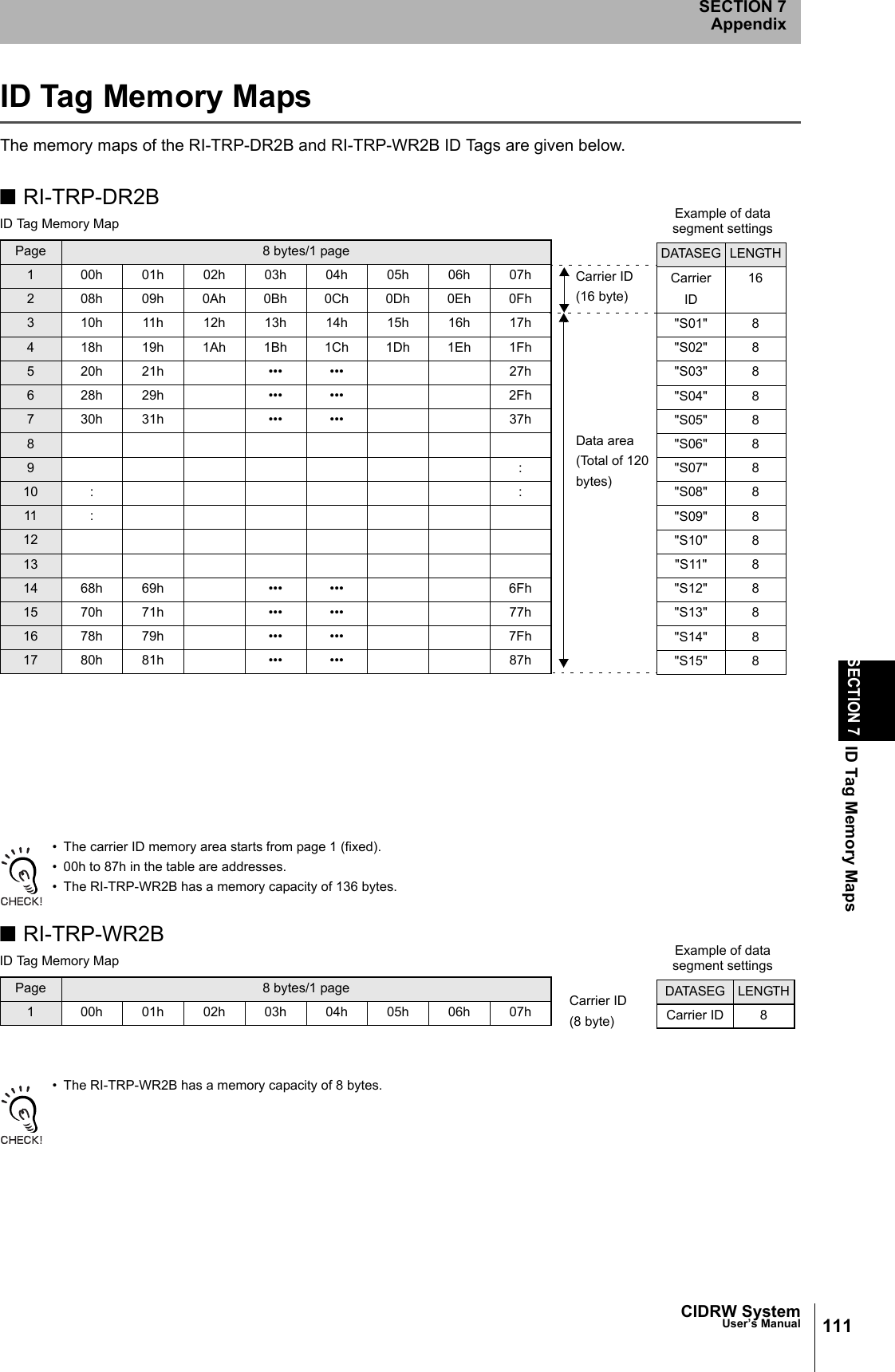

CIDRW SystemUser’s ManualSECTION 7ID Tag Memory MapsSECTION 7Appendix111ID Tag Memory MapsThe memory maps of the RI-TRP-DR2B and RI-TRP-WR2B ID Tags are given below. • The carrier ID memory area starts from page 1 (fixed).• 00h to 87h in the table are addresses. • The RI-TRP-WR2B has a memory capacity of 136 bytes. • The RI-TRP-WR2B has a memory capacity of 8 bytes. Page 8 bytes/1 page1 00h 01h 02h 03h 04h 05h 06h 07h2 08h 09h 0Ah 0Bh 0Ch 0Dh 0Eh 0Fh3 10h 11h 12h 13h 14h 15h 16h 17h4 18h 19h 1Ah 1Bh 1Ch 1Dh 1Eh 1Fh5 20h 21h ••• ••• 27h6 28h 29h ••• ••• 2Fh7 30h 31h ••• ••• 37h89 :10 : :11 :121314 68h 69h ••• ••• 6Fh15 70h 71h ••• ••• 77h16 78h 79h ••• ••• 7Fh17 80h 81h ••• ••• 87hDATASEG LENGTHCarrierID16"S01" 8"S02" 8"S03" 8"S04" 8"S05" 8"S06" 8"S07" 8"S08" 8"S09" 8"S10" 8"S11" 8"S12" 8"S13" 8"S14" 8"S15" 8Carrier ID(16 byte)Data area(Total of 120 bytes)■RI-TRP-DR2BID Tag Memory Map Example of datasegment settingsPage 8 bytes/1 page1 00h 01h 02h 03h 04h 05h 06h 07hDATASEG LENGTHCarrier ID 8Carrier ID(8 byte)■RI-TRP-WR2BID Tag Memory Map Example of datasegment settings

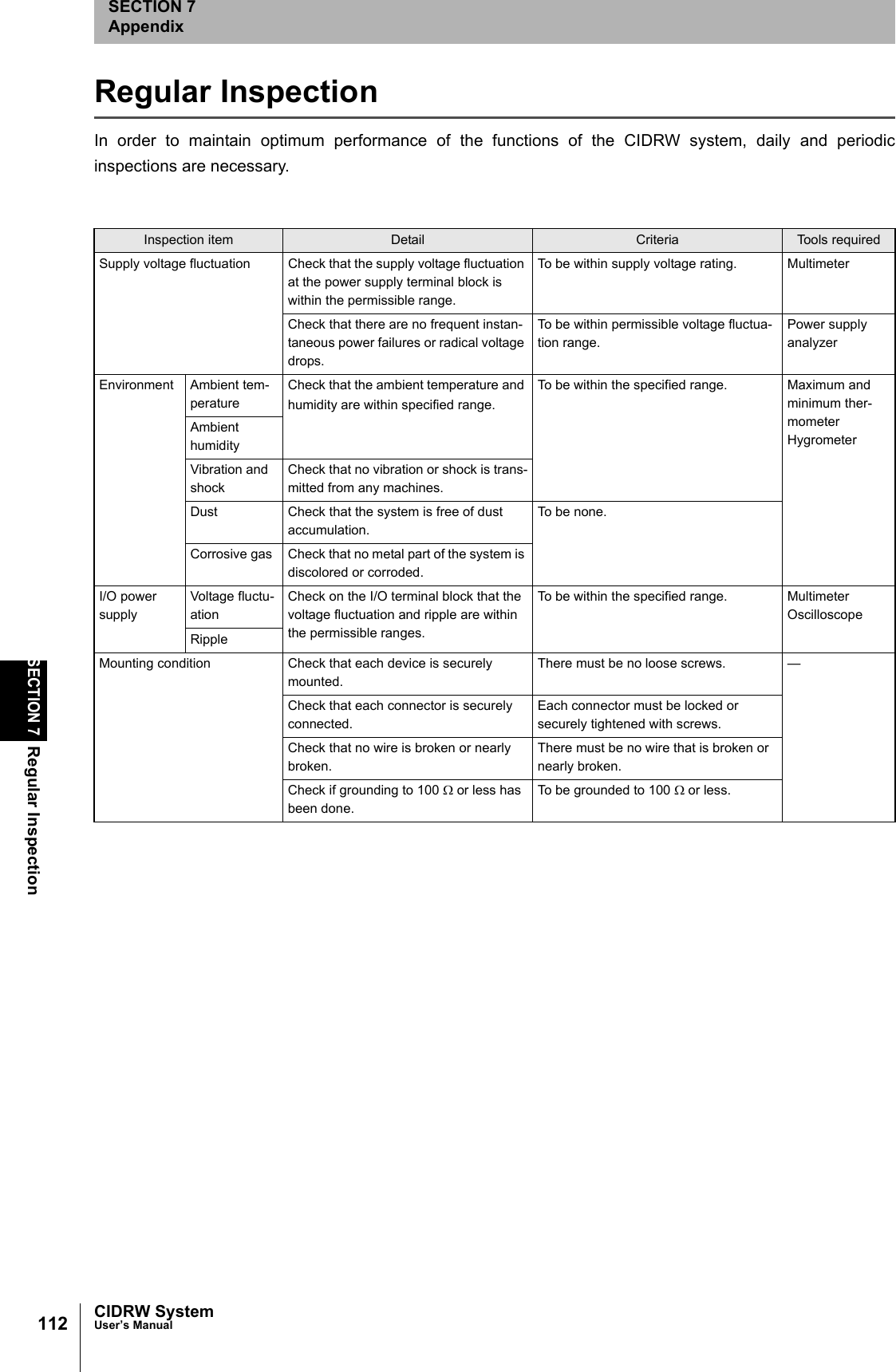

112SECTION 7Regular InspectionCIDRW SystemUser’s ManualSECTION 7AppendixRegular InspectionIn order to maintain optimum performance of the functions of the CIDRW system, daily and periodicinspections are necessary.Inspection item Detail Criteria Tools requiredSupply voltage fluctuation Check that the supply voltage fluctuation at the power supply terminal block is within the permissible range.To be within supply voltage rating. MultimeterCheck that there are no frequent instan-taneous power failures or radical voltage drops.To be within permissible voltage fluctua-tion range.Power supply analyzerEnvironment Ambient tem-peratureCheck that the ambient temperature and humidity are within specified range.To be within the specified range. Maximum and minimum ther-mometerHygrometerAmbient humidityVibration and shockCheck that no vibration or shock is trans-mitted from any machines.Dust Check that the system is free of dust accumulation.To be none.Corrosive gas Check that no metal part of the system is discolored or corroded.I/O power supplyVoltage fluctu-ationCheck on the I/O terminal block that the voltage fluctuation and ripple are within the permissible ranges.To be within the specified range. MultimeterOscilloscopeRippleMounting condition Check that each device is securely mounted.There must be no loose screws. —Check that each connector is securely connected.Each connector must be locked or securely tightened with screws.Check that no wire is broken or nearly broken.There must be no wire that is broken or nearly broken.Check if grounding to 100 Ω or less has been done.To be grounded to 100 Ω or less.

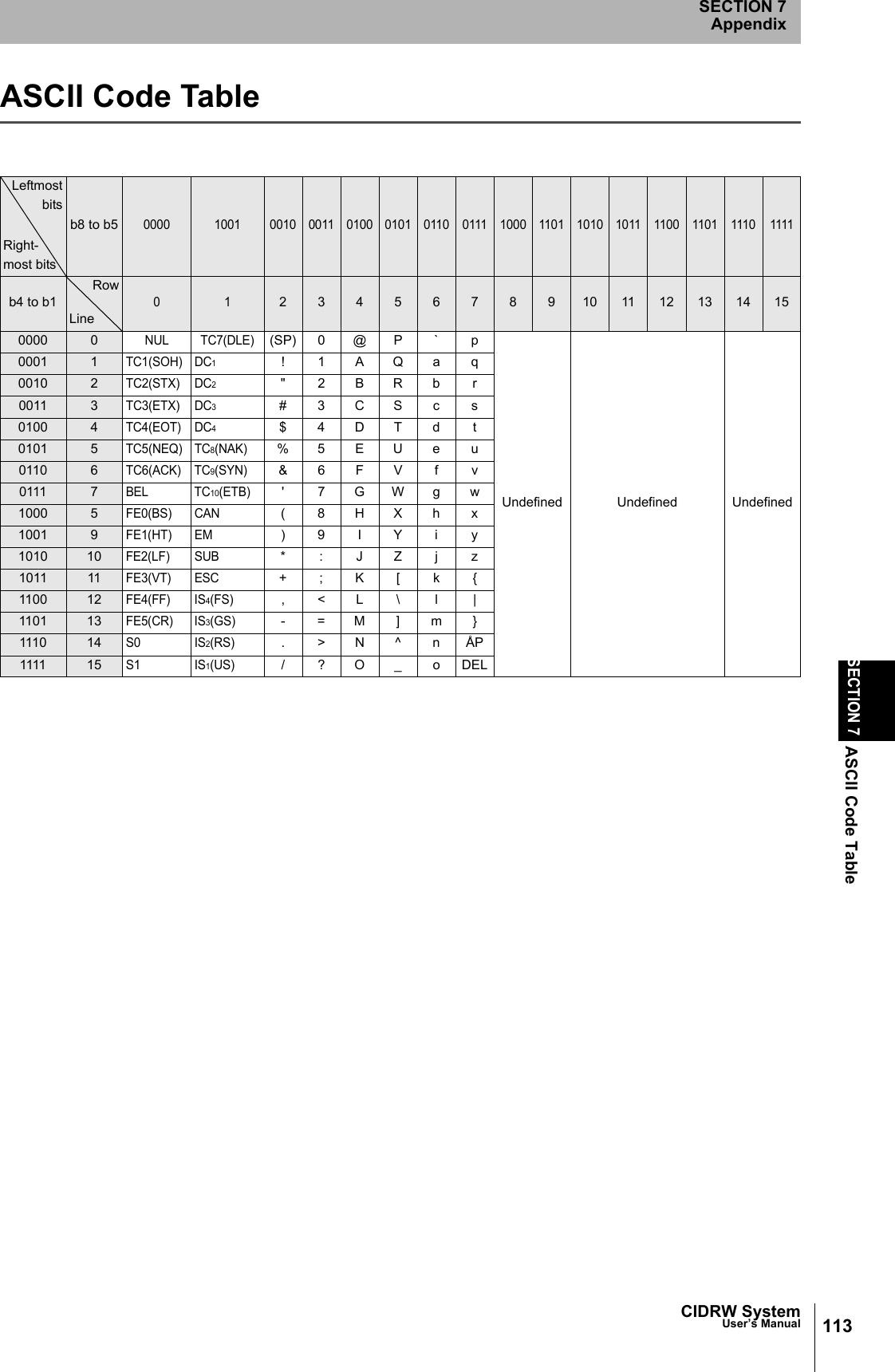

$CIDRW SystemUser’s ManualSECTION 7ASCII Code TableSECTION 7Appendix113ASCII Code TableLeftmostbitsRight-most bitsb8 to b50000 1001 0010 0011 0100 0101 0110 0111 1000 1101 1010 1011 1100 1101 1110 1111b4 to b1RowLine0 12345678910 11 12 13 14 150000 0NUL TC7(DLE)(SP) 0 @ P ` pUndefined Undefined Undefined0001 1TC1(SOH) DC1!1AQaq0010 2TC2(STX) DC2"2BRbr0011 3TC3(ETX) DC3#3CScs0100 4TC4(EOT) DC4$4DTd t0101 5TC5(NEQ) TC8(NAK)%5EUe u0110 6TC6(ACK) TC9(SYN)&6FV f v0111 7BEL TC10(ETB)'7GWgw1000 5FE0(BS) CAN(8HXhx1001 9FE1(HT) EM)9IYiy1010 10FE2(LF) SUB*:JZjz1011 11FE3(VT) ESC+;K[k{1100 12FE4(FF) IS4(FS),<L\ l |1101 13FE5(CR) IS3(GS)-=M]m}1110 14S0 IS2(RS).>N^nÅP1111 15S1 IS1(US)/?O_oDEL$
