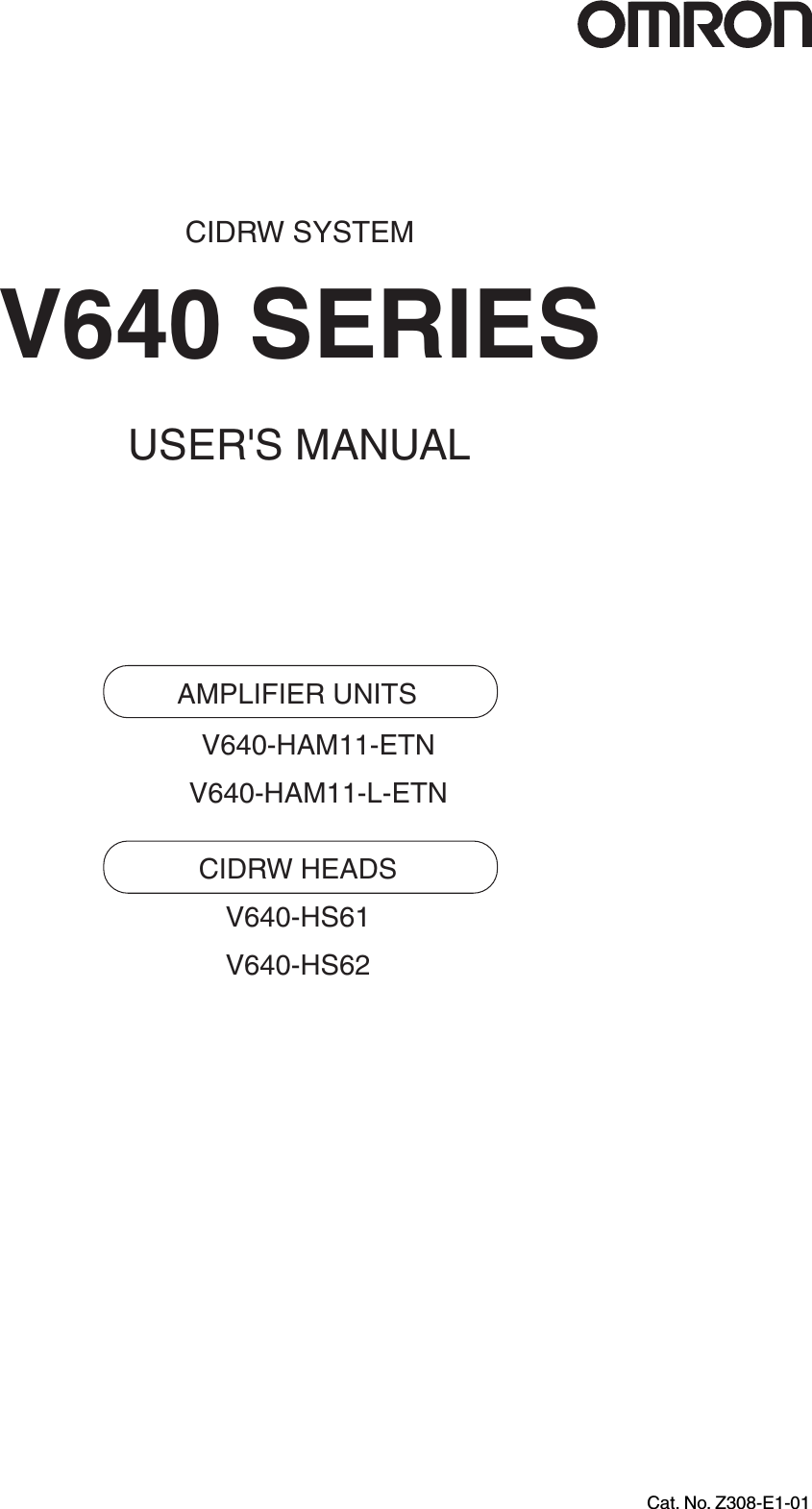

CIDRW SYSTEMV640 SERIESUSER'S MANUALCat. No. Z308-E1-01AMPLIFIER UNITSV640-HAM11-ETNV640-HAM11-L-ETNCIDRW HEADSV640-HS61V640-HS62

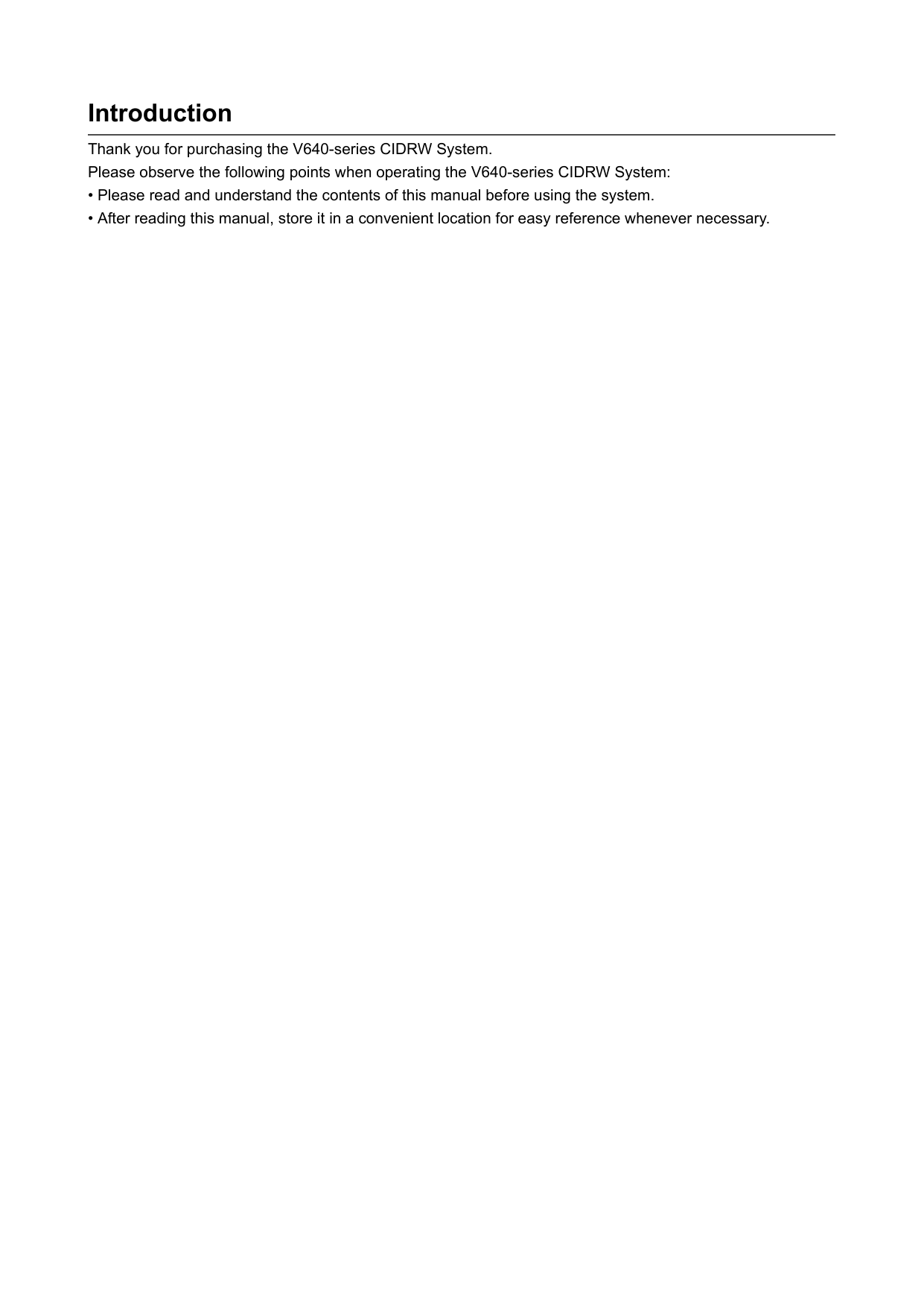

IntroductionThank you for purchasing the V640-series CIDRW System. Please observe the following points when operating the V640-series CIDRW System:• Please read and understand the contents of this manual before using the system. • After reading this manual, store it in a convenient location for easy reference whenever necessary.

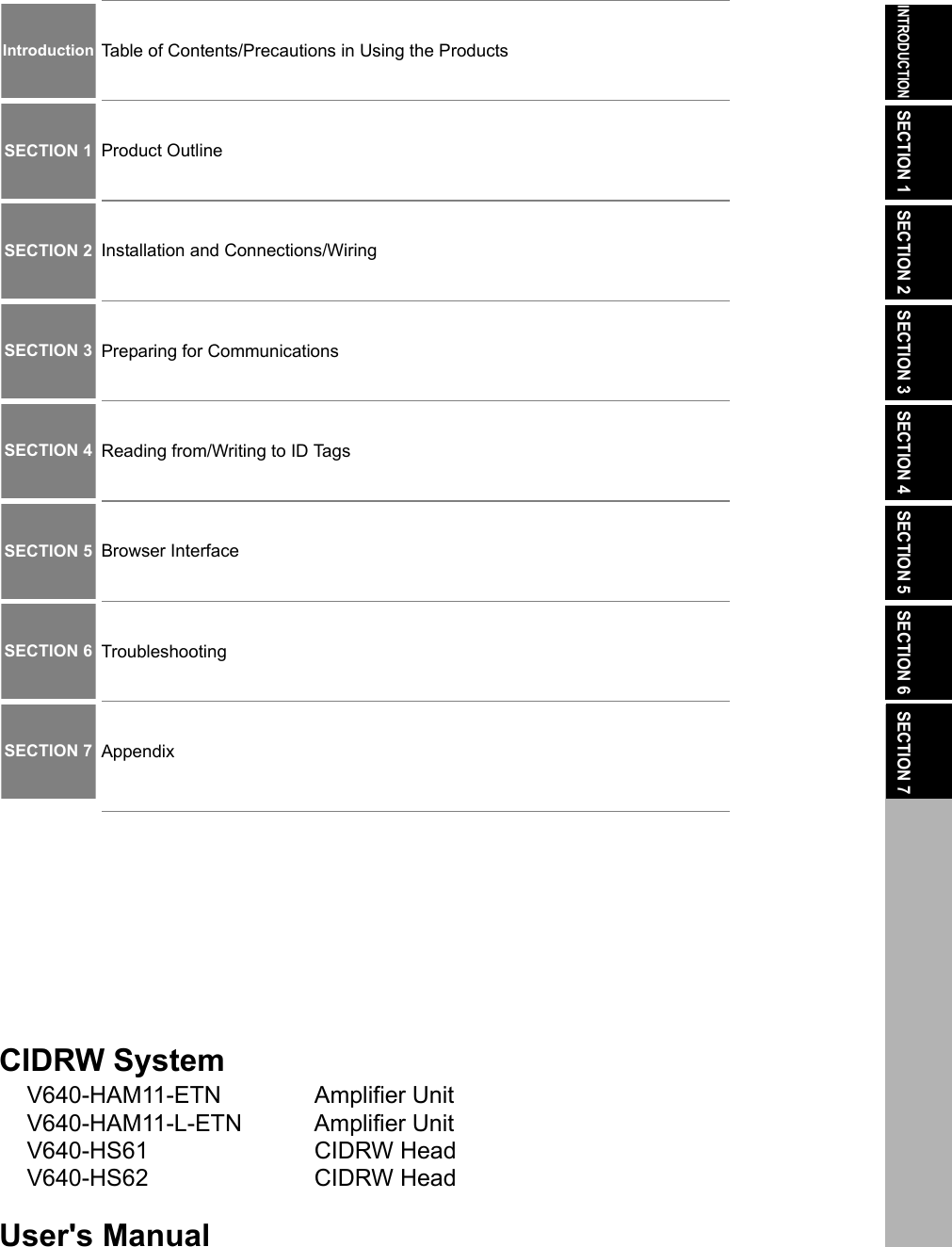

ÇÕǹÇ?Ç ëÊ 1 èÕ ëÊ 2 èÕ ëÊ 3 èÕ ëÊ 4 èÕINTRODUCTIONSECTION 1 SECTION 2 SECTION 3 SECTION 4 SECTION 5 SECTION 6 SECTION 7IntroductionSECTION 1SECTION 2SECTION 3SECTION 4SECTION 5SECTION 6SECTION 7Table of Contents/Precautions in Using the ProductsProduct OutlineInstallation and Connections/WiringPreparing for CommunicationsReading from/Writing to ID TagsBrowser InterfaceTroubleshootingCIDRW SystemV640-HAM11-ETN Amplifier UnitV640-HAM11-L-ETN Amplifier UnitV640-HS61 CIDRW HeadV640-HS62 CIDRW HeadUser's ManualAppendix

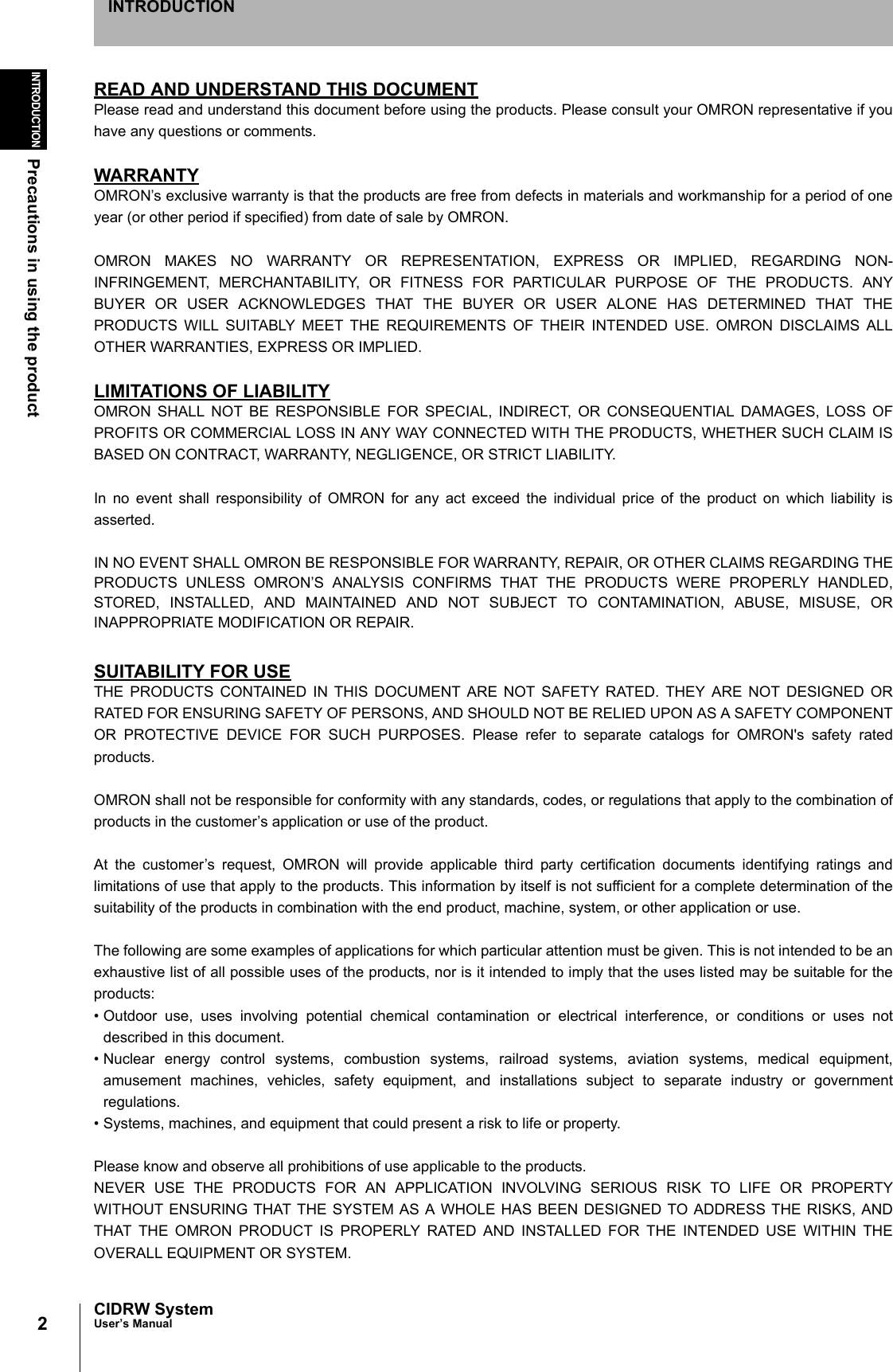

2INTRODUCTIONPrecautions in using the productCIDRW SystemUser’s ManualINTRODUCTIONREAD AND UNDERSTAND THIS DOCUMENTPlease read and understand this document before using the products. Please consult your OMRON representative if youhave any questions or comments.WARRANTYOMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of oneyear (or other period if specified) from date of sale by OMRON.OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANYBUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THEPRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALLOTHER WARRANTIES, EXPRESS OR IMPLIED.LIMITATIONS OF LIABILITYOMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OFPROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM ISBASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability isasserted.IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THEPRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED,STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, ORINAPPROPRIATE MODIFICATION OR REPAIR.SUITABILITY FOR USETHE PRODUCTS CONTAINED IN THIS DOCUMENT ARE NOT SAFETY RATED. THEY ARE NOT DESIGNED ORRATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENTOR PROTECTIVE DEVICE FOR SUCH PURPOSES. Please refer to separate catalogs for OMRON's safety ratedproducts.OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination ofproducts in the customer’s application or use of the product.At the customer’s request, OMRON will provide applicable third party certification documents identifying ratings andlimitations of use that apply to the products. This information by itself is not sufficient for a complete determination of thesuitability of the products in combination with the end product, machine, system, or other application or use.The following are some examples of applications for which particular attention must be given. This is not intended to be anexhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for theproducts:• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses notdescribed in this document.• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment,amusement machines, vehicles, safety equipment, and installations subject to separate industry or governmentregulations.• Systems, machines, and equipment that could present a risk to life or property.Please know and observe all prohibitions of use applicable to the products.NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTYWITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, ANDTHAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THEOVERALL EQUIPMENT OR SYSTEM.

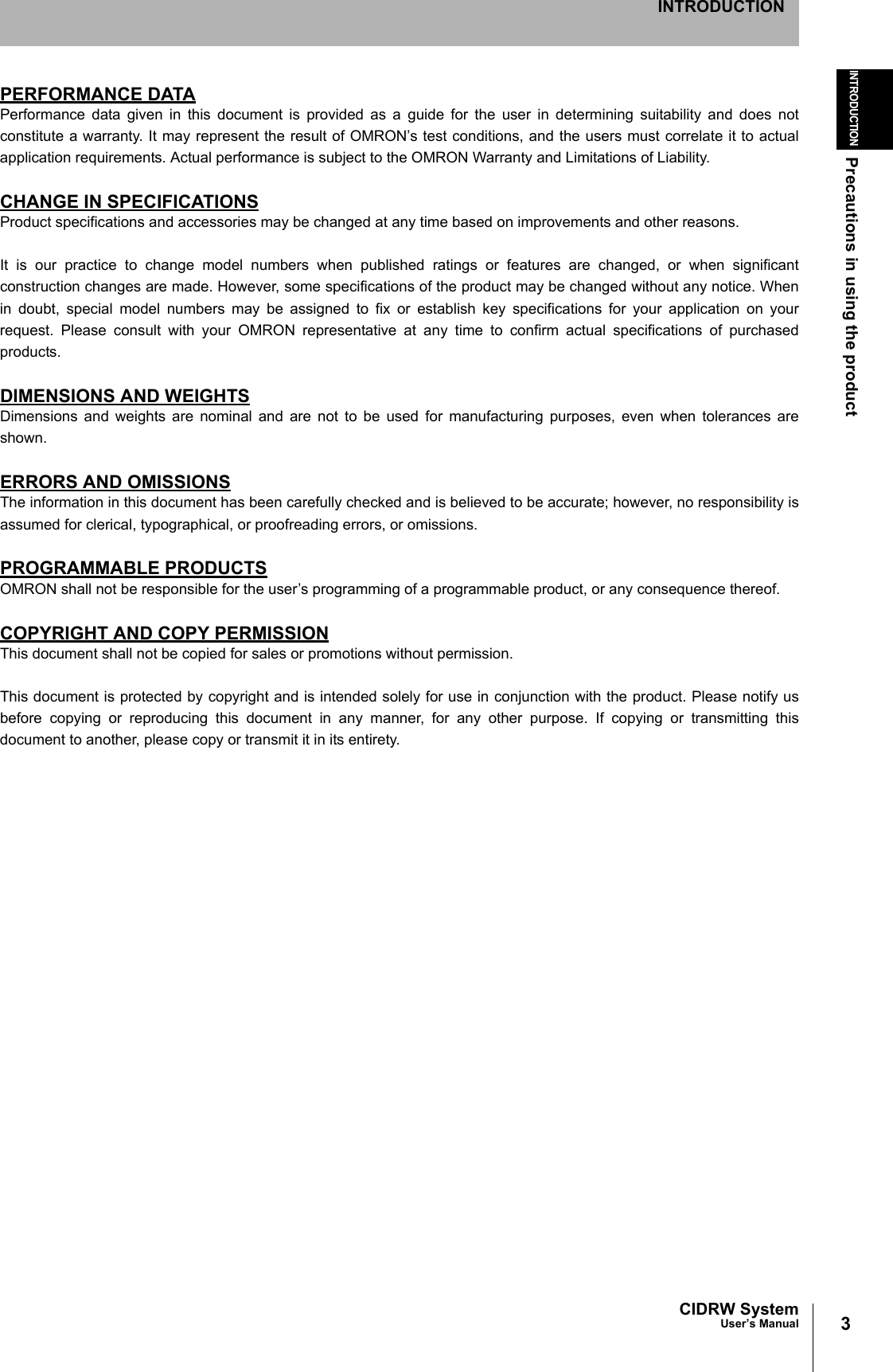

3CIDRW SystemUser’s ManualINTRODUCTIONPrecautions in using the productINTRODUCTIONPERFORMANCE DATAPerformance data given in this document is provided as a guide for the user in determining suitability and does notconstitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actualapplication requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.CHANGE IN SPECIFICATIONSProduct specifications and accessories may be changed at any time based on improvements and other reasons.It is our practice to change model numbers when published ratings or features are changed, or when significantconstruction changes are made. However, some specifications of the product may be changed without any notice. Whenin doubt, special model numbers may be assigned to fix or establish key specifications for your application on yourrequest. Please consult with your OMRON representative at any time to confirm actual specifications of purchasedproducts.DIMENSIONS AND WEIGHTSDimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances areshown.ERRORS AND OMISSIONSThe information in this document has been carefully checked and is believed to be accurate; however, no responsibility isassumed for clerical, typographical, or proofreading errors, or omissions.PROGRAMMABLE PRODUCTSOMRON shall not be responsible for the user’s programming of a programmable product, or any consequence thereof.COPYRIGHT AND COPY PERMISSIONThis document shall not be copied for sales or promotions without permission.This document is protected by copyright and is intended solely for use in conjunction with the product. Please notify usbefore copying or reproducing this document in any manner, for any other purpose. If copying or transmitting thisdocument to another, please copy or transmit it in its entirety.

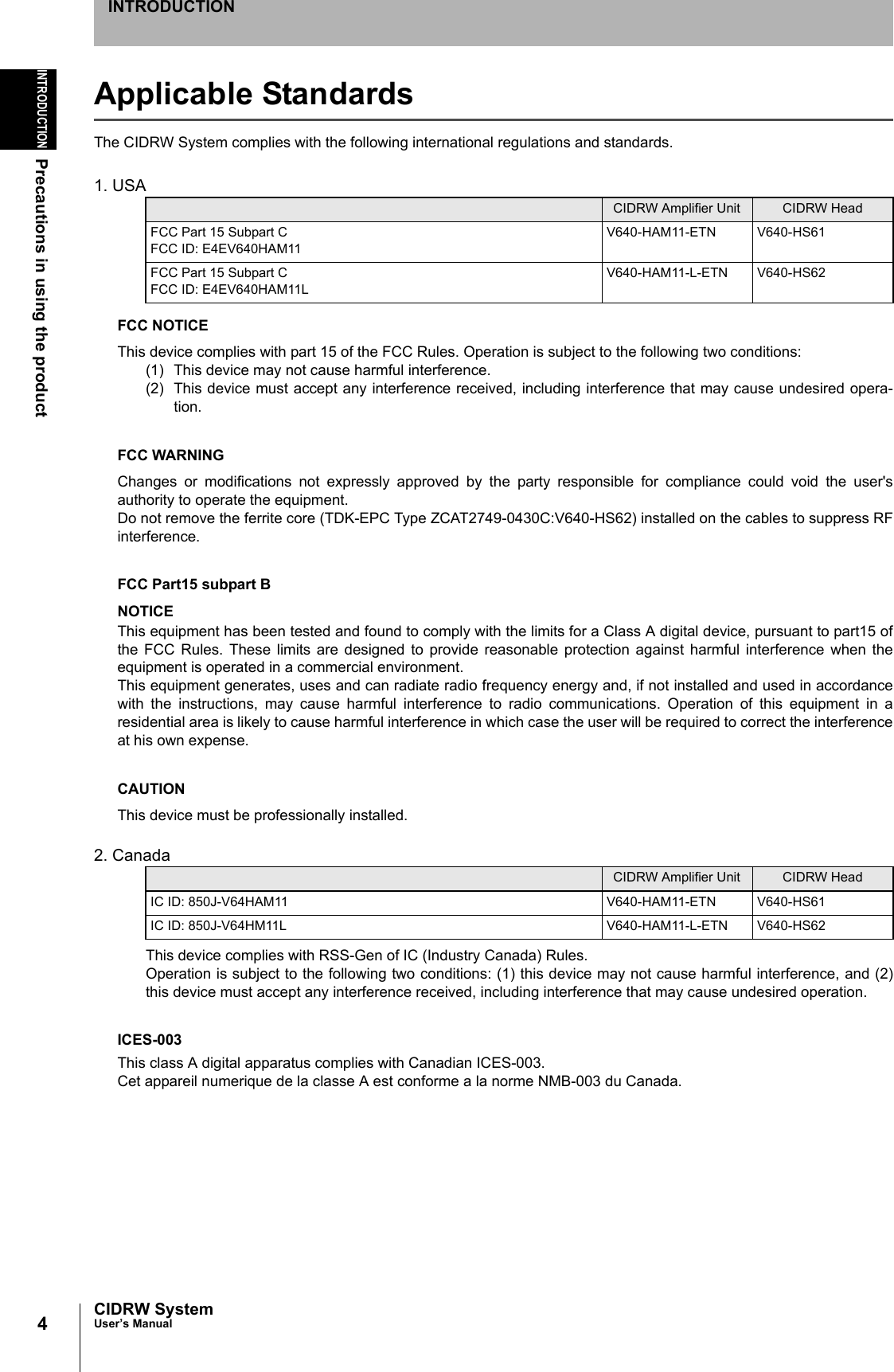

4INTRODUCTIONPrecautions in using the productCIDRW SystemUser’s ManualINTRODUCTIONApplicable StandardsThe CIDRW System complies with the following international regulations and standards. 1. USA FCC NOTICEThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired opera-tion.FCC WARNINGChanges or modifications not expressly approved by the party responsible for compliance could void the user'sauthority to operate the equipment.Do not remove the ferrite core (TDK-EPC Type ZCAT2749-0430C:V640-HS62) installed on the cables to suppress RFinterference. FCC Part15 subpart BNOTICEThis equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference when theequipment is operated in a commercial environment.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordancewith the instructions, may cause harmful interference to radio communications. Operation of this equipment in aresidential area is likely to cause harmful interference in which case the user will be required to correct the interferenceat his own expense.CAUTIONThis device must be professionally installed.2. CanadaThis device complies with RSS-Gen of IC (Industry Canada) Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. ICES-003This class A digital apparatus complies with Canadian ICES-003.Cet appareil numerique de la classe A est conforme a la norme NMB-003 du Canada.CIDRW Amplifier Unit CIDRW HeadFCC Part 15 Subpart CFCC ID: E4EV640HAM11V640-HAM11-ETN V640-HS61FCC Part 15 Subpart CFCC ID: E4EV640HAM11LV640-HAM11-L-ETN V640-HS62CIDRW Amplifier Unit CIDRW HeadIC ID: 850J-V64HAM11 V640-HAM11-ETN V640-HS61IC ID: 850J-V64HM11L V640-HAM11-L-ETN V640-HS62

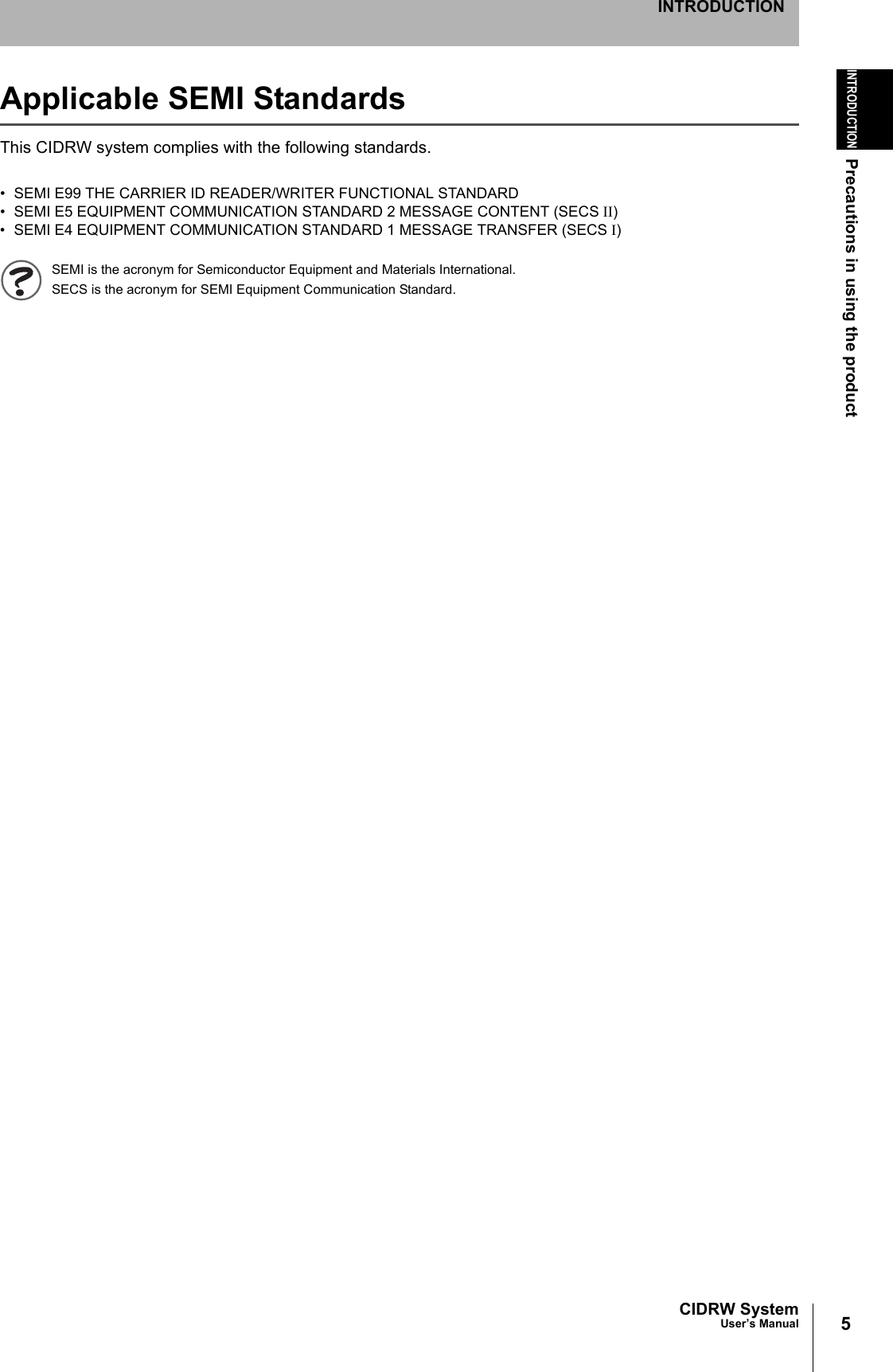

5CIDRW SystemUser’s ManualINTRODUCTIONPrecautions in using the productINTRODUCTIONApplicable SEMI StandardsThis CIDRW system complies with the following standards.• SEMI E99 THE CARRIER ID READER/WRITER FUNCTIONAL STANDARD• SEMI E5 EQUIPMENT COMMUNICATION STANDARD 2 MESSAGE CONTENT (SECS II)• SEMI E4 EQUIPMENT COMMUNICATION STANDARD 1 MESSAGE TRANSFER (SECS I)SEMI is the acronym for Semiconductor Equipment and Materials International.SECS is the acronym for SEMI Equipment Communication Standard.

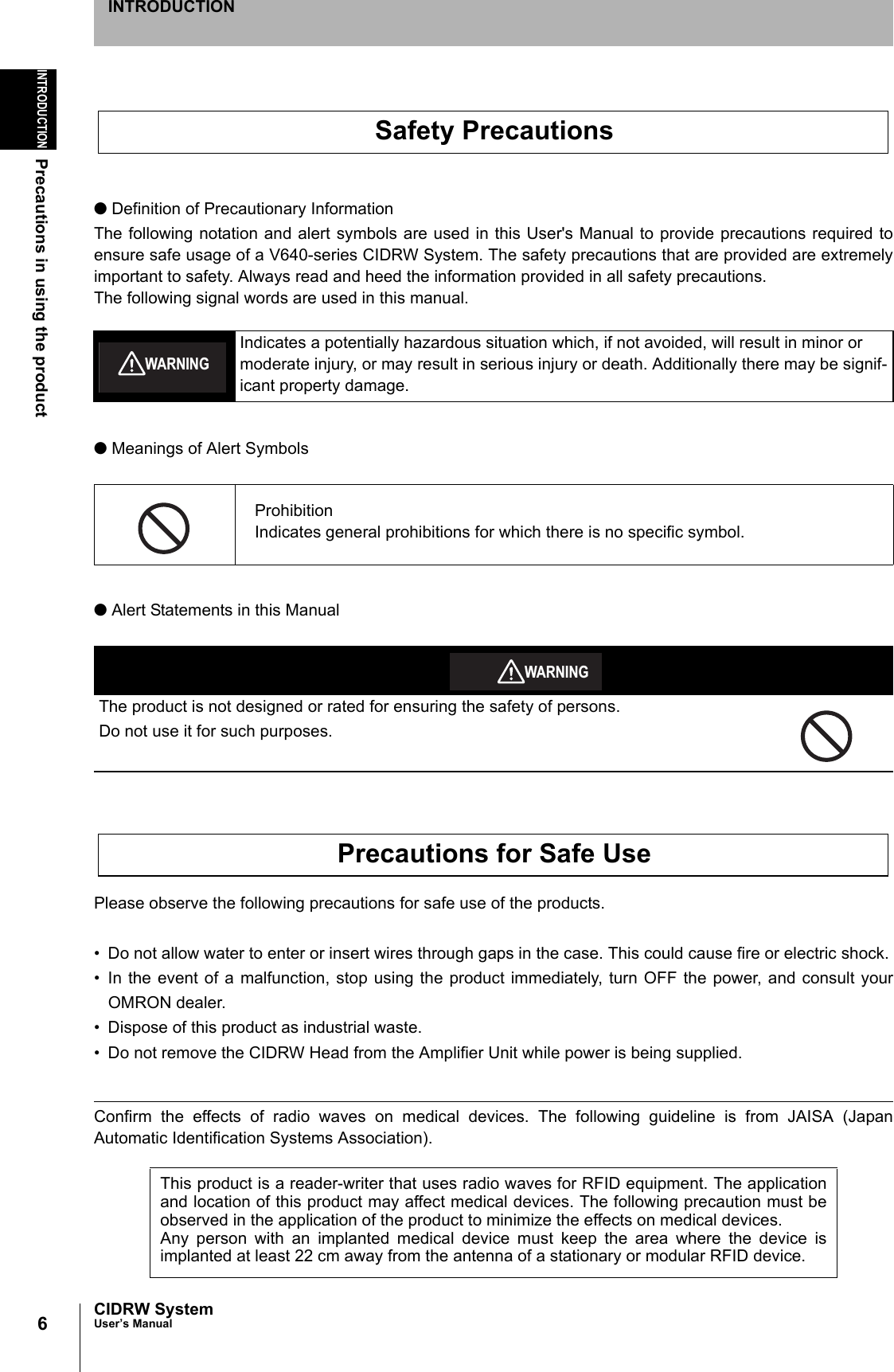

6INTRODUCTIONPrecautions in using the productCIDRW SystemUser’s ManualINTRODUCTION● Definition of Precautionary InformationThe following notation and alert symbols are used in this User's Manual to provide precautions required toensure safe usage of a V640-series CIDRW System. The safety precautions that are provided are extremelyimportant to safety. Always read and heed the information provided in all safety precautions.The following signal words are used in this manual.● Meanings of Alert Symbols● Alert Statements in this ManualPlease observe the following precautions for safe use of the products.• Do not allow water to enter or insert wires through gaps in the case. This could cause fire or electric shock.• In the event of a malfunction, stop using the product immediately, turn OFF the power, and consult yourOMRON dealer.• Dispose of this product as industrial waste.• Do not remove the CIDRW Head from the Amplifier Unit while power is being supplied.Confirm the effects of radio waves on medical devices. The following guideline is from JAISA (JapanAutomatic Identification Systems Association). Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death. Additionally there may be signif-icant property damage.ProhibitionIndicates general prohibitions for which there is no specific symbol.The product is not designed or rated for ensuring the safety of persons.Do not use it for such purposes.This product is a reader-writer that uses radio waves for RFID equipment. The applicationand location of this product may affect medical devices. The following precaution must beobserved in the application of the product to minimize the effects on medical devices. Any person with an implanted medical device must keep the area where the device isimplanted at least 22 cm away from the antenna of a stationary or modular RFID device. Safety PrecautionsWARNINGWARNINGPrecautions for Safe Use

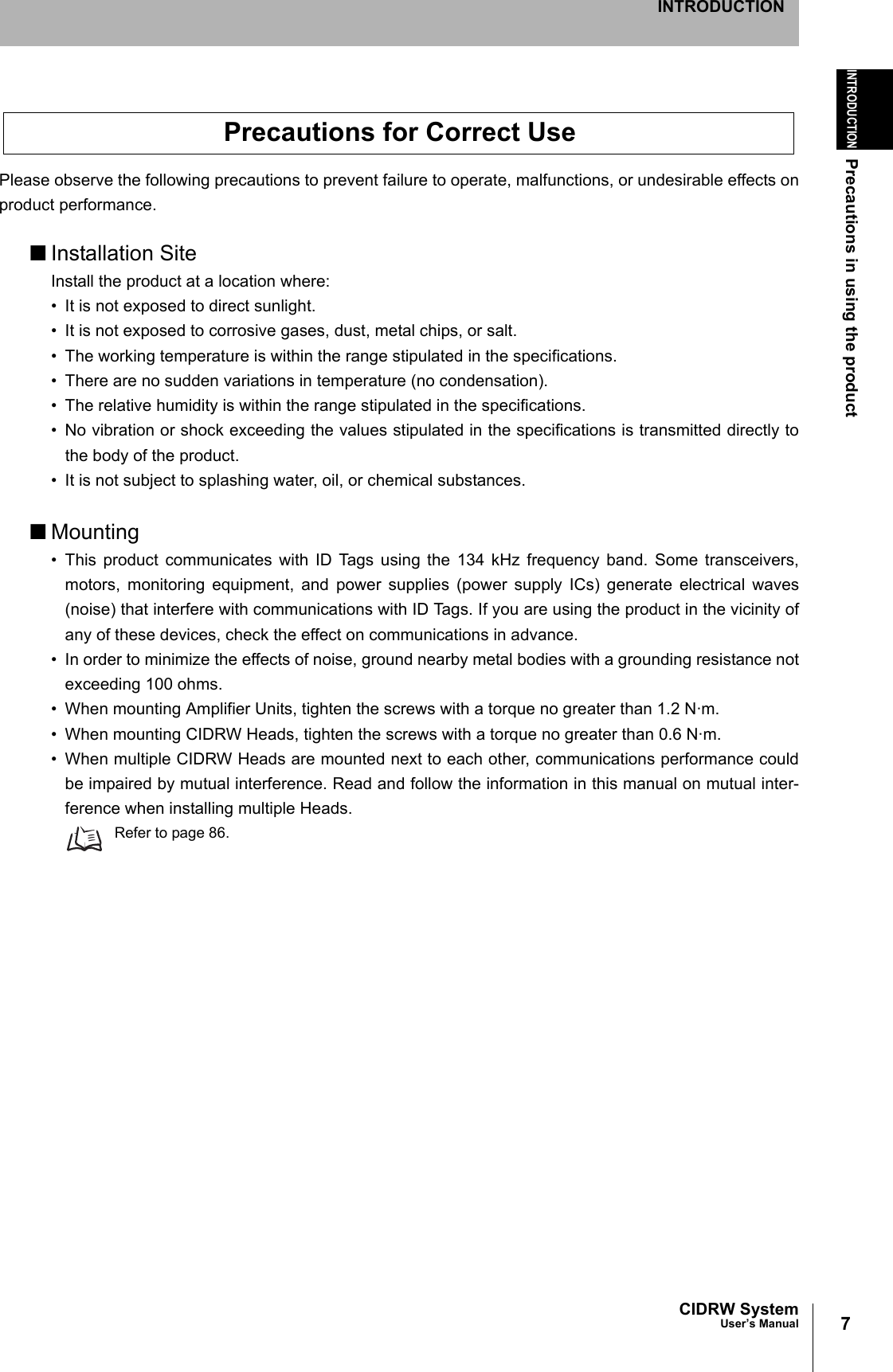

7CIDRW SystemUser’s ManualINTRODUCTIONPrecautions in using the productINTRODUCTIONPlease observe the following precautions to prevent failure to operate, malfunctions, or undesirable effects onproduct performance.■Installation SiteInstall the product at a location where:• It is not exposed to direct sunlight.• It is not exposed to corrosive gases, dust, metal chips, or salt.• The working temperature is within the range stipulated in the specifications.• There are no sudden variations in temperature (no condensation).• The relative humidity is within the range stipulated in the specifications.• No vibration or shock exceeding the values stipulated in the specifications is transmitted directly tothe body of the product.• It is not subject to splashing water, oil, or chemical substances.■Mounting• This product communicates with ID Tags using the 134 kHz frequency band. Some transceivers,motors, monitoring equipment, and power supplies (power supply ICs) generate electrical waves(noise) that interfere with communications with ID Tags. If you are using the product in the vicinity ofany of these devices, check the effect on communications in advance.• In order to minimize the effects of noise, ground nearby metal bodies with a grounding resistance notexceeding 100 ohms.• When mounting Amplifier Units, tighten the screws with a torque no greater than 1.2 N·m.• When mounting CIDRW Heads, tighten the screws with a torque no greater than 0.6 N·m.• When multiple CIDRW Heads are mounted next to each other, communications performance couldbe impaired by mutual interference. Read and follow the information in this manual on mutual inter-ference when installing multiple Heads.Refer to page 86.Precautions for Correct Use

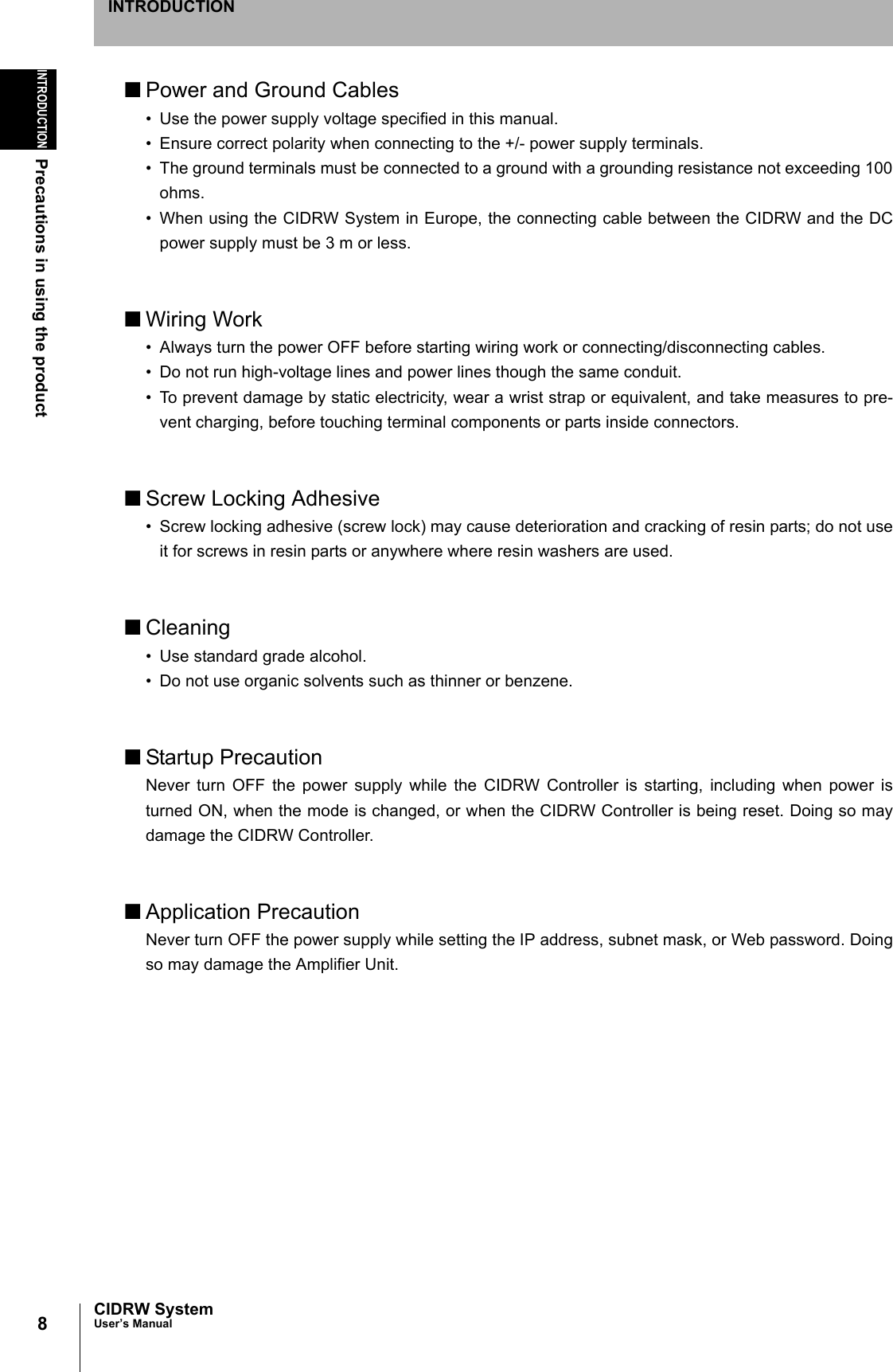

8INTRODUCTIONPrecautions in using the productCIDRW SystemUser’s ManualINTRODUCTION■Power and Ground Cables• Use the power supply voltage specified in this manual.• Ensure correct polarity when connecting to the +/- power supply terminals.• The ground terminals must be connected to a ground with a grounding resistance not exceeding 100ohms.• When using the CIDRW System in Europe, the connecting cable between the CIDRW and the DCpower supply must be 3 m or less.■Wiring Work• Always turn the power OFF before starting wiring work or connecting/disconnecting cables.• Do not run high-voltage lines and power lines though the same conduit.• To prevent damage by static electricity, wear a wrist strap or equivalent, and take measures to pre-vent charging, before touching terminal components or parts inside connectors.■Screw Locking Adhesive• Screw locking adhesive (screw lock) may cause deterioration and cracking of resin parts; do not useit for screws in resin parts or anywhere where resin washers are used.■Cleaning• Use standard grade alcohol.• Do not use organic solvents such as thinner or benzene.■Startup PrecautionNever turn OFF the power supply while the CIDRW Controller is starting, including when power isturned ON, when the mode is changed, or when the CIDRW Controller is being reset. Doing so maydamage the CIDRW Controller.■Application PrecautionNever turn OFF the power supply while setting the IP address, subnet mask, or Web password. Doingso may damage the Amplifier Unit.

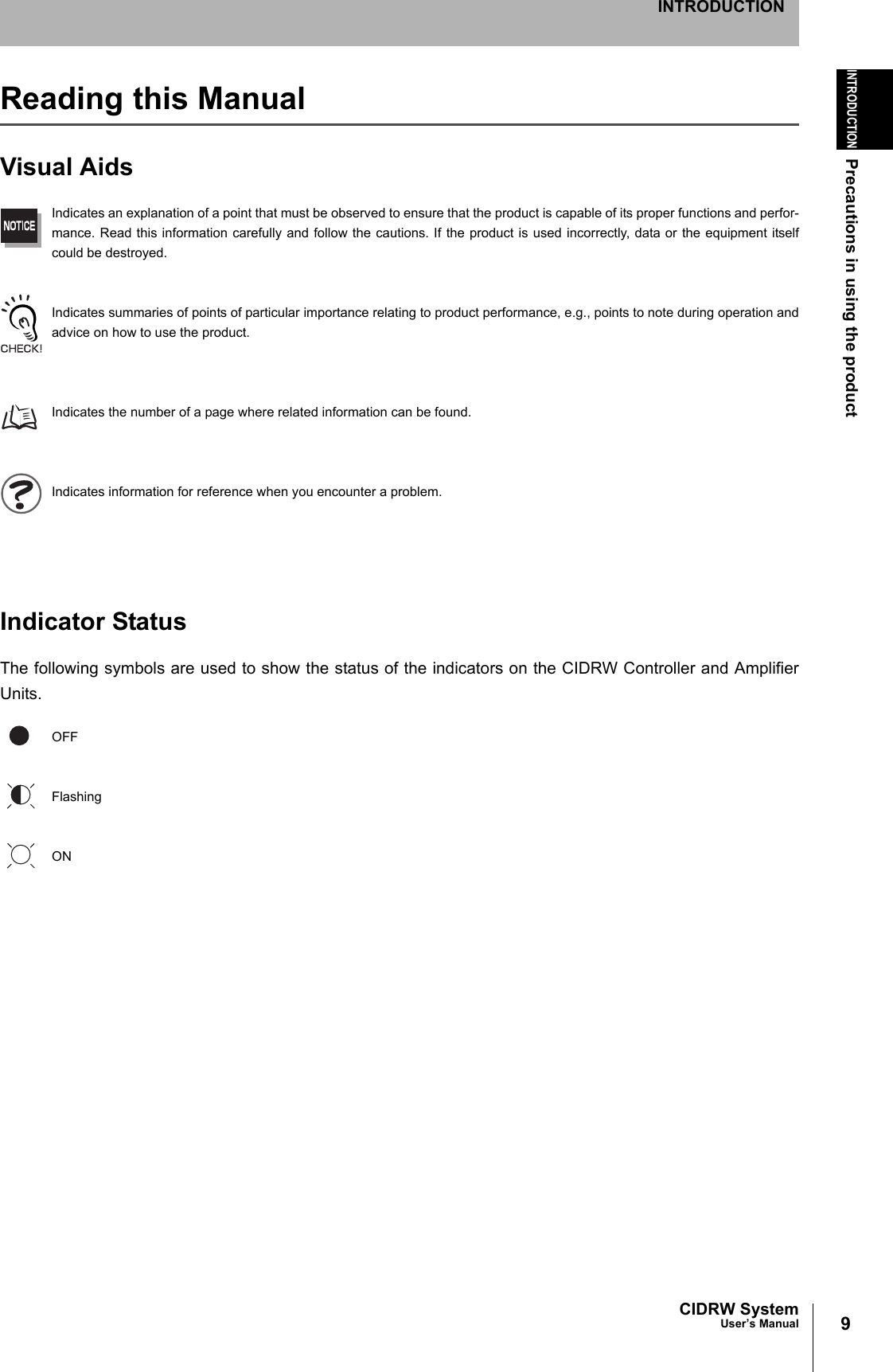

9CIDRW SystemUser’s ManualINTRODUCTIONPrecautions in using the productINTRODUCTIONReading this ManualVisual AidsIndicates an explanation of a point that must be observed to ensure that the product is capable of its proper functions and perfor-mance. Read this information carefully and follow the cautions. If the product is used incorrectly, data or the equipment itselfcould be destroyed.Indicates summaries of points of particular importance relating to product performance, e.g., points to note during operation andadvice on how to use the product.Indicates the number of a page where related information can be found.Indicates information for reference when you encounter a problem.Indicator StatusThe following symbols are used to show the status of the indicators on the CIDRW Controller and AmplifierUnits.OFFFlashingON
10INTRODUCTIONPrecautions in using the productCIDRW SystemUser’s ManualINTRODUCTIONMEMO

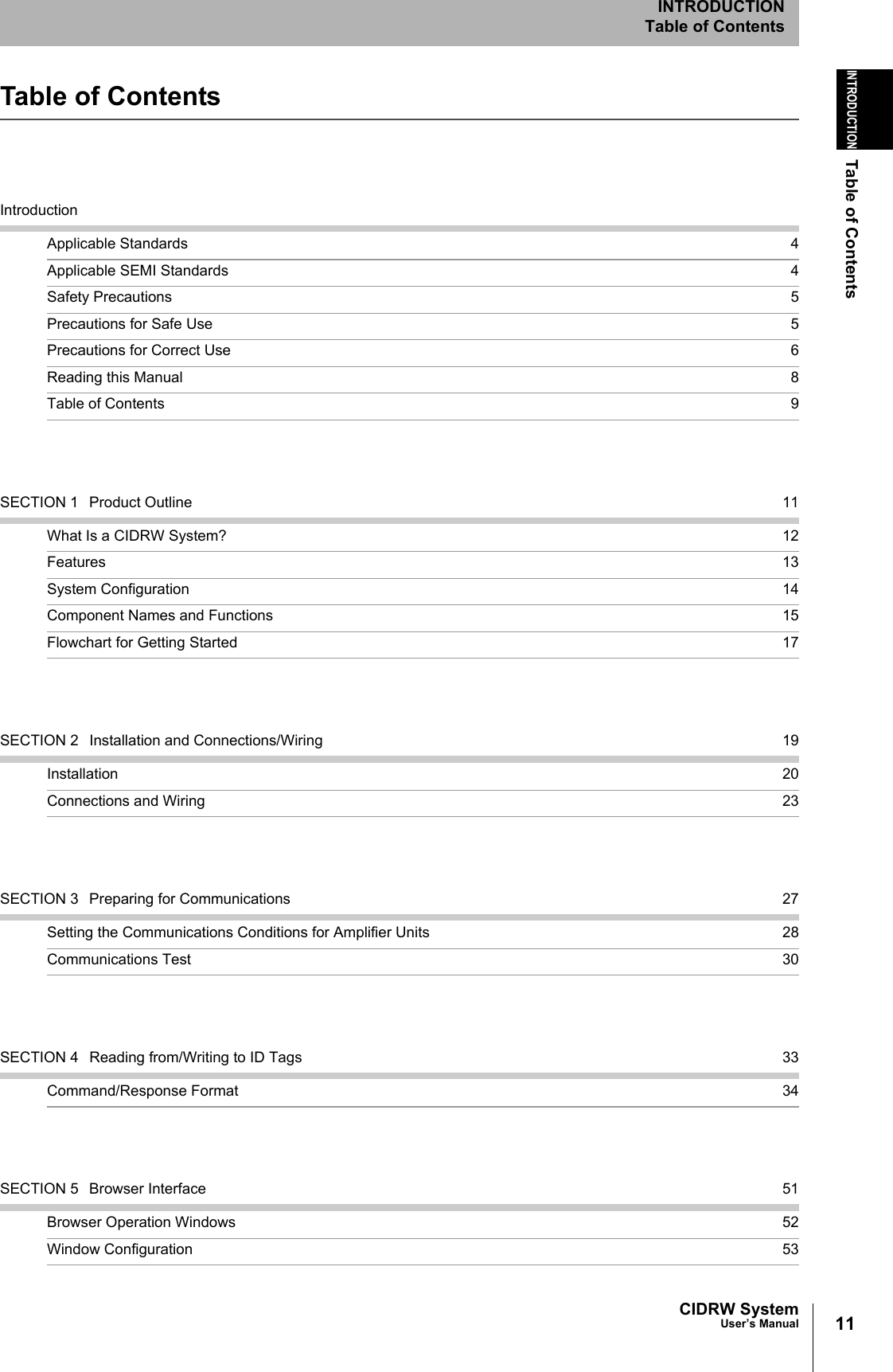

11CIDRW SystemUser’s ManualINTRODUCTIONTable of ContentsINTRODUCTIONTable of ContentsTable of ContentsIntroductionApplicable Standards 4Applicable SEMI Standards 4Safety Precautions 5Precautions for Safe Use 5Precautions for Correct Use 6Reading this Manual 8Table of Contents 9SECTION 1 Product Outline 11What Is a CIDRW System? 12Features 13System Configuration 14Component Names and Functions 15Flowchart for Getting Started 17SECTION 2 Installation and Connections/Wiring 19Installation 20Connections and Wiring 23SECTION 3 Preparing for Communications 27Setting the Communications Conditions for Amplifier Units 28Communications Test 30SECTION 4 Reading from/Writing to ID Tags 33Command/Response Format 34SECTION 5 Browser Interface 51Browser Operation Windows 52Window Configuration 53

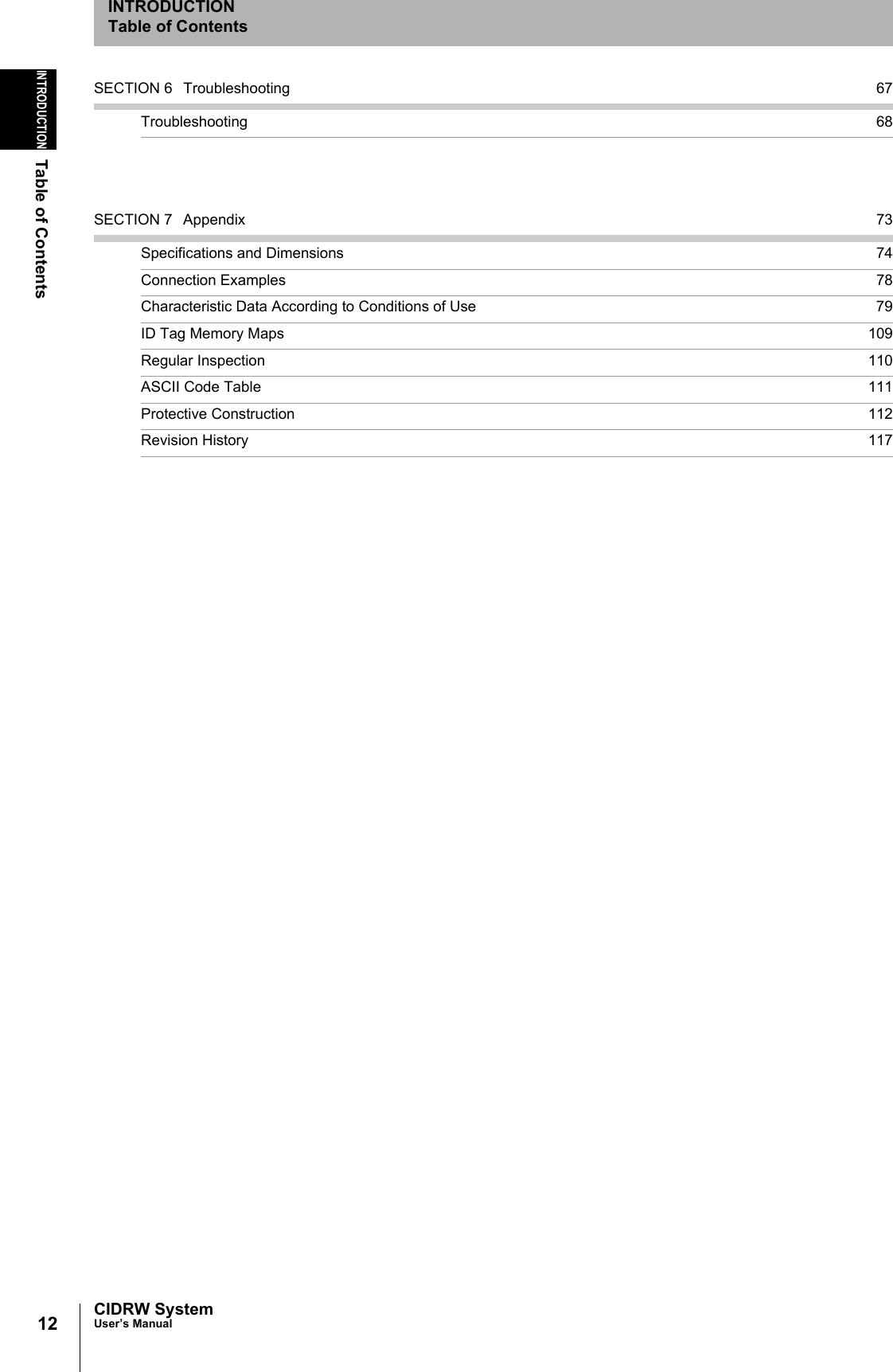

12INTRODUCTIONTable of ContentsCIDRW SystemUser’s ManualINTRODUCTIONTable of ContentsSECTION 6 Troubleshooting 67Troubleshooting 68SECTION 7 Appendix 73Specifications and Dimensions 74Connection Examples 78Characteristic Data According to Conditions of Use 79ID Tag Memory Maps 109Regular Inspection 110ASCII Code Table 111Protective Construction 112Revision History 117

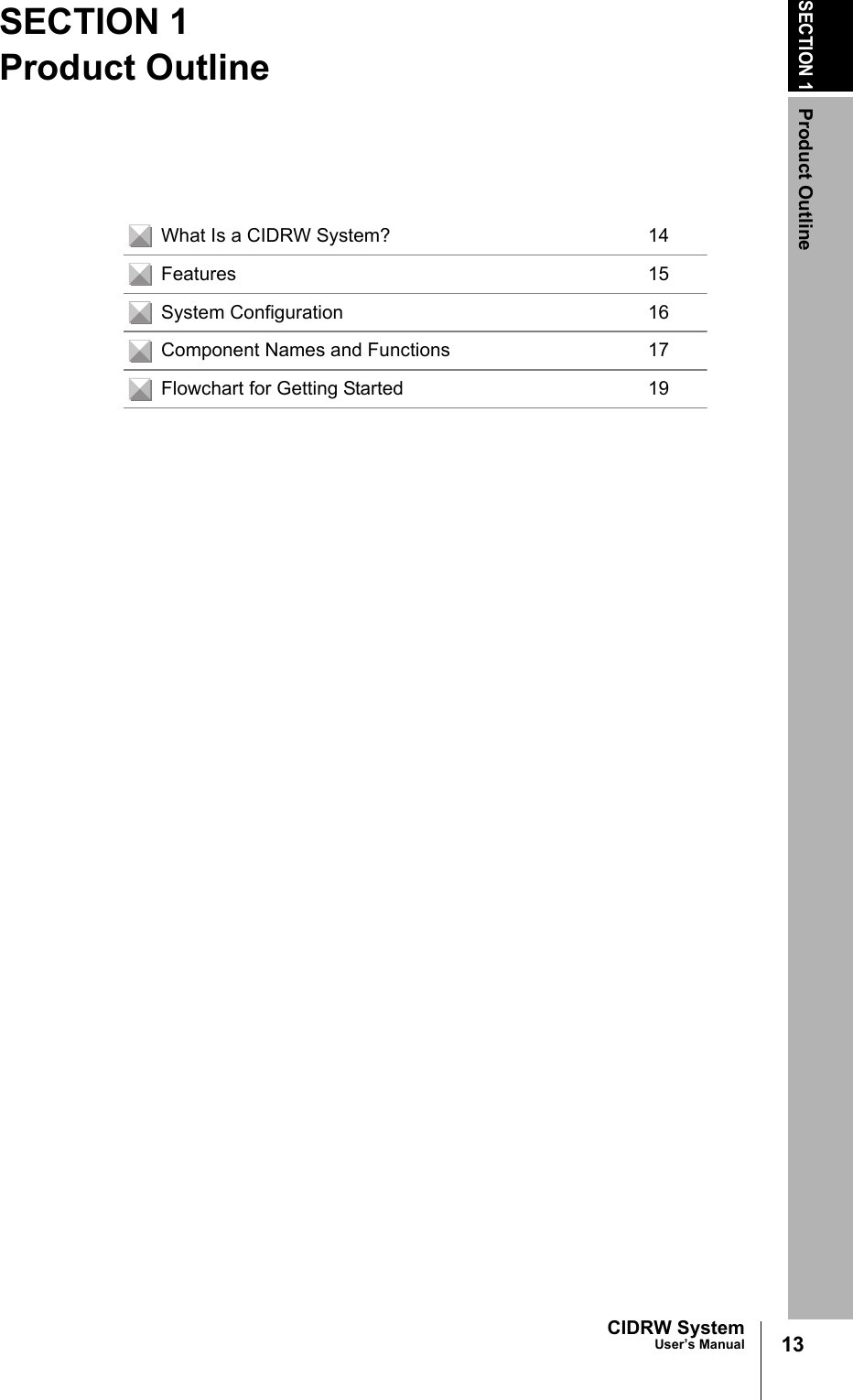

SECTION 1Product Outline13CIDRW SystemUser’s ManualSECTION 1Product OutlineWhat Is a CIDRW System? 14Features 15System Configuration 16Component Names and Functions 17Flowchart for Getting Started 19

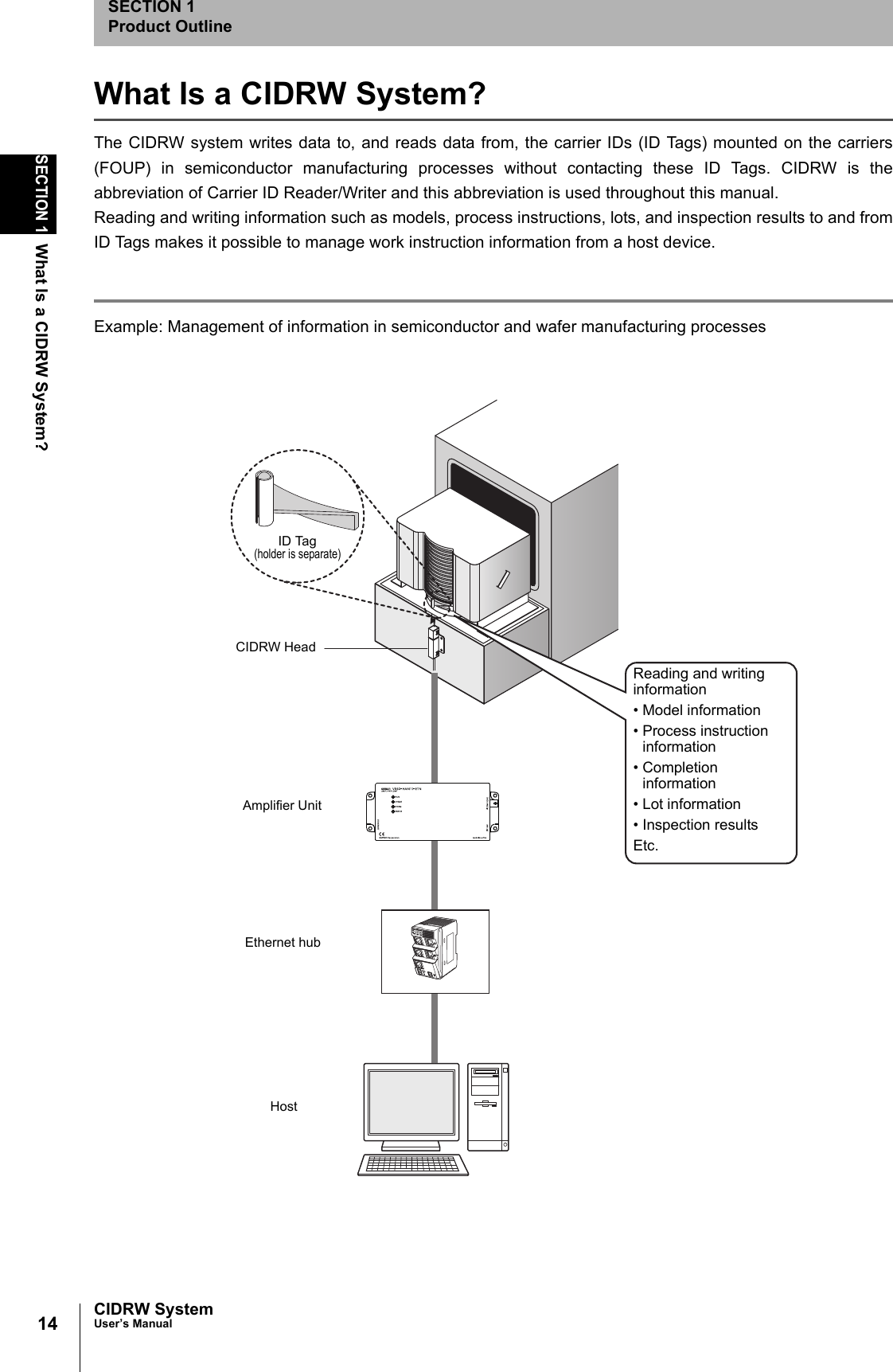

14SECTION 1What Is a CIDRW System?CIDRW SystemUser’s ManualSECTION 1Product OutlineWhat Is a CIDRW System?The CIDRW system writes data to, and reads data from, the carrier IDs (ID Tags) mounted on the carriers(FOUP) in semiconductor manufacturing processes without contacting these ID Tags. CIDRW is theabbreviation of Carrier ID Reader/Writer and this abbreviation is used throughout this manual.Reading and writing information such as models, process instructions, lots, and inspection results to and fromID Tags makes it possible to manage work instruction information from a host device.Example: Management of information in semiconductor and wafer manufacturing processesID Tag(holder is separate)CIDRW HeadReading and writing information• Model information• Process instruction information• Completion information• Lot information• Inspection resultsEtc.HostAmplifier UnitEthernet hub

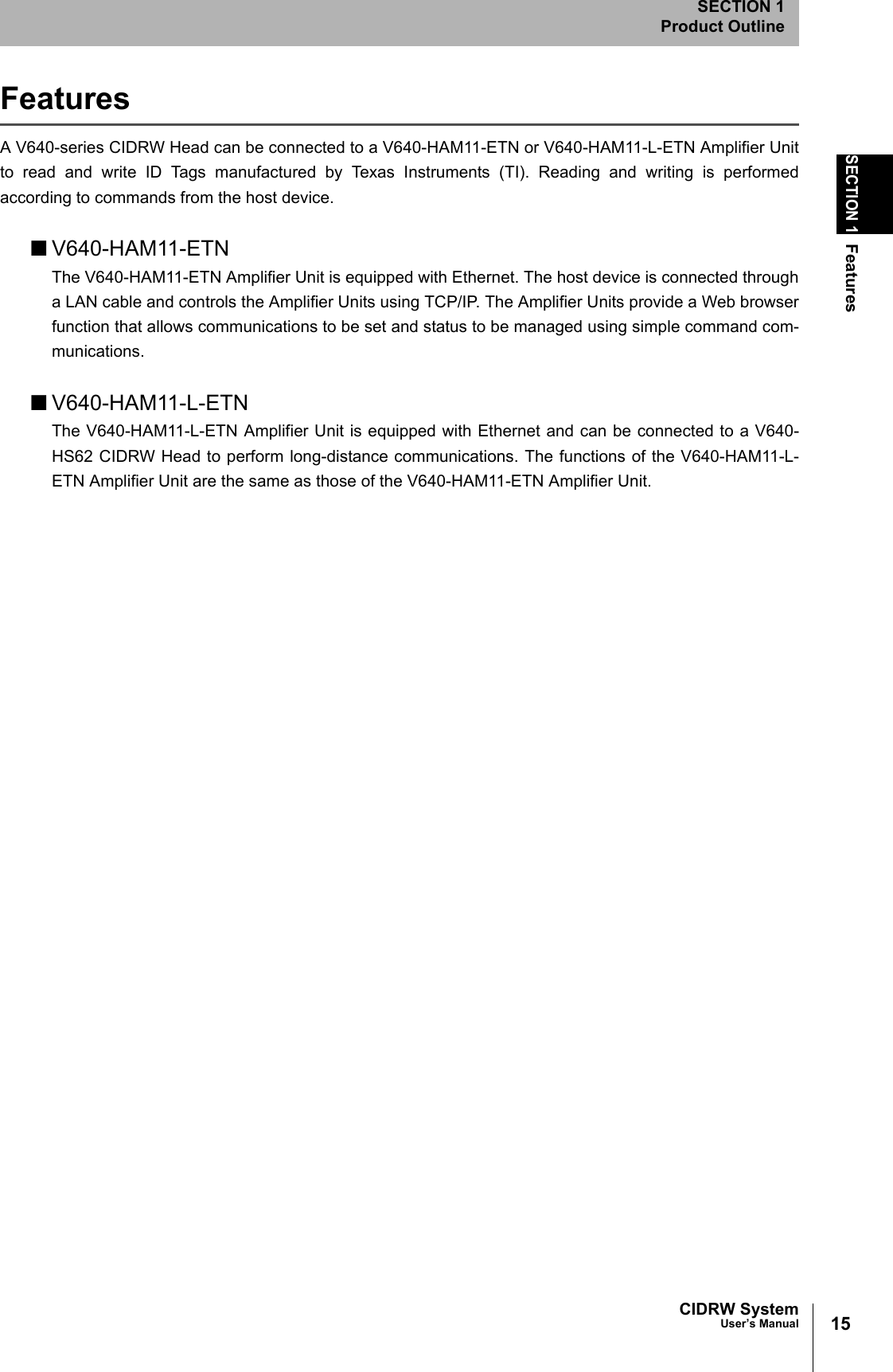

15CIDRW SystemUser’s ManualSECTION 1FeaturesSECTION 1Product OutlineFeaturesA V640-series CIDRW Head can be connected to a V640-HAM11-ETN or V640-HAM11-L-ETN Amplifier Unitto read and write ID Tags manufactured by Texas Instruments (TI). Reading and writing is performedaccording to commands from the host device. ■V640-HAM11-ETNThe V640-HAM11-ETN Amplifier Unit is equipped with Ethernet. The host device is connected througha LAN cable and controls the Amplifier Units using TCP/IP. The Amplifier Units provide a Web browserfunction that allows communications to be set and status to be managed using simple command com-munications. ■V640-HAM11-L-ETNThe V640-HAM11-L-ETN Amplifier Unit is equipped with Ethernet and can be connected to a V640-HS62 CIDRW Head to perform long-distance communications. The functions of the V640-HAM11-L-ETN Amplifier Unit are the same as those of the V640-HAM11-ETN Amplifier Unit.

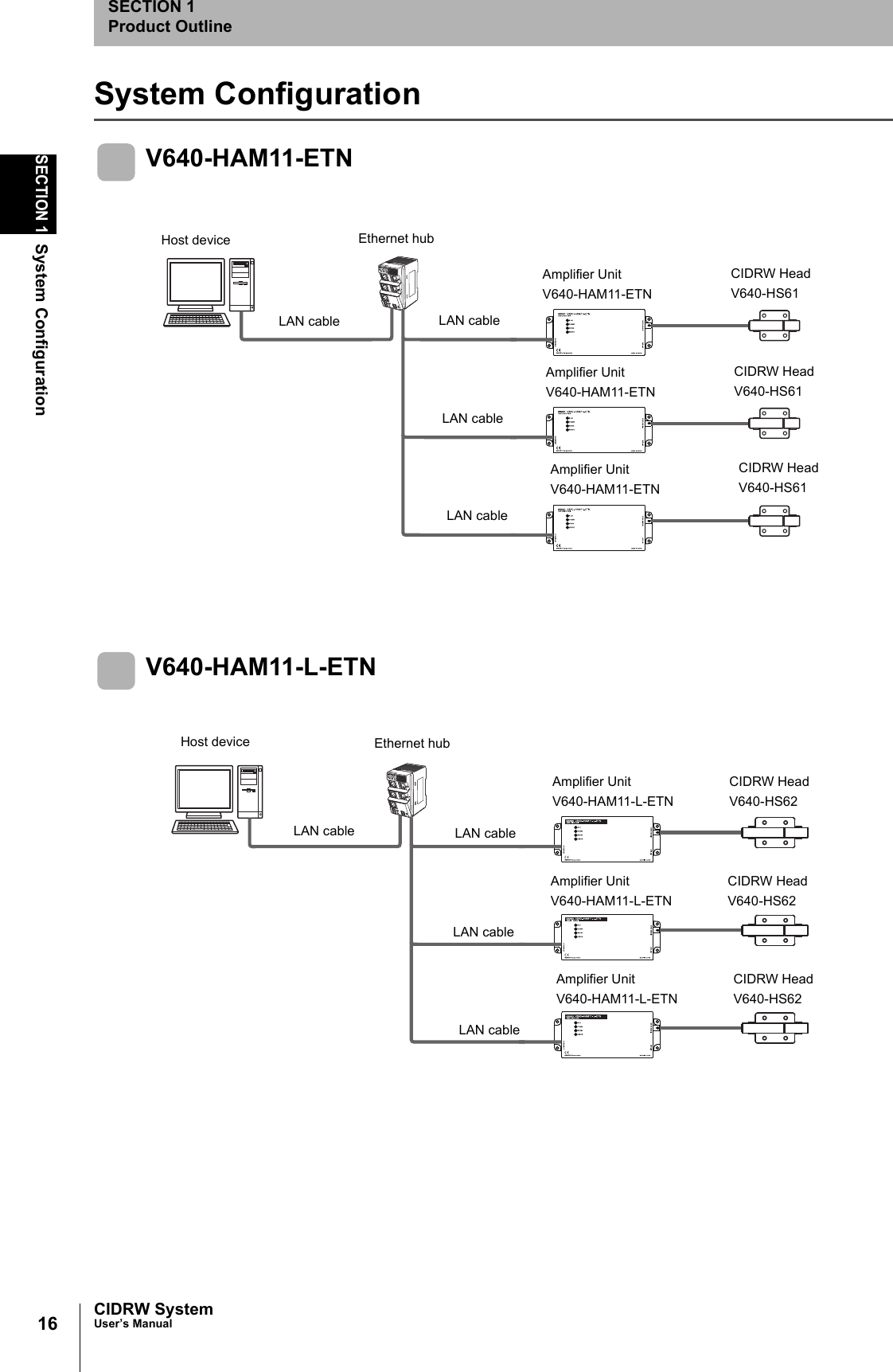

16SECTION 1System ConfigurationCIDRW SystemUser’s ManualSECTION 1Product OutlineSystem ConfigurationV640-HAM11-ETNV640-HAM11-L-ETNCIDRW HeadV640-HS61Amplifier UnitV640-HAM11-ETNEthernet hubHost deviceLAN cable LAN cableCIDRW HeadV640-HS61Amplifier UnitV640-HAM11-ETNLAN cableCIDRW HeadV640-HS61Amplifier UnitV640-HAM11-ETNLAN cableHost deviceCIDRW HeadV640-HS62Amplifier UnitV640-HAM11-L-ETNEthernet hubLAN cable LAN cableCIDRW HeadV640-HS62Amplifier UnitV640-HAM11-L-ETNLAN cableCIDRW HeadV640-HS62Amplifier UnitV640-HAM11-L-ETNLAN cable

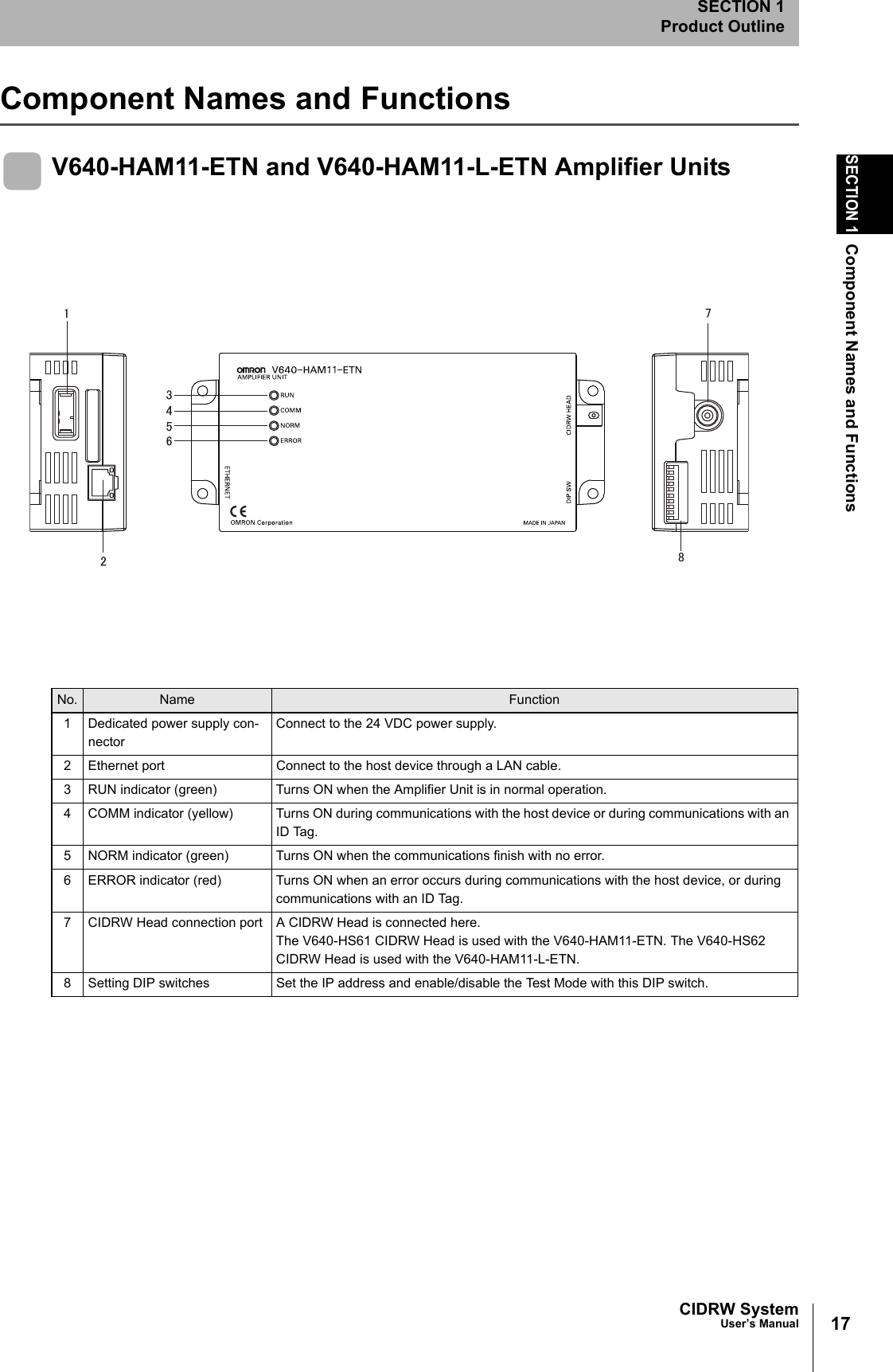

17CIDRW SystemUser’s ManualSECTION 1Component Names and FunctionsSECTION 1Product OutlineComponent Names and FunctionsV640-HAM11-ETN and V640-HAM11-L-ETN Amplifier UnitsNo. Name Function1 Dedicated power supply con-nectorConnect to the 24 VDC power supply.2 Ethernet port Connect to the host device through a LAN cable. 3 RUN indicator (green) Turns ON when the Amplifier Unit is in normal operation.4 COMM indicator (yellow) Turns ON during communications with the host device or during communications with an ID Tag.5 NORM indicator (green) Turns ON when the communications finish with no error.6 ERROR indicator (red) Turns ON when an error occurs during communications with the host device, or during communications with an ID Tag.7 CIDRW Head connection port A CIDRW Head is connected here.The V640-HS61 CIDRW Head is used with the V640-HAM11-ETN. The V640-HS62 CIDRW Head is used with the V640-HAM11-L-ETN.8 Setting DIP switches Set the IP address and enable/disable the Test Mode with this DIP switch.

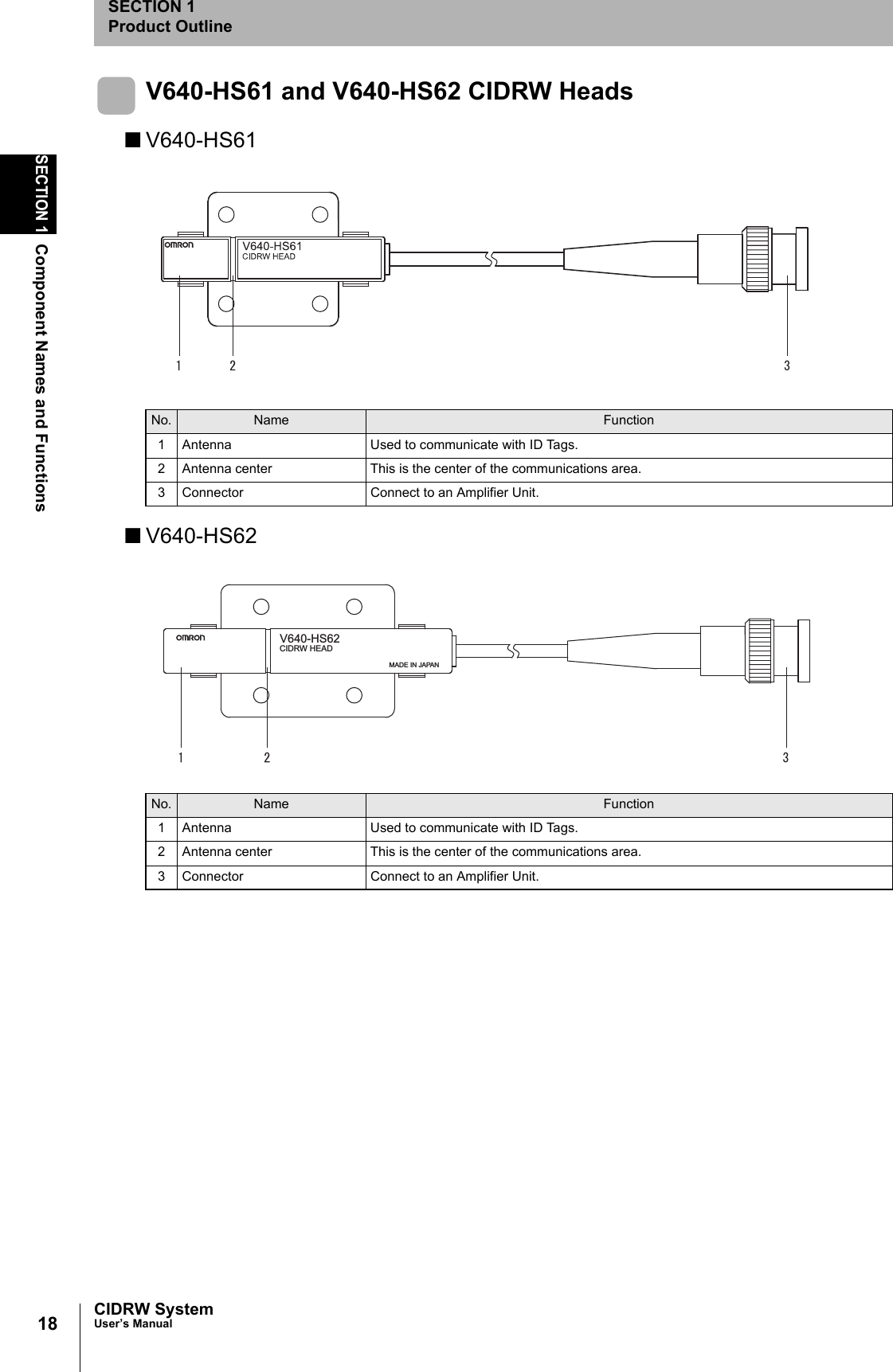

18SECTION 1Component Names and FunctionsCIDRW SystemUser’s ManualSECTION 1Product OutlineV640-HS61 and V640-HS62 CIDRW Heads■V640-HS61■V640-HS62No. Name Function1 Antenna Used to communicate with ID Tags.2 Antenna center This is the center of the communications area.3 Connector Connect to an Amplifier Unit.No. Name Function1 Antenna Used to communicate with ID Tags.2 Antenna center This is the center of the communications area.3 Connector Connect to an Amplifier Unit.V640-HS62CIDRW HEADMADE IN JAPAN

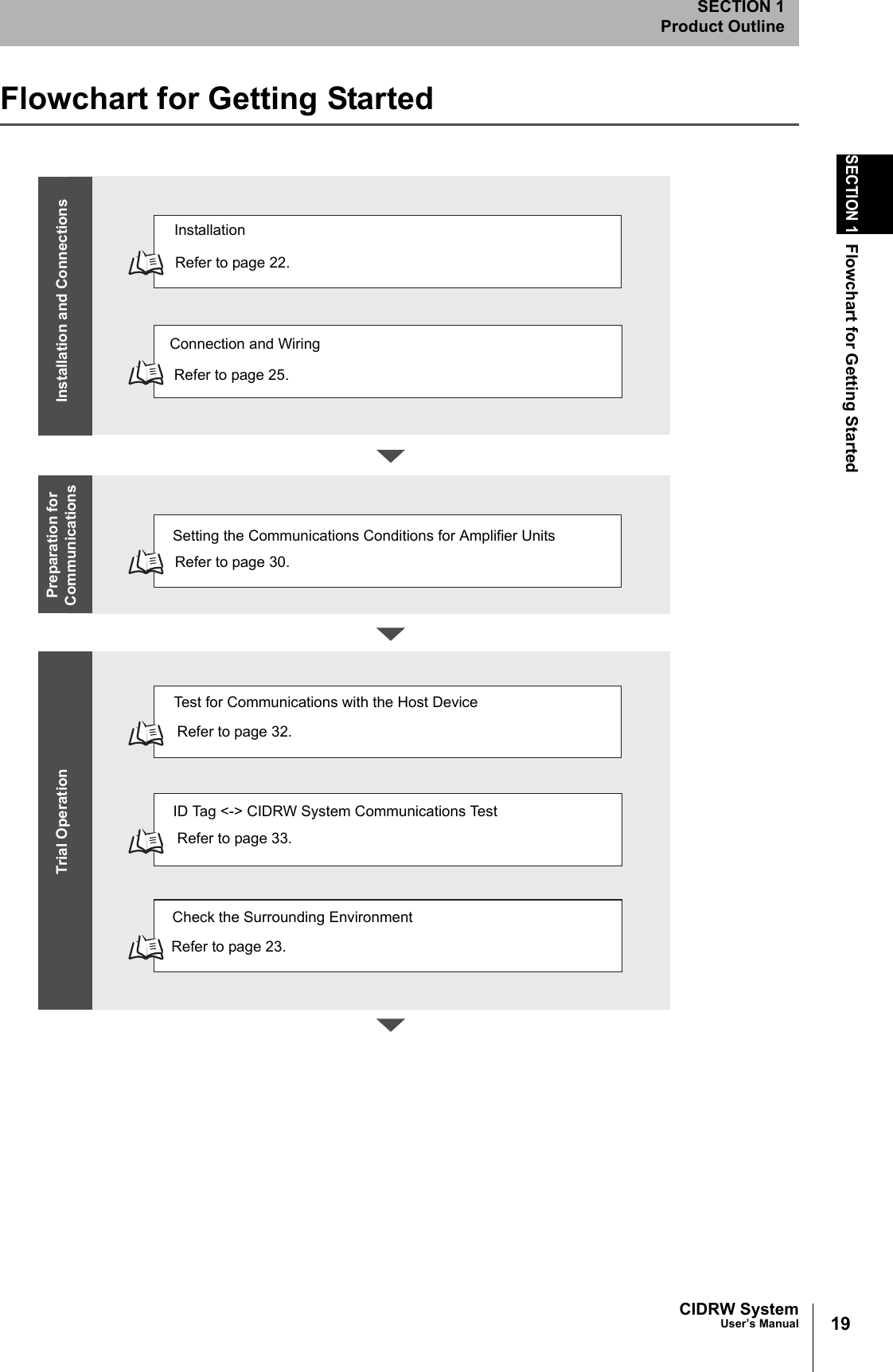

19CIDRW SystemUser’s ManualSECTION 1Flowchart for Getting StartedSECTION 1Product OutlineFlowchart for Getting StartedRefer to page 22.Refer to page 25.Refer to page 30.Refer to page 32.Refer to page 33.InstallationConnection and WiringSetting the Communications Conditions for Amplifier UnitsTest for Communications with the Host DeviceID Tag <-> CIDRW System Communications TestCheck the Surrounding EnvironmentRefer to page 23.Preparation for Communications Trial Operation Installation and Connections

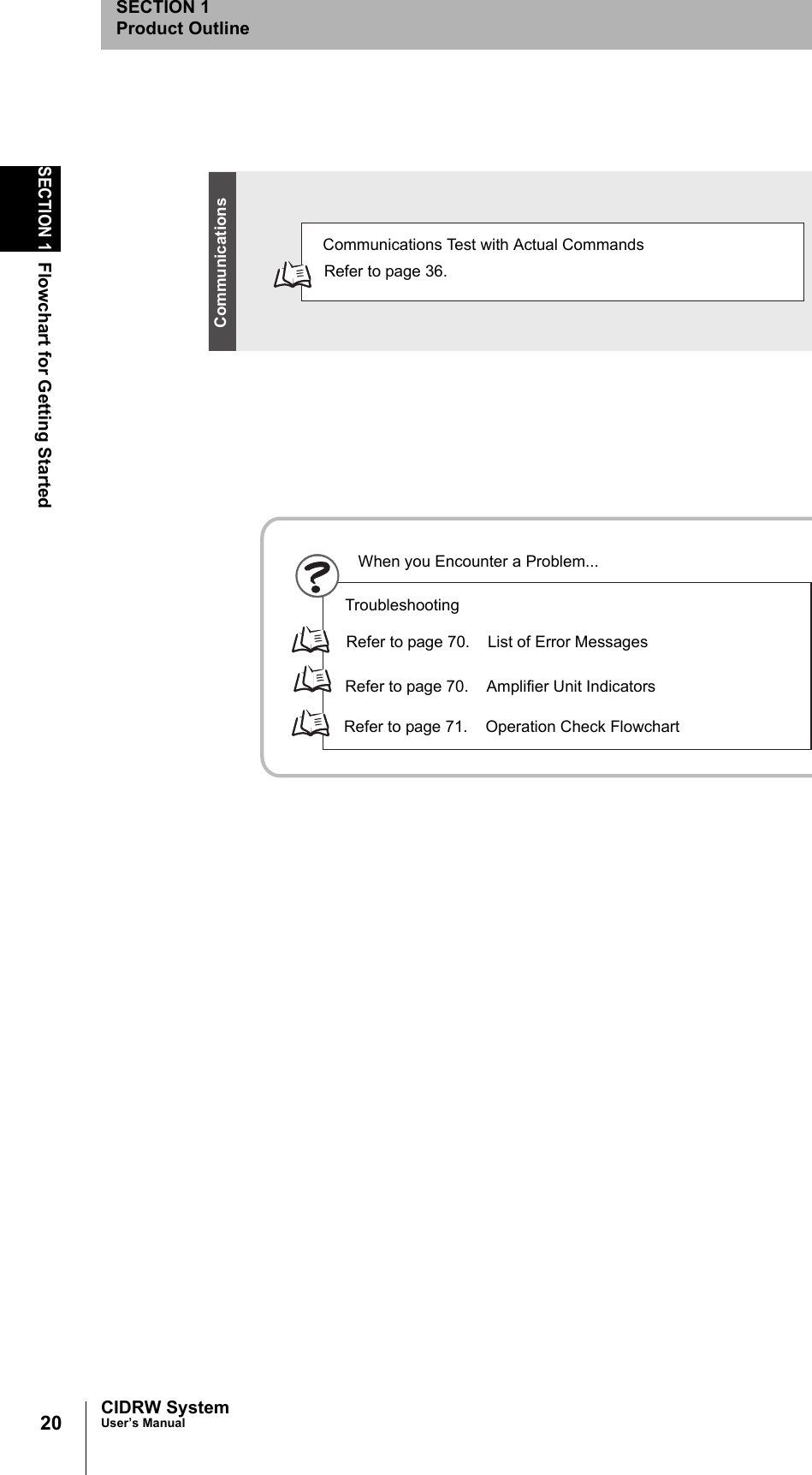

20SECTION 1Flowchart for Getting StartedCIDRW SystemUser’s ManualSECTION 1Product OutlineRefer to page 36.Refer to page 70. List of Error MessagesRefer to page 70. Amplifier Unit IndicatorsRefer to page 71. Operation Check FlowchartCommunications Test with Actual CommandsTroubleshootingWhen you Encounter a Problem...Communications

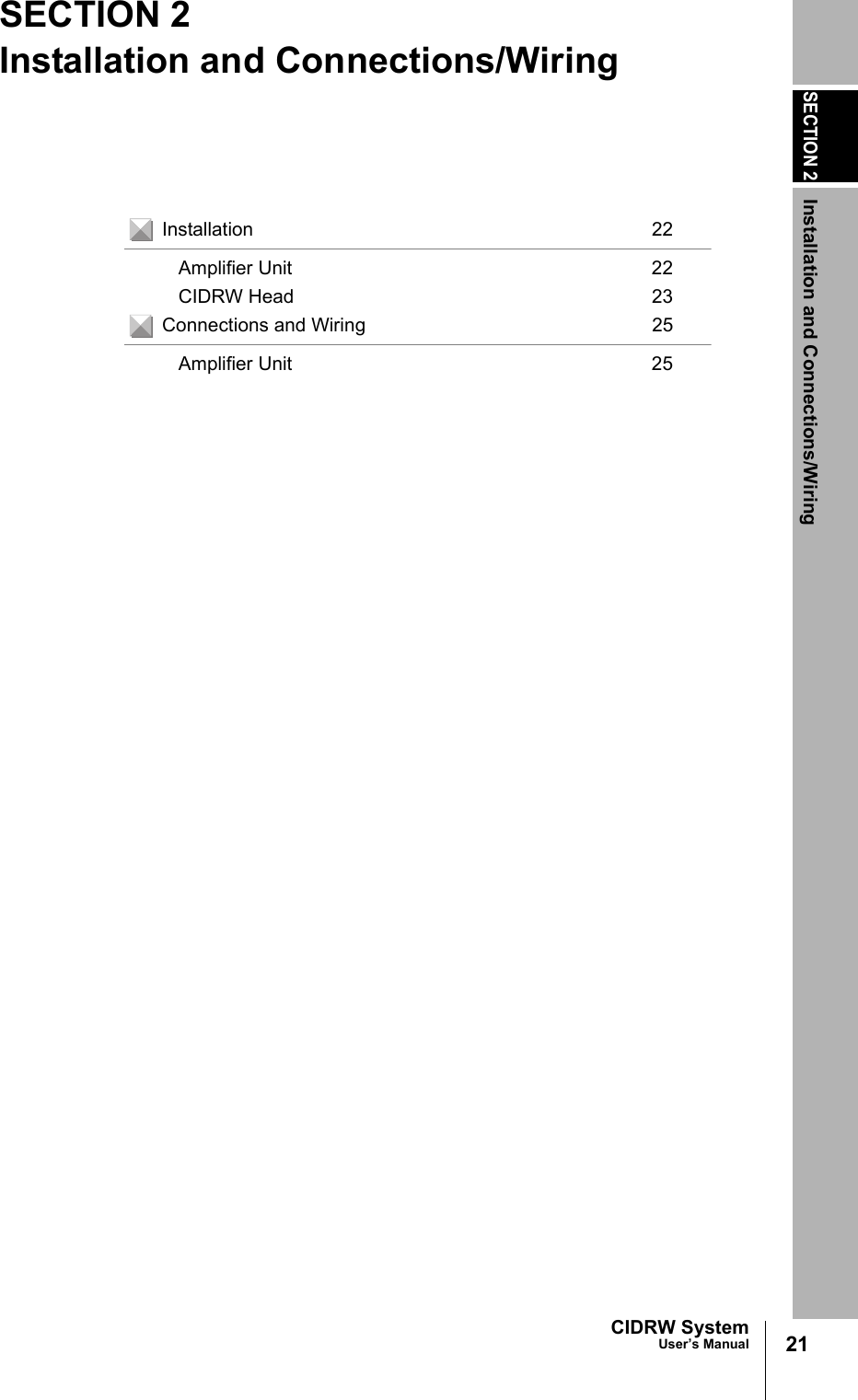

SECTION 2Installation and Connections/Wiring21CIDRW SystemUser’s ManualSECTION 2Installation and Connections/WiringInstallation 22Amplifier Unit 22CIDRW Head 23Connections and Wiring 25Amplifier Unit 25

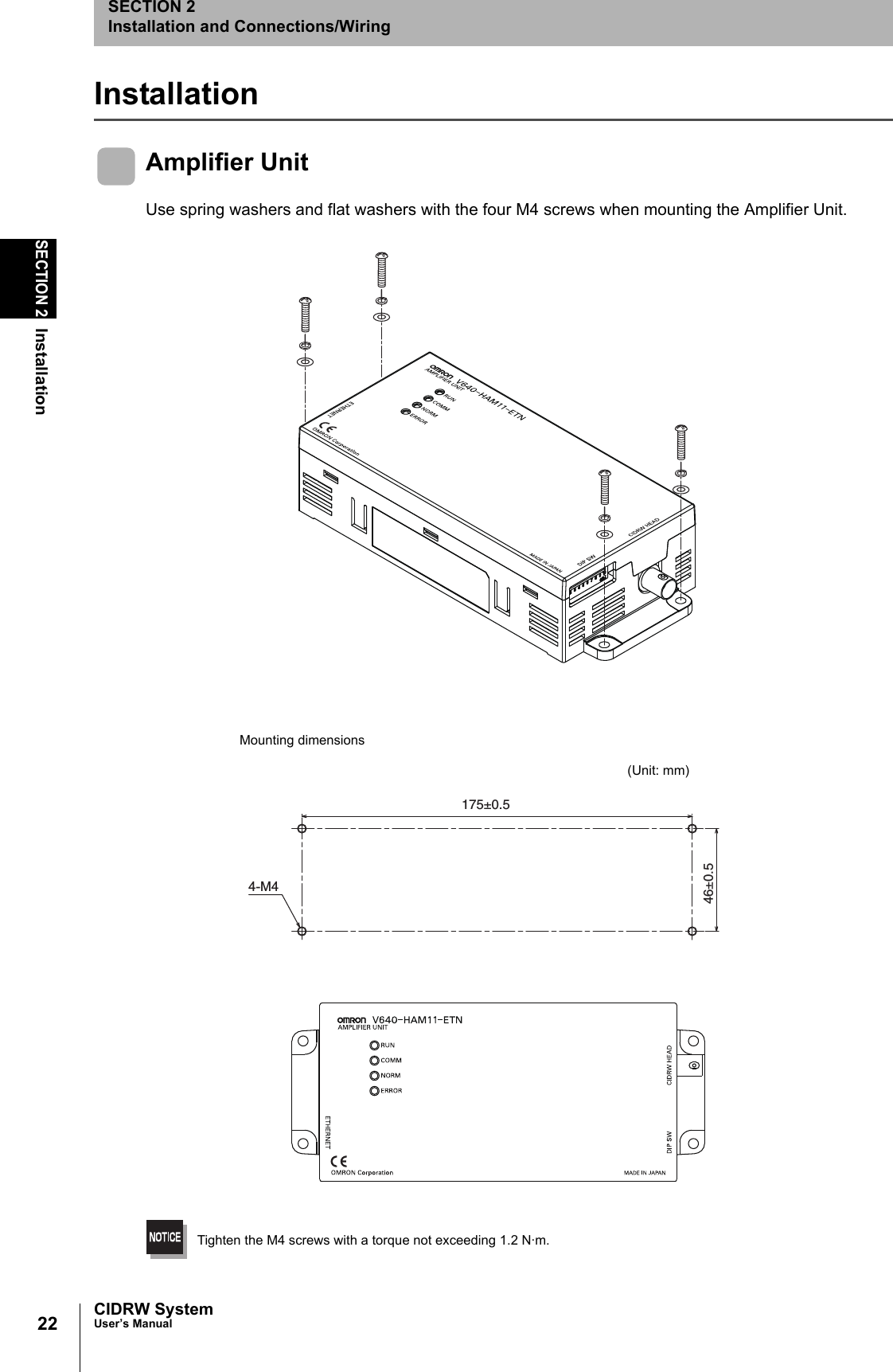

22SECTION 2InstallationCIDRW SystemUser’s ManualSECTION 2Installation and Connections/WiringInstallationAmplifier UnitUse spring washers and flat washers with the four M4 screws when mounting the Amplifier Unit.Tighten the M4 screws with a torque not exceeding 1.2 N·m.175±0.546±0.54-M4Mounting dimensions(Unit: mm)

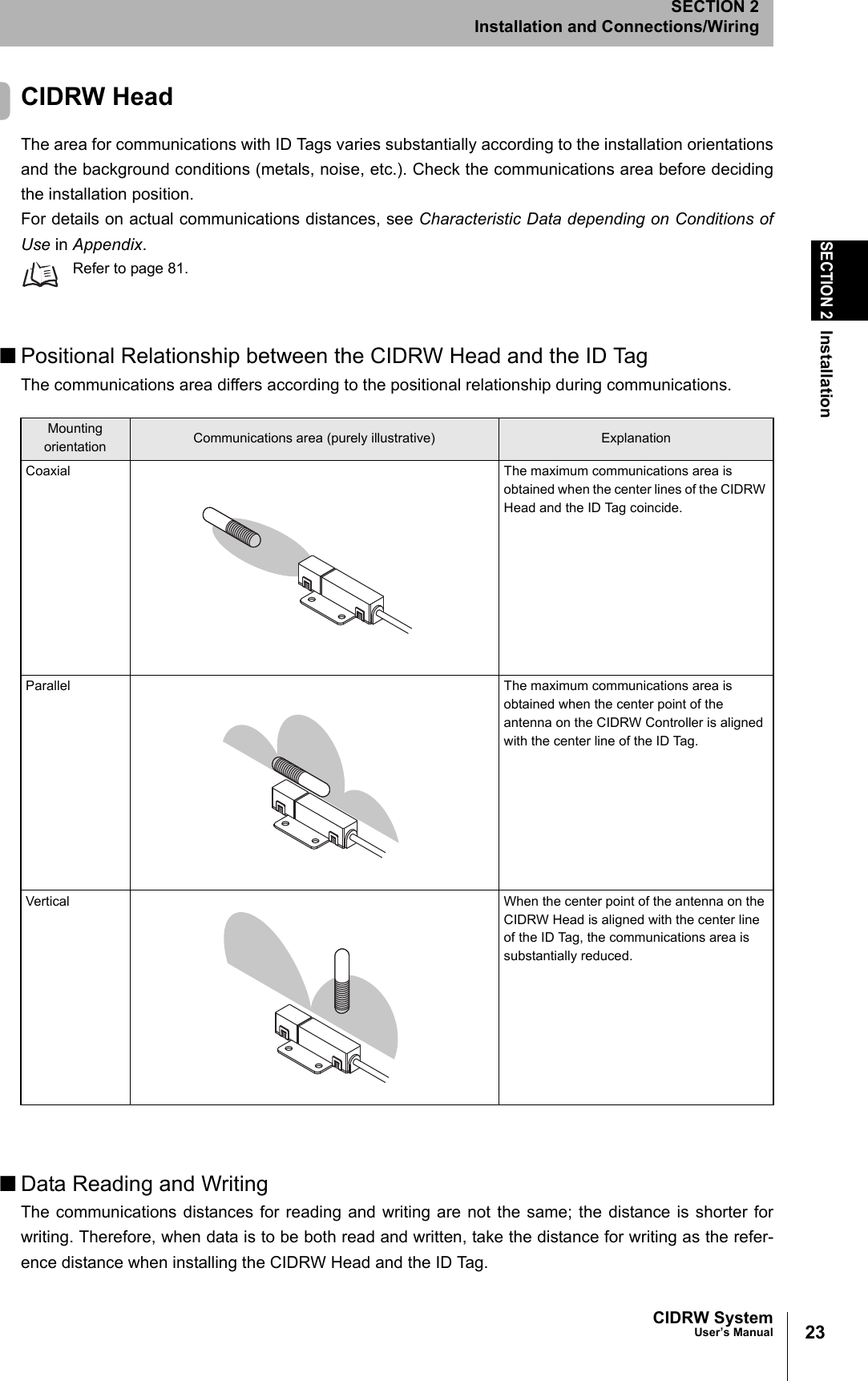

23CIDRW SystemUser’s ManualSECTION 2InstallationSECTION 2Installation and Connections/WiringCIDRW HeadThe area for communications with ID Tags varies substantially according to the installation orientationsand the background conditions (metals, noise, etc.). Check the communications area before decidingthe installation position.For details on actual communications distances, see Characteristic Data depending on Conditions ofUse in Appendix.Refer to page 81.■Positional Relationship between the CIDRW Head and the ID TagThe communications area differs according to the positional relationship during communications.■Data Reading and WritingThe communications distances for reading and writing are not the same; the distance is shorter forwriting. Therefore, when data is to be both read and written, take the distance for writing as the refer-ence distance when installing the CIDRW Head and the ID Tag.Mountingorientation Communications area (purely illustrative) ExplanationCoaxial The maximum communications area is obtained when the center lines of the CIDRW Head and the ID Tag coincide.Parallel The maximum communications area is obtained when the center point of the antenna on the CIDRW Controller is aligned with the center line of the ID Tag.Vertical When the center point of the antenna on the CIDRW Head is aligned with the center line of the ID Tag, the communications area is substantially reduced.

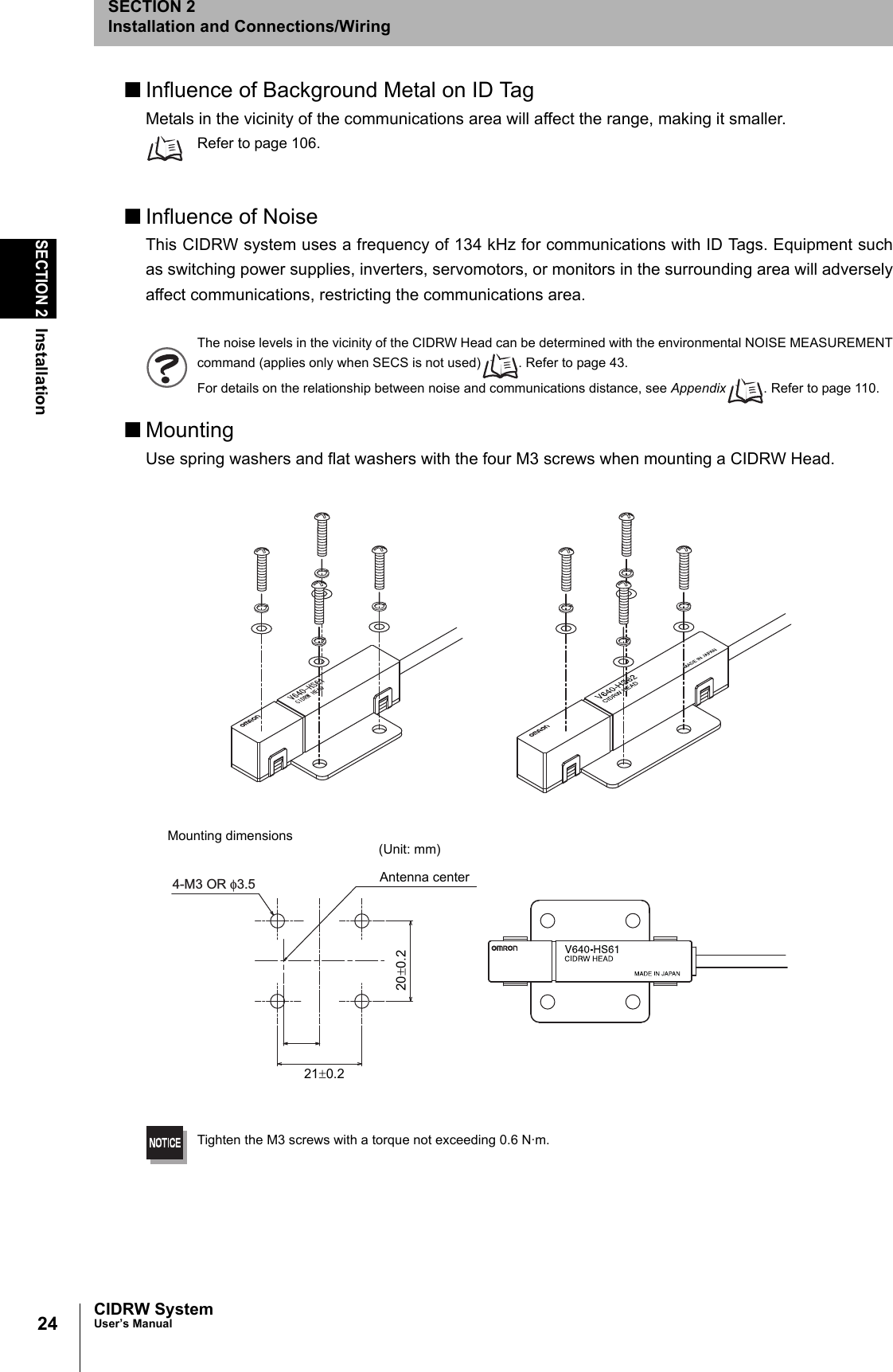

24SECTION 2InstallationCIDRW SystemUser’s ManualSECTION 2Installation and Connections/Wiring■Influence of Background Metal on ID TagMetals in the vicinity of the communications area will affect the range, making it smaller.Refer to page 106.■Influence of NoiseThis CIDRW system uses a frequency of 134 kHz for communications with ID Tags. Equipment suchas switching power supplies, inverters, servomotors, or monitors in the surrounding area will adverselyaffect communications, restricting the communications area.The noise levels in the vicinity of the CIDRW Head can be determined with the environmental NOISE MEASUREMENTcommand (applies only when SECS is not used) . Refer to page 43.For details on the relationship between noise and communications distance, see Appendix . Refer to page 110.■MountingUse spring washers and flat washers with the four M3 screws when mounting a CIDRW Head.Tighten the M3 screws with a torque not exceeding 0.6 N·m.4-M3 OR φ3.5Mounting dimensions (Unit: mm)Antenna center21±0.220±0.2

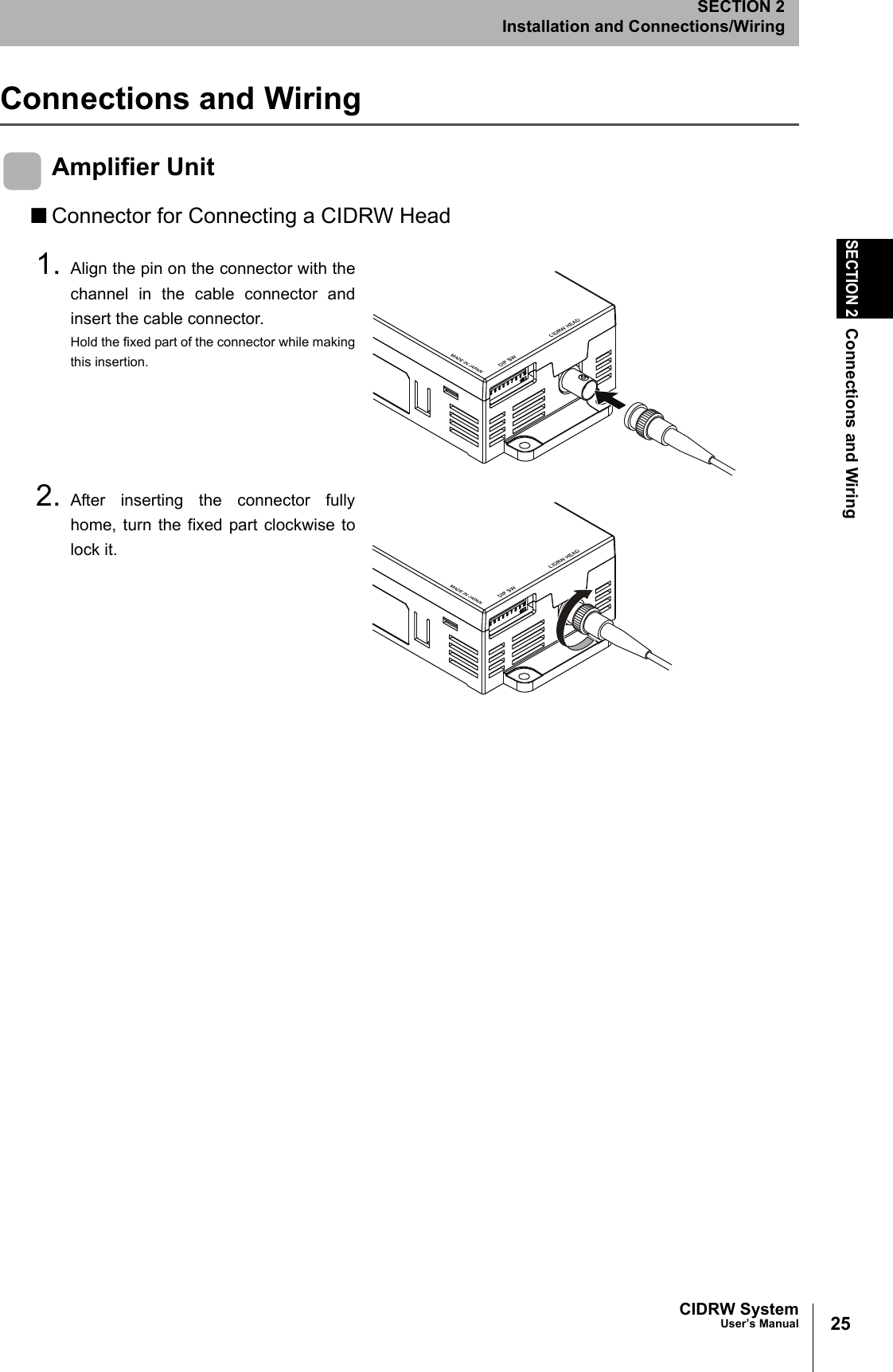

25CIDRW SystemUser’s ManualSECTION 2Connections and WiringSECTION 2Installation and Connections/WiringConnections and WiringAmplifier Unit■Connector for Connecting a CIDRW Head1. Align the pin on the connector with thechannel in the cable connector andinsert the cable connector.Hold the fixed part of the connector while makingthis insertion.2. After inserting the connector fullyhome, turn the fixed part clockwise tolock it.

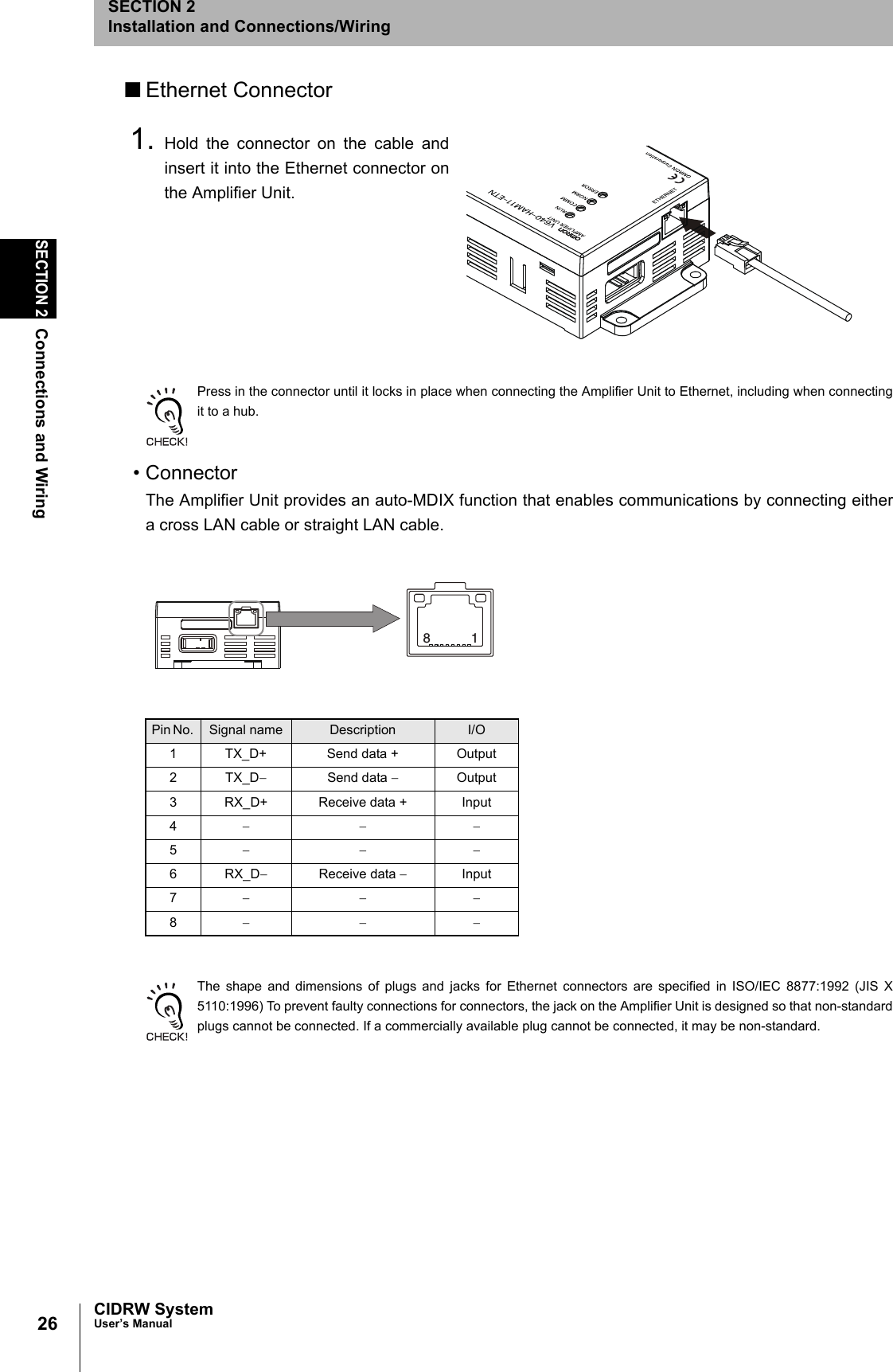

26SECTION 2Connections and WiringCIDRW SystemUser’s ManualSECTION 2Installation and Connections/Wiring■Ethernet Connector1. Hold the connector on the cable andinsert it into the Ethernet connector onthe Amplifier Unit. Press in the connector until it locks in place when connecting the Amplifier Unit to Ethernet, including when connectingit to a hub. • ConnectorThe Amplifier Unit provides an auto-MDIX function that enables communications by connecting eithera cross LAN cable or straight LAN cable. The shape and dimensions of plugs and jacks for Ethernet connectors are specified in ISO/IEC 8877:1992 (JIS X5110:1996) To prevent faulty connections for connectors, the jack on the Amplifier Unit is designed so that non-standardplugs cannot be connected. If a commercially available plug cannot be connected, it may be non-standard. Pin No. Signal name Description I/O1 TX_D+ Send data + Output2TX_D−Send data −Output3 RX_D+ Receive data + Input4−−−5−−−6RX_D−Receive data −Input7−−−8−−−18

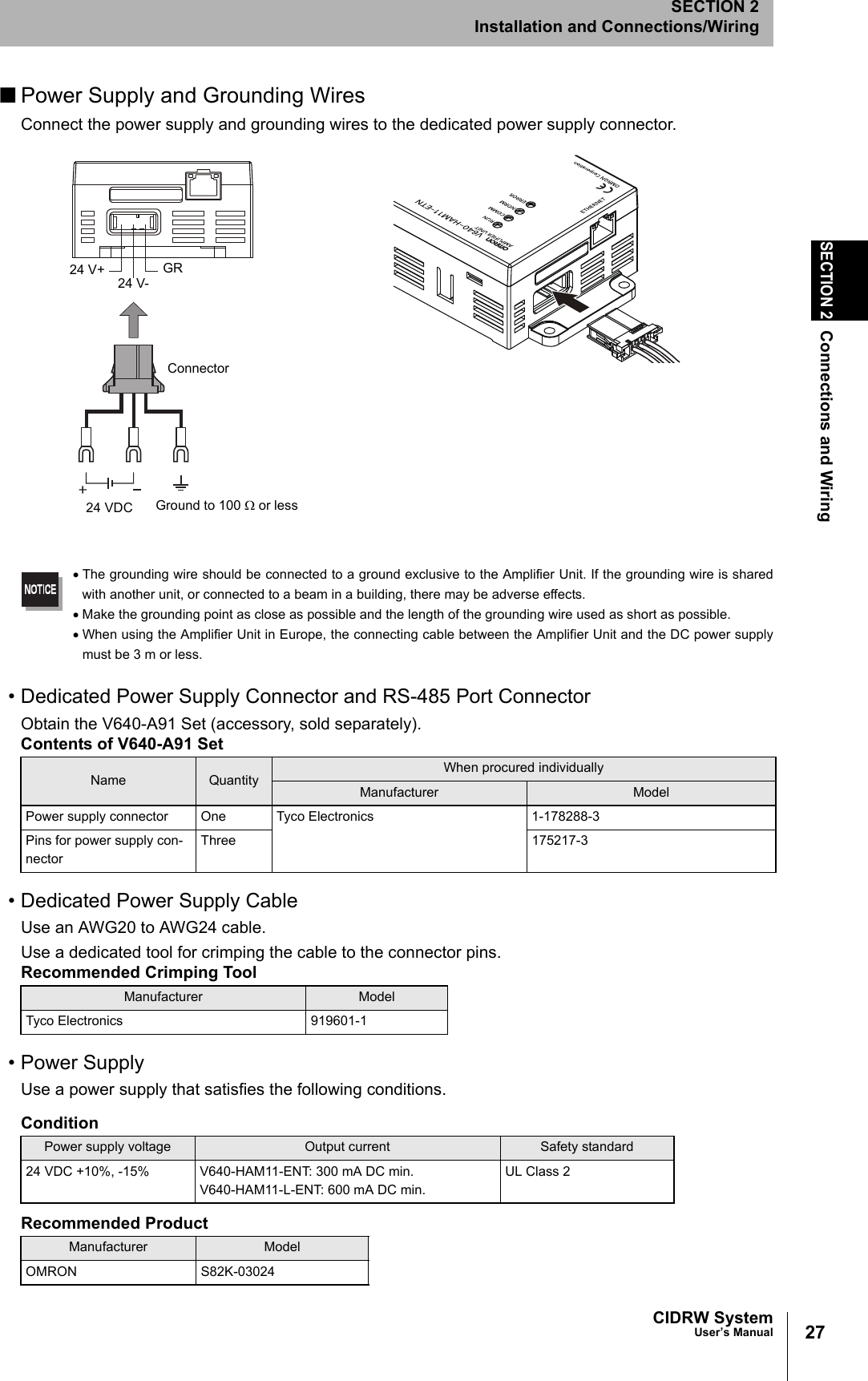

27CIDRW SystemUser’s ManualSECTION 2Connections and WiringSECTION 2Installation and Connections/Wiring■Power Supply and Grounding WiresConnect the power supply and grounding wires to the dedicated power supply connector.•The grounding wire should be connected to a ground exclusive to the Amplifier Unit. If the grounding wire is sharedwith another unit, or connected to a beam in a building, there may be adverse effects.•Make the grounding point as close as possible and the length of the grounding wire used as short as possible.•When using the Amplifier Unit in Europe, the connecting cable between the Amplifier Unit and the DC power supplymust be 3 m or less.• Dedicated Power Supply Connector and RS-485 Port ConnectorObtain the V640-A91 Set (accessory, sold separately). • Dedicated Power Supply CableUse an AWG20 to AWG24 cable.Use a dedicated tool for crimping the cable to the connector pins.• Power Supply Use a power supply that satisfies the following conditions.Contents of V640-A91 SetName Quantity When procured individuallyManufacturer ModelPower supply connector One Tyco Electronics 1-178288-3Pins for power supply con-nectorThree 175217-3Recommended Crimping ToolManufacturer ModelTyco Electronics 919601-1ConditionPower supply voltage Output current Safety standard24 VDC +10%, -15% V640-HAM11-ENT: 300 mA DC min. V640-HAM11-L-ENT: 600 mA DC min. UL Class 2Recommended ProductManufacturer ModelOMRON S82K-0302424 V+ 24 V-GR24 VDC Ground to 100 Ω or lessConnector
28SECTION 2Connections and WiringCIDRW SystemUser’s ManualSECTION 2Installation and Connections/WiringMEMO

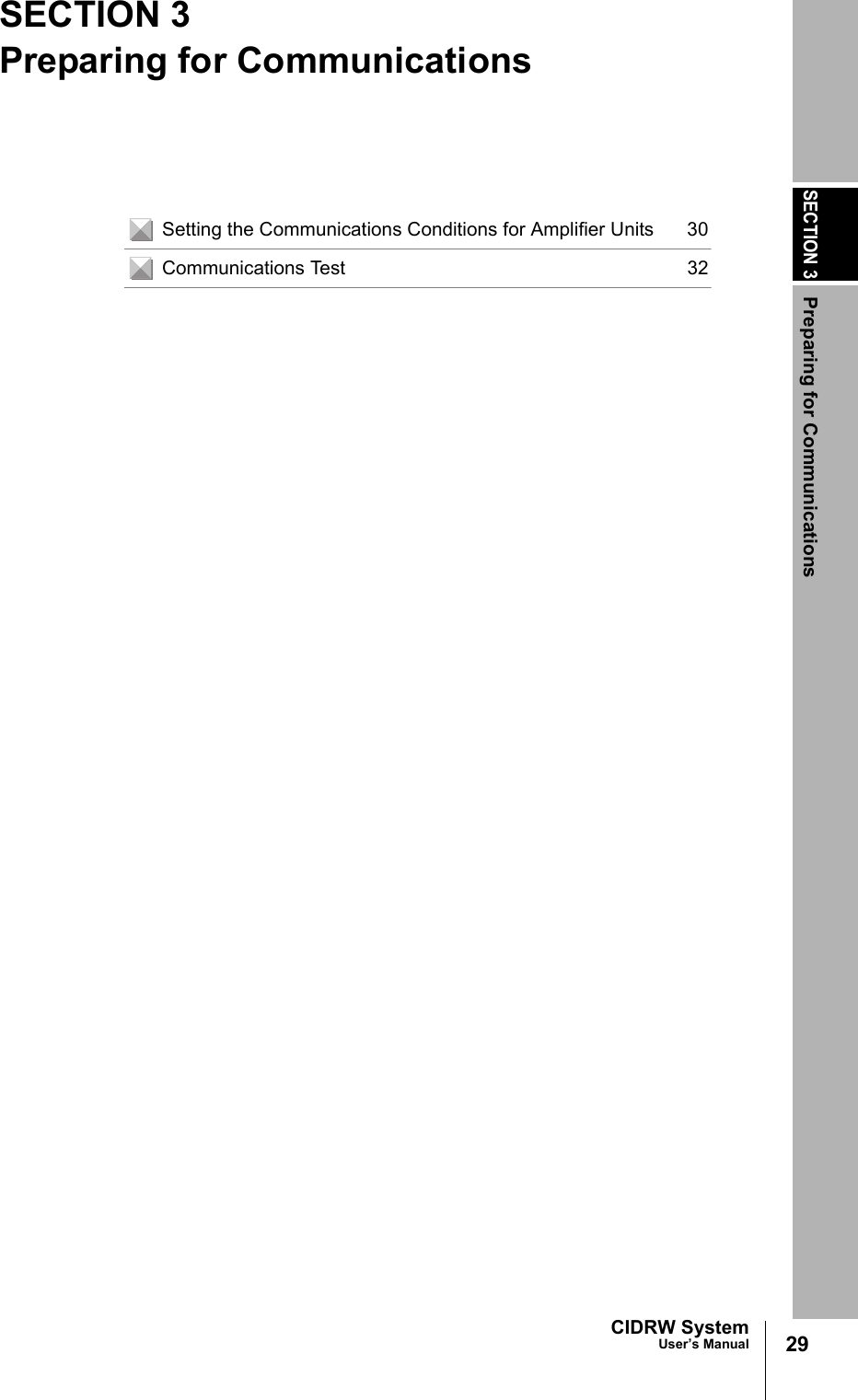

SECTION 3Preparing for Communications29CIDRW SystemUser’s ManualSECTION 3Preparing for CommunicationsSetting the Communications Conditions for Amplifier Units 30Communications Test 32

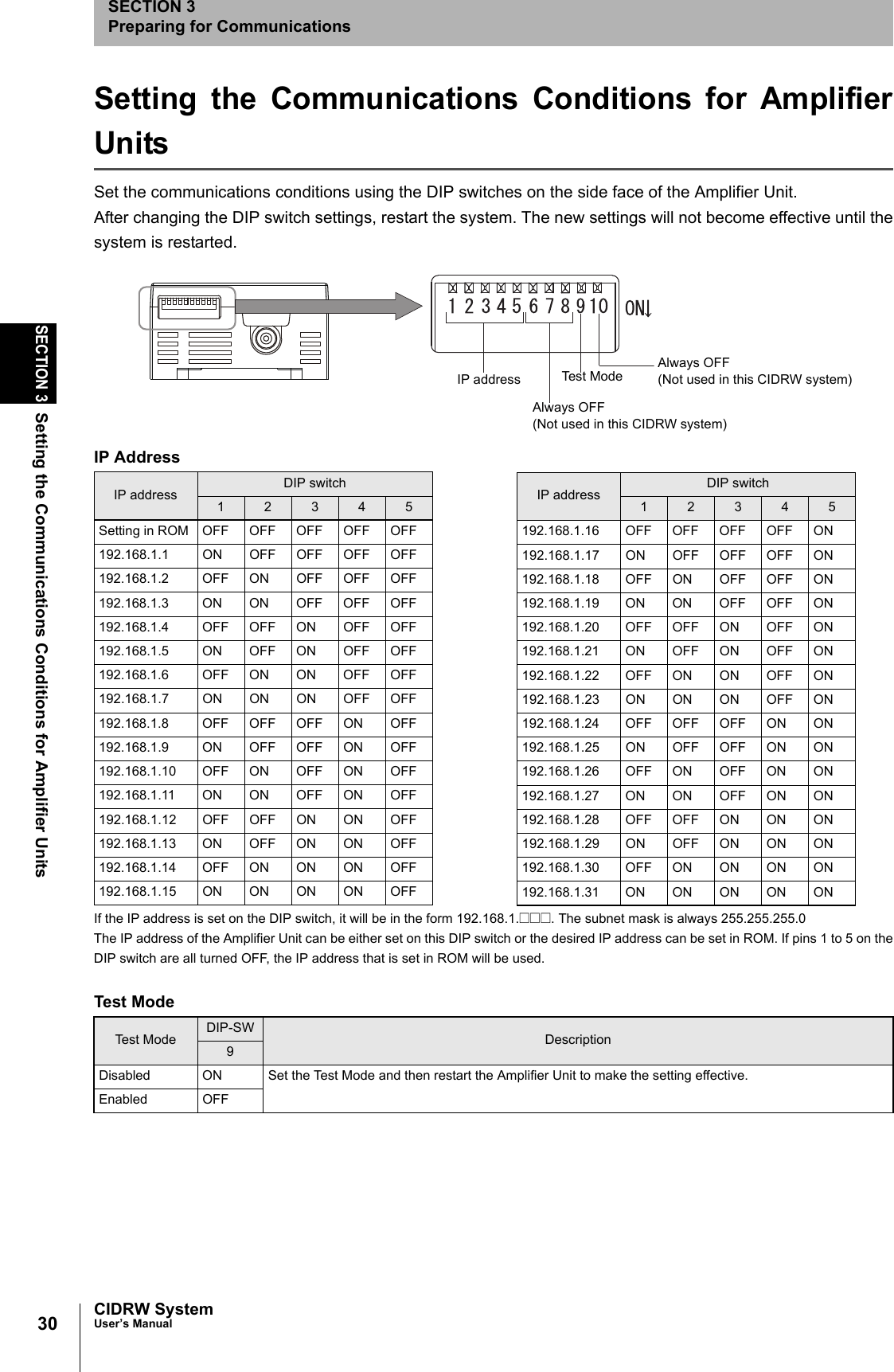

30SECTION 3Setting the Communications Conditions for Amplifier UnitsCIDRW SystemUser’s ManualSECTION 3Preparing for CommunicationsSetting the Communications Conditions for AmplifierUnitsSet the communications conditions using the DIP switches on the side face of the Amplifier Unit.After changing the DIP switch settings, restart the system. The new settings will not become effective until thesystem is restarted. Test ModeTest Mode DIP-SW Description9Disabled ON Set the Test Mode and then restart the Amplifier Unit to make the setting effective. Enabled OFFIP addressAlways OFF(Not used in this CIDRW system)Test Mode Always OFF(Not used in this CIDRW system)IP AddressIP address DIP switch1 2 3 4 5Setting in ROM OFF OFF OFF OFF OFF192.168.1.1 ON OFF OFF OFF OFF192.168.1.2 OFF ON OFF OFF OFF192.168.1.3 ON ON OFF OFF OFF192.168.1.4 OFF OFF ON OFF OFF192.168.1.5 ON OFF ON OFF OFF192.168.1.6 OFF ON ON OFF OFF192.168.1.7 ON ON ON OFF OFF192.168.1.8 OFF OFF OFF ON OFF192.168.1.9 ON OFF OFF ON OFF192.168.1.10 OFF ON OFF ON OFF192.168.1.11 ON ON OFF ON OFF192.168.1.12 OFF OFF ON ON OFF192.168.1.13 ON OFF ON ON OFF192.168.1.14 OFF ON ON ON OFF192.168.1.15 ON ON ON ON OFFIP address DIP switch1 2 3 4 5192.168.1.16 OFF OFF OFF OFF ON192.168.1.17 ON OFF OFF OFF ON192.168.1.18 OFF ON OFF OFF ON192.168.1.19 ON ON OFF OFF ON192.168.1.20 OFF OFF ON OFF ON192.168.1.21 ON OFF ON OFF ON192.168.1.22 OFF ON ON OFF ON192.168.1.23 ON ON ON OFF ON192.168.1.24 OFF OFF OFF ON ON192.168.1.25 ON OFF OFF ON ON192.168.1.26 OFF ON OFF ON ON192.168.1.27 ON ON OFF ON ON192.168.1.28 OFF OFF ON ON ON192.168.1.29 ON OFF ON ON ON192.168.1.30 OFF ON ON ON ON192.168.1.31 ON ON ON ON ONIf the IP address is set on the DIP switch, it will be in the form 192.168.1.@@@. The subnet mask is always 255.255.255.0The IP address of the Amplifier Unit can be either set on this DIP switch or the desired IP address can be set in ROM. If pins 1 to 5 on theDIP switch are all turned OFF, the IP address that is set in ROM will be used.

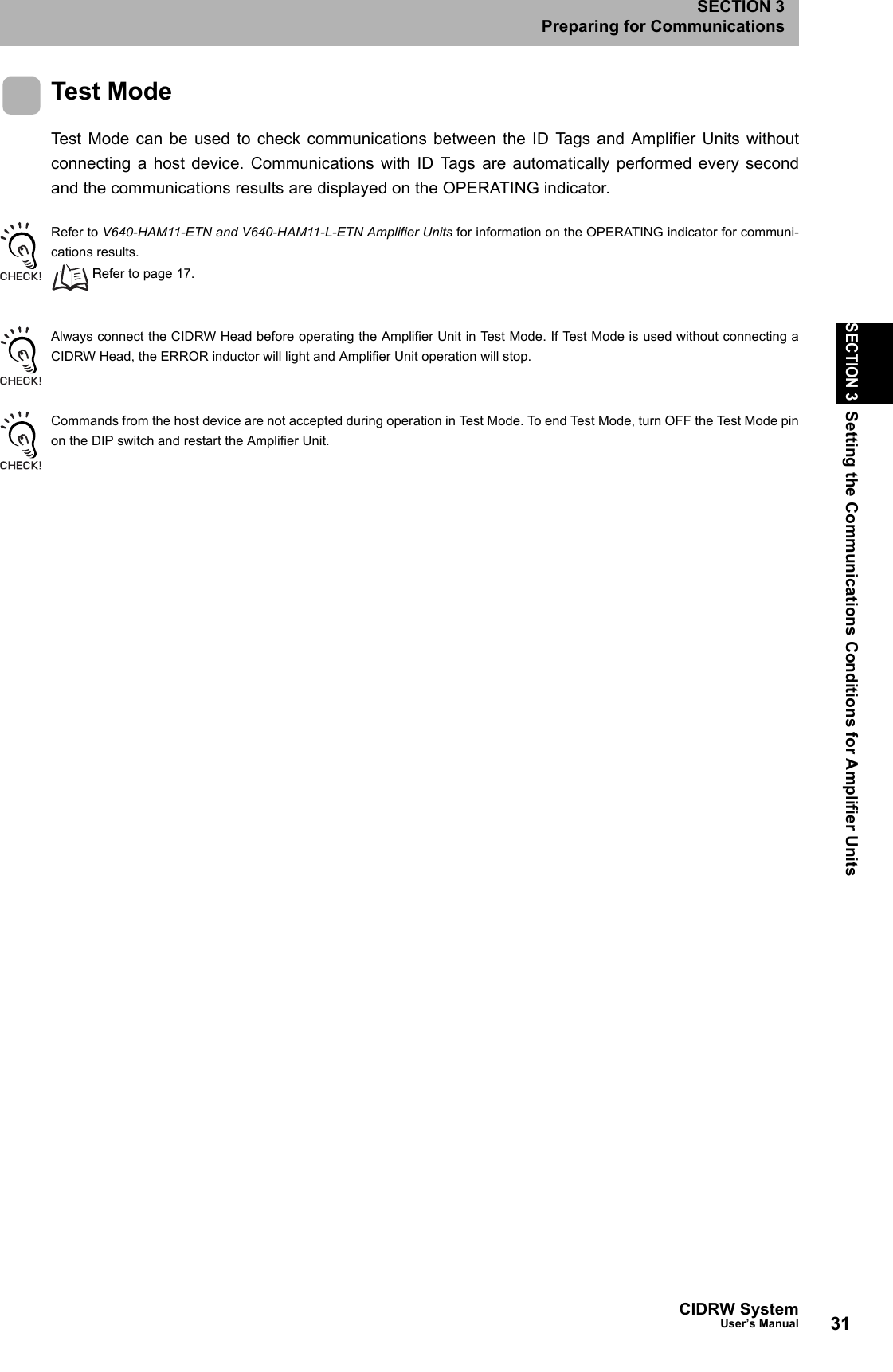

31CIDRW SystemUser’s ManualSECTION 3Setting the Communications Conditions for Amplifier UnitsSECTION 3Preparing for CommunicationsTest ModeTest Mode can be used to check communications between the ID Tags and Amplifier Units withoutconnecting a host device. Communications with ID Tags are automatically performed every secondand the communications results are displayed on the OPERATING indicator. Refer to V640-HAM11-ETN and V640-HAM11-L-ETN Amplifier Units for information on the OPERATING indicator for communi-cations results. Refer to page 17.Always connect the CIDRW Head before operating the Amplifier Unit in Test Mode. If Test Mode is used without connecting aCIDRW Head, the ERROR inductor will light and Amplifier Unit operation will stop. Commands from the host device are not accepted during operation in Test Mode. To end Test Mode, turn OFF the Test Mode pinon the DIP switch and restart the Amplifier Unit.

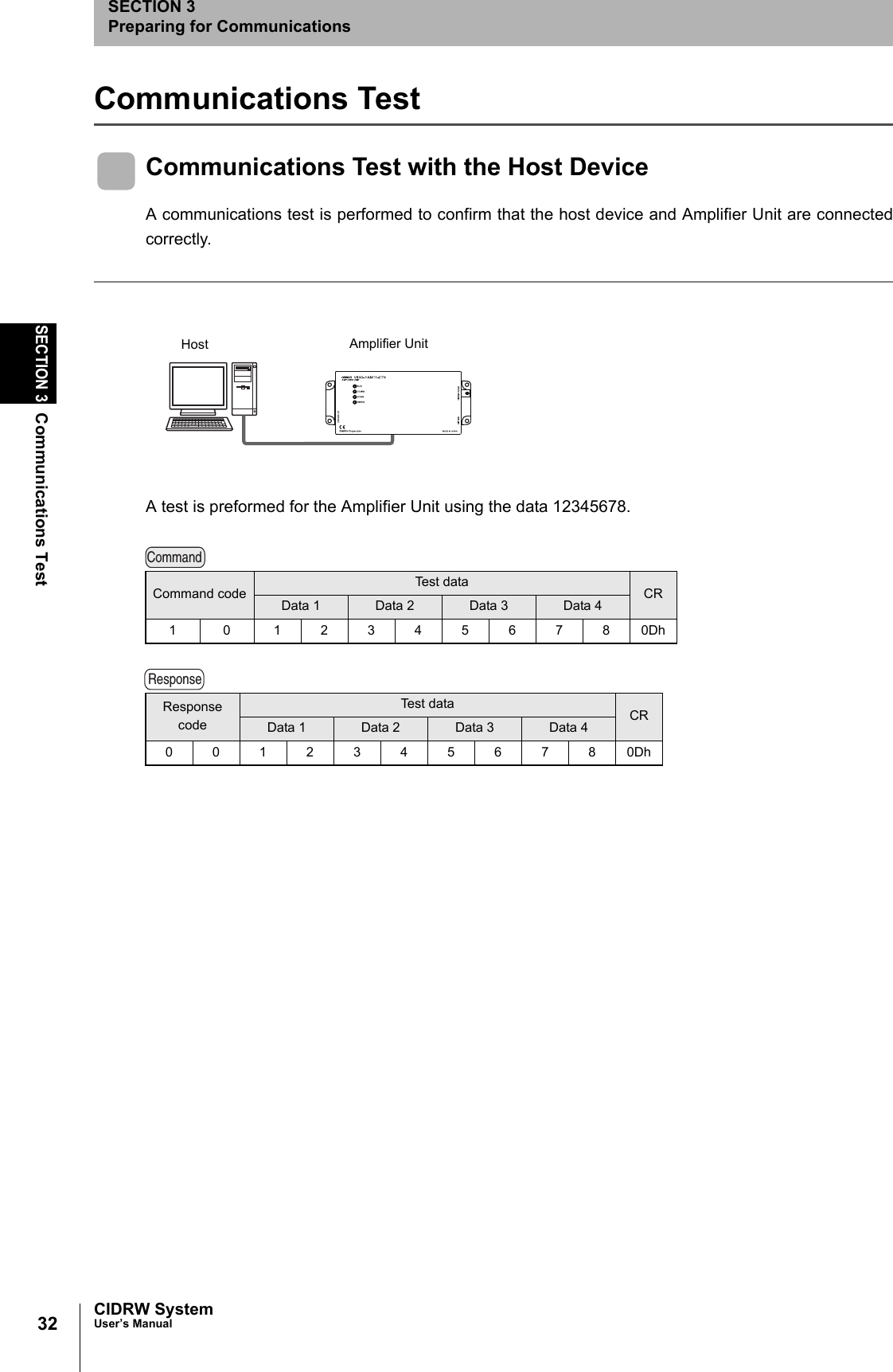

32SECTION 3Communications TestCIDRW SystemUser’s ManualSECTION 3Preparing for CommunicationsCommunications TestCommunications Test with the Host DeviceA communications test is performed to confirm that the host device and Amplifier Unit are connectedcorrectly. A test is preformed for the Amplifier Unit using the data 12345678.Command code Test data CRData 1 Data 2 Data 3 Data 41 0 123456780DhResponse codeTest data CRData 1 Data 2 Data 3 Data 400123456780DhHost Amplifier UnitCommandResponse

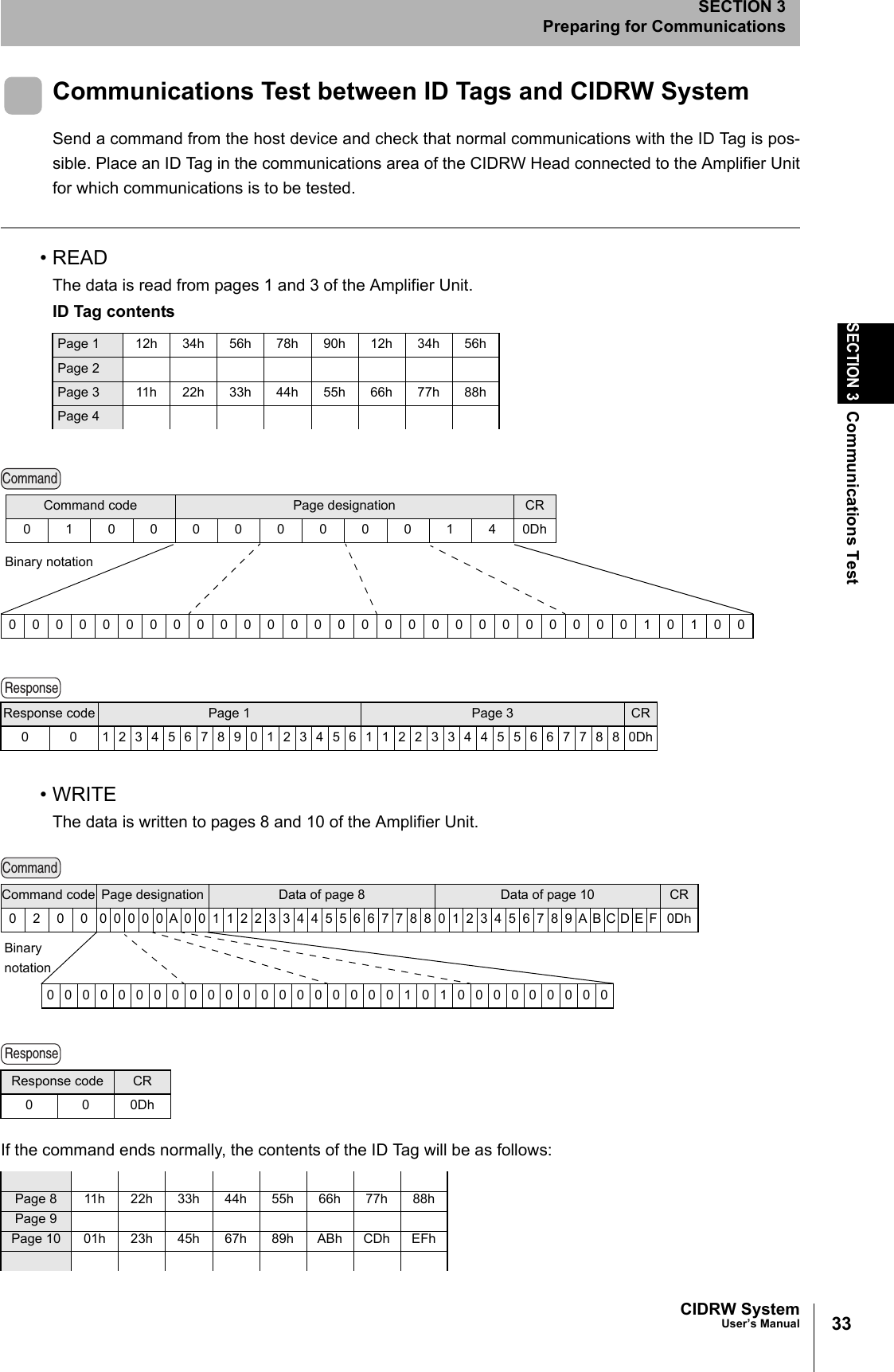

33CIDRW SystemUser’s ManualSECTION 3Communications TestSECTION 3Preparing for CommunicationsCommunications Test between ID Tags and CIDRW SystemSend a command from the host device and check that normal communications with the ID Tag is pos-sible. Place an ID Tag in the communications area of the CIDRW Head connected to the Amplifier Unitfor which communications is to be tested. • READThe data is read from pages 1 and 3 of the Amplifier Unit. •WRITEThe data is written to pages 8 and 10 of the Amplifier Unit. If the command ends normally, the contents of the ID Tag will be as follows: ID Tag contentsPage 1 12h 34h 56h 78h 90h 12h 34h 56hPage 2Page 3 11h 22h 33h 44h 55h 66h 77h 88hPage 4Response code Page 1 Page 3 CR0 0 123456789012345611223344556677880DhResponse code CR000DhPage 8 11h 22h 33h 44h 55h 66h 77h 88hPage 9Page 10 01h 23h 45h 67h 89h ABh CDh EFhCommand00000000000000000000000000010100Binary notationCommand code Page designation CR0100000000140DhResponseCommand00000000000000000000101000000000Command code Page designation Data of page 8 Data of page 10 CR0 2 0 0 00000A0011223344556677880123456789ABCDEF 0DhBinarynotationResponse
34SECTION 3Communications TestCIDRW SystemUser’s ManualSECTION 3Preparing for CommunicationsMEMO

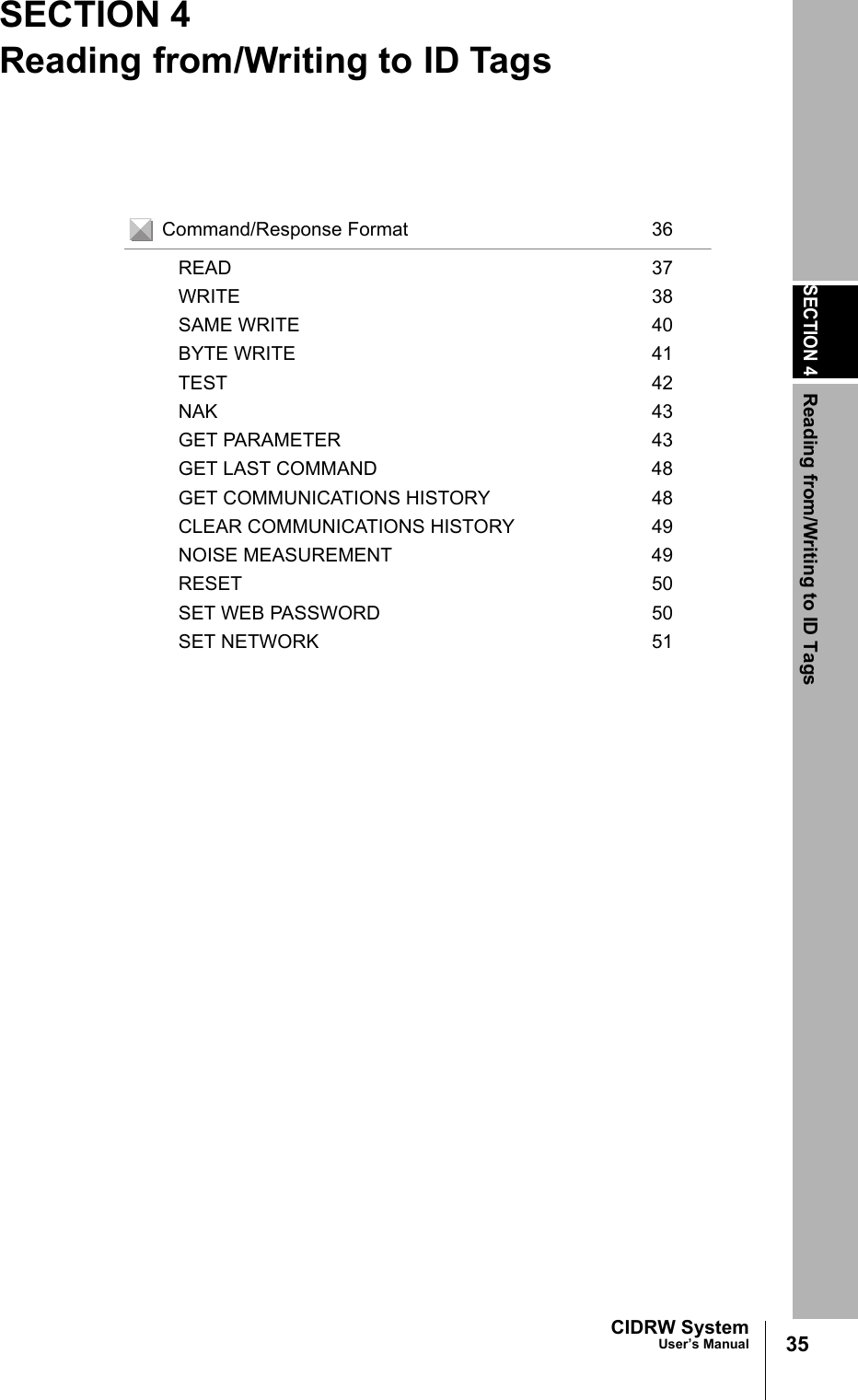

SECTION 4Reading from/Writing to ID Tags35CIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID TagsCommand/Response Format 36READ 37WRITE 38SAME WRITE 40BYTE WRITE 41TEST 42NAK 43GET PARAMETER 43GET LAST COMMAND 48GET COMMUNICATIONS HISTORY 48CLEAR COMMUNICATIONS HISTORY 49NOISE MEASUREMENT 49RESET 50SET WEB PASSWORD 50SET NETWORK 51

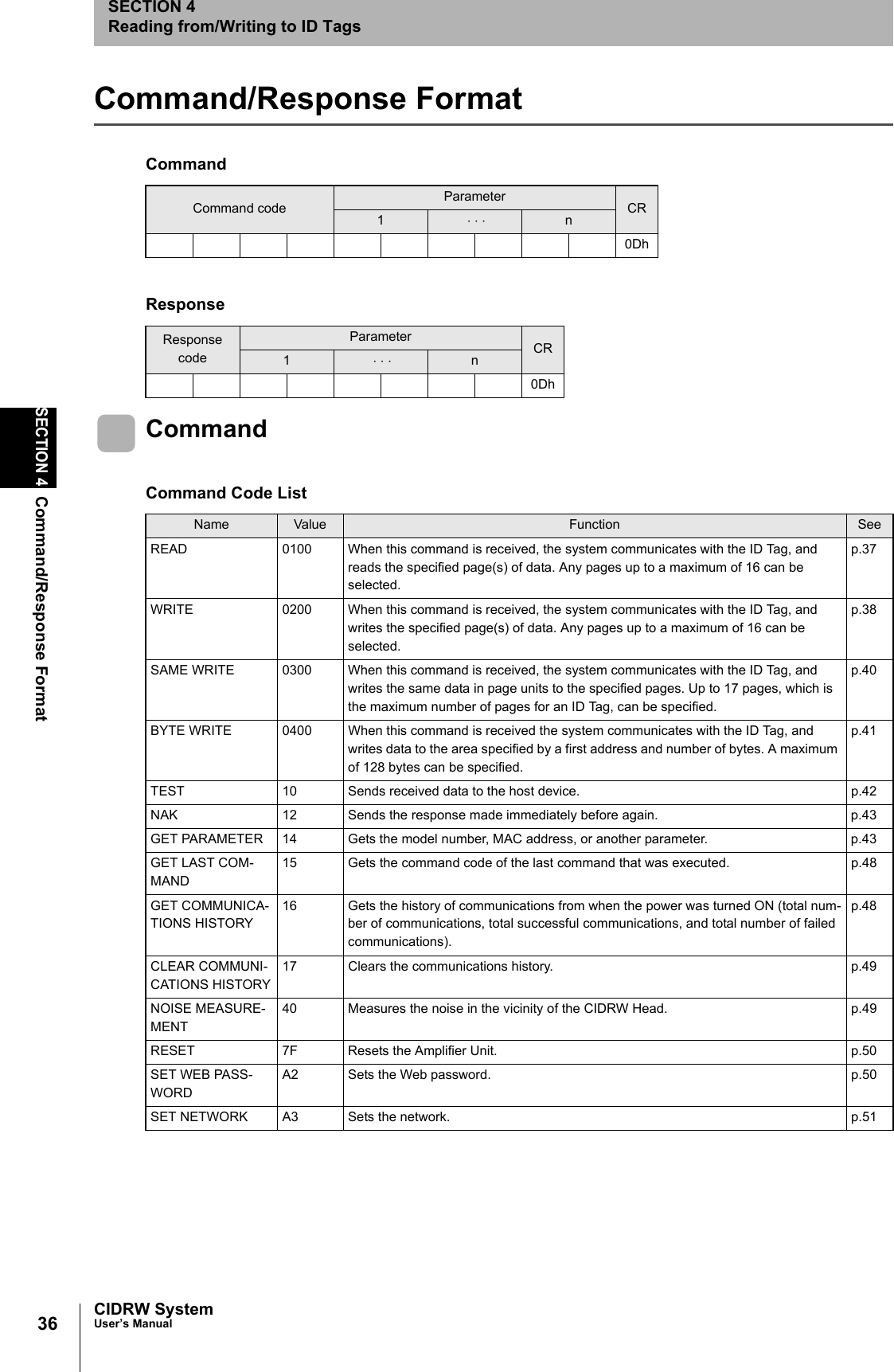

36SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID TagsCommand/Response FormatCommandCommandCommand code Parameter CR1 ⋅ ⋅ ⋅ n0DhResponseResponse codeParameter CR1 ⋅ ⋅ ⋅ n0DhCommand Code ListName Value Function SeeREAD 0100 When this command is received, the system communicates with the ID Tag, and reads the specified page(s) of data. Any pages up to a maximum of 16 can be selected.p.37WRITE 0200 When this command is received, the system communicates with the ID Tag, and writes the specified page(s) of data. Any pages up to a maximum of 16 can be selected.p.38SAME WRITE 0300 When this command is received, the system communicates with the ID Tag, and writes the same data in page units to the specified pages. Up to 17 pages, which is the maximum number of pages for an ID Tag, can be specified.p.40BYTE WRITE 0400 When this command is received the system communicates with the ID Tag, and writes data to the area specified by a first address and number of bytes. A maximum of 128 bytes can be specified.p.41TEST 10 Sends received data to the host device. p.42NAK 12 Sends the response made immediately before again. p.43GET PARAMETER 14 Gets the model number, MAC address, or another parameter. p.43GET LAST COM-MAND15 Gets the command code of the last command that was executed. p.48GET COMMUNICA-TIONS HISTORY16 Gets the history of communications from when the power was turned ON (total num-ber of communications, total successful communications, and total number of failed communications). p.48CLEAR COMMUNI-CATIONS HISTORY17 Clears the communications history. p.49NOISE MEASURE-MENT40 Measures the noise in the vicinity of the CIDRW Head. p.49RESET 7F Resets the Amplifier Unit. p.50SET WEB PASS-WORDA2 Sets the Web password. p.50SET NETWORK A3 Sets the network. p.51

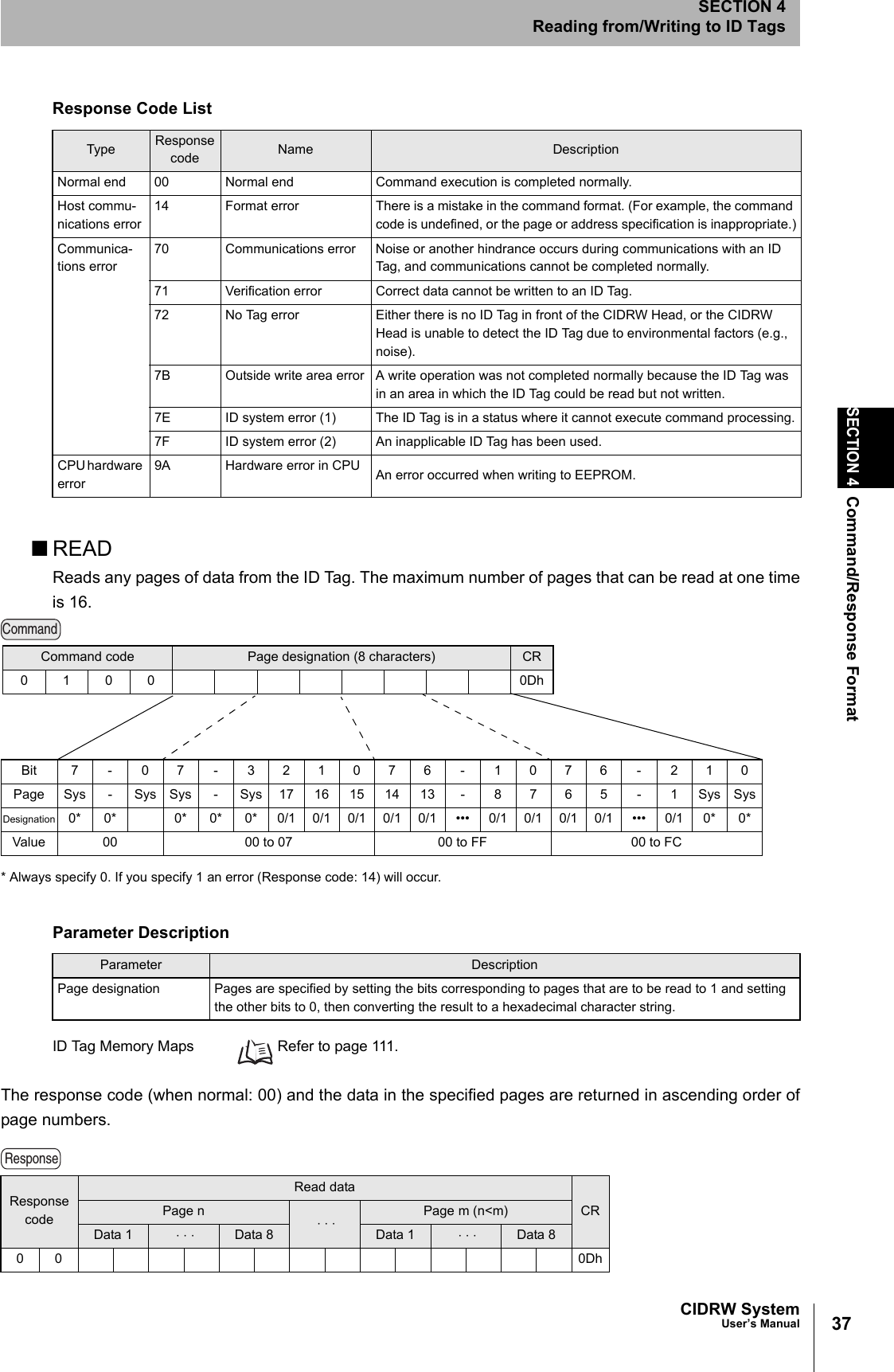

37CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID Tags■READReads any pages of data from the ID Tag. The maximum number of pages that can be read at one timeis 16.ID Tag Memory Maps Refer to page 111.The response code (when normal: 00) and the data in the specified pages are returned in ascending order ofpage numbers.Response Code ListType Response code Name DescriptionNormal end 00 Normal end Command execution is completed normally.Host commu-nications error14 Format error There is a mistake in the command format. (For example, the command code is undefined, or the page or address specification is inappropriate.)Communica-tions error70 Communications error Noise or another hindrance occurs during communications with an ID Tag, and communications cannot be completed normally.71 Verification error Correct data cannot be written to an ID Tag.72 No Tag error Either there is no ID Tag in front of the CIDRW Head, or the CIDRW Head is unable to detect the ID Tag due to environmental factors (e.g., noise).7B Outside write area error A write operation was not completed normally because the ID Tag was in an area in which the ID Tag could be read but not written. 7E ID system error (1) The ID Tag is in a status where it cannot execute command processing.7F ID system error (2) An inapplicable ID Tag has been used.CPU hardware error9A Hardware error in CPU An error occurred when writing to EEPROM. Parameter DescriptionParameter DescriptionPage designation Pages are specified by setting the bits corresponding to pages that are to be read to 1 and setting the other bits to 0, then converting the result to a hexadecimal character string.Response codeRead dataCRPage n ⋅ ⋅ ⋅ Page m (n<m)Data 1 ⋅ ⋅ ⋅ Data 8 Data 1 ⋅ ⋅ ⋅ Data 800 0DhCommandBit 7-07-321076-1076-210Page Sys - Sys Sys - Sys 17 16 15 14 13 - 8 7 6 5 - 1 Sys SysDesignation 0* 0* 0* 0* 0* 0/1 0/1 0/1 0/1 0/1 ••• 0/1 0/1 0/1 0/1 ••• 0/1 0* 0*Value 00 00 to 07 00 to FF 00 to FC* Always specify 0. If you specify 1 an error (Response code: 14) will occur.Command code Page designation (8 characters) CR0100 0DhResponse

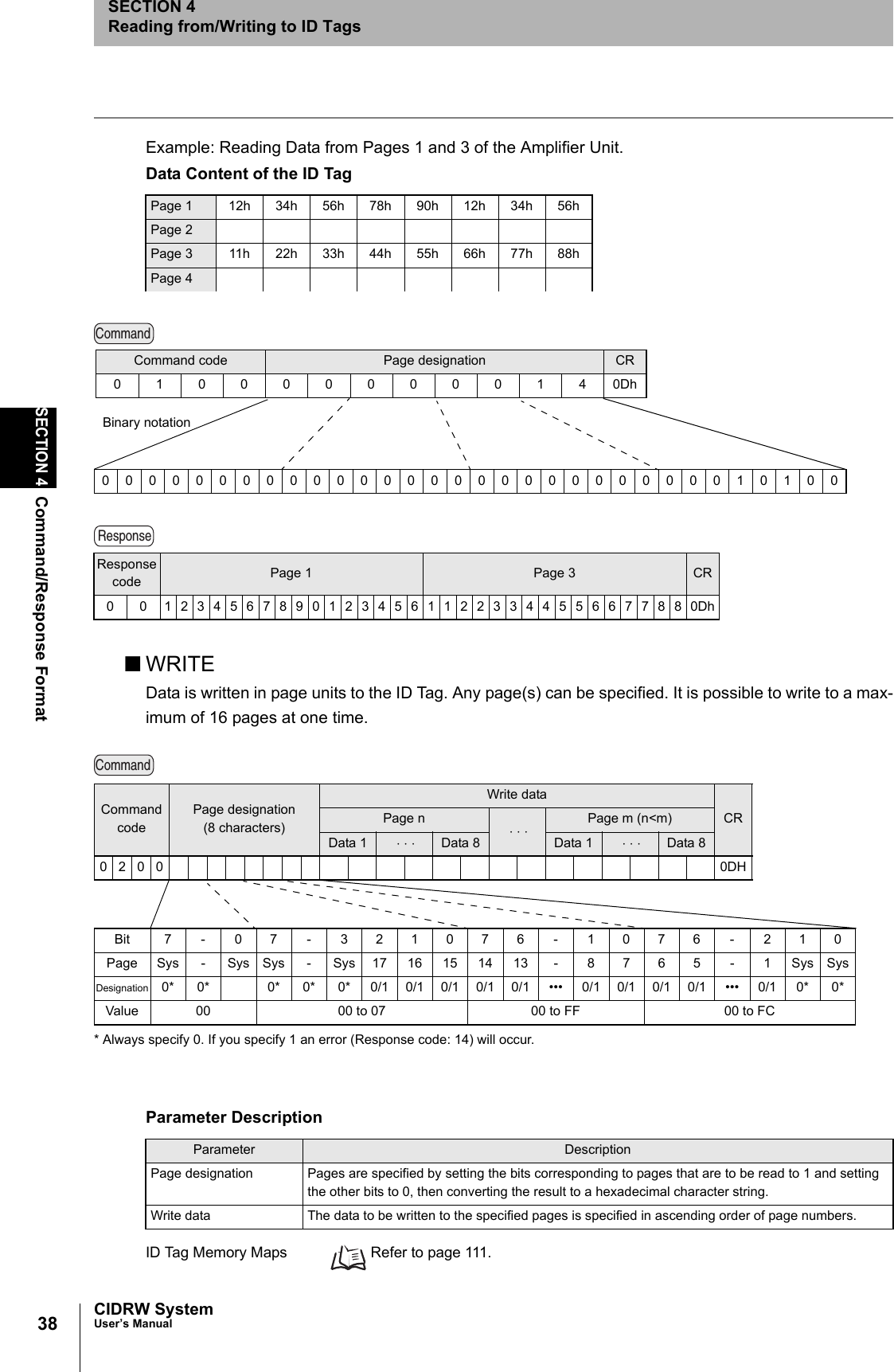

38SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID TagsExample: Reading Data from Pages 1 and 3 of the Amplifier Unit.■WRITEData is written in page units to the ID Tag. Any page(s) can be specified. It is possible to write to a max-imum of 16 pages at one time.ID Tag Memory Maps Refer to page 111.Data Content of the ID TagPage 1 12h 34h 56h 78h 90h 12h 34h 56hPage 2Page 3 11h 22h 33h 44h 55h 66h 77h 88hPage 4Response code Page 1 Page 3 CR0 0 123456789012345611223344556677880DhParameter DescriptionParameter DescriptionPage designation Pages are specified by setting the bits corresponding to pages that are to be read to 1 and setting the other bits to 0, then converting the result to a hexadecimal character string.Write data The data to be written to the specified pages is specified in ascending order of page numbers.Command00000000000000000000000000010100Binary notationCommand code Page designation CR0100000000140DhResponseCommandBit 7-07-321076-1076-210Page Sys - Sys Sys - Sys 17 16 15 14 13 - 8 7 6 5 - 1 Sys SysDesignation 0* 0* 0* 0* 0* 0/1 0/1 0/1 0/1 0/1 ••• 0/1 0/1 0/1 0/1 ••• 0/1 0* 0*Value 00 00 to 07 00 to FF 00 to FC* Always specify 0. If you specify 1 an error (Response code: 14) will occur.Command codePage designation(8 characters)Write dataCRPage n ⋅ ⋅ ⋅ Page m (n<m)Data 1 ⋅ ⋅ ⋅ Data 8 Data 1 ⋅ ⋅ ⋅ Data 80200 0DH
39CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID TagsThe response code (when normal: 00) is returned.Example: Writing Data to Pages 8 and 10 of the Amplifier UnitThe ID Tag status on normal completion is as shown below.Response code CR000DhResponse code CR000DhPage 8 11h 22h 33h 44h 55h 66h 77h 88hPage 9Page 10 01h 23h 45h 67h 89h ABh CDh EFhResponseCommand00000000000000000000101000000000Command codePage designation Data of page 8 Data of page 10 CR0 2 0 000000A0011223344556677880123456789ABCDEF 0DhBinarynotationResponse

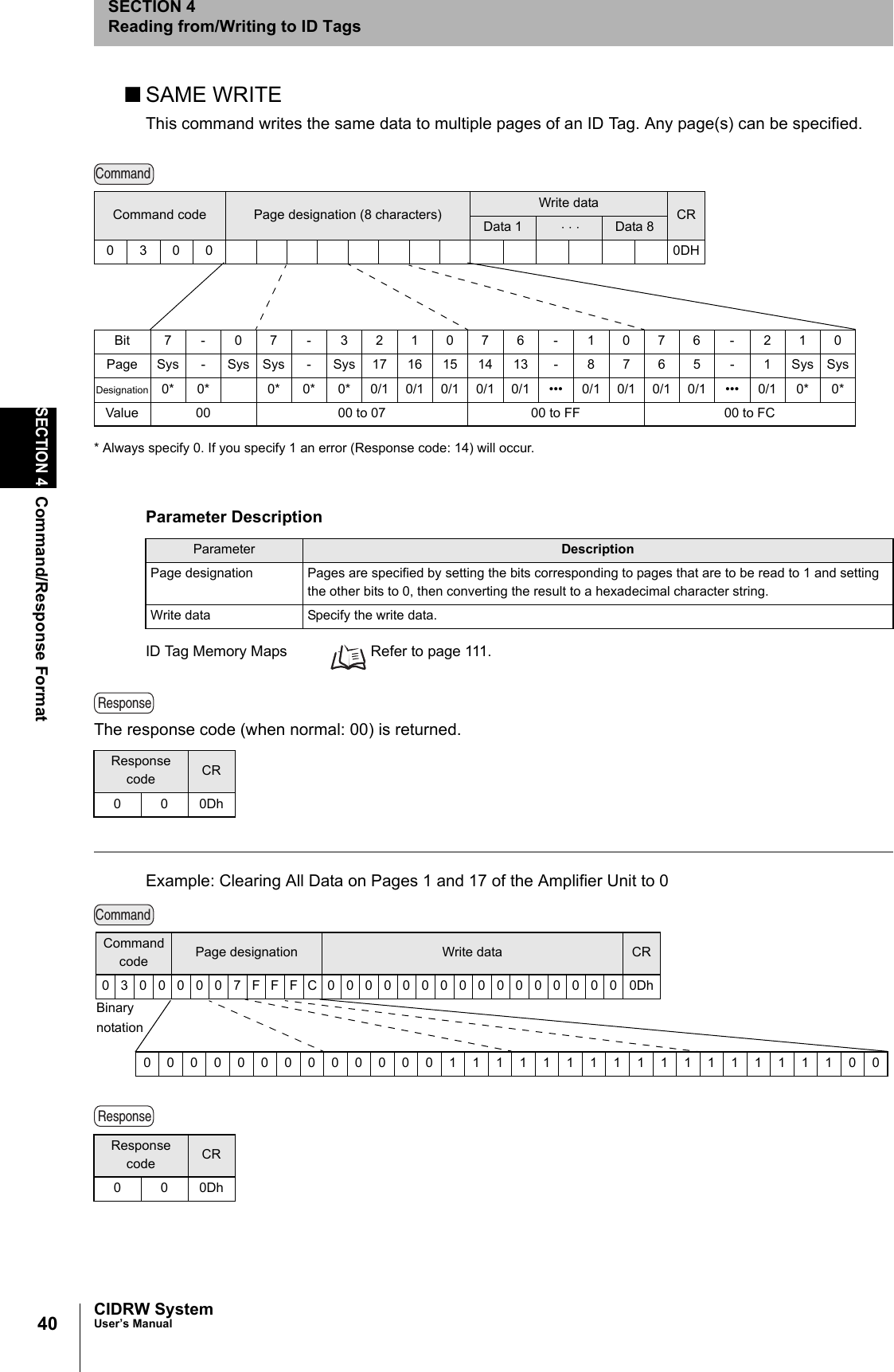

40SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID Tags■SAME WRITEThis command writes the same data to multiple pages of an ID Tag. Any page(s) can be specified.ID Tag Memory Maps Refer to page 111.The response code (when normal: 00) is returned.Example: Clearing All Data on Pages 1 and 17 of the Amplifier Unit to 0Parameter DescriptionParameter DescriptionPage designation Pages are specified by setting the bits corresponding to pages that are to be read to 1 and setting the other bits to 0, then converting the result to a hexadecimal character string.Write data Specify the write data.Response code CR000DhResponse code CR000DhCommandCommand code Page designation (8 characters) Write data CRData 1 ⋅ ⋅ ⋅ Data 80300 0DHBit 7-07-321076-1076-210Page Sys - Sys Sys - Sys 17 16 15 14 13 - 8 7 6 5 - 1 Sys SysDesignation 0* 0* 0* 0* 0* 0/1 0/1 0/1 0/1 0/1 ••• 0/1 0/1 0/1 0/1 ••• 0/1 0* 0*Value 00 00 to 07 00 to FF 00 to FC* Always specify 0. If you specify 1 an error (Response code: 14) will occur.ResponseCommand00000000000001111111111111111100BinarynotationCommand code Page designation Write data CR03000007FFFC00000000000000000DhResponse

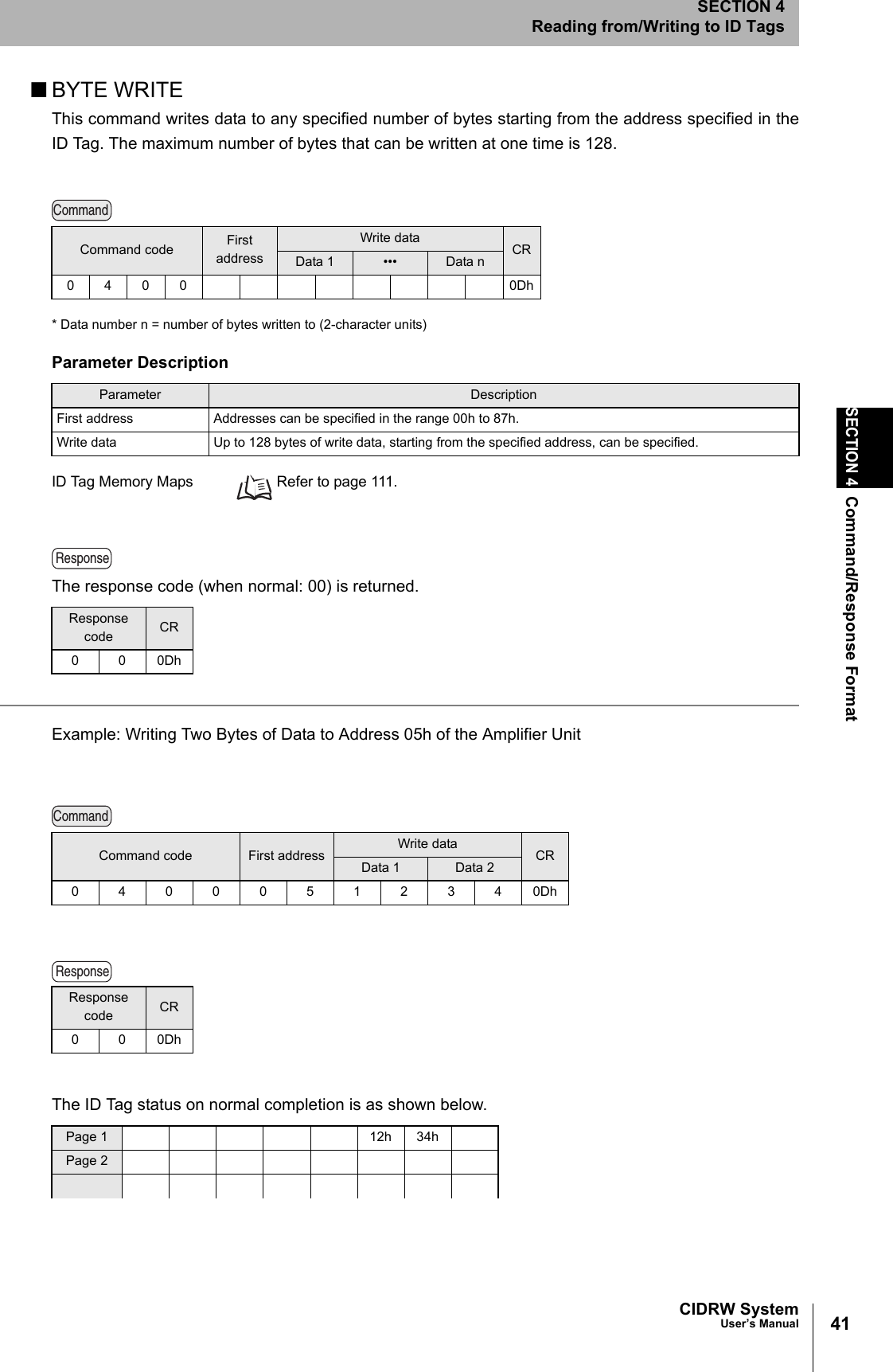

41CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID Tags■BYTE WRITEThis command writes data to any specified number of bytes starting from the address specified in theID Tag. The maximum number of bytes that can be written at one time is 128.* Data number n = number of bytes written to (2-character units)ID Tag Memory Maps Refer to page 111.The response code (when normal: 00) is returned.Example: Writing Two Bytes of Data to Address 05h of the Amplifier UnitThe ID Tag status on normal completion is as shown below.Command code First addressWrite data CRData 1 ••• Data n0400 0DhParameter DescriptionParameter DescriptionFirst address Addresses can be specified in the range 00h to 87h.Write data Up to 128 bytes of write data, starting from the specified address, can be specified.Response code CR000DhCommand code First address Write data CRData 1 Data 204000512340DhResponse code CR000DhPage 1 12h 34hPage 2CommandResponseCommandResponse

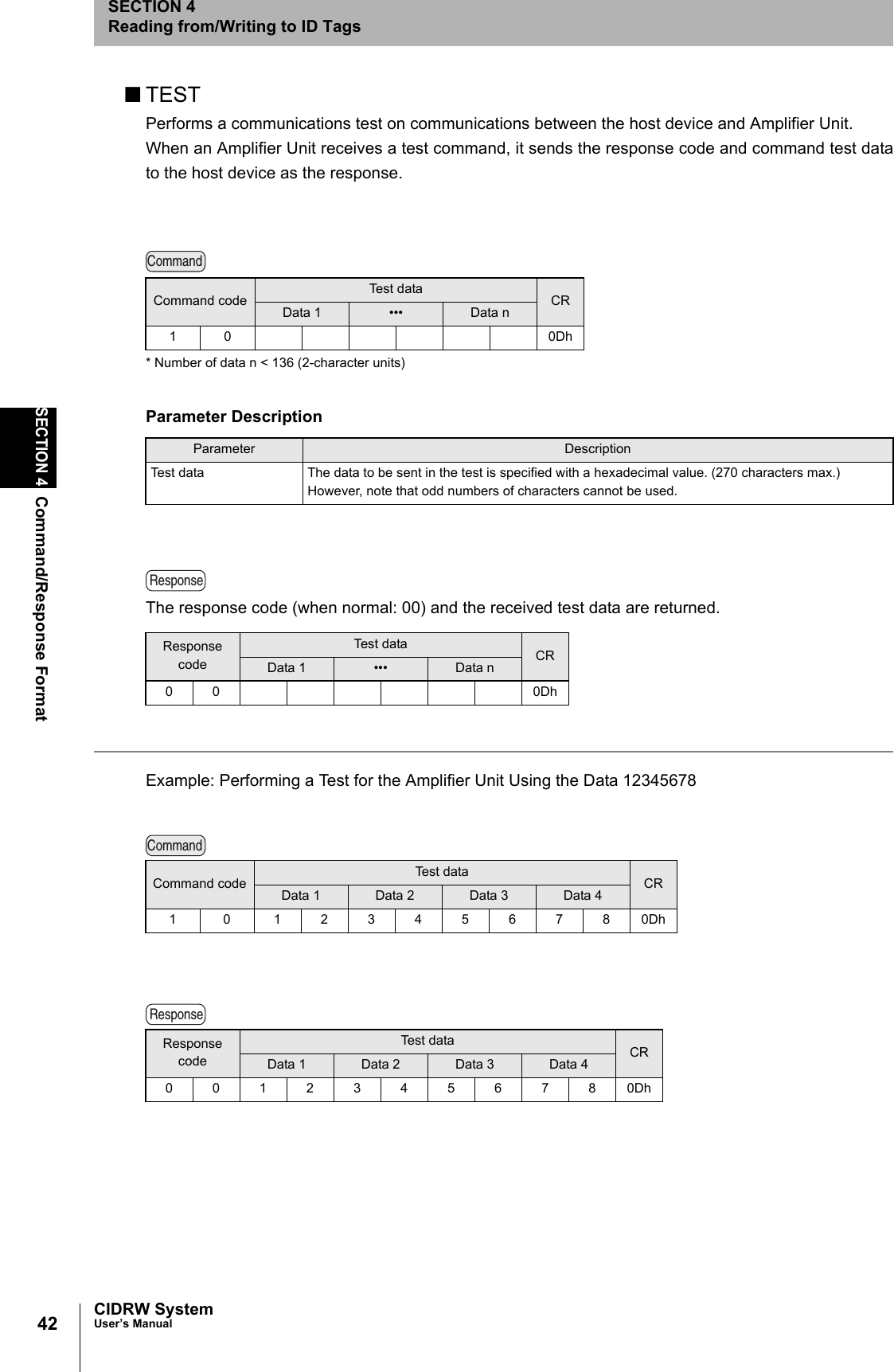

42SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID Tags■TESTPerforms a communications test on communications between the host device and Amplifier Unit.When an Amplifier Unit receives a test command, it sends the response code and command test datato the host device as the response.* Number of data n < 136 (2-character units)The response code (when normal: 00) and the received test data are returned.Example: Performing a Test for the Amplifier Unit Using the Data 12345678Command code Test data CRData 1 ••• Data n10 0DhParameter DescriptionParameter DescriptionTest data The data to be sent in the test is specified with a hexadecimal value. (270 characters max.)However, note that odd numbers of characters cannot be used.Response codeTest data CRData 1 ••• Data n00 0DhCommand code Test data CRData 1 Data 2 Data 3 Data 41 0 123456780DhResponse codeTest data CRData 1 Data 2 Data 3 Data 400123456780DhCommandResponseCommandResponse

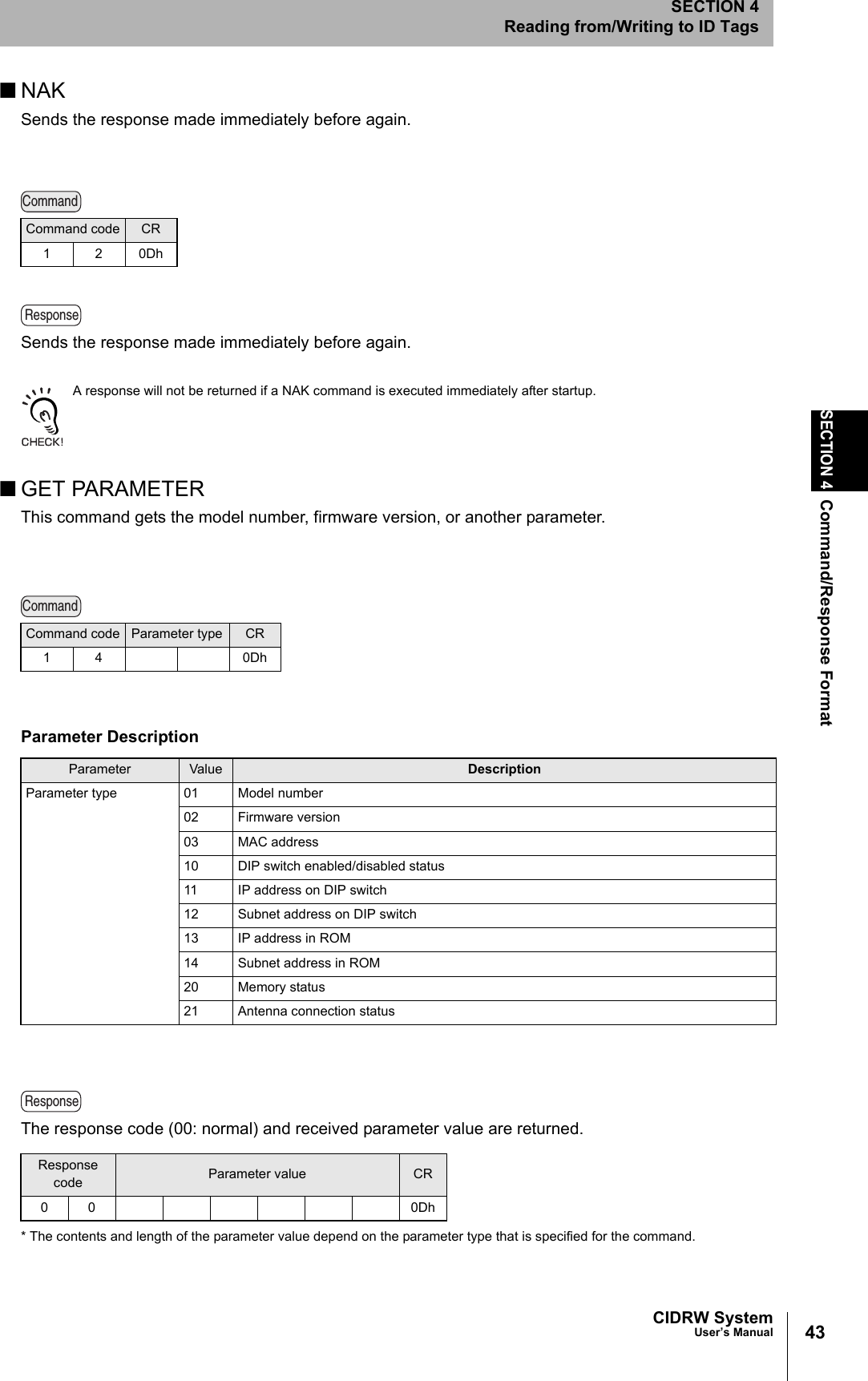

43CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID Tags■NAKSends the response made immediately before again.Sends the response made immediately before again.A response will not be returned if a NAK command is executed immediately after startup. ■GET PARAMETERThis command gets the model number, firmware version, or another parameter. The response code (00: normal) and received parameter value are returned.* The contents and length of the parameter value depend on the parameter type that is specified for the command. Command code CR120DhCommand code Parameter type CR14 0DhParameter DescriptionParameter Value DescriptionParameter type 01 Model number02 Firmware version03 MAC address10 DIP switch enabled/disabled status11 IP address on DIP switch12 Subnet address on DIP switch13 IP address in ROM14 Subnet address in ROM20 Memory status21 Antenna connection statusResponse code Parameter value CR00 0DhCommandResponseCommandResponse

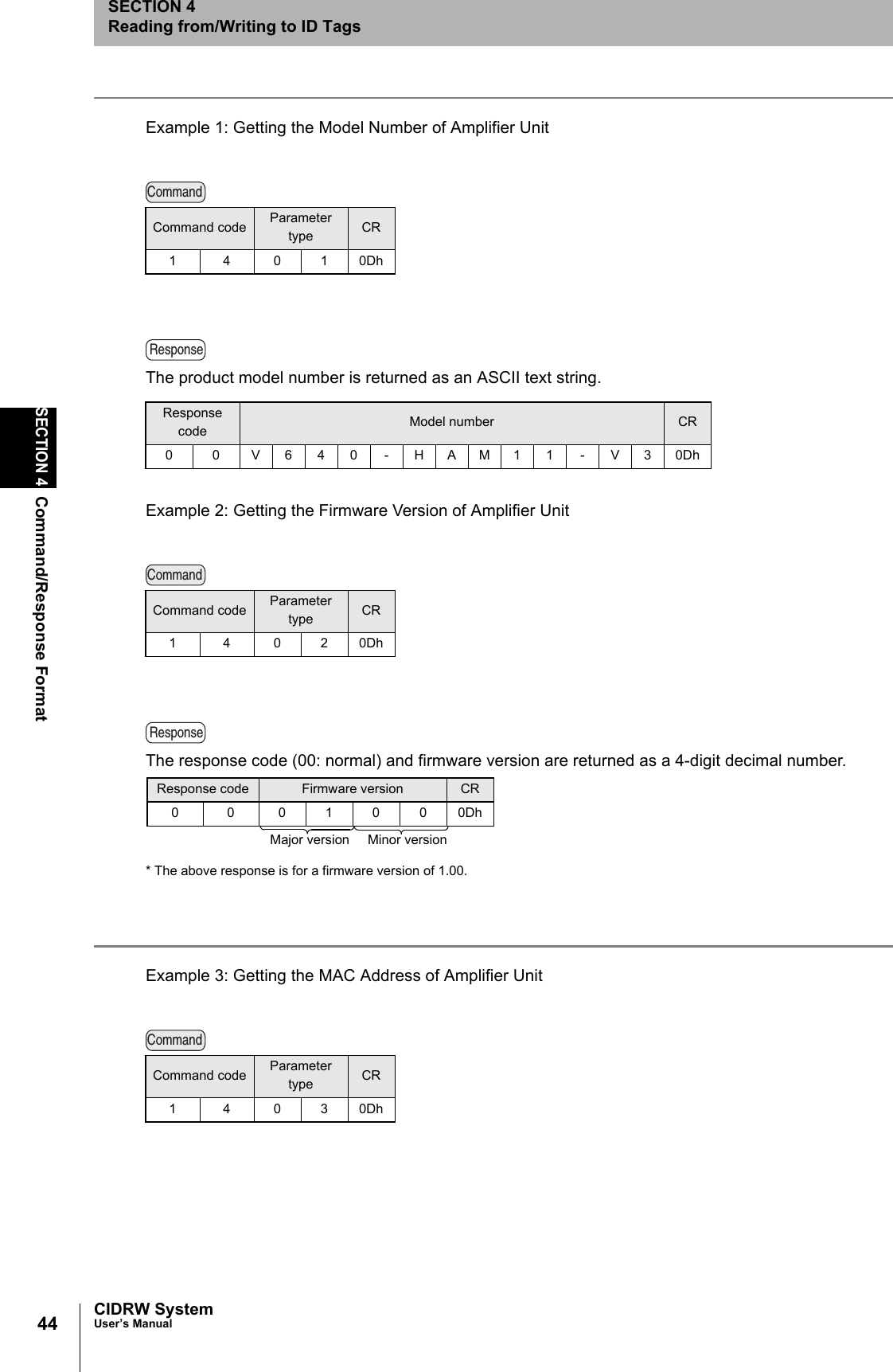

44SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID TagsExample 1: Getting the Model Number of Amplifier UnitThe product model number is returned as an ASCII text string. Example 2: Getting the Firmware Version of Amplifier UnitThe response code (00: normal) and firmware version are returned as a 4-digit decimal number.* The above response is for a firmware version of 1.00. Example 3: Getting the MAC Address of Amplifier UnitCommand code Parameter type CR14010DhResponse code Model number CR0 0 V640-HAM11 -V30DhCommand code Parameter type CR14020DhCommand code Parameter type CR14030DhCommandResponseCommandResponseResponse code Firmware version CR0 0 01000DhMajor version Minor versionCommand

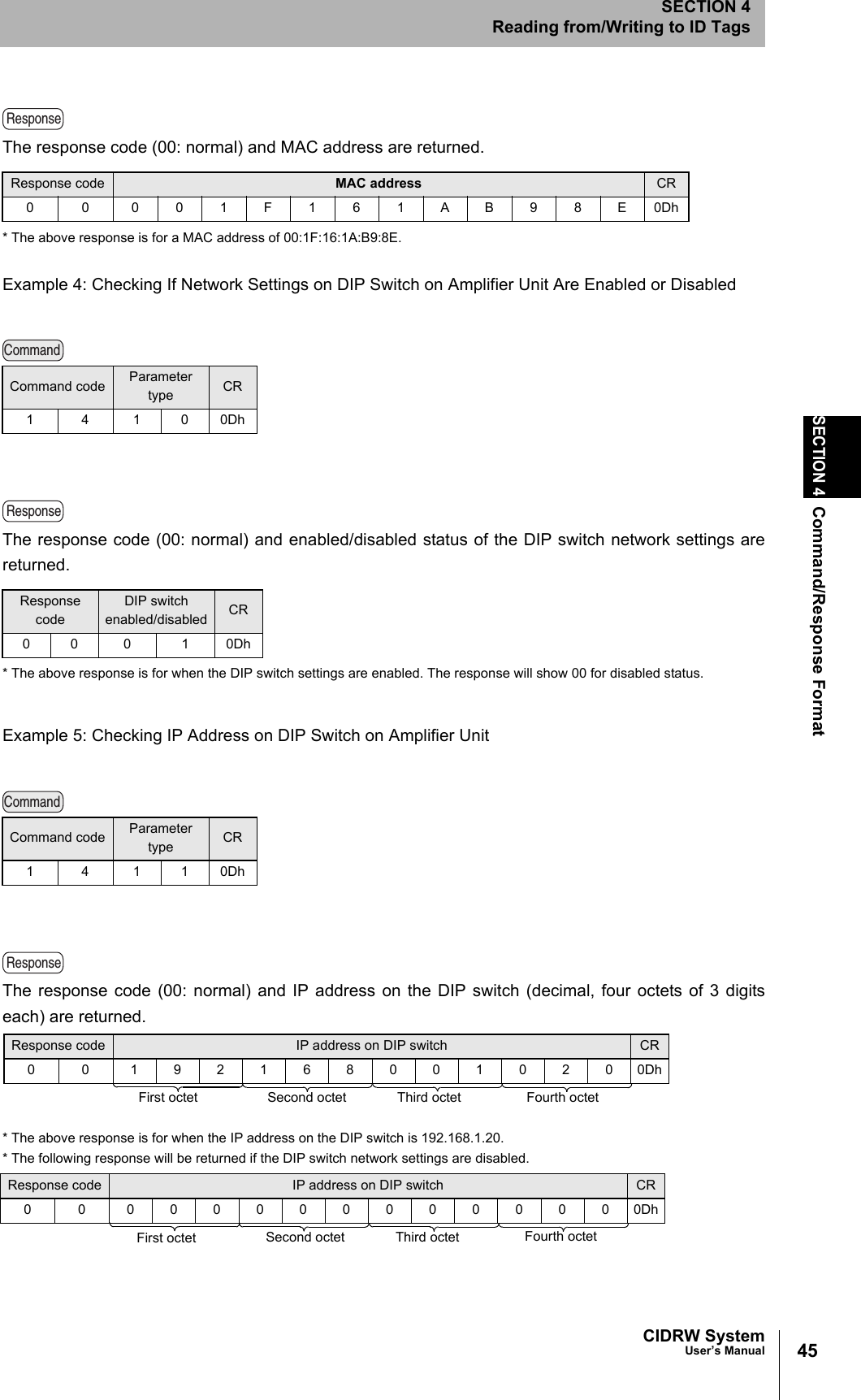

45CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID TagsThe response code (00: normal) and MAC address are returned. * The above response is for a MAC address of 00:1F:16:1A:B9:8E.Example 4: Checking If Network Settings on DIP Switch on Amplifier Unit Are Enabled or DisabledThe response code (00: normal) and enabled/disabled status of the DIP switch network settings arereturned.* The above response is for when the DIP switch settings are enabled. The response will show 00 for disabled status. Example 5: Checking IP Address on DIP Switch on Amplifier UnitThe response code (00: normal) and IP address on the DIP switch (decimal, four octets of 3 digitseach) are returned.* The above response is for when the IP address on the DIP switch is 192.168.1.20.* The following response will be returned if the DIP switch network settings are disabled. Response code MAC address CR0 0 001F161AB98E0DhCommand code Parameter type CR14100DhResponse codeDIP switch enabled/disabled CR00 0 10DhCommand code Parameter type CR14110DhResponseCommandResponseCommandResponseResponse code IP address on DIP switch CR0 0 1921680010200DhFirst octet Second octet Third octet Fourth octetResponse code IP address on DIP switch CR0 0 0000000000000DhFirst octet Second octet Third octet Fourth octet

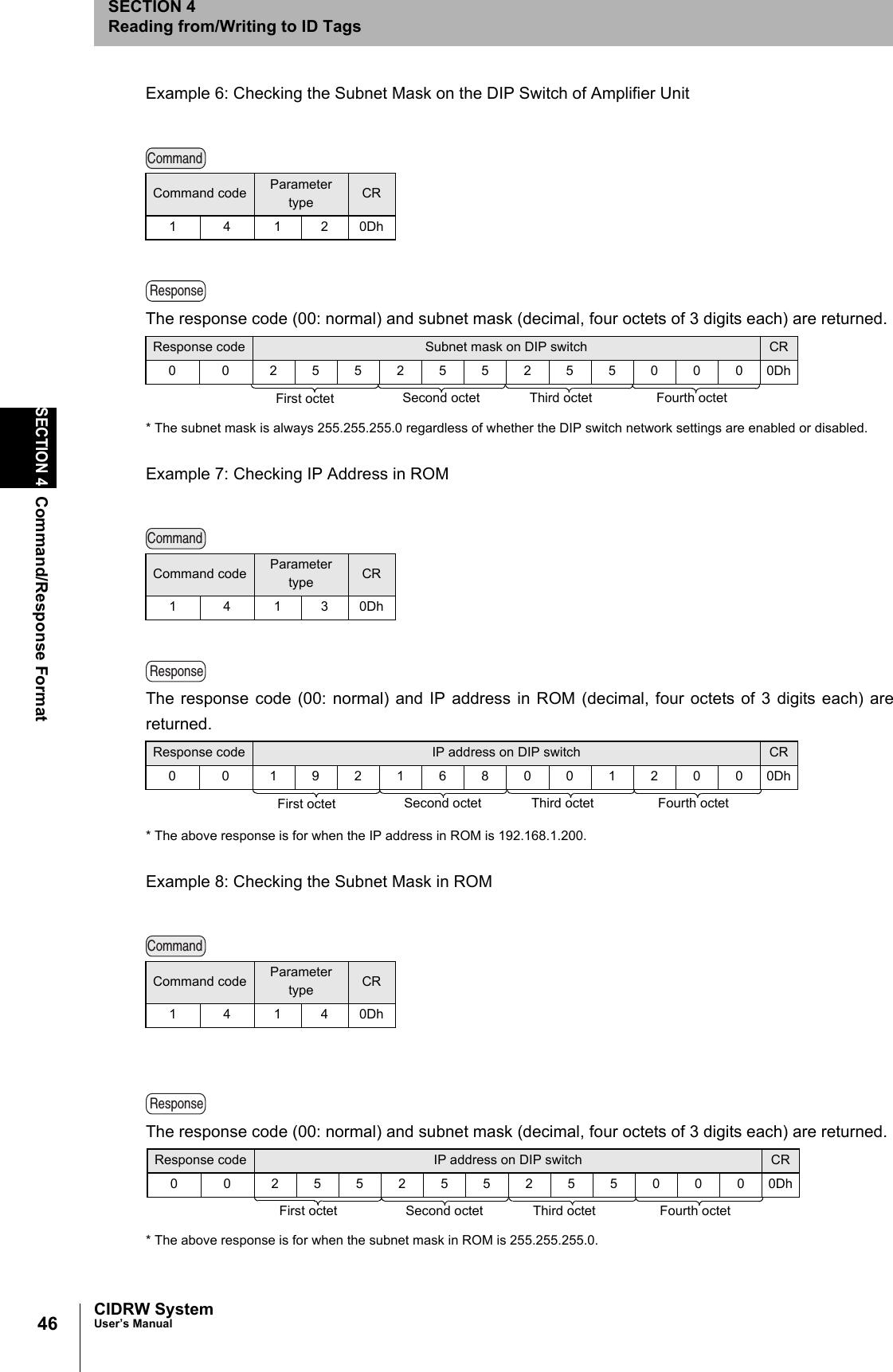

46SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID TagsExample 6: Checking the Subnet Mask on the DIP Switch of Amplifier UnitThe response code (00: normal) and subnet mask (decimal, four octets of 3 digits each) are returned.* The subnet mask is always 255.255.255.0 regardless of whether the DIP switch network settings are enabled or disabled. Example 7: Checking IP Address in ROMThe response code (00: normal) and IP address in ROM (decimal, four octets of 3 digits each) arereturned.* The above response is for when the IP address in ROM is 192.168.1.200.Example 8: Checking the Subnet Mask in ROMThe response code (00: normal) and subnet mask (decimal, four octets of 3 digits each) are returned.* The above response is for when the subnet mask in ROM is 255.255.255.0.Command code Parameter type CR14120DhCommand code Parameter type CR14130DhCommand code Parameter type CR14140DhCommandResponseResponse code Subnet mask on DIP switch CR0 0 2552552550000DhFirst octet Second octet Third octet Fourth octetCommandResponseResponse code IP address on DIP switch CR0 0 1921680012000DhFirst octet Second octet Third octet Fourth octetCommandResponseResponse code IP address on DIP switch CR0 0 2552552550000DhFirst octet Second octet Third octet Fourth octet

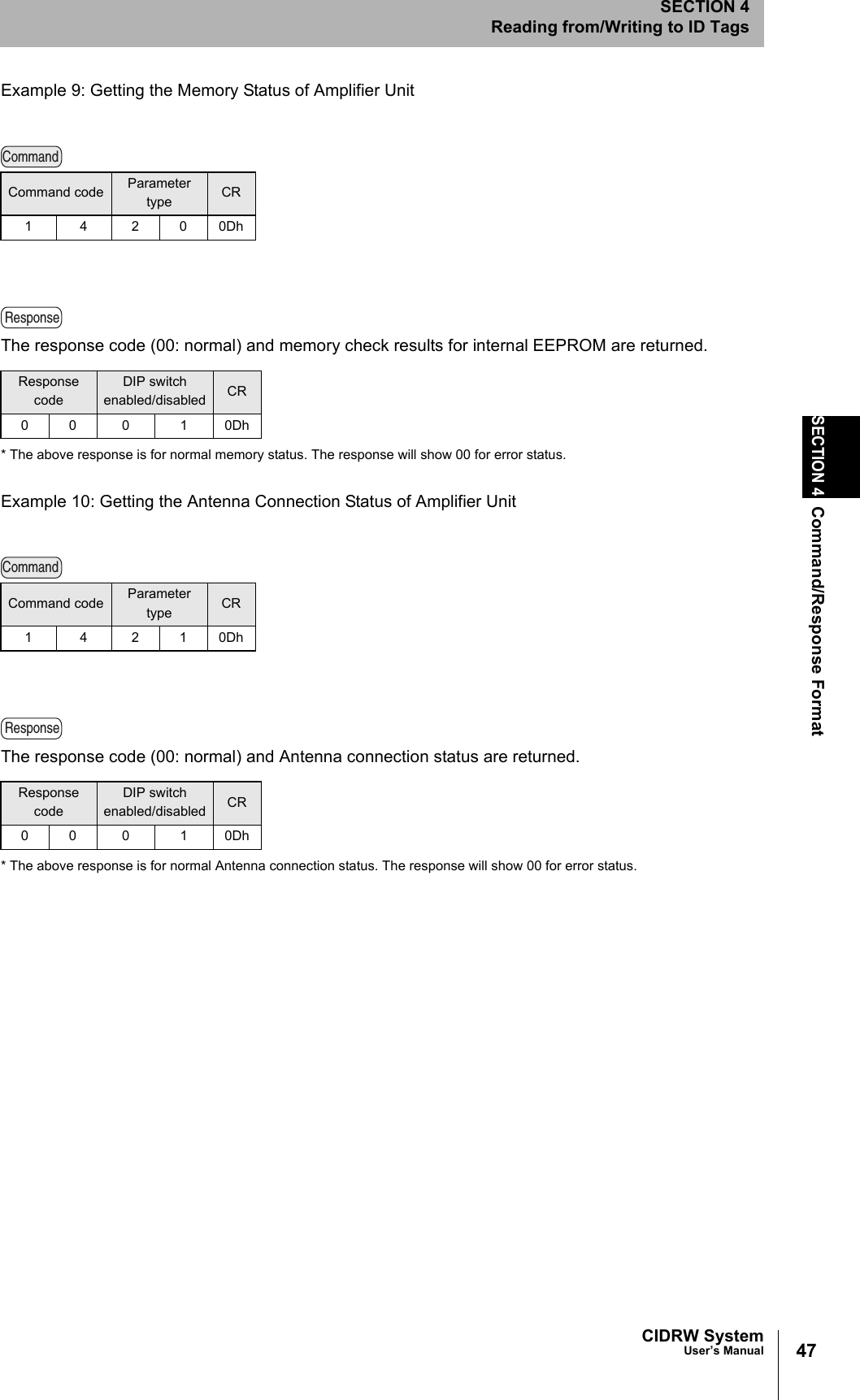

47CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID TagsExample 9: Getting the Memory Status of Amplifier UnitThe response code (00: normal) and memory check results for internal EEPROM are returned. * The above response is for normal memory status. The response will show 00 for error status. Example 10: Getting the Antenna Connection Status of Amplifier UnitThe response code (00: normal) and Antenna connection status are returned.* The above response is for normal Antenna connection status. The response will show 00 for error status. Command code Parameter type CR14200DhResponse codeDIP switch enabled/disabled CR00 0 10DhCommand code Parameter type CR14210DhResponse codeDIP switch enabled/disabled CR00 0 10DhCommandResponseCommandResponse

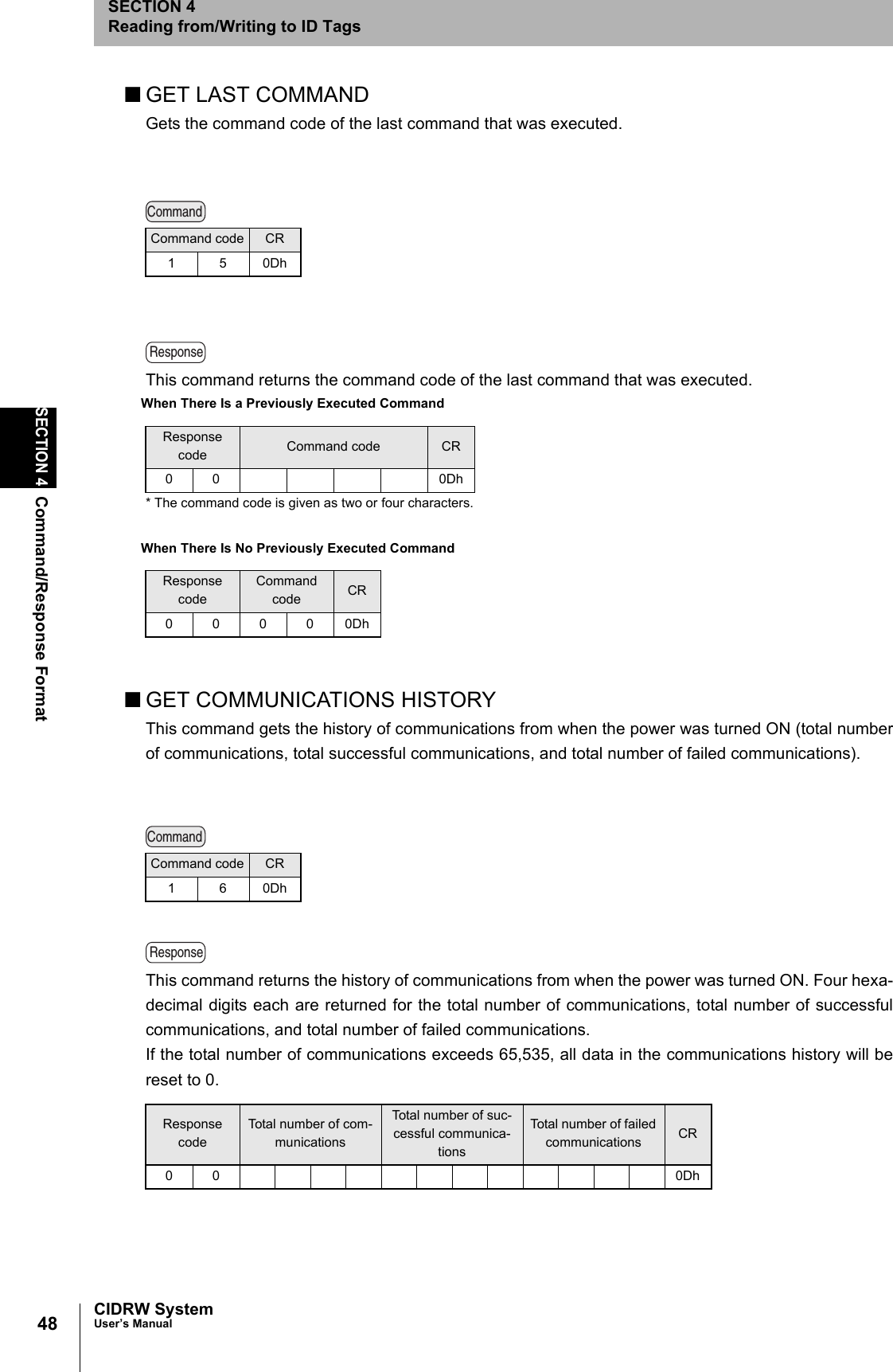

48SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID Tags■GET LAST COMMANDGets the command code of the last command that was executed. This command returns the command code of the last command that was executed. When There Is a Previously Executed Command* The command code is given as two or four characters. When There Is No Previously Executed Command■GET COMMUNICATIONS HISTORYThis command gets the history of communications from when the power was turned ON (total numberof communications, total successful communications, and total number of failed communications). This command returns the history of communications from when the power was turned ON. Four hexa-decimal digits each are returned for the total number of communications, total number of successfulcommunications, and total number of failed communications.If the total number of communications exceeds 65,535, all data in the communications history will bereset to 0. Command code CR150DhResponse code Command code CR00 0DhResponse codeCommand code CR00000DhCommand code CR160DhResponse codeTotal number of com-municationsTotal number of suc-cessful communica-tionsTotal number of failed communications CR00 0DhCommandResponseCommandResponse

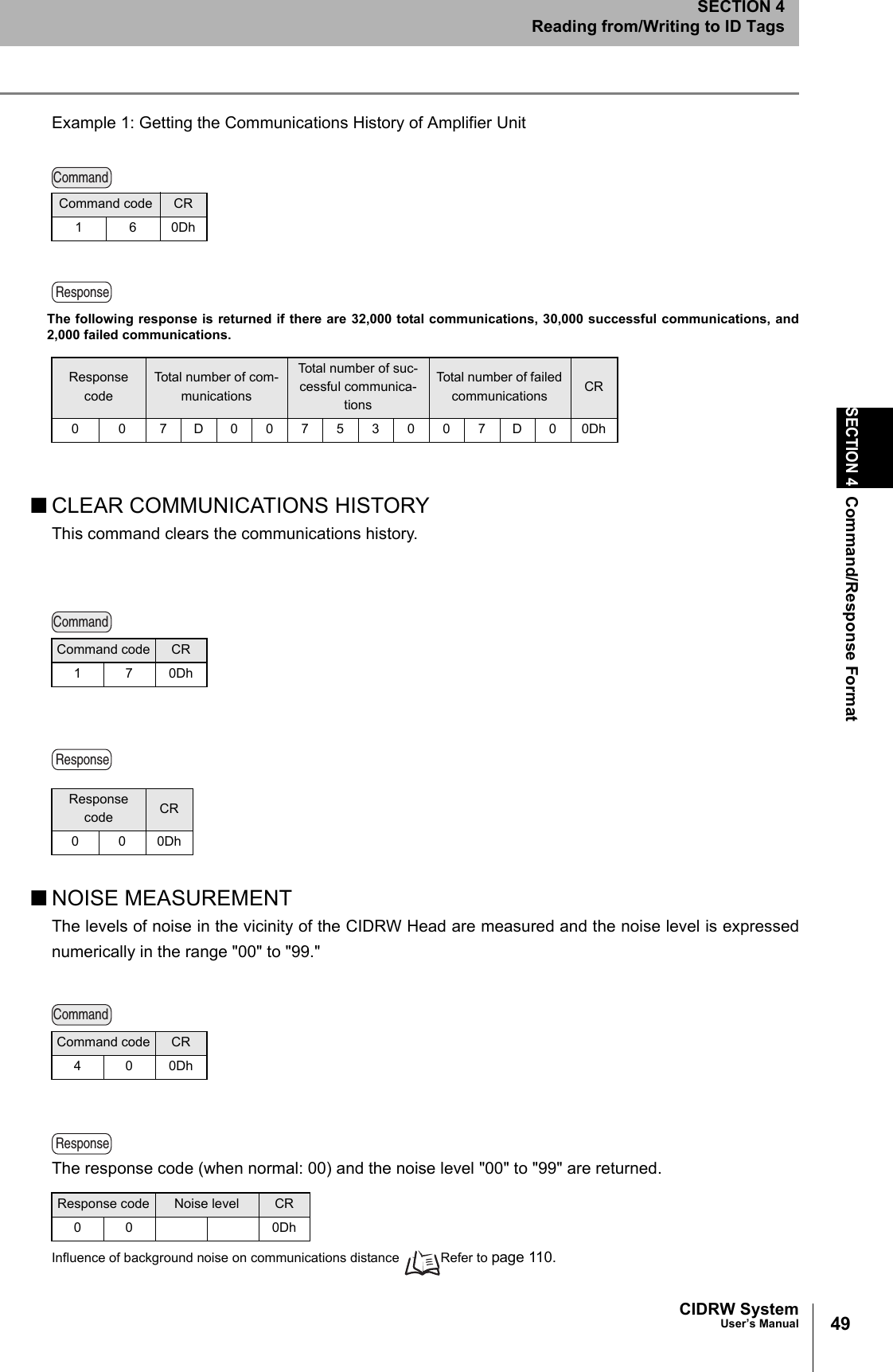

49CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID TagsExample 1: Getting the Communications History of Amplifier UnitThe following response is returned if there are 32,000 total communications, 30,000 successful communications, and2,000 failed communications. ■CLEAR COMMUNICATIONS HISTORYThis command clears the communications history. ■NOISE MEASUREMENTThe levels of noise in the vicinity of the CIDRW Head are measured and the noise level is expressednumerically in the range "00" to "99."The response code (when normal: 00) and the noise level "00" to "99" are returned.Influence of background noise on communications distance Refer to page 110.Command code CR160DhResponse codeTotal number of com-municationsTotal number of suc-cessful communica-tionsTotal number of failed communications CR0 0 7D00753007D00DhCommand code CR170DhResponse code CR000DhCommand code CR400DhResponse code Noise level CR00 0DhCommandResponseCommandResponseCommandResponse

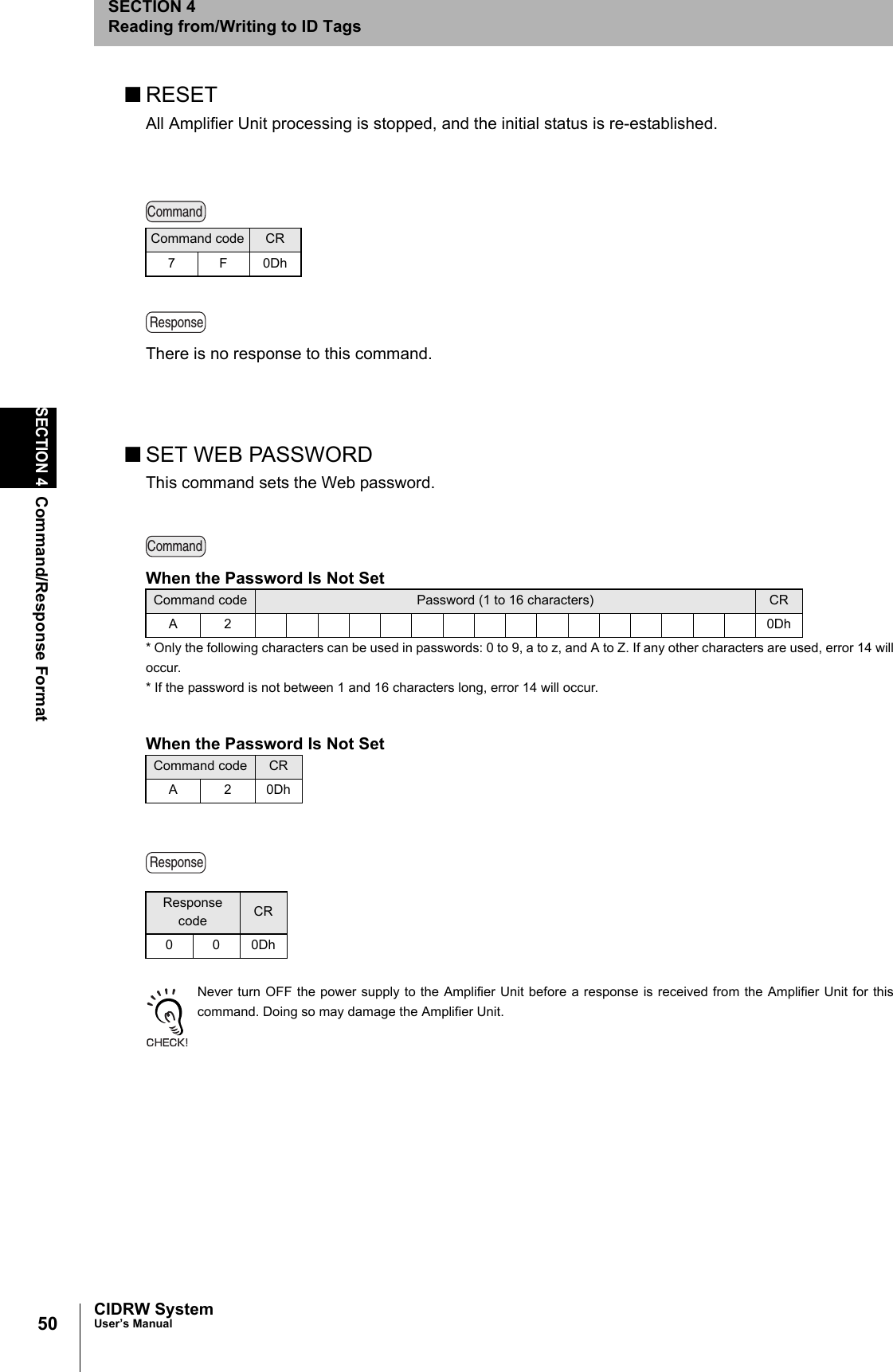

50SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID Tags■RESETAll Amplifier Unit processing is stopped, and the initial status is re-established.There is no response to this command.■SET WEB PASSWORDThis command sets the Web password. When the Password Is Not Set* Only the following characters can be used in passwords: 0 to 9, a to z, and A to Z. If any other characters are used, error 14 willoccur. * If the password is not between 1 and 16 characters long, error 14 will occur. When the Password Is Not SetNever turn OFF the power supply to the Amplifier Unit before a response is received from the Amplifier Unit for thiscommand. Doing so may damage the Amplifier Unit. Command code CR7F0DhCommand code Password (1 to 16 characters) CRA2 0DhCommand code CRA20DhResponse code CR000DhCommandResponseCommandResponse

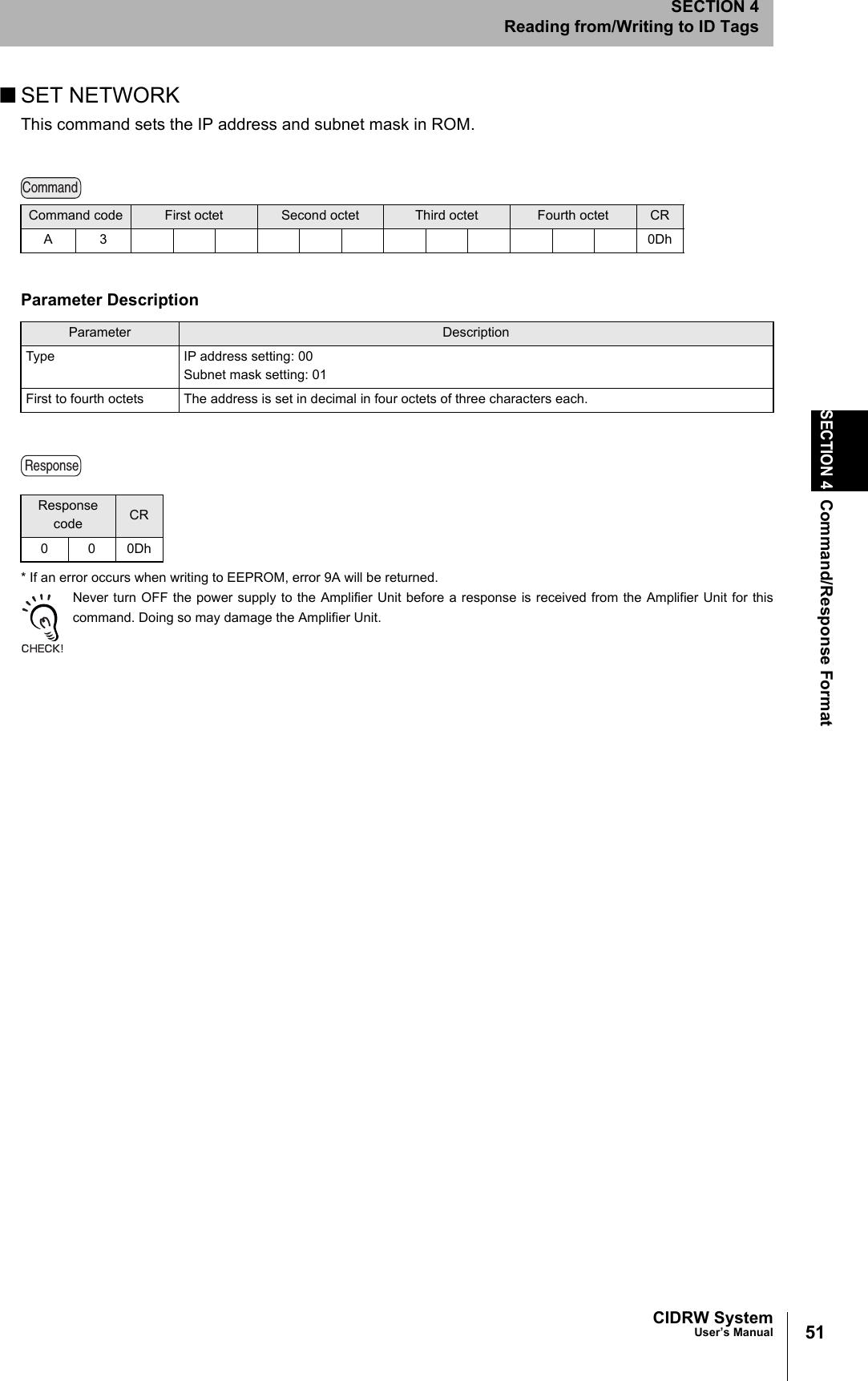

51CIDRW SystemUser’s ManualSECTION 4Command/Response FormatSECTION 4Reading from/Writing to ID Tags■SET NETWORK This command sets the IP address and subnet mask in ROM. * If an error occurs when writing to EEPROM, error 9A will be returned. Never turn OFF the power supply to the Amplifier Unit before a response is received from the Amplifier Unit for thiscommand. Doing so may damage the Amplifier Unit. Command code First octet Second octet Third octet Fourth octet CRA3 0DhParameter DescriptionParameter DescriptionType IP address setting: 00Subnet mask setting: 01First to fourth octets The address is set in decimal in four octets of three characters each. Response code CR000DhCommandResponse

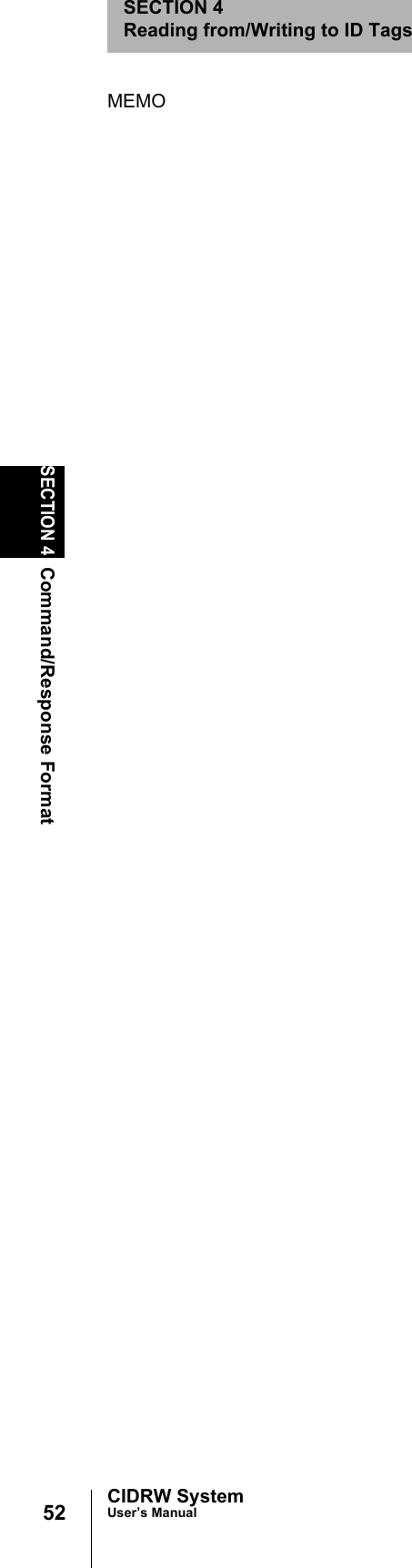

52SECTION 4Command/Response FormatCIDRW SystemUser’s ManualSECTION 4Reading from/Writing to ID TagsMEMO

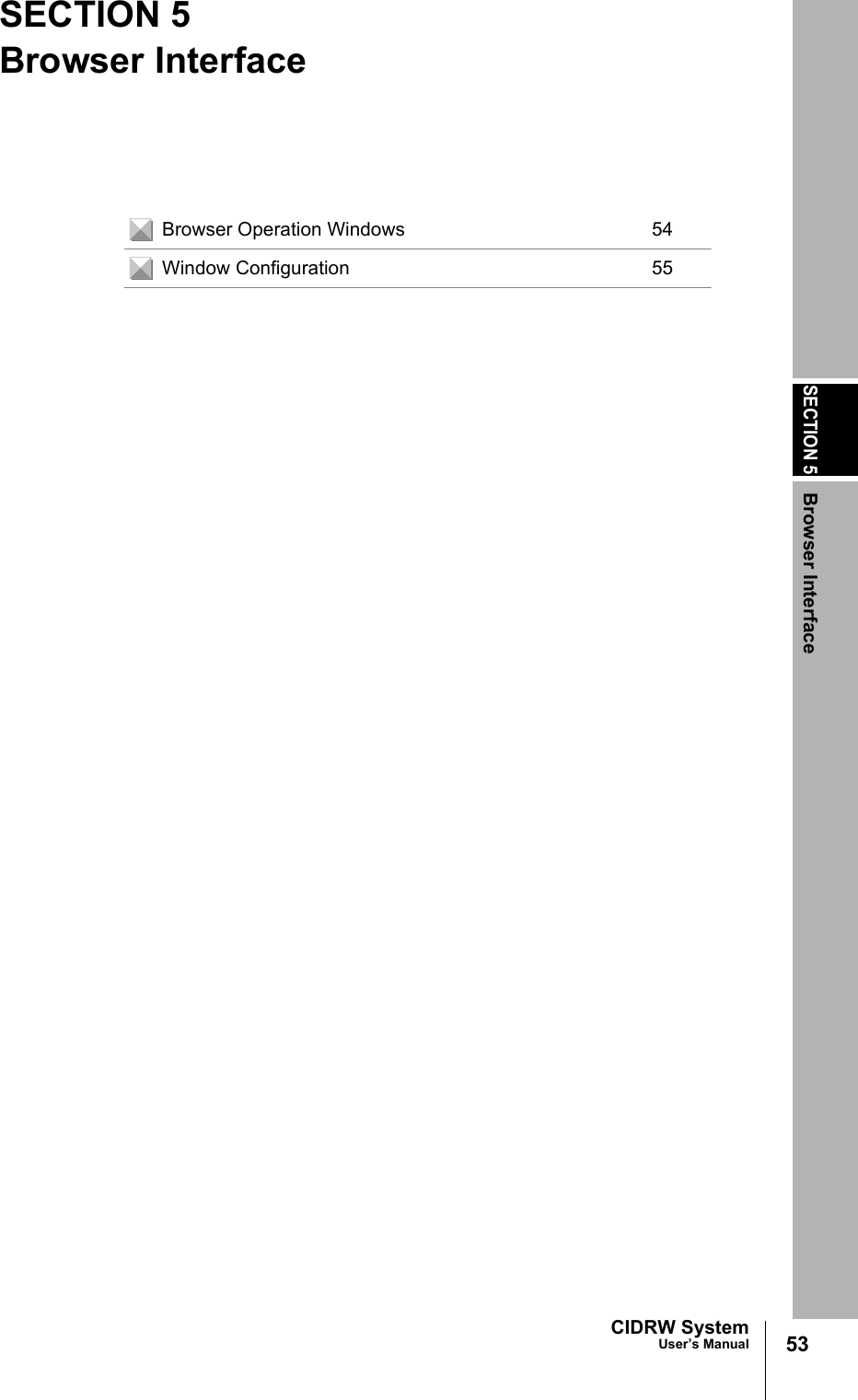

SECTION 5Browser Interface53CIDRW SystemUser’s ManualSECTION 5Browser InterfaceBrowser Operation Windows 54Window Configuration 55

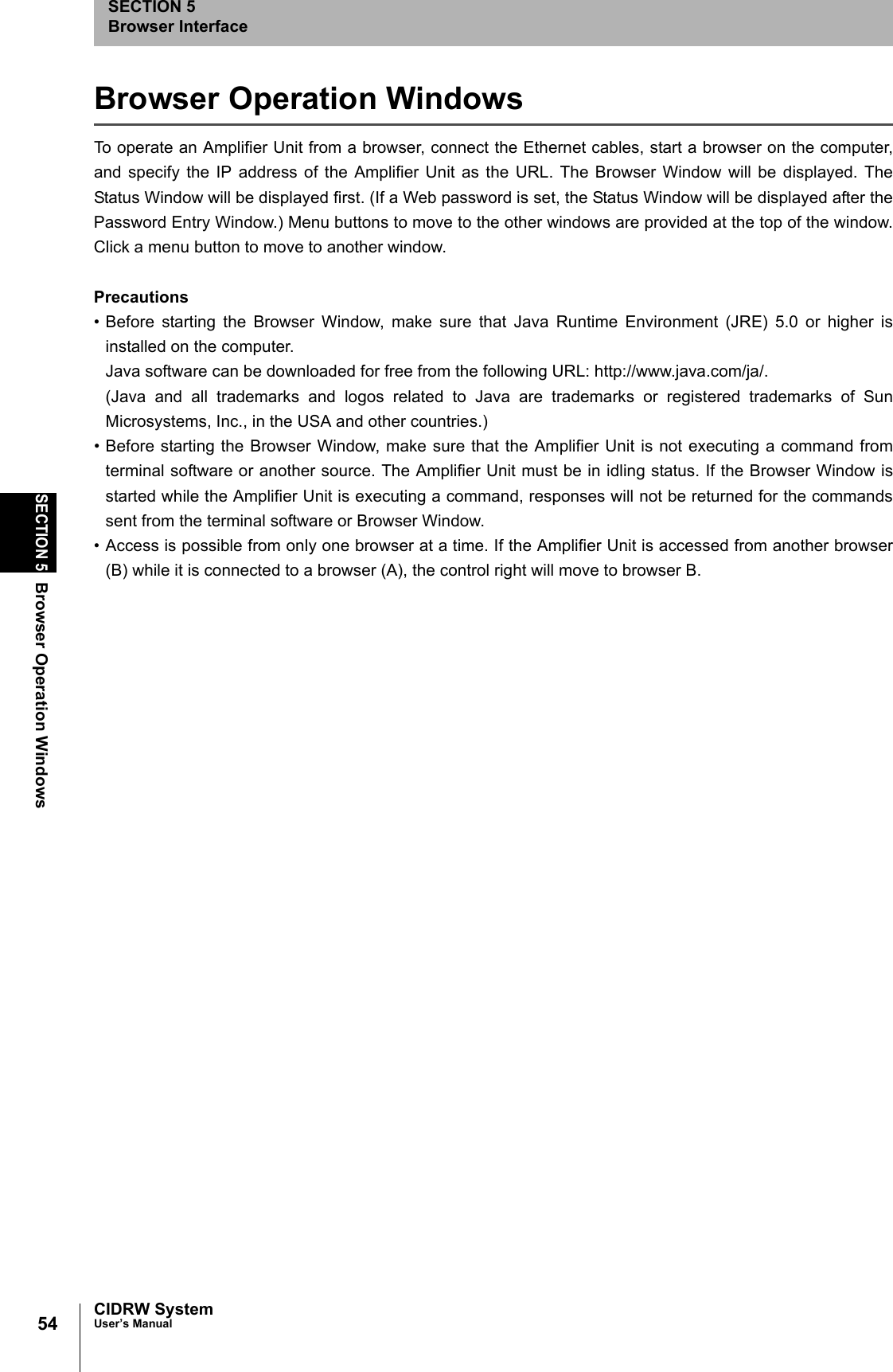

54SECTION 5Browser Operation WindowsCIDRW SystemUser’s ManualSECTION 5Browser InterfaceBrowser Operation WindowsTo operate an Amplifier Unit from a browser, connect the Ethernet cables, start a browser on the computer,and specify the IP address of the Amplifier Unit as the URL. The Browser Window will be displayed. TheStatus Window will be displayed first. (If a Web password is set, the Status Window will be displayed after thePassword Entry Window.) Menu buttons to move to the other windows are provided at the top of the window.Click a menu button to move to another window. Precautions• Before starting the Browser Window, make sure that Java Runtime Environment (JRE) 5.0 or higher isinstalled on the computer. Java software can be downloaded for free from the following URL: http://www.java.com/ja/.(Java and all trademarks and logos related to Java are trademarks or registered trademarks of SunMicrosystems, Inc., in the USA and other countries.) • Before starting the Browser Window, make sure that the Amplifier Unit is not executing a command fromterminal software or another source. The Amplifier Unit must be in idling status. If the Browser Window isstarted while the Amplifier Unit is executing a command, responses will not be returned for the commandssent from the terminal software or Browser Window. • Access is possible from only one browser at a time. If the Amplifier Unit is accessed from another browser(B) while it is connected to a browser (A), the control right will move to browser B.

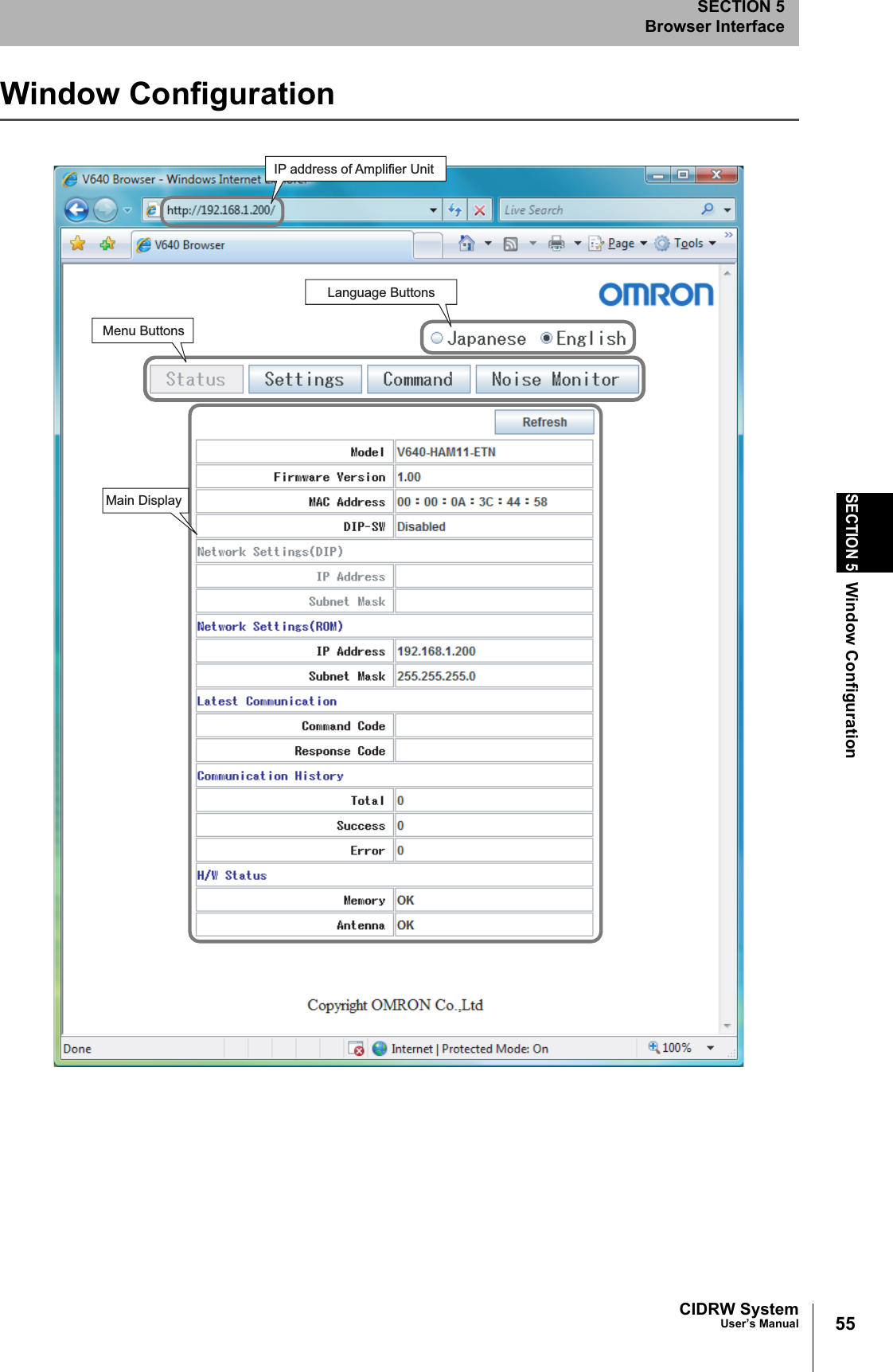

55CIDRW SystemUser’s ManualSECTION 5Window ConfigurationSECTION 5Browser InterfaceWindow Configuration IP address of Amplifier UnitLanguage ButtonsMenu ButtonsMain Display

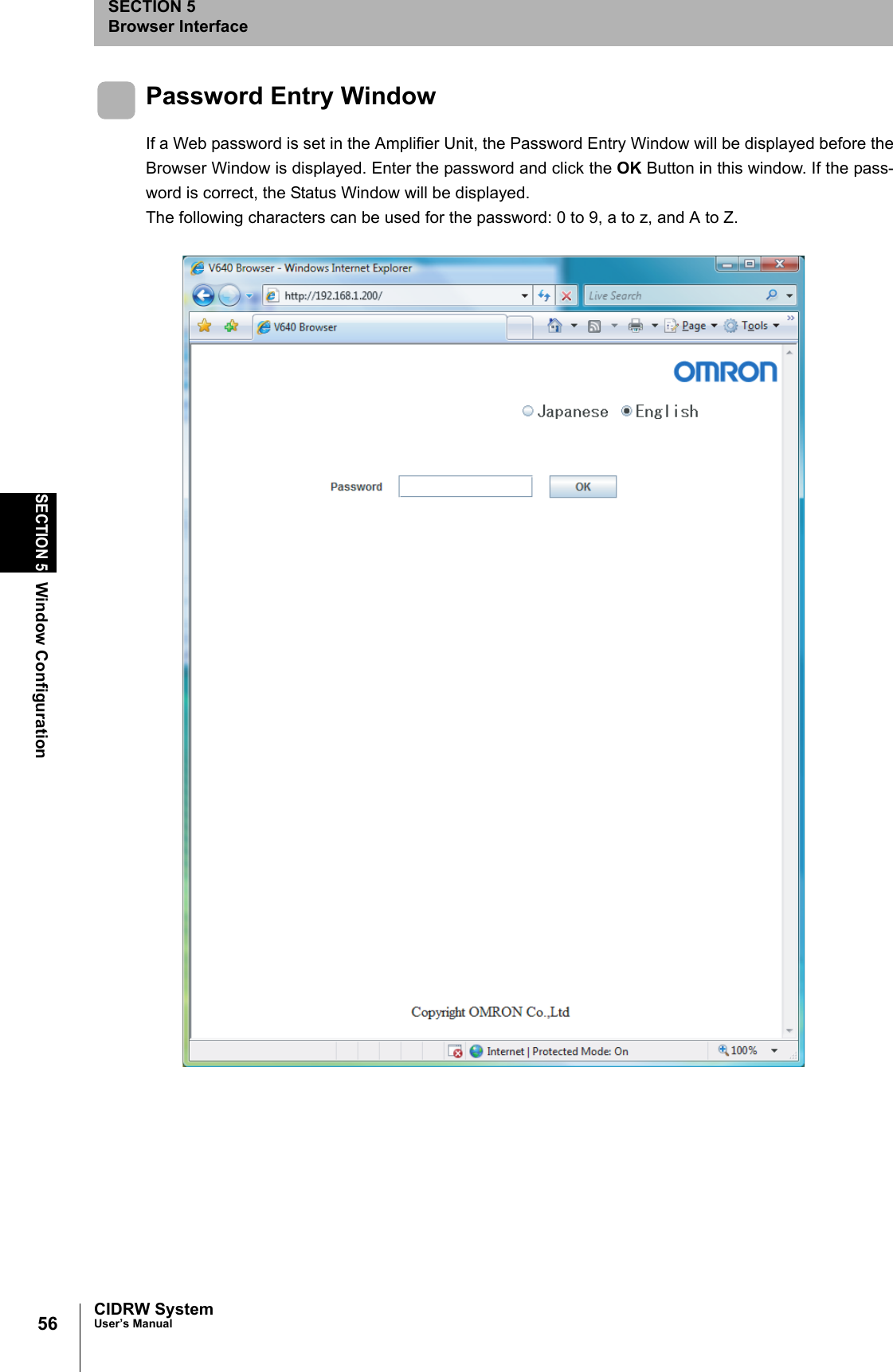

56SECTION 5Window ConfigurationCIDRW SystemUser’s ManualSECTION 5Browser InterfacePassword Entry WindowIf a Web password is set in the Amplifier Unit, the Password Entry Window will be displayed before theBrowser Window is displayed. Enter the password and click the OK Button in this window. If the pass-word is correct, the Status Window will be displayed. The following characters can be used for the password: 0 to 9, a to z, and A to Z.

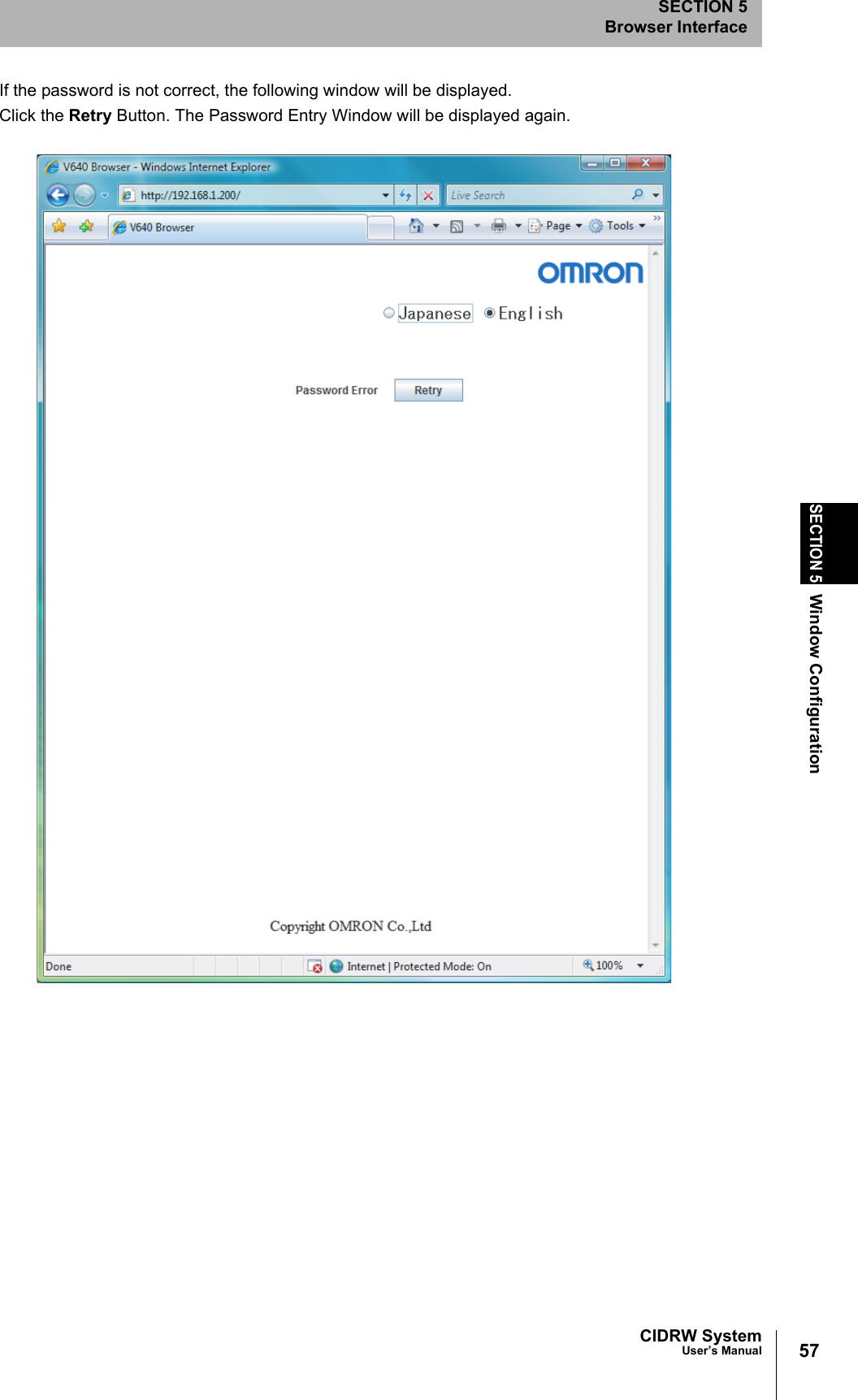

57CIDRW SystemUser’s ManualSECTION 5Window ConfigurationSECTION 5Browser InterfaceIf the password is not correct, the following window will be displayed. Click the Retry Button. The Password Entry Window will be displayed again.

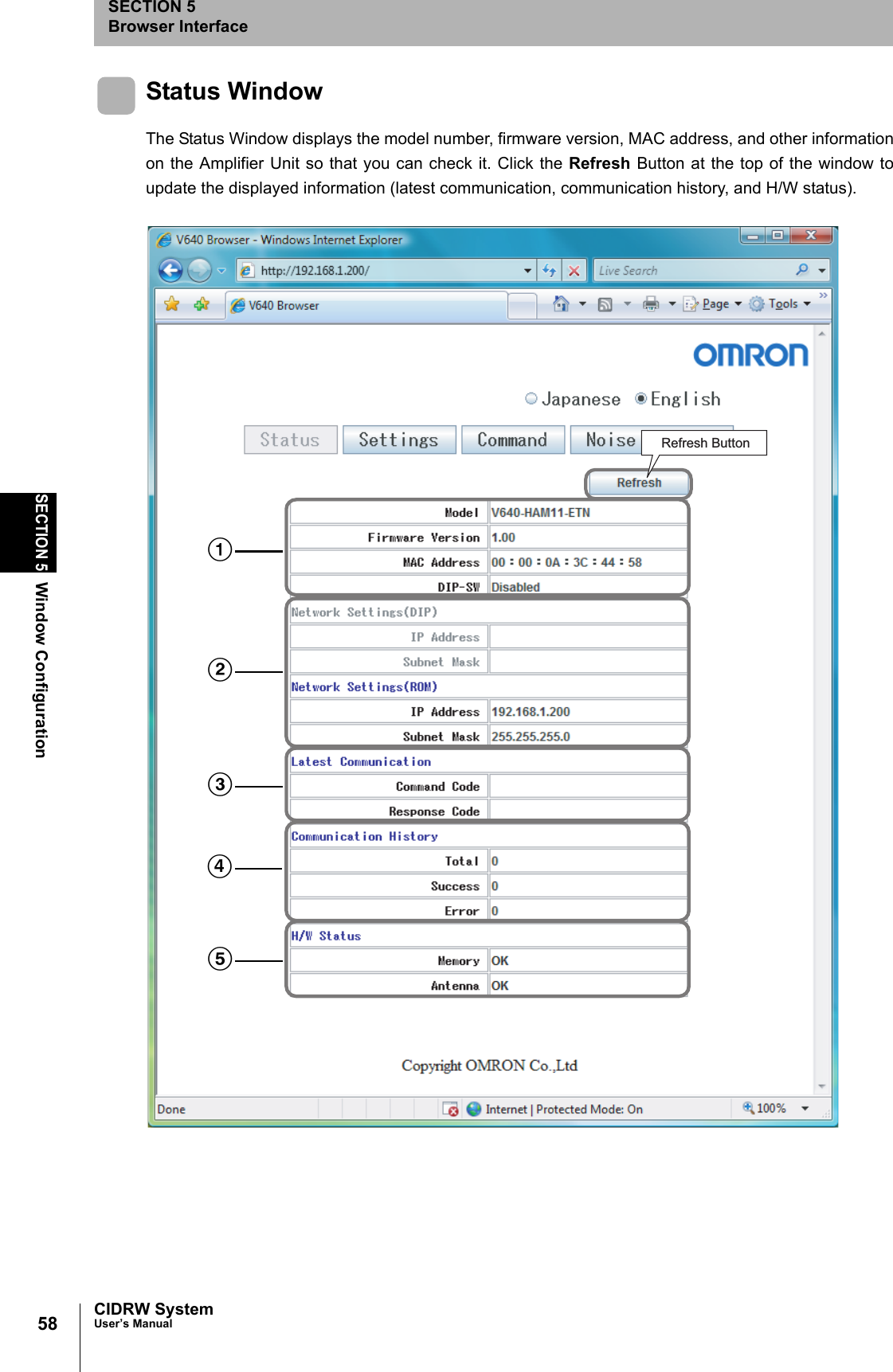

58SECTION 5Window ConfigurationCIDRW SystemUser’s ManualSECTION 5Browser InterfaceStatus WindowThe Status Window displays the model number, firmware version, MAC address, and other informationon the Amplifier Unit so that you can check it. Click the Refresh Button at the top of the window toupdate the displayed information (latest communication, communication history, and H/W status). Refresh ButtonABCDE

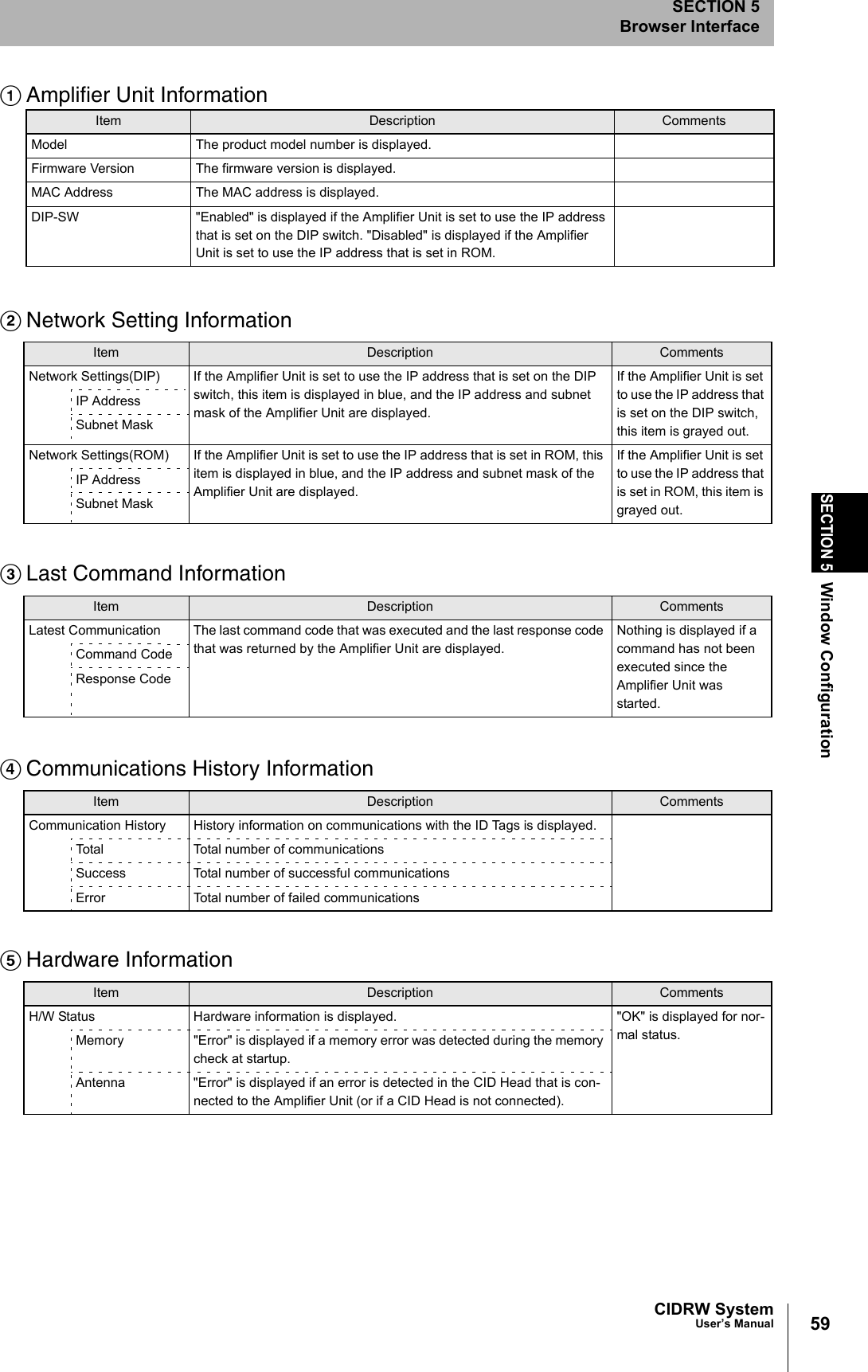

59CIDRW SystemUser’s ManualSECTION 5Window ConfigurationSECTION 5Browser InterfaceAAmplifier Unit InformationBNetwork Setting InformationCLast Command InformationDCommunications History InformationEHardware InformationItem Description CommentsModel The product model number is displayed. Firmware Version The firmware version is displayed. MAC Address The MAC address is displayed. DIP-SW "Enabled" is displayed if the Amplifier Unit is set to use the IP address that is set on the DIP switch. "Disabled" is displayed if the Amplifier Unit is set to use the IP address that is set in ROM. Item Description CommentsNetwork Settings(DIP) If the Amplifier Unit is set to use the IP address that is set on the DIP switch, this item is displayed in blue, and the IP address and subnet mask of the Amplifier Unit are displayed. If the Amplifier Unit is set to use the IP address that is set on the DIP switch, this item is grayed out. IP AddressSubnet MaskNetwork Settings(ROM) If the Amplifier Unit is set to use the IP address that is set in ROM, this item is displayed in blue, and the IP address and subnet mask of the Amplifier Unit are displayed. If the Amplifier Unit is set to use the IP address that is set in ROM, this item is grayed out. IP AddressSubnet MaskItem Description CommentsLatest Communication The last command code that was executed and the last response code that was returned by the Amplifier Unit are displayed. Nothing is displayed if a command has not been executed since the Amplifier Unit was started. Command CodeResponse CodeItem Description CommentsCommunication History History information on communications with the ID Tags is displayed. Total Total number of communicationsSuccess Total number of successful communicationsError Total number of failed communicationsItem Description CommentsH/W Status Hardware information is displayed. "OK" is displayed for nor-mal status. Memory "Error" is displayed if a memory error was detected during the memory check at startup. Antenna "Error" is displayed if an error is detected in the CID Head that is con-nected to the Amplifier Unit (or if a CID Head is not connected).

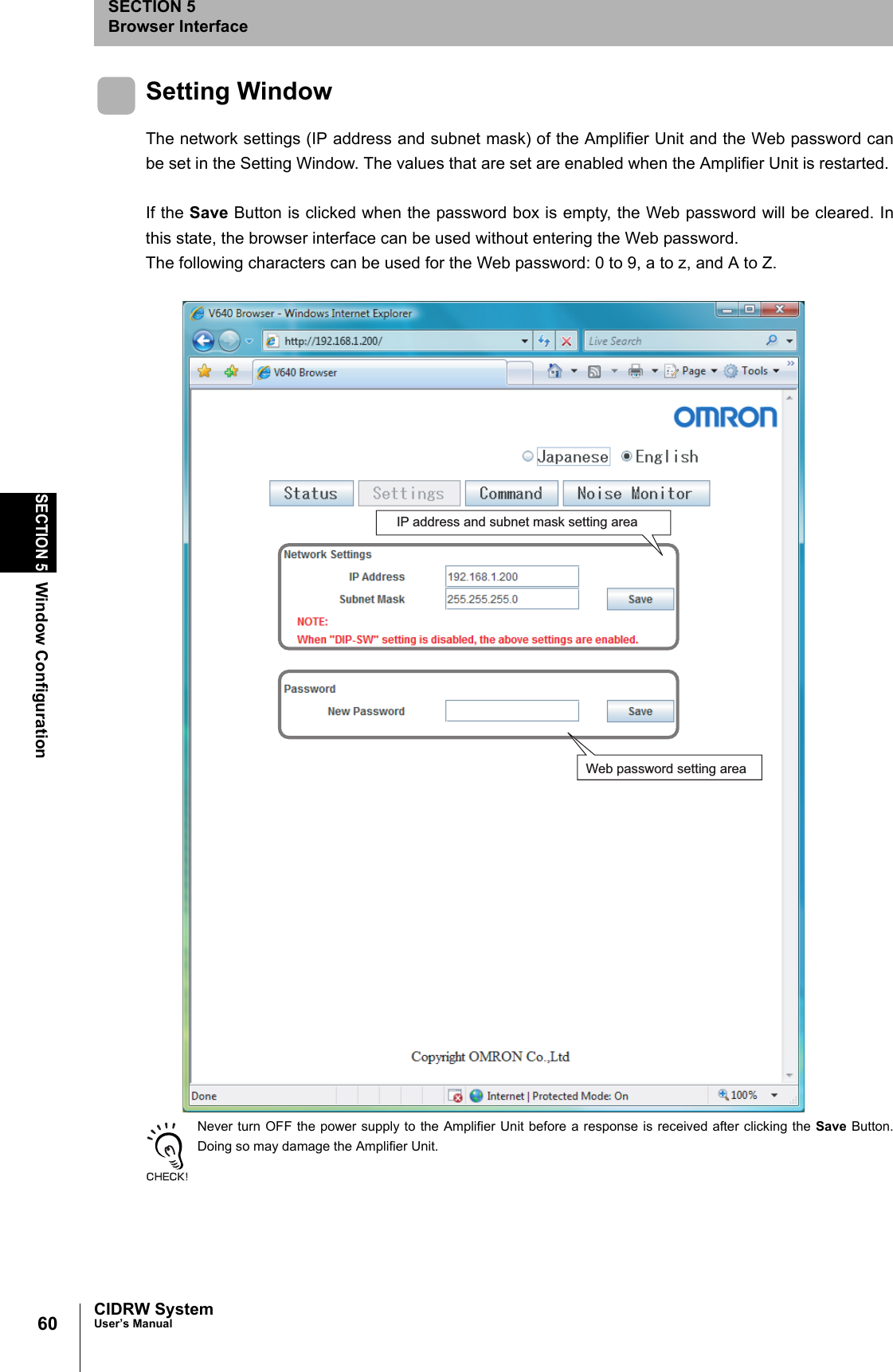

60SECTION 5Window ConfigurationCIDRW SystemUser’s ManualSECTION 5Browser InterfaceSetting WindowThe network settings (IP address and subnet mask) of the Amplifier Unit and the Web password canbe set in the Setting Window. The values that are set are enabled when the Amplifier Unit is restarted. If the Save Button is clicked when the password box is empty, the Web password will be cleared. Inthis state, the browser interface can be used without entering the Web password. The following characters can be used for the Web password: 0 to 9, a to z, and A to Z. Never turn OFF the power supply to the Amplifier Unit before a response is received after clicking the Save Button.Doing so may damage the Amplifier Unit. IP address and subnet mask setting areaWeb password setting area

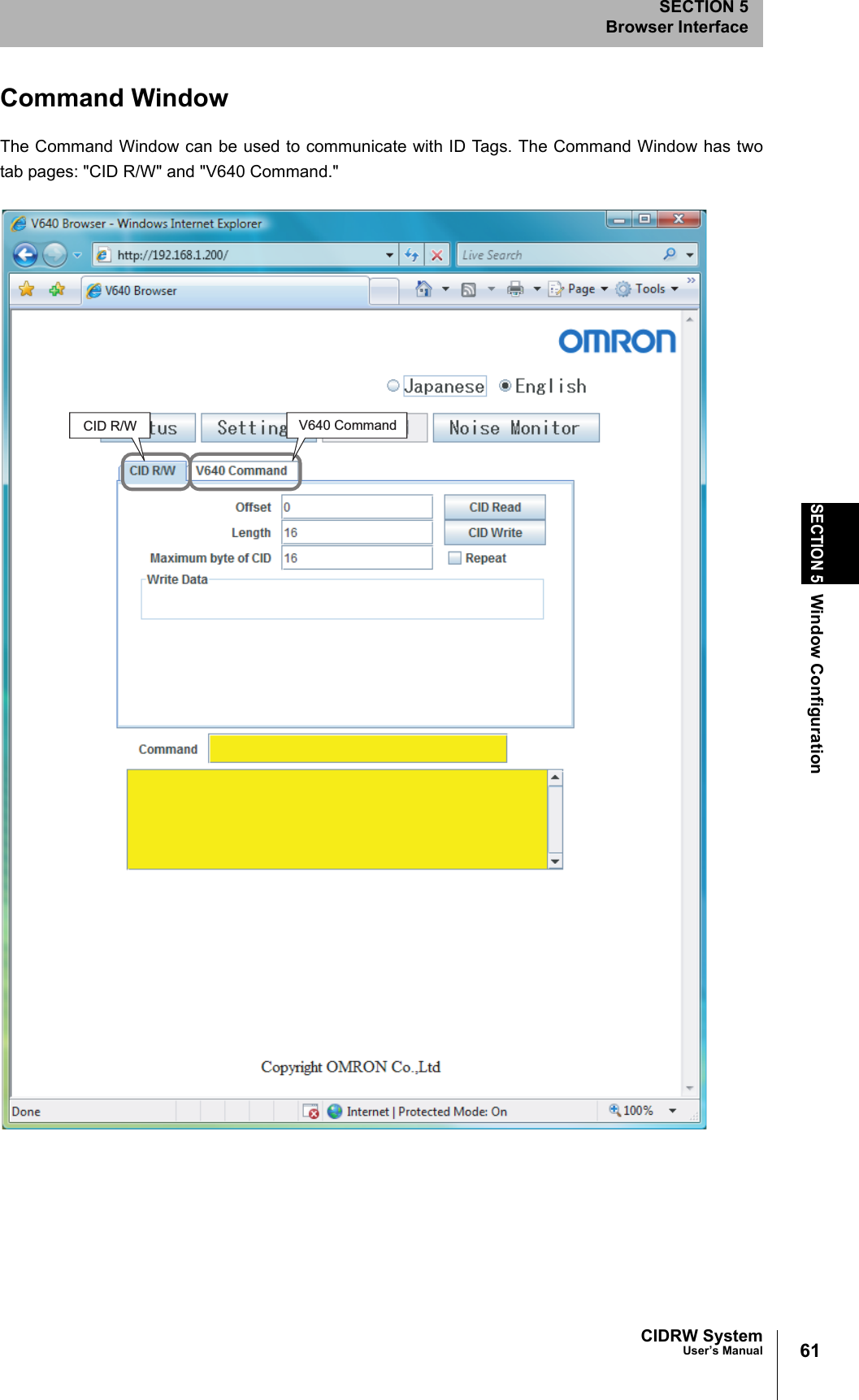

61CIDRW SystemUser’s ManualSECTION 5Window ConfigurationSECTION 5Browser InterfaceCommand WindowThe Command Window can be used to communicate with ID Tags. The Command Window has twotab pages: "CID R/W" and "V640 Command." CID R/W V640 Command

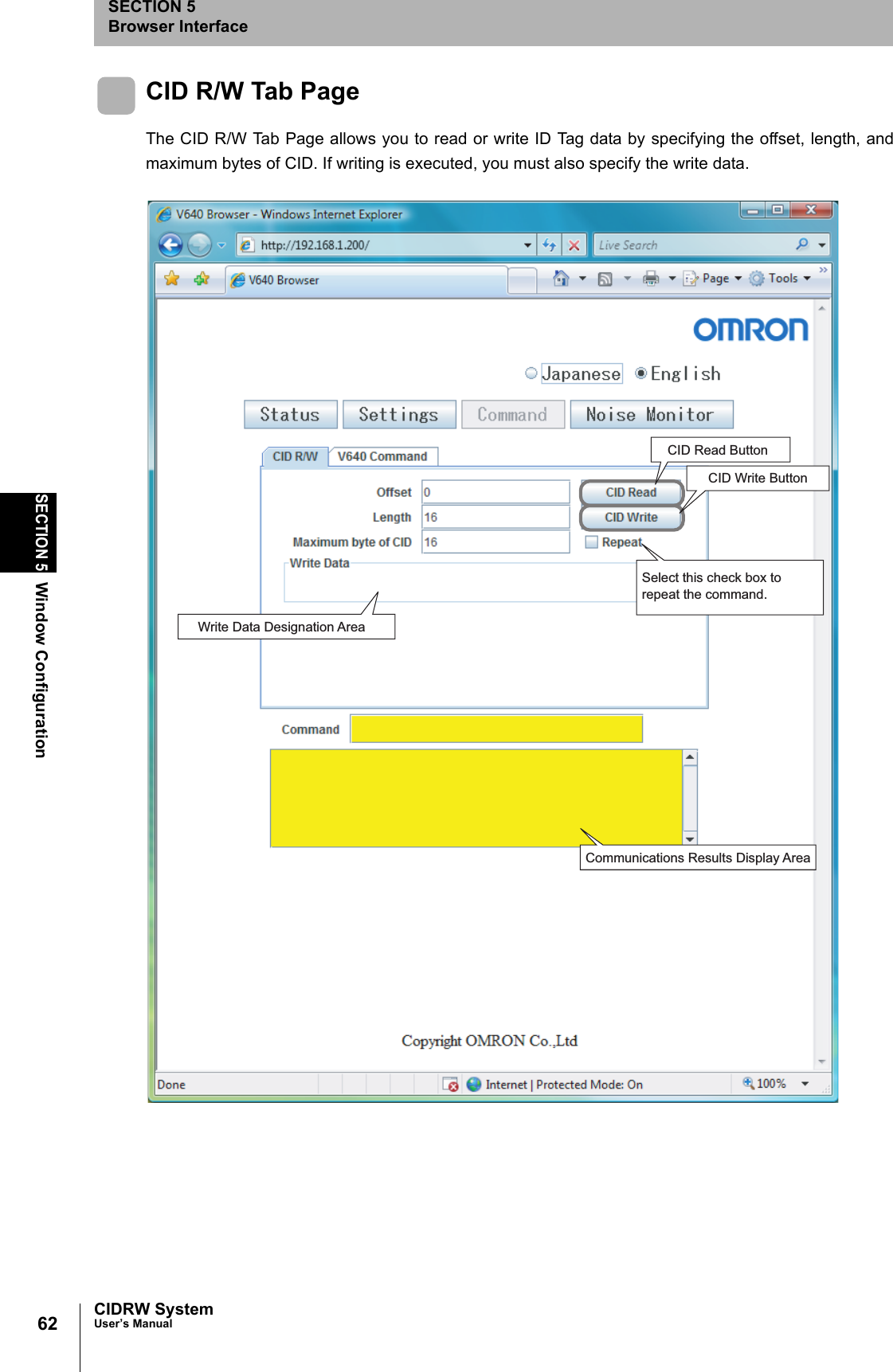

62SECTION 5Window ConfigurationCIDRW SystemUser’s ManualSECTION 5Browser InterfaceCID R/W Tab PageThe CID R/W Tab Page allows you to read or write ID Tag data by specifying the offset, length, andmaximum bytes of CID. If writing is executed, you must also specify the write data. CID Read ButtonCID Write ButtonSelect this check box to repeat the command. Write Data Designation AreaCommunications Results Display Area

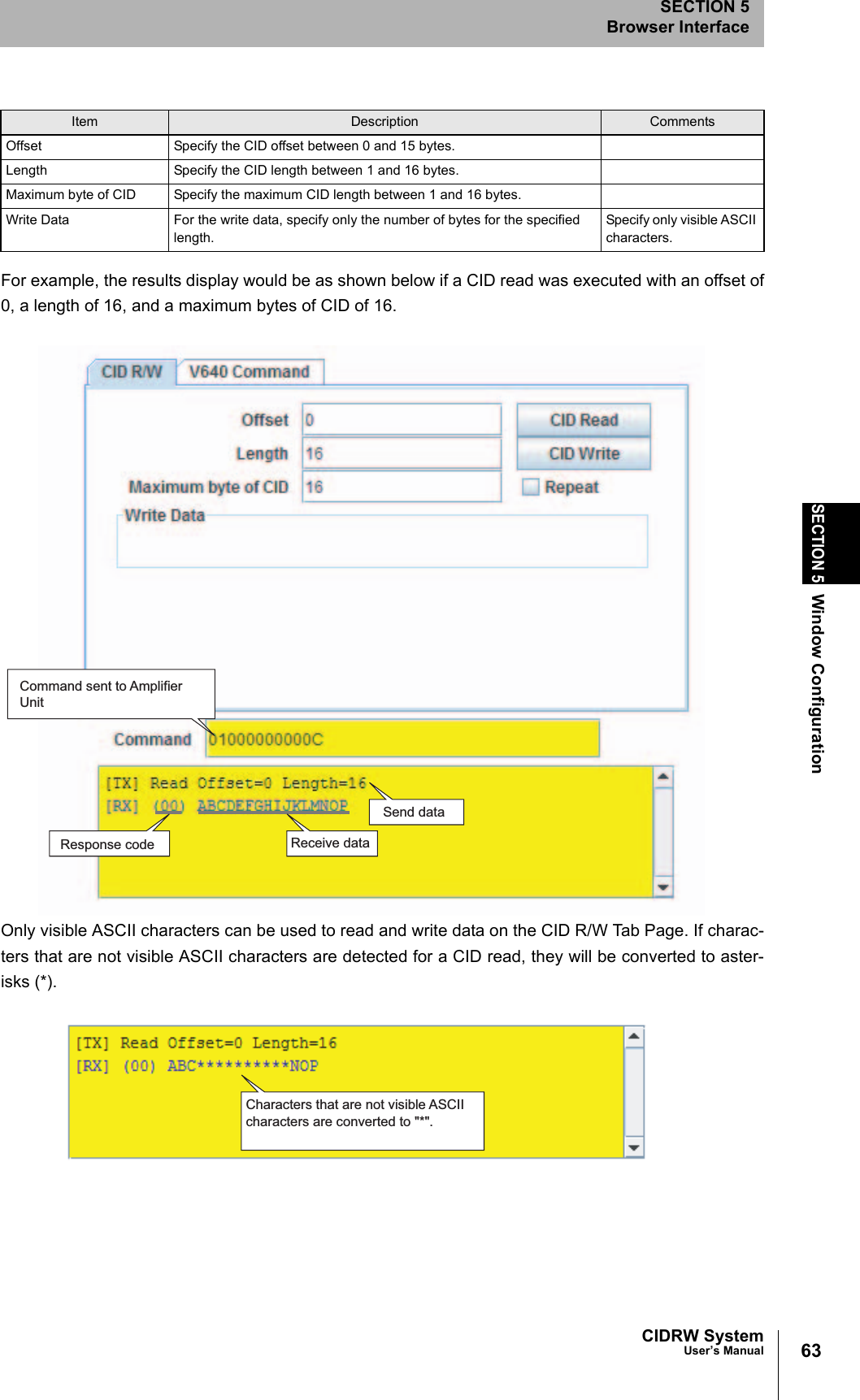

63CIDRW SystemUser’s ManualSECTION 5Window ConfigurationSECTION 5Browser InterfaceFor example, the results display would be as shown below if a CID read was executed with an offset of0, a length of 16, and a maximum bytes of CID of 16. Only visible ASCII characters can be used to read and write data on the CID R/W Tab Page. If charac-ters that are not visible ASCII characters are detected for a CID read, they will be converted to aster-isks (*). Item Description CommentsOffset Specify the CID offset between 0 and 15 bytes. Length Specify the CID length between 1 and 16 bytes. Maximum byte of CID Specify the maximum CID length between 1 and 16 bytes. Write Data For the write data, specify only the number of bytes for the specified length. Specify only visible ASCII characters. Command sent to Amplifier UnitSend dataReceive dataResponse codeCharacters that are not visible ASCII characters are converted to "*".

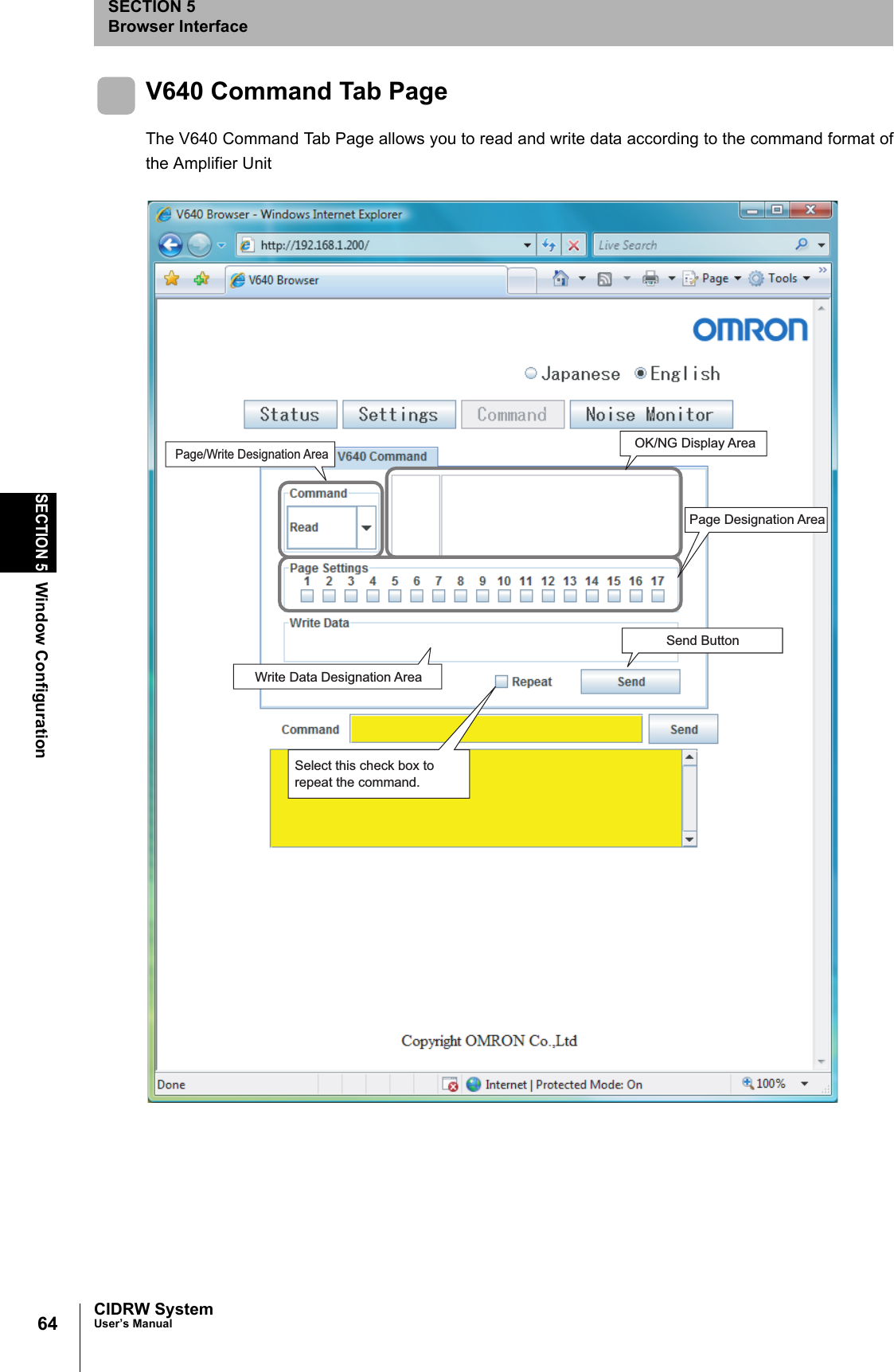

64SECTION 5Window ConfigurationCIDRW SystemUser’s ManualSECTION 5Browser InterfaceV640 Command Tab PageThe V640 Command Tab Page allows you to read and write data according to the command format ofthe Amplifier UnitOK/NG Display AreaPage Designation AreaSend ButtonPage/Write Designation AreaWrite Data Designation AreaSelect this check box to repeat the command.

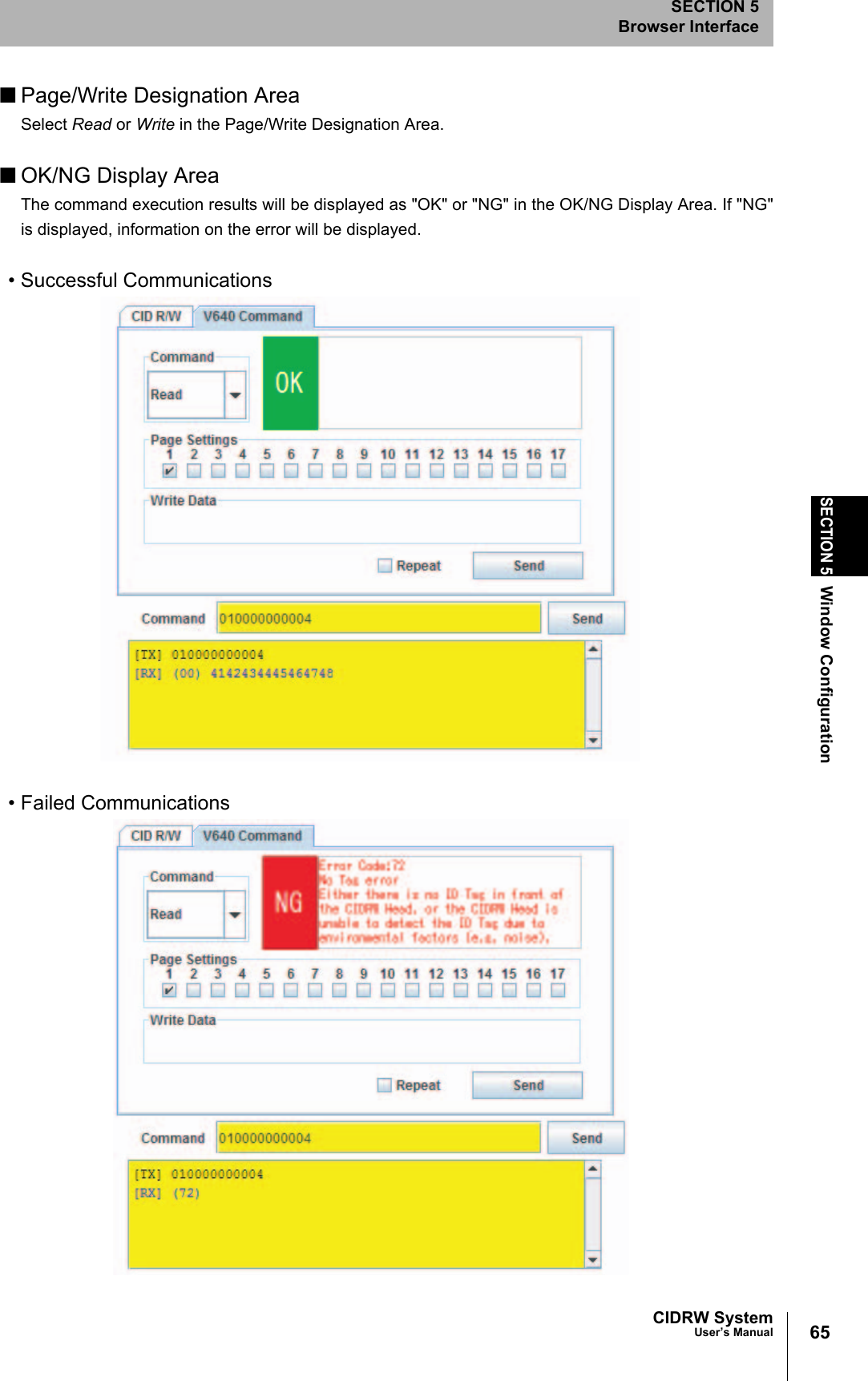

65CIDRW SystemUser’s ManualSECTION 5Window ConfigurationSECTION 5Browser Interface■Page/Write Designation AreaSelect Read or Write in the Page/Write Designation Area. ■OK/NG Display AreaThe command execution results will be displayed as "OK" or "NG" in the OK/NG Display Area. If "NG"is displayed, information on the error will be displayed. • Successful Communications• Failed Communications

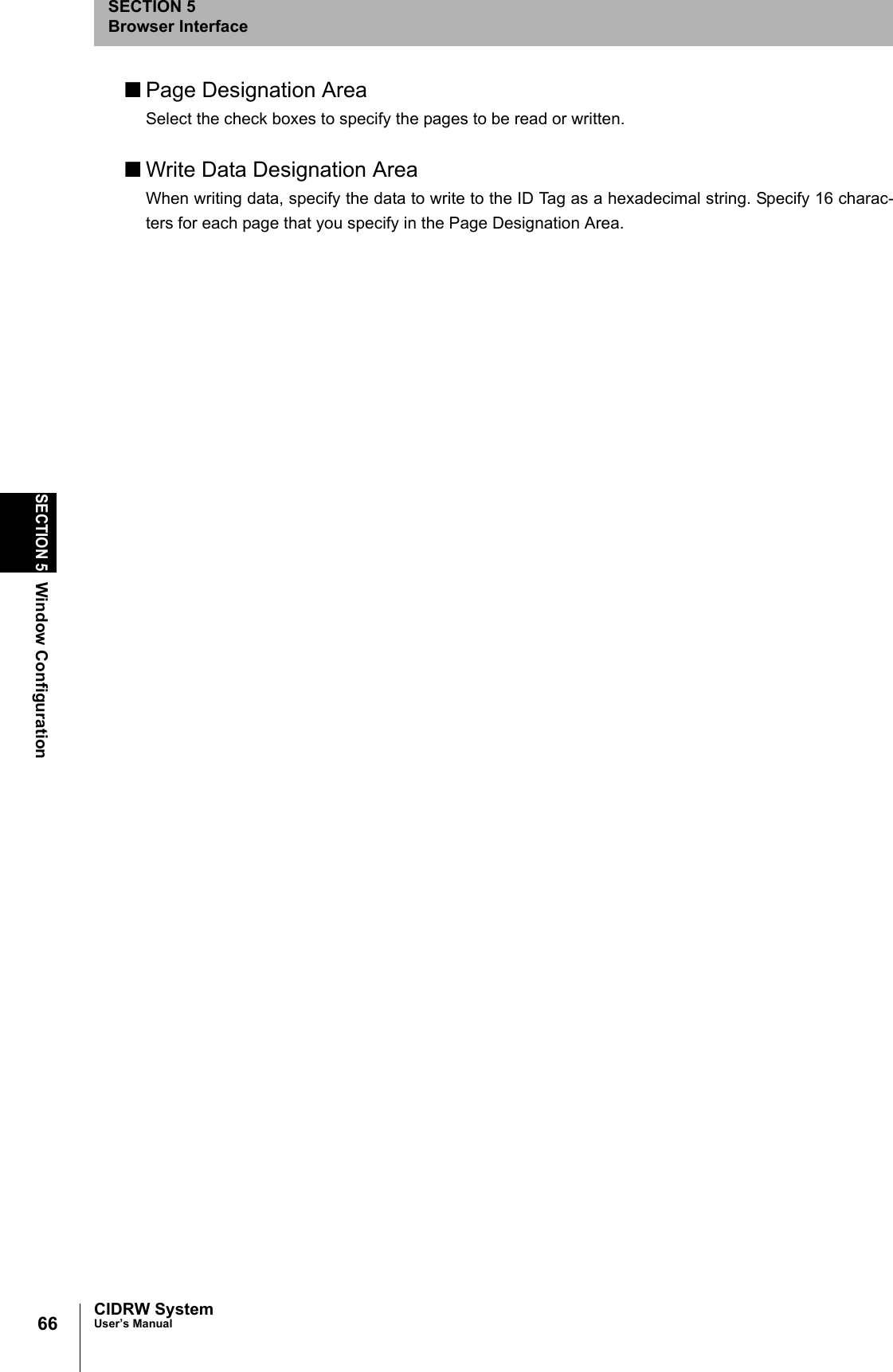

66SECTION 5Window ConfigurationCIDRW SystemUser’s ManualSECTION 5Browser Interface■Page Designation AreaSelect the check boxes to specify the pages to be read or written. ■Write Data Designation AreaWhen writing data, specify the data to write to the ID Tag as a hexadecimal string. Specify 16 charac-ters for each page that you specify in the Page Designation Area.

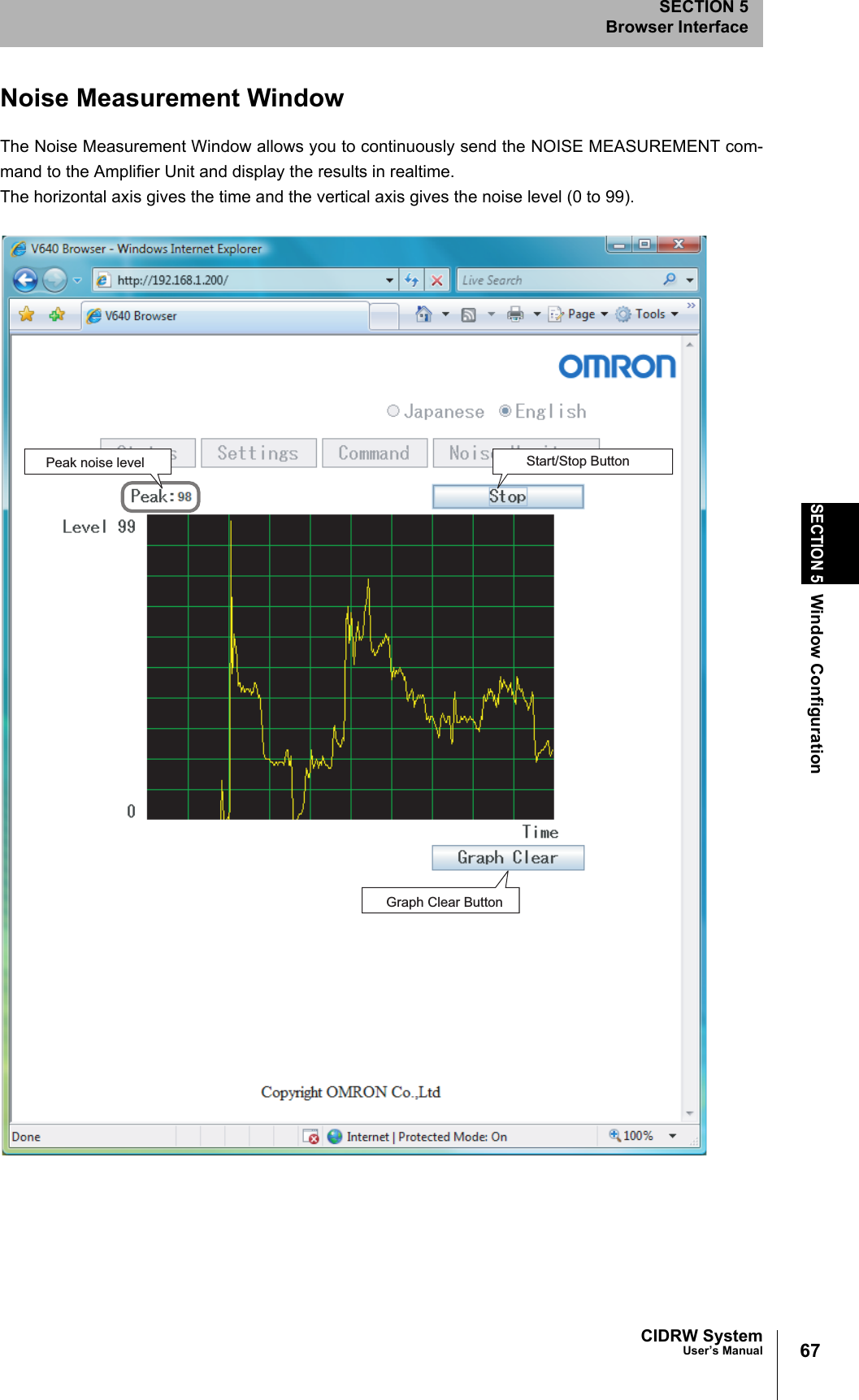

67CIDRW SystemUser’s ManualSECTION 5Window ConfigurationSECTION 5Browser InterfaceNoise Measurement WindowThe Noise Measurement Window allows you to continuously send the NOISE MEASUREMENT com-mand to the Amplifier Unit and display the results in realtime. The horizontal axis gives the time and the vertical axis gives the noise level (0 to 99). Peak noise level Start/Stop ButtonGraph Clear Button

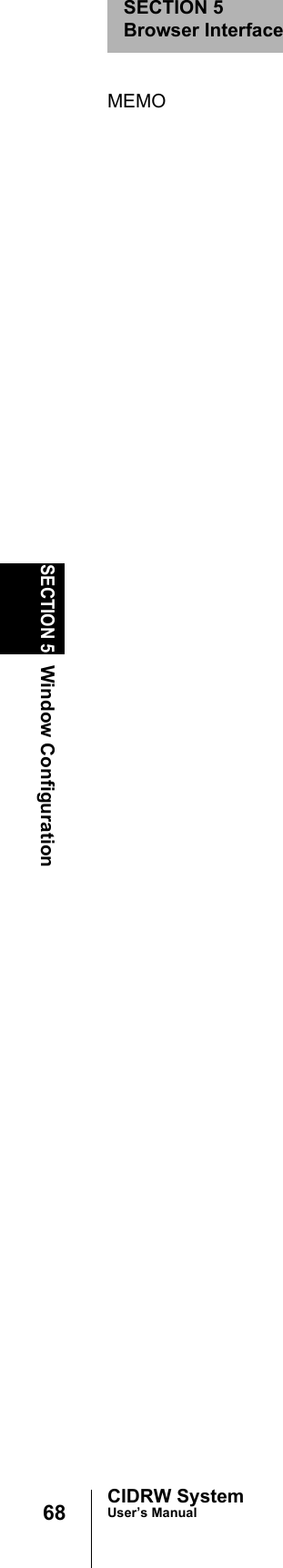

68SECTION 5Window ConfigurationCIDRW SystemUser’s ManualSECTION 5Browser InterfaceMEMO
