Opticon Sensors Europe PX20 PX-20 User Manual PX20 datacollector
Opticon Sensors Europe BV PX-20 PX20 datacollector
User manual
Specifications Manual

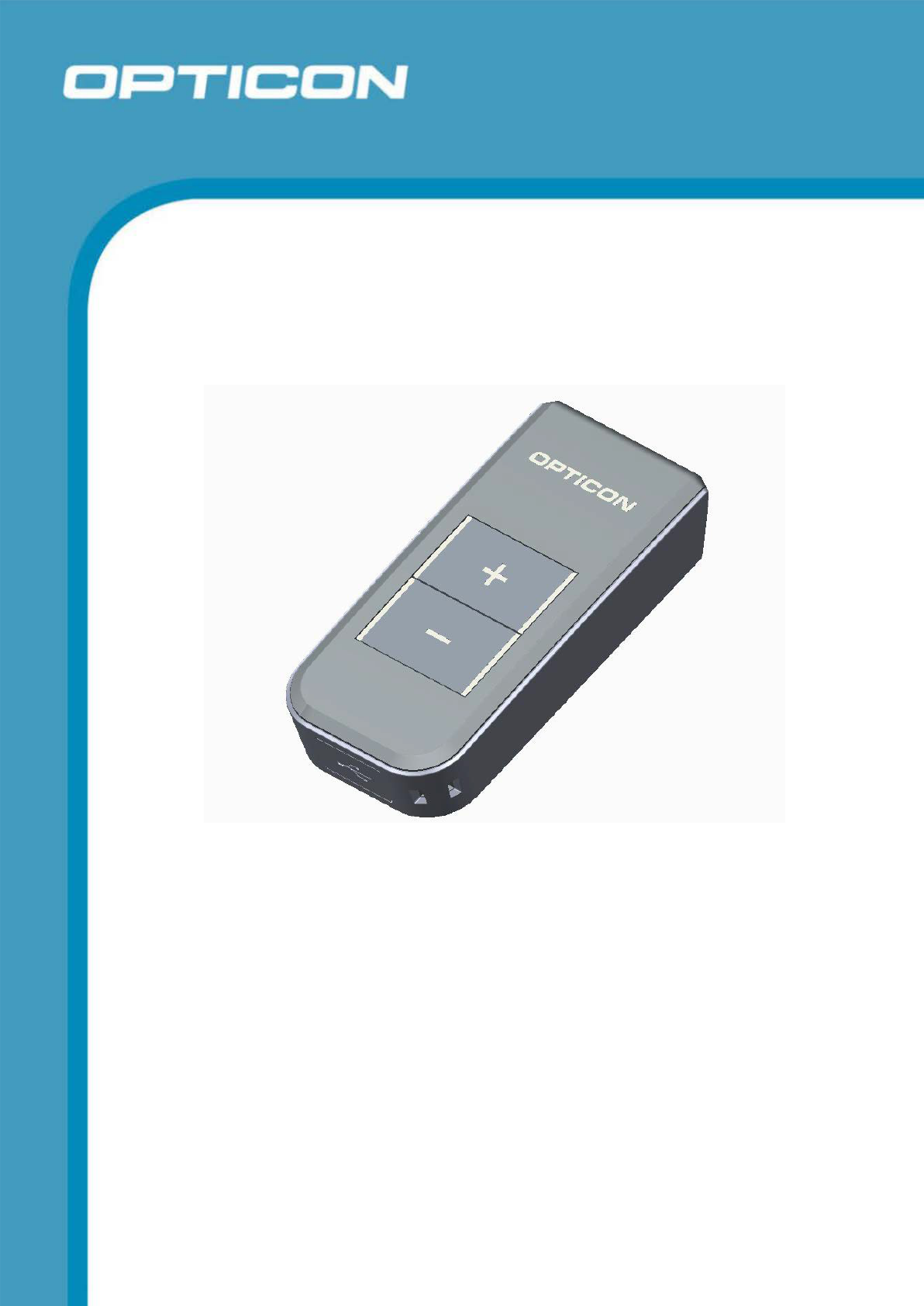

Portable 2D Data Collector
PX-20
The PX-20 is a portable data collector with a 2D barcode
scanner. Scanned and stored data can be transmitted to the
host via the USB interface, or via Bluetooth.
Opticon
PX-20
Specifications Manual
2
Preliminary. All information subject to change without notice.
Document History
Model Number: PX-20
Edition: 1.3
Date: 2013-05-30
Copyright 2013 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE
PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the
warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in
materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by
modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under
warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and software, even if
Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need to
transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered
by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 12-
17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
Opticon
PX-20
Specifications Manual
3
Contents
1. Abstract ..................................................................................................................................... 5
2. Overview ................................................................................................................................... 5
3. Physical Features ..................................................................................................................... 6
3.1. Dimensions ....................................................................................................................... 6
3.2. Weight ............................................................................................................................... 7
3.3. Color ................................................................................................................................. 7
4. Environmental Specifications.................................................................................................. 7
4.1. Operating Temperature and Humidity................................................................................ 7
4.2. Storage Temperature and Humidity ................................................................................... 7
4.3. Ambient Light Immunity ..................................................................................................... 7
5. Component Specification......................................................................................................... 8
6. Electrical Specifications........................................................................................................... 8
6.1. Absolute Maximum Ratings ............................................................................................... 8
6.2. Recommended Operating Conditions ................................................................................ 8
6.3. Electrical Characteristics ................................................................................................... 9
7. Optical Specifications ............................................................................................................ 10
8. Barcode reader Technical Specifications ............................................................................ 11
8.1. Bar Code Test Sample .................................................................................................... 12

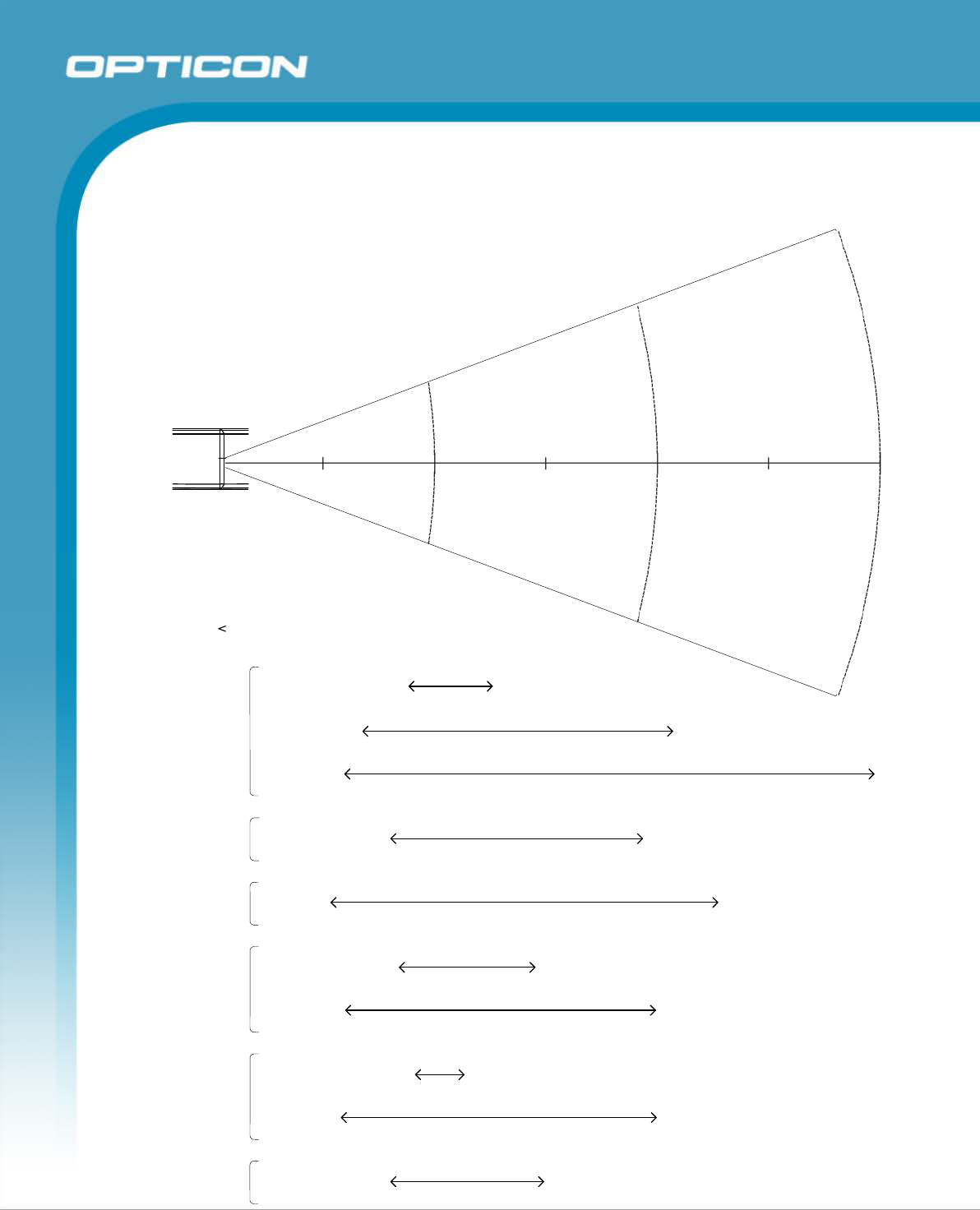

8.2. Scan Area and Depth of Field.......................................................................................... 13
8.3. Print Contrast Signal........................................................................................................ 14
8.4. Minimum Resolution ........................................................................................................ 14
8.5. Wide Bar Code ................................................................................................................ 14
8.6. Motion Tolerance............................................................................................................. 15
8.7. Pitch, Skew, and Tilt ........................................................................................................ 16
8.8. Curvature ........................................................................................................................ 16
9. External interfaces.................................................................................................................. 17
9.1. USB-HID and USB-VCP Interface Specifications ............................................................ 17
9.2. Wireless Interface............................................................................................................ 17
10. Cable and Connector.............................................................................................................. 18
10.1. USB Cable ...................................................................................................................... 18
10.2. Connector........................................................................................................................ 18
10.3. External trigger ................................................................................................................ 18
11. Labeling................................................................................................................................... 19
11.1. Product label ................................................................................................................... 19
11.1. White box label ................................................................................................................ 19
4
Opticon
PX-20
Specifications Manual
12. Packaging Specifications....................................................................................................... 21
12.1. Individual Packaging Specification................................................................................... 21
12.2. Collective Packaging Specification .................................................................................. 22
13. Durability ................................................................................................................................. 23
13.1. Drop Test ........................................................................................................................ 23
13.2. Dust and water Proof ....................................................................................................... 23
14. Regulatory Compliance.......................................................................................................... 24
14.1. Product Safety................................................................................................................. 24
14.2. EMC ................................................................................................................................ 24
14.3. REACH............................................................................................................................ 24
Regulation (EC1907/2006) compliance..................................................................................... 24
14.4. RoHS .............................................................................................................................. 24
14.5. R&TTE ............................................................................................................................ 25
15. Handling .................................................................................................................................. 26
15.1. Shock .............................................................................................................................. 26
15.2. Temperature Conditions .................................................................................................. 26
15.3. Foreign Materials............................................................................................................. 26
15.4. Other ............................................................................................................................... 26
16. Revision History ..................................................................................................................... 27
Table of Figures
Figure 1: Dimensions .................................................................................................................. 6

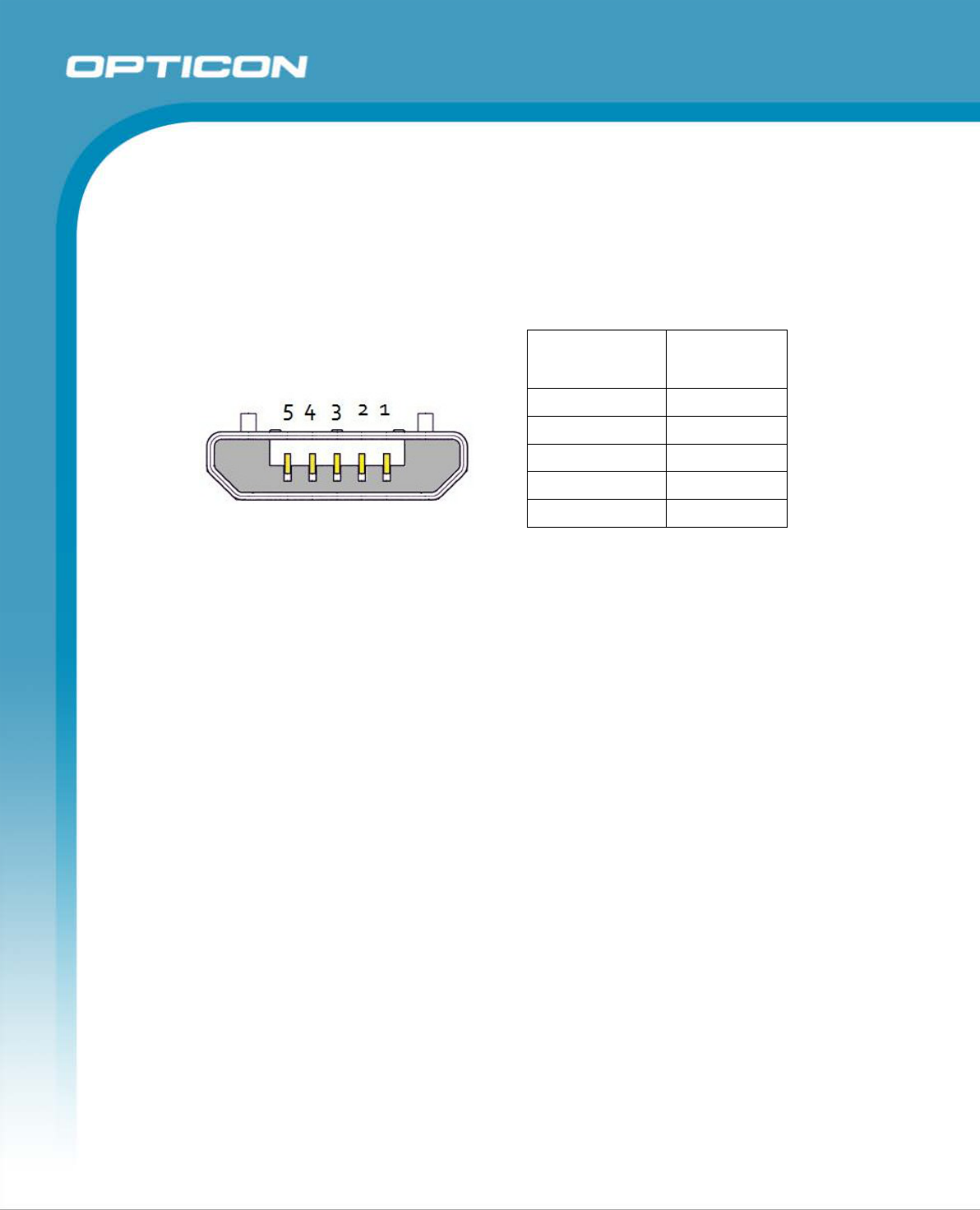

Figure 2: USB Micro-B connector ............................................................................................. 18

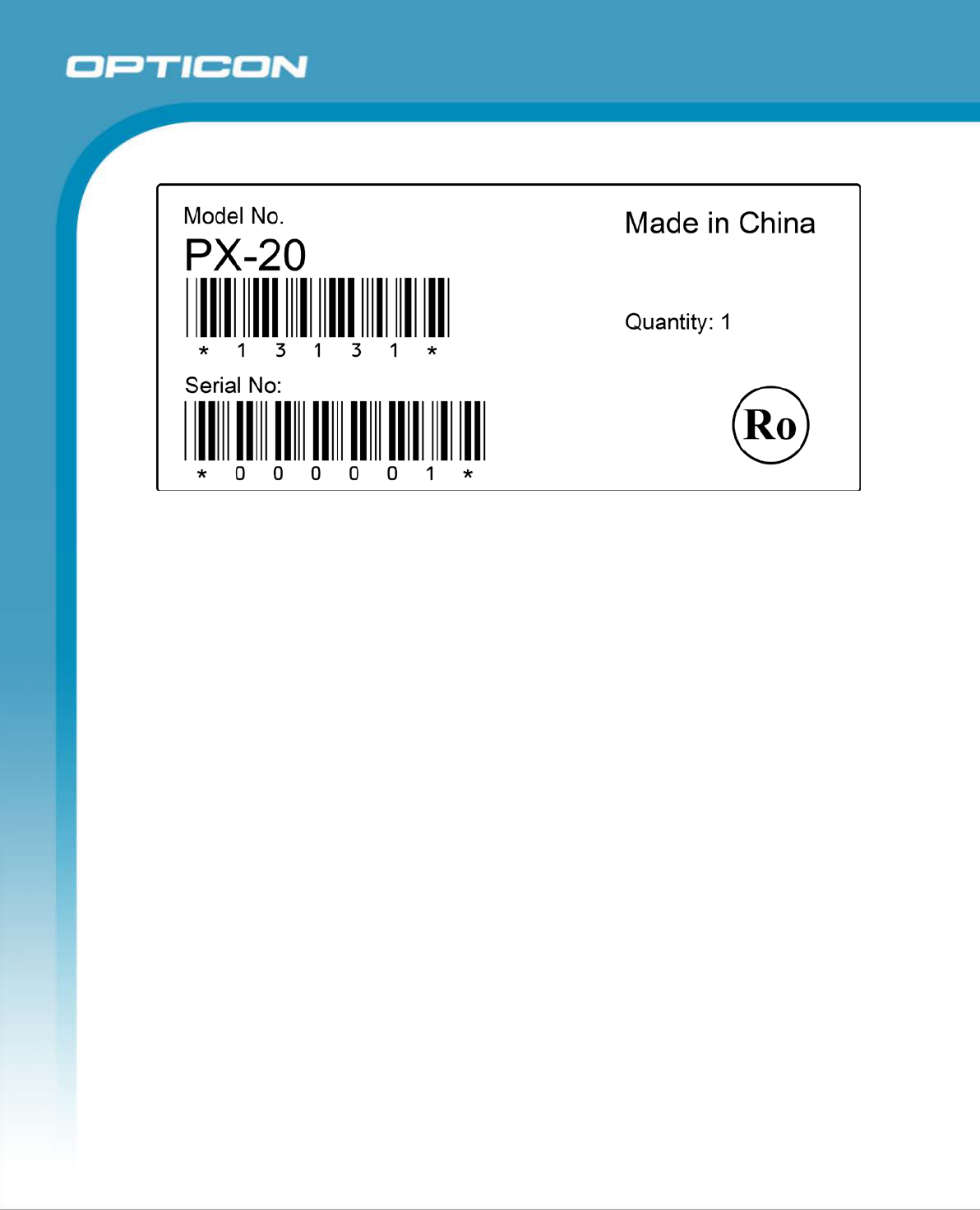

Figure 3: Product label.............................................................................................................. 19
Figure 4: White box label .......................................................................................................... 20

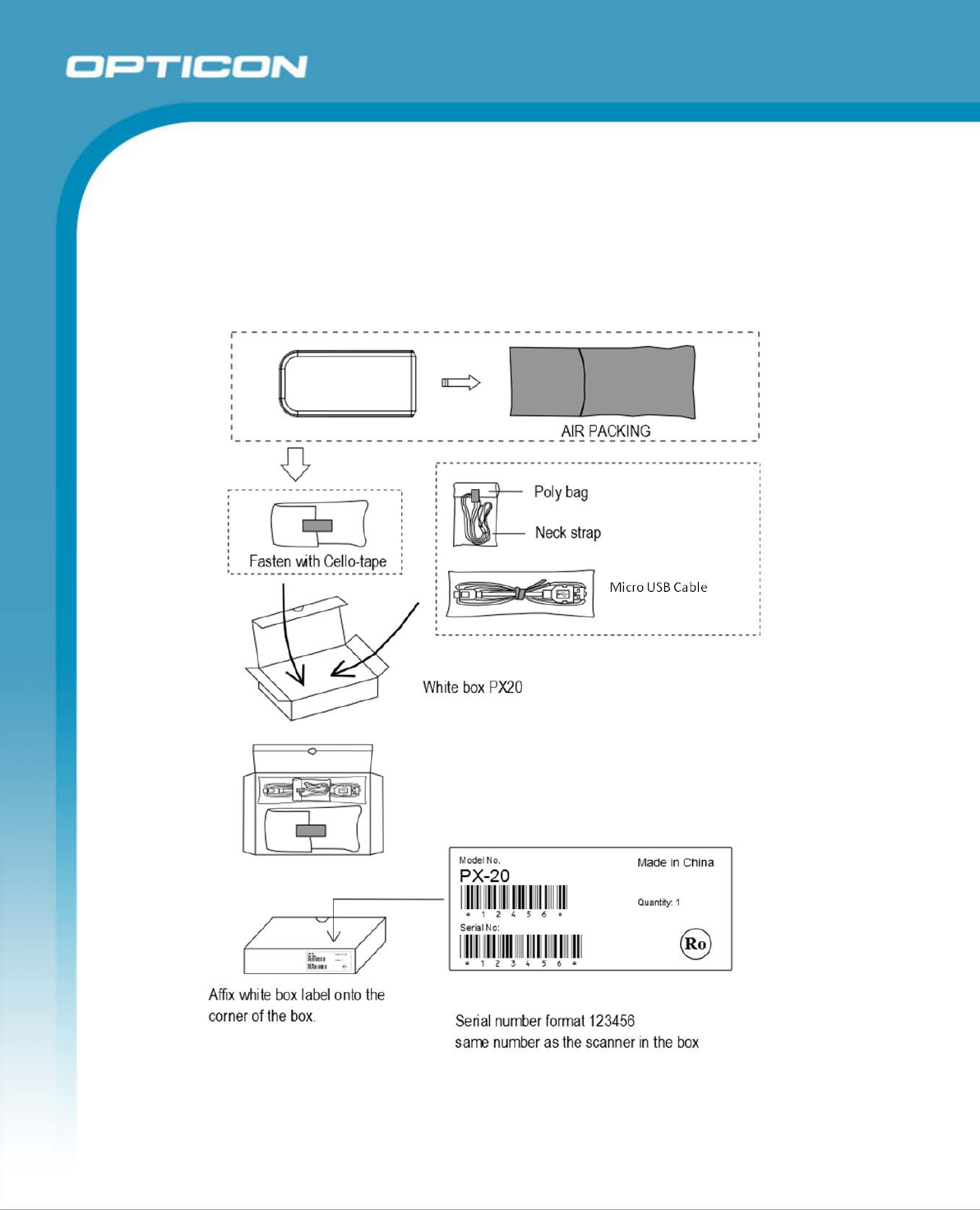

Figure 5: Individual packaging .................................................................................................. 21

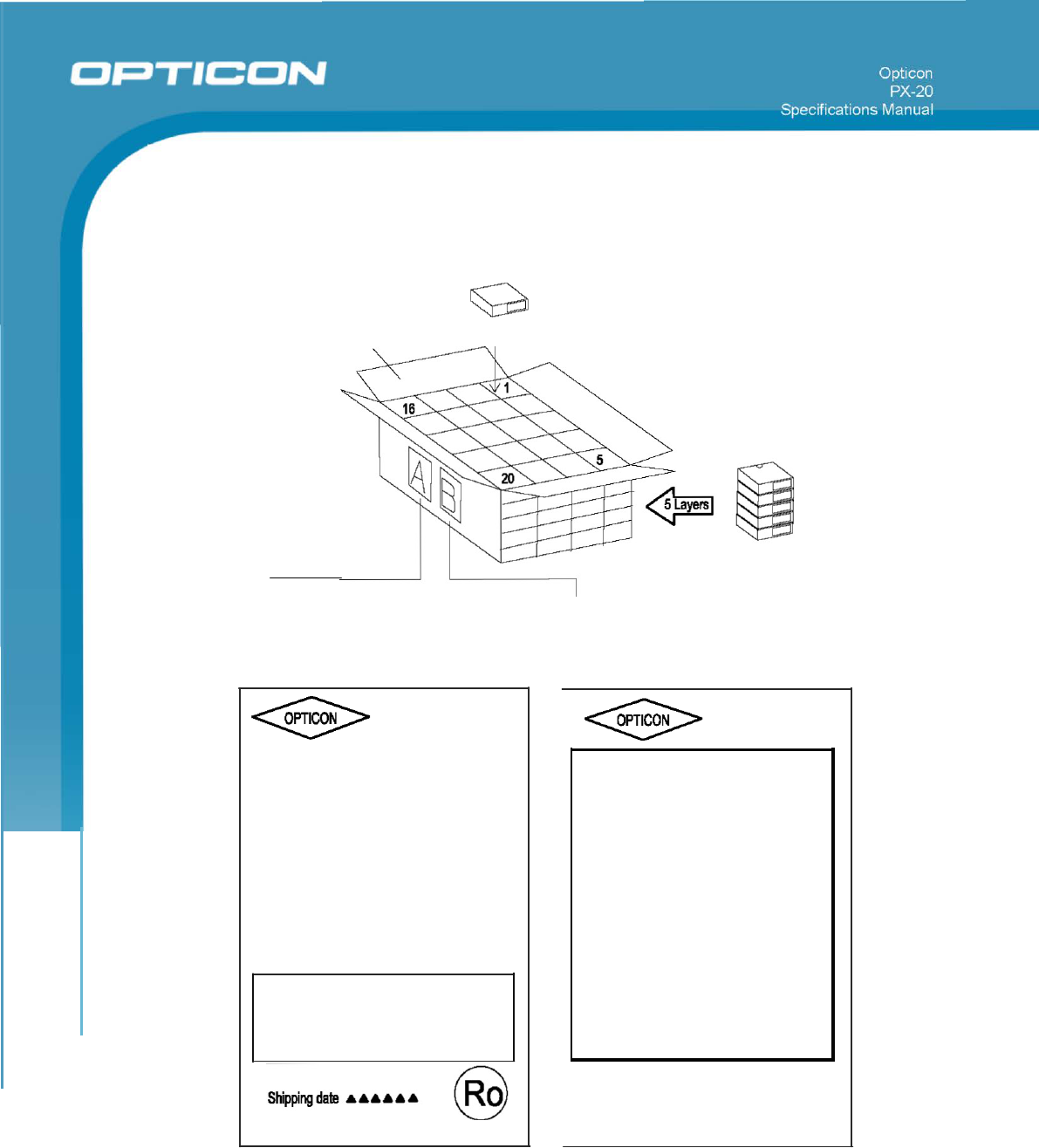

Figure 6: Collective packaging .................................................................................................. 22

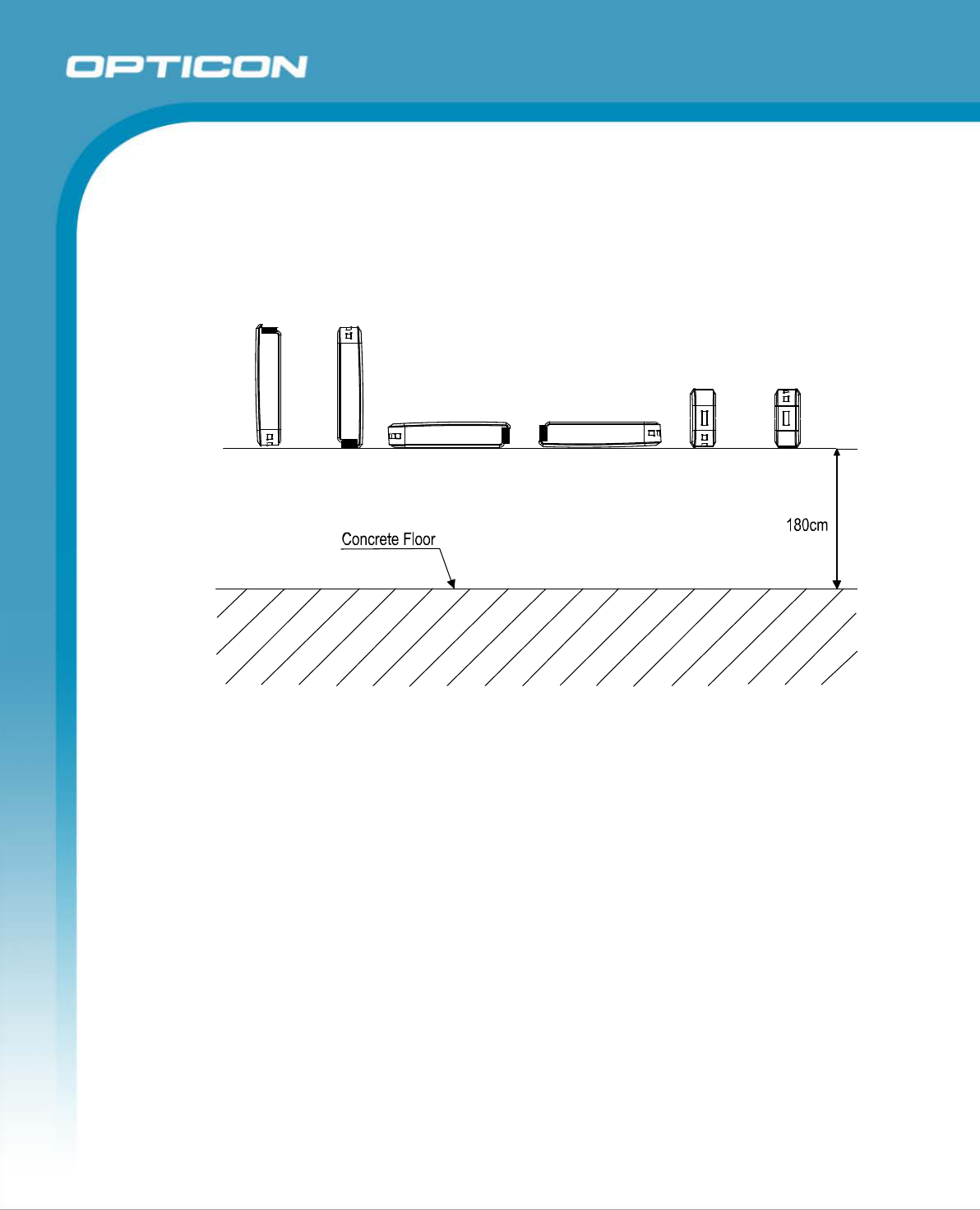

Figure 7: Drop test .................................................................................................................... 23
5
Opticon
PX-20
Specifications Manual
1. Abstract
This manual provides specifications for the PX-20 portable 2D barcode data collector.
2. Overview
The PX-20 is a very compact data collector with a built-in 2D barcode scanner. Due to its
compact size and its Bluetooth capabilities, the PX-20 is the ideal companion scanner for
mobile devices like the iPhone/iPad and Android telephones and tablets. The supported
Bluetooth profiles are HID (keyboard emulation) and SPP (serial port emulation) Special
support is added for iOS devices that allows for the use of the on-screen keyboard, while
the PX-20 is connected. Additional to the Bluetooth wireless capabilities, the PX-20 also has
a 1MByte storage space for off-line use. The USB interface can then be used to download
the data. This is then again either as HID (keyboard emulation) or VCP (serial port
emulation). The PX-20 is fully programmable, using Opticon’s easy to use development
tools that are available for free.
6
Opticon
PX-20
Specifications Manual
3. Physical Features
3.1. Dimensions
(W) 36 x (L) 74 x (D) 16 mm

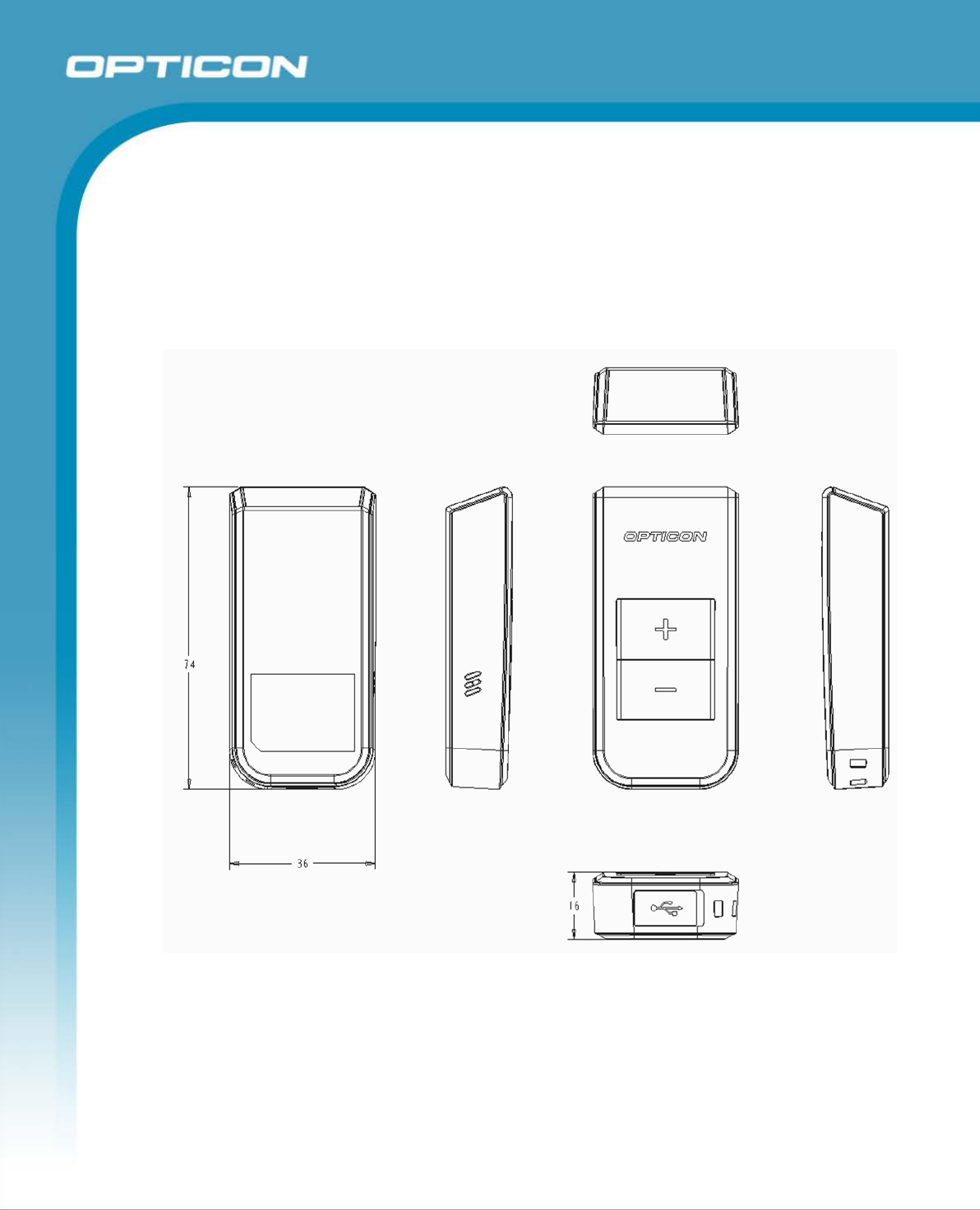

Figure 1: Dimensions
7
Opticon
PX-20
Specifications Manual
3.2. Weight
40 g (estimated)
3.3. Color
Black
4. Environmental Specifications
4.1. Operating Temperature and Humidity
Temperature: -10 to 50° C (Charging temperature range 0 to 45° C)
Humidity: 20% to 90% RH
4.2. Storage Temperature and Humidity
Temperature: -20 to 60° C
Humidity: 20% to 85% RH
4.3. Ambient Light Immunity
Decoding performance is guaranteed when the range of illumination on a barcode
surface is between zero and the following values:
Incandescent light 10,000 lx
Fluorescent light 10,000 lx
Sunlight 100,000 lx
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
Bar Code Sample
: 0.33 mm UPC specified in Chapter 8
Distance
: 130 mm from the front edge of the camera module
Angle
: α = 0°, β =
＋
15°, γ = 0°
Curvature
: R = ∞
Power Supply Voltage
: 3.3 and 5.0 V

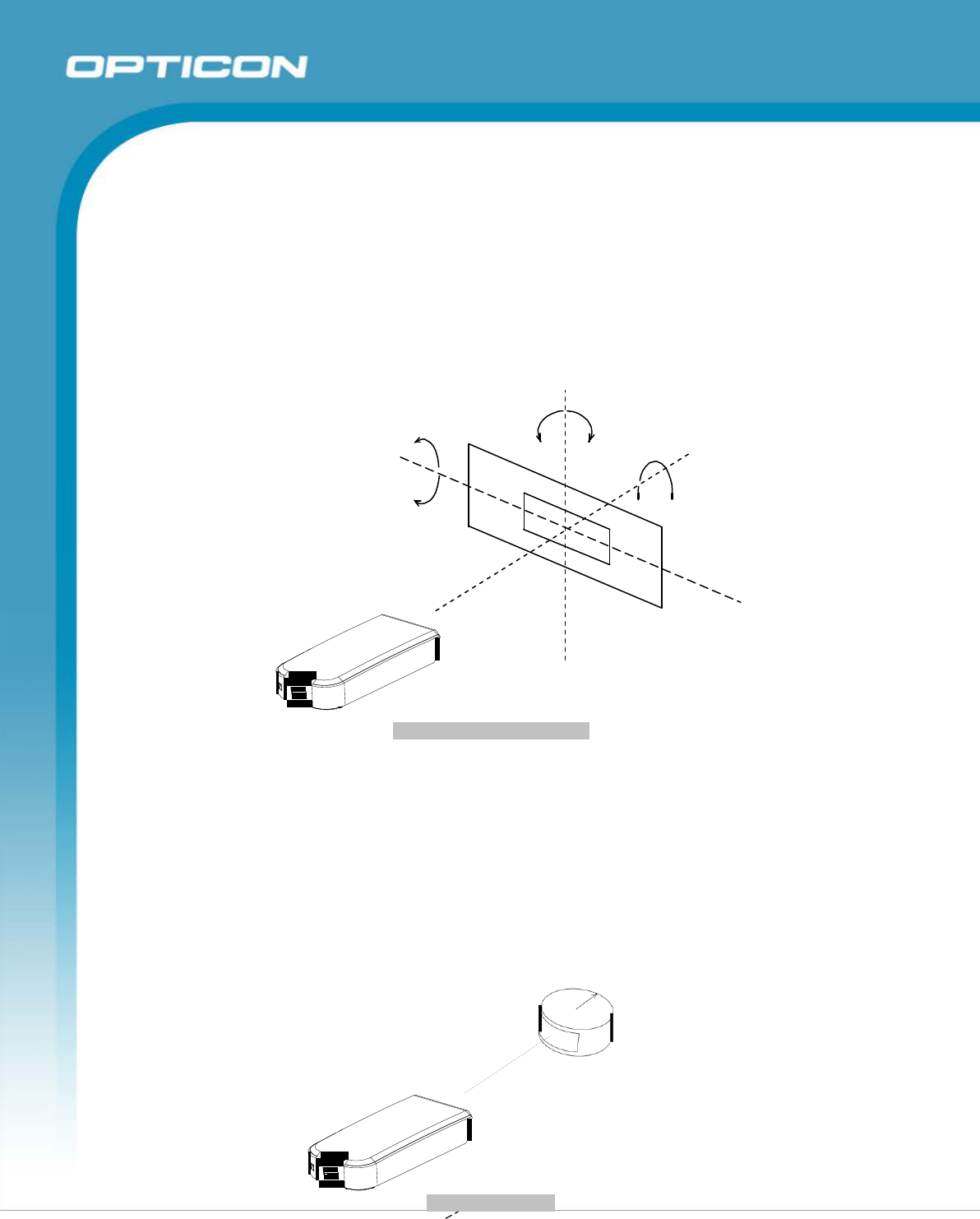

Note: α, β and γ respectively represent pitch, skew and tilt.
8
Opticon
PX-20
Specifications Manual
5. Component Specification
Item
Specifications
Notes
2D Engine
MDI-3100
Opticon’s 2D imager with integrated high speed decoder
Application
processor:
Renesas RX62N
96 MHz Clock speed
Flash ROM:
1 MByte serial flash Barcode storage + >50,000 barcodes + time stamp. Might be used for
other purpose as well, depending on the users application.
512Kbyte program
flash
128Kbyte available for user applications
32Kbyte config flash For configuration storage (e.g. Bluetooth link addresses)
RAM 96KByte 16Kbyte available for user applications
Keys + and - Dome switches
LED RGB
Bluetooth CSR 8811
6. Electrical Specifications
6.1. Absolute Maximum Ratings
Parameter
Symbol
Value
Unit
Power supply voltage (VDD to GND) VDD -0.3 to 6.5 V
Input voltage VIN -0.5 to VDD +0.5 V
Power ripple 0.1 V p-p (10-100 kHz) V
6.2. Recommended Operating Conditions
Item
Symbol
Conditions
Min
Typ
Max
Unit
Power supply voltage
VDD
Battery 3.5 - 4.2 Ｖ
USB 4.5 5.0 5.5 Ｖ
Input voltage Vin 0 － VDD Ｖ
9
Opticon
PX-20
Specifications Manual
6.3. Electrical Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Operating
current
While Scanning IOP
350 400 mA
While in Standby IPRE 45 50 mA
While Charging ICHG1 350 400 mA
When OFF Ioff 100 150 μA
Battery
specifications
Voltage VBAT 2.75 3.7 4.2 V
Rated capacity 350 355 - mAh
Charging current ICHG2 160 mA
Charging time Tchg - - 2.5 hour
Scans when fully charged *1
Operating time
-
-
1500
20
-
-
-
-
Times
Hours
Scans when fully charged *2
Operating time
-
-
2500
35
-
-
-
-
Times
Hours
Startup time (from deep sleep) Td 75 - - ms
Notes
*1 One scan of 1 second per minute, Bluetooth link active, data transmitted
immediately after the scan..
*2 One scan of 1 second per minute, Bluetooth link not active.
10
Opticon
PX-20
Specifications Manual
7. Optical Specifications
Item
Characteristics
Scan method CMOS area sensor (black and white)
Nr of effective pixels 752 (H) x 480 (V) Dots
Image capture speed (*1) 60 fps Frames per second
Focal distance 130 mm
View angle
Horizontal 40.6°
Vertical 26.4°
Auxiliary light source
(LED x 2)
Red LED
Peak wave length 617nm
Directivity angle 2θ1/2 (*2) 60°
Maximum radiation output (*3) 15000mcd
Light source for aiming
Green LED
Peak wave length 528nm
Maximum radiation output (*3) 18700mcd
Notes:
*1 The fastest speed of image capture
*2 Typical value
*3 Typical value at 25 °C
11
Opticon
PX-20
Specifications Manual
Ambient Temperature and Humidity : Room temperature and room humidity
Ambient Light
: 100 ~200 lux (on the surface of a bar code)
Pitch Angle
: α= 0°
Skew Angle
: β = 15°
Tilt Angle
: γ = 0°
Curvature
: R = ∞
Power Supply Voltage
: 3.3 and 5.0 V
PCS (1D and 2D)
: 0.9 or higher
Scanning Test
: Accept the performance with 90% or more success
rate for 10 tries of scan. One scan should be tested
within 2 seconds.
Bar Code Test Sample (1D and 2D)
: Specified below
8. Barcode reader Technical Specifications
Scanning is done by pointing the PX-20’s aiming light to the center of a bar code for scanning.
The conditions for technical specifications are as follows, unless otherwise specified in each section.
<Conditions>
< Test chart >
For 1D codes, OPTOELECTRONICS test samples
For GS1 Databar, stacked codes and 2D codes, printed by a dedicated printer for bar code
12
Opticon
PX-20
Specifications Manual
8.1. Bar Code Test Sample
1 D Bar Codes
<Code 39>
Resolution Symbology
PCS
Size (mm) No. of Digits
0.127 mm (5mil)
Code 39
0.9
32 × 10
15
0.20 mm (7.9mil) 100 × 10
31
0.254 mm (10mil) 32.5 × 10
7
0.508 mm (20mil) 36 × 25
4
<Code 128>
Resolution Symbology
PCS
Size (mm) No. of Digits
0.20 mm (7.9mil) Code 128
0.9
42 × 10
16
<UPC>
Resolution Symbology
PCS
Size (mm) No. of Digits
0.330 mm (13mil) 12-digit UPC 0.9/0.3 31.5 × 25.0
12
<Codabar>
Resolution
Symbology
PCS
Size (mm)
No. of Digits
0.15 mm (6mil) Codabar
0.9
20 × 10
10
GS1 Databar
<GS1-limited>
Resolution Symbology
PCS
Size (mm) No. of Digits
0.169 mm (6.7mil) Limited
0.9
12 × 1.5
14
0.169 mm (6.7mil) Limited-Composite
0.9
12 × 3.0
26
2 D Codes
<PDF417>
Resolution
Error Correction
PCS
Size (mm)
No. of Character
0.169 mm (6.7mil)
Level-3
0.9
23 × 10
58
0.254 mm (10mil) 35 × 15
<QR Code: Model-2>
Resolution
Error Correction
PCS
Size (mm)
No. of Character
0.212 mm (8.4mil)
M
0.9
6 ×
6
44
0.381 mm (15mil) 11 × 11
<Data Matrix>
Resolution
Model
PCS
Size (mm)
No. of Character
0.212 mm (8.4mil)
ECC200
0.9
5 ×
5
40
0.254 mm (10mil) 6 ×
6
Note: The size is outline dimensions excluding quiet zone.
13
Opticon
PX-20
Specifications Manual
8.2. Scan Area and Depth of Field
The scan area is measured from the front edge of the camera module.
50 100 150 200 250 300
Code 39
0.127(5mil)
90 130
0.254(10mil)
70 210
[ Unit ： mm ]
0.508(20mil)
* 65 300
Code 128
UPC 100%
0.20(7.9mil)
80 190
0.33(13mil)
55 225
PDF417
0.169(6.7mil)
85
0.254(10mil)
65
145
200
QR Code
Data Matrix
0.212(8.4mil)
95 120
0.381(15mil)
60 200
0.254(10mil)
80 150
Note: The depth of field depends on the view angle and symbol length
14
Opticon
PX-20
Specifications Manual
MRD : 32% and higher
(70% or higher reflectivity of space and quiet zone)
Distance
: 130 mm from the front edge of the camera module
Bar Code Sample
: UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3)
Bar Code Sample : The above codes specified in Chapter 8
Distance
: 100 mm from the front edge of the camera module
Angle
: α = 0°, β =
＋
15°, γ = 0°
Curvature
: R = ∞
For the pitch angle and tilt angle measurement, set the skew angle β = +15°
Bar Code Sample
: 0.20 mm Code 39 specified in Chapter 8
Distance
: 160 mm from the front edge of the camera module
Angle
: α = 0°, β =
＋
15°, γ = 0°
Curvature
: R = ∞
Figure 3: Scan Area and Depth of Field
8.3. Print Contrast Signal
PSC 0.3 or higher
<Conditions>
MRD = Minimum reflectance of white bar - Maximum reflectance of black bar
PCS = Error!
8.4. Minimum Resolution
1D Code : 0.127 mm (5 mil) Code 39 specified in Chapter 8
GS1-Databar : 0.169 mm (6.7 mil) GS1 Databar-Limited specified in Chapter 8
Stacked Code : 0.169 mm (6.7 mil) PDF417, GS1 Databar-Limited Composite specified in Chapter 8
2D Code : 0.212 mm (8.4 mil) OR Code and Data Matrix specified in Chapter 8
<Conditions>

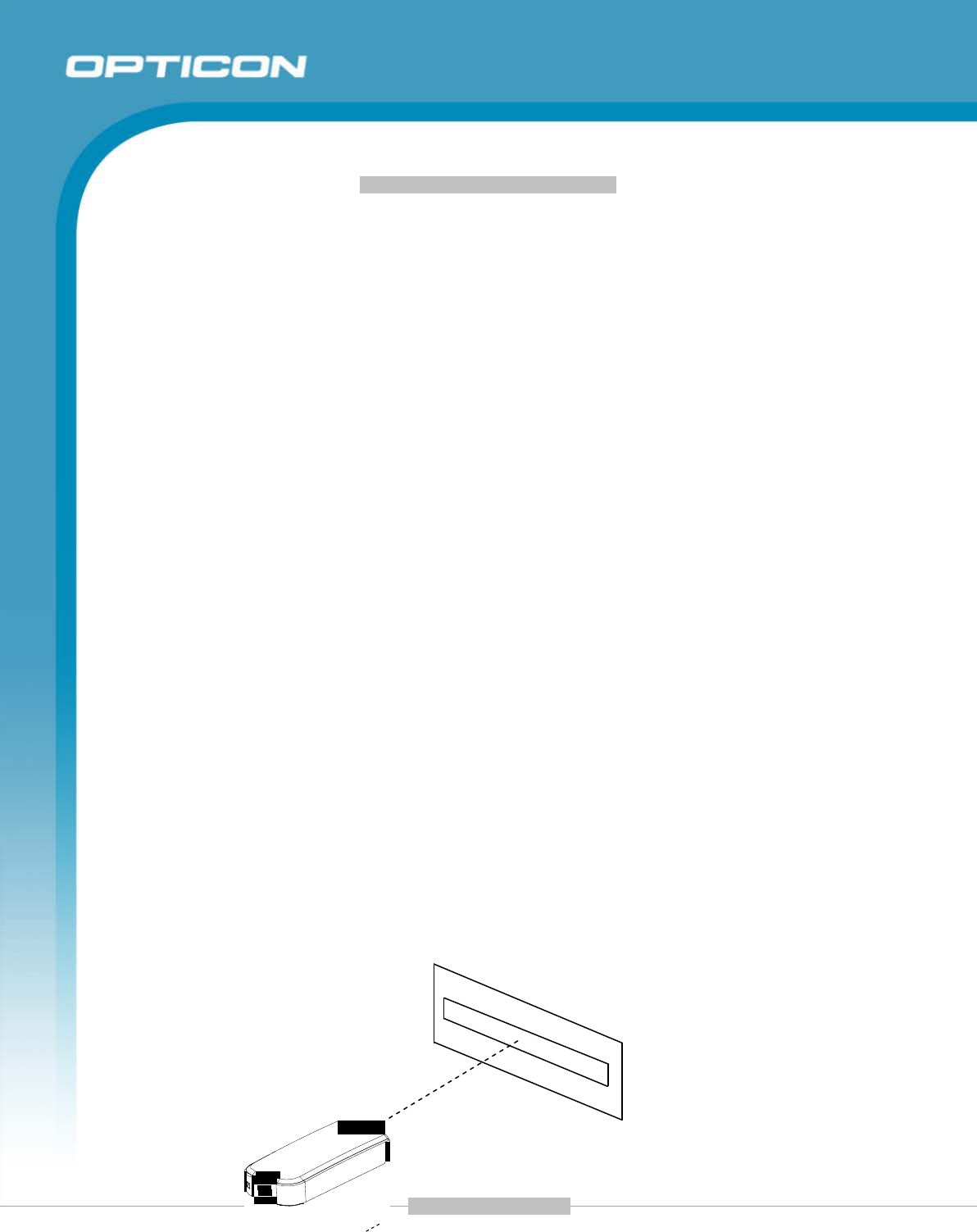

8.5. Wide Bar Code
Code 39 with width of 100 mm and resolution of 0.2 mm can be read.
<Conditions>
Figure 4: Wide Bar Code
15
Opticon
PX-20
Specifications Manual
Ambient Temperature and Humidity : Room temperature and Room humidity
Ambient Light
: 500 lux to 1000 lux (on the surface of a bar code)
Distance
: 130 mm from the front edge of the camera module
Angles
: α= 0°
Skew
: β = 15°
Tilt
: γ = 0°
Curvature
: R = ∞
Power Supply Voltage
: 3.3 and 5.0 V
PCS (1D and 2D)
: 0.9 or higher
Bar Code Sample
: UPC with 0.33 mm resolution specified in Chapter 8

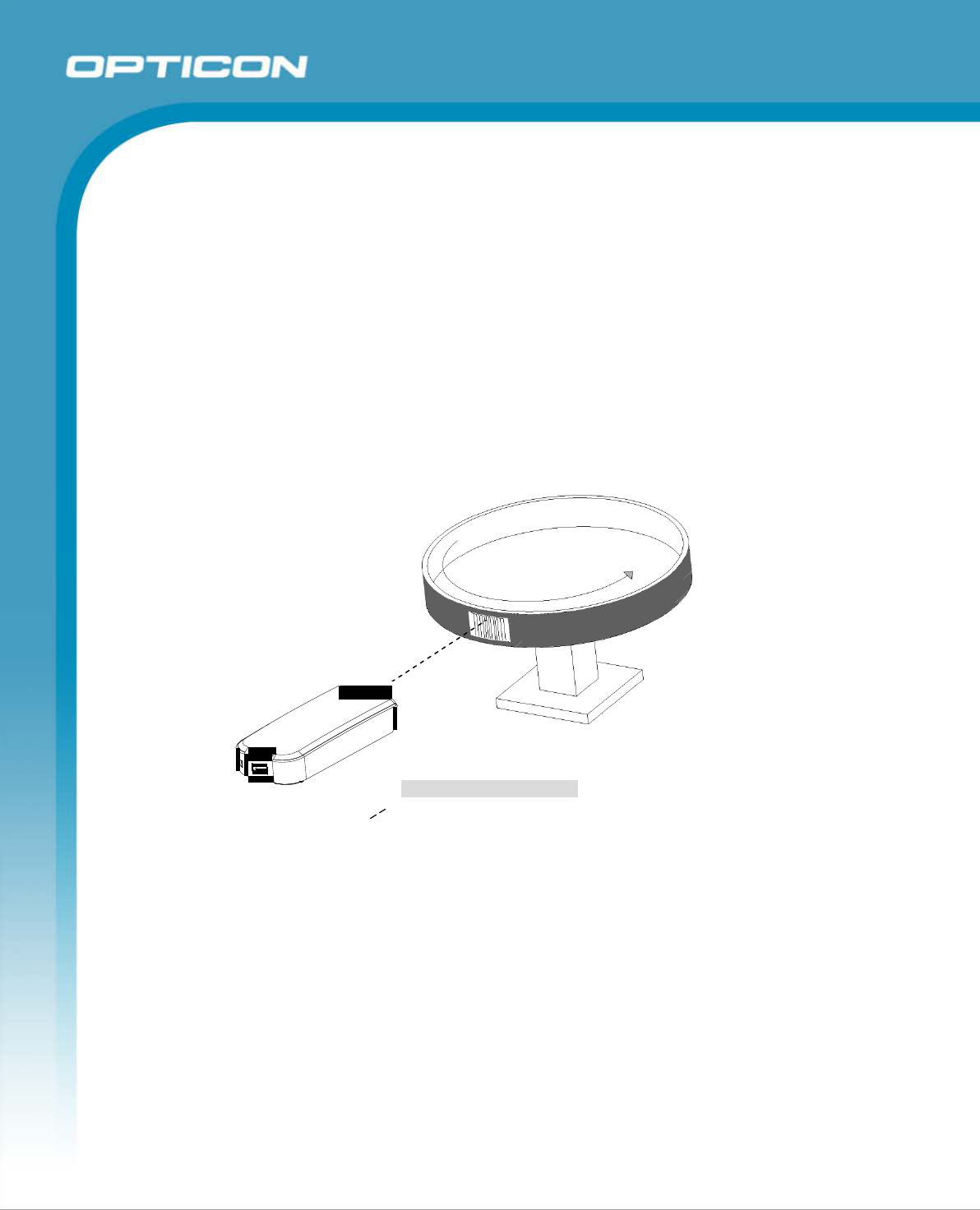

8.6. Motion Tolerance
UPC bar code 100% can be read when it is moving at 2m/s.
<Conditions>
Figure 5: Motion Tolerance
Note: The above shows the possible speed of reading, but no guarantee of 100% reading.
: Scanning may fail due to the specular reflection of illumination LEDs when the reflectivity is high.
16
Opticon
PX-20
Specifications Manual
Bar Code Sample
: 0.33 mm UPC specified in Chapter 8
Distance
: 130 mm from the front edge of the camera module
Curvature
: R = ∞
For the pitch angle and tilt angle measurement, set the skew angle β = +15°
Bar Code Sample : 0.33 mm UPC specified in Chapter 8
Distance
: 110 mm from the front edge of the camera module
Angle
: α = 0°, β =＋15°, γ = 0°
8.7. Pitch, Skew, and Tilt
Pitch : α = ±50°
Skew : β = ±50°
Tilt : γ = ±180°
<Conditions>
α
β － － ＋ γ
＋
＋ －
Figure 6: Pitch, Skew, and Tilt
8.8. Curvature
0.33 mm 12-digit UPC : R ≧ 20 mm
0.15 mm 10-digit Codabar : R ≧ 16 mm
<Conditions>
R
Figure 7: Curvature
Note: Scanning may fail due to the specular reflection of illumination LEDs when the reflectivity is high.
17
Opticon
PX-20
Specifications Manual
9. External interfaces
Interface Specifications
9.1. USB-HID and USB-VCP Interface Specifications
Complies with USB Version 2.0. The supported profiles are USB-COM (also referred
to as USB-VCP that stands for Virtual Communication Port). This port is used for
charging and data communication.
9.2. Wireless Interface
PX-20 has a BT connection with the following features:
Feature
Description
Version 1) 2.1
Supported profiles 1) SPP (Serial Port Profile)
HID (Human Interface Device Profile)
Scanner operating mode while
connected to the host system Master or Slave mode
Security mode As per the Bluetooth 2.1 specification. The settings for this can be
configured in the user application.
Encryption Encryption is linked to the authentication setting and cannot be
enabled or disabled separately.
Communication range 3) Approximately 10 meters
Frequency 4) 2400 MHz to 2483.5 MHz
Transmission power 2.5mW (4dBm) or less
Baud rate 115.2 kbps
Antenna 5) Built in
Notes
1. This product complies with the Bluetooth 2.1 standard. The device that
communicates with this product must support either SPP or HID as well. For
other Bluetooth devices with other profiles we cannot guarantee a connection
before the products have been tested.
2. The communication speed and range of the product may vary due to obstacles
and radio wave conditions between this product and the device to which it is
connected. Conditions on the host device may also affect the communication
speed and communication range of the scanner.
3. The prospective distance may vary based on environmental characteristics.
Also note the following frequency description.
4. The frequency band of the electromagnetic radiation (2.4 GHz) used by this
product is shared by various other devices. Therefore, baudrate and
communication distance may be negatively impacted by other devices.
Baudrate and communication distance are affected by obstacles, wave
conditions, or a device at the other end.
5. This product is equipped with an antenna. Bringing this product too close to a
metallic object may degrade performance.
18
Opticon
PX-20
Specifications Manual
10. Cable and Connector
10.1. USB Cable
A dedicated USB cable is provided. This cable has a USB-A connector on one end
and a micro-USB B connector on the other end.
10.2. Connector
Contact
Number
Signal Name
1 VCC
2 -DATA
3 +DATA
4 Ext trig
5 GND
Figure 2: USB Micro-B connector
10.3. External trigger
It is possible to trigger the PX-20’s barcode reader externally via a pin in the USB
connector. The trigger is active low, edge triggered, enabled by grounding pin 4 in the
USB connector.
19
Opticon
PX-20
Specifications Manual
11. Labeling
11.1. Product label
The product label shown below is affixed to the scanner.

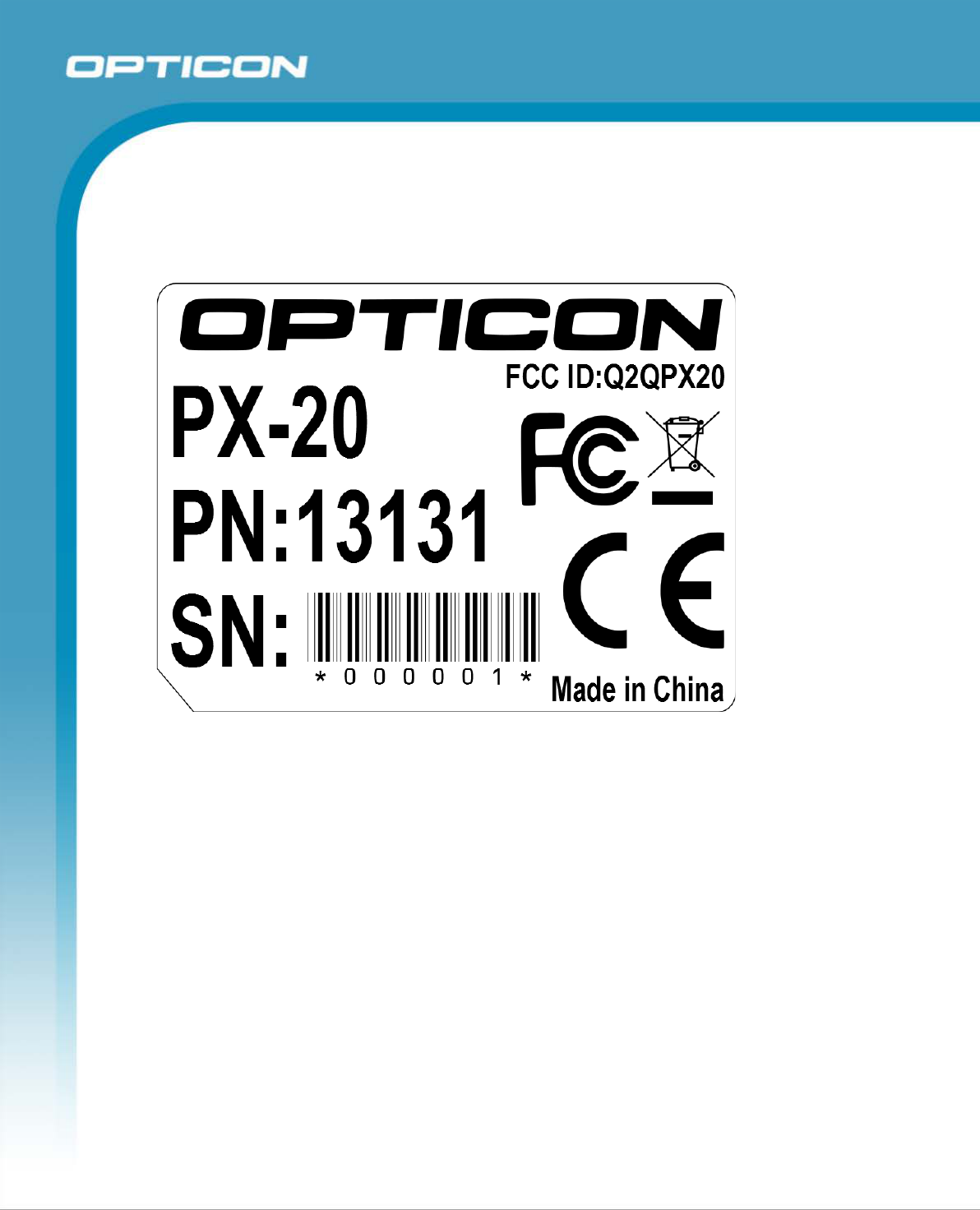

Figure 3: Product label
The serial number consists out of 6 numeric digits. It starts with 000001 and is incremented
with 1 for each scanner. The serial number is also stored in the scanners non-volatile
memory and API functions are available to retrieve the serial number for use in user
applications.
Material: Base + laminate protection against wear.
Base: PP film, thickness 80µm, backing with glue.
Laminate: PET film, clear, thickness 50µm.
Size: 25 x 18.5 mm.
11.1. White box label
Size is 70mm x 25mm with a tolerance of ± 2 mm
Label material: Paper, white, with permanent adhesive backing.
Article number: Standard code 39 + human readable text , data = Jeeves number
Serial number: Standard code 39 + human readable text, data should match that of the
product inside the box.
.
20
Opticon
PX-20
Specifications Manual
Figure 4: White box label
21
Opticon
PX-20
Specifications Manual
12. Packaging Specifications
12.1. Individual Packaging Specification
Put the scanner in a protective foam bag and place it in an individual packing box.
Size of the package after assembly: 125 (W) x 112 (D) x 40 (H) mm
Figure 5: Individual packaging
22
•
••
•
•
•
•••••
•
••••••••
12.2.Collective Packaging
Specification
Size of the shipping box
is:
500
0JV)
x 560
(D)
x 200
(H) mm
Carton
Box
Pack
100
sets into the carton
box
A:Barcode seriallabelfor packing
box
B
:
Missing
serial
number
label
Stick
the
labels
on
both
front
and
bac
k
side of
the
box
Attach
this
label
when
more
than
two
serialnumbers
are
out
of
sequence.
C/N
o
•
a,
Procb:t
PX-20
PO:
1
•••••••
QTY:
1
•••••
S
NJ
F
rorn
:
l
f
l
!lllllfl
l
SNITO:
II
H
I
I
I
I
I
I
I
I
I
IH
I
I
I
II
I
I
I
IHI
Mi &ing
Serial
number
Q'ly
•
a.
1
IIP
W
J
I
I
I
J
II
Ifii
II
J
I
I
·
'II
2
1
•
1
1
1
11
1
1
1
•
1
1
1
1
•
11
•
1
•
1
11
•
111
•
1
•
C/No
••
Missing
Serialnumber
Q'ly
• •
3
J
I
IJIJIJI
J
IJ
4
1
•
1
••
1
1
1
•
1
•
1
•
.
•
1
•
1
5
I
JIJIJIJIJIJ
6
1
1
•
1
1
1
1
1
1
•
1
1
•
1
1
1
1
•
1
1
1
1
•
1
1
1
•
1
1
1
•
1
1
1
•
7
11111
11
f
l
m
l
ii
l
J
m
J
m
J
•
IIIIII
8
11
•
11111
•
11111
•
11111
•
11111
•
11111
•
11111
•
1111
•
1111
9
I
II
IJ
I
I
I
I
J
I
I
I
J
I
I
I
IJ
I
I
I
IJII
II
I
III
10
1
1
•
1
1
111
•
1
11
•
1
1
•
1
1
•
1
1
1
1
•
1
1
1
1
1
1
•
11
•
®
Made
i
n
China
Opticon
Sensor
s
Europe
B
.
V
.
Made
in
Ch
i
na
Opticon
Sensor
s
Europe
B
.
V
.
Figure 6: Collective
p
a
ckaging
Note: The "RO" mark labeled on the package tray or package box guarantees that
the
applicable product has passed our test of RoHS restrictions compliance
(
the
restriction of the use of certain hazardous substances in electrical and
electronic
equipment, 2002/95 EC). However, this document does not have any legal weight
in
the European
Union.
23
Opticon
PX-20
Specifications Manual
13. Durability
13.1. Drop Test
No malfunction occurred after the following drop test.
Drop Test: Drop the data collector from a height of 180 cm onto a concrete floor (three
times in each of 6 angles).
Figure 7: Drop test
24
Opticon
PX-20
Specifications Manual
14. Regulatory Compliance
14.1. Product Safety
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Lamp classification: IEC62471:2006 Exempt Group
14.2. EMC
EN55022
EN55024
FCC Part 15 Subpart B Class B and Part 15 Subpart C: This device complies with
part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate this equipment. (Example: Use only shielded interface cables when
connecting to computer or peripheral devices).
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
14.3. REACH
Regulation (EC1907/2006) compliance
14.4. RoHS
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2002/95 EC.
25
Opticon
PX-20
Specifications Manual
14.5. R&TTE
This scanner conforms to the following standards of the Radio and
Telecommunications Terminal Equipment (R&TTE) directive from the EU.
EN300 328
EN301 489
26
Opticon
PX-20
Specifications Manual
15. Handling
Handle this product carefully. Do not deliberately subject it to any of the following.
15.1. Shock
Do not throw or drop the scanner.
Do not drop or put heavy items on this product or its cable.
15.2. Temperature Conditions
Do not use the scanner at temperatures outside the specified range.
Do not use near heat sources such as radiators, heat registers, stoves, or other types
of devices that produce heat.
Do not use in areas exposed to direct sunlight for long periods of time.
Do not pinch or forcibly bend the cable, especially at very low temperature.
15.3. Foreign Materials
Do not immerse the scanner in liquids.
Do not subject the scanner to chemicals.
Do not insert foreign substances into the device.
15.4. Other
Do not attempt to disassemble, modify or update this device.
The scanner may not perform properly in environments when placed near a flickering
light, such as a computer monitor, television, etc. Do not use in the reach of blinking
lights such as CRT.
27
Opticon
PX-20
Specifications Manual
16. Revision History
Revision
Date
Issued By
Comments
0.1
20120928
NiLe
Initial revision
0.2
20121010
NiLe
Changed chapter 10 to have micro USB
0.3
20121012
NiLe
Updates during review
0.4
20121015
NiLe
Updates according to review notes
0.5
20121030
NiLe
Updated pictures
0.6
20121123
NiLe
Updated label picture, Mech drawings
0.7
20121130
NiLe
Updates during review
1.0
20121221
NiLe
Version 1.0, updated according to comments from Ron de
Vries
1.1
20130109
NiLe
Re-added RoHS in certification chapter
1.2
20130125
Kees
1.3
20130530
NiLe
Updated according to review by Ron de Vries. Mainly
changing data from MDI-3100 HD version to MDI-3100 SR
version
