INTERNATIONAL Data Sheet
November 2000 17384 DRAFT
20462, 20453 DualTech Desktop Reader
Installation Instructions
Description
The DualTech PC Desktop Reader is an accessory for use with a PAC Adminstration interface unit.
This system is used for direct PC to controller communications (fig. 1).
Note: This Desktop Reader will read KeyPAC and PAC ID-devices.
Note: It is unlikely that you will need an Interface Kit at a PC that already has a CNC attached.
CNCs have either front panel or external readers for administration purposes.
WARNING: The Interface Unit contains mains voltages. This procedure should only be carried out by
a suitably qualified and experienced person. If you have any doubts as to your suitability
contact PAC for advice. Failure to do so may result in injury or death by electric shock.
WARNING: If, at any time, the interface kit or its wiring appear damaged then immediately
disconnect it from the mains and contact PAC for advice. Failure to do so can result in
electric shock and/or further damage to equipment.
DualTech Desktop Reader 17384 DRAFT
Page 3 DRAFT ©2000 PAC International Ltd.
Installation
Opening the Interface Unit
WARNING: This Interface Unit contains mains voltages. Before opening ensure that it is
disconnected from the mains. Failure to do so can result in injury or death by electric
shock.
Make sure that the Interface Unit is not connected to the mains then remove the lid by removing the
4 screws recessed in the base.

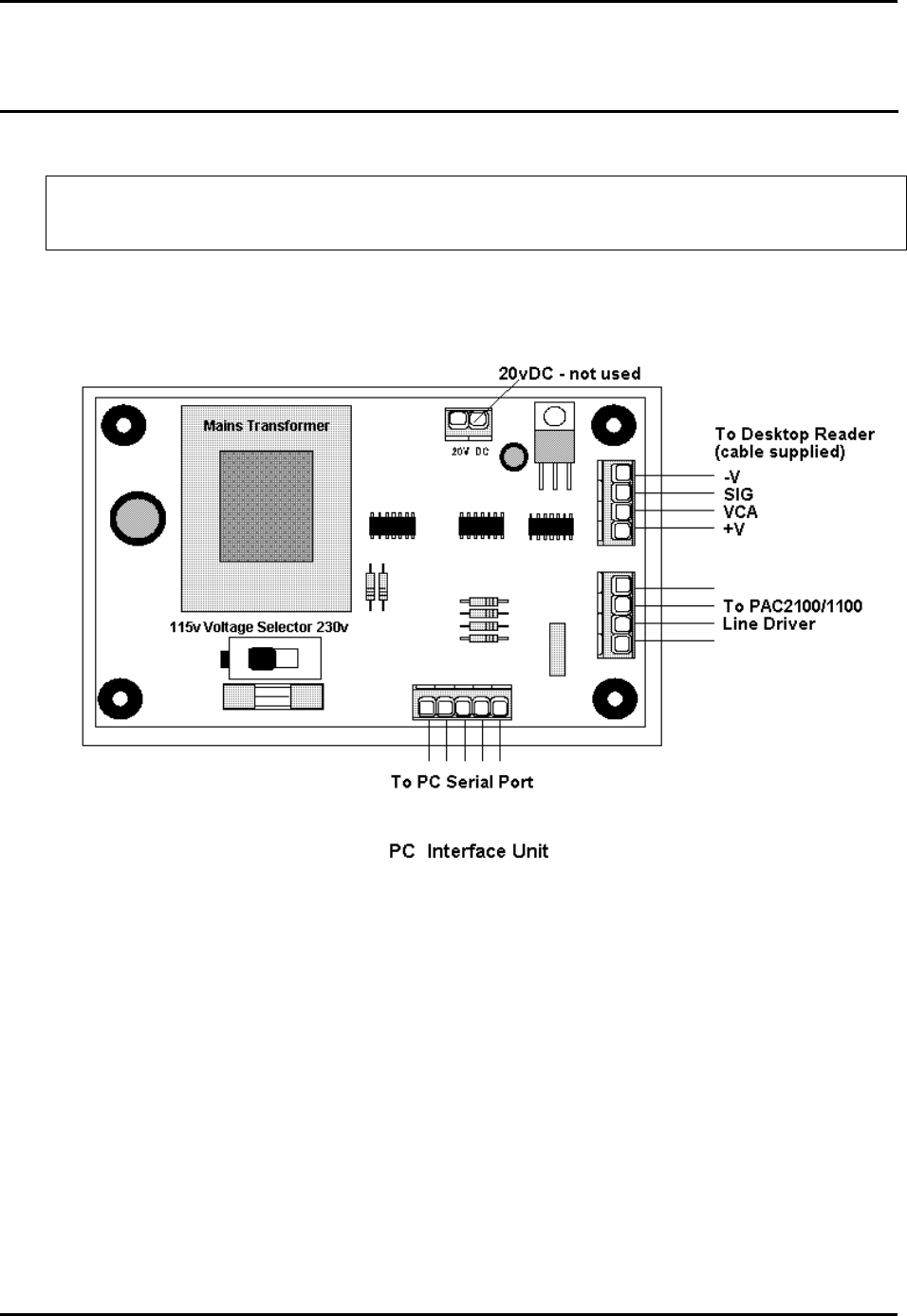

There are removable terminal blocks fitted to the circuit board as shown below:
Connecting the Desktop reader
The Desktop reader supplied with the kit is complete with cable and terminal block. Fit the terminal
block with the screw heads facing the centre of the interface unit, and route the cable through the
grommet provided. Wiring for provided cables - for information only
DualTech Desktop Reader 17384 DRAFT
Page 4 DRAFT ©2000 PAC International Ltd.
Desktop Reader to Interface
56 inch cable supplied.
PC Interface Desktop Reader
4-pole Terminal Block Desktop reader
-V ———— -V Green
VCA ———— VCA Yellow
SIG ———— SIG White
+V ———— +V Brown
Specification
Dimensions 5.12in x 3.54in x 1.25in
Voltage 10.5v DC to 20v DC (Supplied by Administration Interface Unit)
Current Less than 85mA
Temperature Operating: -10°C to +55°C (14°F to 130°F)
Storage: -30°C to +80°C (-20°F to 175°F)
Humidity Operating: 0-90% RH at 30°C ±2°C (85°F±5°F) for 24 hours
Reading Range KeyPAC: Up to 4 inches
PAC: Up to 2 inches
Lead Length 56 inches
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC ID OQL-PAC-D-DT
