PEGATRON VJZ12AD11L 2x2 PCIe M.2 adapter card User Manual

PEGATRON CORPORATION 2x2 PCIe M.2 adapter card

Contents

User manual

Intel® Dual Band Wireless-AC 7265
User manual All rights reserved. Intel Corporation,
Introduction:
Intel®DualBandWireless‐AC7265(codenameStonePeak2orStP2)shallbetheVHT‐5GWi‐Fi2x2andBluetoothcombination
singlechipsolution.StP2shalluseIntel’s2ndgeneration802.11acWi‐Fisolutionandshallsupportboth2.4and5.2GHzbands.
Onthe5.2GHzbanditshalloperateonan80MHzwidechannelreachingPHYratesofupto867Mbps.StP2shallusea
BluetoothcorethatshallsupportBluetooth4.0standardincludingBluetooth4.0LowEnergy(BLE).StP2shallhave2antenna
ports:oneshallbeWi‐FionlyandthesecondwillbesharedbetweenWi‐FiandBluetooth.Wi‐FishallsupportRxantenna
diversity.
HWdescribe:
Form Factors M.2 (Next Generation Form
Factor - NGFF)
Electrical interfaces PCIe and USB 2.0
Antenna Interface
Connector
Hirose U.FL-R-SMT mates with
cable connector U.FL-LP-066
Antenna Diversity On-board diversity
IEEE 802.11
Networking Standards
802.11abgn, 802.11ac, 802.11d,
802.11e, 802.11i, 802.11h,
802.11w
Operating
Temperature
0 to +80 degrees Celsius
Humidity 50% to 90% RH non-condensing
(at temperatures of 25 ºC to 35
ºC)
Frequency
Modulation
5GHz (802.11ac/n) 2.4GHz (802.11b/g/n)
Frequency band 5.15GHz - 5.85GHz (dependent
on country)
2.400 - 2.4835GHz (dependent on
country)
Modulation BPSK, QPSK, 16 QAM, 64 QAM,
256 QAM
CCK, DQPSK, DBPSK
Wireless Medium 5GHz UNII: Orthogonal
Frequency Division
Multiplexing (OFDM)
2.4GHz ISM: Orthogonal Frequency
Division
Multiplexing (OFDM)
ChannelsAll channels as defined by the
relevant specification and
country rules.
Spatial streamsIntel® Dual Band Wireless-AC
7265: 2 X 2
Data RatesAll data rates are theoretical
maximums.
IEEE 802.11ac Data
Rates
Intel® Dual Band Wireless-AC
7265: Up to 867 Mbps
IEEE 802.11n Data
Rates
Tx/Rx (Mbps): 300, 270, 243,
240, 216.7, 195, 180, 173.3,
150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60,
57.8, 45, 43.3, 30, 28.9, 21.7,
15, 14.4, 7.2
IEEE 802.11a Data
Rates
54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11g Data
Rates
54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b Data
Rates
11, 5.5, 2, 1 Mbps
BluetoothDual Mode Bluetooth* 2.1,
2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
General
Operating Systems Windows* 7 (32-bit and 64-bit),
Windows* 8 (32-bit and 64-bit),
Windows* 8.1 (64-bit)
Wi-Fi Alliance*
certification
Wi-Fi CERTIFIED* for 802.11ac,
a/b/g, n, WMM*, WPA*, WPA2*,
and WPS, WPS 2.0,
Protected Management Frames.
Wi-Fi Direct* for peer-to-peer
device connections.
Architecture Infrastructure and SoftAP;
Supports simultaneous Client and
SoftAP modes
Cisco Compatible
Extensions
certification
Cisco Compatible Extensions,
v4.0
Security
Authentication WPA and WPA2, 802.1X
(EAP-TLS, TTLS, PEAP, LEAP,
EAP-FAST), EAP-SIM, EAP-AKA
Authentication
Protocols
PAP, CHAP, TLS, GTC,
MS-CHAP*, MS-CHAPv2
Encryption 64-bit and 128-bit WEP,
AES-CCMP, TKIP
Wi-Fi Direct*
Encryption and
Authentication
WPA2, AES-CCMP
Product Safety UL, C-UL, CB (IEC/EN 60950-1)
InstallWLANcardtothehostplatformbyfactory.
SWdescribe:
Portions of Intel® PROSet/Wireless WiFi Connection Utility include software under the following terms:
1. Setupthe Intel® PROSet for installing driver to the host platform.
2. Use the administrator to installing driver.
Portions Licensed from Devicescape Software, Inc.
Intel® PROSet/Wireless WiFi Connection Utility contains software licensed from Devicescape Software,
Inc. Copyright
(c) 2004 - 2008 Devicescape Software, Inc. All rights reserved.

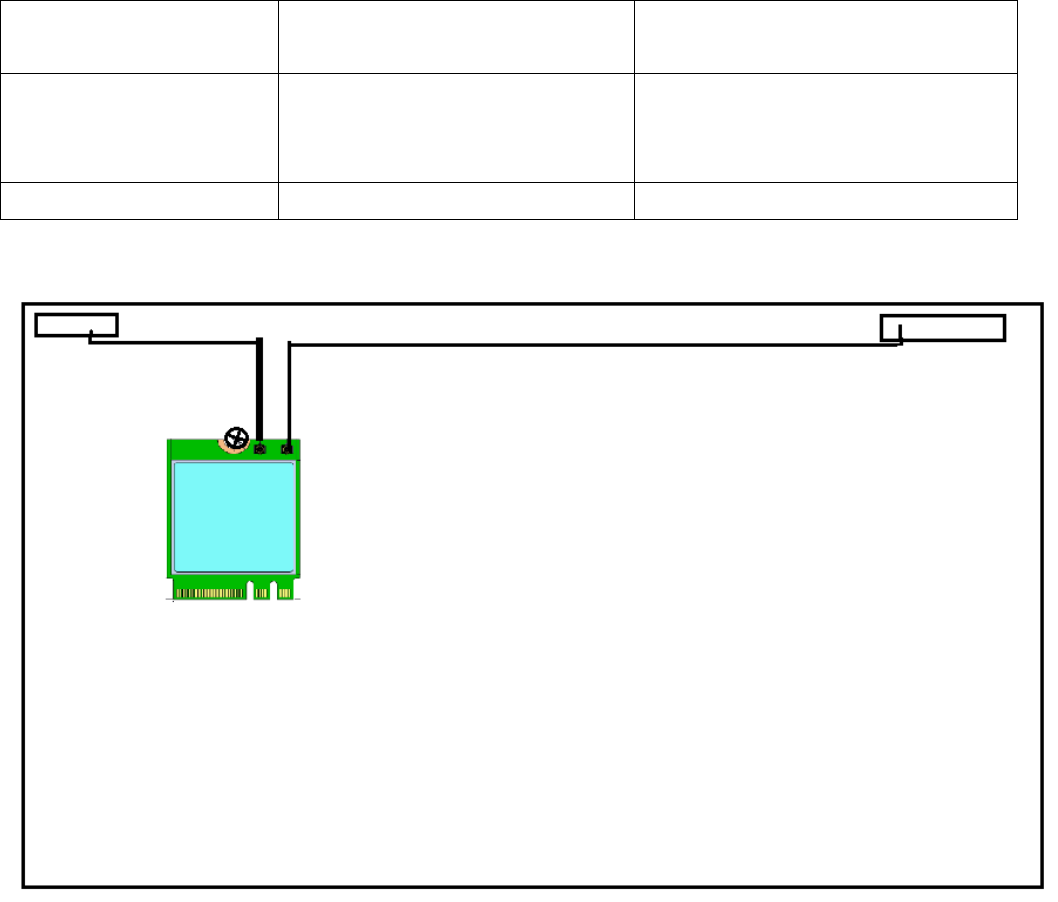

Antenna Placement Within the Host Platform
To ensure RF exposure compliance the antenna(s) used with the Intel® wireless adapters must be
installed in
notebook or tablet PC host platforms to provide a minimum separation distance from all persons, in all
operating
modes and orientations of the host platform, with strict adherence to the table below. The antenna
separation
distance applies to both horizontal and vertical orientation of the antenna when installed in the host
system.
Wireless AdapterMinimum required antenna-to-user
separation distance
Intel® Dual Band Wireless-AC 72658 mm
* This wireless adapter may be installed in mobile devices only
(requires > 20 cm antenna separation from the body of user).
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to the end user
of the product or system incorporating the Intel® wireless adapter, in compliance with local regulations.
Host system must be labeled with "Contains FCC ID: VUIVJZ12AD11L", FCC ID displayed on label.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE
C95.1-1999 and had been tested in accordance with the measurement methods and procedures
specified in OET Bulletin 65 Supplement C.
IMPORTANT NOTE:
This module is intended for OEM integrator.
The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this
module.
Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g.
Verification , Doc) of the host device to be addressed by the integrator/manufacturer.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: VUIVJZ12AD11L ".
