POWER ONE ITALY V2P53 Cellular Module for Data Monitoring User Manual

POWER-ONE ITALY SPA Cellular Module for Data Monitoring

User Manual

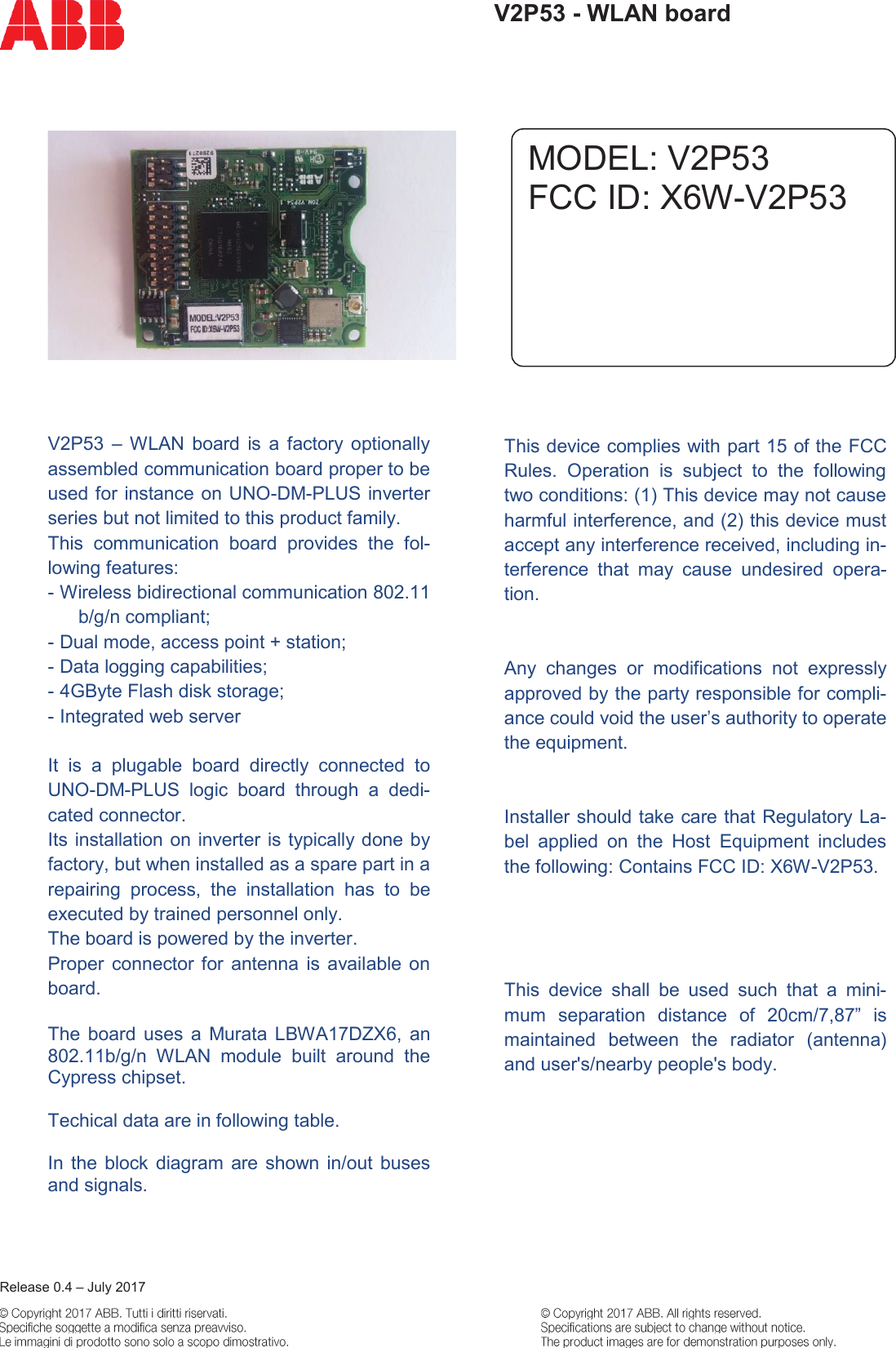

    Release 0.4 – July 2017  V2P53 - WLAN board     V2P53  –  WLAN  board  is  a  factory  optionally assembled communication board proper to be used for instance on UNO-DM-PLUS inverter series but not limited to this product family. This  communication  board  provides  the  fol-lowing features: - Wireless bidirectional communication 802.11 b/g/n compliant; - Dual mode, access point + station; - Data logging capabilities; - 4GByte Flash disk storage; - Integrated web server   It  is  a  plugable  board  directly  connected  to UNO-DM-PLUS  logic  board  through  a  dedi-cated connector. Its installation on inverter is typically done by factory, but when installed as a spare part in a repairing  process,  the  installation  has  to  be executed by trained personnel only. The board is powered by the inverter. Proper  connector  for antenna  is  available  on board.  The  board  uses  a  Murata  LBWA17DZX6,  an 802.11b/g/n  WLAN  module  built  around  the Cypress chipset.   Techical data are in following table.   In  the  block  diagram  are shown  in/out  buses and signals.                  This device complies with part 15 of the FCC Rules.  Operation  is  subject  to  the  following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including in-terference  that  may  cause  undesired  opera-tion.   Any  changes  or  modifications  not  expressly approved by the party responsible for compli-ance could void the user’s authority to operate the equipment.   Installer should take care that Regulatory La-bel  applied  on  the  Host  Equipment  includes the following: Contains FCC ID: X6W-V2P53. Other  labelling  means  as  long  as  it  includes the text “Contains FCC ID: V2P53” is allowed.   This  device  shall  be  used  such  that  a  mini-mum  separation  distance  of  20cm/7,87”  is maintained  between  the  radiator  (antenna) and user's/nearby people's body.  MODEL: V2P53 FCC ID: X6W-V2P53

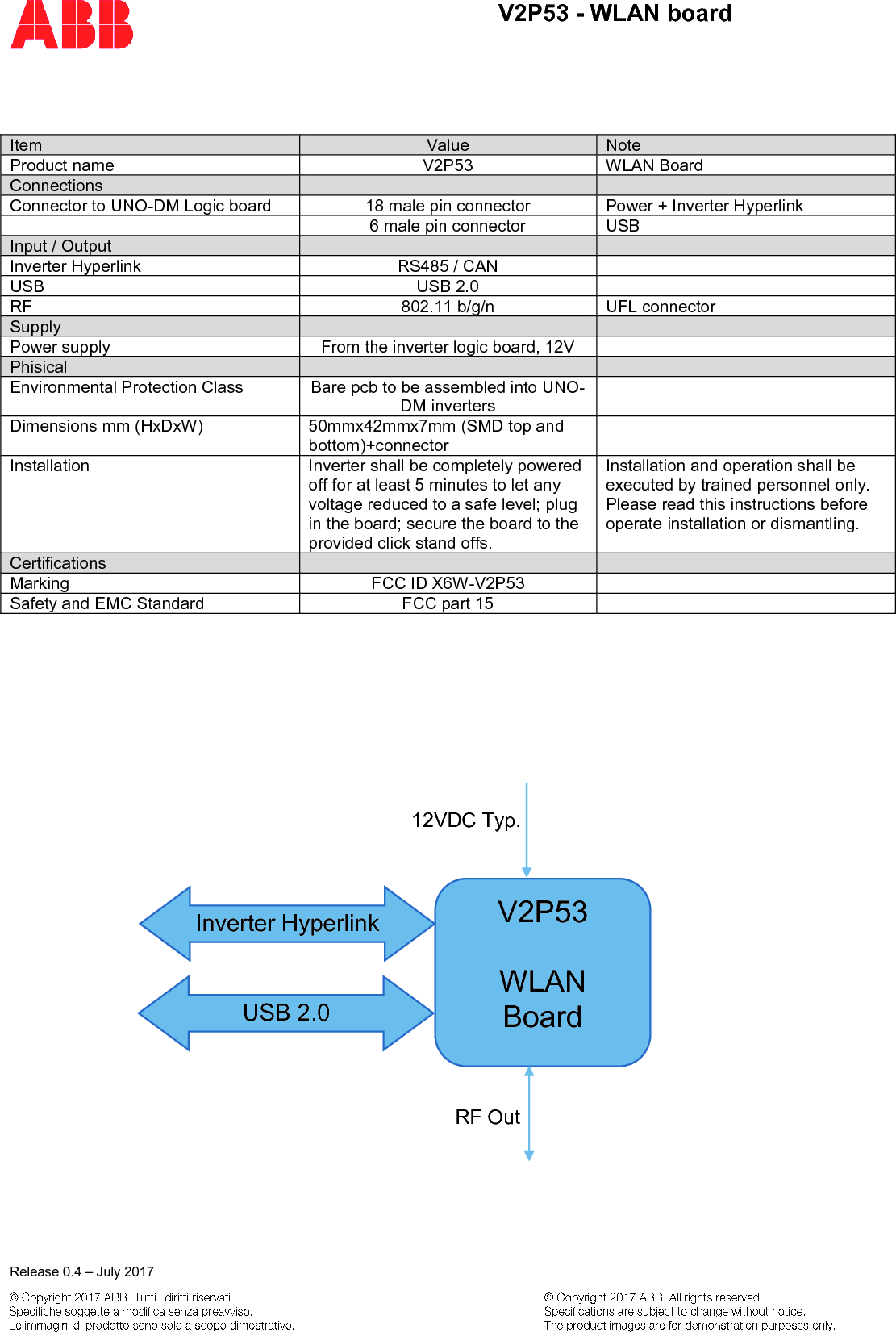

    Release 0.4 – July 2017  V2P53 - WLAN board   Item Value Note Product name V2P53 WLAN Board Connections   Connector to UNO-DM Logic board 18 male pin connector Power + Inverter Hyperlink  6 male pin connector USB Input / Output   Inverter Hyperlink RS485 / CAN  USB USB 2.0  RF 802.11 b/g/n UFL connector Supply   Power supply From the inverter logic board, 12V  Phisical   Environmental Protection Class Bare pcb to be assembled into UNO-DM inverters  Dimensions mm (HxDxW) 50mmx42mmx7mm (SMD top and bottom)+connector  Installation Inverter shall be completely powered off for at least 5 minutes to let any voltage reduced to a safe level; plug in the board; secure the board to the provided click stand offs.  Installation and operation shall be executed by trained personnel only. Please read this instructions before operate installation or dismantling.  Certifications   Marking  FCC ID X6W-V2P53  Safety and EMC Standard FCC part 15      V2P53   WLAN Board 12VDC Typ.  PWM4  ENABLE  VOUT  Inverter Hyperlink USB 2.0 RF Out
