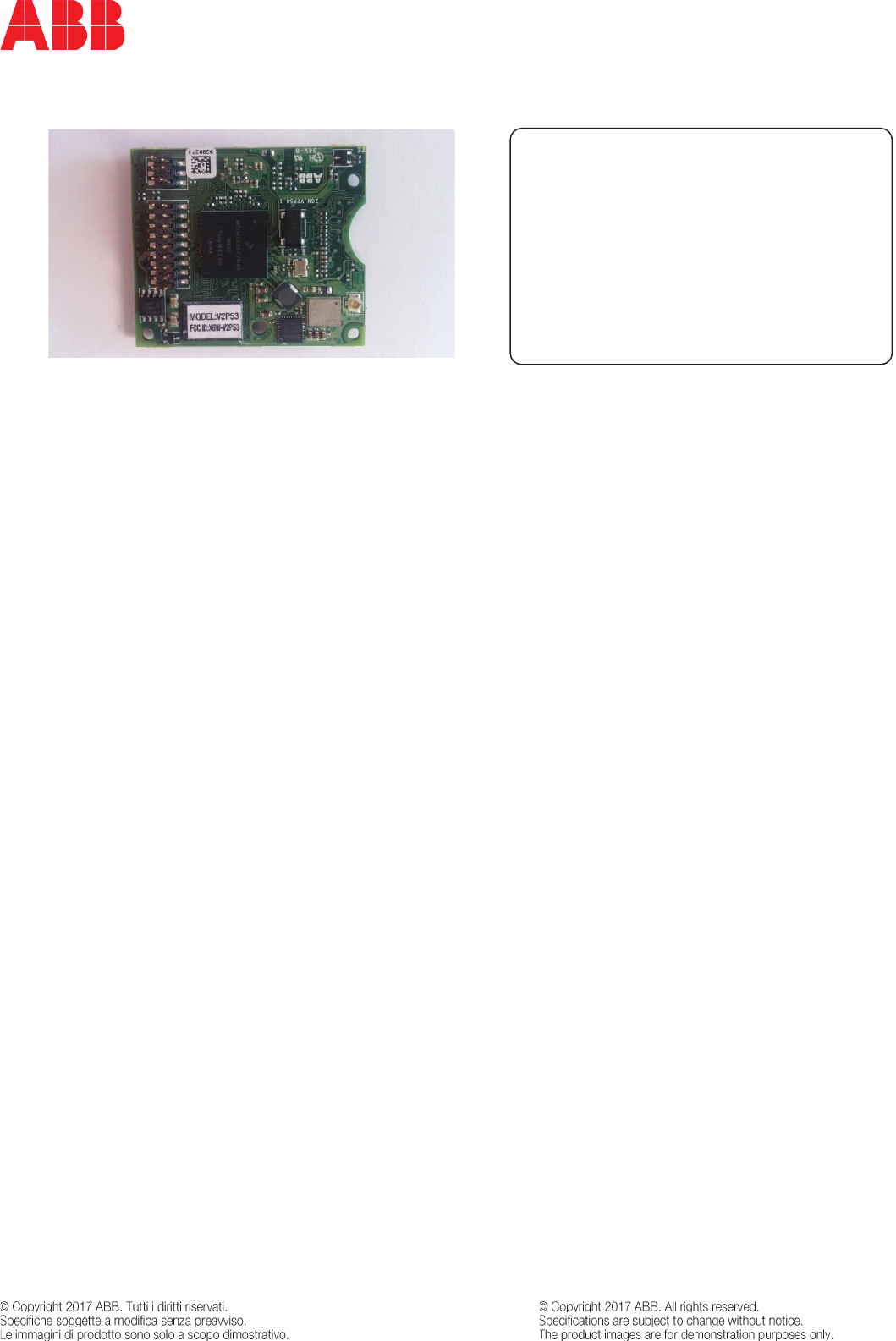

V2P53 - WLAN board
V2P53 – WLAN board is a factory optionally
assembled communication board proper to be
used for instance on UNO-DM-PLUS inverter
series but not limited to this product family.
This communication board provides the fol-
lowing features:
- Wireless bidirectional communication 802.11
b/g/n compliant;
- Dual mode, access point + station;
- Data logging capabilities;
- 4GByte Flash disk storage;
- Integrated web server
It is a plugable board directly connected to
UNO-DM-PLUS logic board through a dedi-
cated connector.
Its installation on inverter is typically done by
factory, but when installed as a spare part in a
repairing process, the installation has to be
executed by trained personnel only.
The board is powered by the inverter.
Proper connector for antenna is available on
board.
The board uses a Murata LBWA17DZX6, an
802.11b/g/n WLAN module built around the
Cypress chipset.
Techical data are in following table.
In the block diagram are shown in/out buses
and signals.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including in-
terference that may cause undesired opera-
tion.
Any changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
Installer should take care that Regulatory La-
bel applied on the Host Equipment includes
the following: Contains FCC ID: X6W-V2P53.
Other labelling means as long as it includes
the text “Contains FCC ID: V2P53” is allowed.
This device shall be used such that a mini-
mum separation distance of 20cm/7,87” is
maintained between the radiator (antenna)
and user's/nearby people's body.
MODEL: V2P53
FCC ID
: X6W-
V2P53
Release 0.4 – July 2017
V2P53 - WLAN board
Item
Value
Note
Product name
V2P53
WLAN Board
Connections
Connector to UNO-DM Logic board
18 male pin connector
Power + Inverter Hyperlink
6 male pin connector
USB
Input / Output
Inverter Hyperlink
RS485 / CAN
USB
USB 2.0
RF
802.11 b/g/n
UFL connector
Supply
Power supply
From the inverter logic board, 12V
Phisical
Environmental Protection Class
Bare pcb to be assembled into UNO-
DM inverters
Dimensions mm (HxDxW)
50mmx42mmx7mm (SMD top and
bottom)+connector
Installation
Inverter shall be completely powered
off for at least 5
minutes to let any
voltage reduced to a safe level; plug
in the board; secure the board to the
provided click stand offs.
Installation and operation shall be
executed by
trained personnel
only.
Please read
this instructions before
operate installation or dismantling.
Certifications
Marking
FCC ID X6W-V2P53
Safety and EMC Standard
FCC part 15
V2P53
WLAN
Board
12VDC Typ.
PWM4
ENABLE
VOUT
Inverter Hyperlink
USB 2.0
RF Out
