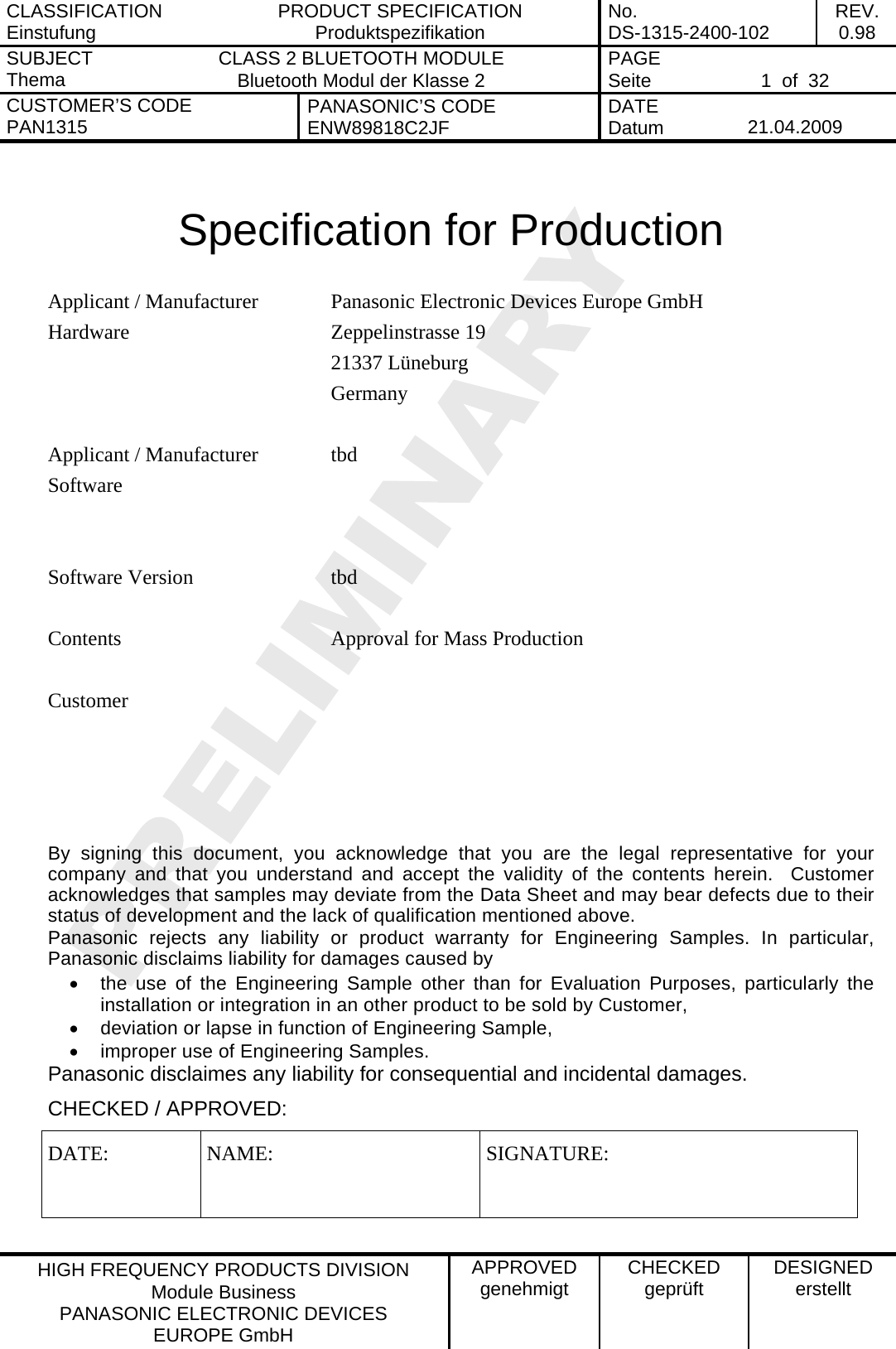

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 1 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 HIGH FREQUENCY PRODUCTS DIVISION Module Business PANASONIC ELECTRONIC DEVICES EUROPE GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt Specification for Production Panasonic Electronic Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg Applicant / Manufacturer Hardware Germany tbd Applicant / Manufacturer Software Software Version tbd Contents Approval for Mass Production Customer By signing this document, you acknowledge that you are the legal representative for your company and that you understand and accept the validity of the contents herein. Customer acknowledges that samples may deviate from the Data Sheet and may bear defects due to their status of development and the lack of qualification mentioned above. Panasonic rejects any liability or product warranty for Engineering Samples. In particular, Panasonic disclaims liability for damages caused by • the use of the Engineering Sample other than for Evaluation Purposes, particularly the installation or integration in an other product to be sold by Customer, • deviation or lapse in function of Engineering Sample, • improper use of Engineering Samples. Panasonic disclaimes any liability for consequential and incidental damages. CHECKED / APPROVED: DATE: NAME: SIGNATURE:

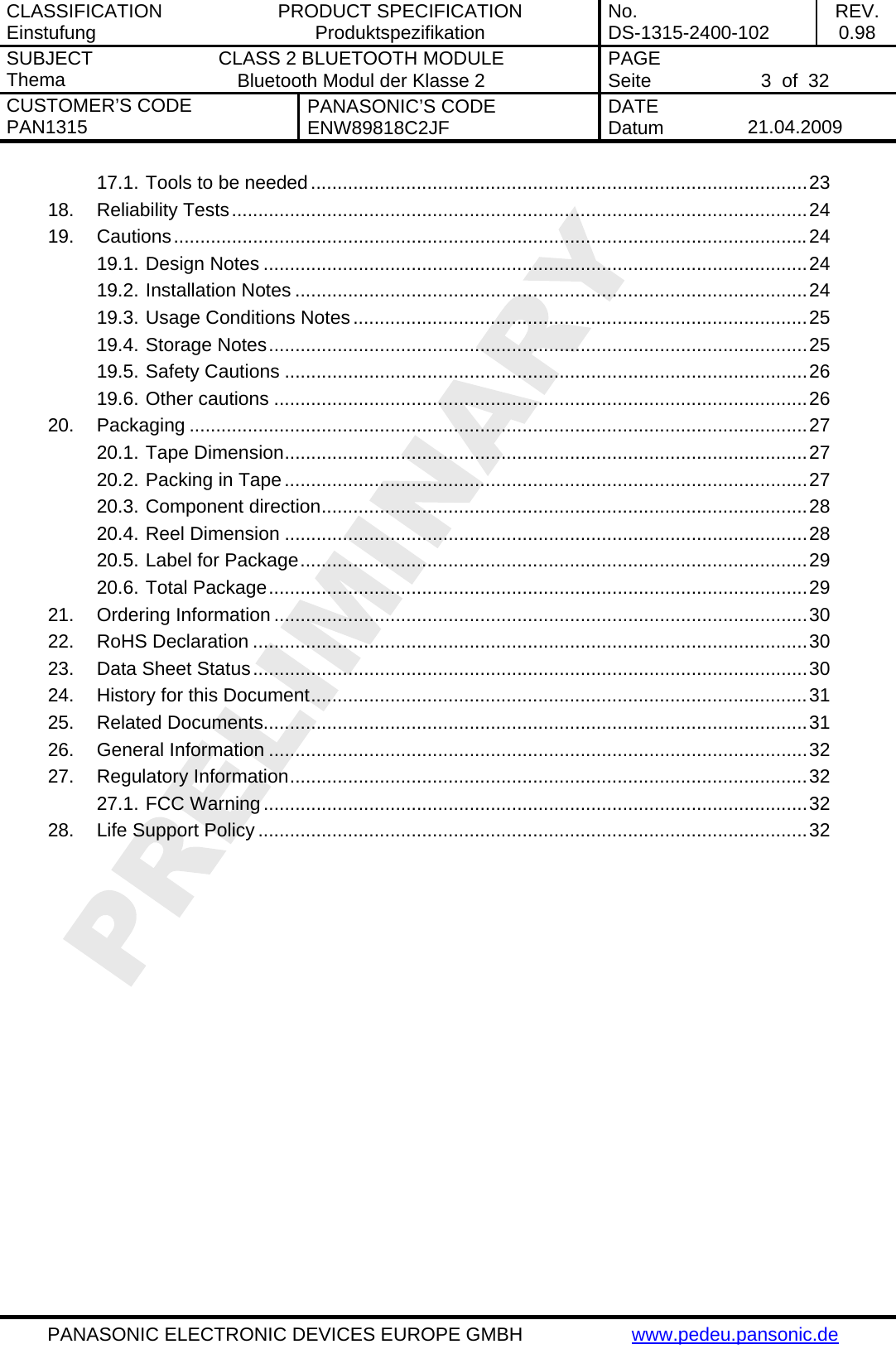

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 3 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 17.1. Tools to be needed..............................................................................................23 18. Reliability Tests.............................................................................................................24 19. Cautions........................................................................................................................24 19.1. Design Notes .......................................................................................................24 19.2. Installation Notes .................................................................................................24 19.3. Usage Conditions Notes......................................................................................25 19.4. Storage Notes......................................................................................................25 19.5. Safety Cautions ...................................................................................................26 19.6. Other cautions .....................................................................................................26 20. Packaging .....................................................................................................................27 20.1. Tape Dimension...................................................................................................27 20.2. Packing in Tape...................................................................................................27 20.3. Component direction............................................................................................28 20.4. Reel Dimension ...................................................................................................28 20.5. Label for Package................................................................................................29 20.6. Total Package......................................................................................................29 21. Ordering Information .....................................................................................................30 22. RoHS Declaration .........................................................................................................30 23. Data Sheet Status.........................................................................................................30 24. History for this Document..............................................................................................31 25. Related Documents.......................................................................................................31 26. General Information ......................................................................................................32 27. Regulatory Information..................................................................................................32 27.1. FCC Warning.......................................................................................................32 28. Life Support Policy ........................................................................................................32

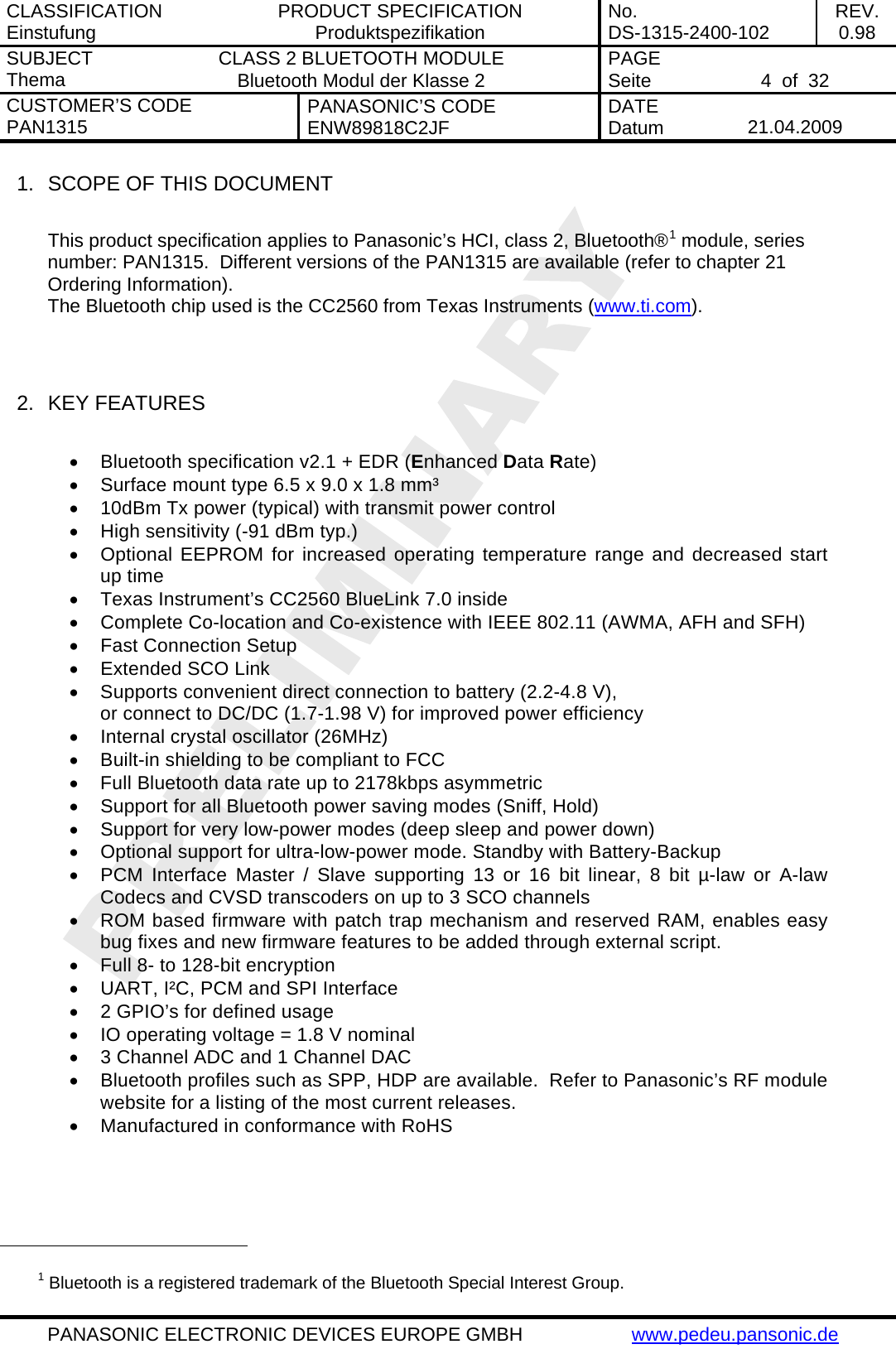

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 4 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 1. SCOPE OF THIS DOCUMENT This product specification applies to Panasonic’s HCI, class 2, Bluetooth®1 module, series number: PAN1315. Different versions of the PAN1315 are available (refer to chapter 21 Ordering Information). The Bluetooth chip used is the CC2560 from Texas Instruments (www.ti.com). 2. KEY FEATURES • Bluetooth specification v2.1 + EDR (Enhanced Data Rate) • Surface mount type 6.5 x 9.0 x 1.8 mm³ • 10dBm Tx power (typical) with transmit power control • High sensitivity (-91 dBm typ.) • Optional EEPROM for increased operating temperature range and decreased start up time • Texas Instrument’s CC2560 BlueLink 7.0 inside • Complete Co-location and Co-existence with IEEE 802.11 (AWMA, AFH and SFH) • Fast Connection Setup • Extended SCO Link • Supports convenient direct connection to battery (2.2-4.8 V), or connect to DC/DC (1.7-1.98 V) for improved power efficiency • Internal crystal oscillator (26MHz) • Built-in shielding to be compliant to FCC • Full Bluetooth data rate up to 2178kbps asymmetric • Support for all Bluetooth power saving modes (Sniff, Hold) • Support for very low-power modes (deep sleep and power down) • Optional support for ultra-low-power mode. Standby with Battery-Backup • PCM Interface Master / Slave supporting 13 or 16 bit linear, 8 bit µ-law or A-law Codecs and CVSD transcoders on up to 3 SCO channels • ROM based firmware with patch trap mechanism and reserved RAM, enables easy bug fixes and new firmware features to be added through external script. • Full 8- to 128-bit encryption • UART, I²C, PCM and SPI Interface • 2 GPIO’s for defined usage • IO operating voltage = 1.8 V nominal • 3 Channel ADC and 1 Channel DAC • Bluetooth profiles such as SPP, HDP are available. Refer to Panasonic’s RF module website for a listing of the most current releases. • Manufactured in conformance with RoHS 1 Bluetooth is a registered trademark of the Bluetooth Special Interest Group.

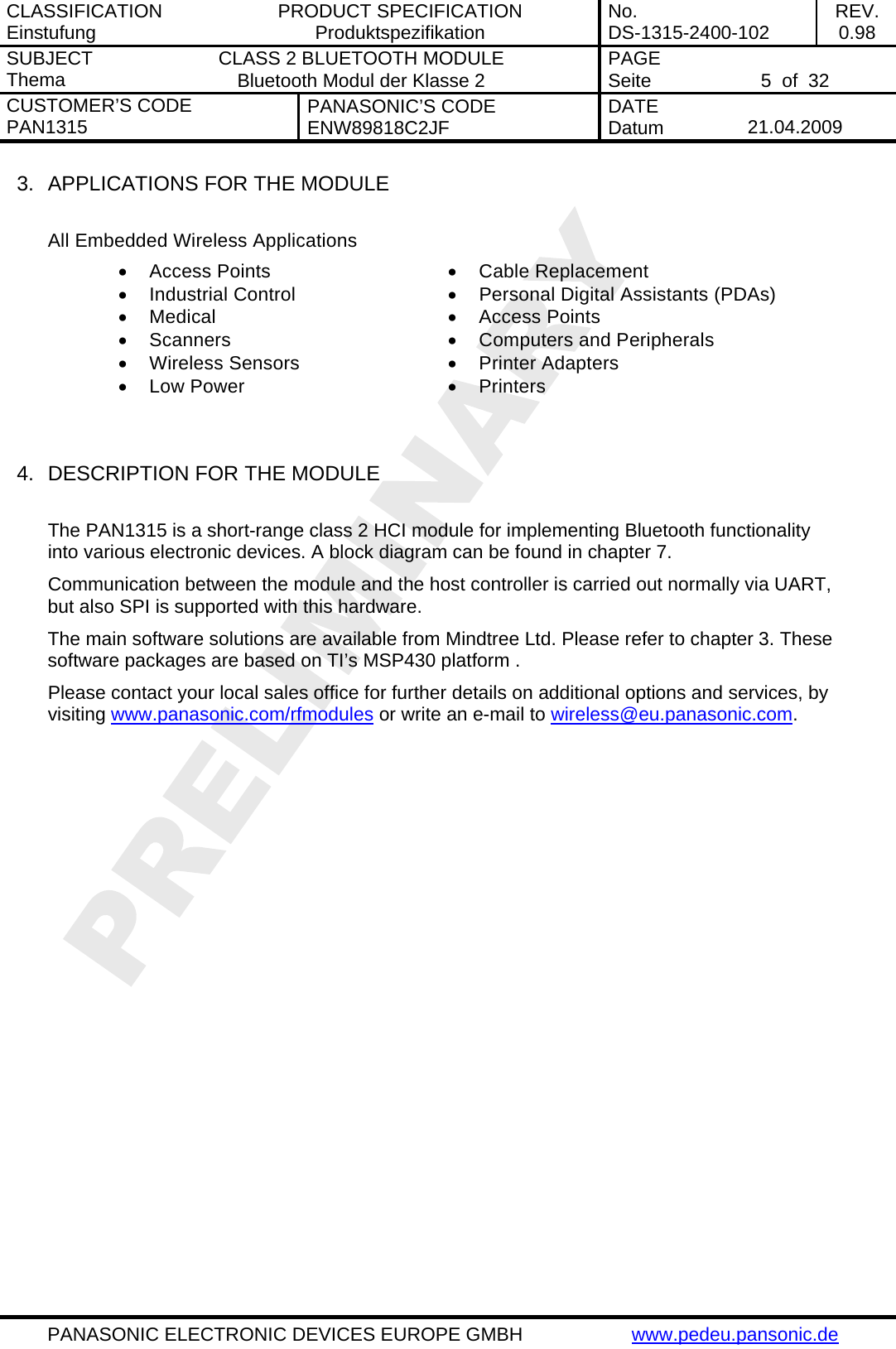

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 5 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 3. APPLICATIONS FOR THE MODULE All Embedded Wireless Applications • Access Points • Cable Replacement • Industrial Control • Personal Digital Assistants (PDAs) • Medical • Access Points • Scanners • Computers and Peripherals • Wireless Sensors • Printer Adapters • Low Power • Printers 4. DESCRIPTION FOR THE MODULE The PAN1315 is a short-range class 2 HCI module for implementing Bluetooth functionality into various electronic devices. A block diagram can be found in chapter 7. Communication between the module and the host controller is carried out normally via UART, but also SPI is supported with this hardware. The main software solutions are available from Mindtree Ltd. Please refer to chapter 3. These software packages are based on TI’s MSP430 platform . Please contact your local sales office for further details on additional options and services, by visiting www.panasonic.com/rfmodules or write an e-mail to wireless@eu.panasonic.com.

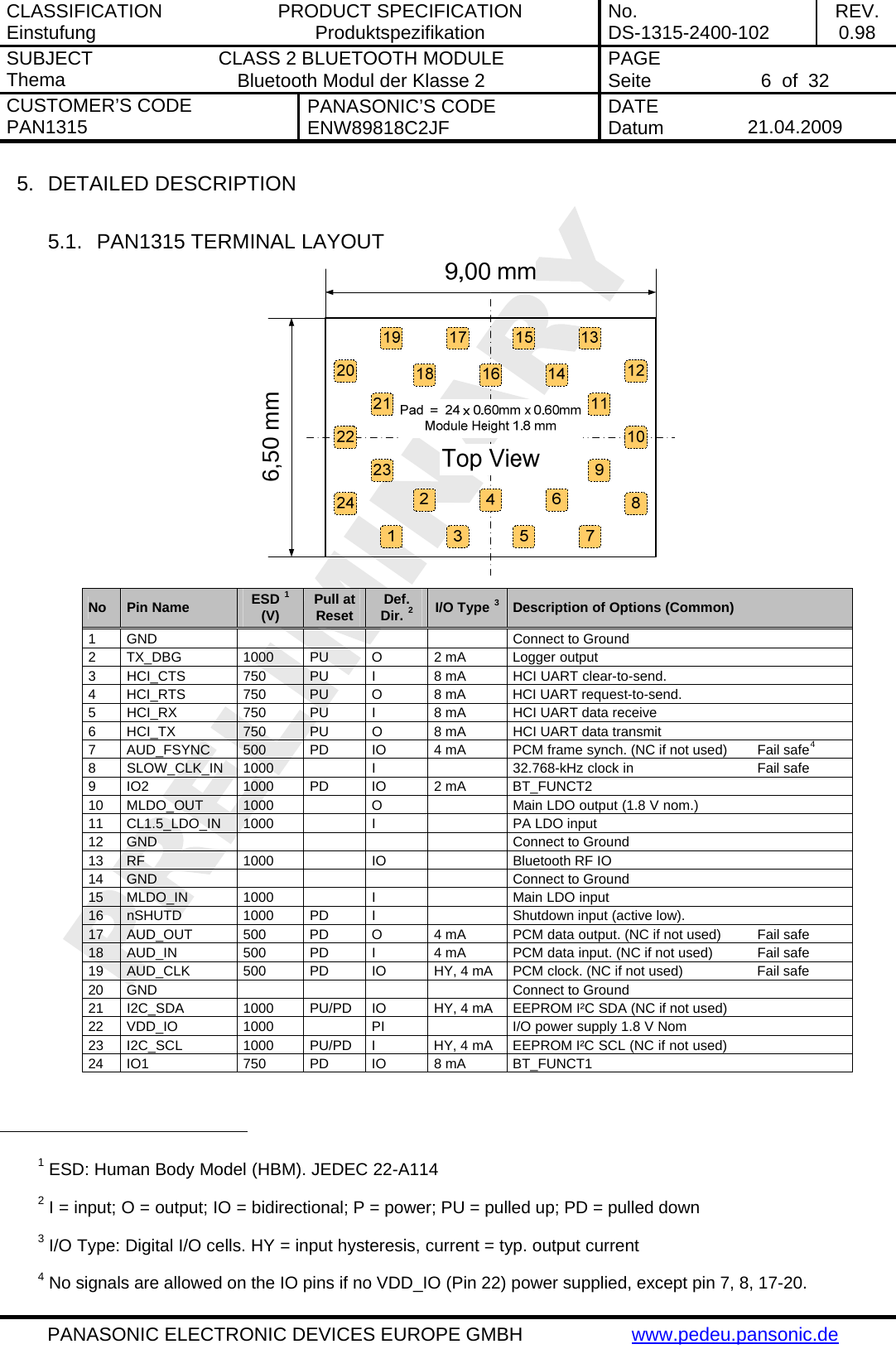

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 6 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 5. DETAILED DESCRIPTION 5.1. PAN1315 TERMINAL LAYOUT 6,50 mm No Pin Name ESD 1 (V) Pull at Reset Def. Dir. 2 I/O Type 3Description of Options (Common) 1 GND Connect to Ground 2 TX_DBG 1000 PU O 2 mA Logger output 3 HCI_CTS 750 PU I 8 mA HCI UART clear-to-send. 4 HCI_RTS 750 PU O 8 mA HCI UART request-to-send. 5 HCI_RX 750 PU I 8 mA HCI UART data receive 6 HCI_TX 750 PU O 8 mA HCI UART data transmit 7 AUD_FSYNC 500 PD IO 4 mA PCM frame synch. (NC if not used) Fail safe4 8 SLOW_CLK_IN 1000 I 32.768-kHz clock in Fail safe 9 IO2 1000 PD IO 2 mA BT_FUNCT2 10 MLDO_OUT 1000 O Main LDO output (1.8 V nom.) 11 CL1.5_LDO_IN 1000 I PA LDO input 12 GND Connect to Ground 13 RF 1000 IO Bluetooth RF IO 14 GND Connect to Ground 15 MLDO_IN 1000 I Main LDO input 16 nSHUTD 1000 PD I Shutdown input (active low). 17 AUD_OUT 500 PD O 4 mA PCM data output. (NC if not used) Fail safe 18 AUD_IN 500 PD I 4 mA PCM data input. (NC if not used) Fail safe 19 AUD_CLK 500 PD IO HY, 4 mA PCM clock. (NC if not used) Fail safe 20 GND Connect to Ground 21 I2C_SDA 1000 PU/PD IO HY, 4 mA EEPROM I²C SDA (NC if not used) 22 VDD_IO 1000 PI I/O power supply 1.8 V Nom 23 I2C_SCL 1000 PU/PD I HY, 4 mA EEPROM I²C SCL (NC if not used) 24 IO1 750 PD IO 8 mA BT_FUNCT1 1 ESD: Human Body Model (HBM). JEDEC 22-A114 2 I = input; O = output; IO = bidirectional; P = power; PU = pulled up; PD = pulled down 3 I/O Type: Digital I/O cells. HY = input hysteresis, current = typ. output current 4 No signals are allowed on the IO pins if no VDD_IO (Pin 22) power supplied, except pin 7, 8, 17-20.

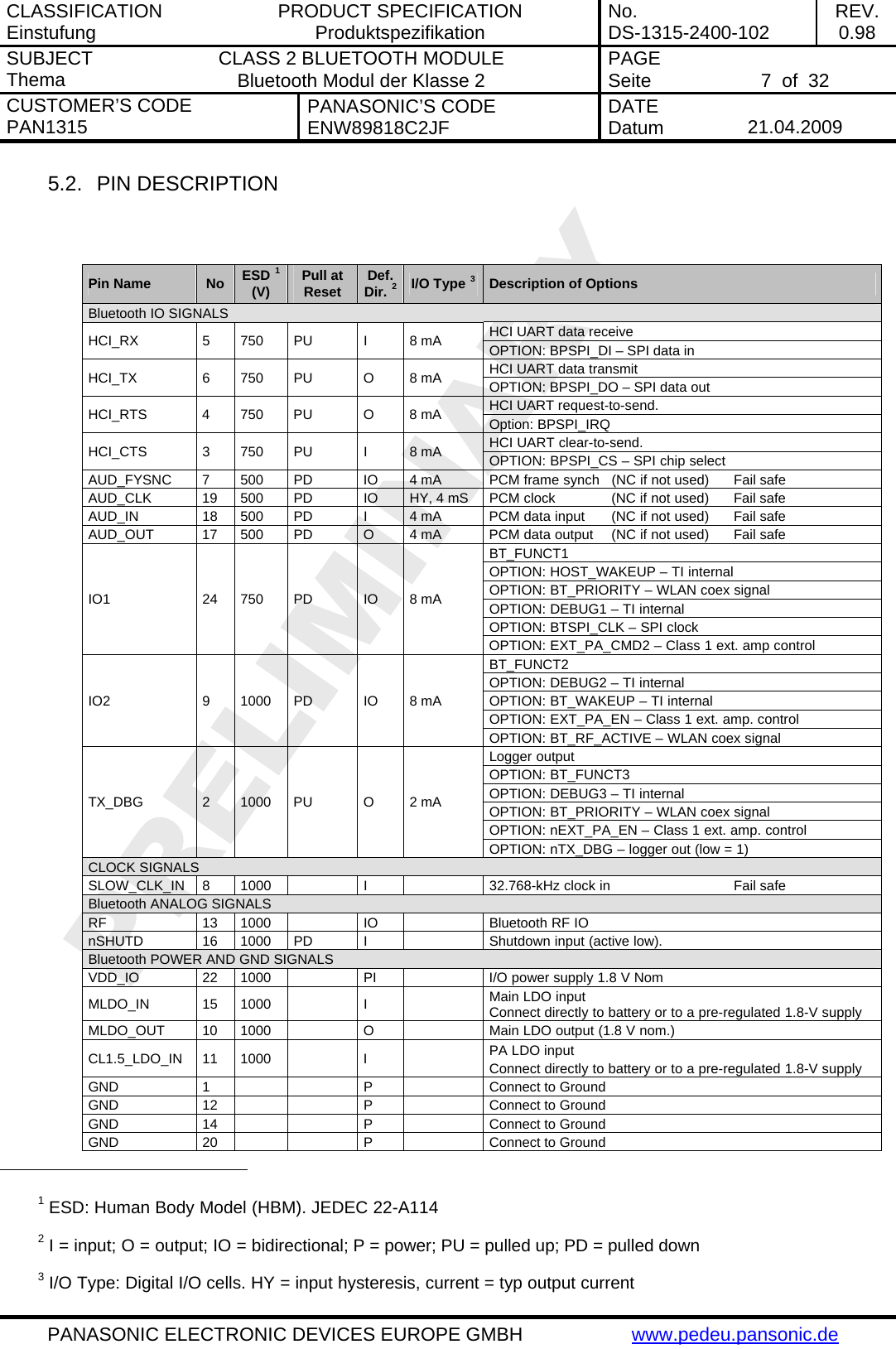

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 7 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 5.2. PIN DESCRIPTION Pin Name No ESD 1 (V) Pull at Reset Def. Dir. 2I/O Type 3Description of Options Bluetooth IO SIGNALS HCI UART data receive HCI_RX 5 750 PU I 8 mA OPTION: BPSPI_DI – SPI data in HCI UART data transmit HCI_TX 6 750 PU O 8 mA OPTION: BPSPI_DO – SPI data out HCI UART request-to-send. HCI_RTS 4 750 PU O 8 mA Option: BPSPI_IRQ HCI UART clear-to-send. HCI_CTS 3 750 PU I 8 mA OPTION: BPSPI_CS – SPI chip select AUD_FYSNC 7 500 PD IO 4 mA PCM frame synch (NC if not used) Fail safe AUD_CLK 19 500 PD IO HY, 4 mS PCM clock (NC if not used) Fail safe AUD_IN 18 500 PD I 4 mA PCM data input (NC if not used) Fail safe AUD_OUT 17 500 PD O 4 mA PCM data output (NC if not used) Fail safe BT_FUNCT1 OPTION: HOST_WAKEUP – TI internal OPTION: BT_PRIORITY – WLAN coex signal OPTION: DEBUG1 – TI internal OPTION: BTSPI_CLK – SPI clock IO1 24 750 PD IO 8 mA OPTION: EXT_PA_CMD2 – Class 1 ext. amp control BT_FUNCT2 OPTION: DEBUG2 – TI internal OPTION: BT_WAKEUP – TI internal OPTION: EXT_PA_EN – Class 1 ext. amp. control IO2 9 1000 PD IO 8 mA OPTION: BT_RF_ACTIVE – WLAN coex signal Logger output OPTION: BT_FUNCT3 OPTION: DEBUG3 – TI internal OPTION: BT_PRIORITY – WLAN coex signal OPTION: nEXT_PA_EN – Class 1 ext. amp. control TX_DBG 2 1000 PU O 2 mA OPTION: nTX_DBG – logger out (low = 1) CLOCK SIGNALS SLOW_CLK_IN 8 1000 I 32.768-kHz clock in Fail safe Bluetooth ANALOG SIGNALS RF 13 1000 IO Bluetooth RF IO nSHUTD 16 1000 PD I Shutdown input (active low). Bluetooth POWER AND GND SIGNALS VDD_IO 22 1000 PI I/O power supply 1.8 V Nom MLDO_IN 15 1000 I Main LDO input Connect directly to battery or to a pre-regulated 1.8-V supply MLDO_OUT 10 1000 O Main LDO output (1.8 V nom.) CL1.5_LDO_IN 11 1000 I PA LDO input Connect directly to battery or to a pre-regulated 1.8-V supply GND 1 P Connect to Ground GND 12 P Connect to Ground GND 14 P Connect to Ground GND 20 P Connect to Ground 1 ESD: Human Body Model (HBM). JEDEC 22-A114 2 I = input; O = output; IO = bidirectional; P = power; PU = pulled up; PD = pulled down 3 I/O Type: Digital I/O cells. HY = input hysteresis, current = typ output current

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 8 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de Pin Name No ESD 1 (V) Pull at Reset Def. Dir. 2I/O Type 3Description of Options EEPROM IO SIGNALS (EEPROM is an option in our PAN1315) EEPROM I²C SCL (NC if not used) OPTION: BT_RF_ACTIVE – WLAN coex signal OPTION: BT_PRIORITY – WLAN coex signal OPTION: BT_FREQ – WLAN coex signal OPTION: EXT_PA_EN – Class 1.5 ext. amp. control OPTION: BT_SCL – Bluetooth I²C SCL I2C_SCL 23 1000 PU/PD I HY, 4mA OPTION: DEBUG11 – TI internal EEPROM I²C IRQ (NC if not used) OPTION: BT_RF_ACTIVE – WLAN coex signal OPTION: BT_PRIORITY – WLAN coex signal OPTION: nEXT_PA_EN – Class 1.5 ext. amp. control OPTION: BT_TX_CONFX – WLAN coex signal OPTION: BT_SDA – Bluetooth I²C SDA I2C_SDA 21 1000 PU/PD IO HY, 4mA OPTION: DEBUG12 – TI internal 5.3. DEVICE POWER SUPPLY The CC2560 single chip Bluetooth radio solution is intended to work in devices with a limited power budget such as cellular phones, headsets, hand-held PC’s and other battery-operated devices. One of the main differentiators of the CC2560 is its power management – its ability to draw as little current as possible. The PAN1315 device requires two kinds of power sources: • Main power supply for the Bluetooth - VDD_IN = VBAT • Power source for the 1.8 V I/O ring - VDD_IO The PAN1315 includes several on-chip voltage regulators for increased noise immunity. The PAN1315 can be connected either directly to the battery or to an external 1.8-V DC to DC converter. There are three ways to supply power: • Full-VBAT system: Maximum RF output power, but not optimum system power:

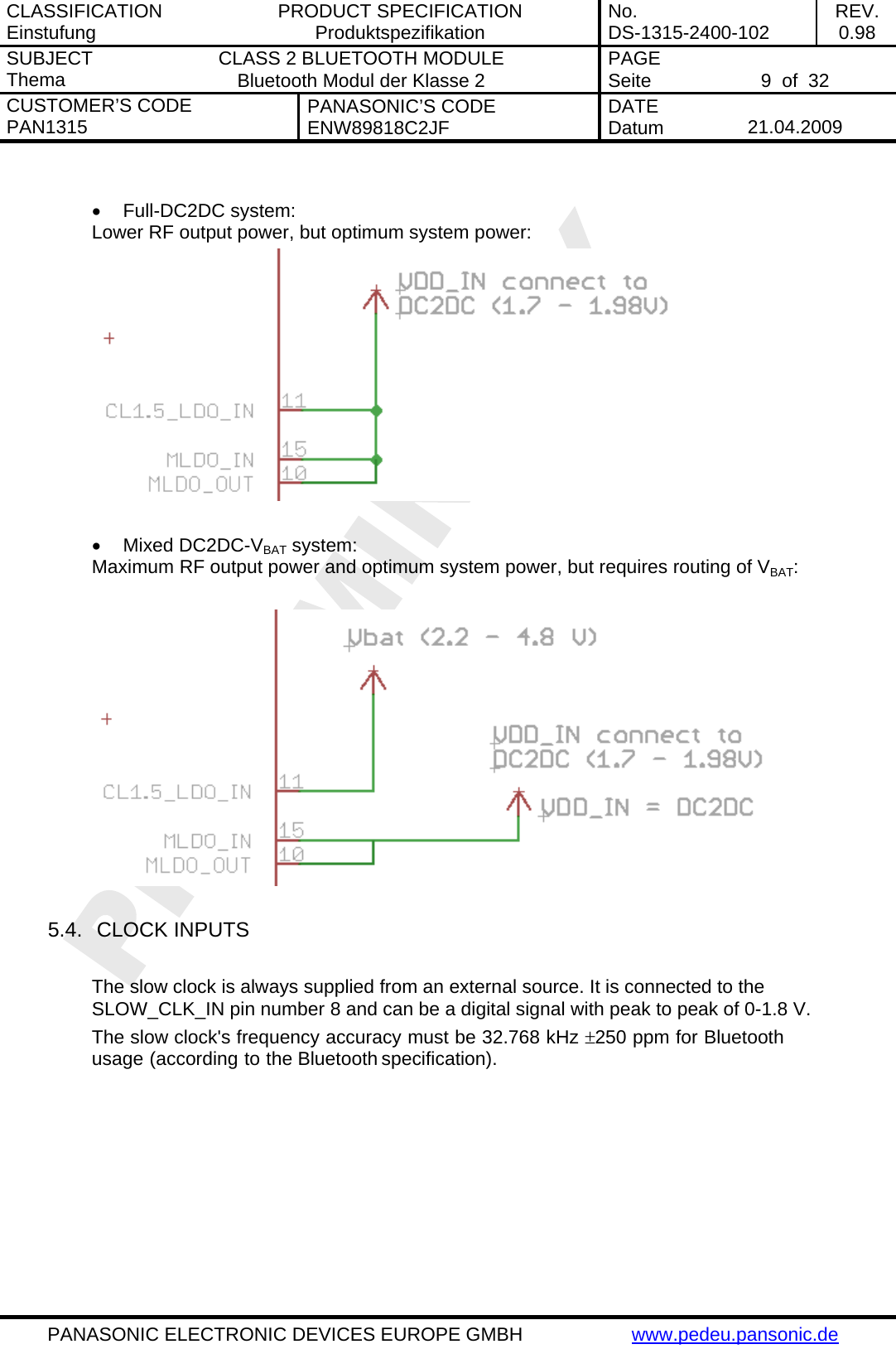

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 9 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de • Full-DC2DC system: Lower RF output power, but optimum system power: • Mixed DC2DC-VBAT system: Maximum RF output power and optimum system power, but requires routing of VBAT: 5.4. CLOCK INPUTS The slow clock is always supplied from an external source. It is connected to the SLOW_CLK_IN pin number 8 and can be a digital signal with peak to peak of 0-1.8 V. The slow clock's frequency accuracy must be 32.768 kHz ±250 ppm for Bluetooth usage (according to the Bluetooth specification).

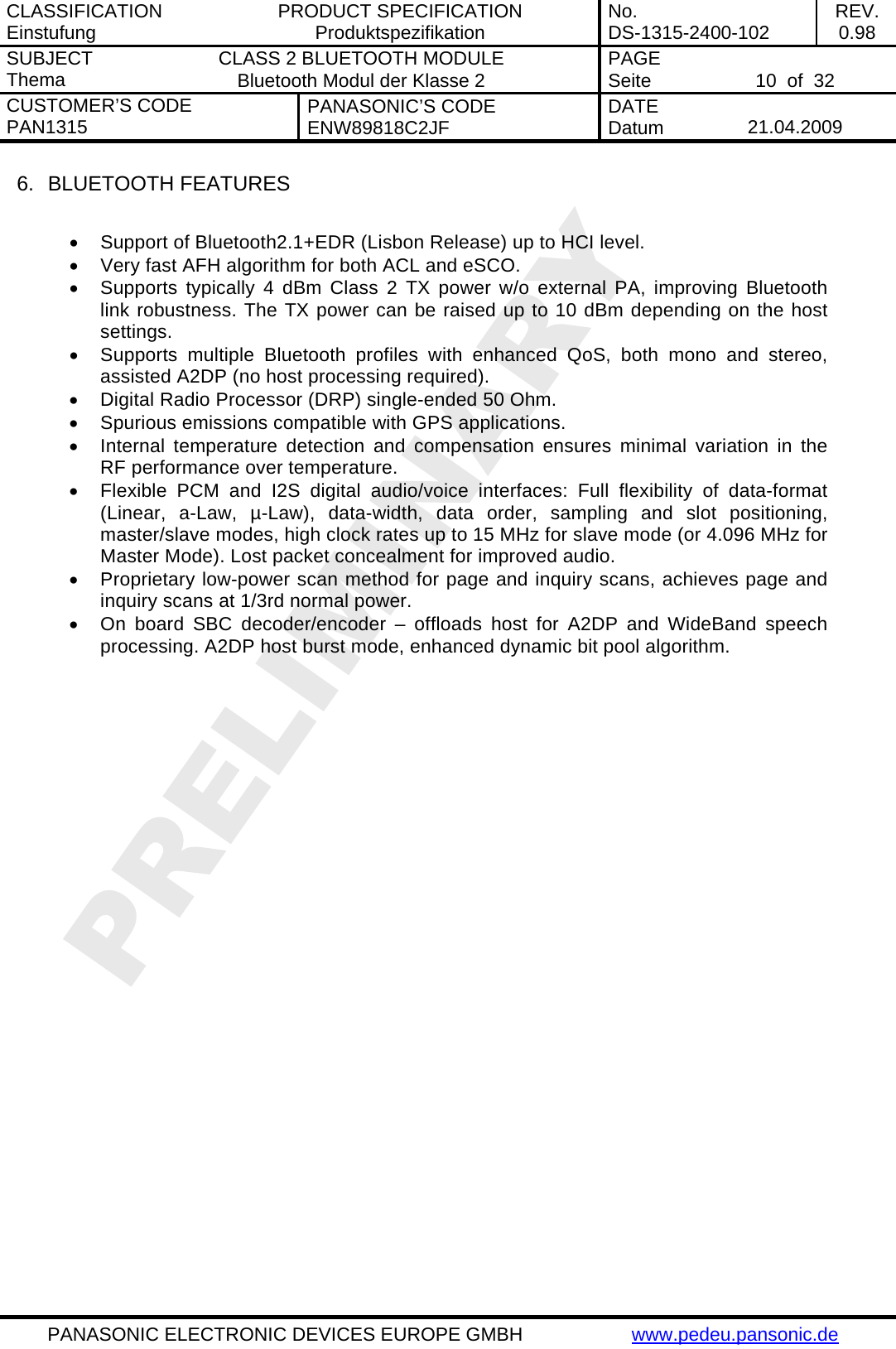

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 10 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 6. BLUETOOTH FEATURES • Support of Bluetooth2.1+EDR (Lisbon Release) up to HCI level. • Very fast AFH algorithm for both ACL and eSCO. • Supports typically 4 dBm Class 2 TX power w/o external PA, improving Bluetooth link robustness. The TX power can be raised up to 10 dBm depending on the host settings. • Supports multiple Bluetooth profiles with enhanced QoS, both mono and stereo, assisted A2DP (no host processing required). • Digital Radio Processor (DRP) single-ended 50 Ohm. • Spurious emissions compatible with GPS applications. • Internal temperature detection and compensation ensures minimal variation in the RF performance over temperature. • Flexible PCM and I2S digital audio/voice interfaces: Full flexibility of data-format (Linear, a-Law, µ-Law), data-width, data order, sampling and slot positioning, master/slave modes, high clock rates up to 15 MHz for slave mode (or 4.096 MHz for Master Mode). Lost packet concealment for improved audio. • Proprietary low-power scan method for page and inquiry scans, achieves page and inquiry scans at 1/3rd normal power. • On board SBC decoder/encoder – offloads host for A2DP and WideBand speech processing. A2DP host burst mode, enhanced dynamic bit pool algorithm.

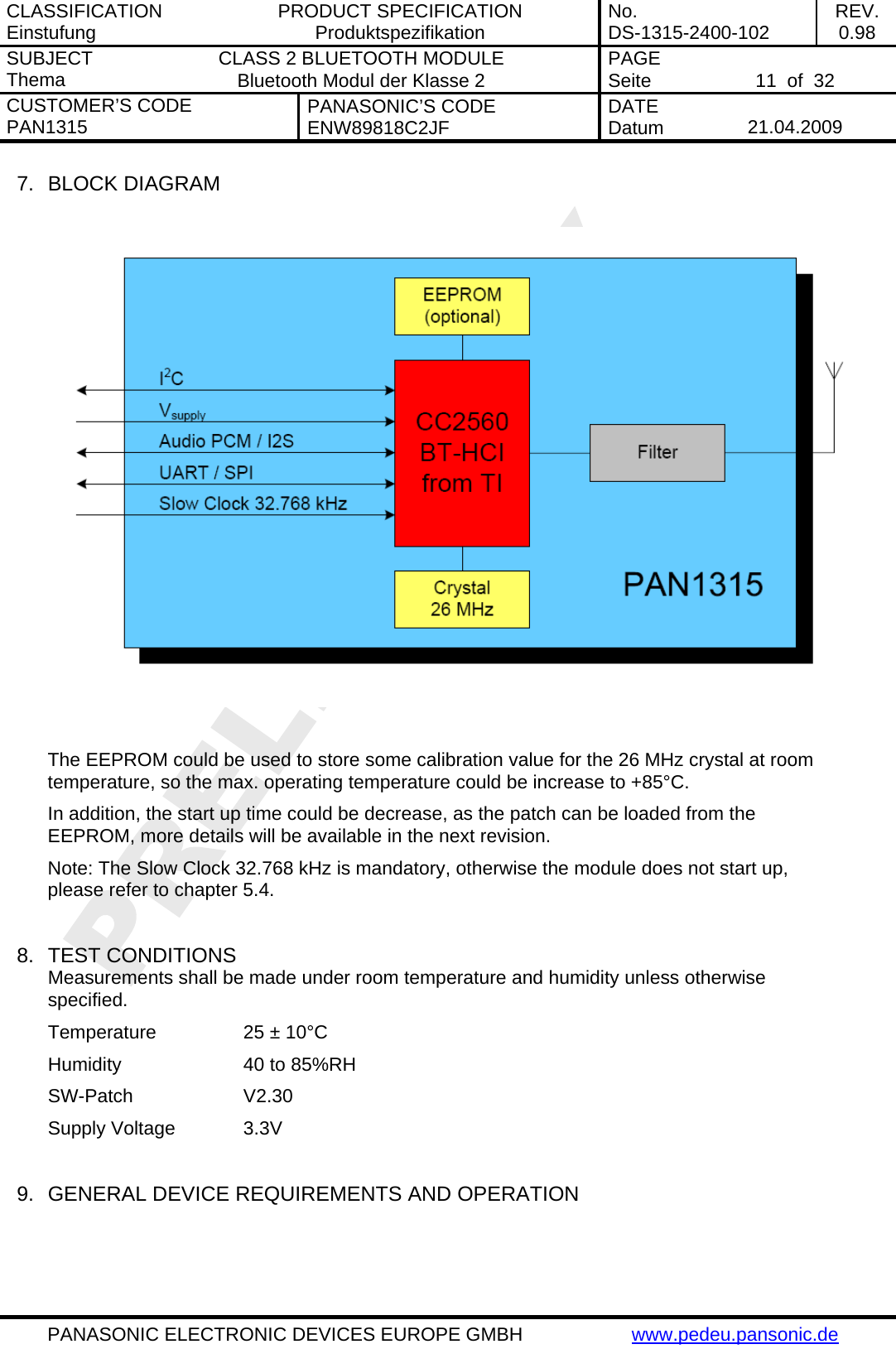

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 11 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 7. BLOCK DIAGRAM The EEPROM could be used to store some calibration value for the 26 MHz crystal at room temperature, so the max. operating temperature could be increase to +85°C. In addition, the start up time could be decrease, as the patch can be loaded from the EEPROM, more details will be available in the next revision. Note: The Slow Clock 32.768 kHz is mandatory, otherwise the module does not start up, please refer to chapter 5.4. 8. TEST CONDITIONS Measurements shall be made under room temperature and humidity unless otherwise specified. Temperature 25 ± 10°C Humidity 40 to 85%RH SW-Patch V2.30 Supply Voltage 3.3V 9. GENERAL DEVICE REQUIREMENTS AND OPERATION

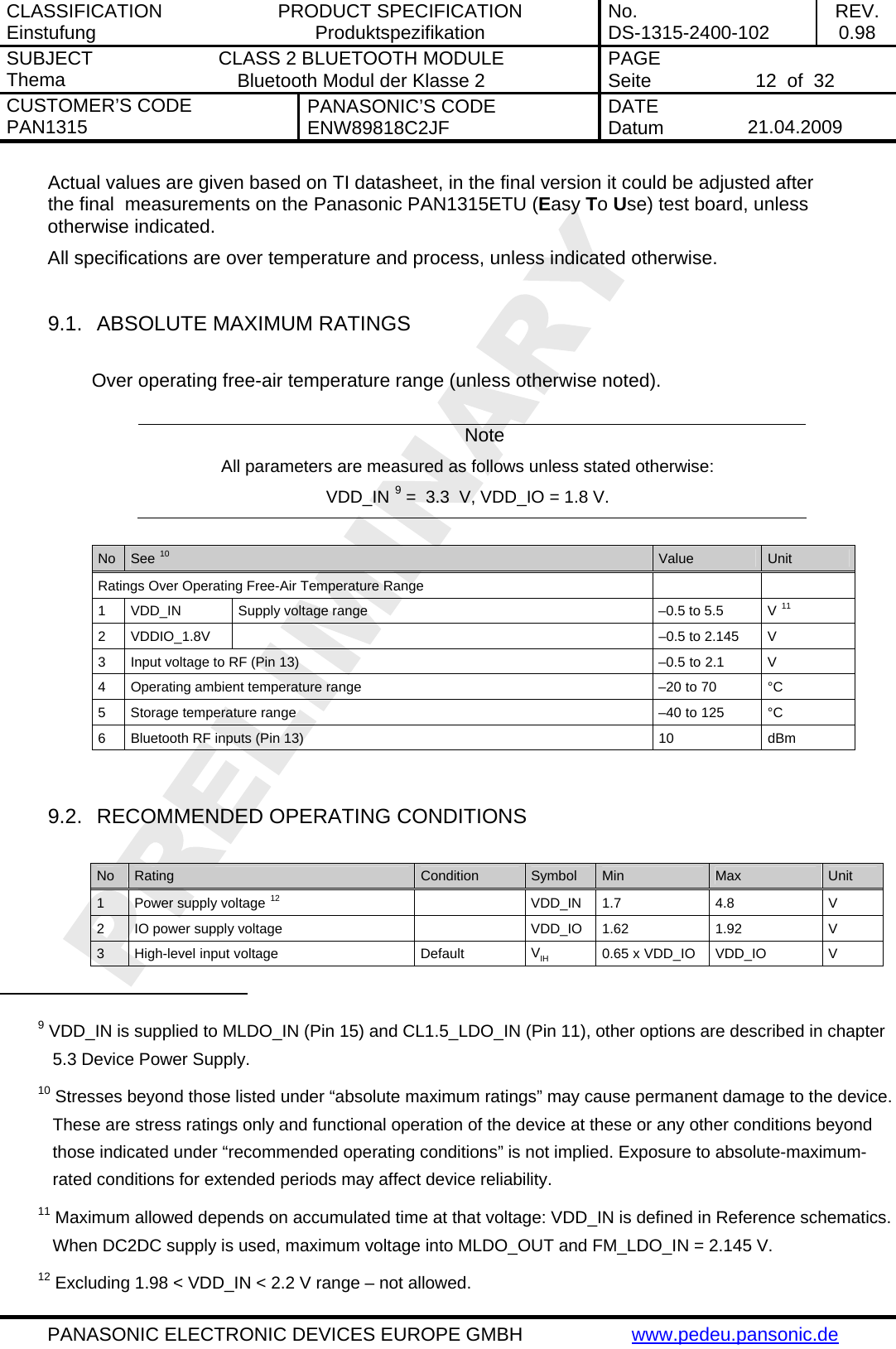

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 12 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de Actual values are given based on TI datasheet, in the final version it could be adjusted after the final measurements on the Panasonic PAN1315ETU (Easy To Use) test board, unless otherwise indicated. All specifications are over temperature and process, unless indicated otherwise. 9.1. ABSOLUTE MAXIMUM RATINGS Over operating free-air temperature range (unless otherwise noted). Note All parameters are measured as follows unless stated otherwise: VDD_IN 9 = 3.3 V, VDD_IO = 1.8 V. No See 10 Value Unit Ratings Over Operating Free-Air Temperature Range 1 VDD_IN Supply voltage range –0.5 to 5.5 V 11 2 VDDIO_1.8V –0.5 to 2.145 V 3 Input voltage to RF (Pin 13) –0.5 to 2.1 V 4 Operating ambient temperature range –20 to 70 °C 5 Storage temperature range –40 to 125 °C 6 Bluetooth RF inputs (Pin 13) 10 dBm 9.2. RECOMMENDED OPERATING CONDITIONS No Rating Condition Symbol Min Max Unit 1 Power supply voltage 12 VDD_IN 1.7 4.8 V 2 IO power supply voltage VDD_IO 1.62 1.92 V 3 High-level input voltage Default VIH 0.65 x VDD_IO VDD_IO V 9 VDD_IN is supplied to MLDO_IN (Pin 15) and CL1.5_LDO_IN (Pin 11), other options are described in chapter 5.3 Device Power Supply. 10 Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 11 Maximum allowed depends on accumulated time at that voltage: VDD_IN is defined in Reference schematics. When DC2DC supply is used, maximum voltage into MLDO_OUT and FM_LDO_IN = 2.145 V. 12 Excluding 1.98 < VDD_IN < 2.2 V range – not allowed.

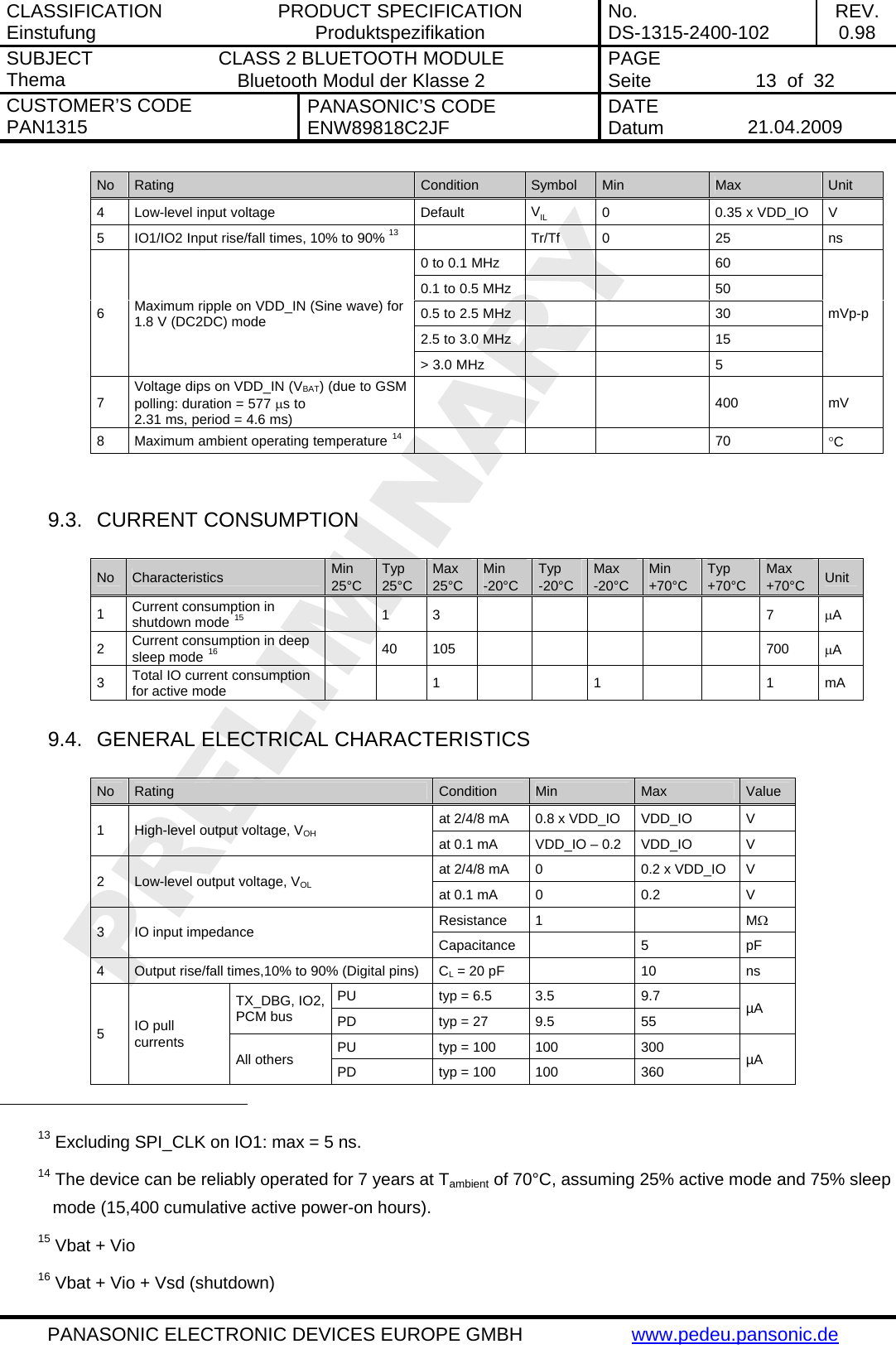

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 13 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de No Rating Condition Symbol Min Max Unit 4 Low-level input voltage Default VIL 0 0.35 x VDD_IO V 5 IO1/IO2 Input rise/fall times, 10% to 90% 13 Tr/Tf 0 25 ns 0 to 0.1 MHz 60 0.1 to 0.5 MHz 50 0.5 to 2.5 MHz 30 2.5 to 3.0 MHz 15 6 Maximum ripple on VDD_IN (Sine wave) for 1.8 V (DC2DC) mode > 3.0 MHz 5 mVp-p 7 Voltage dips on VDD_IN (VBAT) (due to GSM polling: duration = 577 μs to 2.31 ms, period = 4.6 ms) 400 mV 8 Maximum ambient operating temperature 14 70 °C 9.3. CURRENT CONSUMPTION No Characteristics Min 25°C Typ 25°C Max 25°C Min -20°C Typ -20°C Max -20°C Min +70°C Typ +70°C Max +70°C Unit 1 Current consumption in shutdown mode 15 1 3 7 μA 2 Current consumption in deep sleep mode 16 40 105 700 μA 3 Total IO current consumption for active mode 1 1 1 mA 9.4. GENERAL ELECTRICAL CHARACTERISTICS No Rating Condition Min Max Value at 2/4/8 mA 0.8 x VDD_IO VDD_IO V 1 High-level output voltage, VOH at 0.1 mA VDD_IO – 0.2 VDD_IO V at 2/4/8 mA 0 0.2 x VDD_IO V 2 Low-level output voltage, VOL at 0.1 mA 0 0.2 V Resistance 1 MΩ 3 IO input impedance Capacitance 5 pF 4 Output rise/fall times,10% to 90% (Digital pins) CL = 20 pF 10 ns PU typ = 6.5 3.5 9.7 TX_DBG, IO2, PCM bus PD typ = 27 9.5 55 µA PU typ = 100 100 300 5 IO pull currents All others PD typ = 100 100 360 µA 13 Excluding SPI_CLK on IO1: max = 5 ns. 14 The device can be reliably operated for 7 years at Tambient of 70°C, assuming 25% active mode and 75% sleep mode (15,400 cumulative active power-on hours). 15 Vbat + Vio 16 Vbat + Vio + Vsd (shutdown)

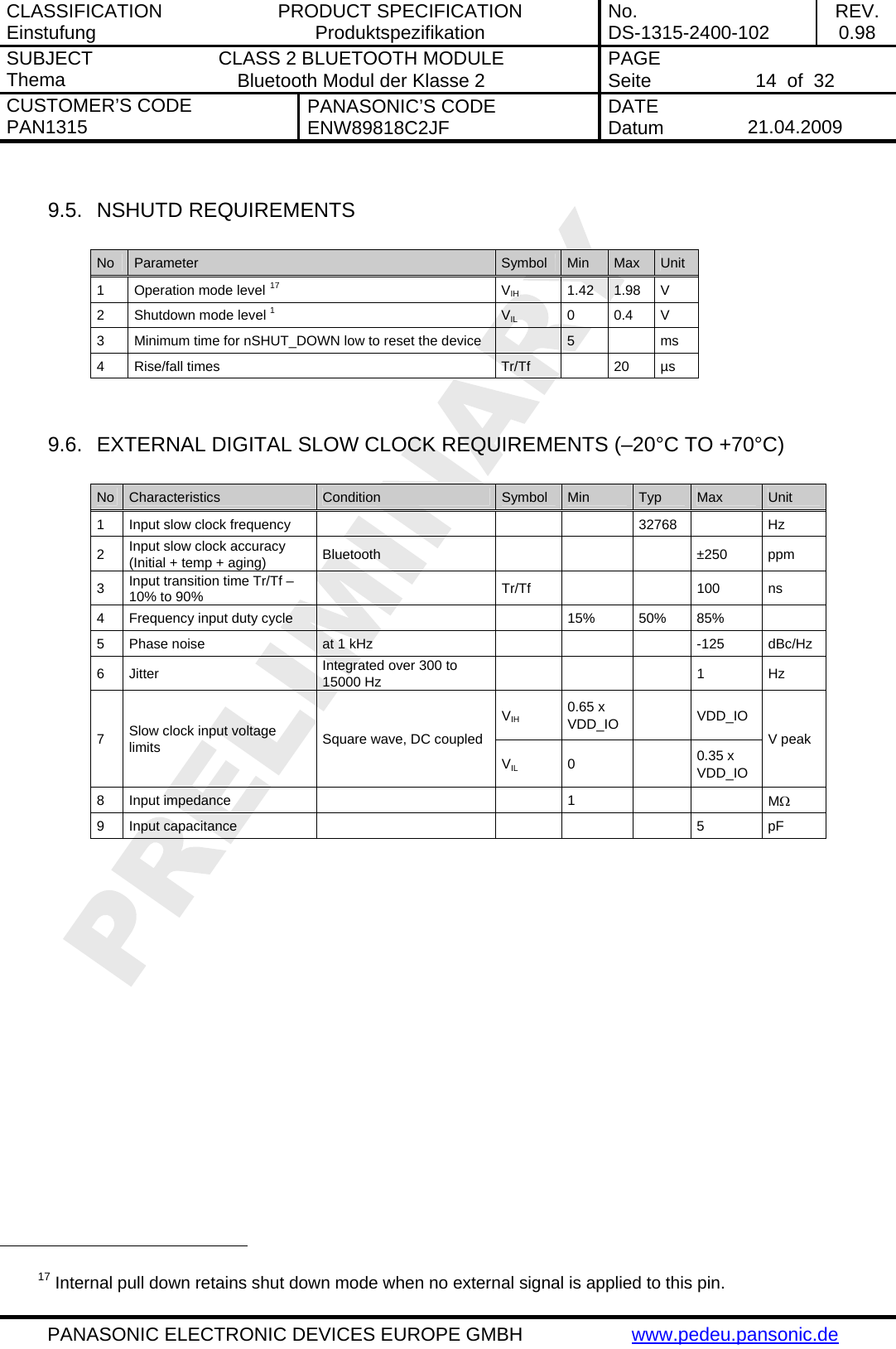

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 14 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 9.5. NSHUTD REQUIREMENTS No Parameter Symbol Min Max Unit 1 Operation mode level 17 VIH 1.42 1.98 V 2 Shutdown mode level 1 VIL 0 0.4 V 3 Minimum time for nSHUT_DOWN low to reset the device 5 ms 4 Rise/fall times Tr/Tf 20 µs 9.6. EXTERNAL DIGITAL SLOW CLOCK REQUIREMENTS (–20°C TO +70°C) No Characteristics Condition Symbol Min Typ Max Unit 1 Input slow clock frequency 32768 Hz 2 Input slow clock accuracy (Initial + temp + aging) Bluetooth ±250 ppm 3 Input transition time Tr/Tf – 10% to 90% Tr/Tf 100 ns 4 Frequency input duty cycle 15% 50% 85% 5 Phase noise at 1 kHz -125 dBc/Hz 6 Jitter Integrated over 300 to 15000 Hz 1 Hz VIH 0.65 x VDD_IO VDD_IO 7 Slow clock input voltage limits Square wave, DC coupled VIL 0 0.35 x VDD_IO V peak 8 Input impedance 1 MΩ 9 Input capacitance 5 pF 17 Internal pull down retains shut down mode when no external signal is applied to this pin.

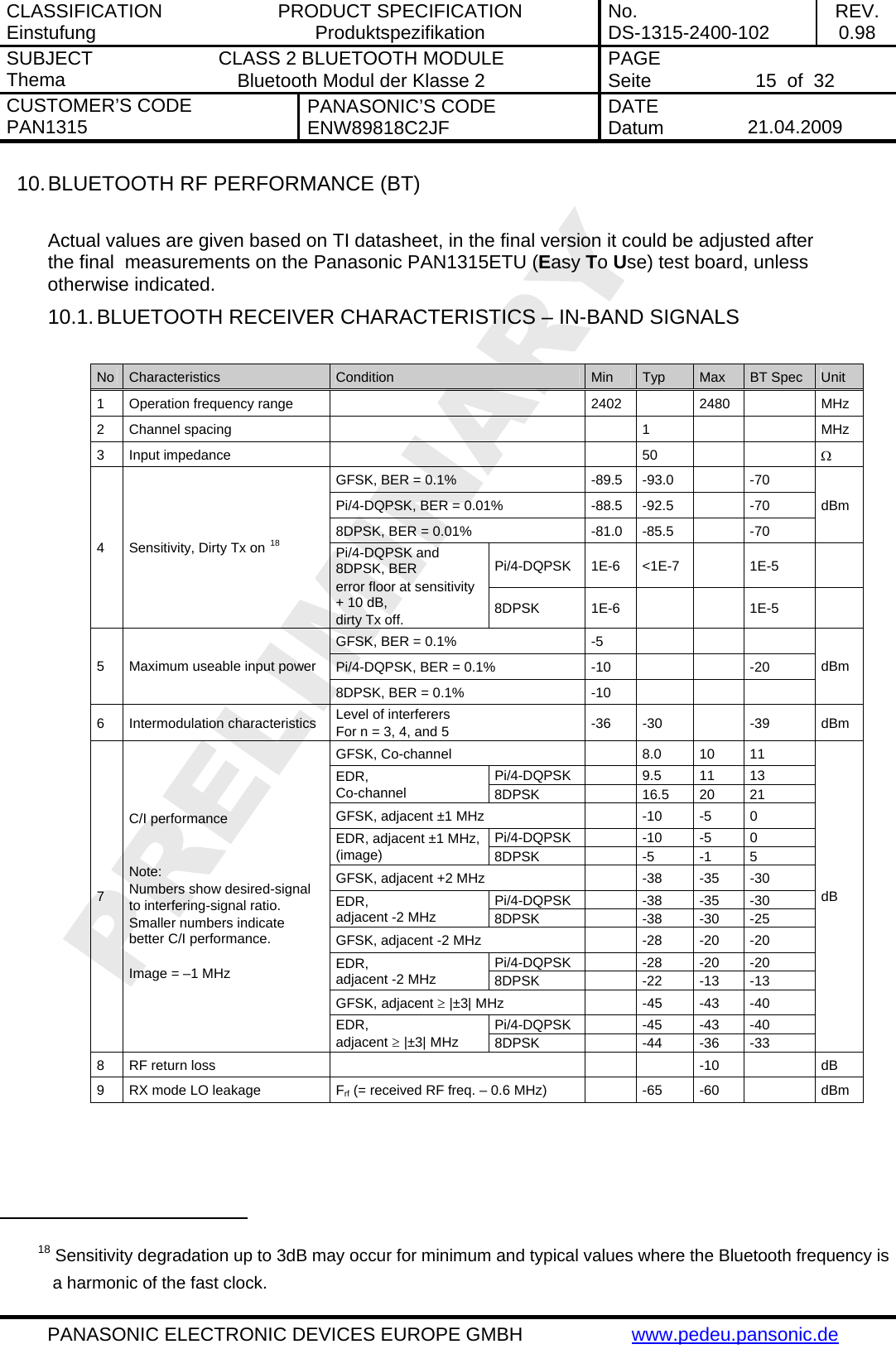

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 15 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 10. BLUETOOTH RF PERFORMANCE (BT) Actual values are given based on TI datasheet, in the final version it could be adjusted after the final measurements on the Panasonic PAN1315ETU (Easy To Use) test board, unless otherwise indicated. 10.1. BLUETOOTH RECEIVER CHARACTERISTICS – IN-BAND SIGNALS No Characteristics Condition Min Typ Max BT Spec Unit 1 Operation frequency range 2402 2480 MHz 2 Channel spacing 1 MHz 3 Input impedance 50 Ω GFSK, BER = 0.1% -89.5 -93.0 -70 Pi/4-DQPSK, BER = 0.01% -88.5 -92.5 -70 8DPSK, BER = 0.01% -81.0 -85.5 -70 dBm Pi/4-DQPSK 1E-6 <1E-7 1E-5 4 Sensitivity, Dirty Tx on 18 Pi/4-DQPSK and 8DPSK, BER error floor at sensitivity + 10 dB, dirty Tx off. 8DPSK 1E-6 1E-5 GFSK, BER = 0.1% -5 Pi/4-DQPSK, BER = 0.1% -10 -20 5 Maximum useable input power 8DPSK, BER = 0.1% -10 dBm 6 Intermodulation characteristics Level of interferers For n = 3, 4, and 5 -36 -30 -39 dBm GFSK, Co-channel 8.0 10 11 Pi/4-DQPSK 9.5 11 13 EDR, Co-channel 8DPSK 16.5 20 21 GFSK, adjacent ±1 MHz -10 -5 0 Pi/4-DQPSK -10 -5 0 EDR, adjacent ±1 MHz, (image) 8DPSK -5 -1 5 GFSK, adjacent +2 MHz -38 -35 -30 Pi/4-DQPSK -38 -35 -30 EDR, adjacent -2 MHz 8DPSK -38 -30 -25 GFSK, adjacent -2 MHz -28 -20 -20 Pi/4-DQPSK -28 -20 -20 EDR, adjacent -2 MHz 8DPSK -22 -13 -13 GFSK, adjacent ≥ |±3| MHz -45 -43 -40 Pi/4-DQPSK -45 -43 -40 7 C/I performance Note: Numbers show desired-signal to interfering-signal ratio. Smaller numbers indicate better C/I performance. Image = –1 MHz EDR, adjacent ≥ |±3| MHz 8DPSK -44 -36 -33 dB 8 RF return loss -10 dB 9 RX mode LO leakage Frf (= received RF freq. – 0.6 MHz) -65 -60 dBm 18 Sensitivity degradation up to 3dB may occur for minimum and typical values where the Bluetooth frequency is a harmonic of the fast clock.

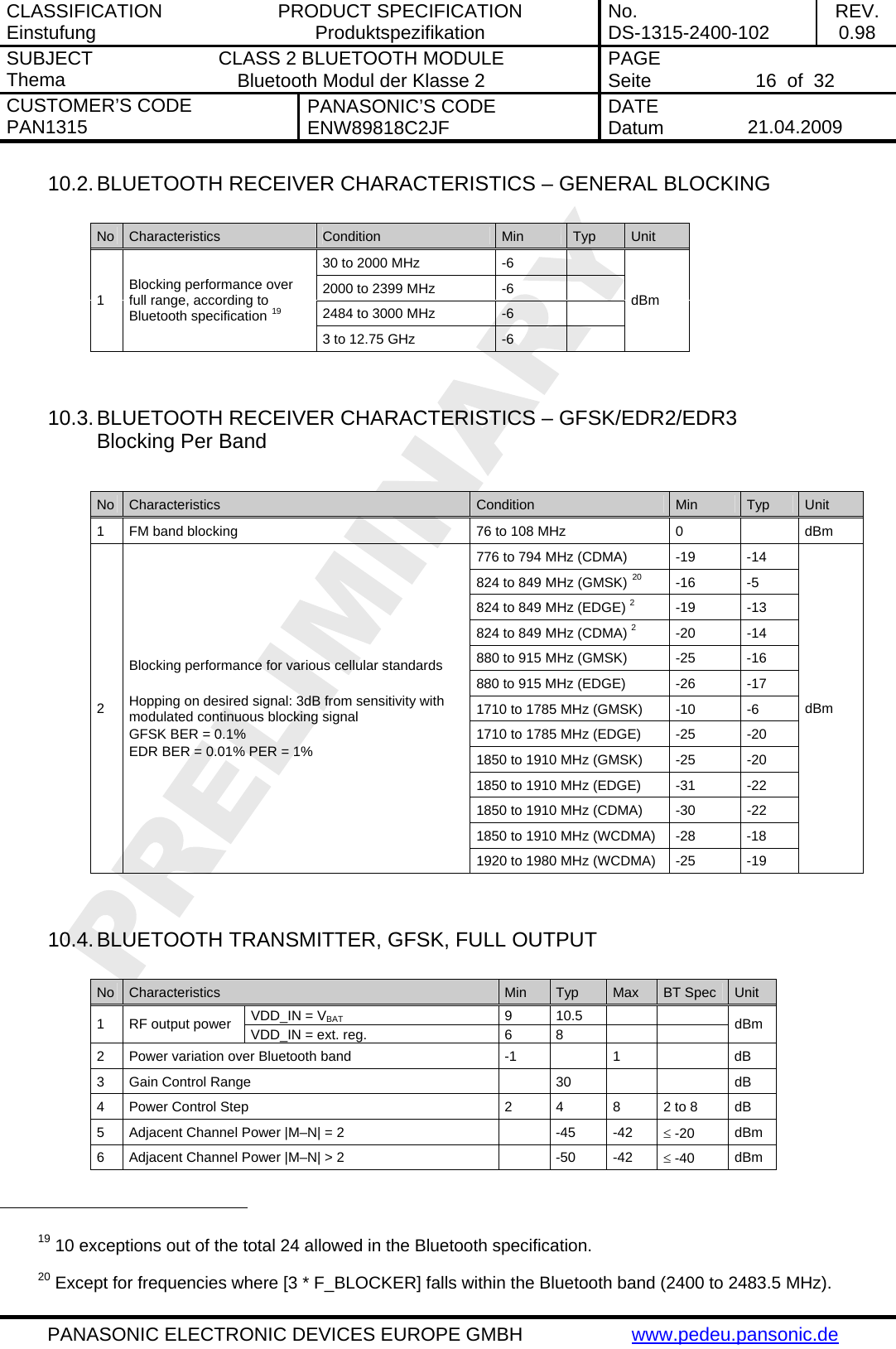

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 16 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 10.2. BLUETOOTH RECEIVER CHARACTERISTICS – GENERAL BLOCKING No Characteristics Condition Min Typ Unit 30 to 2000 MHz -6 2000 to 2399 MHz -6 2484 to 3000 MHz -6 1 Blocking performance over full range, according to Bluetooth specification 19 3 to 12.75 GHz -6 dBm 10.3. BLUETOOTH RECEIVER CHARACTERISTICS – GFSK/EDR2/EDR3 Blocking Per Band No Characteristics Condition Min Typ Unit 1 FM band blocking 76 to 108 MHz 0 dBm 776 to 794 MHz (CDMA) -19 -14 824 to 849 MHz (GMSK) 20 -16 -5 824 to 849 MHz (EDGE) 2 -19 -13 824 to 849 MHz (CDMA) 2 -20 -14 880 to 915 MHz (GMSK) -25 -16 880 to 915 MHz (EDGE) -26 -17 1710 to 1785 MHz (GMSK) -10 -6 1710 to 1785 MHz (EDGE) -25 -20 1850 to 1910 MHz (GMSK) -25 -20 1850 to 1910 MHz (EDGE) -31 -22 1850 to 1910 MHz (CDMA) -30 -22 1850 to 1910 MHz (WCDMA) -28 -18 2 Blocking performance for various cellular standards Hopping on desired signal: 3dB from sensitivity with modulated continuous blocking signal GFSK BER = 0.1% EDR BER = 0.01% PER = 1% 1920 to 1980 MHz (WCDMA) -25 -19 dBm 10.4. BLUETOOTH TRANSMITTER, GFSK, FULL OUTPUT No Characteristics Min Typ Max BT Spec Unit VDD_IN = VBAT 9 10.5 1 RF output power VDD_IN = ext. reg. 6 8 dBm 2 Power variation over Bluetooth band -1 1 dB 3 Gain Control Range 30 dB 4 Power Control Step 2 4 8 2 to 8 dB 5 Adjacent Channel Power |M–N| = 2 -45 -42 ≤ -20 dBm 6 Adjacent Channel Power |M–N| > 2 -50 -42 ≤ -40 dBm 19 10 exceptions out of the total 24 allowed in the Bluetooth specification. 20 Except for frequencies where [3 * F_BLOCKER] falls within the Bluetooth band (2400 to 2483.5 MHz).

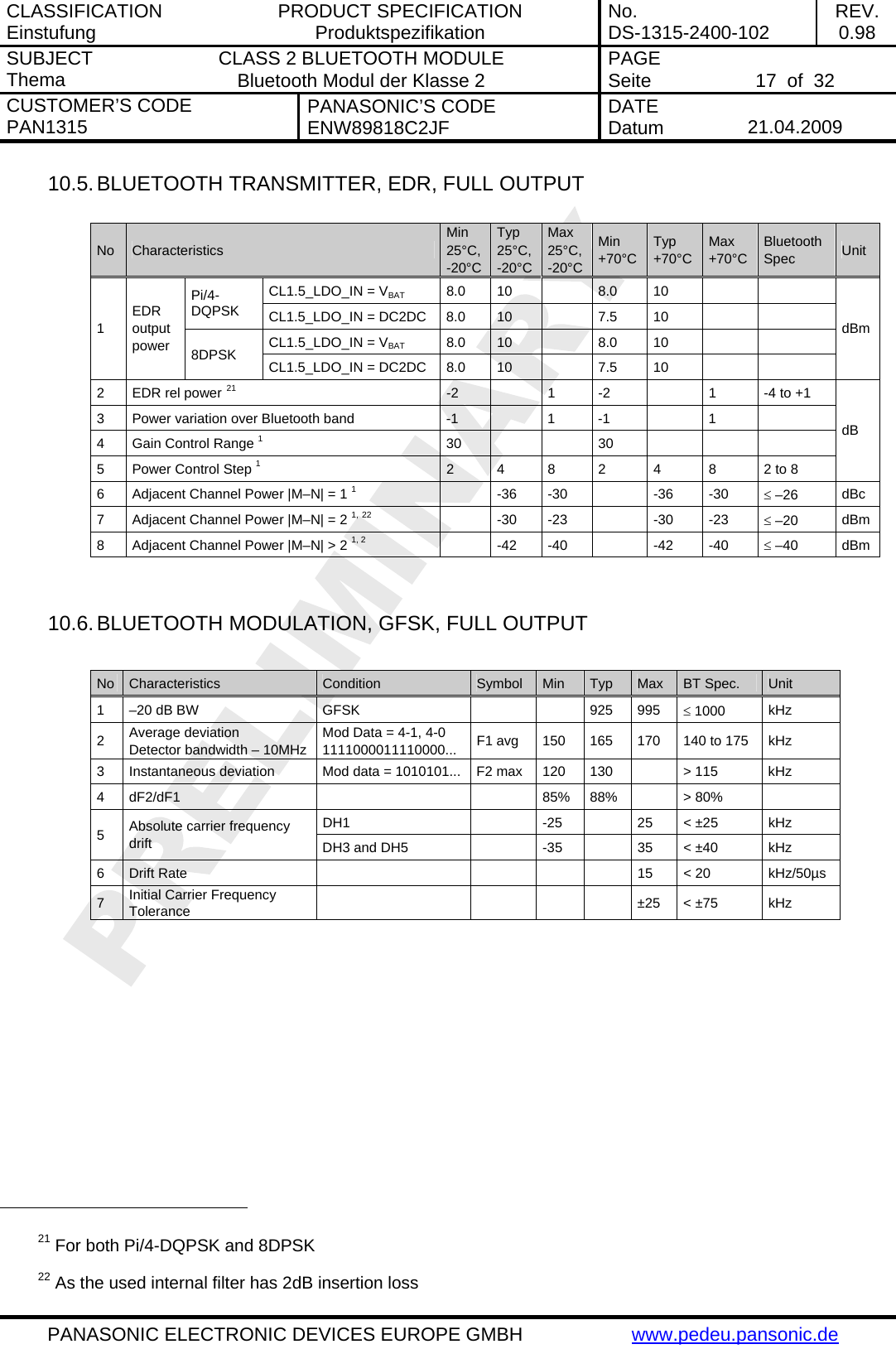

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 17 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 10.5. BLUETOOTH TRANSMITTER, EDR, FULL OUTPUT No Characteristics Min 25°C, -20°C Typ 25°C, -20°C Max 25°C, -20°C Min +70°C Typ +70°C Max +70°C Bluetooth Spec Unit CL1.5_LDO_IN = VBAT 8.0 10 8.0 10 Pi/4-DQPSK CL1.5_LDO_IN = DC2DC 8.0 10 7.5 10 CL1.5_LDO_IN = VBAT 8.0 10 8.0 10 1 EDR output power 8DPSK CL1.5_LDO_IN = DC2DC 8.0 10 7.5 10 dBm 2 EDR rel power 21 -2 1 -2 1 -4 to +1 3 Power variation over Bluetooth band -1 1 -1 1 4 Gain Control Range 1 30 30 5 Power Control Step 1 2 4 8 2 4 8 2 to 8 dB 6 Adjacent Channel Power |M–N| = 1 1 -36 -30 -36 -30 ≤ –26 dBc 7 Adjacent Channel Power |M–N| = 2 1, 22 -30 -23 -30 -23 ≤ –20 dBm 8 Adjacent Channel Power |M–N| > 2 1, 2 -42 -40 -42 -40 ≤ –40 dBm 10.6. BLUETOOTH MODULATION, GFSK, FULL OUTPUT No Characteristics Condition Symbol Min Typ Max BT Spec. Unit 1 –20 dB BW GFSK 925 995 ≤ 1000 kHz 2 Average deviation Detector bandwidth – 10MHz Mod Data = 4-1, 4-0 1111000011110000... F1 avg 150 165 170 140 to 175 kHz 3 Instantaneous deviation Mod data = 1010101... F2 max 120 130 > 115 kHz 4 dF2/dF1 85% 88% > 80% DH1 -25 25 < ±25 kHz 5 Absolute carrier frequency drift DH3 and DH5 -35 35 < ±40 kHz 6 Drift Rate 15 < 20 kHz/50µs 7 Initial Carrier Frequency Tolerance ±25 < ±75 kHz 21 For both Pi/4-DQPSK and 8DPSK 22 As the used internal filter has 2dB insertion loss

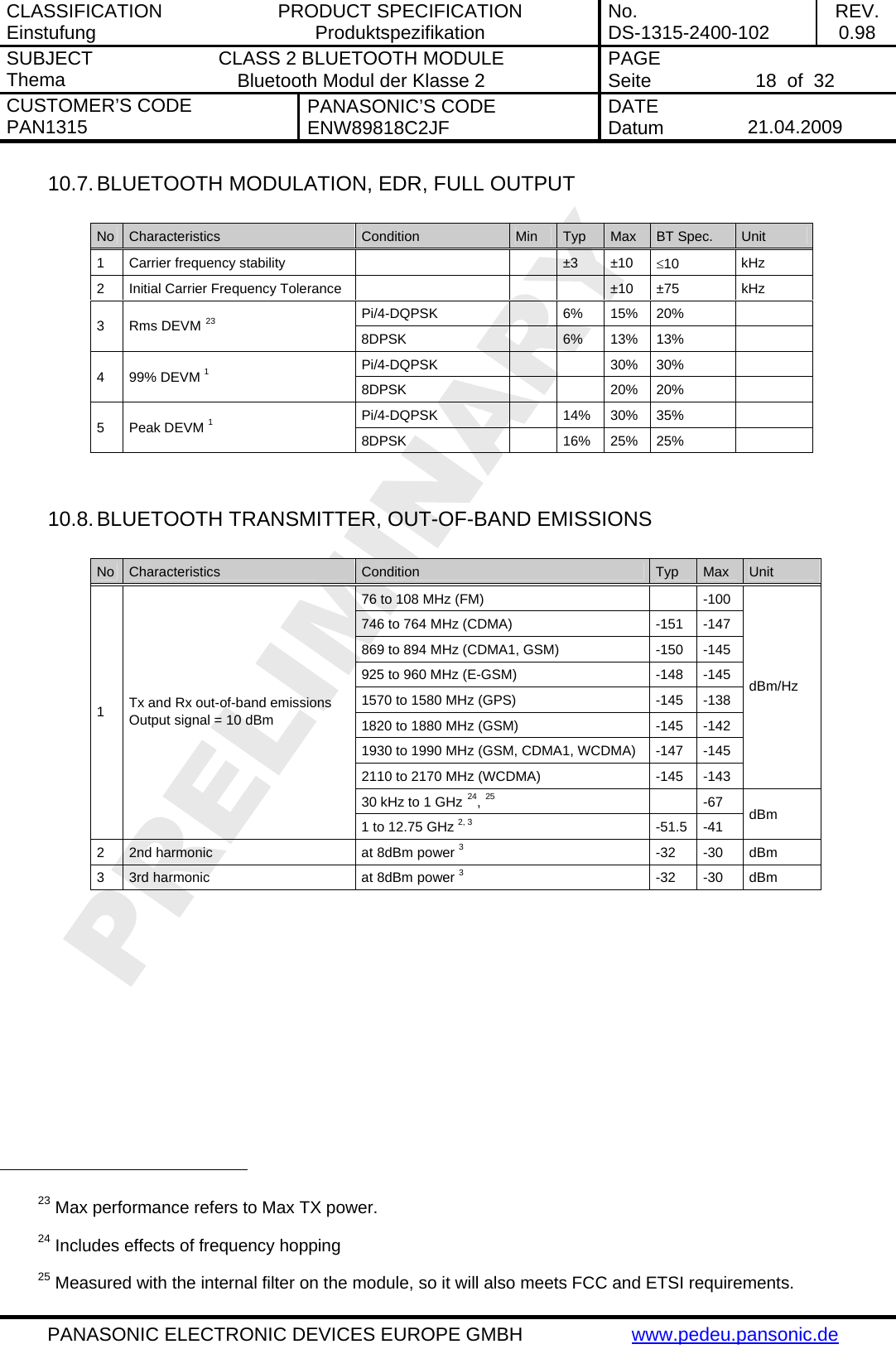

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 18 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 10.7. BLUETOOTH MODULATION, EDR, FULL OUTPUT No Characteristics Condition Min Typ Max BT Spec. Unit 1 Carrier frequency stability ±3 ±10 ≤10 kHz 2 Initial Carrier Frequency Tolerance ±10 ±75 kHz Pi/4-DQPSK 6% 15% 20% 3 Rms DEVM 23 8DPSK 6% 13% 13% Pi/4-DQPSK 30% 30% 4 99% DEVM 1 8DPSK 20% 20% Pi/4-DQPSK 14% 30% 35% 5 Peak DEVM 1 8DPSK 16% 25% 25% 10.8. BLUETOOTH TRANSMITTER, OUT-OF-BAND EMISSIONS No Characteristics Condition Typ Max Unit 76 to 108 MHz (FM) -100 746 to 764 MHz (CDMA) -151 -147 869 to 894 MHz (CDMA1, GSM) -150 -145 925 to 960 MHz (E-GSM) -148 -145 1570 to 1580 MHz (GPS) -145 -138 1820 to 1880 MHz (GSM) -145 -142 1930 to 1990 MHz (GSM, CDMA1, WCDMA) -147 -145 2110 to 2170 MHz (WCDMA) -145 -143 dBm/Hz 30 kHz to 1 GHz 24, 25 -67 1 Tx and Rx out-of-band emissions Output signal = 10 dBm 1 to 12.75 GHz 2, 3 -51.5 -41 dBm 2 2nd harmonic at 8dBm power 3 -32 -30 dBm 3 3rd harmonic at 8dBm power 3 -32 -30 dBm 23 Max performance refers to Max TX power. 24 Includes effects of frequency hopping 25 Measured with the internal filter on the module, so it will also meets FCC and ETSI requirements.

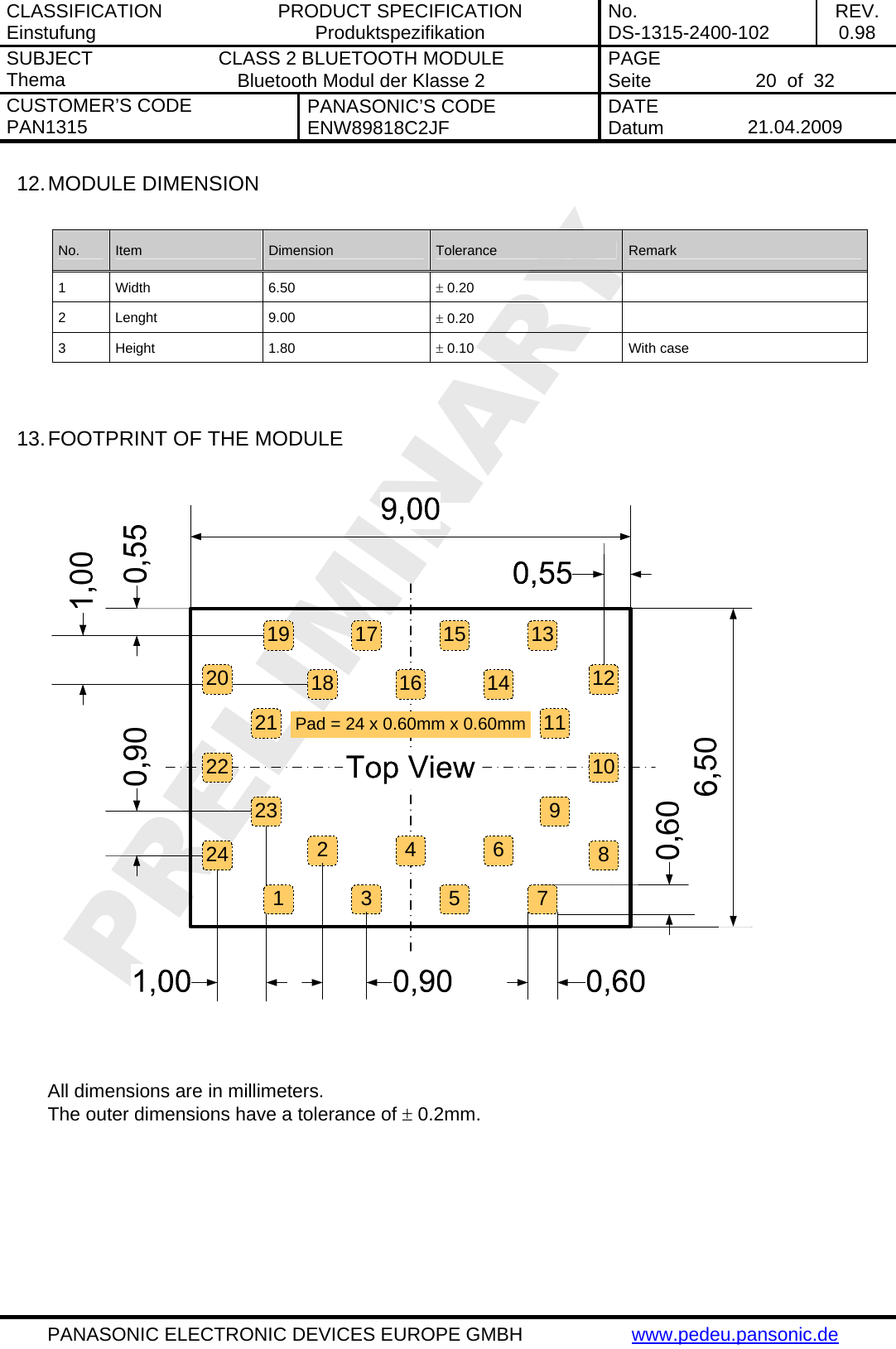

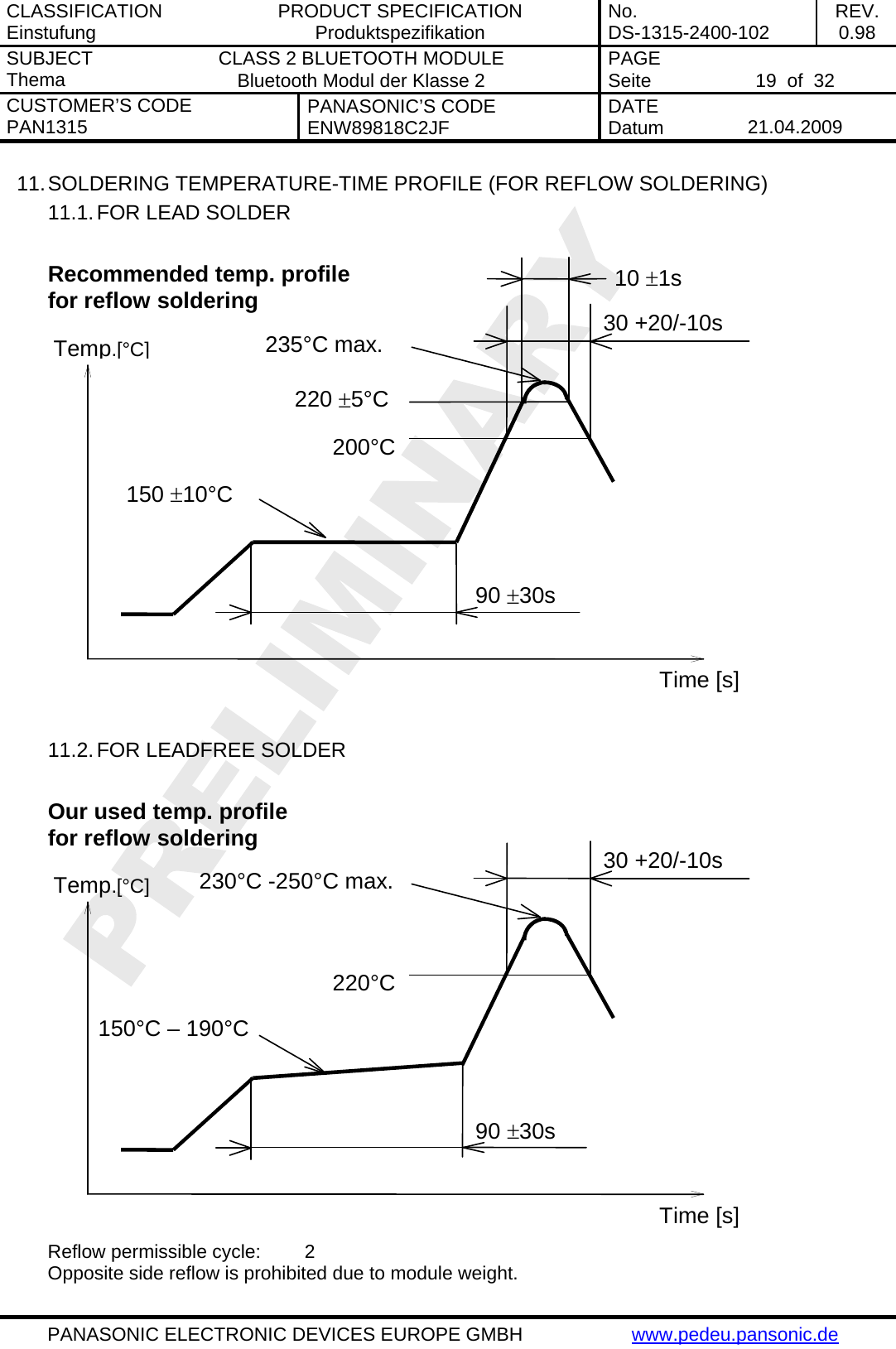

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 20 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 12. MODULE DIMENSION No. Item Dimension Tolerance Remark 1 Width 6.50 ± 0.20 2 Lenght 9.00 ± 0.20 3 Height 1.80 ± 0.10 With case 13. FOOTPRINT OF THE MODULE 17 15 1314119865322122 10416Pad = 24 x 0.60mm x 0.60mm20231241918 127 All dimensions are in millimeters. The outer dimensions have a tolerance of ± 0.2mm.

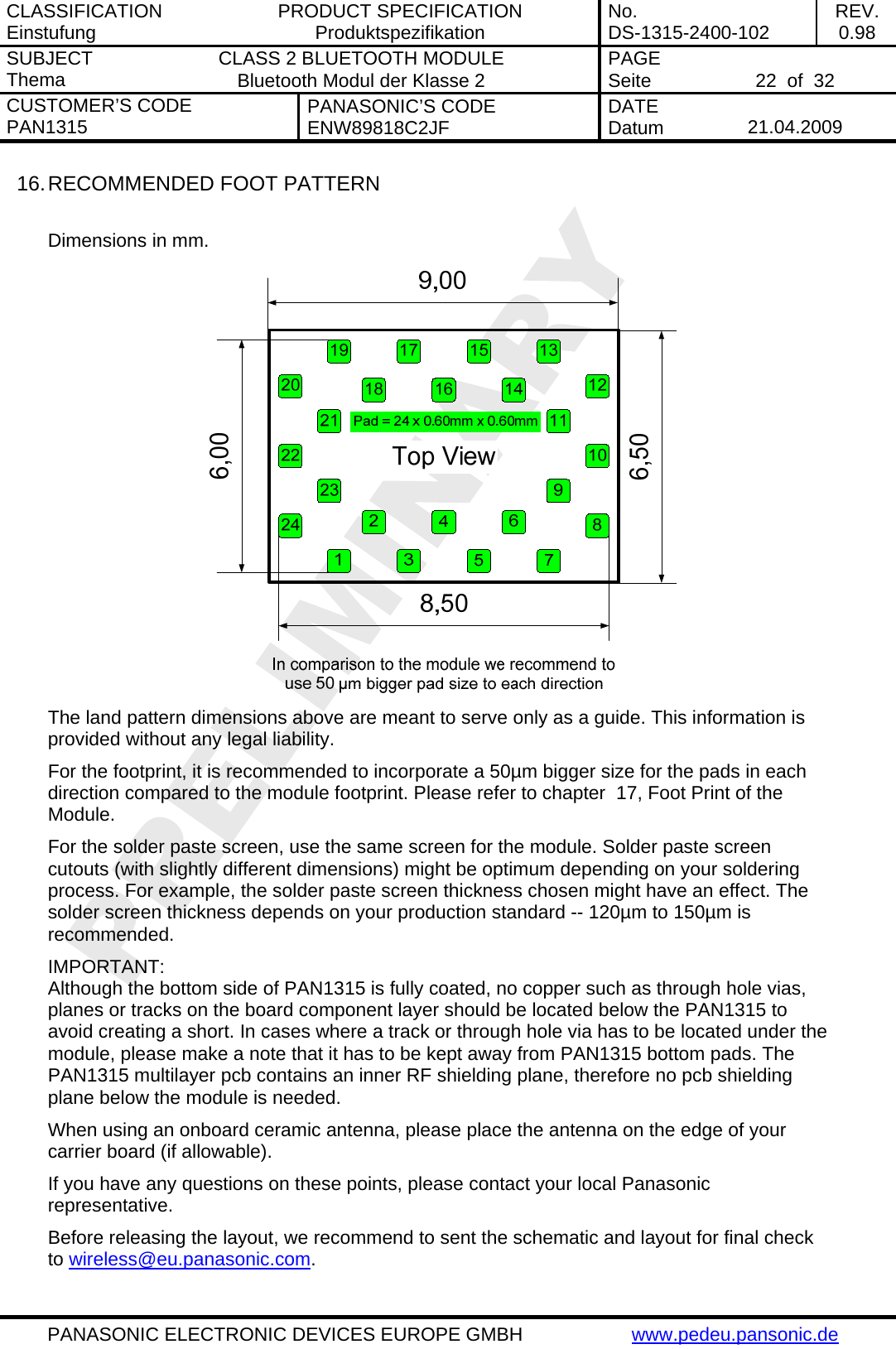

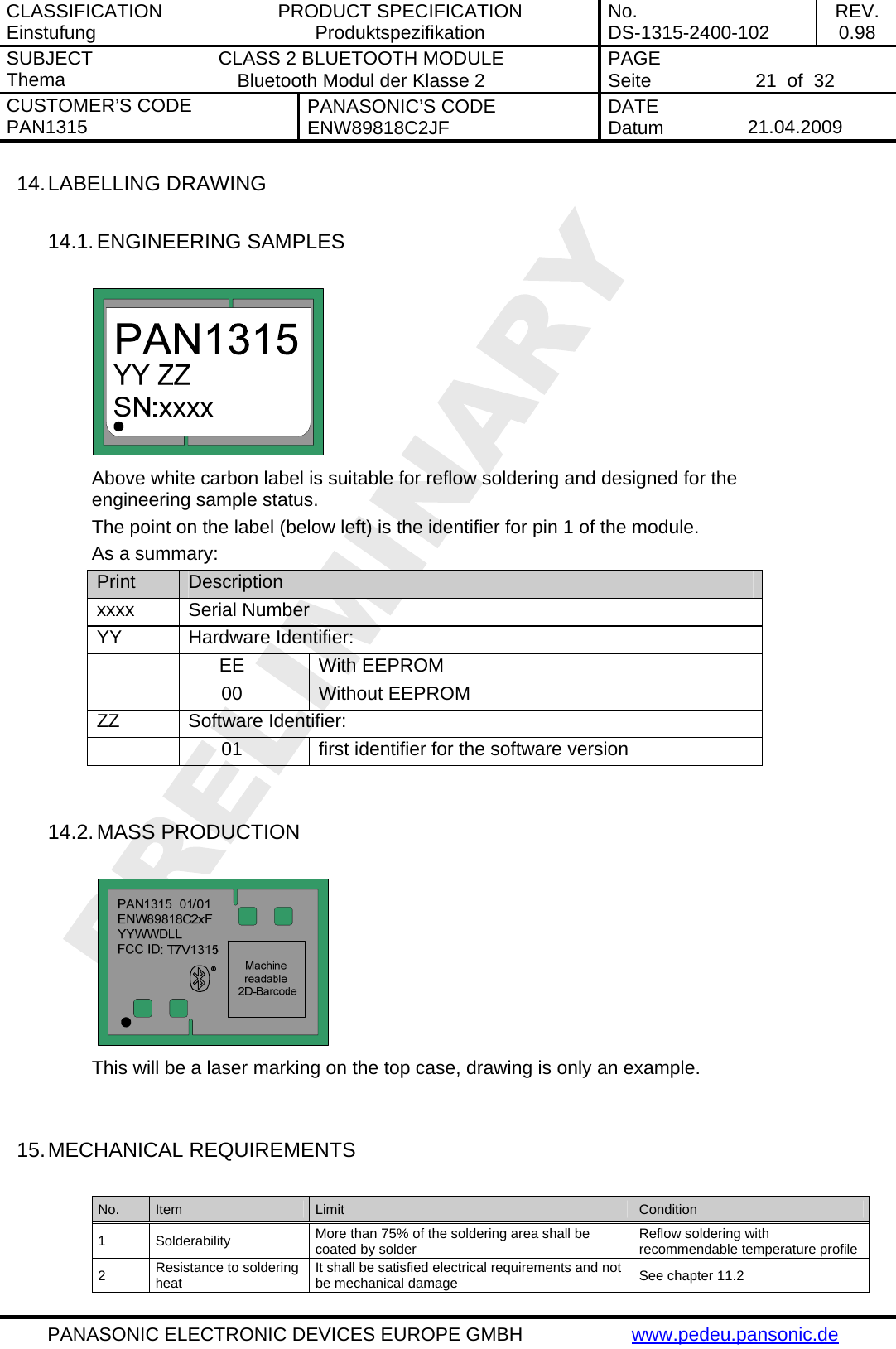

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 22 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 16. RECOMMENDED FOOT PATTERN Dimensions in mm. The land pattern dimensions above are meant to serve only as a guide. This information is provided without any legal liability. For the footprint, it is recommended to incorporate a 50µm bigger size for the pads in each direction compared to the module footprint. Please refer to chapter 17, Foot Print of the Module. For the solder paste screen, use the same screen for the module. Solder paste screen cutouts (with slightly different dimensions) might be optimum depending on your soldering process. For example, the solder paste screen thickness chosen might have an effect. The solder screen thickness depends on your production standard -- 120µm to 150µm is recommended. IMPORTANT: Although the bottom side of PAN1315 is fully coated, no copper such as through hole vias, planes or tracks on the board component layer should be located below the PAN1315 to avoid creating a short. In cases where a track or through hole via has to be located under the module, please make a note that it has to be kept away from PAN1315 bottom pads. The PAN1315 multilayer pcb contains an inner RF shielding plane, therefore no pcb shielding plane below the module is needed. When using an onboard ceramic antenna, please place the antenna on the edge of your carrier board (if allowable). If you have any questions on these points, please contact your local Panasonic representative. Before releasing the layout, we recommend to sent the schematic and layout for final check to wireless@eu.panasonic.com.

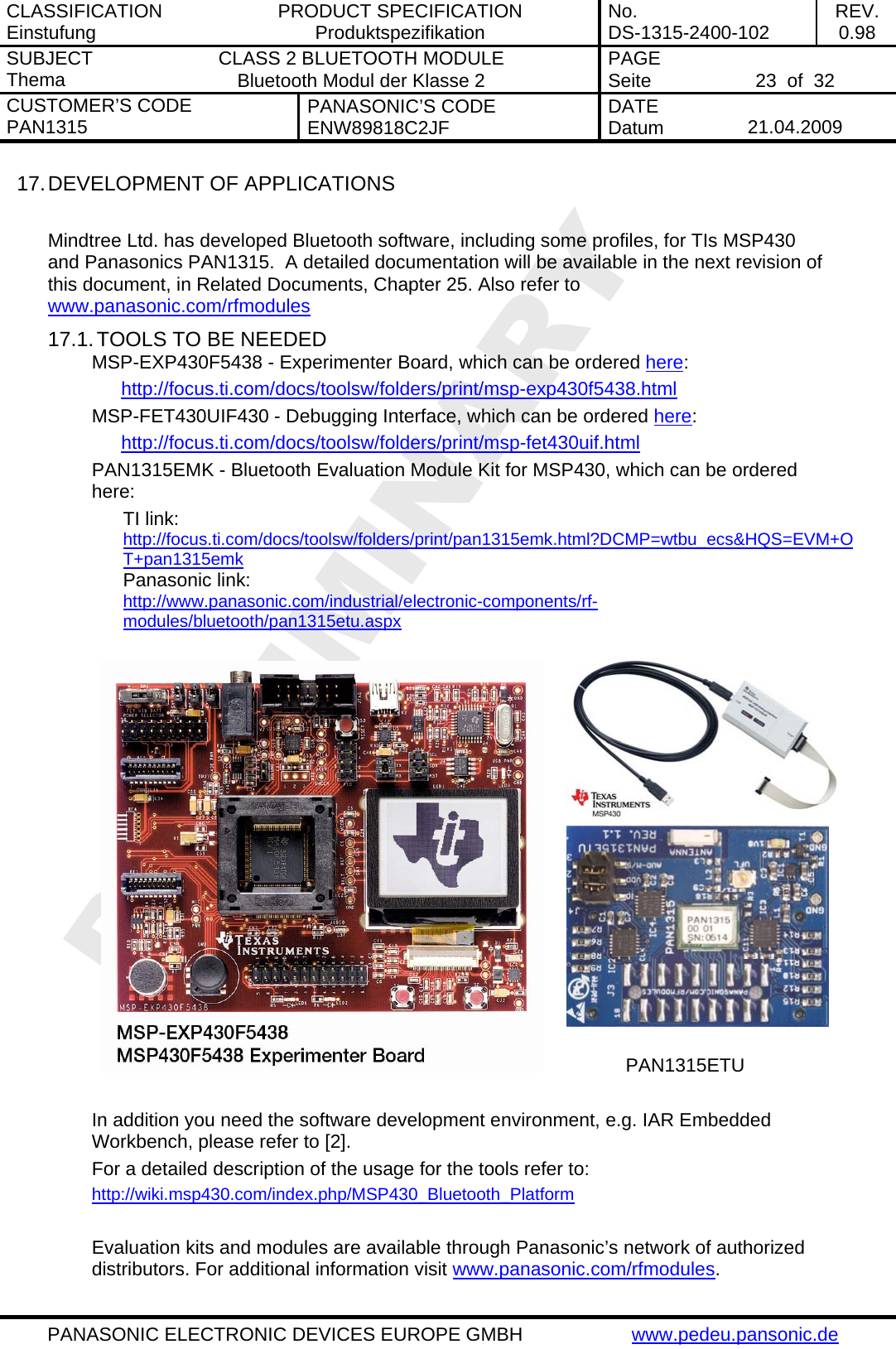

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 23 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 17. DEVELOPMENT OF APPLICATIONS Mindtree Ltd. has developed Bluetooth software, including some profiles, for TIs MSP430 and Panasonics PAN1315. A detailed documentation will be available in the next revision of this document, in Related Documents, Chapter 25. Also refer to www.panasonic.com/rfmodules 17.1. TOOLS TO BE NEEDED MSP-EXP430F5438 - Experimenter Board, which can be ordered here: http://focus.ti.com/docs/toolsw/folders/print/msp-exp430f5438.html MSP-FET430UIF430 - Debugging Interface, which can be ordered here: http://focus.ti.com/docs/toolsw/folders/print/msp-fet430uif.html PAN1315EMK - Bluetooth Evaluation Module Kit for MSP430, which can be ordered here: TI link: http://focus.ti.com/docs/toolsw/folders/print/pan1315emk.html?DCMP=wtbu_ecs&HQS=EVM+OT+pan1315emk Panasonic link: http://www.panasonic.com/industrial/electronic-components/rf-modules/bluetooth/pan1315etu.aspx PAN1315ETU In addition you need the software development environment, e.g. IAR Embedded Workbench, please refer to [2]. For a detailed description of the usage for the tools refer to: http://wiki.msp430.com/index.php/MSP430_Bluetooth_Platform Evaluation kits and modules are available through Panasonic’s network of authorized distributors. For additional information visit www.panasonic.com/rfmodules.

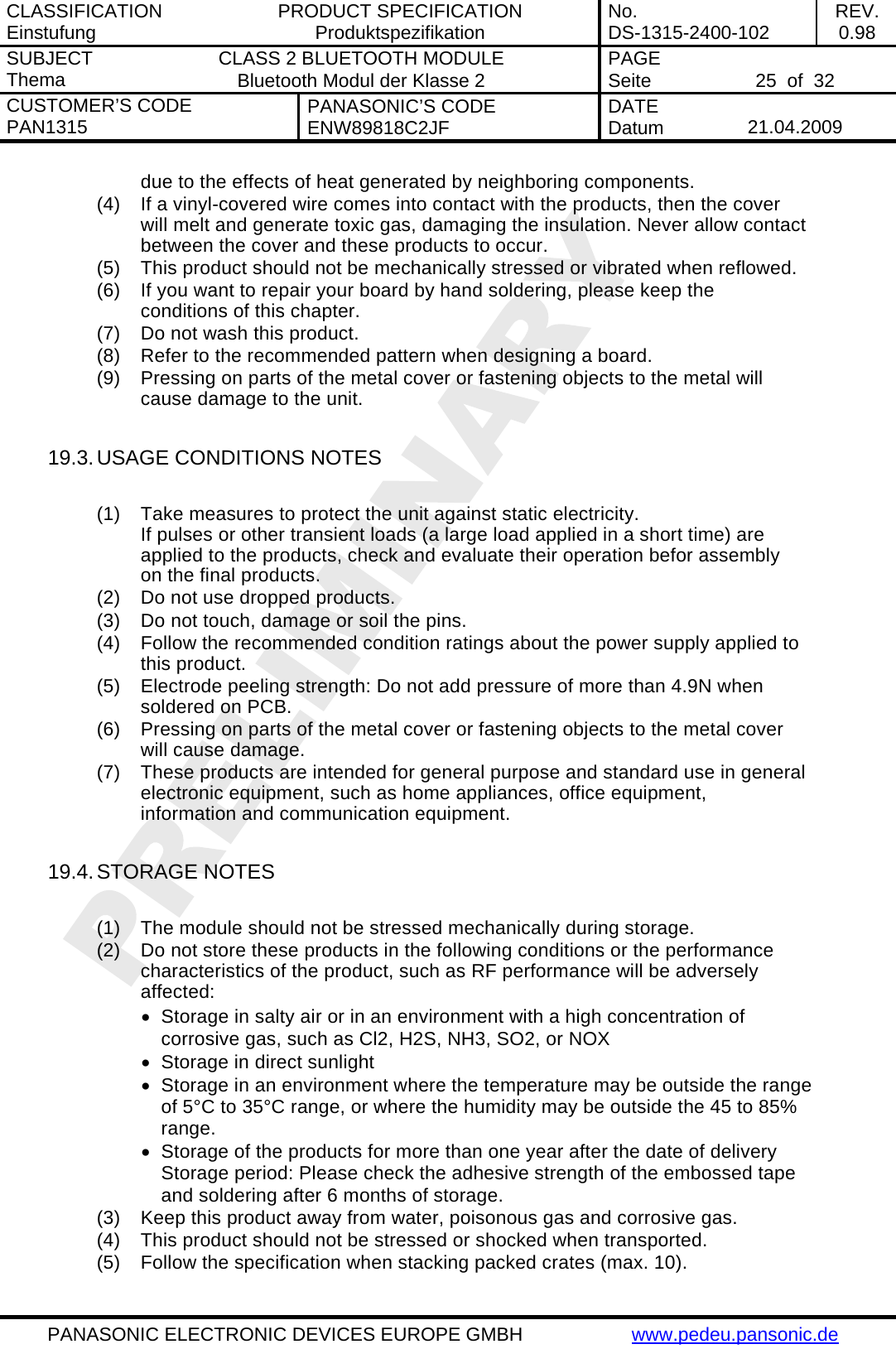

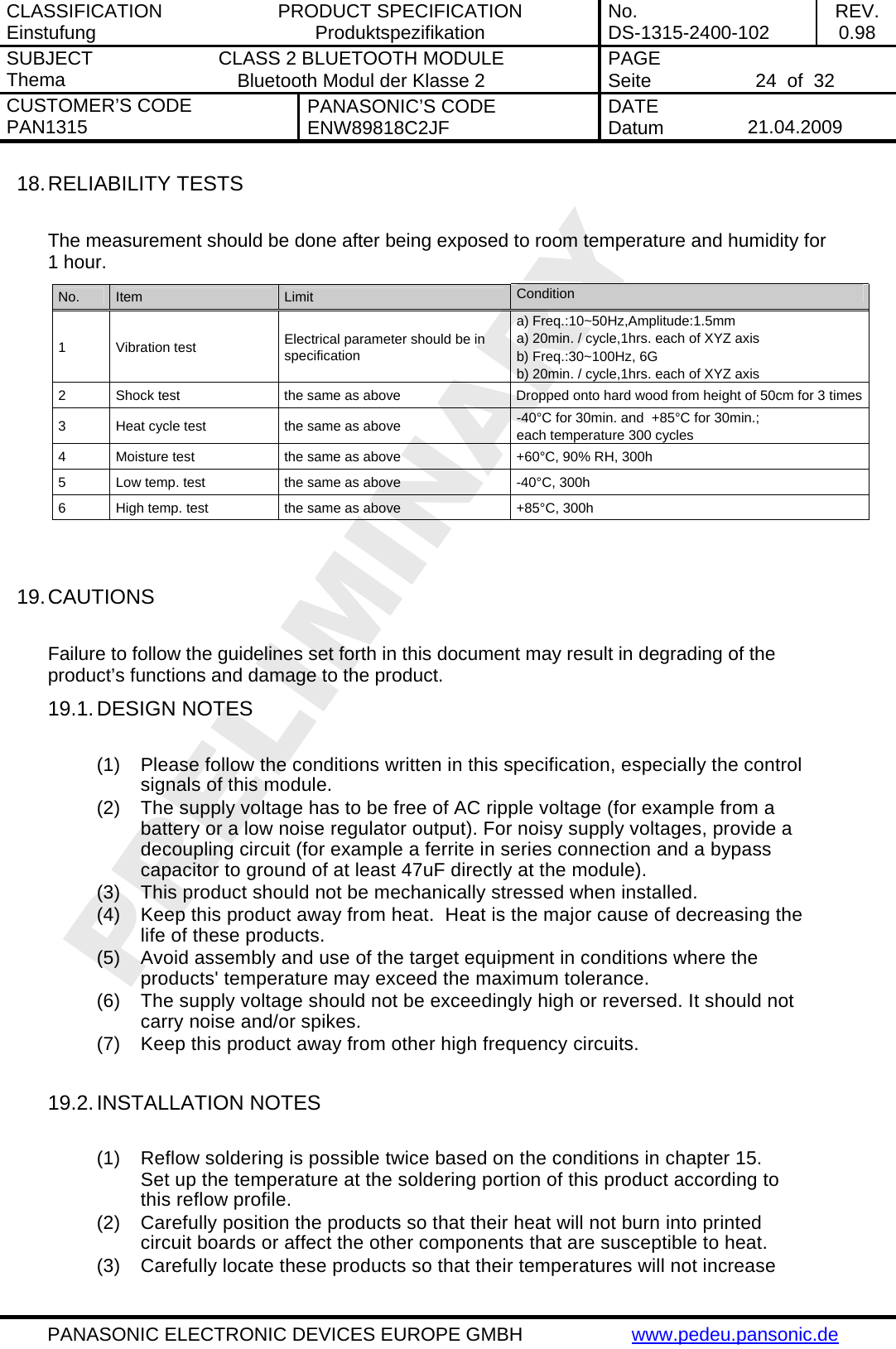

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 25 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de due to the effects of heat generated by neighboring components. (4) If a vinyl-covered wire comes into contact with the products, then the cover will melt and generate toxic gas, damaging the insulation. Never allow contact between the cover and these products to occur. (5) This product should not be mechanically stressed or vibrated when reflowed. (6) If you want to repair your board by hand soldering, please keep the conditions of this chapter. (7) Do not wash this product. (8) Refer to the recommended pattern when designing a board. (9) Pressing on parts of the metal cover or fastening objects to the metal will cause damage to the unit. 19.3. USAGE CONDITIONS NOTES (1) Take measures to protect the unit against static electricity. If pulses or other transient loads (a large load applied in a short time) are applied to the products, check and evaluate their operation befor assembly on the final products. (2) Do not use dropped products. (3) Do not touch, damage or soil the pins. (4) Follow the recommended condition ratings about the power supply applied to this product. (5) Electrode peeling strength: Do not add pressure of more than 4.9N when soldered on PCB. (6) Pressing on parts of the metal cover or fastening objects to the metal cover will cause damage. (7) These products are intended for general purpose and standard use in general electronic equipment, such as home appliances, office equipment, information and communication equipment. 19.4. STORAGE NOTES (1) The module should not be stressed mechanically during storage. (2) Do not store these products in the following conditions or the performance characteristics of the product, such as RF performance will be adversely affected: • Storage in salty air or in an environment with a high concentration of corrosive gas, such as Cl2, H2S, NH3, SO2, or NOX • Storage in direct sunlight • Storage in an environment where the temperature may be outside the range of 5°C to 35°C range, or where the humidity may be outside the 45 to 85% range. • Storage of the products for more than one year after the date of delivery Storage period: Please check the adhesive strength of the embossed tape and soldering after 6 months of storage. (3) Keep this product away from water, poisonous gas and corrosive gas. (4) This product should not be stressed or shocked when transported. (5) Follow the specification when stacking packed crates (max. 10).

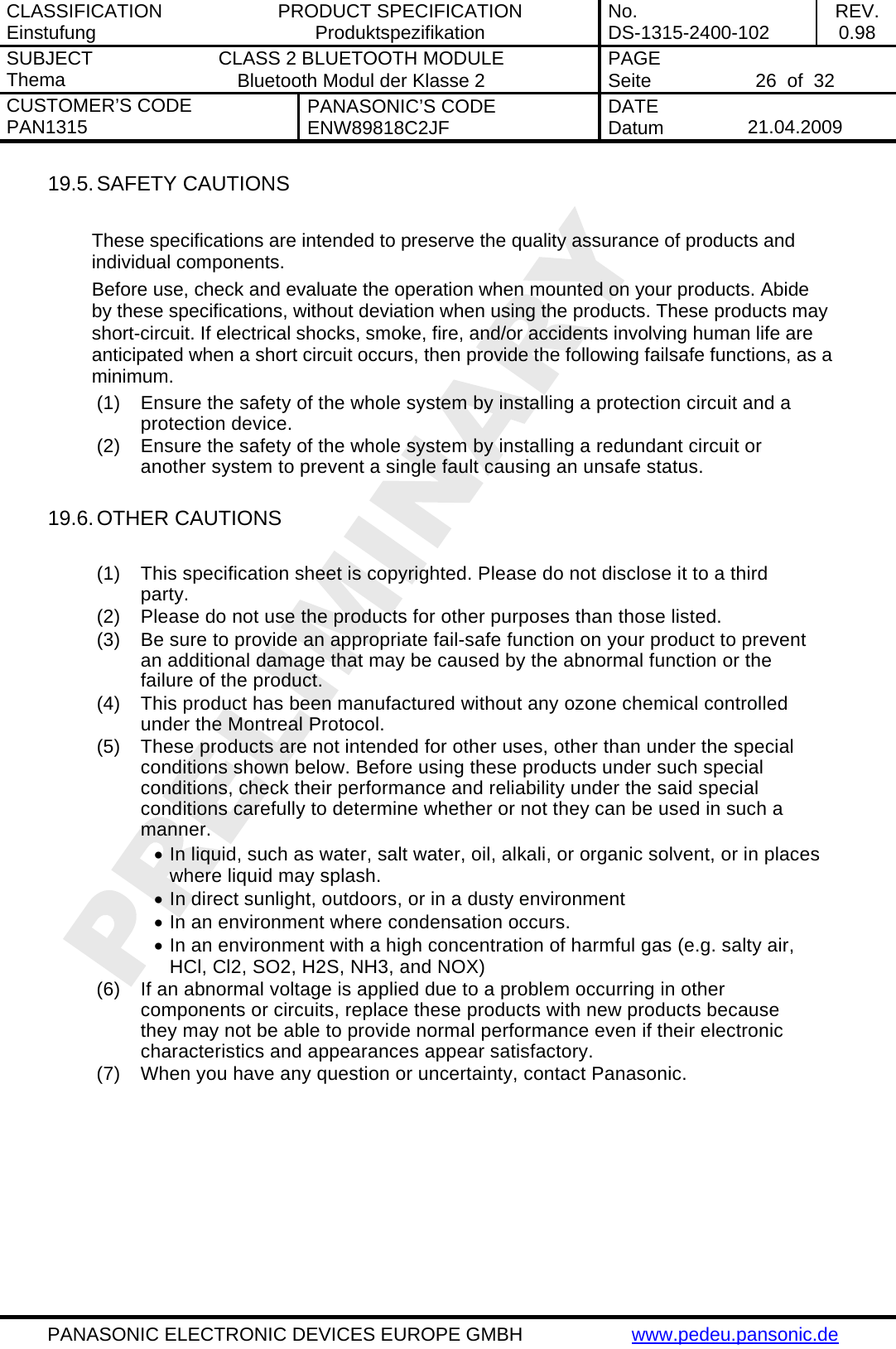

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 26 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 19.5. SAFETY CAUTIONS These specifications are intended to preserve the quality assurance of products and individual components. Before use, check and evaluate the operation when mounted on your products. Abide by these specifications, without deviation when using the products. These products may short-circuit. If electrical shocks, smoke, fire, and/or accidents involving human life are anticipated when a short circuit occurs, then provide the following failsafe functions, as a minimum. (1) Ensure the safety of the whole system by installing a protection circuit and a protection device. (2) Ensure the safety of the whole system by installing a redundant circuit or another system to prevent a single fault causing an unsafe status. 19.6. OTHER CAUTIONS (1) This specification sheet is copyrighted. Please do not disclose it to a third party. (2) Please do not use the products for other purposes than those listed. (3) Be sure to provide an appropriate fail-safe function on your product to prevent an additional damage that may be caused by the abnormal function or the failure of the product. (4) This product has been manufactured without any ozone chemical controlled under the Montreal Protocol. (5) These products are not intended for other uses, other than under the special conditions shown below. Before using these products under such special conditions, check their performance and reliability under the said special conditions carefully to determine whether or not they can be used in such a manner. • In liquid, such as water, salt water, oil, alkali, or organic solvent, or in places where liquid may splash. • In direct sunlight, outdoors, or in a dusty environment • In an environment where condensation occurs. • In an environment with a high concentration of harmful gas (e.g. salty air, HCl, Cl2, SO2, H2S, NH3, and NOX) (6) If an abnormal voltage is applied due to a problem occurring in other components or circuits, replace these products with new products because they may not be able to provide normal performance even if their electronic characteristics and appearances appear satisfactory. (7) When you have any question or uncertainty, contact Panasonic.

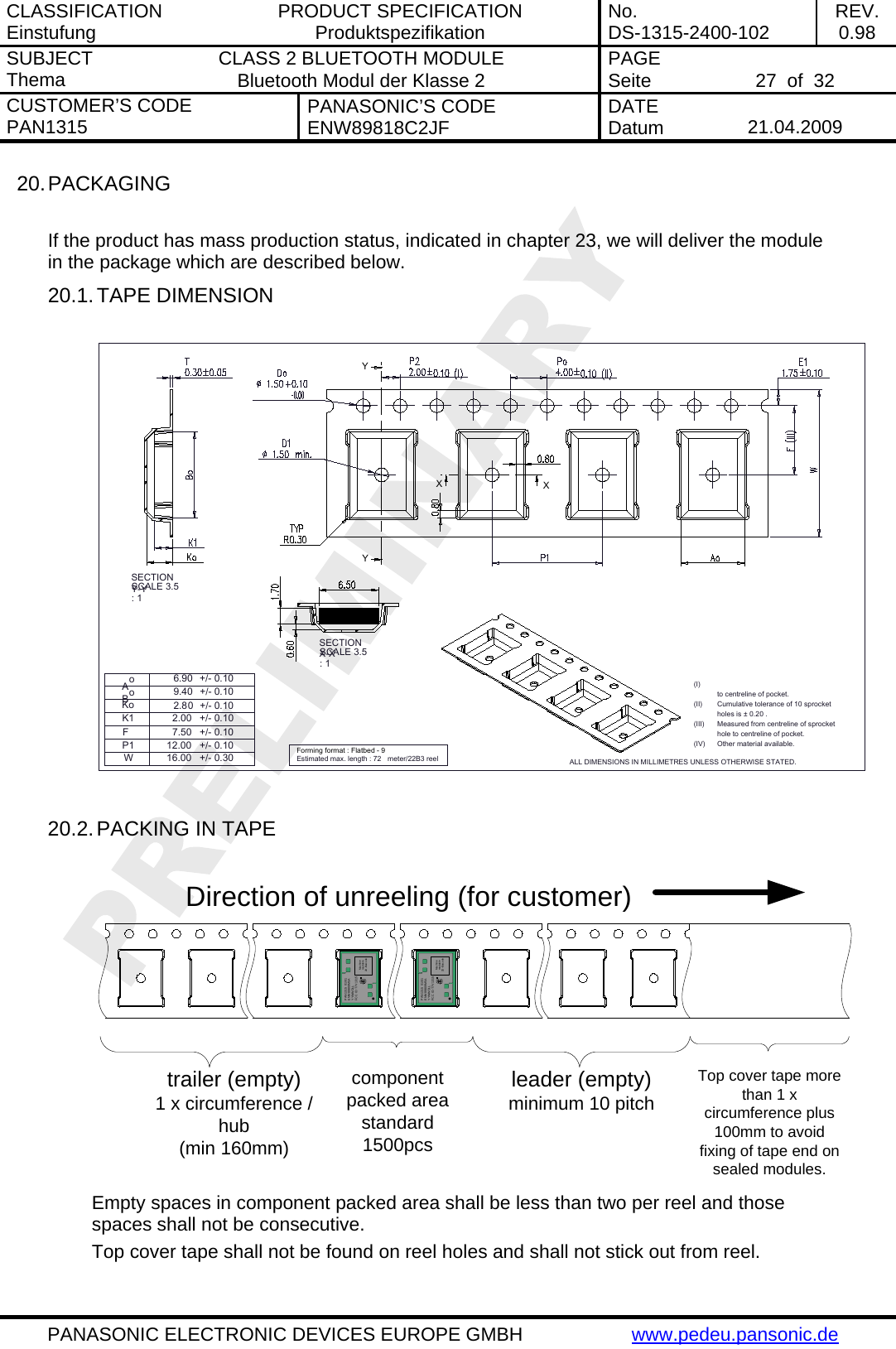

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 27 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 20. PACKAGING If the product has mass production status, indicated in chapter 23, we will deliver the module in the package which are described below. 20.1. TAPE DIMENSION to centreline of pocket.Cumulative tolerance of 10 sprocketholes is ± 0.20 .Measured from centreline of sprockethole to centreline of pocket.(I)(II)(III)(IV) Other material available.ALL DIMENSIONS IN MILLIMETRES UNLESS OTHERWISE STATED.WFP1+/- 0.10+/- 0.10+/- 0.307.5012.0016.00K1 2.00 +/- 0.10Estimated max. length : 72 meter/22B3 reelForming format : Flatbed - 92.80+/- 0.10+/- 0.109.40BoKo6.90Ao+/- 0.10YYXXSECTION Y-Y SCALE 3.5 : 1SECTION X-X SCALE 3.5 : 1 20.2. PACKING IN TAPE trailer (empty)1 x circumference /hub(min 160mm)component packed areastandard 1500pcsleader (empty)minimum 10 pitchTop cover tape more than 1 x circumference plus 100mm to avoid fixing of tape end on sealed modules.Direction of unreeling (for customer)PAN1315 01/01ENW89809M5AYYWWDLLFCC ID: T7V1315Machine readable 2D-Barc odePAN1315 01/01ENW89809M5AYYWWDLLFCC ID: T7V1315Machine readable 2D-Barc ode Empty spaces in component packed area shall be less than two per reel and those spaces shall not be consecutive. Top cover tape shall not be found on reel holes and shall not stick out from reel.

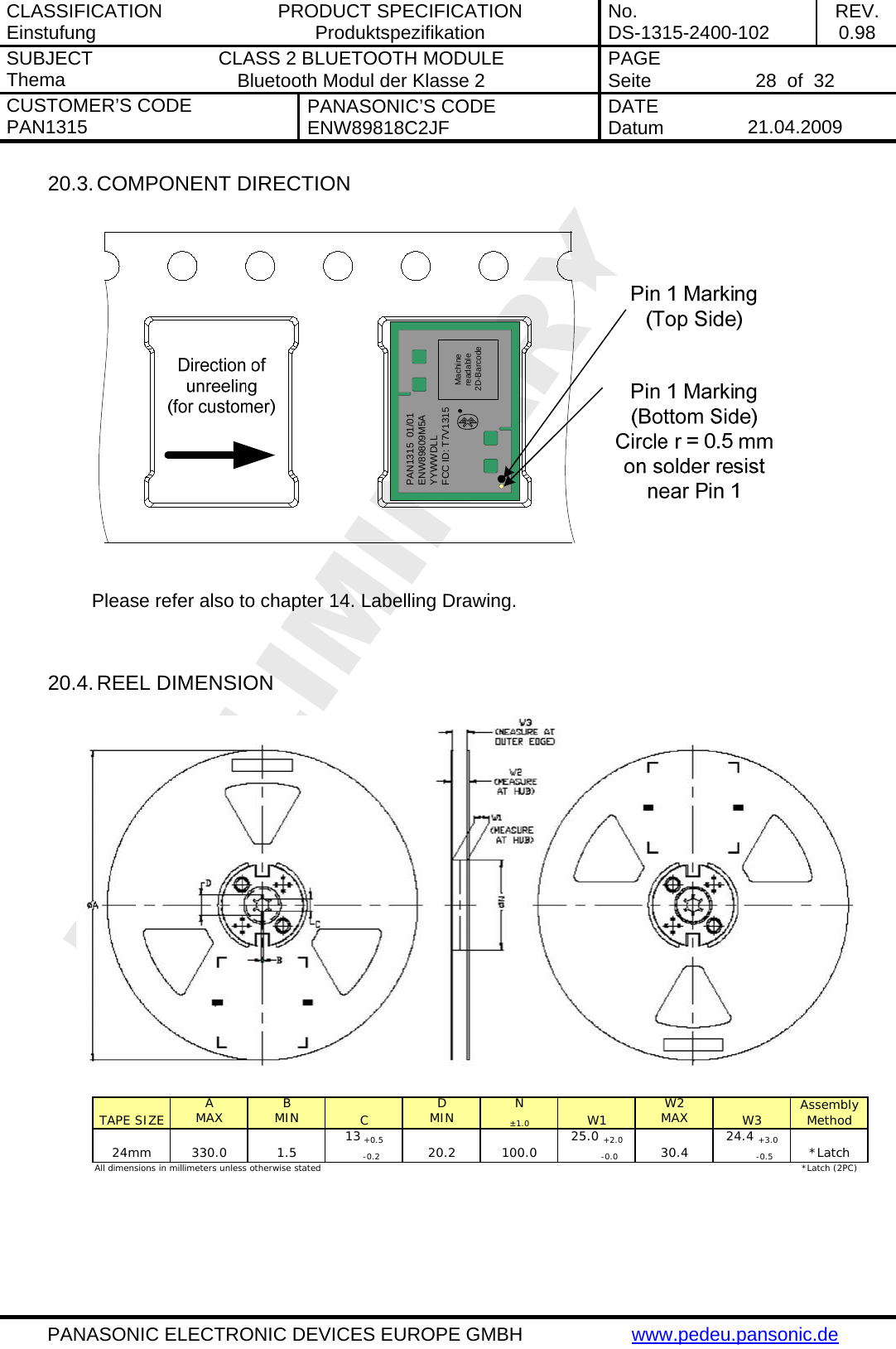

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 28 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 20.3. COMPONENT DIRECTION PAN1315 01/01ENW89809M5AYYWWDLLFCC ID: T7V1315Machine readable 2D-Barcode Please refer also to chapter 14. Labelling Drawing. 20.4. REEL DIMENSION A B D N W2MAX MIN MIN±1.0MAX13 +0.525.0 +2.024.4 +3.0 -0.2 -0.0 -0.5*Latch (2PC)All dimensions in millimeters unless otherwise stated Assembly Method24mm 330.0 1.5 20.2 100.0 30.4 *LatchTAPE SIZE C W1 W3

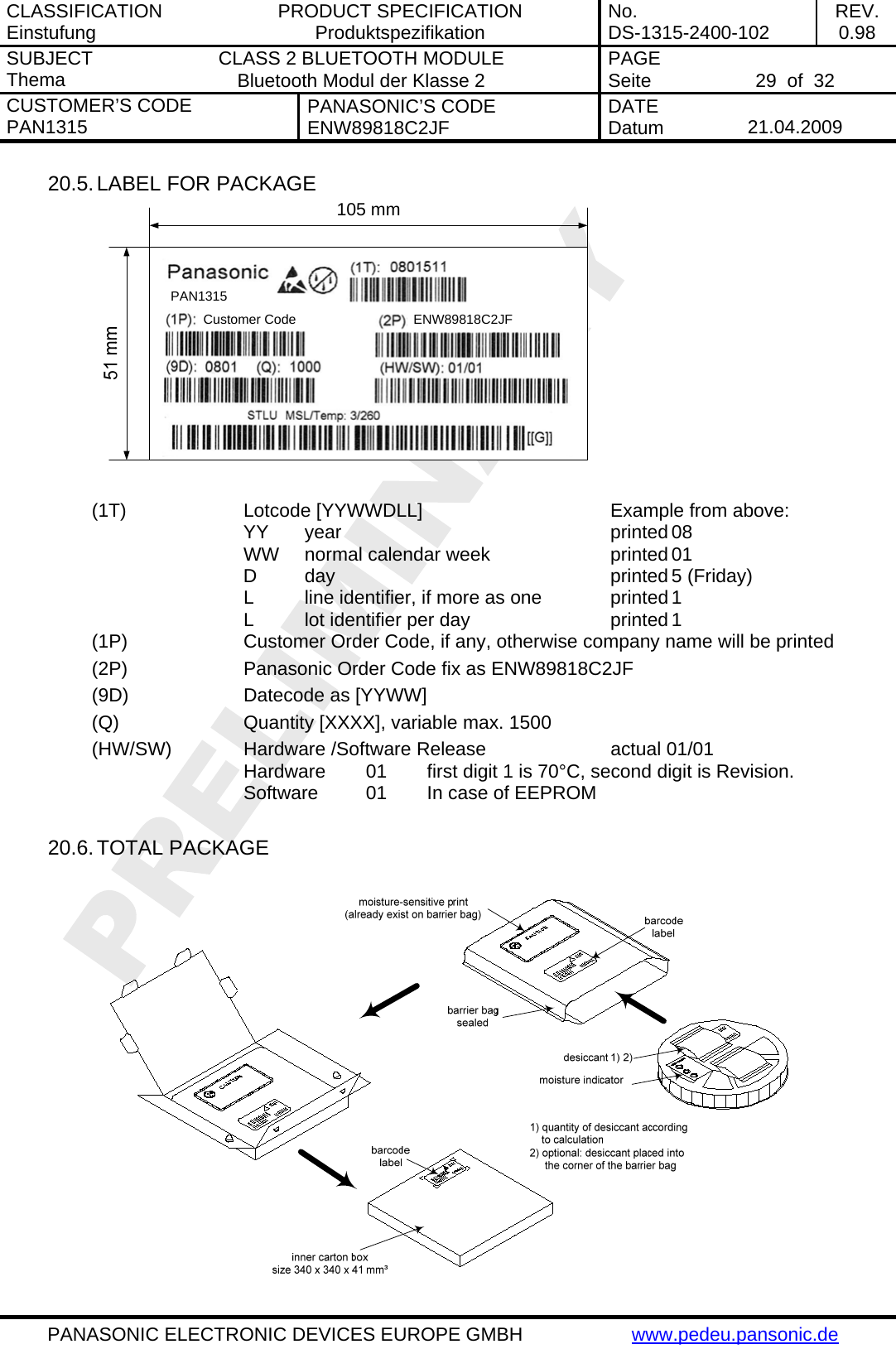

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 29 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 20.5. LABEL FOR PACKAGE PAN1315Customer Code ENW89818C2JF105 mm (1T) Lotcode [YYWWDLL] Example from above: YY year printed 08 WW normal calendar week printed 01 D day printed 5 (Friday) L line identifier, if more as one printed 1 L lot identifier per day printed 1 (1P) Customer Order Code, if any, otherwise company name will be printed (2P) Panasonic Order Code fix as ENW89818C2JF (9D) Datecode as [YYWW] (Q) Quantity [XXXX], variable max. 1500 (HW/SW) Hardware /Software Release actual 01/01 Hardware 01 first digit 1 is 70°C, second digit is Revision. Software 01 In case of EEPROM 20.6. TOTAL PACKAGE

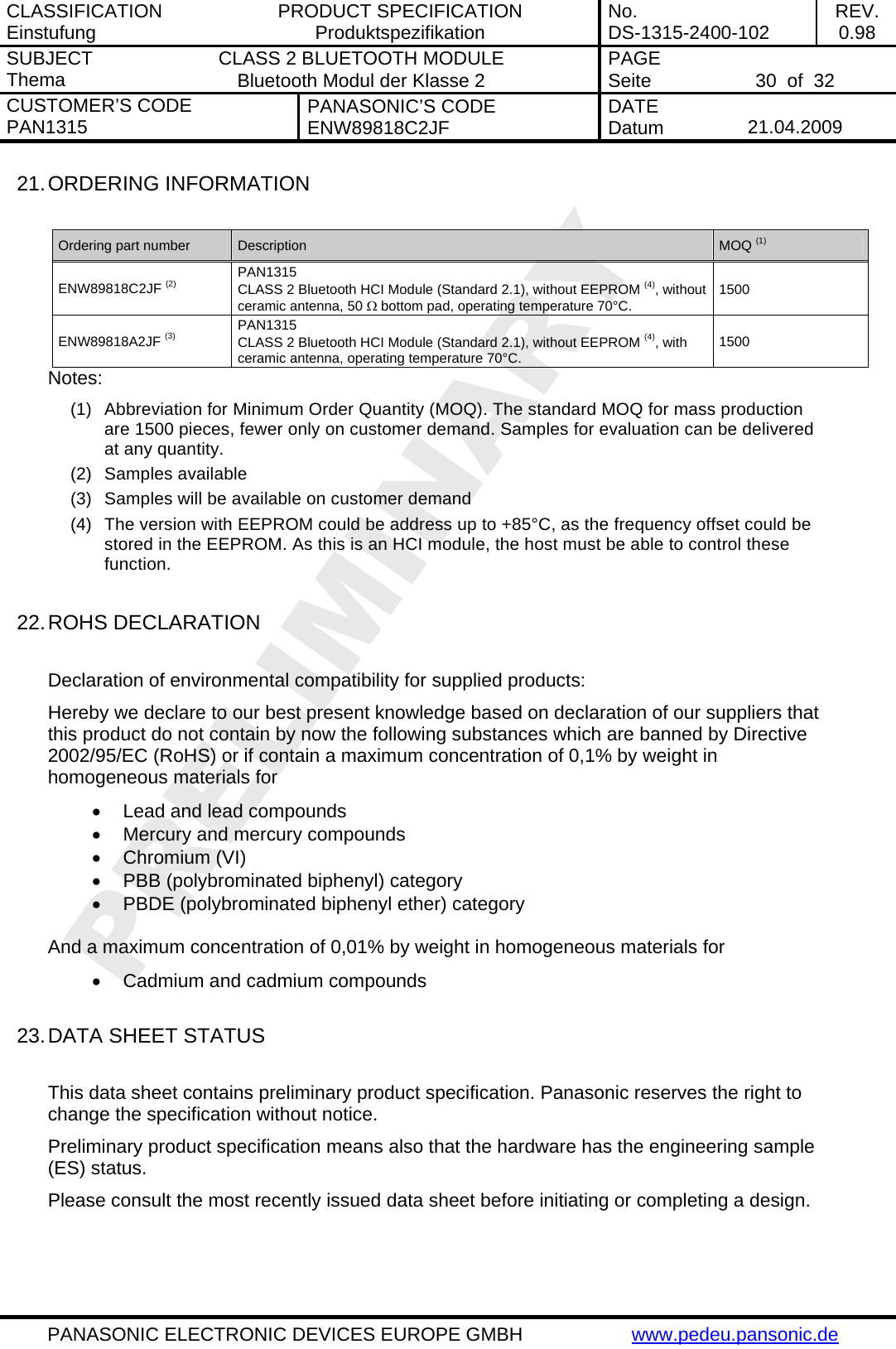

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 30 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 21. ORDERING INFORMATION Ordering part number Description MOQ (1) ENW89818C2JF (2) PAN1315 CLASS 2 Bluetooth HCI Module (Standard 2.1), without EEPROM (4), without ceramic antenna, 50 Ω bottom pad, operating temperature 70°C. 1500 ENW89818A2JF (3) PAN1315 CLASS 2 Bluetooth HCI Module (Standard 2.1), without EEPROM (4), with ceramic antenna, operating temperature 70°C. 1500 Notes: (1) Abbreviation for Minimum Order Quantity (MOQ). The standard MOQ for mass production are 1500 pieces, fewer only on customer demand. Samples for evaluation can be delivered at any quantity. (2) Samples available (3) Samples will be available on customer demand (4) The version with EEPROM could be address up to +85°C, as the frequency offset could be stored in the EEPROM. As this is an HCI module, the host must be able to control these function. 22. ROHS DECLARATION Declaration of environmental compatibility for supplied products: Hereby we declare to our best present knowledge based on declaration of our suppliers that this product do not contain by now the following substances which are banned by Directive 2002/95/EC (RoHS) or if contain a maximum concentration of 0,1% by weight in homogeneous materials for • Lead and lead compounds • Mercury and mercury compounds • Chromium (VI) • PBB (polybrominated biphenyl) category • PBDE (polybrominated biphenyl ether) category And a maximum concentration of 0,01% by weight in homogeneous materials for • Cadmium and cadmium compounds 23. DATA SHEET STATUS This data sheet contains preliminary product specification. Panasonic reserves the right to change the specification without notice. Preliminary product specification means also that the hardware has the engineering sample (ES) status. Please consult the most recently issued data sheet before initiating or completing a design.

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 31 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 24. HISTORY FOR THIS DOCUMENT Revision Date Modification / Remarks 0.90 18.12.2009 1st preliminary version 0.95 01.03.2010 Updated chapter 10.8, 13 and 21. 0.96 Not released Change ESD Information on foot note 1 (page 6) and 1 (page 7) 0.97 25.03.2010 Various updates. Deleted links to TI Datasheet. 0.98 21.04.2010 Updated Links Some minor changes in chapter 8 and 9.1 and change the base for the values in chapter 9. 25. RELATED DOCUMENTS For an update, please search in the suitable homepage. [1] PAN1315ETU Schematic Rev 1.0, December 2009 [2] IAR Embedded Workbench Version 3+ for MSP430 User's Guide Rev. Q, 25 Nov 2009, Link for the download: http://www.ti.com/lit/pdf/slau138

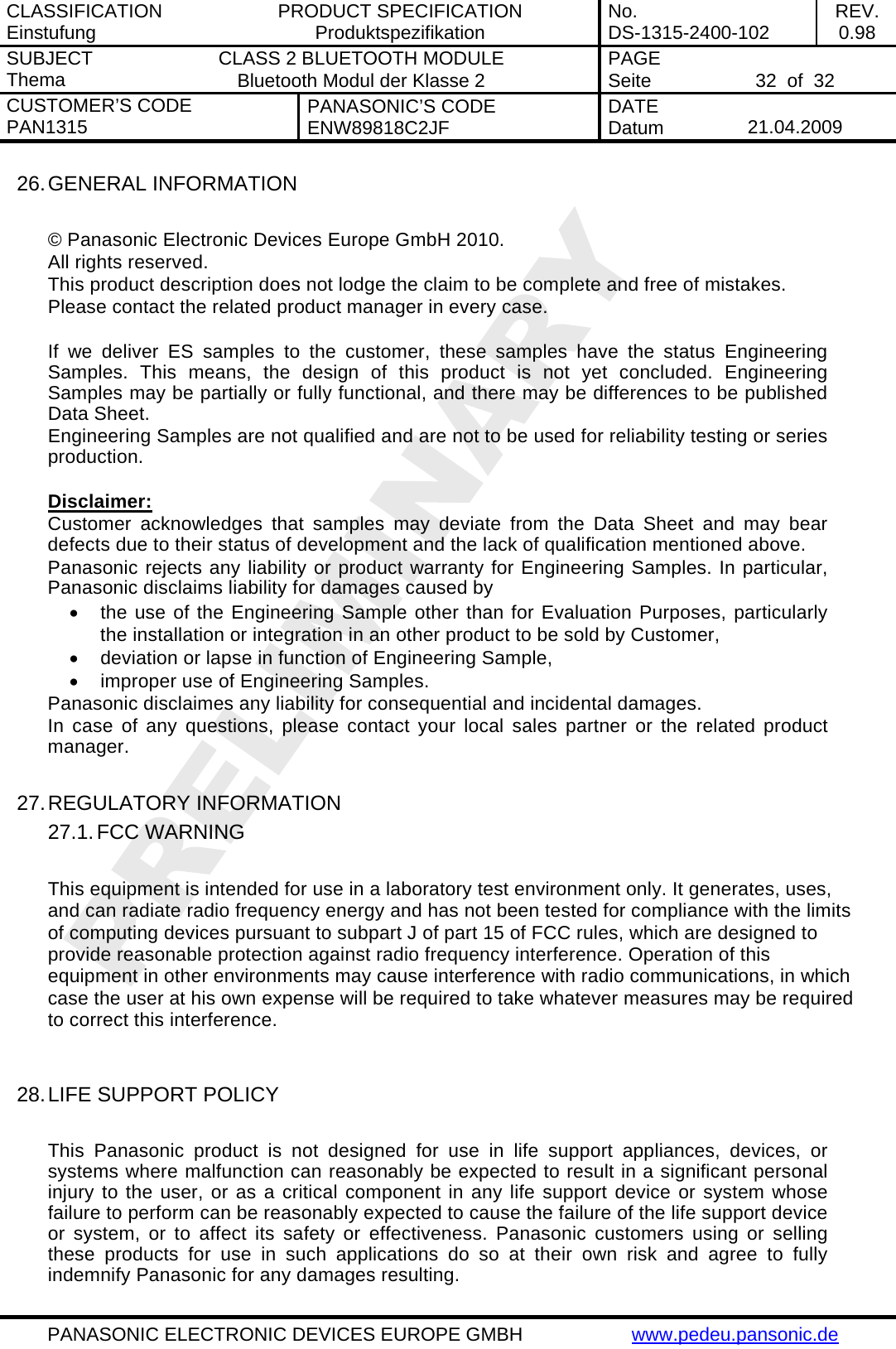

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 32 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de 26. GENERAL INFORMATION © Panasonic Electronic Devices Europe GmbH 2010. All rights reserved. This product description does not lodge the claim to be complete and free of mistakes. Please contact the related product manager in every case. If we deliver ES samples to the customer, these samples have the status Engineering Samples. This means, the design of this product is not yet concluded. Engineering Samples may be partially or fully functional, and there may be differences to be published Data Sheet. Engineering Samples are not qualified and are not to be used for reliability testing or series production. Disclaimer: Customer acknowledges that samples may deviate from the Data Sheet and may bear defects due to their status of development and the lack of qualification mentioned above. Panasonic rejects any liability or product warranty for Engineering Samples. In particular, Panasonic disclaims liability for damages caused by • the use of the Engineering Sample other than for Evaluation Purposes, particularly the installation or integration in an other product to be sold by Customer, • deviation or lapse in function of Engineering Sample, • improper use of Engineering Samples. Panasonic disclaimes any liability for consequential and incidental damages. In case of any questions, please contact your local sales partner or the related product manager. 27. REGULATORY INFORMATION 27.1. FCC WARNING This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment in other environments may cause interference with radio communications, in which case the user at his own expense will be required to take whatever measures may be required to correct this interference. 28. LIFE SUPPORT POLICY This Panasonic product is not designed for use in life support appliances, devices, or systems where malfunction can reasonably be expected to result in a significant personal injury to the user, or as a critical component in any life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. Panasonic customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panasonic for any damages resulting.
