CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
1 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
HIGH FREQUENCY PRODUCTS DIVISION
Module Business
PANASONIC ELECTRONIC DEVICES
EUROPE GmbH
APPROVED
genehmigt CHECKED
geprüft DESIGNED
erstellt
Specification for Production
Panasonic Electronic Devices Europe GmbH
Zeppelinstrasse 19
21337 Lüneburg
Applicant / Manufacturer
Hardware
Germany
tbd
Applicant / Manufacturer
Software
Software Version tbd
Contents Approval for Mass Production
Customer
By signing this document, you acknowledge that you are the legal representative for your
company and that you understand and accept the validity of the contents herein. Customer
acknowledges that samples may deviate from the Data Sheet and may bear defects due to their
status of development and the lack of qualification mentioned above.
Panasonic rejects any liability or product warranty for Engineering Samples. In particular,
Panasonic disclaims liability for damages caused by
• the use of the Engineering Sample other than for Evaluation Purposes, particularly the
installation or integration in an other product to be sold by Customer,
• deviation or lapse in function of Engineering Sample,
• improper use of Engineering Samples.
Panasonic disclaimes any liability for consequential and incidental damages.
CHECKED / APPROVED:
DATE: NAME: SIGNATURE:
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
2 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
TABLE OF CONTENTS
1. Scope of this Document..................................................................................................4
2. Key Features...................................................................................................................4
3. Applications for the Module.............................................................................................5
4. Description for the Module ..............................................................................................5
5. Detailed Description........................................................................................................6
5.1. PAN1315 Terminal Layout.....................................................................................6
5.2. Pin Description.......................................................................................................7

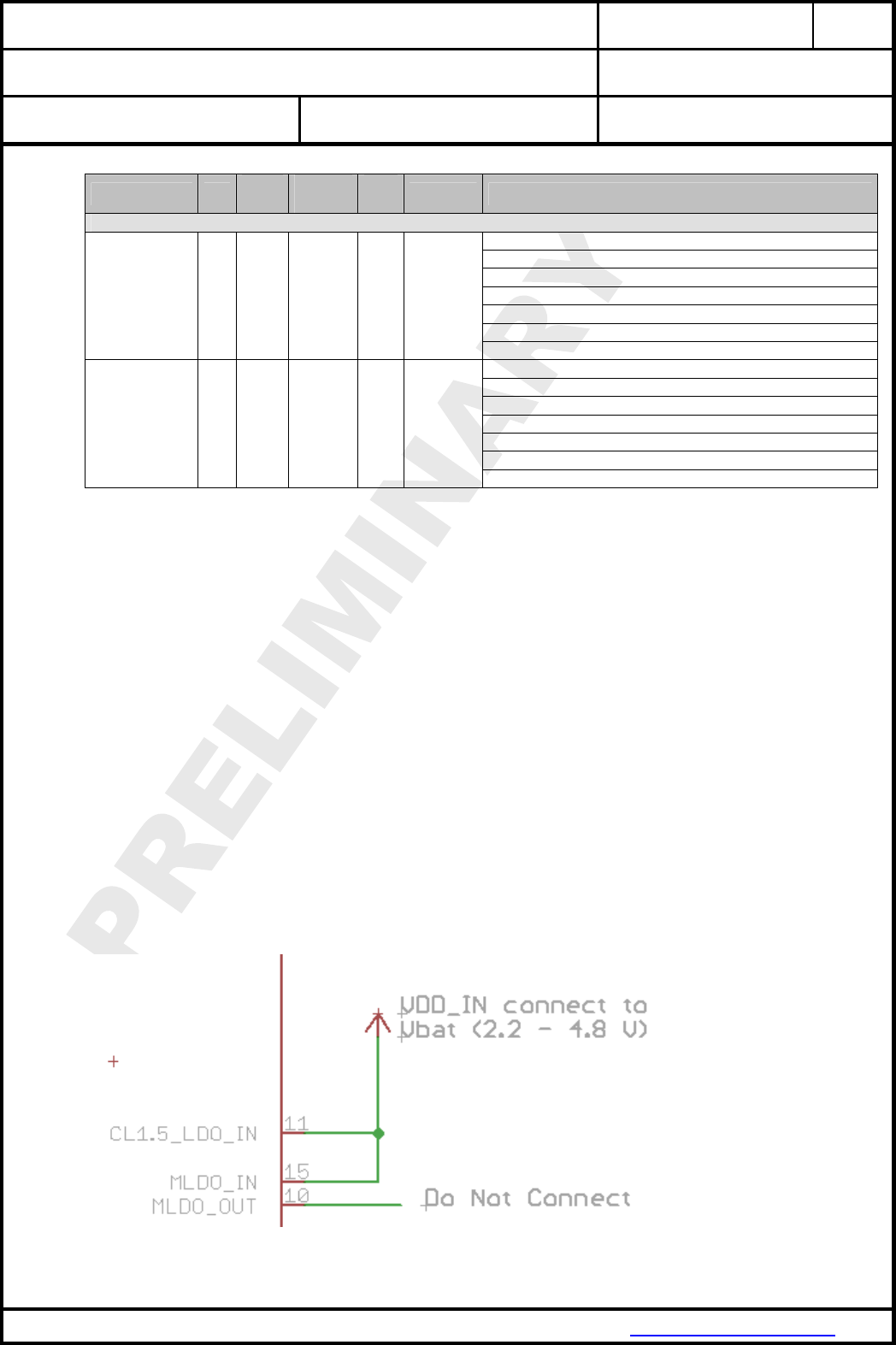

5.3. Device Power Supply.............................................................................................8
5.4. Clock Inputs...........................................................................................................9
6. Bluetooth Features........................................................................................................10

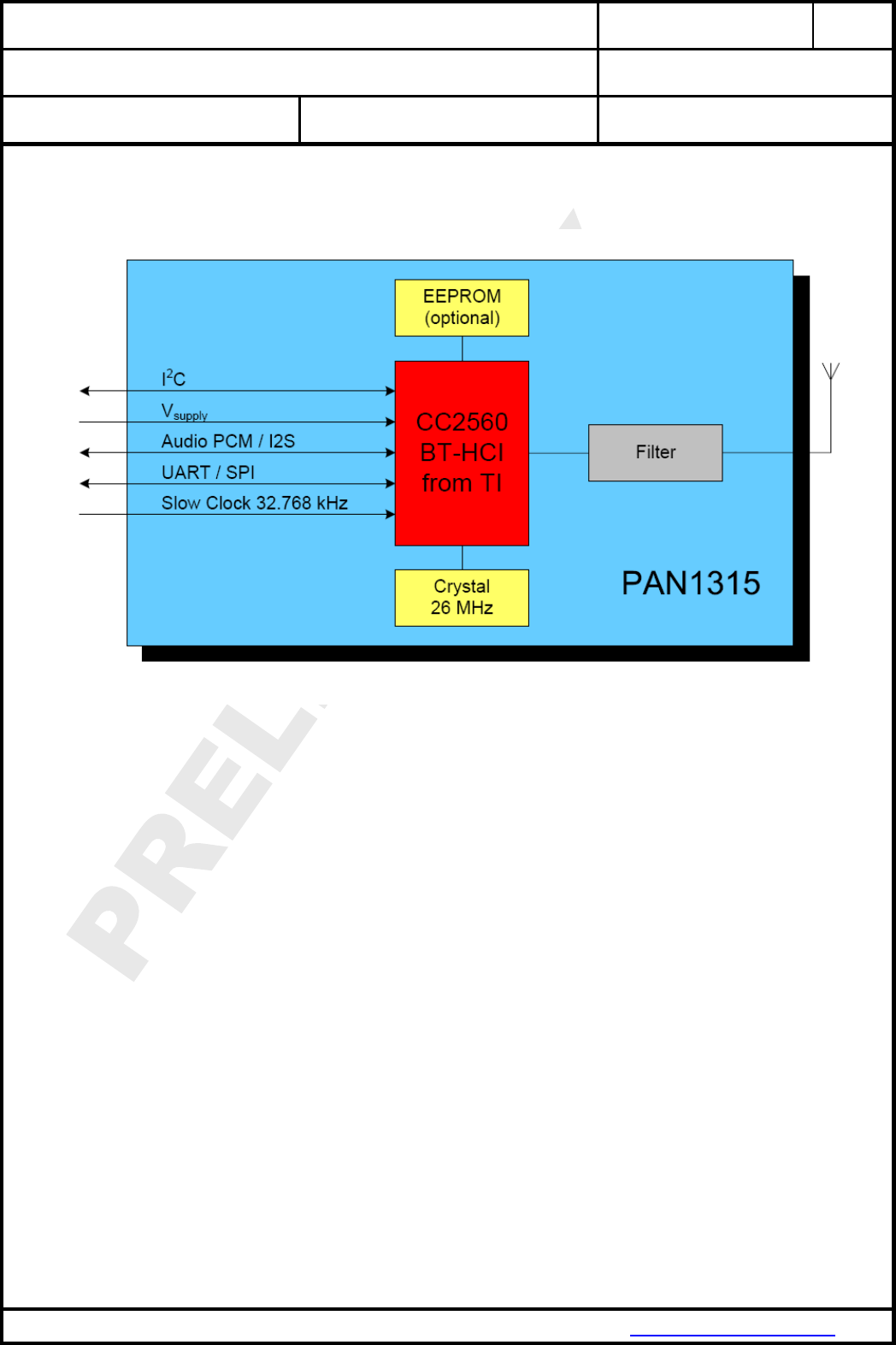

7. Block Diagram...............................................................................................................11
8. Test Conditions .............................................................................................................11
9. General Device Requirements and Operation ..............................................................11
9.1. Absolute Maximum Ratings .................................................................................12
9.2. Recommended Operating Conditions..................................................................12
9.3. Current Consumption...........................................................................................13
9.4. General Electrical Characteristics........................................................................13
9.5. nSHUTD Requirements .......................................................................................14
9.6. External Digital Slow Clock Requirements (–20°C to +70°C)..............................14
10. Bluetooth RF Performance (BT)....................................................................................15
10.1. Bluetooth Receiver Characteristics – In-Band Signals ........................................15
10.2. Bluetooth Receiver Characteristics – General Blocking ......................................16
10.3. Bluetooth Receiver Characteristics – GFSK/EDR2/EDR3...................................16
10.4. Bluetooth Transmitter, GFSK, Full output............................................................16
10.5. Bluetooth Transmitter, EDR, Full output..............................................................17
10.6. Bluetooth Modulation, GFSK, Full output ............................................................17
10.7. Bluetooth Modulation, EDR, Full output...............................................................18
10.8. Bluetooth Transmitter, Out-of-Band Emissions ...................................................18

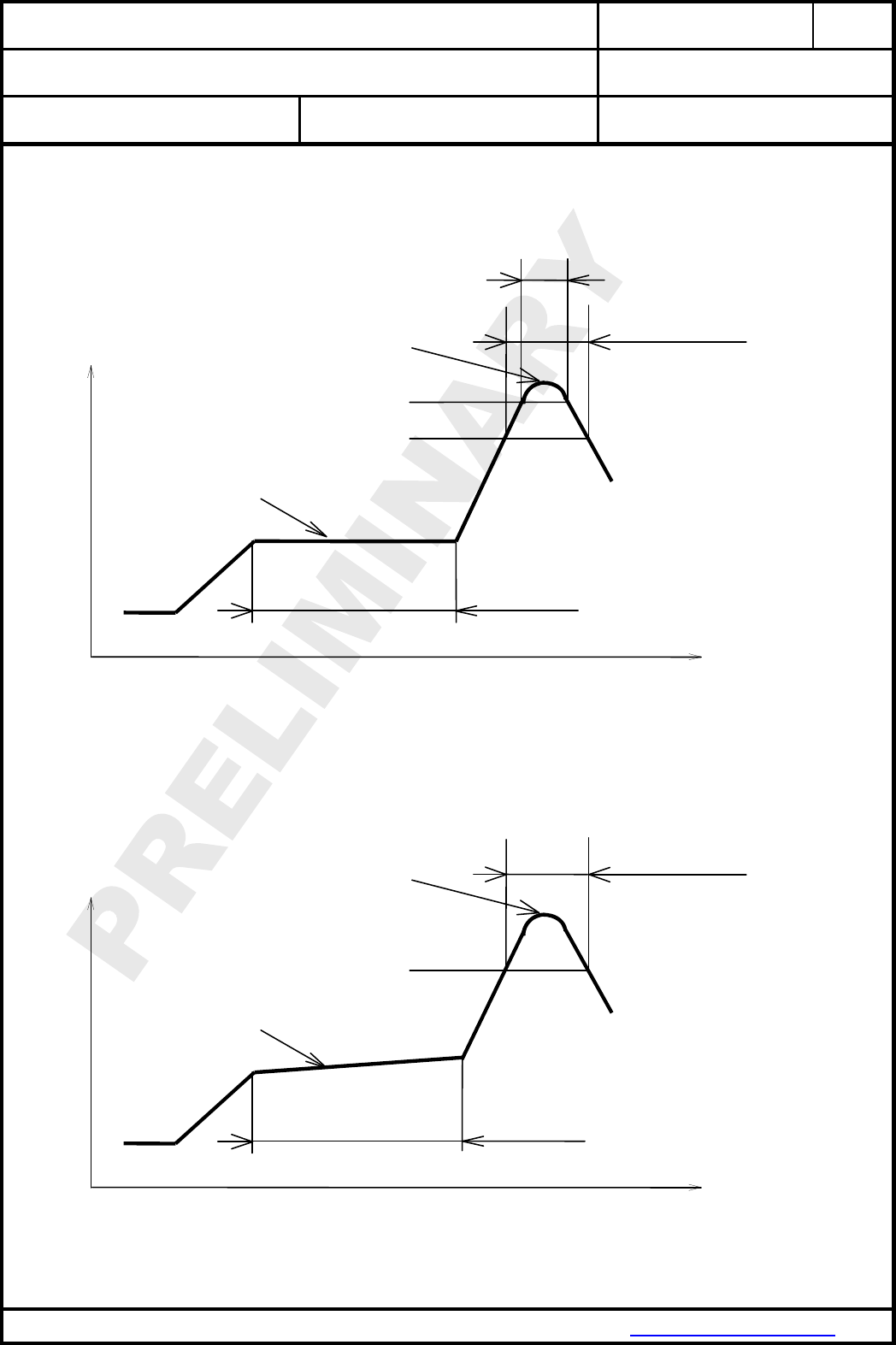

11. Soldering Temperature-Time Profile (for reflow soldering) ...........................................19
11.1. For lead solder.....................................................................................................19
11.2. For leadfree solder...............................................................................................19
12. Module Dimension ........................................................................................................20

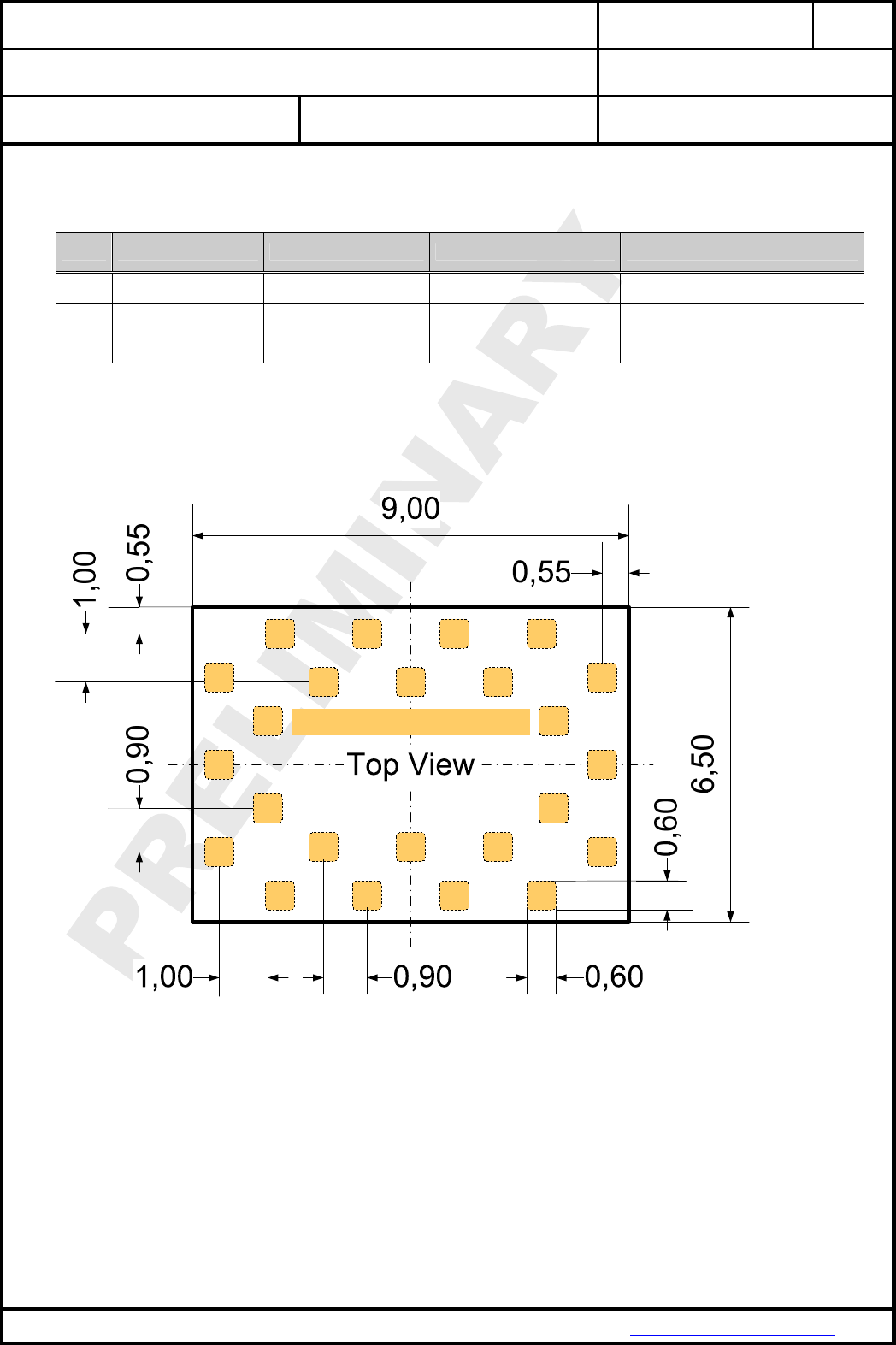

13. FootPrint of the Module.................................................................................................20

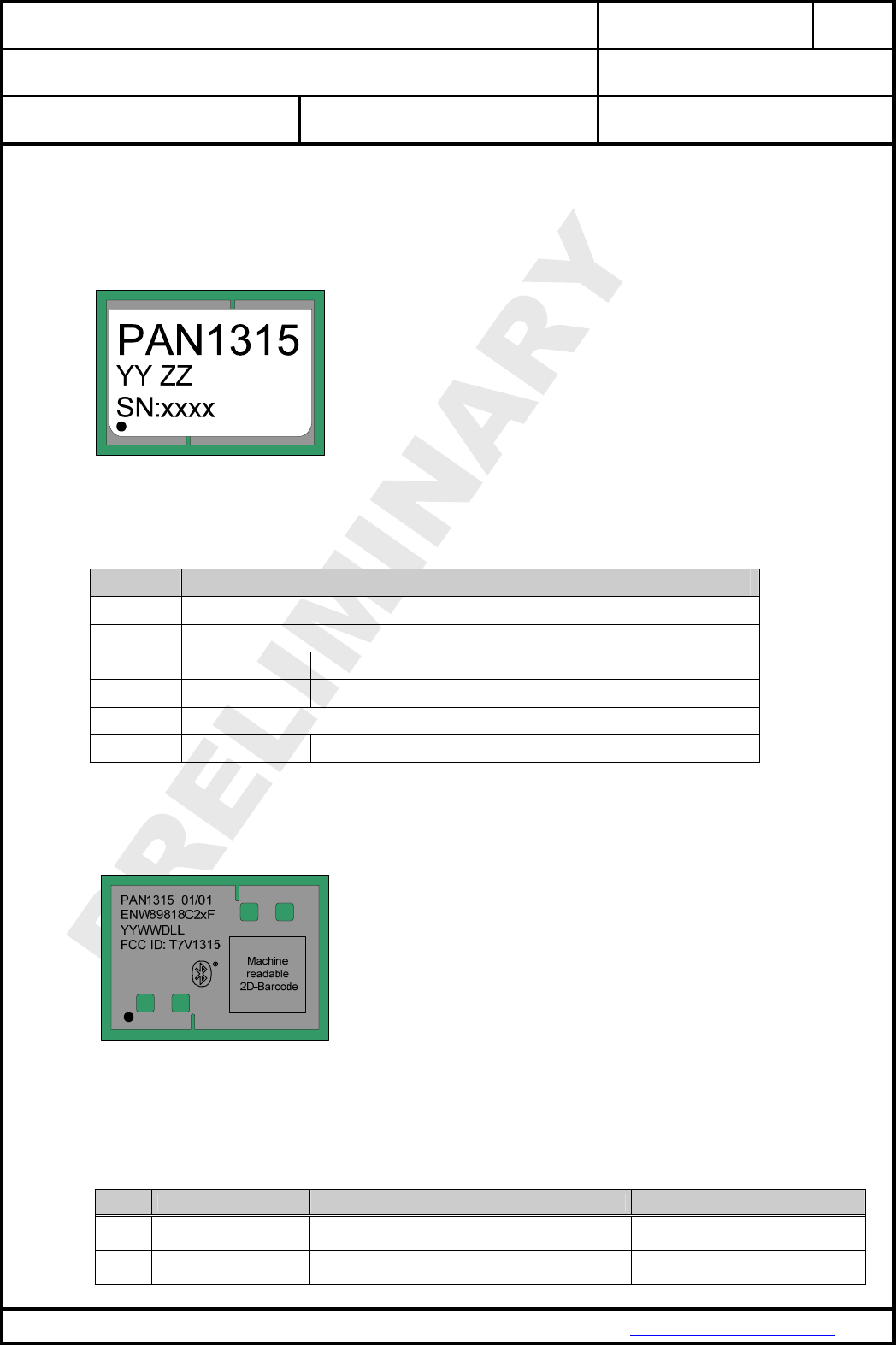

14. Labelling Drawing..........................................................................................................21
14.1. Engineering Samples...........................................................................................21
14.2. Mass Production..................................................................................................21
15. Mechanical Requirements.............................................................................................21
16. Recommended Foot Pattern.........................................................................................22

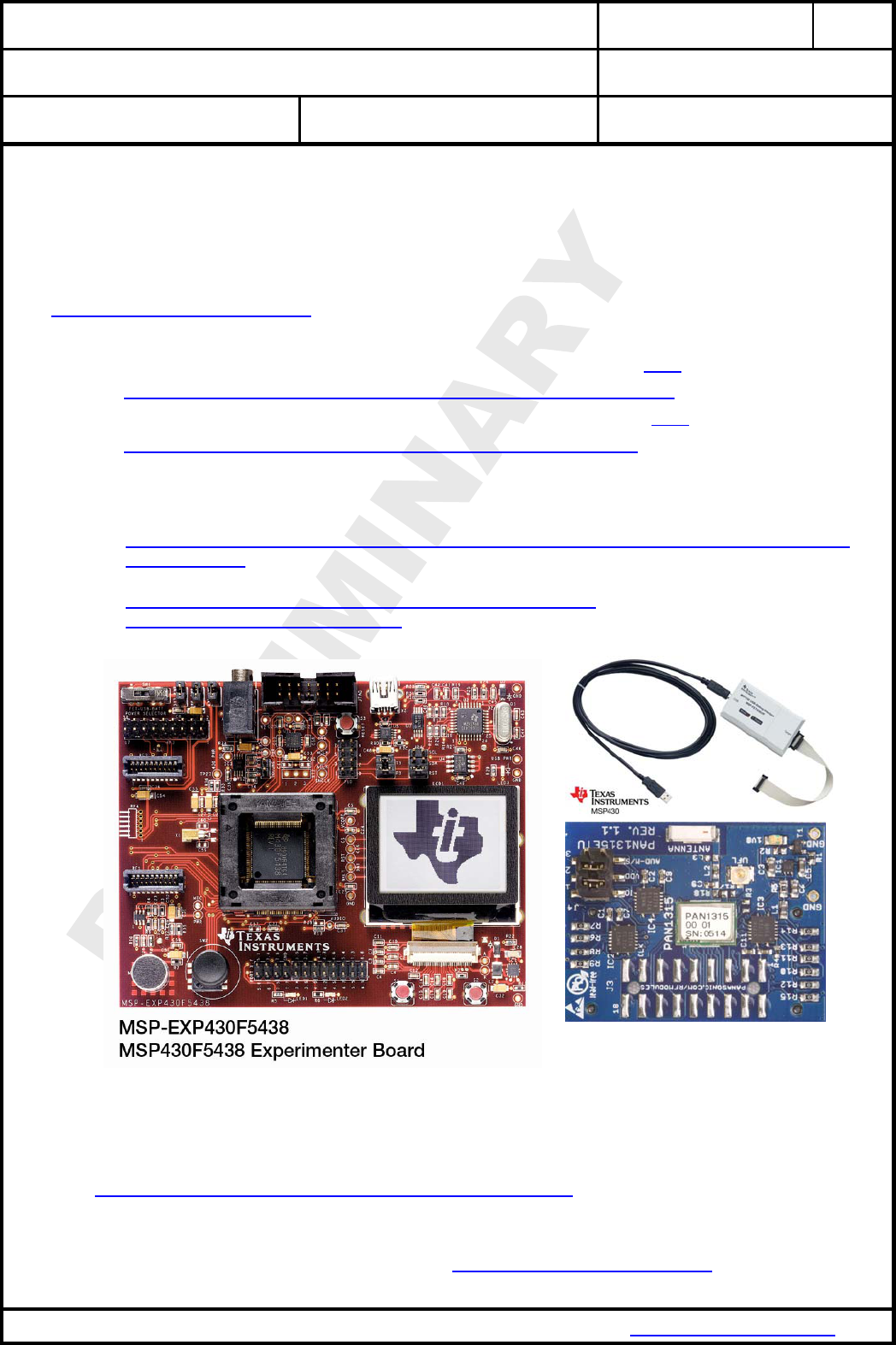

17. Development of Applications.........................................................................................23
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
3 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
17.1. Tools to be needed..............................................................................................23
18. Reliability Tests.............................................................................................................24
19. Cautions........................................................................................................................24
19.1. Design Notes .......................................................................................................24
19.2. Installation Notes .................................................................................................24
19.3. Usage Conditions Notes......................................................................................25
19.4. Storage Notes......................................................................................................25
19.5. Safety Cautions ...................................................................................................26
19.6. Other cautions .....................................................................................................26
20. Packaging .....................................................................................................................27

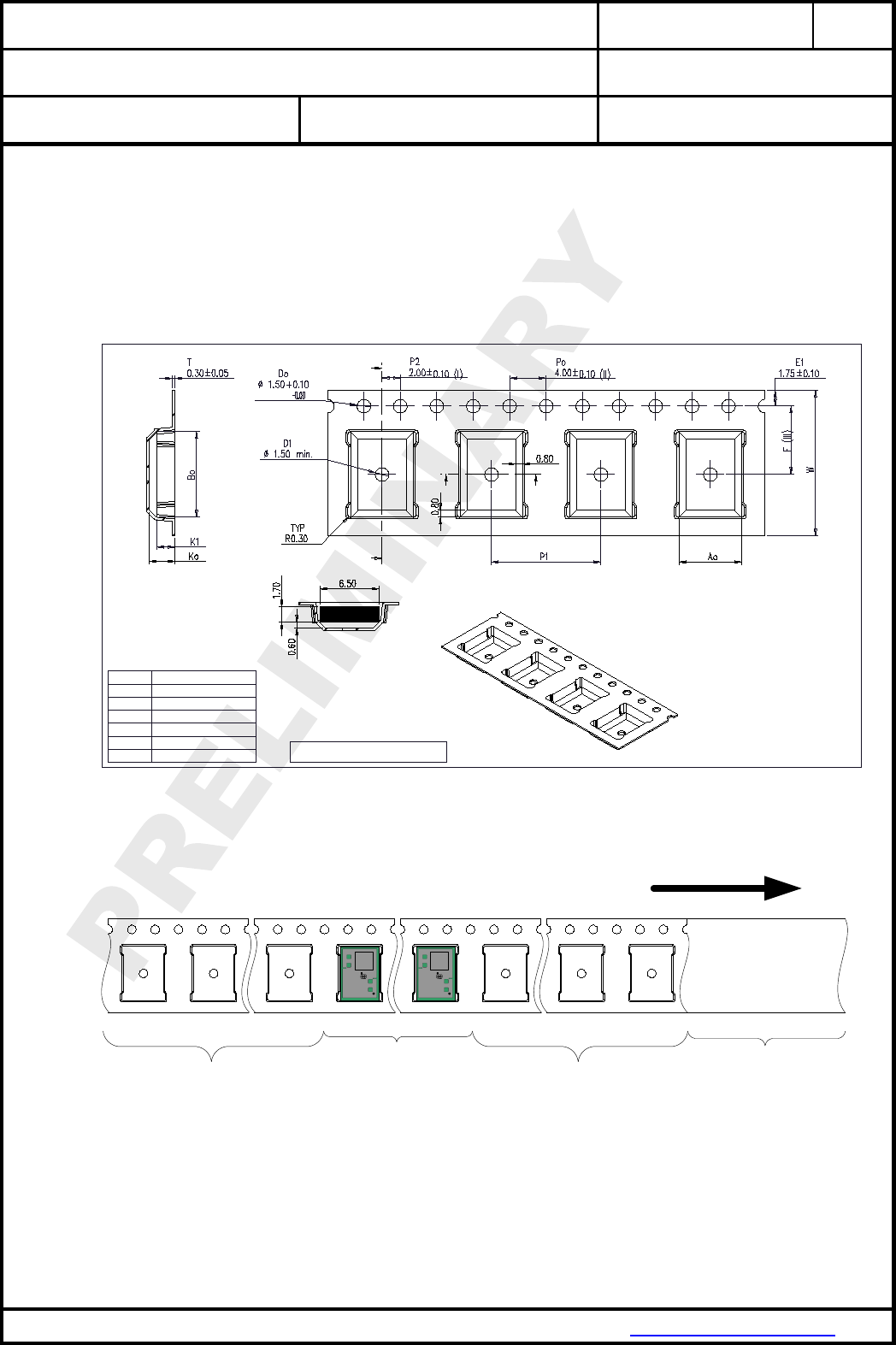

20.1. Tape Dimension...................................................................................................27
20.2. Packing in Tape...................................................................................................27

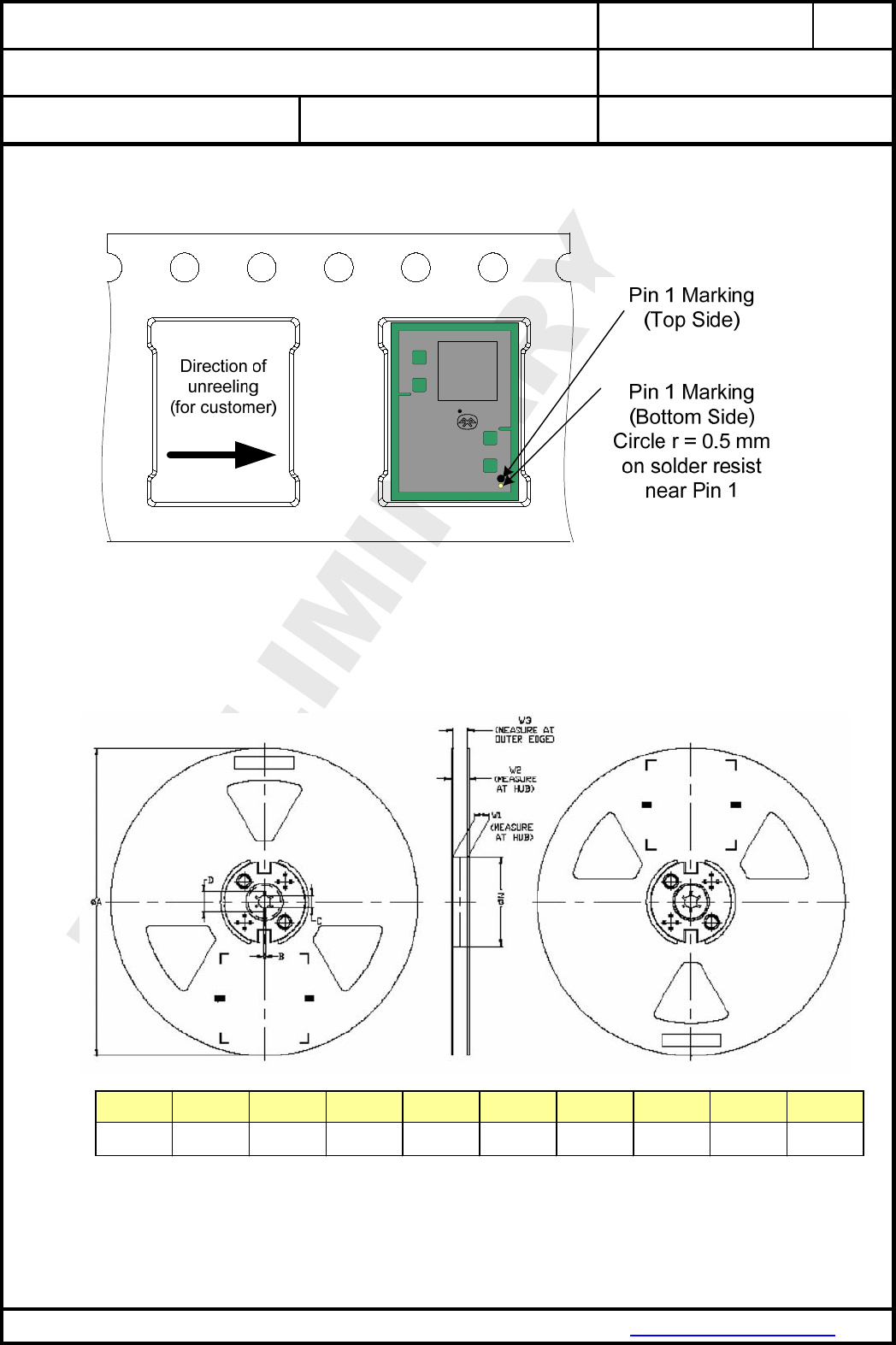

20.3. Component direction............................................................................................28
20.4. Reel Dimension ...................................................................................................28

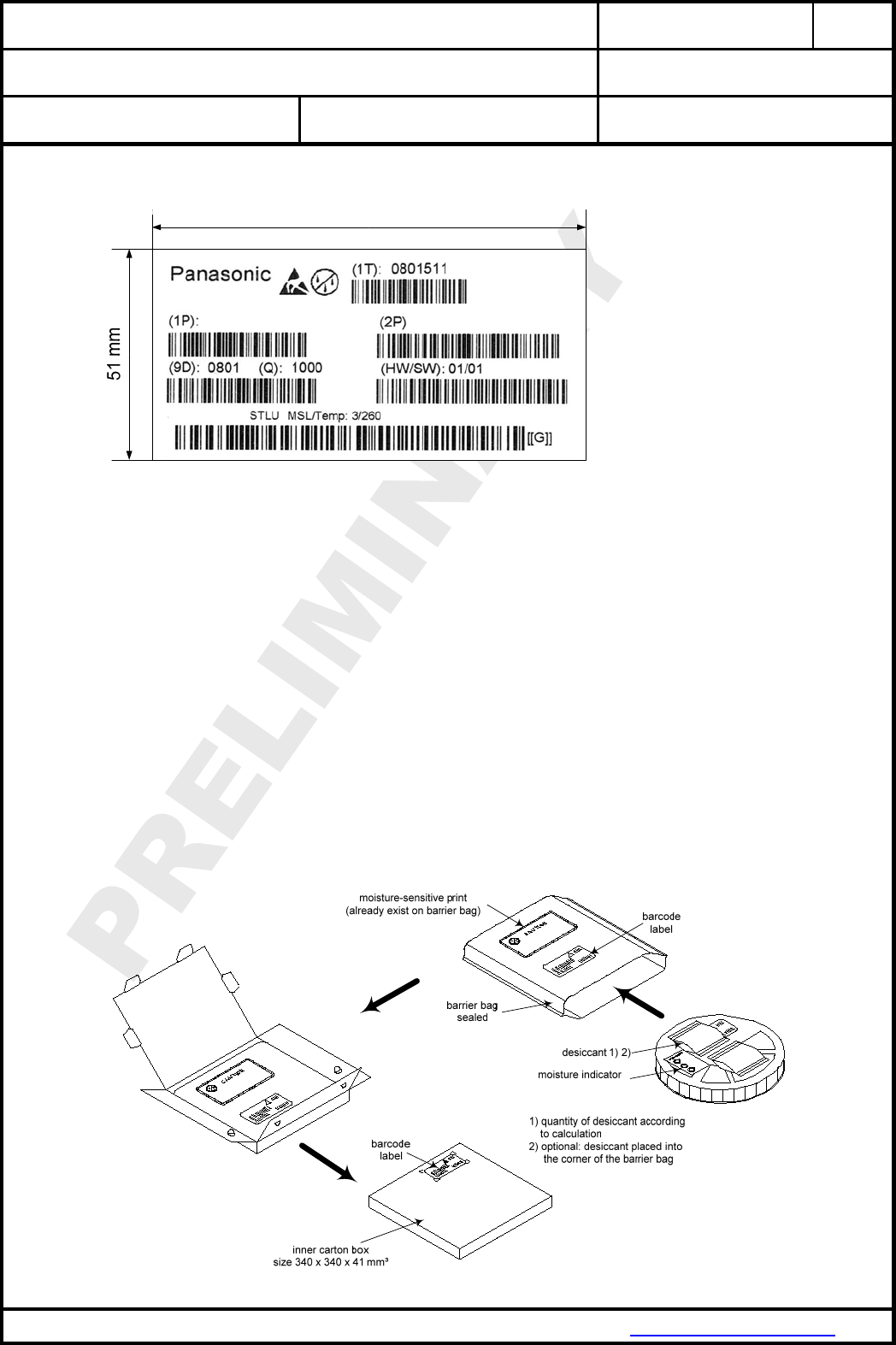

20.5. Label for Package................................................................................................29
20.6. Total Package......................................................................................................29
21. Ordering Information .....................................................................................................30
22. RoHS Declaration .........................................................................................................30
23. Data Sheet Status.........................................................................................................30
24. History for this Document..............................................................................................31
25. Related Documents.......................................................................................................31
26. General Information ......................................................................................................32
27. Regulatory Information..................................................................................................32
27.1. FCC Warning.......................................................................................................32
28. Life Support Policy ........................................................................................................32
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
4 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
1. SCOPE OF THIS DOCUMENT
This product specification applies to Panasonic’s HCI, class 2, Bluetooth®1 module, series
number: PAN1315. Different versions of the PAN1315 are available (refer to chapter 21
Ordering Information).
The Bluetooth chip used is the CC2560 from Texas Instruments (www.ti.com).
2. KEY FEATURES
• Bluetooth specification v2.1 + EDR (Enhanced Data Rate)
• Surface mount type 6.5 x 9.0 x 1.8 mm³
• 10dBm Tx power (typical) with transmit power control
• High sensitivity (-91 dBm typ.)
• Optional EEPROM for increased operating temperature range and decreased start
up time
• Texas Instrument’s CC2560 BlueLink 7.0 inside
• Complete Co-location and Co-existence with IEEE 802.11 (AWMA, AFH and SFH)
• Fast Connection Setup
• Extended SCO Link

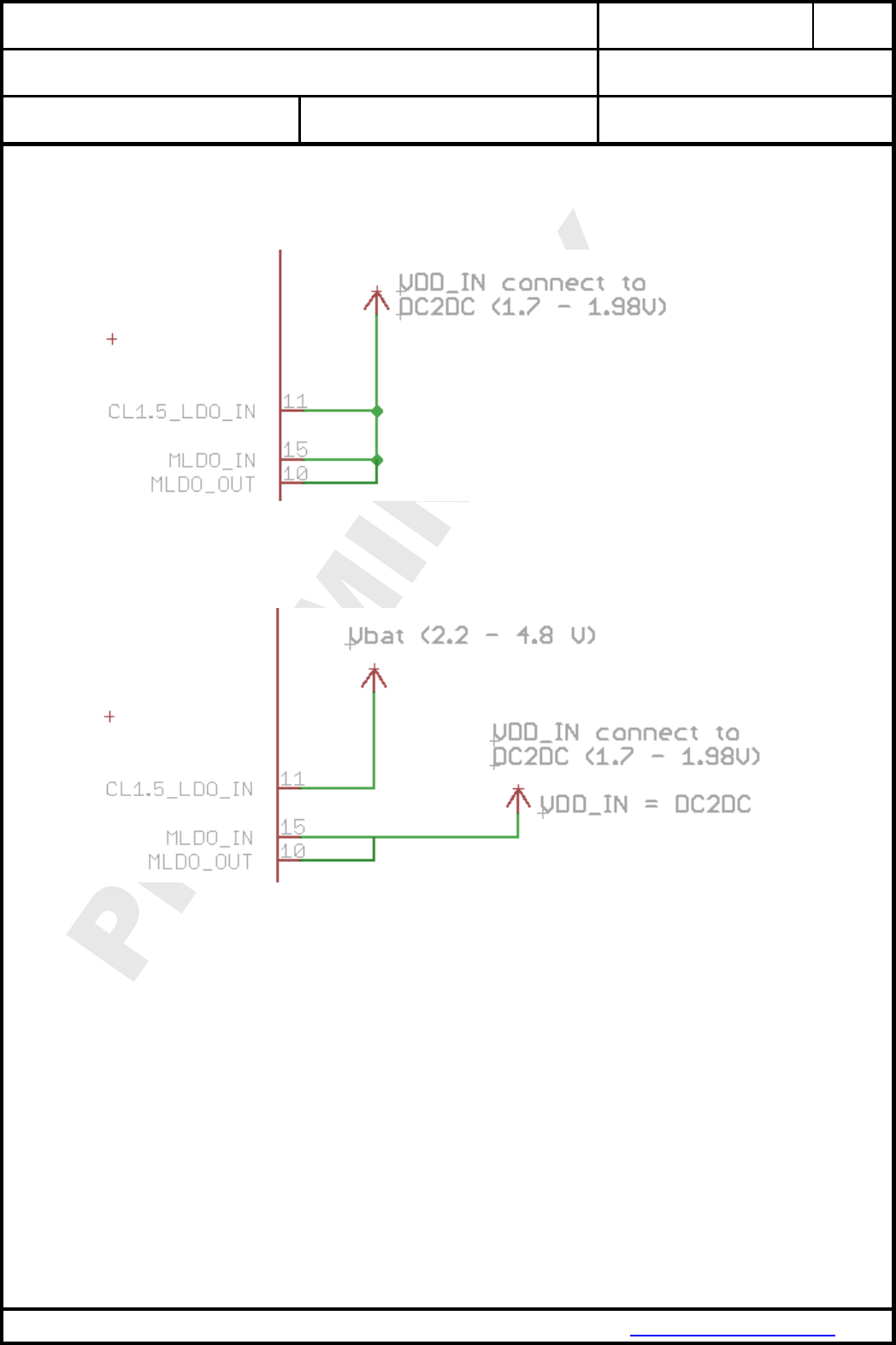

• Supports convenient direct connection to battery (2.2-4.8 V),
or connect to DC/DC (1.7-1.98 V) for improved power efficiency
• Internal crystal oscillator (26MHz)
• Built-in shielding to be compliant to FCC
• Full Bluetooth data rate up to 2178kbps asymmetric
• Support for all Bluetooth power saving modes (Sniff, Hold)
• Support for very low-power modes (deep sleep and power down)
• Optional support for ultra-low-power mode. Standby with Battery-Backup
• PCM Interface Master / Slave supporting 13 or 16 bit linear, 8 bit µ-law or A-law
Codecs and CVSD transcoders on up to 3 SCO channels
• ROM based firmware with patch trap mechanism and reserved RAM, enables easy
bug fixes and new firmware features to be added through external script.
• Full 8- to 128-bit encryption
• UART, I²C, PCM and SPI Interface
• 2 GPIO’s for defined usage
• IO operating voltage = 1.8 V nominal
• 3 Channel ADC and 1 Channel DAC
• Bluetooth profiles such as SPP, HDP are available. Refer to Panasonic’s RF module
website for a listing of the most current releases.
• Manufactured in conformance with RoHS
1 Bluetooth is a registered trademark of the Bluetooth Special Interest Group.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
5 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
3. APPLICATIONS FOR THE MODULE
All Embedded Wireless Applications
• Access Points • Cable Replacement
• Industrial Control • Personal Digital Assistants (PDAs)
• Medical • Access Points
• Scanners • Computers and Peripherals
• Wireless Sensors • Printer Adapters
• Low Power • Printers
4. DESCRIPTION FOR THE MODULE
The PAN1315 is a short-range class 2 HCI module for implementing Bluetooth functionality
into various electronic devices. A block diagram can be found in chapter 7.
Communication between the module and the host controller is carried out normally via UART,
but also SPI is supported with this hardware.
The main software solutions are available from Mindtree Ltd. Please refer to chapter 3. These
software packages are based on TI’s MSP430 platform .
Please contact your local sales office for further details on additional options and services, by
visiting www.panasonic.com/rfmodules or write an e-mail to wireless@eu.panasonic.com.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
6 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
5. DETAILED DESCRIPTION

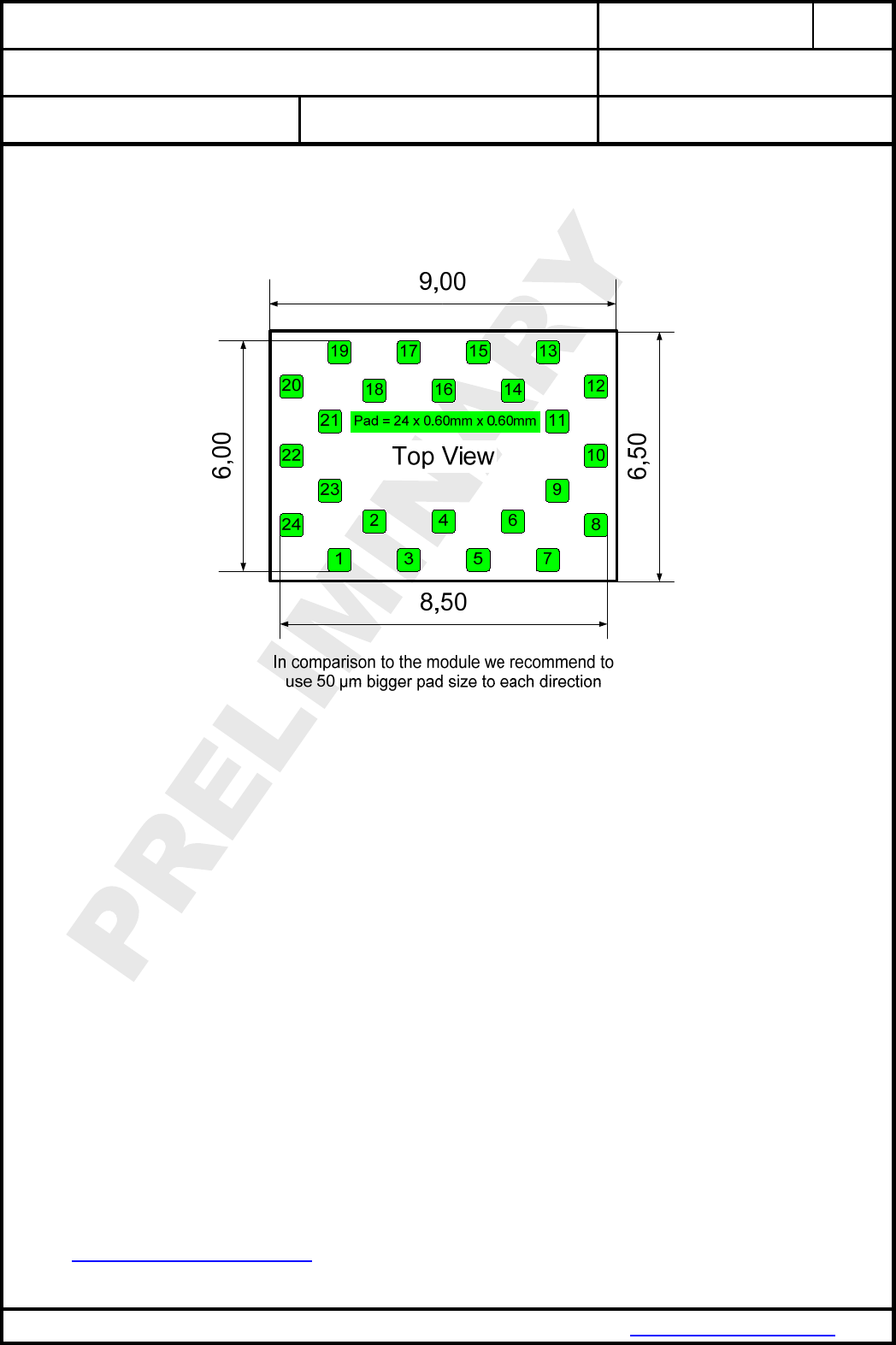

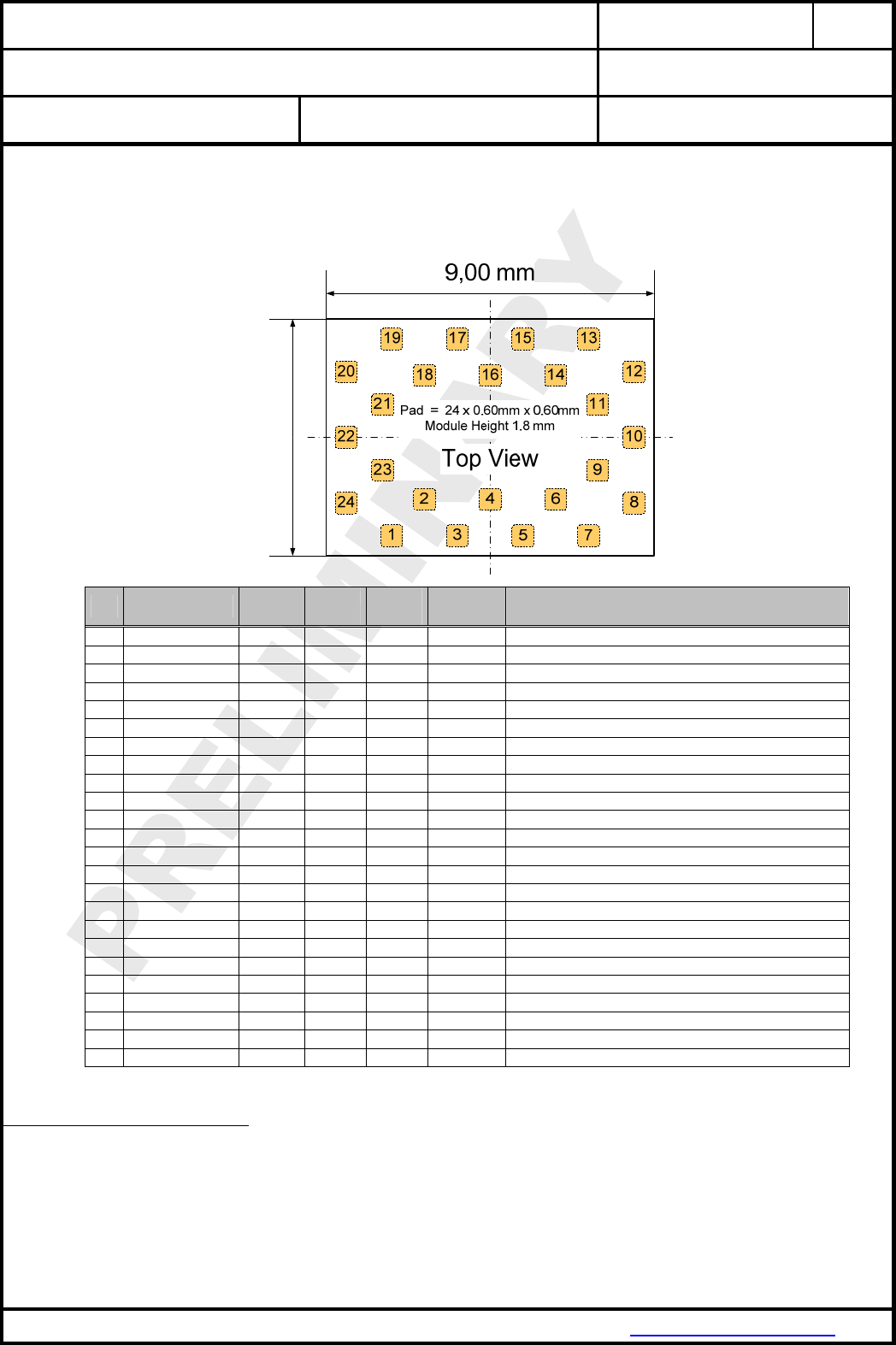

5.1. PAN1315 TERMINAL LAYOUT
6,50 mm
No Pin Name ESD 1
(V) Pull at
Reset Def.
Dir. 2 I/O Type 3Description of Options (Common)
1 GND Connect to Ground
2 TX_DBG 1000 PU O 2 mA Logger output
3 HCI_CTS 750 PU I 8 mA HCI UART clear-to-send.
4 HCI_RTS 750 PU O 8 mA HCI UART request-to-send.
5 HCI_RX 750 PU I 8 mA HCI UART data receive
6 HCI_TX 750 PU O 8 mA HCI UART data transmit
7 AUD_FSYNC 500 PD IO 4 mA PCM frame synch. (NC if not used) Fail safe4
8 SLOW_CLK_IN 1000 I 32.768-kHz clock in Fail safe
9 IO2 1000 PD IO 2 mA BT_FUNCT2
10 MLDO_OUT 1000 O Main LDO output (1.8 V nom.)
11 CL1.5_LDO_IN 1000 I PA LDO input
12 GND Connect to Ground
13 RF 1000 IO Bluetooth RF IO
14 GND Connect to Ground
15 MLDO_IN 1000 I Main LDO input
16 nSHUTD 1000 PD I Shutdown input (active low).
17 AUD_OUT 500 PD O 4 mA PCM data output. (NC if not used) Fail safe
18 AUD_IN 500 PD I 4 mA PCM data input. (NC if not used) Fail safe
19 AUD_CLK 500 PD IO HY, 4 mA PCM clock. (NC if not used) Fail safe
20 GND Connect to Ground
21 I2C_SDA 1000 PU/PD IO HY, 4 mA EEPROM I²C SDA (NC if not used)
22 VDD_IO 1000 PI I/O power supply 1.8 V Nom
23 I2C_SCL 1000 PU/PD I HY, 4 mA EEPROM I²C SCL (NC if not used)
24 IO1 750 PD IO 8 mA BT_FUNCT1
1 ESD: Human Body Model (HBM). JEDEC 22-A114
2 I = input; O = output; IO = bidirectional; P = power; PU = pulled up; PD = pulled down
3 I/O Type: Digital I/O cells. HY = input hysteresis, current = typ. output current
4 No signals are allowed on the IO pins if no VDD_IO (Pin 22) power supplied, except pin 7, 8, 17-20.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
7 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
5.2. PIN DESCRIPTION
Pin Name No ESD 1
(V) Pull at
Reset Def.
Dir. 2I/O Type 3Description of Options
Bluetooth IO SIGNALS
HCI UART data receive
HCI_RX 5 750 PU I 8 mA
OPTION: BPSPI_DI – SPI data in
HCI UART data transmit
HCI_TX 6 750 PU O 8 mA
OPTION: BPSPI_DO – SPI data out
HCI UART request-to-send.
HCI_RTS 4 750 PU O 8 mA
Option: BPSPI_IRQ
HCI UART clear-to-send.
HCI_CTS 3 750 PU I 8 mA
OPTION: BPSPI_CS – SPI chip select
AUD_FYSNC 7 500 PD IO 4 mA PCM frame synch (NC if not used) Fail safe
AUD_CLK 19 500 PD IO HY, 4 mS PCM clock (NC if not used) Fail safe
AUD_IN 18 500 PD I 4 mA PCM data input (NC if not used) Fail safe
AUD_OUT 17 500 PD O 4 mA PCM data output (NC if not used) Fail safe
BT_FUNCT1
OPTION: HOST_WAKEUP – TI internal
OPTION: BT_PRIORITY – WLAN coex signal
OPTION: DEBUG1 – TI internal
OPTION: BTSPI_CLK – SPI clock
IO1 24 750 PD IO 8 mA
OPTION: EXT_PA_CMD2 – Class 1 ext. amp control
BT_FUNCT2
OPTION: DEBUG2 – TI internal
OPTION: BT_WAKEUP – TI internal
OPTION: EXT_PA_EN – Class 1 ext. amp. control
IO2 9 1000 PD IO 8 mA
OPTION: BT_RF_ACTIVE – WLAN coex signal
Logger output
OPTION: BT_FUNCT3
OPTION: DEBUG3 – TI internal
OPTION: BT_PRIORITY – WLAN coex signal
OPTION: nEXT_PA_EN – Class 1 ext. amp. control
TX_DBG 2 1000 PU O 2 mA
OPTION: nTX_DBG – logger out (low = 1)
CLOCK SIGNALS
SLOW_CLK_IN 8 1000 I 32.768-kHz clock in Fail safe
Bluetooth ANALOG SIGNALS
RF 13 1000 IO Bluetooth RF IO
nSHUTD 16 1000 PD I Shutdown input (active low).
Bluetooth POWER AND GND SIGNALS
VDD_IO 22 1000 PI I/O power supply 1.8 V Nom
MLDO_IN 15 1000 I Main LDO input
Connect directly to battery or to a pre-regulated 1.8-V supply
MLDO_OUT 10 1000 O Main LDO output (1.8 V nom.)
CL1.5_LDO_IN 11 1000 I PA LDO input
Connect directly to battery or to a pre-regulated 1.8-V supply
GND 1 P Connect to Ground
GND 12 P Connect to Ground
GND 14 P Connect to Ground
GND 20 P Connect to Ground
1 ESD: Human Body Model (HBM). JEDEC 22-A114
2 I = input; O = output; IO = bidirectional; P = power; PU = pulled up; PD = pulled down
3 I/O Type: Digital I/O cells. HY = input hysteresis, current = typ output current
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
8 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
Pin Name No ESD 1
(V) Pull at
Reset Def.
Dir. 2I/O Type 3Description of Options
EEPROM IO SIGNALS (EEPROM is an option in our PAN1315)
EEPROM I²C SCL (NC if not used)
OPTION: BT_RF_ACTIVE – WLAN coex signal
OPTION: BT_PRIORITY – WLAN coex signal
OPTION: BT_FREQ – WLAN coex signal
OPTION: EXT_PA_EN – Class 1.5 ext. amp. control
OPTION: BT_SCL – Bluetooth I²C SCL
I2C_SCL 23 1000 PU/PD I HY, 4mA
OPTION: DEBUG11 – TI internal
EEPROM I²C IRQ (NC if not used)
OPTION: BT_RF_ACTIVE – WLAN coex signal
OPTION: BT_PRIORITY – WLAN coex signal
OPTION: nEXT_PA_EN – Class 1.5 ext. amp. control
OPTION: BT_TX_CONFX – WLAN coex signal
OPTION: BT_SDA – Bluetooth I²C SDA
I2C_SDA 21 1000 PU/PD IO HY, 4mA
OPTION: DEBUG12 – TI internal
5.3. DEVICE POWER SUPPLY
The CC2560 single chip Bluetooth radio solution is intended to work in devices with a
limited power budget such as cellular phones, headsets, hand-held PC’s and other
battery-operated devices. One of the main differentiators of the CC2560 is its power
management – its ability to draw as little current as possible.
The PAN1315 device requires two kinds of power sources:
• Main power supply for the Bluetooth - VDD_IN = VBAT
• Power source for the 1.8 V I/O ring - VDD_IO
The PAN1315 includes several on-chip voltage regulators for increased noise immunity.
The PAN1315 can be connected either directly to the battery or to an external 1.8-V DC
to DC converter.
There are three ways to supply power:
• Full-VBAT system:
Maximum RF output power, but not optimum system power:
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
9 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
• Full-DC2DC system:
Lower RF output power, but optimum system power:
• Mixed DC2DC-VBAT system:
Maximum RF output power and optimum system power, but requires routing of VBAT:
5.4. CLOCK INPUTS
The slow clock is always supplied from an external source. It is connected to the
SLOW_CLK_IN pin number 8 and can be a digital signal with peak to peak of 0-1.8 V.
The slow clock's frequency accuracy must be 32.768 kHz ±250 ppm for Bluetooth
usage (according to the Bluetooth specification).
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
10 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
6. BLUETOOTH FEATURES
• Support of Bluetooth2.1+EDR (Lisbon Release) up to HCI level.
• Very fast AFH algorithm for both ACL and eSCO.
• Supports typically 4 dBm Class 2 TX power w/o external PA, improving Bluetooth
link robustness. The TX power can be raised up to 10 dBm depending on the host
settings.
• Supports multiple Bluetooth profiles with enhanced QoS, both mono and stereo,
assisted A2DP (no host processing required).
• Digital Radio Processor (DRP) single-ended 50 Ohm.
• Spurious emissions compatible with GPS applications.
• Internal temperature detection and compensation ensures minimal variation in the
RF performance over temperature.
• Flexible PCM and I2S digital audio/voice interfaces: Full flexibility of data-format
(Linear, a-Law, µ-Law), data-width, data order, sampling and slot positioning,
master/slave modes, high clock rates up to 15 MHz for slave mode (or 4.096 MHz for
Master Mode). Lost packet concealment for improved audio.
• Proprietary low-power scan method for page and inquiry scans, achieves page and
inquiry scans at 1/3rd normal power.
• On board SBC decoder/encoder – offloads host for A2DP and WideBand speech
processing. A2DP host burst mode, enhanced dynamic bit pool algorithm.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
11 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
7. BLOCK DIAGRAM
The EEPROM could be used to store some calibration value for the 26 MHz crystal at room
temperature, so the max. operating temperature could be increase to +85°C.
In addition, the start up time could be decrease, as the patch can be loaded from the
EEPROM, more details will be available in the next revision.
Note: The Slow Clock 32.768 kHz is mandatory, otherwise the module does not start up,
please refer to chapter 5.4.
8. TEST CONDITIONS
Measurements shall be made under room temperature and humidity unless otherwise
specified.
Temperature 25 ± 10°C
Humidity 40 to 85%RH
SW-Patch V2.30
Supply Voltage 3.3V
9. GENERAL DEVICE REQUIREMENTS AND OPERATION
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
12 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
Actual values are given based on TI datasheet, in the final version it could be adjusted after
the final measurements on the Panasonic PAN1315ETU (Easy To Use) test board, unless
otherwise indicated.
All specifications are over temperature and process, unless indicated otherwise.
9.1. ABSOLUTE MAXIMUM RATINGS
Over operating free-air temperature range (unless otherwise noted).
Note
All parameters are measured as follows unless stated otherwise:
VDD_IN 9 = 3.3 V, VDD_IO = 1.8 V.
No See 10 Value Unit
Ratings Over Operating Free-Air Temperature Range
1 VDD_IN Supply voltage range –0.5 to 5.5 V 11
2 VDDIO_1.8V –0.5 to 2.145 V
3 Input voltage to RF (Pin 13) –0.5 to 2.1 V
4 Operating ambient temperature range –20 to 70 °C
5 Storage temperature range –40 to 125 °C
6 Bluetooth RF inputs (Pin 13) 10 dBm
9.2. RECOMMENDED OPERATING CONDITIONS
No Rating Condition Symbol Min Max Unit
1 Power supply voltage 12 VDD_IN 1.7 4.8 V
2 IO power supply voltage VDD_IO 1.62 1.92 V
3 High-level input voltage Default VIH 0.65 x VDD_IO VDD_IO V
9 VDD_IN is supplied to MLDO_IN (Pin 15) and CL1.5_LDO_IN (Pin 11), other options are described in chapter
5.3 Device Power Supply.
10 Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device.
These are stress ratings only and functional operation of the device at these or any other conditions beyond
those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-
rated conditions for extended periods may affect device reliability.
11 Maximum allowed depends on accumulated time at that voltage: VDD_IN is defined in Reference schematics.
When DC2DC supply is used, maximum voltage into MLDO_OUT and FM_LDO_IN = 2.145 V.
12 Excluding 1.98 < VDD_IN < 2.2 V range – not allowed.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
13 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
No Rating Condition Symbol Min Max Unit
4 Low-level input voltage Default VIL 0 0.35 x VDD_IO V
5 IO1/IO2 Input rise/fall times, 10% to 90% 13 Tr/Tf 0 25 ns
0 to 0.1 MHz 60
0.1 to 0.5 MHz 50
0.5 to 2.5 MHz 30
2.5 to 3.0 MHz 15
6 Maximum ripple on VDD_IN (Sine wave) for
1.8 V (DC2DC) mode
> 3.0 MHz 5
mVp-p
7 Voltage dips on VDD_IN (VBAT) (due to GSM
polling: duration = 577 μs to
2.31 ms, period = 4.6 ms) 400 mV
8 Maximum ambient operating temperature 14 70 °C
9.3. CURRENT CONSUMPTION
No Characteristics Min
25°C
Typ
25°C
Max
25°C
Min
-20°C
Typ
-20°C
Max
-20°C
Min
+70°C
Typ
+70°C
Max
+70°C Unit
1 Current consumption in
shutdown mode 15 1 3 7 μA
2 Current consumption in deep
sleep mode 16 40 105 700
μA
3 Total IO current consumption
for active mode 1 1 1 mA
9.4. GENERAL ELECTRICAL CHARACTERISTICS
No Rating Condition Min Max Value
at 2/4/8 mA 0.8 x VDD_IO VDD_IO V
1 High-level output voltage, VOH at 0.1 mA VDD_IO – 0.2 VDD_IO V
at 2/4/8 mA 0 0.2 x VDD_IO V
2 Low-level output voltage, VOL at 0.1 mA 0 0.2 V
Resistance 1 MΩ
3 IO input impedance Capacitance 5 pF
4 Output rise/fall times,10% to 90% (Digital pins) CL = 20 pF 10 ns
PU typ = 6.5 3.5 9.7
TX_DBG, IO2,
PCM bus PD typ = 27 9.5 55 µA
PU typ = 100 100 300
5 IO pull
currents
All others PD typ = 100 100 360 µA
13 Excluding SPI_CLK on IO1: max = 5 ns.
14 The device can be reliably operated for 7 years at Tambient of 70°C, assuming 25% active mode and 75% sleep
mode (15,400 cumulative active power-on hours).
15 Vbat + Vio
16 Vbat + Vio + Vsd (shutdown)
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
14 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
9.5. NSHUTD REQUIREMENTS
No Parameter Symbol Min Max Unit
1 Operation mode level 17 V
IH 1.42 1.98 V
2 Shutdown mode level
1 V
IL 0 0.4 V
3 Minimum time for nSHUT_DOWN low to reset the device 5 ms
4 Rise/fall times Tr/Tf 20 µs
9.6. EXTERNAL DIGITAL SLOW CLOCK REQUIREMENTS (–20°C TO +70°C)
No Characteristics Condition Symbol Min Typ Max Unit
1 Input slow clock frequency 32768 Hz
2 Input slow clock accuracy
(Initial + temp + aging) Bluetooth ±250 ppm
3 Input transition time Tr/Tf –
10% to 90% Tr/Tf 100 ns
4 Frequency input duty cycle 15% 50% 85%
5 Phase noise at 1 kHz -125 dBc/Hz
6 Jitter Integrated over 300 to
15000 Hz 1 Hz
VIH 0.65 x
VDD_IO VDD_IO
7 Slow clock input voltage
limits Square wave, DC coupled
VIL 0 0.35 x
VDD_IO
V peak
8 Input impedance 1 MΩ
9 Input capacitance 5 pF
17 Internal pull down retains shut down mode when no external signal is applied to this pin.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
15 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
10. BLUETOOTH RF PERFORMANCE (BT)
Actual values are given based on TI datasheet, in the final version it could be adjusted after
the final measurements on the Panasonic PAN1315ETU (Easy To Use) test board, unless
otherwise indicated.
10.1. BLUETOOTH RECEIVER CHARACTERISTICS – IN-BAND SIGNALS
No Characteristics Condition Min Typ Max BT Spec Unit
1 Operation frequency range 2402 2480 MHz
2 Channel spacing 1 MHz
3 Input impedance 50 Ω
GFSK, BER = 0.1% -89.5 -93.0 -70
Pi/4-DQPSK, BER = 0.01% -88.5 -92.5 -70
8DPSK, BER = 0.01% -81.0 -85.5 -70
dBm
Pi/4-DQPSK 1E-6 <1E-7 1E-5
4 Sensitivity, Dirty Tx on 18 Pi/4-DQPSK and
8DPSK, BER
error floor at sensitivity
+ 10 dB,
dirty Tx off. 8DPSK 1E-6 1E-5
GFSK, BER = 0.1% -5
Pi/4-DQPSK, BER = 0.1% -10 -20
5 Maximum useable input power
8DPSK, BER = 0.1% -10
dBm
6 Intermodulation characteristics
Level of interferers
For n = 3, 4, and 5 -36 -30 -39 dBm
GFSK, Co-channel 8.0 10 11
Pi/4-DQPSK 9.5 11 13
EDR,
Co-channel 8DPSK 16.5 20 21
GFSK, adjacent ±1 MHz -10 -5 0
Pi/4-DQPSK -10 -5 0
EDR, adjacent ±1 MHz,
(image) 8DPSK -5 -1 5
GFSK, adjacent +2 MHz -38 -35 -30
Pi/4-DQPSK -38 -35 -30
EDR,
adjacent -2 MHz 8DPSK -38 -30 -25
GFSK, adjacent -2 MHz -28 -20 -20
Pi/4-DQPSK -28 -20 -20
EDR,
adjacent -2 MHz 8DPSK -22 -13 -13
GFSK, adjacent ≥ |±3| MHz -45 -43 -40
Pi/4-DQPSK -45 -43 -40
7
C/I performance
Note:
Numbers show desired-signal
to interfering-signal ratio.
Smaller numbers indicate
better C/I performance.
Image = –1 MHz
EDR,
adjacent ≥ |±3| MHz 8DPSK -44 -36 -33
dB
8 RF return loss -10 dB
9 RX mode LO leakage Frf (= received RF freq. – 0.6 MHz) -65 -60 dBm
18 Sensitivity degradation up to 3dB may occur for minimum and typical values where the Bluetooth frequency is
a harmonic of the fast clock.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
16 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
10.2. BLUETOOTH RECEIVER CHARACTERISTICS – GENERAL BLOCKING
No Characteristics Condition Min Typ Unit
30 to 2000 MHz -6
2000 to 2399 MHz -6
2484 to 3000 MHz -6
1 Blocking performance over
full range, according to
Bluetooth specification 19
3 to 12.75 GHz -6
dBm
10.3. BLUETOOTH RECEIVER CHARACTERISTICS – GFSK/EDR2/EDR3
Blocking Per Band
No Characteristics Condition Min Typ Unit
1 FM band blocking 76 to 108 MHz 0 dBm
776 to 794 MHz (CDMA) -19 -14
824 to 849 MHz (GMSK) 20 -16 -5
824 to 849 MHz (EDGE) 2 -19 -13
824 to 849 MHz (CDMA) 2 -20 -14
880 to 915 MHz (GMSK) -25 -16
880 to 915 MHz (EDGE) -26 -17
1710 to 1785 MHz (GMSK) -10 -6
1710 to 1785 MHz (EDGE) -25 -20
1850 to 1910 MHz (GMSK) -25 -20
1850 to 1910 MHz (EDGE) -31 -22
1850 to 1910 MHz (CDMA) -30 -22
1850 to 1910 MHz (WCDMA) -28 -18
2
Blocking performance for various cellular standards
Hopping on desired signal: 3dB from sensitivity with
modulated continuous blocking signal
GFSK BER = 0.1%
EDR BER = 0.01% PER = 1%
1920 to 1980 MHz (WCDMA) -25 -19
dBm
10.4. BLUETOOTH TRANSMITTER, GFSK, FULL OUTPUT
No Characteristics Min Typ Max BT Spec Unit
VDD_IN = VBAT 9 10.5
1 RF output power VDD_IN = ext. reg. 6 8 dBm
2 Power variation over Bluetooth band -1 1 dB
3 Gain Control Range 30 dB
4 Power Control Step 2 4 8 2 to 8 dB
5 Adjacent Channel Power |M–N| = 2 -45 -42 ≤ -20 dBm
6 Adjacent Channel Power |M–N| > 2 -50 -42 ≤ -40 dBm
19 10 exceptions out of the total 24 allowed in the Bluetooth specification.
20 Except for frequencies where [3 * F_BLOCKER] falls within the Bluetooth band (2400 to 2483.5 MHz).
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
17 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
10.5. BLUETOOTH TRANSMITTER, EDR, FULL OUTPUT
No Characteristics
Min
25°C,
-20°C
Typ
25°C,
-20°C
Max
25°C,
-20°C
Min
+70°C
Typ
+70°C
Max
+70°C
Bluetooth
Spec Unit
CL1.5_LDO_IN = VBAT 8.0 10 8.0 10
Pi/4-
DQPSK CL1.5_LDO_IN = DC2DC 8.0 10 7.5 10
CL1.5_LDO_IN = VBAT 8.0 10 8.0 10
1
EDR
output
power 8DPSK CL1.5_LDO_IN = DC2DC 8.0 10 7.5 10
dBm
2 EDR rel power 21 -2 1 -2 1 -4 to +1
3 Power variation over Bluetooth band -1 1 -1 1
4 Gain Control Range 1 30 30
5 Power Control Step 1 2 4 8 2 4 8 2 to 8
dB
6 Adjacent Channel Power |M–N| = 1 1 -36 -30 -36 -30
≤ –26 dBc
7 Adjacent Channel Power |M–N| = 2 1, 22 -30 -23 -30 -23
≤ –20 dBm
8 Adjacent Channel Power |M–N| > 2 1, 2 -42 -40 -42 -40
≤ –40 dBm
10.6. BLUETOOTH MODULATION, GFSK, FULL OUTPUT
No Characteristics Condition Symbol Min Typ Max BT Spec. Unit
1 –20 dB BW GFSK 925 995 ≤ 1000 kHz
2 Average deviation
Detector bandwidth – 10MHz
Mod Data = 4-1, 4-0
1111000011110000... F1 avg 150 165 170 140 to 175 kHz
3 Instantaneous deviation Mod data = 1010101... F2 max 120 130 > 115 kHz
4 dF2/dF1 85% 88% > 80%
DH1 -25 25 < ±25 kHz
5 Absolute carrier frequency
drift DH3 and DH5 -35 35 < ±40 kHz
6 Drift Rate 15 < 20 kHz/50µs
7 Initial Carrier Frequency
Tolerance ±25 < ±75 kHz
21 For both Pi/4-DQPSK and 8DPSK
22 As the used internal filter has 2dB insertion loss
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
18 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
10.7. BLUETOOTH MODULATION, EDR, FULL OUTPUT
No Characteristics Condition Min Typ Max BT Spec. Unit
1 Carrier frequency stability ±3 ±10 ≤10 kHz
2 Initial Carrier Frequency Tolerance ±10 ±75 kHz
Pi/4-DQPSK 6% 15% 20%
3 Rms DEVM
23 8DPSK 6% 13% 13%
Pi/4-DQPSK 30% 30%
4 99% DEVM
1 8DPSK 20% 20%
Pi/4-DQPSK 14% 30% 35%
5 Peak DEVM
1 8DPSK 16% 25% 25%
10.8. BLUETOOTH TRANSMITTER, OUT-OF-BAND EMISSIONS
No Characteristics Condition Typ Max Unit
76 to 108 MHz (FM) -100
746 to 764 MHz (CDMA) -151 -147
869 to 894 MHz (CDMA1, GSM) -150 -145
925 to 960 MHz (E-GSM) -148 -145
1570 to 1580 MHz (GPS) -145 -138
1820 to 1880 MHz (GSM) -145 -142
1930 to 1990 MHz (GSM, CDMA1, WCDMA) -147 -145
2110 to 2170 MHz (WCDMA) -145 -143
dBm/Hz
30 kHz to 1 GHz 24, 25 -67
1 Tx and Rx out-of-band emissions
Output signal = 10 dBm
1 to 12.75 GHz 2, 3 -51.5 -41
dBm
2 2nd harmonic at 8dBm power 3 -32 -30 dBm
3 3rd harmonic at 8dBm power 3 -32 -30 dBm
23 Max performance refers to Max TX power.
24 Includes effects of frequency hopping
25 Measured with the internal filter on the module, so it will also meets FCC and ETSI requirements.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
19 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
11. SOLDERING TEMPERATURE-TIME PROFILE (FOR REFLOW SOLDERING)
11.1. FOR LEAD SOLDER
Recommended temp. profile
for reflow soldering
Tem
p
.
[
°C
]
Time [s]
235°C max.
220 ±5°C
200°C
150 ±10°C
90 ±30s
10
±
1s
30 +20/-10s
11.2. FOR LEADFREE SOLDER
Our used temp. profile
for reflow soldering
Temp.[°C]
Time [s]
230°C -250°C max.
220°C
150°C – 190°C
90 ±30s
30 +20/-10s
Reflow permissible cycle: 2
Opposite side reflow is prohibited due to module weight.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
20 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
12. MODULE DIMENSION
No. Item Dimension Tolerance Remark
1 Width 6.50 ± 0.20
2 Lenght 9.00 ± 0.20
3 Height 1.80 ± 0.10 With case
13. FOOTPRINT OF THE MODULE
17 15 13
14
11
9
8
6
53
2
21
22 10
4
16
Pad = 24 x 0.60mm x 0.60mm
20
23
1
24
19
18 12
7
All dimensions are in millimeters.
The outer dimensions have a tolerance of ± 0.2mm.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
21 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
14. LABELLING DRAWING
14.1. ENGINEERING SAMPLES
Above white carbon label is suitable for reflow soldering and designed for the
engineering sample status.
The point on the label (below left) is the identifier for pin 1 of the module.
As a summary:
Print Description
xxxx Serial Number
YY Hardware Identifier:
EE With EEPROM
00 Without EEPROM
ZZ Software Identifier:
01 first identifier for the software version
14.2. MASS PRODUCTION
This will be a laser marking on the top case, drawing is only an example.
15. MECHANICAL REQUIREMENTS
No. Item Limit Condition
1 Solderability More than 75% of the soldering area shall be
coated by solder Reflow soldering with
recommendable temperature profile
2 Resistance to soldering
heat It shall be satisfied electrical requirements and not
be mechanical damage See chapter 11.2
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
22 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
16. RECOMMENDED FOOT PATTERN
Dimensions in mm.
The land pattern dimensions above are meant to serve only as a guide. This information is
provided without any legal liability.
For the footprint, it is recommended to incorporate a 50µm bigger size for the pads in each
direction compared to the module footprint. Please refer to chapter 17, Foot Print of the
Module.
For the solder paste screen, use the same screen for the module. Solder paste screen
cutouts (with slightly different dimensions) might be optimum depending on your soldering
process. For example, the solder paste screen thickness chosen might have an effect. The
solder screen thickness depends on your production standard -- 120µm to 150µm is
recommended.
IMPORTANT:
Although the bottom side of PAN1315 is fully coated, no copper such as through hole vias,
planes or tracks on the board component layer should be located below the PAN1315 to
avoid creating a short. In cases where a track or through hole via has to be located under the
module, please make a note that it has to be kept away from PAN1315 bottom pads. The
PAN1315 multilayer pcb contains an inner RF shielding plane, therefore no pcb shielding
plane below the module is needed.
When using an onboard ceramic antenna, please place the antenna on the edge of your
carrier board (if allowable).
If you have any questions on these points, please contact your local Panasonic
representative.
Before releasing the layout, we recommend to sent the schematic and layout for final check
to wireless@eu.panasonic.com.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
23 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
17. DEVELOPMENT OF APPLICATIONS
Mindtree Ltd. has developed Bluetooth software, including some profiles, for TIs MSP430
and Panasonics PAN1315. A detailed documentation will be available in the next revision of
this document, in Related Documents, Chapter 25. Also refer to
www.panasonic.com/rfmodules
17.1. TOOLS TO BE NEEDED
MSP-EXP430F5438 - Experimenter Board, which can be ordered here:
http://focus.ti.com/docs/toolsw/folders/print/msp-exp430f5438.html
MSP-FET430UIF430 - Debugging Interface, which can be ordered here:
http://focus.ti.com/docs/toolsw/folders/print/msp-fet430uif.html
PAN1315EMK - Bluetooth Evaluation Module Kit for MSP430, which can be ordered
here:
TI link:
http://focus.ti.com/docs/toolsw/folders/print/pan1315emk.html?DCMP=wtbu_ecs&HQS=EVM+O
T+pan1315emk
Panasonic link:
http://www.panasonic.com/industrial/electronic-components/rf-
modules/bluetooth/pan1315etu.aspx
PAN1315ETU
In addition you need the software development environment, e.g. IAR Embedded
Workbench, please refer to [2].
For a detailed description of the usage for the tools refer to:
http://wiki.msp430.com/index.php/MSP430_Bluetooth_Platform
Evaluation kits and modules are available through Panasonic’s network of authorized
distributors. For additional information visit www.panasonic.com/rfmodules.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
24 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
18. RELIABILITY TESTS
The measurement should be done after being exposed to room temperature and humidity for
1 hour.
No. Item Limit Condition
1 Vibration test Electrical parameter should be in
specification
a) Freq.:10~50Hz,Amplitude:1.5mm
a) 20min. / cycle,1hrs. each of XYZ axis
b) Freq.:30~100Hz, 6G
b) 20min. / cycle,1hrs. each of XYZ axis
2 Shock test the same as above Dropped onto hard wood from height of 50cm for 3 times
3 Heat cycle test the same as above -40°C for 30min. and +85°C for 30min.;
each temperature 300 cycles
4 Moisture test the same as above +60°C, 90% RH, 300h
5 Low temp. test the same as above -40°C, 300h
6 High temp. test the same as above +85°C, 300h
19. CAUTIONS
Failure to follow the guidelines set forth in this document may result in degrading of the
product’s functions and damage to the product.
19.1. DESIGN NOTES
(1) Please follow the conditions written in this specification, especially the control
signals of this module.
(2) The supply voltage has to be free of AC ripple voltage (for example from a
battery or a low noise regulator output). For noisy supply voltages, provide a
decoupling circuit (for example a ferrite in series connection and a bypass
capacitor to ground of at least 47uF directly at the module).
(3) This product should not be mechanically stressed when installed.
(4) Keep this product away from heat. Heat is the major cause of decreasing the
life of these products.
(5) Avoid assembly and use of the target equipment in conditions where the
products' temperature may exceed the maximum tolerance.
(6) The supply voltage should not be exceedingly high or reversed. It should not
carry noise and/or spikes.
(7) Keep this product away from other high frequency circuits.
19.2. INSTALLATION NOTES
(1) Reflow soldering is possible twice based on the conditions in chapter 15.
Set up the temperature at the soldering portion of this product according to
this reflow profile.
(2) Carefully position the products so that their heat will not burn into printed
circuit boards or affect the other components that are susceptible to heat.
(3) Carefully locate these products so that their temperatures will not increase
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
25 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
due to the effects of heat generated by neighboring components.
(4) If a vinyl-covered wire comes into contact with the products, then the cover
will melt and generate toxic gas, damaging the insulation. Never allow contact
between the cover and these products to occur.
(5) This product should not be mechanically stressed or vibrated when reflowed.
(6) If you want to repair your board by hand soldering, please keep the
conditions of this chapter.
(7) Do not wash this product.
(8) Refer to the recommended pattern when designing a board.
(9) Pressing on parts of the metal cover or fastening objects to the metal will
cause damage to the unit.
19.3. USAGE CONDITIONS NOTES
(1) Take measures to protect the unit against static electricity.
If pulses or other transient loads (a large load applied in a short time) are
applied to the products, check and evaluate their operation befor assembly
on the final products.
(2) Do not use dropped products.
(3) Do not touch, damage or soil the pins.
(4) Follow the recommended condition ratings about the power supply applied to
this product.
(5) Electrode peeling strength: Do not add pressure of more than 4.9N when
soldered on PCB.
(6) Pressing on parts of the metal cover or fastening objects to the metal cover
will cause damage.
(7) These products are intended for general purpose and standard use in general
electronic equipment, such as home appliances, office equipment,
information and communication equipment.
19.4. STORAGE NOTES
(1) The module should not be stressed mechanically during storage.
(2) Do not store these products in the following conditions or the performance
characteristics of the product, such as RF performance will be adversely
affected:
• Storage in salty air or in an environment with a high concentration of
corrosive gas, such as Cl2, H2S, NH3, SO2, or NOX
• Storage in direct sunlight
• Storage in an environment where the temperature may be outside the range
of 5°C to 35°C range, or where the humidity may be outside the 45 to 85%
range.
• Storage of the products for more than one year after the date of delivery
Storage period: Please check the adhesive strength of the embossed tape
and soldering after 6 months of storage.
(3) Keep this product away from water, poisonous gas and corrosive gas.
(4) This product should not be stressed or shocked when transported.
(5) Follow the specification when stacking packed crates (max. 10).
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
26 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
19.5. SAFETY CAUTIONS
These specifications are intended to preserve the quality assurance of products and
individual components.
Before use, check and evaluate the operation when mounted on your products. Abide
by these specifications, without deviation when using the products. These products may
short-circuit. If electrical shocks, smoke, fire, and/or accidents involving human life are
anticipated when a short circuit occurs, then provide the following failsafe functions, as a
minimum.
(1) Ensure the safety of the whole system by installing a protection circuit and a
protection device.
(2) Ensure the safety of the whole system by installing a redundant circuit or
another system to prevent a single fault causing an unsafe status.
19.6. OTHER CAUTIONS
(1) This specification sheet is copyrighted. Please do not disclose it to a third
party.
(2) Please do not use the products for other purposes than those listed.
(3) Be sure to provide an appropriate fail-safe function on your product to prevent
an additional damage that may be caused by the abnormal function or the
failure of the product.
(4) This product has been manufactured without any ozone chemical controlled
under the Montreal Protocol.
(5) These products are not intended for other uses, other than under the special
conditions shown below. Before using these products under such special
conditions, check their performance and reliability under the said special
conditions carefully to determine whether or not they can be used in such a
manner.
• In liquid, such as water, salt water, oil, alkali, or organic solvent, or in places
where liquid may splash.
• In direct sunlight, outdoors, or in a dusty environment
• In an environment where condensation occurs.
• In an environment with a high concentration of harmful gas (e.g. salty air,
HCl, Cl2, SO2, H2S, NH3, and NOX)
(6) If an abnormal voltage is applied due to a problem occurring in other
components or circuits, replace these products with new products because
they may not be able to provide normal performance even if their electronic
characteristics and appearances appear satisfactory.
(7) When you have any question or uncertainty, contact Panasonic.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
27 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
20. PACKAGING
If the product has mass production status, indicated in chapter 23, we will deliver the module
in the package which are described below.
20.1. TAPE DIMENSION
to centreline of pocket.
Cumulative tolerance of 10 sprocket
holes is ± 0.20 .
Measured from centreline of sprocket
hole to centreline of pocket.
(I)
(II)
(III)
(IV) Other material available.
ALL DIMENSIONS IN MILLIMETRES UNLESS OTHERWISE STATED.
W
F
P1
+/- 0.10
+/- 0.10
+/- 0.30
7.50
12.00
16.00
K1 2.00 +/- 0.10
Estimated max. length : 72 meter/22B3 reel
Forming format : Flatbed - 9
2.80
+/- 0.10
+/- 0.10
9.40
Bo
Ko
6.90
Ao+/- 0.10
Y
Y
X
X
SECTION
Y-Y
SCALE 3.5
: 1
SECTION
X-X
SCALE 3.5
: 1
20.2. PACKING IN TAPE
trailer (empty)
1 x circumference /
hub
(min 160mm)
component
packed area
standard
1500pcs
leader (empty)
minimum 10 pitch
Top cover tape more
than 1 x
circumference plus
100mm to avoid
fixing of tape end on
sealed modules.
Direction of unreeling (for customer)
PAN1315 01/01
ENW89809M5A
YYWWDLL
FCC ID: T7V1315
Machine
readable
2D-Barc ode
PAN1315 01/01
ENW89809M5A
YYWWDLL
FCC ID: T7V1315
Machine
readable
2D-Barc ode
Empty spaces in component packed area shall be less than two per reel and those
spaces shall not be consecutive.
Top cover tape shall not be found on reel holes and shall not stick out from reel.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
28 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
20.3. COMPONENT DIRECTION
PAN1315 01/01
ENW89809M5A
YYWWDLL
FCC ID: T7V1315
Machine
readable
2D-Barcode
Please refer also to chapter 14. Labelling Drawing.
20.4. REEL DIMENSION
A B D N W2
MAX MIN MIN
±1.0
MAX
13
+0.5
25.0
+2.0
24.4
+3.0
-0.2
-0.0 -0.5
*Latch (2PC)All dimensions in millimeters unless otherwise stated
Assembly
Method
24mm 330.0 1.5 20.2 100.0 30.4 *Latch
TAPE SIZE C W1 W3
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
29 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
20.5. LABEL FOR PACKAGE
PAN1315
Customer Code ENW89818C2JF
105 mm
(1T) Lotcode [YYWWDLL] Example from above:
YY year printed 08
WW normal calendar week printed 01
D day printed 5 (Friday)
L line identifier, if more as one printed 1
L lot identifier per day printed 1
(1P) Customer Order Code, if any, otherwise company name will be printed
(2P) Panasonic Order Code fix as ENW89818C2JF
(9D) Datecode as [YYWW]
(Q) Quantity [XXXX], variable max. 1500
(HW/SW) Hardware /Software Release actual 01/01
Hardware 01 first digit 1 is 70°C, second digit is Revision.
Software 01 In case of EEPROM
20.6. TOTAL PACKAGE
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
30 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
21. ORDERING INFORMATION
Ordering part number Description MOQ (1)
ENW89818C2JF (2)
PAN1315
CLASS 2 Bluetooth HCI Module (Standard 2.1), without EEPROM (4), without
ceramic antenna, 50 Ω bottom pad, operating temperature 70°C.
1500
ENW89818A2JF (3) PAN1315
CLASS 2 Bluetooth HCI Module (Standard 2.1), without EEPROM (4), with
ceramic antenna, operating temperature 70°C. 1500
Notes:
(1) Abbreviation for Minimum Order Quantity (MOQ). The standard MOQ for mass production
are 1500 pieces, fewer only on customer demand. Samples for evaluation can be delivered
at any quantity.
(2) Samples available
(3) Samples will be available on customer demand
(4) The version with EEPROM could be address up to +85°C, as the frequency offset could be
stored in the EEPROM. As this is an HCI module, the host must be able to control these
function.
22. ROHS DECLARATION
Declaration of environmental compatibility for supplied products:
Hereby we declare to our best present knowledge based on declaration of our suppliers that
this product do not contain by now the following substances which are banned by Directive
2002/95/EC (RoHS) or if contain a maximum concentration of 0,1% by weight in
homogeneous materials for
• Lead and lead compounds
• Mercury and mercury compounds
• Chromium (VI)
• PBB (polybrominated biphenyl) category
• PBDE (polybrominated biphenyl ether) category
And a maximum concentration of 0,01% by weight in homogeneous materials for
• Cadmium and cadmium compounds
23. DATA SHEET STATUS
This data sheet contains preliminary product specification. Panasonic reserves the right to
change the specification without notice.
Preliminary product specification means also that the hardware has the engineering sample
(ES) status.
Please consult the most recently issued data sheet before initiating or completing a design.
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
31 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
24. HISTORY FOR THIS DOCUMENT
Revision Date Modification / Remarks
0.90 18.12.2009 1st preliminary version
0.95 01.03.2010 Updated chapter 10.8, 13 and 21.
0.96 Not released Change ESD Information on foot note 1 (page 6) and 1 (page 7)
0.97 25.03.2010 Various updates. Deleted links to TI Datasheet.
0.98 21.04.2010
Updated Links Some minor changes in chapter 8 and 9.1 and change the base for the values
in chapter 9.
25. RELATED DOCUMENTS
For an update, please search in the suitable homepage.
[1] PAN1315ETU Schematic Rev 1.0, December 2009
[2] IAR Embedded Workbench Version 3+ for MSP430 User's Guide
Rev. Q, 25 Nov 2009, Link for the download:
http://www.ti.com/lit/pdf/slau138
CLASSIFICATION
Einstufung PRODUCT SPECIFICATION
Produktspezifikation No.
DS-1315-2400-102 REV.
0.98
SUBJECT
Thema CLASS 2 BLUETOOTH MODULE
Bluetooth Modul der Klasse 2 PAGE
Seite
32 of 32
CUSTOMER’S CODE
PAN1315 PANASONIC’S CODE
ENW89818C2JF DATE
Datum 21.04.2009
PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de
26. GENERAL INFORMATION
© Panasonic Electronic Devices Europe GmbH 2010.
All rights reserved.
This product description does not lodge the claim to be complete and free of mistakes.
Please contact the related product manager in every case.
If we deliver ES samples to the customer, these samples have the status Engineering
Samples. This means, the design of this product is not yet concluded. Engineering
Samples may be partially or fully functional, and there may be differences to be published
Data Sheet.
Engineering Samples are not qualified and are not to be used for reliability testing or series
production.
Disclaimer:
Customer acknowledges that samples may deviate from the Data Sheet and may bear
defects due to their status of development and the lack of qualification mentioned above.
Panasonic rejects any liability or product warranty for Engineering Samples. In particular,
Panasonic disclaims liability for damages caused by
• the use of the Engineering Sample other than for Evaluation Purposes, particularly
the installation or integration in an other product to be sold by Customer,
• deviation or lapse in function of Engineering Sample,
• improper use of Engineering Samples.
Panasonic disclaimes any liability for consequential and incidental damages.
In case of any questions, please contact your local sales partner or the related product
manager.
27. REGULATORY INFORMATION
27.1. FCC WARNING
This equipment is intended for use in a laboratory test environment only. It generates, uses,
and can radiate radio frequency energy and has not been tested for compliance with the limits
of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed to
provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which
case the user at his own expense will be required to take whatever measures may be required
to correct this interference.
28. LIFE SUPPORT POLICY
This Panasonic product is not designed for use in life support appliances, devices, or
systems where malfunction can reasonably be expected to result in a significant personal
injury to the user, or as a critical component in any life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life support device
or system, or to affect its safety or effectiveness. Panasonic customers using or selling
these products for use in such applications do so at their own risk and agree to fully
indemnify Panasonic for any damages resulting.
