PAN1315ETU - DESIGN GUIDE

Panasonic’s unique Easy-To-Use (ETU) series of modules, plug directly into evaluation kits with the added

beneﬁ t of header connectors that simplify prototype wiring and ﬁ eld trials.

The engine of the PAN1315ETU is Panasonic’s new PAN1315 Host Controlled Interface (HCI) Bluetooth RF

module based upon Texas Instrument’s seventh generation Bluetooth core integrated circuit, the CC2560.

The PAN1315 series has been designed to be 100% pin compatible with the next generation of Bluetooth Low

Energy devices. This unique design feature enables designers to seamlessly transition between Bluetooth

Classic and Low Energy modules.

TABLE OF CONTENTS

1. Scope of this Document..................................................................................................3

2. Key Features...................................................................................................................3

3. PAN1315 Applications ....................................................................................................4

4. Module Description ......................................................................................................... 4

5. Detailed Description........................................................................................................5

5.1. Block Diagram / Design Help.................................................................................5

5.2. Schematic .............................................................................................................. 6

5.3. Placement..............................................................................................................7

5.4. Pin Description.......................................................................................................7

5.5. Clock Inputs ...........................................................................................................8

6. Key Parts List..................................................................................................................8

7. Module DimensionS ........................................................................................................8

8. APPLICATION Development ..........................................................................................9

8.1. NEEDED Tools ......................................................................................................9

9. RoHS Declaration .........................................................................................................10

10. Data Sheet Status.........................................................................................................10

11. History for this Document..............................................................................................11

12. Related Documents.......................................................................................................11

13. General Information ......................................................................................................12

14. FCC Warning ................................................................................................................12

15. Life Support Policy ........................................................................................................12

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

Panasonic Electronic Components

http://www.panasonic.com/industrial/electronic-components/

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

1. SCOPE OF THIS DOCUMENT

This Design Guide is intended for use with the Bluetooth development platform

PAN1315ETU. (Easy To Use). This guide will help you create a design that can be

implemented quickly into your product.

This guide describes the hardware and gives usefull tips. In addition, the software description

can be downloaded from TI’s website.

Please refer to chapter 8 “Application Development” for a quick overview.

2. KEY FEATURES

x Fast Time to Market

x Easy PCB Layout Using Eagle CAD Files:

x Capable of 2 Layer PCB with 0.2mm Line Width

x Optional EEPROM for Data Configuration

x Optional -40 to +85°C Operating Temperature Range

x MindTree Ethermind Bluetooth Stack with SPP for TI MSP430 Available From TI.

x Other Profiles Available on Request

x FCC, IC and ETSE Compliant

x 100% Compatible with Next Generation PAN1315 Bluetooth Low Energy/Classic

Module

Eagle CAD Files in use

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

http://www.panasonic.com/industrial/electronic-components/

piccomponentsmarketing@us.panasonic.com

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

3. PAN1315 APPLICATIONS

All Embedded Wireless Applications

x Access Points x Cable Replacement

x Printer Adapters x Personal Digital Assistants (PDAs)

x Printers x Access Points

x Scanners x Computers and Peripherals

x Wireless Sensors

x Low Power

x Industrial Control Applications

x Medical

4. MODULE DESCRIPTION

The PAN1315ETU (EasyToUse) Module is a development platform for a class 2 HCI module

to implement Bluetooth functionality into various electronic devices.

The PAN1315ETU is intended for evaluation purpose and works with Texas Instrument’s

MSP430 Hardware Development Kit. Please refer to chapter 8, APPLICATION Development.

Communication between the module and the host controller is typically carried out via UART,

but can also be performed through SPI with this hardware.

To aide in the implementation of this reference design, Eagle formatted application and

layout files are available on the web at the address below.

Please contact your local sales office for further details on additional options and services, by

visiting www.panasonic.com/rfmodules.

www.panasonic.com/industrial/includes/pdf/PAN1315ETU_Eagle_Ver1_1.zip

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

Panasonic Electronic Components

http://www.panasonic.com/industrial/electronic-components/

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

5. DETAILED DESCRIPTION

5.1. BLOCK DIAGRAM / DESIGN HELP

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

http://www.panasonic.com/industrial/electronic-components/

piccomponentsmarketing@us.panasonic.com

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

Please refer to

pages 14 & 15 for

a complete parts

list.

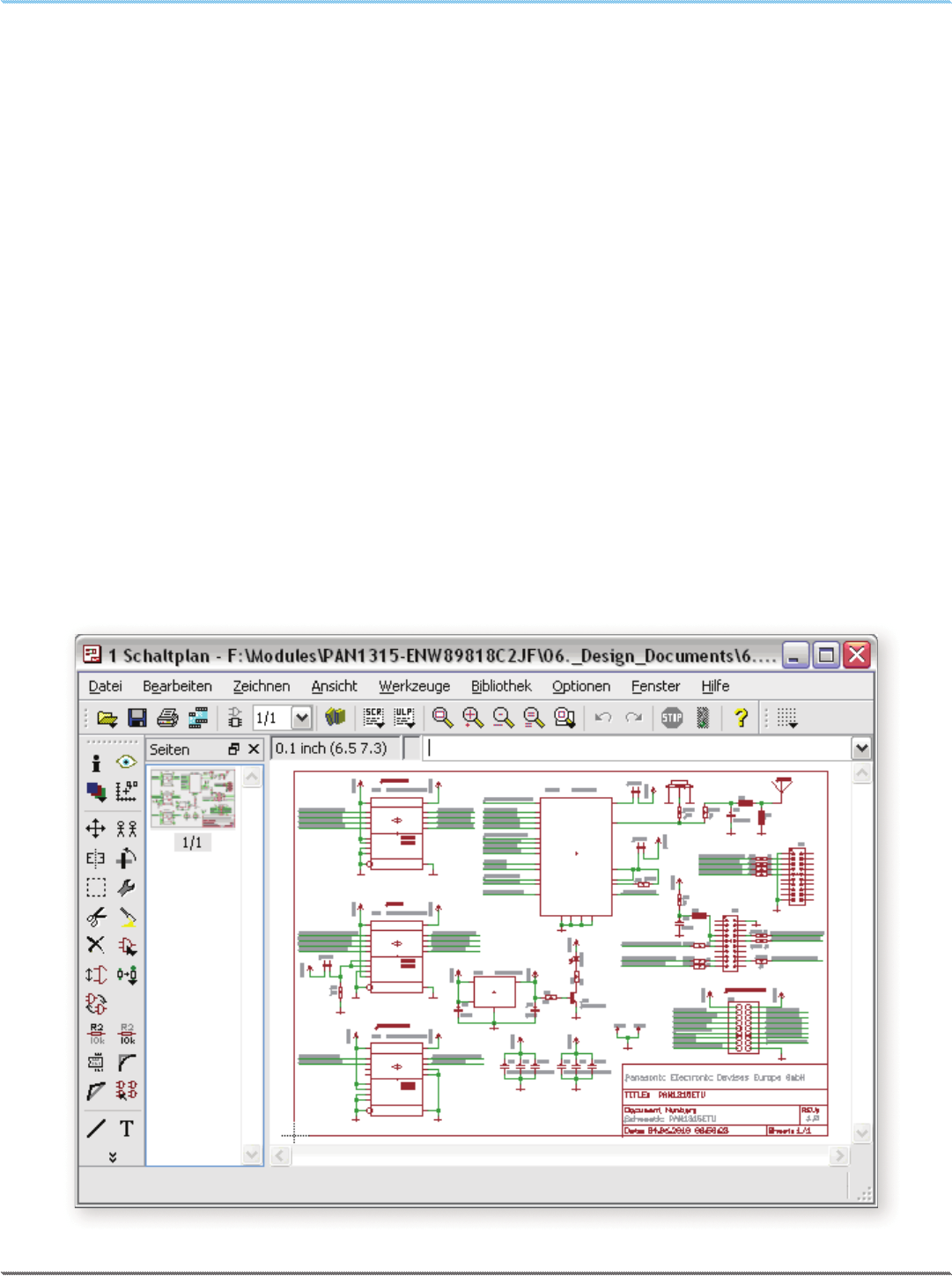

5.2. SCHEMATIC

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

Panasonic Electronic Components

http://www.panasonic.com/industrial/electronic-components/

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

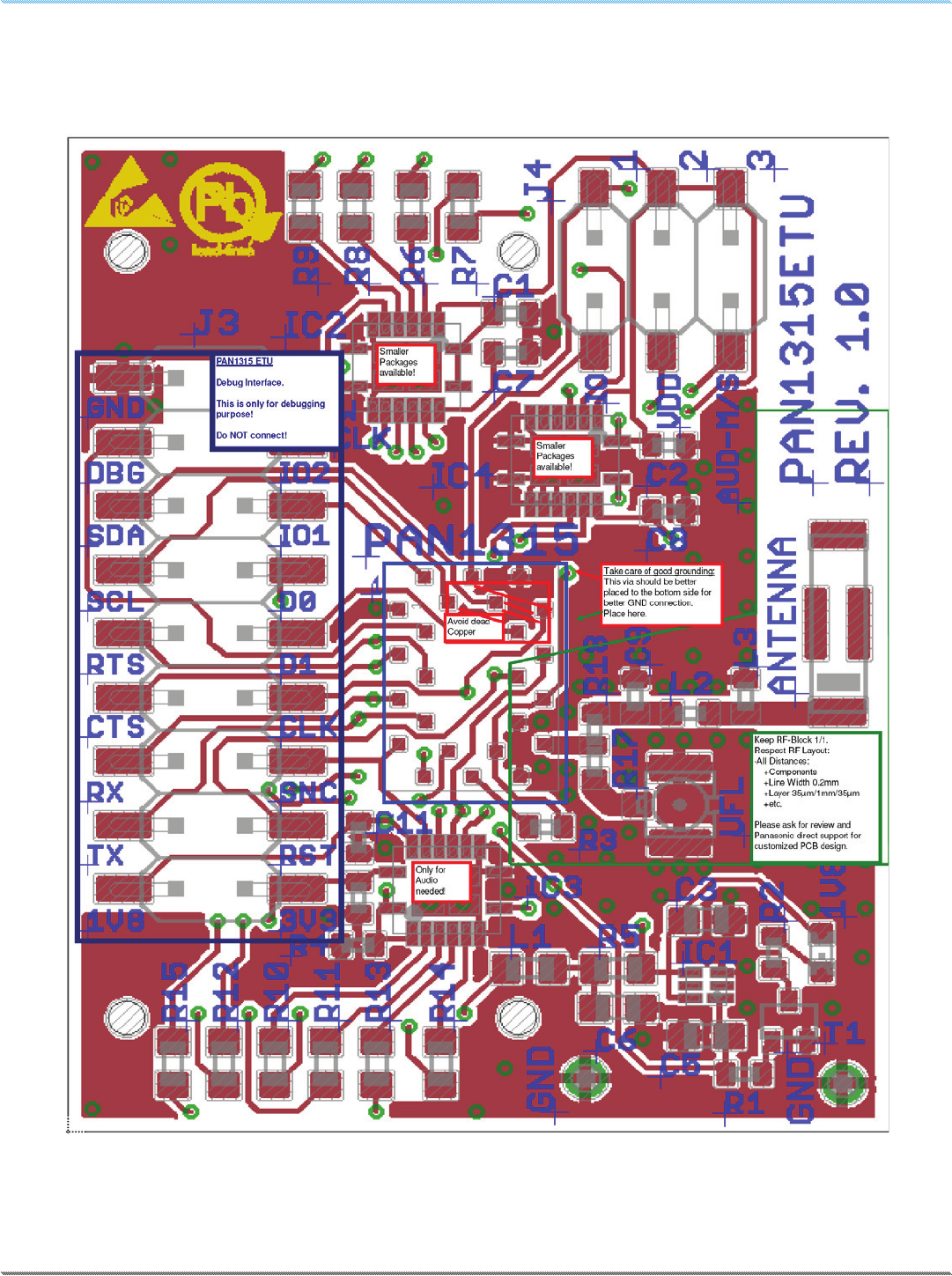

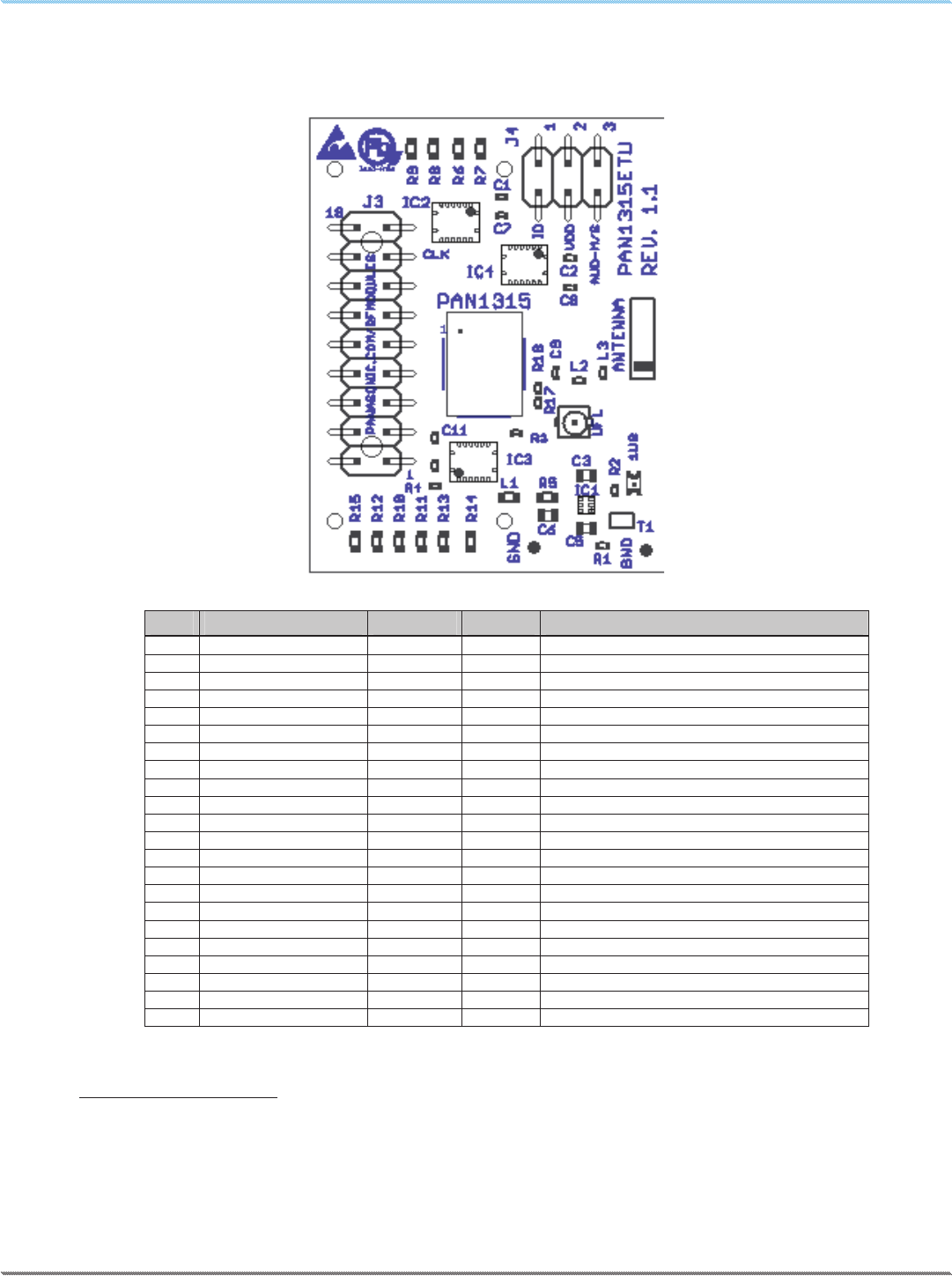

5.3. PLACEMENT

5.4. PIN DESCRIPTION

No Pin Name Connector Def. Dir.1 Description of Options (Common)

1,19 GND J1 Connect to Ground

3 BT_HCI_CTS_3V3 J1 I HCI UART clear-to-send

5 SLOW_CLK_3V3 J1 I HCI

7 BT_HCI_RX_3V3 J1 I HCI UART data receive

9 BT_HCI_TX_3V3 J1 O HCI UART data transmit

other Not connected J1

2 GND J2 I

7 +3V3 J2 I

8 BT_AUDIO_OUT_3V3 J2 O PCM data output

9 +3V3 J2 I

10 BT_AUDIO_IN_3V3 J2 I PCM data input

11 BT_AUDIO_FSYNC_3V3 J2 IO PCM frame synch

17 BT_AUDIO_CLK_3V3 J2 IO PCM clock

18 BT_HCI_RTS_3V3 J2 O HCI UART request-to-send

19 BT_NSHUTD_3V3 J2 I Shutdown input (active low)

other Not connected J2

All Only for Debug J3 Do not use

1/2 VDD_IO J4_1 IO Used for current measurement

1/2 VDD_LDO/MLDO_IN J4_2 IO Used for current measurement

1/2 Audio Direction J4_3 IO Audio Direction Set: Direction to PAN1315

I = input; O = output; IO = bidirectional; P = power; PU = pulled up; PD = pulled down

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

http://www.panasonic.com/industrial/electronic-components/

piccomponentsmarketing@us.panasonic.com

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

5.5. CLOCK INPUTS

The slow clock is always supplied from an external source. It is connected to the

SLOW_CLK_IN and can be a digital signal in the range of 0-1.8 V.

The slow clock's frequency accuracy must be 32.768 kHz r250 ppm for Bluetooth

usage (according to the Bluetooth specification).

When the MSP430 Experimenter board is connected the signal is exposed from the

Controller. So within this application there is no additional clock needed.

6. KEY PARTS LIST

Reference Designator Partnumber Supplier

PAN1315 ENW89818C2JF Panasonic

J1,J2 SFM-110-02-S-D-K-A Samtec, Farnell

IC1 TPS72718DSET TI

IC2,3,4 SN74AVC4T774RGYR TI

J4 Pinheader 2.54mm 6pol Generic

T1 BC847 Generic

LED1 SMD LED Rot Generic

ANT1 2450AT43B100 Johanson

UFL2 U.FL Hirose

7. MODULE DIMENSIONS

No. Item Dimension [mm] Tolerance [mm] Remark

1 Width 40 r 1

2 Lenght 30 r 1

3 Height 15 r 1 With connectors

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

Panasonic Electronic Components

http://www.panasonic.com/industrial/electronic-components/

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

8. APPLICATION DEVELOPMENT

Mindtree Ltd. has developed Bluetooth software, including a few profiles, for TI’s MSP430

and Panasonic’s PAN1315. Detailed documentation will be available in the next revision of

this document. Also refer to www.panasonic.com/rfmodules

8.1. NEEDED TOOLS

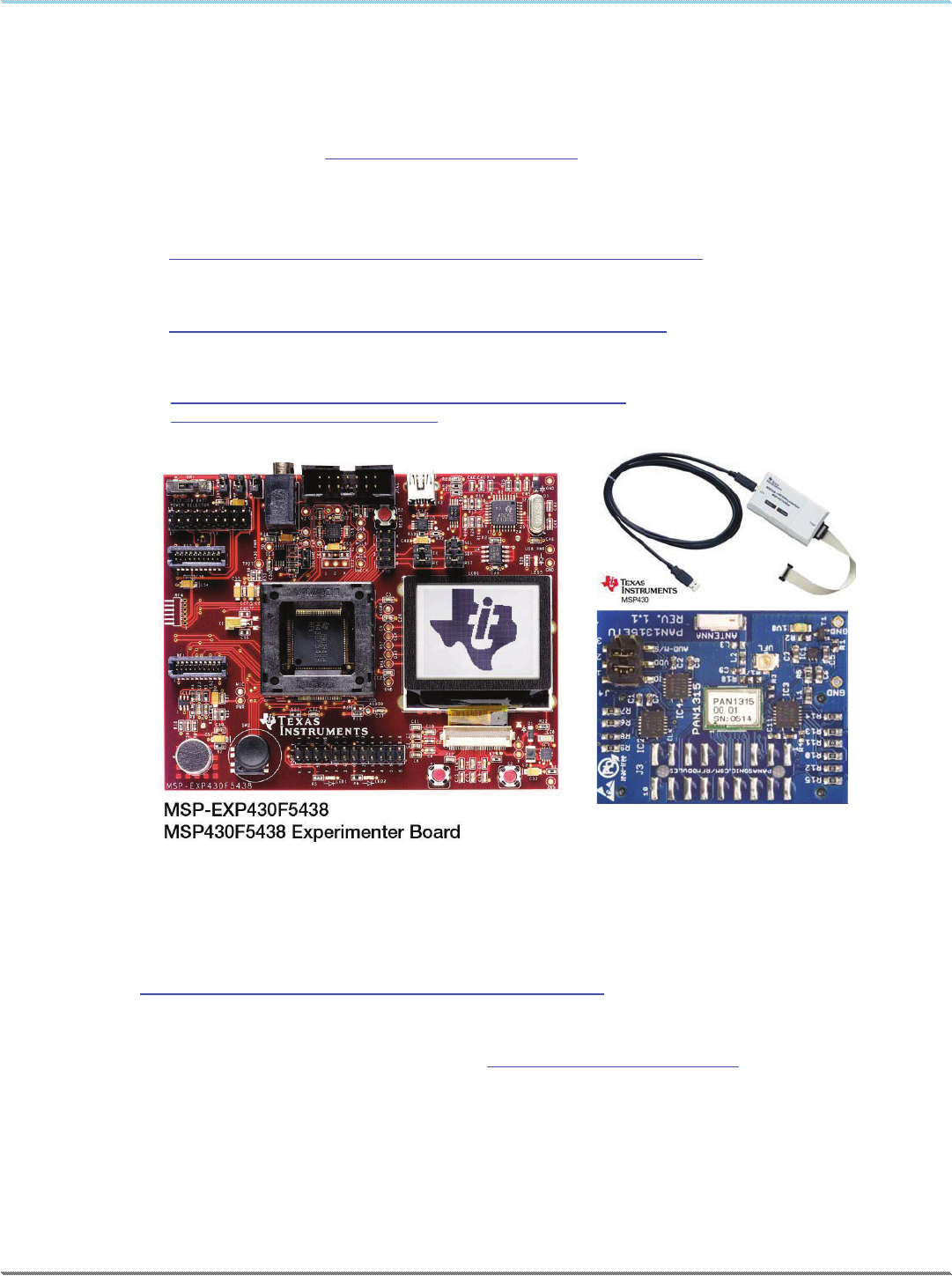

The MSP-EXP430F5438, Experimenter Board can be ordered here:

http://focus.ti.com/docs/toolsw/folders/print/msp-exp430f5438.html

The MSP-FET430UIF430, Debugging Interface can be ordered here:

http://focus.ti.com/docs/toolsw/folders/print/msp-fet430uif.html

The PAN1315EMK, Bluetooth Evaluation Module Kit for MSP430 can be ordered here:

http://www.panasonic.com/industrial/electronic-components/rf-

modules/bluetooth/pan1315etu.aspx

PAN1315ETU

In addition, a software development environment, e.g. IAR Embedded Workbench, is

required, please refer to 0.

For a detailed description on usage of these tools please refer to:

http://wiki.msp430.com/index.php/MSP430_Bluetooth_Platform

Evaluation kits and modules are available through Panasonic’s network of authorized

distributors. For additional information visit www.panasonic.com/rfmodules.

please visit www.iar.com

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

http://www.panasonic.com/industrial/electronic-components/

piccomponentsmarketing@us.panasonic.com

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

9. ROHS DECLARATION

Declaration of environmental compatibility for supplied products:

Panasonic Electronic Devices Europe GMBH hereby declares, to the best of our current

knowledge, based on the declaration of our suppliers that this product does not contain the

following substances which are banned by Directive 2002/95/EC (RoHS) or if contain a

maximum concentration of 0.1% by weight in homogeneous materials:

x Lead and lead compounds

x Mercury and mercury compounds

x Chromium (VI)

x PBB (polybrominated biphenyl) category

x PBDE (polybrominated biphenyl ether) category

And a maximum concentration of 0.01% by weight in homogeneous materials for

x Cadmium and cadmium compounds

10. DATA SHEET STATUS

This data sheet contains preliminary product specification. Panasonic reserves the right to

change the specification without notice, in order to improve the design and supply the best

possible product.

Preliminary product specification means also that the hardware has the engineering sample

(ES) status.

Please consult the most recently issued data sheet before initiating or completing a design.

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

Panasonic Electronic Components

http://www.panasonic.com/industrial/electronic-components/

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

11. HISTORY FOR THIS DOCUMENT

Revision

Version

Date

Datum

Modification / Remarks

Änderungen / Bemerkungen

0.90 24.02.2010 1st preliminary version

0.95 13.03.2010 Accept all changes from RT and added the FCC warning. Correct some formats and create a

new directory

0.96 09.06.2010 Included Design Guide, BOM

12. RELATED DOCUMENTS

For an update, please visit the following website:

IAR Embedded Workbench Version 3+ for MSP430 User's Guide

Rev. Q, 25 Nov 2009

http://www.ti.com/lit/pdf/slau138

PAN1315 Datasheet:

http://www.panasonic.com/industrial/electronic-components/rf-

modules/bluetooth/pan1315.aspx

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

http://www.panasonic.com/industrial/electronic-components/

piccomponentsmarketing@us.panasonic.com

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

13. GENERAL INFORMATION

This product description does not lodge the claim to be complete and free of mistakes.

Please contact the related product manager in every case.

Any ES samples delivered to the customer have the status Engineering Samples. This

means, the design of this product is not yet concluded. Engineering Samples may be

partially or fully functional, and there may be differences that will be published in the most

recent Data Sheet.

Engineering Samples are not qualified and are not to be used for reliability testing or series

production.

Disclaimer:

Customer acknowledges that samples may deviate from the Data Sheet and may bear

defects due to their status of development and the lack of qualification mentioned above.

Panasonic rejects any liability or product warranty for Engineering Samples. In particular,

Panasonic disclaims liability for damages caused by

x The use of the Engineering Sample other than for Evaluation Purposes, particularly

the installation or integration in an other product to be sold by Customer,

x Deviation or lapse in function of Engineering Sample,

x Improper use of Engineering Samples.

Panasonic disclaimes any liability for consequential and incidental damages.

In case of any questions, please contact your local sales partner or the related product

manager.

14. FCC WARNING

This equipment is intended for use in a laboratory test environment only. It generates, uses,

and can radiate radio frequency energy and has not been tested for compliance with the

limits of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed

to provide reasonable protection against radio frequency interference. Operation of this

equipment in other environments may cause interference with radio communications, in

which case the user at his own expense will be required to take whatever measures may be

required to correct this interference.

15. LIFE SUPPORT POLICY

This Panasonic product is not designed for use in life support appliances, devices, or

systems where malfunction can reasonably be expected to result in a significant personal

injury to the user, or as a critical component in any life support device or system whose

failure to perform can be reasonably expected to cause the failure of the life support device

or system, or to affect its safety or effectiveness. Panasonic customers using or selling

these products for use in such applications do so at their own risk and agree to fully

indemnify Panasonic for any damages resulting.

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

Panasonic Electronic Components

http://www.panasonic.com/industrial/electronic-components/

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

APPENDIX:

Test Procedure:

The PAN1315ETU is connected via the MSP430 Board, HCI UART to PC. The

connection to CBT is made via the ETU’s Antenna to the CBT reference antenna.

Output power and current consumption is then checked.

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

http://www.panasonic.com/industrial/electronic-components/

piccomponentsmarketing@us.panasonic.com

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

PARTS LIST: (Please refer to the schematic on page 6)

Part Value Device Package Comments

Antenna

ANT1 JOH_2450AT43B100

JOH_2450AT43B100 SMD_7X2X2 Antenna 1

Capacitors

C1 0.1 C-EUC0402 C0402 rcl

C2 0.1 C-EUC0402 C0402 rcl

C3 1u C-EUC0603 C0603 rcl

C5 1u C-EUC0603 C0603 rcl

C6 1u C-EUC0603 C0603 rcl

C7 0.1 C-EUC0402 C0402 rcl

C8 0.1 C-EUC0402 C0402 rcl

C9 2.2 pF C-EUC0402 C0402 rcl

C10 0.1 C-EUC0402 C0402 rcl

C11 0.1 C-EUC0402 C0402 rcl

Integrated Circuits

IC1 TPS72718 TPS72718 DSE_S-PDS0-N6

texas 1

IC2 SN74AVC4T774 SN74AVC-

4T774RGY RGY SN74AVC4T774 1

IC3 SN74AVC4T774 SN74AVC-

4T774RGY RGY SN74AVC4T774 1

IC4 SN74AVC4T774 SN74AVC-

4T774RGY RGY SN74AVC4T774 1

Connectors

SFM-110-02-SM-D-A-K-

TRSFM-110-02_2 SFM-

110-02_2 Samtec

SFM-110-02-SM-D-A-K-

TRSFM-110-02_2 SFM-

110-02_2 Samtec

J3 NC _PINHD-

2X9SMD _2X09SMD pinhead

J4_1 _PINHD-2X1SMD _2X1SMD pinhead 1

J4_2 _PINHD-2X1SMD _2X1SMD pinhead 1

J4_3 _PINHD-2X1SMD _2X1SMD pinhead 1

UFL2 U.FL U.FL U.FL hirose

Panasonic Electronic Components

Speciﬁ cations are subject to change without notice.

Please contact your local Panasonic sales representative before purchase.

Panasonic Electronic Components

http://www.panasonic.com/industrial/electronic-components/

1-800-344-2112

PAN1315ETU - DESIGN GUIDE

Part Value Device Package Comments

Inductors

L1 1Kȍ, 100mA L0603 rcl 1

L2 3.6 nH L0402 rcl 1

L3 Not Mounted L0402 rcl 1

LED

LED1 LEDCHIPLED_0805

CHI-

PLED_0805

led

RF Module

MOD1 PAN1315P1315FP_!

PAN1315P1315FP_! P1315FP_1 P1315_Eagle4 1

Resistors

R1 1k R-EU_R0402 R0402 rcl

R2 1k R-EU_R0402 R0402 rcl

R3 N.C. R-EU_R0402 R0402 rcl

R4 1k R-EU_R0402 R0402 rcl

R5 0 R-EU_R0603 R0603 rcl

R6 0 R-EU_R0603 R0603 rcl

R7 0 R-EU_R0603 R0603 rcl

R8 0 R-EU_R0603 R0603 rcl

R9 0 R-EU_R0603 R0603 rcl

R10 0 R-EU_R0603 R0603 rcl

R11 0 R-EU_R0603 R0603 rcl

R12 0 R-EU_R0603 R0603 rcl

R13 0 R-EU_R0603 R0603 rcl

R14 0 R-EU_R0603 R0603 rcl

R15 0 R-EU_R0603 R0603 rcl

R17 NC R-EU_R0402 R0402 rcl

R18 0 R-EU_R0402 R0402 rcl

Other

T1 BC847BW BC847BW SOT323 nano_JHO

TP1 TPP1-10 TPP1-10 _P1-10 testpad

TP2 TPP1-10 TPP1-10 _P1-10 testpad

Panasonic Devices Europe 1315 Bluetooth Module User Manual PAN1315ETU design guide

Panasonic Industrial Devices Europe GmbH Bluetooth Module PAN1315ETU design guide

Contents

Updated OEM instruction for module integration

Navigation menu

Namespaces

Views

Navigation
