User Manual Novatel HSDPA36 for use in CF 18

1
This manual contains supplementary instructions regarding the use of the computer. It ex-
plains the cases where the operation of the computer differs from that in the Operating In-
structions.
Your computer is equipped with the HSDPA/UMTS modem enabling you to communicate
using radio frequencies.
Contents
Precautions .................................................................. 2
Names and Functions of Parts ................................... 6

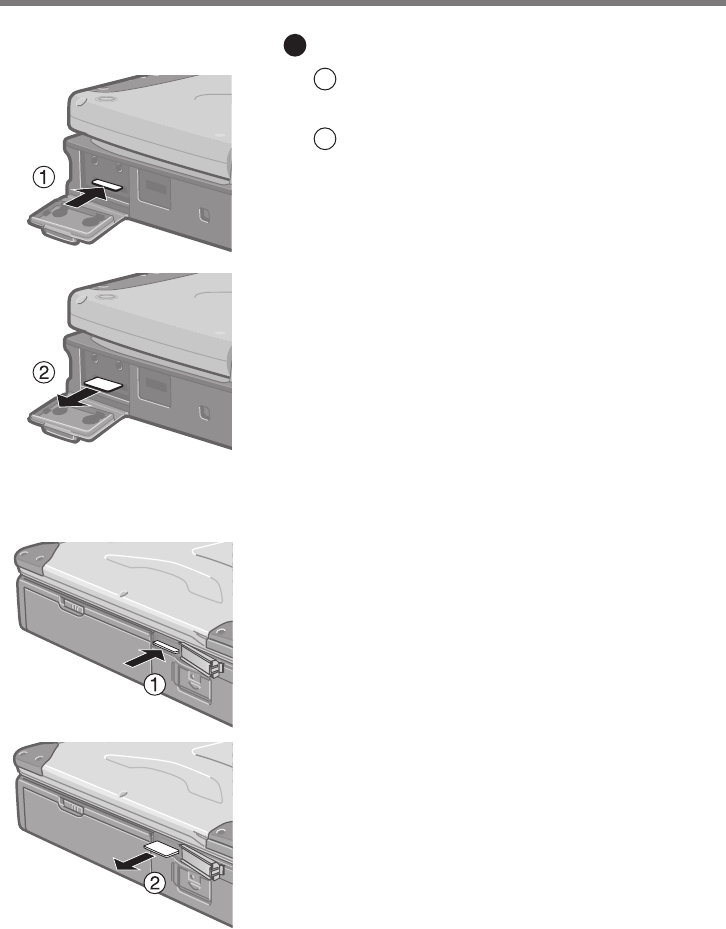

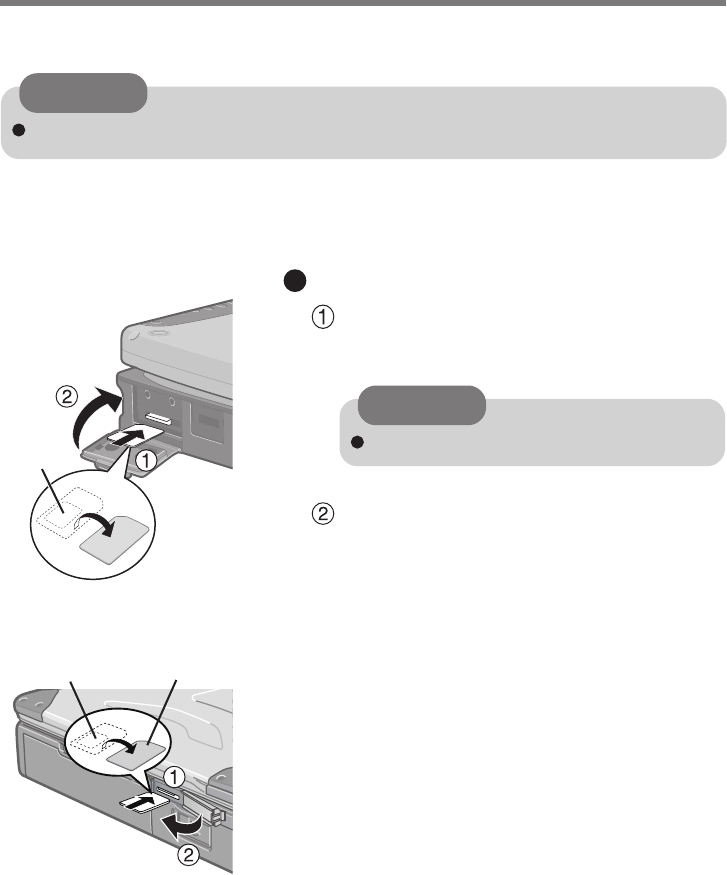

Installing/Removing a SIM Card ................................. 9
Installing the Software .............................................. 11
Appendix .................................................................... 18
Specifications ............................................................ 19
NOTE:NOTE provides a useful fact or helpful information.
CAUTION:CAUTION indicates a condition that may result in minor or moder-
ate injury.
Enter : This illustration means to press the [Enter] key.
[start] - [Run]: This illustration means to click [start], then to click [Run].
(For some applications, you may need to double-click.)
:Where to go for referred information.
: This illustration means to refer to the Reference Manual, which is
available on your computer.
Some of the illustrations in this manual may differ slightly in shape from the actual
items in order to make the explanation easier to understand.
The “CD/DVD drive” is a description about drives, such as CD-ROM, DVD-ROM &
CD-R/RW and DVD MULTI drives.
About the abbreviations in this manual, refer to the table on page 18.
Illustrations and Terminology in this Manual
Supplementary Instructions
for HSDPA/UMTS Modem
Model No. CF-18/CF-29 Series
2
The following safety precautions must be observed during all phases of the operation, usage,
service or repair of any Personal Computer or Handheld Computer incorporating HSDPA/
UMTS modem. Manufacturers of the cellular terminal are advised to convey the following
safety information to users and operating personnel and to incorporate these guidelines into
all manuals supplied with the product. Failure to comply with these precautions violates
safety standards of design, manufacture and intended use of the product. Panasonic assumes
no liability for customer failure to comply with these precautions.
When in a hospital or other health care facility, observe the restrictions on the use
of mobiles. Switch Personal Computer or Handheld Computer incorporating
HSDPA/UMTS modem off, if instructed to do so by the guidelines posted in sen-
sitive areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and
hearing aids can be affected by interference from Personal Computer or Handheld
Computer incorporating HSDPA/UMTS modem placed close to the device. If in
doubt about potential danger, contact the physician or the manufacturer of the
device to verify that the equipment is properly shielded. Pacemaker patients are
advised to keep their Personal Computer or Handheld Computer incorporating
HSDPA/UMTS modem away from the pacemaker, while it is on.
Switch off Personal Computer or Handheld Computer incorporating HSDPA/UMTS
modem before boarding an aircraft. Make sure it cannot be switched on inadvertently.
The operation of wireless appliances in an aircraft is forbidden to prevent interference
with communications systems. Failure to observe these instructions may lead to the
suspension or denial of cellular services to the offender, legal action, or both.
Do not operate Personal Computer or Handheld Computer incorporating HSDPA/
UMTS modem in the presence of flammable gases or fumes. Switch off the cellu-
lar terminal when you are near petrol stations, fuel depots, chemical plants or
where blasting operations are in progress. Operation of any electrical equipment
in potentially explosive atmospheres can constitute a safety hazard.
Your Personal Computer or Handheld Computer incorporating HSDPA/UMTS mo-
dem receives and transmits radio frequency energy while switched on. Remember
that interference can occur if it is used close to TV sets, radios, computers or inad-
equately shielded equipment. Follow any special regulations and always switch off
Personal Computer or Handheld Computer incorporating HSDPA/UMTS modem
wherever forbidden, or when you suspect that it may cause interference or danger.
Safety Precautions
Precautions
3
Road safety comes first! Do not use a Personal Computer or Handheld Computer in-
corporating HSDPA/UMTS modem while driving a vehicle. Do not place the com-
puter with HSDPA/UMTS modem in an area where it could cause personal injury to
the driver or passengers. It is recommended to stow the unit in the boot or secure
stowage area while driving.
Do not place the computer with HSDPA/UMTS modem in an area over an air bag or
in the vicinity where an air bag may deploy.
Air bags inflate with great force and if the computer with HSDPA/UMTS modem is
placed in the air bag deployment area may be propelled with great force and cause
serious injury to occupants of the vehicle.
4
For U.S.A.
Precautions
<CF-18 Series>
Federal Communications Commission Radio Frequency Interference Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radi-
ate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the Panasonic Service Center or an experienced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface cables when connecting to a
computer or peripheral. Also, any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.
FCC RF Exposure Warning:
This equipment is provided with PC Card slot that could be used with wireless transmit-
ters, which will be specifically recommended when they become available.
Other third-party wireless transmitters have not been RF exposure evaluated for use with
this computer and may not comply with FCC RF exposure requirements.
This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment.
This equipment has been approved for portable operation, and unless otherwise advised
in separate supplemental instructions for individual wireless transmitter(s), requires mini-
mum 1.5 cm spacing be provided between antenna(s) and all person’s body (excluding
extremities of hands, wrist and feet) during wireless modes of operation.
This equipment may use multiple installed transmitters, which may be capable of simul-
taneous transmission.
This equipment is provided with external antenna connector(s) for connection to optional
Car Mounter or Port Replicator for mobile external mounted antenna(s). External antenna(s)
must be professionally installed and cannot exceed recommended maximum antenna gain
as described in individual provided supplement instructions for wireless transmitters. Also,
user must maintain minimum 20 cm spacing between external antenna(s) and all person’s
body (excluding extremities of hands, wrist and feet) during wireless modes of operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Responsible Party: Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)
5
<CF-29 Series>
Federal Communications Commission Radio Frequency Interference Statement
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the Panasonic Service Center or an experienced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface cables when connecting to a
computer or peripheral. Also, any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.
FCC RF Exposure Warning:
This equipment is provided with PC Card slot that could be used with wireless transmitters,
which will be specifically recommended when they become available.
Other third-party wireless transmitters have not been RF exposure evaluated for use with
this computer and may not comply with FCC RF exposure requirements.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This equipment has been approved for mobile operation, and unless otherwise advised in
separate supplemental instructions for individual wireless transmitter(s), requires minimum
20 cm spacing be provided between antenna(s) and all person’s body (excluding
extremities of hands, wrist and feet) during wireless modes of operation.
This equipment may use multiple installed transmitters, which may be capable of
simultaneous transmission.
This equipment is provided with external antenna connector(s) for connection to optional
Car Mounter or Port Replicator for mobile external mounted antenna(s). External
antenna(s) must be professionally installed and cannot exceed recommended maximum
antenna gain as described in individual provided supplement instructions for wireless
transmitters. Also, user must maintain minimum 20 cm spacing between external
antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) dur-
ing wireless modes of operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Responsible Party: Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)
6
Names and Functions of Parts
SIM Card Slot
( page 9)
Except the followings, refer to the Operating Instructions for the computer.
Antenna
(Appearance may differ depending on specifications.)
LED Indicators
( page 8)
<CF-18 Series>
HSDPA/UMTS Modem Switch
( page 8)
7
SIM Card Slot
( page 9)
<CF-29 Series>
Antenna
LED Indicators
( page 8)
(Appearance may differ depending on specifications.)
HSDPA/UMTS Modem Switch
( page 8)
8
HSDPA/UMTS Modem Switch
You can use this switch to power on and off the HSDPA/UMTS
modem independently from the computer, regardless of the computer
power status.
This function depends on the setting of the Setup Utility.
Names and Functions of Parts
LED Description
Power On Indication:
A green LED will be used to signal when the HSDPA/UMTS modem
has been powered on.
Ring Indication:
This LED remains dark.
Status Indication:
The LED lights while the HSDPA/UMTS modem is running.
The HSDPA/UMTS Modem Switch will not operate for approxi-
mately 5 seconds after the HSDPA/UMTS modem is turned on
or off.
If the HSDPA/UMTS Modem Switch is pressed and does not
operate, wait for more than 5 seconds and press the switch again.
In the Setup Utility, you can also set the HSDPA/UMTS modem
to power on and off when the computer is powered on and off.
NOTE
9
1
Power off your computer and HSDPA/
UMTS modem.
2
Installing a SIM card
Insert the SIM card into the SIM card slot with
the contact side facing downward and with the
cut corner oriented as shown in the illustration.
Close the cover.
If the cover is not closed, the SIM card may jump
out when the computer falls.
Contact
CAUTION
Do not insert the SIM card upside down.
Installing/Removing a SIM Card
Before using the HSDPA/UMTS modem, set a SIM card to the SIM card slot.
CAUTION
Do not install/remove the SIM card when the HSDPA/UMTS modem’s power is on.
SIM Card
<CF-18 Series>
<CF-29 Series>
Contact SIM Card
10
Removing a SIM card
1Push the card.
It will come out of the slot a little bit.
2Pull the card all the way out.
<CF-18 Series>
<CF-29 Series>
Installing/Removing a SIM Card
11
Installing the Software
<Only for CF-29L******/CF-29M******/CF-29N******/CF-29P****** series>
Updating the BIOS and Embedded Controller
To use the HSDPA/UMTS modem, before installing the software, be sure to update the
BIOS and Embedded Controller if your computer’s BIOS version and Embedded Controller
version are as follows.
•BIOS version: V4.00L11, V4.00L12, or V5.00L11
•Embedded Controller version: V4.00L10, V4.00L11, V4.00L12 or V4.00L13
To check the BIOS version and Embedded controller version:
1Turn on your computer and run the Setup Utility by pressing F2 while
[Panasonic] boot screen is displayed.
If [Enter the password] is displayed, input your Supervisor Password or User
Password.
2Confirm the versions by checking the following items in the [Information] menu.
• [BIOS]
• [Embedded Controller]
You need to know the Supervisor Password or the User Password of the Setup
Utility if it is set. Furthermore, you need to know the logon password of Win-
dows administrator to update the BIOS and Embedded Controller.
A CD/DVD drive is necessary for updating the BIOS and Embedded Controller.
NOTE
Before Updating the BIOS and Embedded Controller
Before updating the BIOS and Embedded Controller, perform the following steps.
1
Turn off the computer and insert the CD/DVD drive into the
multimedia pocket. ( “Multimedia Pocket”)
2
Turn on the computer and log on to Windows with the
administrator authority.
3
Set the Wireless WAN (HSDPA/UMTS) Software CD-ROM
in the CD/DVD drive.
12
4
<For CF-29L******/CF-29M****** series>
Input [x:*1\
29LM\bios_29_4_r060067a_ec_29_4_m060043.exe
]
in [start] - [Run] and select [OK].
<For CF-29N******/CF-29P****** series>
Input [x:*1\
29NP\bios_29_5_r060068a_ec_29_4_m060043.exe
]
in [start] - [Run] and select [OK].
*1“x:” is the drive letter of the CD/DVD drive. Change this to match the drive letter on
your own computer.
5
Read “License Agreement” carefully, and select [Yes].
If you select [No], the utility will be aborted.
6
Input the destination folder, and select [OK].
Files will be extracted to the folder. (Default folder is “c:\upbiosec”)
7
The message “Unpacking of files completed.” will be
displayed, and select [OK].
8
Remove the CD-ROM.
9
Make a BIOS update floppy disk.
1Remove the CD/DVD drive and insert the floppy disk drive into the
Multimedia Pocket.
( “Multimedia Pocket”)
2
Insert a new 2HD floppy disk in the floppy disk drive.
3
Format the floppy disk using the following procedure. (Be sure to make it
bootable.)
Select [start] - [My Computer], right-click on [3 1/2 Floppy (A:)] and select
[Format].
↓
Add a check mark for [Create an MS-DOS startup disk], and select [Start].
↓
Follow the on-screen instructions.
4
Show hidden files on a floppy disk using the following procedure.
Double-click [3 1/2 Floppy (A:)] and select [tool] - [Folder Options] - [View].
↓
Add a check mark for
[Show hidden files and folders] in [Hidden files and folders].
↓
Installing the Software
13
Remove a check mark from [Hide protected operating system files (Recommended)].
↓
Select [OK].
5
Delete all files except for the following:
AUTOEXEC.BAT, COMMAND.COM, CONFIG.SYS, IO.SYS,
MSDOS.SYS
6
Copy all the files you extracted to the [bios] folder in step
6
to the floppy disk.
7
Remove the floppy disk.
10
Make an Embedded Controller update floppy disk.
1Repeat 2 to 5 from step
9
to prepare a second new floppy disk.
2
Copy all the files you extracted to the [ec] folder in step
6
to floppy disk.
3
Remove the floppy disk.
11
Save SETUP data.
1Turn on or restart the computer and run the Setup Utility by pressing F2 while
[Panasonic] boot screen is displayed.
If [Enter the password] is displayed, input the Supervisor Password.
2Disable the Supervisor password if it’s registered.
3Write down all of the contents of the Setup Utility and then press F9 .
At the confirmation message, select [Yes] and press Enter . (The Setup
Utility settings will return to their default values.)
CAUTION
<Only for CF-29N******/CF-29P****** series>
Be sure to write down the TPM settings on the [Security] menu.
(Windows may become unstable if you do not restore the TPM settings
to their previous values after updating the BIOS.)
14
CAUTION
Before updating BIOS and Embedded Controller, connect AC adaptor, insert
battery pack and floppy disk drive correctly, and confirm any peripherals (e.g.
PC card) except floppy disk drive is NOT connected.
Updating the BIOS and Embedded Controller
1
Insert the Embedded Controller update floppy disk ( page 13
step
10
),
and restart or turn on the computer.
The computer boots from the floppy disk.
2
Input [pec29b4 29440160.ROM] and press Enter .
3
Follow the on-screen instructions.
The computer will turn off after Embedded Controller has been updated.
4
Insert the BIOS update floppy disk ( page 12
step
9
),
and turn on the computer.
The computer boots from the floppy disk.
5
<For CF-29L******/CF-29M****** series>
Input [BU294L14] and press Enter .
<For CF-29N******/CF-29P****** series>
Input [BU295L13] and press Enter .
6
Follow the on-screen instructions.
The computer will turn off after BIOS has been updated.
7
Restore SETUP data.
1Turn on the computer and run the Setup Utility by pressing F2 while
[Panasonic] boot screen is displayed.
2Press F9 .
At the confirmation message, select [Yes] and press Enter . (The Setup
Utility settings will return to their default values.)
Installing the Software
15
3Restore all the data saved in step
11
of “Before Updating the BIOS and
Embedded Controller” ( Page 13).
CAUTION
<Only for CF-29N******/CF-29P****** series>
Be sure to restore the settings of TPM in [Security] menu.
Windows may become unstable if you do not restore the TPM settings
to their previous values after updating the BIOS.
4Input current date and time.
5Select [Exit] menu and then select [Save Current Values], then press Enter .
At the confirmation message, select [Yes] and press Enter .
6Turn the computer off by sliding the power switch.
16
Installing the Software
Installing the Software
1
<For CF-18 series>
Connect the CD/DVD drive to the USB port.
<For CF-29 series>
Insert the CD/DVD drive into the Multimedia Pocket. (
“Multimedia Pocket”)
2
Turn on or restart the computer, and run the Setup Utility by
pressing F2 while [Panasonic] screen is displayed.
If [Enter Password] is displayed, input the Supervisor Password.
3
Select the [Advanced] menu and confirm the following.
[On & Off] is selected at [Power SYNC with PC].
If [On & Off] is not set, confirm the power to the HSDPA/UMTS modem is on.
4
Save the settings and exit the Setup Utility.
5
Log on to Windows with the administrator authority.
6
Turn off the HSDPA/UMTS modem.
7
Set the Wireless WAN (HSDPA/UMTS) Software CD-ROM into
the CD/DVD drive.
8
Input [x:*1\setup.bat] in [start] - [Run] and select [OK].
*1“x:” is the drive letter of the CD/DVD drive. Change this to match the drive letter on
your own computer.
9
Follow the on-screen instructions, and install the software.
10
When the installation completes, turn on the HSDPA/UMTS modem.
Wait until the HSDPA/UMTS modem is recognized.
11
Remove the CD-ROM.
17
How to access the Online Manual
Running MobiLink
Uninstalling the software
Select “?” of the MobiLink control panel.
Select [start] - [Control Panel] - [Add or Remove Programs] - [Mobilink], and then
select [Remove] to remove the program.
CAUTION
Do not power the HSDPA/UMTS modem on or off while MobiLink is running.
You can run MobiLink using either of the following procedures.
Double-click on the desktop.
Select [start]- [All Programs] - [Novatel Wireless] - [MobiLink].
18
Setup Utility
The parameters for [Wireless Modem] have been added in [Advanced] menu of the Setup
Utility.
EDGE Enhanced Data rates for Global Evolution
GPRS General Packet Radio Service
HSDPA High Speed Downlink Packet Access
SIM Subscriber Identity Module
UMTS Universal Mobile Telecommunications System
Abbreviations
Appendix
19
Specifications
850/1900 MHz Class 4 (+21dBm)
850 MHz Class E2 (+27dBm)
1900 MHz Class E2 (+26dBm)
850 MHz Class 4 (+33dBm)
1900 MHz Class 1 (+30dBm)
Category 12
3GPP Release 5
MultiSlot Class 10
Mobile Originated SMS (MO-SMS)
Mobile Terminated SMS (MT-SMS)
No Support
No Support
1.8/3V SIM Support
Frequency Band &
Power Class
Data Communication
Other Features
SIM
HSDPA/UMTS
EDGE
GPRS
HSDPA
UMTS
EDGE/GPRS
SMS
FAX
Voice
© 2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Japan
FJ0506-0
DFQX5612ZA

Navigation menu
