OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-W7 series

Introduction.................................................2

Read Me First ..............................................3

Description of Parts .....................................11

First-time Operation .....................................13

On-screen Manual.......................................16

Handling and Maintenance.............................17

Expanding Memory......................................20

Hard Disk Backup Function (Recover Pro)...........22

Hard Disk Data Erase Utility ...........................24

Reinstalling Software....................................25

Troubleshooting (Basic)/Error Code/Message.......27

Hardware Diagnostics...................................31

LIMITED USE LICENSE AGREEMENT..............33

Specifications ............................................35

LIMITED WARRANTY ..................................38

For further information about the com-

puter, you can refer to the on-screen

manual.

To access the on-screen manual

page 16 “On-screen Manual”

For your technical support office, refer to

“LIMITED WARRANTY.”

Getting StartedUseful InformationTroubleshootingAppendix

Introduction

Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc-

tions carefully.

Terms and illustrations in these instructions

Some illustrations are simplified to help your understanding and may look different from the actual unit.

If you do not log on as an administrator, you cannot use some functions or cannot display some screens.

Refer for the latest information about optional products to the catalogs, etc.

In these instructions, the names and terms are referred as follows.

• “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows” or

“Windows XP”

• “WinDVD™ 5 (OEM Version)” as “WinDVD”

• “B’s Recorder GOLD9 BASIC” as “B’s Recorder”

• “B’s CLiP 7” as “B’s CLiP”

The display modes are referred as follows. ( ) indicates the terms in [Intel® Graphics Media Accelerator Driver for

mobile] screen. To display the screen, click [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA

Driver for Mobile].

• Internal LCD (Notebook): The computer’s display

• External display (Monitor): External display

• Simultaneous display (Intel(R) Dual Display Clone): The same screen is displayed on the internal LCD and the

external display.

• Extended desktop: The extended working area across the internal LCD and the external display.

Copyright

be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd.

assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the com-

puter and the manuals.

Trademarks

Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation of the United States

and/or other countries.

Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SDHC Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo-

rated in the United States and/or other countries.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd.

InterVideo, WinDVD™, the InterVideo logo, Ulead and the Corel logo are trademarks or registered trademarks of Corel

Corporation and/or its subsidiaries in Canada, the United States and/or other countries.

Computrace is a registered trademark of Absolute® Software Corp.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective

own companies.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

Enter

: Press [Enter] key.

: Press and hold [Fn] key, and then press [F5] key.

[start] - [Run] : Click [start], and then click [Run].

 : Page in these Operating Instructions.

 : Reference to the on-screen manuals.

CAUTION

NOTE

Getting StartedUseful InformationTroubleshootingAppendix

Read Me First

Federal Communications Commission Radio Fre-

quency Interference Statement

Note: This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

Consult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded inter-

face cables when connecting to a computer or peripheral.

Also, any changes or modifications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

6-M-1

FCC RF Exposure Warning:

This computer is provided with a PC Card slot that could

be used with wireless transmitter(s), which will be spe-

cifically recommended, when they become available.

Other third-party wireless transmitter(s) have not been

RF exposure evaluated for use with this computer and

may not comply with FCC RF exposure requirements.

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

This equipment must be installed and operated in

accordance with provided instructions and minimum

1.5 cm spacing must be provided between antenna

and all person’s body (excluding extremities of hands,

wrist and feet) during wireless modes of operation.

This transmitter must not be co-located or operated in

conjunction with any other antenna or transmitter.

25-M-2-1

This product is restricted to indoor use due to its operation

in the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the fre-

quency range 5.15 to 5.25 GHz to reduce the potential for

harmful interference to co-channel Mobile Satellite sys-

tems. High power radars are allocated as primary users of

the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These

radar stations can cause interference with and/or damage

this product.

25-M-2-1

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)

This device must accept any interference received, includ-

ing interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

6-M-1

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.

On the computer is a label that contains, among other

information, the FCC registration number and ringer

equivalence number (REN) for this equipment. If

required, this information must be provided to the tele-

phone company.

2. An FCC compliant telephone cord and modular plug is

provided with this equipment. This equipment is

designed to be connected to the telephone network or

premises wiring using a compatible modular jack

which is Part 68 compliant. See Installation Instruc-

tions for details.

3. The REN is used to determine the quantity of devices

which may be connected to the telephone line. Exces-

sive RENs on the telephone line may result in the

devices not ringing in response to an incoming call. In

most, but not all area, the sum of RENs should not

exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as deter-

mined by the total RENs, contact the local telephone

company.

4. If your telephone equipment cause harm to the tele-

phone network, the telephone company will notify you

in advice that temporary discontinuance of service

may be required. But if advice notice isn’t practical, the

telephone company will notify the customer as soon as

possible. Also, you will be advised of your right to file a

complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facili-

ties, equipment, operations or procedures that could

affect the operation of the equipment. If this happens

the telephone company will provide advance notice in

order for you to make necessary modifications to

maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair

or warranty information, please contact Panasonic

Corporation of North America at DIAL TOLL FREE 1-

800-LAPTOP5 (1-800-527-8675). If the equipment is

causing harm to the telephone network, the telephone

company may request that you disconnect the equip-

ment until the problem is resolved.

7. There are no user serviceable parts contained in this

equipment.

Models for U.S.A.

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

8. This equipment may not be used on coin service pro-

vided by the telephone company. Connection to party

lines is subject to state tariffs.

9. The Telephone Consumer Protection Act of 1991

makes it unlawful for any person to use a computer or

other electronic device to send any message via a

telephone fax machine unless such message clearly

contains in a margin at the top or bottom of each trans-

mitted page or on the first page of the transmission,

the date and time it is sent and an identification of the

business or other entry, or other individual sending the

message and the telephone number of the sending

machine or such business, other entity, or individual. In

order to program this information into your fax soft-

ware, you should refer to the manual of the Fax soft-

ware being used.

10.According to the FCC’s electrical safety advisory, we

recommend that you may install an AC surge arrestor

in the AC outlet to which this equipment is connected.

Telephone companies report that electrical surges,

typically lightning transients, are very destructive to

customer terminal equipment connected to AC power

sources and that this is a major nationwide problem.

“Caution : To reduce the risk of fire, use only No.26 AWG or

larger telecommunication line cord.”

“ATTENTION : Pour réduire le risque d’incendie, utiliser

uniquement des conducteurs de télécommunications 26

AWG ou de section supérieure.”

16-M-1

Notice for the products using LCD

This product uses one or more fluorescent lamps contain-

ing a small amount of mercury. It also contains lead in

some components. Disposal of these materials may be

regulated in your community due to environmental consid-

erations.

For disposal or recycling information please contact your

local authorities, or the Electronics Industries Alliance:

<http://www.eiae.org/>

24-M-1

This product contains a CR Coin Cell Lithium Battery

which contains Perchlorate Material- special handling

may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

38-M-1

The following safety precautions must be observed during all phases of the operation, usage, service or repair of any

Personal Computer or Handheld Computer incorporating Wireless WAN. Manufacturers of the cellular terminal are

advised to convey the following safety information to users and operating personnel and to incorporate these guidelines

into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design,

manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these

precautions.

When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch

Personal Computer or Handheld Computer incorporating Wireless WAN off, if instructed to do so by the

guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of

cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference

from Personal Computer or Handheld Computer incorporating Wireless WAN placed close to the device. If in

doubt about potential danger, contact the physician or the manufacturer of the device to verify that the

equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or

Handheld Computer incorporating Wireless WAN away from the pacemaker, while it is on.

Switch off Personal Computer or Handheld Computer incorporating Wireless WAN before boarding an

aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft

is forbidden to prevent interference with communications systems. Failure to observe these instructions may

lead to the suspension or denial of cellular services to the offender, legal action, or both.

Do not operate Personal Computer or Handheld Computer incorporating Wireless WAN in the presence of

flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots,

chemical plants or where blasting operations are in progress. Operation of any electrical equipment in

potentially explosive atmospheres can constitute a safety hazard.

Your Personal Computer or Handheld Computer incorporating Wireless WAN receives and transmits radio

frequency energy while switched on. Remember that interference can occur if it is used close to TV sets,

radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off

Personal Computer or Handheld Computer incorporating Wireless WAN wherever forbidden, or when you

suspect that it may cause interference or danger.

Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating Wireless

WAN while driving a vehicle. Do not place the computer with Wireless WAN in an area where it could cause

personal injury to the driver or passengers. It is recommended to stow the unit in the boot or secure stowage

area while driving. Do not place the computer with Wireless WAN in an area over an air bag or in the vicinity

where an air bag may deploy. Air bags inflate with great force and if the computer with Wireless WAN is

placed in the air bag deployment area may be propelled with great force and cause serious injury to

occupants of the vehicle.

Safety Precautions

Getting StartedUseful InformationTroubleshootingAppendix

IMPORTANT!

Personal Computer or Handheld Computer incorporating Wireless WAN operate using radio signals and

cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely solely

upon any wireless device for essential communications, for example emergency calls.

Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating

Wireless WAN must be switched on and in a service area with adequate cellular signal strength.

Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g.

lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an

emergency call.

Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld

Computer incorporating Wireless WAN.

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved

modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified equip-

ment. This certification means that the equipment meets tele-

communications network protective, operational and safety

requirements as prescribed in the appropriate Terminal Equip-

ment Technical Requirements document(s). The Department

does not guarantee the equipment will operate to the user’s

satisfaction.

Before installing this equipment, users should ensure that it is

permissible to be connected to the facilities of the local tele-

communications company. The equipment must also be

installed using an acceptable method of connection. The cus-

tomer should be aware that compliance with the above condi-

tions may not prevent degradation of service in some

situations.

Repairs to certified equipment should be coordinated by a rep-

resentative designated by the supplier. Any repairs or alter-

ations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical

ground connections of the power utility, telephone lines and

internal metallic water pipe system, if present, are connected

together. This precaution may be particularly important in rural

areas. Caution: Users should not attempt to make such con-

nections themselves, but should contact the appropriate elec-

tric inspection authority, or electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN) assigned to

each terminal device provides an indication of the maximum

number of terminals allowed to be connected to a telephone

interface. The termination on an interface may consist of any

combination of devices subject only to the requirement that the

sum of the Ringer Equivalence Numbers of all the devices

does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est con-

forme aux normes de protection, d’exploitation et de sécurité

des réseaux de télécommunications, comme le prescrivent les

documents concernant les exigences techniques relatives au

matériel terminal. Le Ministère n’assure toutefois pas que le

matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est

permis de le raccorder aux installations de l’entreprise locale

de télécommunication. Le matériel doit également être installé

en suivant une méthode acceptée de raccordement.

L’abonné ne doit pas oublier qu’il est possible que la confor-

mité aux conditions énoncées ci-dessus n’empêche pas la

dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être coordon-

nées par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à l’utili-

sateur de débrancher un appareil à la suite de réparations ou

de modifications effectuées par l’utilisateur ou à cause de

mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous

les fils de mise à la terre de la source d’énergie électrique, des

lignes téléphoniques et des canalisations d’eau métalliques,

s’il y en a, sont raccordés ensemble. Cette précaution est par-

ticulièrement importante dans les régions rurales. Avertisse-

ment: L’utilisateur ne doit pas tenter de faire ces

raccordements lui-même; il doit avoir recours à un service

d’inspection des installations électriques, ou à un électricien,

selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à

chaque dispositif terminal indique le nombre maximal de ter-

minaux qui peuvent être raccordés à une interface. La termi-

naison d’une interface téléphonique peut consister en une

combinaison de quelques dispositifs, à la seule condition que

la somme d’indices d’équivalence de la sonnerie de touts les

dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

17-Ca-1

Models for Canada

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

Canadian ICES-003

This Class B digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

7-M-2

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of

the device.

30-Ca-1

This product (local network devices) for the band 5150-

5250 MHz is only indoor usage to reduce potential for

harmful interference to co-channel Mobile Satellite sys-

tems.

High power radars are allocated as primary users (mean-

ing they have priority) of 5250-5350 MHz and 5650-5850

MHz and these radars could cause interference and/or

damage to LELAN devices.

30-Ca-2-1

Declaration of Conformity (DoC)

“Hereby, we declare that this Personal Computer is in compliance with the essential requirements

and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please con-

tact our web address: http://www.doc.panasonic.de

Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Network connection.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Nether-

lands, Sweden, Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland,

Greece, Italy, Norway, Austria, Poland, Hungary, Czech, Slovakia, Slovenia, Estonia, Latvia, Lithuania, Cyprus, Malta,

Romania, Bulgaria and Liechtenstein.

18-E-1

Models for Europe

Getting StartedUseful InformationTroubleshootingAppendix

When using your telephone equipment, basic safety pre-

cautions should always be followed to reduce the risk of

fire, electric shock and injury to persons, including the fol-

lowing:

1. Do not use this product near water, for example, near

a bath tub, wash bowl, kitchen sink or laundry tub, in a

wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk

of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the

vicinity of the leak.

4. Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special

disposal instructions.

SAVE THESE INSTRUCTIONS

19-E-1

Certaines mesures de sécurité doivent être prises pen-

dant l’utilisation de matérial téléphonique afin de réduire

les risques d’incendie, de choc électrique et de blessures.

En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une

baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à

laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil

sans fil) pendant un orage électrique. Ceci peut présenter

un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler

une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de

piles indiqués dans ce manual. Ne pas jeter les piles

dans le feu: elles peuvent exploser. Se conformer aux

règlements pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

19-F-1

This product and your Health

This product, like other radio devices, emits radio fre-

quency electromagnetic energy. The level of energy emit-

ted by this product however is far much less than the

electromagnetic energy emitted by wireless devices like

for example mobile phones.

Because this product operates within the guidelines found

in radio frequency safety standards and recommenda-

tions, we believe this product is safe for use by consum-

ers. These standards and recommendations reflect the

consensus of the scientific community and result from

deliberations of panels and committees of scientists who

continually review and interpret the extensive research lit-

erature.

In some situations or environments, the use of this prod-

uct may be restricted by the proprietor of the building or

responsible representatives of the organization. These sit-

uations may for example include:

Using this product on board of airplanes, or

In any other environment where the risk of interference

to other devices or services is perceived or identified

as harmful.

If you are uncertain of the policy that applies on the use of

wireless devices in a specific organization or environment

(e.g. airports), you are encouraged to ask for authoriza-

tion to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interfer-

ence caused by unauthorized modification of this product.

The correction of interference caused by such unautho-

rized modification will be the responsibility of the user. We

and its authorized resellers or distributors are not liable for

damage or violation of government regulations that may

arise from failing to comply with these guidelines.

26-M-1

Lithium Battery!

This computer contains a lithium battery to enable the

date, time, and other data to be stored. The battery should

only be exchanged by authorized service personnel.

Warning! A risk of explosion from incorrect installation or

misapplication may possibly occur.

15-E-1

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui per-

met de sauvegarder certaines données, notamment la

date et l’heure. La pile ne doit être remplacée que par un

technicien qualifié.

Danger ! Risque d’explosion en cas de non respect de

cette mise en garde!

15-F-1

Important Safety Instructions / Importantes Mesures De Sécurité

Information to the User

Lithium Battery / Pile au lithium

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

12-E-1

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU L’EXÉCU-

TION DE PROCÉDURES AUTRES QUE CELLES SPÉCIFIÉES ICI PEU-

VENT PROVOQUER UNE EXPOSITION À DES RADIATIONS

DANGEREUSES.

NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER

SOIMÊME.

CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL QUALIFIÉ.

12-F-1

12-1-1

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct

method of disposal.

36-M-1

This computer is not intended for use in medical equip-

ment including life-support systems, air traffic control sys-

tems, or other equipment, devices or systems that are

involved with ensuring human life or safety. Panasonic

cannot be held responsible in any way for any damages

or loss resulting from the use of this computer in these

types of equipment, devices or systems, etc.

If a Malfunction Occurs, Immediately Unplug the AC

Plug and the Battery Pack

• This product is damaged

• Foreign object inside this product

• Smoke emitted

• Unusual smell emitted

• Unusually hot

Continuing to use this product while any of the above con-

ditions are present may result in fire or electric shock.

•I

f a malfunction occurs, immediately turn the power off and

unplug the AC plug, and then remove the battery pack.

Then contact your technical support office.

Do Not Touch This Product and Cable When It Starts

Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a Power Source

Other Than a Standard Household AC Outlet

Otherwise, a fire due to overheating may result. Connect-

ing to a DC/AC converter (inverter) may damage the AC

adaptor. On an airplane, only connect the AC adaptor/

charger to an AC outlet specifically approved for such use.

Do Not Do Anything That May Damage the AC Cord,

the AC Plug, or the AC Adaptor

Do not damage or modify the cord, place it near hot tools, bend,

twist, or pull it forcefully, place heavy objects on it, or bundle it tightly.

Continuing to use a damaged cord may result in fire, short circuit, or

electric shock.

CD/DVD Drive Caution

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private

households)

Precautions

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS

PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAF-

FIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT

COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL

NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING

FROM THE USE OF THIS PRODUCT ARISING OUT OF

THE FOREGOING USES.

*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2

Electrical Flight Bag (EFB) Systems and Class1 EFB Systems

when used during critical phases of flight (e.g., during take-off and

landing) and/or mounted on to the aircraft. Class1 EFB Systems

and 2 EFB Systems are defined by FAA: AC (Advisory Circular)

120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.

Panasonic cannot guarantee any specifications, tech-

nologies, reliability, safety (e.g. Flammability/Smoke/

Toxicity/Radio Frequency Emission, etc) requirements

related to aviation standards that exceed the specifica-

tions of our COTS (Commercial-Off-The-Shelf) products.

Getting StartedUseful InformationTroubleshootingAppendix

Do Not Pull or Insert the AC Plug If Your Hands Are Wet

Electric shock may result.

Clean Dust and Other Debris of the AC Plug Regularly

If dust or other debris accumulates on the plug, humidity, etc.

may cause a defect in the insulation, which may result in a fire.

• Pull the plug, and wipe it with a dry cloth.

Pull the plug if the computer is not being used for a long

period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, fire due to overheat-

ing or electric shock may result.

• Do not use a damaged plug or loose AC outlet.

Do Not Place Containers of Liquid or Metal Objects on

Top of the Product

If water or other liquid spills, or if paper clips, coins, or foreign

matter get inside this product, fire or electric shock may result.

• If water spills in the keyboard, refer to page 19. If other for-

eign matter has found its way inside, immediately turn the

power off and unplug the AC plug and remove the battery

pack. Then contact your technical support office.

Do Not Disassemble This Product

There are high-voltage areas inside which may give you

an electric shock if you should touch them. Do not touch

the pins and circuit boards inside, and do not allow foreign

matter to enter inside.

Also, remodeling or disassembly may cause a fire.

Keep SD Memory Cards Away from Infants and Small

Children

Accidental swallowing will result in bodily injury.

In the event of accidental swallowing, see a doctor imme-

diately.

Do Not Place This Product on Unstable Surfaces

If balance is lost, this product may fall over or drop, result-

ing in an injury.

Avoid Stacking

If balance is lost, this product may fall over or drop, result-

ing in an injury.

Do Not Keep This Product Wherever There is a Lot of

Water, Moisture, Steam, Dust, Oily Vapors, etc.

Otherwise, possibly resulting in fire or electric shock.

Do Not Leave This Product in High Temperature Envi-

ronment Such as in a Sun-Heated Car, for a Long

Period of Time

Leaving this product where it will be exposed to extremely

high temperatures such as in a sun-heated car or in direct

sunlight may deform the cabinet and/or cause trouble in the

internal parts. Continued use in such a resulting condition

may lead to short-circuiting or insulation defects, etc. which

may in turn lead to a fire or electric shocks.

Do Not Block the Ventilation Hole

Otherwise, heat will build up inside, possibly resulting in a

fire.

Hold the Plug When Unplugging the AC Plug

Pulling on the cord may damage the cord, resulting in a

fire or electric shock.

Do Not Move This Product While the AC Plug Is Connected

The AC cord may be damaged, resulting in fire or electric shock.

• If the AC cord is damaged, unplug the AC plug immediately.

Use Only the Specified AC Adaptor With This Product

Using an AC adaptor other than the one supplied

(attached to your product or supplied by Panasonic) may

result in a fire.

Do Not Subject the AC Adaptor to Any Strong Impact

Using the AC adaptor after a strong impact such as being

dropped may result in electric shock, short circuit, or fire.

Take a Break of 10-15 Minutes Every Hour

Using this product for long periods of time may have detri-

mental health effects on the eyes or hands.

Do Not Look into the CD/DVD Drive

Looking directly at the internal laser light source may

result in damage to eyesight.

Do Not Use Discs That Are Cracked or Deformed

Because the discs rotate at high speeds, damaged discs

may break apart causing injury.

• Discs that are not round and discs that have been

repaired using adhesives are similarly dangerous, and

so should not be used.

Do Not Turn the Volume Up to Loud When Using

Headphones

Listening at high volumes that overstimulate the ear for

long periods of time may result in loss of hearing.

Use the Modem with a Regular Telephone Line

Connection to an internal phone line (on-premise

switches) of a company or business office, etc. or to a dig-

ital public phone or use in a country or area not supported

by the computer may result in a fire or electric shocks.

Do Not Connect a Telephone Line, or a Network Cable

Other Than the One Specified, into the LAN Port

If the LAN port is connected to a network such as the

ones listed below, a fire or electric shock may result.

• Networks other than 1000BASE-T, 100BASE-TX or

10BASE-T

• Phone lines (IP phone (Internet Protocol Telephone),

Telephone lines, internal phone lines (on-premise

switches), digital public phones, etc.)

Do Not Use with Exposing the Skin to This Product

for a Long Period of Time

Using this product with exposing the skin to the heat

source of this product or AC adaptor for a long period of

time can cause a low-temperature burn.

Do not place the computer near a television or radio

receiver.

Keep the computer away from magnets. Data stored

on the hard disk may be lost.

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

Do Not Use with Any Other Product

The battery pack is rechargeable and was intended for

the specified product. If it is used with a product other

than the one for which it was designed, electrolyte leak-

age, generation of heat, ignition or rupture may result.

Do Not Charge the Battery Using Methods Other Than

Those Specified

If the battery pack is not charged using one of the speci-

fied methods, electrolyte leakage, generation of heat, igni-

tion or rupture may result.

Do Not Throw the Battery Pack into a Fire or Expose It

to Excessive Heat

Generation of heat, ignition or rupture may result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight,

for Example)

Electrolyte leakage, generation of heat, ignition or rupture

may result.

Do Not Insert Sharp Objects into the Battery Pack,

Expose It to Bumps or Shocks, Disassemble, or Mod-

ify It

Electrolyte leakage, generation of heat, ignition or rupture

may result.

Do Not Short the Positive (+) and Negative (-) Con-

tacts

Generation of heat, ignition or rupture may result. Do not

place the battery pack together with articles such as neck-

laces or hairpins when carrying or storing.

Do Not Use This Product with a Battery Pack Other

Than the One Specified

Use only the specified battery pack (CF-VZSU51W/CF-

VZSU52W) with your product. Use of battery packs other

than those manufactured and supplied by Panasonic may

present a safety hazard (generation of heat, ignition or

rupture).

Do not touch the terminals on the battery pack. The

battery pack may no longer function properly if the

contacts are dirty or damaged.

Do not expose the battery pack to water, or allow it to

become wet.

If the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the

battery pack until the remaining battery level becomes

30% to 40% and store it in a cool, dry place.

This computer prevents overcharging of the battery by

recharging only when the remaining power is less than

approx. 95% (when Economy Mode (ECO) is enabled:

75%) of capacity.

The battery pack is not charged when the computer is

first purchased. Be sure to charge it before using it for

the first time. When the AC adaptor is connected to

the computer, charging begins automatically.

Should the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush your

eyes with clear water and see a doctor for medical

treatment as soon as possible.

NOTE

The battery pack may become warm during

recharging or normal use. This is completely nor-

mal.

Recharging will not commence if internal tempera-

ture of the battery pack is outside of the allowable

temperature range (0 °C to 55 °C {32 °F to 131

°F}). ( Reference Manual “Battery Power”)

Once the allowable range requirement is satisfied,

charging begins automatically. Note that the

recharging time varies based on the usage condi-

tions. (Recharging takes longer than usual when

the temperature is 10 °C {50 °F} or below.)

If the temperature is low, the operating time is

shortened. Only use the computer within the

allowable temperature range.

The battery pack is a consumable item. If the

amount of time the computer can be run by using a

particular battery pack becomes dramatically

shorter and repeated recharging does not restore

its performance, the battery pack should be

replaced with a new one.

When transporting a spare battery inside a pack-

age, briefcase, etc., it is recommended that it be

placed in a plastic bag so that its contacts are pro-

tected.

Always power off the computer when it is not in

use. Leaving the computer on when the AC adap-

tor is not connected will exhaust the remaining bat-

tery capacity.

Precautions (Battery Pack)

A lithium ion battery that is recy-

clable powers the product you

have purchased.

Please call 1-800-8-BATTERY

for information on how to recycle

this battery.

L’appareil que vous vous êtes

procuré est alimenté par une bat-

terie au lithium-ion.

Pour des renseignements sur le

recyclage de la batterie, veuillez

composer le

1-800-8-BATTERY.

Getting Started

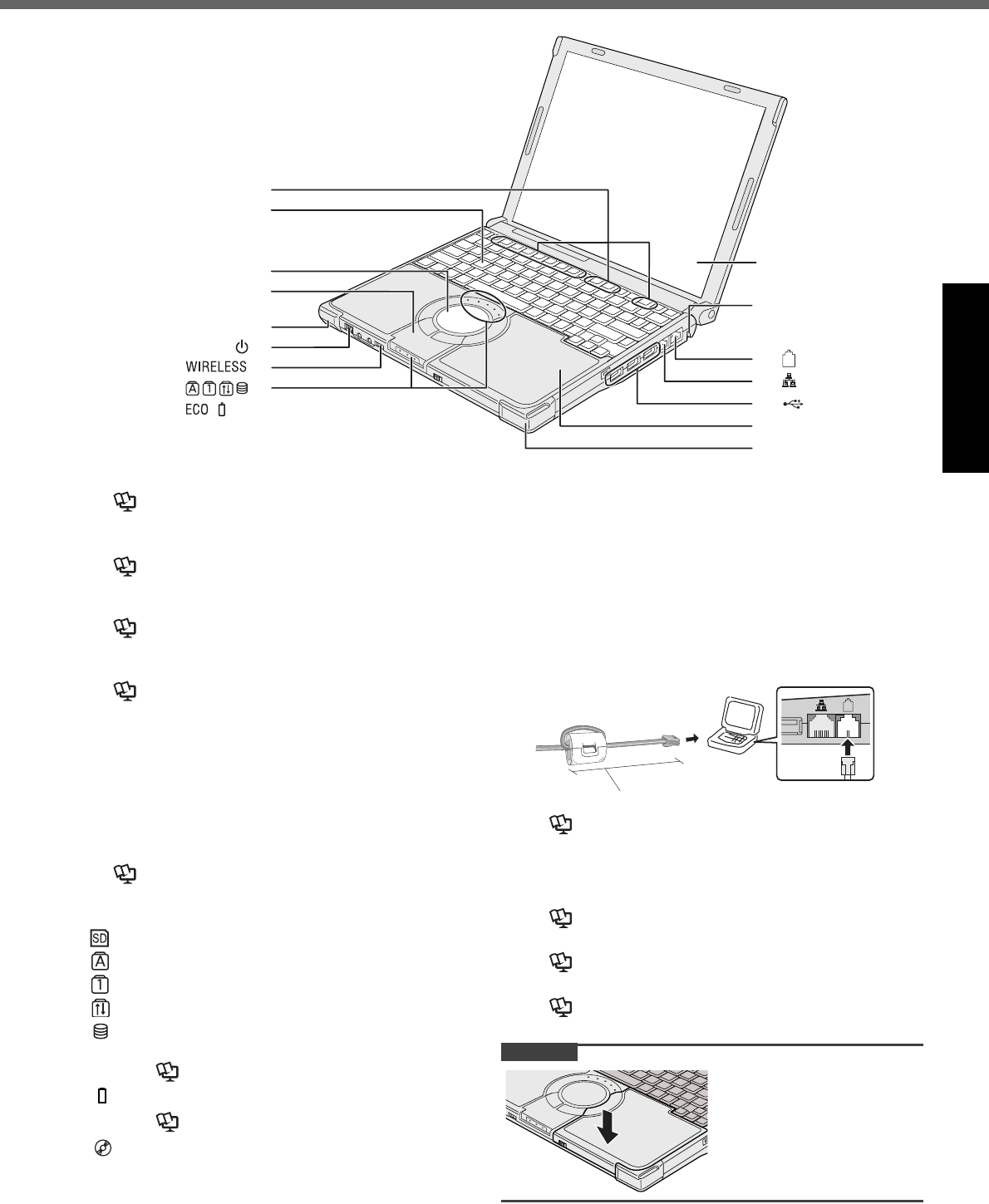

Description of Parts

A :Function Key

 Reference Manual “Key Combinations”

B :Keyboard

C :Touch Pad

 Reference Manual “Using the Touch Pad”

D :Bluetooth Antenna

 Supplementary Instructions

E : Wireless LAN Antenna

 Reference Manual “Wireless LAN”

F : Power Switch

page 14

Power Indicator

• Off: Power off/Hibernation

•Green: Power on

• Blinking green: standby

G :Wireless Switch

Switch the wireless devices to on (right side) or to off (left side).

 Reference Manual “Disabling/Enabling Wire-

less Communication” “Wireless LAN”

H :LED Indicator

: SD/SDHC Memory Card status

: Caps lock

: Numeric key (NumLk)

: Scroll lock (ScrLk)

: Hard disk drive status

ECO

: Economy Mode (ECO) status

 Reference Manual “Battery Power”

: Battery status

 Reference Manual “Battery Power”

: CD/DVD drive status

• Off: Drive power is off.

• Green: Drive power is on, but the drive is not

accessed.

• Blinking green: Drive power is on, and the drive is

being accessed.

I : LCD

J : Security Lock

You can connect a Kensington cable. Refer to the instruc-

tion manual of the cable. The security lock and cable is a

theft prevention device. Matsushita Electric Industrial Co.,

Ltd. will bear no responsibility in the event of theft.

K :Modem Port

• Be sure to use the included modem telephone cable,

and insert the ferrite core side of modem telephone

cable into the modem port on the computer.

• Do not move/remove the ferrite core of modem tele-

phone cable.

 Reference Manual “Modem”

L : LAN Port

If the Mini Port Replicator is connected to the computer,

connect the LAN cable to the LAN port on the Mini Port

Replicator. You cannot use the LAN port on the computer.

 Reference Manual “LAN”

M :USB Ports

 Reference Manual “USB Devices”

N :CD/DVD Drive

 Reference Manual “CD/DVD Drive”

CAUTION

When closing the disc

cover, press down the disc

cover (position of the

arrow) to ensure that the

cover is locked.

90 mm {3.5 "} or less

Description of Parts

Getting StartedUseful InformationTroubleshootingAppendix

':6

A :DC-IN Jack

B :External Display Port

If the Mini Port Replicator is connected to the com-

puter, connect the external display to the external dis-

play port on the Mini Port Replicator. You cannot use

the external display port on the computer.

 Reference Manual “External Display”

C :Mini Port Replicator Connector

Connect the Mini Port Replicator (optional).

 Reference Manual “Mini Port Replicator”

D :Ventilation Hole

E : PC Card Slot

 Reference Manual “PC Cards”

F : SD Memory Card Slot

 Reference Manual “SD/SDHC Memory Card”

G :CD/DVD Drive Power/Open Switch

• Slide the switch to the right to open the disc cover.

• Slide the switch to the left to turn on/off the drive power.

H :Microphone Jack

A condenser microphone can be used. If other types

of microphones are used, audio input may not be pos-

sible, or malfunctions may occur.

• When recording in stereo using a stereo microphone:

Click [start] - [All Programs] - [SoundMAX] - [Control

Panel] and select [Microphone], and then select [No

Filtering] in [Microphone Enhancements].

• When using a monaural microphone with a 2-termi-

nal plug:

Click [start] - [All Programs] - [SoundMAX] - [Control

Panel] and select [Microphone], and then select

[Voice Recording] in [Microphone Enhancements].

Otherwise only audio on the left track will be heard

when recorded in stereo.

I : Headphone Jack

You can connect headphones or amplified speakers.

When they are connected, audio from the internal

speakers is not heard.

J : Battery Latches

page 13

K :Battery Pack

L : RAM Module Slot

page 20

M :Speaker

N :Emergency Hole

 Reference Manual “CD/DVD Drive”

For model with EVDO or without wireless WAN:

The SIM card slot under this cover is not used for this model. Do not open the cover.

For other models:

Refer to the additional instructions.

Wireless WAN Antenna

Getting StartedUseful InformationTroubleshootingAppendix

First-time Operation

Preparation

ACheck and identify the supplied accessories.

If you do not find the described accessories, contact your technical support office.

You will need the serial number when you reinstall B’s Recorder/B’s CLiP (page 30).

BRead the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging

(page 33).

Slide the battery pack in parallel with the arrow direction and attach it so that the

left and right projections on the new battery pack match the dents of the com-

puter.

In case that the projection does not match the dents of the computer, detach the

battery pack once, then slide it while pushing it lightly to avoid floating.

CAUTION

Make sure the latches are securely locked. Otherwise the battery pack may fall

when you carry the computer.

Do not touch the terminals of the battery pack and the computer. Doing so can

make the terminals dirty or damaged, and may cause malfunction of the battery

pack and the computer.

Hold and lift the A part to open the display.

Be careful not to press the SIM card slot cover (B) by mistake.

CAUTION

Do not open the display wider than necessary (140° or more), and do not apply

excessive pressure to the LCD. Do not open or close the computer holding the

edge of the LCD segment.

The battery charging starts automatically.

CAUTION

Do not disconnect the AC adaptor and do not switch the wireless switch to on

until the first-time operation procedure is completed.

When using the computer for the first time, do not connect any peripheral device

except the battery pack and AC adaptor.

Handling the AC adaptor

• Problems such as sudden voltage drops may arise during periods of thunder

and lightning. Since this could adversely affect your computer, an uninterrupt-

ible power source (UPS) is highly recommended unless running from the bat-

tery pack alone.

• AC Adaptor . . . . 1

Model No: CF-AA1623A

• AC Cord . . . . . . 1 • Battery Pack . . .1

Model No: CF-VZSU51W

• Modem Telephone

Cable . . . . . . . . . 1

• Operating Instructions (This book) . . 1 • Product Recovery DVD-ROM (Windows® XP) . . . .1

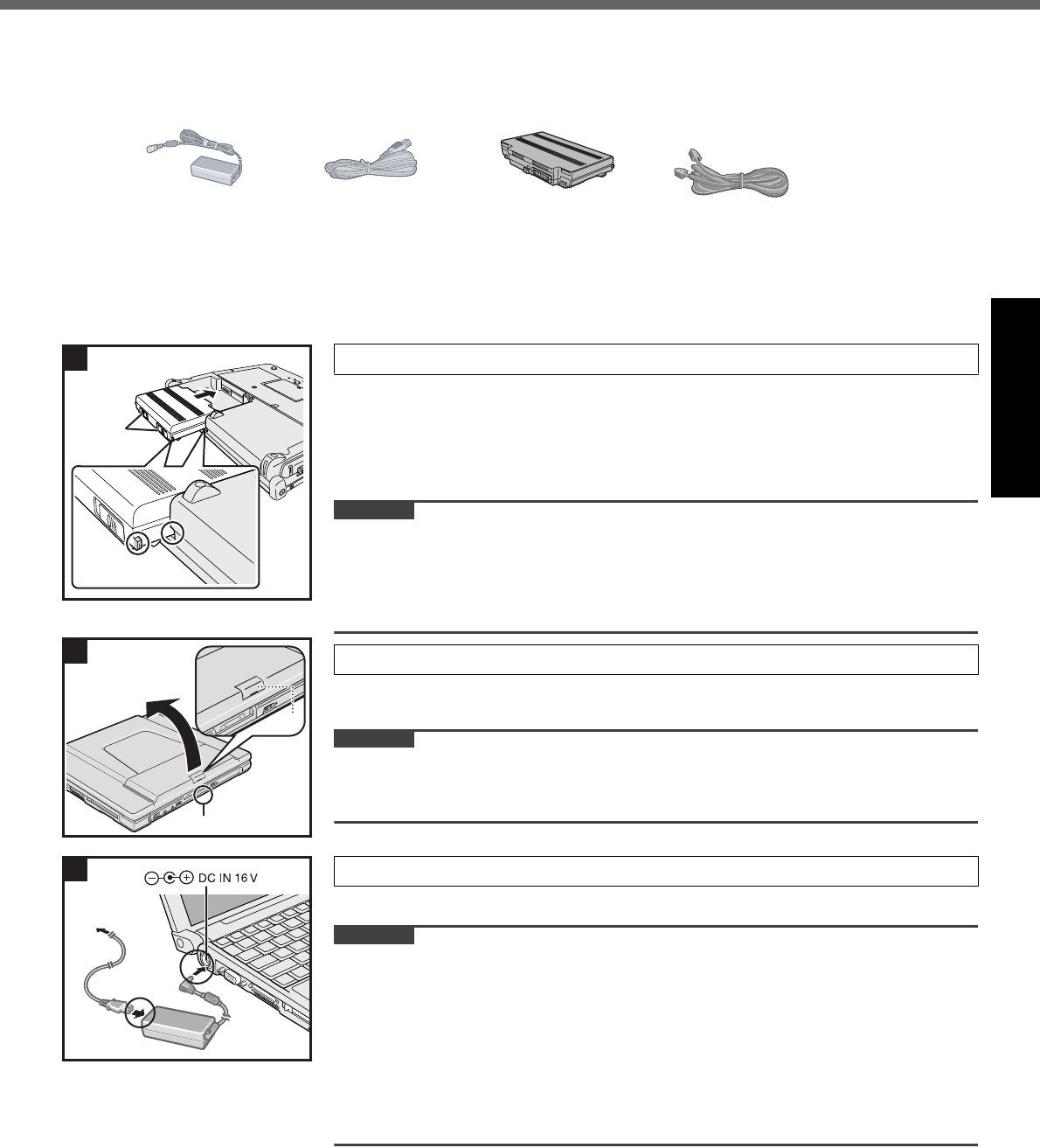

1 Insert the battery pack.

Battery

Latches

2 Open the display.

3 Connect your computer to a power outlet.

First-time Operation

Getting StartedUseful InformationTroubleshootingAppendix

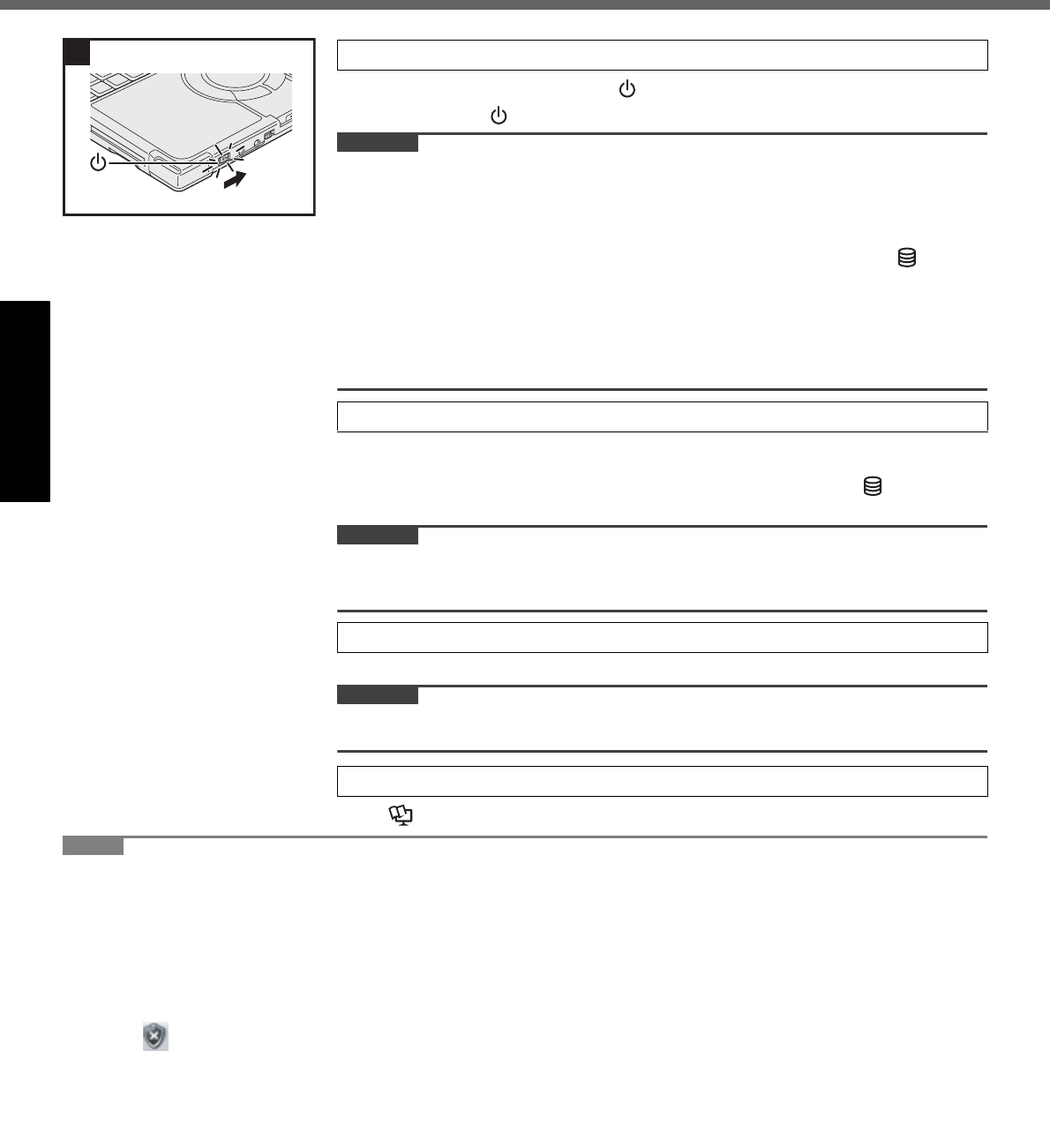

Slide and hold the power switch for approximately one second until the

power indicator lights.

CAUTION

Do not slide the power switch repeatedly.

The computer will forcibly be turned off if you slide and hold the power switch for

four seconds or longer.

Once you turn off the computer, wait for ten seconds or more before you turn on

the computer again.



Do not perform the following operation until the hard disk drive indicator turns off.

• Connecting or disconnecting the AC adaptor

• Sliding the power switch or CD/DVD drive power/open switch

• Touching the keyboard or touch pad

• Closing the display

Do not change the Setup Utility until completing step 5. If you do so, Windows

setup may not operate properly.

Follow the on-screen instructions.

The computer will restart after the setup is complete.

To go to the next step, wait until the hard disk drive indicator has turned

off.

CAUTION

When you set date/time/time zone and click [Next], the screen may not go to the

next step for a few minutes. Do not touch the keyboard or touch pad, and wait

until the screen changes.

Click [start] - [Control Panel] - [User Accounts] - [Create a new account].

CAUTION



Remember your password. If you forget the password, you cannot use the Windows

operation system. Creating a password reset disk beforehand is recommended.

 Reference Manual “CD/DVD Drive”

NOTE

Regarding Windows XP

You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs

on or off. This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).

Windows Update

You can update to the latest patches and service packs for Windows with the following menus.

[start] - [All Programs] - [Windows Update]

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required,

contact your technical support office.

If the message “Your computer might be at risk” is displayed

Select (red icon) on the notification area and make the appropriate settings. The Windows Security Center reg-

ularly gives you notice so that you can make the optimum settings. This is not an error message and you can use the

computer. However, making appropriate measures is recommended to reduce the risk of virus and other attacks.

If you hear the sounds from CD/DVD drive

In the following situations, the sounds from the CD/DVD drive can be heard.

• Immediately after the CD/DVD drive is turned on

• Just after turning on the computer with [DVD Drive Power] set to [On] in the Setup Utility

• When a CD or DVD is playing

The sounds you hear are normal operating sounds created by the motor in the CD/DVD drive operating; it is not a

malfunction.

4 Turn on the computer.

5 Setup Windows.

6 Create a new account.

7 Change the internal CD/DVD drive letter if necessary.

Getting StartedUseful InformationTroubleshootingAppendix

PC Information Viewer

This computer periodically records the management information including the hard disk information such as number

of hours powered-on, number of times powered-on, internal temperature, replacement sector. The maximum data

volume for each record is 750 byte.

These information are only used for estimating the cause when the hard disk goes down by any possibility. They are

never sent to outside via network nor used for any other purpose except for the purpose described the above.

To disable the function, add the check mark for [Disable the automatic save function for management information

history] in [Hard Disk Status] of PC Information Viewer, and click [OK].

When you disable the function, information on how to use the hard disk is not displayed.

( Reference Manual “Check the Computer’s Usage Status” and Hard Disk Handling)

To conserve power, the following power saving methods are set at the time of purchase (When AC adaptor

is connected).

• The screen automatically turns off after 15 minutes of inactivity.

• The computer automatically enters standby*1 after 20 minutes of inactivity.

*1 Refer to Reference Manual “Standby and Hibernation Functions” about resuming from standby.

Power consumption in each mode is as follows. (When AC adaptor is connected)

• When the screen is off Approx. 12 W

• In standby Approx. 2.2 W

• The battery pack is fully charged (or not being charged) and the computer is off Approx. 0.7 W

Note that the computer consumes electricity even when the computer power is off. If the battery pack is fully

charged, the battery will be fully discharged in the following period of time:

When using the battery pack (CF-VZSU51W)

•When power is off: Approx. 1.5 months

•In standby: Approx. 2 days*2

•In hibernation: Approx. 3 days*2

When using the battery pack (CF-VZSU52W)

•When power is off: Approx. 0.7 months

•In standby: Approx. 1 days*2

•In hibernation: Approx. 1.5 days*2

*2 If “Wake Up from wired LAN” is disabled, the period of time will become slightly longer.

If “Wake Up from wireless LAN” is enabled, the period of time will become shorter.

If the computer feels warm while you are using it

• Check the usage environment

- Avoid using the computer on a highly heat retentive surfaces (e.g., rubber pads). If possible, use the computer

on surfaces with good heat dissipation, such as a steel desk.

- Do not use a keyboard cover, as this prevents heat dissipation.

- Always keep the display open when using the computer.

• Check the computer settings

- If the computer becomes warm while the screen saver is displayed, set the screen saver to [Windows XP].

Screen savers that use 3-D images or other complex images increase the CPU utilization rate.

- Use recommended RAM module products. Non-recommended RAM modules may not operate properly, and

may cause damage to your computer.

- If you are not using a wireless LAN, turn the wireless LAN off.

• Double-click on the desktop and click [High speed], then [OK].

- When you set [High speed], rotation of the cooling fan speeds up and the computer can be cooled down. Note

that the battery operation time will be shorter.

- When you do not frequently use CPU or the rotation sound of the fan bothers you, set [Standard] or [Low speed]

as necessary.

When Starting Up/Shutting Down

Do not do the following

• Connecting or disconnecting the AC adaptor

• Sliding the power switch or CD/DVD drive power/open switch

• Touching the keyboard, touch pad or external mouse

• Closing the display

Getting StartedUseful InformationTroubleshootingAppendix

On-screen Manual

You can access the Reference Manual, the Important Tips and the Bluetooth Supplementary Instructions (Only for mod-

els with Bluetooth) on the computer screen after completing the “First-time Operation”.

When you access the Reference Manual, the Important Tips or the Bluetooth Supplementary Instructions (Only for

models with Bluetooth) for the first time, the License Agreement of the Adobe Reader may be displayed. Read it care-

fully and select [Accept] to proceed.

Reference Manual

The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.

To access the Reference Manual:

Click [start] - [Reference Manual].

Important Tips

The Important Tips will provide you with the helpful information about the battery. Read to use the battery pack in the

optimum condition to obtain longer operation time.

To access the Important Tips:

Double-click on the desktop.

Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

Hard Disk Handling

The Hard Disk Handling will provide you with the helpful information on how to use the hard disk.

To access the Hard Disk Handling Supplementary Instructions:

Click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Hard Disk Handling].

Bluetooth Supplementary Instructions

The Supplementary Instructions will provide you with the helpful information about the Bluetooth.

To access the Bluetooth Supplementary Instructions:

Click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Bluetooth Manual].

NOTE

When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure to update.

See http://www.adobe.com/ for the latest version of Adobe Reader.

Contents

Read Me First

Using the Touch Pad

Key Combinations

Battery Power

Computing on the Road

Standby or Hibernation Functions

Security Measures

CD/DVD Drive

WinDVD

B’s Recorder/B’s CLiP

PC Cards

SD/SDHC Memory Card

SD Security

Mini Port Replicator

External Display

USB Devices

Modem

LAN

Disabling/Enabling Wireless

Communication

Wireless LAN

Setup Utility

Icon Enlarger

Loupe Utility

DMI Viewer

Recover Pro

Troubleshooting (Advanced)

Check the Computer’s Usage Sta-

tus

PC Information Popup

Protecting Your Computer from

Viruses

Technical Information

Getting StartedUseful InformationTroubleshootingAppendix

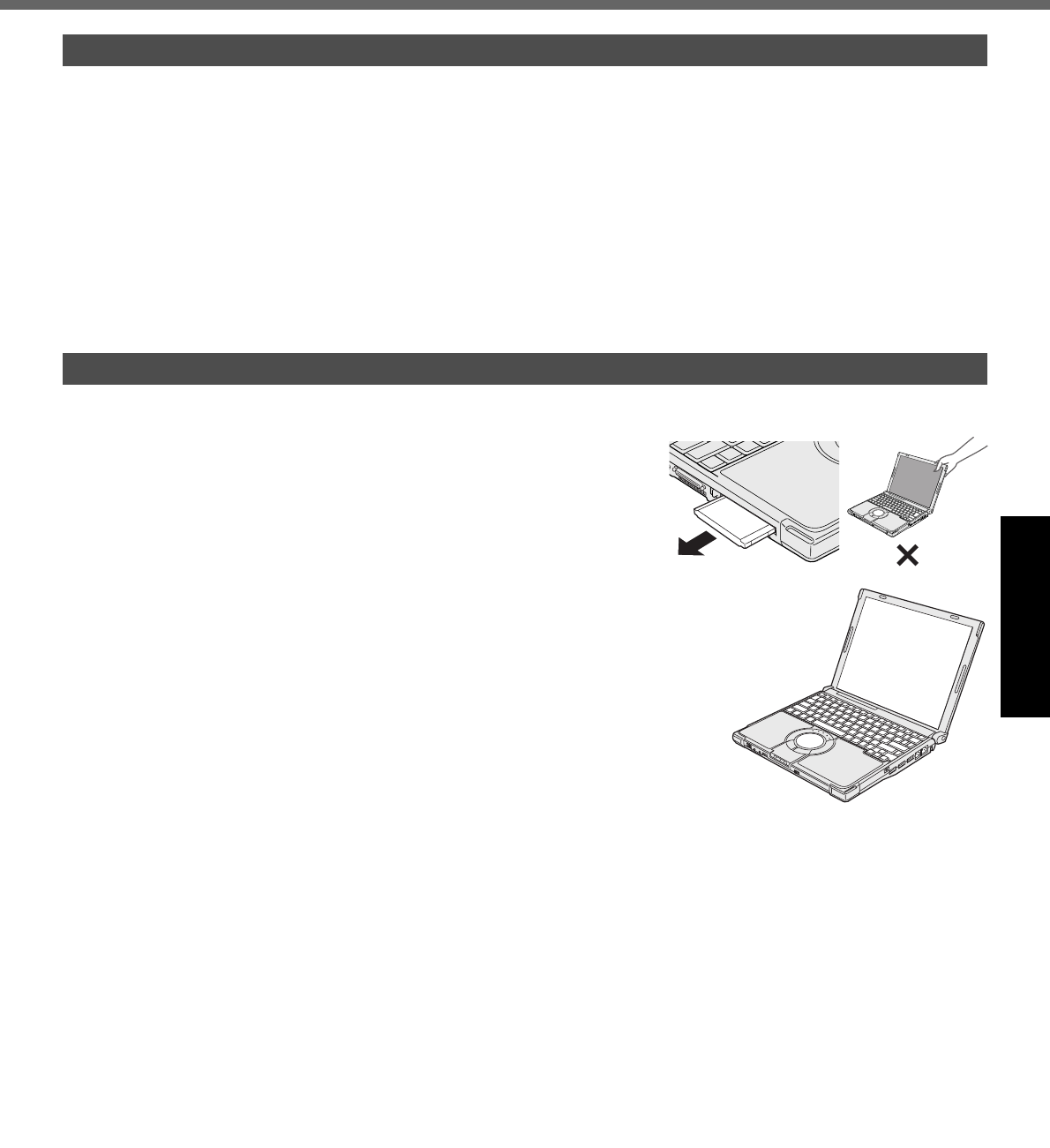

Handling and Maintenance

Place the computer on a flat stable surface. Do not place the computer upright. If the computer is exposed to an

extremely strong impact, it may become inoperable.

Temperature: Operation: 5 °C to 35 °C {41 °F to 95 °F}

Storage: -20°C to 60 °C {- 4 °F to 140 °F}

Humidity: Operation: 30% to 80% RH (No condensation)

Storage: 30% to 90% RH (No condensation)

Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in

the product deterioration and will shorten the product life.

Do not place the computer in the following areas, otherwise the computer may be damaged.

• Near electronic equipment. Image distortion or noise may occur.

• Near magnets or in magnetic fields.

• In extremely high or low temperature.

As the computer can become hot during operation, keep it away from items that are sensitive to heat.

This computer is designed to minimize shock to parts such as the hard disk drive, but no warranty is provided against

any trouble caused by shock. Be extremely careful when handling the computer.

When carrying the computer:

• Turn off the computer.

• Remove all external devices, cables, cards and other protruding things.

• Remove a disc in the CD/DVD drive.

• Do not drop or hit the computer against solid objects.

• Do not leave the display open.

• Do not grip the display part.

When you board an airplane, take the computer with you and never put it in your

checked luggage. When using the computer on airplane, follow the airline’s

instructions.

When carrying a spare battery, put it in a plastic bag to protect its terminals.

This computer contains a magnet and magnetic products at the locations circled

in the illustration at right. Avoid leaving metallic object or magnetic media in con-

tact with these areas.

The touch pad is designed to be used with a finger tip. Do not place any object on

its surface and do not press down strongly with sharp-pointed or hard objects that

may leave marks (e.g., nails, pencils and ball point pens).

Avoid any harmful substances such as oil from getting into the touch pad. The

cursor may not work correctly.

If the computer is being carried in a soft bag with the battery pack removed, avoid undue pressure on the body of the

computer in a crowded place, etc., as this may result in damage to the LCD.

When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction

manuals of the peripheral devices.

Use the peripheral devices conforming to the computer’s specifications.

Connect to the connectors in the correct direction.

If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.

If screws are included, fasten them securely.

Preventing your computer from unauthorized use via wireless LAN/wireless WAN

Before using wireless LAN/wireless WAN, make the appropriate security settings such as data encryption.

Computrace® Software

Computrace® software tracks your stolen computer.

Perform the following steps before installing Computrace® software.

Computrace® software is not included or installed in this computer.

Operation Environment

Handling Cautions

Handling and Maintenance

Getting StartedUseful InformationTroubleshootingAppendix

CAUTION

You will be unable to set [Computrace (R) BIOS Module] to [Disable] once you have set to [Enable]. Do not change

the setting when not used.

• Even if you have set [Computrace (R) BIOS Module] to [Enable], this setting may return to [Disable] after repairs to

the motherboard, etc. have been made.

NOTE

Consult Absolute Software Corp. before disposal.

Refer to the following URL for Computrace® software for installation and available service regions. Note that this

service is only available in certain regions.

http://www.absolute.com

1 Turn on or restart the computer, and press

while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

If the password is requested, enter the Supervisor Password.

2 Select the [Security] menu, then select [Computrace (R) Sub-Menu] and press

Enter

3 Select [Computrace (R) BIOS Module], and set to [Enable].

4 At the confirmation message, select [Execute] and press

Enter

5 At the reconfirmation message, select [Execute] and press

Enter

6 Press

F10

At the confirmation message, select [Yes] and press

Enter

The computer restarts.

To clean the LCD panel and touch pad

Wipe lightly with a gauze or other dry, soft cloth.

To clean areas other than the LCD panel and touch pad

Wet a soft cloth with water or a diluted kitchen cleanser (neutral), wring the cloth out thoroughly, and wipe the dirty area

gently. Using a detergent other than a neutral kitchen cleanser (e.g., a weak alkali cleanser) may adversely affect

painted surfaces.

CAUTION

Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.

Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to

the surface.

Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause

malfunction or damage.

Maintenance

Getting StartedUseful InformationTroubleshootingAppendix

The keyboard on this computer incorporate a drain system (a moisture protection mechanism) that minimizes the

amount of liquid reaching the inside of the computer even if water is spilled on the keyboard.

Any water that comes in contact with the keyboard is drained off through holes in the bottom of the computer, so that vir-

tually no water is left inside the computer. However, this is not a guarantee against damage to the hard disk or other

internal parts, or against the loss or deletion of data.

The drain system is incorporated into only the keyboard. It does not apply to any other components.

If you spill water or any other liquid on the keyboard, even a small amount, be sure to perform the following steps.

Failure to perform these steps may result in damage to the computer. The drain system will not provide complete

protection against water entering the computer.

1 Immediately turn off the computer, and remove the AC adaptor.

2 Wipe any water droplets off of the top of the keyboard using a

soft, dry cloth.

3 Slowly lift up the computer, keeping it level,

and wipe any water coming out of the holes

on the bottom using a soft, dry cloth.

If the computer is tilted during this step, liquid may seep

inside the computer resulting in damage.

4 Keeping the computer level, move

the computer to a dry place.

If the computer is placed back on the wet

surface, water may seep inside the computer

from the bottom.

5 Insert the tip of a ball-point pen or other object into the emer-

gency hole on the bottom of the computer, and move it in the

direction of the arrow to open the disc cover.

The computer should be kept level, without tilting, while the disc cover is being

opened. Move the computer to the edge of the desk or table to perform this oper-

ation.

6 Check to see whether there is any water inside the CD/DVD drive.

If there is water inside, wipe it using a soft, dry cloth.

7 Remove the battery pack.

8 Be sure to contact your technical support office to have the computer checked for any

malfunctions.

If You Spill Water on the Keyboard

Note that repairs resulting from liquids being spilled on the computer are not free of charge, and not covered by war-

ranty.

Getting StartedUseful InformationTroubleshootingAppendix

Expanding Memory

Use RAM modules that comply with the specifications below. Using any other module may cause malfunction or result

in computer failure.

RAM module specifications:

DDR2 SDRAM, 200 pins, SO-DIMM, 1.8 V, PC2-4200

CAUTION

Use recommended RAM module products. Do not use non-recommended RAM modules. Non-recommended RAM

modules may not operate properly, and may cause damage to your computer. Some non-recommended RAM mod-

ules may overheat, causing the cover to warp. Refer to various sources for recommended RAM module.

RAM modules are extremely sensitive to static electricity. There are cases where static electricity generated by the

human body has adversely affected such RAM modules. When inserting or removing a RAM module, do not touch

the terminals or internal components, insert objects other than the module, or allow foreign particles to enter. Doing

so has been known to cause damage, fire or electric shock.

Matsushita Electric Industrial Co., Ltd. will bear no responsibility whatsoever for failures or damage caused by the

use of non-recommended RAM modules, or by incorrect installation or removal of such RAM modules. Before

installing a RAM module, confirm the product type and the correct installation method.

Preparation

ATurn off your computer.

• Do not use the standby or hibernation.

BDisconnect the AC adaptor and remove the battery pack.

CRemove the screw (A) and the cover on the bottom of the computer.

• Use the appropriate screw driver so as not to strip the thread of screw.

1 Place the RAM module lightly in parallel with the RAM module slot so that the notch (B)

of the RAM module and the protrusion (C) of the RAM module slot is in the same direc-

tion.

The gold terminals are visible at this point.

RAM module is at an angle of 20° - 30° with the horizontal line.

Inserting the RAM Module

RAM Module

Slot

B C Gold Terminals

Getting StartedUseful InformationTroubleshootingAppendix

2 Insert the RAM module parallel to the slot firmly until the gold

terminals are invisible.

If it is hard to insert the RAM module, do not try forcibly but check the mod-

ule’s direction.

3 Press the RAM module down until the right and left hooks (D)

lock into place.

When pressing down the module, the right and left hooks will open slightly

and will return after locking.

If it is hard to press down the RAM module, do not try forcibly but check the

module’s direction.

4 Set the cover and battery pack back.

NOTE

If the RAM module is recognized correctly, the total size of this computer’s memory and RAM module memory is dis-

played on the [Information] menu of the Setup Utility.

If the RAM module is not recognized, turn off the computer and insert it again.

1 Carefully open the left and right hooks (E).

The RAM module will be raised.

2 Carefully remove the RAM module from the slot.

3 Set the cover and battery pack back.

Removing the RAM Module

Getting StartedUseful InformationTroubleshootingAppendix

Hard Disk Backup Function (Recover Pro)

The Recover Pro creates a backup area (storage area) on the hard disk to back up (store) the hard disk data, and

restores the backup data to its original location when it is lost or corrupted by operational errors or other factors.

You do not need external media or peripheral devices to back up or restore hard disk data on this computer.

At purchase, the Recover Pro is not installed. Install using the instructions below.

The Recover Pro provides 3 types of backup as follows:

Quick Backup: Scheduled backup of the updated data

File Backup: File backup at file save and change

Complete Backup: Backup of the entire data on the internal hard disk

Here, we will explain the procedures for installation, complete backup (backing up hard disk contents in case Windows

cannot be booted), and complete restore (recovering the

hard disk data

to its condition at the time of the complete

backup).

For further information, refer to the software’s online manual (page 23).

CAUTION

All operations should be executed with the AC adaptor connected. Do not turn the power off while operations are in

progress. If the power is turned off while installation, backup, or restore operations are in progress, these operations

may not function properly, and it may be impossible to start Windows. Also, do not press any keys or slide any

switches, including hot keys.

When restarting the computer, the message “Check file system on C:” will appear. Follow the on-screen instructions.

Do not skip the check process.

Make sure you allow enough space on the hard disk when choosing settings during installation. To change these

settings you must reinstall Recover Pro.

To execute Complete Backup reliably, we recommend performing [Typical] installation in the following cases.

• Hard

disk

with a single partition

• Immediately after reinstalling software (when more than half of the entire space of the hard disk is available)

(page 25)

Be sure to use the internal hard disk drive to create the backup area. Never use disk or device other than the internal

hard disk drive.

Some software (security software, backup software, encryption software, or hard disk accessible specific software,

etc.) may be incompatible with Recover Pro.

For further information, refer to:

http://www.phoenix.com/en/Customer+Services/White+Papers-Specs/Recover+Pro/default.htm

When using Personal Secure Drive ( Installation Manual of "Trusted Platform Module (TPM)"), do not execute

File Backup for Personal Secure Drive.

The “Create recovery CD-DVD” function in Recover Pro is designed to help you save complete backup data to CD or

DVD. When using the “Create recovery CD-DVD”, you can view the complete backup data on the hard disk, but take

care to avoid accidentally deleting this data.

Preparation

Connect the AC adaptor.

1 Log on to Windows as an administrator.

2 Close all programs.

3 Disable anti-virus software.

4 Click [start] - [Run], enter [c:\util\rcvpro\setup.exe], and click [OK].

The InstallShield Wizard screen appears.

5 Click [Next].

Follow the on-screen instructions.

Carefully read the License Agreement, and click [I accept the agreement.].

The computer restarts several times to complete installation. appears in the notification area.

The Recover Pro cannot back up or restore data correctly if a hard disk problem occurs during data backup or restoring.

If an error occurs due to an unexpected malfunction, incorrect operation, or other reason while data is being

restored, the hard disk data (data before restoration) may be lost.

Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damage suffered (including loss of data) as a

result of the use of this function.

Installation

Getting StartedUseful InformationTroubleshootingAppendix

CAUTION

During the installation, the screen may become black (no display) momentarily. This is not a malfunction.

If you select [Typical] in installation, approximately 40% (max.) of the hard disk drive space is allocated as the

backup area.

You cannot change the size of backup area after creation.

Backs up all data on the hard disk.

Preparation

Connect the AC adaptor.

1 Log on to Windows as an administrator.

2 Close all programs.

3 Click [start] - [All Programs] - [Phoenix Applications] - [Phoenix Recover Pro 6].

“Recover Pro 6” screen appears.

4 Click [Complete Backup], and click [Yes].

The computer restarts, and “Recover Pro 6” screen appears.

Follow the on-screen instructions.

NOTE

You can completely backup only one set of the whole data in the hard disk to the backup area.

Do not touch the power switch while using the Recover Pro.

This function uses the data created during complete backup. It restores the

hard disk data

to the condition when you

performed the complete backup. Files created and changes made to settings after the latest complete backup is made

will be deleted.

Preparation

Connect the AC adaptor.

1 Click [start] - [All Programs] - [Phoenix Applications] - [Phoenix Always Launcher] and

click [Run].

The computer restarts, and “Phoenix Always” screen appears.

Alternatively turn on or restart the computer, and hold down

while [Panasonic] boot screen is displayed until

“Phoenix Always” screen appears.

2 Click [Protect / Recover], and click [Phoenix Recover Pro 6].

“Recover Pro 6” screen appears.

3 Click [Complete Restore].

Follow the on-screen instructions.

NOTE

Do not touch the power switch while using the Recover Pro.

To access the online manual

AClick [start] - [All Programs] - [Phoenix Applications] - [Docs], and double-click [UserGuides].

BDouble-click the file of Recover Pro user’s guide or Phoenix Always user’s guide.

Complete Backup

Complete Restore

Getting StartedUseful InformationTroubleshootingAppendix

Hard Disk Data Erase Utility

When disposing the computer or transferring the ownership, erase all hard disk data in order to avoid data leakage.

Even if you erase the data or initialize the hard disk using normal Windows commands, the data can be read with some

special software. Use the hard disk data erase utility to erase the data completely.

Note that transferring of the ownership without uninstalling the commercial software will be a violation of the software’s

license agreement.

CAUTION

When the hard disk contains the Recover Pro backup data, the Recover Pro backup area is lost as well.

NOTE

Even if hard disk data erase is performed, the number of times of DVD’s region code setting will not be reset.

This utility cannot erase data for specific partitions.

It will take 2 to 5 hours to erase the data. (Erasing time varies depending on the capacity of the hard disk.)

Preparation

Prepare the Product Recovery DVD-ROM for Windows® XP (included).

Remove all peripherals.

Connect the AC adaptor and do not remove it until hard disk data erase is complete.

1 Perform the steps 1 to 9 of “Reinstalling Software” (page 25)

In step 2, you do not have to write down all of the contents of the Setup Utility.

If [Enter Password] is displayed during the following procedures, input the Supervisor Password or the User

Password.

2 Press

to execute [2. [Erase HDD]].

To cancel this operation, press

3 At the confirmation message, press

4 When [<<< Start menu >>>] is displayed, press

Enter

The approximate time required for erasing data will be displayed.

5 Press

Space

At the confirmation message, press

Enter

The hard disk erase process starts. When the operation is completed, the “Hard disk data has been deleted.”

message will appear. If a problem has occurred during the operation, an error message will appear.

To cancel partway, press

Ctrl

. The data erasure will be up to that point.

6 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

The hard disk data erase utility erases data using an overwriting method, but there is a possibility that due to malfunc-

tions or other operational errors, data may not be completely erased. There are also specialized devices that may be

able to read data that has been erased using this method. If you need to erase highly confidential data, we recom-

mend that you contact a company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no

responsibility for losses or damages suffered as a result of the use of this utility.

Getting StartedUseful InformationTroubleshootingAppendix

Reinstalling Software

Preparation

Prepare the Product Recovery DVD-ROM for Windows® XP (included).

Remove all peripherals.

Connect the AC adaptor and do not remove it until reinstallation is complete.

CAUTION

When using Recover Pro, in the following step 12,

• If you select [1] or [2], the backup area will be erased.

• If you select [3], Recover Pro will no longer function properly. Select [1] or [2].

• Only when you want to save the data which you stored in the separate partitions other than the first partition and

the Recover Pro backup area, perform the following steps.

ASelect [3].

BAfter reinstallation, back up data to external media (e.g., removable disk).

CStart the reinstallation again, then select [1] or [2] in the step 12.

DReturn the data backed up in external media to the internal hard disk.

NOTE

Even if reinstallation is performed, the number of times of DVD’s region code setting will not be reset.

1 Turn on the computer, and press

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the password is requested, enter the Supervisor Password.

2 Write down all of the contents of the Setup Utility and press

At the confirmation message, select [Yes] and press

Enter

3 Select the [Main] menu, then select [DVD Drive Power] and press

Enter

4 Select [On] and press

Enter

5 Select the [Boot] menu, then select [Optical Drive] and press

until [Optical Drive] is

at the top of [Boot priority order].

6 Press

F10

At the confirmation message, select [Yes] and press

Enter

The computer will restart.

7 Press

while [Panasonic] boot screen is displayed.

If the password is requested, enter the Supervisor Password.

8 Set the Product Recovery DVD-ROM into the CD/DVD drive.

When the disc cover does not open, confirm the following settings.

• [DVD Drive] is set to [Enable] in the [Advanced] menu.

• [DVD Drive Power] is set to [On] in the [Main] menu.

If the setting has not been made, take the following steps.

ASet [DVD Drive] to [Enable] and set [DVD Drive Power] to [On].

BPress

F10

At the confirmation message, select [Yes] and press

Enter

The computer will restart.

CPress

while [Panasonic] boot screen is displayed.

DSet the Product Recovery DVD-ROM.

9 Press

F10

At the confirmation message, select [Yes] and press

Enter

The computer will restart.

When you reinstall the software, the hard disk data will be erased. Back up important data to other media or an exter-

nal hard disk before reinstallation.

Reinstalling software will return the computer to the default condition. The hard disk backup area and the backup data

(page 22) will be erased. (If you reinstall Windows in the first partition, the backup area and data will not be

erased.) Even if the data is stored in partitions on the hard disk, it may be erased or corrupted.

Getting StartedUseful InformationTroubleshootingAppendix

Reinstalling Software

10 Press

to execute [1. [Recovery]].

The License Agreement screen appears.

To cancel partway, press

11 Press

to select [1. Yes, I agree to the provisions above and wish to continue!].

12 Select the settings.

[2]: Enter the size of operating system partition and press

Enter

(The size of data partition will be determined by subtracting the operating system partition size from the

maximum size.)

[3]: Windows will be installed in the first partition.

(If the size of the first partition is smaller than the specific value, installation will not be possible.)

13 At the confirmation message, press

Reinstallation starts automatically. (It will take approximately 20 minutes.)

Do not interrupt reinstallation, for example by turning off the computer or pressing

Ctrl

Alt

Del

. Other-

wise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.

14 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

15 Turn on the computer, and press

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the password is requested, enter the Supervisor Password.

16 Press

At the confirmation message, select [Yes] and then press

Enter

The Setup Utility settings excluding the password(s) will return to the default values.

17 Press

F10

At the confirmation message, select [Yes] and press

Enter

The Setup Utility will close, and the computer will restart.

18 Perform the first-time operation (page 14).

19 Start the Setup Utility and change the settings as necessary.

20 Perform Windows Update.

Getting StartedUseful InformationTroubleshootingAppendix

Troubleshooting (Basic)/Error Code/Message

Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the

“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact

your technical support office. You can also check the computer’s status in the PC Information Viewer ( Reference

Manual “Check the Computer’s Usage Status”).

Troubleshooting (Basic)

Starting Up and Standby and Hibernation Mode

The computer does not

power on/

The power indicator or bat-

tery indicator is not lit.

Connect the AC adaptor.

Insert a fully charged battery.

Remove the battery pack and the AC adaptor, then connect them again.

If an additional RAM module has been inserted, remove the RAM module and check to

see if the RAM module is the recommended one.



When the CPU temperature is high, the computer may not start up to prevent overheating of

the CPU. Wait until the computer cools down, and then turn the power on again. If the com-

puter does not power on even after cooling down, contact your technical support office.

Windows does not start up. Remove all peripheral devices.

• If a device is connected to the USB port, disconnect the device or set [Legacy USB

Support] to [Disable] in the [Advanced] menu of the Setup Utility.

If an additional RAM module has been inserted, remove the RAM module and check to

see if the RAM module is the recommended one.

If the power indicator is lit, slide the power switch for four seconds or longer to turn off,

then turn on again.

Using the following procedure, start up in Safe Mode, and check the error details.

ATurn on the computer, and when the [Panasonic] boot screen disappears (after enter-

ing the password*1 if one is set) hold down

BRelease the key when the Windows Advanced Options Menu appears, and with  or

, select [Safe Mode], then press

Enter

Follow the onscreen instructions.

*1 Supervisor Password or User Password set with the Setup Utility

Press

in the Setup Utility (page 30 “To start the Setup Utility”) to return the Setup

Utility settings (excluding the passwords) to the default values. Start the Setup Utility and

make the settings again.

There is a beep sound, and

either "Extended RAM Mod-

ule Failed" or "Standard

RAM Failed" appears

If "Extended RAM Module Failed" appears, the RAM module is not correctly inserted.

Turn off the computer, check that the RAM module is a recommended module, then

insert it correctly.

If "Standard RAM Failed" appears, contact your technical support office.

Cannot boot from internal

CD/DVD drive.

Make sure that the bootable CD/DVD is set properly.

Start the Setup Utility, and confirm the following settings.

• [DVD Drive] is set to [Enable] in the [Advanced] menu.

• [DVD Drive Power] is set to [On] in the [Main] menu.

• [Optical Drive] is the first device shown in [Boot priority order] in the [Boot] menu.

Bootable CD/DVD created using B’s Recorder in the CF-W4/CF-W5/CF-Y4/CF-Y5

series cannot be used on this computer. If you want to share bootable CD/DVD with

those series, create a new bootable CD/DVD.

When an external CD/DVD drive is connected, you cannot boot from the internal CD/

DVD drive.

You have forgotten the

password.

Supervisor Password or User Password: Contact your technical support office.

Administrator password:

• If you have a password reset disk, you can reset the administrator password. Set the

disk and enter any wrong password, then follow the on-screen instructions and set a

new password.

• If you do not have a password reset disk, reinstall (page 25) and set up Windows,

and then set a new password.

Cannot log on to Windows

with the SD memory card.

The Windows user name and password may not set correctly on the SD memory card.

Enter the Windows user name and password without using the SD memory card. After

logging on to Windows, set the same user name and the password on the SD memory

card and Windows again. ( Reference Manual “SD Security”)

Set [SD Slot] to [Enable] in the [Advanced] menu of the Setup Utility.

“Remove disks or other

media. Press any key to

restart” or a similar mes-

sage appears.

A floppy disk is in the floppy disk drive and it does not contain system startup informa-

tion. Remove the floppy disk and press any key.



This message may appear with some devices connected to

the USB port

. Remove the

device or set [Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.



If the problem persists after removing the disk, it may be a hard disk failure. Perform the rein-

stallation and return the hard disk to its condition at the time of purchase.

(



page 25

)

If the

problem persists even after the reinstallation, contact

your technical support office

Getting StartedUseful InformationTroubleshootingAppendix

Troubleshooting (Basic)/Error Code/Message

[Executing Battery Recali-

bration] screen appears.

The Battery Recalibration was canceled before Windows was shut down last time. To

start up Windows, turn off the computer by the power switch, and then turn on.

The computer will not auto-

matically enter standby/

hibernation.

If you connect to a network using wireless LAN function, perform access point settings.

( Reference Manual “Wireless LAN”)

If you do not use wireless LAN function, turn off wireless LAN function. ( Refer-

ence Manual “Wireless LAN”)

Make sure that you are not using any software that regularly accesses the hard disk.

When logging on (e.g.,

resuming the computer),

audio is distorted.

Perform the following steps to change the audio settings to prevent audio output.

AClick [start] - [Control Panel] - [Sounds, Speech, and Audio Devices] - [Sounds and

Audio Devices], and click [Sounds].

BSet [Windows Logon] and [Windows Logoff] to [(None)].

Cannot resume. One of the following operations may have been carried out.

• In standby mode, the AC adaptor or battery pack was disconnected, or a peripheral

was connected or disconnected.

• The power switch was slid for four seconds or longer to forcibly turn off the computer.

Slide the power switch to turn on the computer. Data not saved will be lost.

Other startup problems. Check to see if there was a disk error.

ARemove all peripheral devices including an external display.

BClick [start] - [My Computer] and right-click [Local Disk(C:)], and click [Properties].

CClick [Tools] - [Check Now].

DSelect the option in [Check disk options] and click [Start].

Start the computer in Safe Mode and check the error details. (Refer to “Windows does

not start up” on page 27.)

Shutting Down

Windows does not shut

down.

Remove all peripheral devices.

Wait one or two minutes. It is not a malfunction.

Password

Even after entering the

password, [Type your pass-

word] is displayed again

If lights up, press

NumLk

to disable the ten-key mode, and then input.

If lights up, press

Caps Lock

to disable the Caps Lock mode, and then input.

Display

When the screen becomes

black for a moment.

When you set [Intel video driver power saving function (Intel(R) Display Power Sav-

ing Technology)] of Power Saving Utility to [Enable], if you do the following opera-

tions, the screen becomes black for a moment, but this is not a malfunction. You can

continue to use this.

• Adjust the brightness of the screen with

• Remove and insert the AC adaptor.



While you are using motion video playback software, benchmark software for graphic, if

error screen is displayed or application software does not function normally, set [Intel video

driver power saving function (Intel(R) Display Power Saving Technology)] to [Disable].

No display. The external display is selected. Press

to switch the display. Wait until the dis-

play has been switched completely before pressing

again.

The display is turned off by the power-saving function. To resume, do not press the direct

selection keys, but press any other key like

Ctrl

The computer entered standby or hibernation by the power-saving function. To resume,

slide the power switch.

The screen may become darker. Press

to make the screen brighter.

The screen is disordered. Changing the number of display colors and resolution may affect the screen. Restart the

computer.

The refresh rate of the internal LCD may be 40 hertz. Change the refresh rate of the

internal LCD.

AClick [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver

for Mobile].

BClick [Display Devices] - [Intel(R) Dual Display Clone] - [Display Settings].

CIf [Refresh Rate] of the Notebook is [40 Hertz], change to [60 Hertz] and click [OK].

The external display does

not work normally.

If the external display does not support the power saving function, it may not work nor-

mally when the computer enters the power saving mode. Turn off the external display.

Starting Up and Standby and Hibernation Mode

Getting StartedUseful InformationTroubleshootingAppendix

“Phoenix Always Launcher”

was used to change the res-

olution setting, but that set-

ting is not applicable.

You cannot set the resolution setting to a value of resolution this computer does not sup-

port.

Battery

The battery indicator is

lights red.

The battery level is very low (the charge is approx. 9% or less).

Connect the AC adaptor. You can use the computer when the indicator light is orange. If

you do not have an AC adaptor, save your data and power off your computer. After

replacing the battery pack with a fully charged one, turn your computer on again.

The battery indicator is

blinking.

If blinking red:

Quickly save your data and power off your computer. Remove the battery pack and dis-

connect the AC adaptor, then connect them again. If the problem persists, contact your

technical support office. The battery pack or charging circuit may be defective.

If blinking orange:

• Battery cannot be recharged temporarily because the internal temperature of the bat-

tery pack is outside the acceptable temperature range for recharging. Your computer

can be used normally in this state. Once the range requirement is satisfied, charging

begins automatically.

• Software applications and peripheral devices (USB devices, etc.) are consuming too

much power. Exit the software applications currently running. Once the range require-

ment is satisfied, charging begins automatically.

The battery indicator is

flashing.

The battery is recharging.

If [Battery Charging Indicator] in [Main] menu of the Setup Utility is set to [Flashing],

the indicator will alternately become lighter and darker.

Touch Pad

The cursor does not work. When using the external mouse, connect it correctly.

Restart the computer by using the keyboard.

Press ,

, and

to select [Restart].



If the computer does not respond to keyboard commands, read “No response” (



page 30

)

Cannot input using the

touch pad.

Set [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.



The drivers for some mice may disable the touch pad. Check your mouse’s operating instructions.

Recover Pro

Cannot install Recover Pro Recover Pro cannot be installed when four primary partitions exist. Reduce the number

of primary partitions to three or less before installation. You can check the number of the

primary partitions in the order of [start] - [Control Panel] - [Performance and Mainte-

nance] - [Administrative Tools] - [Computer Management] - [Disk Management].

Recover Pro cannot be installed when a backup area is remaining on the hard disk. Try

one of the following methods:

• If the backup area has complete backup data and you want to restore that data:

Follow the “Complete Restore” instructions in “Hard Disk Backup Function (Recover

Pro)” to restore the data.

• To return the computer to its condition at the time of shipment:

Reinstall the software (page 25).

• In step 12, do not select “3. Reinstall Windows to the first partition.”

• If you do not need the data in the backup area, or if it is corrupted, or if does not

include complete backup data:

Access [http://www.phoenix.com/en/Customer+Services/Utilities/

Recover+Pro+6.htm#Where], and download/install “Cleanup Utility for Recover Pro 6”.

BDelete the backup area using “Cleanup Utility for Recover Pro 6”.

CReinstall Recover Pro.

In this case, all data in the backup area will be lost.

An unnecessary backup

area is present (is left) when

Recover Pro is not installed.

Access [http://www.phoenix.com/en/Customer+Services/Utilities/

Recover+Pro+6.htm#Where], and download/install “Cleanup Utility for Recover Pro 6”.

BDelete the backup area using “Cleanup Utility for Recover Pro 6”.

Some parts of the hard disk

cannot be File Backed up.

The hard disk area encrypted by security software may not be backed up. Exclude the

area from the File Backup object.

Display

Getting StartedUseful InformationTroubleshootingAppendix

Troubleshooting (Basic)/Error Code/Message

Follow the instructions below when an error code or message appears. If the problem persists or if the error code/mes-

sage displayed is not shown here, contact your technical support office.

To start the Setup Utility

ARestart the computer.

BPress

while [Panasonic] boot screen is displayed.

Reference Manual

The Reference Manual is not

displayed.

Install Adobe Reader.

ALog on to Windows as an administrator.

BClick [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe], then click [OK].

Follow the on-screen instructions.

CUpdate Adobe Reader to its latest version.

If your computer is connected to the internet, start up Adobe Reader and click [Help] -

[Check for updates now].

Reinstalling B’s Recorder/B’s CLiP

A serial number is

requested when reinstalling.

Input the following serial number

B’s Recorder: LK5PAB-AAAK-8225-0869

B’s CLiP: LL5PAB-AAAI-9969-4244

Others

No response. Press

Ctrl

Shift

Esc

to open Task Manager and close the software application that

is not responding.

An input screen (e.g., password input screen at startup) may be hidden behind another

window. Press

Alt

Tab

to check.

Slide the power switch for four seconds or longer to shut down the computer, and then

slide the power switch to turn it on. If the application program does not work normally,

uninstall and reinstall the program. To uninstall, click [start] - [Control Panel] - [Add or

Remove Programs].

Error Code/Message

Error Code/Message Solution

0211 Keyboard error Disconnect external keyboard.

0251 System CMOS

checksum bad -

Default configuration

used

An error has occurred in the memory of Setup Utility settings. This occurs when the memory con-

tent is changed by an unexpected program operation, etc.

Start the Setup Utility and return the settings to the default values, and then change the set-

tings as necessary.

If the problem persists, the internal clock battery may need to be replaced. Contact your tech-

nical support office.

0271 Check date and

time settings

The date and time settings are not correct.

Start the Setup Utility and set the correct date and time.

If the problem persists, the internal clock battery may need to be replaced. Contact your tech-

nical support office.

0280 Previous boot

incomplete - Default

configuration used

Startup has failed repeatedly, so the Setup Utility settings have been returned to the default val-

ues to startup the computer.

Start the Setup Utility and return the settings to the default values, and then change the set-

tings as necessary.

Press <F2> to Setup Write down the error details and press

to start the Setup Utility. Change the settings if

necessary.

Operating System not

found

The operating system is not installed in the floppy disk or the hard disk that you are going to boot

from.

If using a floppy disk, change the disk to the one you can use for boot.

If using the hard disk, check if the hard disk is recognized in [Information] menu of the Setup

Utility. If the hard disk is recognized, perform the reinstallation (page 25). If not, contact

your technical support office.

If a device is connected to the USB port, disconnect the device, or set [Legacy USB Support]

to [Disable] in the [Advanced] menu of the Setup Utility.

Getting StartedUseful InformationTroubleshootingAppendix

Hardware Diagnostics

If the hardware installed in this computer is not operating properly, you can use the PC-Diagnostic Utility to determine

whether or not there is a problem.

If the utility discovers a problem in the hardware, contact your technical support office.

Hardware below can be checked using this utility. (Software cannot be checked.)

CPU

Memory

Hard Disk

CD/DVD Drive

Video Controller

Sound*1

Modem

LAN

Wireless LAN*2

Wireless WAN*3

Bluetooth*4

USB

PC Card Controller

SD Card Controller

Keyboard

Touch Pad

*1 When the PC-Diagnostic Utility is running, a loud beep will sound, so do not use headphones at this time. (The beep will not

sound if mute is using Windows.)

*2 Only for model with wireless LAN

*3 Only for model with wireless WAN

*4 Only for model with Bluetooth

When the video diagnostic check is running, the display may be distorted, and when the audio diagnostic check is

running, sounds may be generated from the speaker. These are not malfunctions.

NOTE

For the hard disk only, you can select standard diagnostic check or extended diagnostic check.

When the PC-Diagnostic Utility starts up, it will run the standard diagnostic check.

We recommend that you use the touch pad for operations. When not using the touch pad, you can operate using the

internal keyboard instead.

If the touch pad does not operate properly, press

Ctrl

Alt

Del

to restart the computer,

or slide the power switch

to turn the power off, and then restart the PC-Diagnostic Utility.

Run this utility using the default settings in the Setup Utility.

If the Setup Utility or other settings will not allow a hardware to be executed, the hardware icon will be displayed in gray.

1 Connect the AC adaptor, and turn on the wireless switch.

During the diagnostic check, do not remove the AC adaptor, or attach any peripheral devices.

Turn on or restart the computer, and press

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the password is requested, enter the Supervisor Password.

If you are using the computer after changing the settings from the status at the time of purchase, we recom-

mend that you make a note of the settings that are changed.

Hardware that can be checked using the PC-Diagnostic Utility

Regarding the PC-Diagnostic Utility

Operations Touch pad operations Internal keyboard operations

Select icon Place the cursor above the icon

Press

Space

and then press

   

( (close) cannot be selected)

Click the icon Tap or click (right click cannot be used) Press

Space

above the icon

Complete the PC- Diagnos-

tic Utility and then restart

the computer

Click (close) Press

Ctrl

Alt

Del

Running the Diagnostic Check

Getting StartedUseful InformationTroubleshootingAppendix

Hardware Diagnostics

3 Press

At the confirmation message, select [Yes] and press

Enter

4 Select the [Main] menu, set [DVD Drive Power] to [On].

5 Press

F10

At the confirmation message, select [Yes] and press

Enter

The computer will restart.

6 Press

Ctrl

while [Panasonic] boot screen is displayed.

When the PC-Diagnostic Utility starts up, it will automatically begin the diagnostic check for all hardware components.

If the password is requested, enter the password.

The touch pad and the internal keyboard cannot be used until alternating blue and yellow colors are displayed

on the left side of the

hardware

icon (A).

By clicking the icon, you can execute the following operations:

• : Start the diagnostic check from the beginning

• : Stop the diagnostic check (You cannot restart the check partway through by clicking )

• : Display help (click the screen or press

Space

to return to the original diagnostic check screen)



You can check the status of the diagnostic check by the display color on the left side of the hardware icon (A).

• Aqua: Not running diagnostic check

• Alternating blue and yellow: Currently running diagnostic check. The interval of the alternating colors differs

depending on the type of diagnostic check currently running.

During memory diagnostic check, the display may freeze for a long period of time. Wait until the process is

complete.

• Green: No problems discovered

• Red: Problems discovered

NOTE

Using the following procedure, you can run a diagnostic check on a specified hardware component,

or run an extended diagnostic check on the hard disk (The extended diagnostic check is only for the

hard disk). The extended diagnostic check is more detailed, and so requires a longer period of time to

run.

AClick to stop the diagnostic check.

Click the icon for the hardware that is not to be checked, so that the icon is displayed in gray (B).

When running a check on the hard disk, clicking the icon once will turn on the extended diagnostic

check (“FULL” (C) will be displayed below the icon); click again, and the icon will be displayed in gray.

CClick to start the diagnostic check.

7 When all the hardware has been checked, confirm the diagnostic check results.

If the display is red and the message “Check Result TEST FAILED” is displayed, you can assume that there is a

problem with the computer’s hardware. Confirm which hardware component is displayed as red, and contact your

technical support office.

If the display is green and the message “Check Result TEST PASSED” is displayed, the computer’s hardware is

operating normally. Continue using the computer as it is. If the computer still does not operate properly, reinstall

the software. (page 25)

NOTE

If you run a memory diagnostic check after installing a new RAM module (sold separately) and the message “Check

Result TEST FAILED” is displayed:

Remove the additional RAM module and run the diagnostic check again. If the message “Check Result TEST

FAILED” is still displayed, you can assume that there is a problem with the internal RAM module.

8 After the diagnostic check is complete, click (close), or press

Ctrl

Alt

Del

restart the computer.

NOTE

When you set [DVD Drive Power] to [On] in the [Main] menu of Setup Utility, you will hear operation sound from CD/

DVD drive soon after the computer starts the startup procedure. To avoid the sound when the computer is starting

up, set [DVD Drive Power] to [Off].

Getting StartedUseful InformationTroubleshootingAppendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY

DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only a

LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, ownership

nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts, designs

and ideas represented by or incorporated in the Programs and related documentation, all of which title, ownership

and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not distrib-

ute or otherwise make the Programs or related documentation available to any third party, by time-sharing or other-

wise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for

any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your

use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or

attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the single

Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also

transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,

to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you

must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER-

MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all cop-

ies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof

set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any

such termination, you agree to destroy, at your expense, the Programs and related documentation together with all cop-

ies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private expense, and are provided with

“RESTRICTED RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in

FAR 52.227-14 and DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government

constitutes acknowledgment of Intel’s proprietary rights in the product.

Getting StartedUseful InformationTroubleshootingAppendix

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en

licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles

cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et

conditions des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par

les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour

obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.

Licence

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les

Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne recevoir qu’un droit

limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’obtenir aucun droit de

titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-à-vis des

algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les Logiciels et la

documentation les accompagnant, dont les titres, propriété et droits resteront tous à MEI ou à leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de

temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation

les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de sauvegarde

uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les Logiciels.

Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du

Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez

céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels

ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification de

produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes

les copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs

copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à

l’exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé au

paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation

antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation

les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,

avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous

ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de

détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme

que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,

clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu

entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre

communication entre nous, relativement à l’objet du présent contrat.

Getting StartedUseful InformationTroubleshootingAppendix

Specifications

To check CPU speed, memory size and the hard disk drive (HDD) size:

Start the Setup Utility ( Reference Manual “Setup Utility”) and select [Information] menu.

[CPU Speed]: CPU speed, [System Memory]: Memory size, [Primary Master]: Hard disk drive size

Main Specifications

Model No. CF-W7BWAZZAM

CPU/

Secondary cache memory Intel® Core™ 2 Duo Processor Ultra Low Voltage U7500 (1.06 GHz, 2 MB*1 L2 cache,

533 MHz FSB)

Chip Set Mobile Intel® GM965 Express chip set

Main Memory*2 1 GB*1, DDR2 SDRAM (2 GB*1 Max.)

Video Memory UMA (384 MB*1 Max.)*3

Hard Disk Drive 80 GB*4

CD/DVD Drive DVD MULTI Drive built-in, Buffer underrun error prevention function: Supported

Continuous Data Trans-

fer Speed*5*6 Reading*7 DVD-RAM*8: 3X (4.7 GB*4) DVD-R*9: 8X (Max.) DVD-R DL: 4X (Max.) DVD-RW:

4X (Max.) DVD-ROM: 8X (Max.) CD-ROM: 24X (Max.) CD-R: 24X (Max.) CD-

RW: 24X (Max.) +R: 8X (Max.) +R DL: 4X (Max.) +RW: 4X (Max.)

Writing*10 DVD-RAM*8: 2X/2-3X (4.7 GB*4) DVD-R: 1X/2X/2-4X/2-8X DVD-RW: 1X/2X/2-4X

+R: 2.4X/2.4-4X/2.4-8X +RW*11: 2.4X/2.4-4X CD-R: 4X/8X/8-12X/8-16X CD-

RW: 4X High-Speed CD-RW: 4X/8X/10X

Supported Discs/For-

mat*6 Reading DVD-ROM (Single Layer, Dual Layer) DVD-Video DVD-R*9(1.4 GB, 4.7 GB)*4

DVD-R DL (8.5 GB)*4 DVD-RW (Ver.1.1/1.2 1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB)*4

DVD-RAM*8 (1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB)*4 +R (4.7 GB)*4 +R DL (8.5 GB)*4

+RW (4.7 GB)*4CD-Audio CD-ROM (XA compatible) CD-R Photo CD (multiple

session compatible) Video CD CD-EXTRA CD-RW CD-TEXT

Writing DVD-RAM*8 (1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB)*4 DVD-R (1.4 GB, 4.7 GB for Gen-

eral)*4 DVD-RW (Ver.1.1/1.2 1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB)*4 +R (4.7 GB*4)

+RW*11 (4.7 GB*4)



CD-R



CD-RW

Display Method 12.1 XGA type (TFT) (1024 × 768 dots)

Internal LCD 65,536/16,777,216 colors (1024 × 768 dots)*12

External Display*13 65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 768 dots/1280 ×

1024 dots/1400 × 1050 dots/1440 × 900 dots/1600 × 1200 dots)

Simultaneous Display on LCD + Exter-

nal Display*13 65,536/16,777,216 colors (800 × 600 dots, 1024 × 768 dots)*12

Wireless LAN Intel® Wireless WiFi Link 4965 AGN*14 (page 36)

Bluetooth*15 page 36

LAN*16 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Modem Data: 56 kbps (V.92) FAX: 14.4 kbps

Sound WAVE and MIDI playback, Intel® High Definition Audio subsystem support, Monaural

Speaker (built in)

Security Chip TPM (TCG V1.2 compliant)*17

Card Slots PC Card Slot × 1, Type I or Type II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA

SD Memory Card Slot*18 × 1

RAM Module Slot × 1, DDR2 SDRAM, 200-pin, 1.8 V, SO-DIMM, PC2-4200 Compliant*19

Interface USB Ports × 3 (USB2.0 × 3)*20 / Modem Port (RJ-11) / LAN Port (RJ-45) *16 /

External Display Port: Mini Dsub 15-pin female / Microphone Jack: Miniature jack, 3.5

DIA / Headphone Jack: Miniature jack, 3.5 DIA / Mini Port Replicator connector: Dedi-

cated 50-pin male

Keyboard/Pointing Device 83 keys/Touch Pad

Power Supply AC adaptor or Battery pack

AC Adaptor*21 Input: 100 V - 240 V AC, 50 Hz/60 Hz

Output: 16 V DC, 3.75 A

Specifications

Getting StartedUseful InformationTroubleshootingAppendix

*1 1 MB = 1,048,576 bytes / 1 GB = 1,073,741,824 bytes

*2 You can physically expand the memory upto 4 GB, but the

total amount of usable memory available will be less depend-

ing on the actual system configuration.

*3 A segment of the main memory is allotted automatically

depending on the computer’s operating status. The size of

the Video Memory cannot be set by the user.

*4 1 GB = 1,000,000,000 bytes. Your operating system or some

application software will report as fewer GB.

*5 Data transfer speeds indicate values measured by

Matsushita Electric Industrial Co., Ltd. The data transfer rate

of DVD per 1X speed is 1,350 KB/s. The data transfer rate of

CD per 1X speed is 150 KB/s.

*6 Performance of CD-R, CD-RW, DVD-RAM, DVD-R, DVD-R

DL, DVD-RW, +R, +R DL, and +RW cannot be guaranteed

depending on writing status and recording format. Also,

some data cannot be played back depending on the disc,

settings, and environment being used.

Does not support writing to DVD-R DL/+R DL (dual layer

discs) and Ultra-Speed CD-RW.

*7 If an unbalanced disc (e.g., a disc with which the balance

has been displaced from the center) is inserted, the speed

may become slower if there are large vibrations while the

disc is rotating.

Battery Pack Li-ion 10.8 V, 5.8 Ah

Operating Time*22 Approx. 5.5 - 11 hours*23 (Approx. 7 hours*24)(Disable Economy Mode (ECO))

Charging Time*25 When using battery pack (CF-VZSU51W)

Appox. 5 hours (Power off)/Apporox. 6.5 hours (Power on)

When using battery pack (CF-VZSU52W)

Appox. 4 hours (Power off)/Apporox. 5 hours (Power on)

Power Consumption*26 Approx. 35 W*27 / Approx. 60 W (maximum when recharging in the ON state)

Physical Dimensions (W × H × D) 272 mm × 36mm (at the front)/49.3 mm (at the rear) × 214.4 mm (excluding protrusion)

{10.7 " × 1.4 " / 2.0 " × 8.5 "}

Weight*28 Approx. 1360 g {3.0 lb.}

Environment Operation Temperature 5°C to 35°C {41°F to 95°F}

Humidity 30% to 80% RH (No condensation)

Storage Temperature -20°C to 60°C {-4°F to 140°F}

Humidity 30% to 90% RH (No condensation)

OS*29 Microsoft® Windows® XP Professional Service Pack 2 with Adovanced Security Tech-

nologies (NTFS File system)

Pre-installed Software*29 Microsoft® Internet Explorer 6 Service Pack 2 / DirectX 9.0c /Microsoft® Windows®

Media Player 10 / Microsoft® Windows® Movie Maker 2.1 / Microsoft® .NET Framework

1.1 SP1/2.0 / Adobe Reader / Intel® PROSet/Wireless Software <Only for model with

wireless LAN> / SD Utility / Icon Enlarger / Loupe Utility / Touch Pad Utility / DMI Viewer

/ PC Information Viewer / PC Information Popup / WinDVD™ 8 (OEM Version) / B's

Recorder GOLD9 BASIC / B's CLiP 7*30 / Hotkey Settings / Optical Disc Drive Letter-

Setting Utility / Optical Disc Drive Power-Saving Utility / Power Saving Utility / Fan Con-

trol Utility / LAN Power Saving Utility / Intel® Matrix Strage Manager / Wireless Switch

Utility / Wireless Connection Disable Utility*31 / Bluetooth Stack for Windows by

TOSHIBA*14 / Economy Mode (ECO) Setting Utility / Battery Recalibration Utility / Infin-

eon TPM Professional Package V2.5*31 / Recover Pro VX*31

Setup Utility / Hard Disk Data Erase Utility*32 / PC-Diagnostic Utility*33

Wireless LAN <Only for model with wireless LAN>

Data Transfer Rates IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)*34

IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)*34

IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)*34

Standard Supported IEEE802.11a/IEEE802.11b/IEEE802.11g

Transmission Method OFDM system, DS-SS system

Wireless Channels Used IEEE802.11a: Channels 36/40/44/48/52/56/60/64/149/153/157/161/165

IEEE802.11b/ IEEE802.11g: Channels 1 to 11

RF Frequency Band IEEE802.11a: 5.18 - 5.32 GHz, 5.745 - 5.825 GHz

IEEE802.11b/ IEEE802.11g: 2412 - 2462 MHz

Bluetooth™ <Only for model with Bluetooth>

Bluetooth Version 2.0 + EDR

Transmission Method FHSS system

Wireless Channels Used Channels 1 to 79

RF Frequency Band 2.402-2.48 GHz

Getting StartedUseful InformationTroubleshootingAppendix

*8 Only non-cartridge type or removable cartridge type can be

used.

*9 DVD-R is compatible with 4.7 GB (for General) playback.

DVD-R (for Authoring) playback is compatible with discs

recorded using Disc-at-Once recording.

*10 Depending on the disc, the writing speed may become

slower.

*11 Does not support writing to High Speed +RW.

*12 A 16,777,216 color display is achieved by using the dithering

function.

*13 Display may be impossible using some connected external

displays.

*14 Only for model with wireless LAN. It does not correspond to

IEEE802.11n.

*15 Only for model with Bluetooth.

*16 Some devices cannot be used depending on the port type.

*17 For information on TPM, click [start] - [Run] and input

“c:\util\drivers\tpm\README.pdf” and refer to the Installation

Manual of “Trusted Platform Module (TPM)”.

*18 Operation has been tested and confirmed using Panasonic

SD/SDHC Memory Cards with a capacity of up to 8 GB.

Operation on other SD equipment is not guaranteed.

*19 Only a RAM module designed for DDR2 (PC2-4200) can be

added (Panasonic : CF-BAK0512U, CF-BAK1024U).

172 pin Micro DIMM used in CF-T5/CF-W5 series cannot be

used.

*20 Does not guarantee operation of all USB-compatible periph-

erals.

*21 <Only for North America>

The AC adaptor is compatible with power sources up to

240 V AC adaptor. This computer is supplied with a 125 V

AC compatible AC cord.

20-M-2-1

*22 Varies depending on the usage conditions, or when an

optional device is attached.

When Economy Mode (ECO) is enabled, the operating time

becomes approximately 20% shorter than when it is dis-

abled.

*23 Measured using Battery Mark™ Version 4.0.1 (LCD bright-

ness : Maximum - Minimum).

*24 Measured using MobileMark™ 2007 (LCD brightness : 60

cd/m2)

*25 Varies depending on the usage conditions, CPU speed, etc.

It may take a long time to charge a fully discharged battery.

*26 Approx. 0.7 W when the battery pack is fully charged (or not

being charged) and the computer is off.

*27 Rated power consumption.

23-E-1

*28 Average value. May differ depending on models.

*29 Operations of this computer are not guaranteed except for

the pre-installed OS.

*30 Preinstalled B’s CLiP does not support CD-R, DVD-R, +R

and DVD-RAM.

*31 Must be installed before use.

*32 The Product Recovery DVD-ROM is required.

*33 For startup methods, refer to “Hardware Diagnostics”

(page 31).

*34 These are speeds specified in IEEE802.11a+b+g standards.

Actual speeds may differ.

Getting StartedUseful InformationTroubleshootingAppendix

LIMITED WARRANTY

Panasonic Computer Solutions Company - Worldwide Product Warranties

Section 1: Limited Warranty - Hardware

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair the products listed below with new or rebuilt parts,

free of charge in the U.S.A. or other Panasonic approved location for the period specified below from the date of original purchase in

the event of a defect in materials or workmanship. These warranties are extended solely to the original purchaser. A purchase receipt

or other proof of date of original purchase will be required before warranty performance is rendered.

• Laptop Computers – 3 Years

• PDRC - LCD and Keyboard Assemblies – 3 Years

• MDWD – Mobile Computer and Wireless Display Assemblies (CF-07/CF-08) - 3 Years

• Hand-held Computers (P1/P2) – 1 Year

• Arbitrator Video Camera – 1 Year

• Arbitrator Recorder Unit – 1 Year

• Arbitrator Remote Control Panel – 1 Year

• Arbitrator Wireless Receiver Unit – 1 Year

• Arbitrator P2 Card(s) (All Sizes) – 1 Year

• Arbitrator Wireless Microphone(s) / Transmitter – 90 Days

• Arbitrator System Component Interconnect Cables – 90 days

Main Battery

The battery supplied with the product is covered under the warranty for one (1) year from date of purchase, except as excluded in

Section 3. Batteries purchased separately are covered under the warranty for one (1) year from the date of purchase. A battery fur-

nished under the warranty is covered for the remaining period of the one year warranty on the original or purchased battery.

Options and Accessories

The below listed Panasonic brand or supplied options and accessories are covered under this limited warranty for the period speci-

fied from the date of purchase or as specifically stated:

• AC Adaptor / Power Cord – 3 Years

• Memory Card (Panasonic Brand) – 3 Years

• Car Mount Docking Station PCB or Complete Vehicle Docking Station – 3 Years

• Port Replicator / I-O Box / Device Cradle (like CF-08) – 3 Years

• Antenna Pass-through Cable – 3 Years

• Backlit or Full-sized keyboard - 3 Years or assumes warranty of the unit in which it is installed

• Integrated Panasonic supplied options and kits including, but not limited to Wireless WAN, Media Bay Drives (Floppy, CD/

DVD), GPS, Bluetooth, Smartcard Reader, and Fingerprint readers – 3 Years or assumes warranty period of the unit in which it

is installed provided the integration was performed by Panasonic or an Authorized Options Integrator.

• Hard Drive (separately purchased) – 1 Year

• External USB Drives (CD / DVD / Floppy / Hard Drive) – 1 Year

• Optional Battery – 1 Year

• Battery Charger – 1 Year

• Standard or Digitizer Stylus Pens – 90 Days (physical damage excluded)

Section 2 - Limited Warranty - Software

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which

the Programs are furnished will be free from defects in material and workmanship under normal use for a period of sixty (60) days

from the date of delivery thereof to you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet

your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation for any

defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects that have

been caused by operation of the disk(s) or other media.

Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, in the United States or

other Panasonic designated location, of any defective disk or other media which is returned to Panasonic’s Authorized Service Cen-

ter, together with a copy of the purchase receipt, within the aforesaid warranty period. The customer is responsible for ensuring that

all data is backed up and made secure during normal use and before sending a unit for service.

For U.S.A.

Getting StartedUseful InformationTroubleshootingAppendix

Section 3 - Limited Warranty Exclusions

Specifically excluded from the warranty are:

• All consumable items; such as screen protection films, logo badges, labels, cleaning cloths, carry cases, manuals, cables,

straps, belts, holsters, tethers, and harnesses and any other options and accessories not listed above or covered under a sep-

arate warranty.

• Failures related to the product operating system, hard drive image, software setup, software program, virus, other program(s)

or file(s) on the hard drive or in any computer memory location.

• Failures due to BIOS settings or changes, as well as any cosmetic or physical damage to the unit.

• Any unit or device with a missing or altered model number or serial number label

• Damage which occurs in shipment

• Failures which are caused by products not supplied by Panasonic

• Failures which result from alteration, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse, neglect,

installation, maladjustment of consumer controls, improper maintenance or modification, use not in accordance with product

use instructions

• Failures due to service by anyone other than a Panasonic Authorized Service Provider

• Failures caused by improper integration by any company other than Panasonic Configuration and Integration Centers.

• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by anyone other than the original purchaser

• Damage that is attributable to acts of God

This warranty only covers failures due to defects in materials or workmanship which occur during normal use.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems

when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Sys-

tems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets)

No.36

Other Limits and Exclusions: There are no other express warranties except as listed above.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS

AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclu-

sion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations

or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For technical support or to arrange for service on your Panasonic computer product, call our toll-free 24 hour hotline at 1-800-

LAPTOP5.

DIAL TOLL FREE: 1-800-LAPTOP5 (1-800-527-8675)

Web Site : www.panasonic.com/toughbook

LIMITED WARRANTY

Getting StartedUseful InformationTroubleshootingAppendix

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software

media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under nor-

mal use, subject to the terms set forth below, during the period of warranty coverage specified.

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature

of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for

instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before warranty ser-

vice is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts

on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance of the original

period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure

of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, intro-

duction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*2. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*2 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems

when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Sys-

tems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets)

No.36

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – PCI warrants to you, the first end user customer, that the disk(s) or other media on which software program(s) is/are

supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from date

of receipt as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.

Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and

you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, 5770 Ambler Drive, Missis-

sauga, Ontario L4W 2T3, within the warranty period, together with a copy of your purchase receipt, and an explanation of the sus-

pected defect, PCI will replace in Canada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the

media only. It does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or conse-

quential damages, or other claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product,

or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling,

modification or attempted modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to

or loss of any program, data or removable storage media. GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH

RESPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,

OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS,

PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU

FOR THE COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE

OF ACTION AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

For Canada

Scope of Coverage Period of Coverage Type of Failure Coverage

• Laptop Computers (except Battery) and AC Adaptor

• Factory/PCI installed options including Wireless WAN, GPS,

Bluetooth, Fingerprint reader, Backlit keyboard, Memory Card

and Media Bay Drives (Floppy, CD/DVD)

• Mobile Wireless Display

• PDRC – LCD and Keyboard Assemblies

• Port Replicator

Three (3) Years from Date of

Original End User Customer

Purchase

Defective Materials or Workman-

ship

• Hand-held Computers

• Battery

• Battery charger

• Auto Adaptor

• External USB Drives

One (1) Year from Date of

Original End User Customer

Purchase

Defective Materials or Workman-

ship

• Standard or Digitizer Stylus Pen Ninety (90) Days from Date of

Original End User Customer

Purchase

Defective Materials or Workman-

ship

• All consumable items including protection film, cleaning cloth,

carry case, tether and harness No Coverage

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase.

No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

Getting StartedUseful InformationTroubleshootingAppendix

GARANTIE LIMITÉE

GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC

Couverture

– Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que ce produit informatique (à l’exclusion des supports des

logiciels) est, au moment de sa vente par PCI ou d’un revendeur agréé par PCI, exempt de défauts de pièces et de fabrication dans les

conditions normales d’utilisation, et ce, pendant la période de couverture de la garantie, sous réserve des modalités décrites ci-dessous.

Recours

– Pour obtenir des informations sur la marche à suivre dans le cas où une réclamation en vertu de la garantie deviendrait

nécessaire, communiquez par téléphone avec un représentant de PCI au 1-800-668-8386, entre 9h00 et 17h00 (heure de l’Est) du lundi

au vendredi (sauf les jours fériés), avant l’échéance de la garantie applicable, en prenant soin d’identifier la nature de la défaillance. Un

reçu ou toute autre pièce justificative de la date d’achat original sera exigé avant toute réparation. Toute pièce défectueuse couverte par

la présente garantie limitée sera réparée ou remplacée par une pièce neuve ou remise à neuf. Le remplacement ou la réparation sera fait

conformément aux modalités de la présente garantie limitée pendant la durée restante de la période originale de la garantie.

Produits non couverts – La présente garantie limitée ne couvre pas les produits achetés à l’extérieur du Canada. Elle ne couvre

pas non plus les dommages, la défaillance ou les défauts attribuables à une manutention inadéquate, une mauvaise installation, une

utilisation anormale ou abusive, de la négligence, un accident, un déversement ou la pénétration d’un objet étranger, une modifica-

tion, un cas fortuit ou une réparation effectuée par une personne non agréée par PCI.

CE PRODUIT N’EST PAS DESTINÉ À ÊTRE UTILISÉ, EN TOUT OU EN PARTIE, COMME SYSTÈME/ÉQUIPEMENT NUCLÉAIRE,

SYSTÈME/ÉQUIPEMENT DE CONTRÔLE DU TRAFFIC AÉRIEN OU SYSTÈME/ÉQUIPEMENT DE POSTE DE PILOTAGE D’AVION

PANASONIC DÉCLINE TOUTE RESPONSABILITÉ CONCERNANT L’UTILISATION DE CE PRODUIT DANS LES CAS SUSMENTIONNÉS.

*3 Les SYSTÈMES/ÉQUIPEMENTS DE POSTE DE PILOTAGE D’AVION sont dotés de systèmes OEPP (organiseur électronique

de poste de pilotage) de classe 2 et de classe 1 utilisés pendant des phases critiques de vol (par exemple, pendant le décollage

et l’atterrissage) et (ou) montés sur l’avion. Les systèmes OEPP de classe 1 et de classe 2 sont définis par le circulaire d’informa-

tion FAA : AC (Advisory Circular) 120-76 A ou le feuilet n°36 JAA :JAA TGL (Temporary Guidance Leaflets) No 36.

GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS

Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur lequel

le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales d’utilisation au

Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.

LA PRÉSENTE GARANTIE EST LA SEULE OFFERTE PAR PCI COUVRANT LES SUPPORTS DE LOGICIELS. PCI ne garantit

pas les logiciels. Reportez-vous à la garantie écrite du concédant de licence d’utilisation du logiciel (qui accompagne la copie du

logiciel) pour toute réclamation en vertu de la garantie.

Réclamation – marche à suivre

– Panasonic Canada Inc. remplacera toute disquette ou support défectueux si l’article en question est

retourné, port payé, à son service de Marketing – produits informatiques, 5770 Ambler Drive, Mississauga (Ontario) L4W 2T3, dans les soix-

ante (60) jours suivant la date d’achat original. Joignez à votre envoi une pièce justificative de votre achat et une description du problème.

Recours

– La responsabilité de PCI - et votre seul recours - dans le cas de toute défaillance couverte par la garantie sur ce support de

logiciel est limitée au seul remplacement du support. Elle ne couvre aucun autre dommage, y compris, mais non exclusivement, la

perte d’usage ou de profits, ni aucun dommage spécial, indirect ou consécutif, ni aucune autre réclamation de nature similaire ou autre.

Produits non couverts

– La présente garantie limitée ne s’applique pas si la ou les disquettes ou autre support ont été utilisés dans

un produit d’une marque autre que Panasonic ou dans des conditions environnementales autres que celles spécifiées par PCI ou le

fabricant, ou soumis à une mauvaise utilisation, à la négligence, à une manutention inadéquate ou encore si le programme a été mod-

ifié ou subi une tentative de modification ou des dommages attribuables à un accident ou à un cas fortuit. De plus, PCI n’assume

aucune responsabilité pour toute perte de, ou tout dommage à, un programme, des données ou un support de sauvegarde amovible.

GÉNÉRALITÉS

PCI NE RECONNAÎT AUCUNE AUTRE GARANTIE, EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS NON EXCLUSIVEMENT, LES

GARANTIES IMPLICITES DE VALEUR COMMERCIALE ET D’UTILITÉ À UNE FIN QUELCONQUE, À L’ÉGARD DU LOGICIEL,

SUPPORTS DE LOGICIELS, PRODUITS INFORMATIQUES, PÉRIPHÉRIQUES ET ACCESSOIRES.

SOUS AUCUNE CIRCONSTANCE PCI NE POURRA ÊTRE TENUE RESPONSABLE DES DOMMAGES SPÉCIAUX, INDIRECTS OU CONSÉCU-

TIFS ATTRIBUABLES À UN MANQUEMENT AUX GARANTIES LIMITÉES DÉCRITES DANS LE PRÉSENT DOCUMENT OU À L’UTILISATION DU

PRODUIT INFORMATIQUE, Y COMPRIS, SANS RESTRICTION, LA PERTE DE DONNÉES, D’AFFAIRES, D’ACHALANDAGE OU DE PROFIT.

DANS TOUS LES CAS, LA RESPONSABILITÉ MAXIMALE DE PCI POUR TOUT MANQUEMENT NE POURRA EXCÉDER LE

PRIX DE VENTE DU PRODUIT INFORMATIQUE.

AUCUNE RÉCLAMATION, SANS ÉGARD À SES MOTIFS, NE POURRA ÊTRE FAITE AUPRÈS DE PCI PLUS DE DEUX (2) ANS

APRÈS LES FAITS INVOQUÉS À LA BASE D’UNE TELLE RÉCLAMATION.

Garantie statutaires

– Certaines juridictions interdisent de telles limitations ou exclusions; aussi, pourraient-elles ne pas s’appliquer.

Pour le Canada

Éléments couverts Durée de couverture Type de couverture

• Ordinateurs blocs-notes (sauf batteries) et adaptateur secteur

• Options installées en usine/par PCI incluant : WAN sans fil,

GPS, Bluetooth, lecteur d’empreintes digitales, clavier rétroé-

clairé, carte mémoire et lecteurs (disquettes, CD/DVD)

• Écran mobile sans fil

• Ensembles PDRC – ACL et clavier

• Duplicateur de port

Trois (3) ans à partir de la date

d’achat original. Défauts de pièces et de fabrica-

tion

• Ordinateurs de poche

• Batterie

• Chargeur de batterie

• Adaptateur pour voiture

• Périphériques USB

Un (1) an à partir de la date

d’achat original. Défauts de pièces et de fabrica-

tion

• Stylo pointeur standard ou pour numériseur graphique Quatre-vingt-dix (90) jours à

partir de la date d’achat origi-

nal.

Défauts de pièces et de fabrica-

tion

•

Tous les articles consommables incluant les pellicules protec-

trices, chiffons de nettoyage, étuis de transport, longes et sangles

Aucune couverture

EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE

Emballez soigneusement le produit, de préférence dans son emballage d’origine. Joignez une description de la défaillance de

même qu’une pièce justificative de la date d’achat. Panasonic Canada Inc. ne peut être tenue responsable pour tout dommage ou

perte subi pendant le transport si vous avez choisi le transporteur.

Getting StartedUseful InformationTroubleshootingAppendix

MEMO

Getting StartedUseful InformationTroubleshootingAppendix

As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Printed in Japan

Panasonic Computer Solutions Company

3 Panasonic Way, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

Outline of the International ENERGY STAR® Office Equipment Program

The international ENERGY STAR® Office Equipment Program is an international program that promotes energy

saving through the use of computers and other office equipment. The program backs the development and dissem-

ination of products with functions that effectively reduce energy consumption. It is an open system in which busi-

ness proprietors can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

For information about ENERGY STAR®, refer to the following web side:

Web site: www.energystar.gov 22-M-1

HS1007-0

DFQW5115ZA

Panasonic of North America 9TGCF-TW71 Personal Computer Models CF-T71 and CF-W71 User Manual CF W7mk2 PCSC

Panasonic Corporation of North America Personal Computer Models CF-T71 and CF-W71 CF W7mk2 PCSC

Contents

Final User Manual for CF W7

Navigation menu

Namespaces

Views

Navigation
