Panasonic of North America RM433V2 RFID Gateway User Manual User Guide
Omni-ID USA Inc. RFID Gateway User Guide
User Guide
433 MHz Radio Module User Guide
Omni-ID office locations: US | UK | China | India | Southeast Asia
DO000720-A 433 MHz Radio Module Use Guide
-1-
CONTENTS
1.
Introduction ........................................................................................................................................................................ 2
Module Block diagram............................................................................................................................................................. 2
Regulatory Approvals .............................................................................................................................................................. 3
2.
Specifications ...................................................................................................................................................................... 4
RM433V2 Specifications .......................................................................................................................................................... 4
3.
Pin configurations ............................................................................................................................................................... 5
pin assignments ....................................................................................................................................................................... 5
pin descriptions ....................................................................................................................................................................... 6
4.
electrical characteristics ...................................................................................................................................................... 7
Maximum ratings .................................................................................................................................................................... 7
operating conditions ............................................................................................................................................................... 7
5.
Appendix A Additional information .................................................................................................................................... 8
Module drawing ...................................................................................................................................................................... 8
Federal communications commision interference statement ................................................................................................ 9
antennas approved by fcc for use with RM433V2 module ..................................................................................................... 9
fcc end product labelling ......................................................................................................................................................... 9
industry canada statement ................................................................................................................................................... 10
industry canada end product labelling .................................................................................................................................. 10
european r&tte directive 1999/5/ec statement ................................................................................................................... 10
rohs compliance .................................................................................................................................................................... 10
disclaimers ............................................................................................................................................................................. 10
Customer Support ................................................................................................................................................................. 11
DO000720-A 433 MHz Radio Module Use Guide
-2-
1. INTRODUCTION
The RM433V2 radio module is a compact easy to use module to add Omni-ID proprietary RF functionality to any device. The
module is targeted at development partners who need to add RF functionality to a device that will be used as part of an Omni-
ID Proview system. The RM433V2 removes the need for expensive and lengthy development of custom RF board designs
requiring expensive agency certifications.

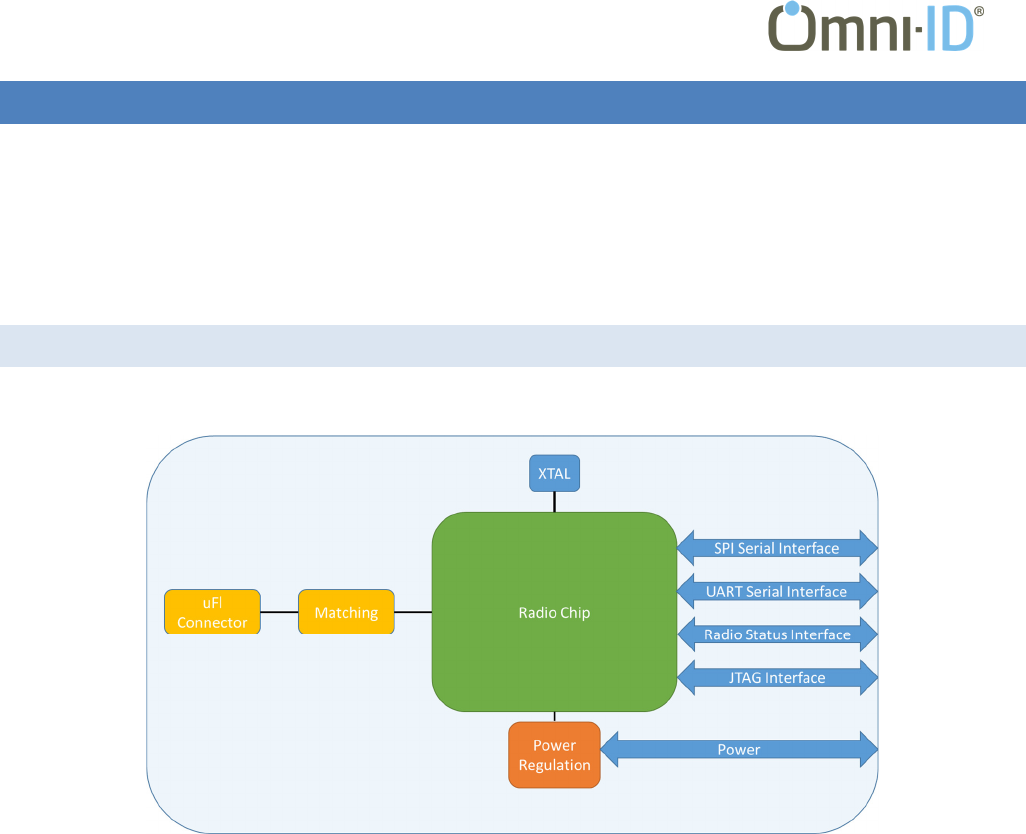

MODULE BLOCK DIAGRAM
DO000720-A 433 MHz Radio Module Use Guide
-3-
REGULATORY APPROVALS
The RM433V2 has been tested against the requirements of the following European standards.
• Radio EN 300 328 v1.7.1.
• EMC, EN 301 489-17 v2.1.1
• Basic Safety Assessment (BSA) EN 60950-1:2006
Additionally, the module has received FCC “Modular Approval”, in compliance with CFR 47 FCC part 15 regulations and in
accordance to FCC Public notice DA00-1407. Appendix XX contains details on the conditions applying to this modular approval.
The module is approved for use with a range of different antennas; further details of which can be found in section Appendix
YY. The modular approval notice and test reports are available on request. The RM433V2 module is also compliant with
Industry Canada RSS210 (Issue 8, Annex 8) and have Industry Canada modular approval.
DO000720-A 433 MHz Radio Module Use Guide
-4-
2. SPECIFICATIONS
RM433V2 SPECIFICATIONS
Typical DC Characteristics Notes
Radio Transmit Current 20 mA
Radio Receive Current 20 mA
Center Frequency Accuracy +/- 10ppm over temperature Additional +/- 3 ppm ageing
Typical RF Characteristics Notes
Rx Sensitivity -100 dBm Nominal for .1% BER
Tx Power +5dBm 433.164 – 434.784 MHz
Max. Input Signal 10 dBm
RSSI Range -100 to -10 dBm
RF Port Impedance 50 ohms 433.164 – 434.784 MHz
Rx Spurious Emissions TBD Conducted into 50ohms
Tx Spurious Emissions TBD Conducted into 50ohms
VSWR (max) 2:1 433.164 – 434.784 MHz
Mechanical Characteristics Notes
Dimensions (mm) 41.91 x 31.75
Dimensions (in) 1.65 x 1.25
DO000720-A 433 MHz Radio Module Use Guide
-5-
3. PIN CONFIGURATIONS

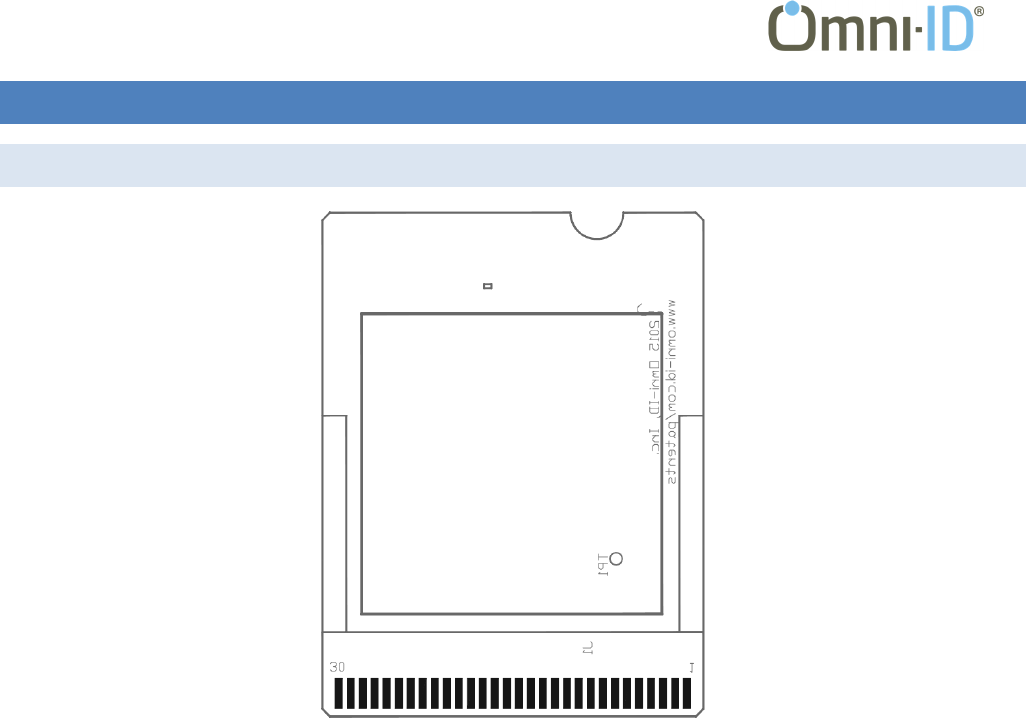

PIN ASSIGNMENTS
DO000720-A 433 MHz Radio Module Use Guide
-6-
PIN DESCRIPTIONS
Pin
No
Pin Function Signal Type Description
1 GND 0V Digital Ground
2 RFGDO1 CMOS RF Test Pin
3 RFDGO0 CMOS RF Test Pin
4 RFGDO2 CMOS RF Test Pin
5 RM MISO CMOS SPI Master In Slave Out
6 RM MOSI CMOS SPI Slave Master Out Slave In Input
7 RM SCLK CMOS SPI Master Clock Output
8 GND 0V Digital Ground
9 RXD CMOS UART RX
10 TXD CMOS UART TX
11 RM_CS CMOS SPI Module Select line
12 GND 0V Digital Ground
13 TX_IN_PROGRESS CMOS Radio transmitting a packet
14 CONFIG_MOD CMOS Enable Module Configuration mode
15 MSG_PENDING CMOS Receive Message Pending
16 RX_IN_PROGRESS CMOS Radio receiving a packet
17 GND 0V Digital Ground
18 RST CMOS Reset Input
19 TEST CMOS JTAG Test Input
20 TCK CMOS JTAG CLK Input
21 TMS CMOS JTAG Mode Select Input
22 TDI CMOS JTAG Data Input
23 TDO CMOS JTAG Data Output
24 GND 0V Digital Ground
25 PWR_OFF CMOS Module Power Enable Input
26 VIN 3.4V-5.0V Supply Voltage
27 VIN 3.4V-5.0V Supply Voltage
28 GND 0V Digital Ground
29 GND 0V Digital Ground
30 GND 0V Digital Ground
DO000720-A 433 MHz Radio Module Use Guide
-7-
4. ELECTRICAL CHARACTERISTICS
MAXIMUM RATINGS
Exceeding these conditions will result in damage to the device.
Parameter Min Max
Device Supply Voltage -0.3V 5.0V
All Pins -0.3V 3.3V
Storage Temperature -40⁰C 85⁰C
OPERATING CONDITIONS
Supply Min Max
VIN 3.4V 5.0V
Ambient Temperature Range -40⁰C 85⁰C
DO000720-A 433 MHz Radio Module Use Guide
-8-
5. APPENDIX A ADDITIONAL INFORMATION

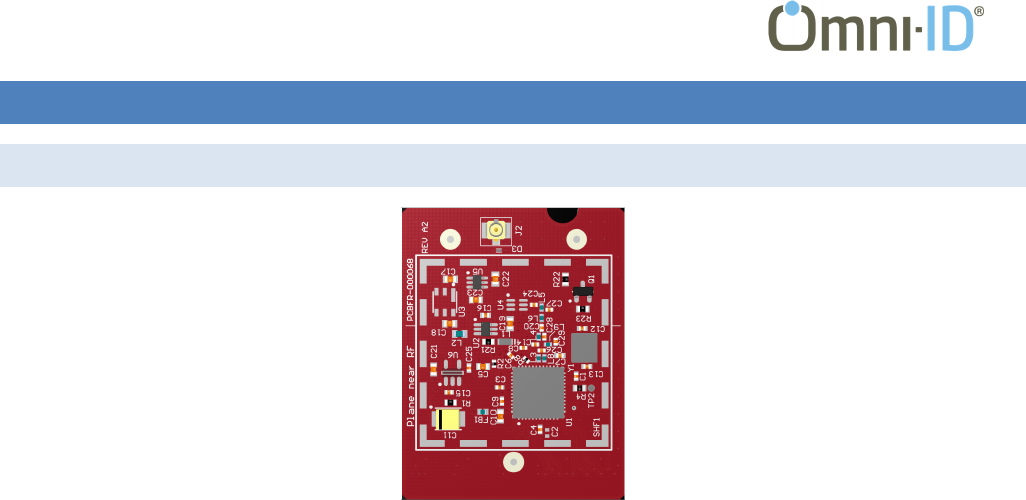

MODULE DRAWING
DO000720-A 433 MHz Radio Module Use Guide
-9-
FEDERAL COMMUNICATIONS COMMISION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
ANTENNAS APPROVED BY FCC FOR USE WITH RM433V2 MODULE
Brand Model Number Description Gain (dBi)
1 COMTELCO BS450S-B Vertical Base Station Antenna 4.65
2 COMTELCO Y2243-B YAGI ANTENNA 9.15
3 Antenna Factor ANT-433-CW-RH Helical Whip Antenna -5.6
4 Antenna Factor ANT-433-MHW-SMA Dipole Antenna 1.2
5 Omni-ID, Inc. CP10636 Horizontal Polarized Dipole Antenna 2.15
FCC END PRODUCT LABELLING
The final ‘end product’ should be labelled in a visible area with the following: “Contains TX FCC ID: N74-RM433V2”
DO000720-A 433 MHz Radio Module Use Guide
-10-
INDUSTRY CANADA STATEMENT
This device complies with Industry Canada license-
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not
cause interference, and (2) this device must accept
any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropic radiated power (e.i.r.p.) is not more than that permitted for successful communication.
INDUSTRY CANADA END PRODUCT LABELLING
For end devices that will be sold or used in Canada the following text should appear on the product label.
“Contains Industry Canada ID IC: 10336A-RM433V2”
EUROPEAN R&TTE DIRECTIVE 1999/5/EC STATEMENT
The RM433V2 module listed in this datasheet is compliant with ETSI EN 300 328 V1.7.1 (2006-10), EMC, EN 301 489-17 v2.1.1
(2009-02) and the Basic Safety Assessment (BSA) EN 60950-1:2006 (2006-06) and is subject to a Notified Body Opinion. The
modules are approved for use with the antennas listed in the following table.
Brand Model Number Description Gain (dBi)
1 COMTELCO BS450S-B Vertical Base Station Antenna 4.65
2 COMTELCO Y2243-B YAGI ANTENNA 9.15
3 Antenna Factor ANT-433-CW-RH Helical Whip Antenna -5.6
4 Antenna Factor ANT-433-MHW-SMA Dipole Antenna 1.2
5 Omni-ID, Inc. CP10636 Horizontal Polarized Dipole Antenna 2.15
ROHS COMPLIANCE
The RM433V2 module meets the requirements of Directive 2002/95/EC of the European Parliament and of the Council on
the Restriction of Hazardous Substance (RoHS).
DISCLAIMERS
The contents of this document are subject to change without notice. OMNI-ID, inc. reserves the right to make changes,
without notice, in the products, including circuits and/or software, described or contained therein. Information contained in
this document regarding device applications and the like is intended through suggestion only and may be superseded by
updates. It is your responsibility to ensure that your application meets with your specifications.
DO000720-A 433 MHz Radio Module Use Guide
-11-
CUSTOMER SUPPORT
Information about Omni-ID’s complete line of RFID products can be found on our website: www.omni-id.com.
Additional support is available by phone: +1 (585) 713-1000 or email: support@omni-id.com.
