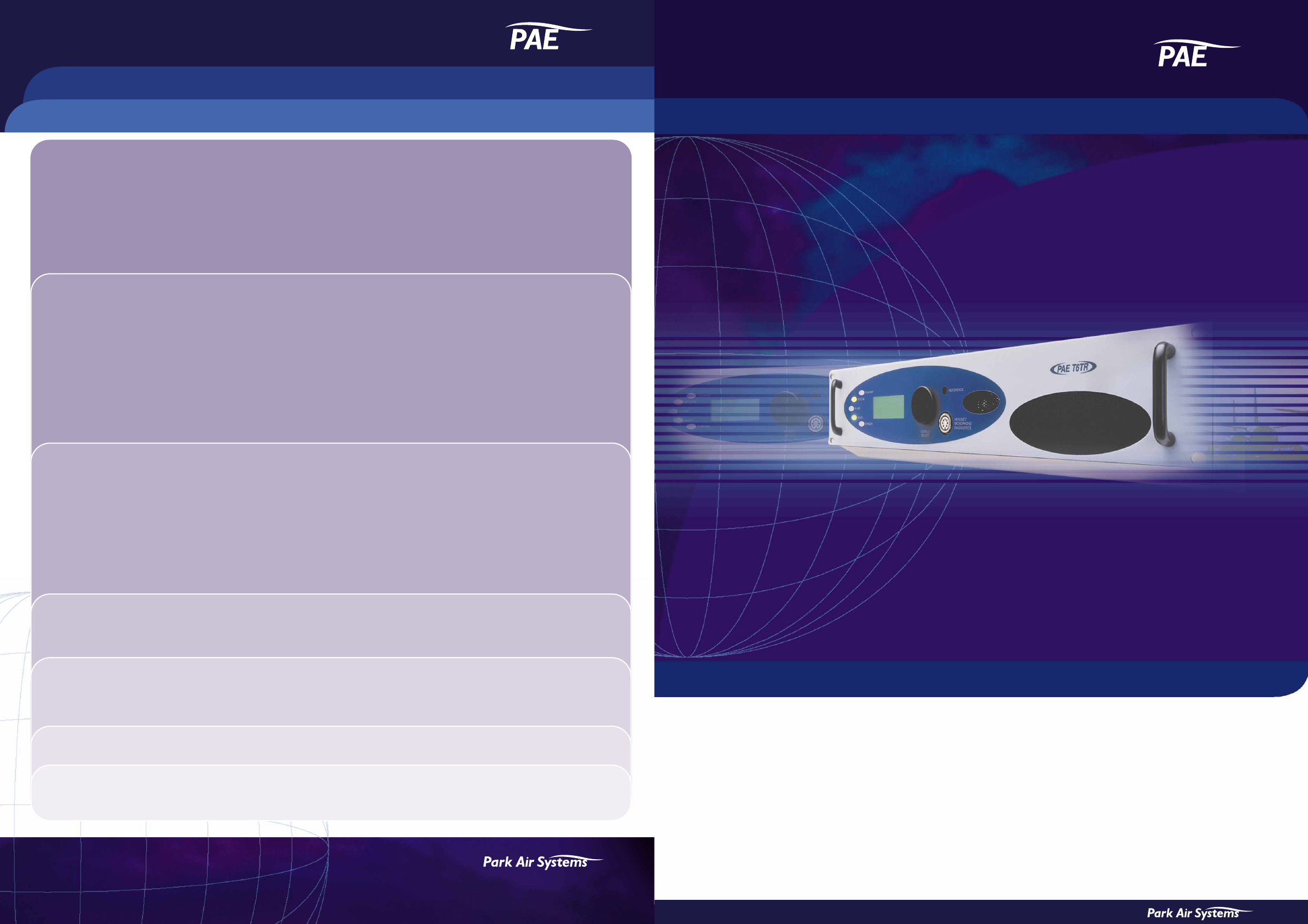

PAE T6TR TRANSCEIVER, VHF Multimode Digital Radio (MDR)
•VHF 118 to 144 MHz Multimode Digital Radio (MDR)
•8.33 kHz and 25 kHz channel spacing
•50 W RF output power
•Digital Coherent Mute (DCM) technology
•Compact 2U case
•Analogue and digital operation
•Extensive remote control facilities
TECHNICAL INFORMATION
PAE T6TR TRANSCEIVER, VHF Multimode Digital Radio (MDR)
Park Air Systems reserves the right to amend specifications in the light of continuing development - 042-2
A subsidiary of Northrop Grumman Corporation
GENERAL
Frequency range: 118 to 136.975 MHz
Option 1 118 to 143.975 MHz
Channel spacing - AM 8.33 kHz and 25 kHz
Modes: A3E AM-voice
Options AM-MSK
VDL-2
VDL-3
Supported standards ICAO Annex 10
EN 301 841-1
EN 300 676
Frequency stability <1 ppm
Ref oscillator adjust From front panel rotary encoder
Duty cycle 100% continuous transmit
Operating temperature -20 to +55°C
Storage temperature -30 to +70°C
Housing: 19” cabinet
Option Desk mount
Power consumption:
ac dc
Transmit 330 VA 10 A
Receive 70 VA 1.4 A
Standby 45 VA 0.5 A
Supply ac: 99 to 264 V 48 to 62 Hz
dc: 21.6 to 32 V
RECEIVE RF
Sensitivity -107 dBm for 10 dB (S+N)/N
Selectivity:
8.33 kHz <6 dB at ±3.5 kHz
>70 dB at ±8.33 kHz
>80 dB at ±25 kHz
25 kHz <6 dB at ±11 kHz
>80 dB at ±25 kHz
Squelch Threshold adjustable in 1 dB steps
for RF input levels from –114 dBm
to –60 dBm (<6 to >30 dB (S+N)/N).
Incorporates Digital Coherent Mute
(DCM) technology to dynamically
filter on-channel interference. DCM
automatically mitigates co-location
interference to ensure the squelch
opens whenever an input
signal exceeds the set threshold
and has a positive (S+N)/N ratio
AGC RF <3 dB change in audio output for
RF signals between –107 dBm
and +10 dBm
AGC audio <1 dB change in audio output for
modulation depth change between
90% and 30%. Automatically
maintains audio at the 90%
modulation equivalent level for
maximum fidelity
Antenna radiation <-73 dBm
TRANSMIT RF
Carrier power 5 to 50 W in 1 W steps
Modulation 0 to 100% in 1% steps
VSWR mismatch Full power into VSWR of 2.5:1
Infinite VSWR without damage
Harmonic outputs <-36 dBm
Spurious outputs <-46 dBm
VOGAD <10% change in modulation depth
for 30 dB change in input level
Tx mute 5 dB below VOGAD threshold
Time out Off, or 2 s to 510 s in 2 s steps
AUDIO CHARACTERISTICS
Audio distortion <5% THD
Audio bandwidth:
8.33 kHz 350 Hz to 2500 Hz
25 kHz 300 Hz to 3400 Hz
Audio interface:
Line output -30 dBm to +10 dBm in 1 dB steps
Line input -40 dBm to 0 dBm in 1 dB steps
Loudspeaker 1 W
External speaker 3 Vac peak-to-peak
Tape -10 dBm
MECHANICAL
Dimensions (mm) 89(H) x 483(W) x 450(D)
Weight 14.5 kg
RF connectors N-type sockets
ORDERING INFORMATION
T6TR Part No. B6550
Option 1
(extended frequency range)
Part No. 6550OPT1
Desk mount kit Part No. 70-6550DESK
User guide Part No. 31-360000TR
Microphone Part No. 24-11030301
Headset/microphone Part No. 24-12002801
End-fed dipole antenna Part No. B2080
CONTROL
Control and monitoring of the T6TR can be carried out locally
from the front panel, or remotely via a RS422 serial port
Pre-set channels 100
Channel settings Frequency, channel spacing,
memory assignment
Operation settings Includes mode, TX power,
modulation depth, squelch
defeat/level, PTT time out
Installation settings Includes audio line levels,
PTT/mute level/polarity, reference
oscillator frequency
Local control facilities Rotary encoder and backlit
multifunction display provide
menu driven control of all
transceiver operating parameters
and BIT functions
LED indicators for standby, ready,
alarm, receive and transmit
Mic/headset/diagnostic port for
local operation and programming
from computer via RS232
serial link
Coaxial connector for monitoring
reference oscillator frequency
Remote control ports Facilities: Audio, control and BIT for
AM operation
MARC: RS422 serial port for
control of radio from MARC or
other compatible system
HDLC: Serial interface for VDL
operation
T1: For connection to Remote
Interface Unit for VDL operation
Park Air Systems Ltd, Northfields, Market Deeping, Peterborough, England, PE6 8UE
Tel: +44 1778 345434 Fax: +44 1778 342877 Email: sales@parkairsystems.com
www.parkairsystems.com

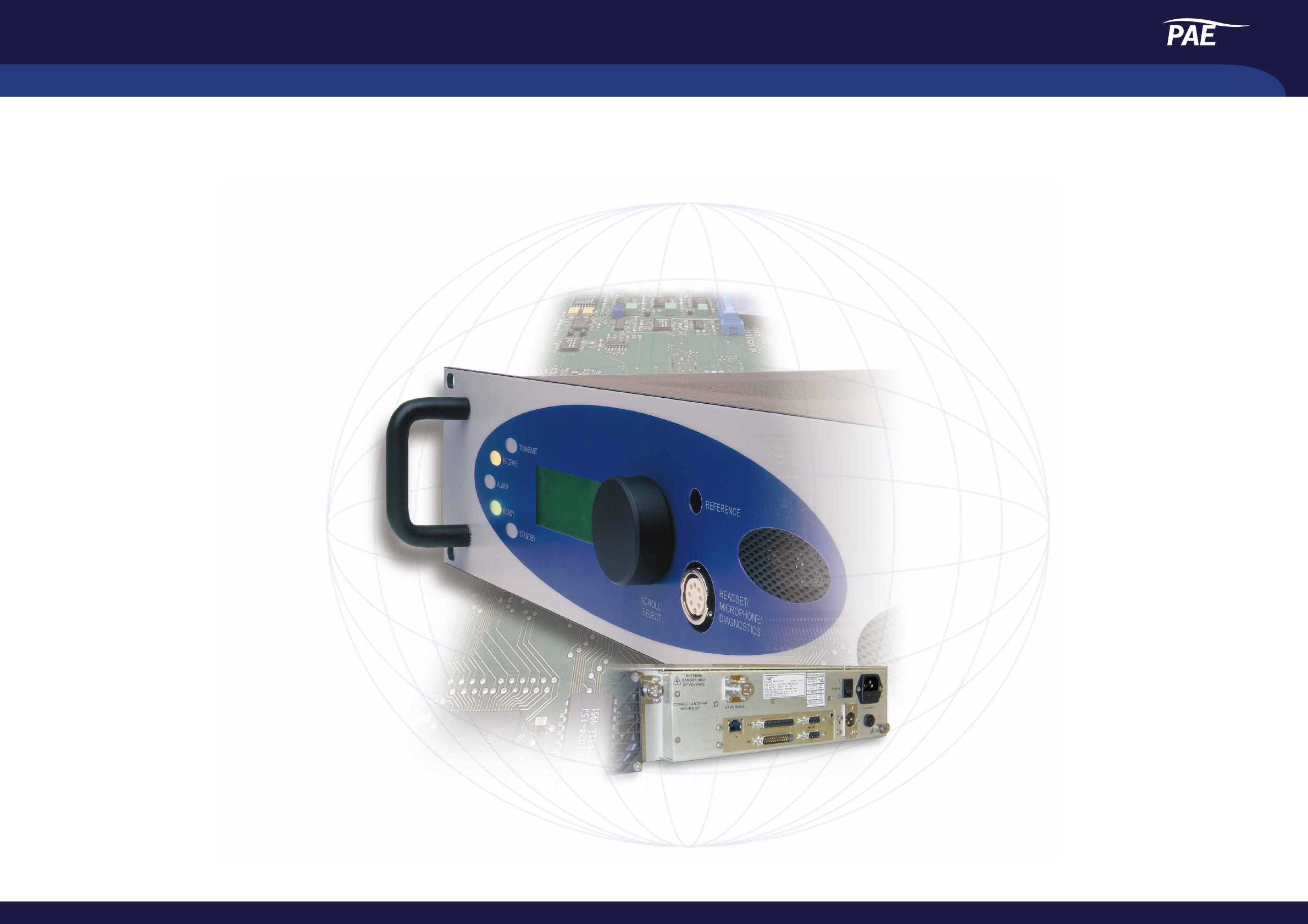

The PAE T6TR TRANSCEIVER
for advanced airspace communications
PAE T6TR TRANSCEIVER, VHF Multimode Digital Radio (MDR)
PAE T6TR
The PAE T6TR TRANSCEIVER
for advanced airspace communications
The PAE T6TR multimode digital
transceiver for ground-to-air
communications is intended for use at
low and medium density airports and air
traffic control installations, emergency services
and airline communications. The compact
dimensions allow the T6TR to be conveniently
used for both desk and rack mount
operations. The radio supports both
voice and ICAO defined data modes.
The radio can be operated locally using the
front panel controls, or remotely via flexible
control interfaces. STANDBY mode allows
the radio to be powered on and off remotely
to ensure minimal current drain on local
power supplies. A 100 channel memory
allows immediate recall of stored frequencies.
Frequency change can be inhibited to prevent
unauthorised tuning.
Both 8.33 kHz and 25 kHz channel spacing
are incorporated. The T6TR recognises
frequencies entered in ICAO format and
automatically adjusts to the correct channel
spacing. For multichannel operation, any
combination of 8.33 kHz and 25 kHz channel
spacing can be programmed.
Careful implementation of DSP techniques
significantly reduces the component count
within the radio. This leads to increased
reliability and reduced logistic costs.
All modulation and demodulation processes
are carried out using DSP algorithms that
provide consistent long-term performance
to further enhance equipment reliability.
All adjustable parameters within the radio can
be modified using the front panel controls, or
from a computer connected to the headset/
diagnostics port, eliminating the need to
remove equipment covers during the
operational life of the radio.
The use of innovative RF engineering allied
to sophisticated DSP technology provides
class leading performance. The advanced
design of the T6TR transceiver allows operation
in demanding co-site conditions, reducing the
need for external filters. The transmitter
employs a sophisticated feedback technique that
minimizes spectral noise and enhances signal
purity. The power amplifier is designed for
optimum performance and maximum reliability
and will support continuous operation applications.
The receiver circuitry benefits from unique
DSP implemented Digital Coherent Mute
(DCM) technology. DCM uses specially
developed algorithms that monitor on-channel
activity and dynamically filter unwanted interfering
signals. The receiver front-end has exceptional
signal handling properties that ensure rejection
of unwanted off-channel signals while maintaining
excellent low level wanted signal performance.
Two antenna ports are provided allowing maximum
flexibility, these may be configured for separate
receiver and transmitter antenna connections, or
a single combined receive/transmit antenna.
The use of separate antenna ports allows the T6TR
to be used with filter multicouplers in larger
system applications. A solid state T/R switching
relay is used to provide both long-term reliability
and the high speed necessary for VDL modes.
Comprehensive Built-In Test (BIT) monitors
both static and dynamic parameters.
Results can be viewed on the front panel
LCD and summarised via READY and ALARM
indicators. All BIT data is available for remote
monitoring via serial ports and transceivers
can be readily networked for remote monitoring
using the PAE Multi-Access Remote Control
(MARC) or similar systems.
