ProtoCom & ProtoCom -Lon

TM

TM

This page intentionally left blank.

Doc# E204701 i

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

ProtoCom/ProtoCom-Lon Installation and Operation Manual Version 1.02

Published by:

Electro Industries/GaugeTechTM

1800 Shames Drive

Westbury, NY 11590

All rights reserved. No part of this publication may be reproduced or transmitted in

any form or by any means, electronic or mechanical, including photocopying, record-

ing, or information storage or retrieval systems or any future forms of duplication, for

any purpose other than the purchaser's use, without the expressed written permission

of Electro Industries/GaugeTech.

© 2014 Electro Industries/GaugeTech

Shark® and Nexus® are registered trademarks of Electro Industries/GaugeTech. The

distinctive shapes, styles, and overall appearances of all Shark® and Nexus® devices

are trademarks of Electro Industries/GaugeTech. Communicator EXTTM and V-SwitchTM

are trademarks of Electro Industries/GaugeTech.

Microsoft® and Windows® are either registered trademarks or trademarks of Micro-

soft Corporation in the United States and/or other countries.

Powered by FieldServer.

Metasys® is a registered trademark of Johnson Controls, Inc.

LonWorks® is a registered trademark of Echelon Corp.

BACnet® is a registered trademark of ASHRAE.

Modbus® is a registered trademark of Schneider Electric, licensed to the Modus

Organization, Inc.

Doc# E204701 ii

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

This page intentionally left blank.

Doc# E204701 iii

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Customer Service and Support

Customer support is available 9:00 am to 4:30 pm, Eastern Standard Time, Monday

through Friday. Please have the model, serial number and a detailed problem descrip-

tion available. If the problem concerns a particular reading, please have all meter

readings available. When returning any merchandise to EIG, a return materials

authorization number is required. For customer or technical assistance, repair or

calibration, phone 516-334-0870 or fax 516-338-4741.

Product Warranty

Electro Industries/GaugeTech warrants all products to be free from defects in material

and workmanship for a period of four years from the date of shipment. During the

warranty period, we will, at our option, either repair or replace any product that

proves to be defective.

To exercise this warranty, fax or call our customer-support department. You will

receive prompt assistance and return instructions. Send the instrument, transporta-

tion prepaid, to EIG at 1800 Shames Drive, Westbury, NY 11590. Repairs will be made

and the instrument will be returned.

This warranty does not apply to defects resulting from unauthorized modification,

misuse, or use for any reason other than electrical power monitoring. The ProtoCom/

ProtoCom-Lon unit is not a user-serviceable product.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED

OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE. ELECTRO INDUSTRIES/

GAUGETECH SHALL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL OR

CONSEQUENTIAL DAMAGES ARISING FROM ANY AUTHORIZED OR

UNAUTHORIZED USE OF ANY ELECTRO INDUSTRIES/GAUGETECH

PRODUCT. LIABILITY SHALL BE LIMITED TO THE ORIGINAL COST OF

THE PRODUCT SOLD.

Doc# E204701 iv

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Use Of Product for Protection

Our products are not to be used for primary over-current protection. Any protection

feature in our products is to be used for alarm or secondary protection only.

Disclaimer

The information presented in this publication has been carefully checked for

reliability; however, no responsibility is assumed for inaccuracies. The information

contained in this document is subject to change without notice.

Safety Symbols

In this manual, this symbol indicates that the operator must refer to

an important WARNING or CAUTION in the operating instructions.

Please see Chapter 4 for important safety information regarding

installation and hookup of the ProtoCom/ProtoCom-Lon unit.

Dans ce manuel, ce symbole indique que l’opérateur doit se référer à un important

AVERTISSEMENT ou une MISE EN GARDE dans les instructions opérationnelles.

Veuillez consulter le chapitre 4 pour des informations importantes relatives à l’instal-

lation et branchement de ProtoCom/ProtoCom-Lon.

UL Compliance

For UL compliance, the following instructions must be met when operating the

ProtoCom/ProtoCom-Lon:

• The units shall be powered by listed LPS or Class 2 power supply suited to the

expected operating temperature range.

• The interconnecting power connector and power cable shall:

• Comply with local electrical code

• Be suited to the expected operating temperature range

• Meet the current and voltage rating for the ProtoCom/ProtoCom-Lon

• Furthermore, the interconnecting power cable shall:

• Be of length not exceeding 3.05m (118.3")

Doc# E204701 v

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

• Be constructed of materials rated VW-1 or FT-1 or better

• If the unit is to be installed in an operating environment with a temperature above

65 °C, it should be installed in a Restricted Access Area requiring a key or a special

tool to gain access.

• This device must not be connected to a LAN segment with outdoor wiring.

About Electro Industries/GaugeTech (EIG)

Founded in 1975 by engineer and inventor Dr. Samuel Kagan, Electro Industries/

GaugeTech changed the face of power monitoring forever with its first breakthrough

innovation: an affordable, easy-to-use AC power meter.

More than thirty years since its founding, Electro Industries/GaugeTech, the leader in

power monitoring and control, continues to revolutionize the industry with the highest

quality, cutting edge power monitoring and control technology on the market today.

An ISO 9001:2008 certified company, EIG sets the industry standard for advanced

power quality and reporting, revenue metering and substation data acquisition and

control. EIG products can be found on site at mainly all of today's leading manufactur-

ers, industrial giants and utilities.

EIG products are primarily designed, manufactured, tested and calibrated at our facil-

ity in Westbury, New York.

Doc# E204701 vi

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Revision History

The following table lists revision information for this manual, Doc #E204701, the

ProtoCom/ProtoCom-Lon Installation and Operation Manual.

Version Number Revision Date Summary of Changes

V.1.01 8/6/2014 First release

V.1.02 9/10/2014 Section 1.9 reorganized and

Section 1.9.1 added - DIN

Rail installation instructions

Doc# E204701 TOC-1

Table of Contents

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Table of Contents

Customer Service and Support iii

Product Warranty iii

Use Of Product for Protection iv

Disclaimer iv

Safety Symbols iv

UL Compliance iv

About Electro Industries/GaugeTech (EIG) v

Revision History vi

1: Introduction to the ProtoCom/ProtoCom-Lon 1-1

1.1: Overview of the ProtoCom/ProtoCom-Lon Gateway 1-1

1.2: EIG Devices and Available Point Count 1-2

1.3: Specifications 1-3

1.4: ProtoCom/ProtoCom-Lon Dimensions 1-4

1.5: Electrical Connections 1-5

1.6: Use of DIP Switches 1-7

1.7: Removing the Top Cover from the ProtoCom/ProtoCom-Lon

(ONLY if Necessary) 1-8

1.7.1: Replacing the Top Cover 1-11

1.8: Graphical User Interface (GUI) Configurator 1-11

1.9: ProtoCom/ProtoCom-Lon Installation 1-13

1.9.1: Mounting on a DIN Rail 1-13

1.9.2: Mounting on a Panel 1-14

Doc# E204701 TOC-2

Table of Contents

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

1.10: The Rest of This Manual 1-15

2: Using the ProtoCom/ProtoCom-Lon 2-1

2.1: Step One - Configure Modbus Communication Settings 2-1

2.2: Step Two - Select the Desired Field BAS Protocol (ProtoCom

only) 2-3

2.3: Step Three - Enable Auto-discovery 2-4

2.4: Step Four - Set MAC Address/Device Instance/Node-ID

(Proto-Com only) 2-5

2.4.1: Set MAC Address - for BACnet MS/TP Protocol Only 2-5

2.4.2: Set the Device Instance - for BACnet MS/TP and

BACnet/IP Protocols 2-6

2.4.2.1: Change Node_Offset Value 2-6

2.4.3: Device Node-ID for Metasys N2, Modbus/TCP, and DF1

Protocols 2-7

2.5: Step 5: Set the Baud Rate for BACnet MS/TP

and DF1 Protocols 2-8

2.6: Step 6 - Connect the ProtoCom/ProtoCom-Lon

to the Meter 2-9

2.6.1: Biasing the Modbus RS485 Network (only if necessary) 2-11

2.6.2: Set End of Line Termination Switch for the Modbus

RS485 Port (only if necessary) 2-12

2.7: Step 7 - Connect to the RS485/LonWorks Network

(BACnet MS/TP, Metasys N2, DF1, or LonWorks) 2-13

2.8: Step 8 - Connect Power to the ProtoCom/ProtoCom-Lon 2-14

2.9: Step 9 - Turn Off Auto-discovery After Completion to

Save Configuration 2-15

2.10: Step 10: Additional Configuration 2-16

Doc# E204701 TOC-3

Table of Contents

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

2.10.1: Use the Web GUI to Configure IP Address for BACnet IP

and EtherNet/IP 2-16

2.10.2: Set Up a Password 2-20

2.10.3: Configure the ProtoCom-Lon 2-22

2.11: Step 11 - Use the CAS BACnet Explorer to Validate the

ProtoCom in the Field (BACnet MS/TP or BACnet/IP) 2-24

2.11.1: CAS BACnet Setup 2-26

3: Device Communication 3-1

3.1: LED Diagnostics for Modbus RTU Communications Between

ProtoCom/ProtoCom-Lon and Devices 3-1

3.2: Communication Problems 3-2

3.2.1: No Communication on Modbus RTU (Meter) Side 3-2

3.2.2: Field Communication Problems 3-2

A: Protocol Data Points for EIG Meters A-1

A.1: Shark® 100 Meter A-2

A.2: Shark® 200 Meter A-4

A.3: Nexus® 1252/1262/1272 Meters A-7

A.4: DMMS 425 Meter A-9

A.5: Nexus® 1500 Meter A-11

A.6: MP200-Y Metering System A-13

A.7: MP200-S Metering System A-20

B: MAC Address DIP Switch Settings B-1

Doc# E204701 TOC-4

Table of Contents

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

This page intentionally left blank.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-1

1: Introduction to the ProtoCom/ProtoCom-Lon

1: Introduction to the ProtoCom/

ProtoCom-Lon

1.1: Overview of the ProtoCom/ProtoCom-Lon Gateway

The ProtoCom/ProtoCom-

Lon is an external, high

performance Building Auto-

mation System (BAS)

multi-protocol gateway that

is pre-configured to auto-

matically communicate

between Electro Industries/

Gaugetech (EIG) meters

and various building auto-

mation protocols.

The ProtoCom supports:

BACnet® MS/TP, BACnet®/IP, Johnson Controls’ Metasys® N2, EtherNet/IP and DF1,

and Modbus® TCP protocols; and the ProtoCom-Lon supports the LonWorks® proto-

col. With the ProtoCom, the meters’ Modbus communication is converted into BACnet

or other popular BAS protocols. With the ProtoCom-Lon, the meters’ Modbus commu-

nication is converted into LonWorks® protocol.

The ProtoCom/ProtoCom-Lon connects to the EIG meter’s RS485 port. Once

connected, the ProtoCom/ProtoCom-Lon unit auto-detects the EIG meter model it is

connected to, and loads the pre-configured protocol data points for that meter, e.g.,

the Shark® 200 meter’s BACnet® objects. You do not need to do manual mapping of

the meter’s Modbus points.

The ProtoCom/ProtoCom-Lon is shipped as a kit (ProtoCom-KT/ProtoCom-Lon-KT)

which consists of the unit, a power supply, a communication cable, a one page Quick-

start guide, and this manual on a CD.

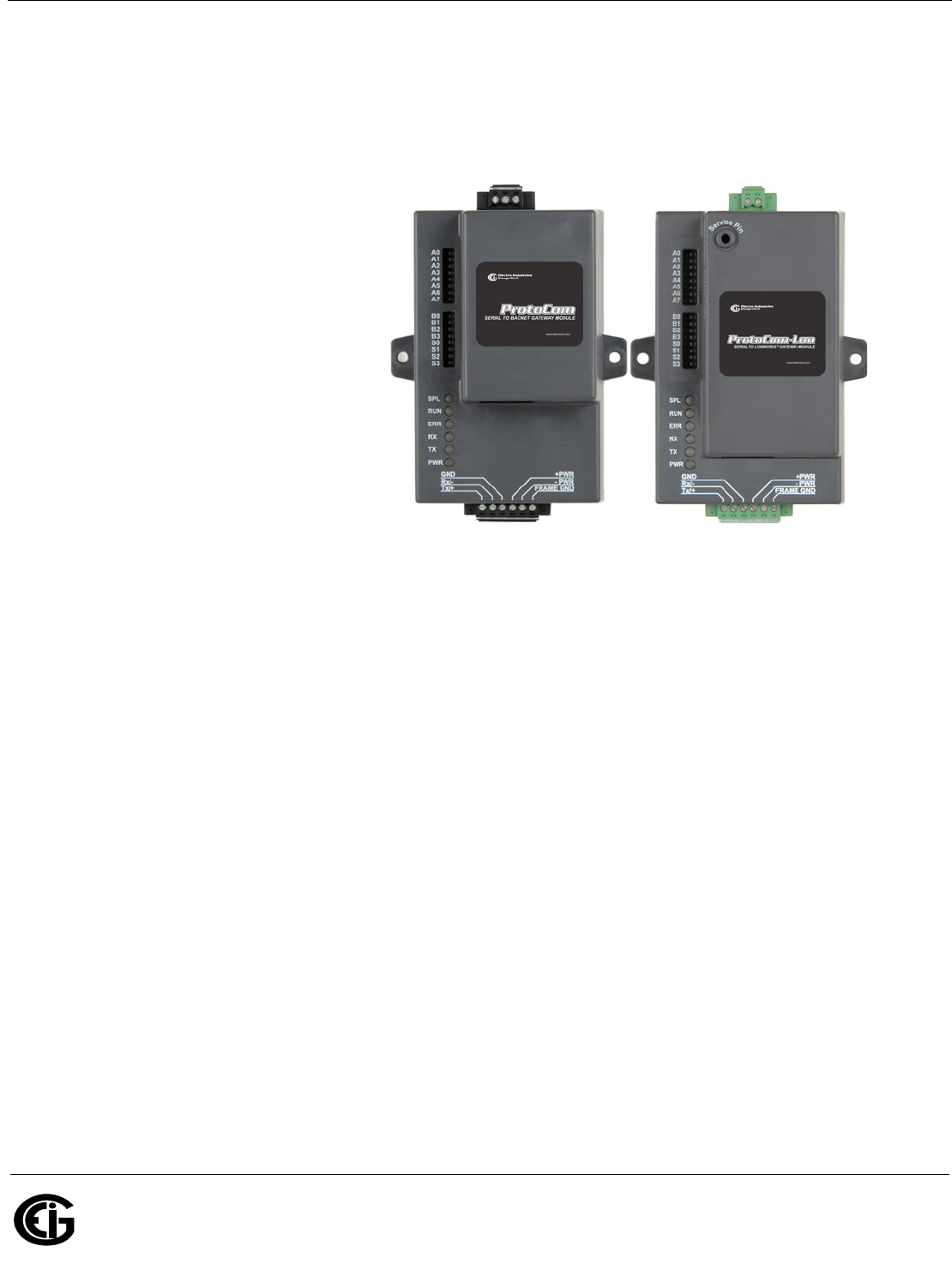

Figure 1.1: ProtoCom/ProtoCom-Lon

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-2

1: Introduction to the ProtoCom/ProtoCom-Lon

1.2: EIG Devices and Available Point Count

The total number of devices attached to ProtoCom cannot exceed 1500 Modbus

registers for BACnet MS/TP, BACnet/IP, Modbus/TCP, Metasys N2, EtherNet/IP, or DF1.

The total number of devices attached to ProtoCom-Lon cannot exceed 1000 Modbus

registers for LonWorks.

Refer to the following table for the supported EIG meters and their associated data

points.

Devices Point

Count

Shark® 100 Meter 56

Shark® 200 Meter 68

Nexus® 1252 1262 1272 Meters 48

DMMS 425 Meter 46

Nexus® 1500 Meter 56

MP200-Y Metering System 241

MP200-S Metering System 571

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-3

1: Introduction to the ProtoCom/ProtoCom-Lon

1.3: Specifications

ProtoCom ProtoCom‐Lon

Electrical

Connections

One6‐pinPhoenixconnector,oneRS485+/‐

groundport,power+/‐framegroundport

One3‐pinRS485Phoenixconnector,one

RS485+/‐groundport

OneEthernet‐10/100Ethernetport

One6‐pinPhoenixconnector,oneRS485+/‐

groundport,power+/‐framegroundport

OneEthernet10/100BaseTport

OneFTT‐10LonWorksport

Approvals: CECertified;TUVapprovedtoUL916,EN60950‐1,EN50491‐3andCSAC22‐2standards;

FCCClassAPart15;OPCSelf‐testedforCompliance;RoHSCompliant;CSA205Approved

Power

Requirements Multi‐modepoweradapter:9‐30VDCor12‐24VAC

Physical

Dimensions 11.5cmLx8.3cmWx4.1cmH(4.5x3.2x1.6in.)

Weight: 0.2kg(0.4lbs)

Operating

Temperature:

‐40°Cto75°C(‐40°Fto167°F)

SurgeSuppression EN61000‐4‐2ESDEN61000‐4‐3EMCEN61000‐4‐4EFT

Humidity: 5‐90%RH(non‐condensing)

(Specificationssubjecttochangewithoutnotice)

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-4

1: Introduction to the ProtoCom/ProtoCom-Lon

1.4: ProtoCom/ProtoCom-Lon Dimensions

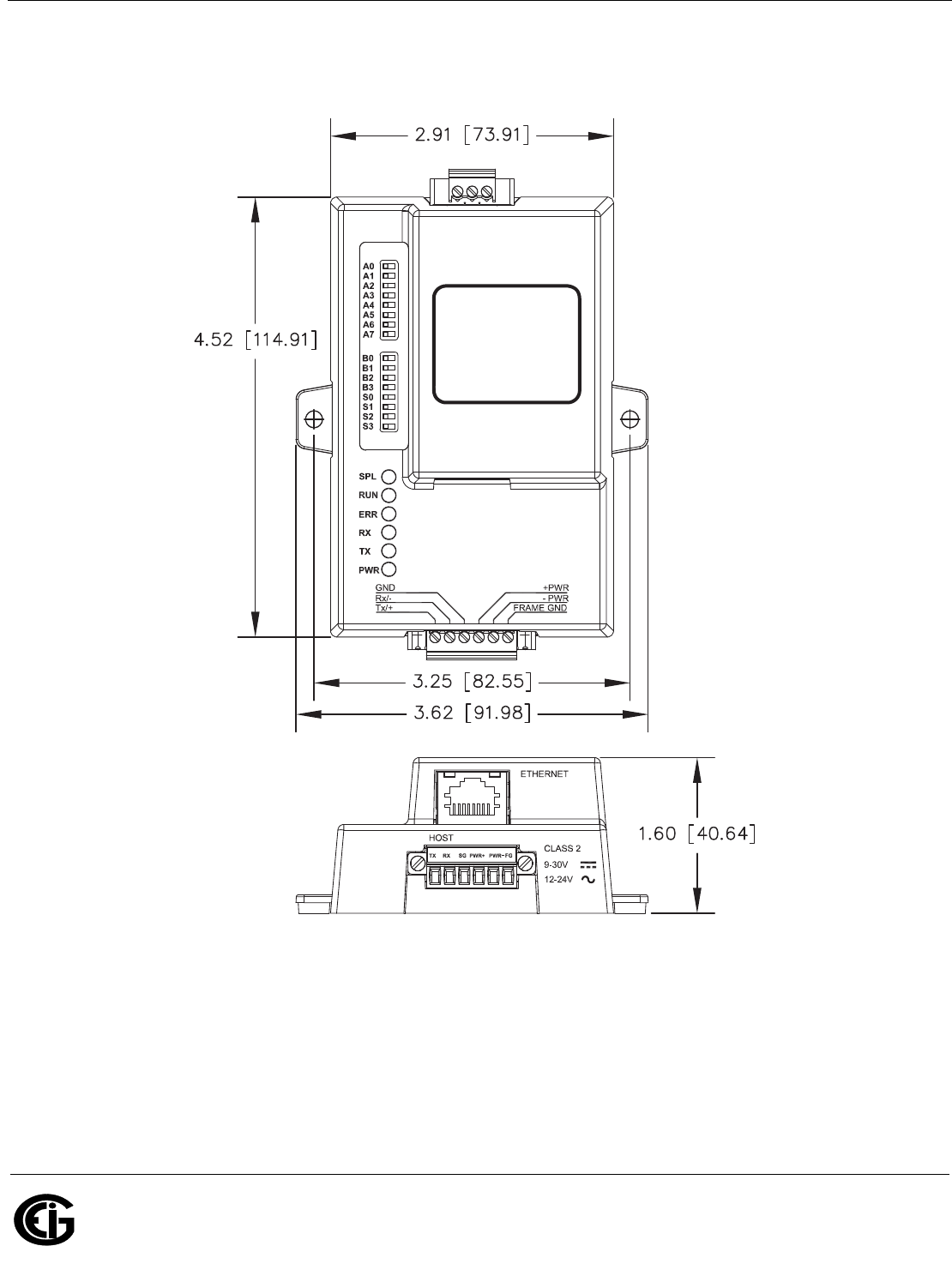

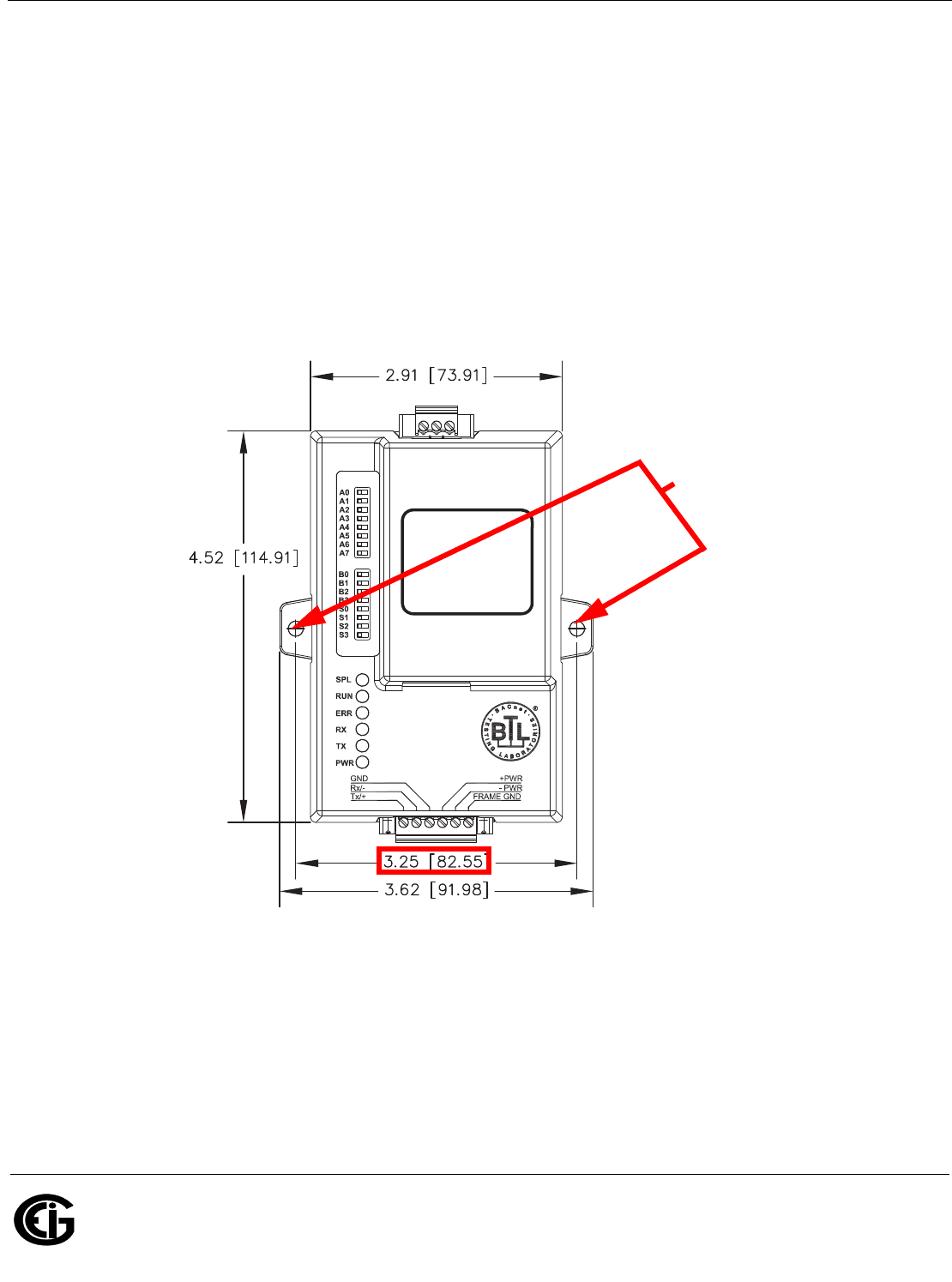

Figure 1.2: ProtoCom Dimensions in inches[cm]

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-5

1: Introduction to the ProtoCom/ProtoCom-Lon

1.5: Electrical Connections

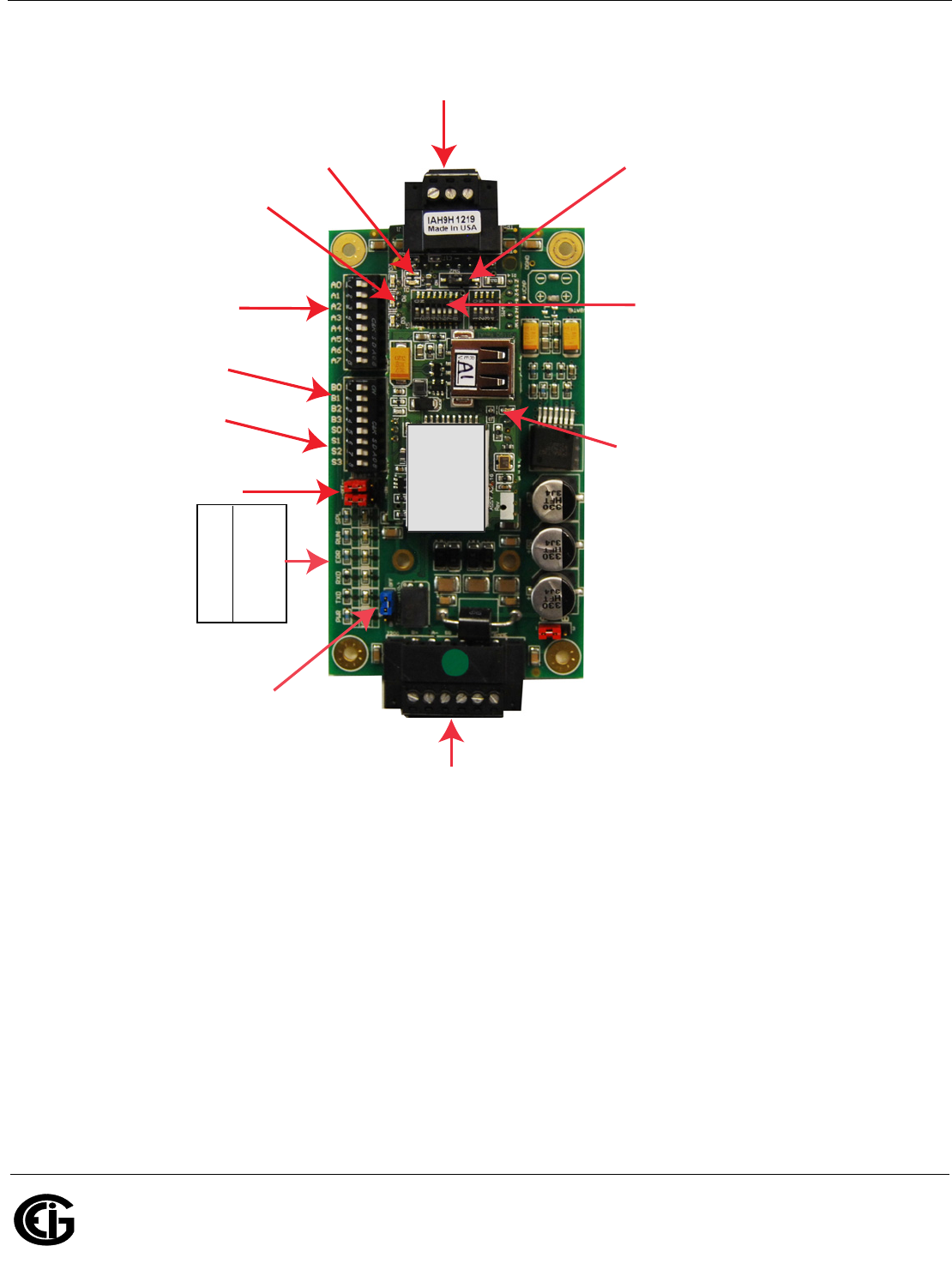

Figure 1.3: ProtoCom Electrical Connections

A Bank - MAC Address

B Bank - Baud Rate

S Bank - Protocol/

Cong

RS485 Bias Jumpers

SPL

RUN

ERR

RX

TX

PWR

LEDs

RS485 Termination

Jumper

RS485 Port to Field Protocol

6-pin Connector - Host RS485 and Power Connections

End of Line Termination Switch

Additional DIP Switches:

Only A1 and A2 are Enabled

PWR

LEDs: Field RS485 Rx/Tx

LEDs: RUN, ERR, Oine, RUN2

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-6

1: Introduction to the ProtoCom/ProtoCom-Lon

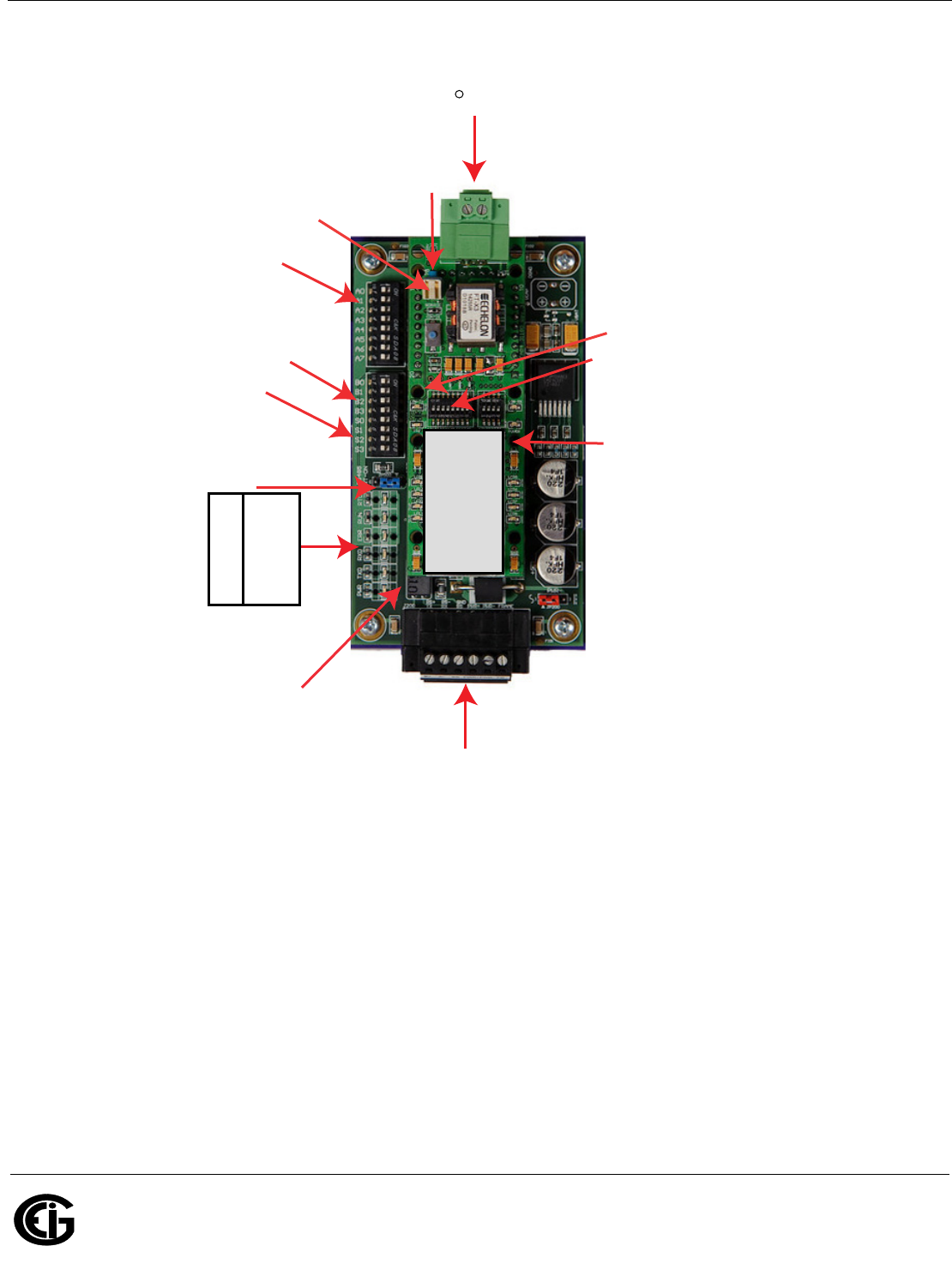

Figure 1.4: ProtoCom-Lon Electrical Connections

6-pin Connector - Host RS485 and Power Connections

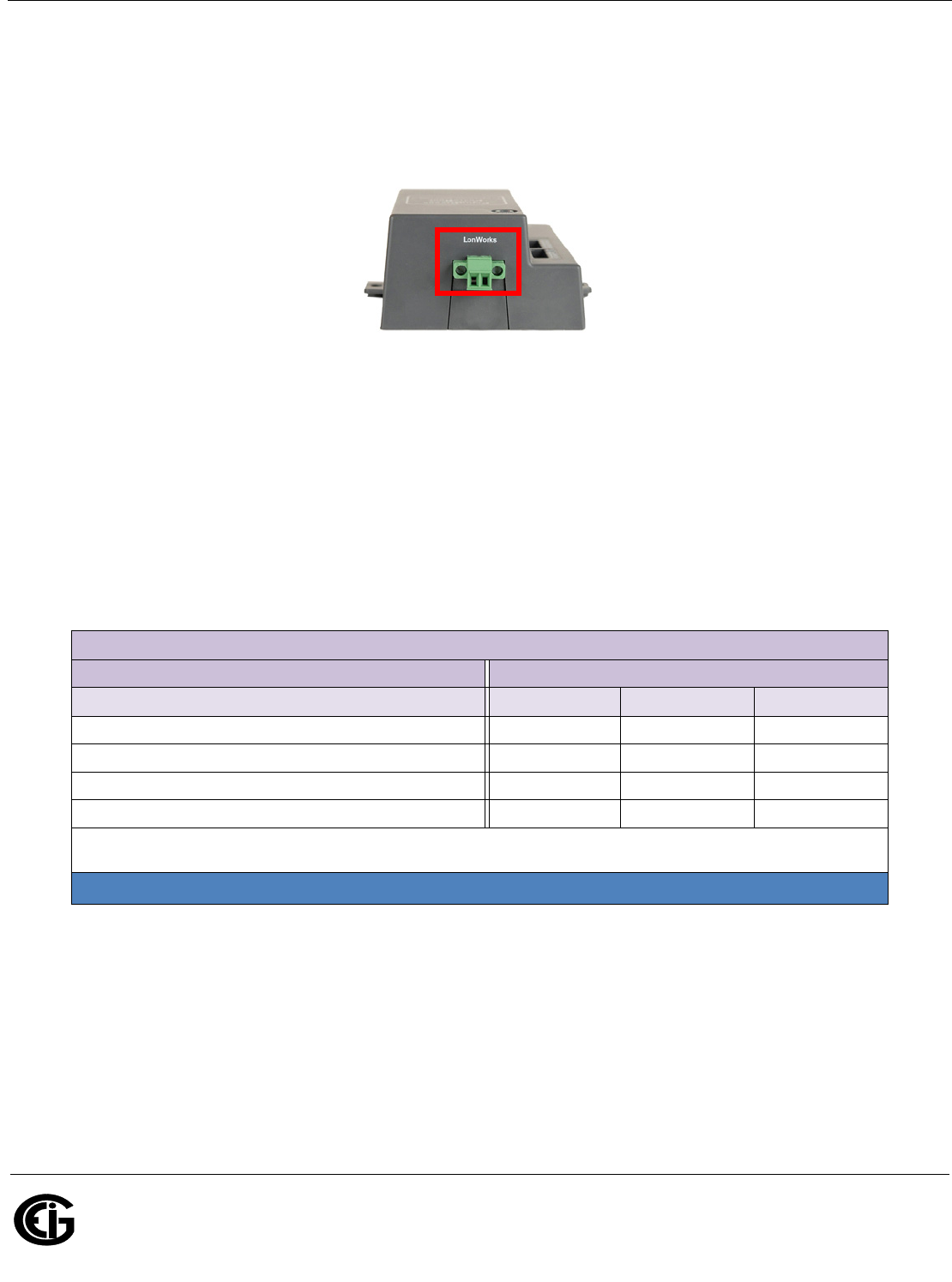

LonWorks Field Connection

R

A Bank - Node-ID

LonWorks LED

LonWorks Service Pin

B Bank - Baud Rate

RS485 Bias Jumpers

SPL

RUN

ERR

RX

TX

PWR

LEDs

S Bank - Protocol/

Cong

Additional DIP Switches:

Only A1 and A2 are

Enabled

LonWorks Rx

RS485 Termination

Jumper

RUN LED

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-7

1: Introduction to the ProtoCom/ProtoCom-Lon

1.6: Use of DIP Switches

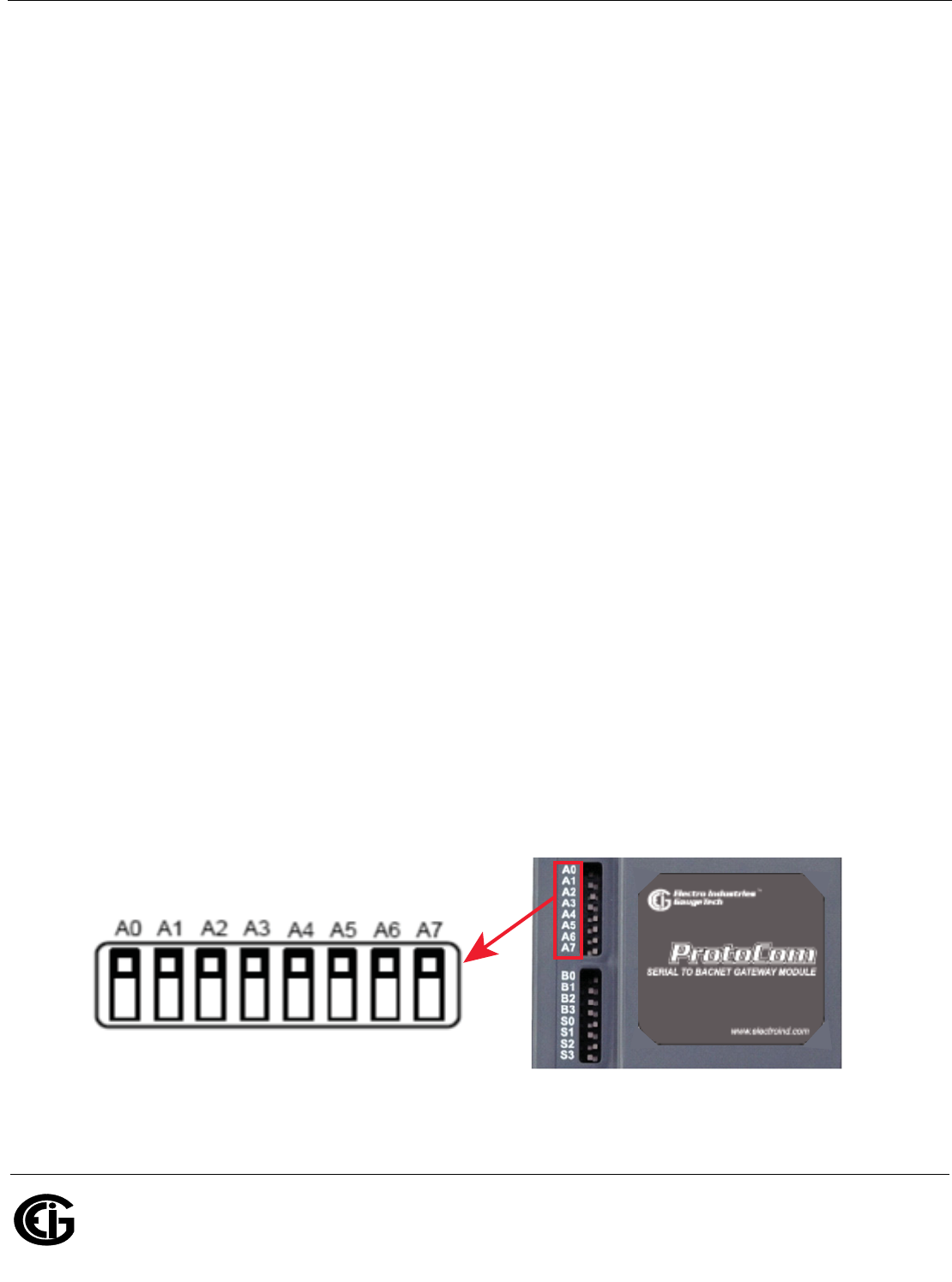

The ProtoCom/ProtoCom-Lon makes use of DIP Switches for many of its settings.

There are 3 banks of DIP Switches on the ProtoCom/ProtoCom-Lon, but on the

ProtoCom-Lon the S bank of DIP Switches is disabled, as it is not used. See the figure

below.

WARNING! When setting DIP Switches, ensure that power to the

ProtoCom/ProtoCom-Lon is OFF. AVERTISSEMENT! Lors de la configu-

ration des commutateurs DIP, veiller à ce que l’alimentation au Proto-

Com/ProtoCom-Lon est DÉSACTIVÉE.

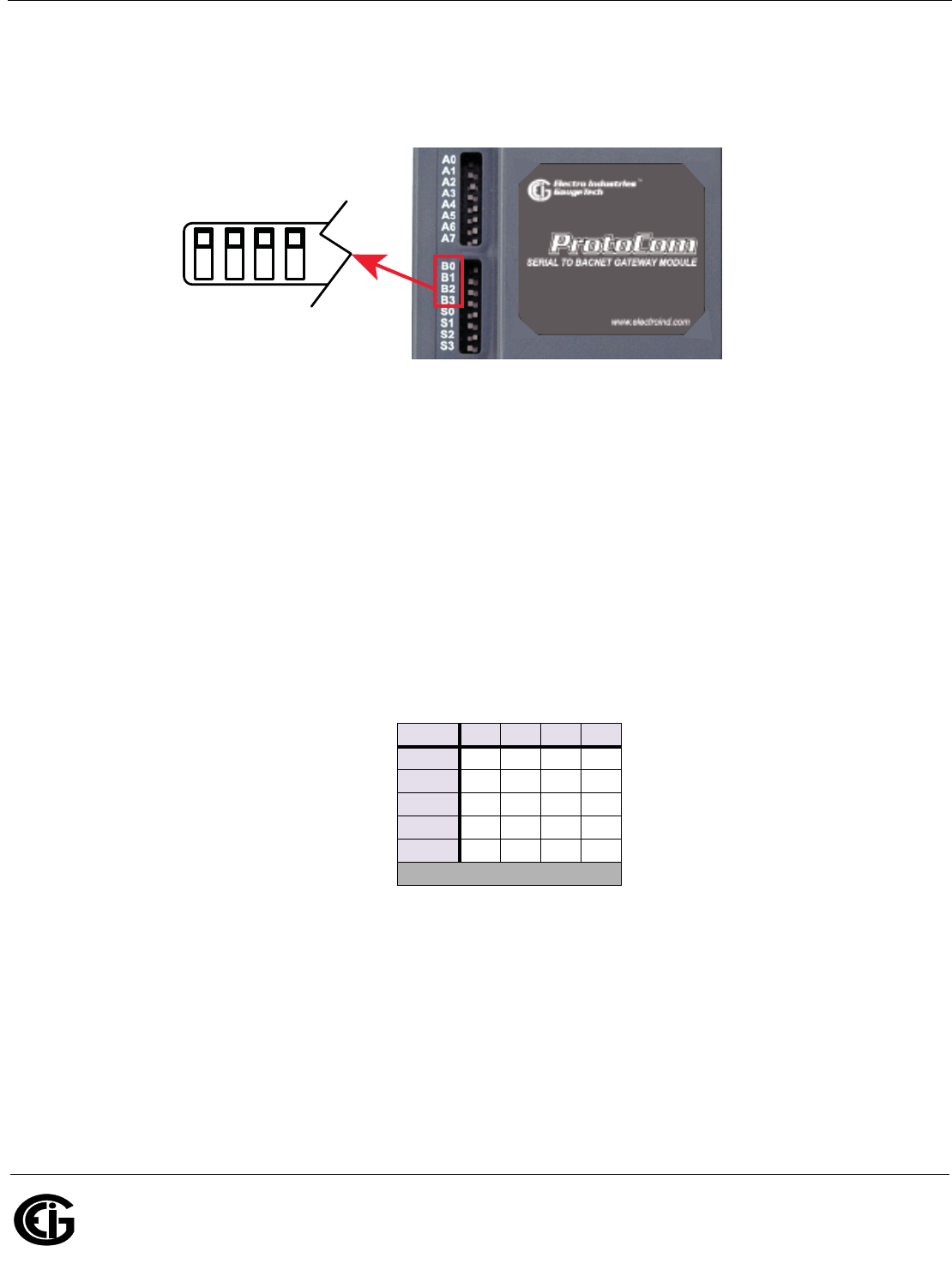

Figure 1.5: DIP Switches

• To set a DIP Switch ON, move it toward the center of the ProtoCom/ProtoCom-Lon.

• To set a DIP Switch OFF, move it toward the outside edge of the ProtoCom/Proto-

Com-Lon.

DIP Switch

OFF ON

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-8

1: Introduction to the ProtoCom/ProtoCom-Lon

1.7: Removing the Top Cover from the ProtoCom/ProtoCom-Lon

(ONLY if Necessary)

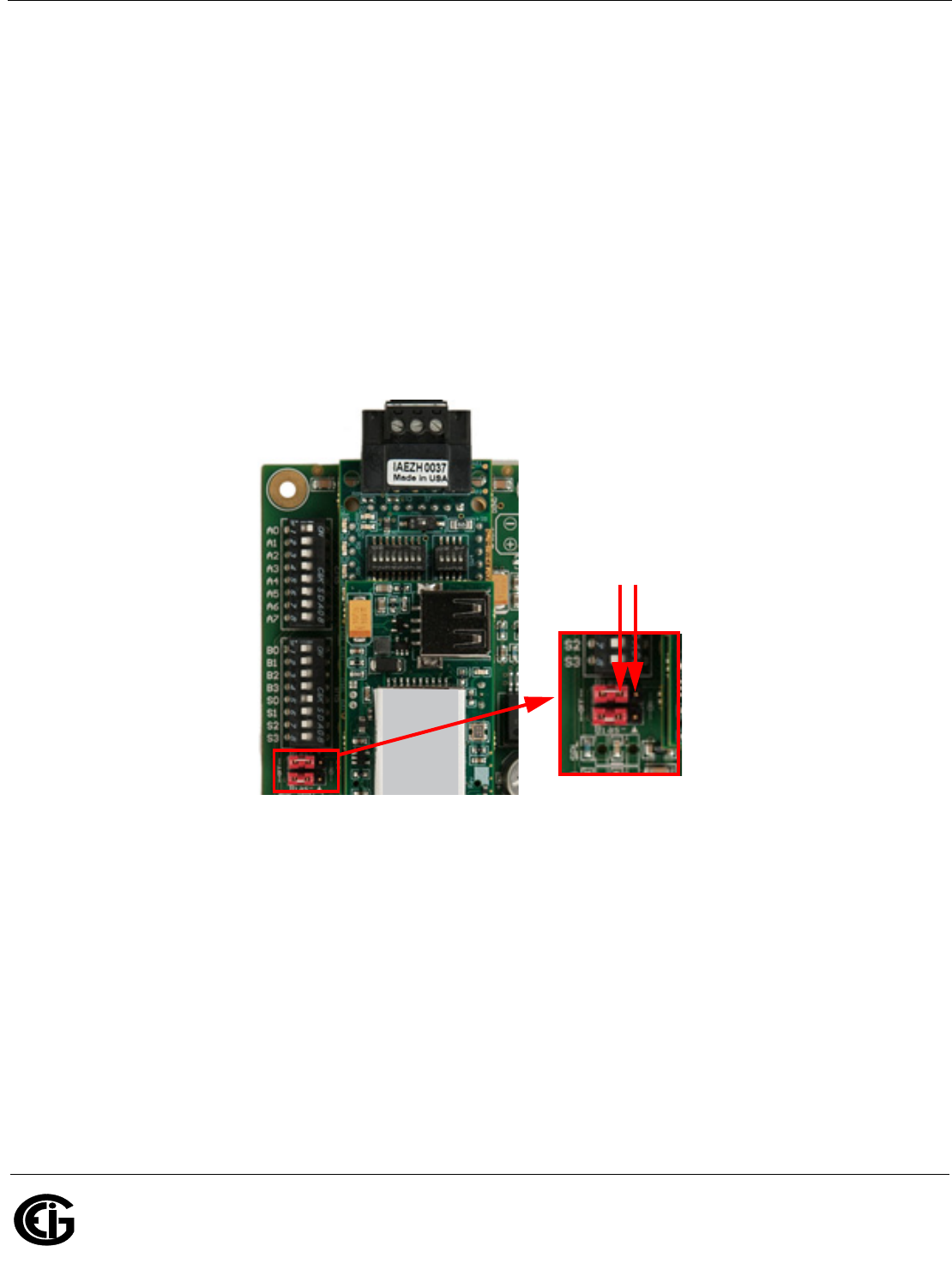

There are two situations (biasing and end-of-line termination, described in Chapter 2)

in which you may need to adjust internal jumpers. To do so you need to separate the

top cover from the main part of the unit.

CAUTION! Be sure the ProtoCom/ProtoCom-Lon is

POWERED OFF. ATTENTION! Veiller à ce que l’alimentation au

ProtoCom/ProtoCom-Lon est DÉSACTIVÉE.

Recommended Procedure to remove the top cover:

Using a flat-sided screw driver or similar tool, gently insert it into the 4 slots in the

back of the ProtoCom/ProtoCom-Lon, alternating between slots until the cover is loos-

ened enough to be removed. Refer to the diagram below.

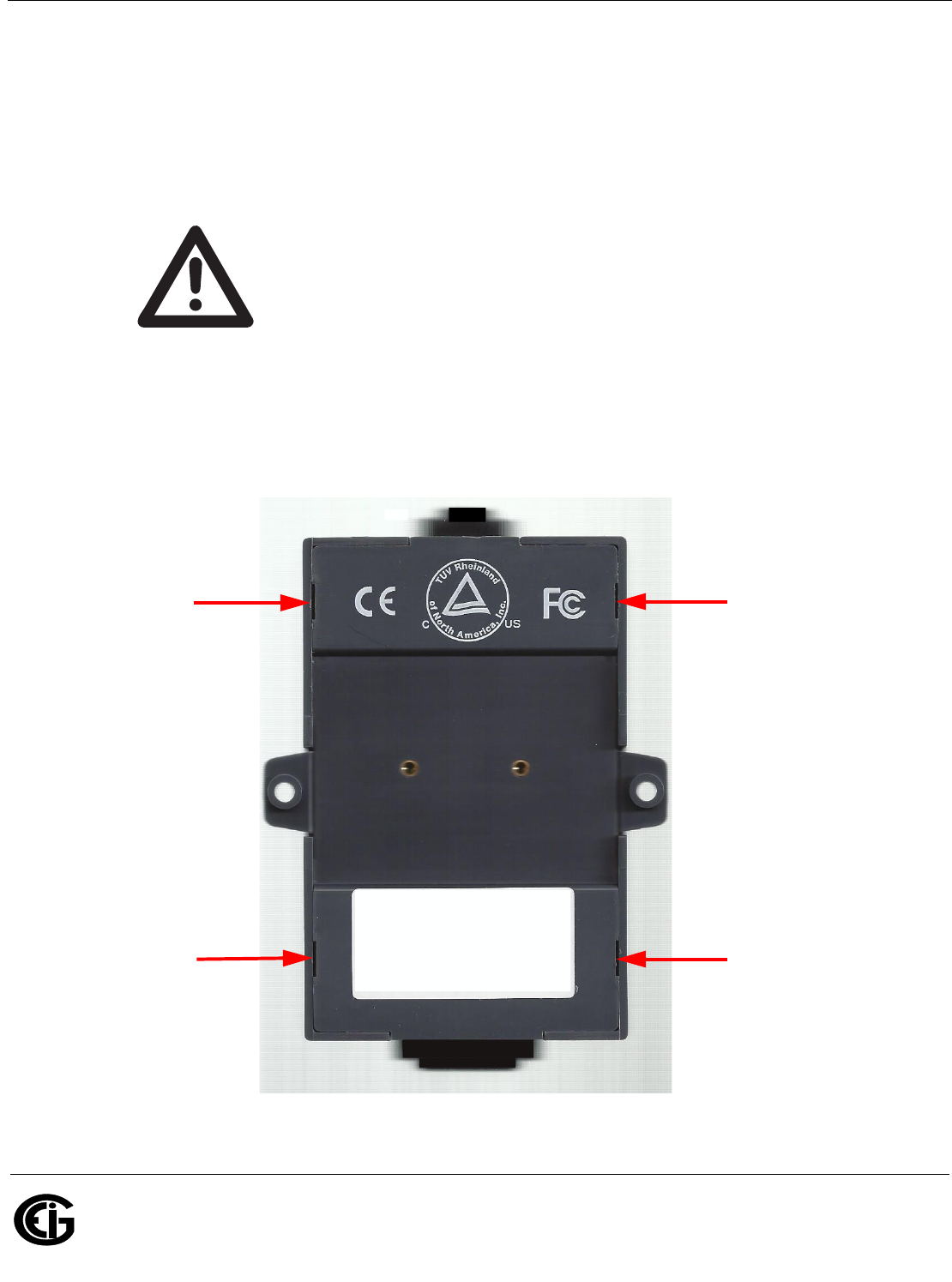

Figure 1.6: Slots in ProtoCom/ProtoCom-Lon Back

Slots for

removing

cover (4)

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-9

1: Introduction to the ProtoCom/ProtoCom-Lon

Alternate Procedure to remove the top cover:

1. Hold the ProtoCom/ProtoCom-Lon firmly with both hands and turn it over, so that

the back is facing you.

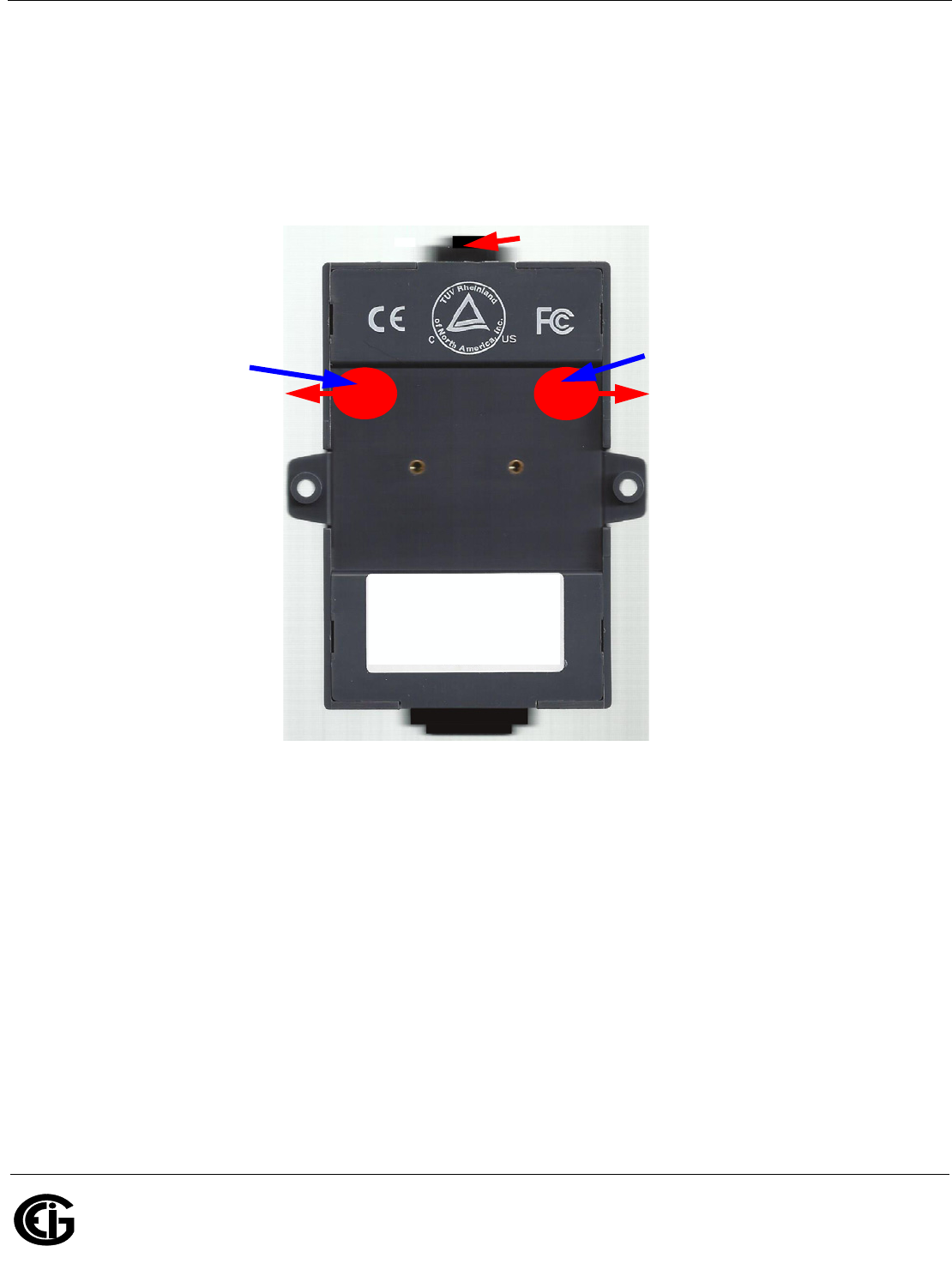

2. Position your thumbs as shown in the figure below and press outward on both sides

to fractionally move the sides away from the back of the unit.

Figure 1.7: Removing the Top Cover, Part 1

3. While keeping your thumbs in this position, use your index finger to pull the top

RS485 connector (labeled Field) toward you. The top back of the ProtoCom will be

freed from the top cover and move toward you about .25”.

4. Keeping the back of the ProtoCom facing you, turn the unit so that the 6 pin

connector (labeled HOST) is at the top. Once again, press outward with your

FIELD

Connector

2.Put right thumb here

3.Pull outward slightly

with thumbs on both

left and right edges

of top cover (in

direction of red

arrows)

4.Using either index

finger, pull forward

on the FIELD

connector to move

the main unit toward

you about .25”

1.Put left thumb here

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-10

1: Introduction to the ProtoCom/ProtoCom-Lon

thumbs as shown in the diagram below and pull the HOST connector toward you.

The main part of the ProtoCom/ProtoCom-Lon will be freed from the top cover.

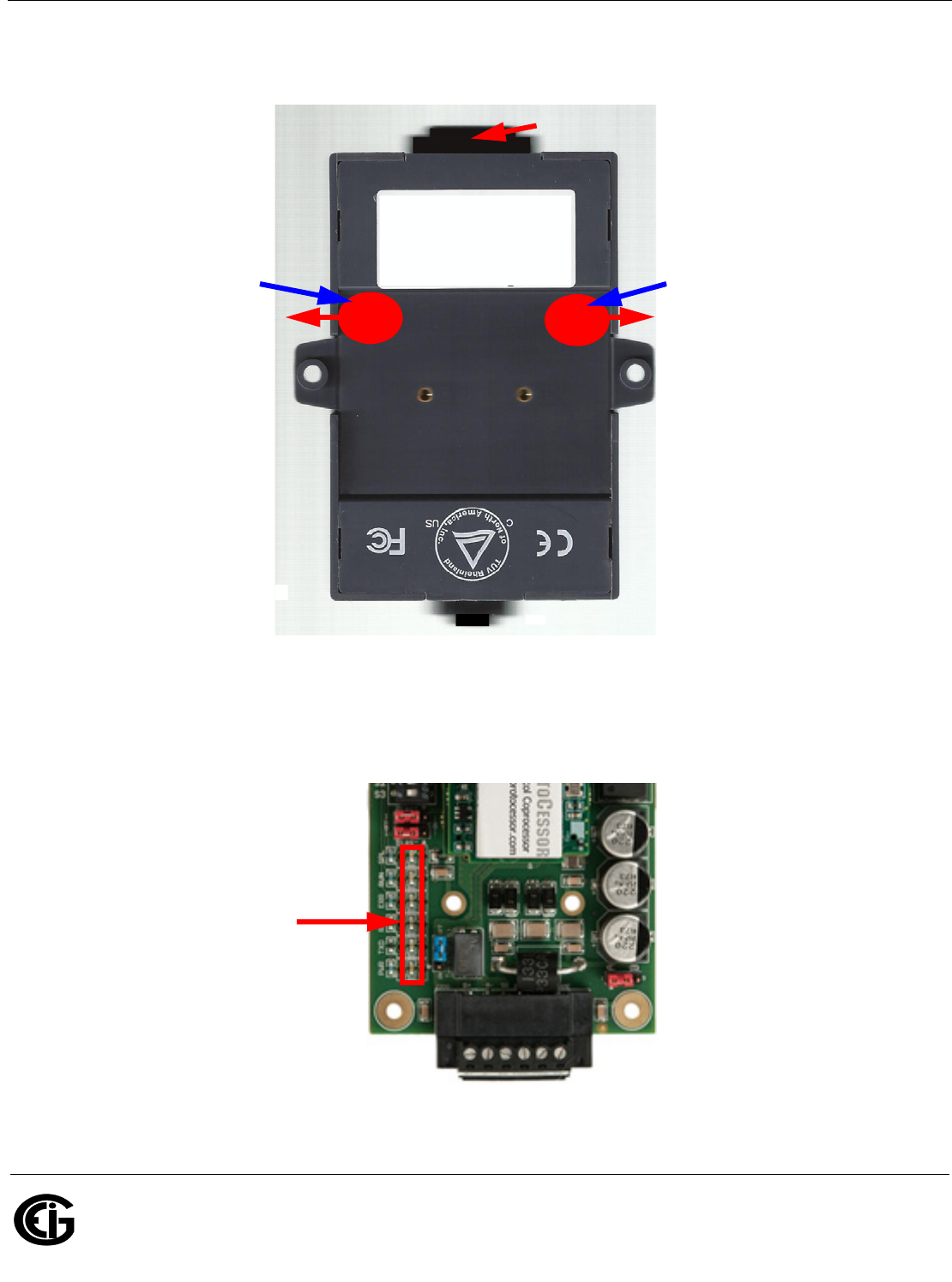

Figure 1.8: Removing the Top Cover, Part 2

NOTE: The plastic LED lens will come loose when the top cover is removed. It

must be replaced as shown in 9he drawing below.

Figure 1.9: Position of the LED Lens

HOST

Connector

Plastic

LED

Lens

fits here

1.Put left thumb here 2.Put right thumb here

3.Pull outward slightly

with thumbs on both

left and right edges

of top cover (in

direction of red

arrows)

4.Using either index

finger, pull forward

on the HOST

connector to free the

main unit

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-11

1: Introduction to the ProtoCom/ProtoCom-Lon

1.7.1: Replacing the Top Cover

To replace the cover:

1. Make sure the LED lens has been returned to its correct position (see Figure 1.8).

2. Carefully position the top cover over the main unit and press gently until it clicks

into place.

1.8: Graphical User Interface (GUI) Configurator

The ProtoCom/ProtoCom-Lon has an embedded GUI Configurator which can be used

to program the Node Offset or change the IP address (see Section 2.10.1), or to set

up a password for the ProtoCom/ProtoCom-Lon (see Section 2.10.2).

To open the GUI Configurator:

1. Connect a standard CAT5 Ethernet cable (straight or crossover) from your PC to the

RJ45 Ethernet port on the ProtoCom/ProtoCom-Lon.

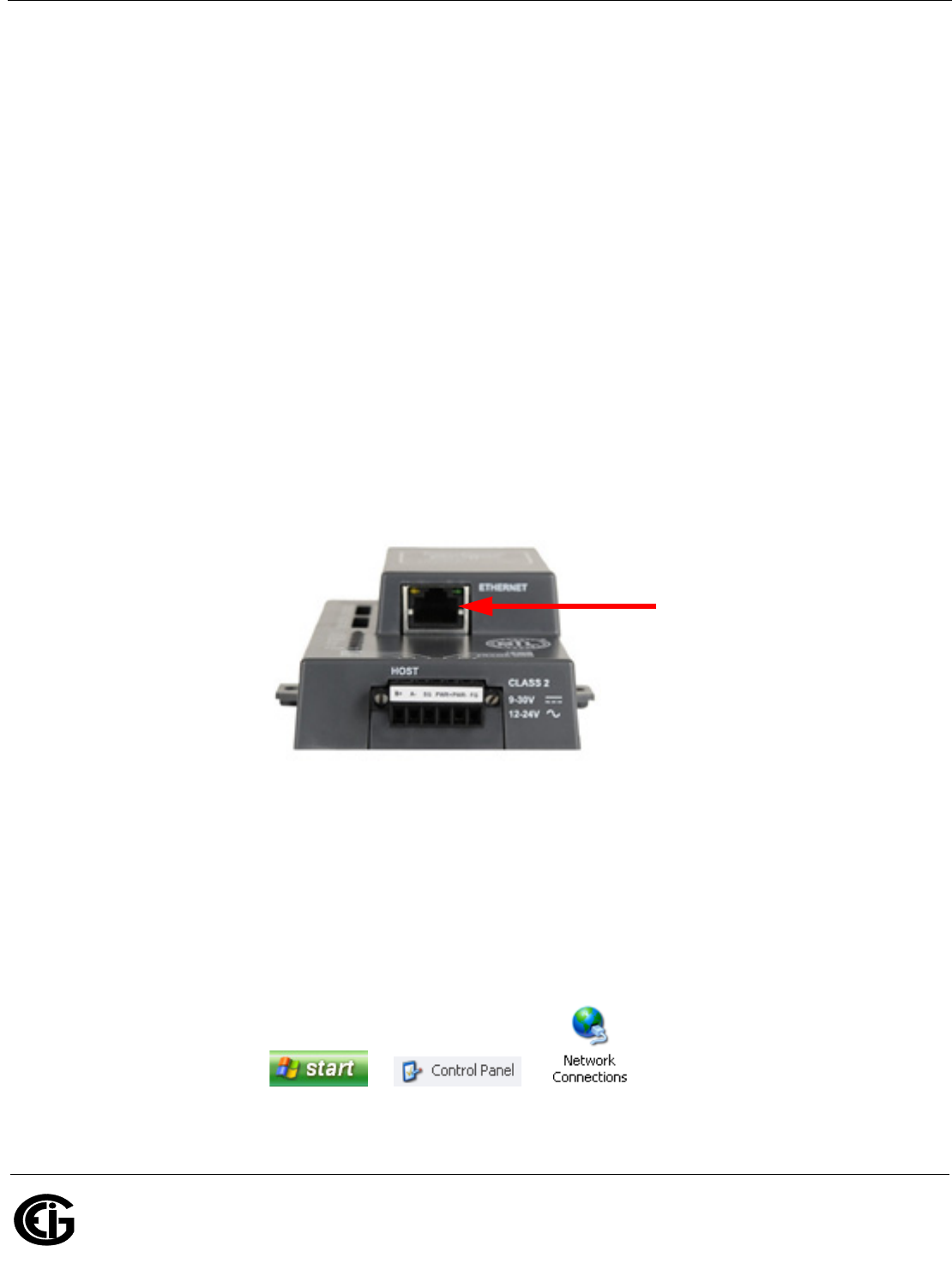

Figure 1.10: ProtoCom/ProtoCom-Lon Ethernet Port

2. The Default IP Address of ProtoCom/ProtoCom-Lon is 192.168.1.24, and the

Subnet Mask is 255.255.255.0. If the PC and ProtoCom/ProtoCom-Lon are on

different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx

network:

a. Go to > >

b. Right-click on Local Area Connection > Properties.

Insert the Ethernet

cable into the unit’s

RJ45 port

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-12

1: Introduction to the ProtoCom/ProtoCom-Lon

c. Highlight >

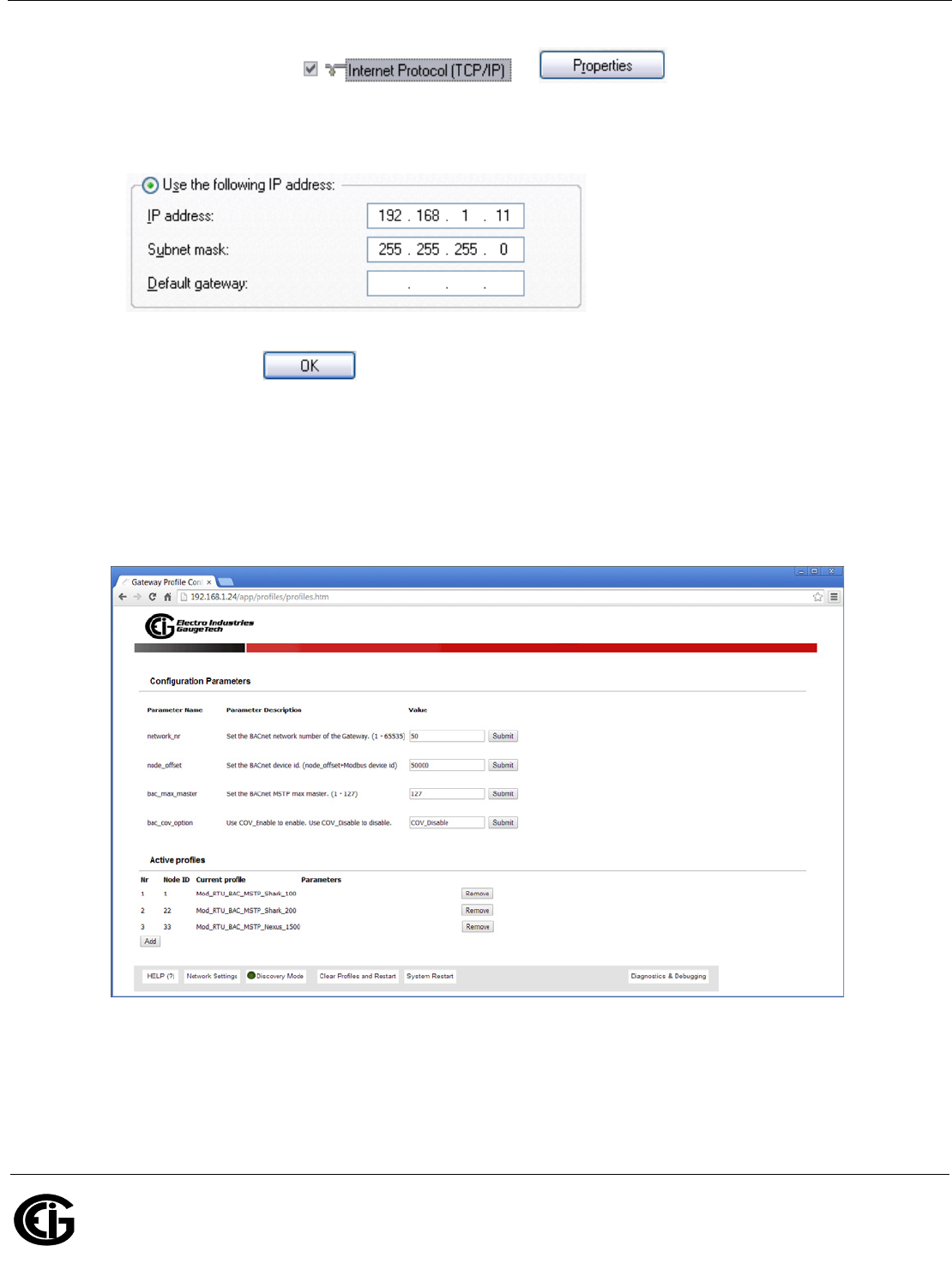

d. Select: Use the following IP address and enter the information below.

e. Click twice.

3. Open a browser application on your PC.

NOTE: You do not need to be connected to the Internet.

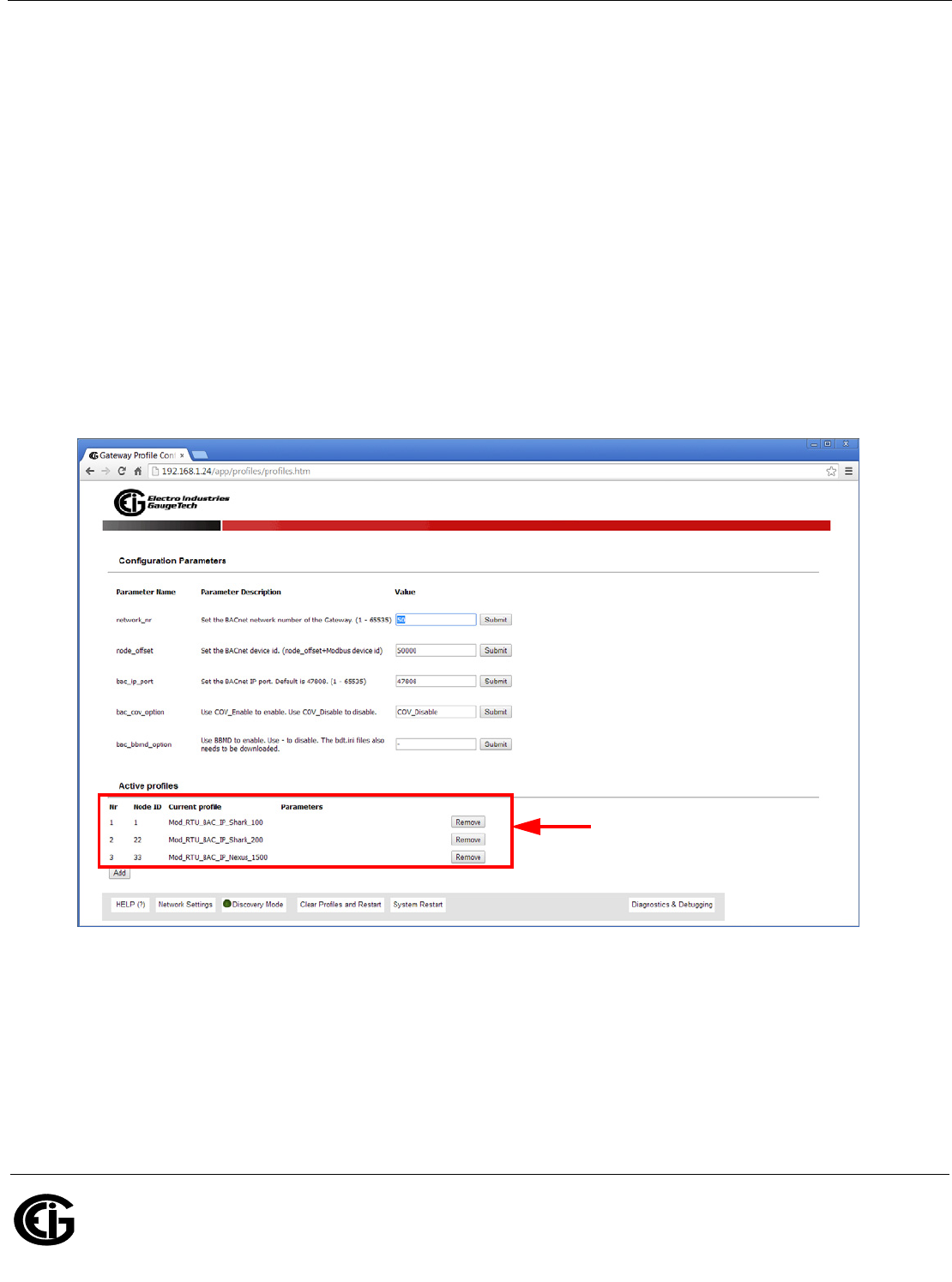

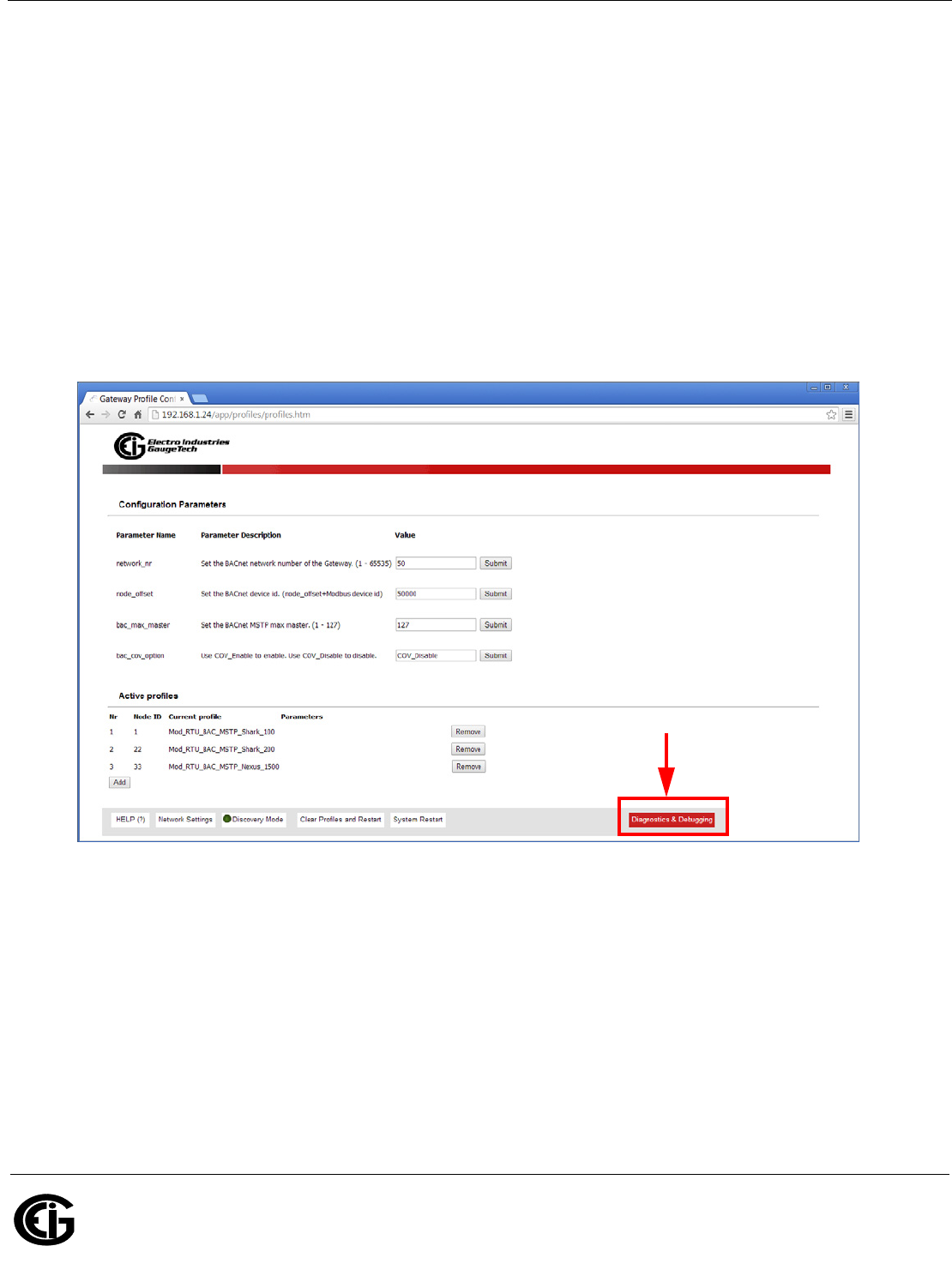

4. Type the ProtoCom/ProtoCom-Lon’s default IP address 192.168.1.24 in the browser

address bar and press Enter to open the GUI. You will see the screen shown below.

NOTES:

• The example screen above is for a ProtoCom running BACnet MSTP. The screen will

look a bit different if you are running another protocol.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-13

1: Introduction to the ProtoCom/ProtoCom-Lon

• If the IP address of the ProtoCom has been changed by previous configuration, you

will need to get the assigned IP address from the network administrator.

1.9: ProtoCom/ProtoCom-Lon Installation

You have two choices for installing the ProtoCom/ProtoCom-Lon:

• Mounting on a DIN rail using the DIN Rail clip that came attached to the unit

• Mounting on a panel using the unit’s mounting holes

1.9.1: Mounting on a DIN Rail

The ProtoCom/ProtoCom-Lon comes with an attached DIN Rail clip.

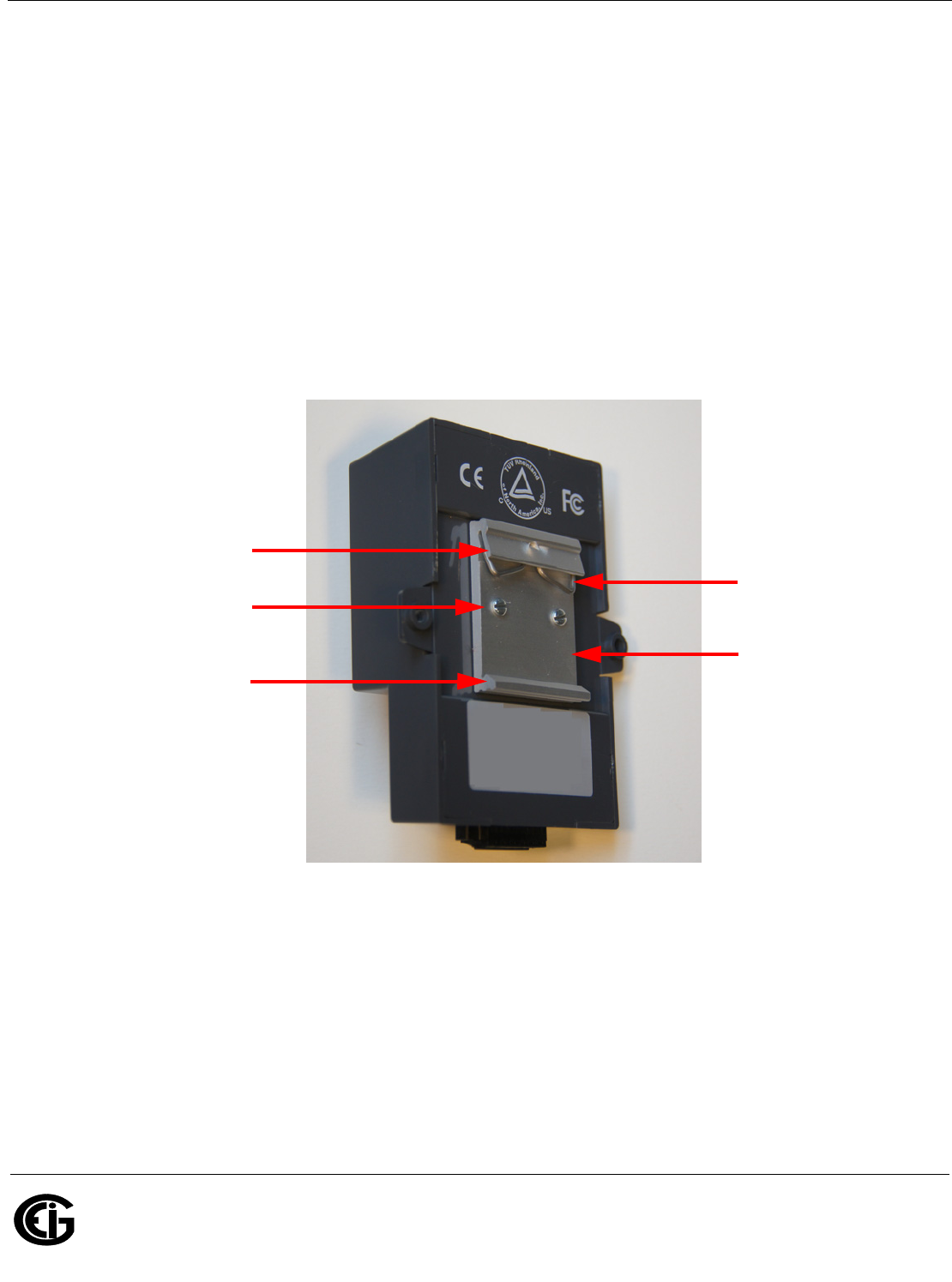

Figure 1.11: DIN Rail Clip

To mount the unit on a DIN Rail:

1. Latch the top edge of the clip onto the DIN Rail and push down on the unit to

compress the butterfly spring.

2. Clip the bottom edge of the clip onto the DIN rail and stop pushing down on the

unit. The butterfly spring will hold the unit in place.

DIN Rail clip

Butterfly spring

Two screws hold the

clip onto the unit

Top edge of clip

Bottom edge of clip

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-14

1: Introduction to the ProtoCom/ProtoCom-Lon

To remove the unit from the DIN Rail:

1. Push down on the unit to compress the butterfly spring.

2. Pull the bottom of the unit away from the DIN Rail to release the bottom edge of

the clip.

3. Unhook the clip from the top of the DIN Rail.

1.9.2: Mounting on a Panel

The ProtoCom/ProtoCom-Lon has mounting holes in its tabs for installation in a panel.

Figure 1.12: Location of Mounting Holes

1. Using a #1 flat-blade screwdriver, unscrew the two screws holding the DIN Rail clip

to the back of the ProtoCom/ProtoCom-Lom (see Figure 1.11) and remove the clip.

2. Verify that the area where the unit is to be mounted allows proper clearance for all

connections and mount the unit using the holes provided, spaced 3.25" apart.

Mounting Holes

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-15

1: Introduction to the ProtoCom/ProtoCom-Lon

1.10: Navigating This Manual

Chapter 2 explains how to use the ProtoCom/ProtoCom-Lon with EIG meters,

including configuration and wiring.

Chapter 3 contains information on device communication.

Appendix A contains the EIG meters points list for the supported protocols.

Appendix B contains the A Bank DIP Switch settings for MAC address.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 1-16

1: Introduction to the ProtoCom/ProtoCom-Lon

This page intentionally left blank.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-1

2: Using the ProtoCom/ProtoCom-Lon

2: Using the ProtoCom/ProtoCom-Lon

This chapter outlines the procedure for setting up communication between the Proto-

Com/ProtoCom-Lon and an EIG meter.

2.1: Step One - Configure Modbus Communication Settings

The ProtoCom/ProtoCom-Lon is designed to connect to the RS485 Modbus port of an

EIG power meter and to convert the serial communication to the desired protocol.

Depending on the meter’s point count (see Section 1.2), the ProtoCom/ProtoCom-Lon

can communicate with more than one meter. Each meter must have an independent

RS485 Modbus address. See the example configuration below.

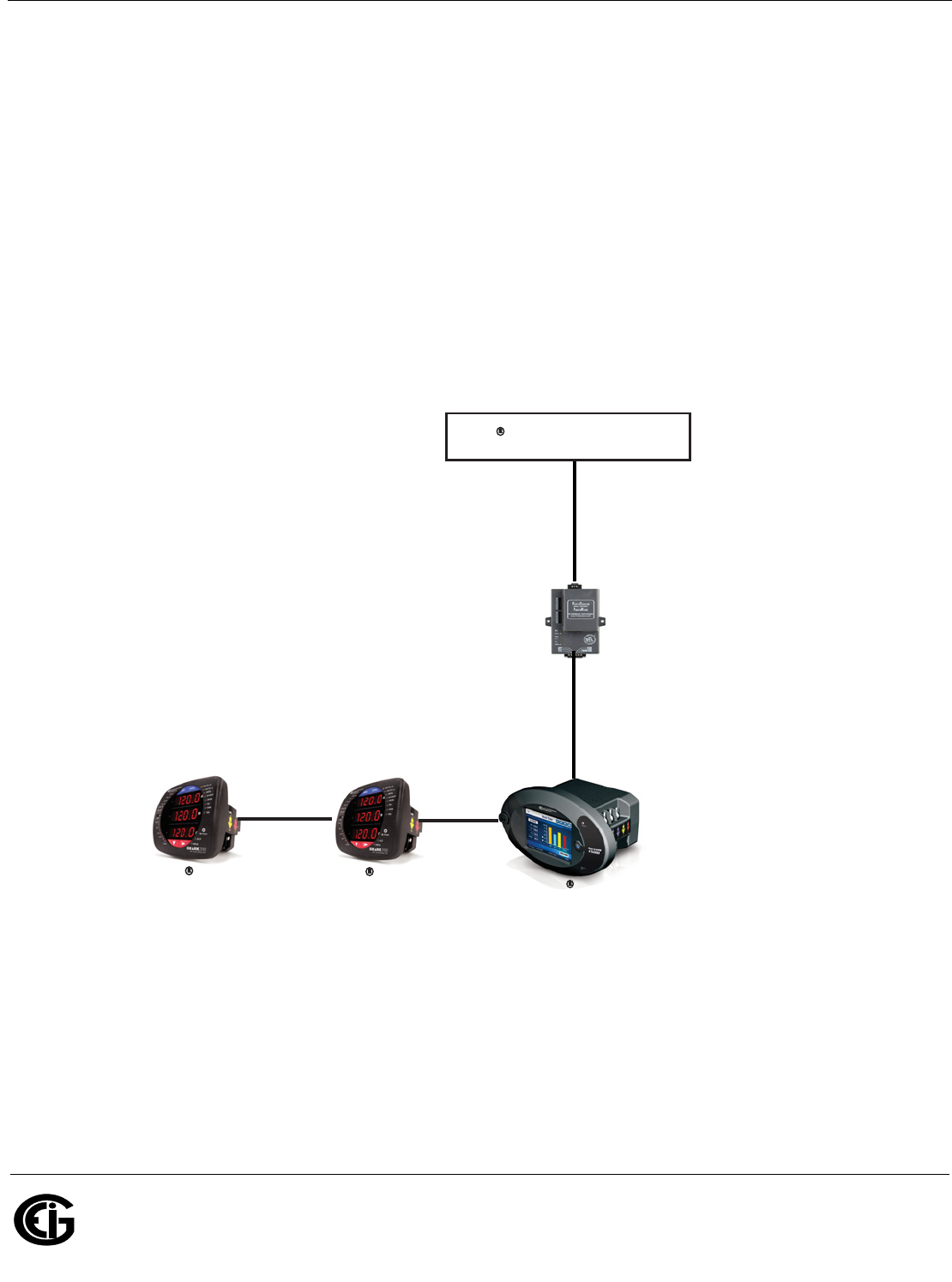

Figure 2.1: Example of Meters, ProtoCom, and Protocol Communication

Nexus 1500 Meter

ProtoCom

BACnet Building Management System

Shark 200 Meter

R

Shark 200 Meter

R

R

R

RS485

BACnet/IP

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-2

2: Using the ProtoCom/ProtoCom-Lon

All devices connected to the ProtoCom/ProtoCom-Lon MUST have the same Baud

Rate, Data Bits, Stop Bits, and Parity. Refer to the following table, which shows the

default communication settings.

1. Assign a Modbus Address to each of the devices attached to the ProtoCom/Proto-

Com-Lon. The Modbus Address needs to be uniquely assigned between 1 and 255.

2. Record the Modbus Address assigned to each device.

Serial Port Setting Device

Protocol Modbus RTU

Baud Rate 9600

Parity None

Data Bits 8

Stop Bits 1

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-3

2: Using the ProtoCom/ProtoCom-Lon

2.2: Step Two - Select the Desired Field BAS Protocol (ProtoCom

only)

You will use the S Bank Dip Switches to choose from BACnet MS/TP, BACnet/IP,

Modbus/TCP, Metasys N2, EtherNet/IP, or DF1 (refer to Section 1.6 for an explanation

of the DIP switches). Note that the ProtoCom’s default setting enables BACnet, so you

don’t need to change this setting unless you want to use another protocol.

WARNING! When setting DIP Switches, please ensure that power to the

board is OFF. AVERTISSEMENT! Lors de la configuration des commutateurs

DIP, veiller à ce que l’alimentation au ProtoCom/ProtoCom-Lon est DÉSACTIVÉE.

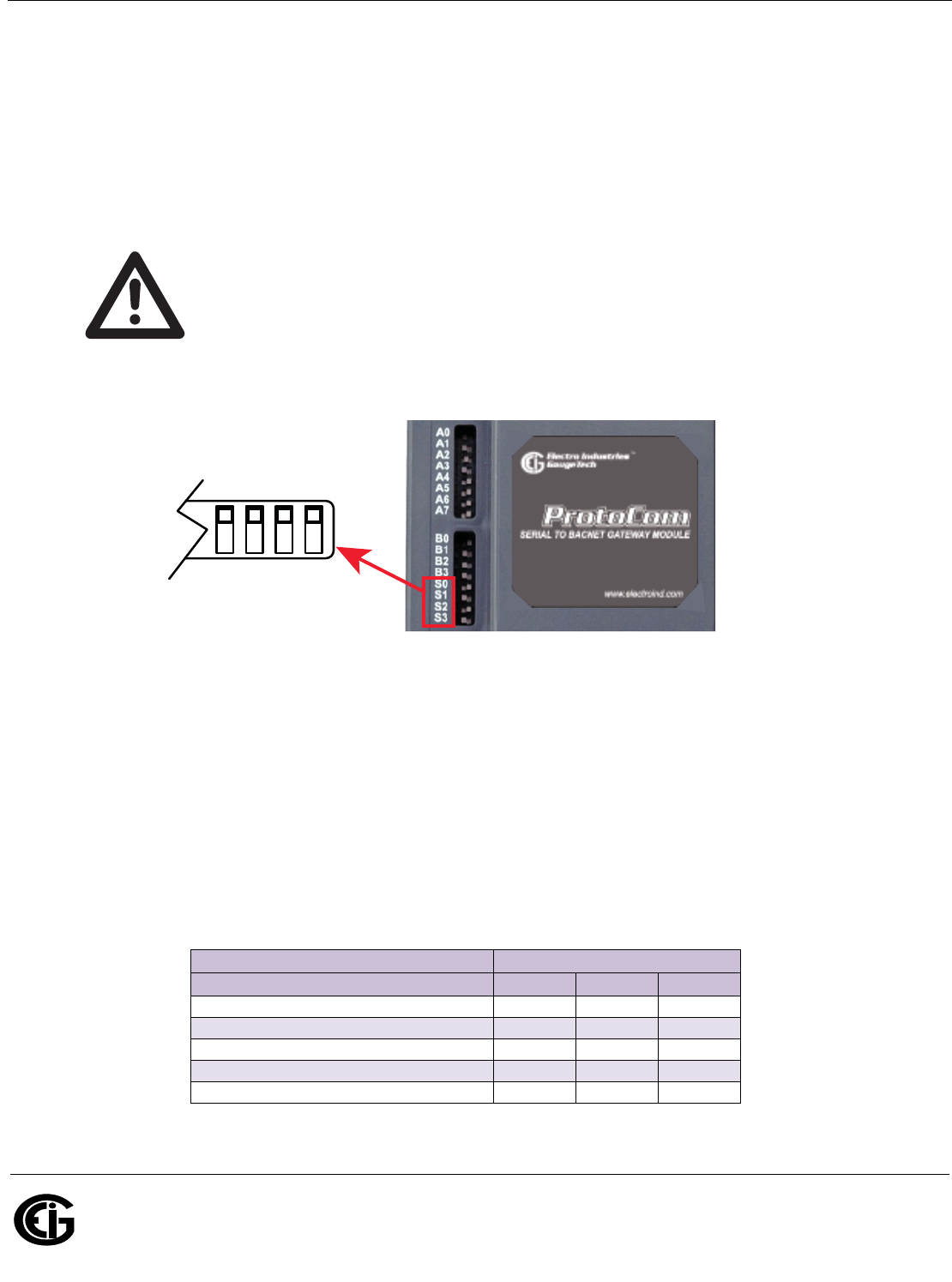

Figure 2.2: S Bank of DIP Switches

• The S bank of DIP switches, S0 - S3 is used to select BACnet MS/TP, BACnet/IP,

Modbus/TCP, Metasys N2, EtherNet/IP, or DF1 protocols on ProtoCom.

• The following chart describes S0 - S3 DIP switch configuration settings for the

devices to support BACnet MS/TP, BACnet/IP, Modbus TCP, Metasys N2,

EtherNet/IP, or DF1 protocols on a ProtoCom.

ProtoCom SBankDIPSwitches

Protocol S0 S1 S2

BACnetIP Off Off Off

BACnetMSTP On Off Off

MetasysN2 Off On Off

EtherNet/IP On On Off

DF1 Off Off On

S0 S1 S2 S3

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-4

2: Using the ProtoCom/ProtoCom-Lon

NOTES:

• When the S bank of switches are all off (this is the default setting) BACnet/IP is

enabled.

• The OFF position is when the DIP switches are set closest to the outside of the

box.

• On the ProtoCom-Lon, the S bank DIP switches are disabled, since the Field

Protocol is always LonWorks.

2.3: Step Three - Enable Auto-discovery

The ProtoCom/ProtoCom-Lon has an Auto-discovery feature that lets it determine the

EIG meter model it is connected to, and automatically load the appropriate points list

for the protocol you choose. This makes configuration simple. The ProtoCom/Proto-

Com-Lon allows a user to put different EIG meters on the RS485 bus, and have the

ProtoCom/ProtoCom-Lon automatically discover them and make them available via

the selected protocol.

Auto-discovery is set in the S Dip Switch bank’s S3 switch (see DIP Switch figure on

the previous page). The setting configuration is shown in the table below.

When installing the ProtoCom for the first time, set S3 to the ON position to enable

Auto-discovery. The ON position is when the DIP switches are set closest to the inside

of the box.

ProtoCom

SBankDIP

Switches

Auto‐DiscoverySettings S3

Auto‐DiscoveryON‐BuildNewConfiguration On

Auto‐DiscoveryOFF‐SaveCurrentConfiguration Off

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-5

2: Using the ProtoCom/ProtoCom-Lon

2.4: Step Four - Set MAC Address/Device Instance/Node-ID (Proto-

Com only)

The Building Management System (BMS) in use must be able to distinguish the Proto-

Com, and the meters attached to it, from all of the other devices in the BMS system.

For this reason, the ProtoCom and connected devices must be given a unique ID. The

specific ID you need to set depends on the BMS protocol you’ll be using.

• MAC Address - used for BACnet MS/TP protocol only (Section 2.4.1): this is an

eight bit address used to identify devices on a single RS485 subnet (the devices

attached to the ProtoCom when using BACnet MS/TP). It identifies the ProtoCom to

the BACnet MS/TP protocol.

• Device Instance - used for both BACnet MS/TP and BACnet/IP (Section 2.4.2): the

Device Instance is used to set up a unique identifier for each of the meters

attached to the ProtoCom.

• Node-ID - used for Metasys N2, Modbus/TCP, and DF1 (Section 2.4.3): this is the

unique identifier for each of the meters attached to the ProtoCom.

2.4.1: Set MAC Address - for BACnet MS/TP Protocol Only

• Note that only 1 MAC address is set for the ProtoCom, regardless of how many

devices are connected to it.

• Set the BACnet MS/TP MAC address between 1 and 127 (Master MAC address):

this is so that the BMS system can find the ProtoCom via BACnet auto discovery.

• Use DIP switches A0 - A7 to assign the MAC Address for BACnet MS/TP.

Figure 2.2: A Bank of DIP Switches

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-6

2: Using the ProtoCom/ProtoCom-Lon

NOTES:

• Refer to Appendix C.1 for the MAC address DIP switch chart.

• When using Metasys N2, Modbus/TCP, and DF1 the A Bank of DIP

switches are disabled and not used. They should be set to the OFF

position.

2.4.2: Set the Device Instance - for BACnet MS/TP and BACnet/IP

Protocols

The BACnet protocol needs a value called Device Instance for each device in the

system. This Device Instance is used to uniquely identify the device in a BACnet

system. The BACnet Device Instance is set up by adding a value known as the

Node_Offset to the Modbus Address that you assigned to the device in step 1

(Section 2.1).

The BACnet Device Instance can range from 1 to 4,194,303. The default Node_Offset

is 50,000.

For example, using the Node_Offset default of 50,000:

a. If Device 1 has a Modbus Address of 1, Device 2 has a Modbus Address of 2,

Device 3 has a Modbus Address of 3;

b. The Device Instance for Device 1 is 50,001; for Device 2 it is 50,002; and for

Device 3 it is 50,003.

2.4.2.1: Change Node_Offset Value

If you need to, you can change the default Node_Offset from 50,000 to any number

between 1 and 4,194,302 using the GUI Configurator (see Section 1.9). Follow these

instructions:

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-7

2: Using the ProtoCom/ProtoCom-Lon

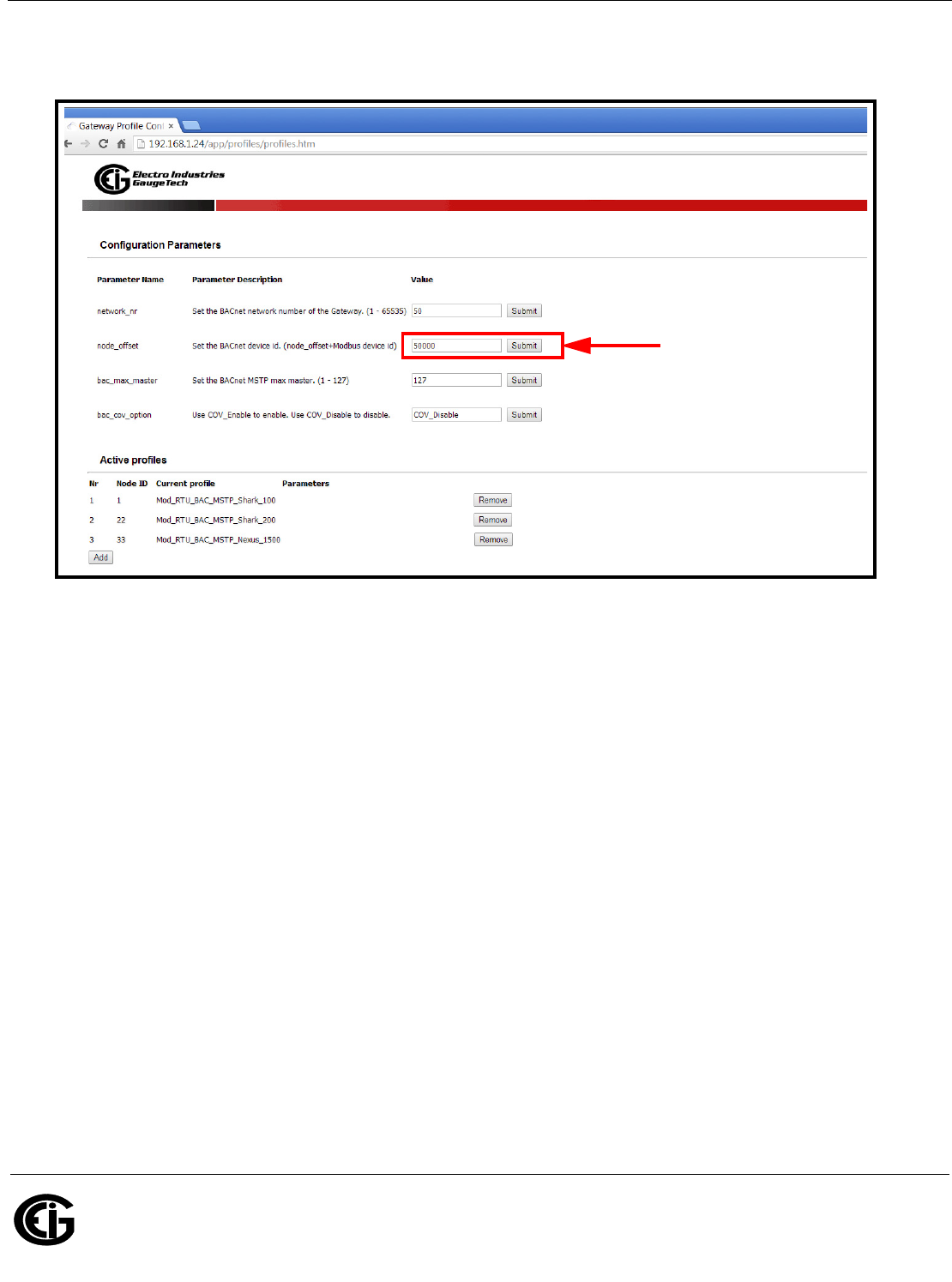

1. From the GUI Configurator screen, enter the Node_Offset you want to use. The

example screen below is for a ProtoCom configured for BACnet MS/TP protocol.

2. Enter the value you want to use in the Node_Offset field.

3. Click Submit. The BACnet device instances will be set by taking the new Node_Off-

set and adding it to the Modbus Address that you assigned to the device (Section

2.1).

For example, using a Node_Offset changed to 20,000:

• If Device 1 has a Modbus Address of 1, Device 2 has a Modbus Address of 2,

Device 3 has a Modbus Address of 3;

• The Device Instance for Device 1 is 20,001; for Device 2 it is 20,002; and for

Device 3 it is 20,003.

2.4.3: Device Node-ID for Metasys N2, Modbus/TCP, and DF1

Protocols

The Modbus Addresses that you assigned to the devices attached to the ProtoCom in

Section 2.1 will be the Metasy N2, Modbus TCP, and DF1 Node_ID's for the field

protocols. You don’t need to set up any other identification.

Enter a new

Node Offset

and click Submit

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-8

2: Using the ProtoCom/ProtoCom-Lon

2.5: Step 5: Set the Baud Rate for BACnet MS/TP and DF1 Protocols

Use DIP Switches B0 - B3 to set the serial baud rate to match the baud rate provided

by the BMS for BACnet MS/TP and DF1.

Figure 2.3: B Bank of DIP Switches

NOTES:

• The baud rate for Metasys N2 protocol is set to 9600: the B bank of DIP Switches is

disabled for Metasys N2 on ProtoCom, since they are not needed.

• The B bank of DIP switches is disabled for the ProtoCom-Lon.

• The default setting of the ProtoCom is 38400.

The following table shows the Baud Rate DIP Switch selection.

Baud B0 B1 B2 B3

9600 On On On Off

19200 Off Off Off On

38400 On On Off On

57600 Off Off On On

76800 On Off On On

B0 B1 B2 B3

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-9

2: Using the ProtoCom/ProtoCom-Lon

2.6: Step 6 - Connect the ProtoCom/ProtoCom-Lon to the Meter

The six pin connector at the bottom of the ProtoCom/ProtoCom-Lon (labeled HOST) is

used to connect the ProtoCom to the EIG meter and to the power supply. (See Section

1.5 for detailed information on the ProtoCom/ProtoCom-Lon’s connections).

• Pins 1 through 3 are for the meter’s RS485 connection, though the RS485 GND (Pin

3) is not typically connected.

• Pins 4 through 6 are for power.

CAUTION! DO NOT CONNECT POWER YET.

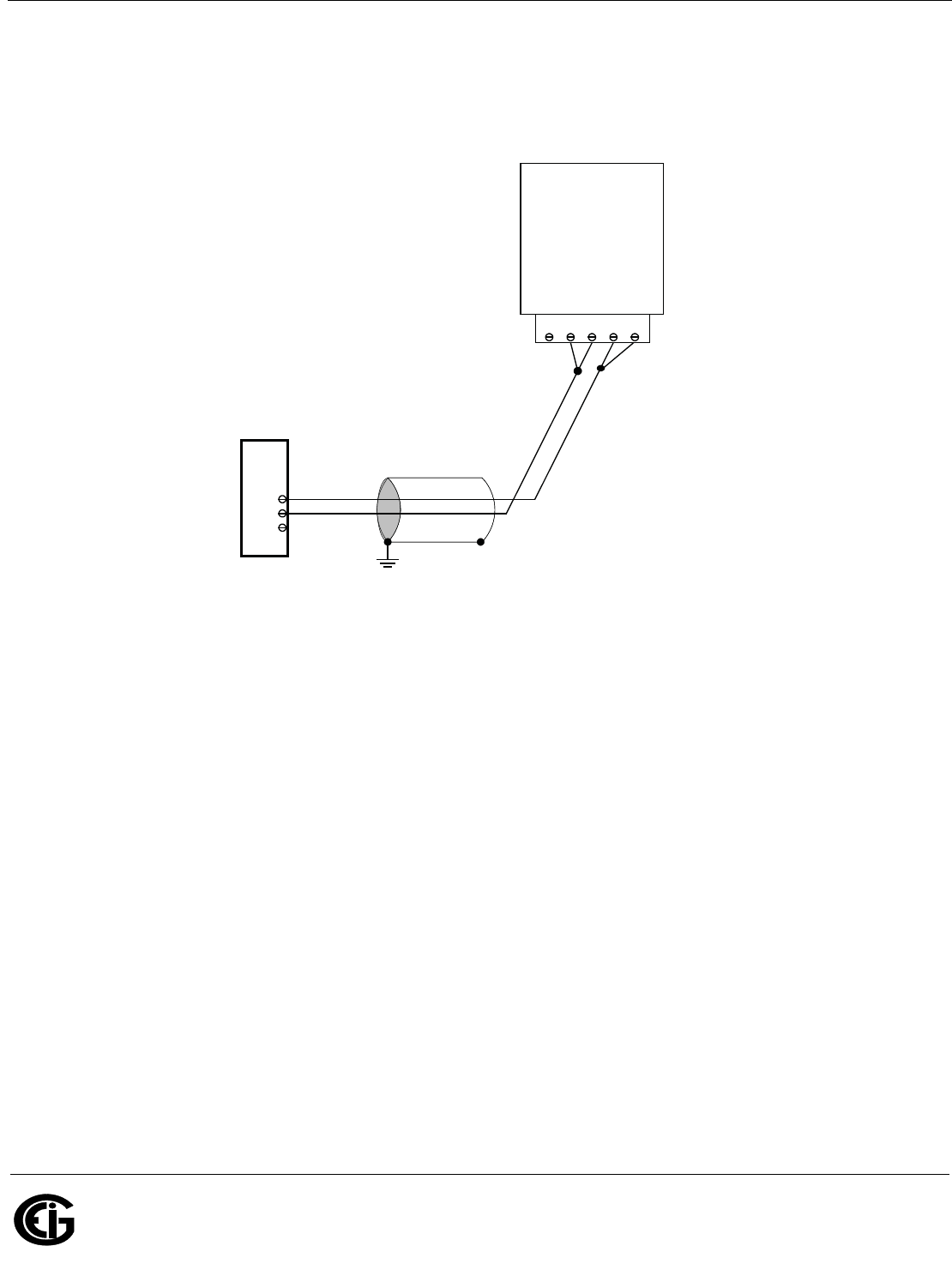

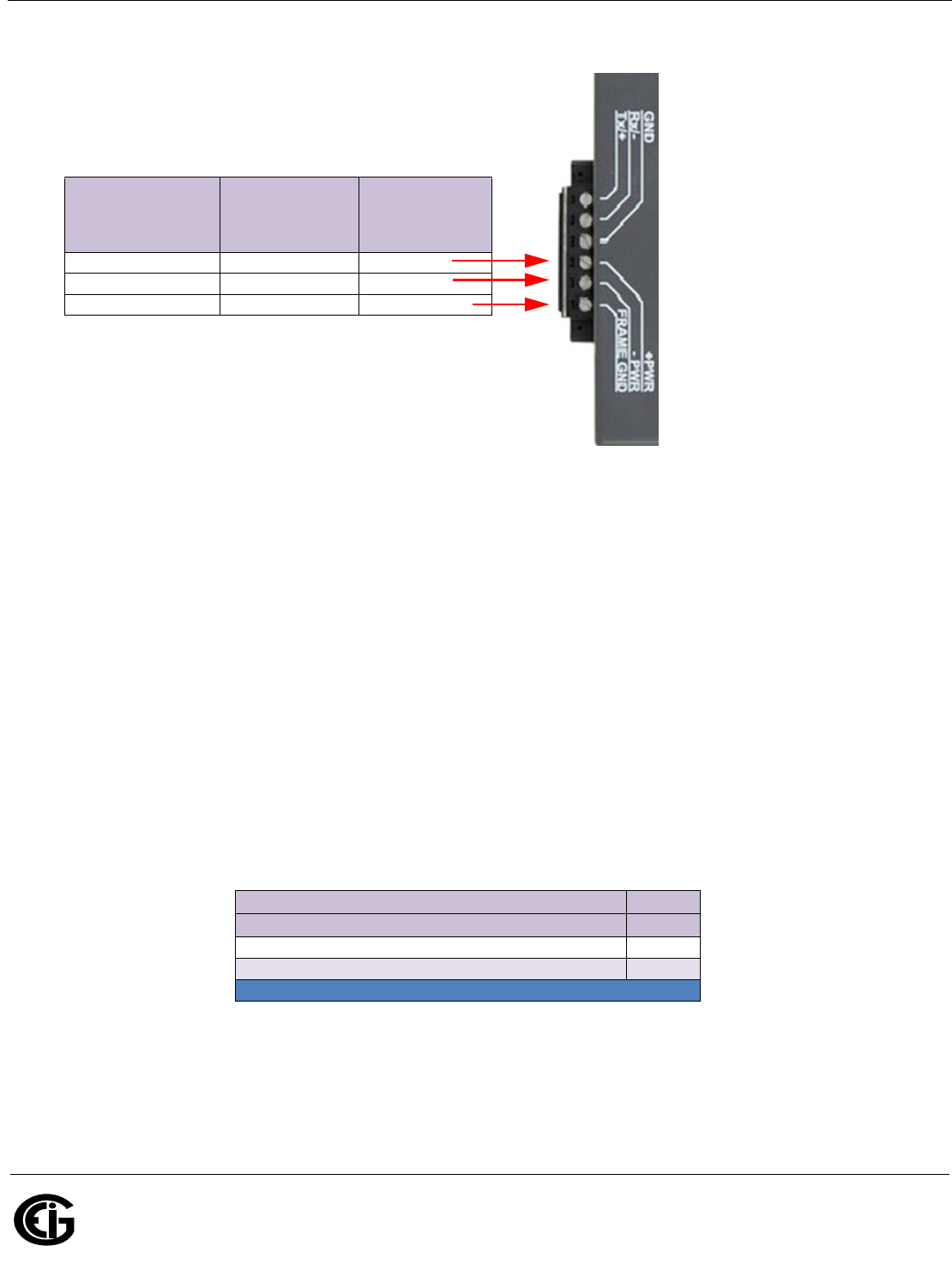

Figure 2.4: HOST RS485 Connections

The EIG meters have the following RS485 connections:

• The Shark® meters, the Nexus® meters, and the MP200 Metering System have a

two wire RS485 connection that can connect directly to the ProtoCom’s RS485

connections:

1. Connect the meter’s B+ to the ProtoCom/ProtoCom-Lon’s Tx +/- connection.

2. Connect the meter’s A- to the ProtoCom/ProtoCom-Lon’s Rx +/- connection.

• The DMMS 425 meter has a four wire RS485 connection.

1. Connect the meter’s R + and T+ wires together, and connect the combined

wire to the ProtoCom’s Tx+/-.

DevicePins ProtoComPin#Pinassignment

PinRS‐485+Pin1RS‐485+

PinRS‐485‐ Pin2RS‐485‐

PinGND Pin3RS‐485GND

PowerIn(+) Pin4V+

PowerIn(‐)Pin5V‐

FrameGround Pin6FRAMEGND

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-10

2: Using the ProtoCom/ProtoCom-Lon

2. Connect the R- and T- wires together and connect the combined wire to the

ProtoCom/ProtoCom-Lon’s Rx +/-.

See the diagram below.

Figure 2.5: Connecting RS485 between DMMS 425 and ProtoCom/ProtoCom-Lon

GR+T+R-T-

RS485

Communications

Port

DMMS 425

Meter

Gnd

Tx+/-

Rx+/-

-

ProtoCom/ProtoCom-Lon

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-11

2: Using the ProtoCom/ProtoCom-Lon

2.6.1: Biasing the Modbus RS485 Network (only if necessary)

An RS485 network with more than one device needs to have biasing to ensure proper

communication. The biasing only needs to be done on one device. If necessary, you

can set up biasing on the ProtoCom. Refer to Section 1.8 for instructions on removing

and replacing the unit’s top cover.

The ProtoCom has 530 Ohm resistors that can be used to set the biasing. The

default position of the Biasing jumpers is OFF. The OFF position is when the 2 RED

biasing jumpers straddle the 4 pins closest to the outside of the board of the Proto-

Com. To turn biasing on, move the jumpers to the right so that they straddle the four

inside pins. See the figure below.

Figure 2.6: Biasing Jumpers

IMPORTANT!

• Only turn biasing ON if the Building Management System (BMS) cannot see more

than one device connected to the ProtoCom and you have checked that all of the

settings (Modbus COM settings, wiring, and DIP switches) are correct.

• Do not touch any other parts of the main board.

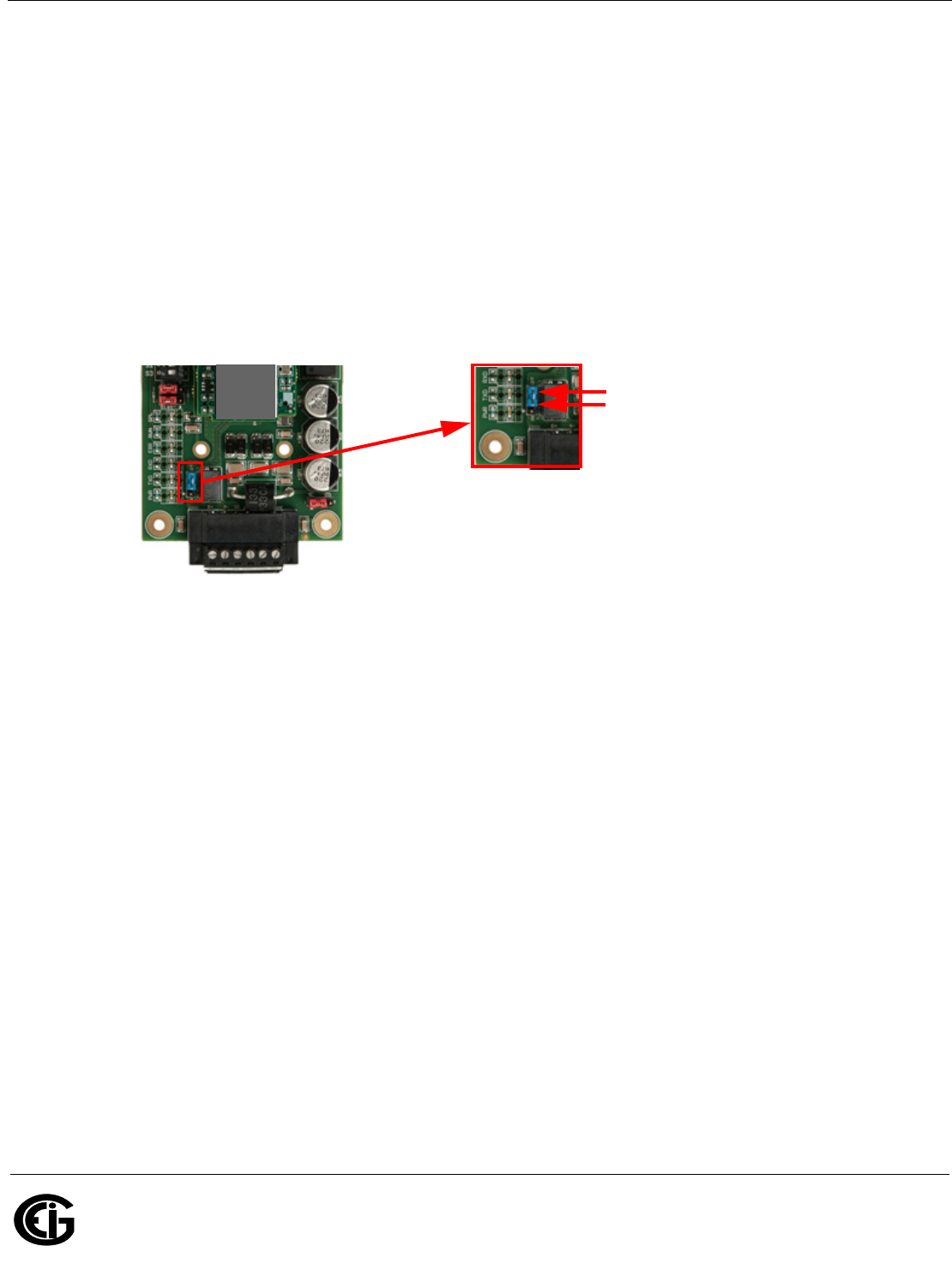

To turn biasing

ON, move the

red jumper to

the right so

that it covers

these 2 pins

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-12

2: Using the ProtoCom/ProtoCom-Lon

2.6.2: Set End of Line Termination Switch for the Modbus RS485 Port

(only if necessary)

On long RS485 cabling runs, the RS485 trunk must be properly terminated at each

end. The ProtoCom has a blue End-of-Line (EOL) terminating switch (see the figure

below). On short cabling runs the EOL switch does not to need to be turned ON;

therefore the default setting for this ProtoCom’s EOL switch is OFF. Refer to Section

1.8 for instructions on removing and replacing the unit’s top cover.

If the ProtoCom is placed at one of the ends of the trunk on a long RS485 cabling run,

turn the Blue RS485 End-of- Line Terminating switch to the ON position.

Figure 2.7: EOL Termination Jumpers

IMPORTANT! Do not touch any other parts of the main board.

To turn the EOL switch

ON, move the blue

jumper down so that it

covers these 2 pins

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-13

2: Using the ProtoCom/ProtoCom-Lon

2.7: Step 7 - Connect to the RS485/LonWorks Network (BACnet

MS/TP, Metasys N2, DF1, or LonWorks)

BACnet MS/TP, Metasys N2, or DF1: Wire the Field Port to the RS485

Network

Connect the BACnet MS/TP or Metasys N2 RS485 network wires to the 3-pin RS485

connector (labeled FIELD) on the top of the ProtoCom, as shown below.

Figure 2.8: FIELD RS485 Wiring

NOTE: The RS485 GND (Pin 3) is not typically connected.

If the ProtoCom is the last device on the BACnet MS/TP, Metasys N2, or DF1 trunk,

the End-Of-Line Termination (EOL) Switch needs to be enabled. See Section 1.8 for

instructions on removing and replacing the unit’s top cover.

To enable the switch: using a thin, pointed tool, move it to the left, as shown in the

diagram below.

Figure 2.9: EOL Switch Setting

BMSRS485

Wiring

ProtoCom

Pin#

Pin

Assignment

RS485+Pin1RS‐485+

RS485‐ Pin2RS‐485‐

‐Pin3RS‐485GND



Push the white

rectangle to the

left

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-14

2: Using the ProtoCom/ProtoCom-Lon

ProtoCom-Lon: Wire the Field Port to the LonWorks Network

Connect the ProtoCom-Lon to the field network with the LonWorks terminal using a

twisted pair non-shielded cable. LonWorks has no polarity.

Figure 2.10: LonWorks FIELD Terminal

2.8: Step 8 - Connect Power to the ProtoCom/ProtoCom-Lon

Apply power to the ProtoCom/ProtoCom-Lon as show in the figure below. Ensure that

the power supply used complies with the specifications provided in Section 1.4.

The ProtoCom/ProtoCom-Lon accepts either 9-30VDC or 12-24 VAC on pins 4 and 5.

PowerRequirementforProtoCom/ProtoCom‐Lonat9Vthrough30VDCor12‐24VAC

CurrentDrawType

ProtoComFamily 12VDC/VAC 24VDC/VAC 30VDC

ProtoCom(Typical) 170mA 100mA 80mA

ProtoCom(Maximum) 240mA 140mA 100mA

ProtoCom‐Lon(Typical) 210mA 100mA 90mA

ProtoCom‐Lon(Maximum) 250mA 130mA 100mA

Note:Thesevaluesare‘nominal’andasafetymarginshouldbeaddedtothepowersupplyofthehostsystem.A

safetymarginof25%isrecommended.



Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-15

2: Using the ProtoCom/ProtoCom-Lon

Figure 2.11: Connecting Power to the ProtoCom/ProtoCom-Lon

2.9: Step 9 - Turn Off Auto-discovery After Completion to Save

Configuration

The S3 DIP Switch for enabling Auto-discovery was set in step 3, Section 2.3. Once

power is applied to a ProtoCom/ProtoCom-Lon that is set to enable Auto-discovery,

the unit takes about 3 minutes to complete the discovery of all of the EIG meters

attached to the ProtoCom/ProtoCom-Lon and the loading of their data points.

Once the ProtoCom/ProtoCom-Lon has discovered all of the connected EIG meters,

set the S3 DIP switch to the OFF position to save the current configuration. The OFF

position is when the DIP switches are set closest to the outside of the box.

Powerto

ProtoCom/

ProtoCom‐Lon

ProtoCom/

ProtoCom‐Lon

Pin#

Pin

Assignment

PowerIn(+) Pin4V+

PowerIn(‐)Pin5V‐

FrameGround Pin6FRAMEGND

ProtoCom/ProtoCom‐Lon

S3DIPSwitchAuto‐discoveryMode S3

Auto‐discoveryON–BuildNewConfiguration On

Auto‐discoveryOFF–SaveCurrentConfiguration Off

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-16

2: Using the ProtoCom/ProtoCom-Lon

2.10: Step 10: Additional Configuration

Depending on the protocol being used and the specific needs of your application, you

may use the following configuration instructions.

2.10.1: Use the Web GUI to Configure IP Address for BACnet IP and

EtherNet/IP

Follow the instructions in Section 1.9 to connect to the ProtoCom via its Ethernet port

and to bring up the Web GUI.

NOTE: Below the Active Profiles heading you should see profiles listed for connected

devices. If no profiles are displayed, check the wiring, baud rate, and DIP switch set-

tings, because there is a problem with device communication. All the active profiles

must show the correct Addresses before proceeding.

Connected devices

found through

Auto-Discovery

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-17

2: Using the ProtoCom/ProtoCom-Lon

Set the IP Address for Field Network (BACnet/IP, Modbus TCP, and

Ethernet/IP Only):

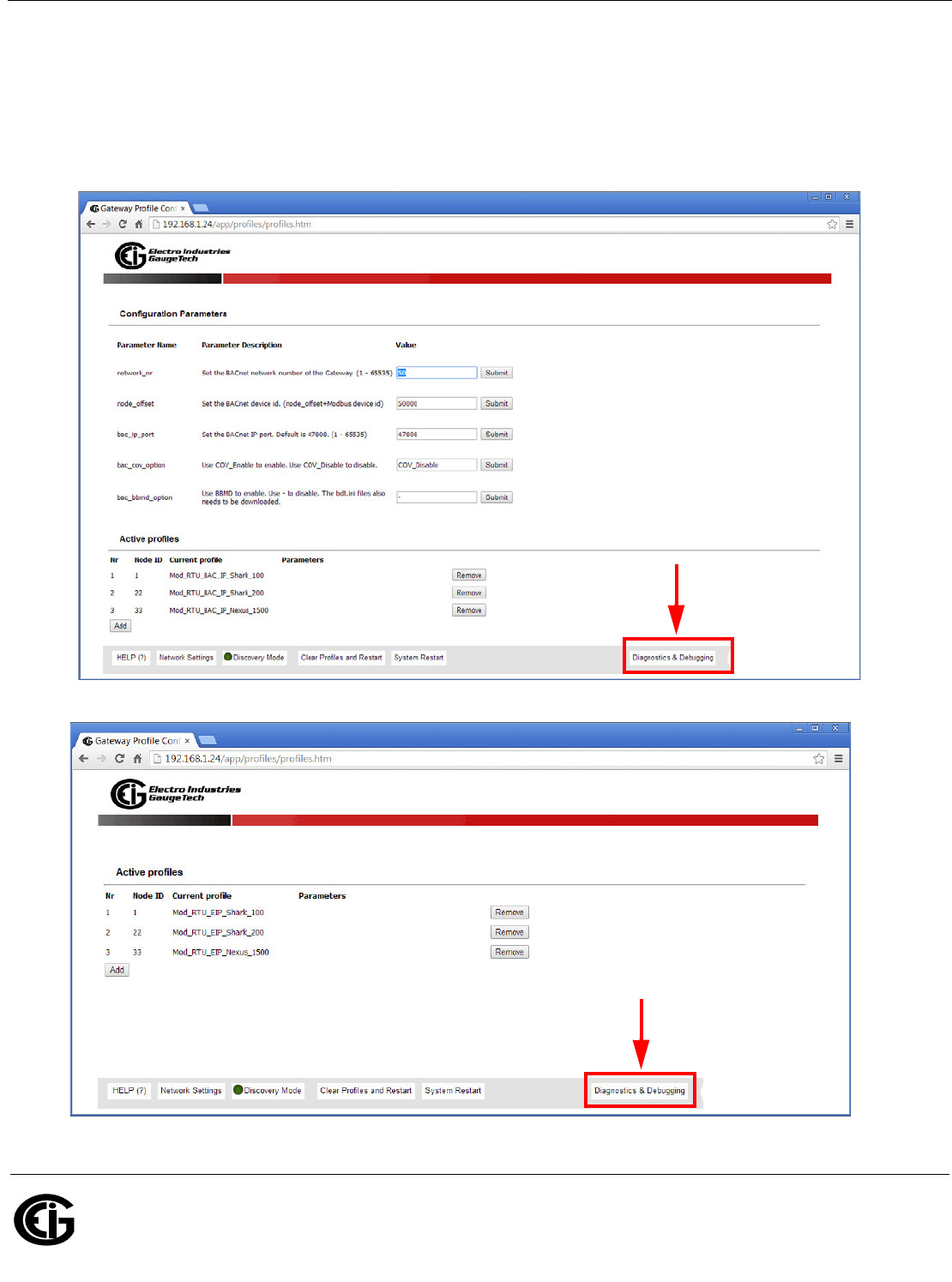

1. From the Web Configurator page, click the Diagnostics & Debugging button in the

bottom right side of the page.

BACnet/IP Configurator Webpage

Ethernet/IP Configurator Webpage

Click this button

Click this button

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-18

2: Using the ProtoCom/ProtoCom-Lon

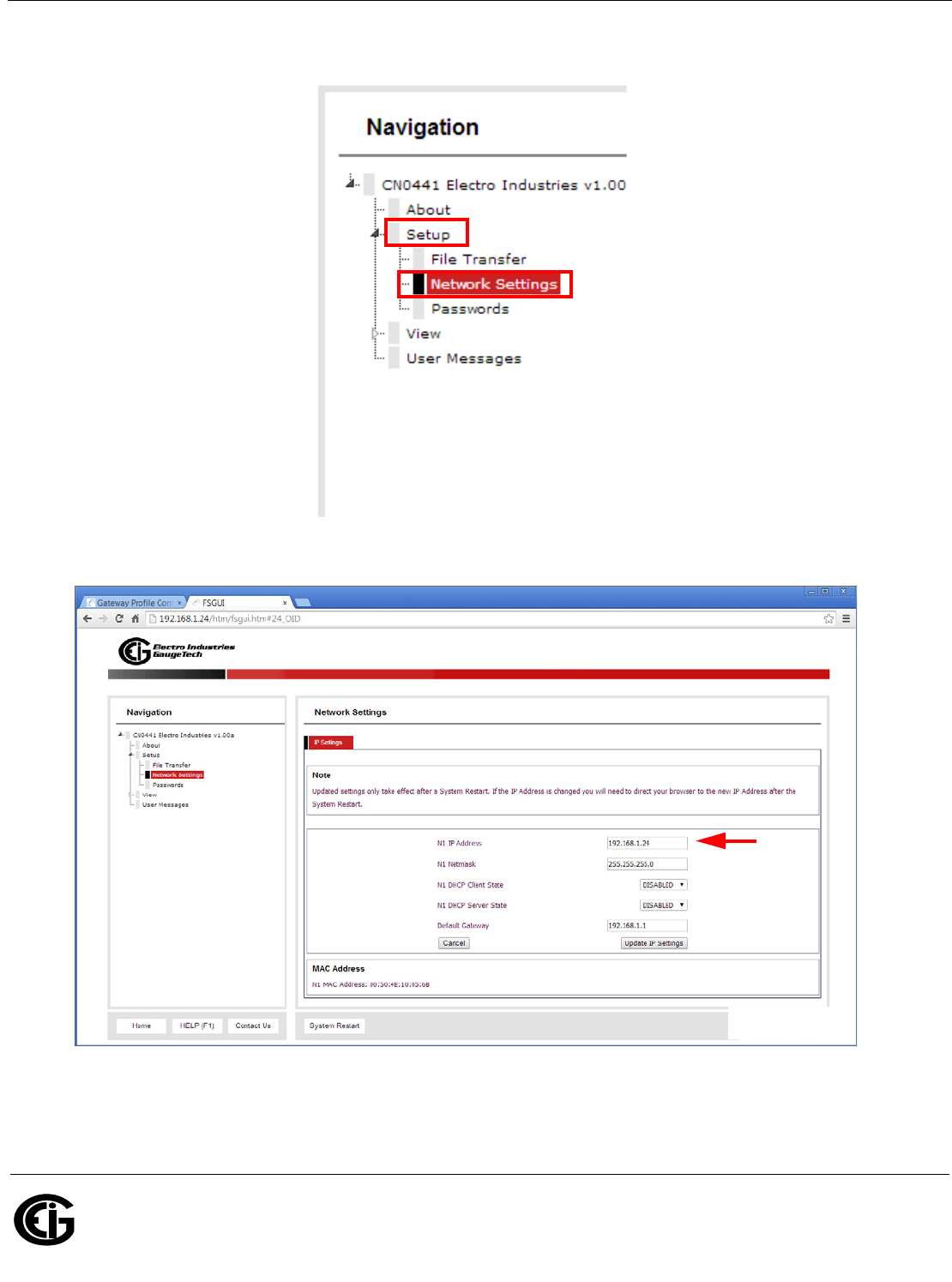

2. Under Navigation, on the left side of the screen, click Setup>Network Settings.

3. The current network settings are shown in the screen.

4. Modify the IP address (N1 IP address field) of the ProtoCom’s Ethernet port.

Enter new

IP address

here

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-19

2: Using the ProtoCom/ProtoCom-Lon

5. If necessary, change the Netmask (N1 Netmask field) by entering a new Subnet

Mask.

6. If necessary, change the IP Gateway (Default Gateway field) by entering a new IP

Gateway.

NOTE: If the ProtoCom is connected to a router, the IP Gateway of the ProtoCom

should be set to the IP address of the router.

7. Reset the ProtoCom by clicking the System Restart button at the bottom of the

page.

8. Unplug the Ethernet cable from the PC and connect it to the network hub or router.

9. Record the IP address you assigned to the ProtoCom and store it in a safe place.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-20

2: Using the ProtoCom/ProtoCom-Lon

2.10.2: Set Up a Password

The ProtoCom/ProtoCom-Lon comes with password disabled, but you can easily

configure a password for it.

There are 2 password access levels:

• Admin: the Admin account has unrestricted access to the unit.

• User: the User account can view any ProtoCom/ProtoCom-Lon information, but

cannot make any changes to settings or restart the unit.

1. Type the IP address of the ProtoCom/ProtoCom-Lon into your PC’s browser.

2. From the Web Configurator landing page, click the Diagnostics & Debugging button

on the bottom right side of the page to access the FST Web GUI.

Click this button

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-21

2: Using the ProtoCom/ProtoCom-Lon

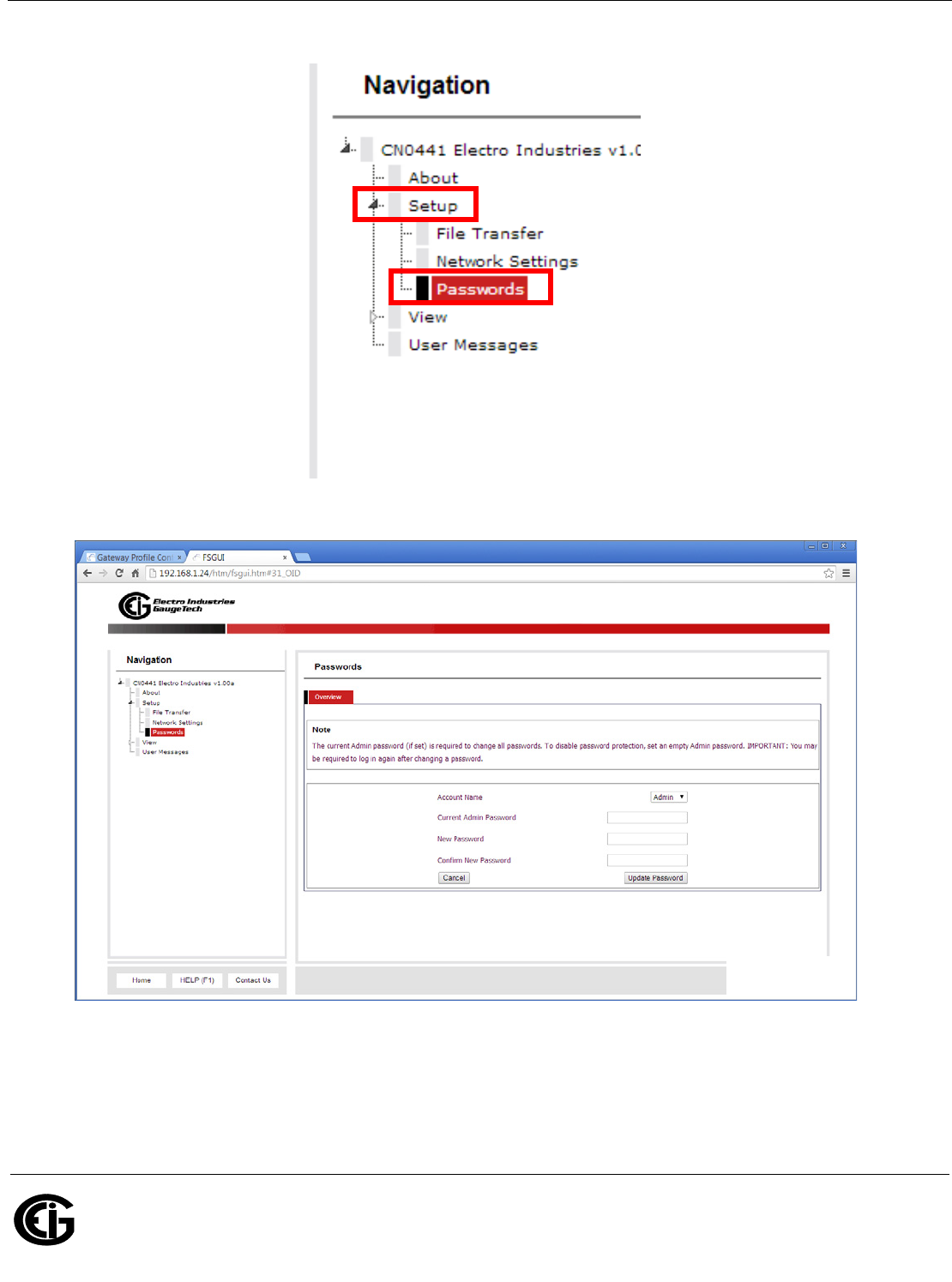

3. From the navigation tree on the left side of the page, click Setup>Passwords.

4. From the pull-down menu, select Admin or User to set the password for that

account.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-22

2: Using the ProtoCom/ProtoCom-Lon

5. Enter the current password (if there is one) and the new password in both the New

Password and Confirm New Password fields. The password must be a minimum of

eight characters; it is case sensitive. Be sure to write down the password and store

it in a safe place.

6. Click Update Password to save your changes.

7. Repeat the process for the other account, if desired.

8. You can close the browser window.

NOTE: You can disable an active password by leaving the New Password and Confirm

New Password fields blank and then clicking the Update Password button.

2.10.3: Configure the ProtoCom-Lon

Following are instructions specific to the ProtoCom-Lon configuration.

Commission the ProtoCom-Lon on a LonWorks Network

Commissioning can only be performed by the LonWorks administrator. The user will

be prompted by the LonWorks Administrator to activate the Service Pin on the Proto-

Com-Lon at the correct step of the commissioning process, which varies for each

LonWorks Network Management Tool.

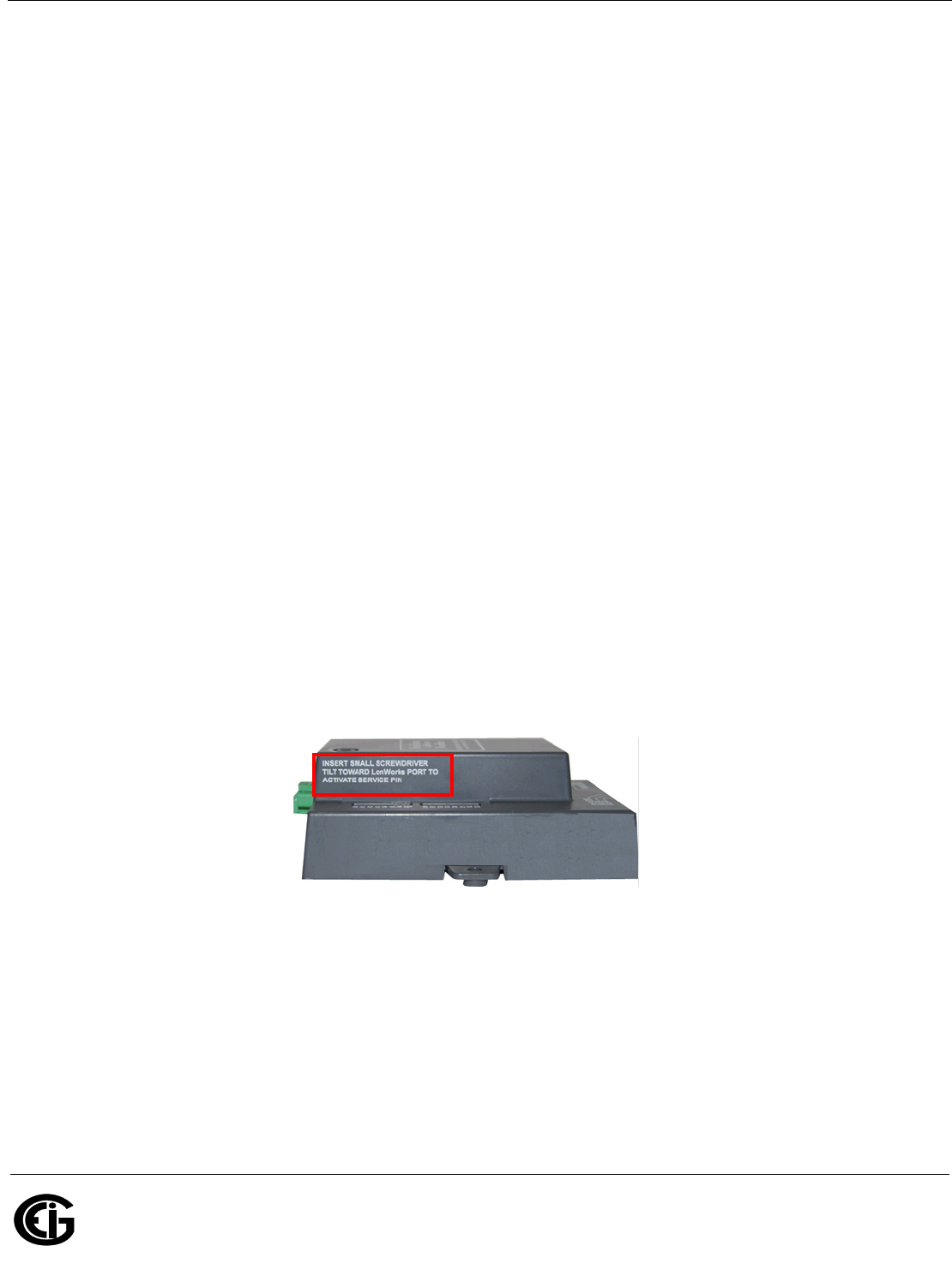

Figure 2.12: Location of ProtoCom-Lon Service Pin Instructions

Upload an XIF File from the ProtoCom-Lon Using the Using the Web GUI

You may need an XIF file. If so, first follow the instructions in Section 1.9 to connect

to the ProtoCom-Lon via its Ethernet port.

Open a web browser and go to the following address:

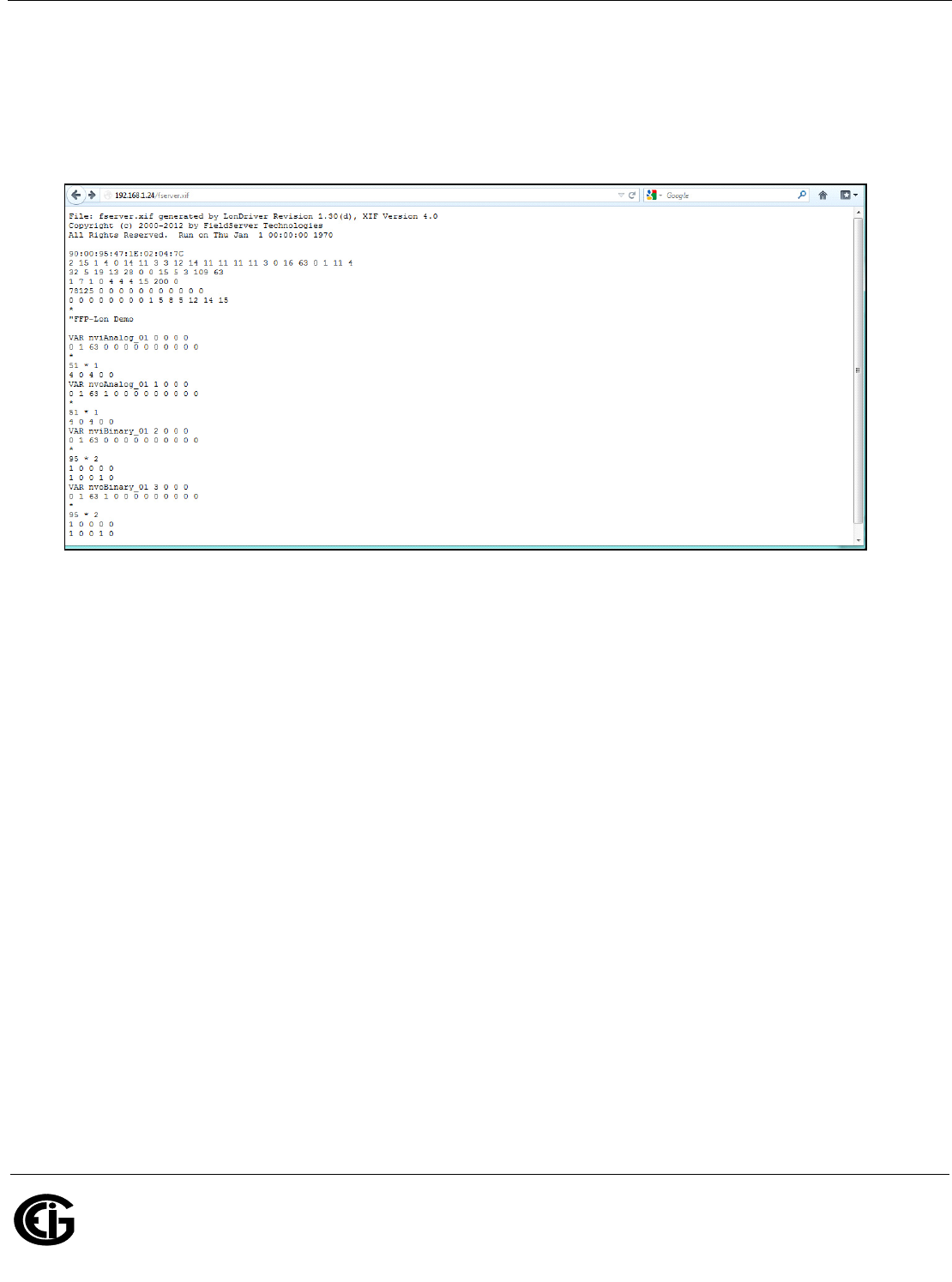

IP address of ProtoCessor/fserver.xif



Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-23

2: Using the ProtoCom/ProtoCom-Lon

For example: 192.168.1.24/fserver.xif

If the web browser prompts you to save the file, save it to the PC. If the web browser

displays the xif file as a web page (see the example shown below), right-click in the

page and save the file to your PC as fserver.xif.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-24

2: Using the ProtoCom/ProtoCom-Lon

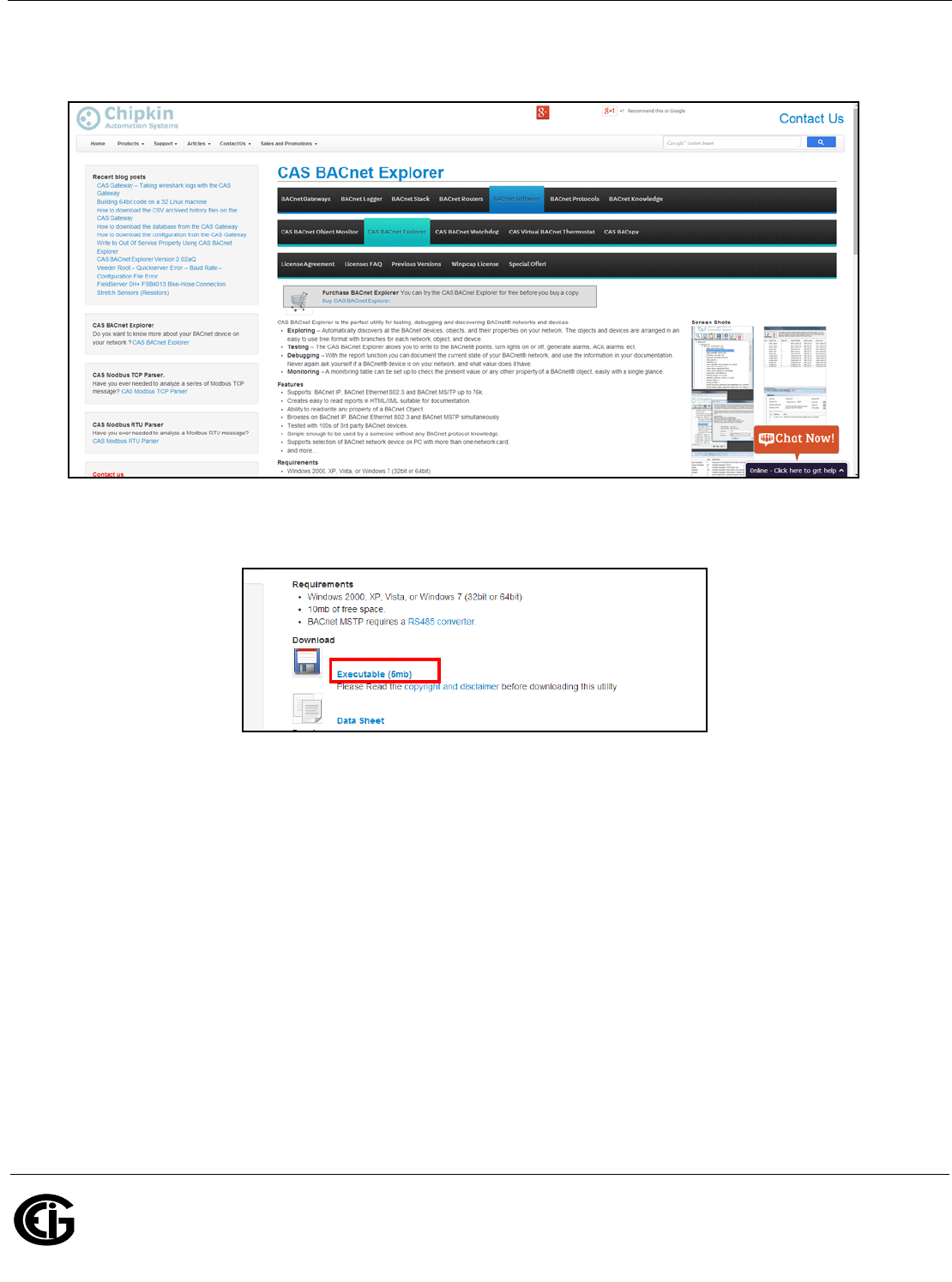

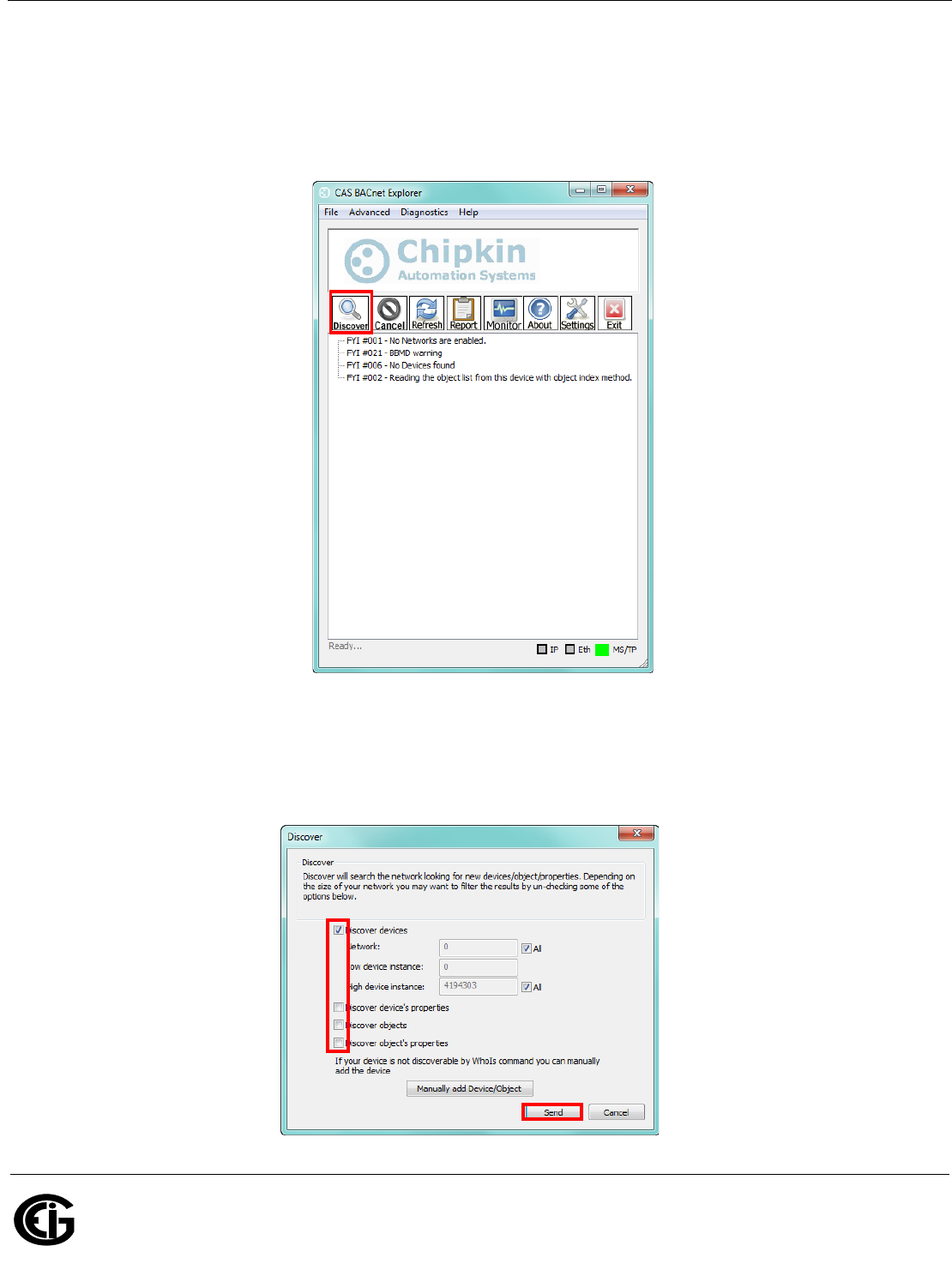

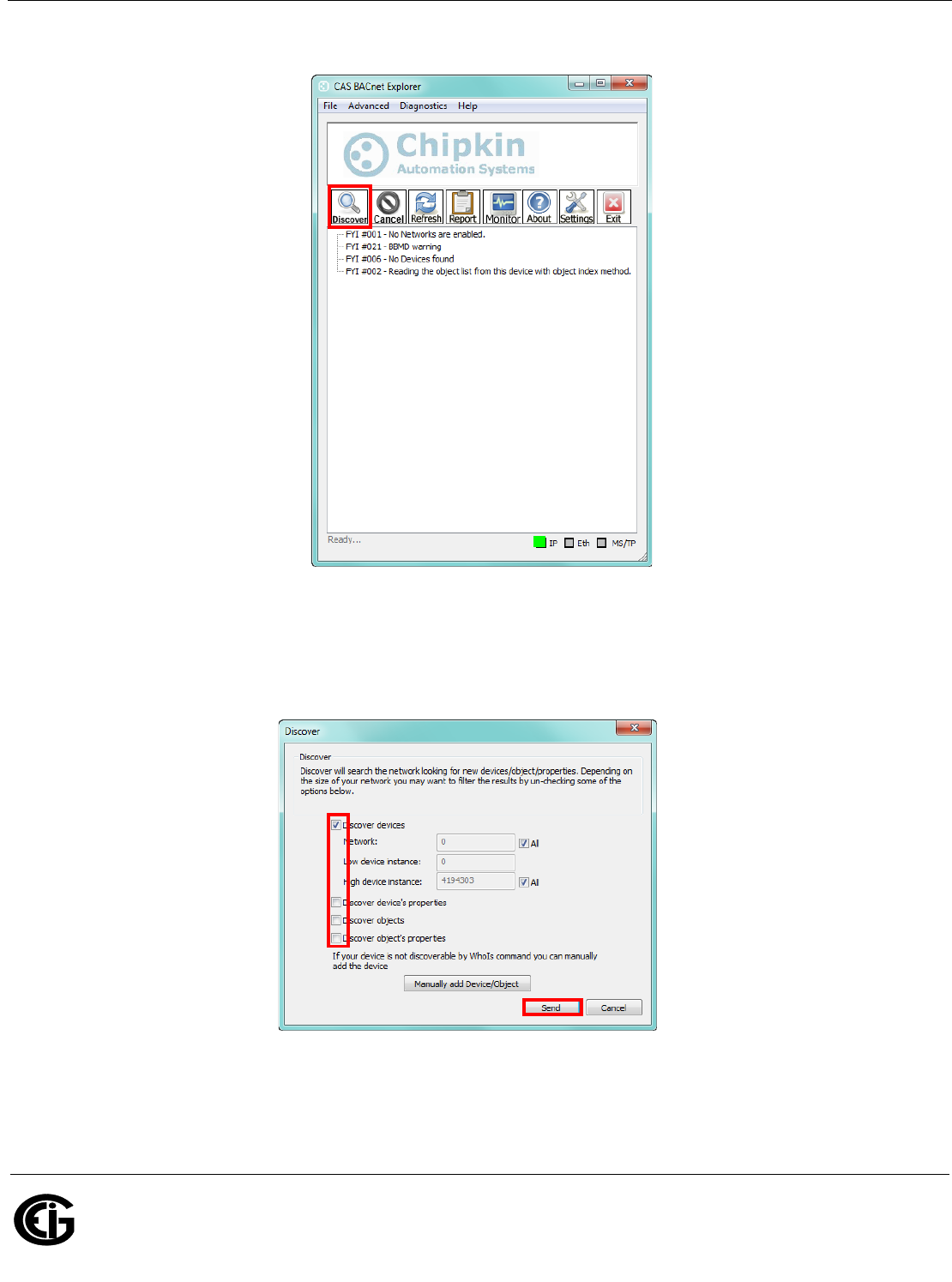

2.11: Step 11 - Use the CAS BACnet Explorer to Validate the

ProtoCom in the Field (BACnet MS/TP or BACnet/IP)

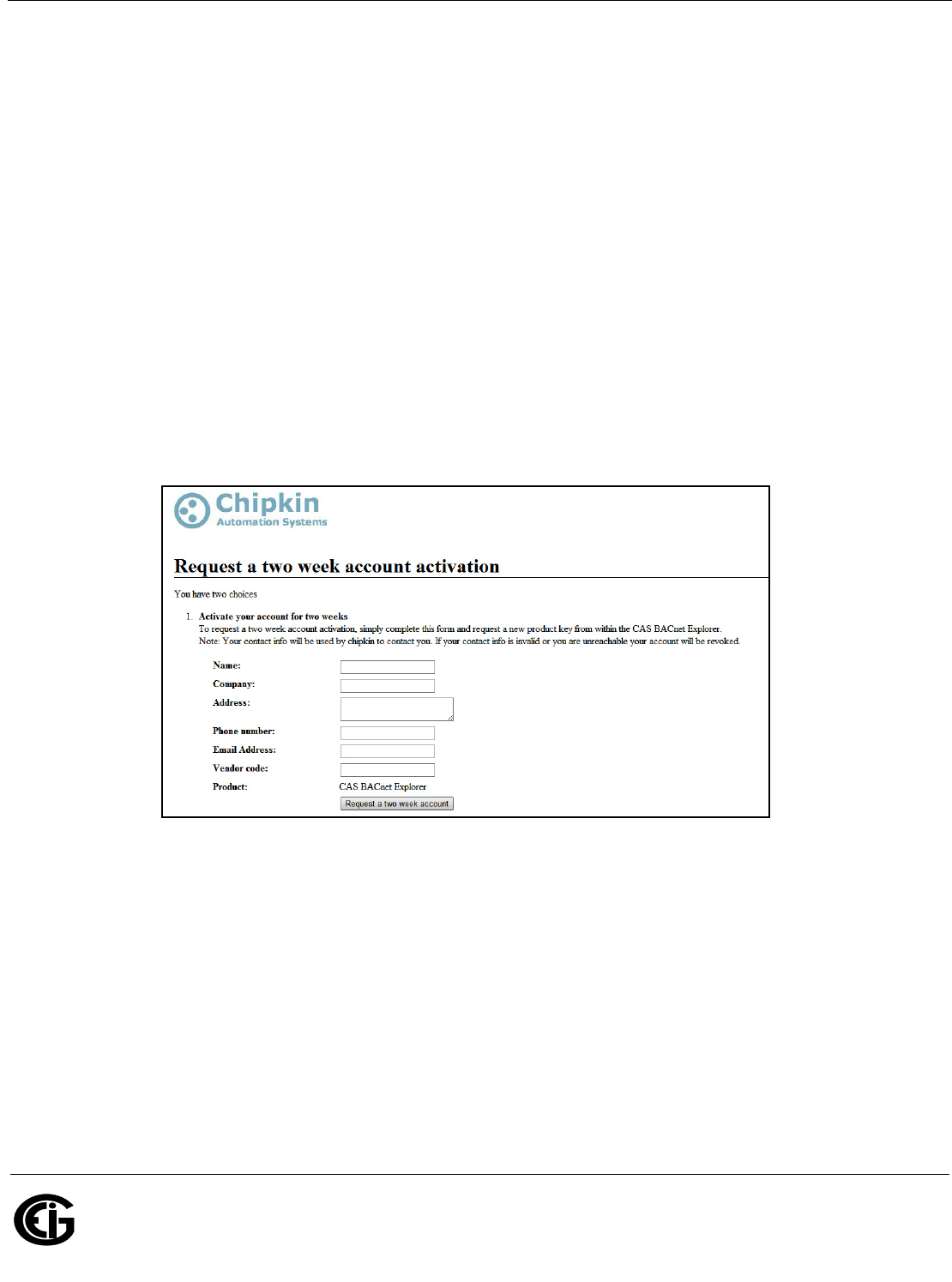

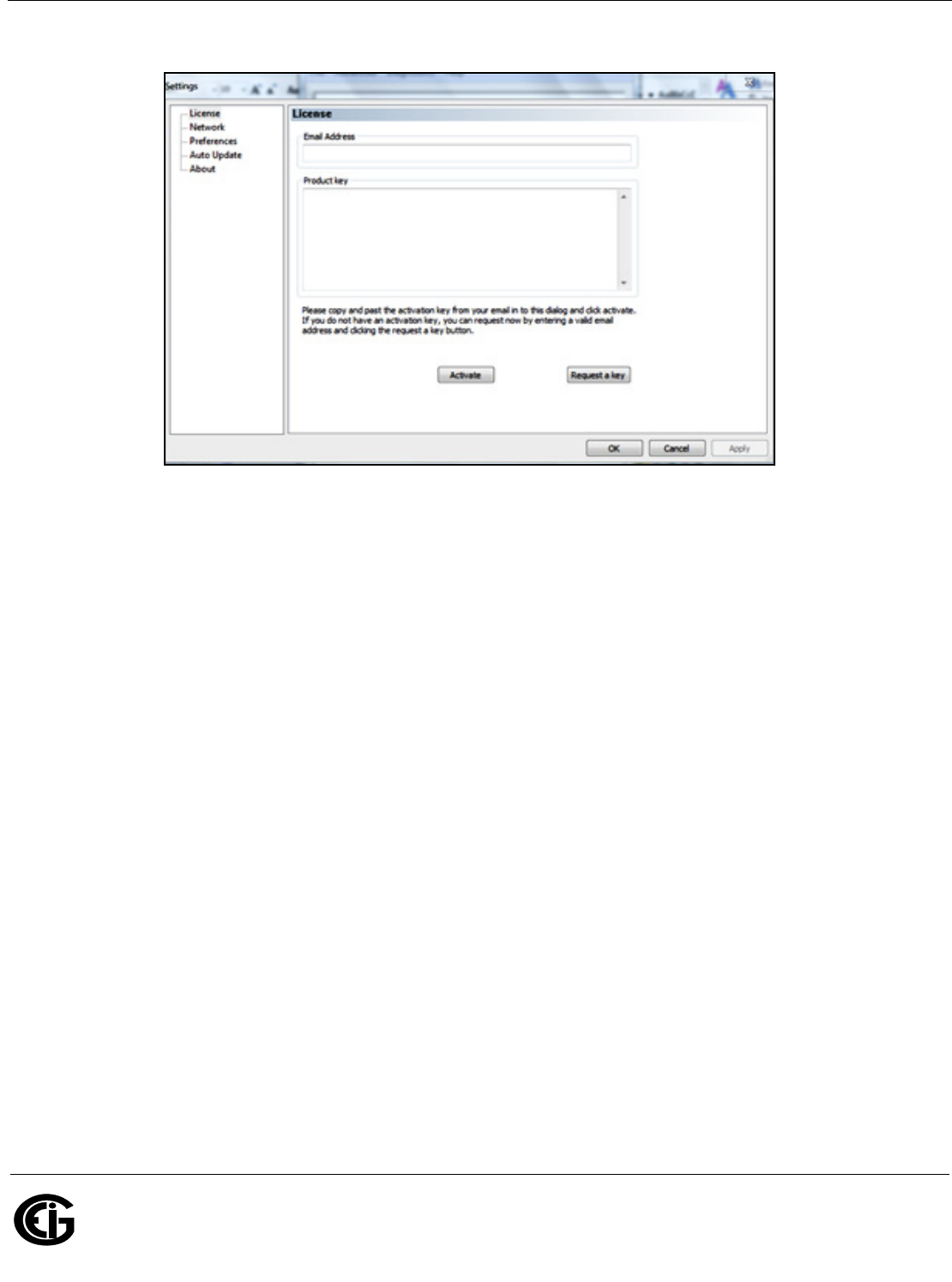

When you purchase a ProtoCom from EIG, you receive a complementary 2 week, fully

functional copy of CAS BACnet Explorer (through Chipkin Automation) that can be

used to validate BACnet MS/TP and/or BACnet/IP communications in the field without

having to have the BMS Integrator on site.

NOTE: To test BACnet MS/TP you will need a Serial to RS485 or a USB to RS485

converter.

Download the CAS Explorer and Request an Activation Key

To request the complementary BACnet CAS key:

1. Go to http://app.chipkin.com/activation/twoweek/.

2. Fill in all the information and enter "Electro2013" in the Vendor Code field.

3. The key will be sent to the email address you entered.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-25

2: Using the ProtoCom/ProtoCom-Lon

4. Once you receive the email with the activation key, go to http://www.chipkin.com/

technical-resources/cas-bacnet-explorer/.

5.. Scroll down until you see the Download icon.

6. Click Executable (dmb) and run the file. A Setup Wizard will step you through

downloading the CAS Bacnet Explorer application.

7. Follow the prompts. When you finish installation a window will prompt you to enter

a license.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-26

2: Using the ProtoCom/ProtoCom-Lon

8. When you click OK, you will see the screen below.

9. Enter your email address and paste the activation key that was sent to your email.

10. Click the Activate button to begin your two week free trial.

2.11.1: CAS BACnet Setup

Following is an example of how to configure the ProtoCom with a BACnet Explorer.

The one shown here was developed by Chipkin Automation Systems. It is subject to

all of their licenses and restrictions. Please read and follow their license requirements

before using.

These are the instructions to set up CAS BACnet Explorer for the first time on BACnet

MS/ST and BACnet/IP.

CAS BACnet MS/TP Setup

1. Using the Serial to RS485 or USB to RS485 converter, connect it to your PC and the

3 Pin BACnet MS/TP connector on the ProtoCom (the FIELD connector).

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-27

2: Using the ProtoCom/ProtoCom-Lon

2. Open the CAS BACnet Explorer application to display the main screen.

3. Click on Settings.

4. In the Networks section, check the BACnet MSTP box and uncheck the BACnet/IP

and BACnet Ethernet boxes.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-28

2: Using the ProtoCom/ProtoCom-Lon

5. Set the BACnet MSTP MAC address to 0.

6. Set the BACnet MSTP Baud Rate to 38400.

7. Click OK.

3. In the bottom right-hand corner of the main screen, make sure that the BACnet

MSTP box is green.

4. Click on Discover.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-29

2: Using the ProtoCom/ProtoCom-Lon

5. Check all 4 boxes.

6. Click Send. The screen will display BACnet network information.

CAS BACnet/IP Setup

1. See Section 1.9 to set the IP address and subnet of the PC that will be running the

CAS BACnet Explorer.

2. Connect a straight or crossover Ethernet cable from the PC to the ProtoCom.

3. Open the CAS BACnet Explorer application to display the main screen.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-30

2: Using the ProtoCom/ProtoCom-Lon

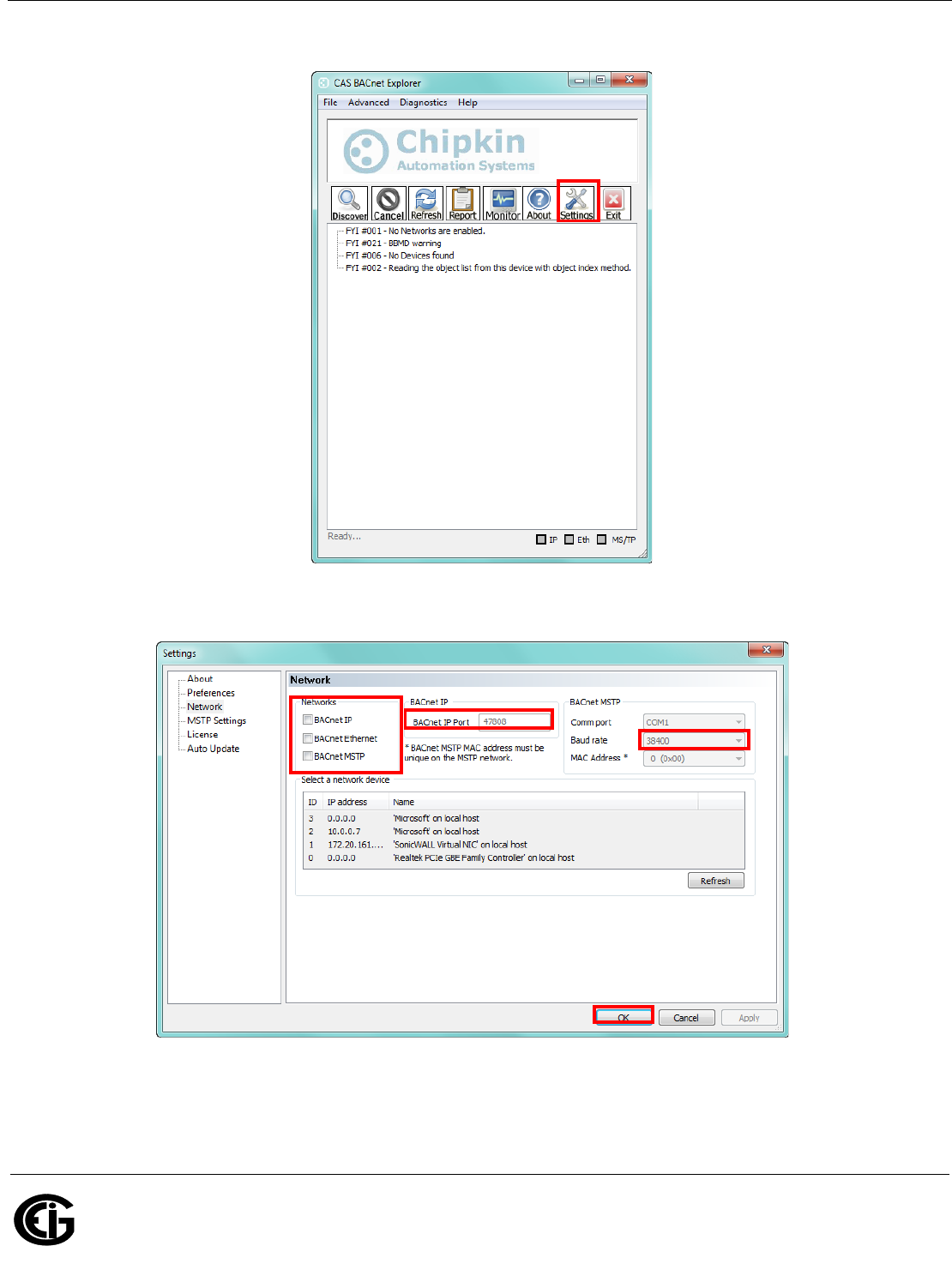

4. Click on Settings.

5. In the Networks section, check the BACnet/IP box and uncheck the BACnet MSTP

and BACnet Ethernet boxes.

6. In the Select a Network Device box, select the PC’s network card by clicking on it.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-31

2: Using the ProtoCom/ProtoCom-Lon

7. Click OK.

4. In the bottom right-hand corner of the screen, make sure that the BACnet/IP box is

green.

5. Click on Discover.

6. Check all 4 boxes.

7. Click Send. The screen will display BACnet network information.

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Doc# E204701 2-32

2: Using the ProtoCom/ProtoCom-Lon

This page intentionally left blank.

Doc# E204701 3 - 1

3: Device Communication

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

3: Device Communication

The ProtoCom/ProtoCom-Lon has LEDs that indicate communication between the

device and both the EIG meters and other devices it is connected to. The LEDs can be

used to diagnose communication problems.

3.1: LED Diagnostics for Modbus RTU Communications Between

ProtoCom/ProtoCom-Lon and Devices

The diagram below shows the unit’s LED Locations.

Figure 3.1: ProtoCom/ProtoCom-Lon LEDs

The table below describes the action of the LEDs.

Tag Description

SPL TheSPLLEDislitiftheProtoCom/ProtoCom‐Lonisoffline.

RUN TheRUNLEDstartsflashing20secondsafterpowerup,indicatingnormaloperation.

ERR

TheSYSERRLEDwillbesolidlylit15secondsafterpowerup,andwillturnoffafter5seconds.Asteadyredlight

afterthattimeindicatesthereisasystemerrorontheProtoCom/ProtoCom‐Lon.Ifthisoccurs,checktheWeb

GUIErrorscreenandreportthe“systemerror”showninthescreentoEIG’sTechnicalSupportforanalysis.

RX TheRXLEDflasheswhenamessageisreceivedontheHostport.

TX TheTXLEDflasheswhenamessageissentontheHostport.

PWR ThisisthepowerlightthatshouldshowsteadygreenatalltimeswhentheProtoCom/ProtoCom‐Lonis

poweredon.



Doc# E204701 3 - 2

3: Device Communication

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

3.2: Communication Problems

Communication problems can be either from the side of the meter communication

with the ProtoCom/ProtoCom-Lon or the ProtoCom/ProtoCom-Lon’s communication

with the field device.

3.2.1: No Communication on Modbus RTU (Meter) Side

If the TX/RX LEDs are not flashing rapidly, there is a communication problem on the

Modbus (Meter) side. Check the following items:

• The action of the ProtoCom/ProtoCom-Lon LEDs - see the table on page 3-1

• That the baud rate, parity, data bits, and stop bits are set correctly

• That the Modbus device address is correct

• That the wiring is correct - see chapters 1 and 2

• That all of the Modbus RTU devices were discovered in the Web Configurator (see

Section 2.10.1)

3.2.2: Field Communication Problems

To diagnose field communication problems, check the following items:

• The action of the ProtoCom/ProtoCom-Lon LEDs - see the table on page 3-1

• That the DIP switch settings for baud rate and device instance are correct - see

sections 2.4 and 2.5

• That the IP address setting is correct

• That the wiring is correct - see chapters 1 and 2

A: Protocol Data Points for EIG Meters

Doc# E204701 A-1

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A: Protocol Data Points for EIG Meters

Lists of the protocol data points for the supported EIG meters begins on the next page.

A: Protocol Data Points for EIG Meters

Doc# E204701 A-2

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.1: Shark® 100 Meter

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

VoltsAͲNAI 1 AI 1 Flt_XXX[0] F10:0 nvoVoltsAN_XXX SNVT_count_inc_f

VoltsBͲNAI 2 AI 2 Flt_XXX[1] F10:1 nvoVoltsBN_XXX SNVT_count_inc_f

VoltsCͲNAI 3 AI 3 Flt_XXX[2] F10:2 nvoVoltsCN_XXX SNVT_count_inc_f

VoltsAͲBAI 4 AI 4 Flt_XXX[3] F10:3 nvoVoltsAB_XXX SNVT_count_inc_f

VoltsBͲCAI 5 AI 5 Flt_XXX[4] F10:4 nvoVoltsBC_XXX SNVT_count_inc_f

VoltsCͲAAI 6 AI 6 Flt_XXX[5] F10:5 nvoVoltsCA_XXX SNVT_count_inc_f

AmpsAAI 7 AI 7 Flt_XXX[6] F10:6 nvoAmpsA_XXX SNVT_count_inc_f

AmpsBAI 8 AI 8 Flt_XXX[7] F10:7 nvoAmpsB_XXX SNVT_count_inc_f

AmpsCAI 9 AI 9 Flt_XXX[8] F10:8 nvoAmpsC_XXX SNVT_count_inc_f

Watts3ͲPhtotalAI 10 AI 10 Flt_XXX[9] F10:9 nvoWatt3PhTo_XXX SNVT_count_inc_f

VARs3ͲPhtotalAI 11 AI 11 Flt_XXX[10]F10:10 nvoVAR3PhTot_XXX SNVT_count_inc_f

VAs3ͲPhtotalAI 12 AI 12 Flt_XXX[11]F10:11 nvoVA3PhTot_XXX SNVT_count_inc_f

PowerFactor3ͲPhtotalAI 13 AI 13 Flt_XXX[12]F10:12 nvoPF3PhTot_XXX SNVT_count_inc_f

FrequencyAI 14 AI 14 Flt_XXX[13]F10:13 nvoFreq_XXX SNVT_count_inc_f

NeutralCurrentAI 15 AI 15 Flt_XXX[14]F10:14 nvoNeutCurr_XXX SNVT_count_inc_f

WͲhoursReceivedAI 16 AI 16 S32_XXX[0]F11:0 nvoWh_Rec_XXX SNVT_count_inc_f

WͲhoursDeliveredAI 17 AI 17 S32_XXX[1]F11:1 nvoWh_Del_XXX SNVT_count_inc_f

WͲhoursNetAI 18 AI 18 S32_XXX[2]F11:2 nvoWh_Net_XXX SNVT_count_inc_f

WͲhoursTotalAI 19 AI 19 S32_XXX[3]F11:3 nvoWh_Tot_XXX SNVT_count_inc_f

VARͲhoursPositiveAI 20 AI 20 S32_XXX[4]F11:4 nvoVARh_Pos_XXX SNVT_count_inc_f

VARͲhoursNegativeAI 21 AI 21 S32_XXX[5]F11:5 nvoVARh_Neg_XXX SNVT_count_inc_f

VARͲhoursNetAI 22 AI 22 S32_XXX[6]F11:6 nvoVARh_Net_XXX SNVT_count_inc_f

VARͲhoursTotalAI 23 AI 23 S32_XXX[7]F11:7 nvoVARh_Tot_XXX SNVT_count_inc_f

VAͲhoursTotalAI 24 AI 24 S32_XXX[8]F11:8 nvoVAh_Tot_XXX SNVT_count_inc_f

PositiveWatts3ͲPhAvgAI 25 AI 25 Flt_XXX[15]F10:15 nvoPsWt3PhAv_XXX SNVT_count_inc_f

PositiveVARs3ͲPhAvgAI 26 AI 26 Flt_XXX[16]F10:16 nvoPsVAR3PhA_XXX SNVT_count_inc_f

NegativeWatts3ͲPhAvgAI 27 AI 27 Flt_XXX[17]F10:17 nvoNgWt3PhAv_XXX SNVT_count_inc_f

NegativeVARs3ͲPhAvgAI 28 AI 28 Flt_XXX[18]F10:18 nvoNgVAR3PhA_XXX SNVT_count_inc_f

VAs3ͲPhAvgAI 29 AI 29 Flt_XXX[19]F10:19 nvoVA3Ph_Avg_XXX SNVT_count_inc_f

PositivePF3ͲPhAvgAI 30 AI 30 Flt_XXX[20]F10:20 nvoPsPF3PhAv_XXX SNVT_count_inc_f

NegativePF3ͲPFAvgAI 31 AI 31 Flt_XXX[21]F10:21 nvoNgPF3PhAv_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-3

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

PositiveWatts3ͲPhMaxAvgDemandAI 32 AI 32 Flt_XXX[22]F10:22 nvoPWt3PMADm_XXX SNVT_count_inc_f

PositiveVARs3ͲPhMaxAvgDemandAI 33 AI 33 Flt_XXX[23]F10:23 nvoPVAR3PMAD_XXX SNVT_count_inc_f

NegativeWatts3ͲPhMaxAvgDemandAI 34 AI 34 Flt_XXX[24]F10:24 nvoNWt3PMADm_XXX SNVT_count_inc_f

NegativeVARs3ͲPhMaxAvgDemandAI 35 AI 35 Flt_XXX[25]F10:25 nvoNVAR3PMAD_XXX SNVT_count_inc_f

VoltsAͲN%THDAI 36 AI 36 Dev_XXX[0]N12:0 nvoVltAN_THD_XXX SNVT_lev_percent

VoltsBͲN%THDAI 37 AI 37 Dev_XXX[1]N12:1 nvoVltBN_THD_XXX SNVT_lev_percent

VoltsCͲN%THDAI 38 AI 38 Dev_XXX[2]N12:2 nvoVltCN_THD_XXX SNVT_lev_percent

AmpsA%THDAI 39 AI 39 Dev_XXX[3]N12:3 nvoAmpA_THD_XXX SNVT_lev_percent

AmpsB%THDAI 40 AI 40 Dev_XXX[4]N12:4 nvoAmpB_THD_XXX SNVT_lev_percent

AmpsC%THDAI 41 AI 41 Dev_XXX[5]N12:5 nvoAmpC_THD_XXX SNVT_lev_percent

MeterStatusAI 42 AI 42 Byt_XXX[0]N13:0 nvoMtrStat_XXX SNVT_count

CTmultiplierAI 43 AI 43 Byt_XXX[1]N13:1 nvoCT_mult_XXX SNVT_count

CTdenominatorAI 44 AI 44 Byt_XXX[2]N13:2 nvoCT_den_XXX SNVT_count

CTnumeratorAI 45 AI 45 Dev_XXX[8]N12:8 nvoCT_num_XXX SNVT_count

PTnumeratorAI 46 AI 46 Dev_XXX[9]N12:9 nvoPT_num_XXX SNVT_count

PTdenominatorAI 47 AI 47 Dev_XXX[10]N12:10 nvoPT_den_XXX SNVT_count

PThookupAI 48 AI 48 Byt_XXX[3]N13:3 nvoPT_hookup_XXX SNVT_count

PTmultiplierAI 49 AI 49 Byt_XXX[4]N13:4 nvoPT_mult_XXX SNVT_count

SerialNumberReg1AI 50 AI 50 Dev_XXX[12]N12:12 nvoSerNum1_XXX SNVT_count

SerialNumberReg2AI 51 AI 51 Dev_XXX[13]N12:13 nvoSerNum2_XXX SNVT_count

SerialNumberReg3AI 52 AI 52 Dev_XXX[14]N12:14 nvoSerNum3_XXX SNVT_count

SerialNumberReg4AI 53 AI 53 Dev_XXX[15]N12:15 nvoSerNum4_XXX SNVT_count

SerialNumberReg5AI 54 AI 54 Dev_XXX[16]N12:16 nvoSerNum5_XXX SNVT_count

SerialNumberReg6AI 55 AI 55 Dev_XXX[17]N12:17 nvoSerNum6_XXX SNVT_count

SerialNumberReg7AI 56 AI 56 Dev_XXX[18]N12:18 nvoSerNum7_XXX SNVT_count

SerialNumberReg8AI 57 AI 57 Dev_XXX[19]N12:19 nvoSerNum8_XXX SNVT_count

PasswordforResetinuseBI 58 DI 58 Byt_XXX[5]N13:5 nvoPswdReset_XXX SNVT_count

PasswordforConfigurationinuseBI 59 DI 59 Byt_XXX[6]N13:6 nvoPswdCnfg_XXX SNVT_count





A: Protocol Data Points for EIG Meters

Doc# E204701 A-4

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.2: Shark® 200 Meter

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

VoltsAͲNAI 1 AI 1 Flt_XXX[0] F10:0 nvoVolts_AN_XXX SNVT_count_inc_f

VoltsBͲNAI 2 AI 2 Flt_XXX[1] F10:1 nvoVolts_BN_XXX SNVT_count_inc_f

VoltsCͲNAI 3 AI 3 Flt_XXX[2] F10:2 nvoVolts_CN_XXX SNVT_count_inc_f

VoltsAͲBAI 4 AI 4 Flt_XXX[3] F10:3 nvoVolts_AB_XXX SNVT_count_inc_f

VoltsBͲCAI 5 AI 5 Flt_XXX[4] F10:4 nvoVolts_BC_XXX SNVT_count_inc_f

VoltsCͲAAI 6 AI 6 Flt_XXX[5] F10:5 nvoVolts_CA_XXX SNVT_count_inc_f

AmpsAAI 7 AI 7 Flt_XXX[6] F10:6 nvoAmps_A_XXX SNVT_count_inc_f

AmpsBAI 8 AI 8 Flt_XXX[7] F10:7 nvoAmps_B_XXX SNVT_count_inc_f

AmpsCAI 9 AI 9 Flt_XXX[8] F10:8 nvoAmps_C_XXX SNVT_count_inc_f

Watts3ͲPhtotalAI 10 AI 10 Flt_XXX[9] F10:9 nvoWatt3PhTo_XXX SNVT_count_inc_f

VARs3ͲPhtotalAI 11 AI 11 Flt_XXX[10]F10:10 nvoVAR3PhTot_XXX SNVT_count_inc_f

VAs3ͲPhtotalAI 12 AI 12 Flt_XXX[11]F10:11 nvoVA_3PhTot_XXX SNVT_count_inc_f

PowerFactor3ͲPhtotalAI 13 AI 13 Flt_XXX[12]F10:12 nvoPF_3PhTot_XXX SNVT_count_inc_f

FrequencyAI 14 AI 14 Flt_XXX[13]F10:13 nvoFreq_XXX SNVT_count_inc_f

NeutralCurrentAI 15 AI 15 Flt_XXX[14]F10:14 nvoNeut_Crnt_XXX SNVT_count_inc_f

WattsPhaseAAI 16 AI 16 Flt_XXX[15]F10:15 nvoWatts_PhA_XXX SNVT_count_inc_f

WattsPhaseBAI 17 AI 17 Flt_XXX[16]F10:16 nvoWatts_PhB_XXX SNVT_count_inc_f

WattsPhaseCAI 18 AI 18 Flt_XXX[17]F10:17 nvoWatts_PhC_XXX SNVT_count_inc_f

VARsPhaseAAI 19 AI 19 Flt_XXX[18]F10:18 nvoVARs_PhA_XXX SNVT_count_inc_f

VARsPhaseBAI 20 AI 20 Flt_XXX[19]F10:19 nvoVARs_PhB_XXX SNVT_count_inc_f

VARsPhaseCAI 21 AI 21 Flt_XXX[20]F10:20 nvoVARs_PhC_XXX SNVT_count_inc_f

VAsPhaseAAI 22 AI 22 Flt_XXX[21]F10:21 nvoVAs_PhA_XXX SNVT_count_inc_f

VAsPhaseBAI 23 AI 23 Flt_XXX[22]F10:22 nvoVAs_PhB_XXX SNVT_count_inc_f

VAsPhaseCAI 24 AI 24 Flt_XXX[23]F10:23 nvoVAs_PhC_XXX SNVT_count_inc_f

PowerFactorPhaseAAI 25 AI 25 Flt_XXX[24]F10:24 nvoPF_PhA_XXX SNVT_count_inc_f

PowerFactorPhaseBAI 26 AI 26 Flt_XXX[25]F10:25 nvoPF_PhB_XXX SNVT_count_inc_f

PowerFactorPhaseCAI 27 AI 27 Flt_XXX[26]F10:26 nvoPF_PhC_XXX SNVT_count_inc_f

WͲhoursReceivedAI 28 AI 28 S32_XXX[0]F11:0 nvoWh_Rec_XXX SNVT_count_inc_f

WͲhoursDeliveredAI 29 AI 29 S32_XXX[1]F11:1 nvoWh_Del_XXX SNVT_count_inc_f

WͲhoursNetAI 30 AI 30 S32_XXX[2]F11:2 nvoWh_Net_XXX SNVT_count_inc_f

WͲhoursTotalAI 31 AI 31 S32_XXX[3]F11:3 nvoWh_Tot_XXX SNVT_count_inc_f

VARͲhoursPositiveAI 32 AI 32 S32_XXX[4]F11:4 nvoVARh_Pos_XXX SNVT_count_inc_f

VARͲhoursNegativeAI 33 AI 33 S32_XXX[5]F11:5 nvoVARh_Neg_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-5

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

VARͲhoursNetAI 34 AI 34 S32_XXX[6]F11:6 nvoVARh_Net_XXX SNVT_count_inc_f

VARͲhoursTotalAI 35 AI 35 S32_XXX[7]F11:7 nvoVARh_Tot_XXX SNVT_count_inc_f

AmpsAAvgAI 36 AI 36 Flt_XXX[27]F10:27 nvoAmpA_Avg_XXX SNVT_count_inc_f

AmpsBAvgAI 37 AI 37 Flt_XXX[28]F10:28 nvoAmpB_Avg_XXX SNVT_count_inc_f

AmpsCAvgAI 38 AI 38 Flt_XXX[29]F10:29 nvoAmpC_Avg_XXX SNVT_count_inc_f

PositiveWatts3ͲPhAvgAI 39 AI 39 Flt_XXX[30]F10:30 nvoPsWat3PAv_XXX SNVT_count_inc_f

PositiveVARs3ͲPhAvgAI 40 AI 40 Flt_XXX[31]F10:31 nvoPsVAR3PAv_XXX SNVT_count_inc_f

NegativeWatts3ͲPhAvgAI 41 AI 41 Flt_XXX[32]F10:32 nvoNgWat3PAv_XXX SNVT_count_inc_f

NegativeVARs3ͲPhAvgAI 42 AI 42 Flt_XXX[33]F10:33 nvoNgVAR3PAv_XXX SNVT_count_inc_f

VAs3ͲPhAvgAI 43 AI 43 Flt_XXX[34]F10:34 nvoVA_3PhAvg_XXX SNVT_count_inc_f

PositivePF3ͲPhAvgAI 44 AI 44 Flt_XXX[35]F10:35 nvoPsPF3PhAv_XXX SNVT_count_inc_f

NegativePF3ͲPFAvgAI 45 AI 45 Flt_XXX[36]F10:36 nvoNgPF3PhAv_XXX SNVT_count_inc_f

VAͲhoursTotalAI 46 AI 46 S32_XXX[8]F11:8 nvoVAh_Tot_XXX SNVT_count_inc_f

MeterStatusAI 47 AI 47 Byt_XXX[0]N14:0 nvoMtr_Stat_XXX SNVT_count

CurrentDate&TimeReg1AI 48 AI 48 Dev1_XXX[0]N12:0 nvoCurDatTm1_XXX SNVT_count

CurrentDate&TimeReg2AI 49 AI 49 Dev1_XXX[1]N12:1 nvoCurDatTm2_XXX SNVT_count

CurrentDate&TimeReg3AI 50 AI 50 Dev1_XXX[2]N12:2 nvoCurDatTm3_XXX SNVT_count

PositiveWatts3ͲPhMaxAvgDemandAI 51 AI 51 Flt_XXX[37]F10:37 nvoPWt3PMADm_XXX SNVT_count_inc_f

PositiveVARs3ͲPhMaxAvgDemandAI 52 AI 52 Flt_XXX[38]F10:38 nvoPVr3PMADm_XXX SNVT_count_inc_f

NegativeWatts3ͲPhMaxAvgDemandAI 53 AI 53 Flt_XXX[39]F10:39 nvoNWt3PMADm_XXX SNVT_count_inc_f

NegativeVARs3ͲPhMaxAvgDemandAI 54 AI 54 Flt_XXX[40]F10:40 nvoNVr3PMADm_XXX SNVT_count_inc_f

CTmultiplierAI 55 AI 55 Byt_XXX[1]N14:1 nvoCT_mult_XXX SNVT_count

CTdenominatorAI 56 AI 56 Byt_XXX[2]N14:2 nvoCT_den_XXX SNVT_count

CTnumeratorAI 57 AI 57 Dev2_XXX[0]N13:0 nvoCT_num_XXX SNVT_count

PTnumeratorAI 58 AI 58 Dev2_XXX[1]N13:1 nvoPT_num_XXX SNVT_count

PTdenominatorAI 59 AI 59 Dev2_XXX[2]N13:2 nvoPT_den_XXX SNVT_count

PThookupAI 60 AI 60 Byt_XXX[3]N14:3 nvoPT_hookup_XXX SNVT_count

PTmultiplierAI 61 AI 61 Byt_XXX[4]N14:4 nvoPT_mult_XXX SNVT_count

SerialNumberReg1AI 62 AI 62 Dev2_XXX[4]N13:4 nvoSerNum1_XXX SNVT_count

SerialNumberReg2AI 63 AI 63 Dev2_XXX[5]N13:5 nvoSerNum2_XXX SNVT_count

SerialNumberReg3AI 64 AI 64 Dev2_XXX[6]N13:6 nvoSerNum3_XXX SNVT_count

SerialNumberReg4AI 65 AI 65 Dev2_XXX[7]N13:7 nvoSerNum4_XXX SNVT_count

SerialNumberReg5AI 66 AI 66 Dev2_XXX[8]N13:8 nvoSerNum5_XXX SNVT_count

SerialNumberReg6AI 67 AI 67 Dev2_XXX[9]N13:9 nvoSerNum6_XXX SNVT_count



A: Protocol Data Points for EIG Meters

Doc# E204701 A-6

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

SerialNumberReg7AI 68 AI 68 Dev2_XXX[1

0]

N13:10 nvoSerNum7_XXX SNVT_count

SerialNumberReg8AI 69 AI 69 Dev2_XXX[1

1]

N13:11 nvoSerNum8_XXX SNVT_count

PasswordforResetinuseBI 70 DI 70 Byt_XXX[5]N14:5 nvoPswdReset_XXX SNVT_count

PasswordforConfigurationinuseBI 71 DI 71 Byt_XXX[6]N14:6 nvoPswdCnfg_XXX SNVT_count











A: Protocol Data Points for EIG Meters

Doc# E204701 A-7

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.3: Nexus® 1252/1262/1272 Meters

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

CurrentTimeReg1AI 1 AI 1 Dev1_XXX[0]N12:0 nvoCurTime1_XXX SNVT_count

CurrentTimeReg2AI 2 AI 2 Dev1_XXX[1]N12:1 nvoCurTime2_XXX SNVT_count

CurrentTimeReg3AI 3 AI 3 Dev1_XXX[2]N12:2 nvoCurTime3_XXX SNVT_count

CurrentTimeReg4AI 4 AI 4 Dev1_XXX[3]N12:3 nvoCurTime4_XXX SNVT_count

OnesecPhaseAͲNVoltageAI 5 AI 5 S32_XXX[0]F10:0 nvoPhAN_Volt_XXX SNVT_count_inc_f

OnesecPhaseBͲNVoltageAI 6 AI 6 S32_XXX[1]F10:1 nvoPhBN_Volt_XXX SNVT_count_inc_f

OnesecPhaseCͲNVoltageAI 7 AI 7 S32_XXX[2]F10:2 nvoPhCN_Volt_XXX SNVT_count_inc_f

OnesecPhaseACurrentAI 8 AI 8 S32_XXX[3]F10:3 nvoPhA_Curr_XXX SNVT_count_inc_f

OnesecPhaseBCurrentAI 9 AI 9 S32_XXX[4]F10:4 nvoPhB_Curr_XXX SNVT_count_inc_f

OnesecPhaseCCurrentAI 10 AI 10 S32_XXX[5]F10:5 nvoPhC_Curr_XXX SNVT_count_inc_f

OnesecNeutralCurrentMeasuredAI 11 AI 11 S32_XXX[6]F10:6 nvoNtCurMeas_XXX SNVT_count_inc_f

OnesecNeutralCurrentCalculatedAI 12 AI 12 S32_XXX[7]F10:7 nvoNtCurMalc_XXX SNVT_count_inc_f

OnesecPhaseAͲBVoltageAI 13 AI 13 S32_XXX[8]F10:8 nvoPhAB_Volt_XXX SNVT_count_inc_f

OnesecPhaseBͲCVoltageAI 14 AI 14 S32_XXX[9]F10:9 nvoPhBC_Volt_XXX SNVT_count_inc_f

OnesecPhaseCͲAVoltageAI 15 AI 15 S32_XXX[10]F10:10 nvoPhCA_Volt_XXX SNVT_count_inc_f

OnesecThreePhaseVAAI 16 AI 16 S32_XXX[11]F10:11 nvo3PhVA_XXX SNVT_count_inc_f

OnesecThreePhaseVARAI 17 AI 17 S32_XXX[12]F10:12 nvo3PhVAR_XXX SNVT_count_inc_f

OnesecWattsAI 18 AI 18 S32_XXX[13]F10:13 nvoWatts_XXX SNVT_count_inc_f

OnesecFrequencyAI 19 AI 19 S32_XXX[14]F10:14 nvo1Freq_XXX SNVT_count_inc_f

OnesecThreePhasePFAI 20 AI 20 Dev2_XXX[0]N13:0 nvo3PhPF_XXX SNVT_count_inc_f

PhaseAͲNVoltageTHDAI 21 AI 21 Dev2_XXX[1]N13:1 nvoVoltANTHD_XXX SNVT_count_inc_f

PhaseBͲNVoltageTHDAI 22 AI 22 Dev2_XXX[2]N13:2 nvoVoltBNTHD_XXX SNVT_count_inc_f

PhaseCͲNVoltageTHDAI 23 AI 23 Dev2_XXX[3]N13:3 nvoVoltCNTHD_XXX SNVT_count_inc_f

PhaseACurrentTHDAI 24 AI 24 Dev2_XXX[4]N13:4 nvoCurrATHD_XXX SNVT_count_inc_f

PhaseBCurrentTHDAI 25 AI 25 Dev2_XXX[5]N13:5 nvoCurrBTHD_XXX SNVT_count_inc_f

PhaseCCurrentTHDAI 26 AI 26 Dev2_XXX[6]N13:6 nvoCurrCTHD_XXX SNVT

_

count_inc_f

BlockWindowAvgVAAI 27 AI 27 S32_XXX[15]F10:15 nvoBlWdAvVA_XXX SNVT_count_inc_f

BlockWindowAvgVARAI 28 AI 28 S32_XXX[16]F10:16 nvoBlWdAvVAR_XXX SNVT_count_inc_f

BlockWindowAvgWattAI 29 AI 29 S32_XXX[17]F10:17 nvoBlWdAvWat_XXX SNVT_count_inc_f

MaxBlockWindowAvgPosVAAI 30 AI 30 S32_XXX[18]F10:18 nvoMBlWdAvVA_XXX SNVT_count_inc_f

MaxBlockWindowAvgPosVARAI 31 AI 31 S32_XXX[19]F10:19 nvoMBWAvPVAR_XXX SNVT_count_inc_f

MaxBlockWindowAvgNegVARAI 32 AI 32 S32_XXX[20]F10:20 nvoMBWAvNVAR_XXX SNVT_count_inc_f

MaxBlockWindowAvgPosWattAI 33 AI 33 S32_XXX[21]F10:21 nvoMBWAvPWat_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-8

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

MaxBlockWindowAvgNegWattAI 34 AI 34 S32_XXX[22]F10:22 nvoMBWAvNWat_XXX SNVT_count_inc_f

TotalVAh(Quad1Ͳ4)ScaledPrimaryAI 35 AI 35 S32_XXX[23]F10:23 nvoTVAhQ14SP_XXX SNVT_count_inc_f

PosVARh(Quad1+2)ScaledPrimaryAI 36 AI 36 S32_XXX[24]F10:24 nvoPVARQ12SP_XXX SNVT_count_inc_f

NegVARh(Quad3+4)ScaledPrimaryAI 37 AI 37 S32_XXX[25]F10:25 nvoNVARQ34SP_XXX SNVT_count_inc_f

PosWh(Quad1+4)ScaledPrimaryAI 38 AI 38 S32_XXX[26]F10:26 nvoPWhQ14ScP_XXX SNVT_count_inc_f

NegWh(Quad2+3)ScaledPrimaryAI 39 AI 39 S32_XXX[27]F10:27 nvoNWhQ23ScP_XXX SNVT_count_inc_f

CTNumeratorAI 40 AI 40 S32_XXX[27]F10:27 nvoCT_num_XXX SNVT_count

CTDenominatorAI 41 AI 41 S32_XXX[28]F10:28 nvoCT_den_XXX SNVT_count

PTNumeratorAI 42 AI 42 S32_XXX[29]F10:29 nvoPT_num_XXX SNVT_count

PTDenominatorAI 43 AI 43 S32_XXX[30]F10:30 nvoPT_den_XXX SNVT_count

SystemHookupAI 44 AI 44 Dev3_XXX[0]N14:0 nvoSysHookup_XXX SNVT_count

PasswordStateAI 45 AI 45 Dev3_XXX[1]N14:1 nvoPass_Stat_XXX SNVT_count

CommDeviceStatusAI 46 AI 46 Dev3_XXX[2]N14:2 nvoComDevSt_XXX SNVT_count

DSPDeviceStatusAI 47 AI 47 Dev3_XXX[3]N14:3 nvoDSPDevSt_XXX SNVT_count

SerialNumberAI 48 AI 48 U32_XXX[0]F11:0 nvoSerNum_XXX SNVT_count_inc_f





A: Protocol Data Points for EIG Meters

Doc# E204701 A-9

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.4: DMMS 425 Meter

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

InstVoltANAI 1 AI 1 S16_XXX[0]N10:0 nvoVolt_AN_XXX SNVT_count_inc_f

InstVoltBNAI 2 AI 2 S16_XXX[1]N10:1 nvoVolt_BN_XXX SNVT_count_inc_f

InstVoltCNAI 3 AI 3 S16_XXX[2]N10:2 nvoVolt_CN_XXX SNVT_count_inc_f

InstVoltABAI 4 AI 4 S16_XXX[3]N10:3 nvoVolt_AB_XXX SNVT_count_inc_f

InstVoltBCAI 5 AI 5 S16_XXX[4]N10:4 nvoVolt_BC_XXX SNVT_count

_

inc_f

InstVoltCAAI 6 AI 6 S16_XXX[5]N10:5 nvoVolt_CA_XXX SNVT_count_inc_f

InstAmpAAI 7 AI 7 S16_XXX[6]N10:6 nvoAmp_A_XXX SNVT_count_inc_f

InstAmpBAI 8 AI 8 S16_XXX[7]N10:7 nvoAmp_B_XXX SNVT_count_inc_f

InstAmpCAI 9 AI 9 S16_XXX[8]N10:8 nvoAmp_C_XXX SNVT_count_inc_f

InstWattAI 10 AI 10 S16_XXX[9]N10:9 nvoWatt_XXX SNVT_count_inc_f

InstVarAI 11 AI 11 S16_XXX[10]N10:10 nvoVar_XXX SNVT_count_inc_f

InstVaAI 12 AI 12 S16_XXX[11]N10:11 nvoVa_XXX SNVT_count_inc_f

InstPfAI 13 AI 13 S16_XXX[12]N10:12 nvoPf_XXX SNVT_count_inc_f

InstFreqAI 14 AI 14 S16_XXX[13]N10:13 nvoFreq_XXX SNVT_count_inc_f

MaxVoltANAI 15 AI 15 S16_XXX[14]N10:14 nvoMaxVoltAN_XXX SNVT_count_inc_f

MaxVoltBNAI 16 AI 16 S16_XXX[15]N10:15 nvoMaxVoltBN_XXX SNVT_count_inc_f

MaxVoltCNAI 17 AI 17 S16_XXX[16]N10:16 nvoMaxVoltCN_XXX SNVT_count_inc_f

MaxVoltABAI 18 AI 18 S16_XXX[17]N10:17 nvoMaxVoltAB_XXX SNVT_count_inc_f

MaxVoltBCAI 19 AI 19 S16_XXX[18]N10:18 nvoMaxVoltBC_XXX SNVT_count_inc_f

MaxVoltCAAI 20 AI 20 S16_XXX[19]N10:19 nvoMaxVoltCA_XXX SNVT_count_inc_f

MaxAmpAAI 21 AI 21 S16_XXX[20]N10:20 nvoMaxAmp_A_XXX SNVT_count_inc_f

MaxAmpBAI 22 AI 22 S16_XXX[21]N10:21 nvoMaxAmp_B_XXX SNVT_count_inc_f

MaxAmpCAI 23 AI 23 S16_XXX[22]N10:22 nvoMaxAmp_C_XXX SNVT_count_inc_f

MaxWattAI 24 AI 24 S16_XXX[23]N10:23 nvoMaxWatt_XXX SNVT_count_inc_f

MaxVarAI 25 AI 25 S16_XXX[24]N10:24 nvoMaxVar_XXX SNVT_count_inc_f

MaxVaAI 26 AI 26 S16_XXX[25]N10:25 nvoMaxVa_XXX SNVT_count_inc_f

MaxPfAI 27 AI 27 S16_XXX[26]N10:26 nvoMaxPf_XXX SNVT_count_inc_f

MaxFreqAI 28 AI 28 S16_XXX[27]N10:27 nvoMaxFreq_XXX SNVT_count_inc_f

WattHourBlock1AI 29 AI 29 Dev_XXX[0]N11:0 nvoWh_Blk1_XXX SNVT_count

WattHourBlock2AI 30 AI 30 Dev_XXX[1]N11:1 nvoWh_Blk2_XXX SNVT_count

WattHourBlock3AI 31 AI 31 Dev_XXX[2]N11:2 nvoWh_Blk3_XXX SNVT_count

WattHourBlock4AI 32 AI 32 Dev_XXX[3]N11:3 nvoWh_Blk4_XXX SNVT_count

WattHourBlock5AI 33 AI 33 Dev_XXX[4]N11:4 nvoWh_Blk5_XXX SNVT_count

A: Protocol Data Points for EIG Meters

Doc# E204701 A-10

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.5: Nexus® 1500 Meter

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

WattHourBlock6AI 34 AI 34 Dev_XXX[5]N11:5 nvoWh_Blk6_XXX SNVT_count

WattHourBlock7AI 35 AI 35 Dev_XXX[6]N11:6 nvoWh_Blk7_XXX SNVT_count

WattHourBlock8AI 36 AI 36 Dev_XXX[7]N11:7 nvoWh_Blk8_XXX SNVT_count

VarHourBlock1AI 37 AI 37 Dev_XXX[8]N11:8 nvoVARh_Blk1_XXX SNVT_count

VarHourBlock2AI 38 AI 38 Dev_XXX[9]N11:9 nvoVARh_Blk2_XXX SNVT_count

VarHourBlock3AI 39 AI 39 Dev_XXX[10]N11:10 nvoVARh_Blk3_XXX SNVT_count

VarHourBlock4AI 40 AI 40 Dev_XXX[11]N11:11 nvoVARh_Blk4_XXX SNVT_count

VarHourBlock5AI 41 AI 41 Dev_XXX[12]N11:12 nvoVARh_Blk5_XXX SNVT_count

VarHourBlock6AI 42 AI 42 Dev_XXX[13]N11:13 nvoVARh_Blk6_XXX SNVT_count

VarHourBlock7AI 43 AI 43 Dev_XXX[14]N11:14 nvoVARh_Blk7_XXX SNVT_count

VarHourBlock8AI 44 AI 44 Dev_XXX[15]N11:15 nvoVARh_Blk8_XXX SNVT_count

CTRatioAI 45 AI 45 Dev_XXX[16]N11:16 nvoCT_Ratio_XXX SNVT_count

PTRatioAI 46 AI 46 Dev_XXX[17]N11:17 nvoPT_Ratio_XXX SNVT_count















A: Protocol Data Points for EIG Meters

Doc# E204701 A-11

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.5: Nexus® 1500 Meter

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

CurrentTimeReg1AI 1 AI 1 Dev1_XXX[0]N13:0 nvoCurTime1_XXX SNVT_count

CurrentTimeReg2AI 2 AI 2 Dev1_XXX[1]N13:1 nvoCurTime2_XXX SNVT_count

CurrentTimeReg3AI 3 AI 3 Dev1_XXX[2]N13:2 nvoCurTime3_XXX SNVT_count

CurrentTimeReg4AI 4 AI 4 Dev1_XXX[3]N13:3 nvoCurTime4_XXX SNVT_count

1secPhAͲNVoltageAI 5 AI 5 S32_XXX[0]F10:0 nvoAN_Volt_XXX SNVT_count_inc_f

1secPhBͲNVoltageAI 6 AI 6 S32_XXX[1]F10:1 nvoBN_Volt_XXX SNVT_count_inc_f

1secPhCͲNVoltageAI 7 AI 7 S32_XXX[2]F10:2 nvoCN_Volt_XXX SNVT_count_inc_f

1secVauxVoltageAI 8 AI 8 S32_XXX[3]F10:3 nvoVaux_Volt_XXX SNVT_count_inc_f

1secPhACurrentAI 9 AI 9 S32_XXX[4]F10:4 nvoA_Crnt_XXX SNVT_count_inc_f

1secPhBCurrentAI 10 AI 10 S32_XXX[5]F10:5 nvoB_Crnt_XXX SNVT_count_inc_f

1secPhCCurrentAI 11 AI 11 S32_XXX[6]F10:6 nvoC_Crnt_XXX SNVT_count_inc_f

1secMeasuredNeutralCurrentAI 12 AI 12 S32_XXX[7]F10:7 nvoMeasNtCrn_XXX SNVT_count_inc_f

1secCalculatedNeutralCurrentAI 13 AI 13 S32_XXX[8]F10:8 nvoCalcNtCrn_XXX SNVT_count_inc_f

1secPhAͲBVoltageAI 14 AI 14 S32_XXX[9]F10:9 nvoAB_Volt_XXX SNVT_count_inc_f

1secPhBͲCVoltageAI 15 AI 15 S32_XXX[10]F10:10 nvoBC_Volt_XXX SNVT_count_inc_f

1secPhCͲAVoltageAI 16 AI 16 S32_XXX[11]F10:11 nvoCA_Volt_XXX SNVT_count_inc_f

1secVAAI 17 AI 17 S32_XXX[12]F10:12 nvoVA_XXX SNVT_count_inc_f

1secThreeVARAI 18 AI 18 S32_XXX[13]F10:13 nvo3_VAR_XXX SNVT_count_inc_f

1secWattsAI 19 AI 19 S32_XXX[14]F10:14 nvoWatts_XXX SNVT_count_inc_f

1secFrequencyAI 20 AI 20 S32_XXX[15]F10:15 nvoFreq_XXX SNVT_count_inc_f

1secThreePhPowerFactorAI 21 AI 21 Dev2_XXX[0]N14:0 nvo3_PF_XXX SNVT_count_inc_f

PhAͲN/PhAͲBVoltageTHDAI 22 AI 22 S16_XXX[0]N11:0 nvoANABVlTHD_XXX SNVT_count_inc_f

PhBͲN/PhBͲCVoltageTHDAI 23 AI 23 S16_XXX[1]N11:1 nvoBNBCVlTHD_XXX SNVT_count_inc_f

PhCͲN/PhCͲAVoltageTHDAI 24 AI 24 S16_XXX[2]N11:2 nvoCNCAVlTHD_XXX SNVT_count_inc_f

PhACurrentTHDAI 25 AI 25 S16_XXX[3]N11:3 nvoA_CurTHD_XXX SNVT_count_inc_f

PhBCurrentTHDAI 26 AI 26 S16_XXX[4]N11:4 nvoB_CurTHD_XXX SNVT_count_inc_f

PhCCurrentTHDAI 27 AI 27 S16_XXX[5]N11:5 nvoC_CurTHD_XXX SNVT_count_inc_f

BlkWindowAvgVAAI 28 AI 28 S32_XXX[16]F10:16 nvoBlWndAvVA_XXX SNVT_count_inc_f

BlkWindowAvgVARAI 29 AI 29 S32_XXX[17]F10:17 nvoBlWndAVAR_XXX SNVT_count_inc_f

BlkWindowAvgWattAI 30 AI 30 S32_XXX[18]F10:18 nvoBlWndAvWt_XXX SNVT_count_inc_f

MaxBlkWindowAvgVAAI 31 AI 31 S32_XXX[19]F10:19 nvoMxBlWdAVA_XXX SNVT_count_inc_f

MaxBlkWindowAvgPosVARAI 32 AI 32 S32_XXX[20]F10:20 nvoMBWdAPVAR_XXX SNVT_count_inc_f

MaxBlkWindowAvgNegVARAI 33 AI 33 S32_XXX[21]F10:21 nvoMBWdANVAR_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-12

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.6: MP200-Y Metering System

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTag

Name

DF1

AddressLonNameLonSNVT

MaxBlkWindowAvgPosWattAI 34 AI 34 S32_XXX[22]F10:22 nvoMBWdAvPWT_XXX SNVT_count_inc_f

MaxBlkWindowAvgNegWattAI 35 AI 35 S32_XXX[23]F10:23 nvoMBWdAvNWT_XXX SNVT_count_inc_f

TotalVAh(Quad1+2+3+4)ScaledPriAI 36 AI 36 Flt_XXX[0] F12:0 nvoTVAh1234P_XXX SNVT_count_inc_f

PosVARh(Quad1+2)ScaledPriAI 37 AI 37 Flt_XXX[1] F12:1 nvoPVARhQ12P_XXX SNVT_count_inc_f

NegVARh(Quad3+4)ScaledPriAI 38 AI 38 Flt_XXX[2] F12:2 nvoNVARhQ34P_XXX SNVT_count_inc_f

PosWh(Quad1+4)ScaledPriAI 39 AI 39 Flt_XXX[3] F12:3 nvoPWhQ14ScP_XXX SNVT_count_inc_f

NegWh(Quad2+3)ScaledPriAI 40 AI 40 Flt_XXX[4] F12:4 nvoNWhQd23SP_XXX SNVT_count_inc_f

PhCurrentCTRatioNumeratorAI 41 AI 41 S32_XXX[29]F10:29 nvoCrtCTRtNm_XXX SNVT_count_inc_f

PhCurrentCTRatioDenominatorAI 42 AI 42 S32_XXX[30]F10:30 nvoCrtCTRtDn_XXX SNVT_count_inc_f

MeasuredNeutralCurrentCTRatioNumAI 43 AI 43 S32_XXX[31]F10:31 nvoMsNtCTRtN_XXX SNVT_count_inc_f

MeasuredNeutralCurrentCTRatioDenAI 44 AI 44 S32_XXX[32]F10:32 nvoMsNtCTRtD_XXX SNVT_count_inc_f

PhVoltagePTRatioNumeratorAI 45 AI 45 S32_XXX[33]F10:33 nvoVtPTRtNum_XXX SNVT_count_inc_f

PhVoltagePTRatioDenominatorAI 46 AI 46 S32_XXX[34]F10:34 nvoVtPTRtDen_XXX SNVT_count_inc_f

AuxVoltagePTRatioNumeratorAI 47 AI 47 S32_XXX[35]F10:35 nvoAxVtPTRtN_XXX SNVT_count_inc_f

AuxVoltagePTRationDenominatorAI 48 AI 48 S32_XXX[36]F10:36 nvoAxVtPTRtD_XXX SNVT_count_inc_f

SystemHookupAI 49 AI 49 Dev3_XXX[0]N15:0 nvoSysHookup_XXX SNVT_count

Level1/Level2PasswordStateAI 50 AI 50 Dev3_XXX[2]N15:2 nvoLv1_2PsSt_XXX SNVT_count_inc_f

SealingSwitchStateAI 51 AI 51 Dev3_XXX[3]N15:3 nvoSlSwState_XXX SNVT_count_inc_f

DeviceStatusAI 52 AI 52 Dev3_XXX[4]N15:4 nvoDevStat_XXX SNVT_count

SerialNumberReg1AI 53 AI 53 Dev3_XXX[5]N15:5 nvoSerNum1_XXX SNVT_count

SerialNumberReg2AI 54 AI 54 Dev3_XXX[6]N15:6 nvoSerNum2_XXX SNVT_count

SerialNumberReg3AI 55 AI 55 Dev3_XXX[7]N15:7 nvoSerNum3_XXX SNVT_count

SerialNumberReg4AI 56 AI 56 Dev3_XXX[8]N15:8 nvoSerNum4_XXX SNVT_count





A: Protocol Data Points for EIG Meters

Doc# E204701 A-13

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.6: MP200-Y Metering System

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VoltsAͲNAI 1 AI 1 Flt_XXX[000]F10:000 nvoVoltsAN_XXX SNVT_count_inc_f

VoltsBͲNAI 2 AI 2 Flt_XXX[001]F10:001 nvoVoltsBN_XXX SNVT_count_inc_f

VoltsCͲNAI 3 AI 3 Flt_XXX[002]F10:002 nvoVoltsCN_XXX SNVT_count_inc_f

VoltsAͲBAI 4 AI 4 Flt_XXX[003]F10:003 nvoVoltsAB_XXX SNVT_count_inc_f

VoltsBͲCAI 5 AI 5 Flt_XXX[004]F10:004 nvoVoltsBC_XXX SNVT_count_inc_f

VoltsCͲAAI 6 AI 6 Flt_XXX[005]F10:005 nvoVoltsCA_XXX SNVT_count_inc_f

FrequencyAI 7 AI 7 Flt_XXX[006]F10:006 nvoFrequency_XXX SNVT_count_inc_f

MTR01AmpsAAI 8 AI 8 Flt_XXX[007]F10:007 nvoM1AmpsA_XXX SNVT_count_inc_f

MTR01AmpsBAI 9 AI 9 Flt_XXX[008]F10:008 nvoM1AmpsB_XXX SNVT_count_inc_f

MTR01AmpsCAI 10 AI 10 Flt_XXX[009]F10:009 nvoM1AmpsC_XXX SNVT_count_inc_f

MTR01Watts3ͲPhtotalAI 11 AI 11 Flt_XXX[010]F10:010 nvoM1WattTot_XXX SNVT_count_inc_f

MTR01VARs3ͲPhtotalAI 12 AI 12 Flt_XXX[011]F10:011 nvoM1VARsTot_XXX SNVT_count_inc_f

MTR01VAs3ͲPhtotalAI 13 AI 13 Flt_XXX[012]F10:012 nvoM1VAsTot_XXX SNVT_count_inc_f

MTR01PowerFactor3ͲPhtotalAI 14 AI 14 Flt_XXX[013]F10:013 nvoM1PFTot_XXX SNVT_count_inc_f

MTR01NeutralCurrentAI 15 AI 15 Flt_XXX[014]F10:014 nvoM1NeutCur_XXX SNVT_count_inc_f

MTR02AmpsAAI 16 AI 16 Flt_XXX[015]F10:015 nvoM2AmpsA_XXX SNVT_count_inc_f

MTR02AmpsBAI 17 AI 17 Flt_XXX[016]F10:016 nvoM2AmpsB_XXX SNVT_count_inc_f

MTR02AmpsCAI 18 AI 18 Flt_XXX[017]F10:017 nvoM2AmpsC_XXX SNVT_count_inc_f

MTR02Watts3ͲPhtotalAI 19 AI 19 Flt_XXX[018]F10:018 nvoM2WattTot_XXX SNVT_count_inc_f

MTR02VARs3ͲPhtotalAI 20 AI 20 Flt_XXX[019]F10:019 nvoM2VARsTot_XXX SNVT_count_inc_f

MTR02VAs3ͲPhtotalAI 21 AI 21 Flt_XXX[020]F10:020 nvoM2VAsTot

_

XXX SNVT_count_inc_f

MTR02PowerFactor3ͲPhtotalAI 22 AI 22 Flt_XXX[021]F10:021 nvoM2PFTot_XXX SNVT_count_inc_f

MTR02NeutralCurrentAI 23 AI 23 Flt_XXX[022]F10:022 nvoM2NeutCur_XXX SNVT_count_inc_f

MTR03AmpsAAI 24 AI 24 Flt_XXX[023]F10:023 nvoM3AmpsA_XXX SNVT_count_inc_f

MTR03AmpsBAI 25 AI 25 Flt_XXX[024]F10:024 nvoM3AmpsB_XXX SNVT_count_inc_f

MTR03AmpsCAI 26 AI 26 Flt_XXX[025]F10:025 nvoM3AmpsC_XXX SNVT_count_inc_f

MTR03Watts3ͲPhtotalAI 27 AI 27 Flt_XXX[026]F10:026 nvoM3WattTot_XXX SNVT_count_inc_f

MTR03VARs3ͲPhtotalAI 28 AI 28 Flt_XXX[027]F10:027 nvoM3VARsTot_XXX SNVT_count_inc_f

MTR03VAs3ͲPhtotalAI 29 AI 29 Flt_XXX[028]F10:028 nvoM3VAsTot_XXX SNVT_count_inc_f

MTR03PowerFactor3ͲPhtotalAI 30 AI 30 Flt_XXX[029]F10:029 nvoM3PFTot_XXX SNVT_count_inc_f

MTR03NeutralCurrentAI 31 AI 31 Flt_XXX[030]F10:030 nvoM3NeutCur_XXX SNVT_count_inc_f

MTR04AmpsAAI 32 AI 32 Flt_XXX[031]F10:031 nvoM4AmpsA_XXX SNVT_count_inc_f

MTR04AmpsBAI 33 AI 33 Flt_XXX[032]F10:032 nvoM4AmpsB_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-14

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

MTR04AmpsCAI 34 AI 34 Flt_XXX[033]F10:033 nvoM4AmpsC_XXX SNVT_count_inc_f

MTR04Watts3ͲPhtotalAI 35 AI 35 Flt_XXX[034]F10:034 nvoM4WattTot_XXX SNVT_count_inc_f

MTR04VARs3ͲPhtotalAI 36 AI 36 Flt_XXX[035]F10:035 nvoM4VARsTot_XXX SNVT_count_inc_f

MTR04VAs3ͲPhtotalAI 37 AI 37 Flt_XXX[036]F10:036 nvoM4VAsTot_XXX SNVT_count_inc_f

MTR04PowerFactor3ͲPhtotalAI 38 AI 38 Flt_XXX[037]F10:037 nvoM4PFTot_XXX SNVT_count_inc_f

MTR04NeutralCurrentAI 39 AI 39 Flt_XXX[038]F10:038 nvoM4NeutCur_XXX SNVT_count_inc_f

MTR05AmpsAAI 40 AI 40 Flt_XXX[039]F10:039 nvoM5AmpsA_XXX SNVT_count_inc_f

MTR05AmpsBAI 41 AI 41 Flt_XXX[040]F10:040 nvoM5AmpsB_XXX SNVT_count_inc_f

MTR05AmpsCAI 42 AI 42 Flt_XXX[041]F10:041 nvoM5AmpsC_XXX SNVT_count_inc_f

MTR05Watts3ͲPhtotalAI 43 AI 43 Flt_XXX[042]F10:042 nvoM5WattTot_XXX SNVT_count_inc_f

MTR05VARs3ͲPhtotalAI 44 AI 44 Flt_XXX[043]F10:043 nvoM5VARsTot_XXX SNVT_count_inc_f

MTR05VAs3ͲPhtotalAI 45 AI 45 Flt_XXX[044]F10:044 nvoM5VAsTot_XXX SNVT_count_inc_f

MTR05PowerFactor3ͲPhtotalAI 46 AI 46 Flt_XXX[045]F10:045 nvoM5PFTot_XXX SNVT_count_inc_f

MTR05NeutralCurrentAI 47 AI 47 Flt_XXX[046]F10:046 nvoM5NeutCur_XXX SNVT_count_inc_f

MTR06AmpsAAI 48 AI 48 Flt_XXX[047]F10:047 nvoM6AmpsA_XXX SNVT_count_inc_f

MTR06AmpsBAI 49 AI 49 Flt_XXX[048]F10:048 nvoM6AmpsB_XXX SNVT_count_inc_f

MTR06AmpsCAI 50 AI 50 Flt_XXX[049]F10:049 nvoM6AmpsC_XXX SNVT_count_inc_f

MTR06Watts3ͲPhtotalAI 51 AI 51 Flt

_

XXX[050]F10:050 nvoM6WattTot_XXX SNVT_count_inc_f

MTR06VARs3ͲPhtotalAI 52 AI 52 Flt_XXX[051]F10:051 nvoM6VARsTot_XXX SNVT_count_inc_f

MTR06VAs3ͲPhtotalAI 53 AI 53 Flt_XXX[052]F10:052 nvoM6VAsTot_XXX SNVT_count_inc_f

MTR06PowerFactor3ͲPhtotalAI 54 AI 54 Flt_XXX[053]F10:053 nvoM6PFTot_XXX SNVT_count_inc_f

MTR06NeutralCurrentAI 55 AI 55 Flt_XXX[054]F10:054 nvoM6NeutCur_XXX SNVT_count_inc_f

MTR07AmpsAAI 56 AI 56 Flt_XXX[055]F10:055 nvoM7AmpsA_XXX SNVT_count_inc_f

MTR07AmpsBAI 57 AI 57 Flt_XXX[056]F10:056 nvoM7AmpsB_XXX SNVT_count_inc_f

MTR07AmpsCAI 58 AI 58 Flt_XXX[057]F10:057 nvoM7AmpsC_XXX SNVT_count_inc_f

MTR07Watts3ͲPhtotalAI 59 AI 59 Flt_XXX[058]F10:058 nvoM7WattTot_XXX SNVT_count_inc_f

MTR07VARs3ͲPhtotalAI 60 AI 60 Flt_XXX[059]F10:059 nvoM7VARsTot_XXX SNVT_count_inc_f

MTR07VAs3ͲPhtotalAI 61 AI 61 Flt_XXX[060]F10:060 nvoM7VAsTot_XXX SNVT_count_inc_f

MTR07PowerFactor3ͲPhtotalAI 62 AI 62 Flt_XXX[061]F10:061 nvoM7PFTot_XXX SNVT_count_inc_f

MTR07NeutralCurrentAI 63 AI 63 Flt_XXX[062]F10:062 nvoM7NeutCur_XXX SNVT_count_inc_f

MTR08AmpsAAI 64 AI 64 Flt_XXX[063]F10:063 nvoM8AmpsA_XXX SNVT_count_inc_f

MTR08AmpsBAI 65 AI 65 Flt_XXX[064]F10:064 nvoM8AmpsB_XXX SNVT_count_inc_f

MTR08AmpsCAI 66 AI 66 Flt_XXX[065]F10:065 nvoM8AmpsC_XXX SNVT_count_inc_f

MTR08Watts3ͲPhtotalAI 67 AI 67 Flt_XXX[066]F10:066 nvoM8WattTot_XXX SNVT_count_inc_f

MTR08VARs3ͲPhtotalAI 68 AI 68 Flt_XXX[067]F10:067 nvoM8VARsTot_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-15

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

MTR08VAs3ͲPhtotalAI 69 AI 69 Flt_XXX[068]F10:068 nvoM8VAsTot_XXX SNVT_count_inc_f

MTR08PowerFactor3ͲPhtotalAI 70 AI 70 Flt_XXX[069]F10:069 nvoM8PFTot_XXX SNVT_count_inc_f

MTR08NeutralCurrentAI 71 AI 71 Flt_XXX[070]F10:070 nvoM8NeutCur_XXX SNVT_count_inc_f

MTR01WͲhoursReceivedAI 72 AI 72 S32_XXX[000]F11:000 nvoM1WHRec_XXX SNVT_count_inc_f

MTR01WͲhoursDeliveredAI 73 AI 73 S32_XXX[001]F11:001 nvoM1WHDel_XXX SNVT_count_inc_f

MTR01WͲhoursNetAI 74 AI 74 S32_XXX[002]F11:002 nvoM1WHNet_XXX SNVT_count_inc_f

MTR01WͲhoursTotalAI 75 AI 75 S32_XXX[003]F11:003 nvoM1WHTot_XXX SNVT_count_inc_f

MTR01VARͲhoursPositiveAI 76 AI 76 S32_XXX[004]F11:004 nvoM1VARHPos_XXX SNVT_count_inc_f

MTR01VARͲhoursNegativeAI 77 AI 77 S32_XXX[005]F11:005 nvoM1VARHNeg_XXX SNVT_count_inc_f

MTR01VARͲhoursNetAI 78 AI 78 S32_XXX[006]F11:006 nvoM1VARHNet_XXX SNVT_count_inc_f

MTR01VARͲhoursTotalAI 79 AI 79 S32_XXX[007]F11:007 nvoM1VARHTot_XXX SNVT_count_inc_f

MTR01VAͲhoursTotalAI 80 AI 80 S32_XXX[008]F11:008 nvoM1VAHTot_XXX SNVT_count_inc_f

MTR02WͲhoursReceivedAI 81 AI 81 S32_XXX[009]F11:009 nvoM2WHRec_XXX SNVT_count_inc_f

MTR02WͲhoursDeliveredAI 82 AI 82 S32_XXX[010]F11:010 nvoM2WHDel_XXX SNVT_count_inc_f

MTR02WͲhoursNetAI 83 AI 83 S32_XXX[011]F11:011 nvoM2WHNet_XXX SNVT_count_inc_f

MTR02WͲhoursTotalAI 84 AI 84 S32_XXX[012]F11:012 nvoM2WHTot_XXX SNVT_count_inc_f

MTR02VARͲhoursPositiveAI 85 AI 85 S32_XXX[013]F11:013 nvoM2VARHPos_XXX SNVT_count_inc_f

MTR02VARͲhoursNegativeAI 86 AI 86 S32_XXX[014]F11:014 nvoM2VARHNeg_XXX SNVT_count_inc_f

MTR02VARͲhoursNetAI 87 AI 87 S32_XXX[015]F11:015 nvoM2VARHNet_XXX SNVT_count_inc_f

MTR02VARͲhoursTotalAI 88 AI 88 S32_XXX[016]F11:016 nvoM2VARHTot_XXX SNVT_count_inc_f

MTR02VAͲhoursTotalAI 89 AI 89 S32_XXX[017]F11:017 nvoM2VAHTot_XXX SNVT_count_inc_f

MTR03WͲhoursReceivedAI 90 AI 90 S32_XXX[018]F11:018 nvoM3WHRec_XXX SNVT_count_inc_f

MTR03WͲhoursDeliveredAI 91 AI 91 S32_XXX[019]F11:019 nvoM3WHDel_XXX SNVT_count_inc_f

MTR03WͲhoursNetAI 92 AI 92 S32_XXX[020]F11:020 nvoM3WHNet_XXX SNVT_count_inc_f

MTR03WͲhoursTotalAI 93 AI 93 S32_XXX[021]F11:021 nvoM3WHTot_XXX SNVT_count_inc_f

MTR03VARͲhoursPositiveAI 94 AI 94 S32_XXX[022]F11:022 nvoM3VARHPos_XXX SNVT_count_inc_f

MTR03VARͲhoursNegativeAI 95 AI 95 S32_XXX[023]F11:023 nvoM3VARHNeg_XXX SNVT_count_inc_f

MTR03VARͲhoursNetAI 96 AI 96 S32_XXX[024]F11:024 nvoM3VARHNet_XXX SNVT_count_inc_f

MTR03VARͲhoursTotalAI 97 AI 97 S32_XXX[025]F11:025 nvoM3VARHTot_XXX SNVT_count_inc_f

MTR03VAͲhoursTotalAI 98 AI 98 S32_XXX[026]F11:026 nvoM3VAHTot_XXX SNVT_count_inc_f

MTR04WͲhoursReceivedAI 99 AI 99 S32_XXX[027]F11:027 nvoM4WHRec_XXX SNVT_count_inc_f

MTR04WͲhoursDeliveredAI 100 AI 100 S32_XXX[028]F11:028 nvoM4WHDel_XXX SNVT_count_inc_f

MTR04WͲhoursNetAI 101 AI 101 S32_XXX[029]F11:029 nvoM4WHNet_XXX SNVT_count_inc_f

MTR04WͲhoursTotalAI 102 AI 102 S32_XXX[030]F11:030 nvoM4WHTot_XXX SNVT_count_inc_f

MTR04VARͲhoursPositiveAI 103 AI 103 S32_XXX[031]F11:031 nvoM4VARHPos_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-16

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.7: MP200-S Metering System

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

MTR04VARͲhoursNegativeAI 104 AI 104 S32_XXX[032]F11:032 nvoM4VARHNeg_XXX SNVT_count_inc_f

MTR04VARͲhoursNetAI 105 AI 105 S32_XXX[033]F11:033 nvoM4VARHNet_XXX SNVT_count_inc_f

MTR04VARͲhoursTotalAI 106 AI 106 S32_XXX[034]F11:034 nvoM4VARHTot_XXX SNVT_count_inc_f

MTR04VAͲhoursTotalAI 107 AI 107 S32_XXX[035]F11:035 nvoM4VAHTot_XXX SNVT_count_inc_f

MTR05WͲhoursReceivedAI 108 AI 108 S32_XXX[036]F11:036 nvoM5WHRec_XXX SNVT_count_inc_f

MTR05WͲhoursDeliveredAI 109 AI 109 S32_XXX[037]F11:037 nvoM5WHDel_XXX SNVT_count_inc_f

MTR05WͲhoursNetAI 110 AI 110 S32_XXX[038]F11:038 nvoM5WHNet_XXX SNVT_count_inc_f

MTR05WͲhoursTotalAI 111 AI 111 S32_XXX[039]F11:039 nvoM5WHTot_XXX SNVT_count_inc_f

MTR05VARͲhoursPositiveAI 112 AI 112 S32_XXX[040]F11:040 nvoM5VARHPos_XXX SNVT_count_inc_f

MTR05VARͲhoursNegativeAI 113 AI 113 S32_XXX[041]F11:041 nvoM5VARHNeg_XXX SNVT_count_inc_f

MTR05VARͲhoursNetAI 114 AI 114 S32_XXX[042]F11:042 nvoM5VARHNet_XXX SNVT_count_inc_f

MTR05VARͲhoursTotalAI 115 AI 115 S32_XXX[043]F11:043 nvoM5VARHTot_XXX SNVT_count_inc_f

MTR05VAͲhoursTotalAI 116 AI 116 S32_XXX[044]F11:044 nvoM5VAHTot_XXX SNVT_count_inc_f

MTR06WͲhoursReceivedAI 117 AI 117 S32_XXX[045]F11:045 nvoM6WHRec_XXX SNVT_count_inc_f

MTR06WͲhoursDeliveredAI 118 AI 118 S32_XXX[046]F11:046 nvoM6WHDel_XXX SNVT_count_inc_f

MTR06WͲhoursNetAI 119 AI 119 S32_XXX[047]F11:047 nvoM6WHNet_XXX SNVT_count_inc_f

MTR06WͲhoursTotalAI 120 AI 120 S32_XXX[048]F11:048 nvoM6WHTot_XXX SNVT_count_inc_f

MTR06VARͲhoursPositiveAI 121 AI 121 S32_XXX[049]F11:049 nvoM6VARHPos_XXX SNVT_count_inc_f

MTR06VARͲhoursNegativeAI 122 AI 122 S32_XXX[050]F11:050 nvoM6VARHNeg_XXX SNVT_count_inc_f

MTR06VARͲhoursNetAI 123 AI 123 S32_XXX[051]F11:051 nvoM6VARHNet_XXX SNVT_count_inc_f

MTR06VARͲhoursTotalAI 124 AI 124 S32_XXX[052]F11:052 nvoM6VARHTot_XXX SNVT_count_inc_f

MTR06VAͲhoursTotalAI 125 AI 125 S32_XXX[053]F11:053 nvoM6VAHTot_XXX SNVT_count_inc_f

MTR07WͲhoursReceivedAI 126 AI 126 S32_XXX[054]F11:054 nvoM7WHRec_XXX SNVT_count_inc_f

MTR07WͲhoursDeliveredAI 127 AI 127 S32_XXX[055]F11:055 nvoM7WHDel_XXX SNVT_count_inc_f

MTR07WͲhoursNetAI 128 AI 128 S32_XXX[056]F11:056 nvoM7WHNet_XXX SNVT_count_inc_f

MTR07WͲhoursTotalAI 129 AI 129 S32_XXX[057]F11:057 nvoM7WHTot_XXX SNVT_count_inc_f

MTR07VARͲhoursPositiveAI 130 AI 130 S32_XXX[058]F11:058 nvoM7VARHPos_XXX SNVT_count_inc_f

MTR07VARͲhoursNegativeAI 131 AI 131 S32_XXX[059]F11:059 nvoM7VARHNeg_XXX SNVT_count_inc_f

MTR07VARͲhoursNetAI 132 AI 132 S32_XXX[060]F11:060 nvoM7VARHNet_XXX SNVT_count_inc_f

MTR07VARͲhoursTotalAI 133 AI 133 S32_XXX[061]F11:061 nvoM7VARHTot_XXX SNVT_count_inc_f

MTR07VAͲhoursTotalAI 134 AI 134 S32_XXX[062]F11:062 nvoM7VAHTot_XXX SNVT_count_inc_f

MTR08WͲhoursReceivedAI 135 AI 135 S32_XXX[063]F11:063 nvoM8WHRec_XXX SNVT_count_inc_f

MTR08WͲhoursDeliveredAI 136 AI 136 S32_XXX[064]F11:064 nvoM8WHDel_XXX SNVT_count_inc_f

MTR08WͲhoursNetAI 137 AI 137 S32_XXX[065]F11:065 nvoM8WHNet_XXX SNVT_count_inc_f

MTR08WͲhoursTotalAI 138 AI 138 S32_XXX[066]F11:066 nvoM8WHTot_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-17

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

MTR08VARͲhoursPositiveAI 139 AI 139 S32_XXX[067]F11:067 nvoM8VARHPos_XXX SNVT_count_inc_f

MTR08VARͲhoursNegativeAI 140 AI 140 S32_XXX[068]F11:068 nvoM8VARHNeg_XXX SNVT_count_inc_f

MTR08VARͲhoursNetAI 141 AI 141 S32_XXX[069]F11:069 nvoM8VARHNet_XXX SNVT_count_inc_f

MTR08VARͲhoursTotalAI 142 AI 142 S32_XXX[070]F11:070 nvoM8VARHTot_XXX SNVT_count_inc_f

MTR08VAͲhoursTotalAI 143 AI 143 S32_XXX[071]F11:071 nvoM8VAHTot_XXX SNVT_count_inc_f

MTR01PositiveWatts3ͲPhAvgAI 144 AI 144 Flt_XXX[071]F10:071 nvoM1PsWtAvg_XXX SNVT_count_inc_f

MTR01PositiveVARs3ͲPhAvgAI 145 AI 145 Flt_XXX[072]F10:072 nvoM1PsVARAv_XXX SNVT_count_inc_f

MTR01NegativeWatts3ͲPhAvgAI 146 AI 146 Flt_XXX[073]F10:073 nvoM1NgWtAvg_XXX SNVT_count_inc_f

MTR01NegativeVARs3ͲPhAvgAI 147 AI 147 Flt_XXX[074]F10:074 nvoM1NgVARAv_XXX SNVT_count_inc_f

MTR01VAs3ͲPhAvgAI 148 AI 148 Flt_XXX[075]F10:075 nvoM1VAsAvg_XXX SNVT_count_inc_f

MTR02PositiveWatts3ͲPhAvgAI 149 AI 149 Flt_XXX[076]F10:076 nvoM2PsWtAvg_XXX SNVT_count_inc_f

MTR02PositiveVARs3ͲPhAvgAI 150 AI 150 Flt_XXX[077]F10:077 nvoM2PsVARAv_XXX SNVT_count_inc_f

MTR02NegativeWatts3ͲPhAvgAI 151 AI 151 Flt_XXX[078]F10:078 nvoM2NgWtAvg_XXX SNVT_count_inc_f

MTR02NegativeVARs3ͲPhAvgAI 152 AI 152 Flt_XXX[079]F10:079 nvoM2NgVARAv_XXX SNVT_count_inc_f

MTR02VAs3ͲPhAvgAI 153 AI 153 Flt_XXX[080]F10:080 nvoM2VAsAvg_XXX SNVT_count_inc_f

MTR03PositiveWatts3ͲPhAvgAI 154 AI 154 Flt_XXX[081]F10:081 nvoM3PsWtAvg_XXX SNVT_count_inc_f

MTR03PositiveVARs3ͲPhAvgAI 155 AI 155 Flt_XXX[082]F10:082 nvoM3PsVARAv_XXX SNVT_count_inc_f

MTR03NegativeWatts3ͲPhAvgAI 156 AI 156 Flt_XXX[083]F10:083 nvoM3NgWtAvg_XXX SNVT_count_inc_f

MTR03NegativeVARs3ͲPhAvgAI 157 AI 157 Flt_XXX[084]F10:084 nvoM3NgVARAv_XXX SNVT_count_inc_f

MTR03VAs3ͲPhAvgAI 158 AI 158 Flt_XXX[085]F10:085 nvoM3VAsAvg_XXX SNVT_count_inc_f

MTR04PositiveWatts3ͲPhAvgAI 159 AI 159 Flt_XXX[086]F10:086 nvoM4PsWtAvg_XXX SNVT_count_inc_f

MTR04PositiveVARs3ͲPhAvgAI 160 AI 160 Flt_XXX[087]F10:087 nvoM4PsVARAv_XXX SNVT_count_inc_f

MTR04NegativeWatts3ͲPhAvgAI 161 AI 161 Flt_XXX[088]F10:088 nvoM4NgWtAvg_XXX SNVT_count_inc_f

MTR04NegativeVARs3ͲPhAvgAI 162 AI 162 Flt_XXX[089]F10:089 nvoM4NgVARAv_XXX SNVT_count_inc_f

MTR04VAs3ͲPhAvgAI 163 AI 163 Flt_XXX[090]F10:090 nvoM4VAsAvg_XXX SNVT_count_inc_f

MTR05PositiveWatts3ͲPhAvgAI 164 AI 164 Flt_XXX[091]F10:091 nvoM5PsWtAvg_XXX SNVT_count_inc_f

MTR05PositiveVARs3ͲPhAvgAI 165 AI 165 Flt_XXX[092]F10:092 nvoM5PsVARAv_XXX SNVT_count_inc_f

MTR05NegativeWatts3ͲPhAvgAI 166 AI 166 Flt_XXX[093]F10:093 nvoM5NgWtAvg_XXX SNVT_count_inc_f

MTR05NegativeVARs3ͲPhAvgAI 167 AI 167 Flt_XXX[094]F10:094 nvoM5NgVARAv_XXX SNVT_count_inc_f

MTR05VAs3ͲPhAvgAI 168 AI 168 Flt_XXX[095]F10:095 nvoM5VAsAvg_XXX SNVT_count_inc_f

MTR06PositiveWatts3ͲPhAvgAI 169 AI 169 Flt_XXX[096]F10:096 nvoM6PsWtAvg_XXX SNVT_count_inc_f

MTR06PositiveVARs3ͲPhAvgAI 170 AI 170 Flt_XXX[097]F10:097 nvoM6PsVARAv_XXX SNVT_count_inc_f

MTR06NegativeWatts3ͲPhAvgAI 171 AI 171 Flt_XXX[098]F10:098 nvoM6NgWtAvg_XXX SNVT_count_inc_f

MTR06NegativeVARs3ͲPhAvgAI 172 AI 172 Flt_XXX[099]F10:099 nvoM6NgVARAv_XXX SNVT_count_inc_f

MTR06VAs3ͲPhAvgAI 173 AI 173 Flt_XXX[100]F10:100 nvoM6VAsAvg_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-18

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

MTR07PositiveWatts3ͲPhAvgAI 174 AI 174 Flt_XXX[101]F10:101 nvoM7PsWtAvg_XXX SNVT_count_inc_f

MTR07PositiveVARs3ͲPhAvgAI 175 AI 175 Flt_XXX[102]F10:102 nvoM7PsVARAv_XXX SNVT_count_inc_f

MTR07NegativeWatts3ͲPhAvgAI 176 AI 176 Flt_XXX[103]F10:103 nvoM7NgWtAvg_XXX SNVT_count_inc_f

MTR07NegativeVARs3ͲPhAvgAI 177 AI 177 Flt_XXX[104]F10:104 nvoM7NgVARAv_XXX SNVT_count_inc_f

MTR07VAs3ͲPhAvgAI 178 AI 178 Flt_XXX[105]F10:105 nvoM7VAsAvg_XXX SNVT_count_inc_f

MTR08PositiveWatts3ͲPhAvgAI 179 AI 179 Flt_XXX[106]F10:106 nvoM8PsWtAvg

_

XXX SNVT_count_inc_f

MTR08PositiveVARs3ͲPhAvgAI 180 AI 180 Flt_XXX[107]F10:107 nvoM8PsVARAv_XXX SNVT_count_inc_f

MTR08NegativeWatts3ͲPhAvgAI 181 AI 181 Flt_XXX[108]F10:108 nvoM8NgWtAvg_XXX SNVT_count_inc_f

MTR08NegativeVARs3ͲPhAvgAI 182 AI 182 Flt_XXX[109]F10:109 nvoM8NgVARAv_XXX SNVT_count_inc_f

MTR08VAs3ͲPhAvgAI 183 AI 183 Flt_XXX[110]F10:110 nvoM8VAsAvg_XXX SNVT_count_inc_f

CPUStatusAI 184 AI 184 Dev1_XXX[000]N12:000 nvoCPUStatus_XXX SNVT_count_inc_f

CurrentTimeReg1AI 185 AI 185 Dev1_XXX[001]N12:001 nvoCurTime1_XXX SNVT_count_inc_f

CurrentTimeReg2AI 186 AI 186 Dev1_XXX[002]N12:002 nvoCurTime2_XXX SNVT_count_inc_f

CurrentTimeReg3AI 187 AI 187 Dev1_XXX[003]N12:003 nvoCurTime3_XXX SNVT_count_inc_f

MTR01PositiveWatts3ͲPhMaxAvgDemAI 188 AI 188 Flt_XXX[111]F10:111 nvo1PWtMxAvD_XXX SNVT_count_inc_f

MTR01PositiveVARs3ͲPhMaxAvgDemAI 189 AI 189 Flt_XXX[112]F10:112 nvo1PVARMxAv_XXX SNVT_count_inc_f

MTR01NegativeWatts3ͲPhMaxAvgDemAI 190 AI 190 Flt_XXX[113]F10:113 nvo1NWtMxAvD_XXX SNVT_count_inc_f

MTR01NegativeVARs3ͲPhMaxAvgDemAI 191 AI 191 Flt_XXX[114]F10:114 nvo1NVARMxAv_XXX SNVT_count_inc_f

MTR02PositiveWatts3ͲPhMaxAvgDemAI 192 AI 192 Flt_XXX[115]F10:115 nvo2PWtMxAvD_XXX SNVT_count_inc_f

MTR02PositiveVARs3ͲPhMaxAvgDemAI 193 AI 193 Flt_XXX[116]F10:116 nvo2PVARMxAv_XXX SNVT_count_inc_f

MTR02NegativeWatts3ͲPhMaxAvgDemAI 194 AI 194 Flt_XXX[117]F10:117 nvo2NWtMxAvD_XXX SNVT_count_inc_f

MTR02NegativeVARs3ͲPhMaxAvgDemAI 195 AI 195 Flt_XXX[118]F10:118 nvo2NVARMxAv_XXX SNVT_count_inc_f

MTR03PositiveWatts3ͲPhMaxAvgDemAI 196 AI 196 Flt_XXX[119]F10:119 nvo3PWtMxAvD_XXX SNVT_count_inc_f

MTR03PositiveVARs3ͲPhMaxAvgDemAI 197 AI 197 Flt_XXX[120]F10:120 nvo3PVARMxAv_XXX SNVT_count_inc_f

MTR03NegativeWatts3ͲPhMaxAvgDemAI 198 AI 198 Flt_XXX[121]F10:121 nvo3NWtMxAvD_XXX SNVT_count_inc_f

MTR03NegativeVARs3ͲPhMaxAvgDemAI 199 AI 199 Flt_XXX[122]F10:122 nvo3NVARMxAv_XXX SNVT_count_inc_f

MTR04PositiveWatts3ͲPhMaxAvgDemAI 200 AI 200 Flt_XXX[123]F10:123 nvo4PWtMxAvD_XXX SNVT_count_inc_f

MTR04PositiveVARs3ͲPhMaxAvgDemAI 201 AI 201 Flt_XXX[124]F10:124 nvo4PVARMxAv_XXX SNVT_count_inc_f

MTR04NegativeWatts3ͲPhMaxAvgDemAI 202 AI 202 Flt_XXX[125]F10:125 nvo4NWtMxAvD_XXX SNVT_count_inc_f

MTR04NegativeVARs3ͲPhMaxAvgDemAI 203 AI 203 Flt_XXX[126]F10:126 nvo4NVARMxAv_XXX SNVT_count_inc_f

MTR05PositiveWatts3ͲPhMaxAvgDemAI 204 AI 204 Flt_XXX[127]F10:127 nvo5PWtMxAvD_XXX SNVT_count_inc_f

MTR05PositiveVARs3ͲPhMaxAvgDemAI 205 AI 205 Flt_XXX[128]F10:128 nvo5PVARMxAv_XXX SNVT_count_inc_f

MTR05NegativeWatts3ͲPhMaxAvgDemAI 206 AI 206 Flt_XXX[129]F10:129 nvo5NWtMxAvD_XXX SNVT_count_inc_f

MTR05NegativeVARs3ͲPhMaxAvgDemAI 207 AI 207 Flt_XXX[130]F10:130 nvo5NVARMxAv_XXX SNVT_count_inc_f

MTR06PositiveWatts3ͲPhMaxAvgDemAI 208 AI 208 Flt_XXX[131]F10:131 nvo6PWtMxAvD_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-19

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

MTR06PositiveVARs3ͲPhMaxAvgDemAI 209 AI 209 Flt_XXX[132]F10:132 nvo6PVARMxAv_XXX SNVT_count_inc_f

MTR06NegativeWatts3ͲPhMaxAvgDemAI 210 AI 210 Flt_XXX[133]F10:133 nvo6NWtMxAvD_XXX SNVT_count_inc_f

MTR06NegativeVARs3ͲPhMaxAvgDemAI 211 AI 211 Flt_XXX[134]F10:134 nvo6NVARMxAv_XXX SNVT_count_inc_f

MTR07PositiveWatts3ͲPhMaxAvgDemAI 212 AI 212 Flt_XXX[135]F10:135 nvo7PWtMxAvD_XXX SNVT_count_inc_f

MTR07PositiveVARs3ͲPhMaxAvgDemAI 213 AI 213 Flt_XXX[136]F10:136 nvo7PVARMxAv_XXX SNVT_count_inc_f

MTR07NegativeWatts3ͲPhMaxAvgDemAI 214 AI 214 Flt_XXX[137]F10:137 nvo7NWtMxAvD_XXX SNVT_count_inc_f

MTR07NegativeVARs3ͲPhMaxAvgDemAI 215 AI 215 Flt_XXX[138]F10:138 nvo7NVARMxAv_XXX SNVT_count_inc_f

MTR08PositiveWatts3ͲPhMaxAvgDemAI 216 AI 216 Flt_XXX[139]F10:139 nvo8PWtMxAvD_XXX SNVT_count_inc_f

MTR08PositiveVARs3ͲPhMaxAvgDemAI 217 AI 217 Flt_XXX[140]F10:140 nvo8PVARMxAv_XXX SNVT_count_inc_f

MTR08NegativeWatts3ͲPhMaxAvgDemAI 218 AI 218 Flt_XXX[141]F10:141 nvo8NWtMxAvD_XXX SNVT_count_inc_f

MTR08NegativeVARs3ͲPhMaxAvgDemAI 219 AI 219 Flt_XXX[142]F10:142 nvo8NVARMxAv_XXX SNVT_count_inc_f

SerialNumberReg1AI 220 AI 220 Dev2_XXX[000]N13:000 nvoSerNum1_XXX SNVT_count_inc

SerialNumberReg2AI 221 AI 221 Dev2_XXX[001]N13:001 nvoSerNum2_XXX SNVT_count_inc

SerialNumberReg3AI 222 AI 222 Dev2_XXX[002]N13:002 nvoSerNum3_XXX SNVT_count_inc

SerialNumberReg4AI 223 AI 223 Dev2_XXX[003]N13:003 nvoSerNum4_XXX SNVT_count_inc

SerialNumberReg5AI 224 AI 224 Dev2_XXX[004]N13:004 nvoSerNum5_XXX SNVT_count_inc

SerialNumberReg6AI 225 AI 225 Dev2_XXX[005]N13:005 nvoSerNum6_XXX SNVT_count_inc

SerialNumberReg7AI 226 AI 226 Dev2_XXX[006]N13:006 nvoSerNum7_XXX SNVT_count_inc

SerialNumberReg8AI 227 AI 227 Dev2_XXX[007]N13:007 nvoSerNum8_XXX SNVT_count_inc

CTdenominatorAI 228 AI 228 Dev2_XXX[008]N13:008 nvoCT_den_XXX SNVT_count_inc

MTR01CTNumeratorAI 229 AI 229 Dev2_XXX[009]N13:009 nvoM1CT_num_XXX SNVT_count_inc

MTR02CTNumeratorAI 230 AI 230 Dev2_XXX[010]N13:010 nvoM2CT_num_XXX SNVT_count_inc

MTR03CTNumeratorAI 231 AI 231 Dev2_XXX[011]N13:011 nvoM3CT_num_XXX SNVT_count_inc

MTR04CTNumeratorAI 232 AI 232 Dev2_XXX[012]N13:012 nvoM4CT_num_XXX SNVT_count_inc

MTR05CTNumeratorAI 233 AI 233 Dev2_XXX[013]N13:013 nvoM5CT_num_XXX SNVT_count_inc

MTR06CTNumeratorAI 234 AI 234 Dev2_XXX[014]N13:014 nvoM6CT_num_XXX SNVT_count_inc

MTR07CTNumeratorAI 235 AI 235 Dev2_XXX[015]N13:015 nvoM7CT_num_XXX SNVT_count_inc

MTR08CTNumeratorAI 236 AI 236 Dev2_XXX[016]N13:016 nvoM8CT_num_XXX SNVT_count_inc

PTNumeratorAI 237 AI 237 Dev2_XXX[017]N13:017 nvoPT_num_XXX SNVT_count_inc

PTdenominatorAI 238 AI 238 Dev2_XXX[018]N13:018 nvoPT_den_XXX SNVT_count_inc

SystemHookupAI 239 AI 239 Dev2_XXX[019]N13:019 nvoSysHookup_XXX SNVT_count_inc

PasswordforResetinuseBI 240 DI 240 Byt_XXX[0] N14:0 nvoPswdReset_XXX SNVT_count_inc

PasswordforConfigurationinuseBI 241 DI 241 Byt_XXX[1] N14:1 nvoPswdCnfg_XXX SNVT_count_inc

A: Protocol Data Points for EIG Meters

Doc# E204701 A-20

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

A.7: MP200-S Metering System

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VoltsAI 1 AI 1 Flt_XXX[000]F10:000 nvoVolts_XXX SNVT_count_inc_f

FrequencyAI 2 AI 2 Flt_XXX[001]F10:001 nvoFrequency_XXX SNVT_count_inc_f

AmpsMeter01AI 3 AI 3 Flt_XXX[002]F10:002 nvoAmpsM1_XXX SNVT_count_inc_f

AmpsMeter02AI 4 AI 4 Flt_XXX[003]F10:003 nvoAmpsM2_XXX SNVT_count_inc_f

AmpsMeter03AI 5 AI 5 Flt_XXX[004]F10:004 nvoAmpsM3_XXX SNVT_count_inc_f

WattsMeter01AI 6 AI 6 Flt_XXX[005]F10:005 nvoWattsM1_XXX SNVT_count_inc_f

WattsMeter02AI 7 AI 7 Flt_XXX[006]F10:006 nvoWattsM2_XXX SNVT_count_inc_f

WattsMeter03AI 8 AI 8 Flt_XXX[007]F10:007 nvoWattsM3_XXX SNVT_count_inc_f

VARsMeter01AI 9 AI 9 Flt_XXX[008]F10:008 nvoVARsM1_XXX SNVT_count_inc_f

VARsMeter02AI 10 AI 10 Flt_XXX[009]F10:009 nvoVARsM2_XXX SNVT_count_inc_f

VARsMeter03AI 11 AI 11 Flt_XXX[010]F10:010 nvoVARsM3_XXX SNVT_count_inc_f

VAsMeter01AI 12 AI 12 Flt_XXX[011]F10:011 nvoVAsM1_XXX SNVT_count_inc_f

VAsMeter02AI 13 AI 13 Flt_XXX[012]F10:012 nvoVAsM2_XXX SNVT_count_inc_f

VAsMeter03AI 14 AI 14 Flt_XXX[013]F10:013 nvoVAsM3_XXX SNVT_count_inc_f

PowerFactorMeter01AI 15 AI 15 Flt_XXX[014]F10:014 nvoPFM1_XXX SNVT_count_inc_f

PowerFactorMeter02AI 16 AI 16 Flt_XXX[015]F10:015 nvoPFM2_XXX SNVT_count_inc_f

PowerFactorMeter03AI 17 AI 17 Flt_XXX[016]F10:016 nvoPFM3_XXX SNVT_count_inc_f

AmpsMeter04AI 18 AI 18 Flt_XXX[017]F10:017 nvoAmpsM4_XXX SNVT_count_inc_f

AmpsMeter05AI 19 AI 19 Flt_XXX[018]F10:018 nvoAmpsM5_XXX SNVT_count_inc_f

AmpsMeter06AI 20 AI 20 Flt_XXX[019]F10:019 nvoAmpsM6_XXX SNVT_count_inc_f

WattsMeter04AI 21 AI 21 Flt_XXX[020]F10:020 nvoWattsM4_XXX SNVT_count_inc_f

WattsMeter05AI 22 AI 22 Flt_XXX[021]F10:021 nvoWattsM5_XXX SNVT_count_inc_f

WattsMeter06AI 23 AI 23 Flt_XXX[022]F10:022 nvoWattsM6_XXX SNVT_count_inc_f

VARsMeter04AI 24 AI 24 Flt_XXX[023]F10:023 nvoVARsM4_XXX SNVT_count_inc_f

VARsMeter05AI 25 AI 25 Flt_XXX[024]F10:024 nvoVARsM5_XXX SNVT_count_inc_f

VARsMeter06AI 26 AI 26 Flt_XXX[025]F10:025 nvoVARsM6_XXX SNVT_count_inc_f

VAsMeter04AI 27 AI 27 Flt_XXX[026]F10:026 nvoVAsM4_XXX SNVT_count_inc_f

VAsMeter05AI 28 AI 28 Flt_XXX[027]F10:027 nvoVAsM5_XXX SNVT_count_inc_f

VAsMeter06AI 29 AI 29 Flt_XXX[028]F10:028 nvoVAsM6_XXX SNVT_count_inc_f

PowerFactorMeter04AI 30 AI 30 Flt_XXX[029]F10:029 nvoPFM4_XXX SNVT_count_inc_f

PowerFactorMeter05AI 31 AI 31 Flt_XXX[030]F10:030 nvoPFM5_XXX SNVT_count_inc_f

PowerFactorMeter06AI 32 AI 32 Flt_XXX[031]F10:031 nvoPFM6_XXX SNVT_count_inc_f

AmpsMeter07AI 33 AI 33 Flt_XXX[032]F10:032 nvoAmpsM7_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-21

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

AmpsMeter08AI 34 AI 34 Flt_XXX[033]F10:033 nvoAmpsM8_XXX SNVT_count_inc_f

AmpsMeter09AI 35 AI 35 Flt_XXX[034]F10:034 nvoAmpsM9_XXX SNVT_count_inc_f

WattsMeter07AI 36 AI 36 Flt_XXX[035]F10:035 nvoWattsM7_XXX SNVT_count_inc_f

WattsMeter08AI 37 AI 37 Flt_XXX[036]F10:036 nvoWattsM8_XXX SNVT_count_inc_f

WattsMeter09AI 38 AI 38 Flt_XXX[037]F10:037 nvoWattsM9_XXX SNVT_count_inc_f

VARsMeter07AI 39 AI 39 Flt_XXX[038]F10:038 nvoVARsM7_XXX SNVT_count_inc_f

VARsMeter08AI 40 AI 40 Flt_XXX[039]F10:039 nvoVARsM8_XXX SNVT_count_inc_f

VARsMeter09AI 41 AI 41 Flt_XXX[040]F10:040 nvoVARsM9_XXX SNVT_count_inc_f

VAsMeter07AI 42 AI 42 Flt_XXX[041]F10:041 nvoVAsM7_XXX SNVT_count_inc_f

VAsMeter08AI 43 AI 43 Flt_XXX[042]F10:042 nvoVAsM8_XXX SNVT_count_inc_f

VAsMeter09AI 44 AI 44 Flt_XXX[043]F10:043 nvoVAsM9_XXX SNVT_count_inc_f

PowerFactorMeter07AI 45 AI 45 Flt_XXX[044]F10:044 nvoPFM7_XXX SNVT_count_inc_f

PowerFactorMeter08AI 46 AI 46 Flt_XXX[045]F10:045 nvoPFM8_XXX SNVT_count_inc_f

PowerFactorMeter09AI 47 AI 47 Flt_XXX[046]F10:046 nvoPFM9_XXX SNVT_count_inc_f

AmpsMeter10AI 48 AI 48 Flt_XXX[047]F10:047 nvoAmpsM10_XXX SNVT_count_inc_f

AmpsMeter11AI 49 AI 49 Flt_XXX[048]F10:048 nvoAmpsM11_XXX SNVT_count_inc_f

AmpsMeter12AI 50 AI 50 Flt_XXX[049]F10:049 nvoAmpsM12_XXX SNVT_count_inc_f

WattsMeter10AI 51 AI 51 Flt_XXX[050]F10:050 nvoWattsM10_XXX SNVT_count_inc_f

WattsMeter11AI 52 AI 52 Flt_XXX[051]F10:051 nvoWattsM11_XXX SNVT_count_inc_f

WattsMeter12AI 53 AI 53 Flt_XXX[052]F10:052 nvoWattsM12_XXX SNVT_count_inc_f

VARsMeter10AI 54 AI 54 Flt_XXX[053]F10:053 nvoVARsM10_XXX SNVT_count_inc_f

VARsMeter11AI 55 AI 55 Flt_XXX[054]F10:054 nvoVARsM11_XXX SNVT_count_inc_f

VARsMeter12AI 56 AI 56 Flt_XXX[055]F10:055 nvoVARsM12_XXX SNVT_count_inc_f

VAsMeter10AI 57 AI 57 Flt_XXX[056]F10:056 nvoVAsM10_XXX SNVT_count_inc_f

VAsMeter11AI 58 AI 58 Flt_XXX[057]F10:057 nvoVAsM11_XXX SNVT_count_inc_f

VAsMeter12AI 59 AI 59 Flt_XXX[058]F10:058 nvoVAsM12_XXX SNVT_count_inc_f

PowerFactorMeter10AI 60 AI 60 Flt_XXX[059]F10:059 nvoPFM10_XXX SNVT_count_inc_f

PowerFactorMeter11AI 61 AI 61 Flt_XXX[060]F10:060 nvoPFM11_XXX SNVT_count_inc_f

PowerFactorMeter12AI 62 AI 62 Flt_XXX[061]F10:061 nvoPFM12_XXX SNVT_count_inc_f

AmpsMeter13AI 63 AI 63 Flt_XXX[062]F10:062 nvoAmpsM13_XXX SNVT_count_inc_f

AmpsMeter14AI 64 AI 64 Flt_XXX[063]F10:063 nvoAmpsM14_XXX SNVT_count_inc_f

AmpsMeter15AI 65 AI 65 Flt_XXX[064]F10:064 nvoAmpsM15_XXX SNVT_count_inc_f

WattsMeter13AI 66 AI 66 Flt_XXX[065]F10:065 nvoWattsM13_XXX SNVT_count_inc_f

WattsMeter14AI 67 AI 67 Flt_XXX[066]F10:066 nvoWattsM14_XXX SNVT_count_inc_f

WattsMeter15AI 68 AI 68 Flt_XXX[067]F10:067 nvoWattsM15_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-22

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VARsMeter13AI 69 AI 69 Flt_XXX[068]F10:068 nvoVARsM13_XXX SNVT_count_inc_f

VARsMeter14AI 70 AI 70 Flt_XXX[069]F10:069 nvoVARsM14_XXX SNVT_count_inc_f

VARsMeter15AI 71 AI 71 Flt_XXX[070]F10:070 nvoVARsM15_XXX SNVT_count_inc_f

VAsMeter13AI 72 AI 72 Flt_XXX[071]F10:071 nvoVAsM13_XXX SNVT_count_inc_f

VAsMeter14AI 73 AI 73 Flt_XXX[072]F10:072 nvoVAsM14_XXX SNVT_count_inc_f

VAsMeter15AI 74 AI 74 Flt_XXX[073]F10:073 nvoVAsM15_XXX SNVT_count_inc_f

PowerFactorMeter13AI 75 AI 75 Flt_XXX[074]F10:074 nvoPFM13_XXX SNVT_count_inc_f

PowerFactorMeter14AI 76 AI 76 Flt_XXX[075]F10:075 nvoPFM14_XXX SNVT_count_inc_f

PowerFactorMeter15AI 77 AI 77 Flt_XXX[076]F10:076 nvoPFM15_XXX SNVT_count_inc_f

AmpsMeter16AI 78 AI 78 Flt_XXX[077]F10:077 nvoAmpsM16_XXX SNVT_count_inc_f

AmpsMeter17AI 79 AI 79 Flt_XXX[078]F10:078 nvoAmpsM17_XXX SNVT_count_inc_f

AmpsMeter18AI 80 AI 80 Flt_XXX[079]F10:079 nvoAmpsM18_XXX SNVT_count_inc_f

WattsMeter16AI 81 AI 81 Flt_XXX[080]F10:080 nvoWattsM16_XXX SNVT_count_inc_f

WattsMeter17AI 82 AI 82 Flt_XXX[081]F10:081 nvoWattsM17_XXX SNVT_count_inc_f

WattsMeter18AI 83 AI 83 Flt_XXX[082]F10:082 nvoWattsM18_XXX SNVT_count_inc_f

VARsMeter16AI 84 AI 84 Flt_XXX[083]F10:083 nvoVARsM16_XXX SNVT_count_inc_f

VARsMeter17AI 85 AI 85 Flt_XXX[084]F10:084 nvoVARsM17_XXX SNVT_count_inc_f

VARsMeter18AI 86 AI 86 Flt_XXX[085]F10:085 nvoVARsM18_XXX SNVT_count_inc_f

VAsMeter16AI 87 AI 87 Flt_XXX[086]F10:086 nvoVAsM16_XXX SNVT_count_inc_f

VAsMeter17AI 88 AI 88 Flt_XXX[087]F10:087 nvoVAsM17_XXX SNVT_count_inc_f

VAsMeter18AI 89 AI 89 Flt_XXX[088]F10:088 nvoVAsM18_XXX SNVT_count_inc_f

PowerFactorMeter16AI 90 AI 90 Flt_XXX[089]F10:089 nvoPFM16_XXX SNVT_count_inc_f

PowerFactorMeter17AI 91 AI 91 Flt_XXX[090]F10:090 nvoPFM17_XXX SNVT_count_inc_f

PowerFactorMeter18AI 92 AI 92 Flt_XXX[091]F10:091 nvoPFM18_XXX SNVT_count_inc_f

AmpsMeter19AI 93 AI 93 Flt_XXX[092]F10:092 nvoAmpsM19_XXX SNVT_count_inc_f

AmpsMeter20AI 94 AI 94 Flt_XXX[093]F10:093 nvoAmpsM20_XXX SNVT_count_inc_f

AmpsMeter21AI 95 AI 95 Flt_XXX[094]F10:094 nvoAmpsM21_XXX SNVT_count_inc_f

WattsMeter19AI 96 AI 96 Flt_XXX[095]F10:095 nvoWattsM19_XXX SNVT_count_inc_f

WattsMeter20AI 97 AI 97 Flt_XXX[096]F10:096 nvoWattsM20_XXX SNVT_count_inc_f

WattsMeter21AI 98 AI 98 Flt_XXX[097]F10:097 nvoWattsM21_XXX SNVT_count_inc_f

VARsMeter19AI 99 AI 99 Flt_XXX[098]F10:098 nvoVARsM19_XXX SNVT_count_inc_f

VARsMeter20AI 100 AI 100 Flt_XXX[099]F10:099 nvoVARsM20_XXX SNVT_count_inc_f

VARsMeter21AI 101 AI 101 Flt_XXX[100]F10:100 nvoVARsM21_XXX SNVT_count_inc_f

VAsMeter19AI 102 AI 102 Flt_XXX[101]F10:101 nvoVAsM19_XXX SNVT_count_inc_f

VAsMeter20AI 103 AI 103 Flt_XXX[102]F10:102 nvoVAsM20_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-23

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VAsMeter21AI 104 AI 104 Flt_XXX[103]F10:103 nvoVAsM21_XXX SNVT_count_inc_f

PowerFactorMeter19AI 105 AI 105 Flt_XXX[104]F10:104 nvoPFM19_XXX SNVT_count_inc_f

PowerFactorMeter20AI 106 AI 106 Flt_XXX[105]F10:105 nvoPFM20_XXX SNVT_count_inc_f

PowerFactorMeter21AI 107 AI 107 Flt_XXX[106]F10:106 nvoPFM21_XXX SNVT_count_inc_f

AmpsMeter22AI 108 AI 108 Flt_XXX[107]F10:107 nvoAmpsM22_XXX SNVT_count_inc_f

AmpsMeter23AI 109 AI 109 Flt_XXX[108]F10:108 nvoAmpsM23_XXX SNVT_count_inc_f

AmpsMeter24AI 110 AI 110 Flt_XXX[109]F10:109 nvoAmpsM24_XXX SNVT_count_inc_f

WattsMeter22AI 111 AI 111 Flt_XXX[110]F10:110 nvoWattsM22_XXX SNVT_count_inc_f

WattsMeter23AI 112 AI 112 Flt_XXX[111]F10:111 nvoWattsM23_XXX SNVT_count_inc_f

WattsMeter24AI 113 AI 113 Flt_XXX[112]F10:112 nvoWattsM24_XXX SNVT_count_inc_f

VARsMeter22AI 114 AI 114 Flt_XXX[113]F10:113 nvoVARsM22_XXX SNVT_count_inc_f

VARsMeter23AI 115 AI 115 Flt_XXX[114]F10:114 nvoVARsM23_XXX SNVT_count_inc_f

VARsMeter24AI 116 AI 116 Flt_XXX[115]F10:115 nvoVARsM24_XXX SNVT_count_inc_f

VAsMeter22AI 117 AI 117 Flt_XXX[116]F10:116 nvoVAsM22_XXX SNVT_count_inc_f

VAsMeter23AI 118 AI 118 Flt_XXX[117]F10:117 nvoVAsM23_XXX SNVT_count_inc_f

VAsMeter24AI 119 AI 119 Flt_XXX[118]F10:118 nvoVAsM24_XXX SNVT_count_inc_f

PowerFactorMeter22AI 120 AI 120 Flt_XXX[119]F10:119 nvoPFM22_XXX SNVT_count_inc_f

PowerFactorMeter23AI 121 AI 121 Flt_XXX[120]F10:120 nvoPFM23_XXX SNVT_count_inc_f

PowerFactorMeter24AI 122 AI 122 Flt_XXX[121]F10:121 nvoPFM24_XXX SNVT_count_inc_f

WͲhoursReceivedMeter01AI 123 AI 123 S32_XXX[000]F12:000 nvoWHRecM1_XXX SNVT_count_inc_f

WͲhoursReceivedMeter02AI 124 AI 124 S32_XXX[001]F12:001 nvoWHRecM2_XXX SNVT_count_inc_f

WͲhoursReceivedMeter03AI 125 AI 125 S32_XXX[002]F12:002 nvoWHRecM3_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter01AI 126 AI 126 S32_XXX[003]F12:003 nvoWHDelM1_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter02AI 127 AI 127 S32_XXX[004]F12:004 nvoWHDelM2_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter03AI 128 AI 128 S32_XXX[005]F12:005 nvoWHDelM3_XXX SNVT_count_inc_f

WͲhoursNetMeter01AI 129 AI 129 S32_XXX[006]F12:006 nvoWHNetM1_XXX SNVT_count_inc_f

WͲhoursNetMeter02AI 130 AI 130 S32_XXX[007]F12:007 nvoWHNetM2_XXX SNVT_count_inc_f

WͲhoursNetMeter03AI 131 AI 131 S32_XXX[008]F12:008 nvoWHNetM3_XXX SNVT_count_inc_f

WͲhoursTotalMeter01AI 132 AI 132 S32_XXX[009]F12:009 nvoWHTotM1_XXX SNVT_count_inc_f

WͲhoursTotalMeter02AI 133 AI 133 S32_XXX[010]F12:010 nvoWHTotM2_XXX SNVT_count_inc_f

WͲhoursTotalMeter03AI 134 AI 134 S32_XXX[011]F12:011 nvoWHTotM3_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter01AI 135 AI 135 S32_XXX[012]F12:012 nvoVARhPosM1_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter02AI 136 AI 136 S32_XXX[013]F12:013 nvoVARhPosM2_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter03AI 137 AI 137 S32_XXX[014]F12:014 nvoVARhPosM3_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter01AI 138 AI 138 S32_XXX[015]F12:015 nvoVARhNegM1_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-24

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VARͲhoursNegativeMeter02AI 139 AI 139 S32_XXX[016]F12:016 nvoVARhNegM2_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter03AI 140 AI 140 S32_XXX[017]F12:017 nvoVARhNegM3_XXX SNVT_count_inc_f

VARͲhoursNetMeter01AI 141 AI 141 S32_XXX[018]F12:018 nvoVARhNetM1_XXX SNVT_count_inc_f

VARͲhoursNetMeter02AI 142 AI 142 S32_XXX[019]F12:019 nvoVARhNetM2_XXX SNVT_count_inc_f

VARͲhoursNetMeter03AI 143 AI 143 S32_XXX[020]F12:020 nvoVARhNetM3_XXX SNVT_count_inc_f

VARͲhoursTotalMeter01AI 144 AI 144 S32_XXX[021]F12:021 nvoVARhTotM1_XXX SNVT_count_inc_f

VARͲhoursTotalMeter02AI 145 AI 145 S32_XXX[022]F12:022 nvoVARhTotM2_XXX SNVT_count_inc_f

VARͲhoursTotalMeter03AI 146 AI 146 S32_XXX[023]F12:023 nvoVARhTotM3_XXX SNVT_count_inc_f

VAͲhoursTotalMeter01AI 147 AI 147 S32_XXX[024]F12:024 nvoVAhTotM1_XXX SNVT_count_inc_f

VAͲhoursTotalMeter02AI 148 AI 148 S32_XXX[025]F12:025 nvoVAhTotM2_XXX SNVT_count_inc_f

VAͲhoursTotalMeter03AI 149 AI 149 S32_XXX[026]F12:026 nvoVAhTotM3_XXX SNVT_count_inc_f

WͲhoursReceivedMeter04AI 150 AI 150 S32_XXX[027]F12:027 nvoWHRecM4_XXX SNVT_count_inc_f

WͲhoursReceivedMeter05AI 151 AI 151 S32_XXX[028]F12:028 nvoWHRecM5_XXX SNVT_count_inc_f

WͲhoursReceivedMeter06AI 152 AI 152 S32_XXX[029]F12:029 nvoWHRecM6_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter04AI 153 AI 153 S32_XXX[030]F12:030 nvoWHDelM4_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter05AI 154 AI 154 S32_XXX[031]F12:031 nvoWHDelM5_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter06AI 155 AI 155 S32_XXX[032]F12:032 nvoWHDelM6_XXX SNVT_count_inc_f

WͲhoursNetMeter04AI 156 AI 156 S32_XXX[033]F12:033 nvoWHNetM4_XXX SNVT_count_inc_f

WͲhoursNetMeter05AI 157 AI 157 S32_XXX[034]F12:034 nvoWHNetM5_XXX SNVT_count_inc_f

WͲhoursNetMeter06AI 158 AI 158 S32_XXX[035]F12:035 nvoWHNetM6_XXX SNVT_count_inc_f

WͲhoursTotalMeter04AI 159 AI 159 S32_XXX[036]F12:036 nvoWHTotM4_XXX SNVT_count_inc_f

WͲhoursTotalMeter05AI 160 AI 160 S32_XXX[037]F12:037 nvoWHTotM5_XXX SNVT_count_inc_f

WͲhoursTotalMeter06AI 161 AI 161 S32_XXX[038]F12:038 nvoWHTotM6_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter04AI 162 AI 162 S32_XXX[039]F12:039 nvoVARhPosM4_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter05AI 163 AI 163 S32_XXX[040]F12:040 nvoVARhPosM5_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter06AI 164 AI 164 S32_XXX[041]F12:041 nvoVARhPosM6_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter04AI 165 AI 165 S32_XXX[042]F12:042 nvoVARhNegM4_XXX SNVT_count

_

inc_f

VARͲhoursNegativeMeter05AI 166 AI 166 S32_XXX[043]F12:043 nvoVARhNegM5_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter06AI 167 AI 167 S32_XXX[044]F12:044 nvoVARhNegM6_XXX SNVT_count_inc_f

VARͲhoursNetMeter04AI 168 AI 168 S32_XXX[045]F12:045 nvoVARhNetM4_XXX SNVT_count_inc_f

VARͲhoursNetMeter05AI 169 AI 169 S32_XXX[046]F12:046 nvoVARhNetM5_XXX SNVT_count_inc_f

VARͲhoursNetMeter06AI 170 AI 170 S32_XXX[047]F12:047 nvoVARhNetM6_XXX SNVT_count_inc_f

VARͲhoursTotalMeter04AI 171 AI 171 S32_XXX[048]F12:048 nvoVARhTotM4_XXX SNVT_count_inc_f

VARͲhoursTotalMeter05AI 172 AI 172 S32_XXX[049]F12:049 nvoVARhTotM5_XXX SNVT_count_inc_f

VARͲhoursTotalMeter06AI 173 AI 173 S32_XXX[050]F12:050 nvoVARhTotM6_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-25

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VAͲhoursTotalMeter04AI 174 AI 174 S32_XXX[051]F12:051 nvoVAhTotM4_XXX SNVT_count_inc_f

VAͲhoursTotalMeter05AI 175 AI 175 S32_XXX[052]F12:052 nvoVAhTotM5_XXX SNVT_count_inc_f

VAͲhoursTotalMeter06AI 176 AI 176 S32_XXX[053]F12:053 nvoVAhTotM6

_

XXX SNVT_count_inc_f

WͲhoursReceivedMeter07AI 177 AI 177 S32_XXX[054]F12:054 nvoWHRecM7_XXX SNVT_count_inc_f

WͲhoursReceivedMeter08AI 178 AI 178 S32_XXX[055]F12:055 nvoWHRecM8_XXX SNVT_count_inc_f

WͲhoursReceivedMeter09AI 179 AI 179 S32_XXX[056]F12:056 nvoWHRecM9_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter07AI 180 AI 180 S32_XXX[057]F12:057 nvoWHDelM7_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter08AI 181 AI 181 S32_XXX[058]F12:058 nvoWHDelM8_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter09AI 182 AI 182 S32_XXX[059]F12:059 nvoWHDelM9_XXX SNVT_count_inc_f

WͲhoursNetMeter07AI 183 AI 183 S32_XXX[060]F12:060 nvoWHNetM7_XXX SNVT_count_inc_f

WͲhoursNetMeter08AI 184 AI 184 S32_XXX[061]F12:061 nvoWHNetM8_XXX SNVT_count_inc_f

WͲhoursNetMeter09AI 185 AI 185 S32_XXX[062]F12:062 nvoWHNetM9_XXX SNVT_count_inc_f

WͲhoursTotalMeter07AI 186 AI 186 S32_XXX[063]F12:063 nvoWHTotM7_XXX SNVT_count_inc_f

WͲhoursTotalMeter08AI 187 AI 187 S32_XXX[064]F12:064 nvoWHTotM8_XXX SNVT_count_inc_f

WͲhoursTotalMeter09AI 188 AI 188 S32_XXX[065]F12:065 nvoWHTotM9_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter07AI 189 AI 189 S32_XXX[066]F12:066 nvoVARhPosM7_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter08AI 190 AI 190 S32_XXX[067]F12:067 nvoVARhPosM8_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter09AI 191 AI 191 S32_XXX[068]F12:068 nvoVARhPosM9_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter07AI 192 AI 192 S32_XXX[069]F12:069 nvoVARhNegM7_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter08AI 193 AI 193 S32_XXX[070]F12:070 nvoVARhNegM8_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter09AI 194 AI 194 S32_XXX[071]F12:071 nvoVARhNegM9_XXX SNVT_count_inc_f

VARͲhoursNetMeter07AI 195 AI 195 S32_XXX[072]F12:072 nvoVARhNetM7_XXX SNVT_count_inc_f

VARͲhoursNetMeter08AI 196 AI 196 S32_XXX[073]F12:073 nvoVARhNetM8_XXX SNVT_count_inc_f

VARͲhoursNetMeter09AI 197 AI 197 S32_XXX[074]F12:074 nvoVARhNetM9_XXX SNVT_count_inc_f

VARͲhoursTotalMeter07AI 198 AI 198 S32_XXX[075]F12:075 nvoVARhTotM7_XXX SNVT_count_inc_f

VARͲhoursTotalMeter08AI 199 AI 199 S32_XXX[076]F12:076 nvoVARhTotM8_XXX SNVT_count_inc_f

VARͲhoursTotalMeter09AI 200 AI 200 S32_XXX[077]F12:077 nvoVARhTotM9_XXX SNVT_count_inc_f

VAͲhoursTotalMeter07AI 201 AI 201 S32_XXX[078]F12:078 nvoVAhTotM7_XXX SNVT_count_inc_f

VAͲhoursTotalMeter08AI 202 AI 202 S32_XXX[079]F12:079 nvoVAhTotM8_XXX SNVT_count_inc_f

VAͲhoursTotalMeter09AI 203 AI 203 S32_XXX[080]F12:080 nvoVAhTotM9_XXX SNVT_count_inc_f

WͲhoursReceivedMeter10AI 204 AI 204 S32_XXX[081]F12:081 nvoWHRecM10_XXX SNVT_count_inc_f

WͲhoursReceivedMeter11AI 205 AI 205 S32_XXX[082]F12:082 nvoWHRecM11_XXX SNVT_count_inc_f

WͲhoursReceivedMeter12AI 206 AI 206 S32_XXX[083]F12:083 nvoWHRecM12_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter10AI 207 AI 207 S32_XXX[084]F12:084 nvoWHDelM10_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter11AI 208 AI 208 S32_XXX[085]F12:085 nvoWHDelM11_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-26

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

WͲhoursDeliveredMeter12AI 209 AI 209 S32_XXX[086]F12:086 nvoWHDelM12_XXX SNVT_count_inc_f

WͲhoursNetMeter10AI 210 AI 210 S32_XXX[087]F12:087 nvoWHNetM10_XXX SNVT_count_inc_f

WͲhoursNetMeter11AI 211 AI 211 S32_XXX[088]F12:088 nvoWHNetM11_XXX SNVT_count_inc_f

WͲhoursNetMeter12AI 212 AI 212 S32_XXX[089]F12:089 nvoWHNetM12_XXX SNVT_count_inc_f

WͲhoursTotalMeter10AI 213 AI 213 S32_XXX[090]F12:090 nvoWHTotM10_XXX SNVT_count_inc_f

WͲhoursTotalMeter11AI 214 AI 214 S32_XXX[091]F12:091 nvoWHTotM11_XXX SNVT_count_inc

_

f

WͲhoursTotalMeter12AI 215 AI 215 S32_XXX[092]F12:092 nvoWHTotM12_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter10AI 216 AI 216 S32_XXX[093]F12:093 nvoVARhPsM10_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter11AI 217 AI 217 S32_XXX[094]F12:094 nvoVARhPsM11_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter12AI 218 AI 218 S32_XXX[095]F12:095 nvoVARhPsM12_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter10AI 219 AI 219 S32_XXX[096]F12:096 nvoVARhNgM10_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter11AI 220 AI 220 S32_XXX[097]F12:097 nvoVARhNgM11_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter12AI 221 AI 221 S32_XXX[098]F12:098 nvoVARhNgM12_XXX SNVT_count_inc_f

VARͲhoursNetMeter10AI 222 AI 222 S32_XXX[099]F12:099 nvoVARhNtM10_XXX SNVT_count_inc_f

VARͲhoursNetMeter11AI 223 AI 223 S32_XXX[100]F12:100 nvoVARhNtM11_XXX SNVT_count_inc_f

VARͲhoursNetMeter12AI 224 AI 224 S32_XXX[101]F12:101 nvoVARhNtM12_XXX SNVT_count_inc_f

VARͲhoursTotalMeter10AI 225 AI 225 S32_XXX[102]F12:102 nvoVARhToM10_XXX SNVT_count_inc_f

VARͲhoursTotalMeter11AI 226 AI 226 S32_XXX[103]F12:103 nvoVARhToM11_XXX SNVT_count_inc_f

VARͲhoursTotalMeter12AI 227 AI 227 S32_XXX[104]F12:104 nvoVARhToM12_XXX SNVT_count_inc_f

VAͲhoursTotalMeter10AI 228 AI 228 S32_XXX[105]F12:105 nvoVAhTotM10_XXX SNVT_count_inc_f

VAͲhoursTotalMeter11AI 229 AI 229 S32_XXX[106]F12:106 nvoVAhTotM11_XXX SNVT_count_inc_f

VAͲhoursTotalMeter12AI 230 AI 230 S32_XXX[107]F12:107 nvoVAhTotM12_XXX SNVT_count_inc_f

WͲhoursReceivedMeter13AI 231 AI 231 S32_XXX[108]F12:108 nvoWHRecM13_XXX SNVT_count_inc_f

WͲhoursReceivedMeter14AI 232 AI 232 S32_XXX[109]F12:109 nvoWHRecM14_XXX SNVT_count_inc_f

WͲhoursReceivedMeter15AI 233 AI 233 S32_XXX[110]F12:110 nvoWHRecM15

_

XXX SNVT_count_inc_f

WͲhoursDeliveredMeter13AI 234 AI 234 S32_XXX[111]F12:111 nvoWHDelM13_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter14AI 235 AI 235 S32_XXX[112]F12:112 nvoWHDelM14_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter15AI 236 AI 236 S32_XXX[113]F12:113 nvoWHDelM15_XXX SNVT_count_inc_f

WͲhoursNetMeter13AI 237 AI 237 S32_XXX[114]F12:114 nvoWHNetM13_XXX SNVT_count_inc_f

WͲhoursNetMeter14AI 238 AI 238 S32_XXX[115]F12:115 nvoWHNetM14_XXX SNVT_count_inc_f

WͲhoursNetMeter15AI 239 AI 239 S32_XXX[116]F12:116 nvoWHNetM15_XXX SNVT_count_inc_f

WͲhoursTotalMeter13AI 240 AI 240 S32_XXX[117]F12:117 nvoWHTotM13_XXX SNVT_count_inc_f

WͲhoursTotalMeter14AI 241 AI 241 S32_XXX[118]F12:118 nvoWHTotM14_XXX SNVT_count_inc_f

WͲhoursTotalMeter15AI 242 AI 242 S32_XXX[119]F12:119 nvoWHTotM15_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter13AI 243 AI 243 S32_XXX[120]F12:120 nvoVARhPsM13_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-27

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VARͲhoursPositiveMeter14AI 244 AI 244 S32_XXX[121]F12:121 nvoVARhPsM14_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter15AI 245 AI 245 S32_XXX[122]F12:122 nvoVARhPsM15_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter13AI 246 AI 246 S32_XXX[123]F12:123 nvoVARhNgM13_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter14AI 247 AI 247 S32_XXX[124]F12:124 nvoVARhNgM14_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter15AI 248 AI 248 S32_XXX[125]F12:125 nvoVARhNgM15_XXX SNVT_count_inc_f

VARͲhoursNetMeter13AI 249 AI 249 S32_XXX[126]F12:126 nvoVARhNtM13_XXX SNVT_count_inc_f

VARͲhoursNetMeter14AI 250 AI 250 S32_XXX[127]F12:127 nvoVARhNtM14_XXX SNVT_count_inc_f

VARͲhoursNetMeter15AI 251 AI 251 S32_XXX[128]F12:128 nvoVARhNtM15_XXX SNVT_count_inc_f

VARͲhoursTotalMeter13AI 252 AI 252 S32_XXX[129]F12:129 nvoVARhToM13_XXX SNVT_count_inc_f

VARͲhoursTotalMeter14AI 253 AI 253 S32_XXX[130]F12:130 nvoVARhToM14_XXX SNVT_count_inc_f

VARͲhoursTotalMeter15AI 254 AI 254 S32_XXX[131]F12:131 nvoVARhToM15_XXX SNVT_count_inc_f

VAͲhoursTotalMeter13AI 255 AI 255 S32_XXX[132]F12:132 nvoVAhTotM13_XXX SNVT_count_inc_f

VAͲhoursTotalMeter14AI 256 AI 256 S32_XXX[133]F12:133 nvoVAhTotM14_XXX SNVT_count_inc_f

VAͲhoursTotalMeter15AI 257 ADF 1 S32_XXX[134]F12:134 nvoVAhTotM15_XXX SNVT_count_inc_f

WͲhoursReceivedMeter16AI 258 ADF 2 S32_XXX[135]F12:135 nvoWHRecM16_XXX SNVT_count_inc_f

WͲhoursReceivedMeter17AI 259 ADF 3 S32_XXX[136]F12:136 nvoWHRecM17_XXX SNVT_count_inc_f

WͲhoursReceivedMeter18AI 260 ADF 4 S32_XXX[137]F12:137 nvoWHRecM18_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter16AI 261 ADF 5 S32_XXX[138]F12:138 nvoWHDelM16_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter17AI 262 ADF 6 S32_XXX[139]F12:139 nvoWHDelM17_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter18AI 263 ADF 7 S32_XXX[140]F12:140 nvoWHDelM18_XXX SNVT_count_inc_f

WͲhoursNetMeter16AI 264 ADF 8 S32_XXX[141]F12:141 nvoWHNetM16_XXX SNVT_count_inc_f

WͲhoursNetMeter17AI 265 ADF 9 S32_XXX[142]F12:142 nvoWHNetM17_XXX SNVT_count_inc_f

WͲhoursNetMeter18AI 266 ADF 10 S32_XXX[143]F12:143 nvoWHNetM18_XXX SNVT_count_inc_f

WͲhoursTotalMeter16AI 267 ADF 11 S32_XXX[144]F12:144 nvoWHTotM16_XXX SNVT_count_inc_f

WͲhoursTotalMeter17AI 268 ADF 12 S32_XXX[145]F12:145 nvoWHTotM17_XXX SNVT_count_inc_f

WͲhoursTotalMeter18AI 269 ADF 13 S32_XXX[146]F12:146 nvoWHTotM18_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter16AI 270 ADF 14 S32_XXX[147]F12:147 nvoVARhPsM16_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter17AI 271 ADF 15 S32_XXX[148]F12:148 nvoVARhPsM17_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter18AI 272 ADF 16 S32_XXX[149]F12:149 nvoVARhPsM18_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter16AI 273 ADF 17 S32_XXX[150]F12:150 nvoVARhNgM16_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter17AI 274 ADF 18 S32_XXX[151]F12:151 nvoVARhNgM17_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter18AI 275 ADF 19 S32_XXX[152]F12:152 nvoVARhNgM18_XXX SNVT_count_inc_f

VARͲhoursNetMeter16AI 276 ADF 20 S32_XXX[153]F12:153 nvoVARhNtM16_XXX SNVT_count_inc_f

VARͲhoursNetMeter17AI 277 ADF 21 S32_XXX[154]F12:154 nvoVARhNtM17_XXX SNVT_count_inc_f

VARͲhoursNetMeter18AI 278 ADF 22 S32_XXX[155]F12:155 nvoVARhNtM18_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-28

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

VARͲhoursTotalMeter16AI 279 ADF 23 S32_XXX[156]F12:156 nvoVARhToM16_XXX SNVT_count_inc_f

VARͲhoursTotalMeter17AI 280 ADF 24 S32_XXX[157]F12:157 nvoVARhToM17_XXX SNVT_count_inc_f

VARͲhoursTotalMeter18AI 281 ADF 25 S32_XXX[158]F12:158 nvoVARhToM18_XXX SNVT_count_inc_f

VAͲhoursTotalMeter16AI 282 ADF 26 S32_XXX[159]F12:159 nvoVAhTotM16_XXX SNVT_count_inc_f

VAͲhoursTotalMeter17AI 283 ADF 27 S32_XXX[160]F12:160 nvoVAhTotM17_XXX SNVT_count_inc_f

VAͲhoursTotalMeter18AI 284 ADF 28 S32_XXX[161]F12:161 nvoVAhTotM18_XXX SNVT_count_inc_f

WͲhoursReceivedMeter19AI 285 ADF 29 S32_XXX[162]F12:162 nvoWHRecM19_XXX SNVT_count_inc_f

WͲhoursReceivedMeter20AI 286 ADF 30 S32_XXX[163]F12:163 nvoWHRecM20_XXX SNVT_count_inc_f

WͲhoursReceivedMeter21AI 287 ADF 31 S32_XXX[164]F12:164 nvoWHRecM21_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter19AI 288 ADF 32 S32_XXX[165]F12:165 nvoWHDelM19_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter20AI 289 ADF 33 S32_XXX[166]F12:166 nvoWHDelM20_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter21AI 290 ADF 34 S32_XXX[167]F12:167 nvoWHDelM21_XXX SNVT_count_inc_f

WͲhoursNetMeter19AI 291 ADF 35 S32_XXX[168]F12:168 nvoWHNetM19_XXX SNVT_count_inc_f

WͲhoursNetMeter20AI 292 ADF 36 S32_XXX[169]F12:169 nvoWHNetM20_XXX SNVT_count_inc_f

WͲhoursNetMeter21AI 293 ADF 37 S32_XXX[170]F12:170 nvoWHNetM21_XXX SNVT_count_inc_f

WͲhoursTotalMeter19AI 294 ADF 38 S32_XXX[171]F12:171 nvoWHTotM19_XXX SNVT_count_inc_f

WͲhoursTotalMeter20AI 295 ADF 39 S32_XXX[172]F12:172 nvoWHTotM20_XXX SNVT_count_inc_f

WͲhoursTotalMeter21AI 296 ADF 40 S32_XXX[173]F12:173 nvoWHTotM21_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter19AI 297 ADF 41 S32_XXX[174]F12:174 nvoVARhPsM19_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter20AI 298 ADF 42 S32_XXX[175]F12:175 nvoVARhPsM20_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter21AI 299 ADF 43 S32_XXX[176]F12:176 nvoVARhPsM21_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter19AI 300 ADF 44 S32_XXX[177]F12:177 nvoVARhNgM19_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter20AI 301 ADF 45 S32_XXX[178]F12:178 nvoVARhNgM20_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter21AI 302 ADF 46 S32_XXX[179]F12:179 nvoVARhNgM21_XXX SNVT_count_inc_f

VARͲhoursNetMeter19AI 303 ADF 47 S32_XXX[180]F12:180 nvoVARhNtM19_XXX SNVT_count_inc_f

VARͲhoursNetMeter20AI 304 ADF 48 S32_XXX[181]F12:181 nvoVARhNtM20_XXX SNVT_count_inc_f

VARͲhoursNetMeter21AI 305 ADF 49 S32_XXX[182]F12:182 nvoVARhNtM21_XXX SNVT_count_inc_f

VARͲhoursTotalMeter19AI 306 ADF 50 S32_XXX[183]F12:183 nvoVARhToM19_XXX SNVT_count_inc

_

f

VARͲhoursTotalMeter20AI 307 ADF 51 S32_XXX[184]F12:184 nvoVARhToM20_XXX SNVT_count_inc_f

VARͲhoursTotalMeter21AI 308 ADF 52 S32_XXX[185]F12:185 nvoVARhToM21_XXX SNVT_count_inc_f

VAͲhoursTotalMeter19AI 309 ADF 53 S32_XXX[186]F12:186 nvoVAhTotM19_XXX SNVT_count_inc_f

VAͲhoursTotalMeter20AI 310 ADF 54 S32_XXX[187]F12:187 nvoVAhTotM20_XXX SNVT_count_inc_f

VAͲhoursTotalMeter21AI 311 ADF 55 S32_XXX[188]F12:188 nvoVAhTotM21_XXX SNVT_count_inc_f

WͲhoursReceivedMeter22AI 312 ADF 56 S32_XXX[189]F12:189 nvoWHRecM22_XXX SNVT_count_inc_f

WͲhoursReceivedMeter23AI 313 ADF 57 S32_XXX[190]F12:190 nvoWHRecM23_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-29

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

WͲhoursReceivedMeter24AI 314 ADF 58 S32_XXX[191]F12:191 nvoWHRecM24_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter22AI 315 ADF 59 S32_XXX[192]F12:192 nvoWHDelM22_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter23AI 316 ADF 60 S32_XXX[193]F12:193 nvoWHDelM23_XXX SNVT_count_inc_f

WͲhoursDeliveredMeter24AI 317 ADF 61 S32_XXX[194]F12:194 nvoWHDelM24_XXX SNVT_count_inc_f

WͲhoursNetMeter22AI 318 ADF 62 S32_XXX[195]F12:195 nvoWHNetM22_XXX SNVT_count_inc_f

WͲhoursNetMeter23AI 319 ADF 63 S32_XXX[196]F12:196 nvoWHNetM23_XXX SNVT_count_inc_f

WͲhoursNetMeter24AI 320 ADF 64 S32_XXX[197]F12:197 nvoWHNetM24_XXX SNVT_count_inc_f

WͲhoursTotalMeter22AI 321 ADF 65 S32_XXX[198]F12:198 nvoWHTotM22_XXX SNVT_count_inc_f

WͲhoursTotalMeter23AI 322 ADF 66 S32_XXX[199]F12:199 nvoWHTotM23_XXX SNVT_count_inc_f

WͲhoursTotalMeter24AI 323 ADF 67 S32_XXX[200]F12:200 nvoWHTotM24_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter22AI 324 ADF 68 S32_XXX[201]F12:201 nvoVARhPsM22_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter23AI 325 ADF 69 S32_XXX[202]F12:202 nvoVARhPsM23_XXX SNVT_count_inc_f

VARͲhoursPositiveMeter24AI 326 ADF 70 S32_XXX[203]F12:203 nvoVARhPsM24_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter22AI 327 ADF 71 S32_XXX[204]F12:204 nvoVARhNgM22_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter23AI 328 ADF 72 S32_XXX[205]F12:205 nvoVARhNgM23_XXX SNVT_count_inc_f

VARͲhoursNegativeMeter24AI 329 ADF 73 S32_XXX[206]F12:206 nvoVARhNgM24_XXX SNVT_count_inc_f

VARͲhoursNetMeter22AI 330 ADF 74 S32_XXX[207]F12:207 nvoVARhNtM22_XXX SNVT_count_inc_f

VARͲhoursNetMeter23AI 331 ADF 75 S32_XXX[208]F12:208 nvoVARhNtM23_XXX SNVT_count_inc_f

VARͲhoursNetMeter24AI 332 ADF 76 S32_XXX[209]F12:209 nvoVARhNtM24_XXX SNVT_count_inc_f

VARͲhoursTotalMeter22AI 333 ADF 77 S32_XXX[210]F12:210 nvoVARhToM22_XXX SNVT_count_inc_f

VARͲhoursTotalMeter23AI 334 ADF 78 S32_XXX[211]F12:211 nvoVARhToM23_XXX SNVT_count_inc_f

VARͲhoursTotalMeter24AI 335 ADF 79 S32_XXX[212]F12:212 nvoVARhToM24_XXX SNVT_count_inc_f

VAͲhoursTotalMeter22AI 336 ADF 80 S32_XXX[213]F12:213 nvoVAhTotM22_XXX SNVT_count_inc_f

VAͲhoursTotalMeter23AI 337 ADF 81 S32_XXX[214]F12:214 nvoVAhTotM23_XXX SNVT_count_inc_f

VAͲhoursTotalMeter24AI 338 ADF 82 S32_XXX[215]F12:215 nvoVAhTotM24_XXX SNVT_count_inc_f

PositiveWattsMeter01AvgAI 339 ADF 83 Flt_XXX[122]F10:122 nvoPsWtM1Avg_XXX SNVT_count_inc_f

PositiveWattsMeter02AvgAI 340 ADF 84 Flt_XXX[123]F10:123 nvoPsWtM2Avg_XXX SNVT_count_inc_f

PositiveWattsMeter03AvgAI 341 ADF 85 Flt_XXX[124]F10:124 nvoPsWtM3Avg_XXX SNVT_count_inc_f

PositiveVARsMeter01AvgAI 342 ADF 86 Flt_XXX[125]F10:125 nvoPsVARM1Av_XXX SNVT_count_inc_f

PositiveVARsMeter02AvgAI 343 ADF 87 Flt_XXX[126]F10:126 nvoPsVARM2Av_XXX SNVT_count_inc_f

PositiveVARsMeter03AvgAI 344 ADF 88 Flt_XXX[127]F10:127 nvoPsVARM3Av_XXX SNVT_count_inc_f

NegativeWattsMeter01AvgAI 345 ADF 89 Flt_XXX[128]F10:128 nvoNgWtM1Avg_XXX SNVT_count_inc_f

NegativeWattsMeter02AvgAI 346 ADF 90 Flt_XXX[129]F10:129 nvoNgWtM2Avg_XXX SNVT_count_inc_f

NegativeWattsMeter03AvgAI 347 ADF 91 Flt_XXX[130]F10:130 nvoNgWtM3Avg_XXX SNVT_count_inc_f

NegativeVARsMeter01AvgAI 348 ADF 92 Flt_XXX[131]F10:131 nvoNgVARM1Av_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-30

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

NegativeVARsMeter02AvgAI 349 ADF 93 Flt_XXX[132]F10:132 nvoNgVARM2Av_XXX SNVT_count_inc_f

NegativeVARsMeter03AvgAI 350 ADF 94 Flt_XXX[133]F10:133 nvoNgVARM3Av_XXX SNVT_count_inc_f

PositiveWattsMeter04AvgAI 351 ADF 95 Flt_XXX[134]F10:134 nvoPsWtM4Avg_XXX SNVT_count_inc_f

PositiveWattsMeter05AvgAI 352 ADF 96 Flt_XXX[135]F10:135 nvoPsWtM5Avg_XXX SNVT_count_inc_f

PositiveWattsMeter06AvgAI 353 ADF 97 Flt_XXX[136]F10:136 nvoPsWtM6Avg_XXX SNVT_count_inc_f

PositiveVARsMeter04AvgAI 354 ADF 98 Flt_XXX[137]F10:137 nvoPsVARM4Av_XXX SNVT_count_inc_f

PositiveVARsMeter05AvgAI 355 ADF 99 Flt_XXX[138]F10:138 nvoPsVARM5Av_XXX SNVT_count_inc_f

PositiveVARsMeter06AvgAI 356 ADF 100 Flt_XXX[139]F10:139 nvoPsVARM6Av_XXX SNVT_count_inc_f

NegativeWattsMeter04AvgAI 357 ADF 101 Flt_XXX[140]F10:140 nvoNgWtM4Avg_XXX SNVT_count_inc_f

NegativeWattsMeter05AvgAI 358 ADF 102 Flt_XXX[141]F10:141 nvoNgWtM5Avg_XXX SNVT_count_inc_f

NegativeWattsMeter06AvgAI 359 ADF 103 Flt_XXX[142]F10:142 nvoNgWtM6Avg_XXX SNVT_count_inc_f

NegativeVARsMeter04AvgAI 360 ADF 104 Flt_XXX[143]F10:143 nvoNgVARM4Av_XXX SNVT_count_inc_f

NegativeVARsMeter05AvgAI 361 ADF 105 Flt_XXX[144]F10:144 nvoNgVARM5Av_XXX SNVT_count_inc_f

NegativeVARsMeter06AvgAI 362 ADF 106 Flt_XXX[145]F10:145 nvoNgVARM6Av_XXX SNVT_count_inc_f

PositiveWattsMeter07AvgAI 363 ADF 107 Flt_XXX[146]F10:146 nvoPsWtM7Avg_XXX SNVT_count_inc_f

PositiveWattsMeter08AvgAI 364 ADF 108 Flt_XXX[147]F10:147 nvoPsWtM8Avg_XXX SNVT_count_inc_f

PositiveWattsMeter09AvgAI 365 ADF 109 Flt_XXX[148]F10:148 nvoPsWtM9Avg_XXX SNVT_count_inc_f

PositiveVARsMeter07AvgAI 366 ADF 110 Flt_XXX[149]F10:149 nvoPsVARM7Av_XXX SNVT_count_inc_f

PositiveVARsMeter08AvgAI 367 ADF 111 Flt_XXX[150]F10:150 nvoPsVARM8Av_XXX SNVT_count_inc_f

PositiveVARsMeter09AvgAI 368 ADF 112 Flt_XXX[151]F10:151 nvoPsVARM9Av_XXX SNVT_count_inc_f

NegativeWattsMeter07AvgAI 369 ADF 113 Flt_XXX[152]F10:152 nvoNgWtM7Avg_XXX SNVT_count_inc_f

NegativeWattsMeter08AvgAI 370 ADF 114 Flt_XXX[153]F10:153 nvoNgWtM8Avg_XXX SNVT_count_inc_f

NegativeWattsMeter09AvgAI 371 ADF 115 Flt_XXX[154]F10:154 nvoNgWtM9Avg_XXX SNVT_count_inc_f

NegativeVARsMeter07AvgAI 372 ADF 116 Flt_XXX[155]F10:155 nvoNgVARM7Av_XXX SNVT_count_inc_f

NegativeVARsMeter08AvgAI 373 ADF 117 Flt_XXX[156]F10:156 nvoNgVARM8Av_XXX SNVT_count_inc_f

NegativeVARsMeter09AvgAI 374 ADF 118 Flt_XXX[157]F10:157 nvoNgVARM9Av_XXX SNVT_count_inc_f

PositiveWattsMeter10AvgAI 375 ADF 119 Flt_XXX[158]F10:158 nvoPsWtM10Av_XXX SNVT_count_inc_f

PositiveWattsMeter11AvgAI 376 ADF 120 Flt_XXX[159]F10:159 nvoPsWtM11Av_XXX SNVT_count_inc_f

PositiveWattsMeter12AvgAI 377 ADF 121 Flt_XXX[160]F10:160 nvoPsWtM12Av_XXX SNVT_count_inc_f

PositiveVARsMeter10AvgAI 378 ADF 122 Flt_XXX[161]F10:161 nvoPsVAR10Av_XXX SNVT_count_inc_f

PositiveVARsMeter11AvgAI 379 ADF 123 Flt_XXX[162]F10:162 nvoPsVAR11Av_XXX SNVT_count_inc_f

PositiveVARsMeter12AvgAI 380 ADF 124 Flt_XXX[163]F10:163 nvoPsVAR12Av_XXX SNVT_count_inc_f

NegativeWattsMeter10AvgAI 381 ADF 125 Flt_XXX[164]F10:164 nvoNgWtM10Av_XXX SNVT_count_inc_f

NegativeWattsMeter11AvgAI 382 ADF 126 Flt_XXX[165]F10:165 nvoNgWtM11Av_XXX SNVT_count_inc_f

NegativeWattsMeter12AvgAI 383 ADF 127 Flt_XXX[166]F10:166 nvoNgWtM12Av_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-31

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

NegativeVARsMeter10AvgAI 384 ADF 128 Flt_XXX[167]F10:167 nvoNgVAR10Av_XXX SNVT_count_inc_f

NegativeVARsMeter11AvgAI 385 ADF 129 Flt_XXX[168]F10:168 nvoNgVAR11Av_XXX SNVT_count_inc_f

NegativeVARsMeter12AvgAI 386 ADF 130 Flt_XXX[169]F10:169 nvoNgVAR12Av_XXX SNVT_count_inc_f

PositiveWattsMeter13AvgAI 387 ADF 131 Flt_XXX[170]F10:170 nvoPsWtM13Av_XXX SNVT_count_inc_f

PositiveWattsMeter14AvgAI 388 ADF 132 Flt_XXX[171]F10:171 nvoPsWtM14Av_XXX SNVT_count_inc_f

PositiveWattsMeter15AvgAI 389 ADF 133 Flt_XXX[172]F10:172 nvoPsWtM15Av_XXX SNVT_count_inc_f

PositiveVARsMeter13AvgAI 390 ADF 134 Flt_XXX[173]F10:173 nvoPsVAR13Av_XXX SNVT_count_inc_f

PositiveVARsMeter14AvgAI 391 ADF 135 Flt_XXX[174]F10:174 nvoPsVAR14Av_XXX SNVT_count_inc_f

PositiveVARsMeter15AvgAI 392 ADF 136 Flt_XXX[175]F10:175 nvoPsVAR15Av_XXX SNVT_count_inc_f

NegativeWattsMeter13AvgAI 393 ADF 137 Flt_XXX[176]F10:176 nvoNgWtM13Av_XXX SNVT_count_inc_f

NegativeWattsMeter14AvgAI 394 ADF 138 Flt_XXX[177]F10:177 nvoNgWtM14Av_XXX SNVT_count_inc_f

NegativeWattsMeter15AvgAI 395 ADF 139 Flt_XXX[178]F10:178 nvoNgWtM15Av_XXX SNVT_count_inc_f

NegativeVARsMeter13AvgAI 396 ADF 140 Flt_XXX[179]F10:179 nvoNgVAR13Av_XXX SNVT_count_inc_f

NegativeVARsMeter14AvgAI 397 ADF 141 Flt_XXX[180]F10:180 nvoNgVAR14Av_XXX SNVT_count_inc_f

NegativeVARsMeter15AvgAI 398 ADF 142 Flt_XXX[181]F10:181 nvoNgVAR15Av_XXX SNVT_count_inc_f

PositiveWattsMeter16AvgAI 399 ADF 143 Flt_XXX[182]F10:182 nvoPsWtM16Av_XXX SNVT_count_inc_f

PositiveWattsMeter17AvgAI 400 ADF 144 Flt_XXX[183]F10:183 nvoPsWtM17Av_XXX SNVT_count_inc_f

PositiveWattsMeter18AvgAI 401 ADF 145 Flt_XXX[184]F10:184 nvoPsWtM18Av_XXX SNVT_count_inc_f

PositiveVARsMeter16AvgAI 402 ADF 146 Flt_XXX[185]F10:185 nvoPsVAR16Av_XXX SNVT_count_inc_f

PositiveVARsMeter17AvgAI 403 ADF 147 Flt_XXX[186]F10:186 nvoPsVAR17Av_XXX SNVT_count_inc_f

PositiveVARsMeter18AvgAI 404 ADF 148 Flt_XXX[187]F10:187 nvoPsVAR18Av_XXX SNVT_count_inc_f

NegativeWattsMeter16AvgAI 405 ADF 149 Flt_XXX[188]F10:188 nvoNgWtM16Av_XXX SNVT_count_inc_f

NegativeWattsMeter17AvgAI 406 ADF 150 Flt_XXX[189]F10:189 nvoNgWtM17Av_XXX SNVT_count_inc_f

NegativeWattsMeter18AvgAI 407 ADF 151 Flt_XXX[190]F10:190 nvoNgWtM18Av_XXX SNVT_count_inc_f

NegativeVARsMeter16AvgAI 408 ADF 152 Flt_XXX[191]F10:191 nvoNgVAR16Av_XXX SNVT_count_inc_f

NegativeVARsMeter17AvgAI 409 ADF 153 Flt_XXX[192]F10:192 nvoNgVAR17Av_XXX SNVT_count_inc_f

NegativeVARsMeter18AvgAI 410 ADF 154 Flt_XXX[193]F10:193 nvoNgVAR18Av_XXX SNVT_count_inc_f

PositiveWattsMeter19AvgAI 411 ADF 155 Flt_XXX[194]F10:194 nvoPsWtM19Av_XXX SNVT_count_inc_f

PositiveWattsMeter20AvgAI 412 ADF 156 Flt_XXX[195]F10:195 nvoPsWtM20Av_XXX SNVT_count_inc_f

PositiveWattsMeter21AvgAI 413 ADF 157 Flt_XXX[196]F10:196 nvoPsWtM21Av_XXX SNVT_count_inc_f

PositiveVARsMeter19AvgAI 414 ADF 158 Flt_XXX[197]F10:197 nvoPsVAR19Av_XXX SNVT_count_inc_f

PositiveVARsMeter20AvgAI 415 ADF 159 Flt_XXX[198]F10:198 nvoPsVAR20Av_XXX SNVT_count_inc_f

PositiveVARsMeter21AvgAI 416 ADF 160 Flt_XXX[199]F10:199 nvoPsVAR21Av_XXX SNVT_count_inc_f

NegativeWattsMeter19AvgAI 417 ADF 161 Flt_XXX[200]F10:200 nvoNgWtM19Av_XXX SNVT_count_inc_f

NegativeWattsMeter20AvgAI 418 ADF 162 Flt_XXX[201]F10:201 nvoNgWtM20Av_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-32

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

NegativeWattsMeter21AvgAI 419 ADF 163 Flt_XXX[202]F10:202 nvoNgWtM21Av_XXX SNVT_count_inc_f

NegativeVARsMeter19AvgAI 420 ADF 164 Flt_XXX[203]F10:203 nvoNgVAR19Av_XXX SNVT_count_inc_f

NegativeVARsMeter20AvgAI 421 ADF 165 Flt_XXX[204]F10:204 nvoNgVAR20Av_XXX SNVT_count_inc_f

NegativeVARsMeter21AvgAI 422 ADF 166 Flt_XXX[205]F10:205 nvoNgVAR21Av_XXX SNVT_count_inc_f

PositiveWattsMeter22AvgAI 423 ADF 167 Flt_XXX[206]F10:206 nvoPsWtM22Av_XXX SNVT_count_inc_f

PositiveWattsMeter23AvgAI 424 ADF 168 Flt_XXX[207]F10:207 nvoPsWtM23Av_XXX SNVT_count_inc_f

PositiveWattsMeter24AvgAI 425 ADF 169 Flt_XXX[208]F10:208 nvoPsWtM24Av_XXX SNVT_count_inc_f

PositiveVARsMeter22AvgAI 426 ADF 170 Flt_XXX[209]F10:209 nvoPsVAR22Av_XXX SNVT_count_inc_f

PositiveVARsMeter23AvgAI 427 ADF 171 Flt_XXX[210]F10:210 nvoPsVAR23Av_XXX SNVT_count_inc_f

PositiveVARsMeter24AvgAI 428 ADF 172 Flt_XXX[211]F10:211 nvoPsVAR24Av_XXX SNVT_count_inc_f

NegativeWattsMeter22AvgAI 429 ADF 173 Flt_XXX[212]F10:212 nvoNgWtM22Av_XXX SNVT_count_inc_f

NegativeWattsMeter23AvgAI 430 ADF 174 Flt_XXX[213]F10:213 nvoNgWtM23Av_XXX SNVT_count_inc_f

NegativeWattsMeter24AvgAI 431 ADF 175 Flt_XXX[214]F10:214 nvoNgWtM24Av_XXX SNVT_count_inc_f

NegativeVARsMeter22AvgAI 432 ADF 176 Flt_XXX[215]F10:215 nvoNgVAR22Av_XXX SNVT_count_inc_f

NegativeVARsMeter23AvgAI 433 ADF 177 Flt_XXX[216]F10:216 nvoNgVAR23Av_XXX SNVT_count_inc_f

NegativeVARsMeter24AvgAI 434 ADF 178 Flt_XXX[217]F10:217 nvoNgVAR24Av_XXX SNVT_count_inc_f

CurrentDateandTime1AI 435 ADF 179 Dev1_XXX[000]N13:000 nvoCurDatTm1_XXX SNVT_count_inc_f

CurrentDateandTime2AI 436 ADF 180 Dev1_XXX[001]N13:001 nvoCurDatTm2_XXX SNVT_count_inc_f

CurrentDateandTime3AI 437 ADF 181 Dev1_XXX[002]N13:002 nvoCurDatTm3_XXX SNVT_count_inc_f

PosWattsMeter01MaxAvgDemAI 438 ADF 182 Flt_XXX[218]F10:218 nvoPWt1MxAvD_XXX SNVT_count_inc_f

PosWattsMeter02MaxAvgDemAI 439 ADF 183 Flt_XXX[219]F10:219 nvoPWt2MxAvD_XXX SNVT_count_inc_f

PosWattsMeter03MaxAvgDemAI 440 ADF 184 Flt_XXX[220]F10:220 nvoPWt3MxAvD_XXX SNVT_count_inc_f

PosVARsMeter01MaxAvgDemAI 441 ADF 185 Flt_XXX[221]F10:221 nvoPVAR1MxAv_XXX SNVT_count_inc_f

PosVARsMeter02MaxAvgDemAI 442 ADF 186 Flt_XXX[222]F10:222 nvoPVAR2MxAv_XXX SNVT_count_inc_f

PosVARsMeter03MaxAvgDemAI 443 ADF 187 Flt

_

XXX[223]F10:223 nvoPVAR3MxAv_XXX SNVT_count_inc_f

NegWattsMeter01MaxAvgDemAI 444 ADF 188 Flt_XXX[224]F10:224 nvoNWt1MxAvD_XXX SNVT_count_inc_f

NegWattsMeter02MaxAvgDemAI 445 ADF 189 Flt_XXX[225]F10:225 nvoNWt2MxAvD_XXX SNVT_count_inc_f

NegWattsMeter03MaxAvgDemAI 446 ADF 190 Flt_XXX[226]F10:226 nvoNWt3MxAvD_XXX SNVT_count_inc_f

NegVARsMeter01MaxAvgDemAI 447 ADF 191 Flt_XXX[227]F10:227 nvoNVAR1MxAv_XXX SNVT_count_inc_f

NegVARsMeter02MaxAvgDemAI 448 ADF 192 Flt_XXX[228]F10:228 nvoNVAR2MxAv_XXX SNVT_count_inc_f

NegVARsMeter03MaxAvgDemAI 449 ADF 193 Flt_XXX[229]F10:229 nvoNVAR3MxAv_XXX SNVT_count_inc_f

PosWattsMeter04MaxAvgDemAI 450 ADF 194 Flt_XXX[230]F10:230 nvoPWt4MxAvD_XXX SNVT_count_inc_f

PosWattsMeter05MaxAvgDemAI 451 ADF 195 Flt_XXX[231]F10:231 nvoPWt5MxAvD_XXX SNVT_count_inc_f

PosWattsMeter06MaxAvgDemAI 452 ADF 196 Flt_XXX[232]F10:232 nvoPWt6MxAvD_XXX SNVT_count_inc_f

PosVARsMeter04MaxAvgDemAI 453 ADF 197 Flt_XXX[233]F10:233 nvoPVAR4MxAv_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-33

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

PosVARsMeter05MaxAvgDemAI 454 ADF 198 Flt_XXX[234]F10:234 nvoPVAR5MxAv_XXX SNVT_count_inc_f

PosVARsMeter06MaxAvgDemAI 455 ADF 199 Flt_XXX[235]F10:235 nvoPVAR6MxAv_XXX SNVT_count_inc_f

NegWattsMeter04MaxAvgDemAI 456 ADF 200 Flt_XXX[236]F10:236 nvoNWt4MxAvD_XXX SNVT_count_inc_f

NegWattsMeter05MaxAvgDemAI 457 ADF 201 Flt_XXX[237]F10:237 nvoNWt5MxAvD_XXX SNVT_count_inc_f

NegWattsMeter06MaxAvgDemAI 458 ADF 202 Flt_XXX[238]F10:238 nvoNWt6MxAvD_XXX SNVT_count_inc_f

NegVARsMeter04MaxAvgDemAI 459 ADF 203 Flt_XXX[239]F10:239 nvoNVAR4MxAv_XXX SNVT_count_inc_f

NegVARsMeter05MaxAvgDemAI 460 ADF 204 Flt_XXX[240]F10:240 nvoNVAR5MxAv_XXX SNVT_count_inc_f

NegVARsMeter06MaxAvgDemAI 461 ADF 205 Flt_XXX[241]F10:241 nvoNVAR6MxAv_XXX SNVT_count_inc_f

PosWattsMeter07MaxAvgDemAI 462 ADF 206 Flt_XXX[242]F10:242 nvoPWt7MxAvD_XXX SNVT_count_inc_f

PosWattsMeter08MaxAvgDemAI 463 ADF 207 Flt_XXX[243]F10:243 nvoPWt8MxAvD_XXX SNVT_count_inc_f

PosWattsMeter09MaxAvgDemAI 464 ADF 208 Flt_XXX[244]F10:244 nvoPWt9MxAvD_XXX SNVT_count_inc_f

PosVARsMeter07MaxAvgDemAI 465 ADF 209 Flt_XXX[245]F10:245 nvoPVAR7MxAv_XXX SNVT_count_inc_f

PosVARsMeter08MaxAvgDemAI 466 ADF 210 Flt_XXX[246]F10:246 nvoPVAR8MxAv_XXX SNVT_count_inc_f

PosVARsMeter09MaxAvgDemAI 467 ADF 211 Flt_XXX[247]F10:247 nvoPVAR9MxAv_XXX SNVT_count_inc_f

NegWattsMeter07MaxAvgDemAI 468 ADF 212 Flt_XXX[248]F10:248 nvoNWt7MxAvD_XXX SNVT_count_inc_f

NegWattsMeter08MaxAvgDemAI 469 ADF 213 Flt_XXX[249]F10:249 nvoNWt8MxAvD_XXX SNVT_count_inc_f

NegWattsMeter09MaxAvgDemAI 470 ADF 214 Flt_XXX[250]F10:250 nvoNWt9MxAvD_XXX SNVT_count_inc_f

NegVARsMeter07MaxAvgDemAI 471 ADF 215 Flt_XXX[251]F10:251 nvoNVAR7MxAv_XXX SNVT_count_inc_f

NegVARsMeter08MaxAvgDemAI 472 ADF 216 Flt_XXX[252]F10:252 nvoNVAR8MxAv_XXX SNVT_count_inc_f

NegVARsMeter09MaxAvgDemAI 473 ADF 217 Flt_XXX[253]F10:253 nvoNVAR9MxAv_XXX SNVT_count_inc_f

PosWattsMeter10MaxAvgDemAI 474 ADF 218 Flt_XXX[254]F10:254 nvoPWt10MxAv_XXX SNVT_count_inc_f

PosWattsMeter11MaxAvgDemAI 475 ADF 219 Flt_XXX[255]F11:000 nvoPWt11MxAv_XXX SNVT_count_inc_f

PosWattsMeter12MaxAvgDemAI 476 ADF 220 Flt_XXX[256]F11:001 nvoPWt12MxAv_XXX SNVT_count_inc_f

PosVARsMeter10MaxAvgDemAI 477 ADF 221 Flt_XXX[257]F11:002 nvoPVAR10MxA_XXX SNVT_count_inc_f

PosVARsMeter11MaxAvgDemAI 478 ADF 222 Flt_XXX[258]F11:003 nvoPVAR11MxA_XXX SNVT_count_inc_f

PosVARsMeter12MaxAvgDemAI 479 ADF 223 Flt_XXX[259]F11:004 nvoPVAR12MxA_XXX SNVT_count_inc_f

NegWattsMeter10MaxAvgDemAI 480 ADF 224 Flt_XXX[260]F11:005 nvoNWt10MxAv_XXX SNVT_count_inc_f

NegWattsMeter11MaxAvgDemAI 481 ADF 225 Flt_XXX[261]F11:006 nvoNWt11MxAv_XXX SNVT_count_inc_f

NegWattsMeter12MaxAvgDemAI 482 ADF 226 Flt_XXX[262]F11:007 nvoNWt12MxAv_XXX SNVT_count_inc_f

NegVARsMeter10MaxAvgDemAI 483 ADF 227 Flt_XXX[263]F11:008 nvoNVAR10MxA_XXX SNVT_count_inc_f

NegVARsMeter11MaxAvgDemAI 484 ADF 228 Flt_XXX[264]F11:009 nvoNVAR11MxA_XXX SNVT_count_inc_f

NegVARsMeter12MaxAvgDemAI 485 ADF 229 Flt_XXX[265]F11:010 nvoNVAR12MxA_XXX SNVT_count_inc_f

PosWattsMeter13MaxAvgDemAI 486 ADF 230 Flt_XXX[266]F11:011 nvoPWt13MxAv_XXX SNVT_count_inc_f

PosWattsMeter14MaxAvgDemAI 487 ADF 231 Flt_XXX[267]F11:012 nvoPWt14MxAv_XXX SNVT_count_inc_f

PosWattsMeter15MaxAvgDemAI 488 ADF 232 Flt_XXX[268]F11:013 nvoPWt15MxAv_XXX SNVT

_

count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-34

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

PosVARsMeter13MaxAvgDemAI 489 ADF 233 Flt_XXX[269]F11:014 nvoPVAR13MxA_XXX SNVT_count_inc_f

PosVARsMeter14MaxAvgDemAI 490 ADF 234 Flt_XXX[270]F11:015 nvoPVAR14MxA_XXX SNVT_count_inc_f

PosVARsMeter15MaxAvgDemAI 491 ADF 235 Flt_XXX[271]F11:016 nvoPVAR15MxA_XXX SNVT_count_inc_f

NegWattsMeter13MaxAvgDemAI 492 ADF 236 Flt_XXX[272]F11:017 nvoNWt13MxAv_XXX SNVT_count_inc_f

NegWattsMeter14MaxAvgDemAI 493 ADF 237 Flt_XXX[273]F11:018 nvoNWt14MxAv_XXX SNVT_count_inc_f

NegWattsMeter15MaxAvgDemAI 494 ADF 238 Flt_XXX[274]F11:019 nvoNWt15MxAv_XXX SNVT_count_inc_f

NegVARsMeter13MaxAvgDemAI 495 ADF 239 Flt_XXX[275]F11:020 nvoNVAR13MxA_XXX SNVT_count_inc_f

NegVARsMeter14MaxAvgDemAI 496 ADF 240 Flt_XXX[276]F11:021 nvoNVAR14MxA_XXX SNVT_count_inc_f

NegVARsMeter15MaxAvgDemAI 497 ADF 241 Flt_XXX[277]F11:022 nvoNVAR15MxA_XXX SNVT_count_inc_f

PosWattsMeter16MaxAvgDemAI 498 ADF 242 Flt_XXX[278]F11:023 nvoPWt16MxAv_XXX SNVT_count_inc

_

f

PosWattsMeter17MaxAvgDemAI 499 ADF 243 Flt_XXX[279]F11:024 nvoPWt17MxAv_XXX SNVT_count_inc_f

PosWattsMeter18MaxAvgDemAI 500 ADF 244 Flt_XXX[280]F11:025 nvoPWt18MxAv_XXX SNVT_count_inc_f

PosVARsMeter16MaxAvgDemAI 501 ADF 245 Flt

_

XXX[281]F11:026 nvoPVAR16MxA_XXX SNVT_count_inc_f

PosVARsMeter17MaxAvgDemAI 502 ADF 246 Flt_XXX[282]F11:027 nvoPVAR17MxA_XXX SNVT_count_inc_f

PosVARsMeter18MaxAvgDemAI 503 ADF 247 Flt_XXX[283]F11:028 nvoPVAR18MxA_XXX SNVT_count_inc_f

NegWattsMeter16MaxAvgDemAI 504 ADF 248 Flt_XXX[284]F11:029 nvoNWt16MxAv_XXX SNVT_count_inc_f

NegWattsMeter17MaxAvgDemAI 505 ADF 249 Flt_XXX[285]F11:030 nvoNWt17MxAv_XXX SNVT_count_inc_f

NegWattsMeter18MaxAvgDemAI 506 ADF 250 Flt_XXX[286]F11:031 nvoNWt18MxAv_XXX SNVT_count_inc_f

NegVARsMeter16MaxAvgDemAI 507 ADF 251 Flt_XXX[287]F11:032 nvoNVAR16MxA_XXX SNVT_count_inc_f

NegVARsMeter17MaxAvgDemAI 508 ADF 252 Flt_XXX[288]F11:033 nvoNVAR17MxA_XXX SNVT_count_inc_f

NegVARsMeter18MaxAvgDemAI 509 ADF 253 Flt_XXX[289]F11:034 nvoNVAR18MxA_XXX SNVT_count_inc_f

PosWattsMeter19MaxAvgDemAI 510 ADF 254 Flt_XXX[290]F11:035 nvoPWt19MxAv_XXX SNVT_count_inc_f

PosWattsMeter20MaxAvgDemAI 511 ADF 255 Flt_XXX[291]F11:036 nvoPWt20MxAv_XXX SNVT_count_inc_f

PosWattsMeter21MaxAvgDemAI 512 ADF 256 Flt_XXX[292]F11:037 nvoPWt21MxAv_XXX SNVT_count_inc_f

PosVARsMeter19MaxAvgDemAI 513 ADI 1 Flt_XXX[293]F11:038 nvoPVAR19MxA_XXX SNVT_count_inc_f

PosVARsMeter20MaxAvgDemAI 514 ADI 2 Flt_XXX[294]F11:039 nvoPVAR20MxA_XXX SNVT_count_inc_f

PosVARsMeter21MaxAvgDemAI 515 ADI 3 Flt_XXX[295]F11:040 nvoPVAR21MxA_XXX SNVT_count_inc_f

NegWattsMeter19MaxAvgDemAI 516 ADI 4 Flt_XXX[296]F11:041 nvoNWt19MxAv_XXX SNVT_count_inc_f

NegWattsMeter20MaxAvgDemAI 517 ADI 5 Flt_XXX[297]F11:042 nvoNWt20MxAv_XXX SNVT_count_inc_f

NegWattsMeter21MaxAvgDemAI 518 ADI 6 Flt_XXX[298]F11:043 nvoNWt21MxAv_XXX SNVT_count_inc_f

NegVARsMeter19MaxAvgDemAI 519 ADI 7 Flt_XXX[299]F11:044 nvoNVAR19MxA_XXX SNVT_count_inc_f

NegVARsMeter20MaxAvgDemAI 520 ADI 8 Flt_XXX[300]F11:045 nvoNVAR20MxA_XXX SNVT_count_inc_f

NegVARsMeter21MaxAvgDemAI 521 ADI 9 Flt_XXX[301]F11:046 nvoNVAR21MxA_XXX SNVT_count_inc_f

PosWattsMeter22MaxAvgDemAI 522 ADI 10 Flt_XXX[302]F11:047 nvoPWt22MxAv_XXX SNVT_count_inc_f

PosWattsMeter23MaxAvgDemAI 523 ADI 11 Flt_XXX[303]F11:048 nvoPWt23MxAv_XXX SNVT_count_inc_f

A: Protocol Data Points for EIG Meters

Doc# E204701 A-35

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

PosWattsMeter24MaxAvgDemAI 524 ADI 12 Flt_XXX[304]F11:049 nvoPWt24MxAv_XXX SNVT_count_inc_f

PosVARsMeter22MaxAvgDemAI 525 ADI 13 Flt_XXX[305]F11:050 nvoPVAR22MxA_XXX SNVT_count_inc_f

PosVARsMeter23MaxAvgDemAI 526 ADI 14 Flt_XXX[306]F11:051 nvoPVAR23MxA_XXX SNVT_count_inc_f

PosVARsMeter24MaxAvgDemAI 527 ADI 15 Flt_XXX[307]F11:052 nvoPVAR24MxA_XXX SNVT_count_inc_f

NegWattsMeter22MaxAvgDemAI 528 ADI 16 Flt_XXX[308]F11:053 nvoNWt22MxAv_XXX SNVT_count_inc_f

NegWattsMeter23MaxAvgDemAI 529 ADI 17 Flt

_

XXX[309]F11:054 nvoNWt23MxAv_XXX SNVT_count_inc_f

NegWattsMeter24MaxAvgDemAI 530 ADI 18 Flt_XXX[310]F11:055 nvoNWt24MxAv_XXX SNVT_count_inc_f

NegVARsMeter22MaxAvgDemAI 531 ADI 19 Flt_XXX[311]F11:056 nvoNVAR22MxA_XXX SNVT_count_inc_f

NegVARsMeter23MaxAvgDemAI 532 ADI 20 Flt_XXX[312]F11:057 nvoNVAR23MxA_XXX SNVT_count_inc_f

NegVARsMeter24MaxAvgDemAI 533 ADI 21 Flt_XXX[313]F11:058 nvoNVAR24MxA_XXX SNVT_count_inc_f

CTDenominatorAI 534 ADI 22 Dev2_XXX[000]N14:000 nvoCTDen_XXX SNVT_count_inc

CTNumeratorMeter1AI 535 ADI 23 Dev2_XXX[001]N14:001 nvoCTNum1_XXX SNVT_count_inc

CTNumeratorMeter2AI 536 ADI 24 Dev2_XXX[002]N14:002 nvoCTNum2_XXX SNVT_count_inc

CTNumeratorMeter3AI 537 ADI 25 Dev2_XXX[003]N14:003 nvoCTNum3_XXX SNVT_count_inc

CTNumeratorMeter4AI 538 ADI 26 Dev2_XXX[004]N14:004 nvoCTNum4_XXX SNVT_count_inc

CTNumeratorMeter5AI 539 ADI 27 Dev2_XXX[005]N14:005 nvoCTNum5_XXX SNVT_count_inc

CTNumeratorMeter6AI 540 ADI 28 Dev2_XXX[006]N14:006 nvoCTNum6_XXX SNVT_count_inc

CTNumeratorMeter7AI 541 ADI 29 Dev2_XXX[007]N14:007 nvoCTNum7_XXX SNVT_count_inc

CTNumeratorMeter8AI 542 ADI 30 Dev2_XXX[008]N14:008 nvoCTNum8_XXX SNVT_count_inc

CTNumeratorMeter9AI 543 ADI 31 Dev2_XXX[009]N14:009 nvoCTNum9_XXX SNVT_count_inc

CTNumeratorMeter10AI 544 ADI 32 Dev2_XXX[010]N14:010 nvoCTNum10_XXX SNVT_count_inc

CTNumeratorMeter11AI 545 ADI 33 Dev2_XXX[011]N14:011 nvoCTNum11_XXX SNVT_count_inc

CTNumeratorMeter12AI 546 ADI 34 Dev2_XXX[012]N14:012 nvoCTNum12_XXX SNVT_count_inc

CTNumeratorMeter13AI 547 ADI 35 Dev2_XXX[013]N14:013 nvoCTNum13_XXX SNVT_count_inc

CTNumeratorMeter14AI 548 ADI 36 Dev2_XXX[014]N14:014 nvoCTNum14_XXX SNVT_count_inc

CTNumeratorMeter15AI 549 ADI 37 Dev2_XXX[015]N14:015 nvoCTNum15_XXX SNVT_count_inc

CTNumeratorMeter16AI 550 ADI 38 Dev2_XXX[016]N14:016 nvoCTNum16_XXX SNVT_count_inc

CTNumeratorMeter17AI 551 ADI 39 Dev2_XXX[017]N14:017 nvoCTNum17_XXX SNVT_count_inc

CTNumeratorMeter18AI 552 ADI 40 Dev2_XXX[018]N14:018 nvoCTNum18_XXX SNVT_count_inc

CTNumeratorMeter19AI 553 ADI 41 Dev2_XXX[019]N14:019 nvoCTNum19_XXX SNVT_count_inc

CTNumeratorMeter20AI 554 ADI 42 Dev2_XXX[020]N14:020 nvoCTNum20_XXX SNVT_count_inc

CTNumeratorMeter21AI 555 ADI 43 Dev2_XXX[021]N14:021 nvoCTNum21_XXX SNVT_count_inc

CTNumeratorMeter22AI 556 ADI 44 Dev2_XXX[022]N14:022 nvoCTNum22_XXX SNVT_count_inc

CTNumeratorMeter23AI 557 ADI 45 Dev2_XXX[023]N14:023 nvoCTNum23_XXX SNVT_count_inc

CTNumeratorMeter24AI 558 ADI 46 Dev2_XXX[024]N14:024 nvoCTNum24_XXX SNVT_count_inc

A: Protocol Data Points for EIG Meters

Doc# E204701 A-36

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

PointName

BACnet

Object

Type

BACnet

Object

ID

N2

Data

Type

N2

Point

Address

EIPTagNameDF1

AddressLonNameLonSNVT

PTnumeratorAI 559 ADI 47 Dev2_XXX[025]N14:025 nvoPTnum_XXX SNVT_count_inc_f

PTdenominatorAI 560 ADI 48 Dev3_XXX[000]N15:000 nvoPTden_XXX SNVT_count_inc

HookupAI 561 ADI 49 Dev3_XXX[001]N15:001 nvoHookup_XXX SNVT_count_inc

SerialNumberReg1AI 562 ADI 50 Dev3_XXX[002]N15:002 nvoSerNum1_XXX SNVT_count_inc

SerialNumberReg2AI 563 ADI 51 Dev3_XXX[003]N15:003 nvoSerNum2_XXX SNVT_count_inc

SerialNumberReg3AI 564 ADI 52 Dev3_XXX[004]N15:004 nvoSerNum3_XXX SNVT_count_inc

SerialNumberReg4AI 565 ADI 53 Dev3_XXX[005]N15:005 nvoSerNum4_XXX SNVT_count_inc

SerialNumberReg5AI 566 ADI 54 Dev3_XXX[006]N15:006 nvoSerNum5_XXX SNVT_count_inc

SerialNumberReg6AI 567 ADI 55 Dev3_XXX[007]N15:007 nvoSerNum6_XXX SNVT_count_inc

SerialNumberReg7AI 568 ADI 56 Dev3_XXX[008]N15:008 nvoSerNum7_XXX SNVT_count_inc

SerialNumberReg8AI 569 ADI 57 Dev3_XXX[009]N15:009 nvoSerNum8_XXX SNVT_count_inc

PasswordforResetinuseBI 570 ADI 58 Byt_XXX[0] N16:0 nvoPswdReset_XXX SNVT_count_inc

PasswordforConfigurationinuseBI 571 ADI 59 Byt_XXX[1] N16:1 nvoPswdCnfg_XXX SNVT_count_inc

Doc# E204701 B - 1

B: MAC Address DIP Switch Settings

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

B: MAC Address DIP Switch Settings

This following table lists the settings for the A Bank of DIP switches, used to set a

MAC address.

Address A0 A1 A2 A3 A4 A5 A6 A7

0 OffOffOffOffOffOffOffOff

1 On Off Off Off Off Off Off Off

2 Off On Off Off Off Off Off Off

3 OnOnOffOffOffOffOffOff

4 Off Off On Off Off Off Off Off

5 On Off On Off Off Off Off Off

6 Off On On Off Off Off Off Off

7 OnOnOnOffOffOffOffOff

8 Off Off Off On Off Off Off Off

9 OnOffOffOnOffOffOffOff

10 Off On Off On Off Off Off Off

11 On On Off On Off Off Off Off

12 Off Off On On Off Off Off Off

13 On Off On On Off Off Off Off

14 OffOnOnOnOffOffOffOff

15 On On On On Off Off Off Off

16 Off Off Off Off On Off Off Off

17 On Off Off Off On Off Off Off

18 Off On Off Off On Off Off Off

19 On On Off Off On Off Off Off

20 Off Off On Off On Off Off Off

21 On Off On Off On Off Off Off

22 Off On On Off On Off Off Off

23 On On On Off On Off Off Off

24 Off Off Off On On Off Off Off

25 On Off Off On On Off Off Off

26 Off On Off On On Off Off Off

27 On On Off On On Off Off Off

28 Off Off On On On Off Off Off

29 On Off On On On Off Off Off

30 OffOnOnOnOnOffOffOff

31 On On On On On Off Off Off

32 Off Off Off Off Off On Off Off

33 On Off Off Off Off On Off Off

34 Off On Off Off Off On Off Off

35 On On Off Off Off On Off Off

36 Off Off On Off Off On Off Off

37 On Off On Off Off On Off Off

38 OffOnOnOffOffOnOffOff

39 On On On Off Off On Off Off

40 Off Off Off On Off On Off Off

Doc# E204701 B - 2

B: MAC Address DIP Switch Settings

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Address A0 A1 A2 A3 A4 A5 A6 A7

41 On Off Off On Off On Off Off

42 Off On Off On Off On Off Off

43 On On Off On Off On Off Off

44 Off Off On On Off On Off Off

45 On Off On On Off On Off Off

46 Off On On On Off On Off Off

47 On On On On Off On Off Off

48 Off Off Off Off On On Off Off

49 On Off Off Off On On Off Off

50 Off On Off Off On On Off Off

51 On On Off Off On On Off Off

52 Off Off On Off On On Off Off

53 On Off On Off On On Off Off

54 Off On On Off On On Off Off

55 On On On Off On On Off Off

56 Off Off Off On On On Off Off

57 On Off Off On On On Off Off

58 Off On Off On On On Off Off

59 On On Off On On On Off Off

60 Off Off On On On On Off Off

61 OnOffOnOnOnOnOffOff

62 OffOnOnOnOnOnOffOff

63 On On On On On On Off Off

64 Off Off Off Off Off Off On Off

65 On Off Off Off Off Off On Off

66 Off On Off Off Off Off On Off

67 On On Off Off Off Off On Off

68 Off Off On Off Off Off On Off

69 On Off On Off Off Off On Off

70 Off On On Off Off Off On Off

71 On On On Off Off Off On Off

72 Off Off Off On Off Off On Off

73 On Off Off On Off Off On Off

74 Off On Off On Off Off On Off

75 On On Off On Off Off On Off

76 Off Off On On Off Off On Off

77 On Off On On Off Off On Off

78 OffOnOnOnOffOffOnOff

79 On On On On Off Off On Off

80 Off Off Off Off On Off On Off

81 On Off Off Off On Off On Off

82 Off On Off Off On Off On Off

83 On On Off Off On Off On Off

84 Off Off On Off On Off On Off

85 On Off On Off On Off On Off

86 Off On On Off On Off On Off

87 On On On Off On Off On Off

88 Off Off Off On On Off On Off

89 On Off Off On On Off On Off

Doc# E204701 B - 3

B: MAC Address DIP Switch Settings

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Address A0 A1 A2 A3 A4 A5 A6 A7

90 Off On Off On On Off On Off

91 On On Off On On Off On Off

92 Off Off On On On Off On Off

93 On Off On On On Off On Off

94 OffOnOnOnOnOffOnOff

95 On On On On On Off On Off

96 Off Off Off Off Off On On Off

97 On Off Off Off Off On On Off

98 Off On Off Off Off On On Off

99 On On Off Off Off On On Off

100 Off Off On Off Off On On Off

101 On Off On Off Off On On Off

102 OffOnOnOffOffOnOnOff

103 On On On Off Off On On Off

104 Off Off Off On Off On On Off

105 On Off Off On Off On On Off

106 Off On Off On Off On On Off

107 On On Off On Off On On Off

108 Off Off On On Off On On Off

109 On Off On On Off On On Off

110 Off On On On Off On On Off

111 On On On On Off On On Off

112 Off Off Off Off On On On Off

113 On Off Off Off On On On Off

114 Off On Off Off On On On Off

115 On On Off Off On On On Off

116 Off Off On Off On On On Off

117 On Off On Off On On On Off

118 Off On On Off On On On Off

119 On On On Off On On On Off

120 OffOffOffOnOnOnOnOff

121 On Off Off On On On On Off

122 Off On Off On On On On Off

123 On On Off On On On On Off

124 Off Off On On On On On Off

125 OnOffOnOnOnOnOnOff

126 OffOnOnOnOnOnOnOff

127 On On On On On On On Off

128 OffOffOffOffOffOffOffOn

129 On Off Off Off Off Off Off On

130 Off On Off Off Off Off Off On

131 On On Off Off Off Off Off On

132 Off Off On Off Off Off Off On

133 On Off On Off Off Off Off On

134 Off On On Off Off Off Off On

135 On On On Off Off Off Off On

136 Off Off Off On Off Off Off On

137 On Off Off On Off Off Off On

138 Off On Off On Off Off Off On

Doc# E204701 B - 4

B: MAC Address DIP Switch Settings

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Address A0 A1 A2 A3 A4 A5 A6 A7

139 On On Off On Off Off Off On

140 Off Off On On Off Off Off On

141 On Off On On Off Off Off On

142 OffOnOnOnOffOffOffOn

143 On On On On Off Off Off On

144 Off Off Off Off On Off Off On

145 On Off Off Off On Off Off On

146 Off On Off Off On Off Off On

147 On On Off Off On Off Off On

148 Off Off On Off On Off Off On

149 On Off On Off On Off Off On

150 Off On On Off On Off Off On

151 On On On Off On Off Off On

152 Off Off Off On On Off Off On

153 On Off Off On On Off Off On

154 Off On Off On On Off Off On

155 On On Off On On Off Off On

156 Off Off On On On Off Off On

157 On Off On On On Off Off On

158 OffOnOnOnOnOffOffOn

159 On On On On On Off Off On

160 Off Off Off Off Off On Off On

161 On Off Off Off Off On Off On

162 Off On Off Off Off On Off On

163 On On Off Off Off On Off On

164 Off Off On Off Off On Off On

165 On Off On Off Off On Off On

166 OffOnOnOffOffOnOffOn

167 On On On Off Off On Off On

168 Off Off Off On Off On Off On

169 On Off Off On Off On Off On

170 Off On Off On Off On Off On

171 On On Off On Off On Off On

172 Off Off On On Off On Off On

173 On Off On On Off On Off On

174 Off On On On Off On Off On

175 On On On On Off On Off On

176 Off Off Off Off On On Off On

177 On Off Off Off On On Off On

178 Off On Off Off On On Off On

179 On On Off Off On On Off On

180 Off Off On Off On On Off On

181 On Off On Off On On Off On

182 Off On On Off On On Off On

183 On On On Off On On Off On

184 Off Off Off On On On Off On

185 On Off Off On On On Off On

186 Off On Off On On On Off On

187 On On Off On On On Off On

Doc# E204701 B - 5

B: MAC Address DIP Switch Settings

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Address A0 A1 A2 A3 A4 A5 A6 A7

188 Off Off On On On On Off On

189 OnOffOnOnOnOnOffOn

190 OffOnOnOnOnOnOffOn

191 On On On On On On Off On

192 Off Off Off Off Off Off On On

193 On Off Off Off Off Off On On

194 Off On Off Off Off Off On On

195 On On Off Off Off Off On On

196 Off Off On Off Off Off On On

197 On Off On Off Off Off On On

198 Off On On Off Off Off On On

199 On On On Off Off Off On On

200 Off Off Off On Off Off On On

201 On Off Off On Off Off On On

202 Off On Off On Off Off On On

203 On On Off On Off Off On On

204 Off Off On On Off Off On On

205 On Off On On Off Off On On

206 OffOnOnOnOffOffOnOn

207 On On On On Off Off On On

208 Off Off Off Off On Off On On

209 On Off Off Off On Off On On

210 Off On Off Off On Off On On

211 On On Off Off On Off On On

212 Off Off On Off On Off On On

213 On Off On Off On Off On On

214 Off On On Off On Off On On

215 On On On Off On Off On On

216 Off Off Off On On Off On On

217 On Off Off On On Off On On

218 Off On Off On On Off On On

219 On On Off On On Off On On

220 Off Off On On On Off On On

221 On Off On On On Off On On

222 OffOnOnOnOnOffOnOn

223 On On On On On Off On On

224 Off Off Off Off Off On On On

225 On Off Off Off Off On On On

226 Off On Off Off Off On On On

227 On On Off Off Off On On On

228 Off Off On Off Off On On On

229 On Off On Off Off On On On

230 OffOnOnOffOffOnOnOn

231 On On On Off Off On On On

232 Off Off Off On Off On On On

233 On Off Off On Off On On On

234 Off On Off On Off On On On

235 On On Off On Off On On On

236 Off Off On On Off On On On

Doc# E204701 B - 6

B: MAC Address DIP Switch Settings

Electro Industries/GaugeTech

The Leader In Power Monitoring and Smart Grid Solutions

Address A0 A1 A2 A3 A4 A5 A6 A7

237 On Off On On Off On On On

238 Off On On On Off On On On

239 On On On On Off On On On

240 Off Off Off Off On On On On

241 On Off Off Off On On On On

242 OffOnOffOffOnOnOnOn

243 On On Off Off On On On On

244 Off Off On Off On On On On

245 On Off On Off On On On On

246 Off On On Off On On On On

247 On On On Off On On On On

248 OffOffOffOnOnOnOnOn

249 On Off Off On On On On On

250 Off On Off On On On On On

251 OnOnOffOnOnOnOnOn

252 Off Off On On On On On On

253 OnOffOnOnOnOnOnOn

254 OffOnOnOnOnOnOnOn

255 On On On On On On On On
