APPROVAL SHEET

RoHS compliant

APPROVAL SIGNATURES:

CUSTOMER ： 源拓光电

PART NAME ： 5V 1.25A ADAPTER UL

MODEL NO. ： BSW0127-5012502W

ISSUE DATE ： 2010-8-3

VERSION NO. : REV1.1

EFFICIENCY STANDARDS： ERP ⅴ

ACEPOWER ELECTRONICS CO.,LTD.

Add.:No.312 Hongfa Road,South Bridge Area,Xiaoshan,

Hangzhou,P.R.China P.C.:311231

Tel: +86-571-22868352

Fax: +86-571-22868512

E-mail: jennyking@acepower.com.cn

http://www.acepower.com.cn

Please fax back after your confirming.

Approved

by

Checked

by

Designed

by

Prepared

by

ACEPOWER ELECTRONICS CO., LTD.

Specification Department R&D

Page 1

Type BSW0127-5012502W ADAPTER Date 2010-8-3

Document History

Change Information

Date Revision No. Previous version Current version

2010-8-3 REV1.1 / DC cord is changed.

Approved

by

Checked

by

Designed

by

Prepared

by

ACEPOWER ELECTRONICS CO., LTD.

Specification Department R&D

Page 2

Type BSW0127-5012502W ADAPTER Date 2010-8-3

LIST

1. Scope

2. Model No.

3. Referenced standard

4. Electrical characteristics

5. Circuit diagram

6. Use guide

7. Caution

8. Attachments

8.1 Label

8.2 DC cord drawing

8.3 Appearance drawing

8.4 Assembly drawing

8.5 Pack drawing

8.6 Test report

Approved

by

Checked

by

Designed

by

Prepared

by

ACEPOWER ELECTRONICS CO., LTD.

Specification Department R&D

Page 3

Type BSW0127-5012502W ADAPTER Date 2010-8-3

1．Scope：This specification is applied to 5V 1.25A ADAPTER

2．Model No.： BSW0127-5012502W ADAPTER

3．Referenced standard：UL60950-1.

4．Electrical characteristics

4.1 Operating conditions：

Operating temperature：0℃～40℃

Storage temperature：-20℃～70℃

Relative humidity：≤95%

Air pressure：70～106KPa

4.2 Performance and measurement conditions：

No Item Specifications Test Conditions

1 Appearance

The color of the case is accordant. Pour

is not distinctly deficient, no markedly

air bubbles, sinking, and so on. The top

and bottom case is tie in, no clearance,

displacement≤1mm, lax≤1mm and so

on. After free drop, the case is close.

Visual Inspection

2 Size See Appearance drawing Vernier caliper

3 Power supply voltage 100-240VAC 50/60Hz

4 Input current 500mA

5 Output voltage Vout=5±5%VDC 0A≤IO≤1.25A

6 Ripple&Noise ≤100mVp-p

Measurement is done by 20MHz

bandwidth oscilloscope and

terminated each output with a

0.1uF ceramic capacitor and a

10uF electrolytic capacitor.

（Vin=220VAC）

7 Average efficiency ≥69.8%

Measurement is done by

25%load, 50%load, 75%load ，

100%load ，at 115VAC and

230VAC.

8 Input power

consumption ≤0.3W No load

Approved

by Checked by Designed

by

Prepared

by

ACEPOWER ELECTRONICS CO., LTD.

Specification Department R&D

Page 4

Type BSW0127-5012502W ADAPTER Date 2010-8-3

No. Item Specifications Test conditions

9 Over voltage protection Use the Zener diode to protect the output.

10

Short circuit protection

The adapter will shut

down and will not been

damaged.

If short circuit occurs, all the output should be

protected. After the fault, the adapter

automatically recovers.

11 Dielectric Strength

Without damage such

as insulation break

down.

Primary and secondary: AC3000(50Hz)

Vrms,5mA, 1 minute for type test,1 second for

production test.

DC500V shall be applied for 1min. between

Primary and Secondary, Primary and case

12 Insulation resistance ≥20MΩ DC500V shall be applied for 1min. between

Secondary and case.

13 Cord bending test ≥1000 times

The DC cord shall withstand weight of 500g,it

swing from left to right at angle of 120 degree, 40

times per min.

14 Strain relief test No damaged after the

test

Fix the main part of the adapter, Plug and cord at

their normal position applied a weight of 5 Kg to

output for 15 seconds.

15 High temperature

storage test

The adapter shall be storaged at temperature of

40±2℃，for 24hours.

16 Low temperature storage

test

The adapter shall be storaged at temperature of

0±2 for 24℃hours.

17

High temperature and

high humidity operation

test

Clause 4.2.1, 4.2.5,

4.2.6, 4.2.11, 4.2.12

shall be satisfied. The adapter shall be storaged at temperature of

40±2℃ with relative of 90%-95% for 48hours.

18 M.T.B.F ≥50,000 hours At 25℃

19 Vibration test

Frequency:10-55Hz

Amplitude:0.15mm,

Time: 10times per directions (X,Y,and Z)

20 Free drop test

No breakage should be

observed; Mechanical

and electronic

characteristic meet

design request

Dropping from a height of 60cm to a wood plate

of 20mm thickness. And 1 time each side total 6

times.

Approved

by

Checked

by

Designed

by

Prepared

by

ACEPOWER ELECTRONICS CO., LTD.

Specification Department R&D

Page 5

Type BSW0127-5012502W ADAPTER Date 2010-8-3

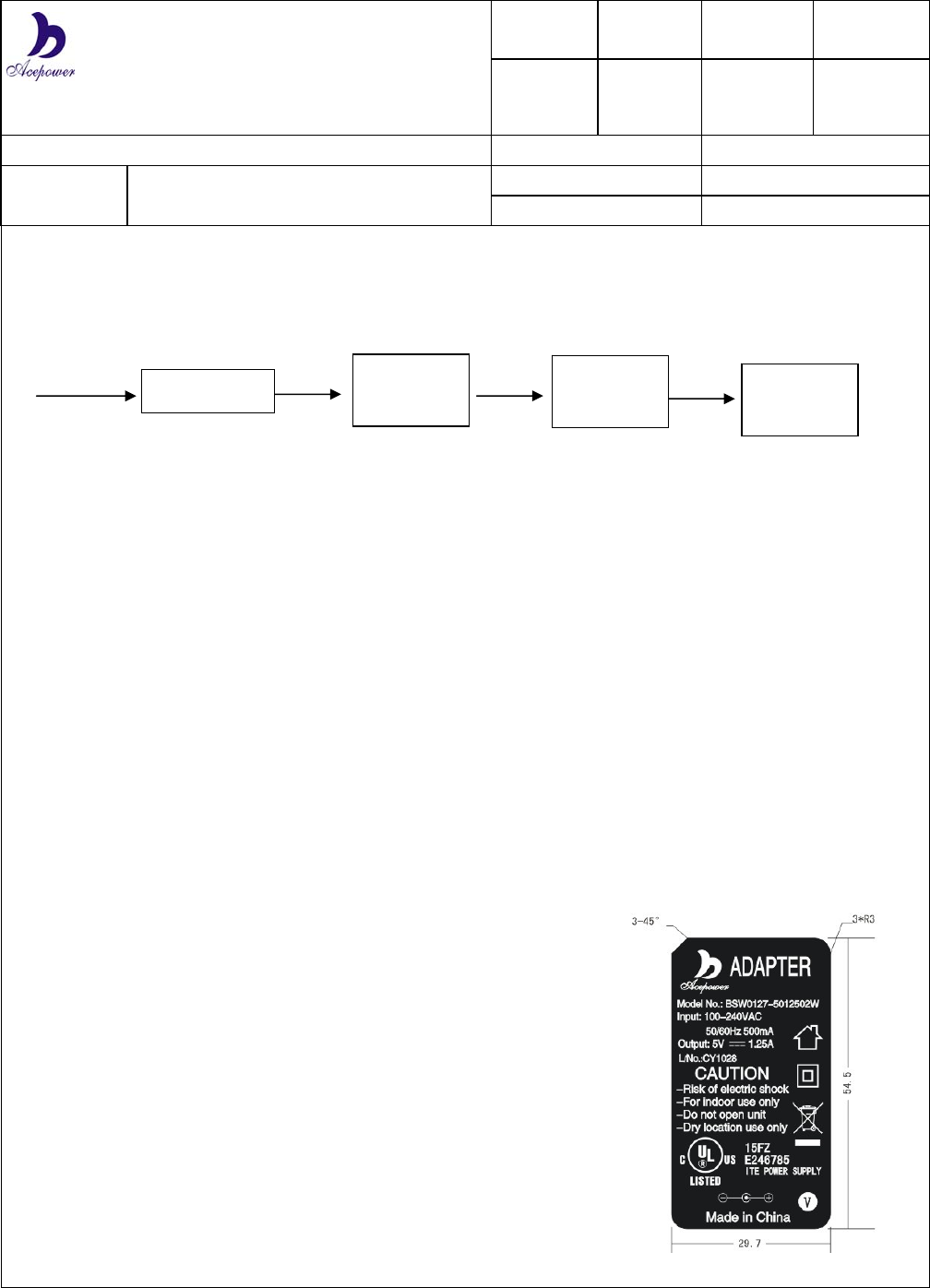

5．Circuit diagram

6．Use guide

Input：100-240VAC 50/60Hz (500mA)

Output：5VDC 1.25A

I/O connector Pin description：in(+),out(-)

7．Caution

7.1 Risk of electric shock

7.2 For indoor use only

7.3 Do not open the unit

7.4 Dry location use only

8. Attachments

8.1 Label

8.1.1 Material：PC (granulation)；

8.1.2 Thickness：＜ 0.3mm；

8.1.3 Color：Black grounding, argent font；

8.1.4 L/No.:CY1028 is the track date,

“10”means year, “28” means week；

8.1.5 Size & Content：

Transformer Stabilize

Voltage

Voltage

Output

Control

Voltage

100-240VAC

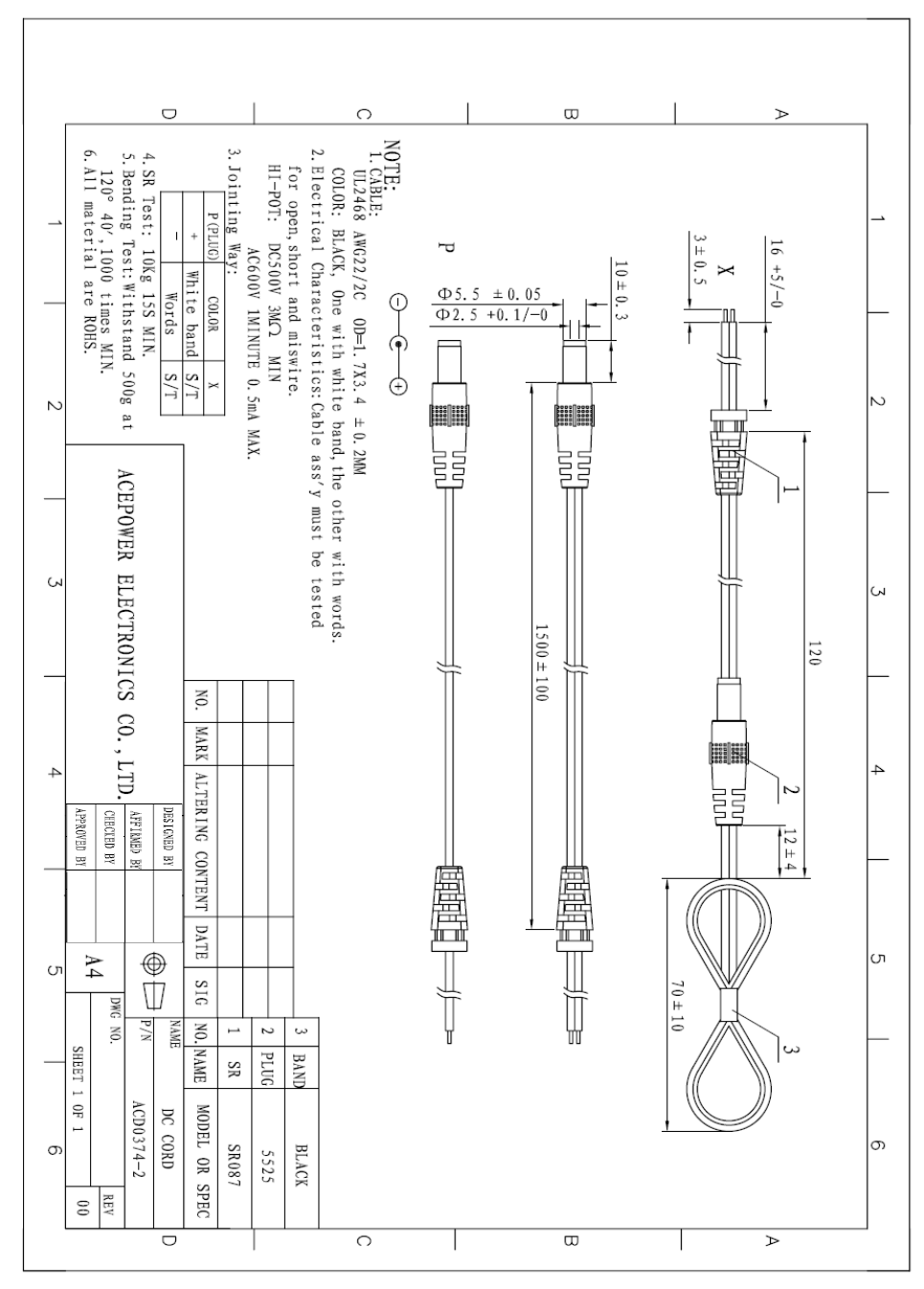

8.2 DC cord drawing

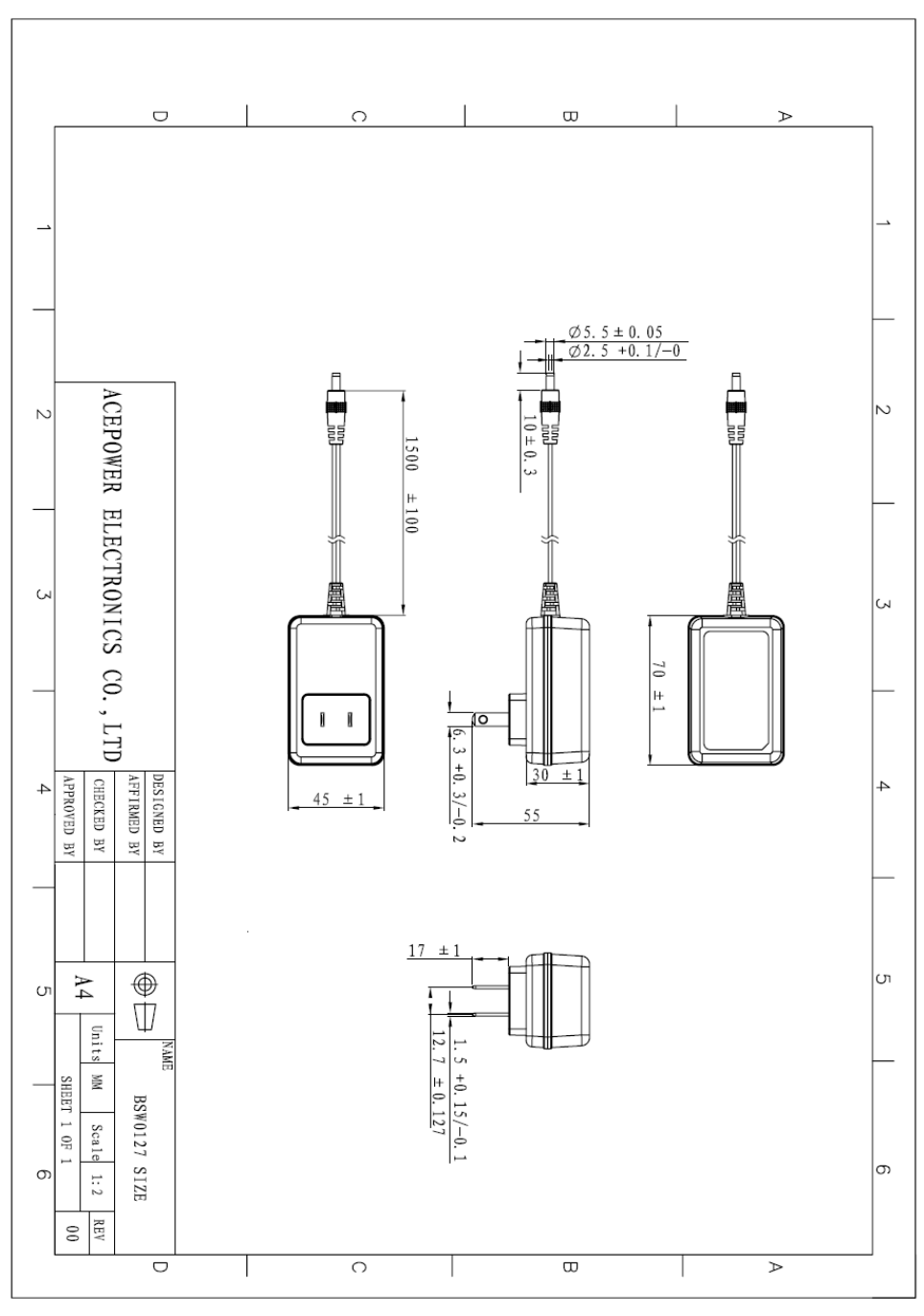

8.3 Appearance drawing

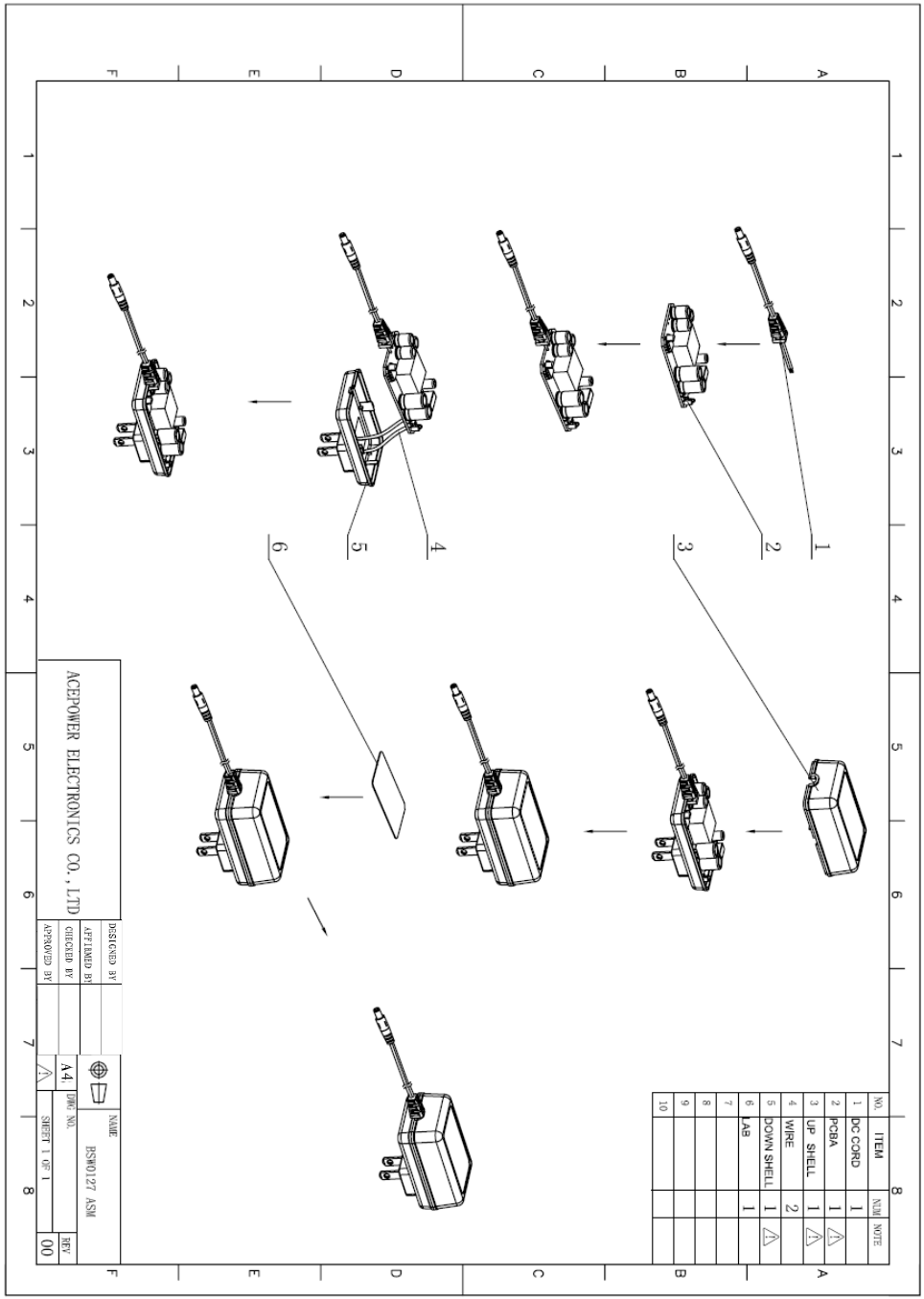

8.4 Assembly drawing

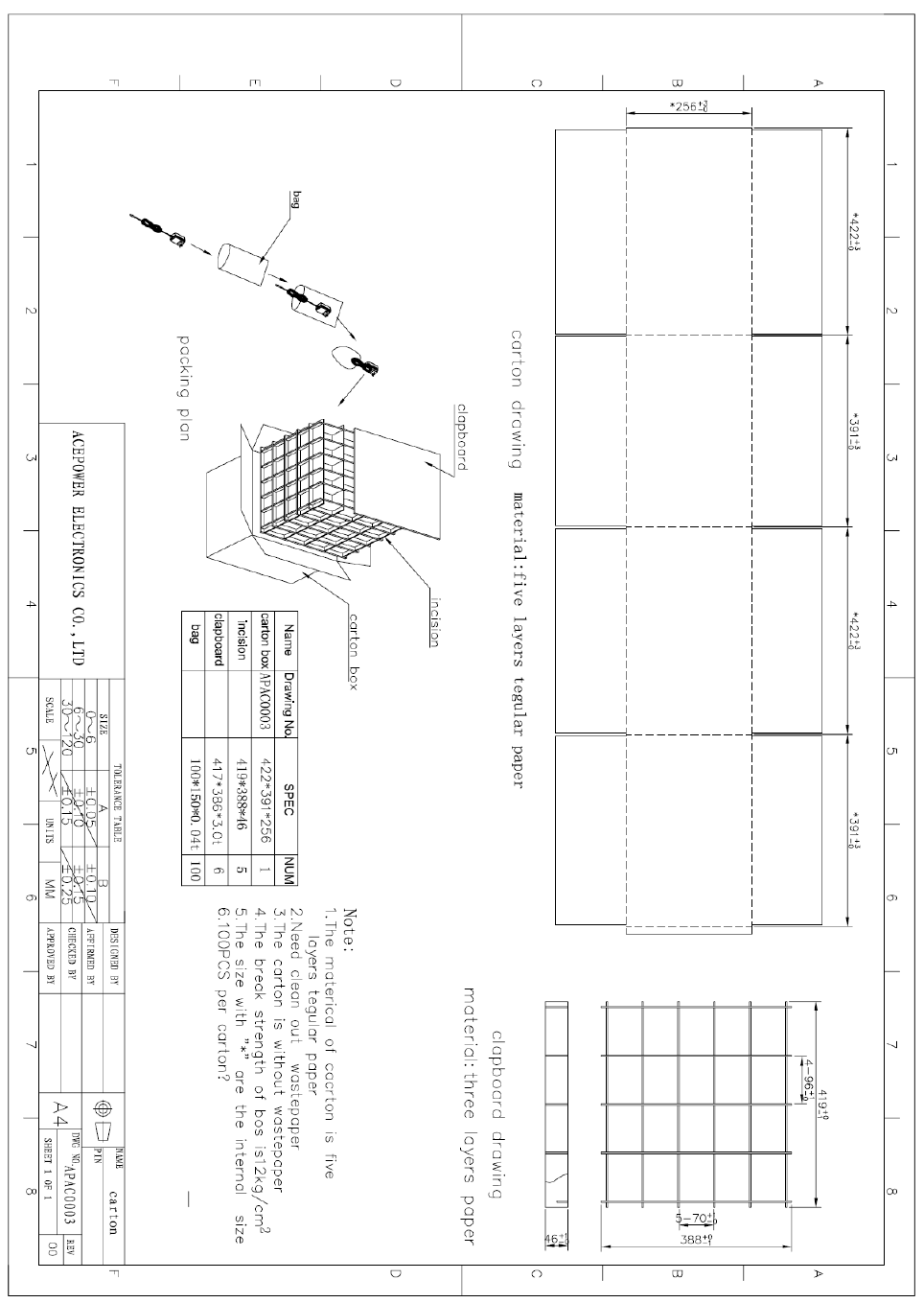

8.5 Pack drawing

8.6 Test report

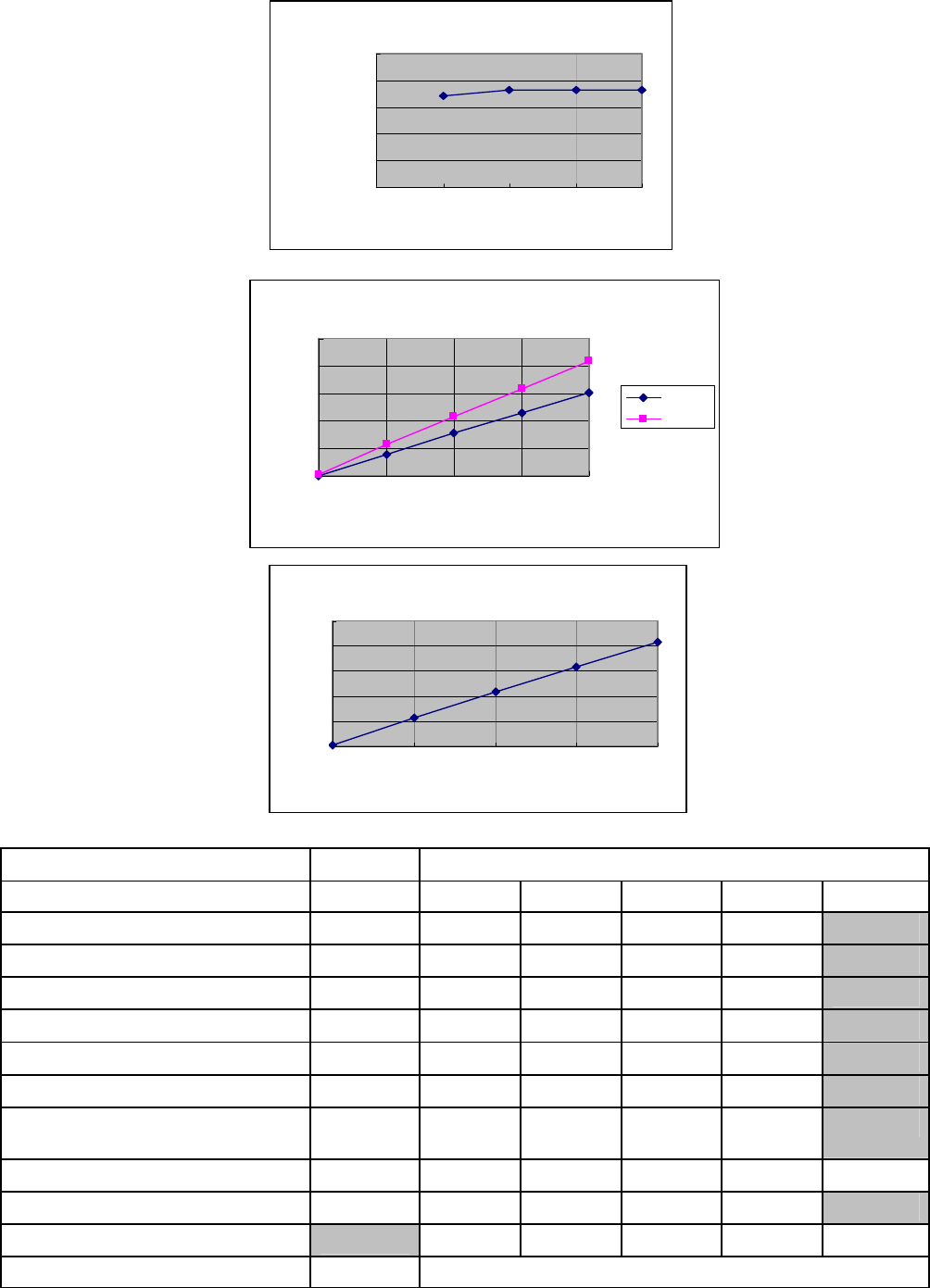

No load Active power values

Percent of nameplate current 0% 25% 50% 75% 100% Average

d.c. output current (A) 0 0.3136 0.6265 0.9376 1.2512

d.c. output voltage (V) 5.111 5.051 4.991 4.937 4.879

d.c. output power (W) 0 1.58 3.12 4.63 6.09

a.c. input current (A) 0.0031 0.0361 0.0578 0.0808 0.115

a.c. input voltage (V) 115.7 115.9 115.8 115.9 115.12

a.c. input power (W) 0.1 2.2 4.18 6.16 8.22

Total harmonic distortion (THD)

of input current

22.45%

324.59%

456.25%

445.14%

429.47%

True power fact (W/VA) 0.333 0.53 0.626 0.627 0.63 0.5492

Power consumed by EUT 0.1 0.62 1.06 1.53 2.13

Efficiency 71.82% 74.64% 75.16% 74.09% 73.93%

Compulsory value ≤0.3W ≥0.075 x Ln (Pno) + 0.561=69.8%

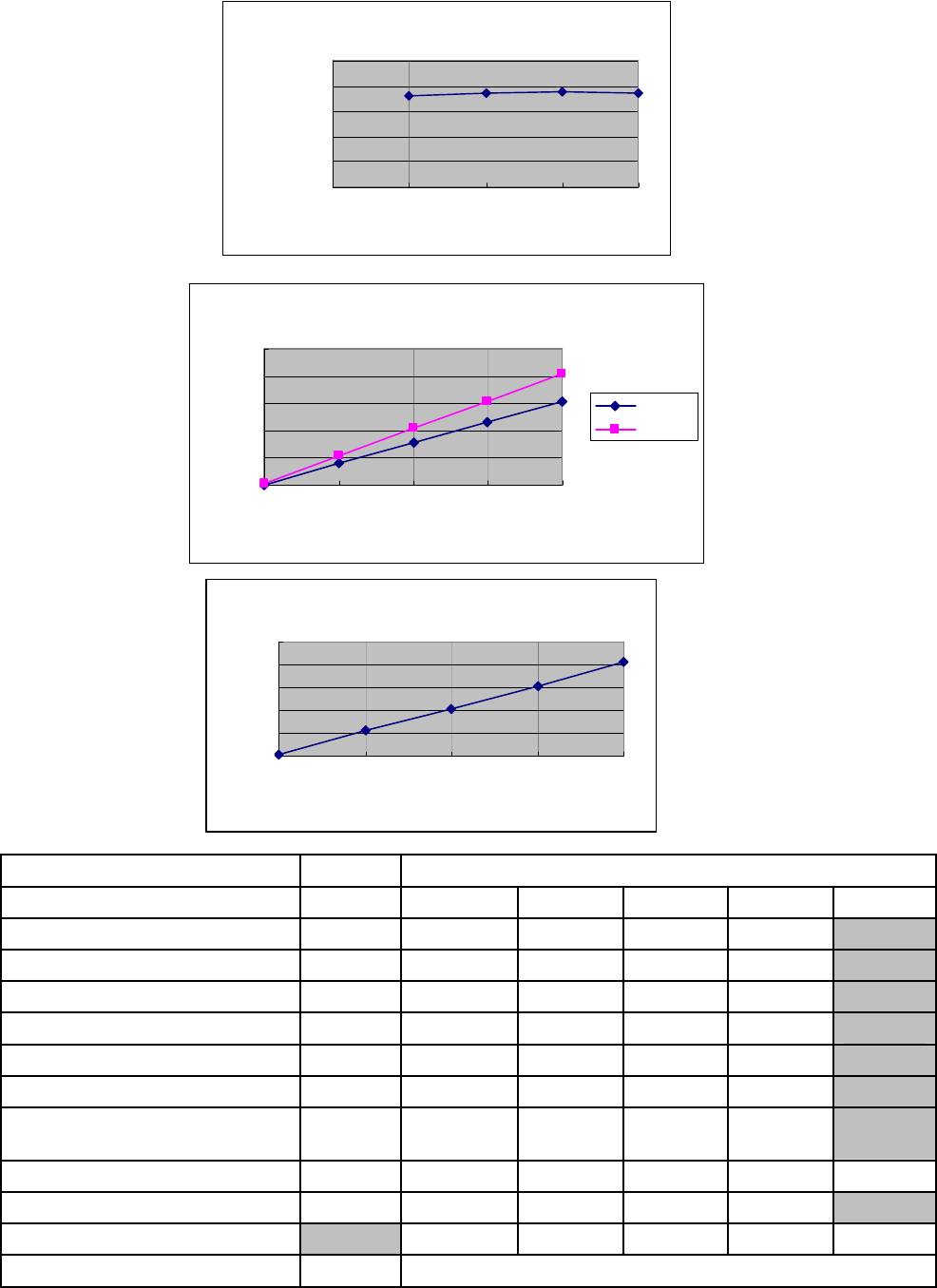

Measured and calculated data of BSW0127-5012502W at 115V 50Hz

Efficiency of EUT

0.00%

20.00%

40.00%

60.00%

80.00%

100.00%

0% 25% 50% 75% 100%

Actual Fraction of Output Current

Efficiency

Input and Output Power vs Output Current

0

2

4

6

8

10

0% 25% 50% 75% 100%

Actual Fraction of Output Current

Power(W)

Output

Input

Input vs Output Power

0

2

4

6

8

10

0 1.58 3.12 4.63 6.09

Output Power(W)

Input Power(W)

Efficiency of EUT

0.00%

20.00%

40.00%

60.00%

80.00%

100.00%

0% 25% 50% 75% 100%

Actual Fraction of Output Current

Efficiency

Input and Output Power vs Output Current

0

2

4

6

8

10

0% 25% 50% 75% 100%

Actual Fraction of Output Current

Power(W)

Output

Input

Input vs Output Power

0

2

4

6

8

10

0 1.58 3.12 4.62 6.09

Output Power(W)

Input Power(W)

No load Active power values

Percent of nameplate current 0% 25% 50% 75% 100% Average

d.c. output current (A) 0 0.3136 0.06256 0.9376 1.2512

d.c. output voltage (V) 5.111 5.05 4.911 4.931 4.871

d.c. output power (W) 0 1.58 3.12 4.62 6.09

a.c. input current (A) 0.0019 0.0256 0.042 0.0566 0.0678

a.c. input voltage (V) 230.8 230.5 230.8 230.5 230.1

a.c. input power (W) 0.12 2.3 4.31 6.32 8.32

Total harmonic distortion (THD)

of input current

25.36%

368.73%

472.13%

453.19%

433.29%

True power fact (W/VA) 0.341 0.381 0.446 0.499 0.543 0.442

Power consumed by EUT 0.12 0.72 1.19 1.7 2.23

Efficiency 68.70% 72.39% 73.10% 73.20% 71.80%

Compulsory value ≤0.3W ≥0.075 x Ln (Pno) + 0.561=69.8%

Measured and calculated data of BSW0127-5012502W at 230V 50Hz
