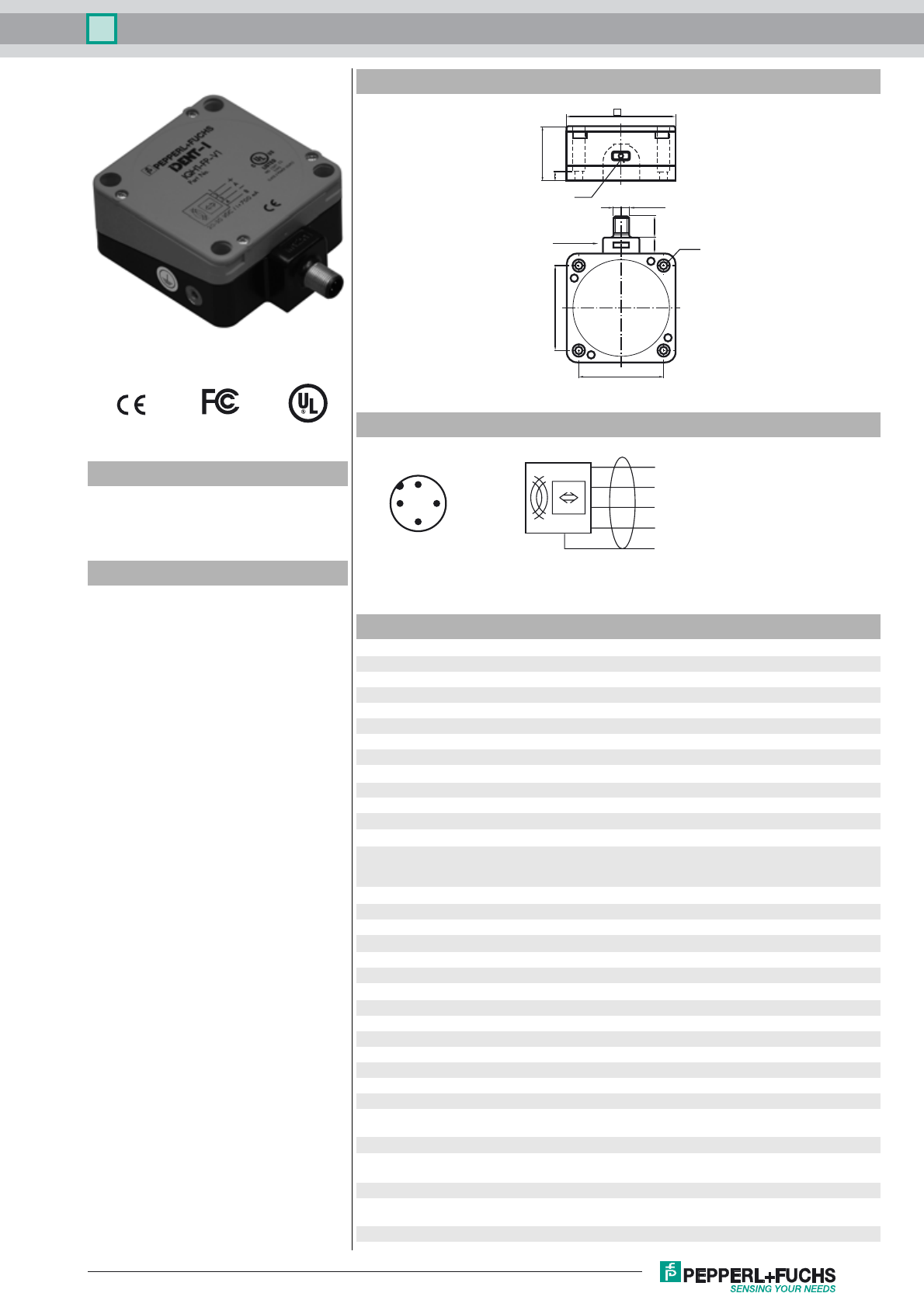

Read/write head IQH1-FP-V1
1
Release date: 2014-02-21 09:23 Date of issue: 2014-02-21 204623_eng.xml
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
Model Number
IQH1-FP-V1
Read/write head
for IDENTControl
Features
• Operating frequency 13.56 MHz
• Conforms to ISO 15693
• Suitable for FRAM transponder
• Dual-LED for function display
• Connection via V1 (M12 x 1) plug
connection
• Degree of protection IP67
Dimensions
Electrical connection
Technical data
General specifications
Operating frequency 13.56 MHz
Tra n s f e r r ate 2 6 k B i t / s
Sensing range
Read distance 0 ... 130 mm
Write distance 0 ... 130 mm
Width max. 100 mm
UL File Number E87056
Functional safety related parameters
MTTFd 680 a
Mission Time (TM) 10 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
LED green/yellow green: power on
green flashing: read/write attempt performed
yellow: data carrier detected
Electrical specifications
Power consumption P0≤ 1.3 W
Supply from the IDENTControl
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Degree of protection IP67
Connection M12 x 1 connector
Material
Housing PBT
Base diecast aluminum
Encapsulation compound CY 221/HY 2966
Installation
Distance between two heads Multiplex on: ≥ 100 mm
Multiplex off: ≥ 150 mm
Mass approx. 380 g
Compliance with standards and direc-
tives
Directive conformity
R&TTE Directive 1995/5/EC EN 301489-1 V1.8.1 (2008-04), EN 301489-3 V1.4.1 (2002-08),
EN 300330-2 V1.3.1 (2006-04), EN 60950-1:2006
Standard conformity
Ø5.3
M20 x 1.5
80
11
65
65
LED
40
7
16
M12 x 1
Shield
+
A
-
B
1
2
3
4
1
42
3
Release date: 2014-02-21 09:23 Date of issue: 2014-02-21 204623_eng.xml
2
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
IQH1-FP-V1Read/write head
Accessories
IQC21-50P
Data carrier
IQC21-58
Data carrier
IQC22-C5
Data carrier
IQC33-20
Data carrier
IQC33-30
Data carrier
IQC33-50
Data carrier
V1-G-5M-PUR-ABG-V1-W
Connecting cable, M12 to M12, PUR ca-
ble 4-pin, shielded
V1-G-10M-PUR-ABG-V1-W
Connecting cable, M12 to M12, PUR ca-
ble 4-pin, shielded
IQC24-27-T12
Data carrier
IQC31-22-T9
Data carrier
IQC22-22CT-T9
Data carrier
IQC22-C1 UNPRINTED
Data carrier
AB-FP
Mounting aid
Electromagnetic compatibility EN 61000-6-2, EN 61000-6-4
Degree of protection EN 60529
RFID ISO/IEC 15693-2:2006 , ISO/IEC 15693-3:2009 , ISO/IEC
18000-3 ,
Approvals and certificates
FCC approval This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Notes
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference when the equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense.
