Philio Technology PAD02 Smart Dimmer Socket User Manual
Philio Technology Corporation Smart Dimmer Socket
User manual
PAD02
Z-Wave Smart Dimmer Socket
Warning: Do not use Non-Dimmable LED lamps.

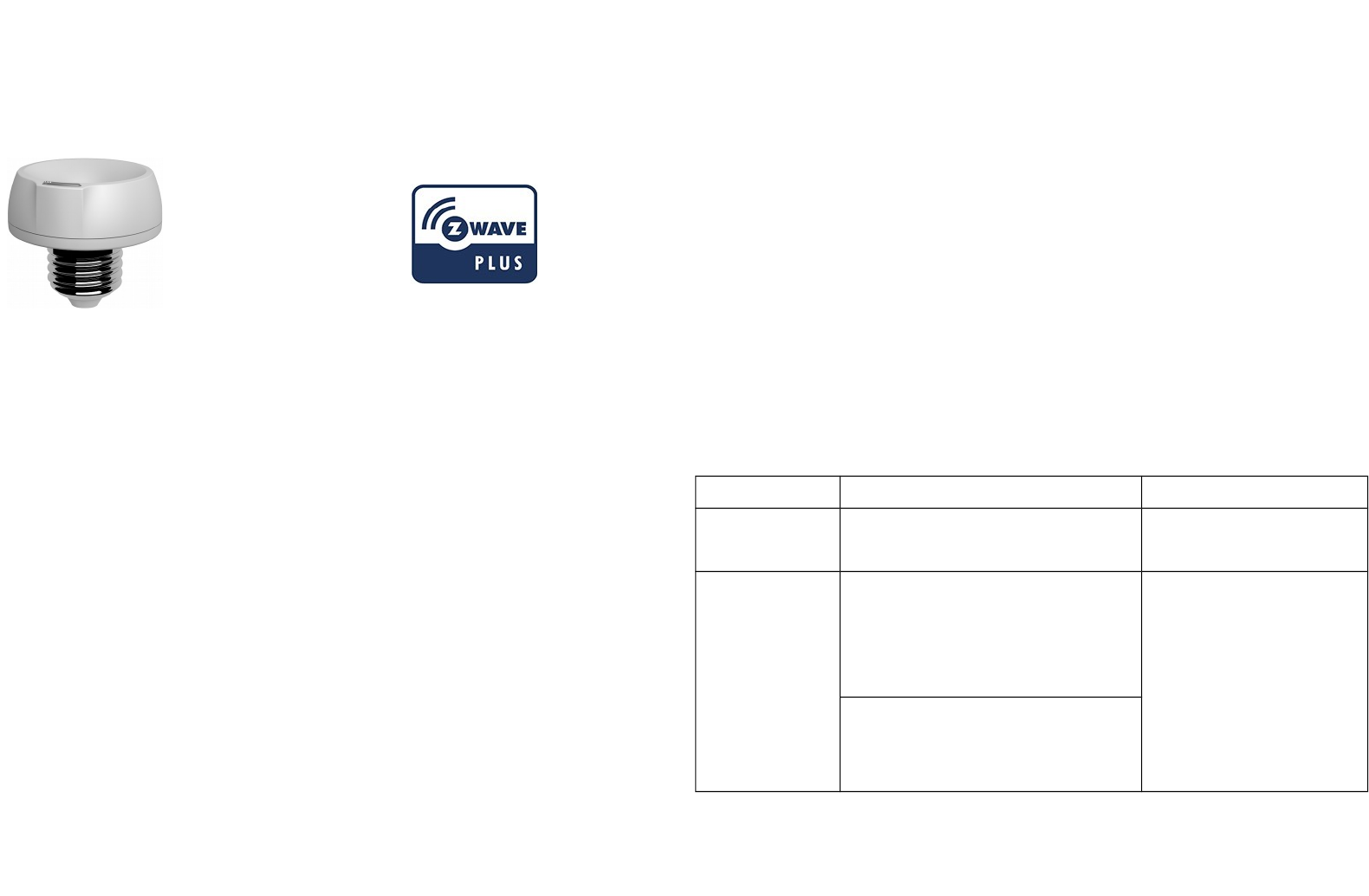

PAD02 is an E27(EU)/ E26(US) Edison screw based lamp socket, which provides
electrical connection to the E14(EU)/ E12(US) Edison screw based lamps and
support it in the lighting fixture. The use of socket allows lamps to be safely and
conveniently replaced. You can On/Off the light by pressing the button briefly,
or a long pressing to control the brightness of dimmable light bulb.
This dimmer is a transceiver which is a security enabled device which based on
Z-Wave Plus technology, and it is fully compatible with any Z-WaveTM enabled
network. Since PAD02 supports Security Command Class, it can learn with
Secured controller. Its functionality and supported command classes is identical
when included as a secure and non-secure device.
Adding to Z-WaveTM Network
In the front casing, there is an on/off button with LED indicator below which is used to
switch on and off or carries out inclusion, exclusion, reset or association.
When first power applied, its LED flashes on and off alternately and repeatedly at 0.5
second intervals. It implies that it has not been assigned a node ID and start auto
inclusion.
Auto Inclusion
The function of auto inclusion will be executed as long as the dimmer does not
have Node ID and just connect the switch to main power.
Note: Auto inclusion timeout is 2 minute during which the node information of
explorer frame will be emitted once every several seconds. Unlike “inclusion” function
as shown in the table below, the execution of auto inclusion is free from pressing the
On/Off button on the dimmer.
The table below lists an operation summary of basic Z-Wave functions. Please refer
to the instructions for your Z-WaveTM Certificated Primary Controller to access the
Setup function, and to include/exclude/associate devices
Function Description Annotation
No node ID The Z-Wave Controller does not allocate
a node ID to the Switch.
LED 2-second on, 2-second
off
Inclusion 1. Put your Z-Wave controller into
inclusion mode by following the
instructions provided by the
controller manufacturer.
One press one flash LED
2. Pressing Include button of PAD02
three times within 2 seconds will
enter inclusion mode.
1
Exclusion 1. Put your Z-Wave controller into
exclusion mode by following the
instructions provided by the
controller manufacturer.
One press one flash LED
2. Pressing Include button of PAD02
three times within 2 seconds will enter
exclusion mode.
3. Node ID has been excluded. 0.5s On, 0.5s Off (Enter
auto inclusion)
Reset 1. Pressing Include button of PAD02
three times within 2 seconds will
enter inclusion mode.
Use this procedure only in
the event that the primary
controller is lost or
otherwise inoperable.
2. Within 1 second, press Include button
of PAD02 again for 5 seconds.
3. IDs are excluded. 0.5s On, 0.5s Off (Enter
auto inclusion)
Association 1. The PAD02 is an always listening
Z-Wave device, so associations
may be added or removed by a con-
troller at any time.
Or If your controller requires to have
the PAD02 send a 'node information
frame' or NIF for associations, then
pressing the On/Off button three
times within 2 seconds will cause
the PAD02 to send its NIF.
2. There are only one group for the
switch
Including a node ID allocated by Z-Wave Controller means inclusion. Excluding a node
ID allocated by Z-Wave Controller means exclusion.
Failed or success in including/excluding the node ID can be viewed from the Z-Wave
Controller.
LED Indication
To distinguish what mode the switch is in, view from the LED for identification.
State Type LED Indication
Normal Whenever we switch On and off of the PAD02 by On/Off button or
RF command, the LED will lights up when switch on; whereas LED
off when switch off.
No node ID Under normal operation, when the Switch has not been allocated a
node ID, the LED flashes on and off alternately at 2-second intervals.
By pressing On/Off button, it will stop flashing temporarily.
Learning When PAD02 is in learning mode, LED flashes on and off alternately
and repeatedly at 0.5 second intervals.
Choosing a Suitable Location
1. Do not locate the dimmer facing direct sunlight, humid or dusty place.
2. The suitable ambient temperature for the Switch is 0°C~40°C.
2
3. Do not locate the dimmer where exists combustible substances or any source of
heat, e.g. fires, radiators, boiler etc.
4. After putting it into use, the body of dimmer will become a little bit hot of which
phenomenon is normal.

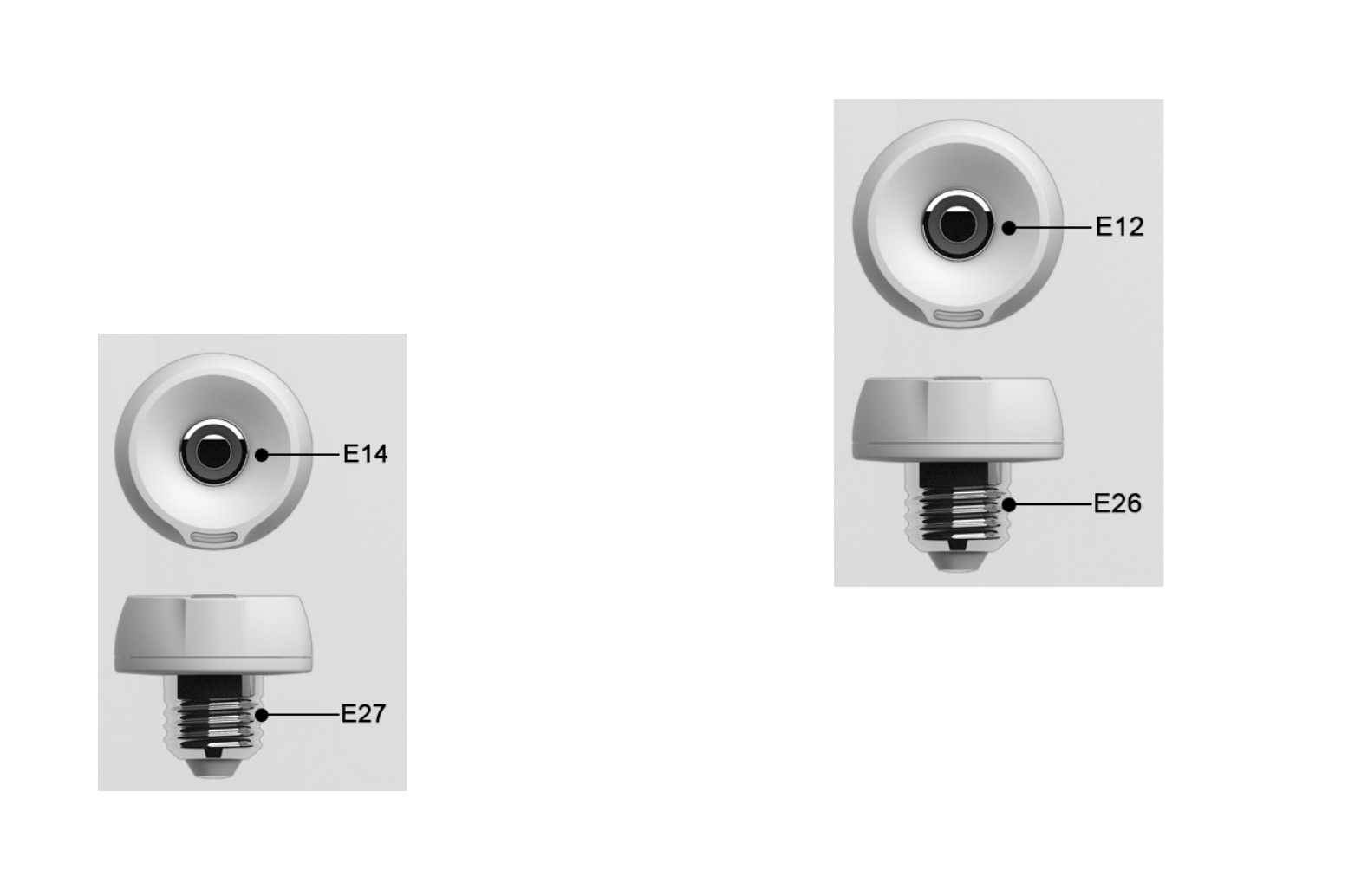

screw lamp holder Type:
Since the socket type for each country in Europe varies, refer to the outline for each
socket suited for each country as follows:
EU TYPE: PAD02-1
US TYPE: PAD02-2
Note: Please make sure that the intensity of the screw lampholder of the electrical
device must be Maximum Load (Watts) and have same head as the enclosed screw
lampholder before inserting to the socket.
3
Troubleshooting
Symptom Cause of Failure Recommendation
The Switch not working
and LED off
4. The Switch is not
plugged into the
electrical outlet properly
5. The Switch break down
1. Check power connections
2. Don’t open up the Switch and send it
for repair.
The Switch LED
illuminating, but cannot
control the ON/OFF
Switch of the load
attached
1.Check if the load
plugged into the Switch
has its own ON/OFF
switch
2. The switch is protected
1. Set the ON/OFF switch of the load
attached to ON
2. Unprotected the switch or follow the
instruction of protection.
The Switch LED
illuminating, but the
Detector cannot control
the Switch
1. Not carry out
association
2. Same frequency
interference
1. Carry out association
2. Wait for a while to re-try
Specification
Operating Voltage 100V~240V / 50Hz~60Hz
Maximum Load (watts) 40W (Incandescent bulbs); ( PAD02-1; PAD02-2)
Maximum Load (watts) 13W (Dimmable LED bulbs); ( PAD02-1; PAD02-2)
Screw lamp holder Type: EU type: E27 to E14; PAD02-1
US type: E26 to E12; PAD02-2
Operating Temperature 0°C ~ 40°C
Frequency Range 868.40MHz & 869.85MHz/ EU (PAD02-1);
908.4MHz & 916.0MHz/ USA (PAD02-2);
RF Maximum Power +5dBm
Transmission Range Minimum 40 m in door 100m outdoor line of sight
Modulation Type FSK (Frequency-Shift Keying)
** Specifications are subject to change and improvement without notice.
FCC ID : RHHPAD02
Warning: Do not use Non-Dimmable LED lamps.
Warning:
1.Plug out to disconnect from power supply; Do not plug in line.
2. Do not exceed the max rating.
3. Do not use Non-Dimmable LED lamps.
4
Disposal
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Company of License Holder：Philio Technology Corporation
Address of License Holder：8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City
24257, Taiwan(R.O.C)
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
5
