Philio Technology PAD07 In Wall Smart Dimmer User Manual

Philio Technology Corporation In Wall Smart Dimmer

User manual

PAD07 In Wall Smart Dimmer
Warning: Do not use Non-Dimmable LED lamps.

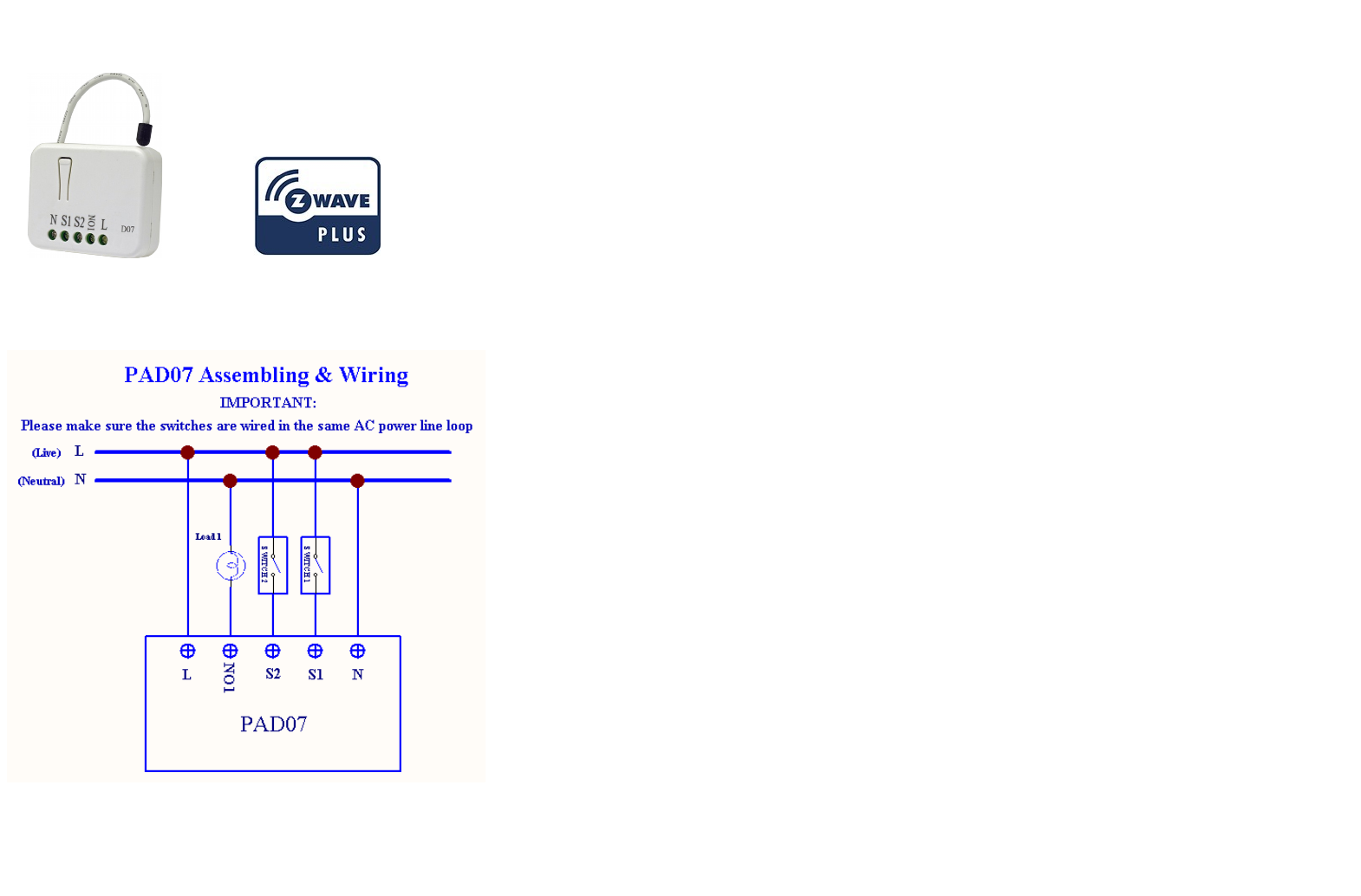

Fig 1. Assembling & Wiring
Built-in High Breaking Capacity current fuse protection. Rating : 2A /250V.
Built-in Thermal Cutoff Fuses protection. Rated Temperature :125 °C; Rating :
2A /250V.
PAD07 is a security enabled wireless dimmer, based on Z-Wave Plus technology. Z-
Wave PlusTM enabled devices displaying the Z-Wave PlusTM logo can also be used
with it regardless of the manufacturer, and can also be used in other manufacturer’s
Z-WaveTM enabled networks. You can On/Off the light by pressing the button briefly,
or a long pressing to control the brightness of dimmable light bulb.
This dimmer is a transceiver which is a security enabled device which based on
Z-Wave Plus technology, and it is fully compatible with any Z-WaveTM enabled
network. Since PAD07 supports Security Command Class, it can learn with
Secured controller. Its functionality and supported command classes is identical
when included as a secure and non-secure device.
Adding to Z-WaveTM Network
In the front casing, there is an on/off button (also an include button) with LED indica-
tor below which is used to dim on and off or carries out inclusion, exclusion, reset or
association. When first power applied, its LED flashes on and off alternately and re-
peatedly at 0.5 second intervals. It implies that it has not been assigned a node ID
and start auto inclusion.
Auto Inclusion
The function of auto inclusion will be executed as long as the dimmer does not
have Node ID and just connect the switch to main power.
Note: Auto inclusion timeout is 2 minute during which the node information of
explorer frame will be emitted once every several seconds. Unlike “inclusion” function
as shown in the table below, the execution of auto inclusion is free from pressing the
1
On/Off button on the dimmer.
The table below lists an operation summary of basic Z-Wave functions. Please refer
to the instructions for your Z-WaveTM Certificated Primary Controller to access the
Setup function, and to Add/Remove/associate devices
Function Description Annotation
No node ID The Z-Wave Controller does not allocate
a node ID to the Switch.
LED 2-second on, 2-second
off
Add (Inclusion) 1. Put your Z-Wave controller into
inclusion mode by following the
instructions provided by the
controller manufacturer.
2. Pressing Include button of PAD07
three times within 2 seconds will
enter inclusion mode.
Remove
(Exclusion)
1. Put your Z-Wave controller into
exclusion mode by following the
instructions provided by the
controller manufacturer.
2. Pressing Include button of PAD07
three times within 2 seconds will
enter exclusion mode.
3. Node ID has been excluded. 0.5s On, 0.5s Off (Enter
auto inclusion)
Reset 1. Pressing Include button of PAD07
three times within 2 seconds will
enter inclusion mode.
Use this procedure only in
the event that the primary
controller is lost or
otherwise inoperable.
2. Within 1 second, press Include button
of PAD07 again for 5 seconds.
3. IDs are excluded. 0.5s On, 0.5s Off (Enter
auto inclusion)
Association 1. The PAD07 is an always listening
Z-Wave device, so associations
may be added or removed by a con-
troller at any time.
Or If your controller requires to have
the PAD07 send a 'node information
frame' or NIF for associations, then
pressing the On/Off button three
times within 2 seconds will cause
the PAD07 to send its NIF.
2. There is only one group for the
dimmer
Adding a node ID allocated by Z-Wave Controller means inclusion. Removing a node
ID allocated by Z-Wave Controller means exclusion.
Failed or success in including/excluding the node ID can be viewed from the Z-Wave
Controller.
LED Indication
2
To distinguish what mode the switch is in, view from the LED for identification.
State Type LED Indication
Normal Whenever we switch On and off of the PAD07 by On/Off button or RF
command, the LED will lights up when switch on; whereas LED off
when switch off.
No node ID Under normal operation, when the Switch has not been allocated a
node ID, the LED flashes on and off alternately at 2-second intervals.
By pressing On/Off button, it will stop flashing temporarily.
Learning When PAD07 is in learning mode, LED flashes on and off alternately
and repeatedly at 0.5 second intervals.
Choosing a Suitable Location
1. Do not locate the dimmer facing direct sunlight, humid or dusty place.
2. The suitable ambient temperature for the Switch is 0°C~40°C.
3. Do not locate the dimmer where exists combustible substances or any source of
heat, e.g. fires, radiators, boiler etc.
4. After putting it into use, the body of dimmer will become a little bit hot of which
phenomenon is normal.
Manual dim level control :
To manually switch on the light, press and release the On/Off button or S1/S2 shortly
when the light is off. The light will dim from off to the level which was set before
switch off. To manually switch off the light, press and release the On/Off button or
S1/S2 shortly when the light is on. To adjust the dim level, press and hold the On/Off
button or S1/S2 until the desired dim level is achieved, then release.
Programming
1. Basic Command Class / Multilevel Switch Command Class
The dimmer will respond to BASIC and MULTILEVEL SWITCH commands that are
part of the Z-Wave system. If PAD07 is included as a secured node, it will only re-
sponse to the security encapsulation command of BASIC and MULTILEVEL
SWITCH.
1-1 BASIC_GET / MULTILEVEL_SWITCH_GET
Upon receipt of the following commands from a Z-Wave Controller, the Switch will
report its dimmer state to the node inquired.
Basic Get Command: [Command Class Basic, Basic Get]
Basic Report Command:
Report OFF: [Command Class Basic, Basic Report, Value = 0]
Report ON:[Command Class Basic, Basic Report, Value = 1~99]
Multilevel Switch Get Command:[Command Class Multilevel Switch, Multilevel
Switch Get]
Multilevel Switch Report Command:
Report OFF:[Command Class Multilevel Switch, Multilevel Switch Report,
Value=0]
Report ON:[Command Class Multilevel Switch, Multilevel Switch Report, Value
=1~99]
3
1-2 BASIC_SET / MULTILEVEL_SWITCH _SET
Upon receipt of the following commands from a Z-Wave Controller, the load
attached to the dimmer will turn on or off.
[Command Class Basic, Basic Set, Value = 0] : the load attached to the
dimmer turns off.
[Command Class Basic, Basic Set, Value = 1~99] : the attached load dim on as
the level.
[Command Class Multilevel Switch, Multilevel Switch Set, Value=0, Duration =
0~255] : the load attached to the dimmer turns off.
[Command Class Multilevel Switch, Multilevel Switch Set, Value =1~99, Dura-
tion = 0~255] : the attached load dim on as the level.
1. Z-Wave’s Groups (Maximum 5 nodes)
The Switch can be set to send reports to associated Z-Wave devices. It supports
one association group with five nodes support for grouping 1. For group 1, the dim-
mer
will report MULTILEVEL_SWITCH_REPORT, ALARM_REPORT and DEVICE_RE-
SET_LOCALLY_NOTIFICATION.
2-1 Auto report to Grouping 1
2-1-1 On/Off Event Report
When “on” or “off ” state has been changed, it will send Multilevel Switch Report to
the
nodes of Grouping 1.
Multilevel Switch Report
ON:[Command Class Multilevel Switch, Multilevel Switch Report, Value
=1~99]
OFF:[Command Class Multilevel Switch, Multilevel Switch Report, Value
=0(0x00)]
2-1-2 Overload alarm report
When PAD07 detects the Overload, it will send Alarm Report to Group 1 nodes. After
detecting overload state and sending this alarm report, PAD07 will turn off the dim-
mer automatically and lockout the On/Off button and S1/S2. The only thing to do is
unplug PAD07 and reduce the load. Then re-power on PAD07 and it will work again.
The content of Alarm Report
Alarm report command: [Command_Class_Alarm, Alarm_Report, Alarm Type =
0x08, Alarm Level = 0xFF]
2-2 Send Basic Set to Grouping 1
When “on” or “off ” state has been changed by manual key pressing, a Basic Set
command will follow the Multilevel Switch Report send to the nodes of Grouping 1.
[Command Class Basic, Basic Set, Value = 0]
[Command Class Basic, Basic Set, Value = 1~99]
3. Z-Wave’s Configuration
Configuration
Parameter
Function Size
(Byte)
Value Unit Default Description
1 Dimmer Level
Report mode
1 0-1 1 0 : Disable
1 : Enable
2 LED indication
mode
1 1-3 1 1: Show dimmer state
2 : Show night mode
3: One flash mode
4
3 External switch
type
1 1-3 1 1 : One switch mode
2 : Two switch mode
3: Up/Down switch
mode
4 Restore dimmer
state
1 0-2 1 0 : Dimmer off
1 : Last dimmer state
2 : Dimmer on
3-1 Dimmer level report mode :
Whenever dimmer on/off state changes, it will send MULTILEVEL_SWITCH_
REPORT to the nodes of group1. The default setting is Enable the function.
3-2 LED indication mode :
3-2-1 Show dimmer StateWhen dimmer is on, LED is on. When dimmer is off,
LED is off. The default setting is Show dimmer State.
3-2-2 Show Night mode When dimmer is on, LED is off. When dimmer is off,
LED is on.
3-2-3 One flash modeWhen dimmer on/off state changes, LED will light on one
second and then off.
3-3 External switch type
3-3-1 One switch modeOnly S1 can dim up the light bulb to brightest level, then
dim down to darkest level, and so on…
3-3-2 Two switch modeS1 and S2 can dim up the light bulb to brightest level,
then dim down to darkest level, and so on…
3-3-3 Up/Down switch modeS1 can only dim up the light bulb to brightest level,
and S2 can only dim down to Off.
3-4 restore dimmer state :
Whenever the AC power return from lost, PAD07 will restore the switch state which
could be Dimmer offLast dimmer stateDimmer on. The default setting is Last dim-
mer state.
4. Firmware update over the air (OTA)
PAD07 is based on 500 series SoC and supports Firmware Update Command
Class, it can receives the updated firmware image sent by controller via the Z-
wave RF media. It is a helpful and convenient way to improve some function if
needed.
5. Command Classes
The Switch supports Command Classes including…
* COMMAND_CLASS_ZWAVEPLUS_INFO
* COMMAND_CLASS_VERSION_V2
* COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
* COMMAND_CLASS_SECURITY
* COMMAND_CLASS_DEVICE_RESET_LOCALLY
* COMMAND_CLASS_ASSOCIATION_V2
* COMMAND_CLASS_ASSOCIATION_GRP_INFO
* COMMAND_CLASS_POWERLEVEL
* COMMAND_CLASS_BASIC
* COMMAND_CLASS_SWITCH_MULTILEVEL_V2
* COMMAND_CLASS_CONFIGURATION
* COMMAND_CLASS_ALARM
* COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
* COMMAND_CLASS_SCENE_ACTIVATION
* COMMAND_CLASS_SCENE_ACTUATOR_CONF
5
Troubleshooting
Symptom Cause of Failure Recommendation
The dimmer does not
work and LED off
1.The dimmer does not
connect the electrical
wire properly
2.The dimmer break down
1. Check power connections
2. Don’t open up the dimmer and send it for
repair.
The dimmer LED
illuminating, but cannot
control the ON/OFF
state of the load
attached
Check if the load
connected to the dimmer
has its own ON/OFF
switch
Set the ON/OFF switch of the load attached
to ON
The dimmer LED
illuminating, but the
Detector cannot control
the Switch
1. Not carry out
association
2. Same frequency
interference
1. Carry out association
2. Wait for a while to re-try
Specification
Input Rating:(Operating Voltage) 100~240Vac / 50Hz~60Hz
Input Rating:(Operating Current) 0.01~1A ; (Maximum: 1A)
Output Rating: Maximum Load (Current) Maximum: 0.9A (100~240Vac)
Output Rating: Maximum Load (watts)
(230V)
200W (13W x 15 pieces) (Dimmable LED bulbs)
(230Vac)
Output Rating: Maximum Load (watts)
(120V)
100W (13W x 15 pieces) (Dimmable LED bulbs)
(120Vac)
Output Rating: Maximum Dimmable LED
bulbs
Maximum: 15 pieces (Dimmable LED bulbs)
Operating Temperature 0°C ~ 40°C
Frequency Range 868.40MHz & 869.85MHz/ EU (PAD07-EU);
908.4MHz & 916.0MHz/ USA (PAD07-US);
RF Maximum Power +5dBm
Transmission Range Minimum 40 m in door 100m outdoor line of sight
Modulation Type FSK (Frequency-Shift Keying)
** Specifications are subject to change and improvement without notice.
FCC ID : RHHPAD07
6
Warning: Do not use Non-Dimmable LED lamps.
DANGER
Danger of electrocution!
All works on the device may be performed only by a qualified and licensed
electrician. Observe national regulations.
Any works introducing changes into the configuration must be always performed with
disconnected voltage.
Choosing a Suitable Location
1. Do not locate the Module facing direct sunlight, humid or dusty place.
2. The suitable ambient temperature for the Module is 0°C~40°C.
3. Do not locate the Module where exists combustible substances or any source of
heat, e.g. fires, radiators, boiler etc.
4. After putting it into use, the body of Module will become a little bit hot of which
phenomenon is normal.
Warning:
1.Plug out to disconnect from power supply; Do not plug in line.
2. Do not exceed the max rating.
3. Do not use Non-Dimmable LED lamps.
Disposal
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Company of License HolderPhilio Technology Corporation
Address of License Holder8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City
24257, Taiwan(R.O.C)
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
7
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
8

Navigation menu
