Philio Technology PAN05 In Wall Single relay (1 way) switch User Manual BH002 RF ON OFF CONTROLLER
Philio Technology Corporation In Wall Single relay (1 way) switch BH002 RF ON OFF CONTROLLER
(PAN05-2) UserMan
PAN05-1/-2/-3 In Wall Single relay(1 way) switch module
P

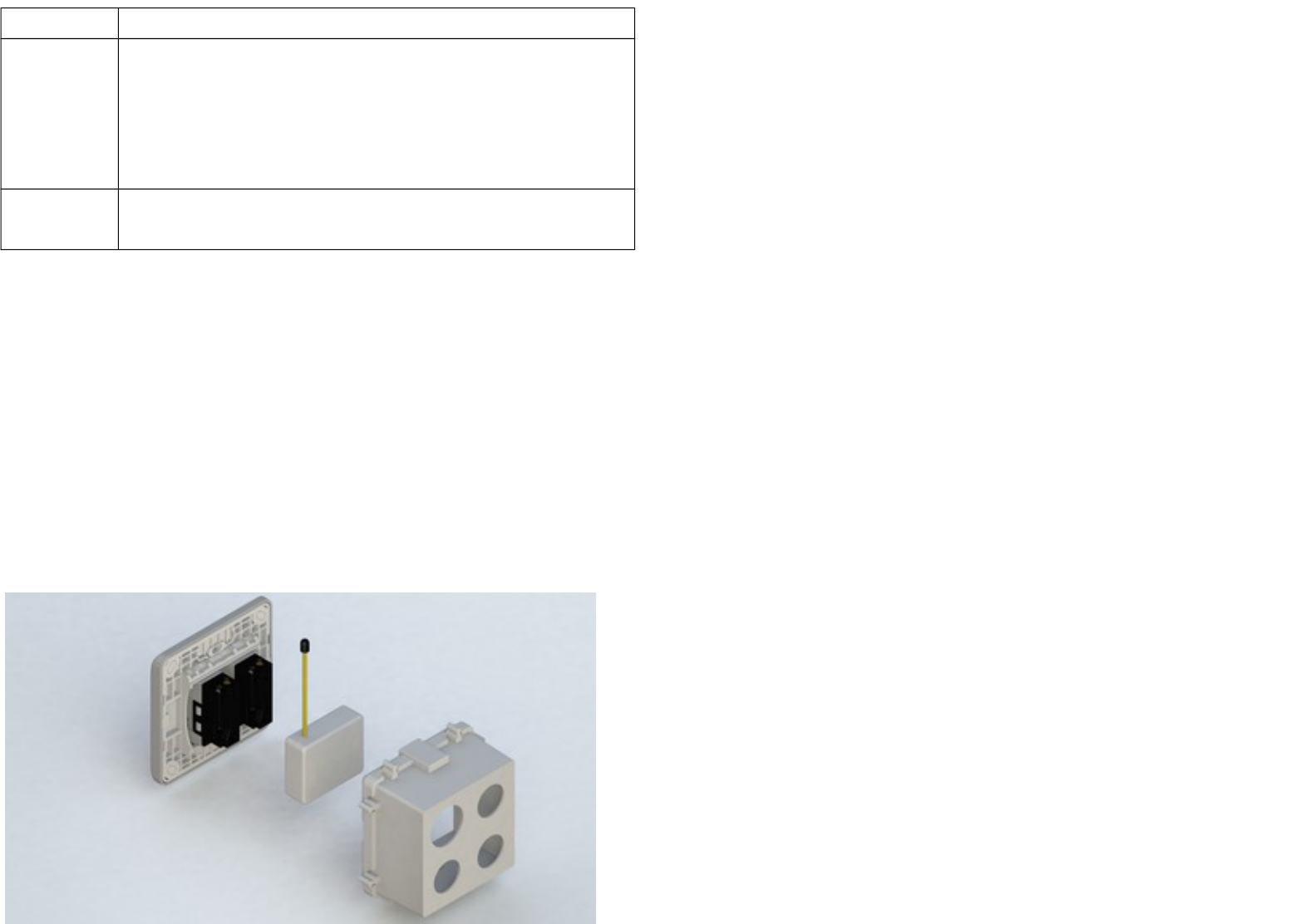

Fig 1. Assembling
This in-wall switch module is a transceiver which is a Z-WaveTM enabled device and
is fully compatible with any Z-WaveTM enabled network. Mini size design let the
module can easily hide itself into the wall box and that will be good for the house
decoration.
There are many kind of application by using the module to switch Load On and Off ,
one main application is the light control. If connect the com port directly to AC Line
terminal ,the new smart relay calibration technology can reduce the inrush current
caused by the load and let the module work perfectly with many kind of light like
incandescent, fluorescent and LED light. This module can also connect to alternative
power supply like DC 12V to switch on/off 12V MR-16 light as follow picture.
Adding to Z-WaveTM Network
In the front casing, there is an on/off button with LED indicator below which is used to
toggle switch on and off or carries out inclusion, exclusion, reset or association. After
being excluded, its LED flashes on and off alternately and repeatedly at 2-second in-
tervals. It implies that it has not been assigned a node ID and cannot work with Z-
Wave enabled devices.
Auto Inclusion
The function of auto inclusion will be executed as long as the in wall switch does not
have Node ID and just connect the switch to main power.
Note: Auto inclusion timeout is 2 minute during which the node information of
explorer frame will be emitted once every 5 seconds. Unlike “inclusion” function as
1
shown in the table below, the execution of auto inclusion is free from pressing the
On/Off button on the Switch.
The table below lists an operation summary of basic Z-Wave functions. Please refer
to the instructions for your Z-WaveTM Certificated Primary Controller to access the
Setup function, and to include/exclude/associate devices
Function Description LED Indication
No node ID The Z-Wave Controller does not allocate
a node ID to the Switch.
2-second on, 2-second off
Inclusion 1. Have Z-Wave Controller entered
inclusion mode.
One press one flash
2. Pressing Include button of PAN05
three times within 2 seconds will
enter inclusion mode.
Exclusion 1. Have Z-Wave Controller entered
exclusion mode.
One press one flash
2. Pressing Include button of PAN05
three times within 2 seconds will
enter exclusion mode.
Node ID has been excluded. 2-second on, 2-second off
Reset 1. Pressing Include button of PAN05
three times within 2 seconds will
enter inclusion mode.
2. Within 1 second, press Include
button of PAN05 again for 5
seconds until LED is off.
3. IDs are excluded.
Association 1. Have Z-Wave Controller entered
association mode.
Or Pressing Include button of PAN05
three times within 2 seconds will
enter association mode
One press one flash
2. There are only 1 group for the switch
※Including a node ID allocated by Z-Wave Controller means inclusion. Excluding a node
ID allocated by Z-Wave Controller means exclusion.
※Failed or success in including/excluding the node ID can be viewed from the Z-Wave
Controller.
Sometimes people are not easy to execute exclusion or inclusion especially when
PAN05 already installed in a wall box. To solve this issue, PAN05 support a special
feature that can use S1 or S2 to execute “exclusion, inclusion, Reset or Association”
at the first 3 minutes when first time connect to main power.
LED Indication
To distinguish what mode the switch is in, view from the LED for identification.
State Type LED Indication
Normal Whenever we switch On and off of the PAN05 by S1 S2 or On/Off
button or RF command , the LED will lights up 1 second and then
2
off.
No node ID Under normal operation, when the Switch has not been allocated a
node ID, the LED flashes on and off alternately at 2-second
intervals. By pressing S1 S2 or On/Off button, it will stop flashing
temporarily. However, after disconnect and reconnect the Switch,
the LED will flash on and off alternately at 2-second intervals.
Learning When PAB01 is in learning mode, LED flashes on and off
alternately and repeatedly at 0.5 second intervals.
Choosing a Suitable Location
1. Do not locate the Switch facing direct sunlight, humid or dusty place.
2. The suitable ambient temperature for the Switch is 0°C~40°C.
3. Do not locate the Switch where exists combustible substances or any source of
heat, e.g. fires, radiators, boiler etc.
4. After putting it into use, the body of Switch will become a little bit hot of which
phenomenon is normal.
Installation

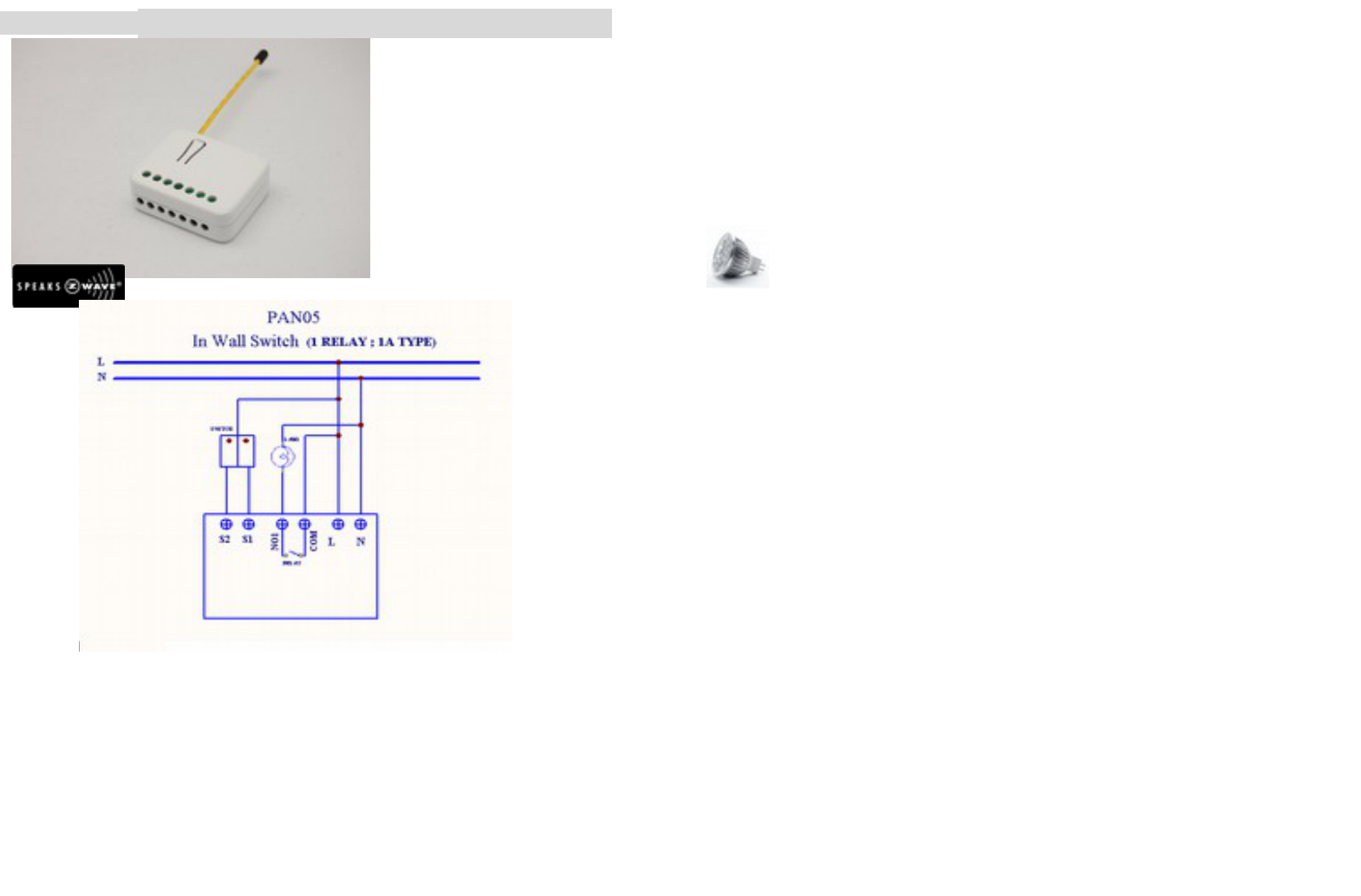

1. Put the in wall switch into a wall box and connect the AC power wire L,N to
PAN05 connector L, N.
2. Connect the wall switch to the PAN05 as Fig1 .
3. There are 3 mode PAN05 can be configured to match different kind of wall
switch, please refer to 3-1 Edge / Pulse / Edge-Toggle mode which described
in next section of this user manual.
4. If Edge-Toggle mode has been set, and the S1 S2 is connect to normal bi-stable
switch, every time when change the state of the wall switch will also swap the
state of Relay1.
Programming
1. Basic Command Class / Binary Switch Command Class
The Switch will respond to BASIC and BINARY commands that are part of the Z-
3
Wave system.
1-1 BASIC_GET / BINARY_SWITCH_GET
Basic Get Command: [Command Class Basic, Basic Get]
Basic Report Command:
Report OFF: [Command Class Basic, Basic Report, Value = 0(0x00)]
Report ON:[Command Class Basic, Basic Report, Value = (255)0xFF]
Binary Switch Get Command:[Command Class Switch Binary, Switch
Binary Get]
Binary Switch Report Command:
Report OFF:[Command Class Switch Binary, Switch Binary Report, Value
=0(0x00)]
Report ON:[Command Class Switch Binary, Switch Binary Report, Value =
(255)0xFF]
1-2 BASIC_SET / SWITCH_BINARY_SET
[Command Class Basic, Basic Set, Value = (255)0xFF]: the load attached to
the Switch turns on.
[Command Class Basic, Basic Set, Value = 0(0x00)]: the load attached to
the Switch turns off.
[Command Class Switch Binary, Switch Binary Set, Value = (255)0xFF]:
the load attached to the Switch turns on.
[Command Class Switch Binary, Switch Binary Set, Value = 0(0x00)]: the
load attached to the Switch turns off.
2. Z-Wave’s Groups (Association Command Class Version 1)
The Switch can be set to send reports to control associated Z-Wave devices. It
supports only one association group and the group has one node support. Group1
support SWITCH_BINARY_REPORT, BASIC_REPORT.
For group 1, the Switch will report ON/OFF status of Relay1
2-1 Auto report to Grouping 1 (Maximum Node 1)
2-1-1 On/Off Event Report
When “on” or “off ” state has been changed (ex. Press S1 S2 or include on/off
button), it will send Binary Switch Report to the nodes of Group1.
Binary Switch Report
ON:[Command Class Switch Binary, Switch Binary Report, Value
=(255)0xFF]
OFF:[Command Class Switch Binary, Switch Binary Report, Value
=0(0x00)]
2-1-2 Overload alarm report command
When PAN05 detect the overload, it will send Alarm Report to the correspond
Group.
4
The content of Alarm Report
Alarm report command:[Command Class Alarm, Alarm Report, Alarm Type
= 0x08, Alarm Level = 0xFF]
3. Z-Wave’s Configuration
Configuration
Parameter
Function Size
(Byte)
Value Unit Default Description
1 Edge or
Pulse
mode or
Edge-Tog
gle mode
1 1-3 1 1：Edge mode
2：Pulse mode
3：Edge-Toggle
mode
5 Restore
switch
state
mode
1 0-2 1 0 : Switch Off
1 : Last Switch
State
2 : Switch On
6 Manual
On/Off
mode
1 0-1 1 0：Disable
manual On/Off
1：Enable
manual On/Off
7 LED
indication
mode
1 1-2 1 1：Show switch
state
2：Show night
mode
8 Auto off
timer
1 0-
0x7FFF
Second 00：Disable auto
off function
1-0x7FFF：1 ~
32767seconds
9 RF Off
command
mode
1 0-3 0 0：Switch off
1：Ignore
2：Switch toggle
3：Switch on
3-1 Edge / Pulse / Edge-Toggle mode
Manual switch S1 and S2 can set to Edge mode or Pulse mode or Edge-Toggle
mode , default value is Edge mode.
Edge mode: this mode is suitable for the bi stable wall switch that has indicator point
on the switch, and the same position correspond to same state of relay1. if the
PAN05 relay change the state because of receiving Z-Wave RF command, it may
need two times of change (switch on to off or switch off to on) to let relay back to the
correspond state. Manual switch S2 is disabled in this mode.
Pulse mode: this mode is suitable for the toggle type wall switch to swap the state of
Relay1.
Edge-Toggle mode: this mode is suitable for the normal bi-stable switch, every time
when change the state of the wall switch will also swap the state of Relay1.
3-2 Restore Switch State Mode
Whenever the AC power reconnected to PAN05, it will set the switch to Off、On or
Last switch state, default value is Last switch state.
3-3 Manual On/Off Mode
The On/Off function of S1、S2 and learn switch can be disabled or enabled by this
parameter, default value is Enable.
5
3-4 LED indication Mode
Show switch state：LED on for switch on and off for switch off.
Show switch state：LED off for switch on and on for switch off.
The default value is Show switch state.
3-5 Auto Off timer
When auto off timer is equal to 0, the auto off function will be disabled. Whenever the
switch is set to on, the auto off timer begin to count down. After the timer counts to
zero, PAN05 will switch off automatically. The default value is disable auto off
function.
3-6 RF Off command mode
Whenever a RF Off command is received, it could be interpreted as Switch
Off、
Switch On、
Switch Toggle, or it would be ignored. The default value is Switch Off.
4. Command Classes
The Switch supports Command Classes including…
* COMMAND_CLASS_ZWAVEPLUS_INFO
* COMMAND_CLASS_VERSION
* COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
* COMMAND_CLASS_DEVICE_RESET_LOCALLY
* COMMAND_CLASS_ASSOCIATION_V2
* COMMAND_CLASS_ASSOCIATION_GRP_INFO
* COMMAND_CLASS_POWERLEVEL
* COMMAND_CLASS_SWITCH_BINARY
* COMMAND_CLASS_BASIC
* COMMAND_CLASS_SWITCH_ALL
* COMMAND_CLASS_CONFIGURATION
* COMMAND_CLASS_ALARM
* COMMAND_CLASS_SCENE_ACTIVATION
* COMMAND_CLASS_SCENE_ACTUATOR_CONF
* COMMAND_CLASS_PROTECTION
* COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
Troubleshooting
Symptom Cause of Failure Recommendation
The Switch not working and
LED off
1. The Switch is not
connect to the Main
power
2. The Switch break
down
1. Check power connections
2. Don’t open up the Switch and send it
for repair.
The Switch LED
illuminating, but cannot
control the ON/OFF
Switch of the load attached
Check if the load connect
into the Switch has its
own ON/OFF switch
Set the ON/OFF switch of the load
attached to ON
The Switch LED
illuminating, but the
Detector cannot control
1. Not carry out
association
2. Same frequency
1. Carry out association
2. Wait for a while to re-try
6
the Switch interference
LED keep flashing
continuously, but cannot
control
Overload occurs Remove the load attached or check
max. load cannot exceed
11A(230Vac/120Vac)
Specification
Operating Voltage 100 ~240VAC
Maximum Load 11A(230Vac/120Vac)
Range Minimum 30 m in door 100m outdoor line of sight
Operating Temperature 0°C ~ 40°C
Frequency Range PAN05-1: 868.40MHz; 869.85MHz(EU) /
PAN05-2 908.40MHz; 916.00MHz(USA/Canada) /
PAN05-3 922.5MHz/ 923.9MHz/ 926.3MHz (Taiwan/JP)
** Specifications are subject to change and improvement without notice.
FCC ID : RHHPAN05
Warning:
1.Plug out to disconnect from power supply; Do not plug in line.
2. Do not exceed the max rating
Disposal
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Company of License Holder：Philio Technology Corporation
Address of License Holder：8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New
Taipei City 24257,Taiwan(R.O.C)
FCC Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
7
encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
8
