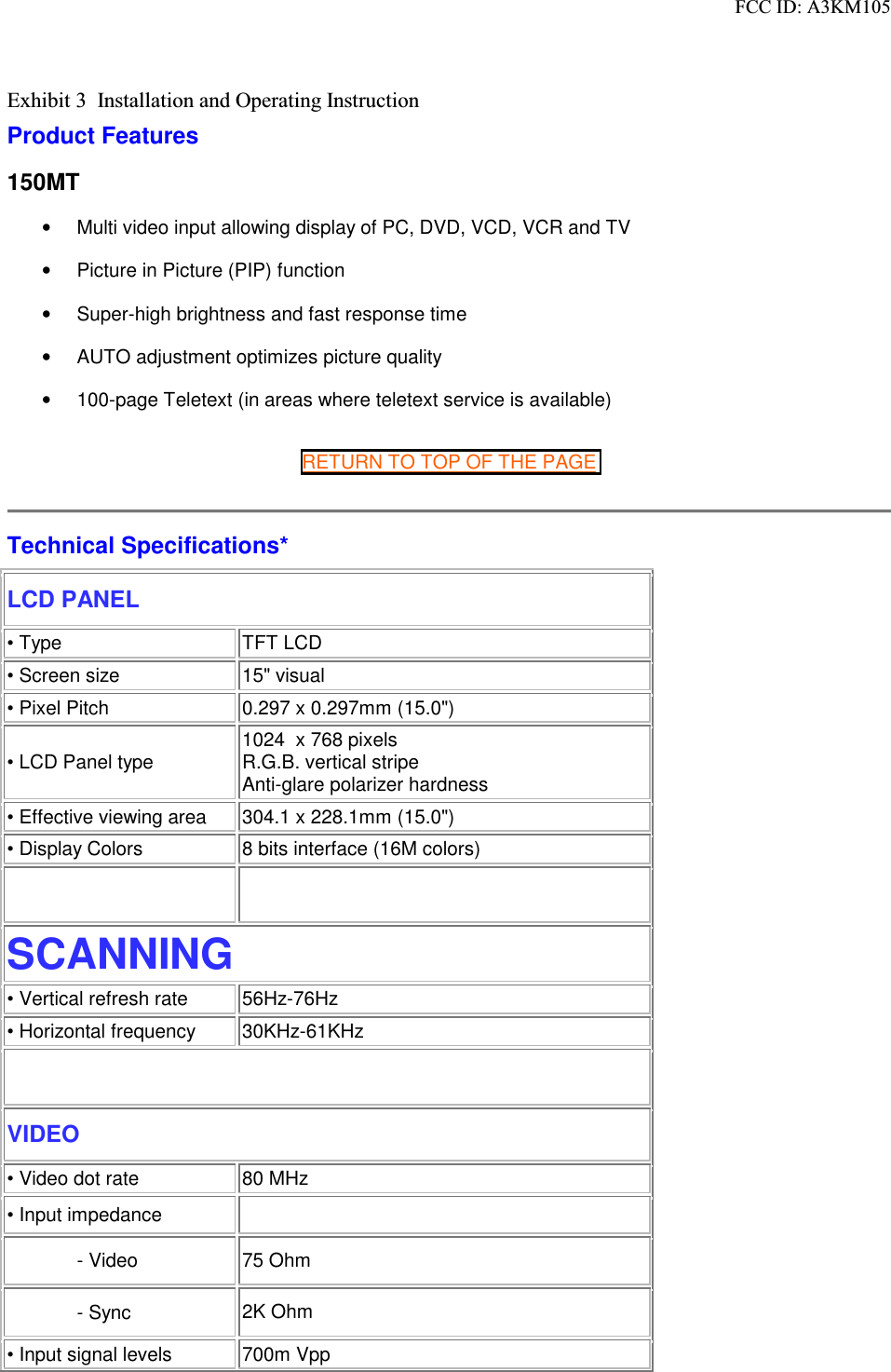

&.'"-Product Features150MT• Multi video input allowing display of PC, DVD, VCD, VCR and TV• Picture in Picture (PIP) function• Super-high brightness and fast response time• AUTO adjustment optimizes picture quality• 100-page Teletext (in areas where teletext service is available)RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • TypeTFT LCD• Screen size15" visual• Pixel Pitch0.297 x 0.297mm (15.0")• LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer hardness• Effective viewing area304.1 x 228.1mm (15.0")• Display Colors8 bits interface (16M colors)SCANNING• Vertical refresh rate56Hz-76Hz• Horizontal frequency 30KHz-61KHzVIDEO• Video dot rate80 MHz• Input impedance- Video75 Ohm- Sync2K Ohm• Input signal levels700m Vpp
• Sync input signalSeparate syncComposite sync• Sync polaritiesPositive and negative• Input FrequencyXGA Hsync 48- 61 KHz, Vsync 60 - 76 Hz (N.I.) SVGA Hsync 35- 50 KHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 KHz, Vsync 60 - 76 Hz (N.I.)• Video interfaceD-sub, S-Video, TV-RF, SCART or composite and components videoAUDIO• Input level for PC/SVHS/SCART500 mV nominal• Headphone out signal level4mW max. • Loudspeaker 2x2.5WOPTICAL CHARACTERISTICS • Contrast ratio 500 (typ.)• Brightness 300 cd/m2 (typ.) • Peak contrast angle6 o'clock• White Chromacityx: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K)• Viewing Angle (C/R >5) Upper >60° (typ.)Lower >70° (typ.)Left >75 ° (typ.) Right >75 ° (typ.)• Response time <=25ms (typ.) * These information are subject to change without notice.RETURN TO TOP OF THE PAGEResolution & Preset Modes• Maximum1024 x 768 at 75Hz• Recommended 1024 x 768 at 60Hz14 user definable modes14 factory preset modes:

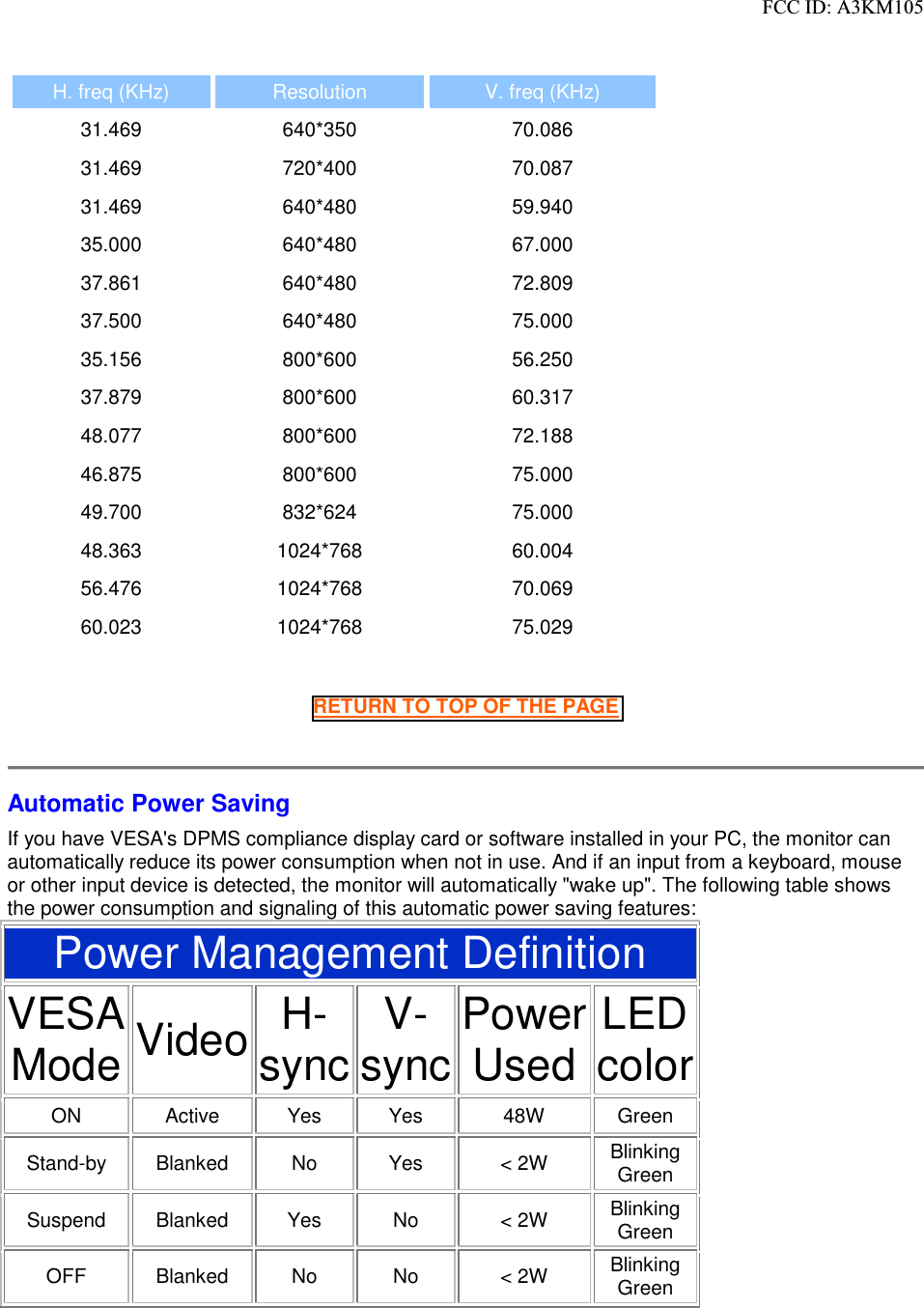

H. freq (KHz)ResolutionV. freq (KHz)31.469640*35070.08631.469720*40070.08731.469640*48059.94035.000640*48067.00037.861640*48072.80937.500640*48075.00035.156800*60056.25037.879800*60060.31748.077800*60072.18846.875800*60075.00049.700832*62475.00048.3631024*76860.00456.4761024*76870.06960.0231024*76875.029RETURN TO TOP OF THE PAGEAutomatic Power SavingIf you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features: Power Management DefinitionVESA ModeVideoH-syncV-syncPower UsedLED colorONActiveYesYes48WGreenStand-byBlankedNoYes< 2WBlinking GreenSuspendBlankedYesNo< 2WBlinking GreenOFFBlankedNoNo< 2WBlinking Green

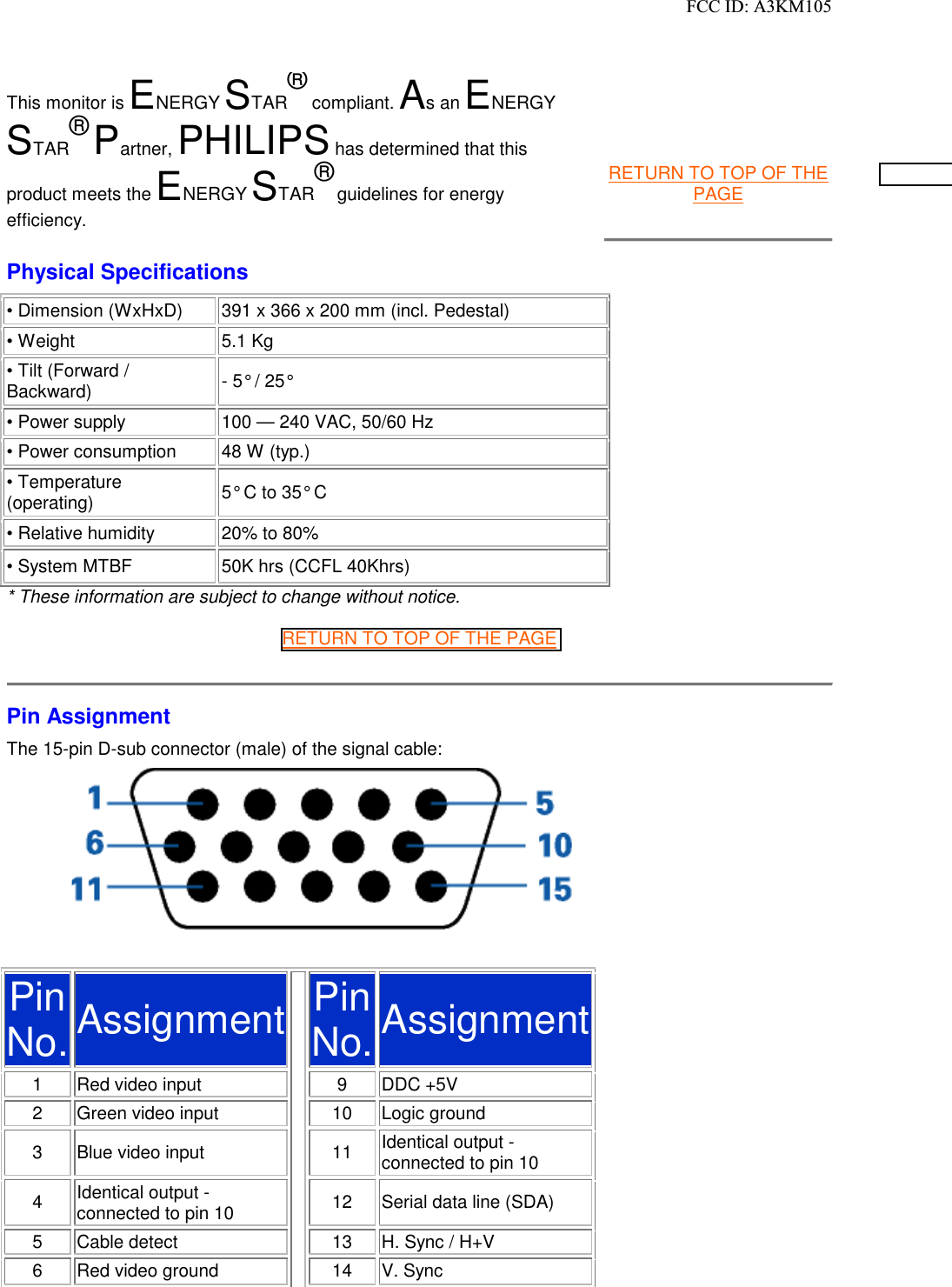

RETURN TO TOP OF THE PAGEPhysical Specifications• Dimension (WxHxD) 391 x 366 x 200 mm (incl. Pedestal) • Weight 5.1 Kg • Tilt (Forward / Backward)- 5° / 25°• Power supply100 — 240 VAC, 50/60 Hz• Power consumption 48 W (typ.)• Temperature (operating)5° C to 35° C • Relative humidity 20% to 80%• System MTBF50K hrs (CCFL 40Khrs)* These information are subject to change without notice. RETURN TO TOP OF THE PAGEPin AssignmentThe 15-pin D-sub connector (male) of the signal cable: Pin No.AssignmentPin No.Assignment1Red video input 9DDC +5V 2Green video input10Logic ground3Blue video input11Identical output - connected to pin 104Identical output - connected to pin 1012Serial data line (SDA)5Cable detect 13H. Sync / H+V6Red video ground14V. SyncThis monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

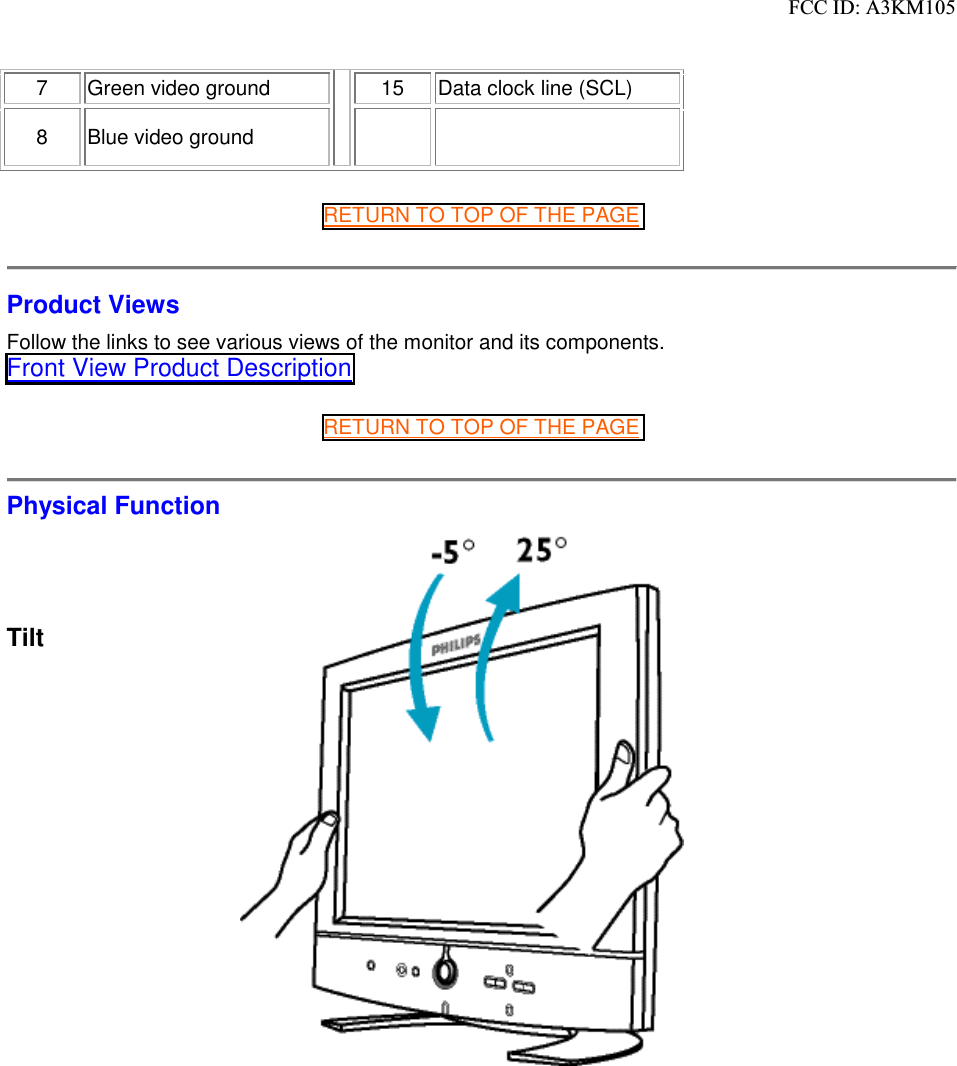

7Green video ground15Data clock line (SCL)8Blue video groundRETURN TO TOP OF THE PAGEProduct ViewsFollow the links to see various views of the monitor and its components.Front View Product DescriptionRETURN TO TOP OF THE PAGEPhysical FunctionTilt

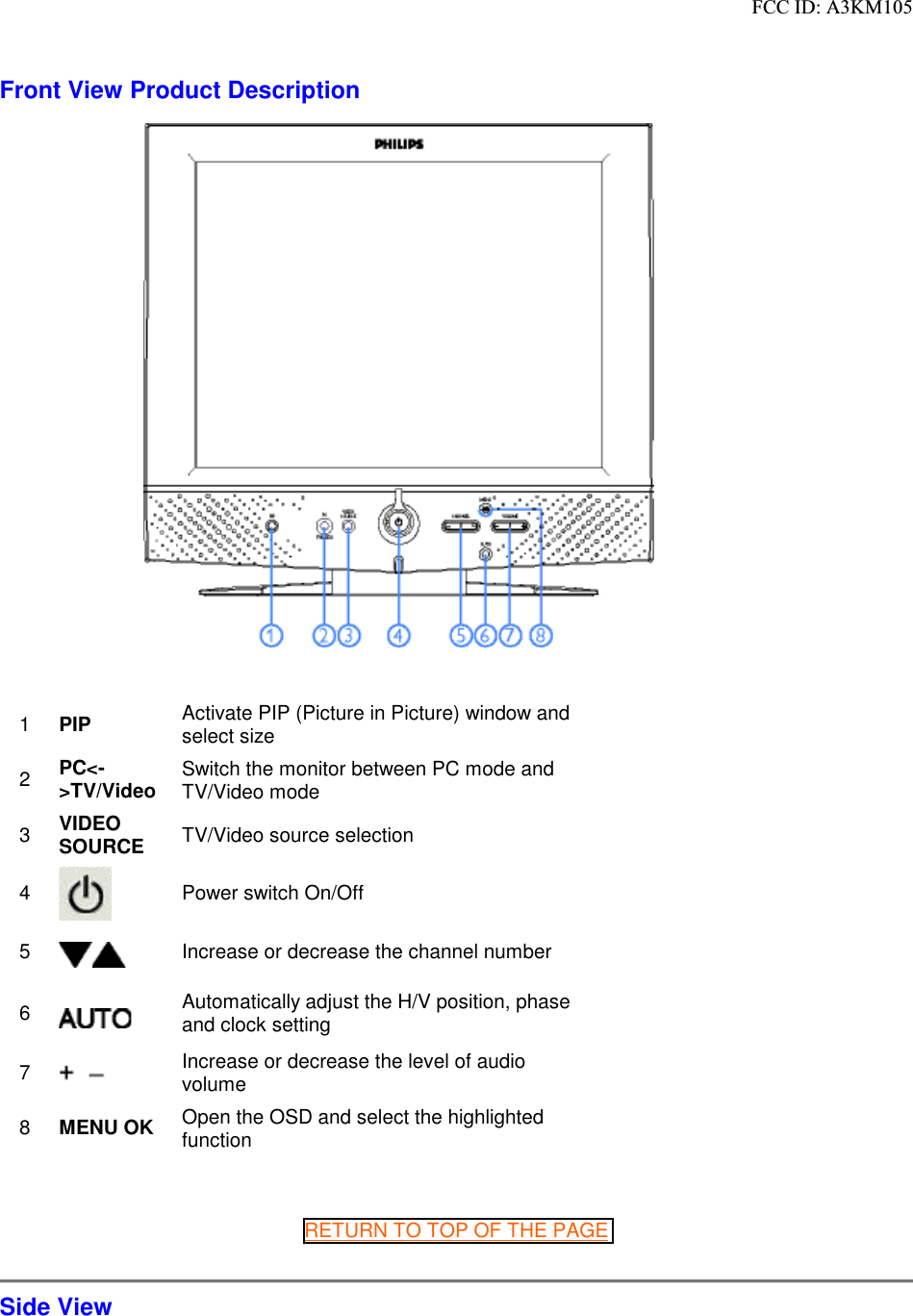

Front View Product Description1PIPActivate PIP (Picture in Picture) window and select size2PC<->TV/VideoSwitch the monitor between PC mode and TV/Video mode3VIDEO SOURCE TV/Video source selection4Power switch On/Off5Increase or decrease the channel number6Automatically adjust the H/V position, phase and clock setting7Increase or decrease the level of audio volume 8MENU OKOpen the OSD and select the highlighted functionRETURN TO TOP OF THE PAGESide View

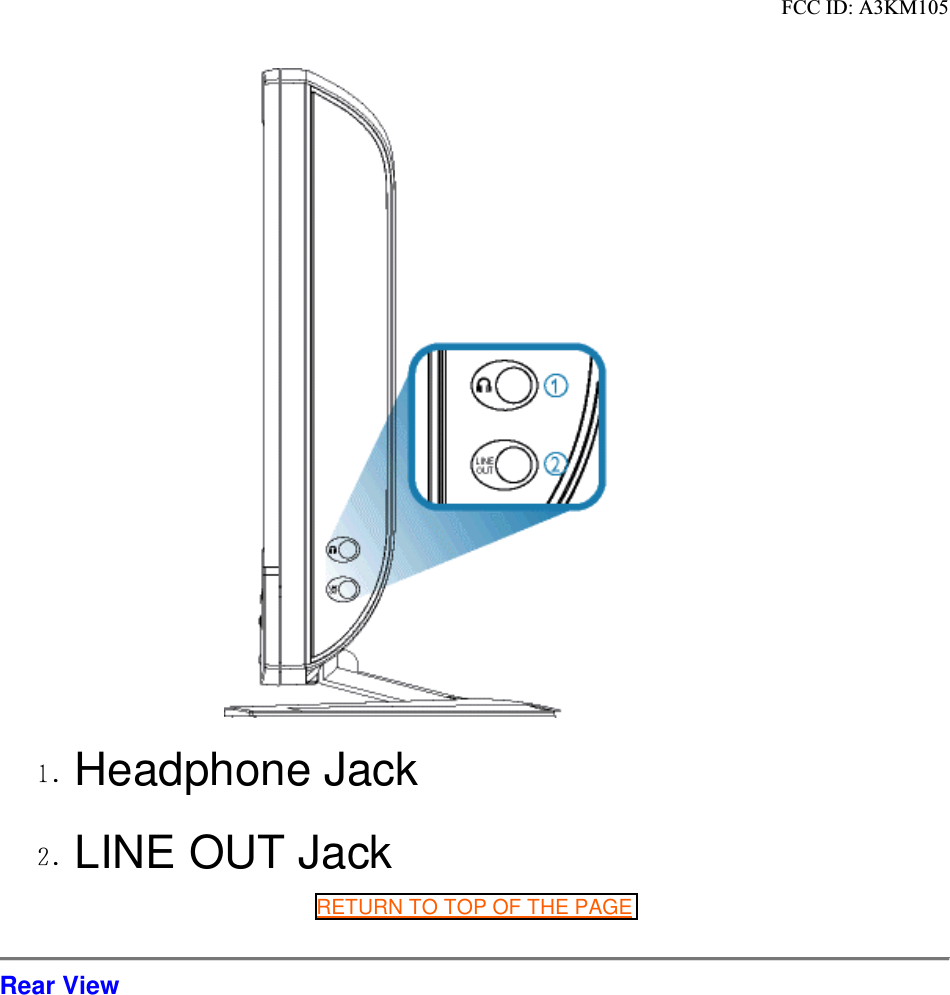

Headphone JackLINE OUT JackRETURN TO TOP OF THE PAGERear View

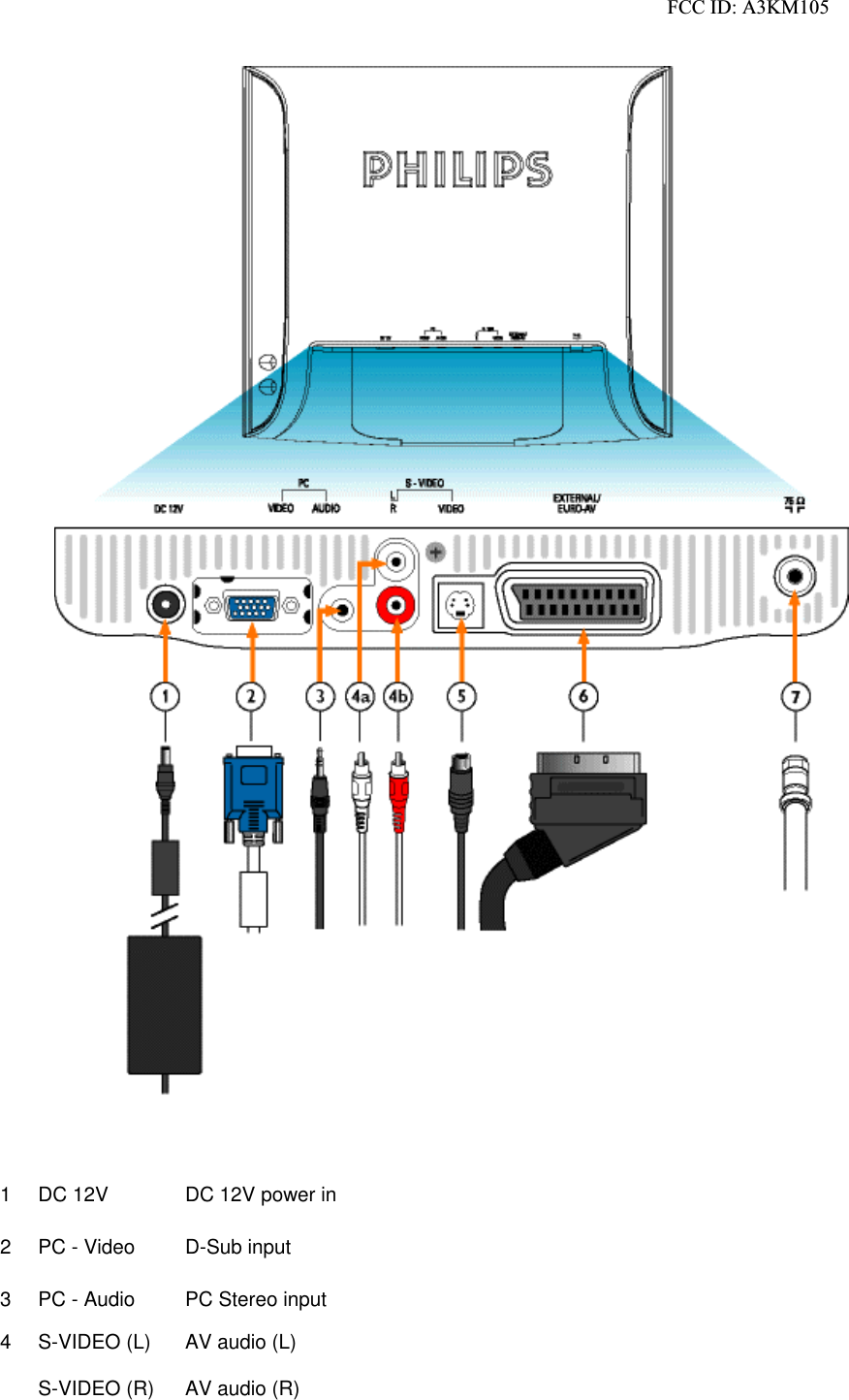

1DC 12VDC 12V power in 2PC - VideoD-Sub input3PC - AudioPC Stereo input 4S-VIDEO (L)AV audio (L)S-VIDEO (R)AV audio (R)

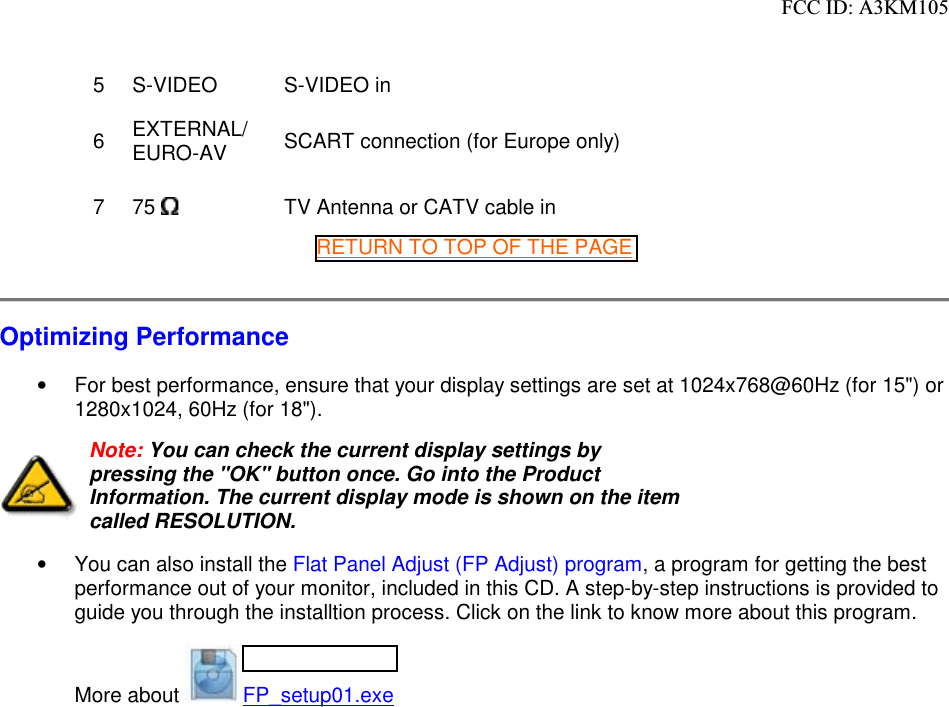

5S-VIDEO S-VIDEO in 6EXTERNAL/ EURO-AV SCART connection (for Europe only)775 TV Antenna or CATV cable inRETURN TO TOP OF THE PAGEOptimizing Performance• For best performance, ensure that your display settings are set at 1024x768@60Hz (for 15") or 1280x1024, 60Hz (for 18").Note: You can check the current display settings by pressing the "OK" button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.• You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor, included in this CD. A step-by-step instructions is provided to guide you through the installtion process. Click on the link to know more about this program.More about FP_setup01.exe

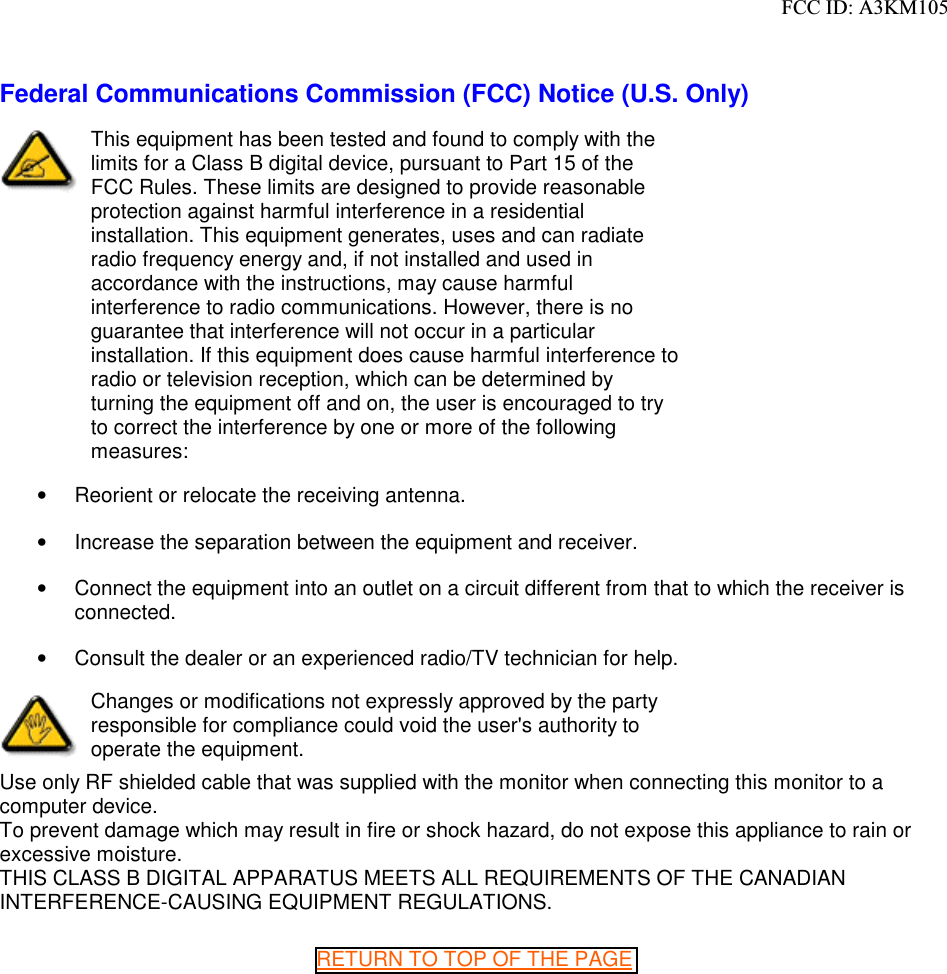

Federal Communications Commission (FCC) Notice (U.S. Only)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE
