Philips Electronics M105 15" Color LCD TV/Monitor User Manual Exhibit 6
Philips Electronics Industries (Taiwan) Ltd 15" Color LCD TV/Monitor Exhibit 6
User Manual
&.'"-
Product Features
150MT
• Multi video input allowing display of PC, DVD, VCD, VCR and TV
• Picture in Picture (PIP) function
• Super-high brightness and fast response time
• AUTO adjustment optimizes picture quality
• 100-page Teletext (in areas where teletext service is available)
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• TypeTFT LCD
• Screen size15" visual
• Pixel Pitch0.297 x 0.297mm (15.0")
• LCD Panel type 1024 x 768 pixels
R.G.B. vertical stripe
Anti-glare polarizer hardness
• Effective viewing area304.1 x 228.1mm (15.0")
• Display Colors8 bits interface (16M colors)
SCANNING
• Vertical refresh rate56Hz-76Hz
• Horizontal frequency 30KHz-61KHz
VIDEO
• Video dot rate80 MHz
• Input impedance
- Video75 Ohm
- Sync2K Ohm
• Input signal levels700m Vpp
• Sync input signalSeparate sync
Composite sync
• Sync polaritiesPositive and negative
• Input Frequency
XGA Hsync 48- 61 KHz, Vsync
60 - 76 Hz (N.I.)
SVGA Hsync 35- 50 KHz, Vsync
56 - 75 Hz (N.I.)
VGA Hsync 31- 38 KHz, Vsync 60
- 76 Hz (N.I.)
• Video interfaceD-sub, S-Video, TV-RF, SCART or composite
and components video
AUDIO
• Input level for
PC/SVHS/SCART500 mV nominal
• Headphone out signal
level4mW max.
• Loudspeaker 2x2.5W
OPTICAL CHARACTERISTICS
• Contrast ratio 500 (typ.)
• Brightness 300 cd/m2 (typ.)
• Peak contrast angle6 o'clock
• White Chromacityx: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338
(at 6500° K)
• Viewing Angle (C/R >5)
Upper >60° (typ.)
Lower >70° (typ.)
Left >75 ° (typ.)
Right >75 ° (typ.)
• Response time <=25ms (typ.)
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
• Maximum1024 x 768 at 75Hz
• Recommended 1024 x 768 at 60Hz
14 user definable modes
14 factory preset modes:
H. freq (KHz)ResolutionV. freq (KHz)
31.469640*35070.086
31.469720*40070.087
31.469640*48059.940
35.000640*48067.000
37.861640*48072.809
37.500640*48075.000
35.156800*60056.250
37.879800*60060.317
48.077800*60072.188
46.875800*60075.000
49.700832*62475.000
48.3631024*76860.004
56.4761024*76870.069
60.0231024*76875.029
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse
or other input device is detected, the monitor will automatically "wake up". The following table shows
the power consumption and signaling of this automatic power saving features:
Power Management Definition
VESA
ModeVideoH-
sync
V-
sync
Power
Used
LED
color
ONActiveYesYes48WGreen
Stand-byBlankedNoYes< 2WBlinking
Green
SuspendBlankedYesNo< 2WBlinking
Green
OFFBlankedNoNo< 2WBlinking
Green
RETURN TO TOP OF THE
PAGE
Physical Specifications
• Dimension (WxHxD) 391 x 366 x 200 mm (incl. Pedestal)
• Weight 5.1 Kg
• Tilt (Forward /
Backward)- 5° / 25°
• Power supply100 — 240 VAC, 50/60 Hz
• Power consumption 48 W (typ.)
• Temperature
(operating)5° C to 35° C
• Relative humidity 20% to 80%
• System MTBF50K hrs (CCFL 40Khrs)
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE

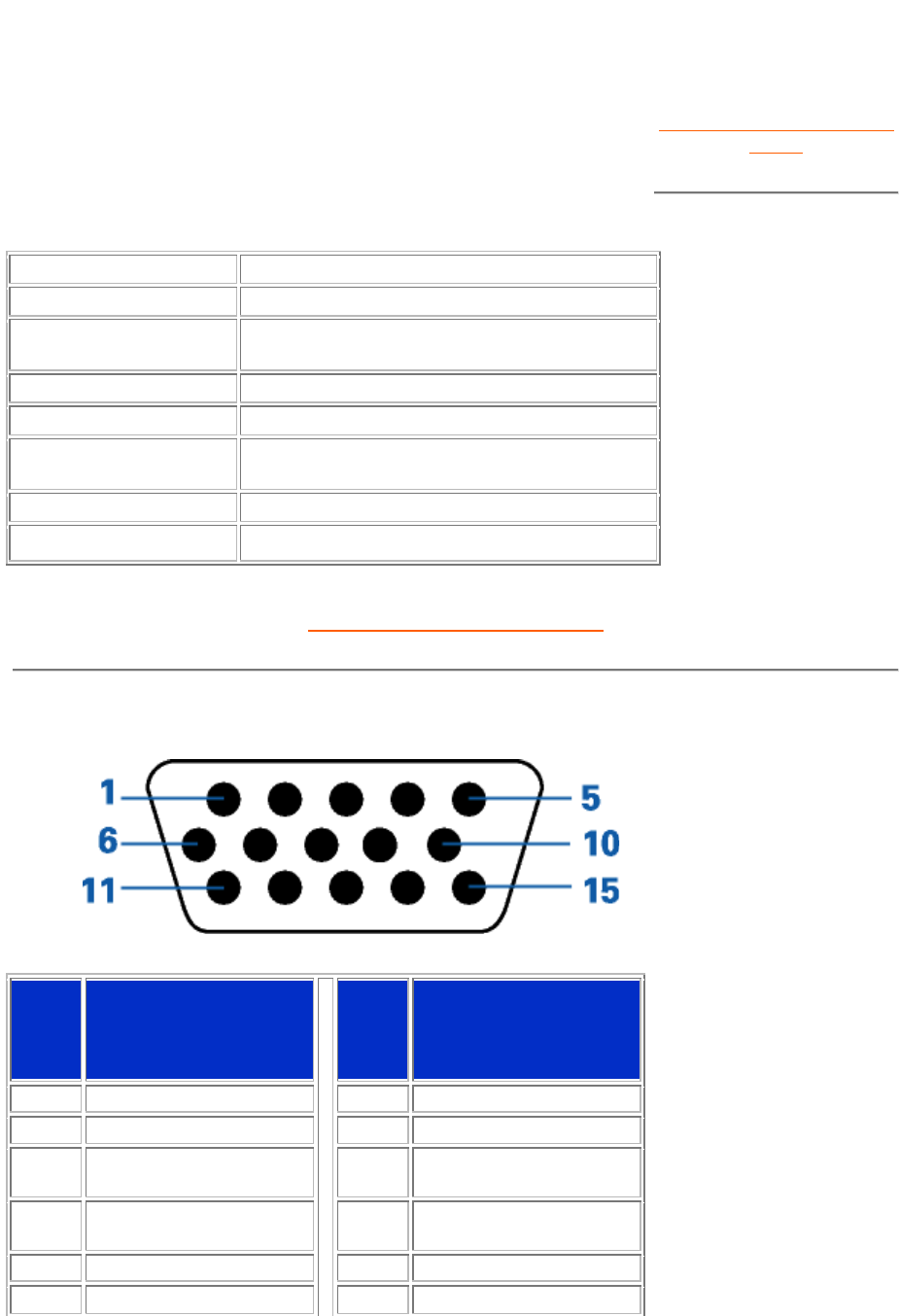

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable:
Pin
No.AssignmentPin
No.Assignment
1Red video input 9DDC +5V
2Green video input10Logic ground
3Blue video input11Identical output -
connected to pin 10
4Identical output -
connected to pin 1012Serial data line (SDA)
5Cable detect 13H. Sync / H+V
6Red video ground14V. Sync
This monitor is ENERGY STAR® compliant. As an ENERGY
STAR® Partner, PHILIPS has determined that this
product meets the ENERGY STAR® guidelines for energy
efficiency.
7Green video ground15Data clock line (SCL)
8Blue video ground
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function

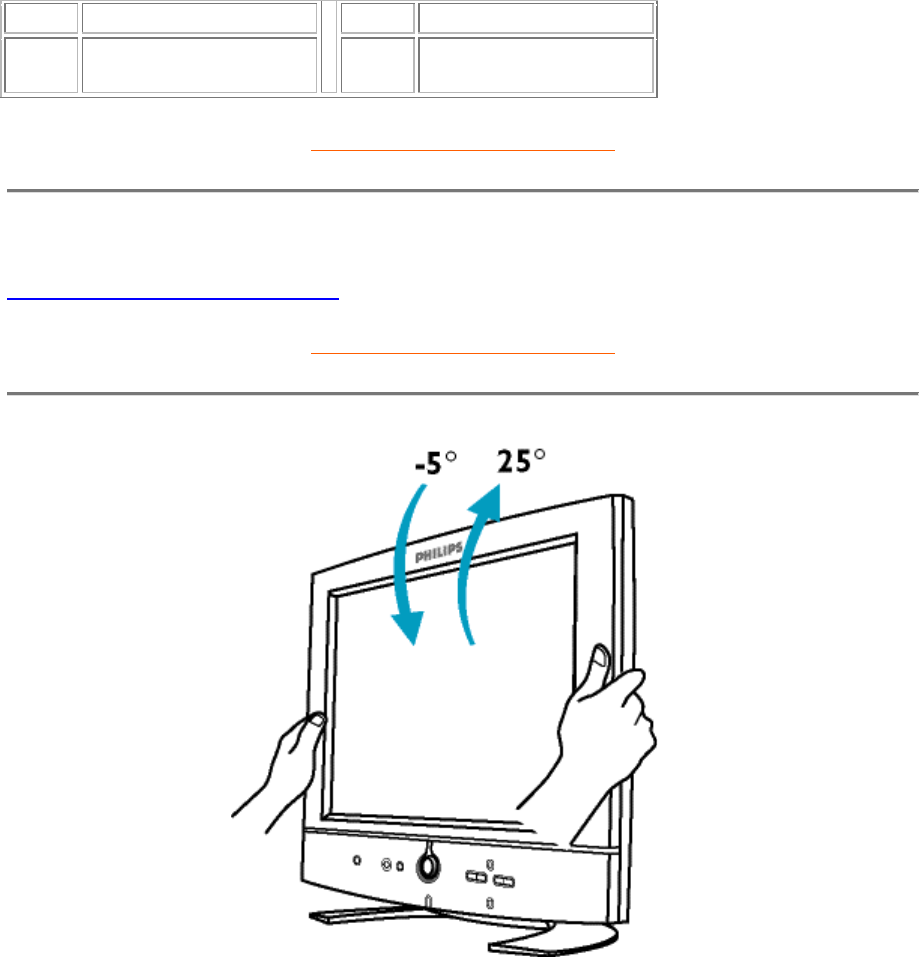

Tilt

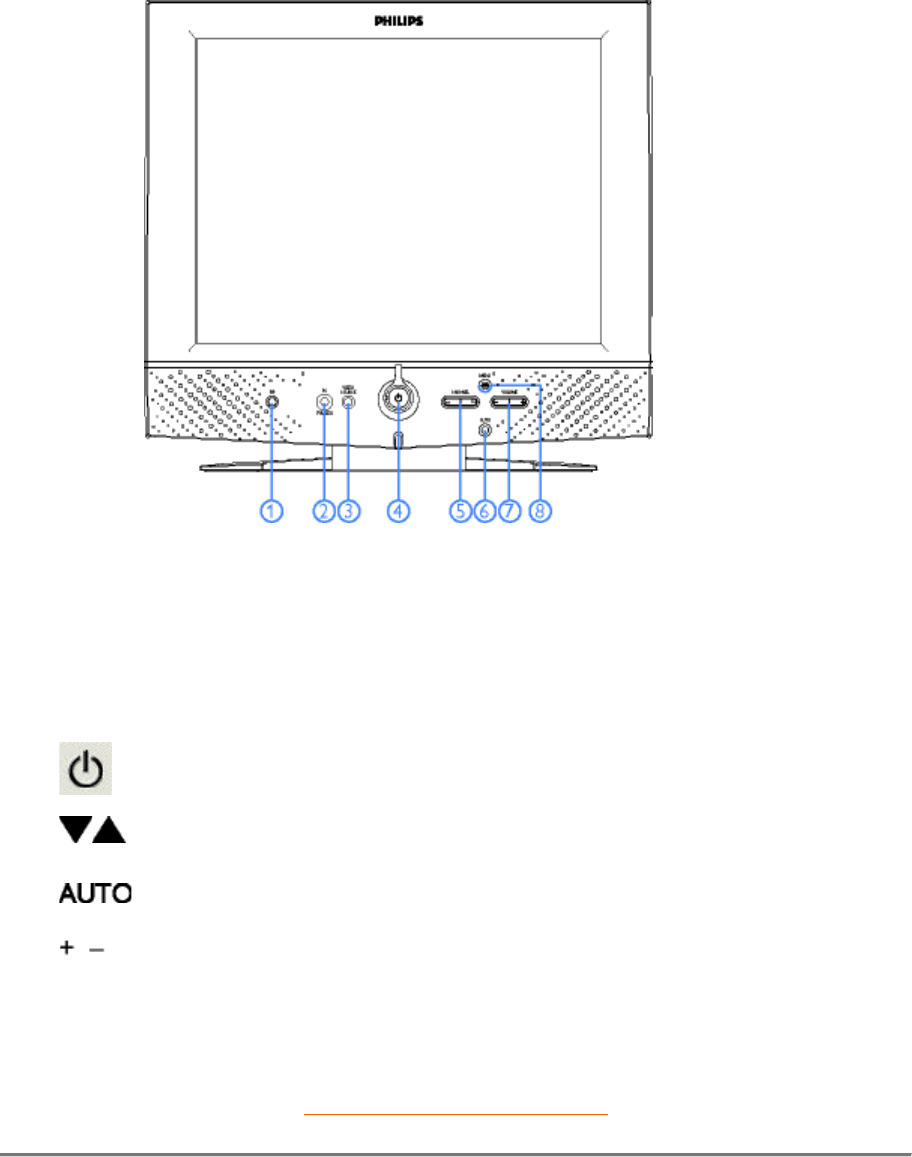

Front View Product Description
1PIPActivate PIP (Picture in Picture) window and
select size
2PC<-
>TV/VideoSwitch the monitor between PC mode and
TV/Video mode
3VIDEO
SOURCE TV/Video source selection
4
Power switch On/Off
5Increase or decrease the channel number
6Automatically adjust the H/V position, phase
and clock setting
7Increase or decrease the level of audio
volume
8MENU OKOpen the OSD and select the highlighted
function
RETURN TO TOP OF THE PAGE

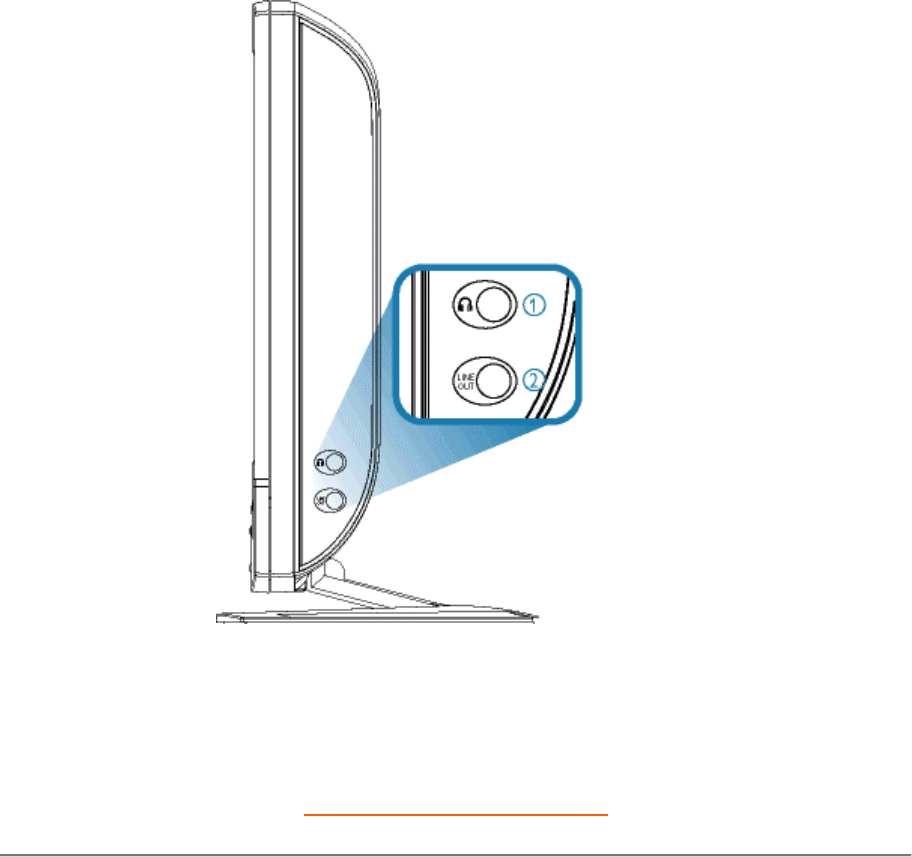

Side View
Headphone Jack
LINE OUT Jack
RETURN TO TOP OF THE PAGE

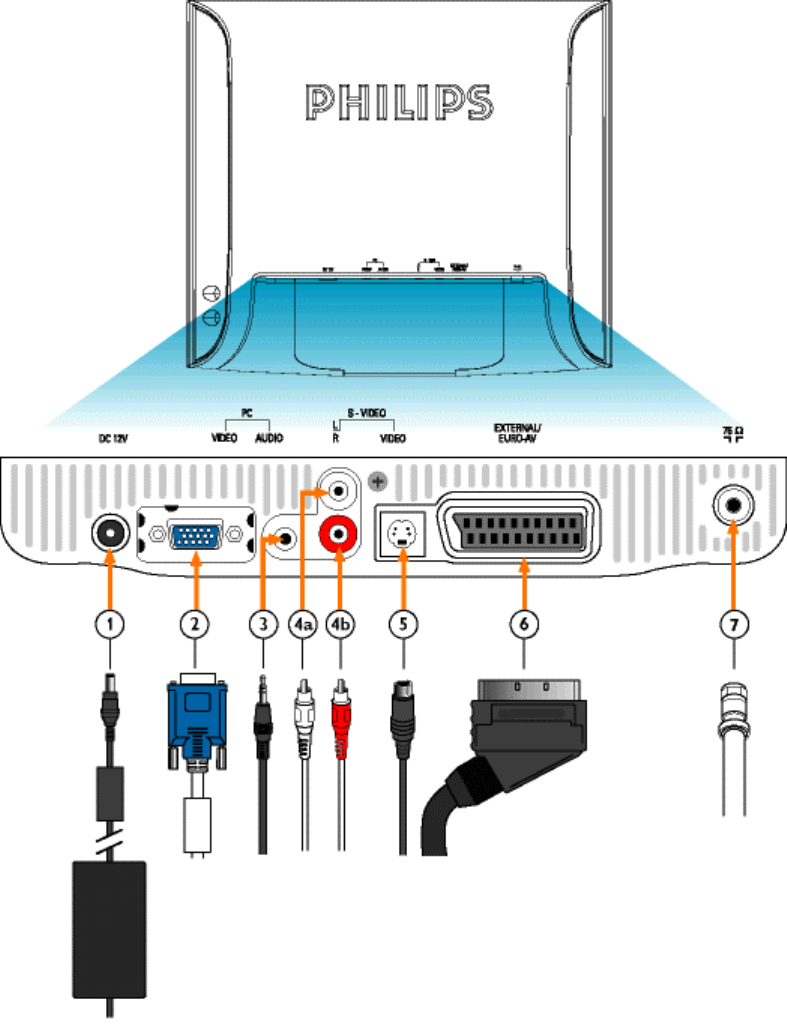

Rear View
1DC 12VDC 12V power in
2PC - VideoD-Sub input
3PC - AudioPC Stereo input
4S-VIDEO (L)AV audio (L)
S-VIDEO (R)AV audio (R)
5S-VIDEO S-VIDEO in
6EXTERNAL/
EURO-AV SCART connection (for Europe only)
775 TV Antenna or CATV cable in
RETURN TO TOP OF THE PAGE
Optimizing Performance
• For best performance, ensure that your display settings are set at 1024x768@60Hz (for 15") or
1280x1024, 60Hz (for 18").
Note: You can check the current display settings by
pressing the "OK" button once. Go into the Product
Information. The current display mode is shown on the item
called RESOLUTION.
• You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best
performance out of your monitor, included in this CD. A step-by-step instructions is provided to
guide you through the installtion process. Click on the link to know more about this program.
More about FP_setup01.exe
Federal Communications Commission (FCC) Notice (U.S. Only)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or
excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
