Philips Electronics M108 15" LCD Color Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd 15" LCD Color Monitor

User Manual

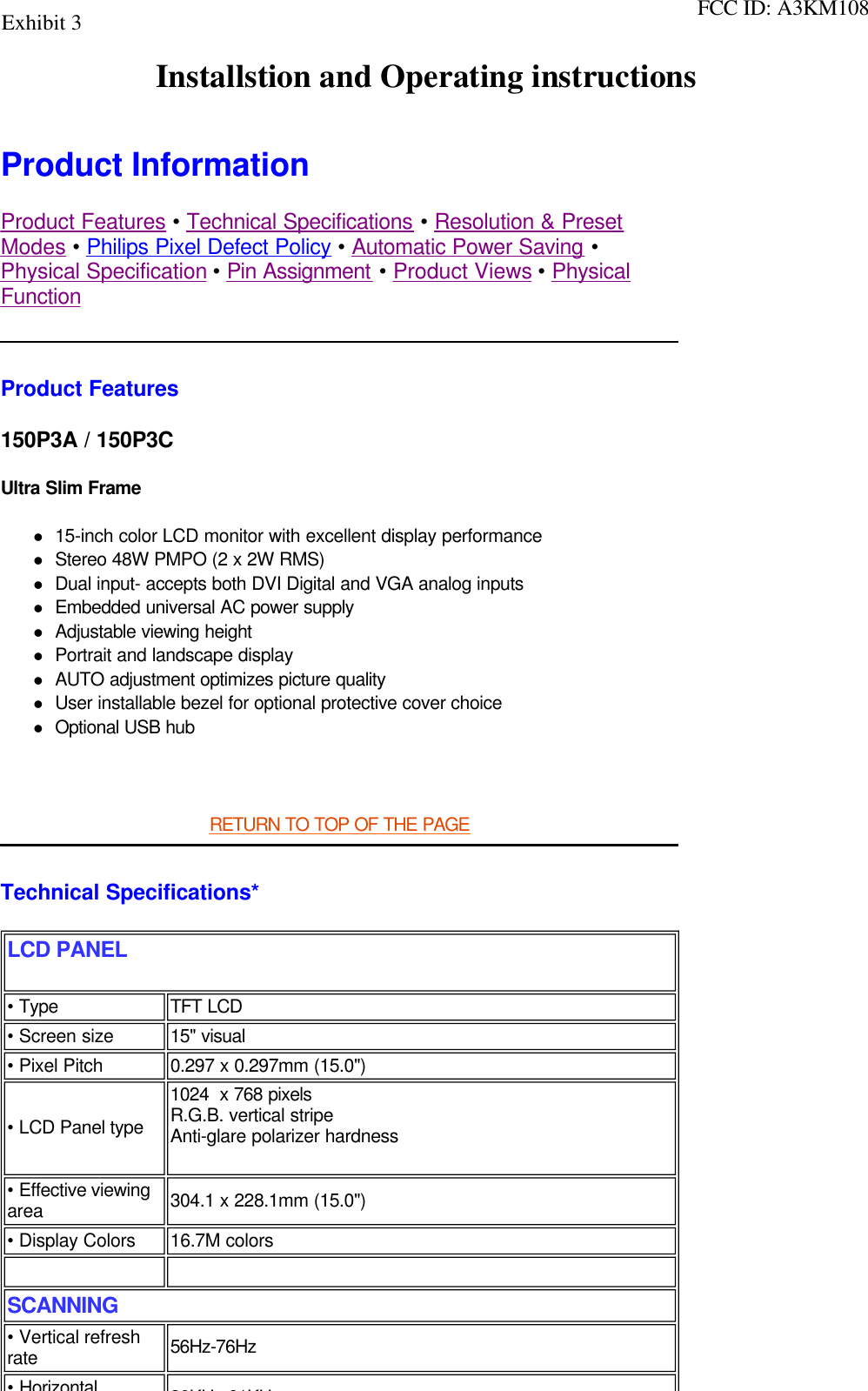

FCC ID: A3KM108 Product Information Product Features • Technical Specifications • Resolution & PresetModes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • PhysicalFunctionProduct Features150P3A / 150P3C Ultra Slim Framel15-inch color LCD monitor with excellent display performancelStereo 48W PMPO (2 x 2W RMS) lDual input- accepts both DVI Digital and VGA analog inputs lEmbedded universal AC power supplylAdjustable viewing height lPortrait and landscape display lAUTO adjustment optimizes picture qualitylUser installable bezel for optional protective cover choice lOptional USB hub RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 15" visual• Pixel Pitch 0.297 x 0.297mm (15.0")• LCD Panel type 1024 x 768 pixelsR.G.B. vertical stripe Anti-glare polarizer hardness• Effective viewing area 304.1 x 228.1mm (15.0")• Display Colors 16.7M colors SCANNING• Vertical refresh rate 56Hz-76Hz• Horizontal 30KHz-61KHzExhibit 3Installstion and Operating instructions

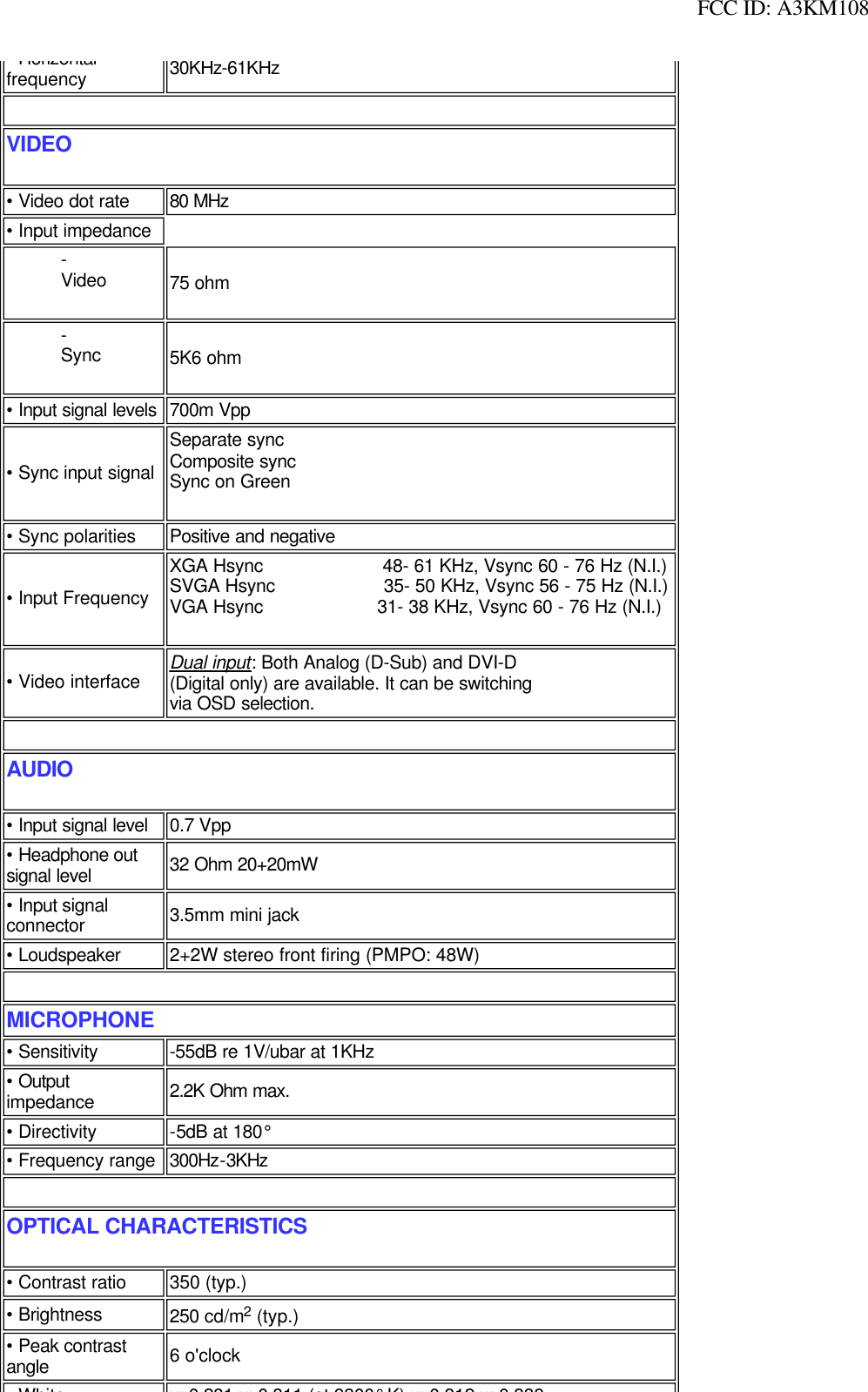

FCC ID: A3KM108• Horizontal frequency 30KHz-61KHz VIDEO• Video dot rate 80 MHz• Input impedance- Video 75 ohm- Sync 5K6 ohm• Input signal levels 700m Vpp• Sync input signalSeparate sync Composite syncSync on Green• Sync polarities Positive and negative• Input FrequencyXGA Hsync 48- 61 KHz, Vsync 60 - 76 Hz (N.I.)SVGA Hsync 35- 50 KHz, Vsync 56 - 75 Hz (N.I.)VGA Hsync 31- 38 KHz, Vsync 60 - 76 Hz (N.I.)• Video interface Dual input: Both Analog (D-Sub) and DVI-D (Digital only) are available. It can be switching via OSD selection. AUDIO• Input signal level 0.7 Vpp • Headphone out signal level 32 Ohm 20+20mW• Input signal connector 3.5mm mini jack• Loudspeaker 2+2W stereo front firing (PMPO: 48W) MICROPHONE• Sensitivity -55dB re 1V/ubar at 1KHz• Output impedance 2.2K Ohm max.• Directivity -5dB at 180° • Frequency range 300Hz-3KHz OPTICAL CHARACTERISTICS • Contrast ratio 350 (typ.)• Brightness 250 cd/m2 (typ.) • Peak contrast angle 6 o'clock• White x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338

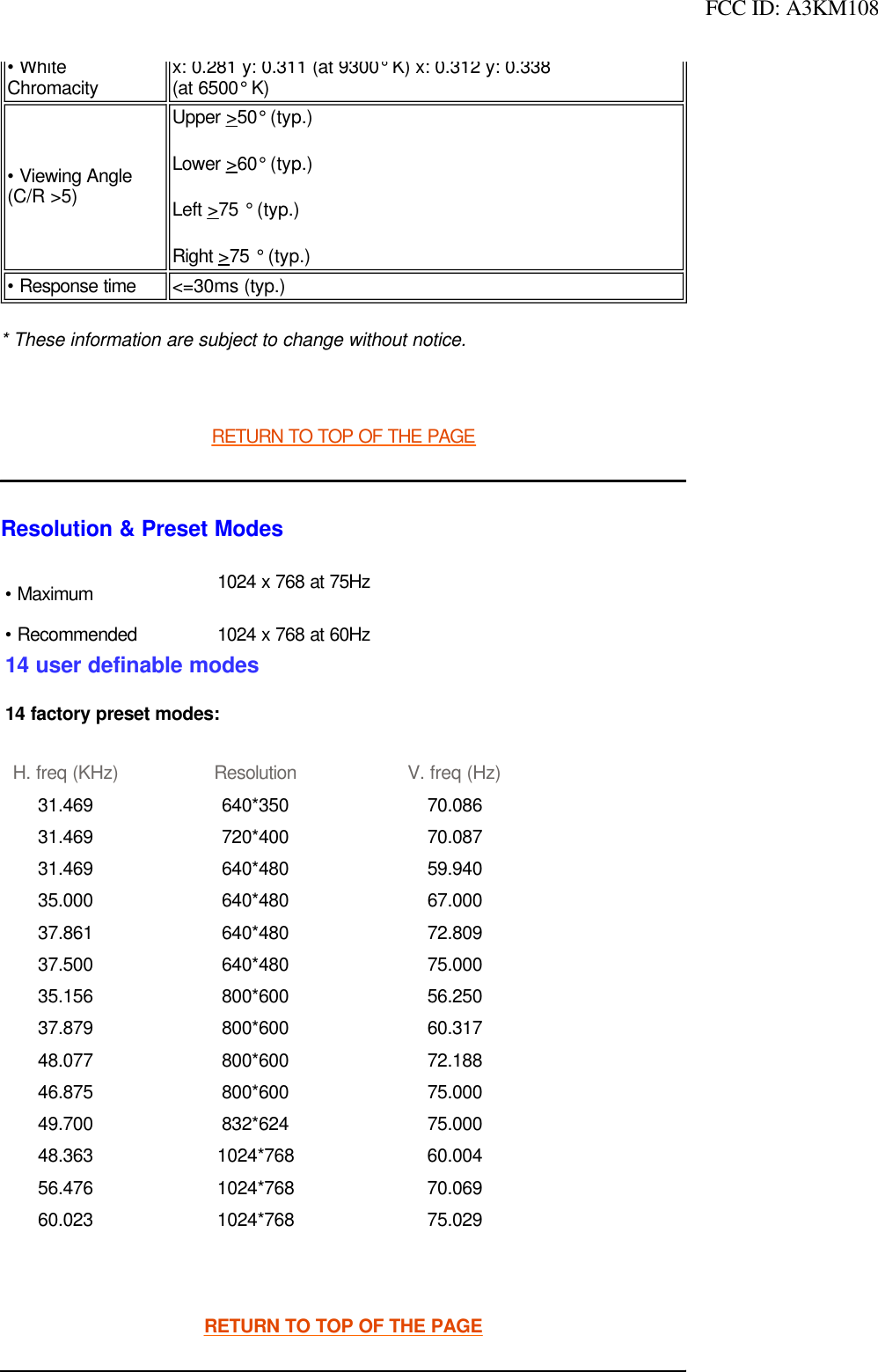

FCC ID: A3KM108* These information are subject to change without notice. RETURN TO TOP OF THE PAGEResolution & Preset ModesRETURN TO TOP OF THE PAGE• White Chromacityx: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K)• Viewing Angle (C/R >5) Upper >50° (typ.)Lower >60° (typ.)Left >75 ° (typ.) Right >75 ° (typ.)• Response time <=30ms (typ.) • Maximum 1024 x 768 at 75Hz• Recommended 1024 x 768 at 60Hz14 user definable modes14 factory preset modes: H. freq (KHz) Resolution V. freq (Hz)31.469 640*350 70.08631.469 720*400 70.08731.469 640*480 59.94035.000 640*480 67.00037.861 640*480 72.80937.500 640*480 75.00035.156 800*600 56.25037.879 800*600 60.31748.077 800*600 72.18846.875 800*600 75.00049.700 832*624 75.00048.363 1024*768 60.00456.476 1024*768 70.06960.023 1024*768 75.029

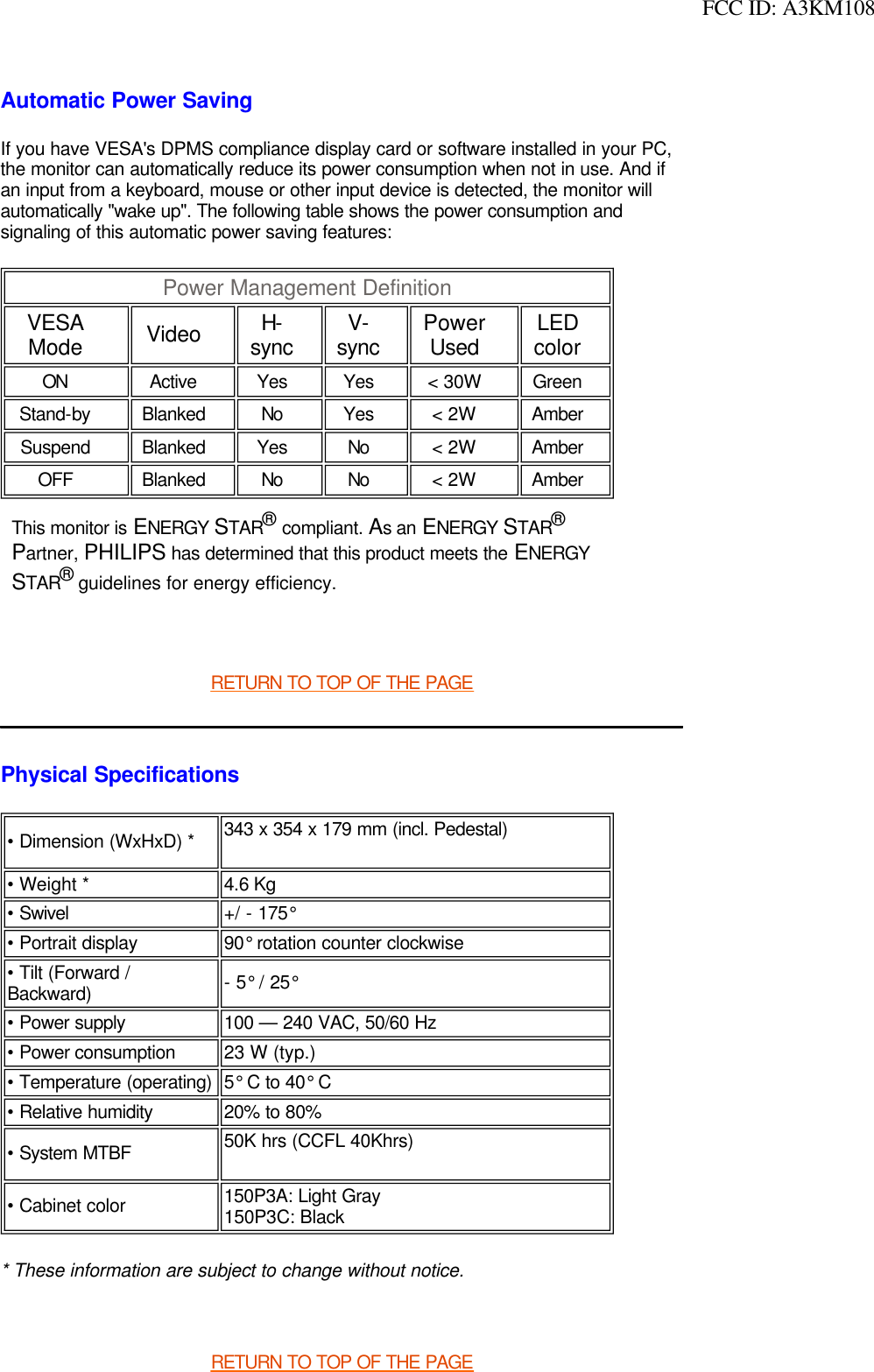

FCC ID: A3KM108Automatic Power SavingIf you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features: RETURN TO TOP OF THE PAGEPhysical Specifications * These information are subject to change without notice. RETURN TO TOP OF THE PAGEPower Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 30W Green Stand-by Blanked No Yes < 2W Amber Suspend Blanked Yes No < 2W Amber OFF Blanked No No < 2W Amber This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) * 343 x 354 x 179 mm (incl. Pedestal) • Weight * 4.6 Kg • Swivel +/ - 175° • Portrait display 90° rotation counter clockwise• Tilt (Forward / Backward) - 5° / 25°• Power supply 100 — 240 VAC, 50/60 Hz• Power consumption 23 W (typ.)• Temperature (operating) 5° C to 40° C • Relative humidity 20% to 80%• System MTBF 50K hrs (CCFL 40Khrs)• Cabinet color 150P3A: Light Gray150P3C: Black

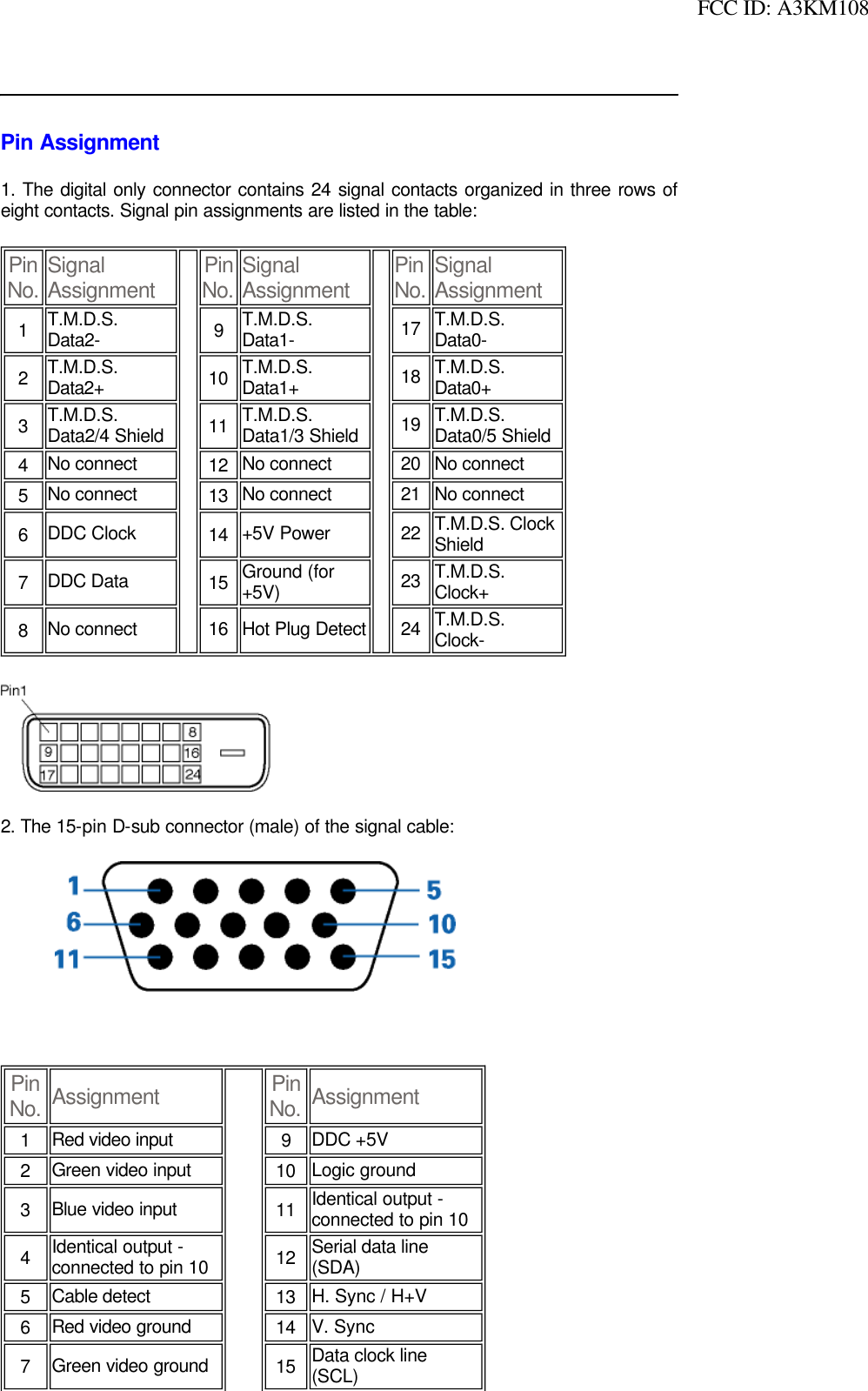

FCC ID: A3KM108Pin Assignment1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the table: 2. The 15-pin D-sub connector (male) of the signal cable: Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground3 Blue video input 11 Identical output - connected to pin 104 Identical output - connected to pin 10 12 Serial data line (SDA)5 Cable detect 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)

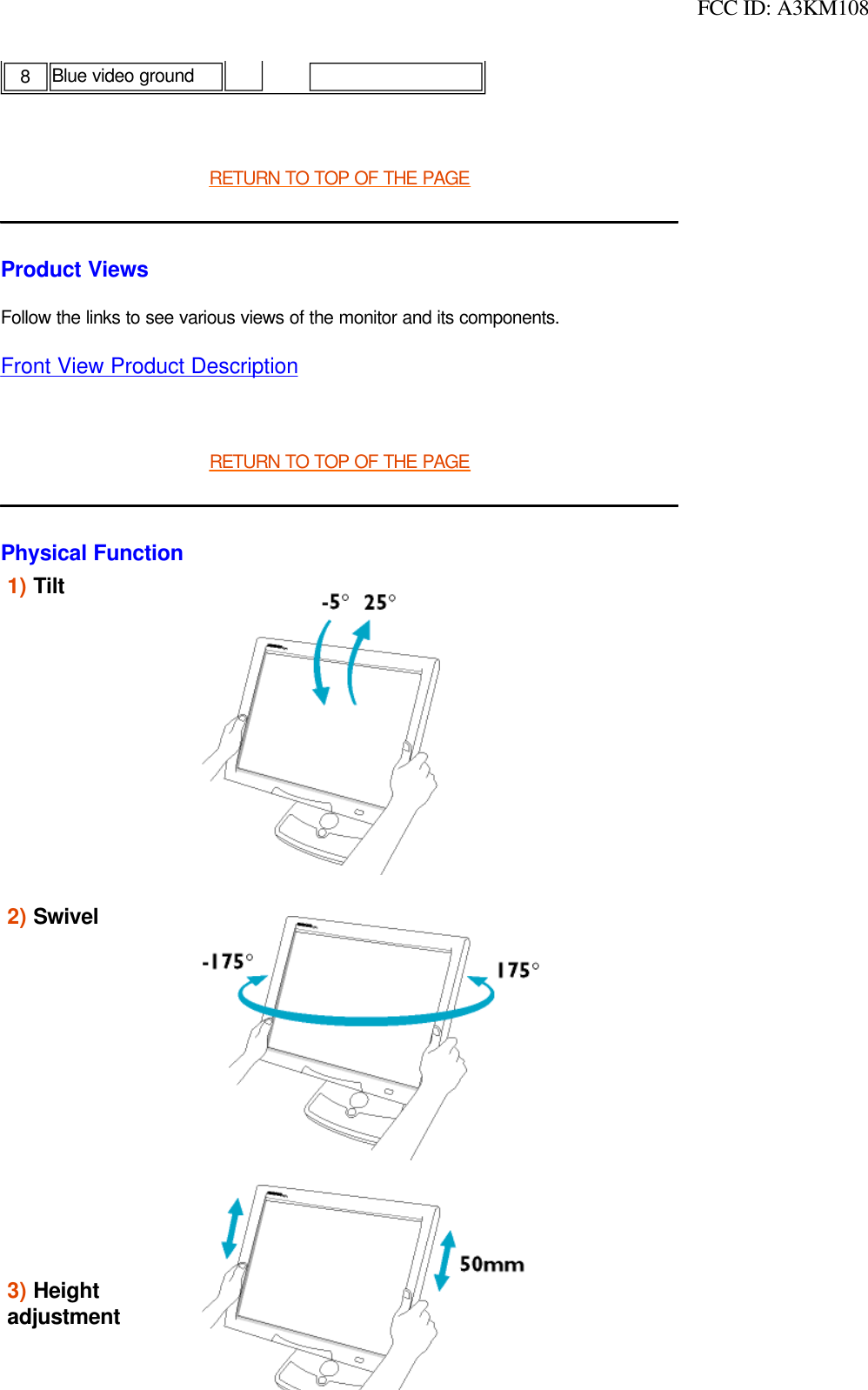

FCC ID: A3KM108 RETURN TO TOP OF THE PAGEProduct ViewsFollow the links to see various views of the monitor and its components.Front View Product Description RETURN TO TOP OF THE PAGEPhysical Function 8 Blue video ground 1) Tilt 2) Swivel 3) Height adjustment

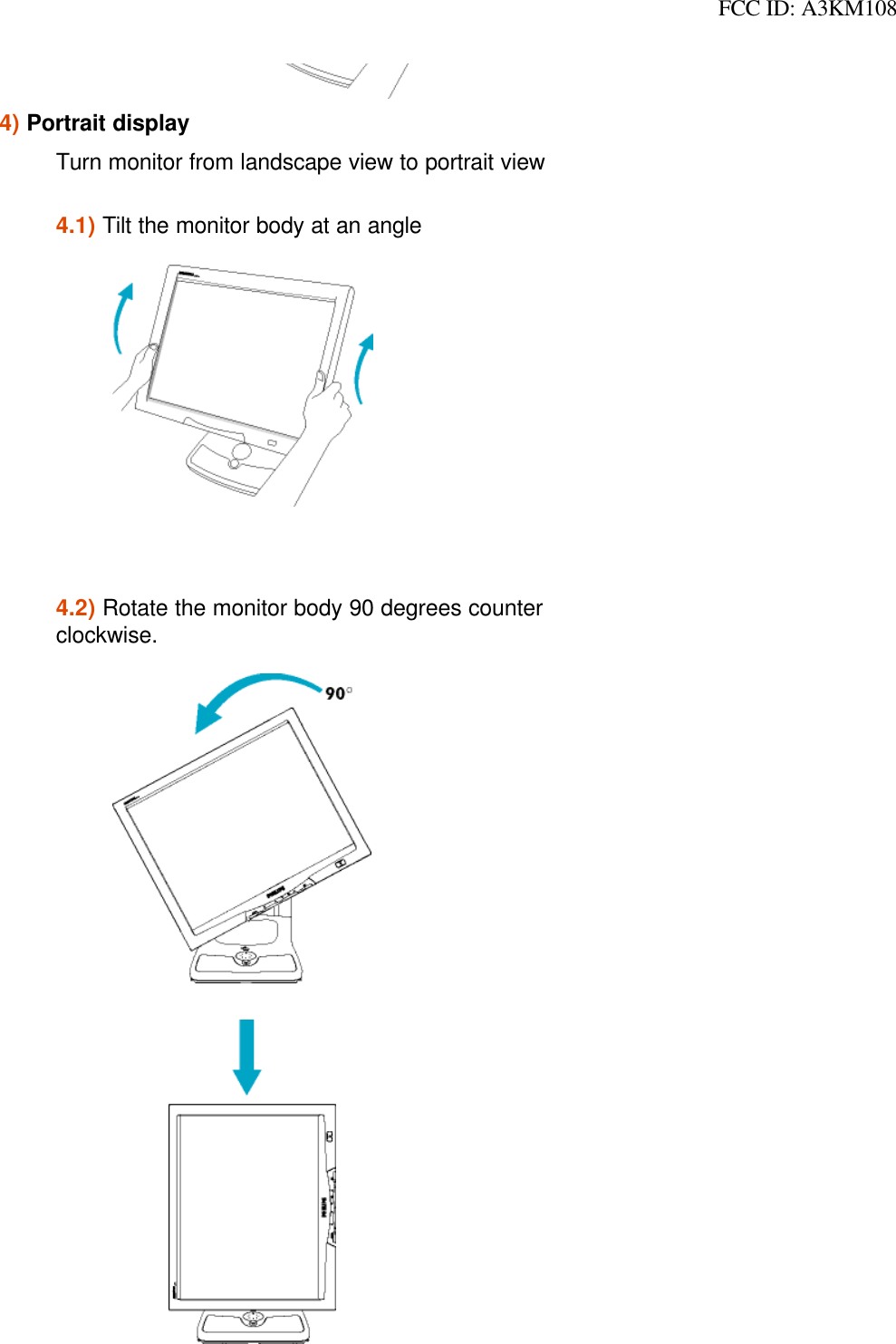

FCC ID: A3KM108 4) Portrait displayTurn monitor from landscape view to portrait view4.1) Tilt the monitor body at an angle 4.2) Rotate the monitor body 90 degrees counter clockwise.

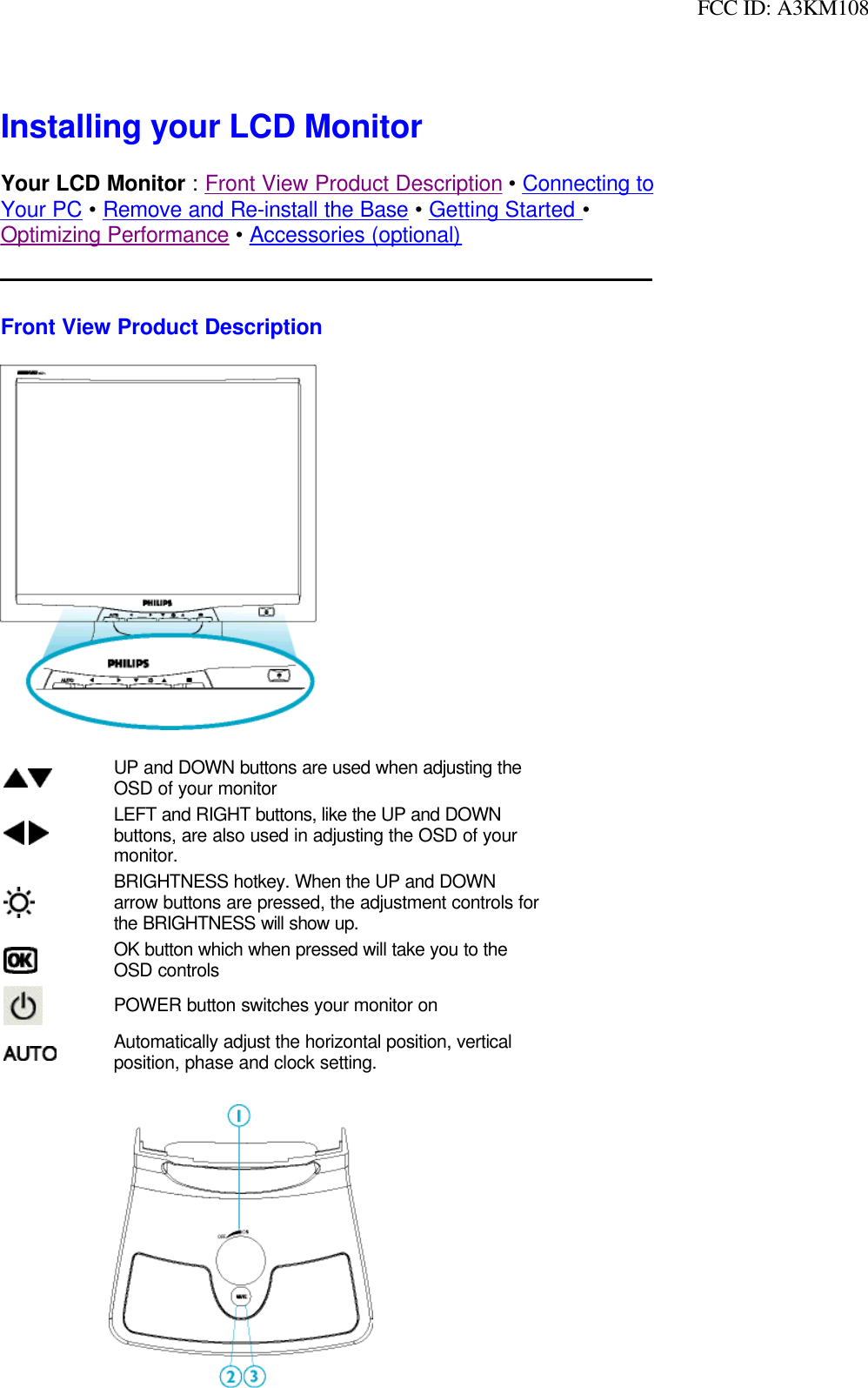

FCC ID: A3KM108Installing your LCD MonitorYour LCD Monitor : Front View Product Description • Connecting toYour PC • Remove and Re-install the Base • Getting Started • Optimizing Performance • Accessories (optional)Front View Product DescriptionUP and DOWN buttons are used when adjusting the OSD of your monitor LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.OK button which when pressed will take you to the OSD controlsPOWER button switches your monitor onAutomatically adjust the horizontal position, vertical position, phase and clock setting.

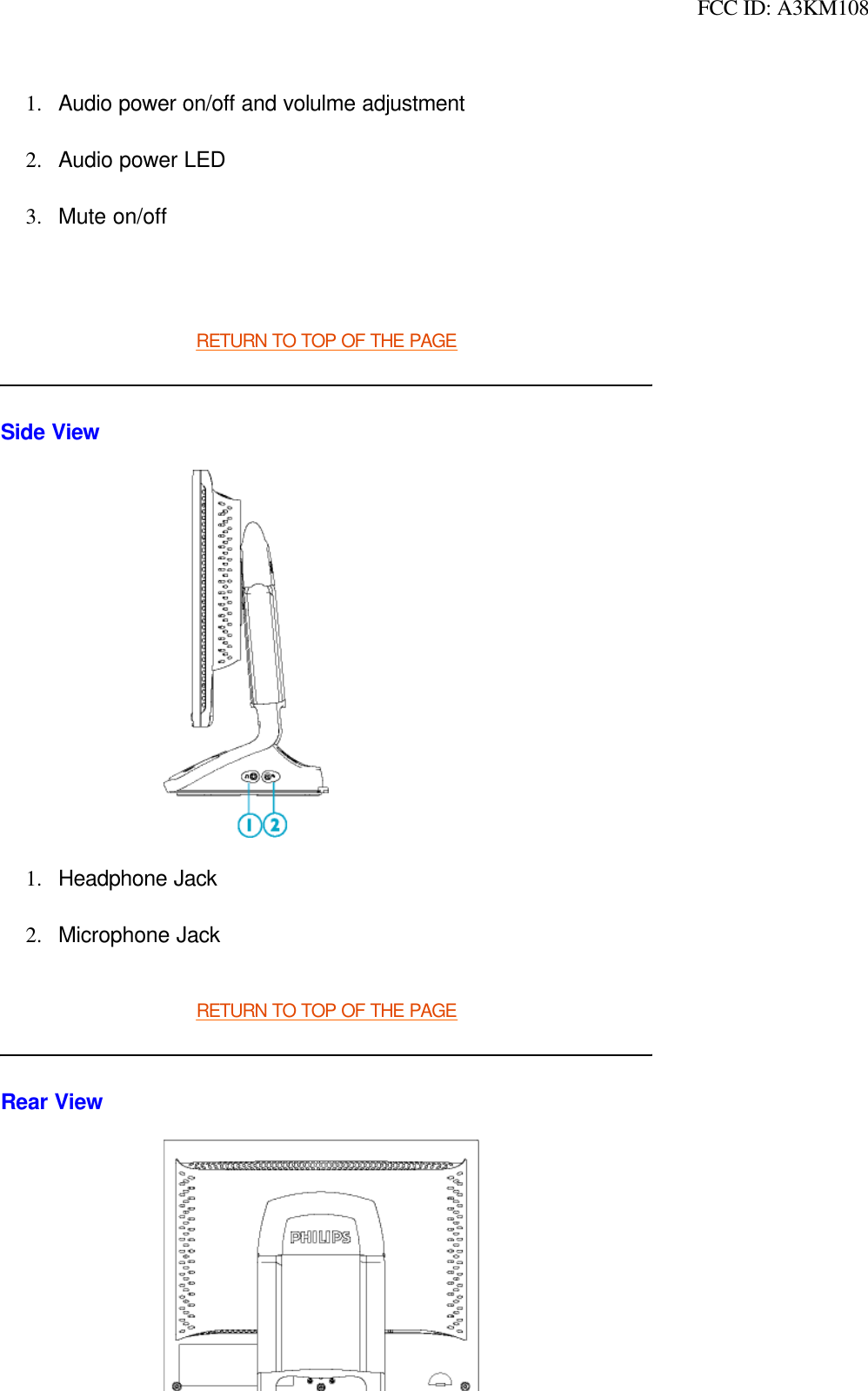

FCC ID: A3KM108 RETURN TO TOP OF THE PAGESide ViewRETURN TO TOP OF THE PAGERear View1. Audio power on/off and volulme adjustment 2. Audio power LED 3. Mute on/off 1. Headphone Jack 2. Microphone Jack

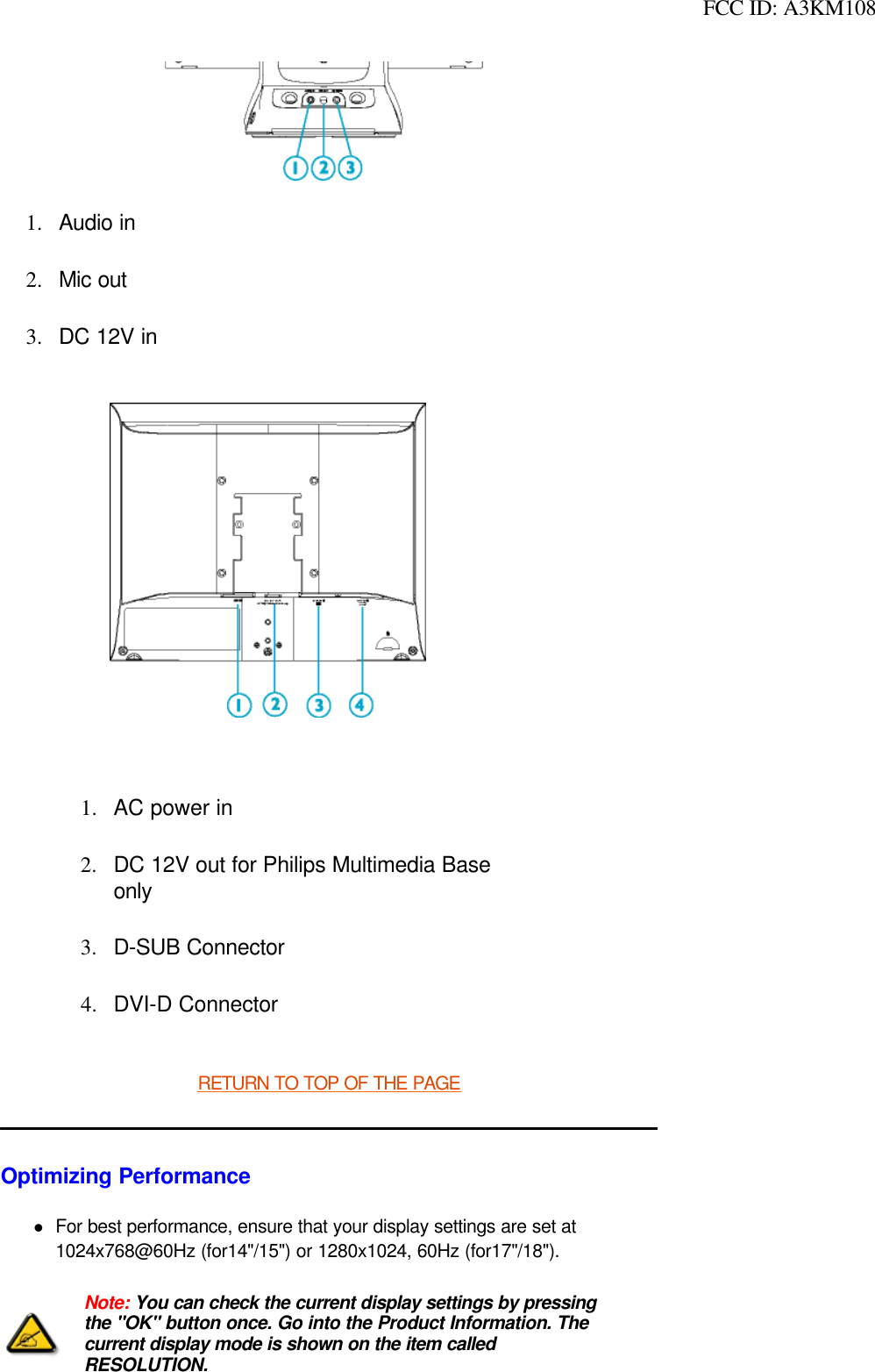

FCC ID: A3KM108 RETURN TO TOP OF THE PAGE Optimizing Performance lFor best performance, ensure that your display settings are set at 1024x768@60Hz (for14"/15") or 1280x1024, 60Hz (for17"/18"). 1. Audio in 2. Mic out 3. DC 12V in 1. AC power in 2. DC 12V out for Philips Multimedia Base only 3. D-SUB Connector 4. DVI-D Connector Note: You can check the current display settings by pressing the "OK" button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.
FCC ID: A3KM108lYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor, included in this CD. A step-by-step instructions is provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup01.exe RETURN TO TOP OF THE PAGE

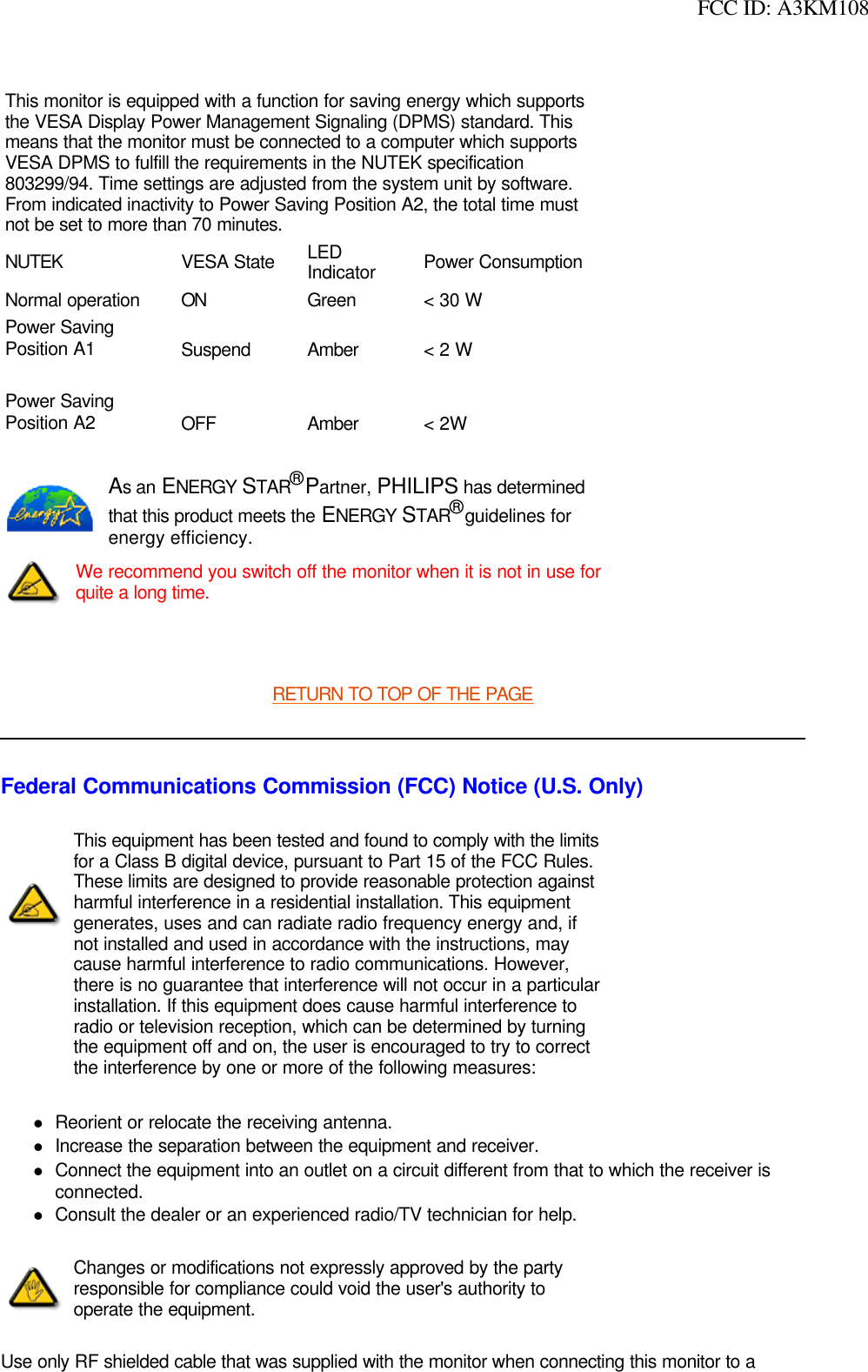

FCC ID: A3KM108 RETURN TO TOP OF THE PAGEFederal Communications Commission (FCC) Notice (U.S. Only)lReorient or relocate the receiving antenna. lIncrease the separation between the equipment and receiver. lConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. lConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software. From indicated inactivity to Power Saving Position A2, the total time must not be set to more than 70 minutes.NUTEK VESA State LED Indicator Power ConsumptionNormal operation ON Green < 30 WPower SavingPosition A1 Suspend Amber < 2 WPower SavingPosition A2 OFF Amber < 2WAs an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for quite a long time.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

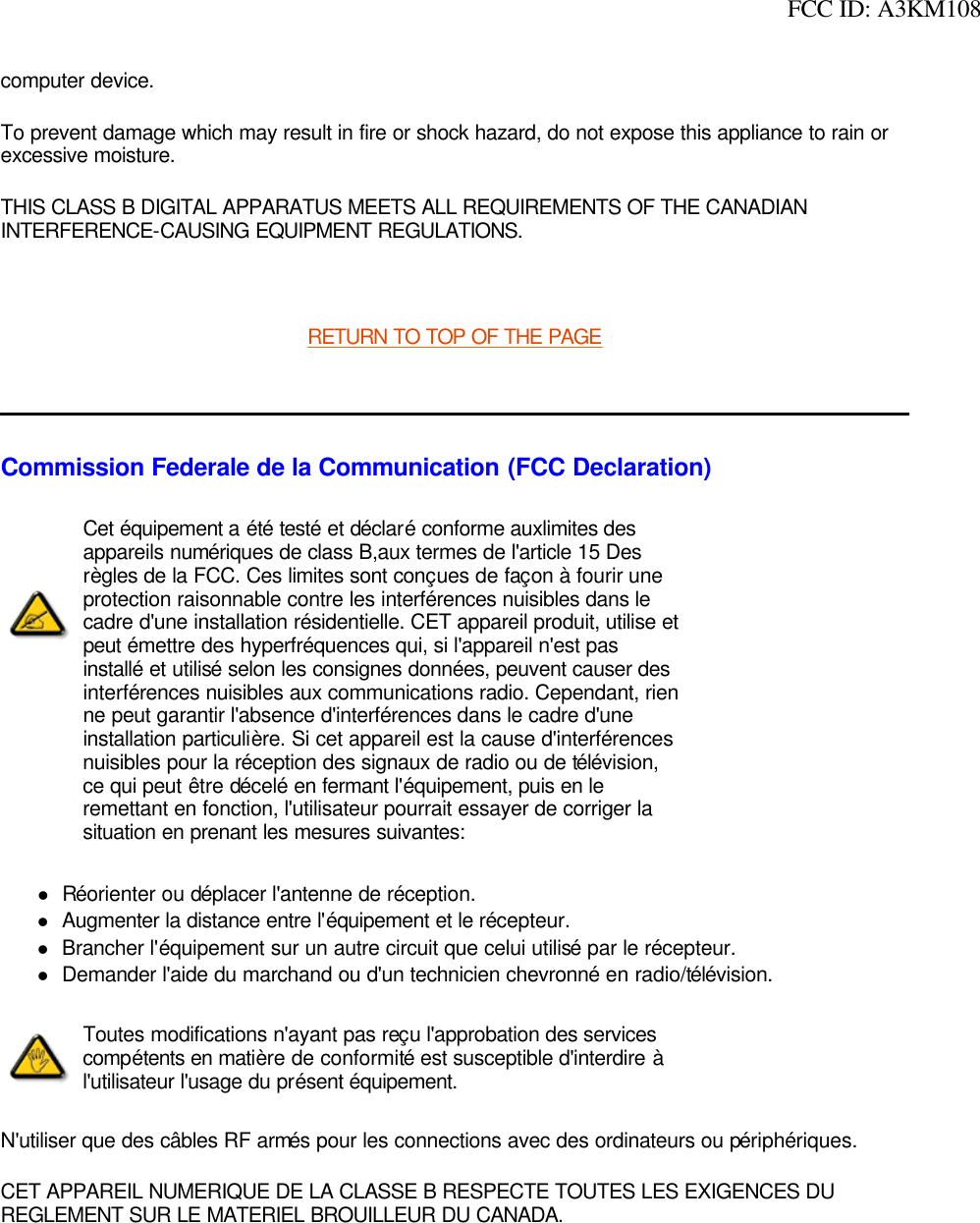

FCC ID: A3KM108computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration)lRéorienter ou déplacer l'antenne de réception. lAugmenter la distance entre l'équipement et le récepteur. lBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. lDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
