Philips Electronics M108 15" LCD Color Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd 15" LCD Color Monitor
User Manual
FCC ID: A3KM108
Product Information
Product Features • Technical Specifications • Resolution & Preset
Modes • Philips Pixel Defect Policy • Automatic Power Saving •
Physical Specification • Pin Assignment • Product Views • Physical
Function
Product Features
150P3A / 150P3C
Ultra Slim Frame
l15-inch color LCD monitor with excellent display performance
lStereo 48W PMPO (2 x 2W RMS)
lDual input- accepts both DVI Digital and VGA analog inputs
lEmbedded universal AC power supply
lAdjustable viewing height
lPortrait and landscape display
lAUTO adjustment optimizes picture quality
lUser installable bezel for optional protective cover choice
lOptional USB hub
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 15" visual
• Pixel Pitch 0.297 x 0.297mm (15.0")
• LCD Panel type
1024 x 768 pixels
R.G.B. vertical stripe
Anti-glare polarizer hardness
• Effective viewing
area 304.1 x 228.1mm (15.0")
• Display Colors 16.7M colors
SCANNING
• Vertical refresh
rate 56Hz-76Hz
• Horizontal
30KHz-61KHz
Exhibit 3
Installstion and Operating instructions
FCC ID: A3KM108
• Horizontal
frequency
30KHz-61KHz
VIDEO
• Video dot rate 80 MHz
• Input impedance
-
Video 75 ohm
-
Sync 5K6 ohm
• Input signal levels 700m Vpp
• Sync input signal
Separate sync
Composite sync
Sync on Green
• Sync polarities Positive and negative
• Input Frequency
XGA Hsync 48- 61 KHz, Vsync 60 - 76 Hz (N.I.)
SVGA Hsync 35- 50 KHz, Vsync 56 - 75 Hz (N.I.)
VGA Hsync 31- 38 KHz, Vsync 60 - 76 Hz (N.I.)
• Video interface Dual input: Both Analog (D-Sub) and DVI-D
(Digital only) are available. It can be switching
via OSD selection.
AUDIO
• Input signal level 0.7 Vpp
• Headphone out
signal level 32 Ohm 20+20mW
• Input signal
connector 3.5mm mini jack
• Loudspeaker 2+2W stereo front firing (PMPO: 48W)
MICROPHONE
• Sensitivity -55dB re 1V/ubar at 1KHz
• Output
impedance 2.2K Ohm max.
• Directivity -5dB at 180°
• Frequency range 300Hz-3KHz
OPTICAL CHARACTERISTICS
• Contrast ratio 350 (typ.)
• Brightness 250 cd/m2 (typ.)
• Peak contrast
angle 6 o'clock
• White
x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338
FCC ID: A3KM108
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
RETURN TO TOP OF THE PAGE
• White
Chromacity
x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338
(at 6500° K)
• Viewing Angle
(C/R >5)
Upper >50° (typ.)
Lower >60° (typ.)
Left >75 ° (typ.)
Right >75 ° (typ.)
• Response time <=30ms (typ.)
• Maximum 1024 x 768 at 75Hz
• Recommended 1024 x 768 at 60Hz
14 user definable modes
14 factory preset modes:
H. freq (KHz) Resolution V. freq (Hz)
31.469 640*350 70.086
31.469 720*400 70.087
31.469 640*480 59.940
35.000 640*480 67.000
37.861 640*480 72.809
37.500 640*480 75.000
35.156 800*600 56.250
37.879 800*600 60.317
48.077 800*600 72.188
46.875 800*600 75.000
49.700 832*624 75.000
48.363 1024*768 60.004
56.476 1024*768 70.069
60.023 1024*768 75.029
FCC ID: A3KM108
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed in your PC,
the monitor can automatically reduce its power consumption when not in use. And if
an input from a keyboard, mouse or other input device is detected, the monitor will
automatically "wake up". The following table shows the power consumption and
signaling of this automatic power saving features:
RETURN TO TOP OF THE PAGE
Physical Specifications
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Power Management Definition
VESA
Mode Video H-
sync V-
sync Power
Used LED
color
ON Active Yes Yes < 30W Green
Stand-by Blanked No Yes < 2W Amber
Suspend Blanked Yes No < 2W Amber
OFF Blanked No No < 2W Amber
This monitor is ENERGY STAR® compliant. As an ENERGY STAR®
Partner, PHILIPS has determined that this product meets the ENERGY
STAR® guidelines for energy efficiency.
• Dimension (WxHxD) * 343 x 354 x 179 mm (incl. Pedestal)
• Weight * 4.6 Kg
• Swivel +/ - 175°
• Portrait display 90° rotation counter clockwise
• Tilt (Forward /
Backward) - 5° / 25°
• Power supply 100 — 240 VAC, 50/60 Hz
• Power consumption 23 W (typ.)
• Temperature (operating) 5° C to 40° C
• Relative humidity 20% to 80%
• System MTBF 50K hrs (CCFL 40Khrs)
• Cabinet color 150P3A: Light Gray
150P3C: Black
FCC ID: A3KM108

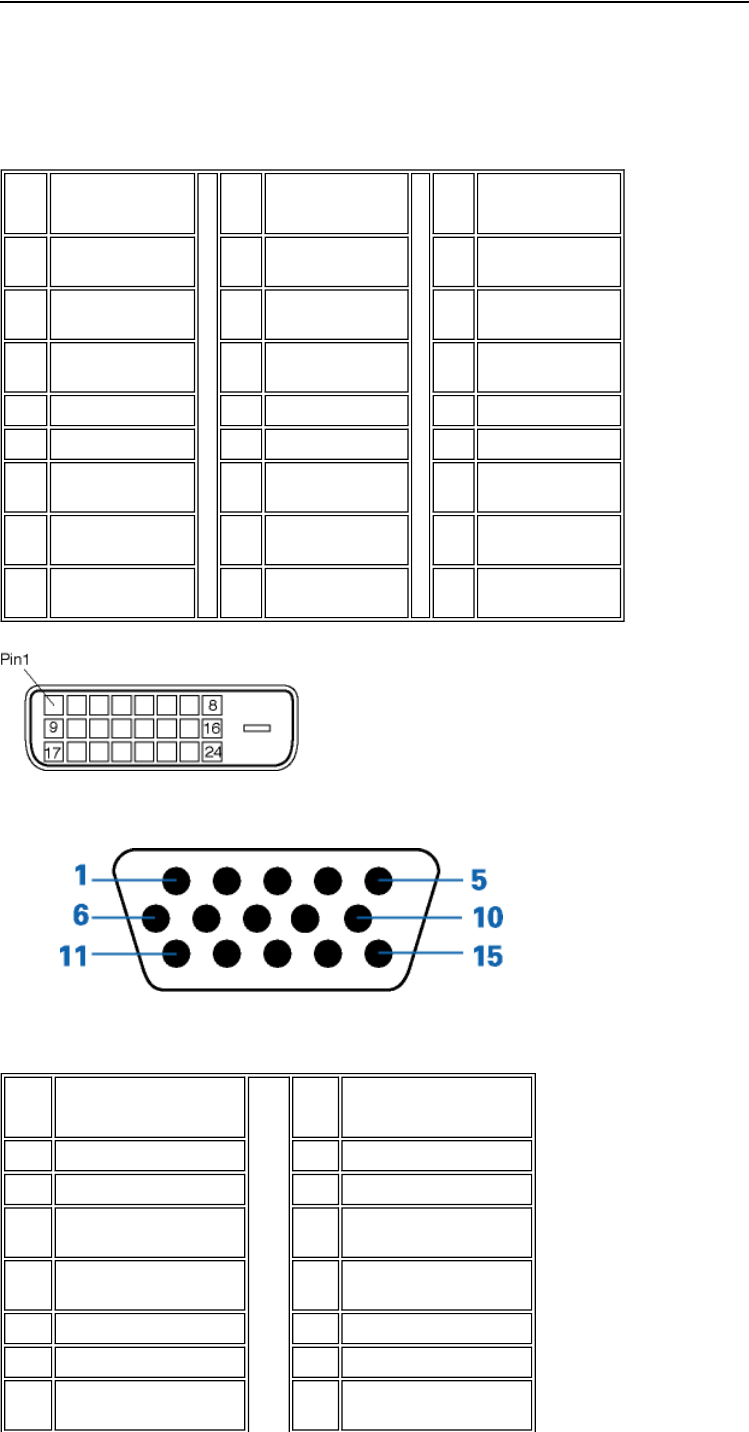

Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of
eight contacts. Signal pin assignments are listed in the table:
2. The 15-pin D-sub connector (male) of the signal cable:
Pin
No.
Signal
Assignment
Pin
No.
Signal
Assignment
Pin
No. Signal
Assignment
1 T.M.D.S.
Data2- 9 T.M.D.S.
Data1- 17 T.M.D.S.
Data0-
2 T.M.D.S.
Data2+ 10 T.M.D.S.
Data1+ 18 T.M.D.S.
Data0+
3 T.M.D.S.
Data2/4 Shield 11 T.M.D.S.
Data1/3 Shield 19 T.M.D.S.
Data0/5 Shield
4 No connect 12 No connect 20 No connect
5 No connect 13 No connect 21 No connect
6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock
Shield
7 DDC Data 15 Ground (for
+5V) 23 T.M.D.S.
Clock+
8 No connect 16 Hot Plug Detect 24 T.M.D.S.
Clock-
Pin
No.
Assignment
Pin
No.
Assignment
1 Red video input
9 DDC +5V
2 Green video input 10 Logic ground
3 Blue video input 11 Identical output -
connected to pin 10
4 Identical output -
connected to pin 10 12 Serial data line
(SDA)
5 Cable detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line
(SCL)
FCC ID: A3KM108
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE

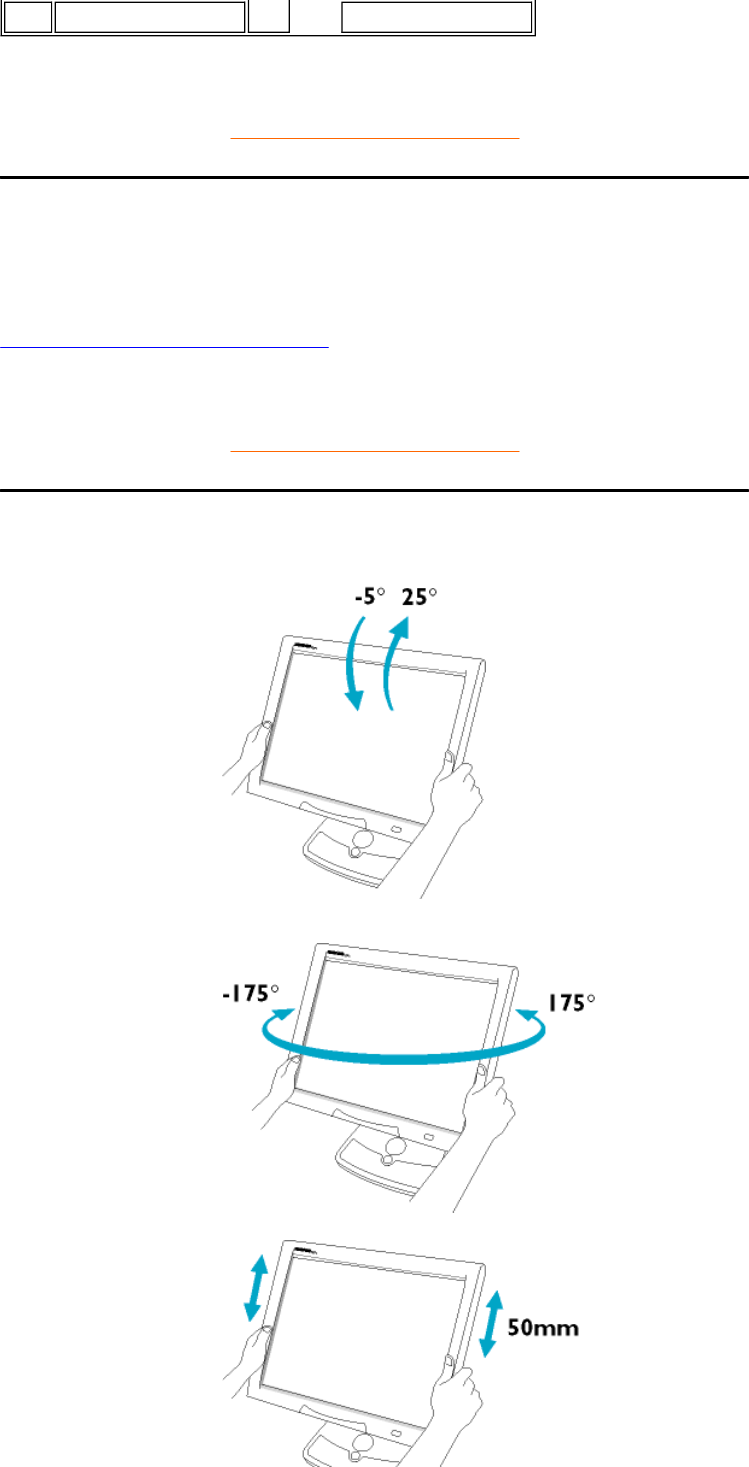

Physical Function
8 Blue video ground
1) Tilt
2) Swivel
3) Height
adjustment
FCC ID: A3KM108

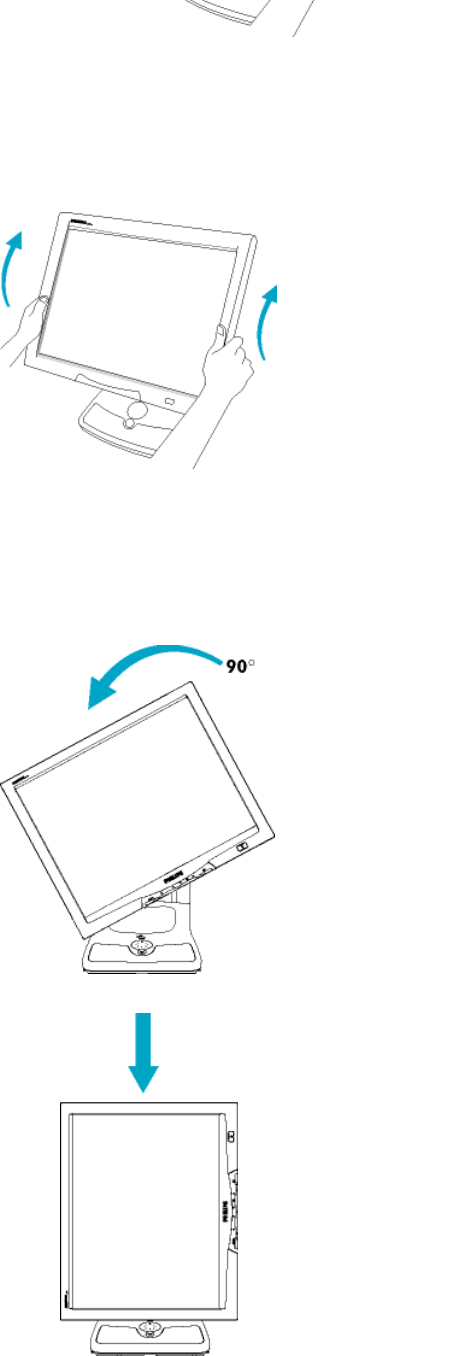

4) Portrait display
Turn monitor from landscape view to portrait view
4.1) Tilt the monitor body at an angle
4.2) Rotate the monitor body 90 degrees counter
clockwise.
FCC ID: A3KM108
Installing your LCD Monitor
Your LCD Monitor : Front View Product Description • Connecting to
Your PC • Remove and Re-install the Base • Getting Started •
Optimizing Performance • Accessories (optional)

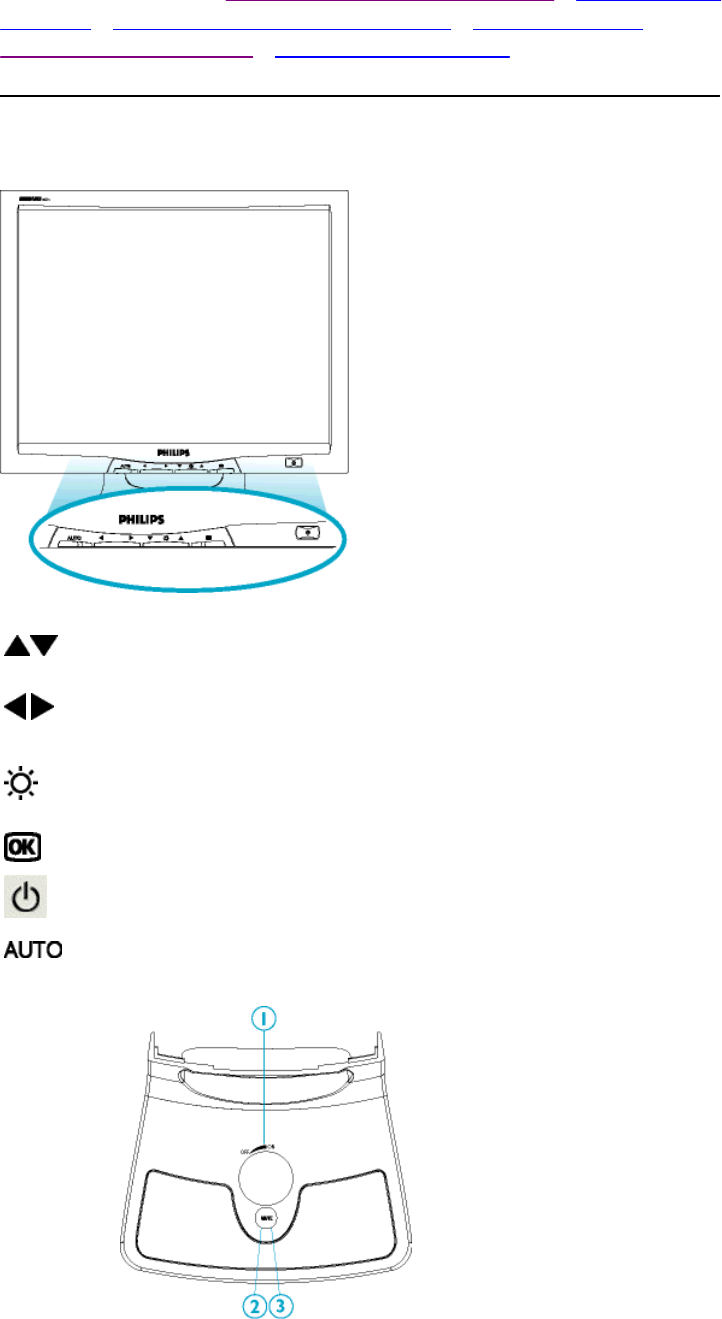

Front View Product Description
UP and DOWN buttons are used when adjusting the
OSD of your monitor
LEFT and RIGHT buttons, like the UP and DOWN
buttons, are also used in adjusting the OSD of your
monitor.
BRIGHTNESS hotkey. When the UP and DOWN
arrow buttons are pressed, the adjustment controls for
the BRIGHTNESS will show up.
OK button which when pressed will take you to the
OSD controls
POWER button switches your monitor on
Automatically adjust the horizontal position, vertical
position, phase and clock setting.
FCC ID: A3KM108
RETURN TO TOP OF THE PAGE
Side View
RETURN TO TOP OF THE PAGE

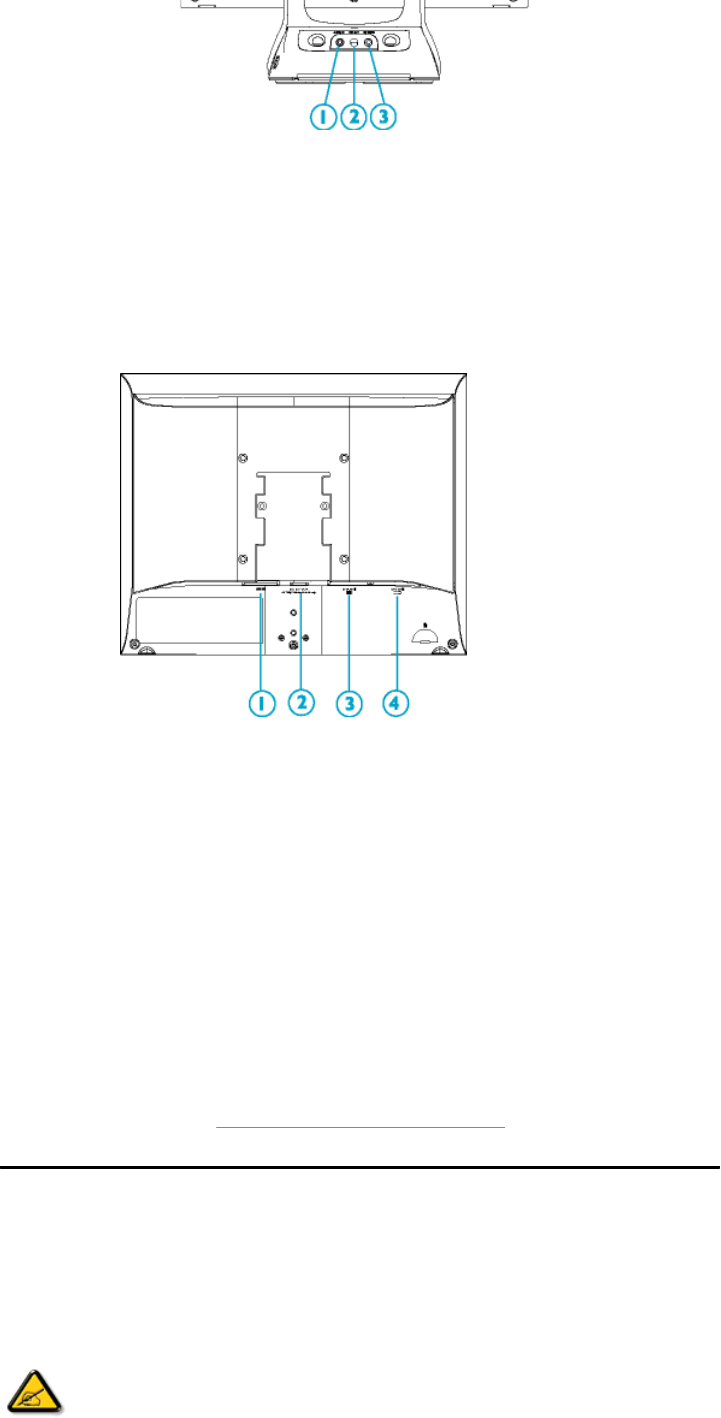

Rear View
1. Audio power on/off and volulme adjustment
2. Audio power LED
3. Mute on/off
1. Headphone Jack
2. Microphone Jack
FCC ID: A3KM108
RETURN TO TOP OF THE PAGE
Optimizing Performance
lFor best performance, ensure that your display settings are set at
1024x768@60Hz (for14"/15") or 1280x1024, 60Hz (for17"/18").
1. Audio in
2. Mic out
3. DC 12V in
1. AC power in
2. DC 12V out for Philips Multimedia Base
only
3. D-SUB Connector
4. DVI-D Connector
Note: You can check the current display settings by pressing
the "OK" button once. Go into the Product Information. The
current display mode is shown on the item called
RESOLUTION.
FCC ID: A3KM108
lYou can also install the Flat Panel Adjust (FP Adjust) program, a program
for getting the best performance out of your monitor, included in this CD. A
step-by-step instructions is provided to guide you through the installtion
process. Click on the link to know more about this program.
More about FP_setup01.exe
RETURN TO TOP OF THE PAGE
FCC ID: A3KM108
RETURN TO TOP OF THE PAGE
Federal Communications Commission (FCC) Notice (U.S. Only)
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
lConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
This monitor is equipped with a function for saving energy which supports
the VESA Display Power Management Signaling (DPMS) standard. This
means that the monitor must be connected to a computer which supports
VESA DPMS to fulfill the requirements in the NUTEK specification
803299/94. Time settings are adjusted from the system unit by software.
From indicated inactivity to Power Saving Position A2, the total time must
not be set to more than 70 minutes.
NUTEK VESA State LED
Indicator Power Consumption
Normal operation ON Green < 30 W
Power Saving
Position A1 Suspend Amber < 2 W
Power Saving
Position A2 OFF Amber < 2W
As an ENERGY STAR®
Partner, PHILIPS has determined
that this product meets the ENERGY STAR®
guidelines for
energy efficiency.
We recommend you switch off the monitor when it is not in use for
quite a long time.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
FCC ID: A3KM108
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or
excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
lRéorienter ou déplacer l'antenne de réception.
lAugmenter la distance entre l'équipement et le récepteur.
lBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
lDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
Cet équipement a été testé et déclaré conforme auxlimites des
appareils numériques de class B,aux termes de l'article 15 Des
règles de la FCC. Ces limites sont conçues de façon à fourir une
protection raisonnable contre les interférences nuisibles dans le
cadre d'une installation ré
sidentielle. CET appareil produit, utilise et
peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des
interfé
rences nuisibles aux communications radio. Cependant, rien
ne peut garantir l'absence d'interférences dans le cadre d'une
installation particulière. Si cet appareil est la cause d'interférences
nuisibles pour la réception des signaux de radio ou de télévision,
ce qui peut être décelé en fermant l'équipement, puis en le
remettant en fonction, l'utilisateur pourrait essayer de corriger la
situation en prenant les mesures suivantes:
Toutes modifications n'ayant pas reçu l'approbation des services
compétents en matière de conformité est susceptible d'interdire à
l'utilisateur l'usage du présent équipement.
