Philips Electronics M111 18 inches SXGA LCD all-in-one Monitor/TV User Manual

Philips Electronics Industries (Taiwan) Ltd 18 inches SXGA LCD all-in-one Monitor/TV

User Manual

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 180MT 18 inch-SXGA LCD all-in-one Monitor/TV with excellent display performance Multiple video input allowing display of PC, TV(with Teletext), DVD and VCD Picture in Picture (PIP) function for displaying both TV or video and PC application on the screen Super-high brightness/contrast and fast response time 100-page Teletext (available only in Asia Pacific and Western Europe) Digital Nicam/2CS stereo(available only in Asia Pacific and Western Europe) Component Video Input (YPbPr/YCbCr) for DVD (available only in Asia Pacific and NTSC systems) Euroconnector (SCART) (available only in Western Europe) RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 18.1" visual• Pixel Pitch 0.2805 x 0.2805mm • LCD Panel type 1280 x 1024pixels R.G.B. vertical stripe Anti-glare polarizer• Effective viewing area (H) 359.0 x (V) 287.2mm• Display Colors 8 bits interface (16.7M colors) SCANNING• Vertical refresh rate 56Hz-75Hz• Horizontal frequency 30kHz-80kHz Exhibit 3Installstion and Operating Instructions

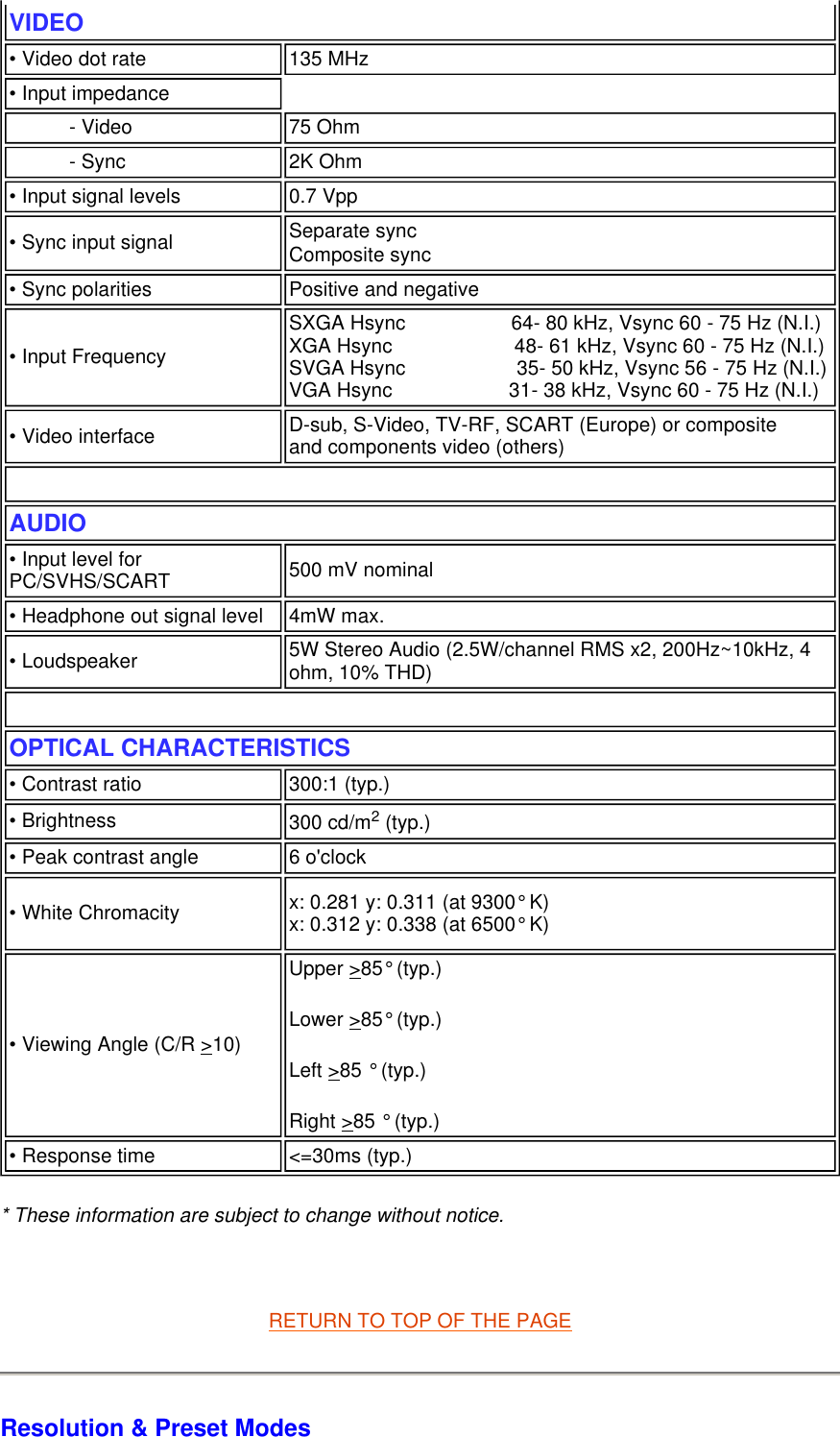

* These information are subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes VIDEO • Video dot rate 135 MHz• Input impedance- Video 75 Ohm- Sync 2K Ohm• Input signal levels 0.7 Vpp• Sync input signal Separate syncComposite sync• Sync polarities Positive and negative• Input FrequencySXGA Hsync 64- 80 kHz, Vsync 60 - 75 Hz (N.I.) XGA Hsync 48- 61 kHz, Vsync 60 - 75 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 75 Hz (N.I.)• Video interface D-sub, S-Video, TV-RF, SCART (Europe) or composite and components video (others) AUDIO • Input level for PC/SVHS/SCART 500 mV nominal• Headphone out signal level 4mW max. • Loudspeaker 5W Stereo Audio (2.5W/channel RMS x2, 200Hz~10kHz, 4 ohm, 10% THD) OPTICAL CHARACTERISTICS • Contrast ratio 300:1 (typ.)• Brightness 300 cd/m2 (typ.) • Peak contrast angle 6 o'clock• White Chromacity x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K) • Viewing Angle (C/R >10) Upper >85° (typ.)Lower >85° (typ.) Left >85 ° (typ.) Right >85 ° (typ.) • Response time <=30ms (typ.)

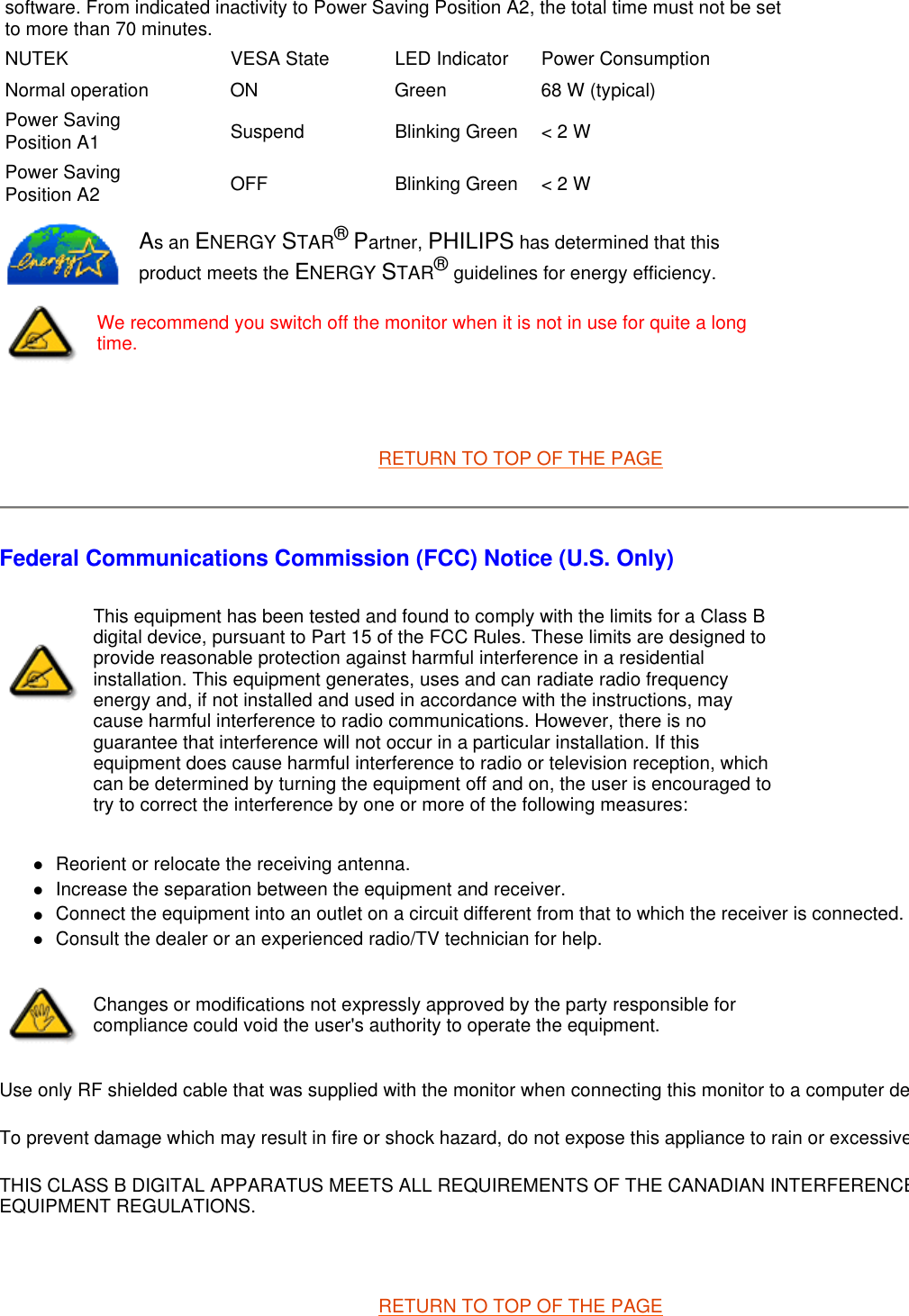

RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving • Maximum 1280 x 1024 at 75Hz• Recommended 1280 x 1024 at 60Hz17 user definable modes 17 factory preset modes: (Interlace mode is not applicable) H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70.1 31.5 720*400 70.1 31.5 640*480 59.9 35.0 640*480 67.0 37.8 640*480 72.8 37.5 640*480 75.0 35.2 800*600 56.3 37.9 800*600 60.3 48.0 800*600 72.0 46.9 800*600 75.0 49.7 832*624 75.0 48.4 1024*768 60.0 56.5 1024*768 70.0 60.1 1024*768 75.0 68.7 1152*870 75.0 64.0 1280*1024 60.0 80.0 1280*1024 75.0

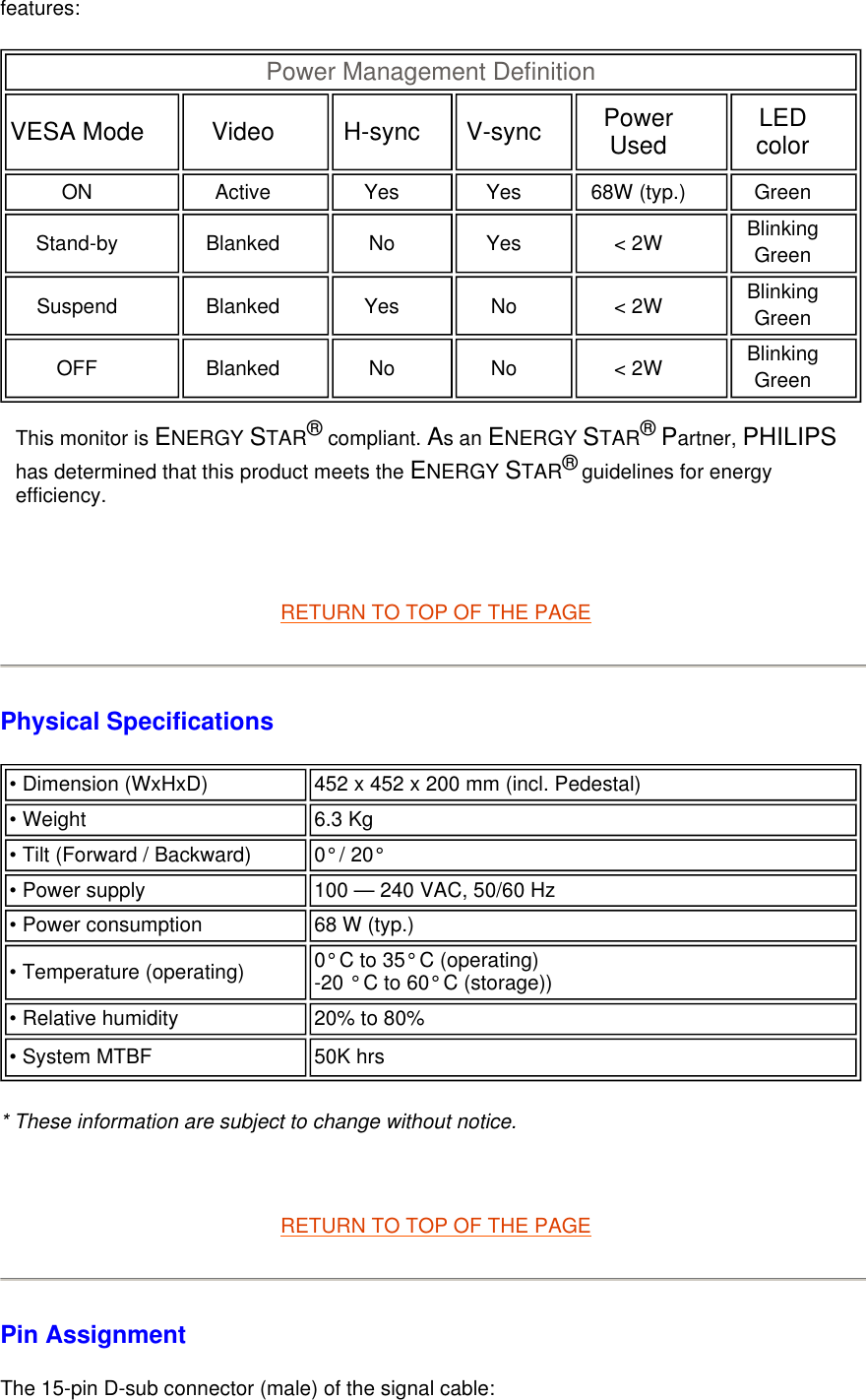

features: RETURN TO TOP OF THE PAGE Physical Specifications * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable: Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes 68W (typ.) Green Stand-by Blanked No Yes < 2W Blinking Green Suspend Blanked Yes No < 2W Blinking Green OFF Blanked No No < 2W Blinking Green This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) 452 x 452 x 200 mm (incl. Pedestal) • Weight 6.3 Kg • Tilt (Forward / Backward) 0° / 20°• Power supply 100 — 240 VAC, 50/60 Hz• Power consumption 68 W (typ.)• Temperature (operating) 0° C to 35° C (operating) -20 ° C to 60° C (storage))• Relative humidity 20% to 80%• System MTBF 50K hrs

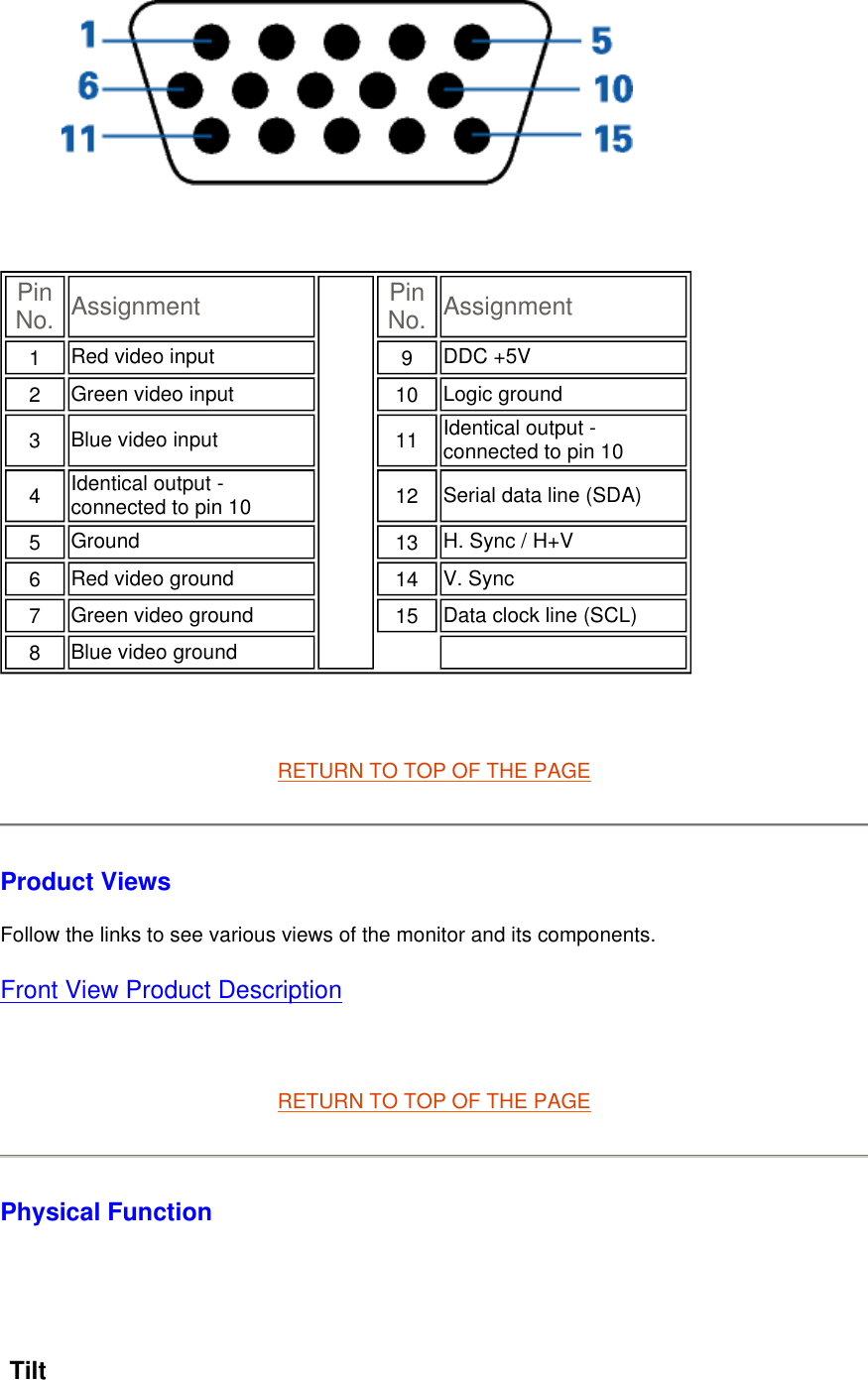

RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Pin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground3 Blue video input 11 Identical output - connected to pin 104 Identical output - connected to pin 10 12 Serial data line (SDA)5 Ground 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video ground Tilt
RETURN TO TOP OF THE PAGE

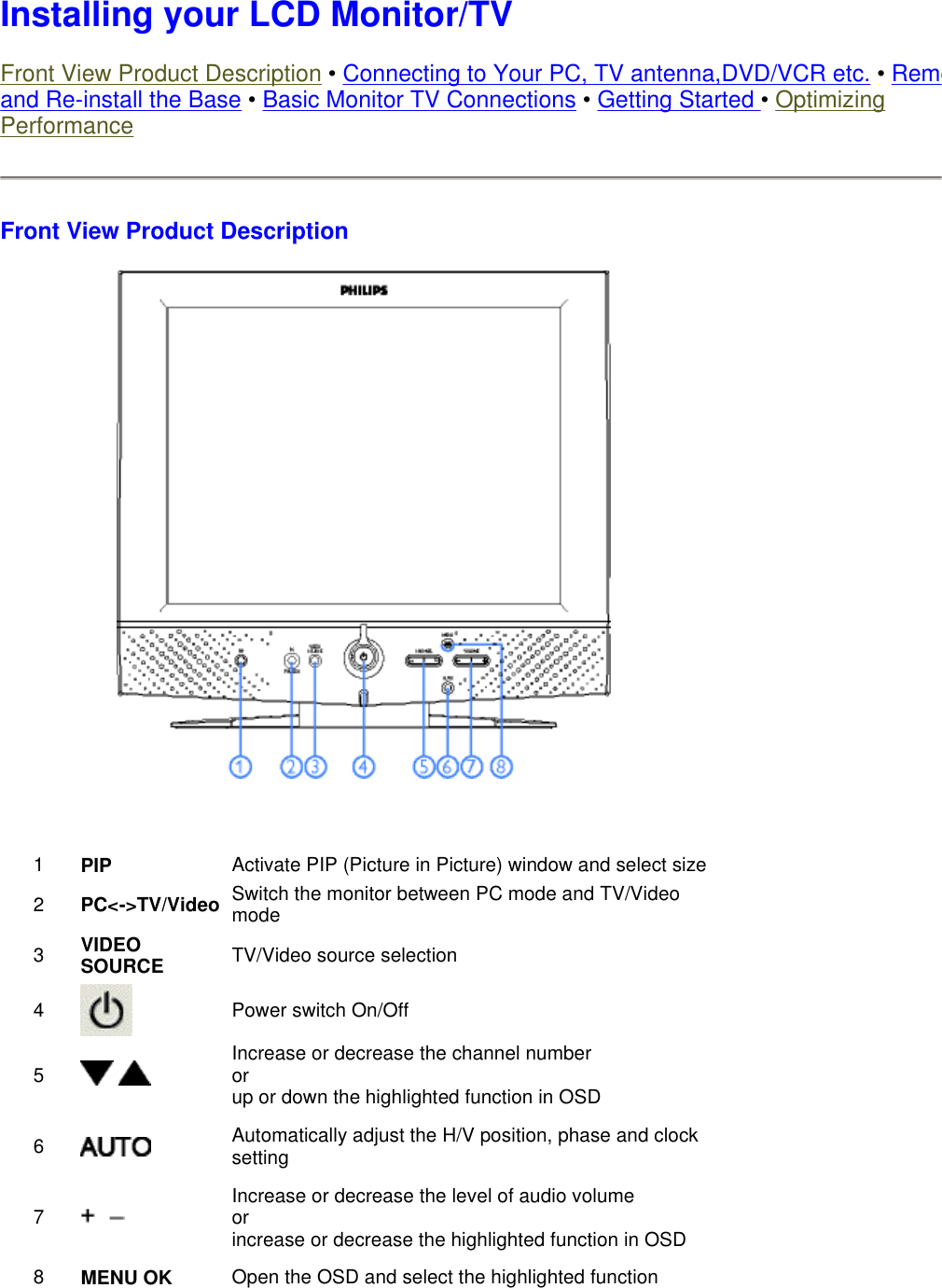

Installing your LCD Monitor/TV Front View Product Description • Connecting to Your PC, TV antenna,DVD/VCR etc. • Remoand Re-install the Base • Basic Monitor TV Connections • Getting Started • Optimizing Performance Front View Product Description 1 PIP Activate PIP (Picture in Picture) window and select size2 PC<->TV/Video Switch the monitor between PC mode and TV/Video mode3 VIDEO SOURCE TV/Video source selection4 Power switch On/Off5 Increase or decrease the channel number or up or down the highlighted function in OSD6 Automatically adjust the H/V position, phase and clock setting7 Increase or decrease the level of audio volume or increase or decrease the highlighted function in OSD8 MENU OK Open the OSD and select the highlighted function
RETURN TO TOP OF THE PAGE Side View RETURN TO TOP OF THE PAGE Rear View 1. Headphone Jack 2. LINE OUT Jack

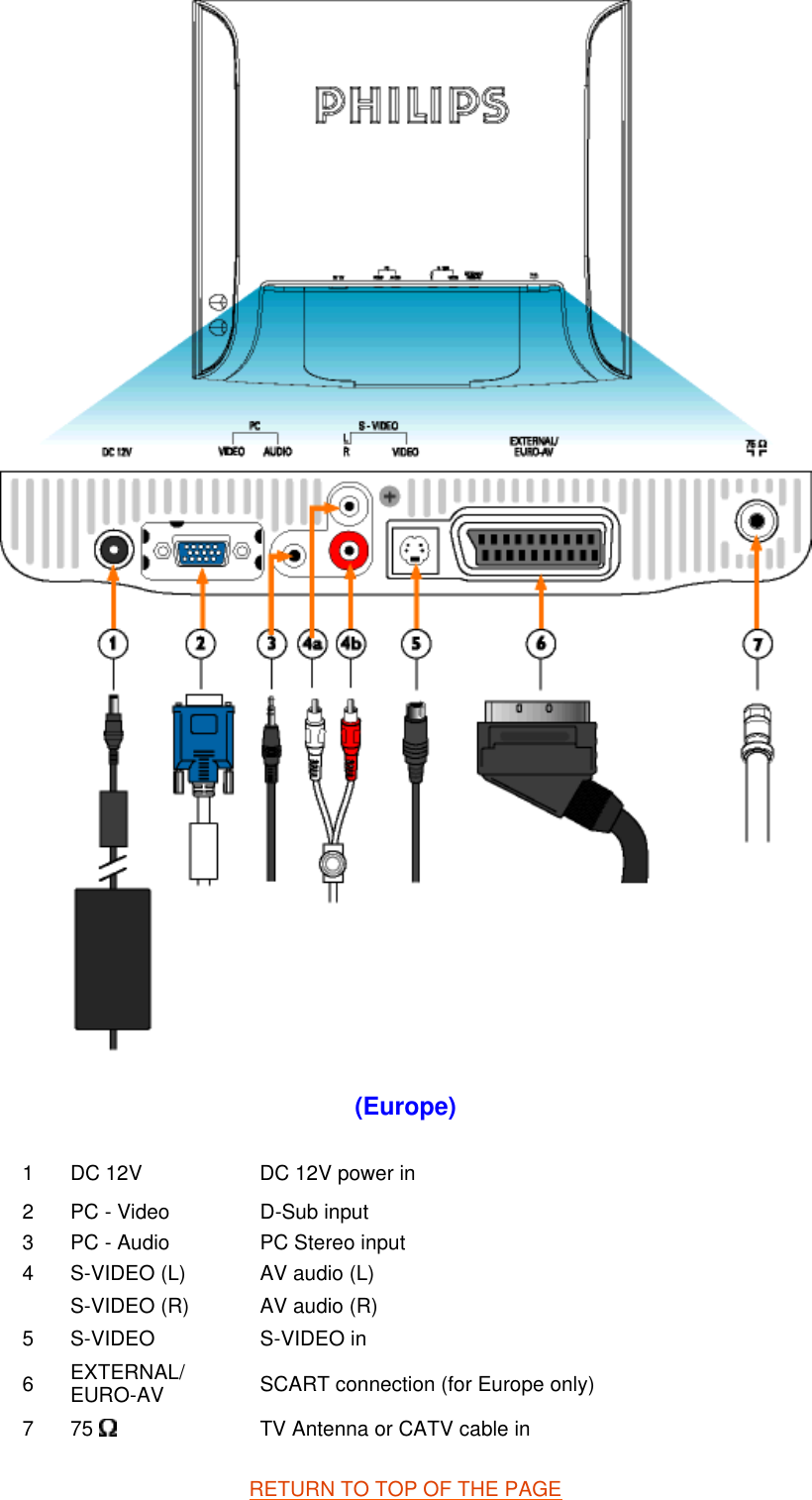

(Europe) RETURN TO TOP OF THE PAGE 1 DC 12V DC 12V power in 2 PC - Video D-Sub input3 PC - Audio PC Stereo input 4 S-VIDEO (L) AV audio (L) S-VIDEO (R) AV audio (R)5 S-VIDEO S-VIDEO in 6 EXTERNAL/ EURO-AV SCART connection (for Europe only) 7 75 TV Antenna or CATV cable in

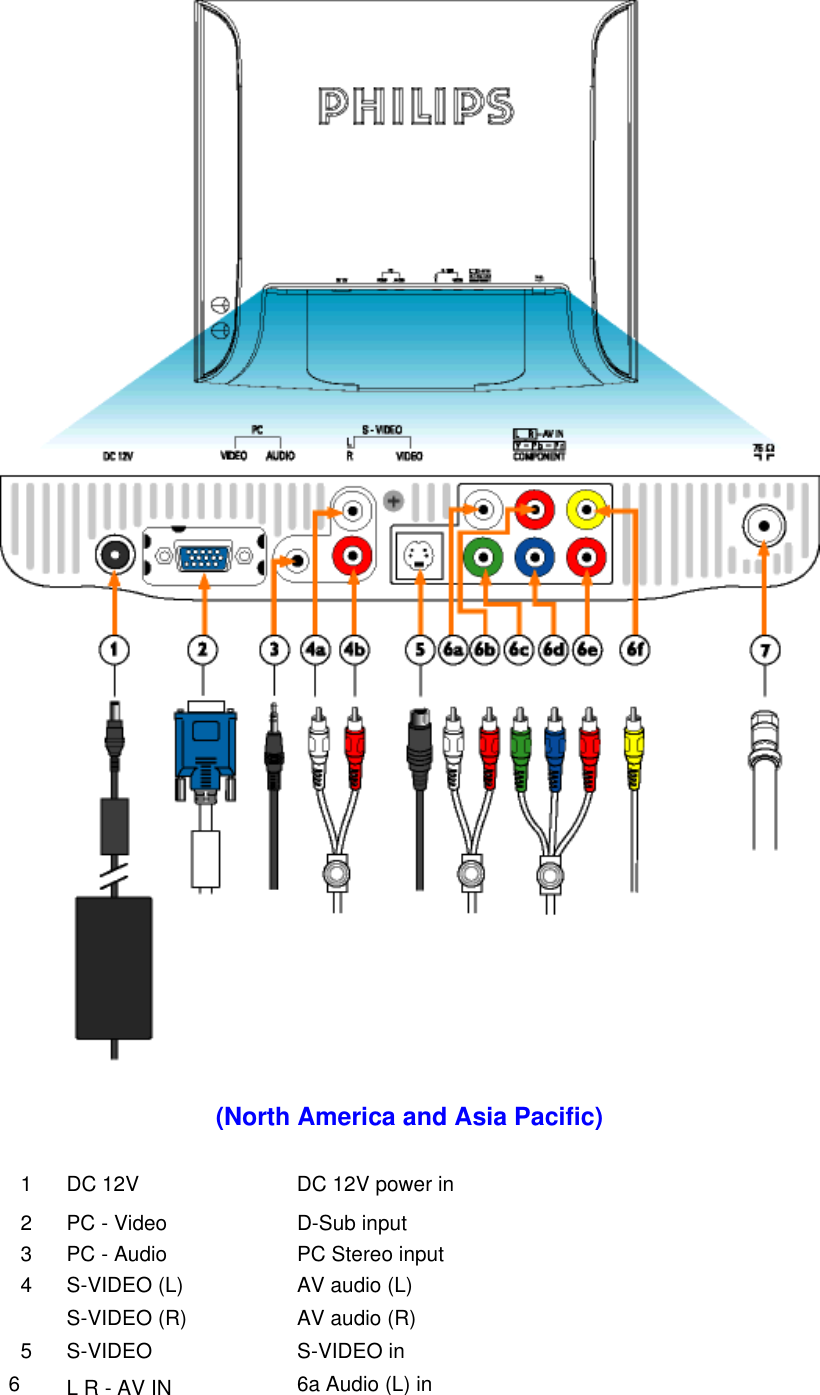

(North America and Asia Pacific) 1 DC 12V DC 12V power in 2 PC - Video D-Sub input3 PC - Audio PC Stereo input 4 S-VIDEO (L) AV audio (L) S-VIDEO (R) AV audio (R)5 S-VIDEO S-VIDEO in 6 L R - AV IN 6a Audio (L) in
RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1024x768@60Hz (for 15") or 1280x160Hz (for 18"). zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performanout of your monitor, included in this CD. A step-by-step instructions is provided to guide you through theinstalltion process. Click on the link to know more about this program. More about FP_setup02.exe RETURN TO TOP OF THE PAGE Y-Pb-Pr Component 6b Audio (R) in6f CVBS in6c, d, e Component video in7 75 TV Antenna or CATV cable inNote: You can check the current display settings by pressing the "OK" button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

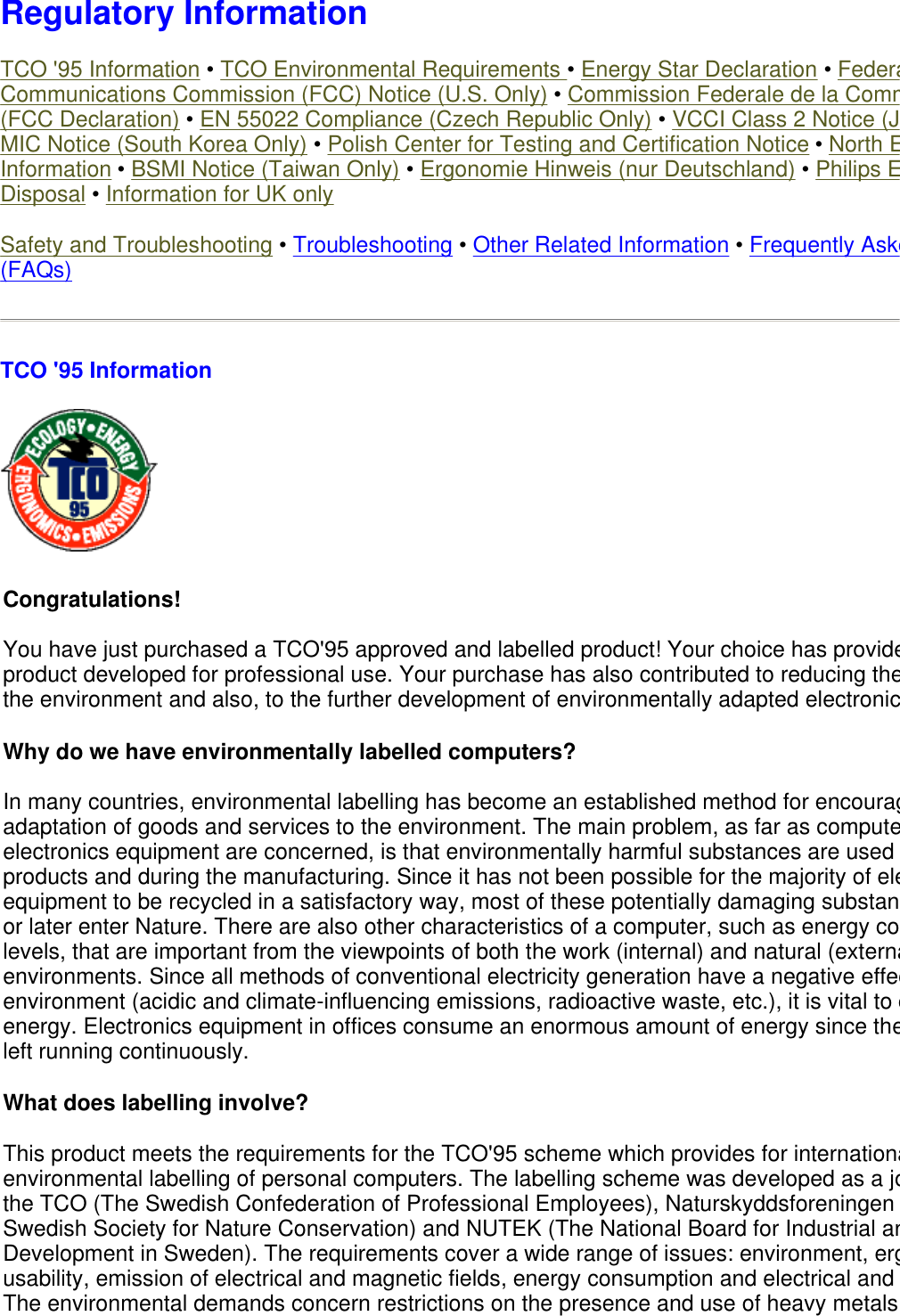

Regulatory Information TCO '95 Information • TCO Environmental Requirements • Energy Star Declaration • FederaCommunications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Comm(FCC Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2 Notice (JMIC Notice (South Korea Only) • Polish Center for Testing and Certification Notice • North EInformation • BSMI Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips EDisposal • Information for UK only Safety and Troubleshooting • Troubleshooting • Other Related Information • Frequently Aske(FAQs) TCO '95 Information Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provideproduct developed for professional use. Your purchase has also contributed to reducing thethe environment and also, to the further development of environmentally adapted electronicWhy do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouragadaptation of goods and services to the environment. The main problem, as far as computeelectronics equipment are concerned, is that environmentally harmful substances are used products and during the manufacturing. Since it has not been possible for the majority of eleequipment to be recycled in a satisfactory way, most of these potentially damaging substanor later enter Nature. There are also other characteristics of a computer, such as energy colevels, that are important from the viewpoints of both the work (internal) and natural (externaenvironments. Since all methods of conventional electricity generation have a negative effecenvironment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to cenergy. Electronics equipment in offices consume an enormous amount of energy since theleft running continuously. What does labelling involve? This product meets the requirements for the TCO'95 scheme which provides for internationaenvironmental labelling of personal computers. The labelling scheme was developed as a jothe TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial anDevelopment in Sweden). The requirements cover a wide range of issues: environment, ergusability, emission of electrical and magnetic fields, energy consumption and electrical and The environmental demands concern restrictions on the presence and use of heavy metals
RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer deTo prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessiveTHIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCEEQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGEsoftware. From indicated inactivity to Power Saving Position A2, the total time must not be set to more than 70 minutes.NUTEK VESA State LED Indicator Power ConsumptionNormal operation ON Green 68 W (typical)Power SavingPosition A1 Suspend Blinking Green < 2 WPower SavingPosition A2 OFF Blinking Green < 2 WAs an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for quite a long time.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

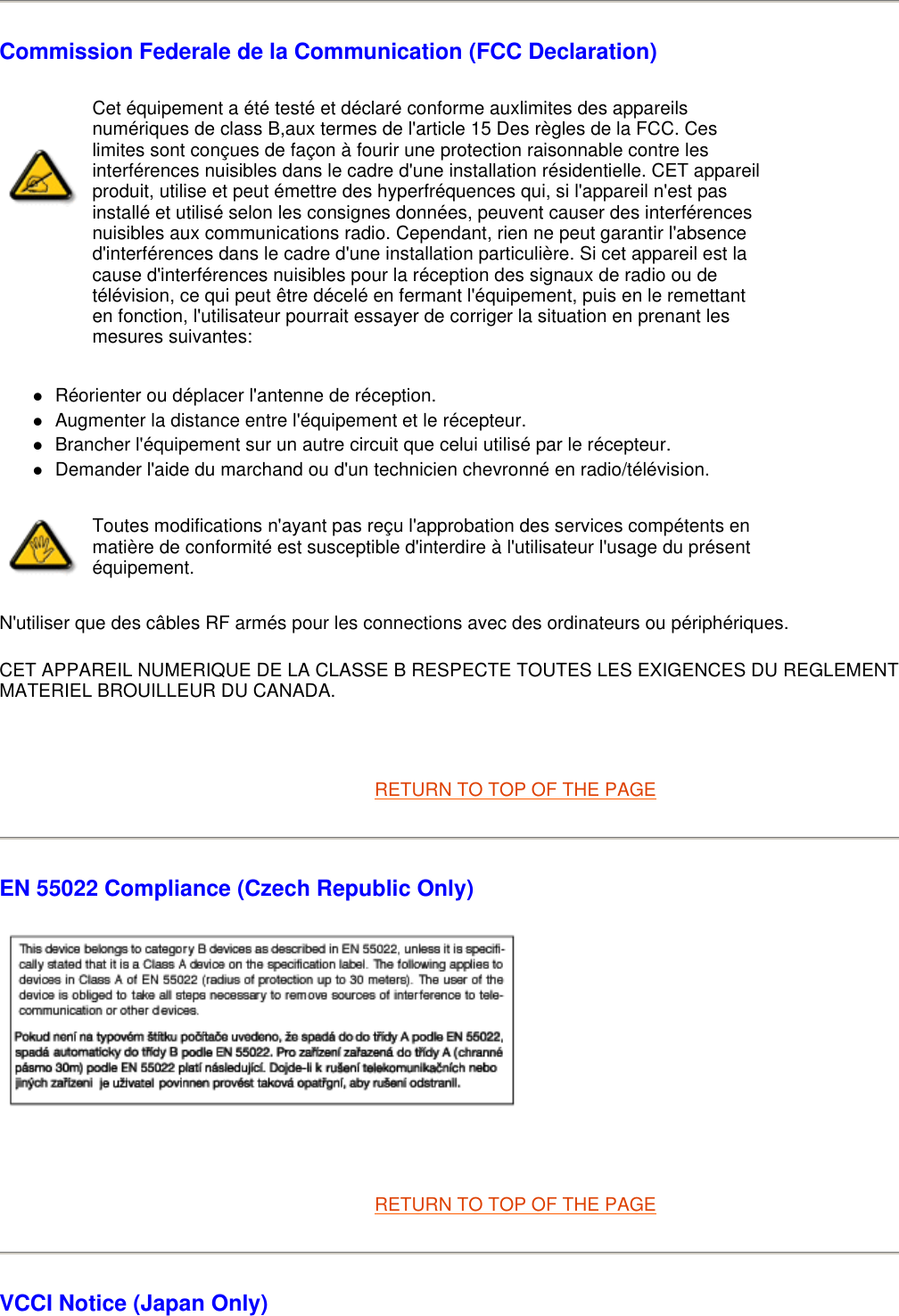

Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only) RETURN TO TOP OF THE PAGE VCCI Notice (Japan Only) Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.

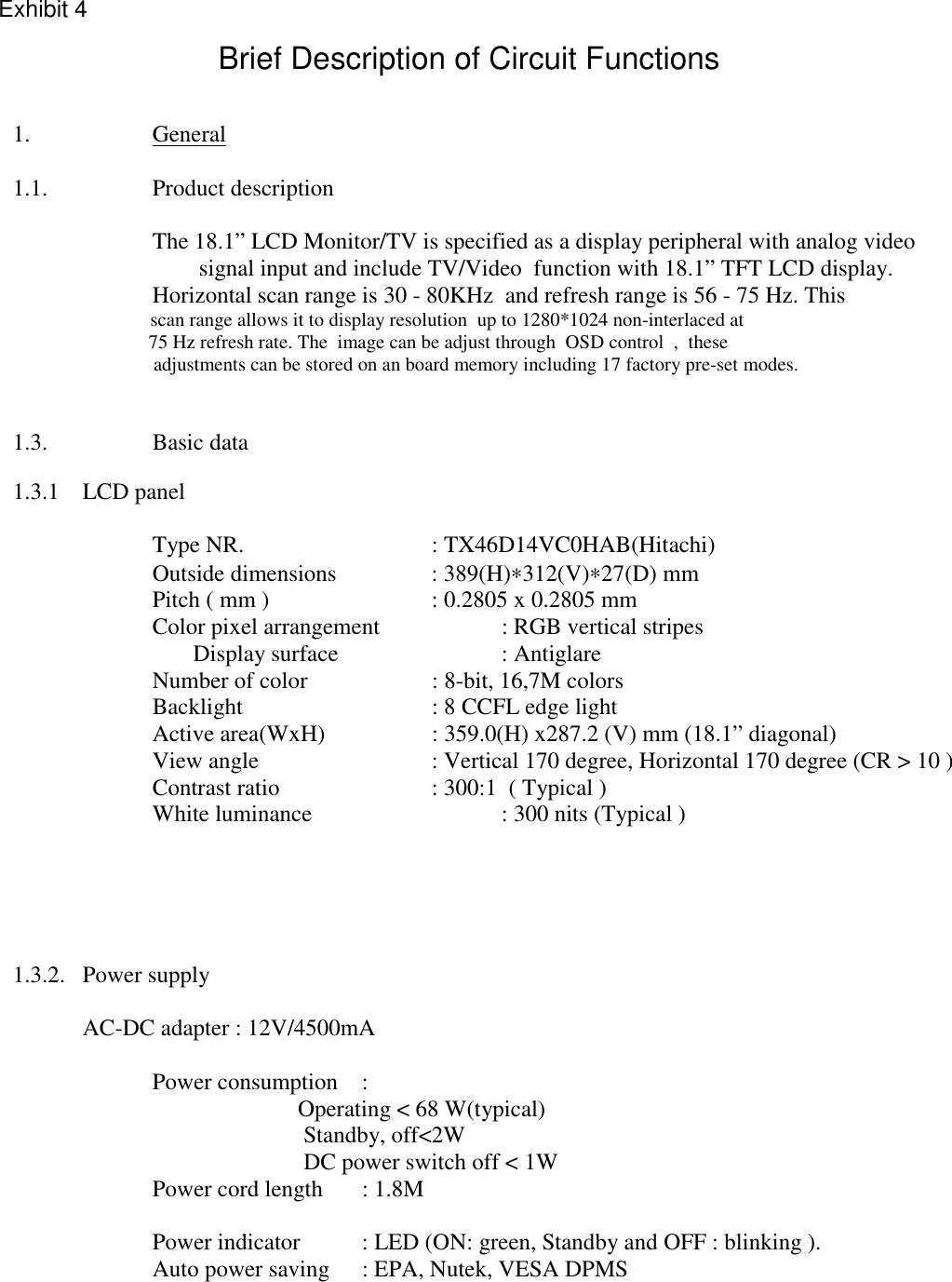

1. General 1.1. Product description The 18.1” LCD Monitor/TV is specified as a display peripheral with analog video signal input and include TV/Video function with 18.1” TFT LCD display. Horizontal scan range is 30 - 80KHz and refresh range is 56 - 75 Hz. This scan range allows it to display resolution up to 1280*1024 non-interlaced at 75 Hz refresh rate. The image can be adjust through OSD control , these adjustments can be stored on an board memory including 17 factory pre-set modes. 1.3. Basic data 1.3.1 LCD panel Type NR. : TX46D14VC0HAB(Hitachi) Outside dimensions : 389(H)∗312(V)∗27(D) mm Pitch ( mm ) : 0.2805 x 0.2805 mm Color pixel arrangement : RGB vertical stripes Display surface : Antiglare Number of color : 8-bit, 16,7M colors Backlight : 8 CCFL edge light Active area(WxH) : 359.0(H) x287.2 (V) mm (18.1” diagonal) View angle : Vertical 170 degree, Horizontal 170 degree (CR > 10 ) Contrast ratio : 300:1 ( Typical ) White luminance : 300 nits (Typical ) 1.3.2. Power supply AC-DC adapter : 12V/4500mA Power consumption : Operating < 68 W(typical) Standby, off<2W DC power switch off < 1W Power cord length : 1.8M Power indicator : LED (ON: green, Standby and OFF : blinking ). Auto power saving : EPA, Nutek, VESA DPMS Exhibit 4Brief Description of Circuit Functions

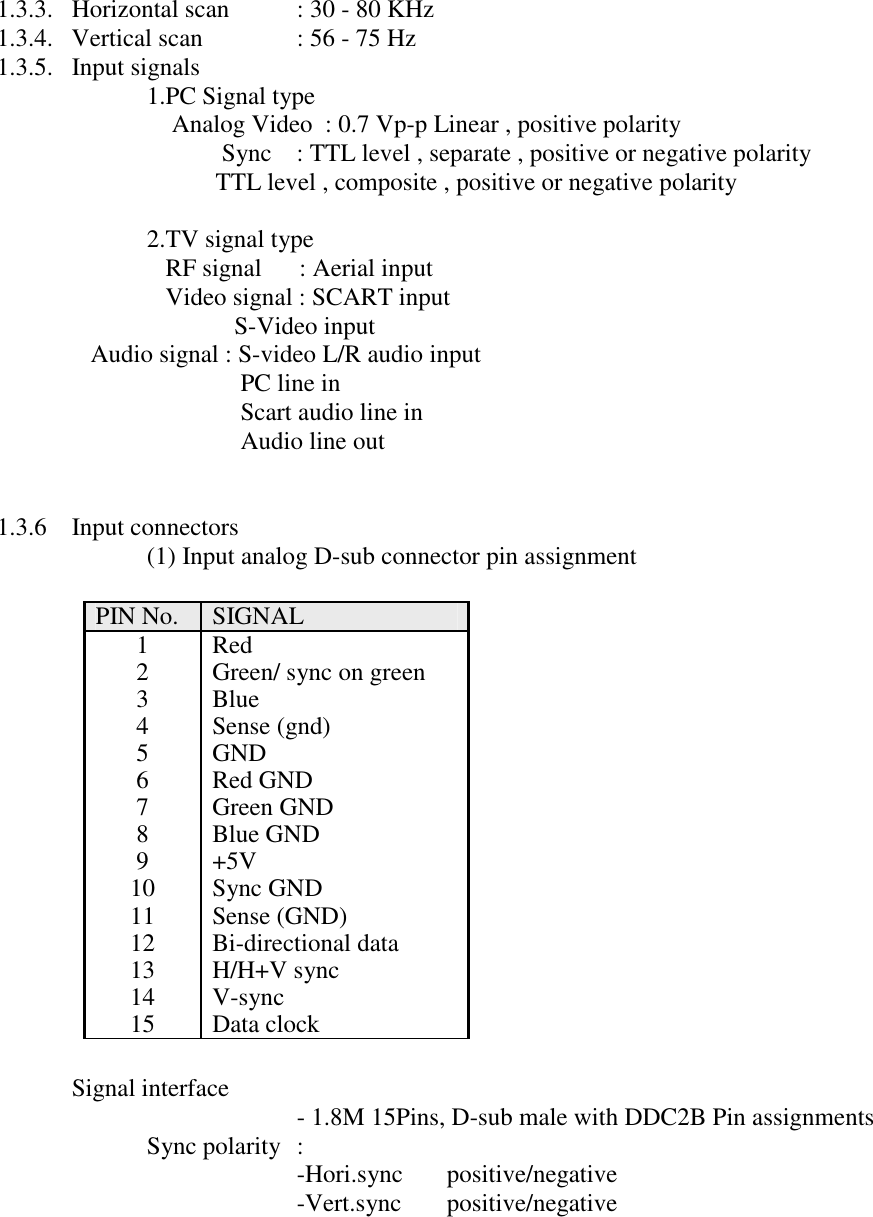

1.3.3. Horizontal scan : 30 - 80 KHz 1.3.4. Vertical scan : 56 - 75 Hz 1.3.5. Input signals 1.PC Signal type Analog Video : 0.7 Vp-p Linear , positive polarity Sync : TTL level , separate , positive or negative polarity TTL level , composite , positive or negative polarity 2.TV signal type RF signal : Aerial input Video signal : SCART input S-Video input Audio signal : S-video L/R audio input PC line in Scart audio line in Audio line out 1.3.6 Input connectors (1) Input analog D-sub connector pin assignment Signal interface - 1.8M 15Pins, D-sub male with DDC2B Pin assignments Sync polarity : -Hori.sync positive/negative -Vert.sync positive/negative PIN No. SIGNAL 1 Red 2 Green/ sync on green 3 Blue 4 Sense (gnd) 5 GND 6 Red GND 7 Green GND 8 Blue GND 9 +5V 10 Sync GND 11 Sense (GND) 12 Bi-directional data 13 H/H+V sync 14 V-sync 15 Data clock
(2) Input SCART connector pin assignment PIN No. SIGNAL 1 Audio output B ( right ) 2 Audio input B ( right ) 3 Audio output A ( left ) 4 Ground (audio ) 5 Ground ( blue ) 6 Audio input A ( left ) 7 Blue input 8 Function select 9 Ground ( green ) 10 Comms data 2 11 Green input 12 Comms data 1 13 Ground ( red ) 14 Ground ( blanking ) 15 Red input 16 RGB switching control 17 Ground ( video input & output ) 18 Ground ( RGB switching control ) 19 Video output ( composite ) 20 Video input ( composite ) 21 Common ground ( shield )

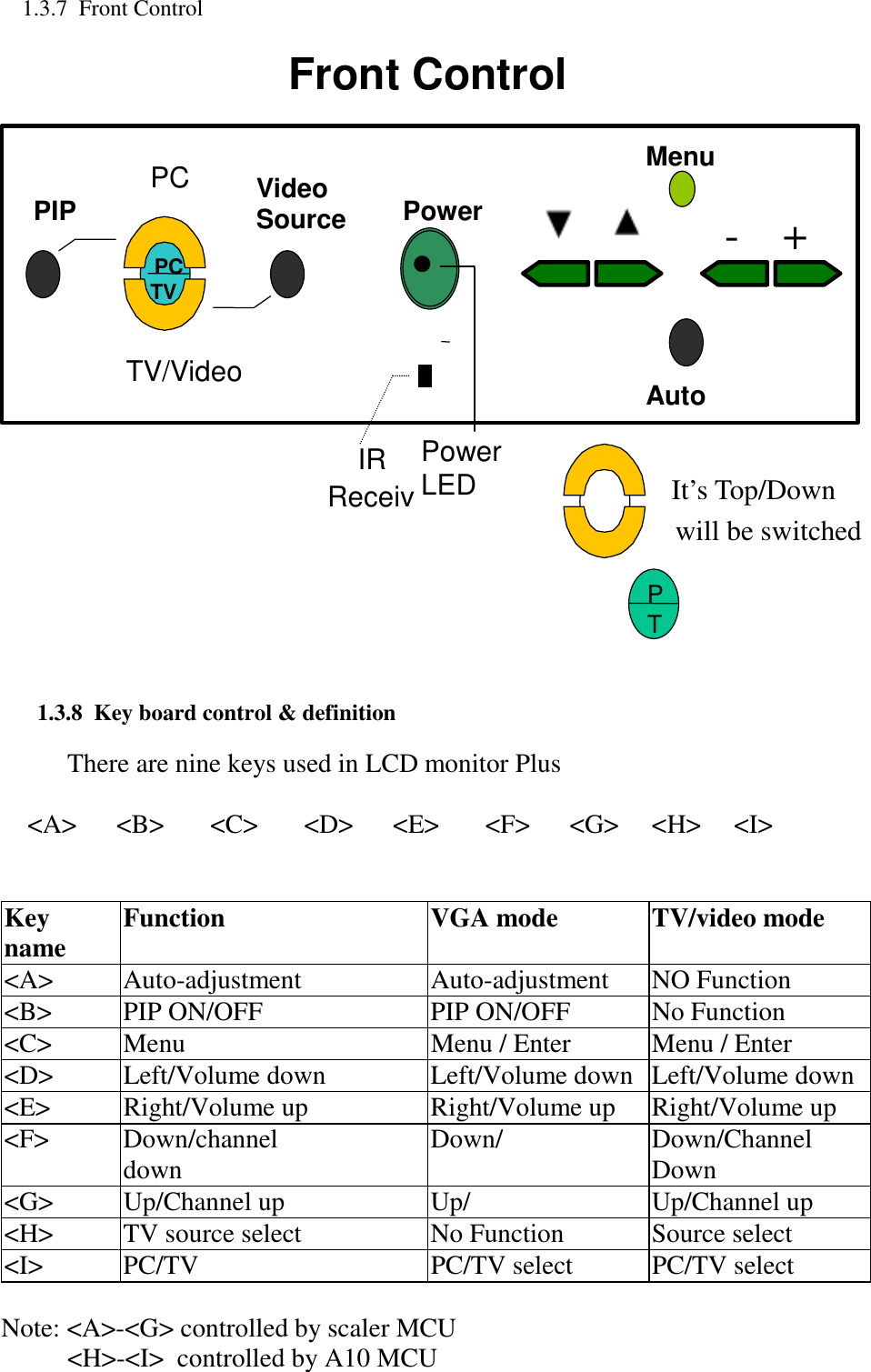

1.3.7 Front Control 1.3.8 Key board control & definition There are nine keys used in LCD monitor Plus <A> <B> <C> <D> <E> <F> <G> <H> <I> Key name Function VGA mode TV/video mode <A> Auto-adjustment Auto-adjustment NO Function <B> PIP ON/OFF PIP ON/OFF No Function <C> Menu Menu / Enter Menu / Enter <D> Left/Volume down Left/Volume down Left/Volume down <E> Right/Volume up Right/Volume up Right/Volume up <F> Down/channel down Down/ Down/Channel Down <G> Up/Channel up Up/ Up/Channel up <H> TV source select No Function Source select <I> PC/TV PC/TV select PC/TV select Note: <A>-<G> controlled by scaler MCU <H>-<I> controlled by A10 MCU Video Source Power PC TV Menu Auto Power LED PIP - + Front Control PC TV/Video It’s Top/Down will be switched PT IRReceiv•

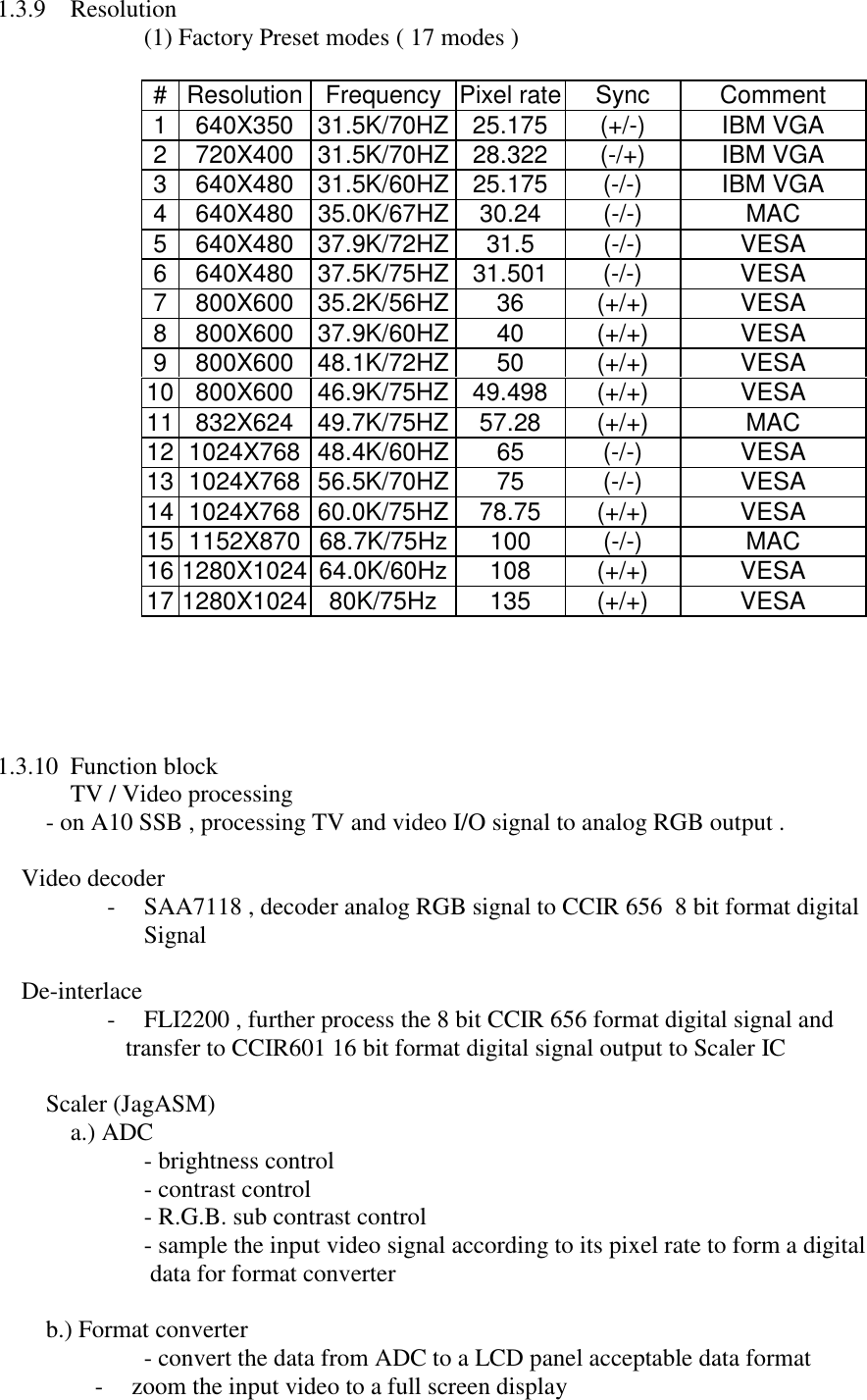

1.3.9 Resolution (1) Factory Preset modes ( 17 modes ) # Resolution Frequency Pixel rate Sync Comment 1 640X350 31.5K/70HZ 25.175 (+/-) IBM VGA 2 720X400 31.5K/70HZ 28.322 (-/+) IBM VGA 3 640X480 31.5K/60HZ 25.175 (-/-) IBM VGA 4 640X480 35.0K/67HZ 30.24 (-/-) MAC 5 640X480 37.9K/72HZ 31.5 (-/-) VESA 6 640X480 37.5K/75HZ 31.501 (-/-) VESA 7 800X600 35.2K/56HZ 36 (+/+) VESA 8 800X600 37.9K/60HZ 40 (+/+) VESA 9 800X600 48.1K/72HZ 50 (+/+) VESA 10 800X600 46.9K/75HZ 49.498 (+/+) VESA 11 832X624 49.7K/75HZ 57.28 (+/+) MAC 12 1024X768 48.4K/60HZ 65 (-/-) VESA 13 1024X768 56.5K/70HZ 75 (-/-) VESA 14 1024X768 60.0K/75HZ 78.75 (+/+) VESA 15 1152X870 68.7K/75Hz 100 (-/-) MAC 16 1280X1024 64.0K/60Hz 108 (+/+) VESA 17 1280X1024 80K/75Hz 135 (+/+) VESA 1.3.10 Function block TV / Video processing - on A10 SSB , processing TV and video I/O signal to analog RGB output . Video decoder - SAA7118 , decoder analog RGB signal to CCIR 656 8 bit format digital Signal De-interlace - FLI2200 , further process the 8 bit CCIR 656 format digital signal and transfer to CCIR601 16 bit format digital signal output to Scaler IC Scaler (JagASM) a.) ADC - brightness control - contrast control - R.G.B. sub contrast control - sample the input video signal according to its pixel rate to form a digital data for format converter b.) Format converter - convert the data from ADC to a LCD panel acceptable data format - zoom the input video to a full screen display

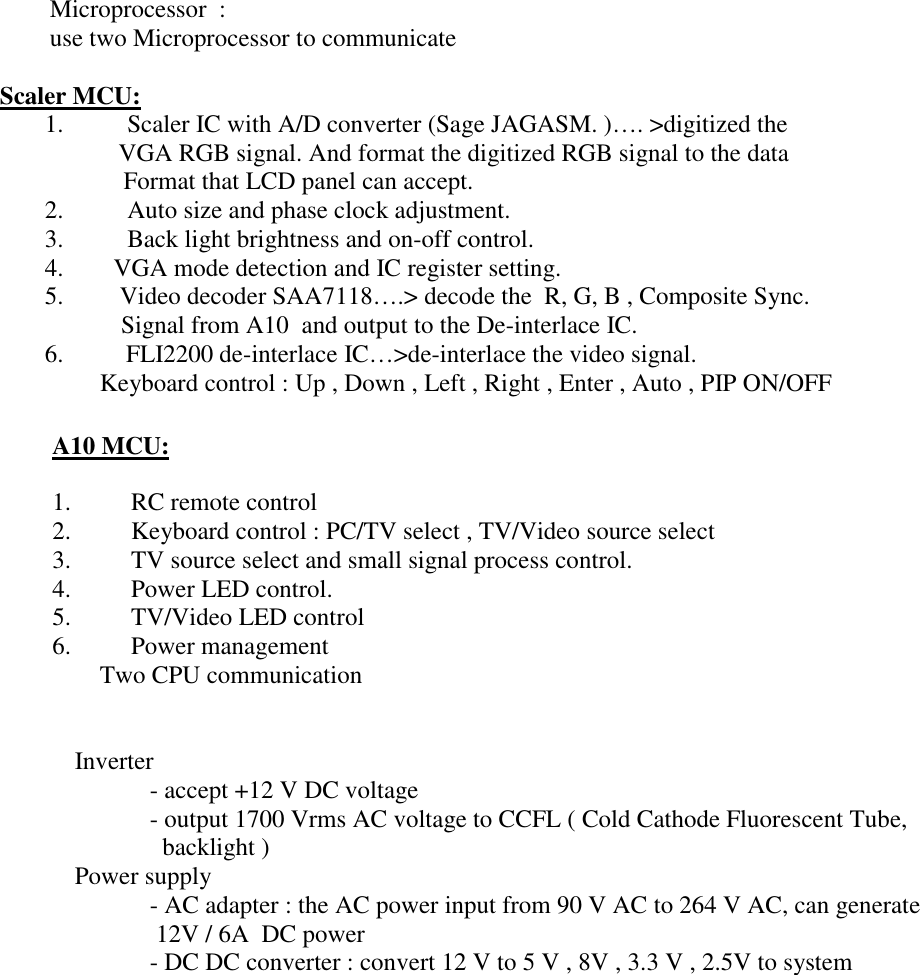

Microprocessor : use two Microprocessor to communicate Scaler MCU: 1. Scaler IC with A/D converter (Sage JAGASM. )…. >digitized the VGA RGB signal. And format the digitized RGB signal to the data Format that LCD panel can accept. 2. Auto size and phase clock adjustment. 3. Back light brightness and on-off control. 4. VGA mode detection and IC register setting. 5. Video decoder SAA7118….> decode the R, G, B , Composite Sync. Signal from A10 and output to the De-interlace IC. 6. FLI2200 de-interlace IC…>de-interlace the video signal. Keyboard control : Up , Down , Left , Right , Enter , Auto , PIP ON/OFF A10 MCU: 1. RC remote control 2. Keyboard control : PC/TV select , TV/Video source select 3. TV source select and small signal process control. 4. Power LED control. 5. TV/Video LED control 6. Power management Two CPU communication Inverter - accept +12 V DC voltage - output 1700 Vrms AC voltage to CCFL ( Cold Cathode Fluorescent Tube, backlight ) Power supply - AC adapter : the AC power input from 90 V AC to 264 V AC, can generate 12V / 6A DC power - DC DC converter : convert 12 V to 5 V , 8V , 3.3 V , 2.5V to system
