Philips Electronics M111 18 inches SXGA LCD all-in-one Monitor/TV User Manual
Philips Electronics Industries (Taiwan) Ltd 18 inches SXGA LCD all-in-one Monitor/TV
User Manual
Product Information
Product Features • Technical Specifications • Resolution & Preset Modes •
Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification •
Pin Assignment • Product Views • Physical Function
Product Features
180MT
18 inch-SXGA LCD all-in-one Monitor/TV with excellent display performance
Multiple video input allowing display of PC, TV(with Teletext), DVD and VCD
Picture in Picture (PIP) function for displaying both TV or video and PC application on
the screen
Super-high brightness/contrast and fast response time
100-page Teletext (available only in Asia Pacific and Western Europe)
Digital Nicam/2CS stereo(available only in Asia Pacific and Western Europe)
Component Video Input (YPbPr/YCbCr) for DVD (available only in Asia Pacific and
NTSC systems)
Euroconnector (SCART) (available only in Western Europe)
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 18.1" visual
• Pixel Pitch 0.2805 x 0.2805mm
• LCD Panel type 1280 x 1024pixels
R.G.B. vertical stripe
Anti-glare polarizer
• Effective viewing area (H) 359.0 x (V) 287.2mm
• Display Colors 8 bits interface (16.7M colors)
SCANNING
• Vertical refresh rate 56Hz-75Hz
• Horizontal frequency 30kHz-80kHz
Exhibit 3
Installstion and Operating Instructions
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
VIDEO
• Video dot rate 135 MHz
• Input impedance
- Video 75 Ohm
- Sync 2K Ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
• Sync polarities Positive and negative
• Input Frequency
SXGA Hsync 64- 80 kHz, Vsync 60 - 75 Hz (N.I.)
XGA Hsync 48- 61 kHz, Vsync 60 - 75 Hz (N.I.)
SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.)
VGA Hsync 31- 38 kHz, Vsync 60 - 75 Hz (N.I.)
• Video interface D-sub, S-Video, TV-RF, SCART (Europe) or composite
and components video (others)
AUDIO
• Input level for
PC/SVHS/SCART 500 mV nominal
• Headphone out signal level 4mW max.
• Loudspeaker 5W Stereo Audio (2.5W/channel RMS x2, 200Hz~10kHz, 4
ohm, 10% THD)
OPTICAL CHARACTERISTICS
• Contrast ratio 300:1 (typ.)
• Brightness 300 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromacity x: 0.281 y: 0.311 (at 9300° K)
x: 0.312 y: 0.338 (at 6500° K)
• Viewing Angle (C/R >10)
Upper >85° (typ.)
Lower >85° (typ.)
Left >85 ° (typ.)
Right >85 ° (typ.)
• Response time <=30ms (typ.)
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed in your PC, the
monitor can automatically reduce its power consumption when not in use. And if an input from
a keyboard, mouse or other input device is detected, the monitor will automatically "wake up".
The following table shows the power consumption and signaling of this automatic power saving
• Maximum 1280 x 1024 at 75Hz
• Recommended 1280 x 1024 at 60Hz
17 user definable modes
17 factory preset modes:
(Interlace mode is not applicable)
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70.1
31.5 720*400 70.1
31.5 640*480 59.9
35.0 640*480 67.0
37.8 640*480 72.8
37.5 640*480 75.0
35.2 800*600 56.3
37.9 800*600 60.3
48.0 800*600 72.0
46.9 800*600 75.0
49.7 832*624 75.0
48.4 1024*768 60.0
56.5 1024*768 70.0
60.1 1024*768 75.0
68.7 1152*870 75.0
64.0 1280*1024 60.0
80.0 1280*1024 75.0
features:
RETURN TO TOP OF THE PAGE
Physical Specifications
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Pin Assignment
The 15-pin D-sub connector (male) of the signal cable:
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
ON Active Yes Yes 68W (typ.) Green
Stand-by Blanked No Yes < 2W Blinking
Green
Suspend Blanked Yes No < 2W Blinking
Green
OFF Blanked No No < 2W Blinking
Green
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) 452 x 452 x 200 mm (incl. Pedestal)
• Weight 6.3 Kg
• Tilt (Forward / Backward) 0° / 20°
• Power supply 100 — 240 VAC, 50/60 Hz
• Power consumption 68 W (typ.)
• Temperature (operating) 0° C to 35° C (operating)
-20 ° C to 60° C (storage))
• Relative humidity 20% to 80%
• System MTBF 50K hrs
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
Pin
No. Assignment
Pin
No. Assignment
1 Red video input 9 DDC +5V
2 Green video input 10 Logic ground
3 Blue video input 11 Identical output -
connected to pin 10
4 Identical output -
connected to pin 10 12 Serial data line (SDA)
5 Ground 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground

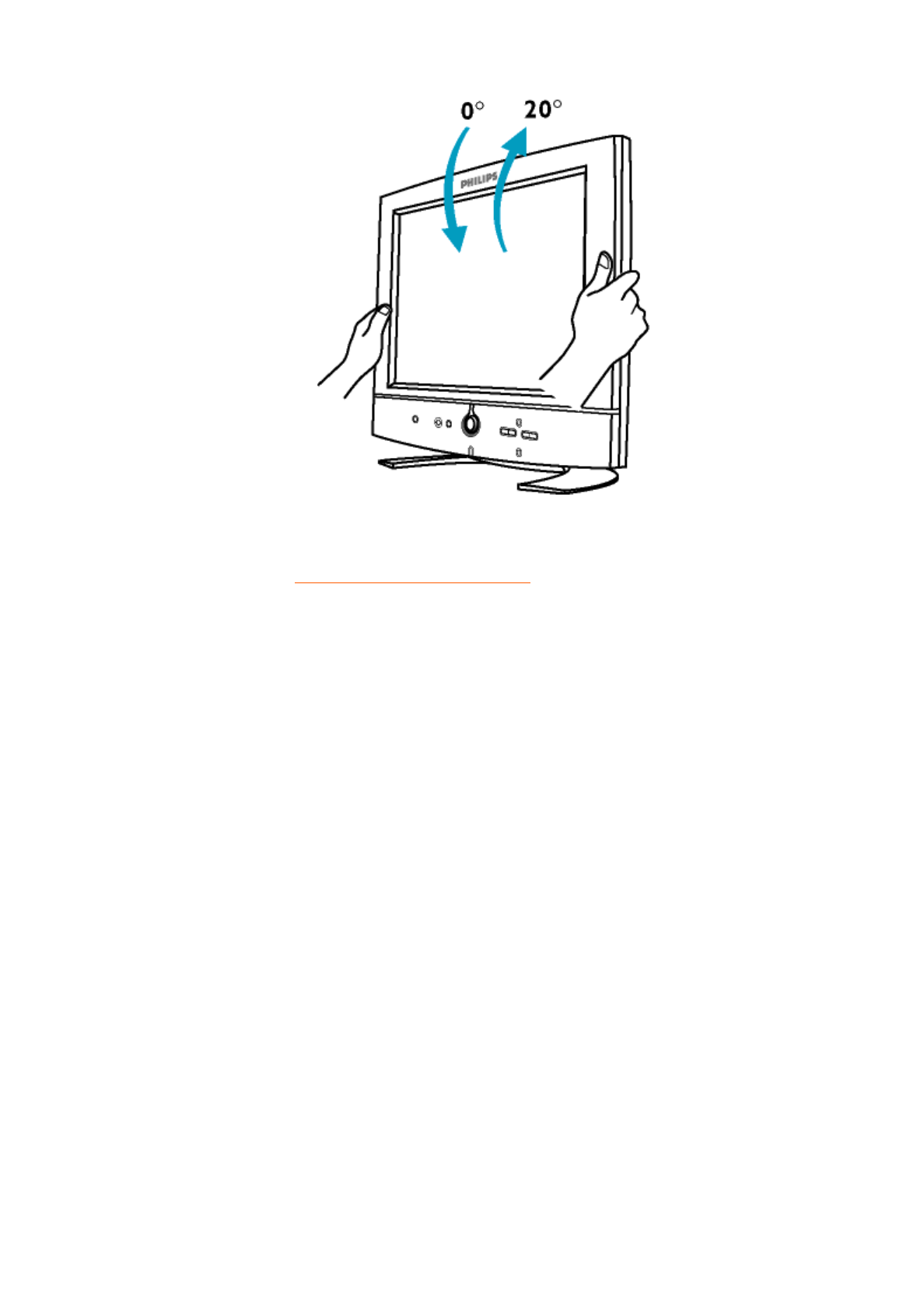

Tilt
RETURN TO TOP OF THE PAGE
Installing your LCD Monitor/TV
Front View Product Description • Connecting to Your PC, TV antenna,DVD/VCR etc. • Rem
o
and Re-install the Base • Basic Monitor TV Connections • Getting Started • Optimizing
Performance

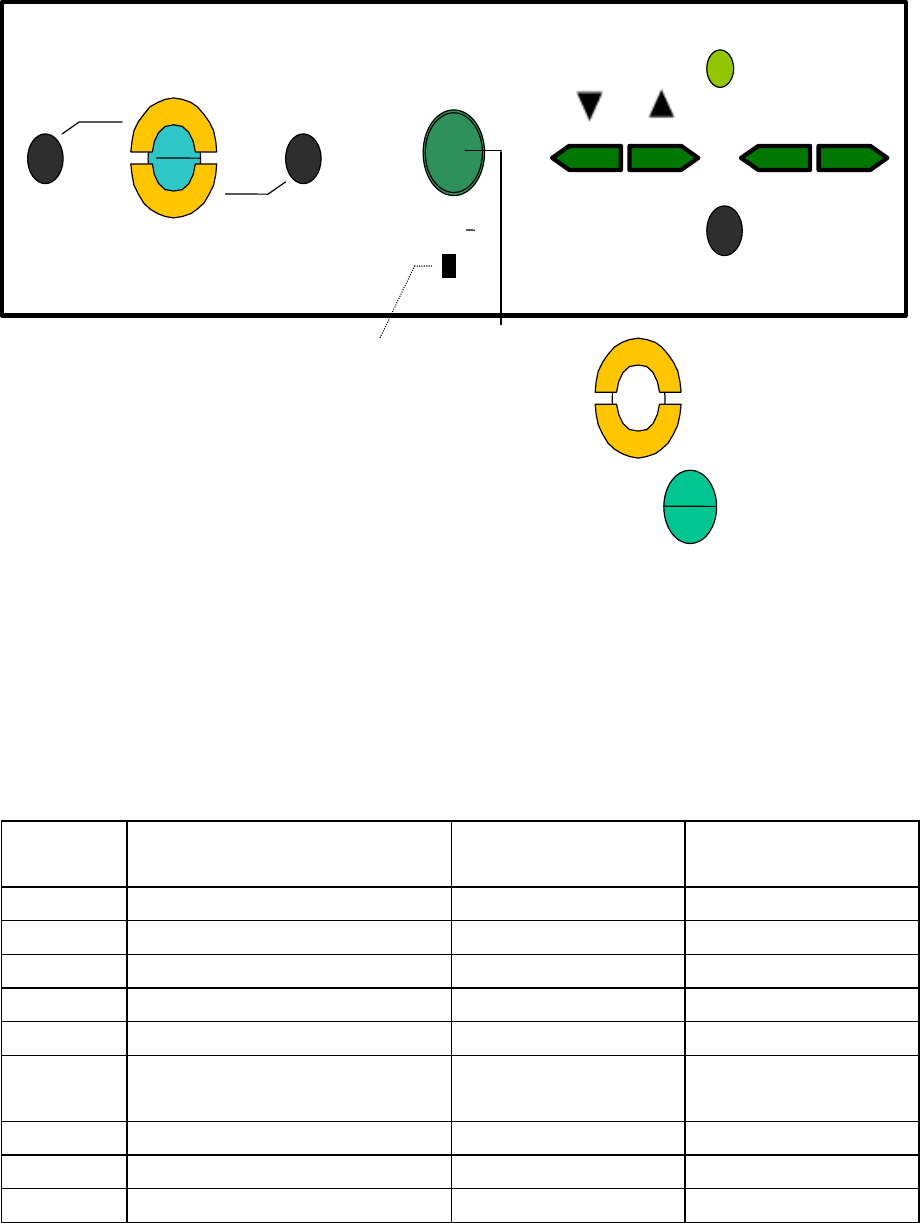

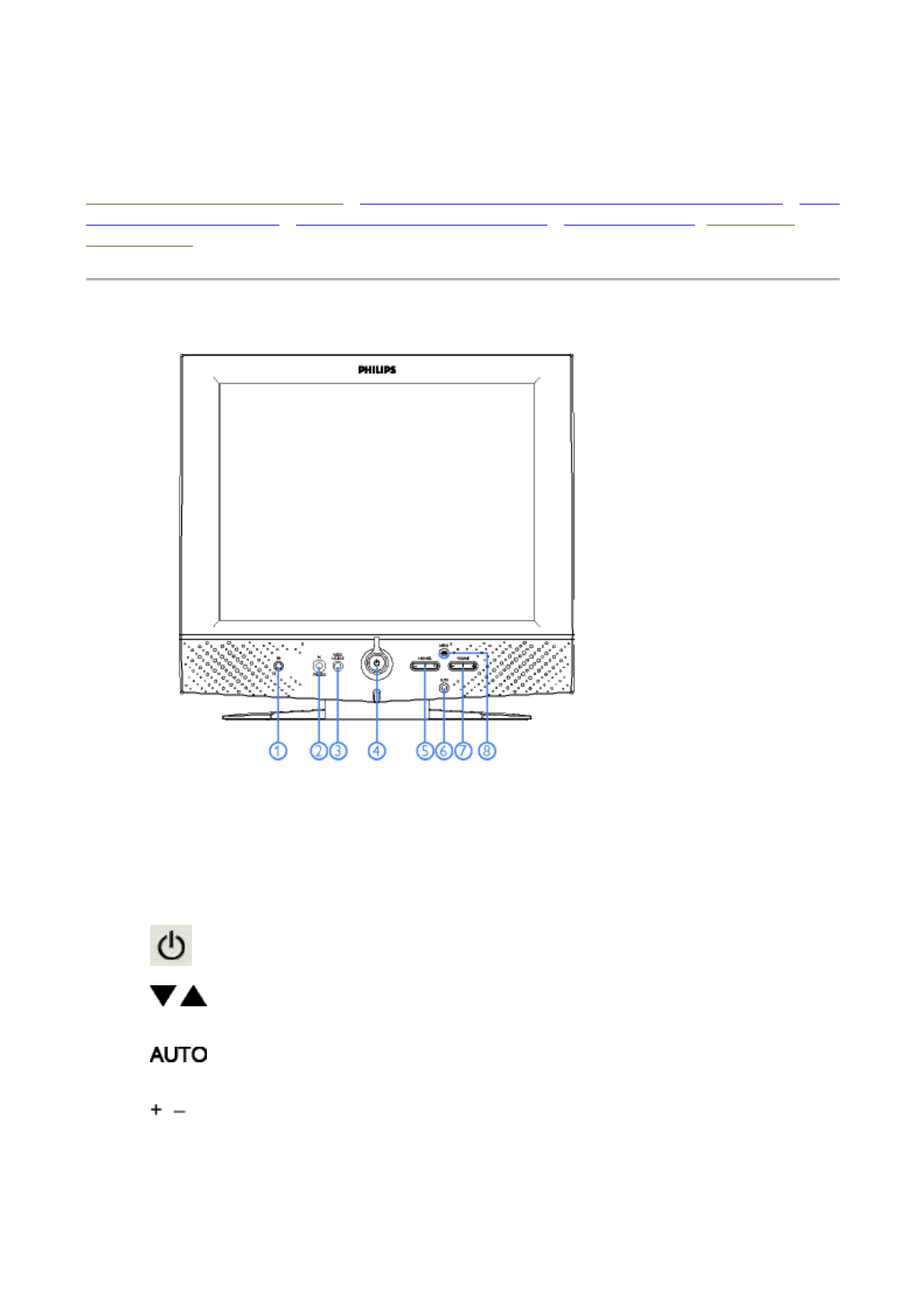

Front View Product Description
1 PIP Activate PIP (Picture in Picture) window and select size
2 PC<->TV/Video Switch the monitor between PC mode and TV/Video
mode
3 VIDEO
SOURCE TV/Video source selection
4 Power switch On/Off
5 Increase or decrease the channel number
or
up or down the highlighted function in OSD
6 Automatically adjust the H/V position, phase and clock
setting
7
Increase or decrease the level of audio volume
or
increase or decrease the highlighted function in OSD
8 MENU OK Open the OSD and select the highlighted function
RETURN TO TOP OF THE PAGE

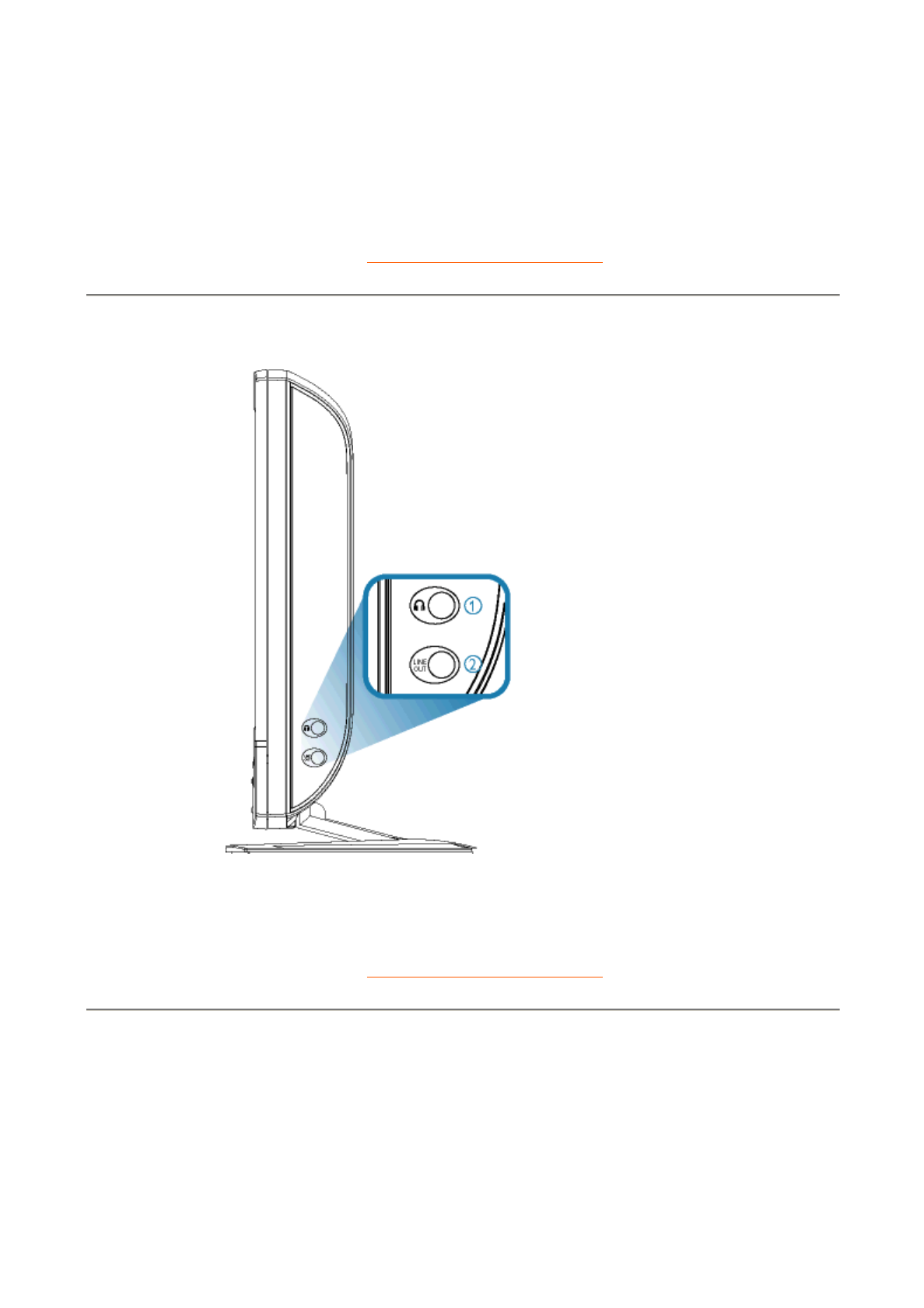

Side View
RETURN TO TOP OF THE PAGE

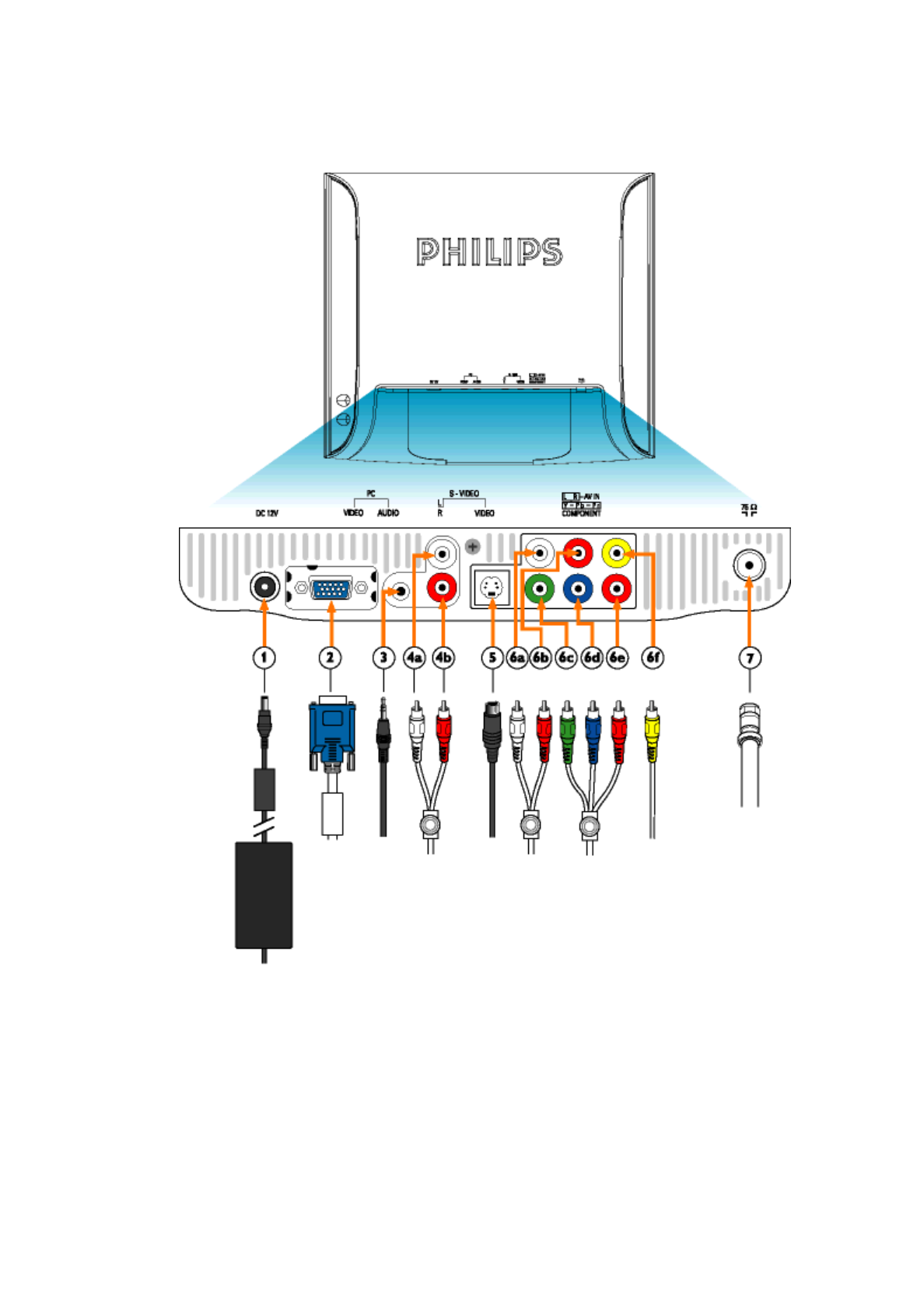

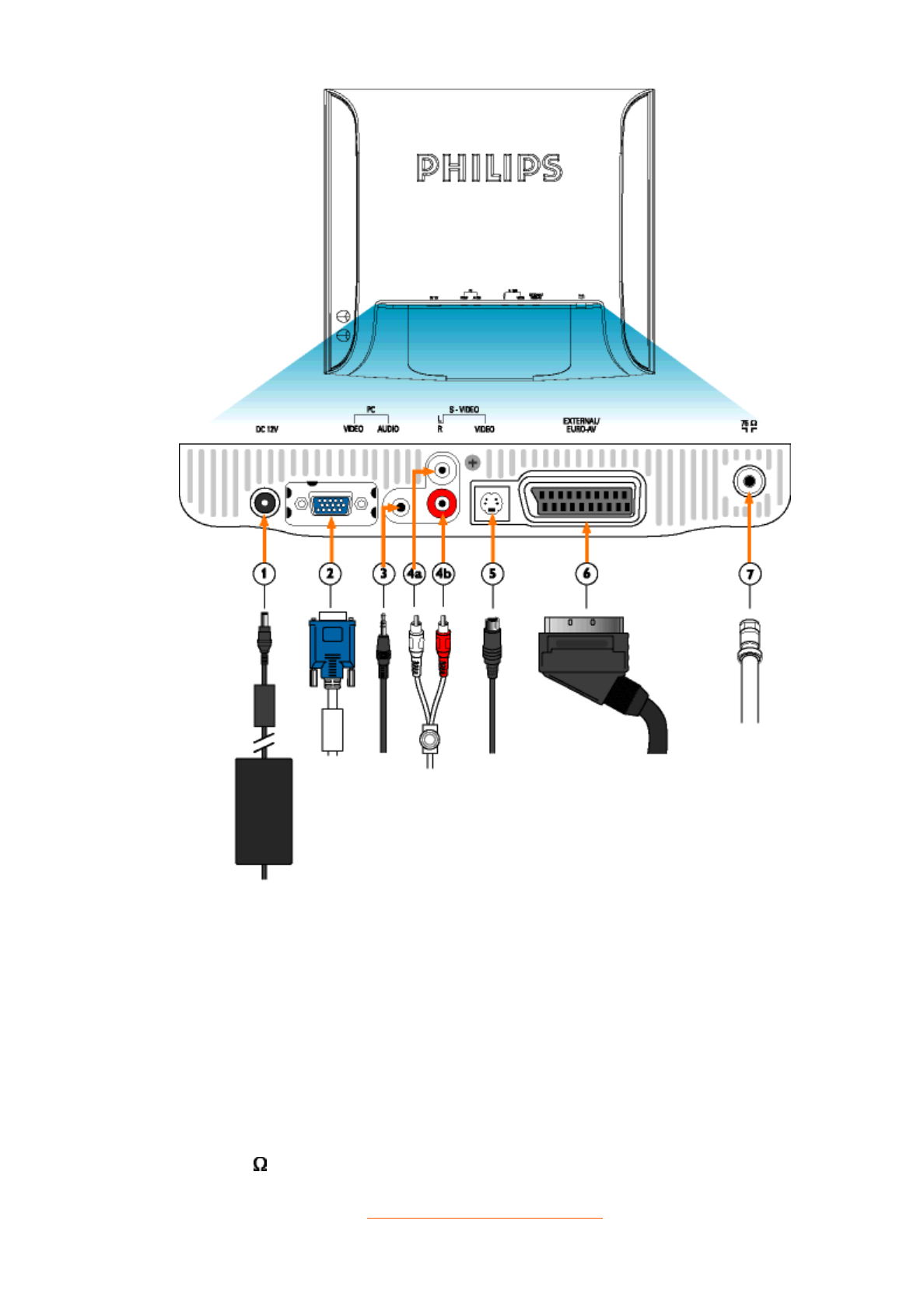

Rear View
1. Headphone Jack
2. LINE OUT Jack
(Europe)
RETURN TO TOP OF THE PAGE
1 DC 12V DC 12V power in
2 PC - Video D-Sub input
3 PC - Audio PC Stereo input
4 S-VIDEO (L) AV audio (L)
S-VIDEO (R) AV audio (R)
5 S-VIDEO S-VIDEO in
6 EXTERNAL/
EURO-AV SCART connection (for Europe only)
7 75 TV Antenna or CATV cable in
(North America and Asia Pacific)
1 DC 12V DC 12V power in
2 PC - Video D-Sub input
3 PC - Audio PC Stereo input
4 S-VIDEO (L) AV audio (L)
S-VIDEO (R) AV audio (R)
5 S-VIDEO S-VIDEO in
6 L R - AV IN 6a Audio (L) in
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1024x768@60Hz (for 15") or 1280x1
60Hz (for 18").
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performa
n
out of your monitor, included in this CD. A step-by-step instructions is provided to guide you through th
e
installtion process. Click on the link to know more about this program.
More about FP_setup02.exe
RETURN TO TOP OF THE PAGE
Y-Pb-Pr
Component 6b Audio (R) in
6f CVBS in
6c, d, e Component video in
7 75 TV Antenna or CATV cable in
Note: You can check the current display settings by pressing the "OK"
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
Regulatory Information
TCO '95 Information • TCO Environmental Requirements • Energy Star Declaration • Feder
a
Communications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Com
m
(FCC Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2 Notice (J
MIC Notice (South Korea Only) • Polish Center for Testing and Certification Notice • North
E
Information • BSMI Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips
E
Disposal • Information for UK only
Safety and Troubleshooting • Troubleshooting • Other Related Information • Frequently Ask
e
(FAQs)
TCO '95 Information
Congratulations!
You have just purchased a TCO'95 approved and labelled product! Your choice has provid
e
product developed for professional use. Your purchase has also contributed to reducing th
e
the environment and also, to the further development of environmentally adapted electroni
c
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encoura
g
adaptation of goods and services to the environment. The main problem, as far as comput
e
electronics equipment are concerned, is that environmentally harmful substances are used
products and during the manufacturing. Since it has not been possible for the majority of el
e
equipment to be recycled in a satisfactory way, most of these potentially damaging substan
or later enter Nature. There are also other characteristics of a computer, such as energy co
levels, that are important from the viewpoints of both the work (internal) and natural (extern
a
environments. Since all methods of conventional electricity generation have a negative effe
c
environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to
c
energy. Electronics equipment in offices consume an enormous amount of energy since th
e
left running continuously.
What does labelling involve?
This product meets the requirements for the TCO'95 scheme which provides for internation
a
environmental labelling of personal computers. The labelling scheme was developed as a j
o
the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen
Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial a
n
Development in Sweden). The requirements cover a wide range of issues: environment, er
g
usability, emission of electrical and magnetic fields, energy consumption and electrical and
The environmental demands concern restrictions on the presence and use of heavy metals
RETURN TO TOP OF THE PAGE
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer d
e
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessiv
e
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENC
E
EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
software. From indicated inactivity to Power Saving Position A2, the total time must not be set
to more than 70 minutes.
NUTEK VESA State LED Indicator Power Consumption
Normal operation ON Green 68 W (typical)
Power Saving
Position A1 Suspend Blinking Green < 2 W
Power Saving
Position A2 OFF Blinking Green < 2 W
As an ENERGY STAR® Partner, PHILIPS has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency.
We recommend you switch off the monitor when it is not in use for quite a long
time.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT
MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
EN 55022 Compliance (Czech Republic Only)
RETURN TO TOP OF THE PAGE
VCCI Notice (Japan Only)
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
1. General
1.1. Product description
The 18.1” LCD Monitor/TV is specified as a display peripheral with analog video
signal input and include TV/Video function with 18.1” TFT LCD display.
Horizontal scan range is 30 - 80KHz and refresh range is 56 - 75 Hz. This
scan range allows it to display resolution up to 1280*1024 non-interlaced at
75 Hz refresh rate. The image can be adjust through OSD control , these
adjustments can be stored on an board memory including 17 factory pre-set modes.
1.3. Basic data
1.3.1 LCD panel
Type NR. : TX46D14VC0HAB(Hitachi)
Outside dimensions : 389(H)∗312(V)∗27(D) mm
Pitch ( mm ) : 0.2805 x 0.2805 mm
Color pixel arrangement : RGB vertical stripes
Display surface : Antiglare
Number of color : 8-bit, 16,7M colors
Backlight : 8 CCFL edge light
Active area(WxH) : 359.0(H) x287.2 (V) mm (18.1” diagonal)
View angle : Vertical 170 degree, Horizontal 170 degree (CR > 10 )
Contrast ratio : 300:1 ( Typical )
White luminance : 300 nits (Typical )
1.3.2. Power supply
AC-DC adapter : 12V/4500mA
Power consumption :
Operating < 68 W(typical)
Standby, off<2W
DC power switch off < 1W
Power cord length : 1.8M
Power indicator : LED (ON: green, Standby and OFF : blinking ).
Auto power saving : EPA, Nutek, VESA DPMS
Exhibit 4
Brief Description of Circuit Functions
1.3.3. Horizontal scan : 30 - 80 KHz
1.3.4. Vertical scan : 56 - 75 Hz
1.3.5. Input signals
1.PC Signal type
Analog Video : 0.7 Vp-p Linear , positive polarity
Sync : TTL level , separate , positive or negative polarity
TTL level , composite , positive or negative polarity
2.TV signal type
RF signal : Aerial input
Video signal : SCART input
S-Video input
Audio signal : S-video L/R audio input
PC line in
Scart audio line in
Audio line out
1.3.6 Input connectors
(1) Input analog D-sub connector pin assignment
Signal interface
- 1.8M 15Pins, D-sub male with DDC2B Pin assignments
Sync polarity :
-Hori.sync positive/negative
-Vert.sync positive/negative
PIN No. SIGNAL
1 Red
2 Green/ sync on green
3 Blue
4 Sense (gnd)
5 GND
6 Red GND
7 Green GND
8 Blue GND
9 +5V
10 Sync GND
11 Sense (GND)
12 Bi-directional data
13 H/H+V sync
14 V-sync
15 Data clock
(2) Input SCART connector pin assignment
PIN No. SIGNAL
1 Audio output B ( right )
2 Audio input B ( right )
3 Audio output A ( left )
4 Ground (audio )
5 Ground ( blue )
6 Audio input A ( left )
7 Blue input
8 Function select
9 Ground ( green )
10 Comms data 2
11 Green input
12 Comms data 1
13 Ground ( red )
14 Ground ( blanking )
15 Red input
16 RGB switching control
17 Ground ( video input & output )
18 Ground ( RGB switching control )
19 Video output ( composite )
20 Video input ( composite )
21 Common ground ( shield )
1.3.7 Front Control
1.3.8 Key board control & definition
There are nine keys used in LCD monitor Plus
<A> <B> <C> <D> <E> <F> <G> <H> <I>
Key
name Function VGA mode TV/video mode
<A> Auto-adjustment Auto-adjustment NO Function
<B> PIP ON/OFF PIP ON/OFF No Function
<C> Menu Menu / Enter Menu / Enter
<D> Left/Volume down Left/Volume down Left/Volume down
<E> Right/Volume up Right/Volume up Right/Volume up
<F> Down/channel
down Down/ Down/Channel
Down
<G> Up/Channel up Up/ Up/Channel up
<H> TV source select No Function Source select
<I> PC/TV PC/TV select PC/TV select
Note: <A>-<G> controlled by scaler MCU
<H>-<I> controlled by A10 MCU
Video
Source Power
PC
TV
Menu
Auto
Power
LED
PIP
- +
Front Control
PC
TV/Video
It’s Top/Down
will be switched
P
T
IR
Receiv
•
1.3.9 Resolution
(1) Factory Preset modes ( 17 modes )
# Resolution Frequency Pixel rate Sync Comment
1 640X350 31.5K/70HZ 25.175 (+/-) IBM VGA
2 720X400 31.5K/70HZ 28.322 (-/+) IBM VGA
3 640X480 31.5K/60HZ 25.175 (-/-) IBM VGA
4 640X480 35.0K/67HZ 30.24 (-/-) MAC
5 640X480 37.9K/72HZ 31.5 (-/-) VESA
6 640X480 37.5K/75HZ 31.501 (-/-) VESA
7 800X600 35.2K/56HZ 36 (+/+) VESA
8 800X600 37.9K/60HZ 40 (+/+) VESA
9 800X600 48.1K/72HZ 50 (+/+) VESA
10 800X600 46.9K/75HZ 49.498 (+/+) VESA
11 832X624 49.7K/75HZ 57.28 (+/+) MAC
12 1024X768 48.4K/60HZ 65 (-/-) VESA
13 1024X768 56.5K/70HZ 75 (-/-) VESA
14 1024X768 60.0K/75HZ 78.75 (+/+) VESA
15 1152X870 68.7K/75Hz 100 (-/-) MAC
16 1280X1024 64.0K/60Hz 108 (+/+) VESA
17 1280X1024 80K/75Hz 135 (+/+) VESA
1.3.10 Function block
TV / Video processing
- on A10 SSB , processing TV and video I/O signal to analog RGB output .
Video decoder
- SAA7118 , decoder analog RGB signal to CCIR 656 8 bit format digital
Signal
De-interlace
- FLI2200 , further process the 8 bit CCIR 656 format digital signal and
transfer to CCIR601 16 bit format digital signal output to Scaler IC
Scaler (JagASM)
a.) ADC
- brightness control
- contrast control
- R.G.B. sub contrast control
- sample the input video signal according to its pixel rate to form a digital
data for format converter
b.) Format converter
- convert the data from ADC to a LCD panel acceptable data format
- zoom the input video to a full screen display
Microprocessor :
use two Microprocessor to communicate
Scaler MCU:
1. Scaler IC with A/D converter (Sage JAGASM. )…. >digitized the
VGA RGB signal. And format the digitized RGB signal to the data
Format that LCD panel can accept.
2. Auto size and phase clock adjustment.
3. Back light brightness and on-off control.
4. VGA mode detection and IC register setting.
5. Video decoder SAA7118….> decode the R, G, B , Composite Sync.
Signal from A10 and output to the De-interlace IC.
6. FLI2200 de-interlace IC…>de-interlace the video signal.
Keyboard control : Up , Down , Left , Right , Enter , Auto , PIP ON/OFF
A10 MCU:
1. RC remote control
2. Keyboard control : PC/TV select , TV/Video source select
3. TV source select and small signal process control.
4. Power LED control.
5. TV/Video LED control
6. Power management
Two CPU communication
Inverter
- accept +12 V DC voltage
- output 1700 Vrms AC voltage to CCFL ( Cold Cathode Fluorescent Tube,
backlight )
Power supply
- AC adapter : the AC power input from 90 V AC to 264 V AC, can generate
12V / 6A DC power
- DC DC converter : convert 12 V to 5 V , 8V , 3.3 V , 2.5V to system
