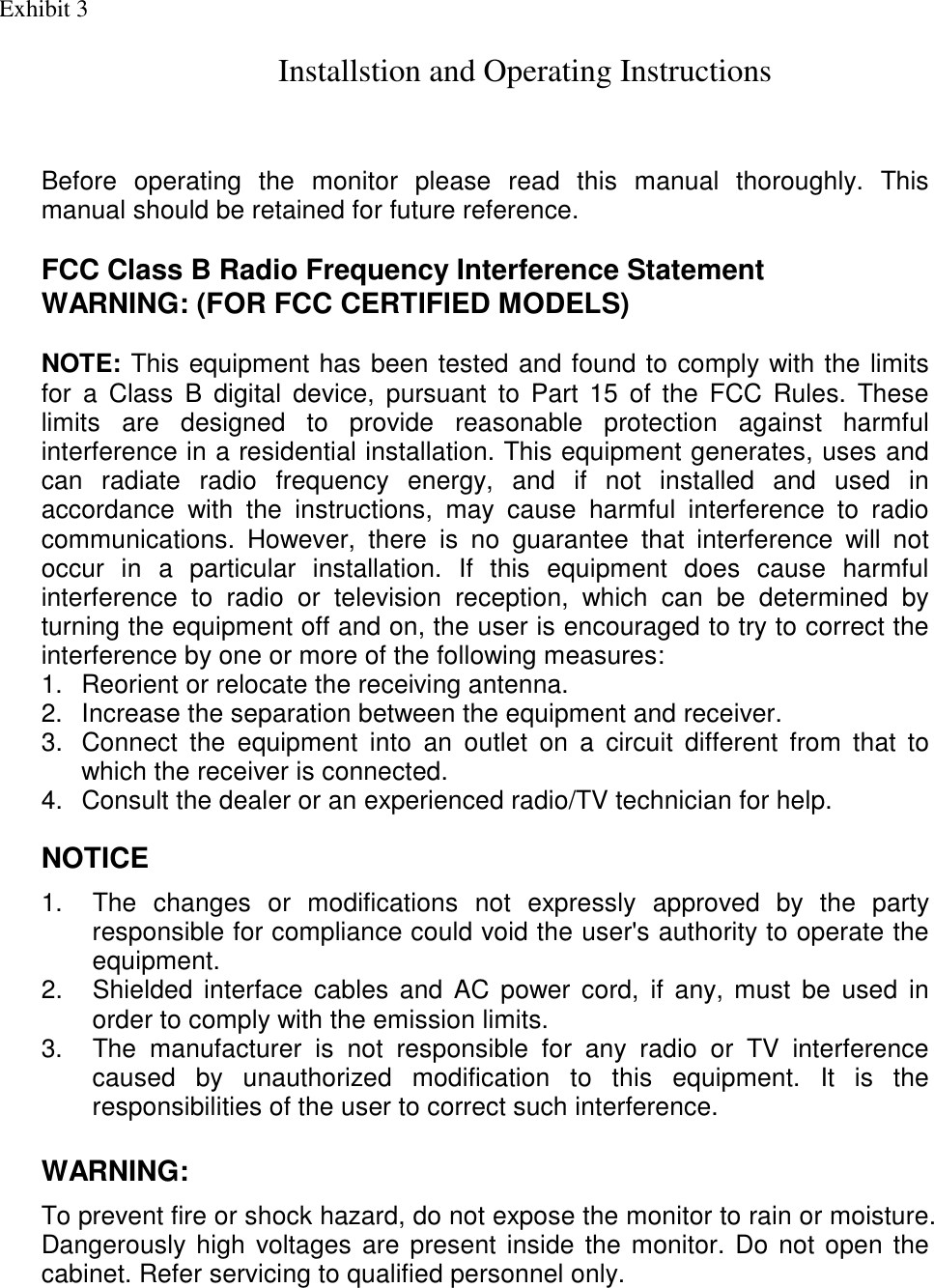

Before operating the monitor please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. 3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. WARNING: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only. Exhibit 3 Installstion and Operating Instructions

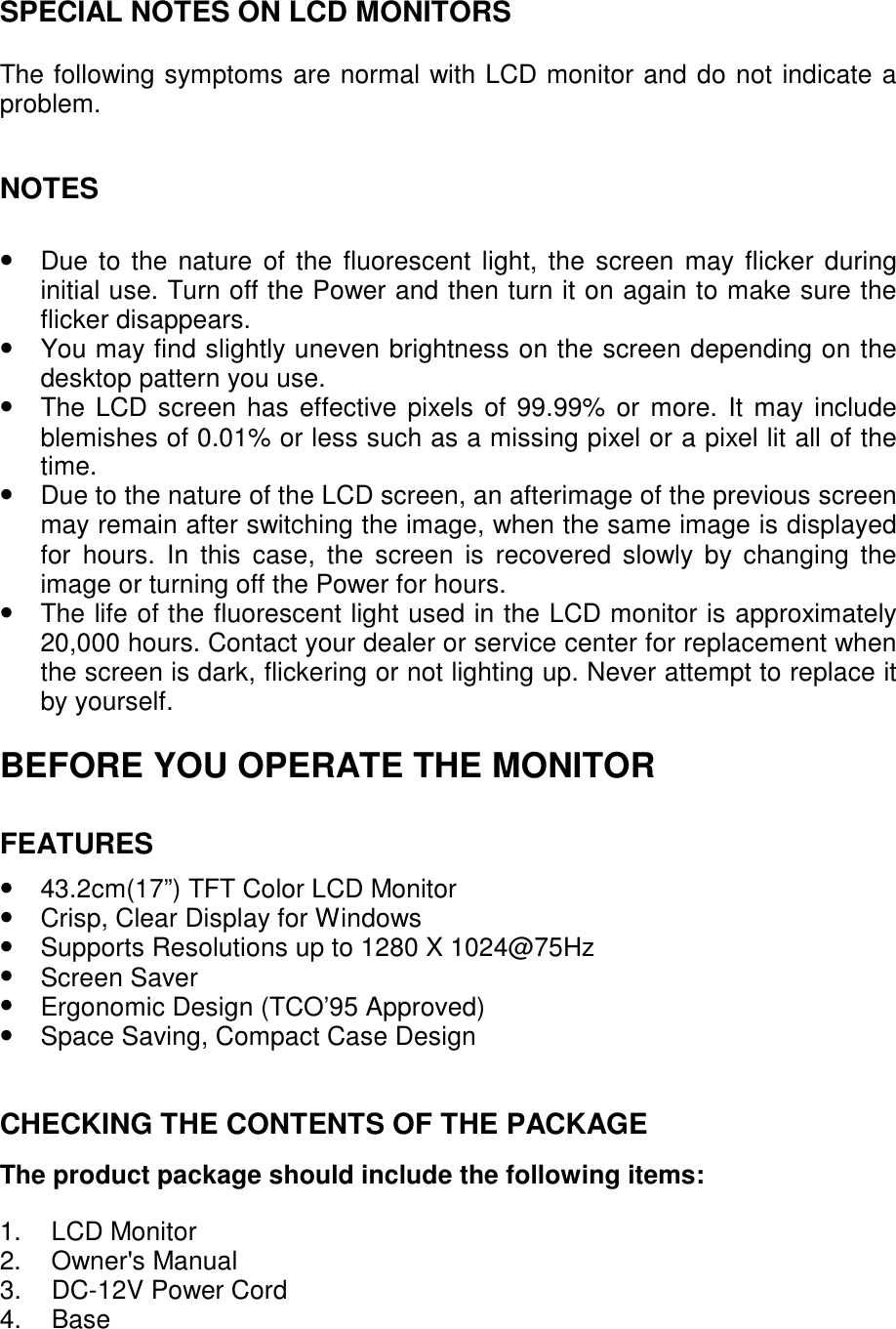

SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. NOTES • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power and then turn it on again to make sure the flicker disappears. • You may find slightly uneven brightness on the screen depending on the desktop pattern you use. • The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time. • Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power for hours. • The life of the fluorescent light used in the LCD monitor is approximately 20,000 hours. Contact your dealer or service center for replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. BEFORE YOU OPERATE THE MONITOR FEATURES • 43.2cm(17”) TFT Color LCD Monitor • Crisp, Clear Display for Windows • Supports Resolutions up to 1280 X 1024@75Hz • Screen Saver • Ergonomic Design (TCO’95 Approved) • Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: 1. LCD Monitor 2. Owner's Manual 3. DC-12V Power Cord 4. Base

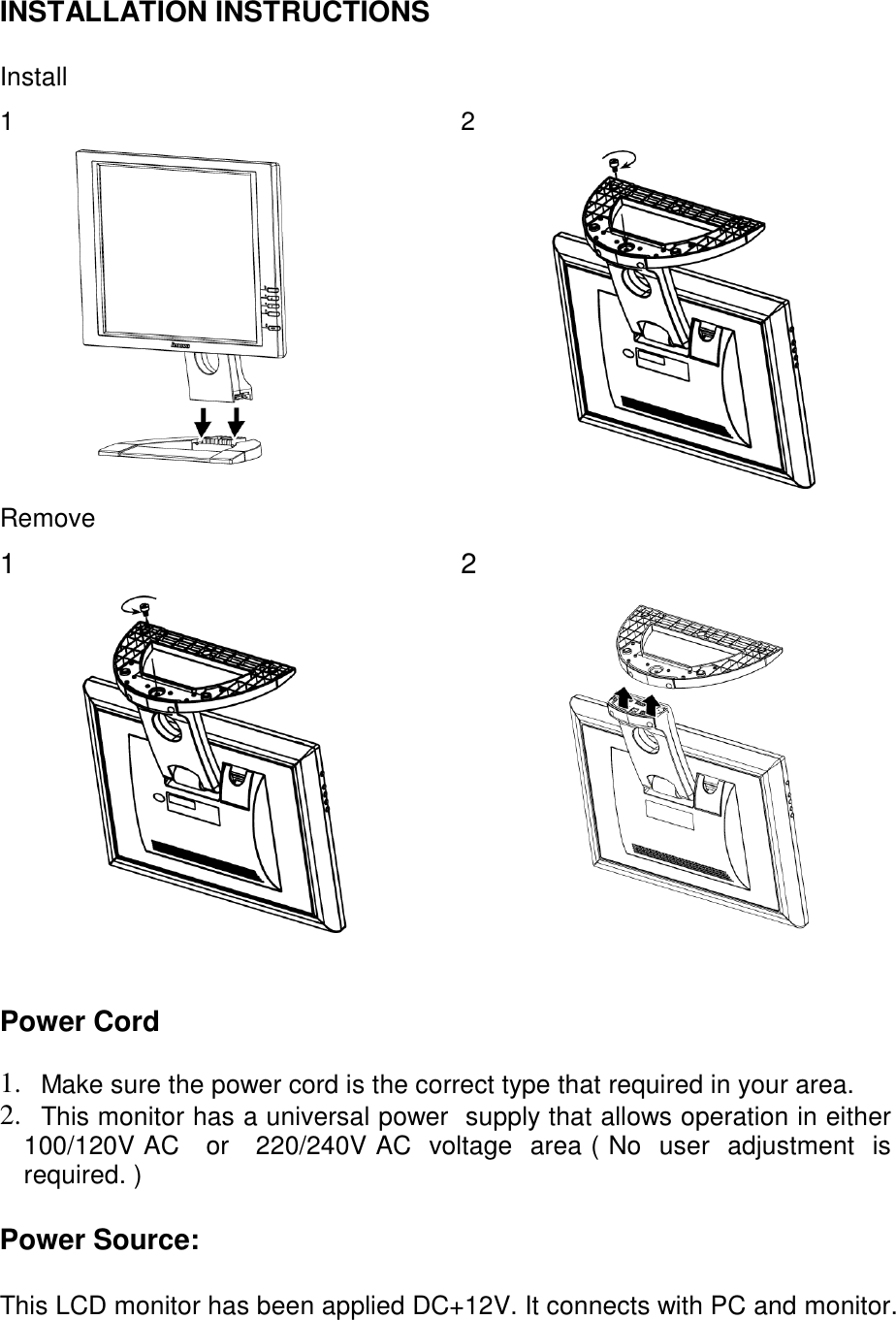

INSTALLATION INSTRUCTIONS Install 1 2 Remove 1 2 Power Cord 1. Make sure the power cord is the correct type that required in your area. 2. This monitor has a universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area ( No user adjustment is required. ) Power Source: This LCD monitor has been applied DC+12V. It connects with PC and monitor.

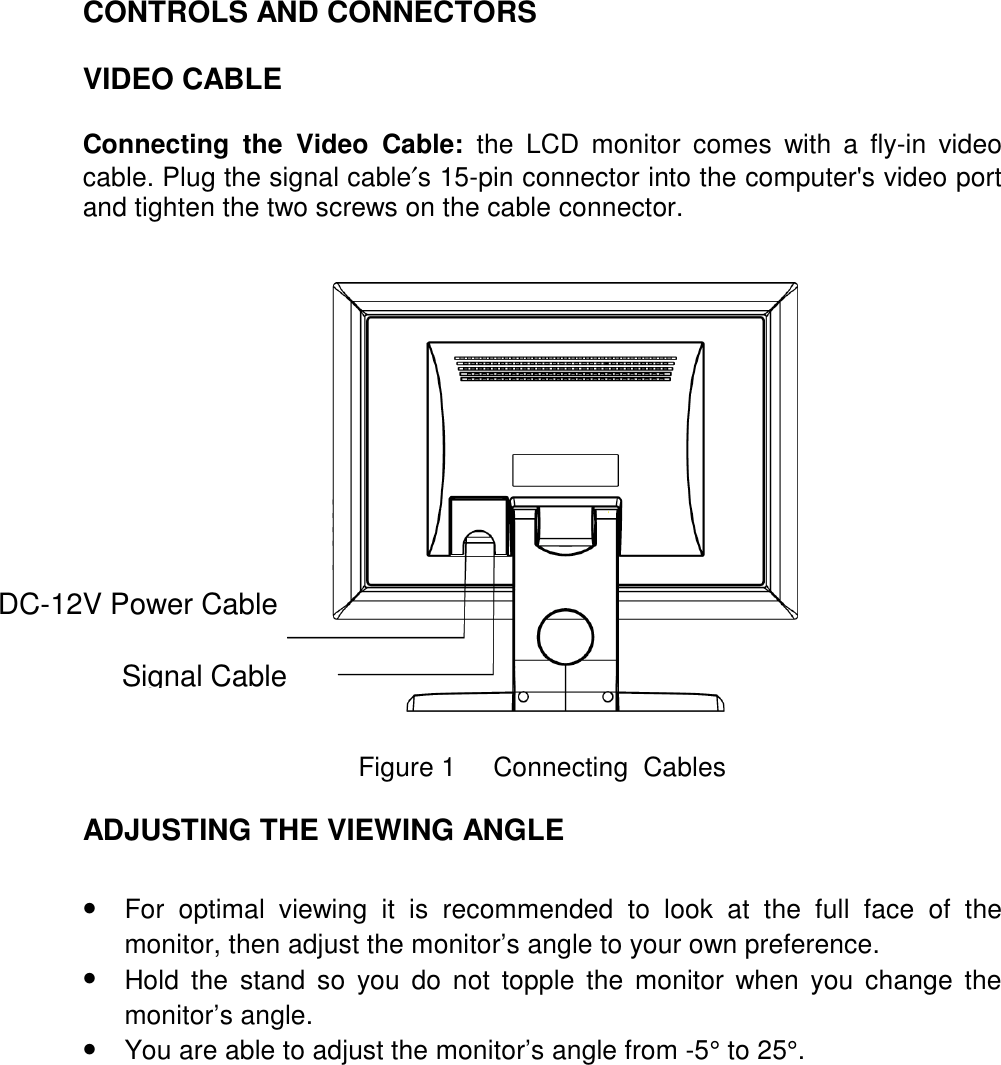

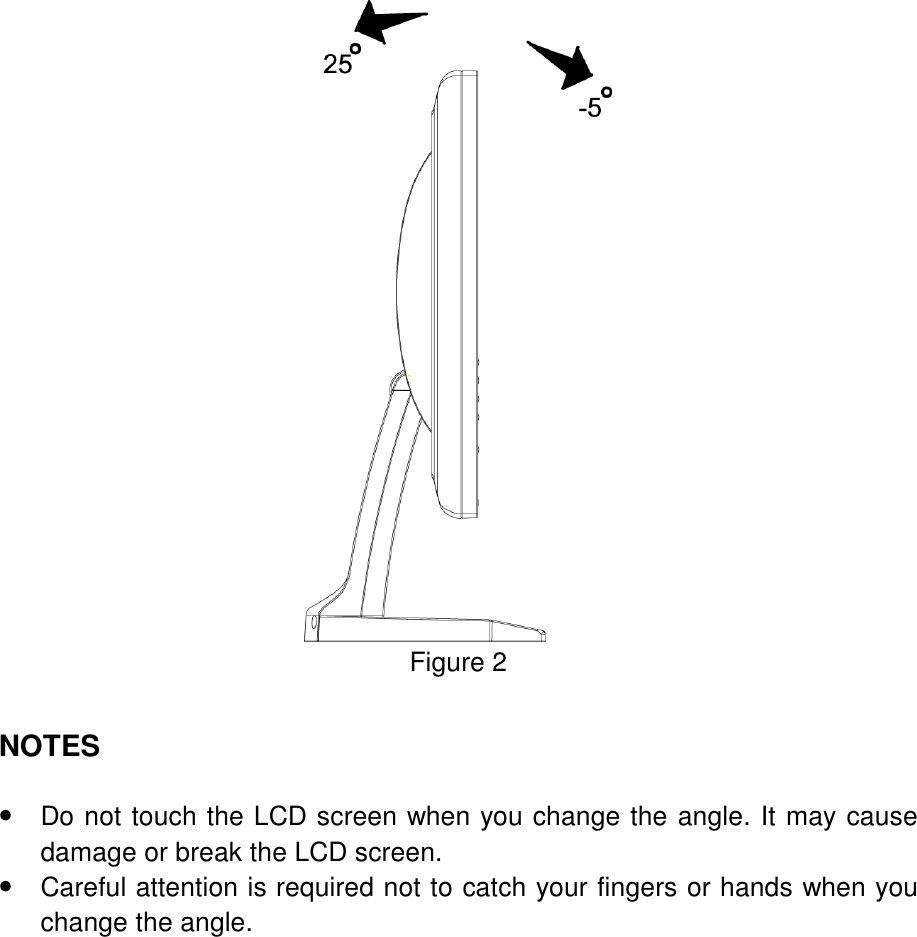

CONTROLS AND CONNECTORS VIDEO CABLE Connecting the Video Cable: the LCD monitor comes with a fly-in video cable. Plug the signal cable′s 15-pin connector into the computer's video port and tighten the two screws on the cable connector. Figure 1 Connecting Cables ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. • You are able to adjust the monitor’s angle from -5° to 25°. DC-12V Power Cable Signal Cable
Figure 2 NOTES • Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen. • Careful attention is required not to catch your fingers or hands when you change the angle.

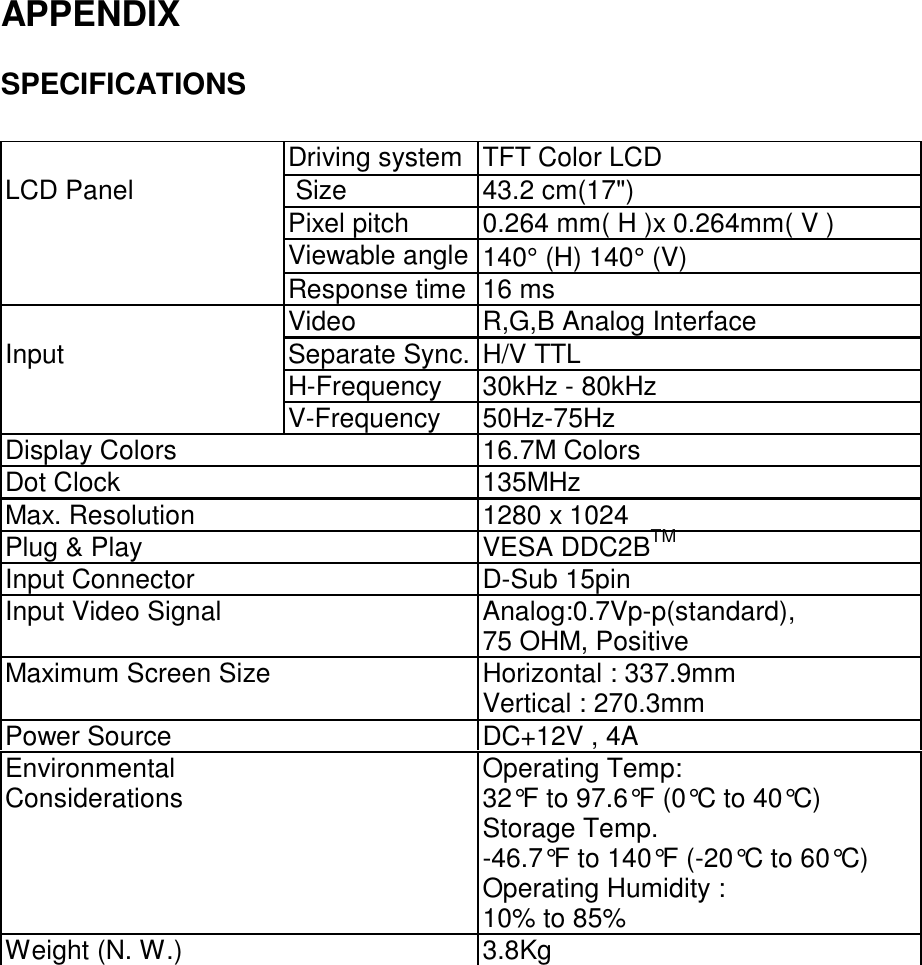

APPENDIX SPECIFICATIONS Driving system TFT Color LCD LCD Panel Size 43.2 cm(17") Pixel pitch 0.264 mm( H )x 0.264mm( V ) Viewable angle 140° (H) 140° (V) Response time 16 ms Video R,G,B Analog Interface Input Separate Sync. H/V TTL H-Frequency 30kHz - 80kHz V-Frequency 50Hz-75Hz Display Colors 16.7M Colors Dot Clock 135MHz Max. Resolution 1280 x 1024 Plug & Play VESA DDC2BTM Input Connector D-Sub 15pin Input Video Signal Analog:0.7Vp-p(standard), 75 OHM, Positive Maximum Screen Size Horizontal : 337.9mm Vertical : 270.3mm Power Source DC+12V , 4A Environmental Considerations Operating Temp: 32°F to 97.6°F (0°C to 40°C) Storage Temp. -46.7°F to 140°F (-20°C to 60°C) Operating Humidity : 10% to 85% Weight (N. W.) 3.8Kg

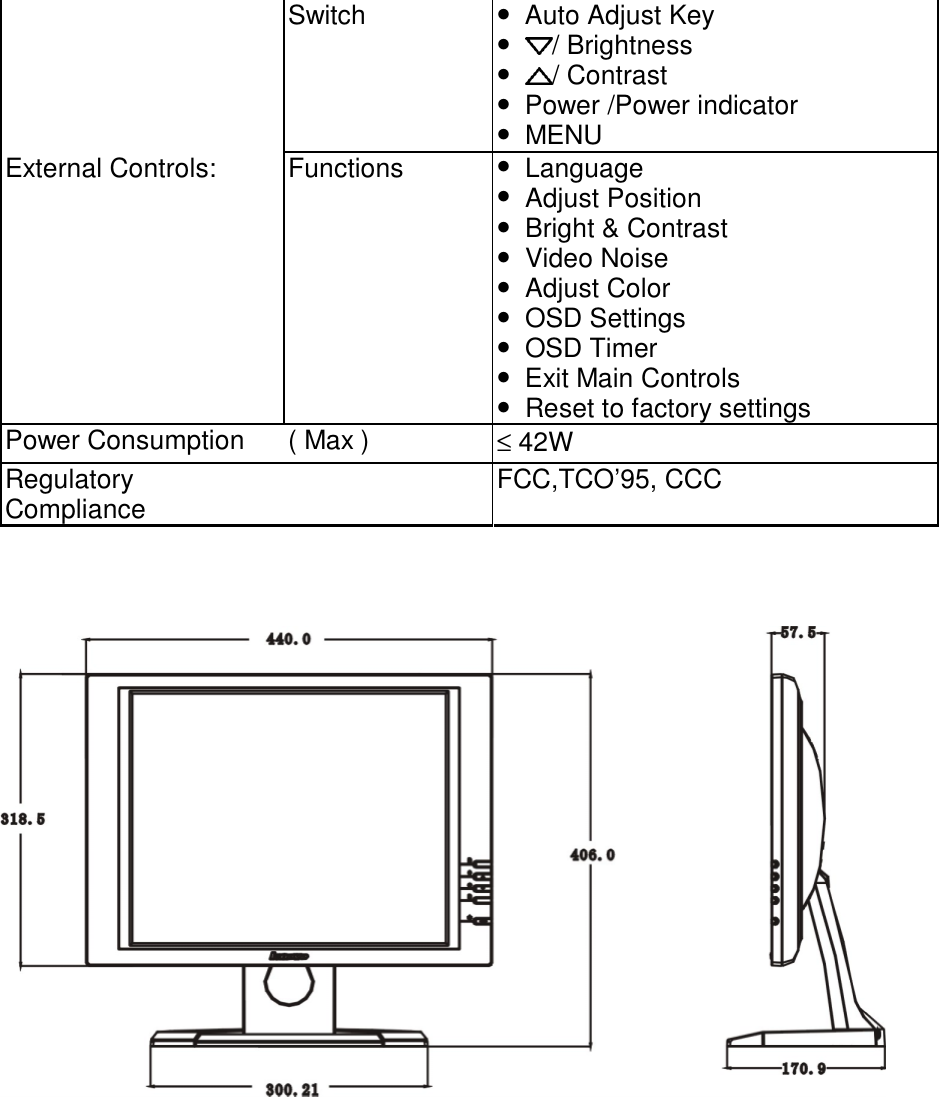

Switch • Auto Adjust Key • / Brightness • / Contrast • Power /Power indicator • MENU External Controls: Functions • Language • Adjust Position • Bright & Contrast • Video Noise • Adjust Color • OSD Settings • OSD Timer • Exit Main Controls • Reset to factory settings Power Consumption ( Max ) ≤ 42W Regulatory Compliance FCC,TCO’95, CCC
FACTORY PRESET TIMING TABLE STANDARD RESOLUTION HORIZONTAL FREQUENCY VERTICAL FREQUENCY VGA 640 x 350 31.469kHz 70.087Hz TV signal 640 × 480 31.25kHz 50.0Hz VGA 640 × 480 31.469kHz 59.94Hz VESA 640 × 480 37.861kHz 72.809Hz VESA 640 × 480 37.5kHz 75.0Hz VGA 720 × 400 31.469kHz 70.087Hz SVGA 800 × 600 35.156kHz 56.25Hz VESA 800 × 600 37.879kHz 60.317Hz VESA 800 × 600 48.077kHz 72.188Hz VESA 800 × 600 46.875kHz 75.0Hz XGA 1024 × 768 48.363kHz 60.004Hz VESA 1024 × 768 56.476kHz 70.069Hz VESA 1024 × 768 60.023kHz 75.029Hz XGA 1280 ×1024 63.981kHz 60.020Hz VESA 1280 ×1024 79.976kHz 75.025Hz CONNECTOR PIN ASSIGNMENT 1561011 15

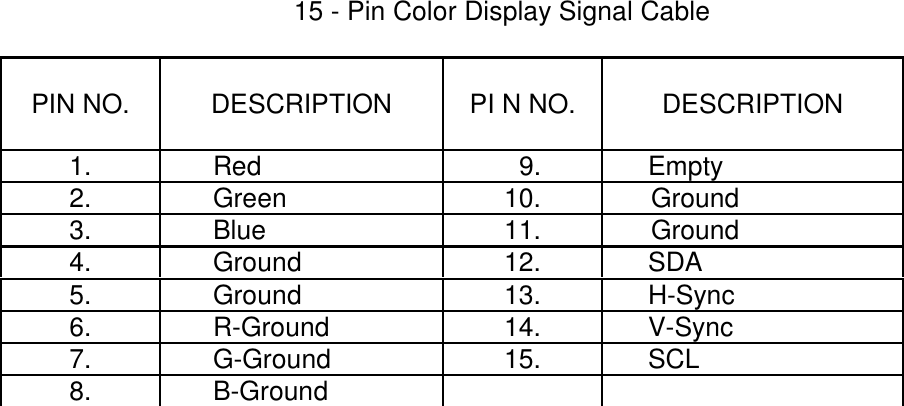

15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PI N NO. DESCRIPTION 1. Red 9. Empty 2. Green 10. Ground 3. Blue 11. Ground 4. Ground 12. SDA 5. Ground 13. H-Sync 6. R-Ground 14. V-Sync 7. G-Ground 15. SCL 8. B-Ground
