Philips Electronics M127 17 Inches LCD Color Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd 17 Inches LCD Color Monitor
User Manual
Before operating the monitor please read this manual thoroughly. This
manual should be retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables and AC power cord, if any, must be used in
order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modification to this equipment. It is the
responsibilities of the user to correct such interference.
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture.
Dangerously high voltages are present inside the monitor. Do not open the
cabinet. Refer servicing to qualified personnel only.
Exhibit 3
Installstion and Operating Instructions
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitor and do not indicate a
problem.
NOTES
• Due to the nature of the fluorescent light, the screen may flicker during
initial use. Turn off the Power and then turn it on again to make sure the
flicker disappears.
• You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include
blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the
time.
• Due to the nature of the LCD screen, an afterimage of the previous screen
may remain after switching the image, when the same image is displayed
for hours. In this case, the screen is recovered slowly by changing the
image or turning off the Power for hours.
• The life of the fluorescent light used in the LCD monitor is approximately
20,000 hours. Contact your dealer or service center for replacement when
the screen is dark, flickering or not lighting up. Never attempt to replace it
by yourself.
BEFORE YOU OPERATE THE MONITOR
FEATURES
• 43.2cm(17”) TFT Color LCD Monitor
• Crisp, Clear Display for Windows
• Supports Resolutions up to 1280 X 1024@75Hz
• Screen Saver
• Ergonomic Design (TCO’95 Approved)
• Space Saving, Compact Case Design
CHECKING THE CONTENTS OF THE PACKAGE
The product package should include the following items:
1. LCD Monitor
2. Owner's Manual
3. DC-12V Power Cord
4. Base

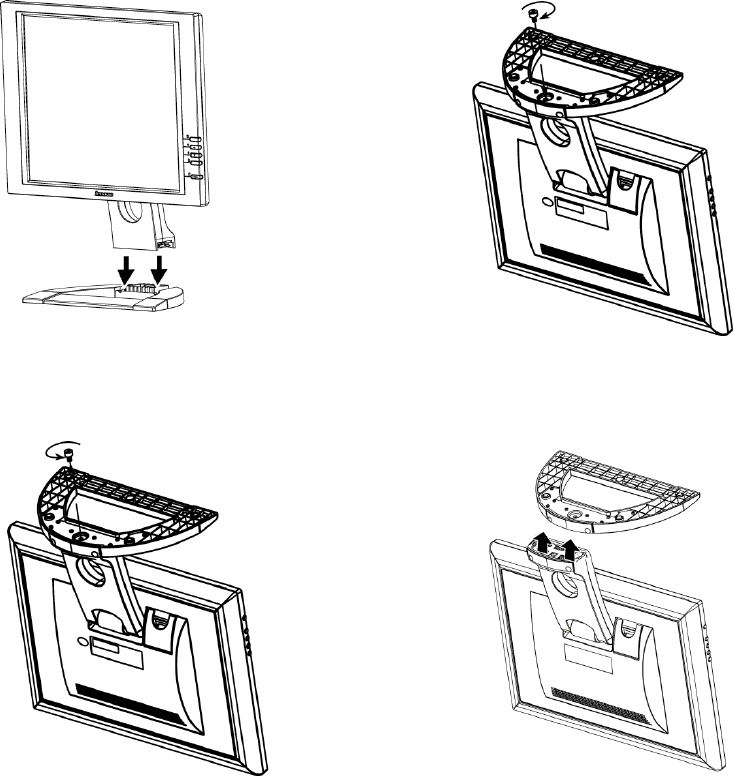

INSTALLATION INSTRUCTIONS
Install
1 2
Remove
1 2
Power Cord
1. Make sure the power cord is the correct type that required in your area.
2. This monitor has a universal power supply that allows operation in either
100/120V AC or 220/240V AC voltage area ( No user adjustment is
required. )
Power Source:
This LCD monitor has been applied DC+12V. It connects with PC and monitor.

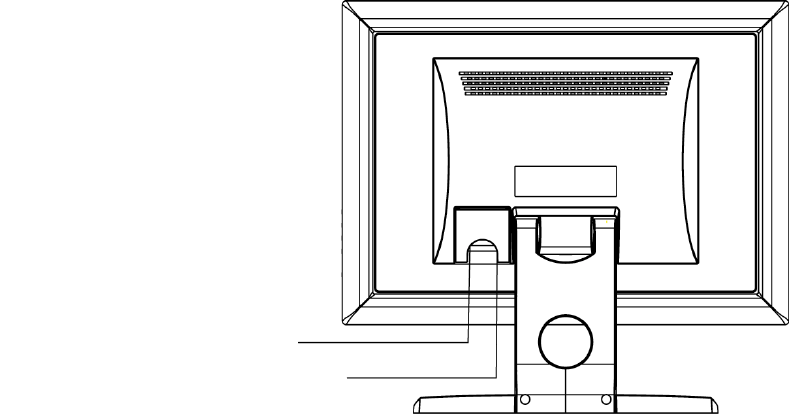

CONTROLS AND CONNECTORS
VIDEO CABLE
Connecting the Video Cable: the LCD monitor comes with a fly-in video
cable. Plug the signal cable′s 15-pin connector into the computer's video port
and tighten the two screws on the cable connector.
Figure 1 Connecting Cables

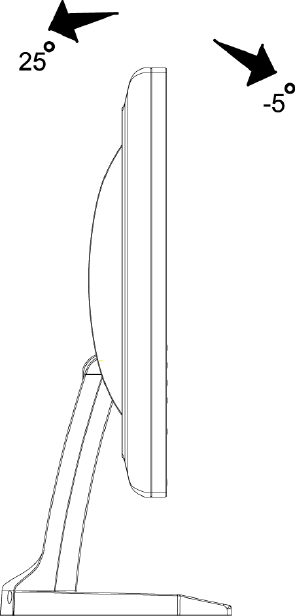

ADJUSTING THE VIEWING ANGLE
• For optimal viewing it is recommended to look at the full face of the
monitor, then adjust the monitor’s angle to your own preference.
• Hold the stand so you do not topple the monitor when you change the
monitor’s angle.
• You are able to adjust the monitor’s angle from -5° to 25°.
D
C
-12V P
o
w
e
r
Cab
l
e
Si
g
nal Cable
Figure 2
NOTES
• Do not touch the LCD screen when you change the angle. It may cause
damage or break the LCD screen.
• Careful attention is required not to catch your fingers or hands when you
change the angle.
APPENDIX
SPECIFICATIONS
Driving system TFT Color LCD
LCD Panel Size 43.2 cm(17")
Pixel pitch 0.264 mm( H )x 0.264mm( V )
Viewable angle 140° (H) 140° (V)
Response time 16 ms
Video R,G,B Analog Interface
Input Separate Sync. H/V TTL
H-Frequency 30kHz - 80kHz
V-Frequency 50Hz-75Hz
Display Colors 16.7M Colors
Dot Clock 135MHz
Max. Resolution 1280 x 1024
Plug & Play VESA DDC2BTM
Input Connector D-Sub 15pin
Input Video Signal Analog:0.7Vp-p(standard),
75 OHM, Positive
Maximum Screen Size Horizontal : 337.9mm
Vertical : 270.3mm
Power Source DC+12V , 4A
Environmental
Considerations Operating Temp:
32°F to 97.6°F (0°C to 40°C)
Storage Temp.
-46.7°F to 140°F (-20°C to 60°C)
Operating Humidity :
10% to 85%
Weight (N. W.) 3.8Kg

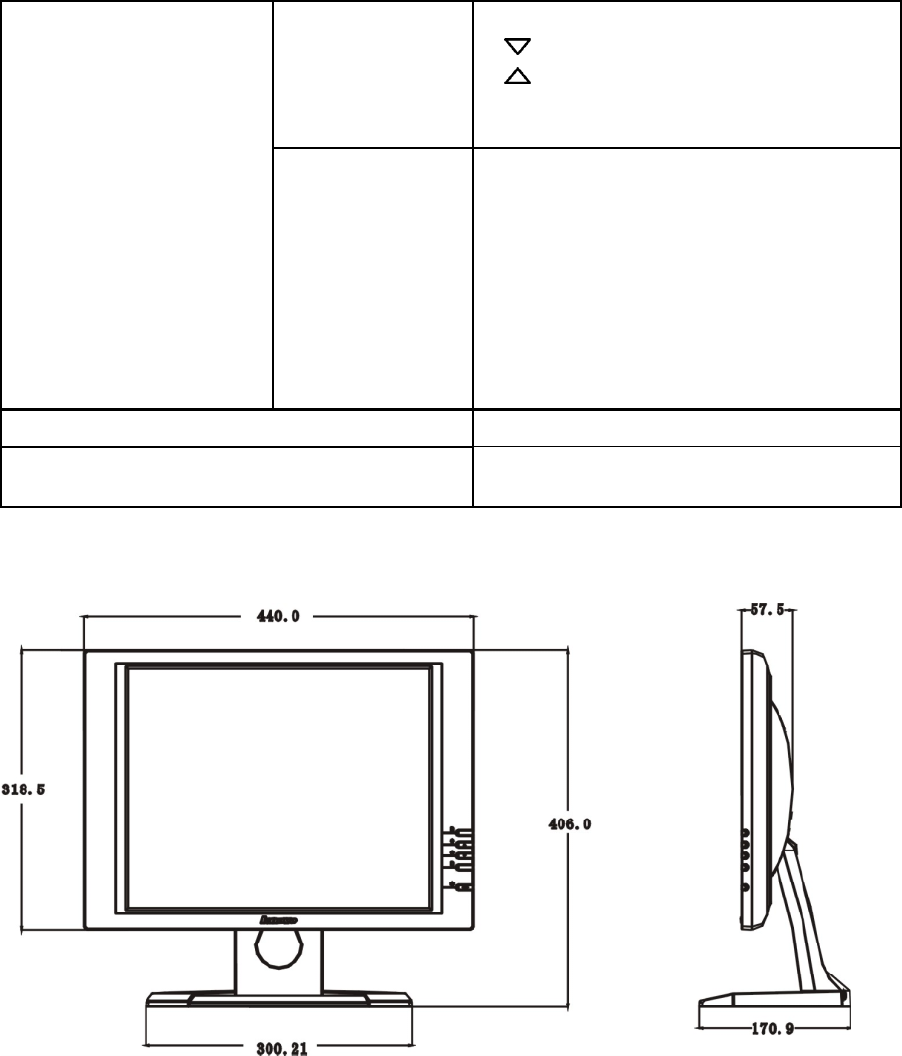

Switch • Auto Adjust Key
• / Brightness
• / Contrast
• Power /Power indicator
• MENU
External Controls: Functions • Language
• Adjust Position
• Bright & Contrast
• Video Noise
• Adjust Color
• OSD Settings
• OSD Timer
• Exit Main Controls
• Reset to factory settings
Power Consumption ( Max ) ≤ 42W
Regulatory
Compliance FCC,TCO’95, CCC

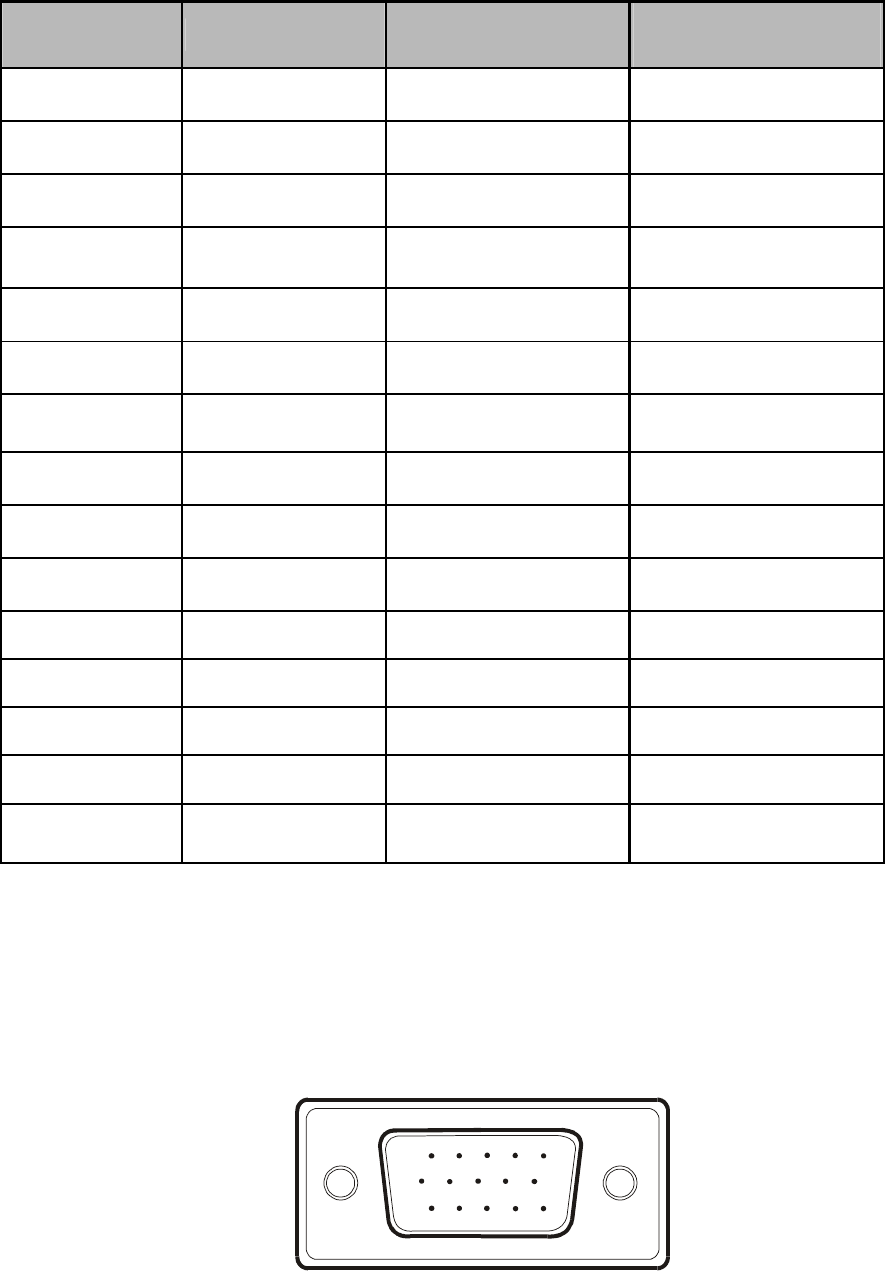

FACTORY PRESET TIMING TABLE
STANDARD RESOLUTION HORIZONTAL
FREQUENCY VERTICAL
FREQUENCY
VGA 640 x 350 31.469kHz 70.087Hz
TV signal 640 × 480 31.25kHz 50.0Hz
VGA 640 × 480 31.469kHz 59.94Hz
VESA 640 × 480 37.861kHz 72.809Hz
VESA 640 × 480 37.5kHz 75.0Hz
VGA 720 × 400 31.469kHz 70.087Hz
SVGA 800 × 600 35.156kHz 56.25Hz
VESA 800 × 600 37.879kHz 60.317Hz
VESA 800 × 600 48.077kHz 72.188Hz
VESA 800 × 600 46.875kHz 75.0Hz
XGA 1024 × 768 48.363kHz 60.004Hz
VESA 1024 × 768 56.476kHz 70.069Hz
VESA 1024 × 768 60.023kHz 75.029Hz
XGA 1280 ×1024 63.981kHz 60.020Hz
VESA 1280 ×1024 79.976kHz 75.025Hz
CONNECTOR PIN ASSIGNMENT
15
610
11 15
15 - Pin Color Display Signal Cable
PIN NO.
DESCRIPTION
PI N NO.
DESCRIPTION
1. Red 9. Empty
2. Green 10. Ground
3. Blue 11. Ground
4. Ground 12. SDA
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. SCL
8. B-Ground
