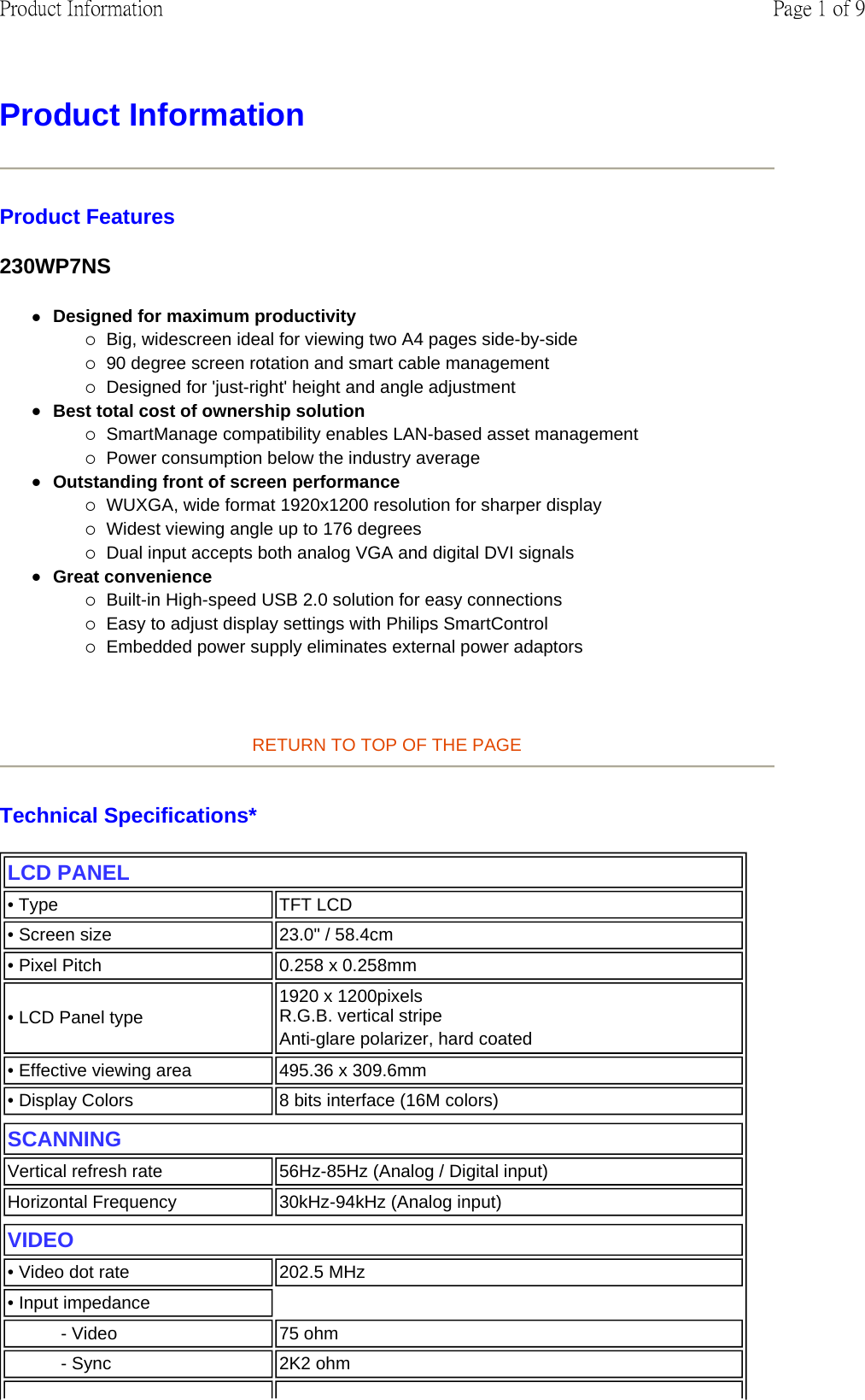

Product Information Product Features 230WP7NS zDesigned for maximum productivity {Big, widescreen ideal for viewing two A4 pages side-by-side {90 degree screen rotation and smart cable management {Designed for 'just-right' height and angle adjustment zBest total cost of ownership solution {SmartManage compatibility enables LAN-based asset management {Power consumption below the industry average zOutstanding front of screen performance {WUXGA, wide format 1920x1200 resolution for sharper display {Widest viewing angle up to 176 degrees {Dual input accepts both analog VGA and digital DVI signals zGreat convenience {Built-in High-speed USB 2.0 solution for easy connections {Easy to adjust display settings with Philips SmartControl {Embedded power supply eliminates external power adaptors RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 23.0" / 58.4cm• Pixel Pitch 0.258 x 0.258mm• LCD Panel type 1920 x 1200pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 495.36 x 309.6mm• Display Colors 8 bits interface (16M colors)SCANNINGVertical refresh rate 56Hz-85Hz (Analog / Digital input)Horizontal Frequency 30kHz-94kHz (Analog input)VIDEO • Video dot rate 202.5 MHz• Input impedance- Video 75 ohm- Sync 2K2 ohmPage 1 of 9Product Information

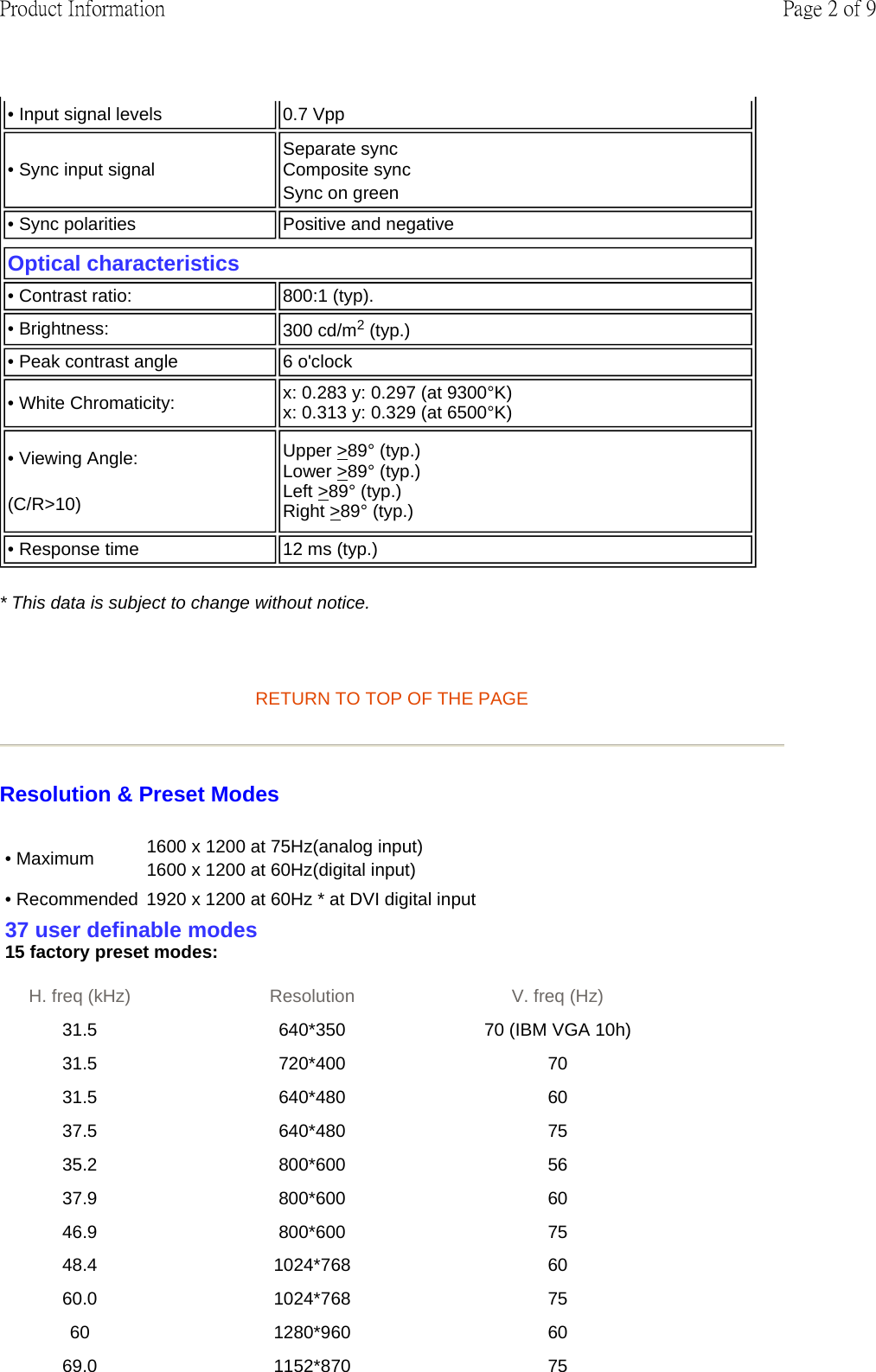

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negativeOptical characteristics • Contrast ratio: 800:1 (typ).• Brightness: 300 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle: (C/R>10) Upper >89° (typ.) Lower >89° (typ.) Left >89° (typ.) Right >89° (typ.) • Response time 12 ms (typ.) • Maximum 1600 x 1200 at 75Hz(analog input) 1600 x 1200 at 60Hz(digital input) • Recommended 1920 x 1200 at 60Hz * at DVI digital input37 user definable modes 15 factory preset modes:H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 (IBM VGA 10h) 31.5 720*400 70 31.5 640*480 60 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 48.4 1024*768 60 60.0 1024*768 75 60 1280*960 60 69.0 1152*870 75 Page 2 of 9Product Information

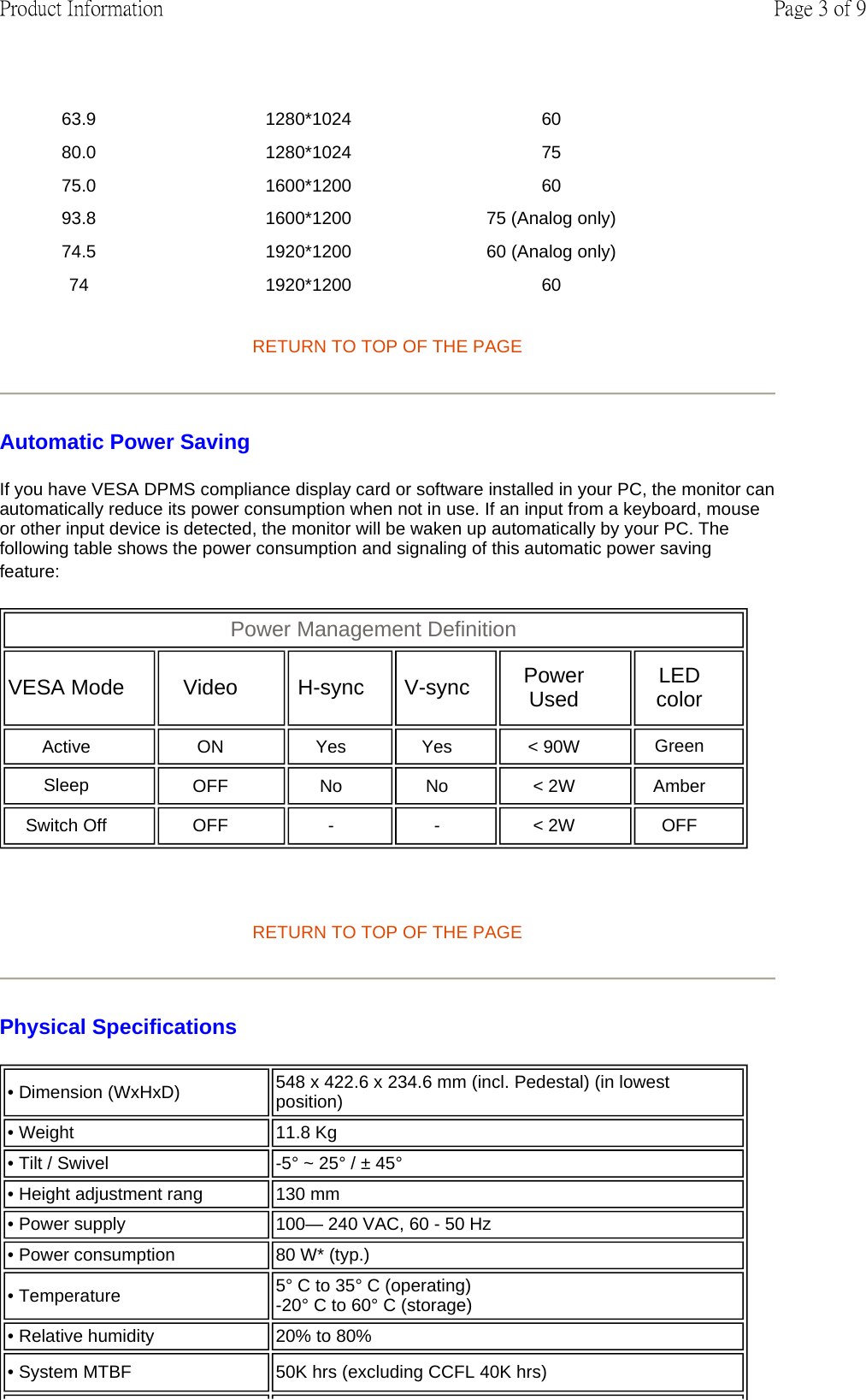

RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will be waken up automatically by your PC. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE Physical Specifications 63.9 1280*1024 60 80.0 1280*1024 75 75.0 1600*1200 60 93.8 1600*1200 75 (Analog only) 74.5 1920*1200 60 (Analog only) 74 1920*1200 60 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active ON Yes Yes < 90W Green Sleep OFF No No < 2W Amber Switch Off OFF - -< 2W OFF • Dimension (WxHxD) 548 x 422.6 x 234.6 mm (incl. Pedestal) (in lowest position) • Weight 11.8 Kg • Tilt / Swivel -5° ~ 25° / ± 45° • Height adjustment rang 130 mm• Power supply 100— 240 VAC, 60 - 50 Hz• Power consumption 80 W* (typ.)• Temperature 5° C to 35° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40K hrs)Page 3 of 9Product Information

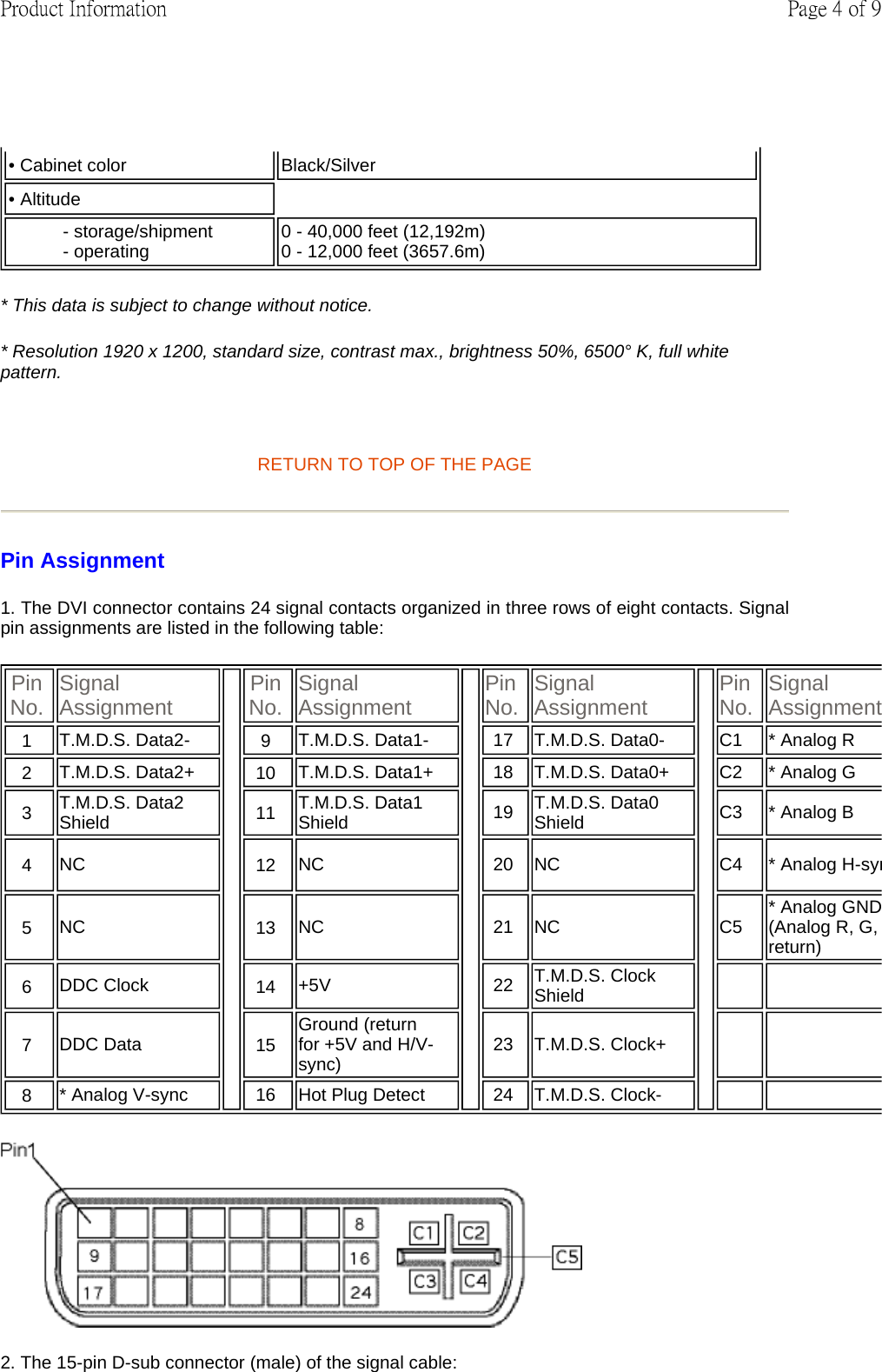

* This data is subject to change without notice. * Resolution 1920 x 1200, standard size, contrast max., brightness 50%, 6500° K, full white pattern. RETURN TO TOP OF THE PAGE Pin Assignment 1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: 2. The 15-pin D-sub connector (male) of the signal cable: • Cabinet color Black/Silver• Altitude- storage/shipment - operating 0 - 40,000 feet (12,192m) 0 - 12,000 feet (3657.6m)Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G3 T.M.D.S. Data2 Shield 11 T.M.D.S. Data1 Shield 19 T.M.D.S. Data0 Shield C3 * Analog B4 NC 12 NC 20 NC C4 * Analog H-syn5 NC 13 NC 21 NC C5 * Analog GND(Analog R, G, return)6 DDC Clock 14 +5V 22 T.M.D.S. Clock Shield 7 DDC Data 15 Ground (return for +5V and H/V-sync) 23 T.M.D.S. Clock+ 8 * Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock- Page 4 of 9Product Information

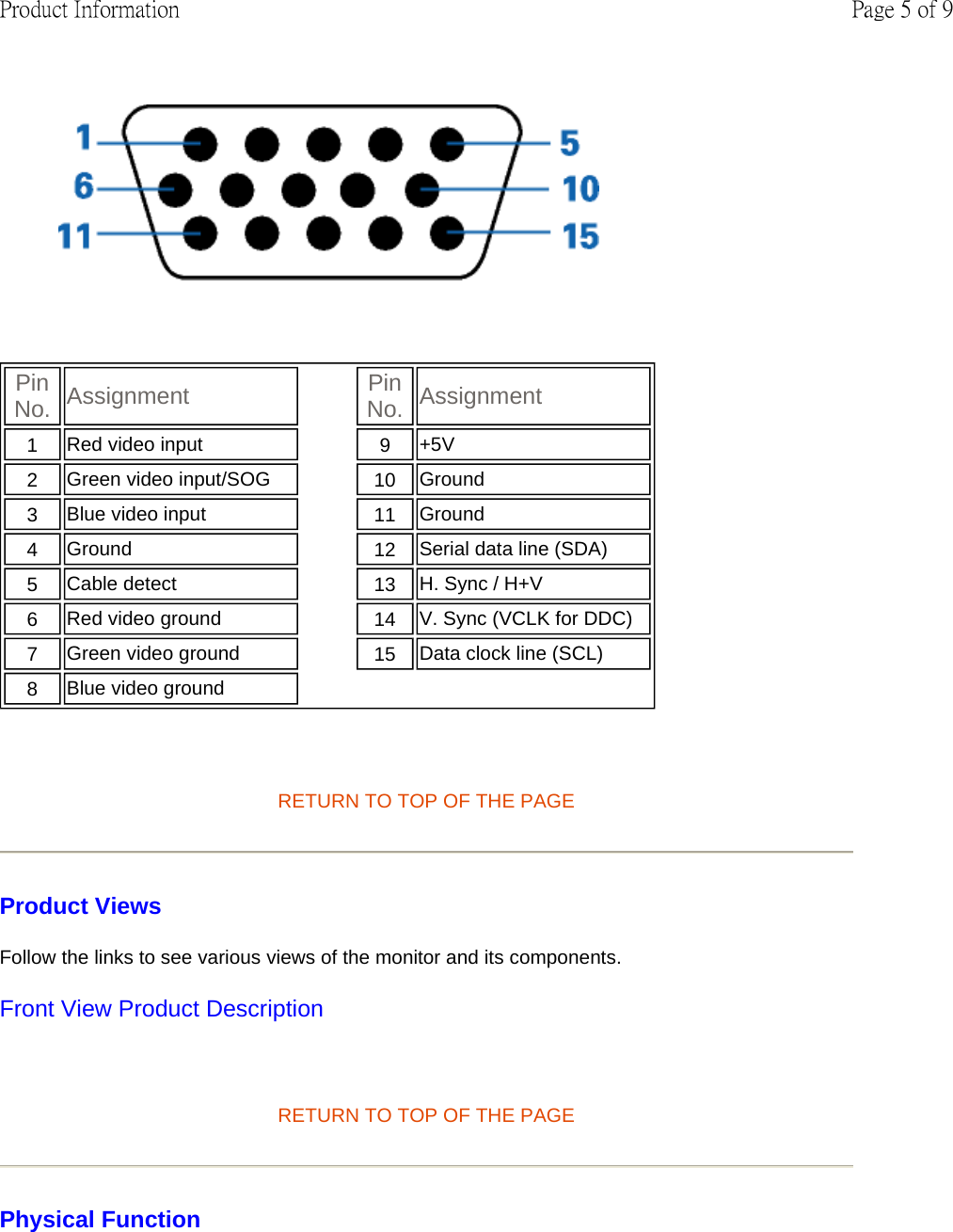

RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Pin No. Assignment Pin No. Assignment1 Red video input 9 +5V2 Green video input/SOG 10 Ground3 Blue video input 11 Ground4 Ground 12 Serial data line (SDA)5 Cable detect 13 H. Sync / H+V6 Red video ground 14 V. Sync (VCLK for DDC)7 Green video ground 15 Data clock line (SCL)8 Blue video groundPage 5 of 9Product Information

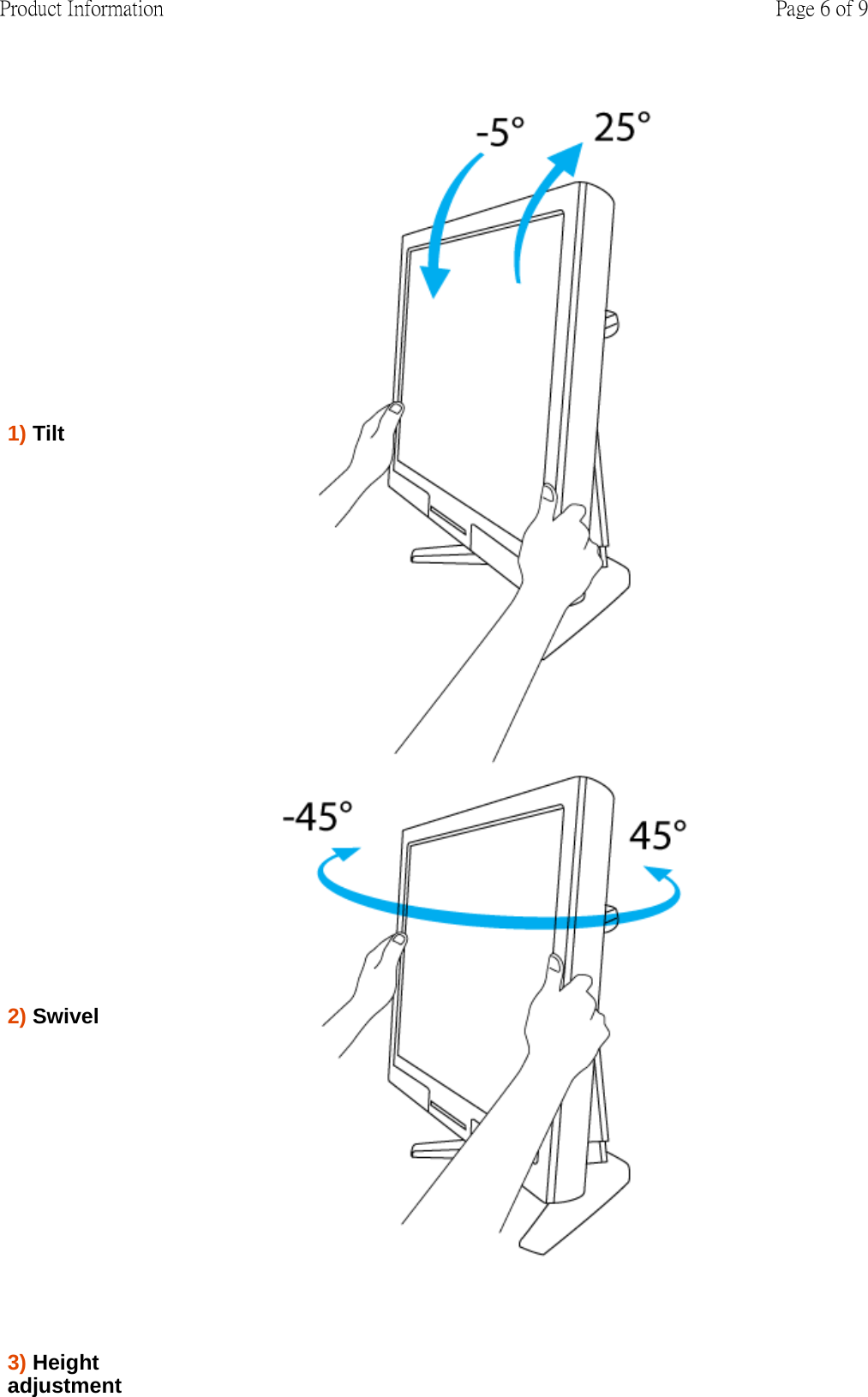

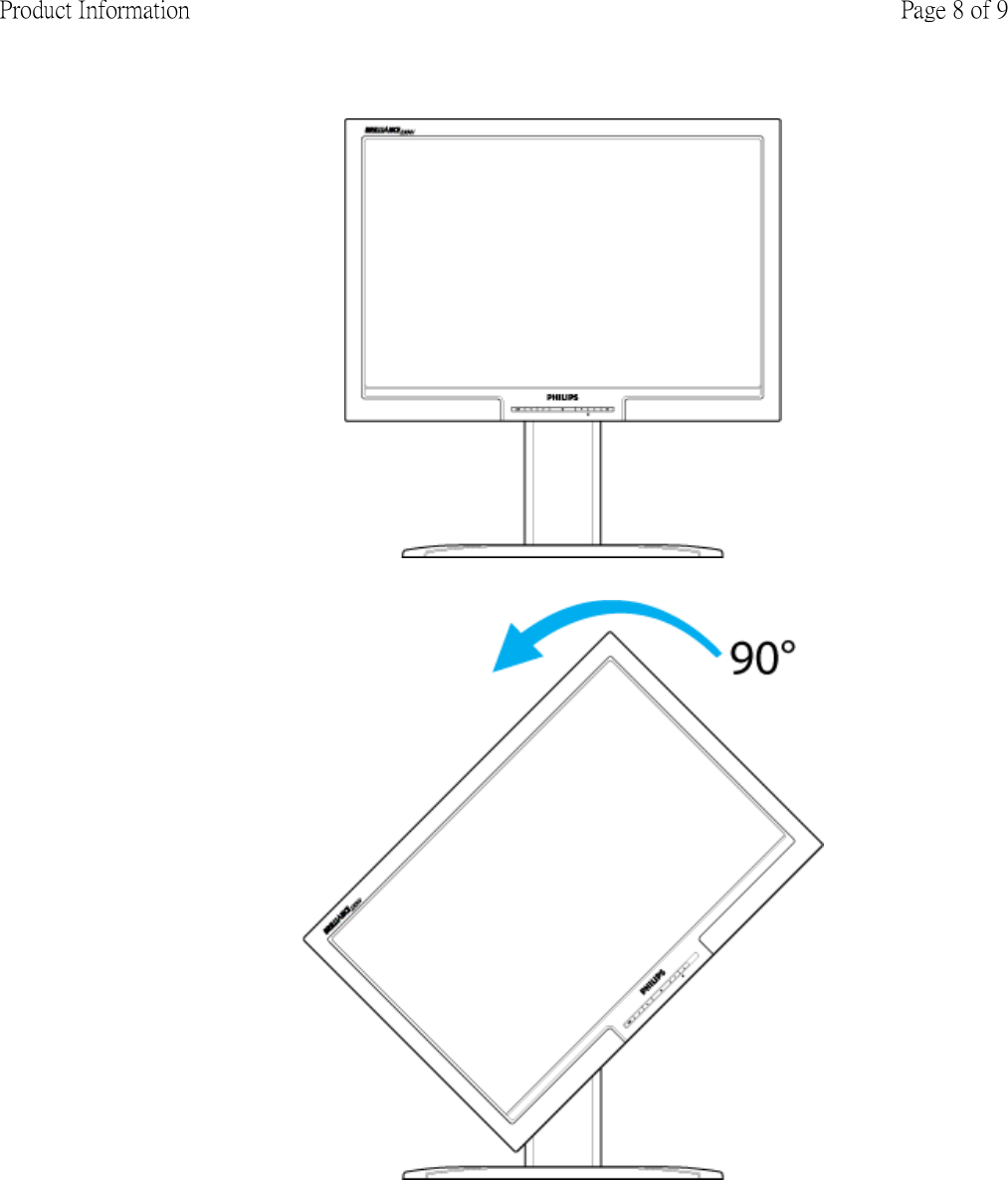

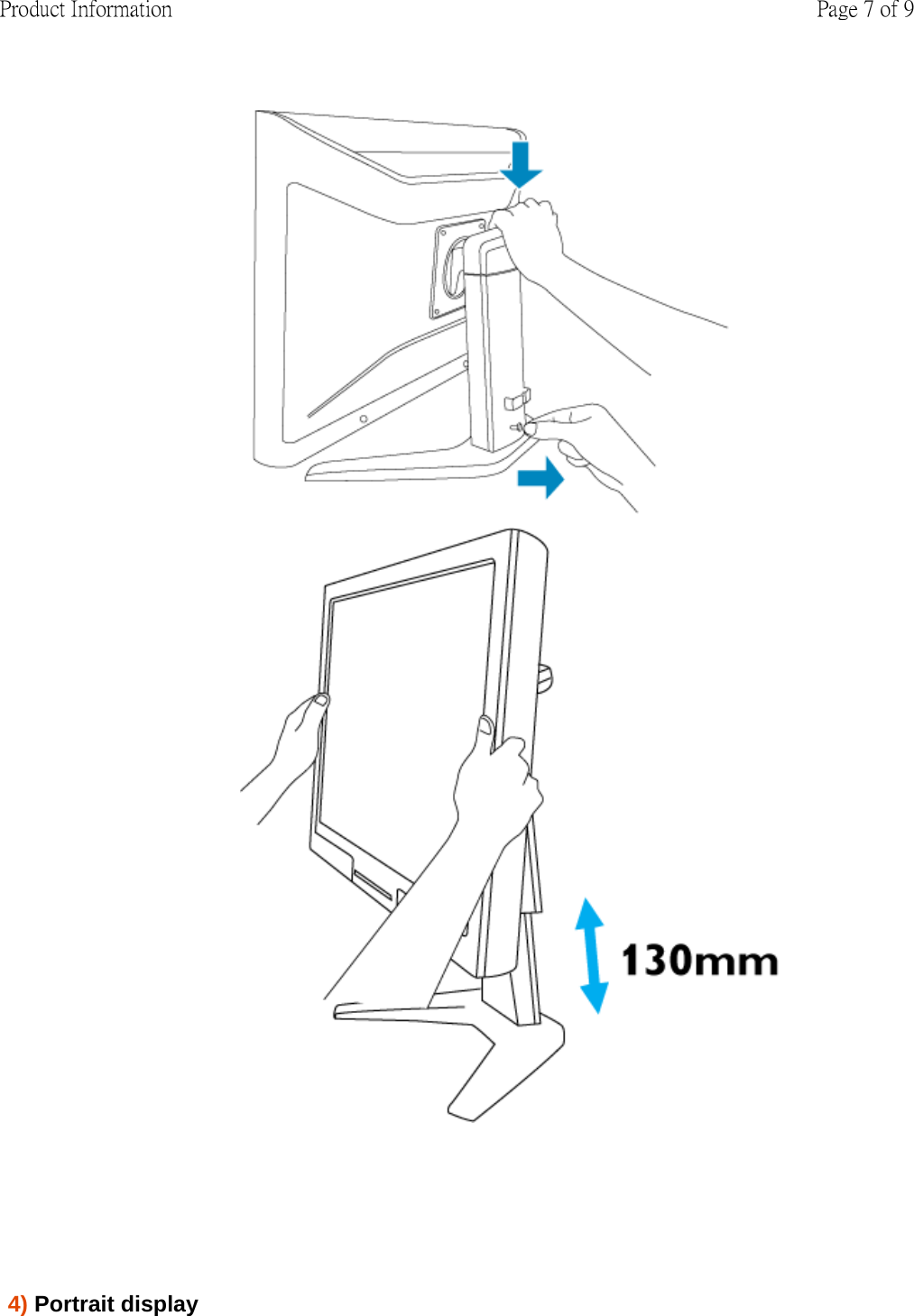

1) Tilt 2) Swivel 3) Height adjustment Page 6 of 9Product Information

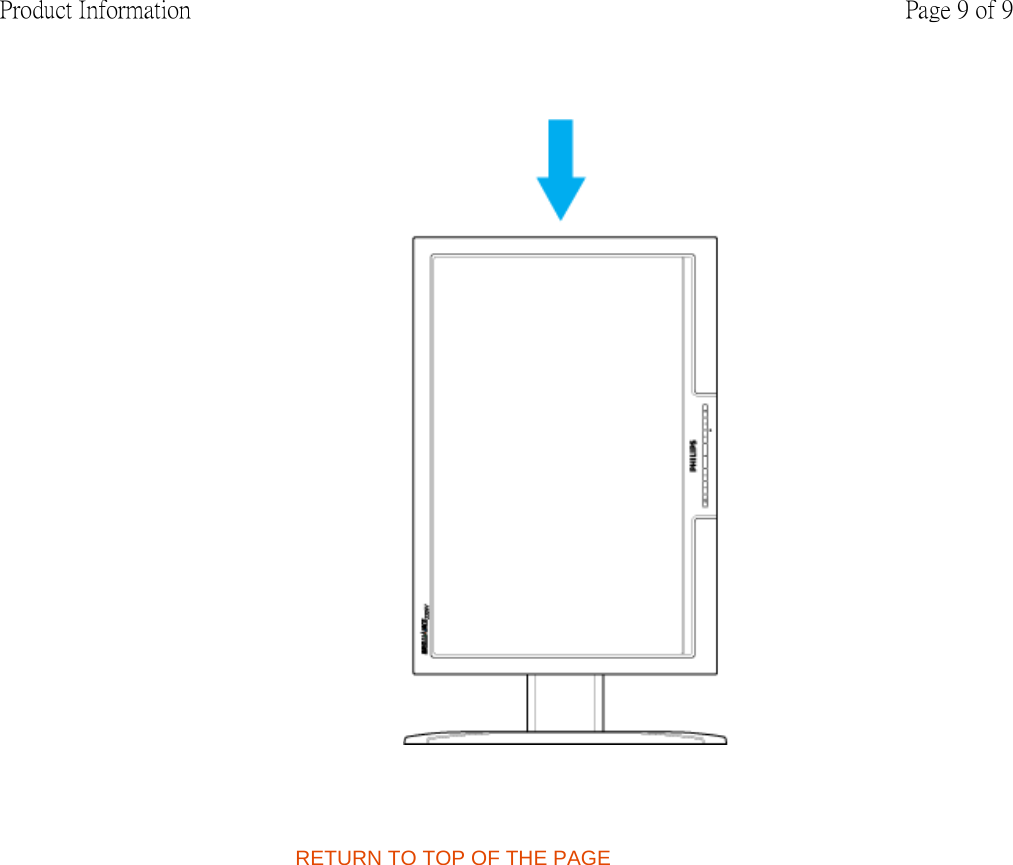

4) Portrait display Page 7 of 9Product Information
Page 8 of 9Product Information
RETURN TO TOP OF THE PAGE Page 9 of 9Product Information

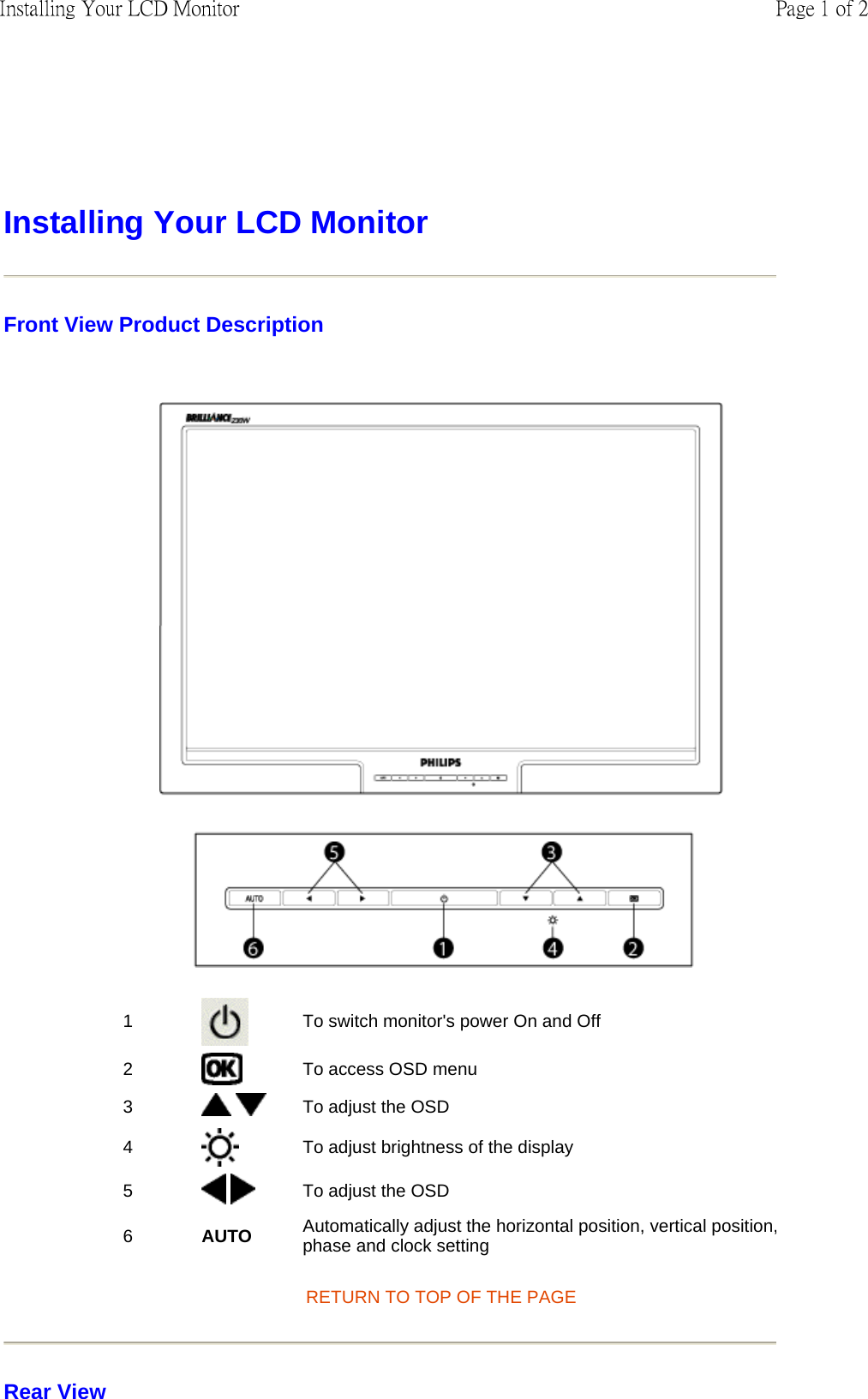

Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE Rear View 1 To switch monitor's power On and Off2 To access OSD menu3 To adjust the OSD4 To adjust brightness of the display5 To adjust the OSD6 AUTO Automatically adjust the horizontal position, vertical position,phase and clock settingPage 1 of 2Installing Your LCD Monitor

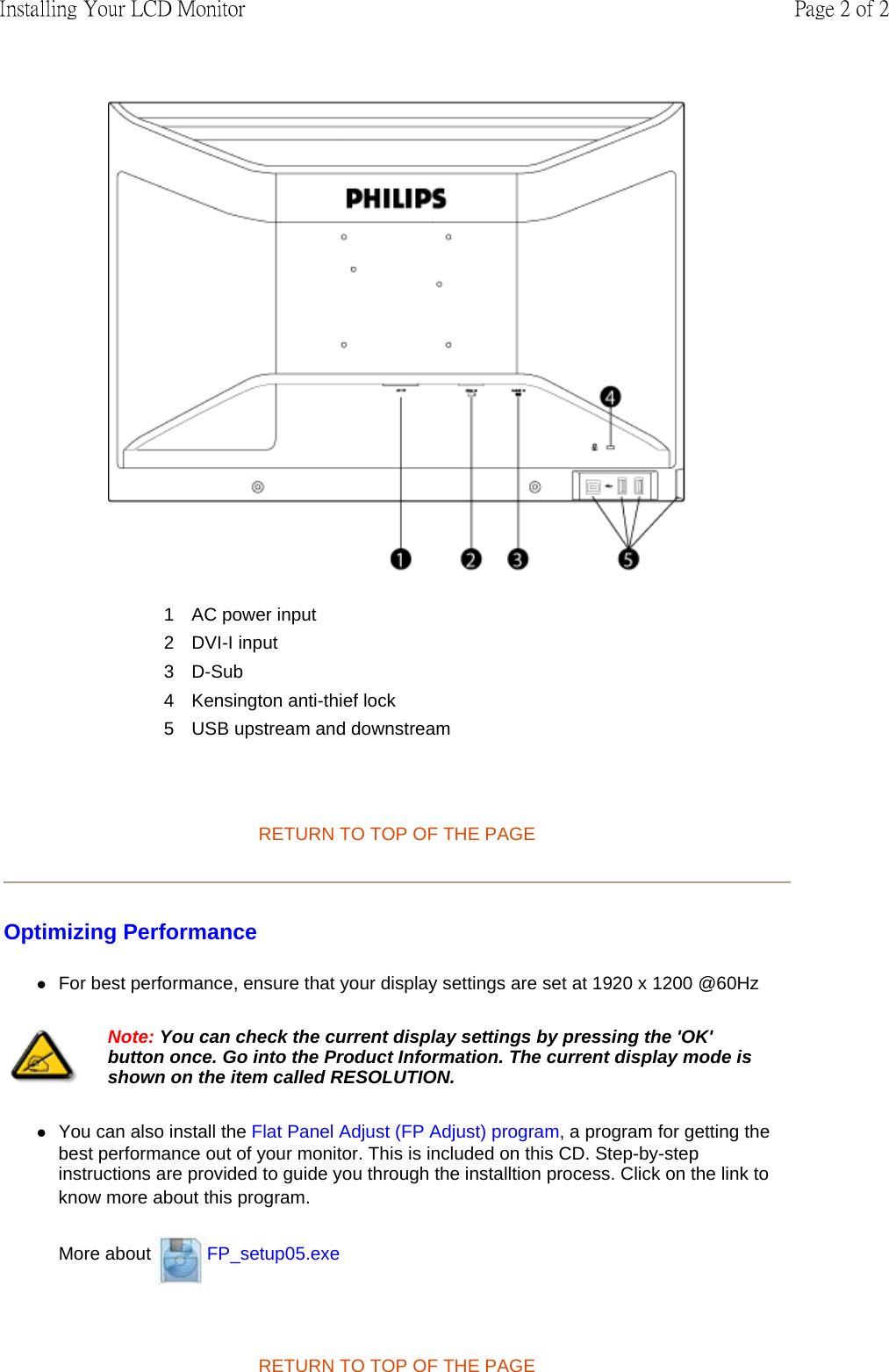

RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1920 x 1200 @60Hz zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup05.exe RETURN TO TOP OF THE PAGE 1 AC power input2 DVI-I input3 D-Sub4 Kensington anti-thief lock5 USB upstream and downstreamNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.Page 2 of 2Installing Your LCD Monitor

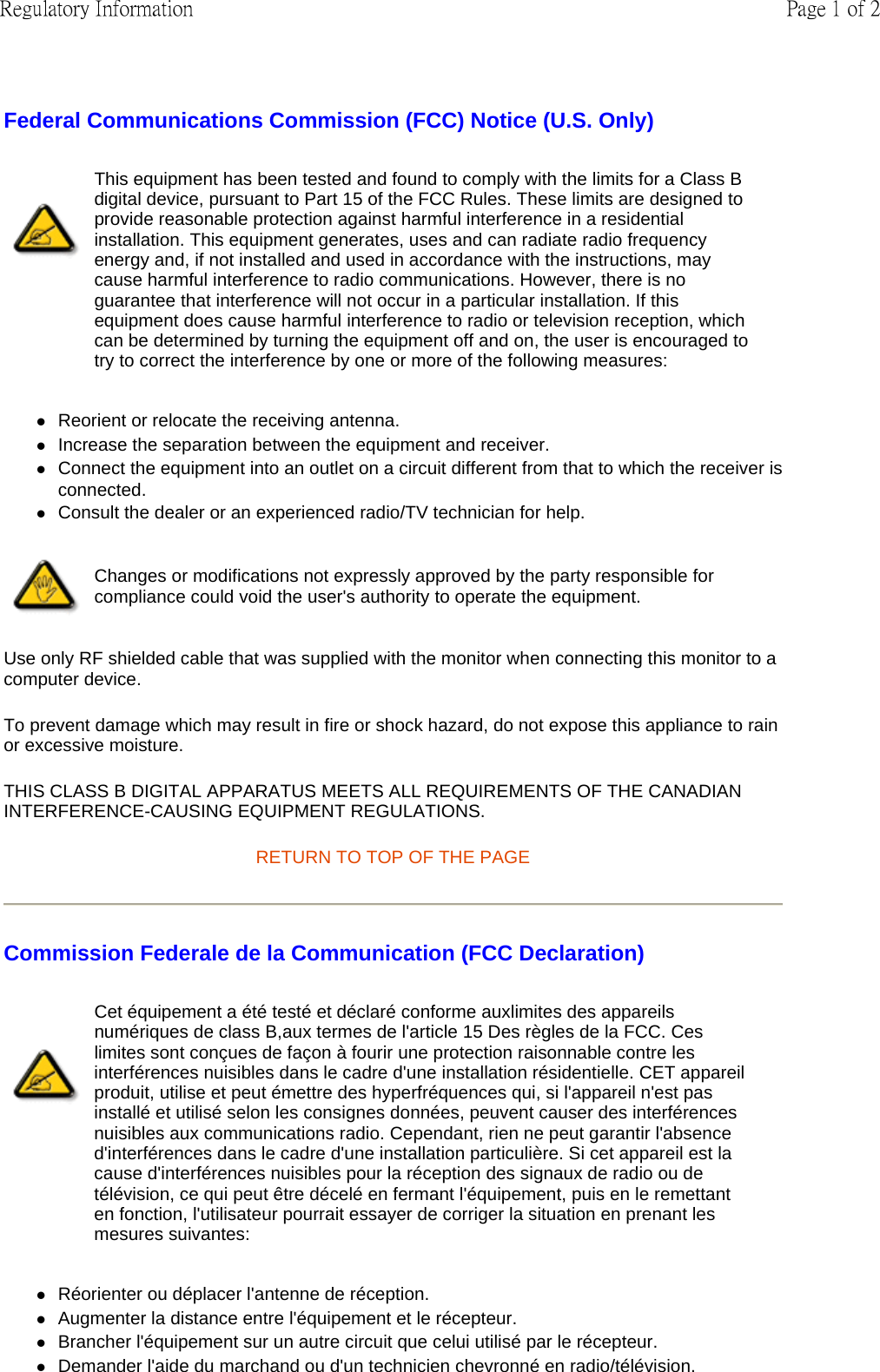

Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Page 1 of 2Regulatory Information

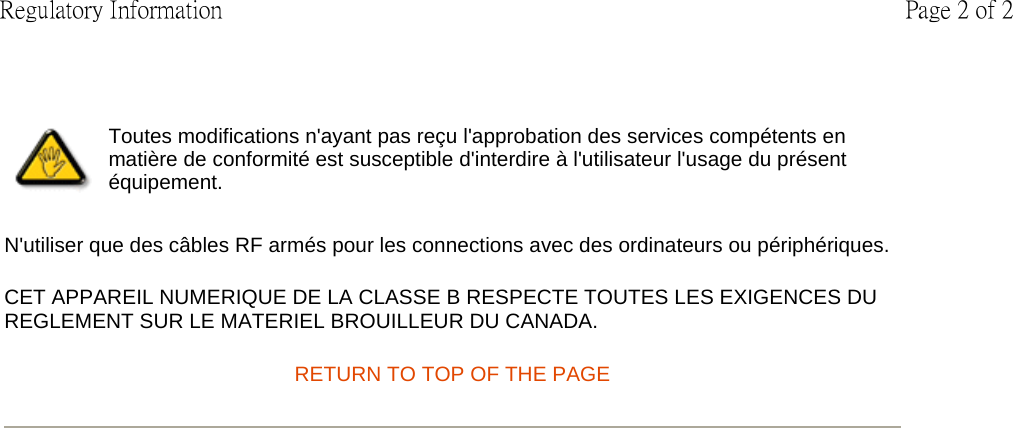

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.Page 2 of 2Regulatory Information
