Philips Electronics M147 LCD Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd LCD Monitor Users Manual
Users Manual
Page 1 of 1e-Manual
Product Information
Product Features
230WP7NS
zDesigned for maximum productivity
{Big, widescreen ideal for viewing two A4 pages side-by-side
{90 degree screen rotation and smart cable management
{Designed for 'just-right' height and angle adjustment
zBest total cost of ownership solution
{SmartManage compatibility enables LAN-based asset management
{Power consumption below the industry average
zOutstanding front of screen performance
{WUXGA, wide format 1920x1200 resolution for sharper display
{Widest viewing angle up to 176 degrees
{Dual input accepts both analog VGA and digital DVI signals
zGreat convenience
{Built-in High-speed USB 2.0 solution for easy connections
{Easy to adjust display settings with Philips SmartControl
{Embedded power supply eliminates external power adaptors
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 23.0" / 58.4cm
• Pixel Pitch 0.258 x 0.258mm
• LCD Panel type 1920 x 1200pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 495.36 x 309.6mm
• Display Colors 8 bits interface (16M colors)
SCANNING
Vertical refresh rate 56Hz-85Hz (Analog / Digital input)
Horizontal Frequency 30kHz-94kHz (Analog input)
VIDEO
• Video dot rate 202.5 MHz
• Input impedance
- Video 75 ohm
- Sync 2K2 ohm
Page 1 of 9Product Information
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
Optical characteristics
• Contrast ratio: 800:1 (typ).
• Brightness: 300 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
• Viewing Angle:
(C/R>10)
Upper >89° (typ.)
Lower >89° (typ.)
Left >89° (typ.)
Right >89° (typ.)
• Response time 12 ms (typ.)
• Maximum 1600 x 1200 at 75Hz(analog input)
1600 x 1200 at 60Hz(digital input)
• Recommended 1920 x 1200 at 60Hz * at DVI digital input
37 user definable modes
15 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70 (IBM VGA 10h)
31.5 720*400 70
31.5 640*480 60
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
48.4 1024*768 60
60.0 1024*768 75
60 1280*960 60
69.0 1152*870 75
Page 2 of 9Product Information
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will be waken up automatically by your PC. The
following table shows the power consumption and signaling of this automatic power saving
feature:
RETURN TO TOP OF THE PAGE
Physical Specifications
63.9 1280*1024 60
80.0 1280*1024 75
75.0 1600*1200 60
93.8 1600*1200 75 (Analog only)
74.5 1920*1200 60 (Analog only)
74 1920*1200 60
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
Active ON Yes Yes < 90W Green
Sleep OFF No No < 2W Amber
Switch Off OFF - -< 2W OFF
• Dimension (WxHxD) 548 x 422.6 x 234.6 mm (incl. Pedestal) (in lowest
position)
• Weight 11.8 Kg
• Tilt / Swivel -5° ~ 25° / ± 45°
• Height adjustment rang 130 mm
• Power supply 100— 240 VAC, 60 - 50 Hz
• Power consumption 80 W* (typ.)
• Temperature 5° C to 35° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
Page 3 of 9Product Information
* This data is subject to change without notice.
* Resolution 1920 x 1200, standard size, contrast max., brightness 50%, 6500° K, full white
p
attern.
RETURN TO TOP OF THE PAGE
Pin Assignment

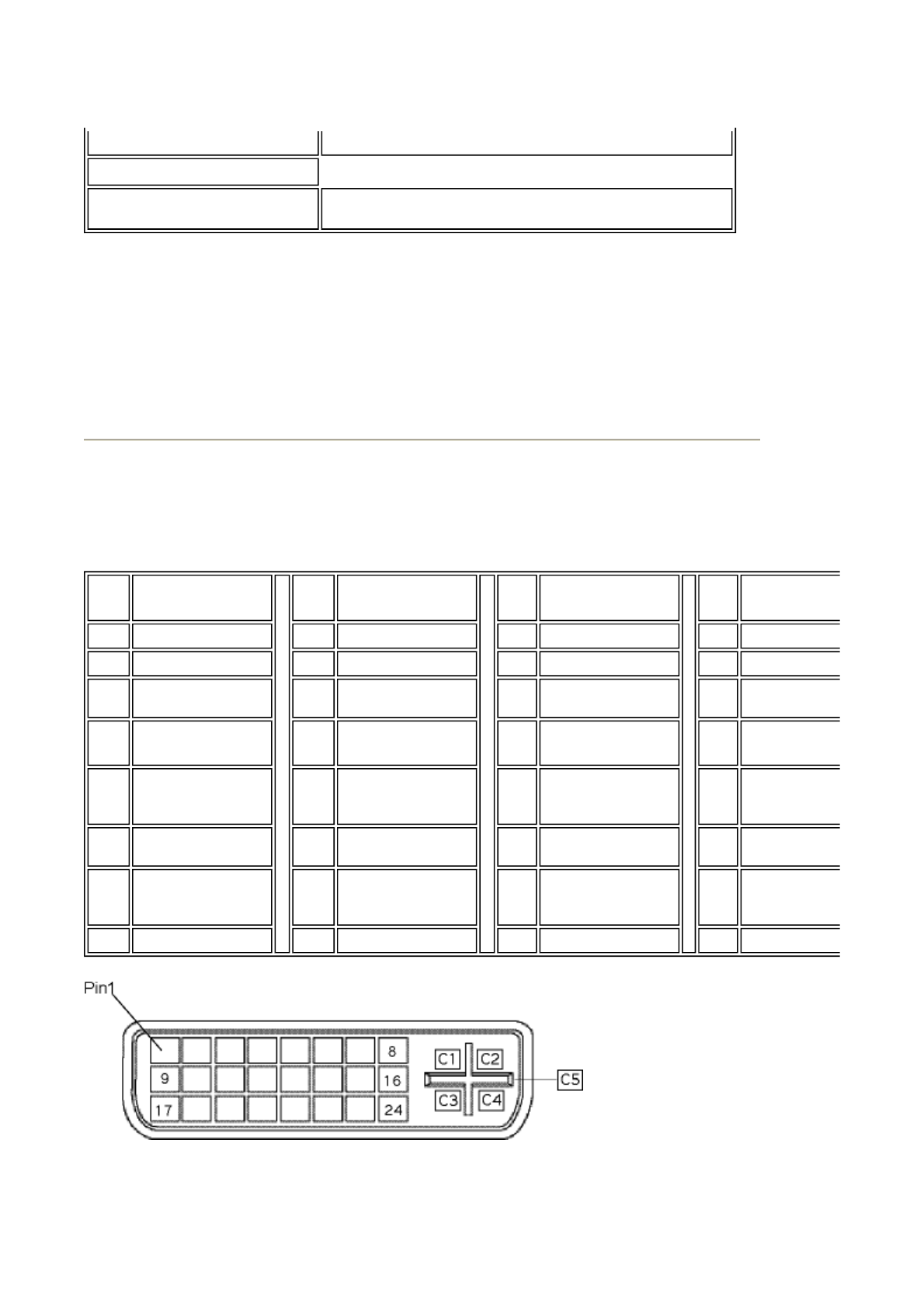

1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal
pin assignments are listed in the following table:

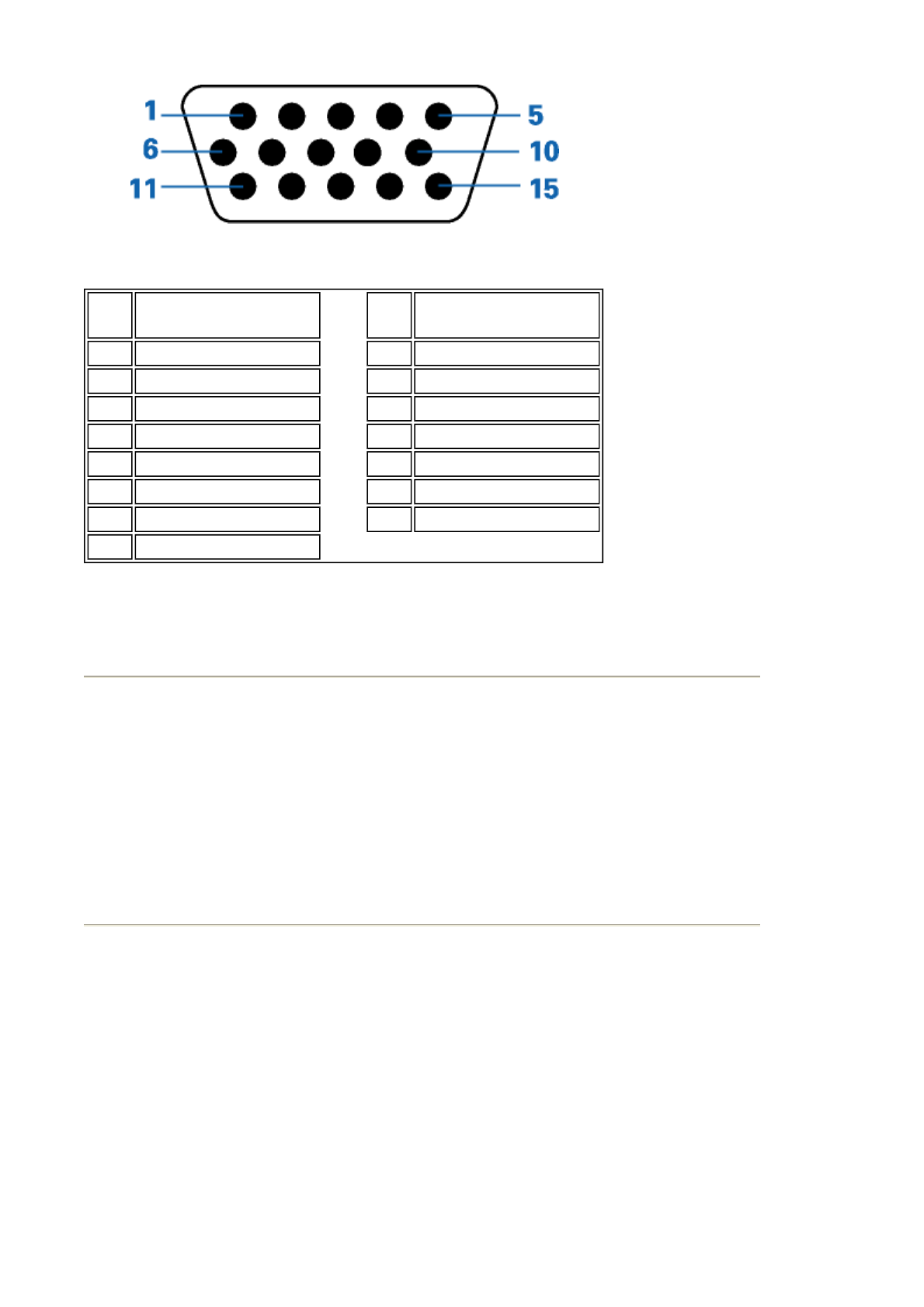

2. The 15-pin D-sub connector (male) of the signal cable:
• Cabinet color Black/Silver
• Altitude
- storage/shipment
- operating 0 - 40,000 feet (12,192m)
0 - 12,000 feet (3657.6m)
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal
A
ssignmen
t
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G
3 T.M.D.S. Data2
Shield 11 T.M.D.S. Data1
Shield 19 T.M.D.S. Data0
Shield C3 * Analog B
4 NC 12 NC 20 NC C4 * Analog H-sy
n
5 NC 13 NC 21 NC C5 * Analog GND
(Analog R, G,
return)
6 DDC Clock 14 +5V 22 T.M.D.S. Clock
Shield
7 DDC Data 15 Ground (return
for +5V and H/V-
sync) 23 T.M.D.S. Clock+
8 * Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock-
Page 4 of 9Product Information
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Ground
3 Blue video input 11 Ground
4 Ground 12 Serial data line (SDA)
5 Cable detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
Page 5 of 9Product Information

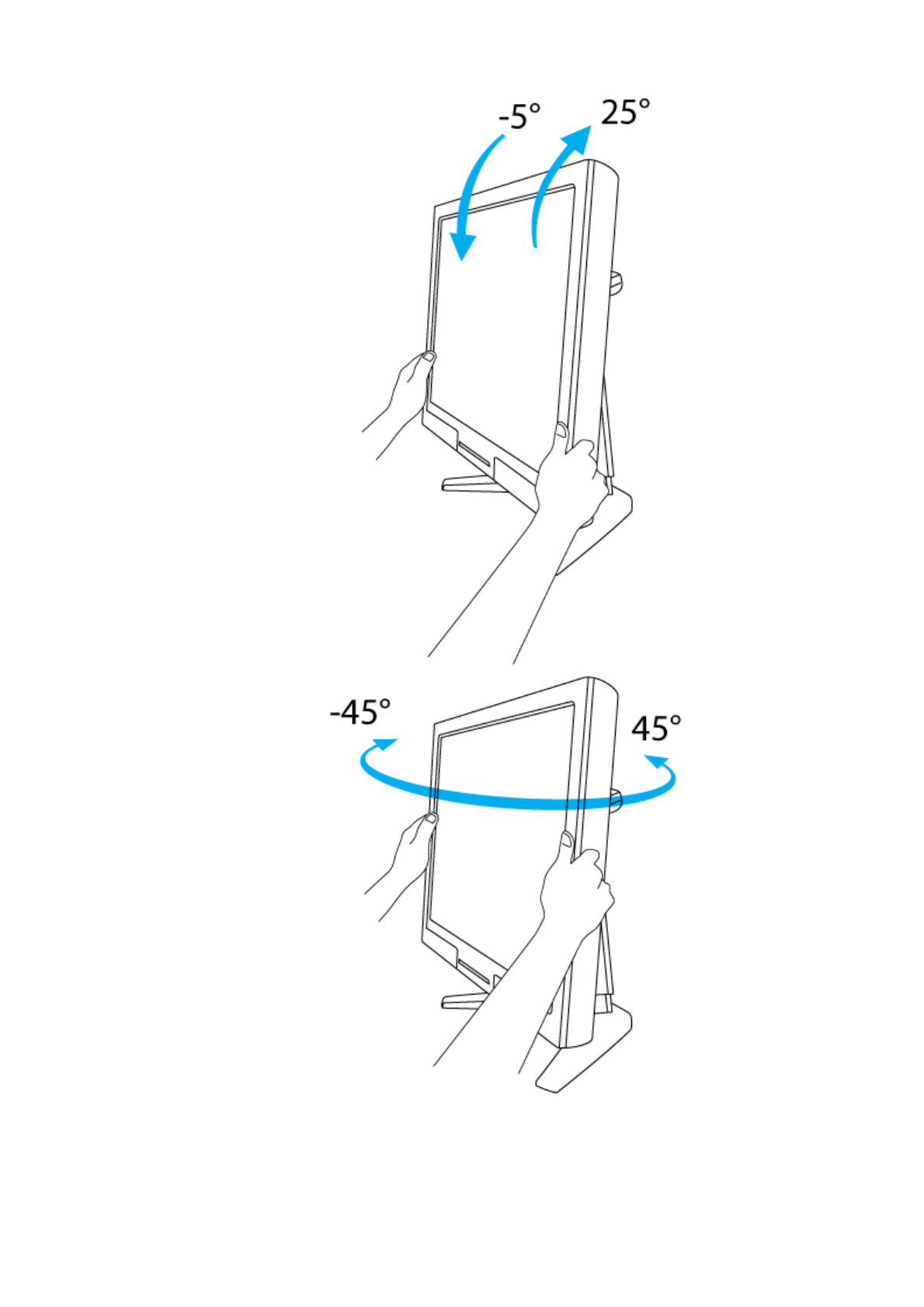

1) Tilt
2) Swivel

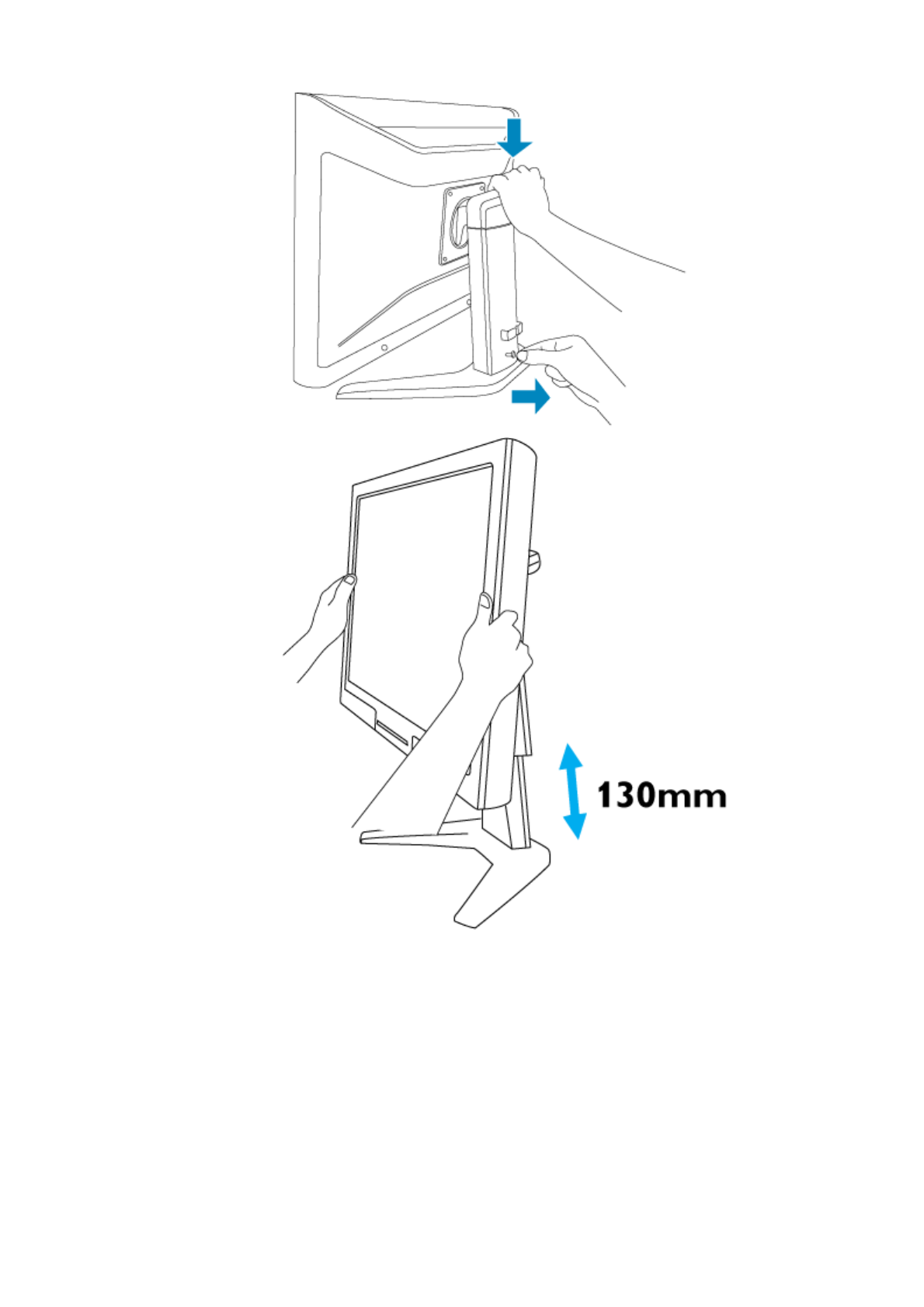

3) Height
adjustment
Page 6 of 9Product Information

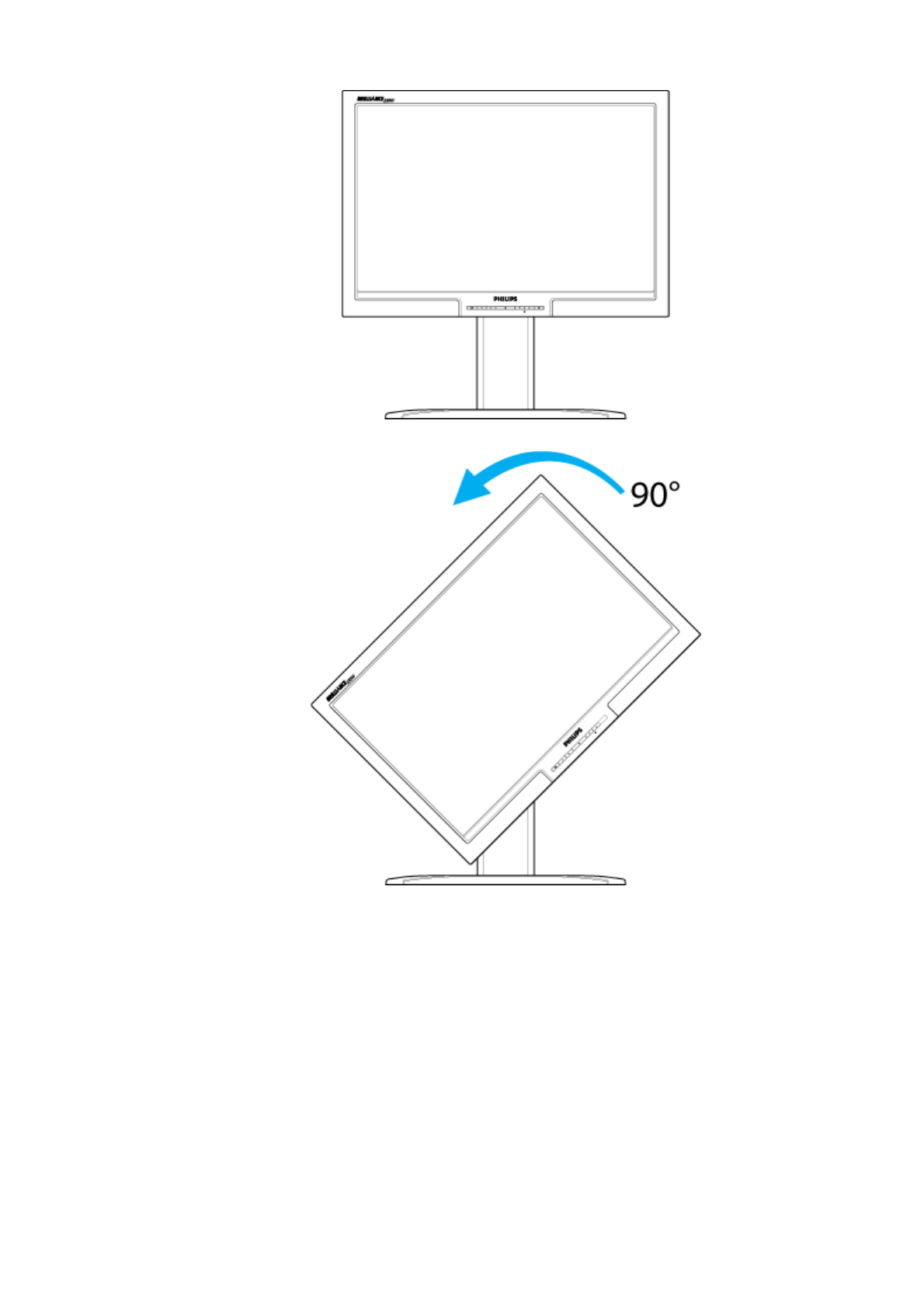

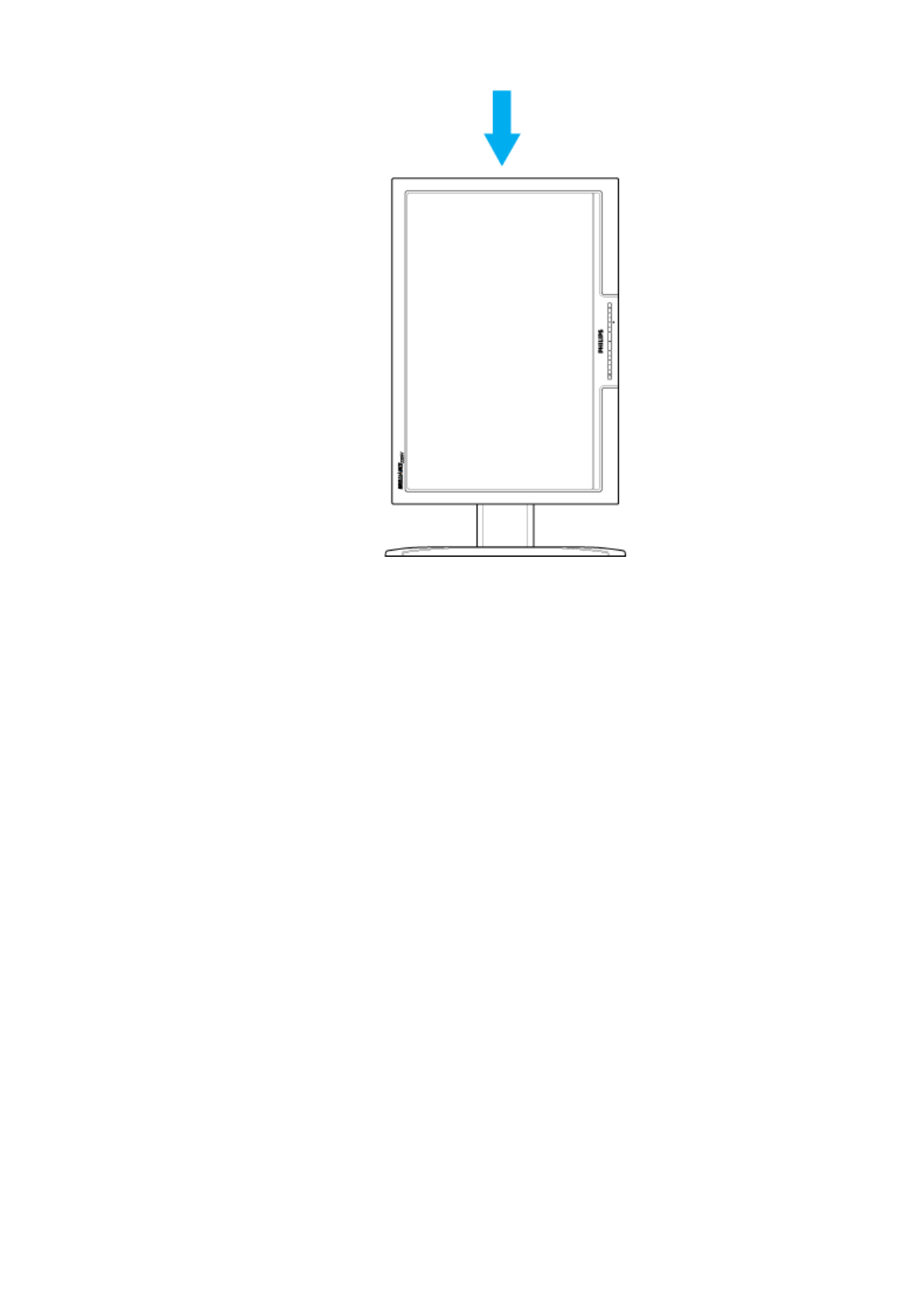

4) Portrait display
Page 7 of 9Product Information
Page 8 of 9Product Information
RETURN TO TOP OF THE PAGE
Page 9 of 9Product Information
Installing Your LCD Monitor

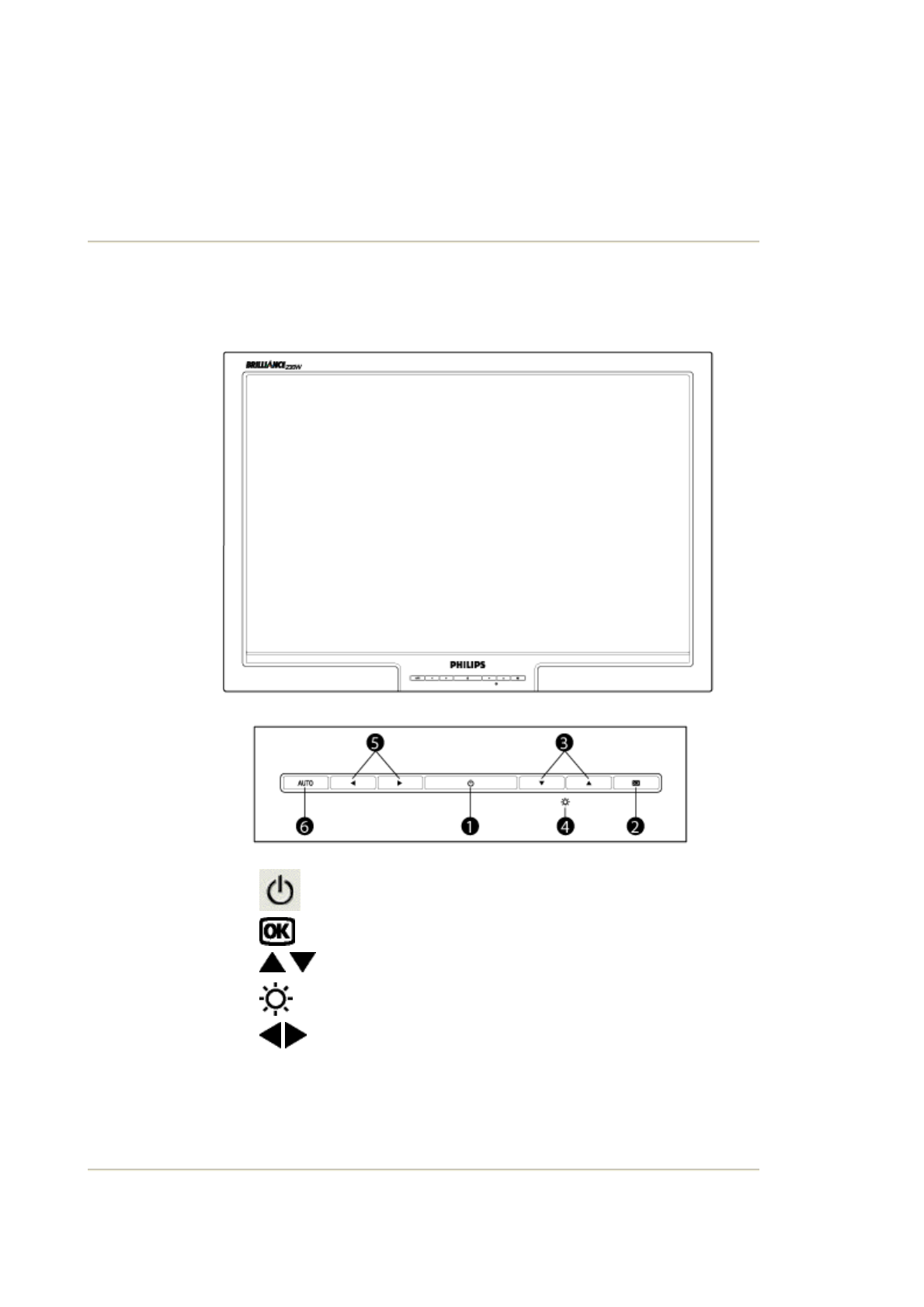

Front View Product Description
RETURN TO TOP OF THE PAGE

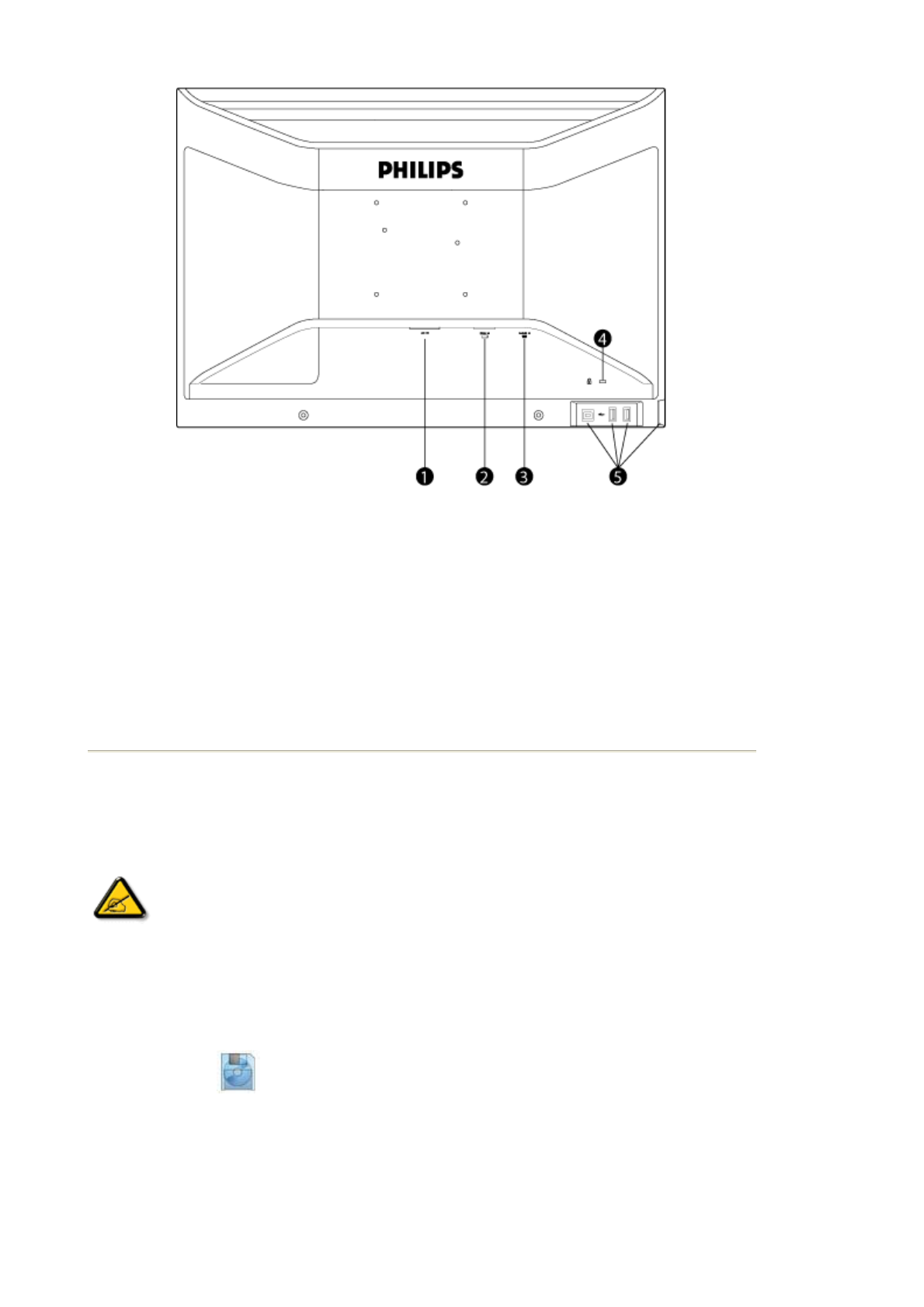

Rear View
1 To switch monitor's power On and Off
2 To access OSD menu
3 To adjust the OSD
4 To adjust brightness of the display
5 To adjust the OSD
6 AUTO Automatically adjust the horizontal position, vertical position
,
phase and clock setting
Page 1 of 2Installing Your LCD Monitor
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1920 x 1200 @60Hz
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step
instructions are provided to guide you through the installtion process. Click on the link to
know more about this program.
More about FP_setup05.exe
RETURN TO TOP OF THE PAGE
1 AC power input
2 DVI-I input
3 D-Sub
4 Kensington anti-thief lock
5 USB upstream and downstream
Note: You can check the current display settings by pressing the 'OK'
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
Page 2 of 2Installing Your LCD Monitor
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
Page 1 of 2Regulatory Information
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
Page 2 of 2Regulatory Information
