Philips Electronics M149 20” LCD Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd 20” LCD Monitor Users Manual

Users Manual

e-ManualPhilips LCD Monitor Electronic User’s Manualfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/index.htm2006-03-06 4:02:55 PM

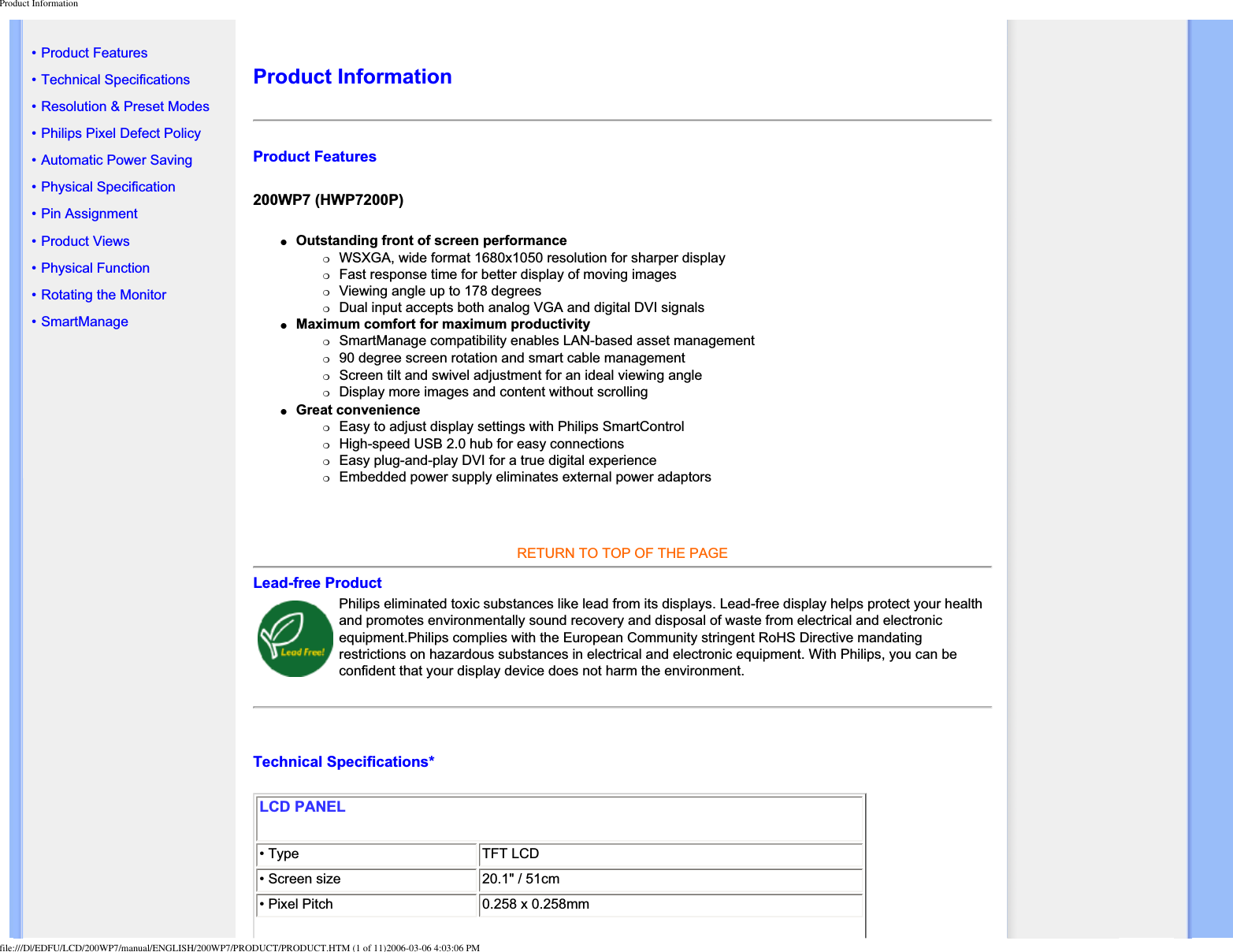

Product Information• Product Features• Technical Specifications• Resolution & Preset Modes• Philips Pixel Defect Policy• Automatic Power Saving• Physical Specification• Pin Assignment• Product Views• Physical Function• Rotating the Monitor• SmartManageProduct Information Product Features 200WP7 (HWP7200P)●Outstanding front of screen performance❍WSXGA, wide format 1680x1050 resolution for sharper display ❍Fast response time for better display of moving images❍Viewing angle up to 178 degrees ❍Dual input accepts both analog VGA and digital DVI signals ●Maximum comfort for maximum productivity❍SmartManage compatibility enables LAN-based asset management❍90 degree screen rotation and smart cable management❍Screen tilt and swivel adjustment for an ideal viewing angle❍Display more images and content without scrolling●Great convenience❍Easy to adjust display settings with Philips SmartControl❍High-speed USB 2.0 hub for easy connections❍Easy plug-and-play DVI for a true digital experience❍Embedded power supply eliminates external power adaptorsRETURN TO TOP OF THE PAGELead-free ProductPhilips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment.Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 20.1" / 51cm• Pixel Pitch 0.258 x 0.258mmfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (1 of 11)2006-03-06 4:03:06 PM

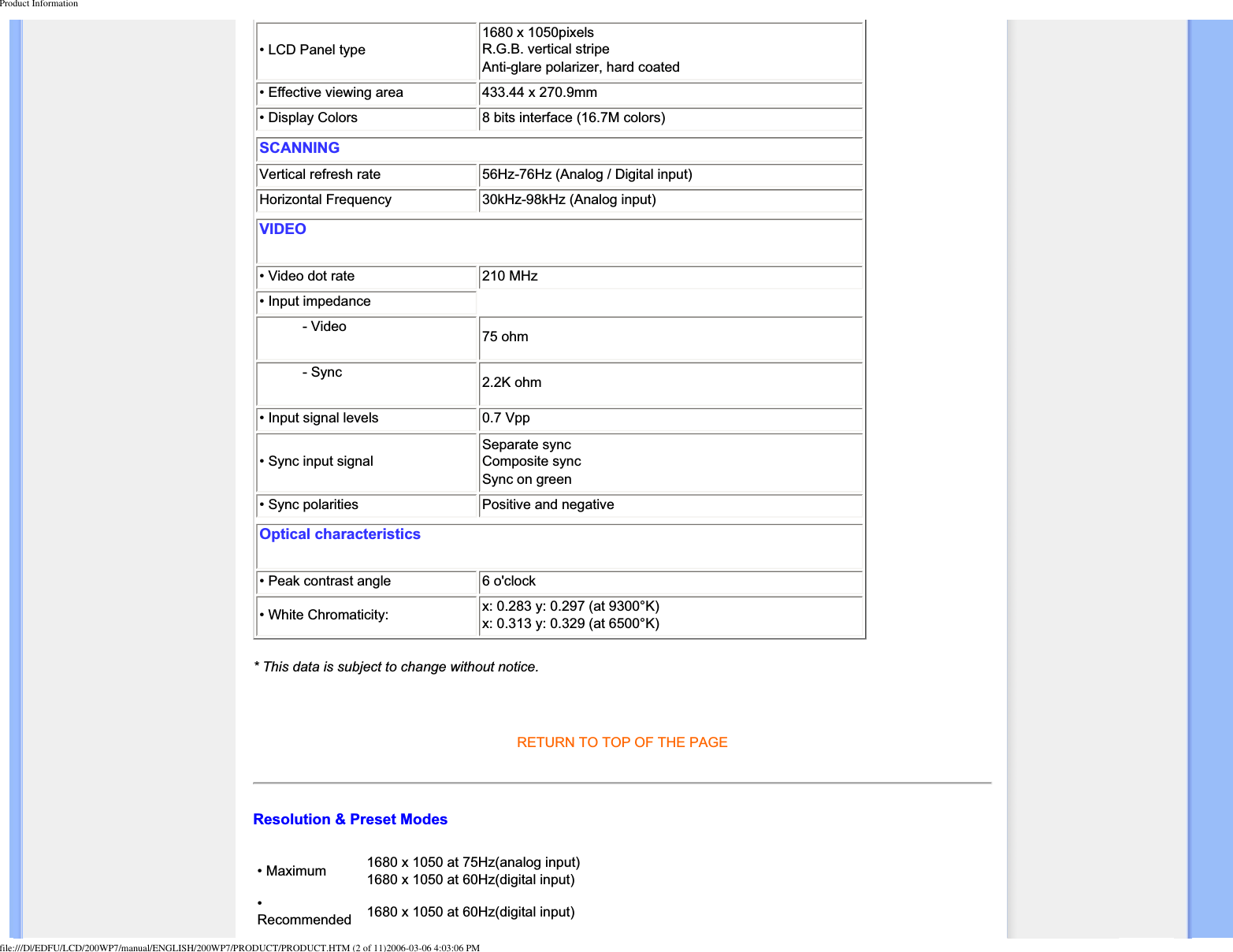

Product Information• LCD Panel type 1680 x 1050pixels R.G.B. vertical stripeAnti-glare polarizer, hard coated• Effective viewing area 433.44 x 270.9mm• Display Colors 8 bits interface (16.7M colors)SCANNINGVertical refresh rate 56Hz-76Hz (Analog / Digital input)Horizontal Frequency 30kHz-98kHz (Analog input)VIDEO• Video dot rate 210 MHz • Input impedance- Video 75 ohm- Sync 2.2K ohm• Input signal levels 0.7 Vpp• Sync input signalSeparate syncComposite sync Sync on green• Sync polarities Positive and negativeOptical characteristics • Peak contrast angle 6 o'clock• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K)* This data is subject to change without notice.RETURN TO TOP OF THE PAGEResolution & Preset Modes• Maximum 1680 x 1050 at 75Hz(analog input) 1680 x 1050 at 60Hz(digital input)•Recommended 1680 x 1050 at 60Hz(digital input)file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (2 of 11)2006-03-06 4:03:06 PM

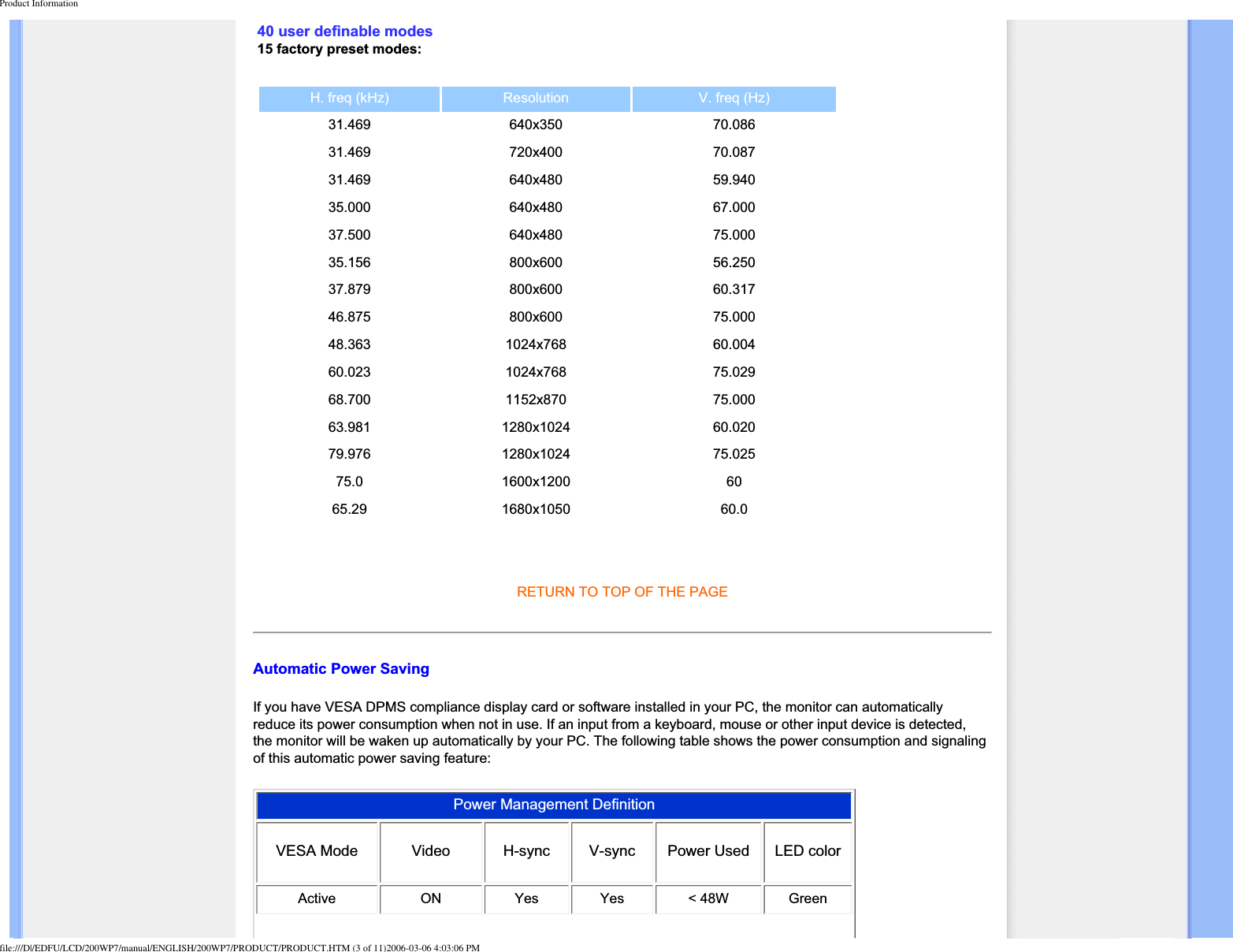

Product Information40 user definable modes15 factory preset modes:H. freq (kHz) Resolution V. freq (Hz)31.469 640x350 70.08631.469 720x400 70.08731.469 640x480 59.94035.000 640x480 67.00037.500 640x480 75.00035.156 800x600 56.25037.879 800x600 60.31746.875 800x600 75.00048.363 1024x768 60.00460.023 1024x768 75.02968.700 1152x870 75.00063.981 1280x1024 60.02079.976 1280x1024 75.02575.0 1600x1200 6065.29 1680x1050 60.0RETURN TO TOP OF THE PAGEAutomatic Power SavingIf you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will be waken up automatically by your PC. The following table shows the power consumption and signaling of this automatic power saving feature:Power Management DefinitionVESA Mode Video H-sync V-sync Power Used LED colorActive ON Yes Yes < 48W Greenfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (3 of 11)2006-03-06 4:03:06 PM

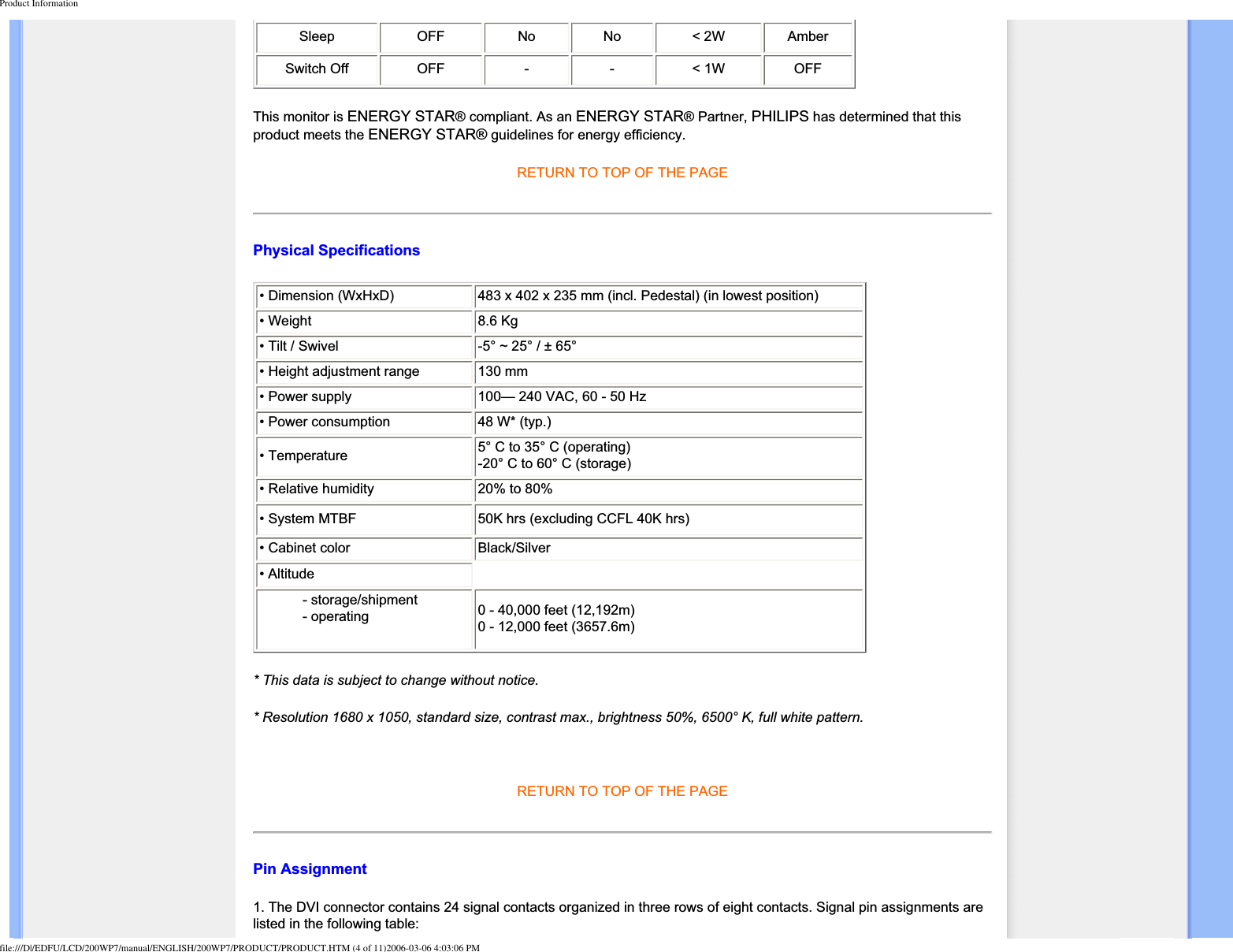

Product InformationSleep OFF No No < 2W AmberSwitch Off OFF - - < 1W OFFThis monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.RETURN TO TOP OF THE PAGEPhysical Specifications• Dimension (WxHxD) 483 x 402 x 235 mm (incl. Pedestal) (in lowest position) • Weight 8.6 Kg • Tilt / Swivel -5° ~ 25° / ± 65° • Height adjustment range 130 mm• Power supply 100— 240 VAC, 60 - 50 Hz• Power consumption 48 W* (typ.)• Temperature 5° C to 35° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40K hrs)• Cabinet color Black/Silver•Altitude- storage/shipment - operating 0 - 40,000 feet (12,192m) 0 - 12,000 feet (3657.6m)* This data is subject to change without notice.* Resolution 1680 x 1050, standard size, contrast max., brightness 50%, 6500° K, full white pattern.RETURN TO TOP OF THE PAGEPin Assignment1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (4 of 11)2006-03-06 4:03:06 PM

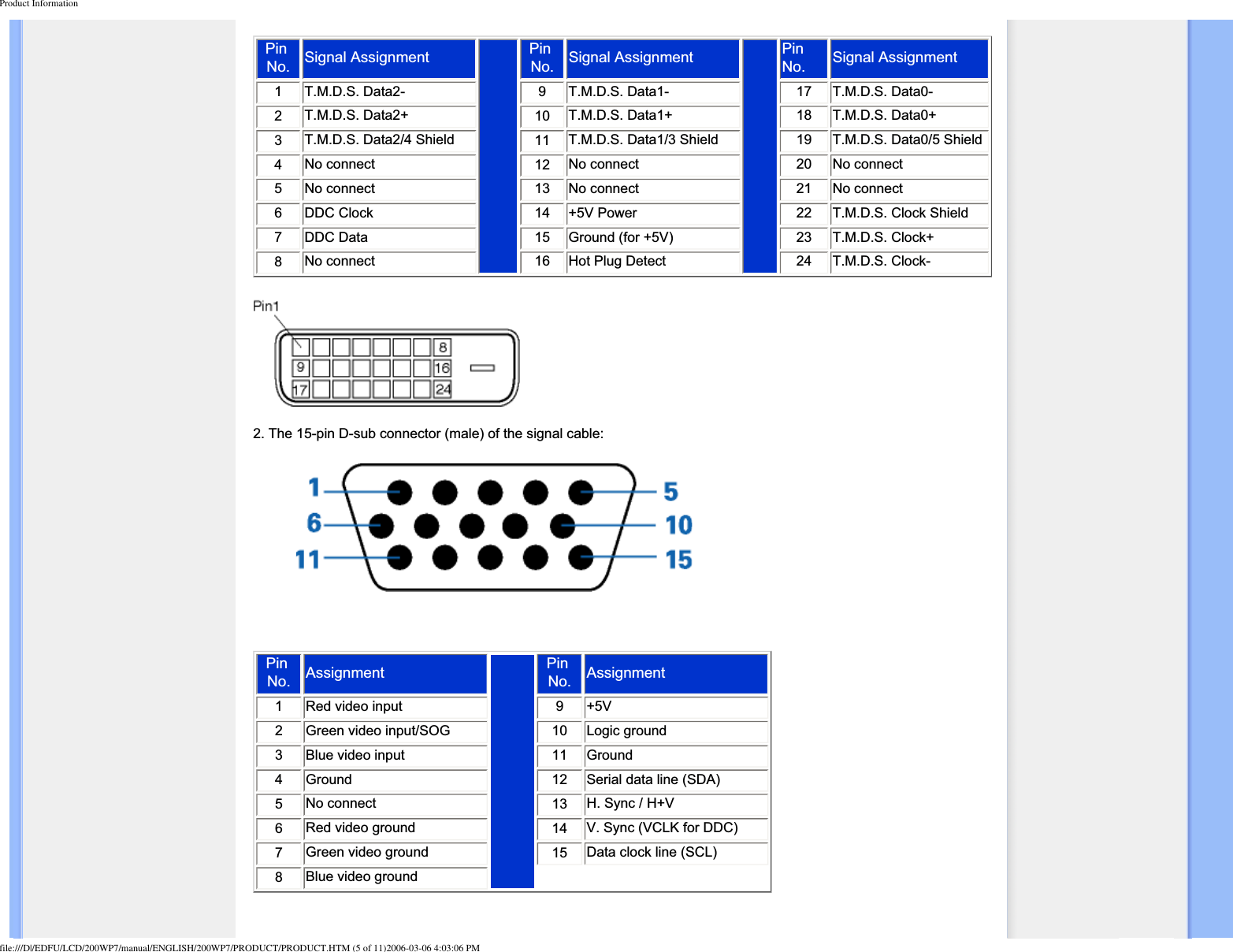

Product InformationPinNo. Signal Assignment PinNo. Signal Assignment PinNo. Signal Assignment1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0-2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4No connect 12 No connect 20 No connect 5No connect 13 No connect 21 No connect 6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-2. The 15-pin D-sub connector (male) of the signal cable: PinNo. Assignment PinNo. Assignment1Red video input 9+5V2Green video input/SOG 10 Logic ground3Blue video input 11 Ground4Ground 12 Serial data line (SDA)5No connect 13 H. Sync / H+V6Red video ground 14 V. Sync (VCLK for DDC)7Green video ground 15 Data clock line (SCL)8Blue video groundfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (5 of 11)2006-03-06 4:03:06 PM

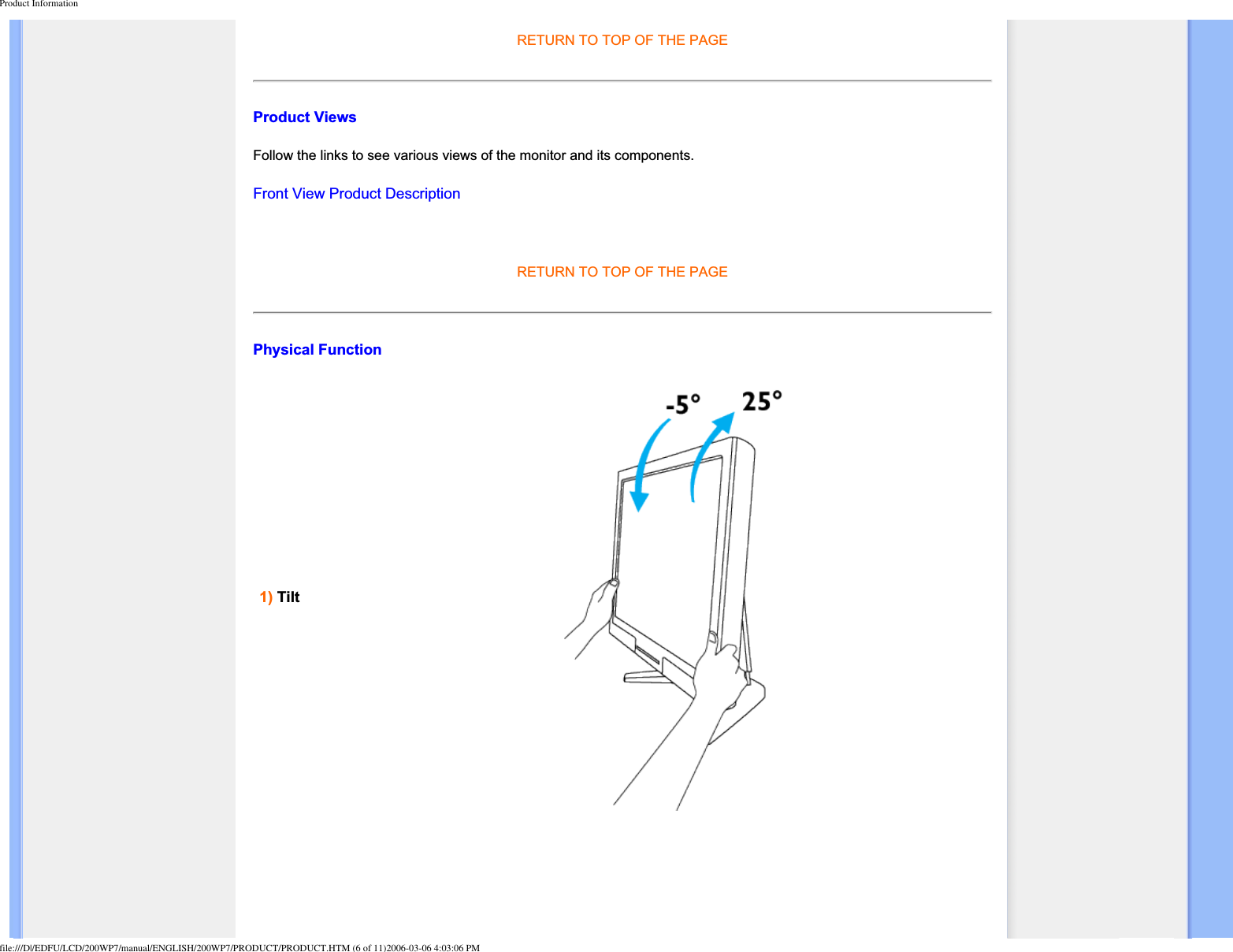

Product InformationRETURN TO TOP OF THE PAGEProduct ViewsFollow the links to see various views of the monitor and its components.Front View Product DescriptionRETURN TO TOP OF THE PAGEPhysical Function1) Tiltfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (6 of 11)2006-03-06 4:03:06 PM

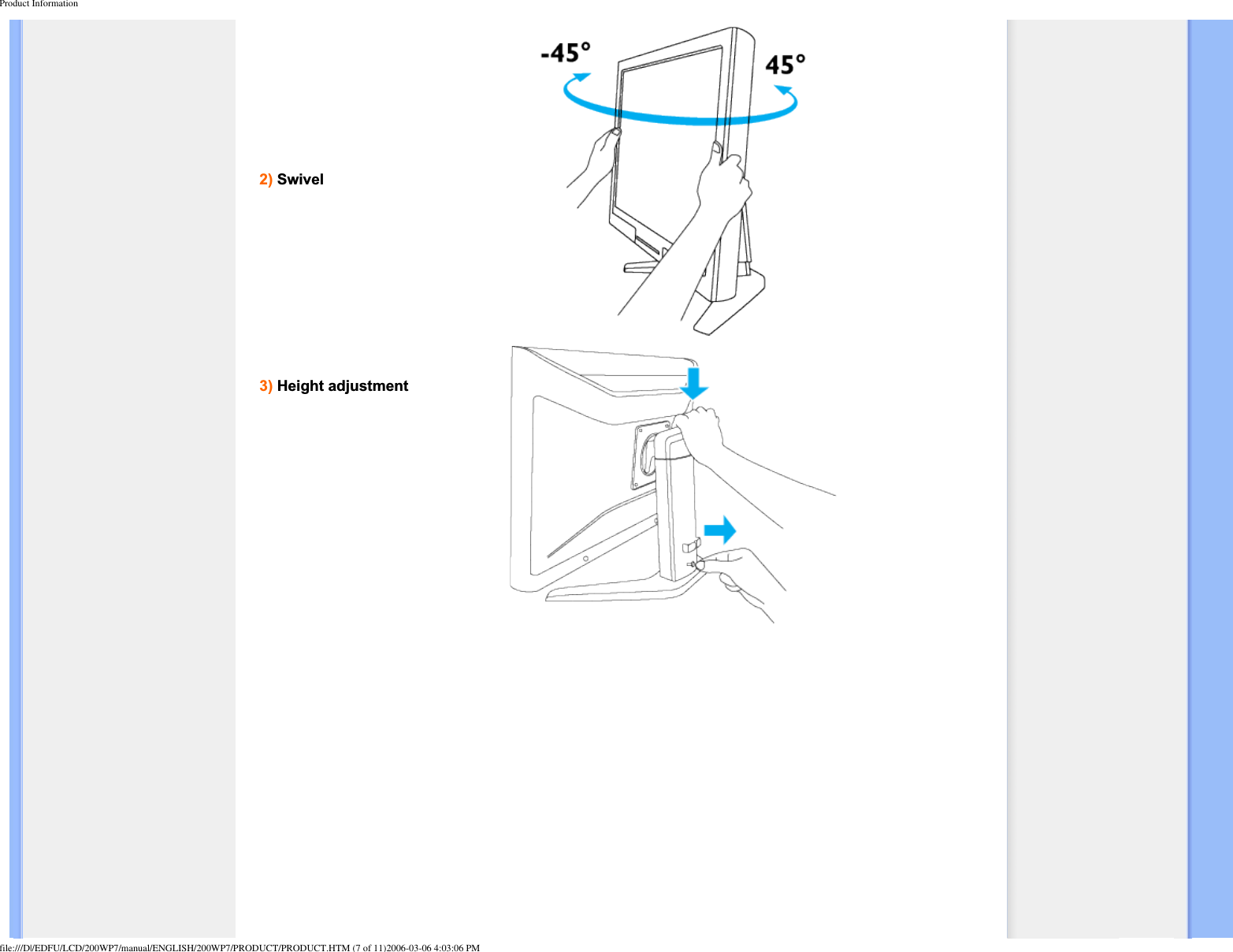

Product Information2) Swivel3) Height adjustmentfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (7 of 11)2006-03-06 4:03:06 PM

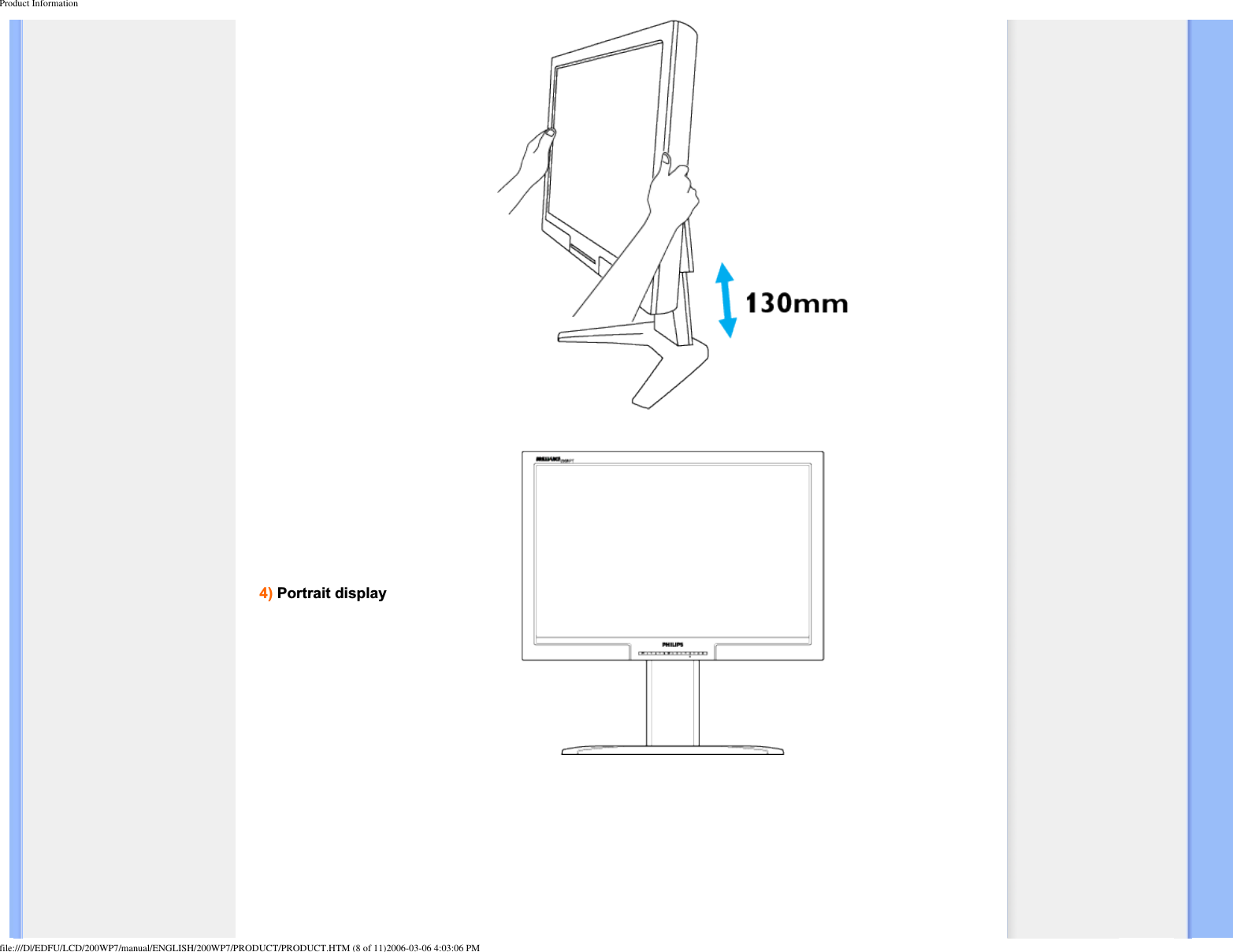

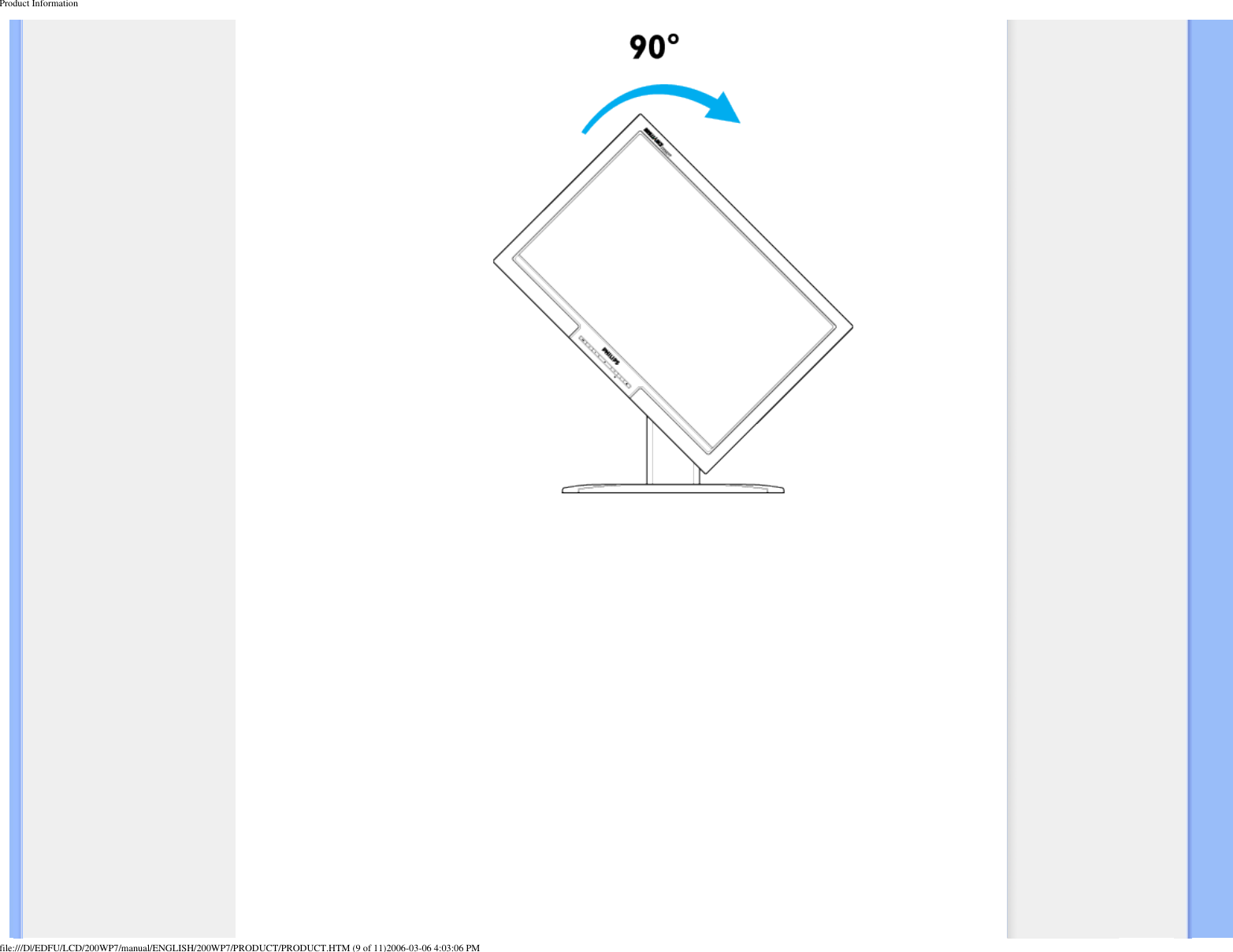

Product Information4) Portrait displayfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (8 of 11)2006-03-06 4:03:06 PM
Product Informationfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (9 of 11)2006-03-06 4:03:06 PM
Product Informationfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (10 of 11)2006-03-06 4:03:06 PM

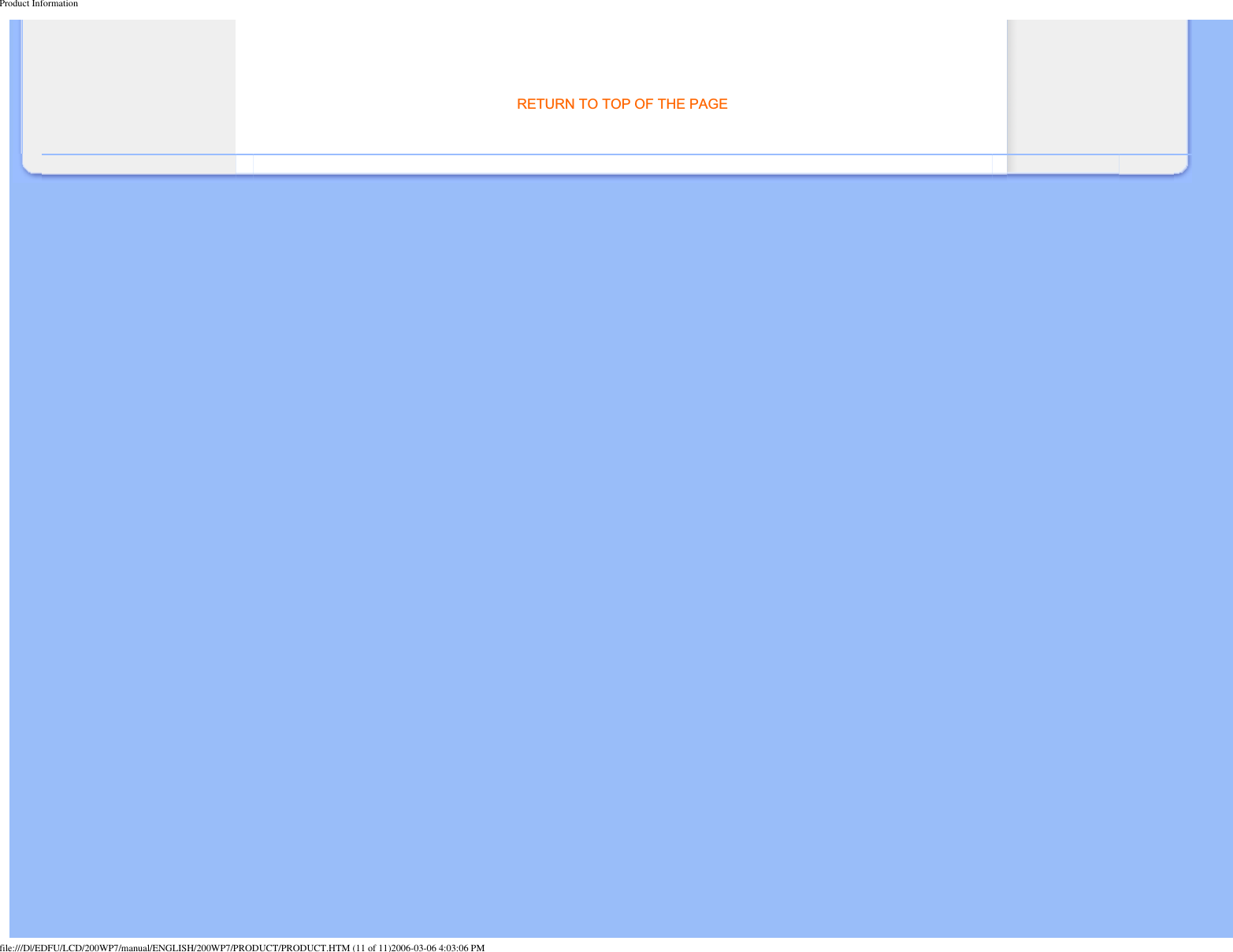

Product InformationRETURN TO TOP OF THE PAGEfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (11 of 11)2006-03-06 4:03:06 PM

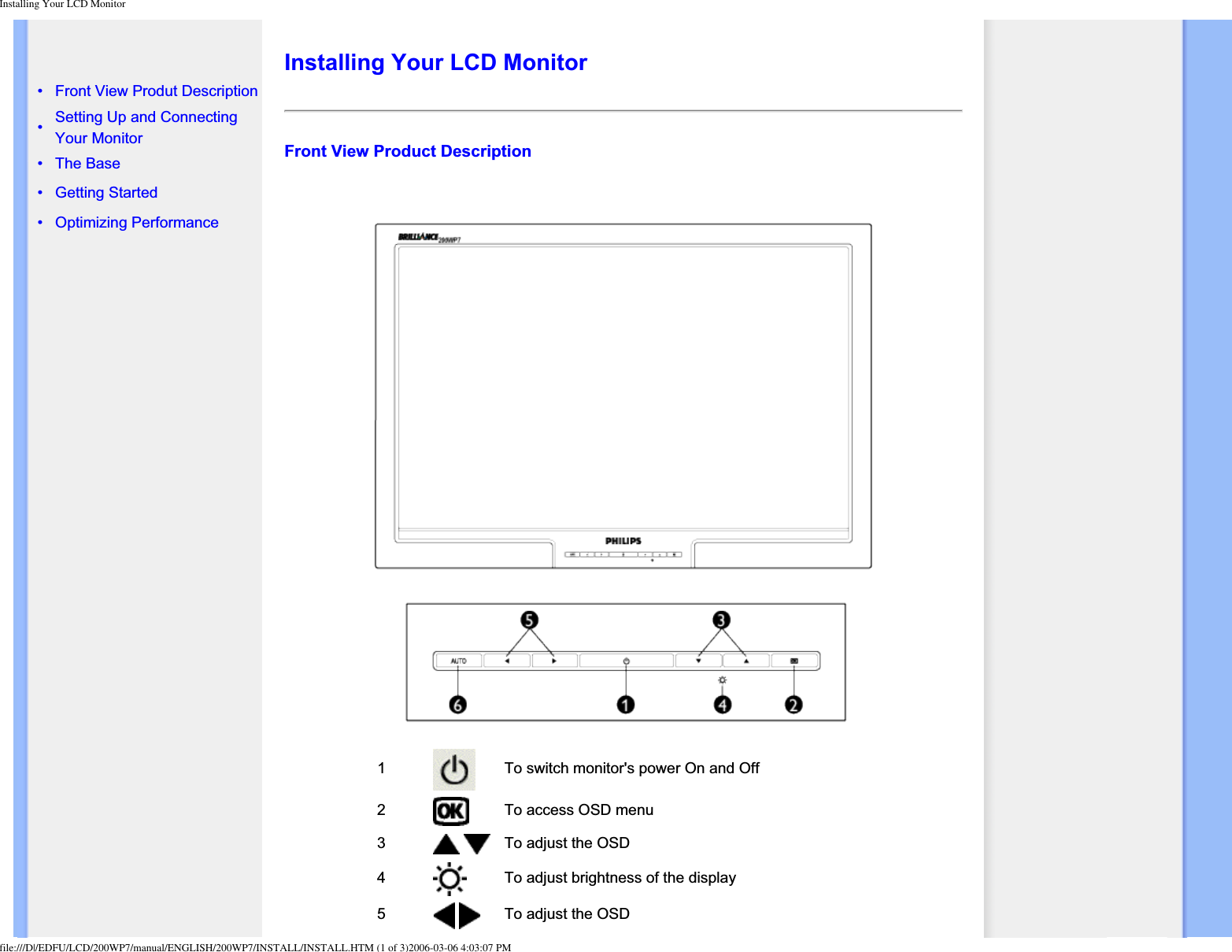

Installing Your LCD Monitor • Front View Produt Description•Setting Up and Connecting Your Monitor• The Base• Getting Started • Optimizing PerformanceInstalling Your LCD MonitorFront View Product Description1 To switch monitor's power On and Off2To access OSD menu3To adjust the OSD4To adjust brightness of the display5To adjust the OSDfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/INSTALL.HTM (1 of 3)2006-03-06 4:03:07 PM

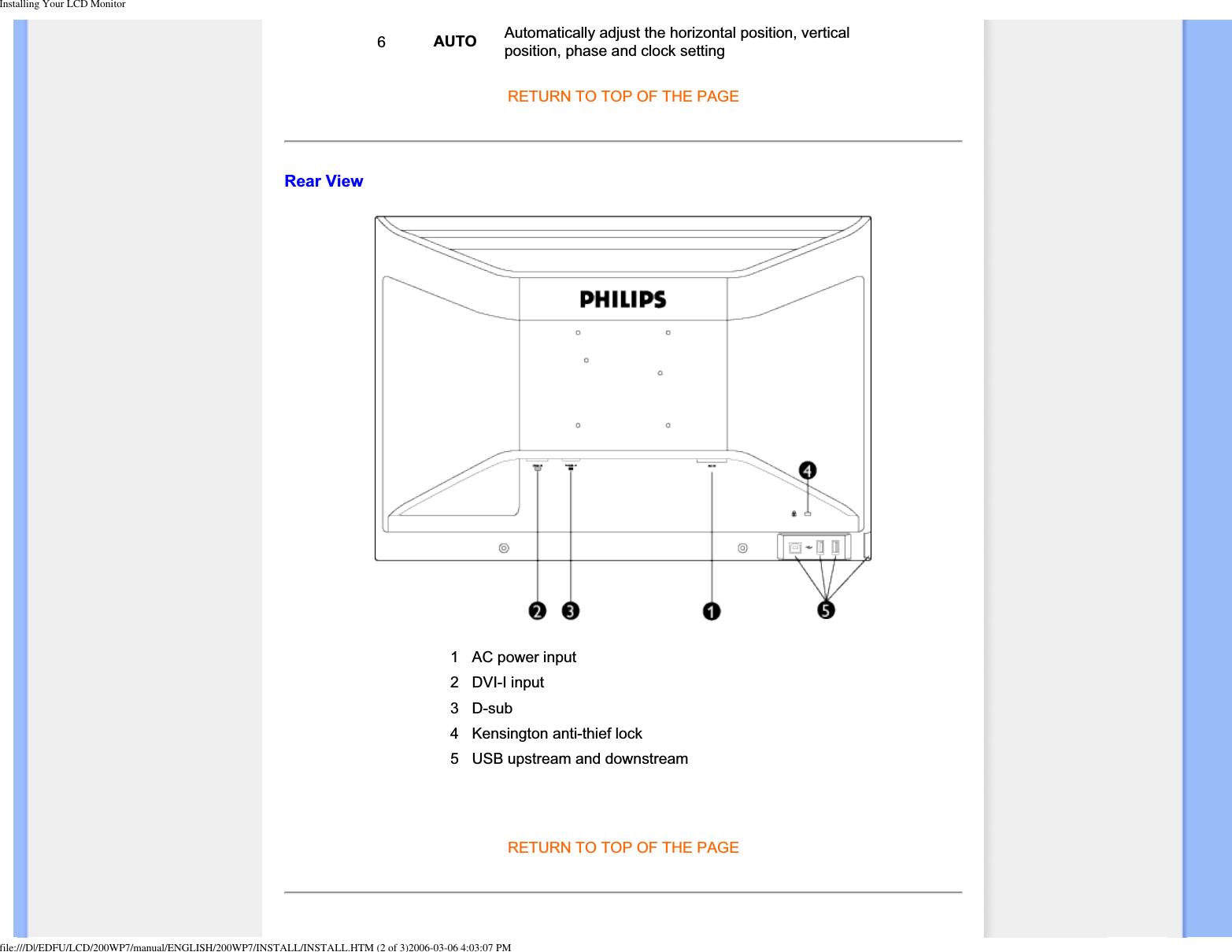

Installing Your LCD Monitor 6AUTO Automatically adjust the horizontal position, vertical position, phase and clock settingRETURN TO TOP OF THE PAGERear View1 AC power input2 DVI-I input3 D-sub4 Kensington anti-thief lock5 USB upstream and downstreamRETURN TO TOP OF THE PAGEfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/INSTALL.HTM (2 of 3)2006-03-06 4:03:07 PM

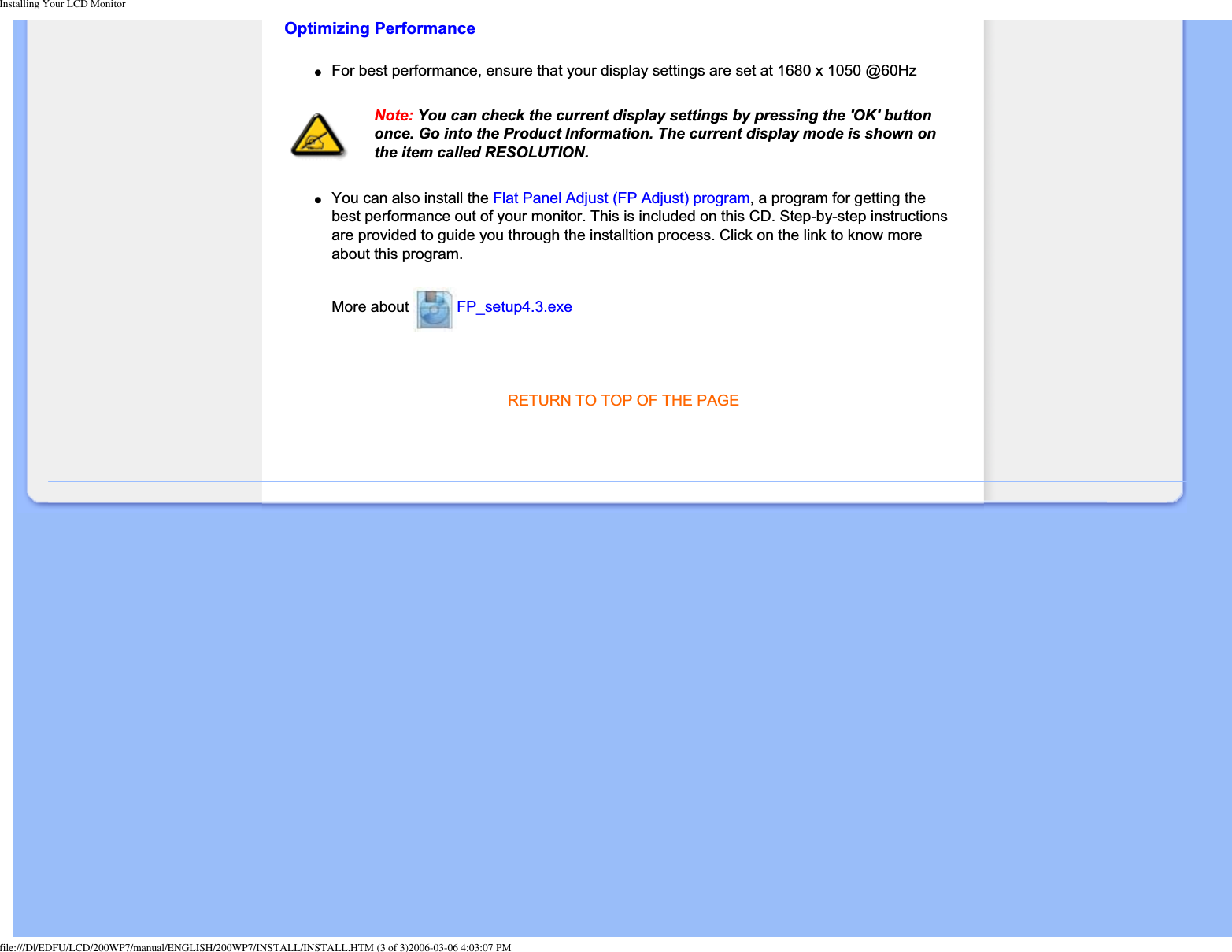

Installing Your LCD Monitor Optimizing Performance●For best performance, ensure that your display settings are set at 1680 x 1050 @60HzNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.●You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program.More about FP_setup4.3.exeRETURN TO TOP OF THE PAGEfile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/INSTALL.HTM (3 of 3)2006-03-06 4:03:07 PM

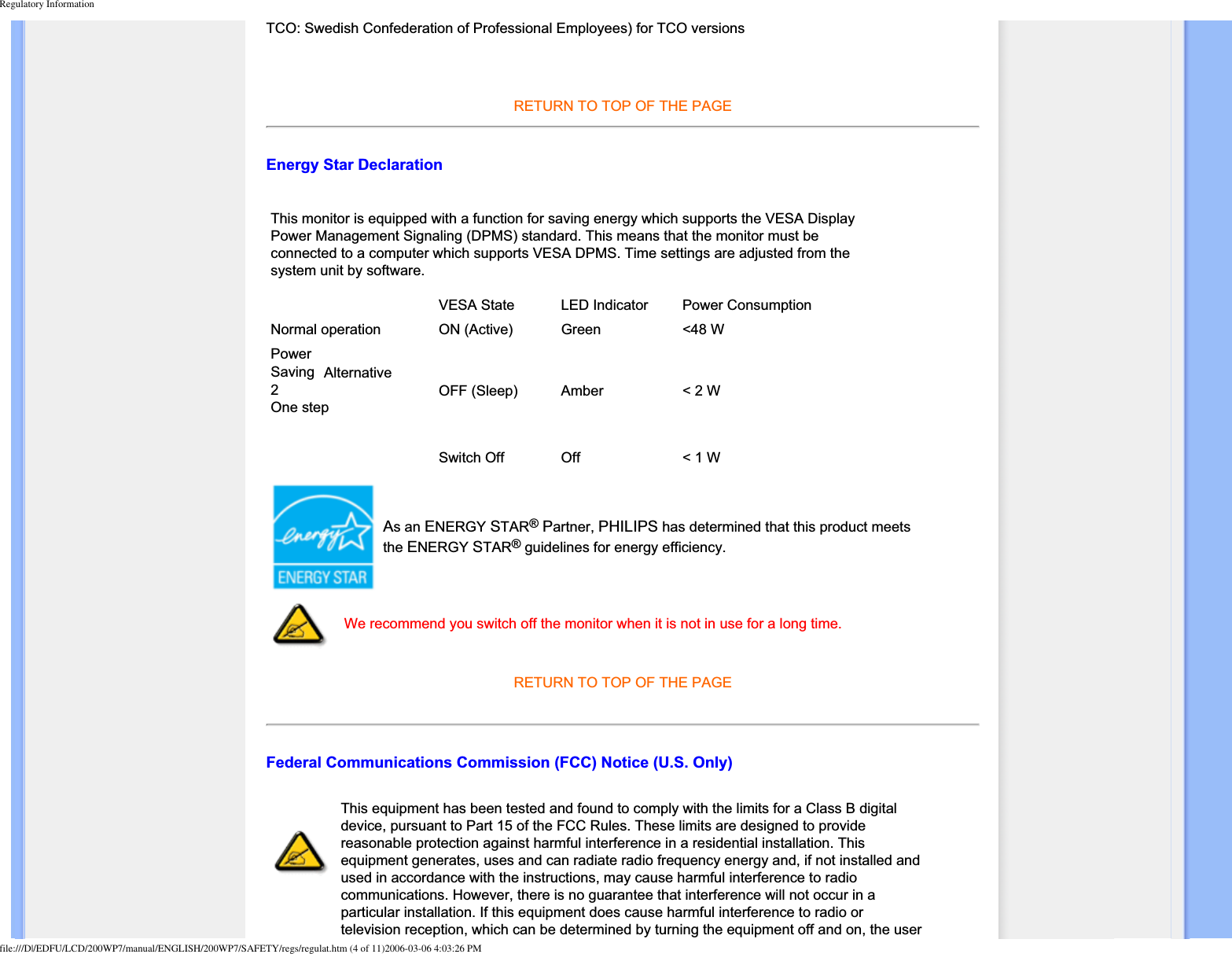

Regulatory InformationTCO: Swedish Confederation of Professional Employees) for TCO versions RETURN TO TOP OF THE PAGEEnergy Star Declaration This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS. Time settings are adjusted from the system unit by software.VESA State LED Indicator Power ConsumptionNormal operation ON (Active) Green <48 WPowerSaving Alternative2One stepOFF (Sleep) Amber < 2 WSwitch Off Off < 1 WAs an ENERGY STAR®Partner, PHILIPS has determined that this product meets the ENERGY STAR®guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for a long time.RETURN TO TOP OF THE PAGEFederal Communications Commission (FCC) Notice (U.S. Only)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/SAFETY/regs/regulat.htm (4 of 11)2006-03-06 4:03:26 PM

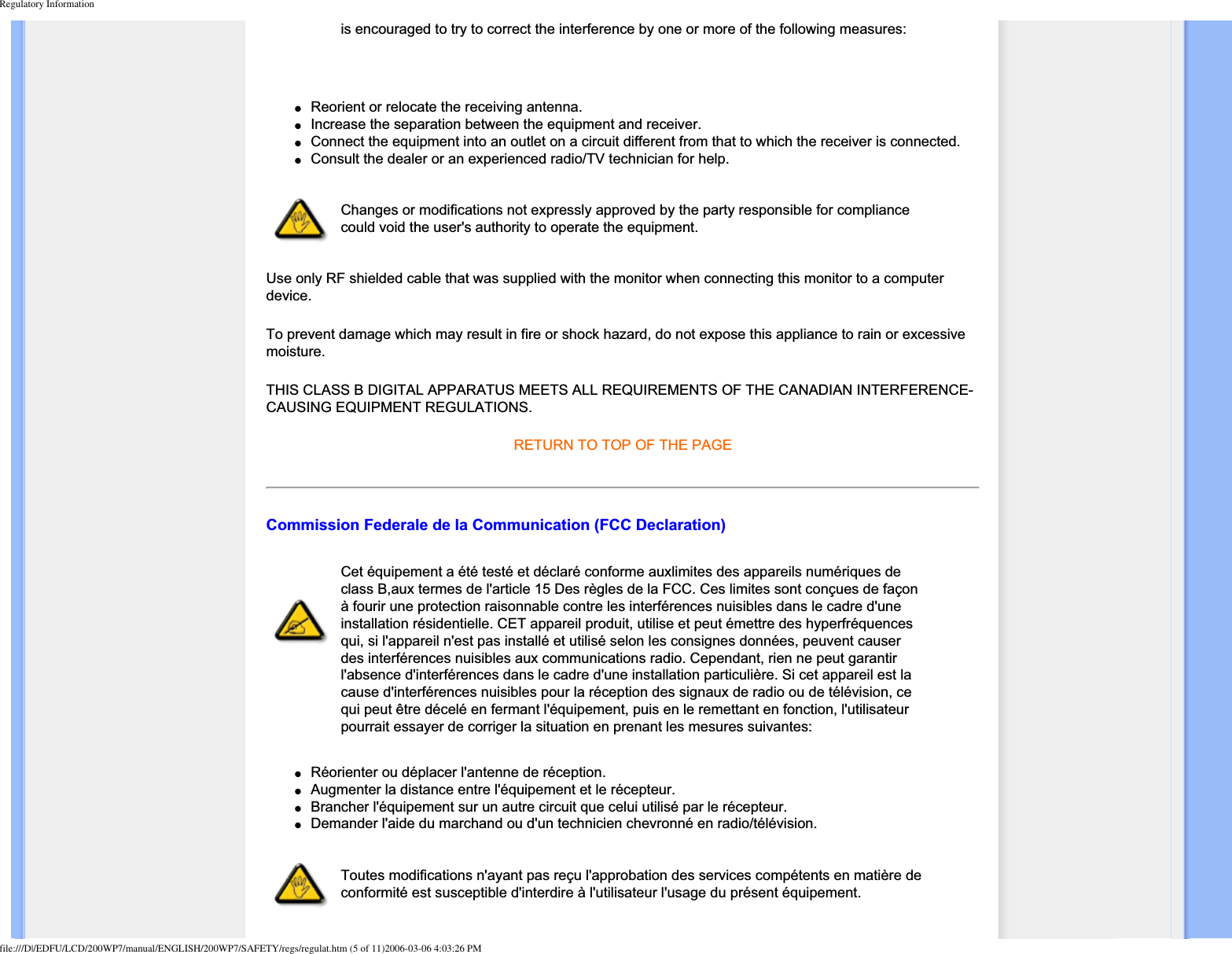

Regulatory Informationis encouraged to try to correct the interference by one or more of the following measures:●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device.To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGECommission Federale de la Communication (FCC Declaration)Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes:●Réorienter ou déplacer l'antenne de réception. ●Augmenter la distance entre l'équipement et le récepteur. ●Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur. ●Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision. Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/SAFETY/regs/regulat.htm (5 of 11)2006-03-06 4:03:26 PM

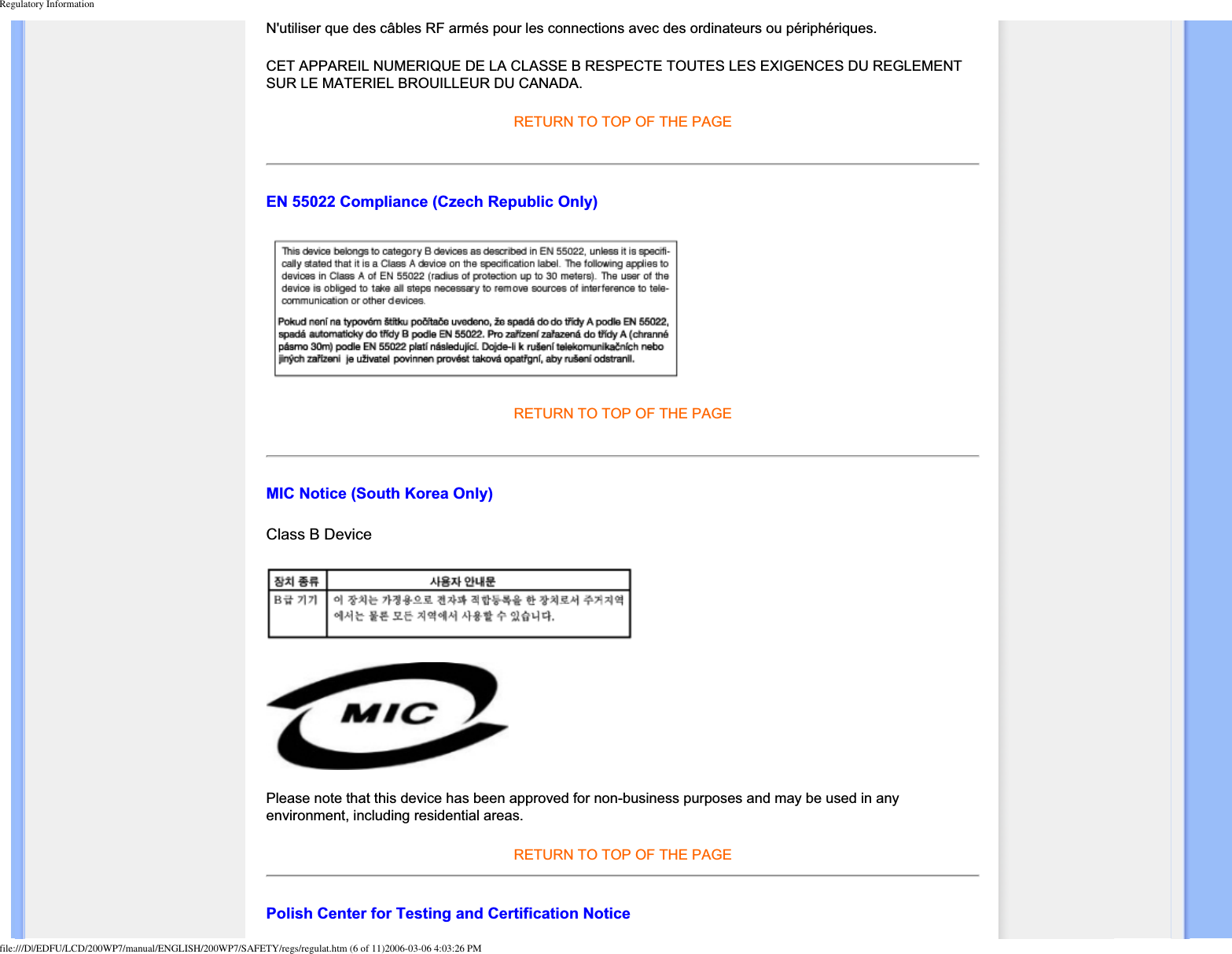

Regulatory InformationN'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGEEN 55022 Compliance (Czech Republic Only)RETURN TO TOP OF THE PAGEMIC Notice (South Korea Only)Class B DevicePlease note that this device has been approved for non-business purposes and may be used in any environment, including residential areas.RETURN TO TOP OF THE PAGEPolish Center for Testing and Certification Noticefile:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/SAFETY/regs/regulat.htm (6 of 11)2006-03-06 4:03:26 PM
