Product Information
• Product Features
• Technical Specifications
• Resolution & Preset Modes
• Philips Pixel Defect Policy
• Automatic Power Saving
• Physical Specification
• Pin Assignment
• Product Views
• Physical Function
• Rotating the Monitor
• SmartManage
Product Information
Product Features
200WP7 (HWP7200P)
●Outstanding front of screen performance
❍WSXGA, wide format 1680x1050 resolution for sharper display
❍Fast response time for better display of moving images
❍Viewing angle up to 178 degrees
❍Dual input accepts both analog VGA and digital DVI signals
●Maximum comfort for maximum productivity
❍SmartManage compatibility enables LAN-based asset management
❍90 degree screen rotation and smart cable management
❍Screen tilt and swivel adjustment for an ideal viewing angle
❍Display more images and content without scrolling
●Great convenience
❍Easy to adjust display settings with Philips SmartControl
❍High-speed USB 2.0 hub for easy connections
❍Easy plug-and-play DVI for a true digital experience
❍Embedded power supply eliminates external power adaptors
RETURN TO TOP OF THE PAGE
Lead-free Product
Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health
and promotes environmentally sound recovery and disposal of waste from electrical and electronic
equipment.Philips complies with the European Community stringent RoHS Directive mandating
restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be
confident that your display device does not harm the environment.
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 20.1" / 51cm
• Pixel Pitch 0.258 x 0.258mm
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (1 of 11)2006-03-06 4:03:06 PM
Product Information
• LCD Panel type
1680 x 1050pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 433.44 x 270.9mm
• Display Colors 8 bits interface (16.7M colors)
SCANNING
Vertical refresh rate 56Hz-76Hz (Analog / Digital input)
Horizontal Frequency 30kHz-98kHz (Analog input)
VIDEO
• Video dot rate 210 MHz
• Input impedance
- Video 75 ohm
- Sync 2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal
Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
Optical characteristics
• Peak contrast angle 6 o'clock
• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
• Maximum 1680 x 1050 at 75Hz(analog input)
1680 x 1050 at 60Hz(digital input)
•
Recommended 1680 x 1050 at 60Hz(digital input)
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (2 of 11)2006-03-06 4:03:06 PM
Product Information
40 user definable modes
15 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.469 640x350 70.086
31.469 720x400 70.087
31.469 640x480 59.940
35.000 640x480 67.000
37.500 640x480 75.000
35.156 800x600 56.250
37.879 800x600 60.317
46.875 800x600 75.000
48.363 1024x768 60.004
60.023 1024x768 75.029
68.700 1152x870 75.000
63.981 1280x1024 60.020
79.976 1280x1024 75.025
75.0 1600x1200 60
65.29 1680x1050 60.0
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically
reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected,
the monitor will be waken up automatically by your PC. The following table shows the power consumption and signaling
of this automatic power saving feature:
Power Management Definition
VESA Mode Video H-sync V-sync Power Used LED color
Active ON Yes Yes < 48W Green
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (3 of 11)2006-03-06 4:03:06 PM
Product Information
Sleep OFF No No < 2W Amber
Switch Off OFF - - < 1W OFF
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimension (WxHxD) 483 x 402 x 235 mm (incl. Pedestal) (in lowest position)
• Weight 8.6 Kg
• Tilt / Swivel -5° ~ 25° / ± 65°
• Height adjustment range 130 mm
• Power supply 100— 240 VAC, 60 - 50 Hz
• Power consumption 48 W* (typ.)
• Temperature 5° C to 35° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
• Cabinet color Black/Silver
•Altitude
- storage/shipment
- operating 0 - 40,000 feet (12,192m)
0 - 12,000 feet (3657.6m)
* This data is subject to change without notice.
* Resolution 1680 x 1050, standard size, contrast max., brightness 50%, 6500° K, full white pattern.
RETURN TO TOP OF THE PAGE
Pin Assignment
1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are
listed in the following table:
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (4 of 11)2006-03-06 4:03:06 PM
Product Information
Pin
No. Signal Assignment Pin
No. Signal Assignment Pin
No. Signal Assignment
1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0-
2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield
4No connect 12 No connect 20 No connect
5No connect 13 No connect 21 No connect
6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield
7DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+
8No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-
2. The 15-pin D-sub connector (male) of the signal cable:
Pin
No. Assignment Pin
No. Assignment
1Red video input 9+5V
2Green video input/SOG 10 Logic ground
3Blue video input 11 Ground
4Ground 12 Serial data line (SDA)
5No connect 13 H. Sync / H+V
6Red video ground 14 V. Sync (VCLK for DDC)
7Green video ground 15 Data clock line (SCL)
8Blue video ground
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (5 of 11)2006-03-06 4:03:06 PM
Product Information
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function

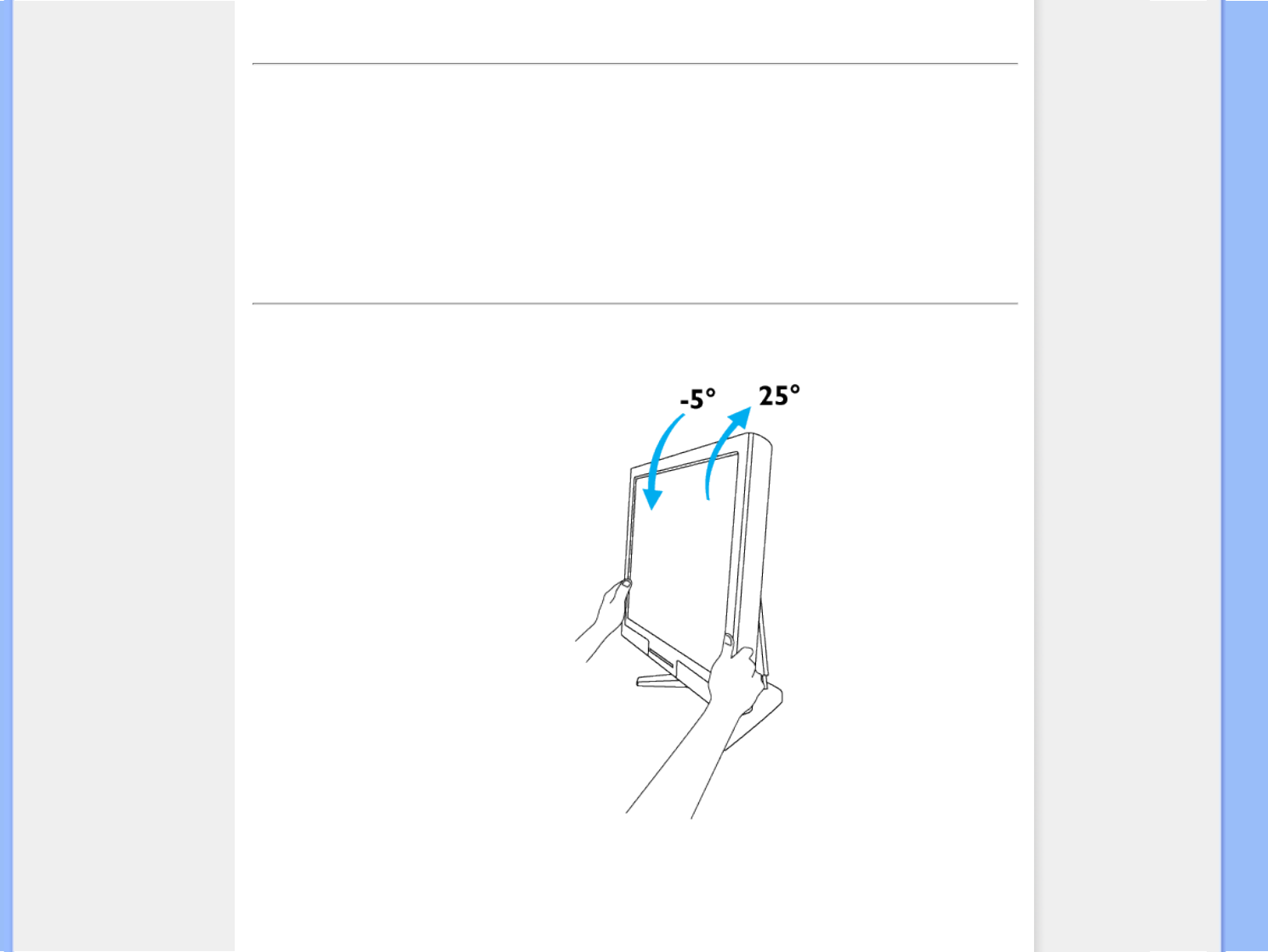

1) Tilt
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (6 of 11)2006-03-06 4:03:06 PM
Product Information

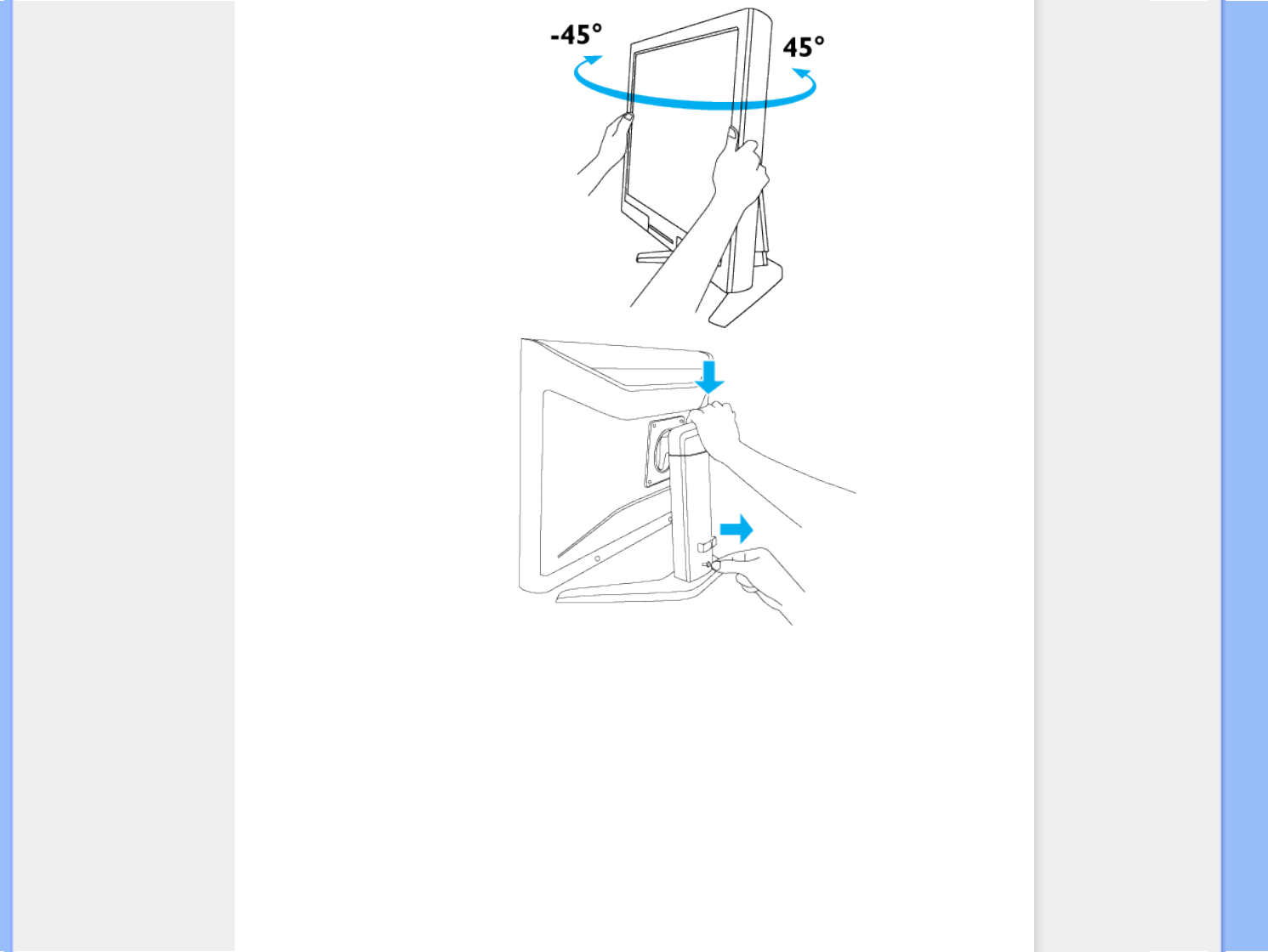

2) Swivel

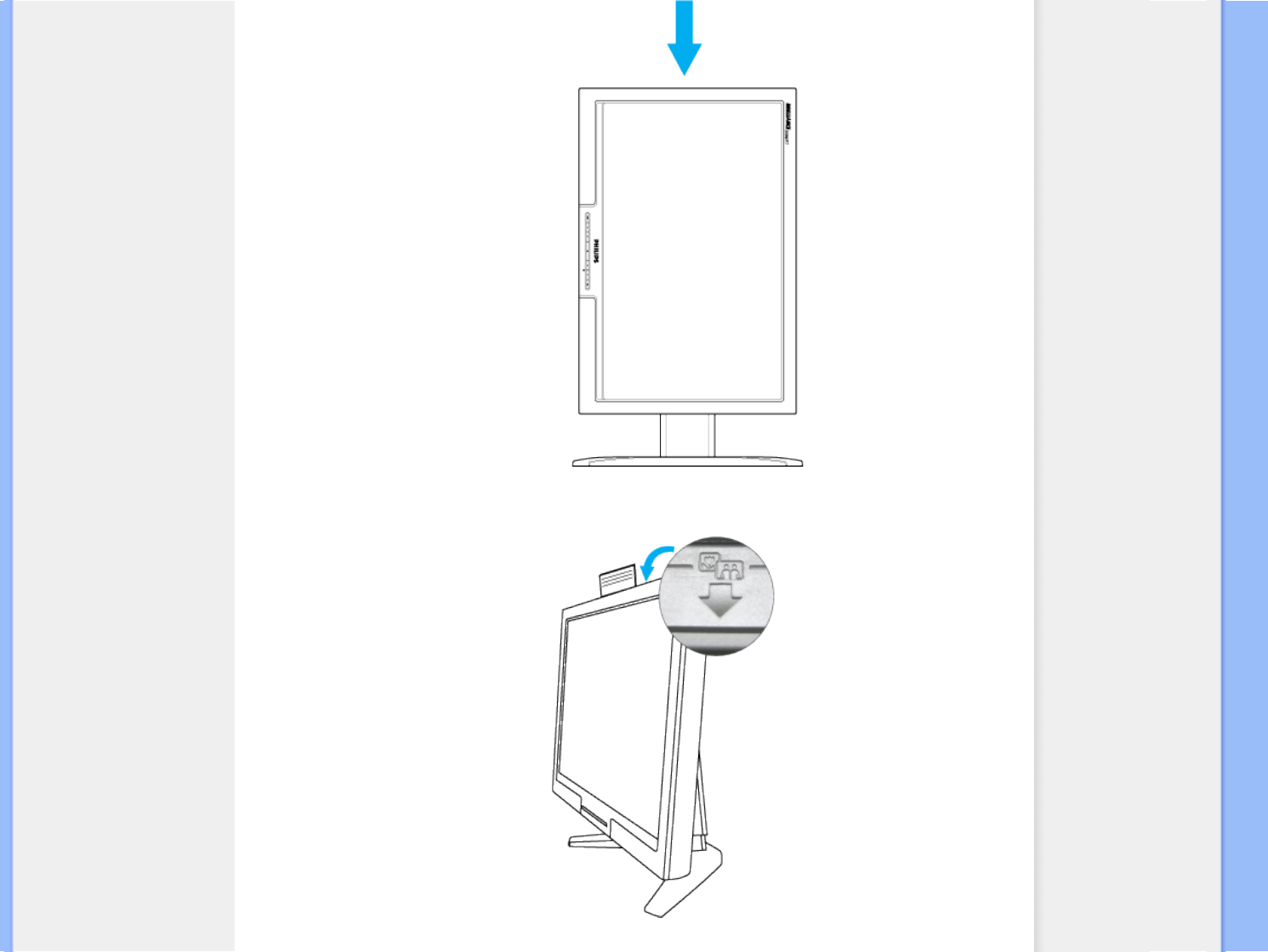

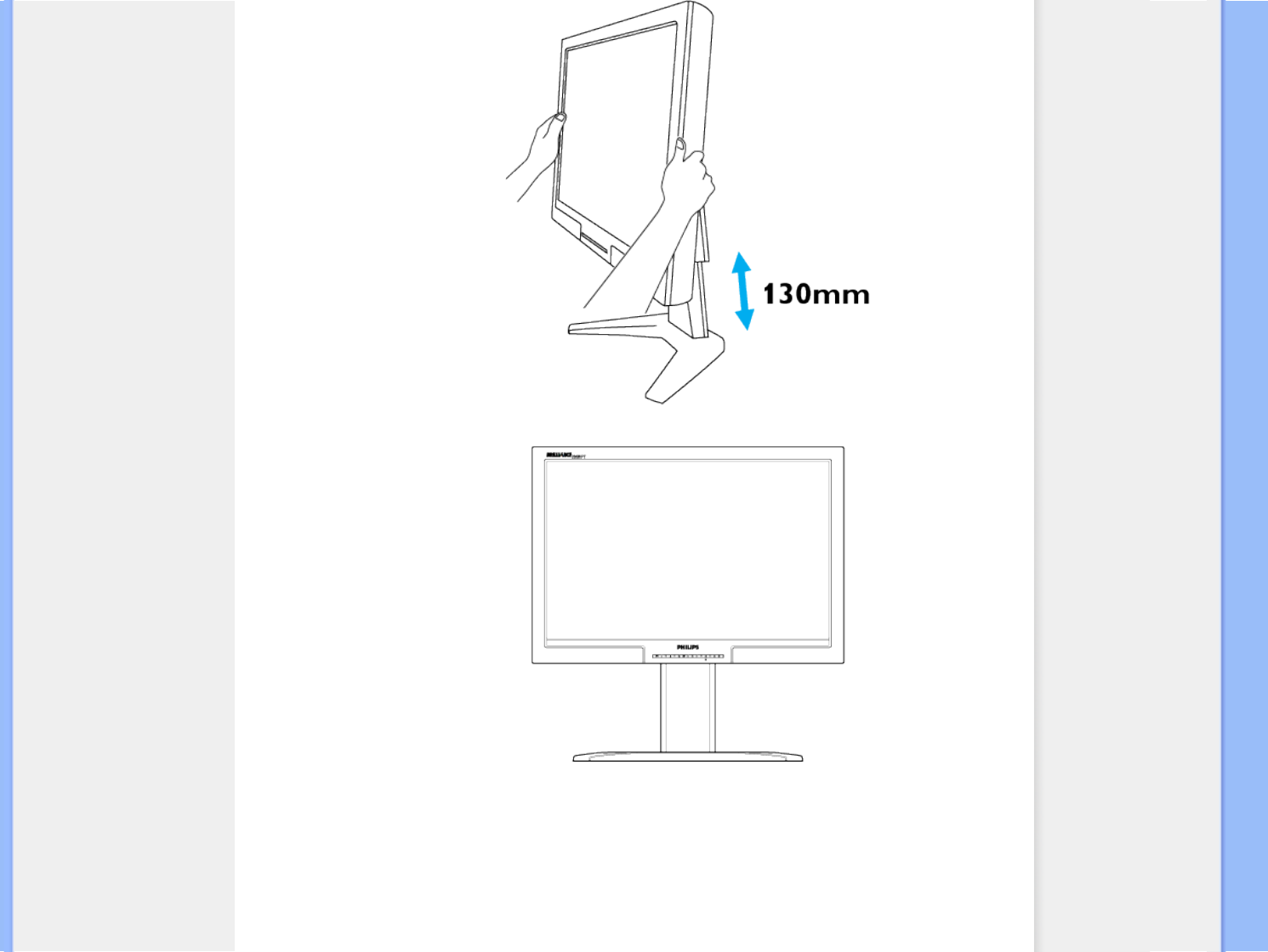

3) Height adjustment
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (7 of 11)2006-03-06 4:03:06 PM
Product Information

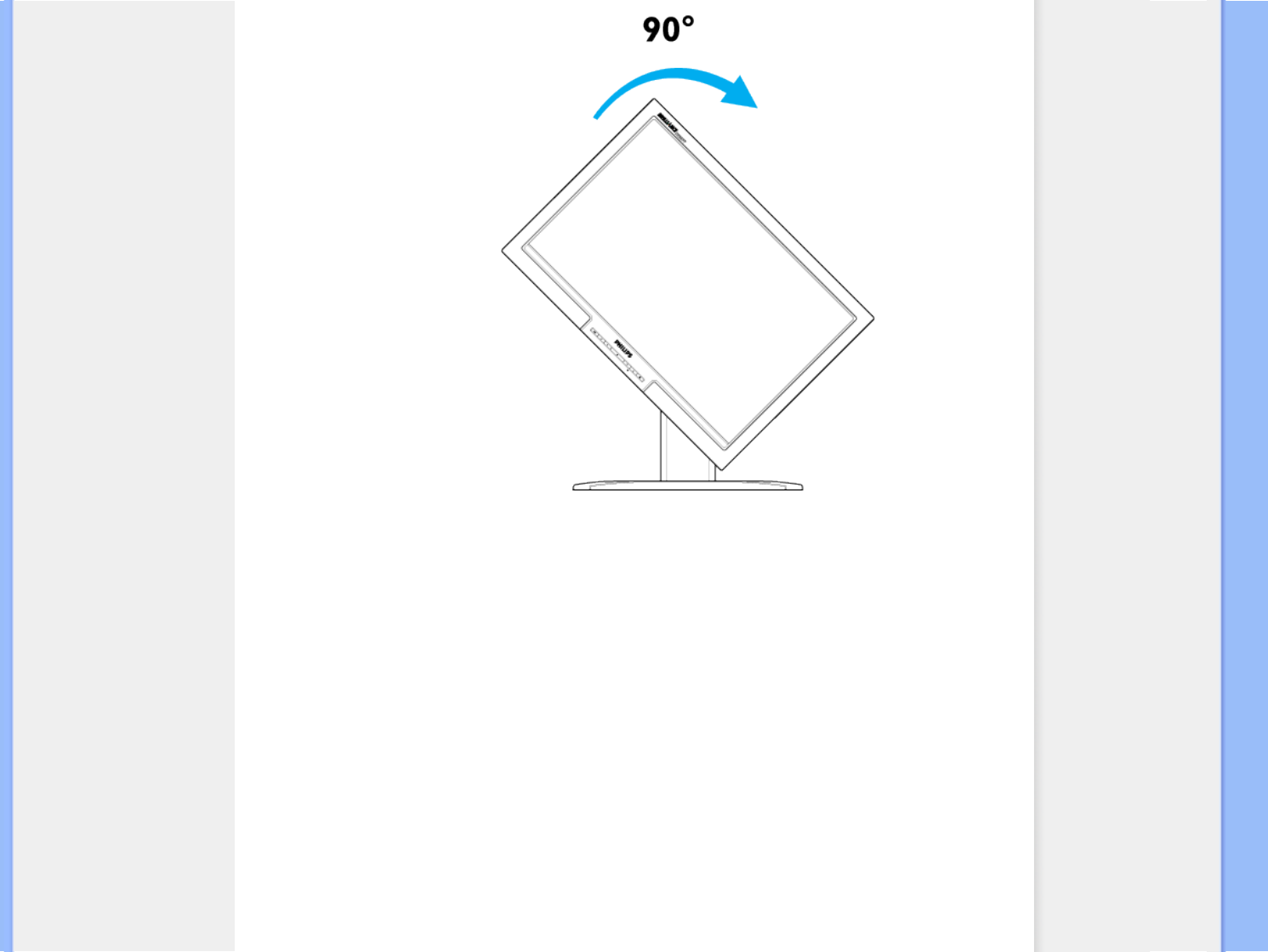

4) Portrait display
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (8 of 11)2006-03-06 4:03:06 PM
Product Information
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (9 of 11)2006-03-06 4:03:06 PM
Product Information
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (10 of 11)2006-03-06 4:03:06 PM
Product Information
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (11 of 11)2006-03-06 4:03:06 PM
Installing Your LCD Monitor
• Front View Produt Description
•Setting Up and Connecting
Your Monitor
• The Base
• Getting Started
• Optimizing Performance
Installing Your LCD Monitor

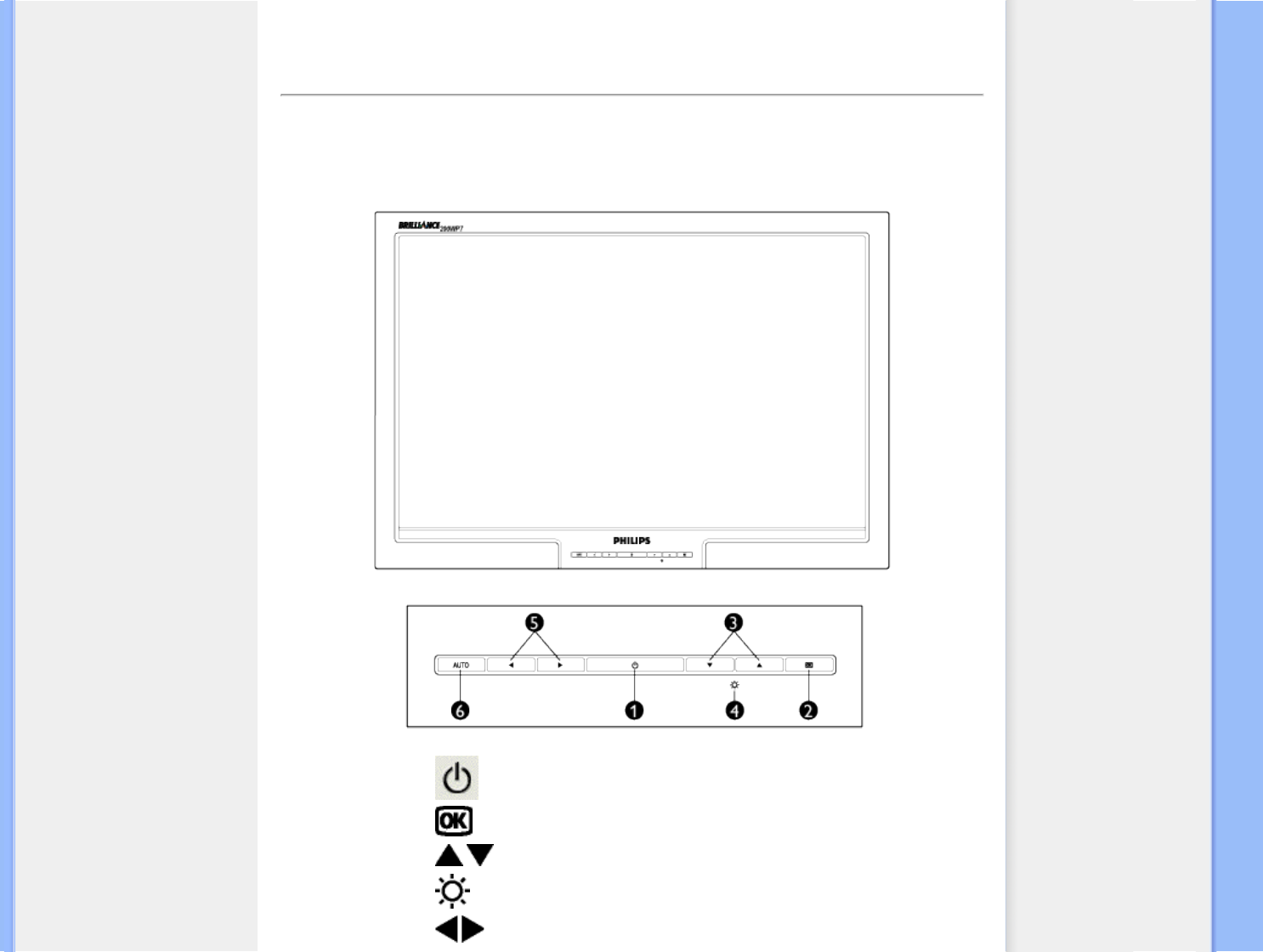

Front View Product Description
1 To switch monitor's power On and Off
2To access OSD menu
3To adjust the OSD
4To adjust brightness of the display
5To adjust the OSD
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/INSTALL.HTM (1 of 3)2006-03-06 4:03:07 PM
Installing Your LCD Monitor
6AUTO Automatically adjust the horizontal position, vertical
position, phase and clock setting
RETURN TO TOP OF THE PAGE

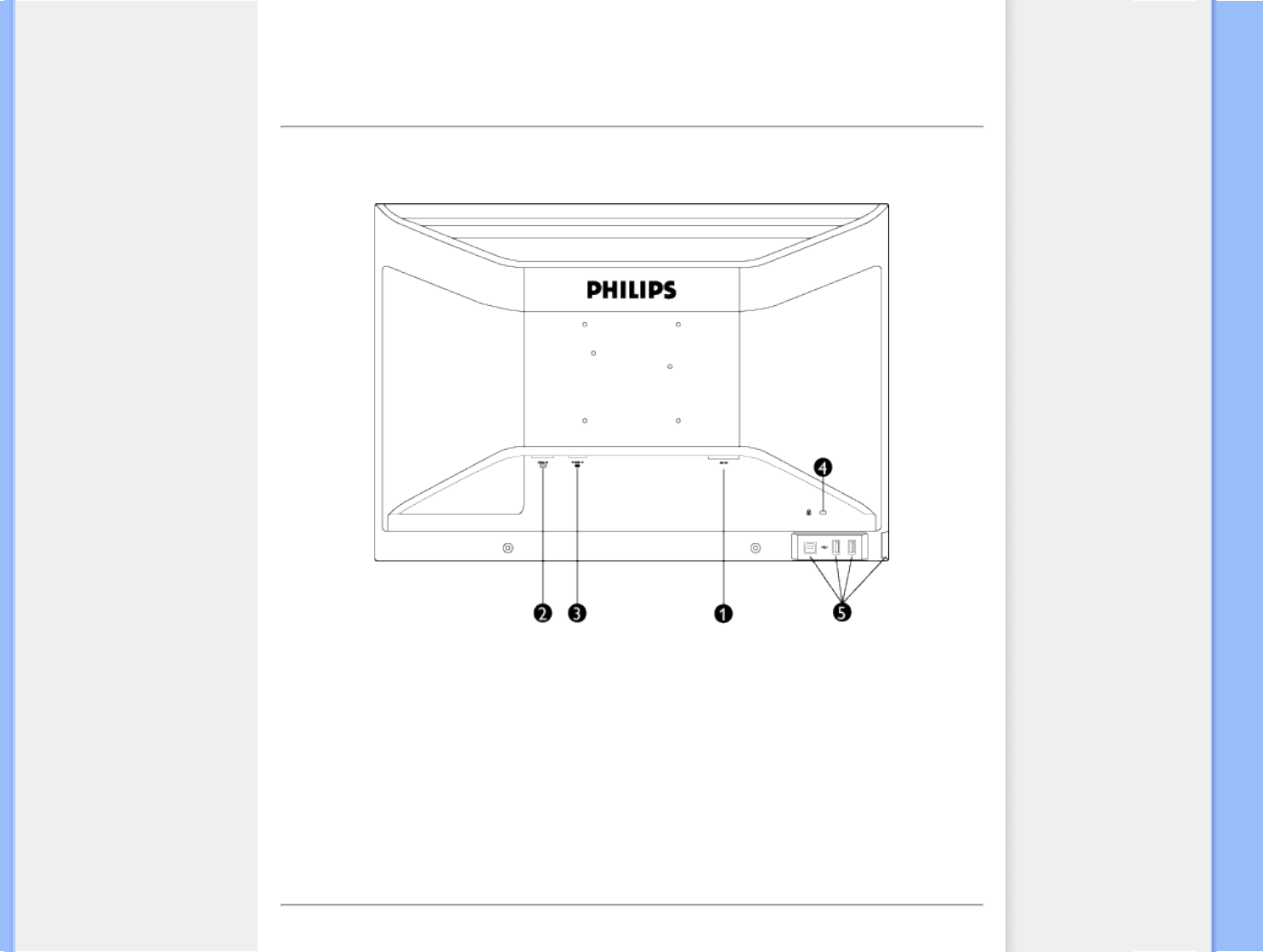

Rear View
1 AC power input
2 DVI-I input
3 D-sub
4 Kensington anti-thief lock
5 USB upstream and downstream
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/INSTALL.HTM (2 of 3)2006-03-06 4:03:07 PM
Installing Your LCD Monitor
Optimizing Performance
●For best performance, ensure that your display settings are set at 1680 x 1050 @60Hz
Note: You can check the current display settings by pressing the 'OK' button
once. Go into the Product Information. The current display mode is shown on
the item called RESOLUTION.
●You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step instructions
are provided to guide you through the installtion process. Click on the link to know more
about this program.
More about FP_setup4.3.exe
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/INSTALL.HTM (3 of 3)2006-03-06 4:03:07 PM
Regulatory Information
TCO: Swedish Confederation of Professional Employees) for TCO versions
RETURN TO TOP OF THE PAGE
Energy Star Declaration
This monitor is equipped with a function for saving energy which supports the VESA Display
Power Management Signaling (DPMS) standard. This means that the monitor must be
connected to a computer which supports VESA DPMS. Time settings are adjusted from the
system unit by software.
VESA State LED Indicator Power Consumption
Normal operation ON (Active) Green <48 W
Power
Saving Alternative
2
One step
OFF (Sleep) Amber < 2 W
Switch Off Off < 1 W
As an ENERGY STAR®Partner, PHILIPS has determined that this product meets
the ENERGY STAR®guidelines for energy efficiency.
We recommend you switch off the monitor when it is not in use for a long time.
RETURN TO TOP OF THE PAGE
Federal Communications Commission (FCC) Notice (U.S. Only)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/SAFETY/regs/regulat.htm (4 of 11)2006-03-06 4:03:26 PM
Regulatory Information
is encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer
device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive
moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-
CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de
class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon
à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une
installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences
qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer
des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir
l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce
qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur
pourrait essayer de corriger la situation en prenant les mesures suivantes:
●Réorienter ou déplacer l'antenne de réception.
●Augmenter la distance entre l'équipement et le récepteur.
●Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
●Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de
conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/SAFETY/regs/regulat.htm (5 of 11)2006-03-06 4:03:26 PM
Regulatory Information
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT
SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
EN 55022 Compliance (Czech Republic Only)
RETURN TO TOP OF THE PAGE
MIC Notice (South Korea Only)
Class B Device
Please note that this device has been approved for non-business purposes and may be used in any
environment, including residential areas.
RETURN TO TOP OF THE PAGE
Polish Center for Testing and Certification Notice
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/SAFETY/regs/regulat.htm (6 of 11)2006-03-06 4:03:26 PM
