User Manual 1
BLACKVUE
DR650S-2CH
For manuals, customer support and FAQs go to www.blackvue.com
DR650S-2CH 3
Important safety information
For user safety and to avoid property damage, read through this manual and follow these
safety instructions to use the product correctly.
yDo not disassemble, repair, or modify the product yourself.
Doing so may cause fire, electric shock, or malfunction. For internal inspection and
repair, contact the service center.
yDo not adjust the product while driving.
Doing so may cause an accident. Stop or park your car in a safe place before installing
and setting up the product.
yDo not operate the product with wet hands.
Doing so may cause electric shock.
yIf any foreign matter gets inside the product, detach the power cord immediately.
Contact the service center for repair.
yDo not cover the product with any material.
Doing so may cause external deformation of the product or re. Use the product and
peripherals in a well-ventilated location.
yIf the product is used outside the optimal temperature range (-20°C - 60°C / -4°F -
140°F), performance can decline or malfunctions may occur.
yWhen entering or exiting a tunnel, when directly facing into bright sunlight, or when
recording at night without lighting the quality of recorded video may deteriorate.
yIf the product is damaged or the power supply is cut due to an accident, video may not
be recorded.
yDo not remove the microSD card while the microSD card is saving or reading data.
yThe data can be damaged or malfunctions may occur.
4BLACKVUE
FCC Compliance Information
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protections against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception which
can be determined by turning the equipment o and on, the user is encouraged to ty to
correct the interference by one or more of the following measures.
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
yConsult the dealer or an experienced radio, TV technician for help.
yOnly shielded interface cable should be used.
Finally, any changes or modications to the equipment by the user not expressly approved
by the grantee or manufacture could void the user’s authority to operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation of this device.
FCC ID: YCK-DR650S-2CH
DR650S-2CH 5
CAUTION
Any changed or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
There is a risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
CE WARNING
yChanges and modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
yIt is desirable that it be installed and operated with at least 20cm or more between the
radiator and a person’s body (excluding extremities: hand, wrists, feet, and ankles).
6BLACKVUE
Disposal of your BlackVue dashcam
1. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities. Contact local
authorities to learn about disposal and recycling options available in
your area.
2. The correct disposal of your BlackVue dashcam will help prevent
potential negative consequences for the environment and human
health.
3. For more detailed information about disposal of your BlackVue
dashcam, please contact your city oce, waste disposal service or the
shop where you purchased the product.
DR650S-2CH 7

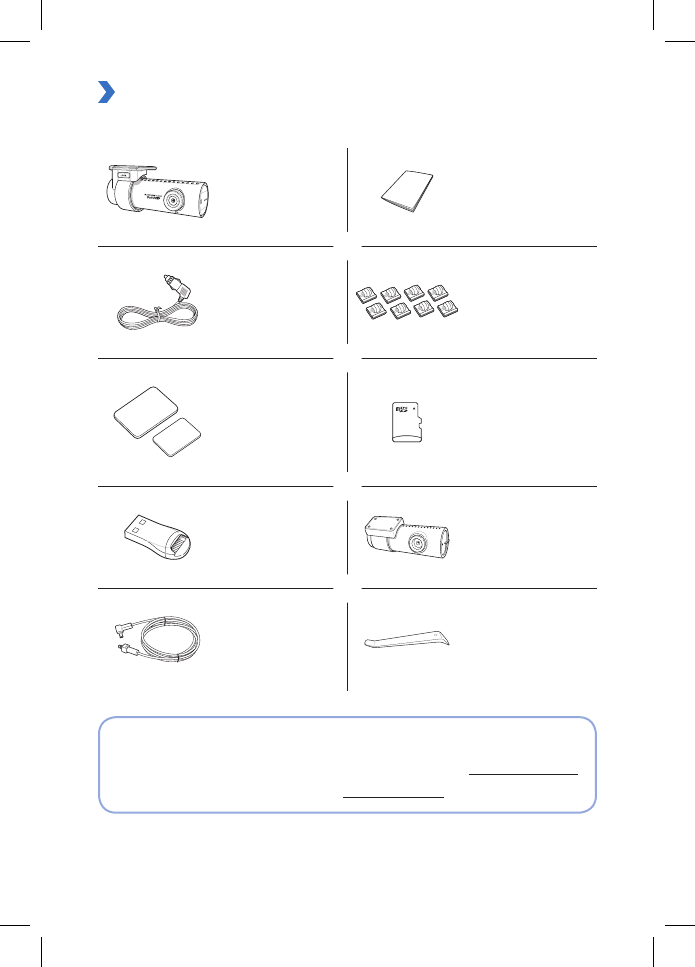

In the box
Check the box for each of the following items before installing the BlackVue dashcam.
Front camera Quick start guide
Power cord Cable clips
(8 EA)
Double-sided tape for
the Mounting Brackets microSD Card
microSD card reader Rear camera
Rear camera
connection cable Pry tool
Need help?
Download the manual (including FAQs) and the latest rmware from www.blackvue.com
Or contact a Customer Support expert at cs@pittasoft.com
8BLACKVUE

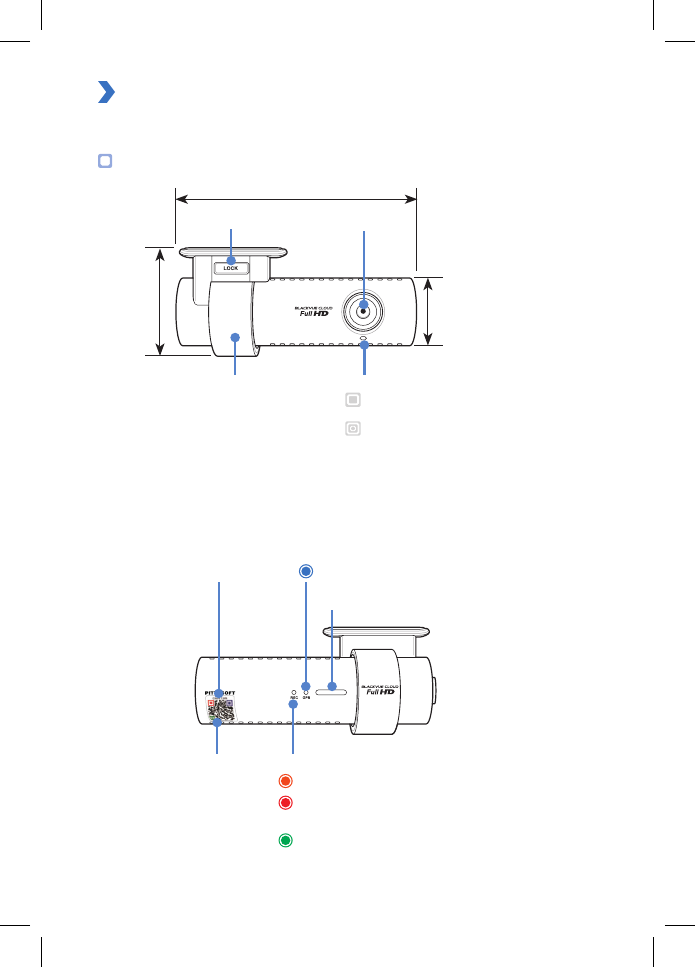

At a glance
The following diagrams explain each part of the BlackVue dashcam.
Front camera
Camera lens
Mounting bracket Front security LED
: Blinks slowly in normal and parking mode.
: Blinks quickly when (i) an event is being
recorded (impact detected), (ii) manual
recording has started, or (iii) motion is
detected in parking mode.
Lock button
55 mm
118.5 mm
36 mm
GPS LED
: GPS is on
QR Code:
Used to register your camera
for the Cloud Service (leave
attached for easy access).
Recording LED
: Blinks orange in normal mode.
: Blinks red when (i) an event is being recorded (impact
detected), or (ii) manual recording has started.
: Blinks green when motion is detected in parking mode.
Cloud code
Speaker
DR650S-2CH 9

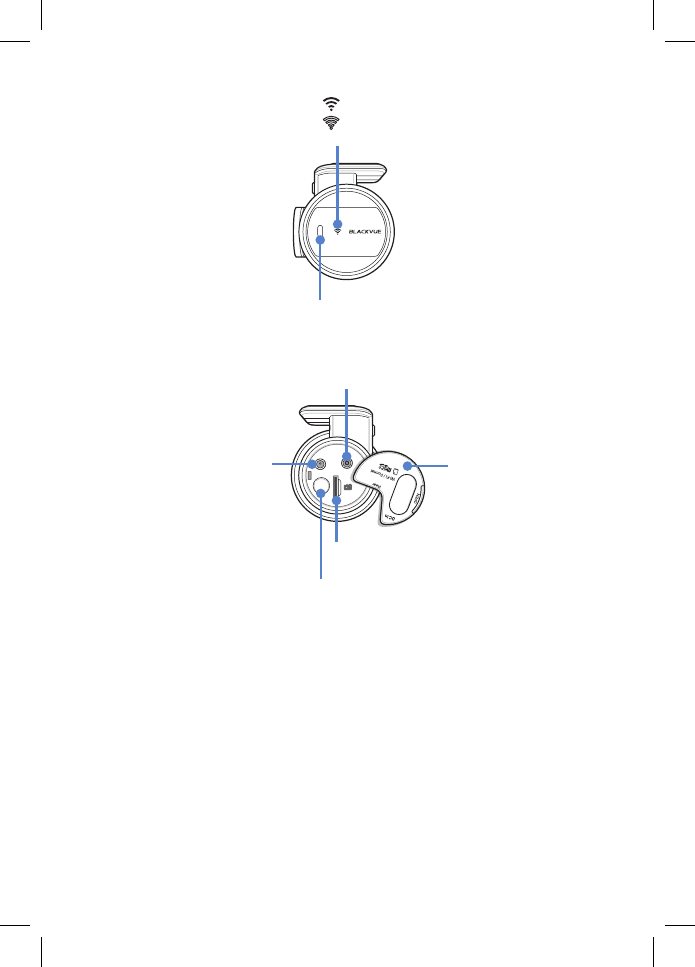

Manual recording proximity sensor:
Touch or wave a nger within 20mm of
the sensor to start a manual recording.
Wi-Fi/Internet LED
: Direct Wi-Fi is on.
: Blinks when connected to the
internet (Cloud connected).
Wi-Fi / Format button
* Self-format function: To format the microSD
card press the button for 10 seconds until
the dashcam beeps.
Cover DC in
(power connector)
microSD card slot
Rear camera connection port
10 BLACKVUE

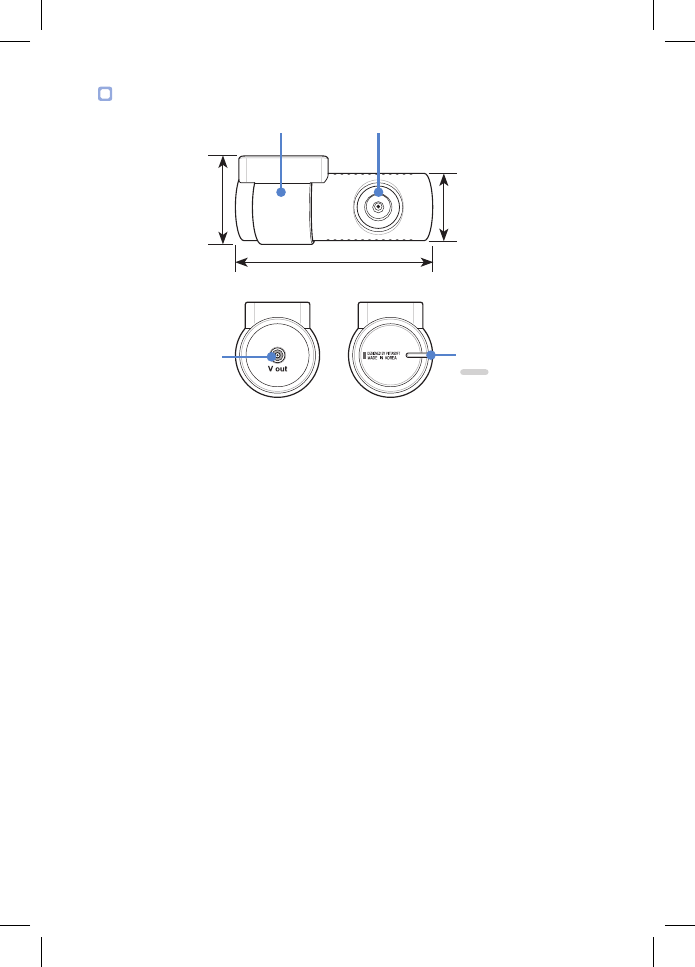

Rear camera
Rear security LED
: Rear camera is on
(on in all recording
modes).
V out
(Front camera
connection port)
Mounting bracket Camera lens
31 mm
67.4 mm
25 mm
DR650S-2CH 11

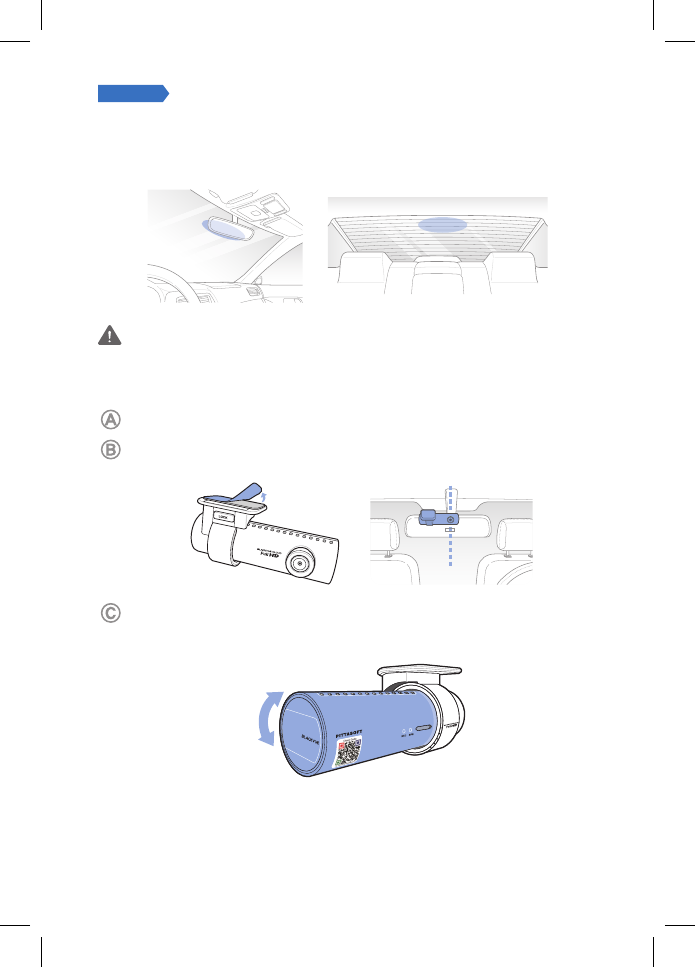

STEP 1 Install and power up
Install the front camera behind the rear view mirror. Install the rear camera at the top of
the back windshield. Remove any foreign matter and clean and dry the windshield before
installation.
Warning
yDo not install the product in a location where it can obstruct the driver's eld of
vision.
Turn o the engine.
Peel o the protective lm from the double-sided tape and attach the front camera
to the windshield behind the rear-view mirror.
Adjust the angle of the lens by rotating the body of the front camera. We
recommend pointing the lens slightly downwards (≈10° below horizontal), so as to
record video with a 6:4 road to background ratio.
12 BLACKVUE

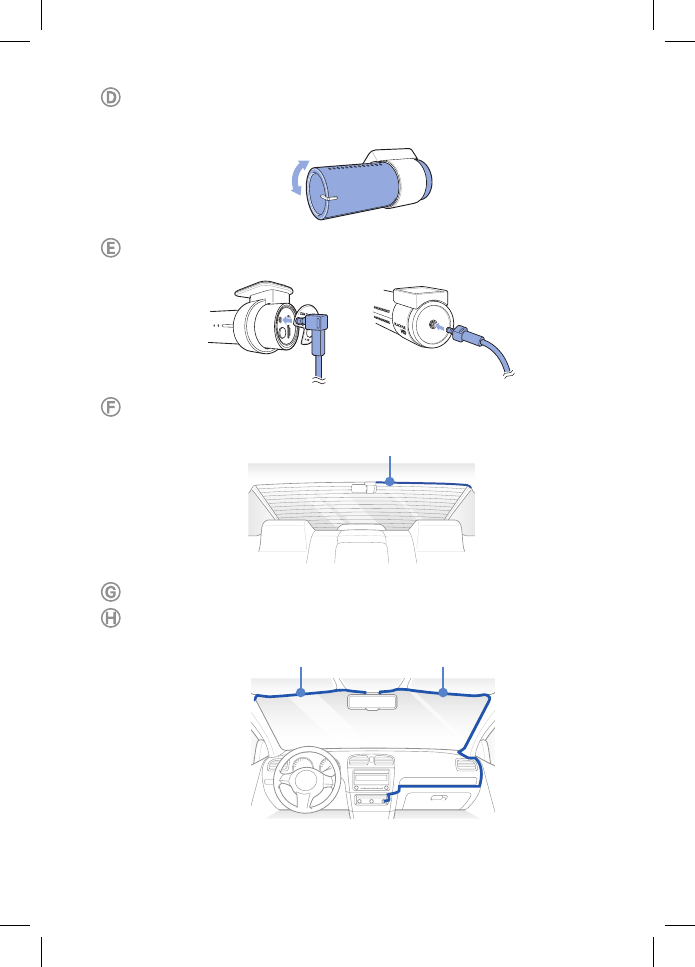

Peel o the protective lm from the double-sided tape and attach the rear camera
to the rear windshield. Adjust the angle of the lens by rotating the body of the rear
camera.
Connect the front camera ('Rear' port) and the rear camera ('V out') using the rear
camera connection cable.
Use the pry tool to lift the edges of the rubber window sealing and molding and
tuck in the rear camera connection cable.
Rear camera connection cable
Plug the power cord into the cigarette lighter socket and the front camera.
Use the pry tool to lift the edges of the windshield trim/molding and tuck in the
power cord.
Power cordRear camera connection cable
DR650S-2CH 13
Turn on the engine. The BlackVue dashcam will power up and start recording. Video
files are stored on the microSD card. When the microSD card fills up, the newest
video les will start to replace the oldest video les (called loop recording) – so you
will always have the most recent video les.
Note
yThe recording LED blinks while recording (default setting) and the GPS LED is
on when a GPS signal is received. There are 4 recording modes: Normal, Event,
Parking and Manual. The dashcam starts recording in normal mode, switches to
event mode when an impact is detected, and switches to parking mode if the
vehicle is stationary for 10 minutes. Touching the manual recording proximity
sensor will start a manual recording.
yWhen you run the dashcam for the rst time the rmware is automatically loaded
onto the microSD card. After the firmware has been loaded onto the microSD
card you can customize settings using BlackVue Viewer on a computer.
Turn off the engine. The dashcam will automatically stop recording and power
down. To record in parking mode while the engine is off please install a Power
Magic Battery Pack (sold separately) or a Power Magic Pro (sold separately). A
Power Magic Pro powers your dashcam when the engine is o by hardwiring it to
the automotive battery. A low voltage power cut-o function and a parking mode
timer protect the automotive battery from discharge.
14 BLACKVUE
STEP 2 Playback
Playing video les on your smartphone (Android/iOS)
Search for the BlackVue C app in the Google Play Store or Apple App Store and
install it on your smartphone.

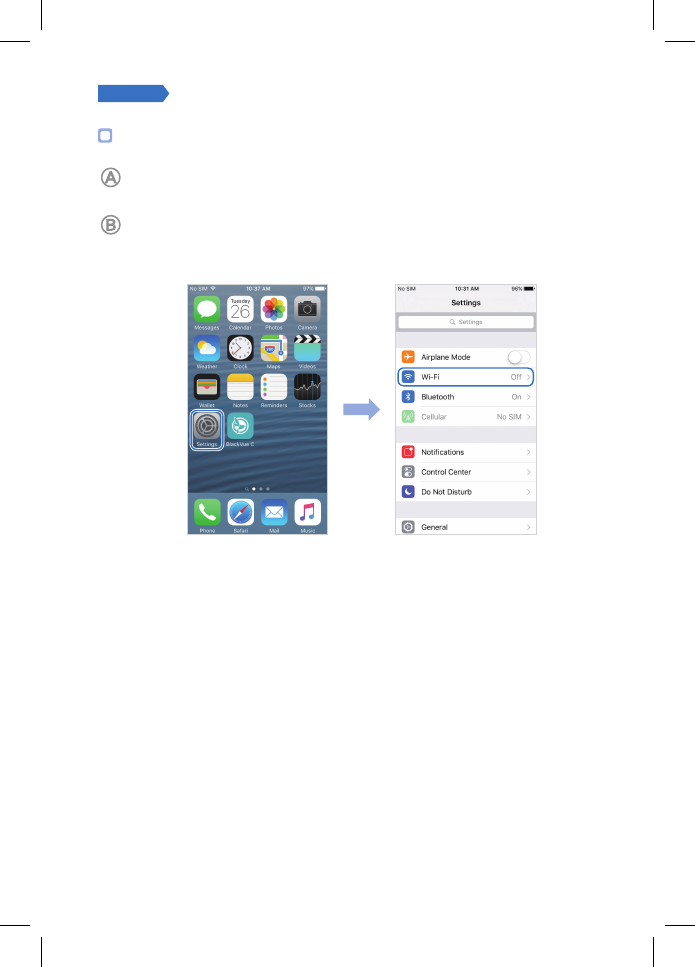

“Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi:
(i) Go to your smartphone’s Settings then select Wi-Fi, and make sure Wi-Fi is
turned on.
(ii) Choose your BlackVue dashcam from the network list. The dashcam’s default
SSID begins with its model number (e.g. DR650S-******).
(iii) Enter the default password ‘blackvue’ and tap Join.
(iv) Open the BlackVue C app and select BLACKVUE WI-FI.
