PowerFleet CTLL CelloTrack 10Y LTE C1 GC9773001-000 User Manual CelloTrack T Family Overview

Pointer Telocation CelloTrack 10Y LTE C1 GC9773001-000 CelloTrack T Family Overview

User manual_CelloTrack 10y User Manual -DFT1.pdf

Copyright © 2018 by Pointer Telocation, Ltd.

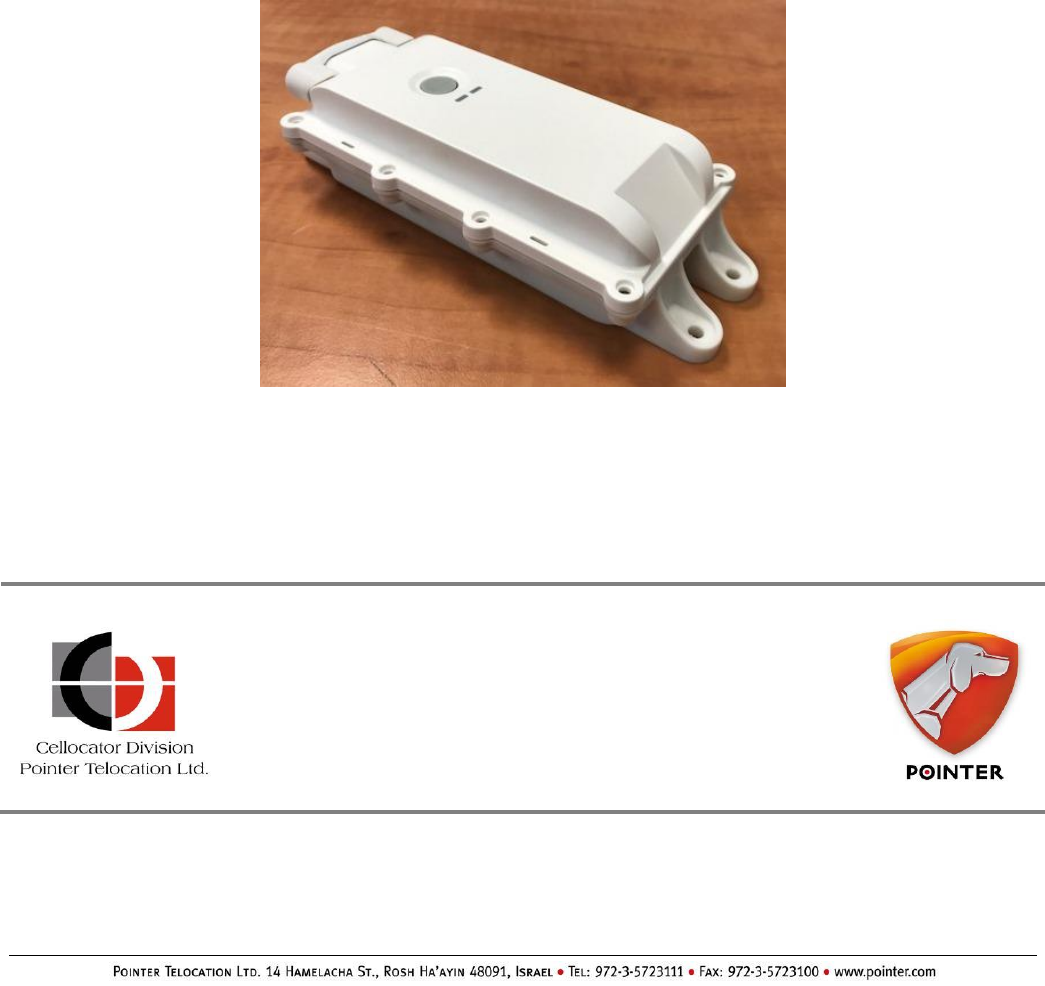

Cellocator™ CelloTrack
10y USER Manaul
Proprietary and Confidential
Version 1.0
Revised and Updated: May 30, 2018
CelloTrack 10y Overview
CelloTrack T Family Overview Page 2
Copyright © 2018 by Pointer Telocation, Ltd.
Legal Notices
IMPORTANT
1. All legal terms and safety and operating instructions should be read thoroughly before
the product accompanying this document is installed and operated.
2. This document should be retained for future reference.
3. Attachments, accessories or peripheral devices not supplied or recommended in
writing by Pointer Telocation Ltd. May be hazardous and/or may cause damage to the
product and should not, in any circumstances, be used or combined with the product.
General
The product accompanying this document is not designated for and should not be used in
life support appliances, devices, machines or other systems of any sort where any
malfunction of the product can reasonably be expected to result in injury or death.
Customers of Pointer Telocation Ltd. using, integrating, and/or selling the product for use
in such applications do so at their own risk and agree to fully indemnify Pointer Telocation
Ltd. for any resulting loss or damages.
Warranty Exceptions and Disclaimers
Pointer Telocation Ltd. Shall bear no responsibility and shall have no obligation under the
foregoing limited warranty for any damages resulting from normal wear and tear, the cost
of obtaining substitute products, or any defect that is (i) discovered by purchaser during
the warranty period but purchaser does not notify Pointer Telocation Ltd. Until after the
end of the warranty period, (ii) caused by any accident, force majeure, misuse, abuse,
handling or testing, improper installation or unauthorized repair or modification of the
product, (iii) caused by use of any software not supplied by Pointer Telocation Ltd., or by
use of the product other than in accordance with its documentation, or (iv) the result of
electrostatic discharge, electrical surge, fire, flood or similar causes. Unless otherwise
provided in a written agreement between the purchaser and Pointer Telocation Ltd., the
purchaser shall be solely responsible for the proper configuration, testing and verification
of the product prior to deployment in the field.
POINTER TELOCATION LTD.’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY
UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE PRODUCT
HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF REPAIR OR REPLACEMENT IS NOT
POSSIBLE, OBTAIN A REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE.
POINTER TELOCATION LTD. EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF ANY
KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, SATISFACTORY
PERFORMANCE AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL
POINTER TELOCATION LTD. BE LIABLE FOR ANY INDIRECT, SPECIAL, EXEMPLARY,
INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOSS
OR INTERRUPTION OF USE, DATA, REVENUES OR PROFITS) RESULTING FROM A BREACH
OF THIS WARRANTY OR BASED ON ANY OTHER LEGAL THEORY, EVEN IF POINTER
TELOCATION LTD. HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH
DAMAGES.
CelloTrack 10y Overview
CelloTrack T Family Overview Page 3
Copyright © 2018 by Pointer Telocation, Ltd.
Intellectual Property
Copyright in and to this document is owned solely by Pointer Telocation Ltd. Nothing in this document shall be
construed as granting you any license to any intellectual property rights subsisting in or related to the subject
matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or
other intellectual property rights, all of which remain the sole property of Pointer Telocation Ltd. Subject to
applicable copyright law, no part of this document may be reproduced, stored in or introduced into a retrieval
system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or
otherwise), or for any purpose, without the express written permission of Pointer Telocation Ltd.
FCC Compliance Statement
This device complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment.
The device should be installed and operated with a minimum distance of 20cm between the radiator and your body.
This device must not be collocated or operating in conjunction with any other antenna or transmitter.
© Copyright 2018. All rights reserved.
CelloTrack 10y Overview
CelloTrack T Family Overview Page 4
Copyright © 2018 by Pointer Telocation, Ltd.
1 Introduction
1.1 About this Document
This document provides a brief overview of the CelloTrack 10y. It includes descriptions
of CelloTrack 10y special features and modes of operation, battery life tables and
technical specifications.
1.2 Abbreviations
Abbreviation
Description
FB
Front Button
GSM
Global System for Mobile communications
GPS
Global Positioning System
GNSS
Global Navigation Satellite System
OTA
Over the Air
SMS
Short Message Service (GSM)
IP
International Protection Rating
3Y
Three Years
8M
Eight Months
AH
Amper Hour
3D
3 Dimensions
LED
Light Emitted Diode
APS
Automatic Power Save (modem feature)
GPIO
General Purpose Input / Output
1.3 References
#
Reference
Description
1
2
1.4 Revision History
Version
Date
Description
1.0
May 29, 2018
Initial release
CelloTrack 10y Overview
CelloTrack T Family Overview Page 5
Copyright © 2018 by Pointer Telocation, Ltd.
2 The CelloTrack 10y
2.1 CelloTrack 10y Overview
Cellocator's CelloTrack 10y, designed for advanced asset tracking and asset
management applications, provides enhanced functionality, ease of installation and
support for a wide range of applications.
The capabilities provided by the CelloTrack 10y can greatly reduce an enterprise's
financial losses incurred as a result of the often difficult task of successfully tracking
and remotely managing the location, usage profile and security aspects of
transportation equipment such as trailers, containers, train wagons or any kind of
valuable mobile asset such as electricity generators, heavy machinery, chemical toilets
and waste containers.
The CelloTrack unit is designed for unpowered assets. It is ideal for trailers,
containers, trains and other high value mobile assets.
The unit includes a USB connector for programming, covered by a rubber cover for
dust and water protection (IP67).
The CelloTrack 10y provide a durable and long life solution that support up to 10 years
of continuous operation with single GNSS reading and Cellular transmissions per day.
The CelloTrack 10y supports the required network standards for NA and supports all
the big service providers and their affiliates, such as AT&T, T-Mobile, Telus and
Rogers.
The CelloTrack 10y is based on Cello and CelloTrack Technologies and supports similar
tracking, communication, GNSS location-based features and maintenance capabilities
as per those available in the Cello and CelloTrack families.
Other CelloTrack 10y features include:
Stand-alone tracking device. Can be installed and operated for long time periods
without a power supply.
Houses all components in the same enclosure, including battery, GNSS positioning
engine, Cellular modem and antennas.
Highly rugged durable IP67 weatherproof casing for outdoor long-life service, with
brackets for easy mounting.
Long operation time (up to 10 years @ 1 transmission / day) via a 42.5 Ah of
primary Lithium-thionyl Chloride (Li-socl2) battery capacities.
design for minimum idle current consumption on hibernation
Support NA LTE network with user equipment category CAT 1.
Scalable Cellular communication technology – can support any cellular network
supported by Cinterion modem family .
CSR SiRFstarV™ based, GPS and GLONSS, positioning engine for reduced
acquisition time and better accuracy.
Support Wireless Sensor Network and up to 16 MultiSense devices
A 3D accelerometer that detects crash (accident), movement and vibrations of
assets and enables different transmission rates for a moving asset and a standing
asset.
A programmable (on/off/test/panic) push button.
Two monitoring LEDs for GSM and GNSS status indication.
A charging and communication connector.
CelloTrack 10y Overview
CelloTrack T Family Overview Page 6
Copyright © 2018 by Pointer Telocation, Ltd.
Easy mounting using screws or magnets.
tampering detection
Designed for operation w/o or minimal maintenance. (environment tests, Halt
tests, Formal reliability assessments)
Operating temperature range -30°C to 75°C
ISO16750 compliance (Shock, temperature, humidity, UV, chemical, salt, and so
on)
Supports up to 9000 time-stamped events.
Support variety of operation (logging and reporting frequency) profiles to meet
required transmissions and power budget
Advanced carrier selection algorithm.
Built-in Geo-fence capabilities.
Support an internal USB connector allowing RMA and debugging.
Support OTA FW upgrade (FOTA).
2.2 The Need / Use in the Field
The following applications / markets require a solution which can be only provided or
better provided by the CelloTrack 10Y, based on a non-rechargeable battery.
Nearly or completely static assets located in difficult to reach locations where
CelloTrack or CelloTrack Power cannot be used / maintained. In such cases,
CelloTrack LL will be a better economic solution than the regular CelloTrack.
Assets which can be maintained only after a very long period, such as train cabins
with maintenance period of 5-6 years.
Customers who prefer minimum maintenance to units and who will use the product
which has the longest life period.
Install and forget applications; the unit is installed for several years after which the
vehicle or asset are no longer important. For example: long term leasing where the
unit is needed to track the vehicle / asset in case of payment issues. Once the last
payment is received the unit is no longer needed.
Tracking as an integral part of the asset applications, where the unit life matches
the estimated life of the vehicle / asset. For example, a container’s life time is
estimated to be 10 years; a practical solution would be a CelloTrack with a 10 year
life time, which will be an integral part of the container with no maintenance
needed.
Applications which require extreme operating temperatures in which charging is
impossible or rechargeable batteries do not perform well.
2.3 Main Advantages over the Regular CelloTrack
Longer life time between maintenance procedures
Low maintenance efforts and cost
Wider operating temperature range (-30°C to 75°C instead of -20°C to 60°C)
CelloTrack 10y Overview
CelloTrack T Family Overview Page 7
Copyright © 2018 by Pointer Telocation, Ltd.
2.4 CelloTrack 10y Feature List
The following list details the features and capabilities of the CelloTrack 10y. These
features are actually a combination of the Fleet management capabilities derived from
Cellocator’s Cello product line and specific asset management capabilities designed
solely for the CelloTrack family.
Geo-Fences (100)
Way Points
Roaming List (100)
Usage counters (PTO)
Server authentication
Automatic SIM PIN lock
DNS support
Virtual odometer
Road curve smoothing
Offline Tracking
Wake up event
Movement detection
Crash detection
Time based events (adaptive to movement status)
Specific time (in day) reporting
Distance based events
Velocity Adaptive message rate
Home/Roam adaptive message rate
Distress reporting mode (higher priority)
Over speeding alerts
Go/Halt reports
Internal excessive temp
A/D threshold events
Frequency threshold events
GNSS status events
Watchdog
Battery level reporting
Network dependent traffic Opt
Cellocator+ (Maintenance) server support
OTA/Serial Firmware upgrade
OTA/Serial configuration update
CelloTrack 10y Overview
CelloTrack T Family Overview Page 8
Copyright © 2018 by Pointer Telocation, Ltd.
3 CelloTrack Interfaces

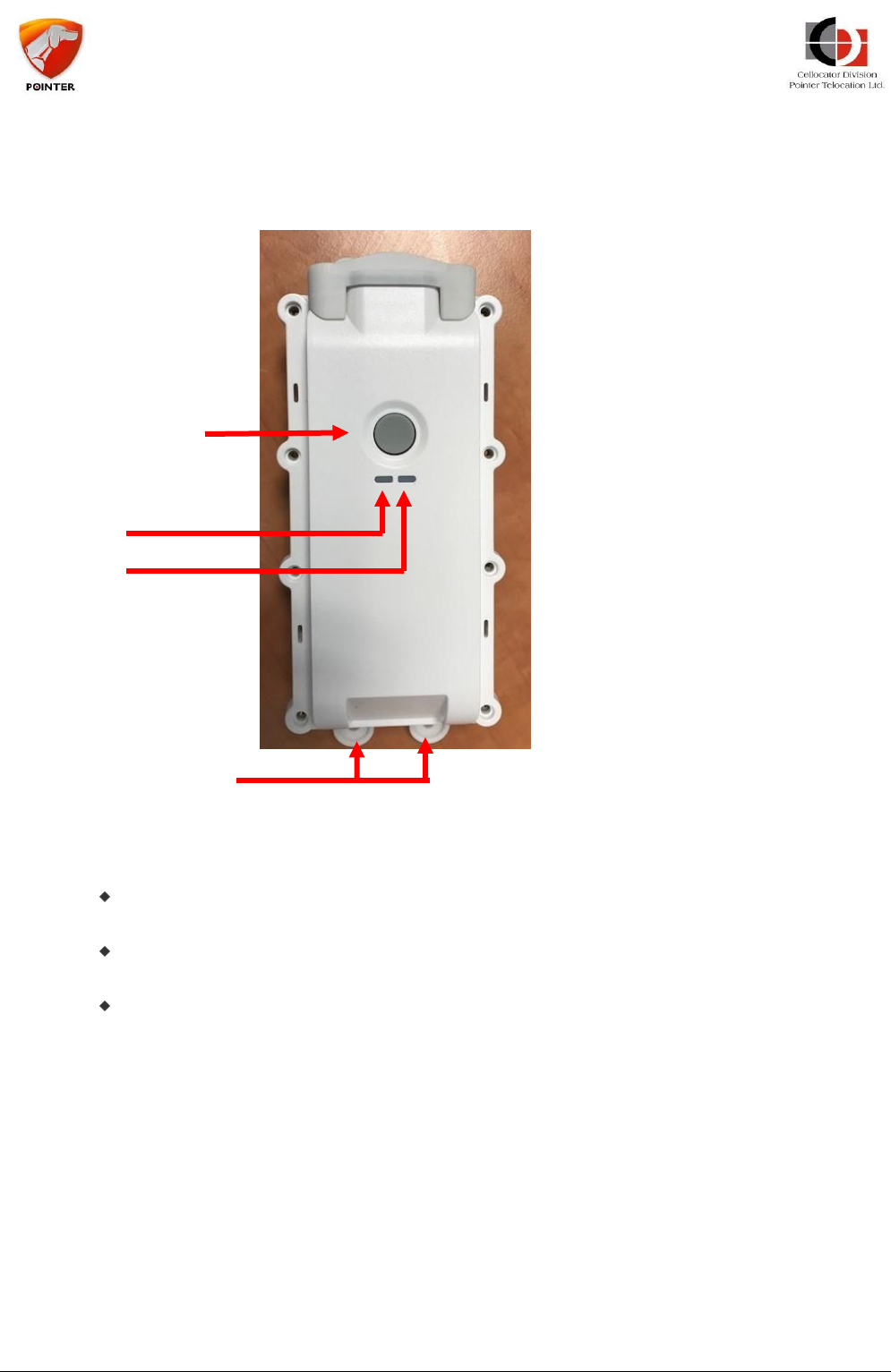

3.1 The CelloTrack Interface
The Front Button allows activation/de-activation, battery status check, battery
replacement sequence, and MultiSense communication pairing.
The SYS LED is a dual color (Green and Red) LED, which indicates unit
activation/de-activation, panic, and battery status/replacement.
The COMM LED is a dual color (Green and Red) LED, which indicates the unit
Cellular communication and position status.
3.2 CelloTrack COMM LED description
3.2.1 Overview
The COMM LED shall be used to indicate unit Cellular communication and position in
Green light.
The blinking pattern is constructed from cycles of 2 blinking zones each, which will be
repeated by unit continually. The first zone represents the functionality of Cellular
communication (GSM), the second zone – the GNSS status.
Each zone will last 3 seconds with 1 second of LED off interval between them. 5 seconds
LED Off interval will separate between each cycle.
FB (Front Button)
COMM LED
SYS LED
Installation bracket
CelloTrack 10y Overview
CelloTrack T Family Overview Page 9
Copyright © 2018 by Pointer Telocation, Ltd.
4 CelloTrack 10y Specifications
4.1 CelloTrack 10y Specification
Communication
Cellular
communication
LTE Cat 1 NA with 3G Fallback
LTE NA: Bands 2, 4, 5, 12 (700, 850, 1700/2100 (AWS),
1900 MHz), data rates: 10.2[DL] / 5.2[UL] Mbps
3G NA: UMTS Bands 5, 4, 2 (850, 1700/2100 (AWS),
1900); HSPA 5.76[UL]/7.2[DL] Mbps
Packet Data: TCP/IP, UDP/IP
SMS: PDU mode
SIM
Internal, full size replaceable, 1.8/3V
Optional SIM on chip
Remote PIN code management
Antenna
Internal, multi band antenna
GNSS
Technology
Internal module, CSR SiRFstarV™ based
GPS and GLONSS supported.
Sensitivity (tracking)
-165dBm
Acquisition (normal)
Cold <27 Sec, Warm<10 Sec, Hot<1 Sec
Antenna
Internal, on board patch antenna
Interfaces
COM port
Via USB 2.0 interface over standard micro-USB connector
Debug, Configuration, FW upgrade
3D Accelerometer
3D, ±8g range, 12 Bit representation, 4mg resolution
Movement detection
MMI
2 dual colored LED status indication
Activation / Distress button
Reed relay and magnet based Tamper detection
Wireless
2.4 GHz Proprietary wireless interface for MultiSense
integration.
Power
Internal Battery
lithium-thionyl chloride (SOCl2), 3.6V, 42.5 Ah, primary
(non-rechargeable)
Average Current
Consumption
On taking location and transmission session: 85mA
CelloTrack 10y Overview
CelloTrack T Family Overview Page 10
Copyright © 2018 by Pointer Telocation, Ltd.
Hibernation: < 130 µA
Shipment (Off): < 80 µA
Environment
Temp, operating
-300C – 750C.
Temp, storage
00C – 300C (battery limitation)
Humidity
95% non-condensing
Ingress Protection
IP67
Vibration, Impact,
Humidity, chemical
ISO 16750 part 3 & 4
Mounting
Screw or magnetic mounting
Regulatory compliance / certification
CE
CE Safety EN60950-1:2001+A11:2004
FCC
Part 15 Subpart B, part 22/24 compliant
IC
ICES-003, Issue 5:2012 Class B.
CAN/CSA-CEI/IEC CISPR 22:10
PTCRB
TRP, TIS, Spurious and harmonics emission
AT&T
Yes
Environment
ISO 16750 part 3 & 4
UL
compliant
Reliability assessment
Annual Failed Ratio <0.5%
HALT (Highly Accelerated
Life Test)
passed
RoHS and conflict
minerals
compliant
Dimensions & Weight
Enclosure material
Lexan 943
Dimensions
~203mm x 81mm x 50mm
Weight
~ 510 gr
4.2 CelloTrack 10y – 42.5 AH Battery Life
TX / 24Hrs
Life time [years]
96
0.35
48
0.7
CelloTrack 10y Overview
CelloTrack T Family Overview Page 11
Copyright © 2018 by Pointer Telocation, Ltd.
TX / 24Hrs
Life time [years]
24
1.3
12
2.4
8
3.3
6
4
4
5.2
2
7.8
1
10.7

Navigation menu
