Powertech Industrial Co Ltd Wireless Home Appliance Timer Remote Control Kit RF bester
Users Manual
Wireless
Home Appliance Timer
Remote Control Kit
R9P-120
R9P-121
R9P-007
R9P-202
R9P-403
R9P-616
User’s Manual
All Versions
Service Center in USA
Company’s name: Haowell Technology & Consulting, Inc.
Address: 415 Cloverdale Ln. Walnut, CA 91789-2028
phone no: 909-859-5150
Fax no: 909-468-4660
Contact person: Shannon Chang
E-mail: Shannon@HaowellConsultants.com
© Copyright 2010
The information contained herein is subject to change without notice.
This document contains proprietary information, which is protected by copyright.
No part of this document may be photocopied, reproduced,
or translated into another language without the prior written consent.
February 2010
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate the
equipment.
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment into an outlet on a circuit different from that to which
the receiver is needed.
*Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=1258621&img=bg2.png)
Operating Instruction - Outlet Adaptor
1. Plug the outlet adaptor into a powered 125VAC wall outlet.
2. Plug the fixture / appliances you wish to control into 1 outlet wall tap / wall
tap plus or the remote outlet of the 2-outlets wall tap plus or yard stake.
3. Turn the mechanical power switch (electrical power switch is not
applicable) of the fixture / appliance to the ON position.
4. Use the timer remote control to set timer and control the fixture/appliance
(see the operating instruction – timer remote control in below).
IMPORTANT:
● Outdoor use outlet adaptor is recommended plugged into a
GFCI-protected outlet.
● Outdoor use outlet adaptor is suitable for damp locations. Not for water i
mmersion or for use where directly exposed to water.
● Yard stake outlet adaptor should be installed above ground level so it will
not fill up with water when raining or snowing. Always unplug and remove
the devices from the yard stake when raining or snowing.
MANUAL ON/OFF AND LEARNING FUNCTION OF THE OUTLET
ADAPTER
Note: This button on the outlet adapter serves as manual ON/OFF and
Learning functions.
Manual ON/OFF function
If you have lost your remote timer control, you can still manually turn on/off
the remote outlet on the outlet adaptor.
1. To manually turn on the fixture/appliance, press the MANUAL ON/OFF
button on the outlet adaptor once. The red LED indicator of the outlet
adaptor and the fixture / appliance that plug in the outlet adapter will then
turn ON as well.
INTRODUCTION
THANK YOU for purchasing Wireless Home Appliance Timer Remote Control
Kit, you can remotely control indoor or outdoor fixtures and appliances from
up to 100ft away (in open space).
Having your holiday lighting or appliances turned ON & OFF is just as easy as
few clicks on the timer remote control. Our product can conveniently help to
change your house into an easy home automation style.
OPERATING INSTRUCTIONS

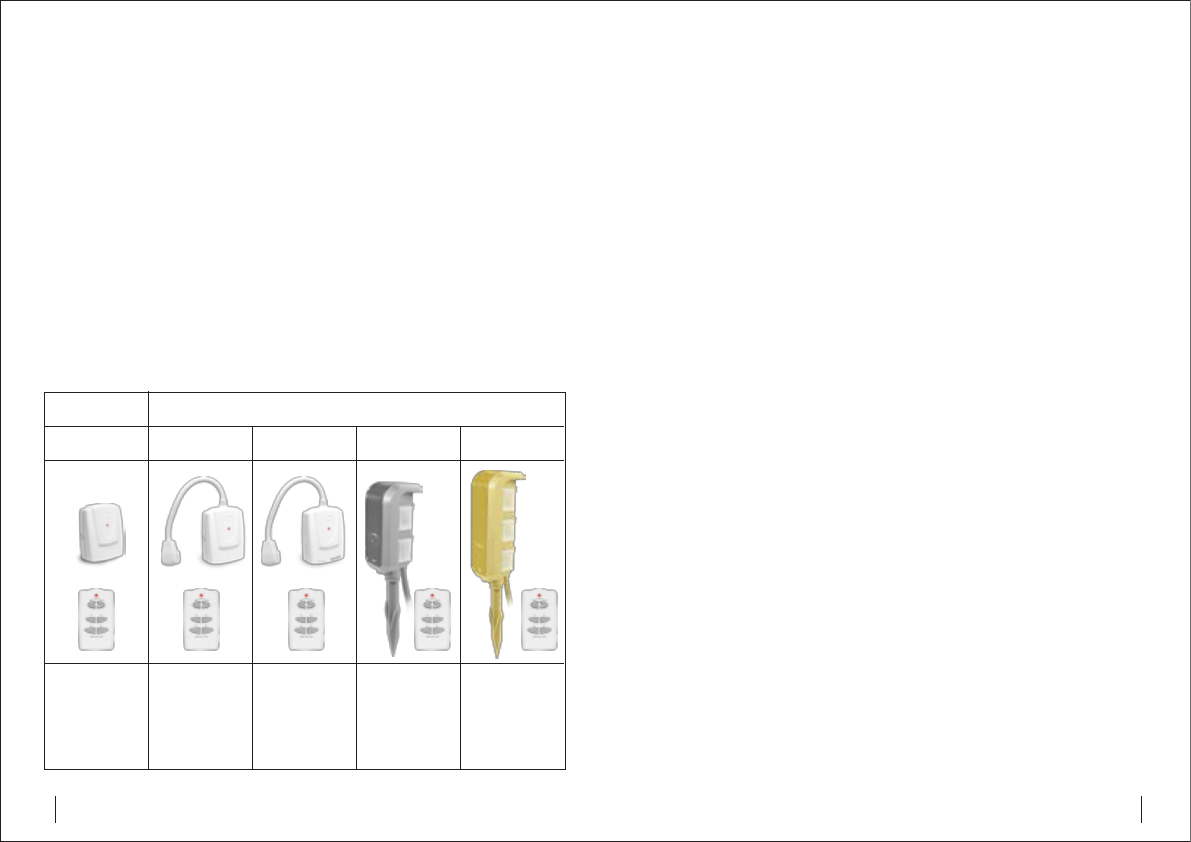

NOTE: There are five types of Wireless Home Appliance Timer Remote
Control Kit available that best suits your needs. The timer remote control and
outlet adaptor may vary depending on the kit model purchased.
Indoor Use
R9P-120
1-Outlet
Wall Tap
with timer
remote control
1-Outlet
Wall Tap Plus
with timer
remote control
2-Outlets
Wall Tap Plus
(1 always on /
1 remote outlet)
with timer
remote control
4-Outlets
Yard Stake
(2 always on /
2 remote outlets)
with timer
remote control
6-Outlets
Yard Stake
(2 always on /
4 remote outlets)
with timer
remote control
R9P-121 R9P-202 R9P-403 R9P-616
Outdoor Use
Versions V1.0
2
Versions V1.0
1
![](/img.php?id=1258621&img=bg3.png)
2. To manually turn off the fixture/appliance, press once the MANUAL
ON/OFF button on the outlet adaptor. The red LED indicator of the outlet
adaptor and the fixture/appliance that plug in the outlet adapter will then
turn ON as well.
Learning function – for timer remote control and outlet adaptor
NOTE: The timer remote control and the outlet adaptor in the kit are
pre-paired and ready to use.
If you purchase solely outlet adaptor (must be one of above model), you can
pair the exiting timer remote control with the new purchase outlet adaptor.
1. Hold the timer remote control close to the outlet adaptor.
2. Press the learning button (manual ON/OFF button) on the outlet adaptor
at least 5 seconds until the red LED indicator light flashes and goes into
learning mode, then release the button.
3. Within 15 seconds, press both ON and OFF buttons on the timer remote
control once to sync with the outlet adaptor.
4. If the outlet adaptor has successfully learned the code from the timer
remote control, the red LED indicator will go from flashing light to solid
light, then off afterward.
5. Check to see if learning is successful by pressing on and off buttons on the
timer remote control to switch ON and OFF the outlet adaptor.
6. Repeat steps 2~5 if learning is not successful.
Operating Instruction – Timer Remote Control
In open space, the timer remote control has a wireless range up to 100 feet*
to control the outlet adaptor.
*Actual range may vary depending on environment condition, interference
and building materials.
To turn ON and OFF the fixture/appliance
1. To turn ON the lighting fixture/appliance, press ON button on the remote
timer control. The red LED indicator on the timer remote control will flash
and the fixture/appliance on the outlet adaptor will turn ON.
2. To turn OFF the fixture/appliance, press OFF button on the timer remote
control. The red LED indicator on the timer remote control will flash and
the fixture/appliance on the outlet adaptor will turn OFF.
To turn ON and OFF the fixture/appliance by Timer Feature
Example 1: When the fixture/appliance is initially turned ON, and you wish to
turn it OFF after 3 hrs.
1. Set 3 hrs timer by pressing 3H button on the remote.
2. The red LED indicator on the outlet adaptor will flash 3 times to confirm
the timer.
3. The lighting fixture/appliance will be turned OFF automatically when 3 hrs
timer is up.
Example 2: When the lighting fixture/appliance is initially turned OFF, and
you wish to turn it ON after 6 hrs.
1. Set 6 hrs timer by pressing 6H button on the remote.
2. The red LED indicator on the outlet adaptor will flash 6 times to confirm
the timer.
3. The Lighting fixture/appliance will be turned ON automatically when 6 hrs
timer is up.
Replace battery in the remote timer control
One A23 12V Alkaline battery is included and pre-installed in the timer
remote control.
Versions V1.0
3
Versions V1.0
4
![](/img.php?id=1258621&img=bg4.png)
Replace the battery when the red LED light on the timer remote control goes
very dim or does not illuminate while operating.
Remove the battery compartment cover on the back of the timer remote
control, take out the old battery and insert one A23 12V Alkaline battery in the
proper orientation, and re-install the battery compartment cover.
Wall mount for timer remote control
1. Select a spot within the wireless range to mount the supplied wall bracket
for timer remote control.
2. The ideal locations for wall mount are entrance of a room or location
where timer remote control wall mount can be easily seen and accessed.
3. Use adhesive tape or supplied screws to securely attach the supplied wall
bracket to a wall.

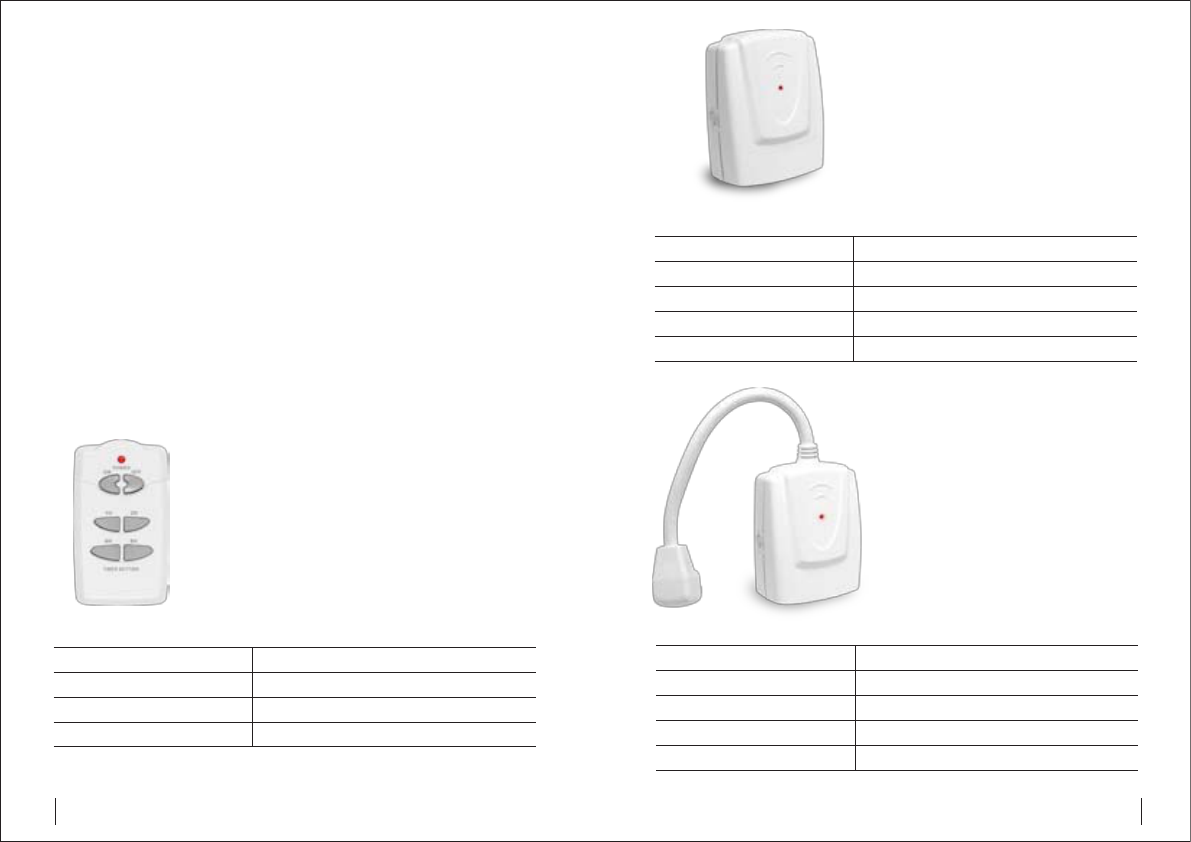

SPECIFICATIONS
Versions V1.0
5
Versions V1.0
6
Outdoor Use - Wall Tap Plus
1. Power on indicator
2. Remote Outlet
Indoor Use - Wall Tap
1. Power on indicator
2. Manual ON/OFF & Learning Button
3. Remote Outlet
Electrical Rating
Resistive Load
Remote Outlet
Power on indicator
Stand-by power
15A / 125V, 60Hz
1875W
1
Red LED
<1W
Electrical Rating
Resistive Load
Remote Outlet
Power on indicator
Stand-by power
13A / 125V, 60Hz
1625W
1
Red LED
<1W
Timer Remote Control
1. Power on and timer indicator
2. ON/OFF Button – press to control remote outlet
or press both ON & OFF buttons to sync with the
outlet adaptor
3. Timer Setting Buttons – Select timer to control
remote outlet
Battery Type
Battery Life
Power on indicator
Wireless Range
Use ONLY A23 12V Alkaline
3-6 months
Red LED
Up to 100ft (Open Space)
Model No. R9P007 Model No. R9P116T0
Model No. R9P115T0
![](/img.php?id=1258621&img=bg5.png)
Versions V1.0
7

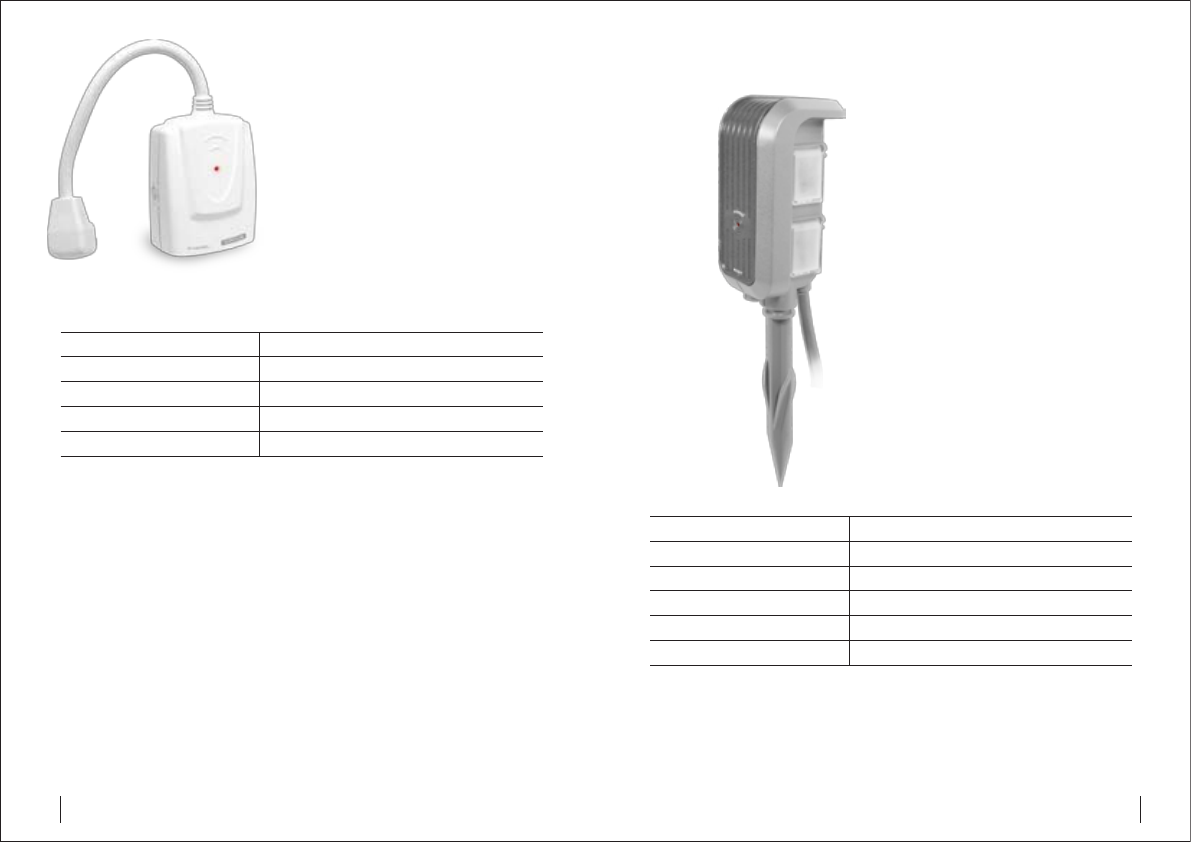

Outdoor Use –
4 outlet Yard Stake
1. Manual ON/OFF & Learning Button
2. Power on indicator
3. Remote outlets on both side
4. Always On outlets on both side
Electrical Rating
Resistive Load
Remote Outlet
Always On outlet
Power on indicator
Stand-by power
15A / 125V, 60Hz
1875W
2
2
Red LED
<1W
Outdoor Use –
2 outlet Wall Tap Plus
1. Power on indicator
2. Manual ON/OFF & Learning Button
3. Always On outlet
4. Remote outlet
Electrical Rating
Resistive Load
Remote Outlet
Power on indicator
Stand-by power
13A / 125V, 60Hz
1625W
1
Red LED
<1W
Versions V1.0
8
Model No. R9P204T0
Model No. R9P401T0
![](/img.php?id=1258621&img=bg6.png)
Versions V1.0
9

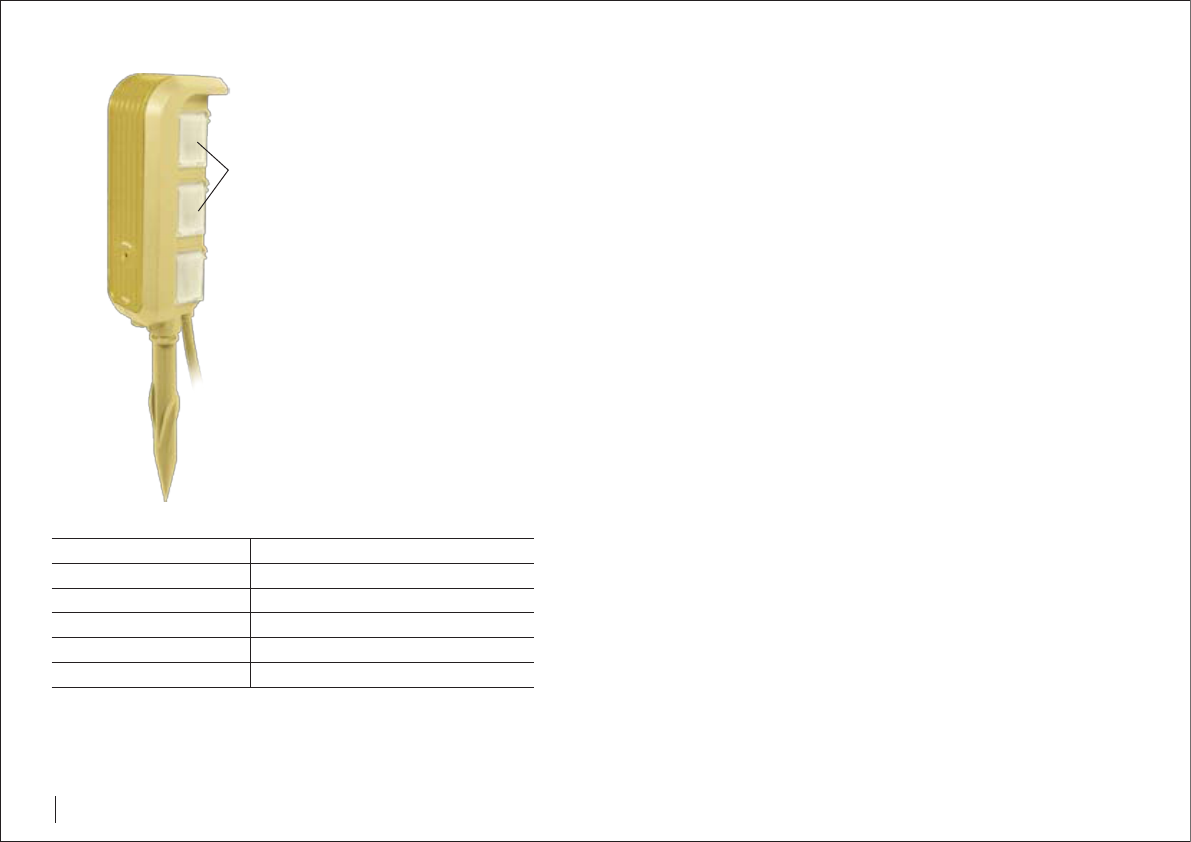

Outdoor Use –
6 Outlet Yard Stake
1. Manual ON/OFF & Learning Button
2. Power on indicator
3. Remote outlets on both side
4. Always On outlets on both side
Electrical Rating
Resistive Load
Remote Outlet
Always On outlet
Power on indicator
Stand-by power
15A / 125V, 60Hz
1875W
4
2
Red LED
<1W
Model No. R9P601T0
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
