Prime Electronics and Satellitics WM288P Wireless LAN mini - PCI Card User Manual System Spec

Prime Electronics & Satellitics Inc. Wireless LAN mini - PCI Card System Spec

User Manual

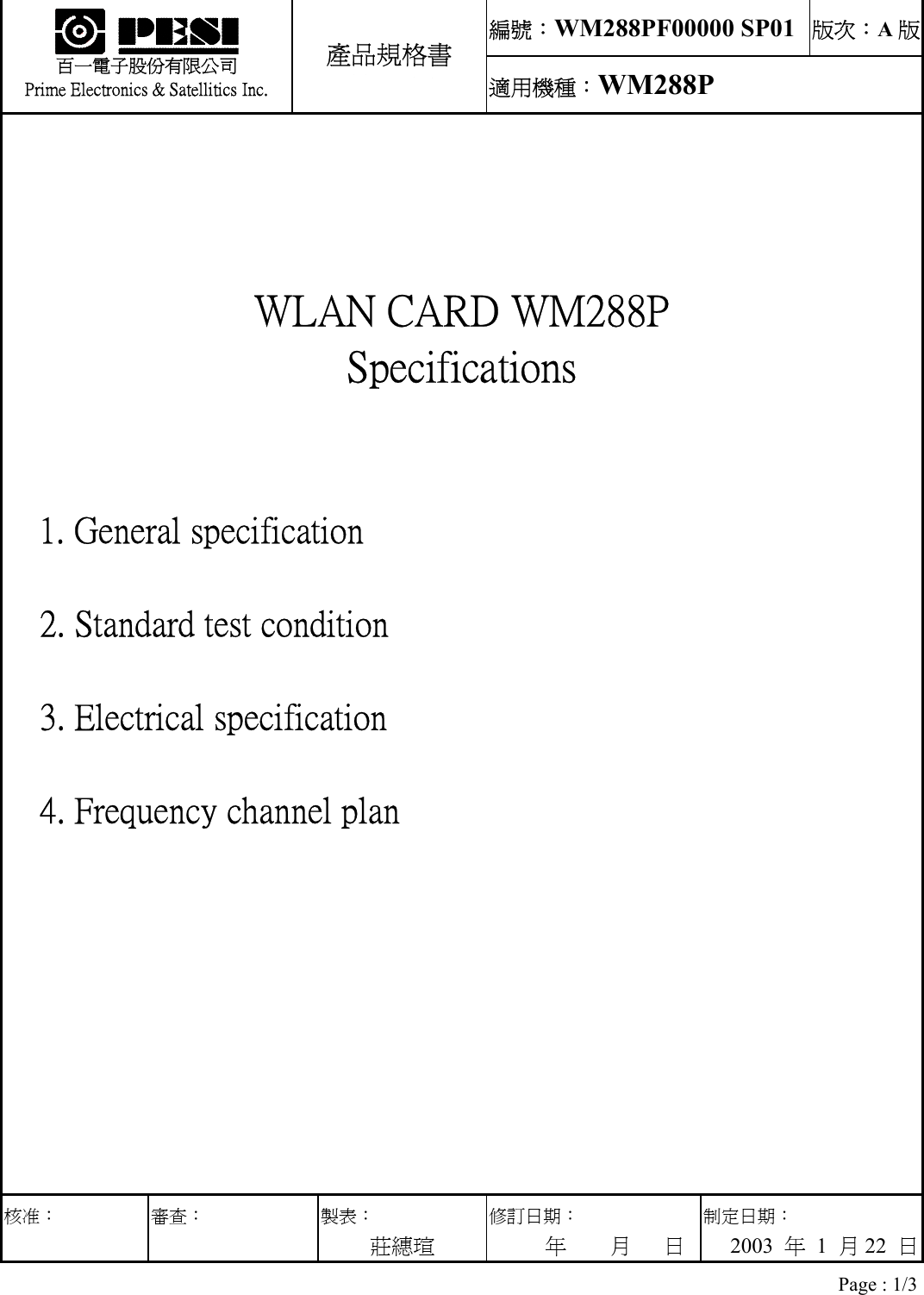

編號:WM288PF00000 SP01 版次:A版33333333   百一電子股份有限公司 Prime Electronics & Satellitics Inc. 產品規格書 適用機種:WM288P    WLAN CARD WM288P Specifications   1. General specification   2. Standard test condition   3. Electrical specification   4. Frequency channel plan 核准: 審查: 製表: 莊繐瑄 修訂日期:       年    月   日 制定日期:    2003  年 1 月22  日 Page : 1/3

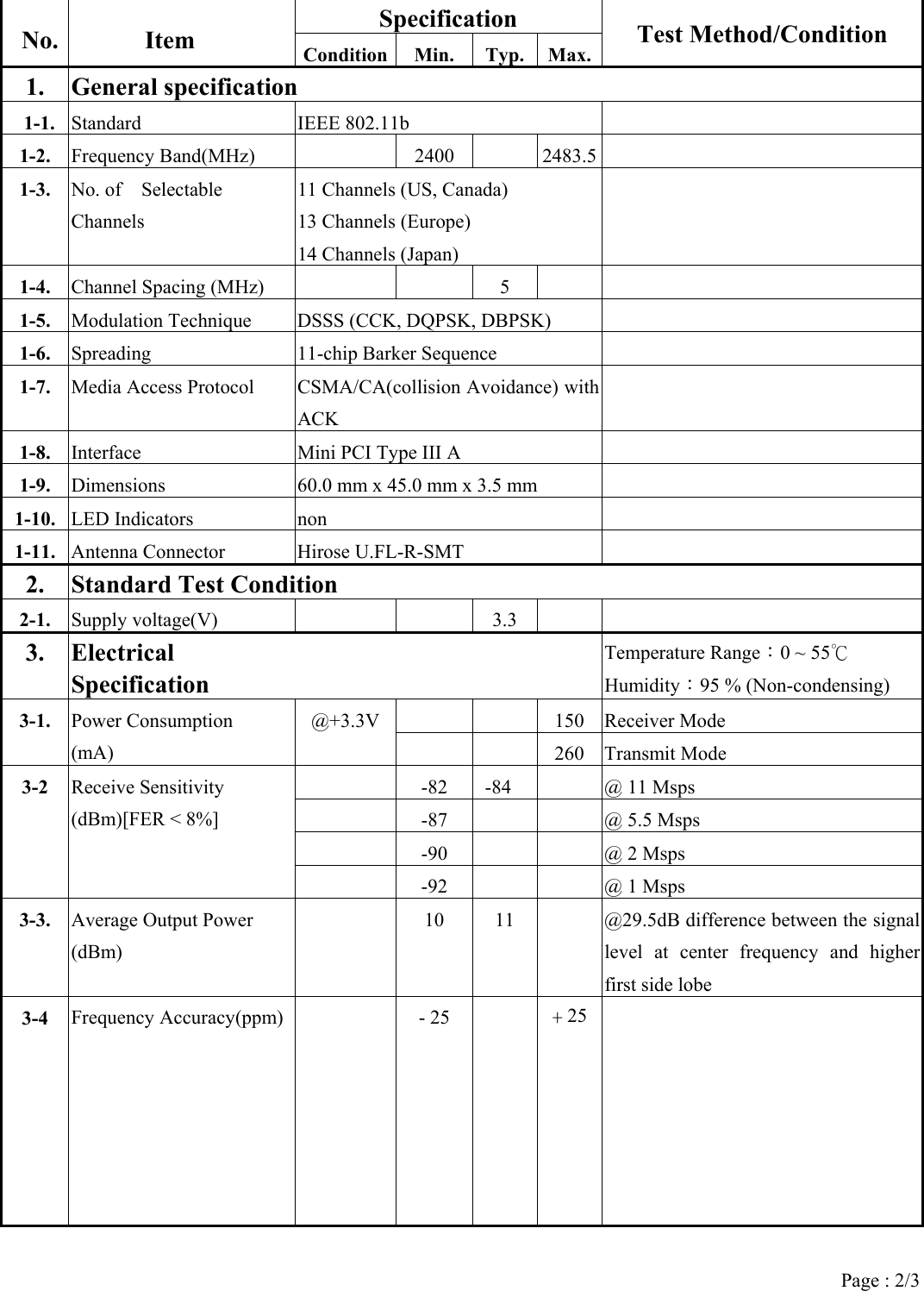

Specification No. Item  Condition Min. Typ. Max.Test Method/Condition 1. General specification 1-1. Standard IEEE 802.11b   1-2. Frequency Band(MHz)    2400    2483.5  1-3. No. of  Selectable Channels 11 Channels (US, Canada) 13 Channels (Europe) 14 Channels (Japan)  1-4. Channel Spacing (MHz)      5     1-5. Modulation Technique  DSSS (CCK, DQPSK, DBPSK)   1-6. Spreading  11-chip Barker Sequence   1-7.  Media Access Protocol  CSMA/CA(collision Avoidance) with ACK  1-8.  Interface  Mini PCI Type III A   1-9.  Dimensions  60.0 mm x 45.0 mm x 3.5 mm   1-10.  LED Indicators  non   1-11.  Antenna Connector  Hirose U.FL-R-SMT   2. Standard Test Condition 2-1.  Supply voltage(V)   3.3   3. Electrical Specification Temperature Range:0 ~ 55℃ Humidity:95 % (Non-condensing)   150 Receiver Mode 3-1.  Power Consumption (mA) @+3.3V   260 Transmit Mode   -82    -84    @ 11 Msps   -87   @ 5.5 Msps   -90   @ 2 Msps 3-2  Receive Sensitivity (dBm)[FER < 8%]   -92   @ 1 Msps 3-3.  Average Output Power (dBm)   10  11    @29.5dB difference between the signal level at center frequency and higher first side lobe 3-4  Frequency Accuracy(ppm)    - 25    + 25   Page : 2/3

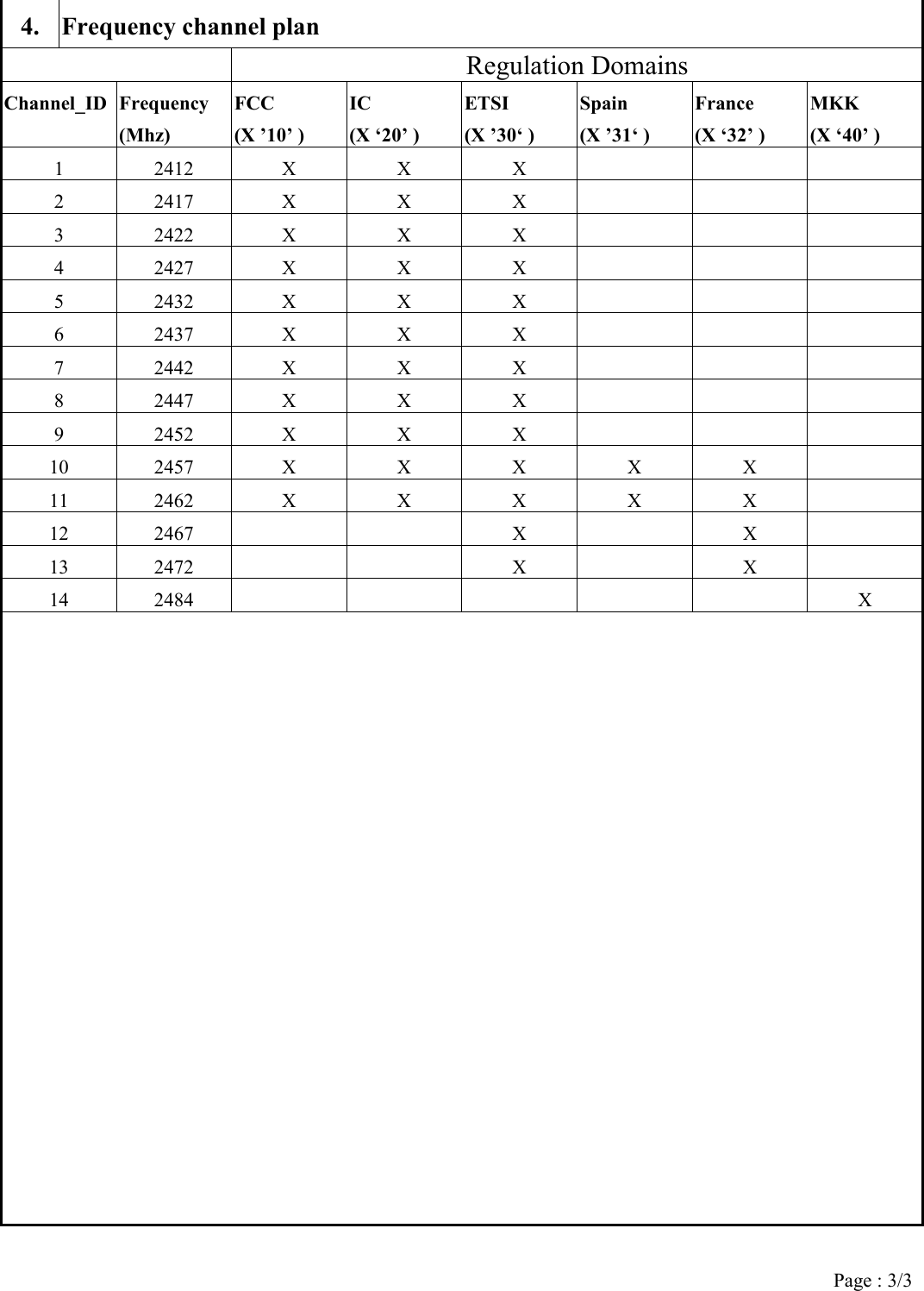

4. Frequency channel plan  Regulation Domains Channel_ID Frequency (Mhz) FCC   (X ’10’ ) IC (X ‘20’ ) ETSI  (X ’30‘ ) Spain  (X ’31‘ ) France     (X ‘32’ ) MKK (X ‘40’ ) 1 2412 X X X     2 2417 X X X     3 2422 X X X     4 2427 X X X     5 2432 X X X     6 2437 X X X     7 2442 X X X     8 2447 X X X     9 2452 X X X     10 2457 X X X X X   11 2462 X X X X X   12 2467    X   X   13 2472    X   X   14 2484       X         Page : 3/3

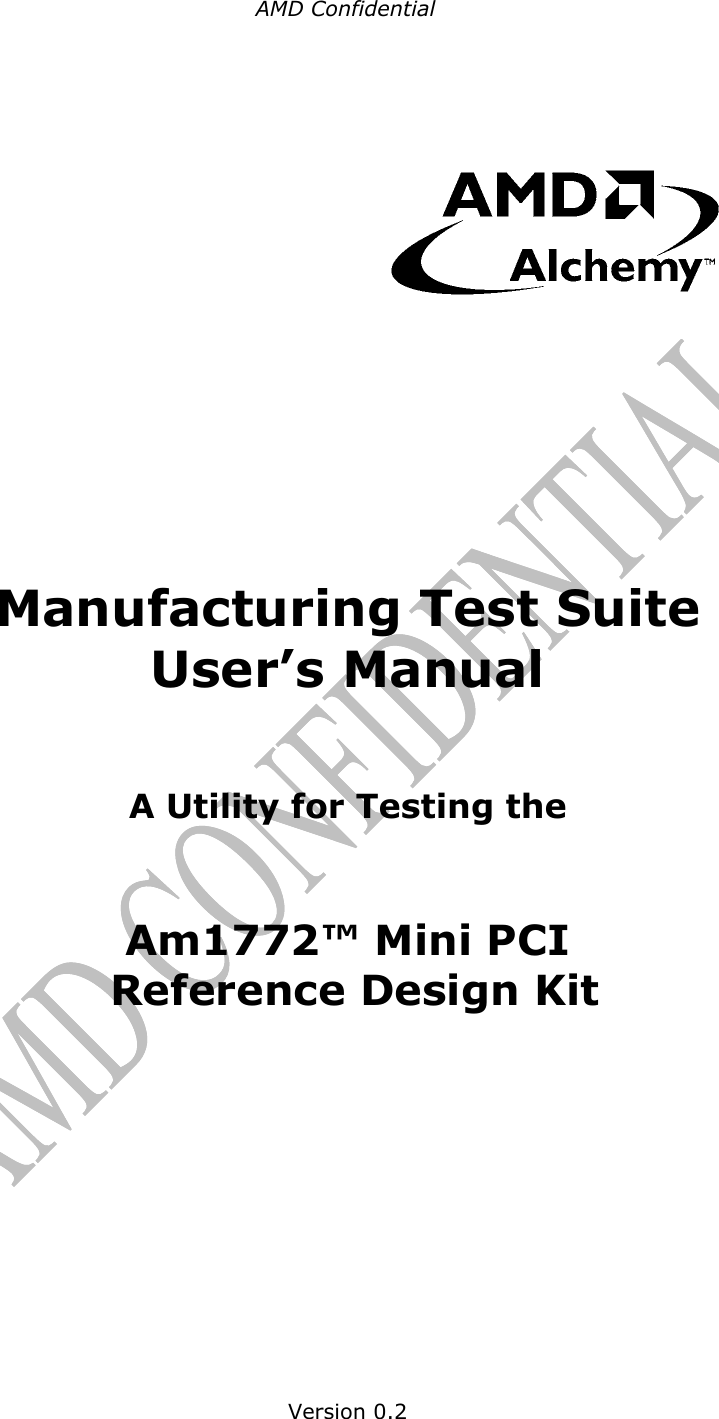

AMD Confidential           Manufacturing Test Suite User’s Manual A Utility for Testing the Am1772™ Mini PCI  Reference Design Kit   Version 0.2

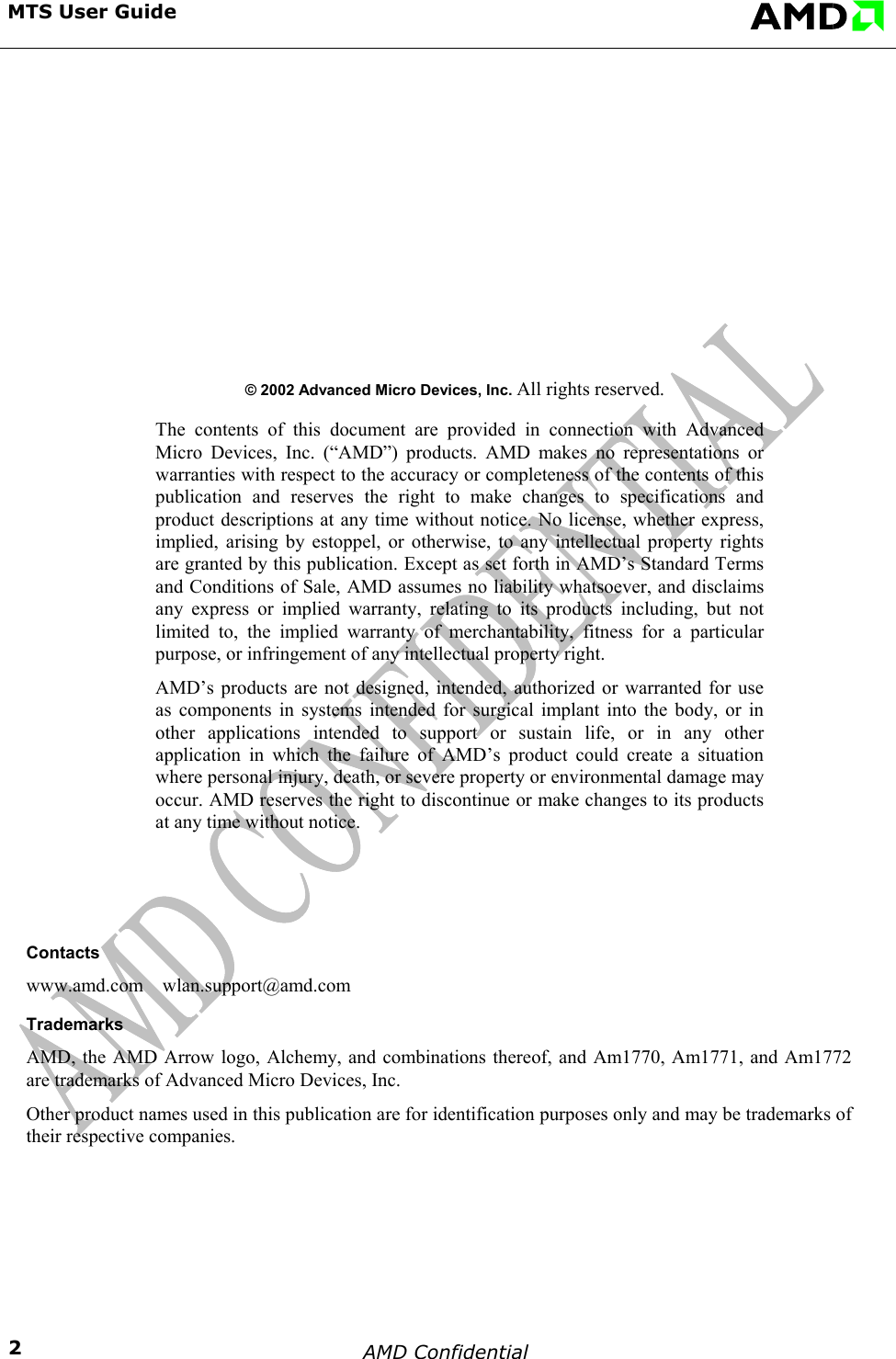

MTS User Guide                               © 2002 Advanced Micro Devices, Inc. All rights reserved.   The contents of this document are provided in connection with Advanced Micro Devices, Inc. (“AMD”) products. AMD makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. No license, whether express, implied, arising by estoppel, or otherwise, to any intellectual property rights are granted by this publication. Except as set forth in AMD’s Standard Terms and Conditions of Sale, AMD assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.   AMD’s products are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other applications intended to support or sustain life, or in any other application in which the failure of AMD’s product could create a situation where personal injury, death, or severe property or environmental damage may occur. AMD reserves the right to discontinue or make changes to its products at any time without notice.          Contacts www.amd.com    wlan.support@amd.com Trademarks AMD, the AMD Arrow logo, Alchemy, and combinations thereof, and Am1770, Am1771, and Am1772 are trademarks of Advanced Micro Devices, Inc.  Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies.  AMD Confidential    2

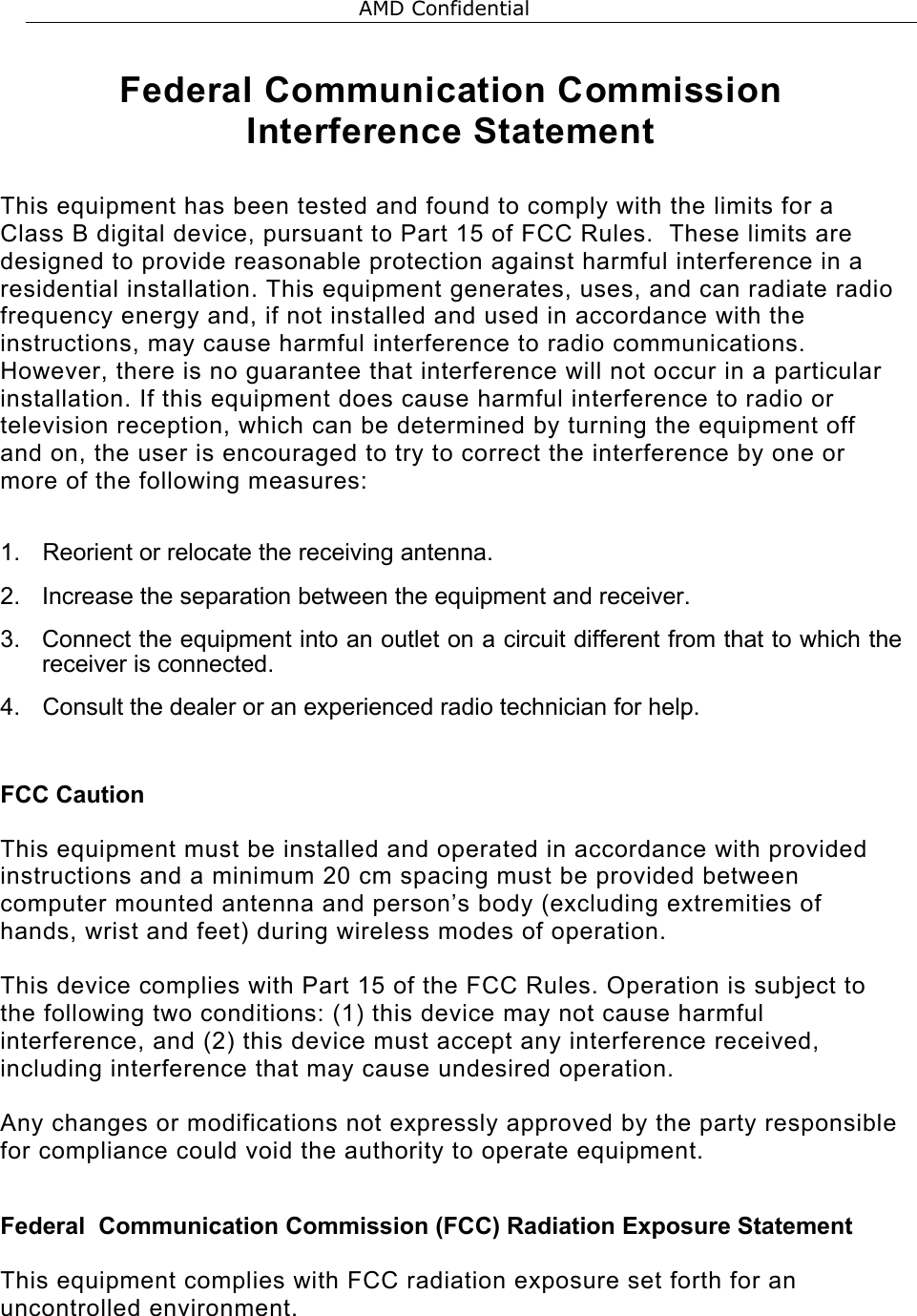

 Federal Communication Commission Interference Statement  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules.  These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:    1.  Reorient or relocate the receiving antenna. 2.  Increase the separation between the equipment and receiver. 3.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4.  Consult the dealer or an experienced radio technician for help.  FCC Caution  This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.   Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.  Federal  Communication Commission (FCC) Radiation Exposure Statement  This equipment complies with FCC radiation exposure set forth for an uncontrolled environment.   AMD Confidential

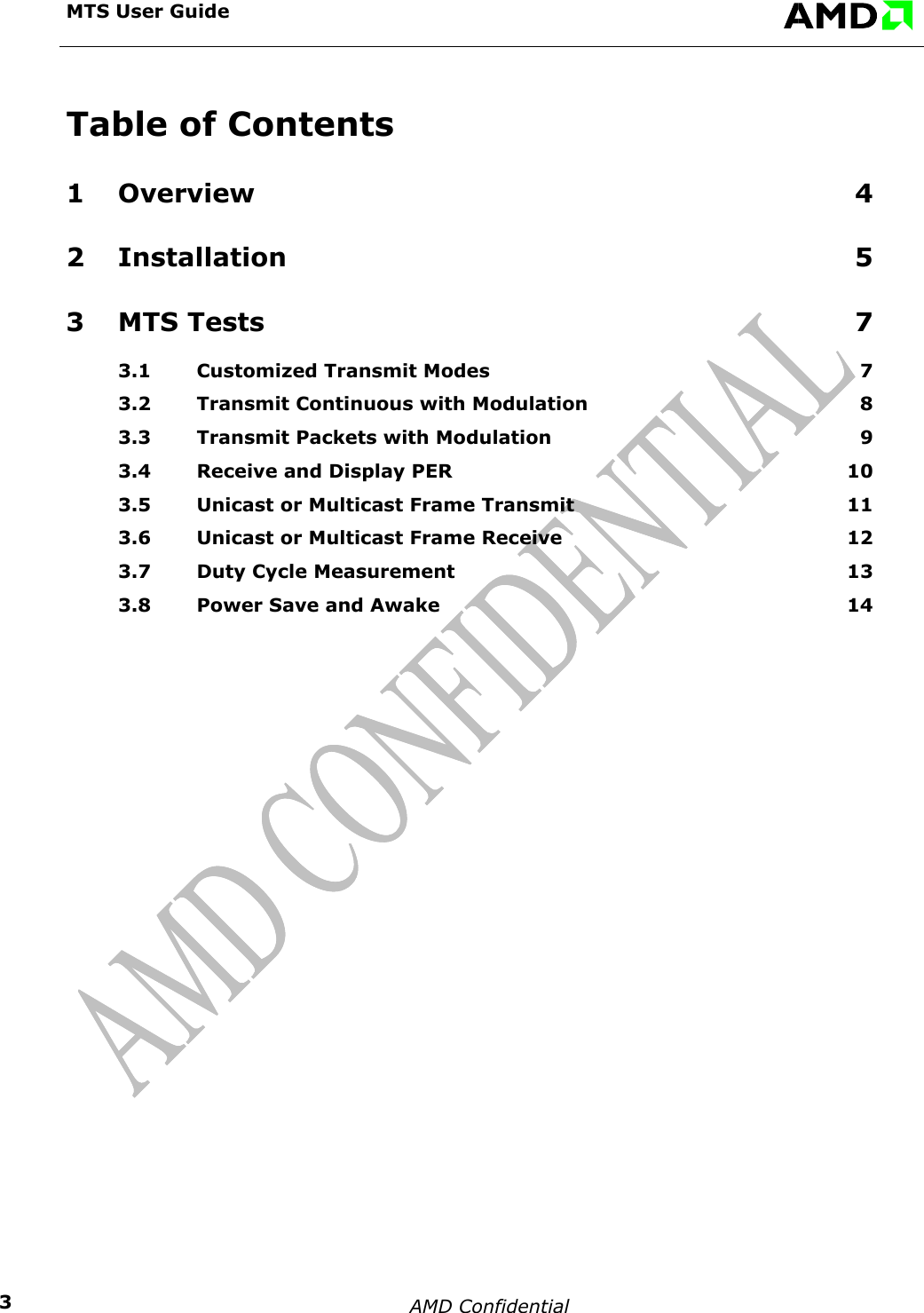

MTS User Guide    Table of Contents 1 Overview 4 2 Installation 5 3 MTS Tests  7 3.1 Customized Transmit Modes  7 3.2 Transmit Continuous with Modulation  8 3.3 Transmit Packets with Modulation  9 3.4 Receive and Display PER  10 3.5 Unicast or Multicast Frame Transmit  11 3.6 Unicast or Multicast Frame Receive  12 3.7 Duty Cycle Measurement  13 3.8 Power Save and Awake  14   AMD Confidential    3

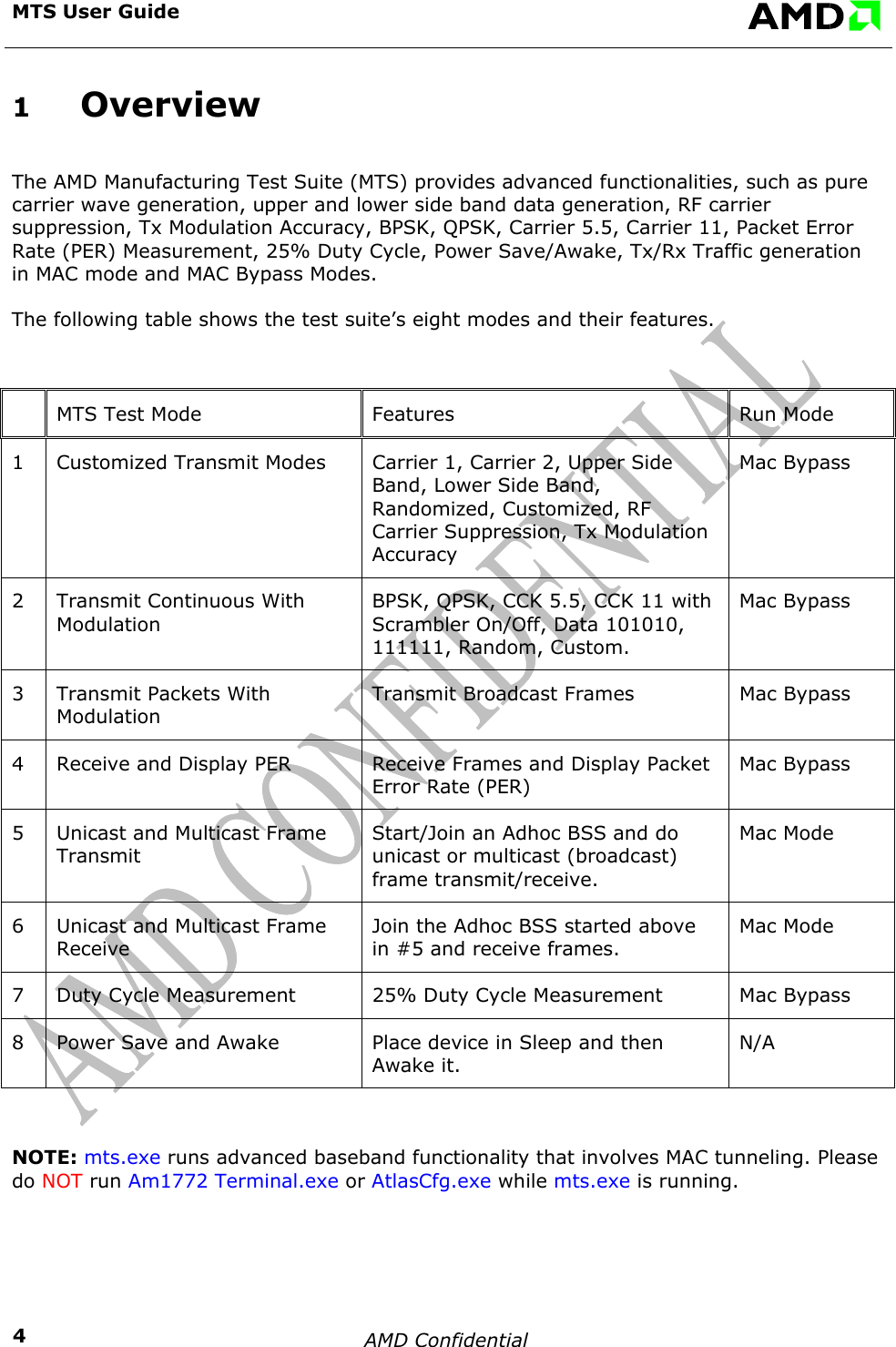

MTS User Guide    1  Overview The AMD Manufacturing Test Suite (MTS) provides advanced functionalities, such as pure carrier wave generation, upper and lower side band data generation, RF carrier suppression, Tx Modulation Accuracy, BPSK, QPSK, Carrier 5.5, Carrier 11, Packet Error Rate (PER) Measurement, 25% Duty Cycle, Power Save/Awake, Tx/Rx Traffic generation in MAC mode and MAC Bypass Modes.  The following table shows the test suite’s eight modes and their features.    MTS Test Mode  Features  Run Mode 1  Customized Transmit Modes  Carrier 1, Carrier 2, Upper Side Band, Lower Side Band, Randomized, Customized, RF Carrier Suppression, Tx Modulation Accuracy Mac Bypass 2  Transmit Continuous With Modulation BPSK, QPSK, CCK 5.5, CCK 11 with Scrambler On/Off, Data 101010, 111111, Random, Custom. Mac Bypass 3  Transmit Packets With Modulation Transmit Broadcast Frames  Mac Bypass 4  Receive and Display PER  Receive Frames and Display Packet Error Rate (PER) Mac Bypass 5  Unicast and Multicast Frame Transmit Start/Join an Adhoc BSS and do unicast or multicast (broadcast) frame transmit/receive. Mac Mode 6  Unicast and Multicast Frame Receive Join the Adhoc BSS started above in #5 and receive frames. Mac Mode 7  Duty Cycle Measurement  25% Duty Cycle Measurement  Mac Bypass 8  Power Save and Awake  Place device in Sleep and then Awake it. N/A  NOTE: mts.exe runs advanced baseband functionality that involves MAC tunneling. Please do NOT run Am1772 Terminal.exe or AtlasCfg.exe while mts.exe is running. AMD Confidential    4

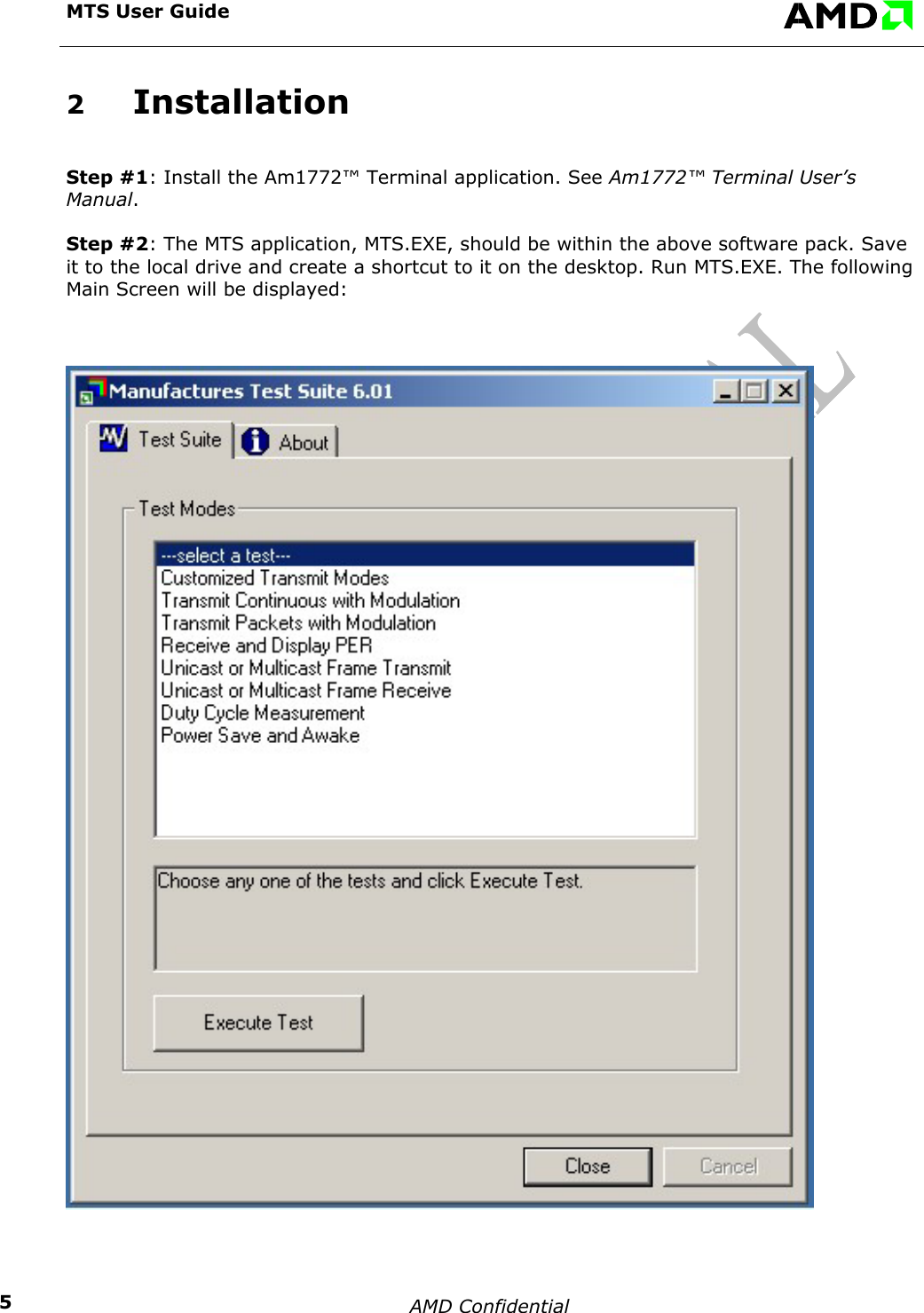

MTS User Guide    AMD Confidential    52  Installation Step #1: Install the Am1772™ Terminal application. See Am1772™ Terminal User’s Manual. Step #2: The MTS application, MTS.EXE, should be within the above software pack. Save it to the local drive and create a shortcut to it on the desktop. Run MTS.EXE. The following Main Screen will be displayed:

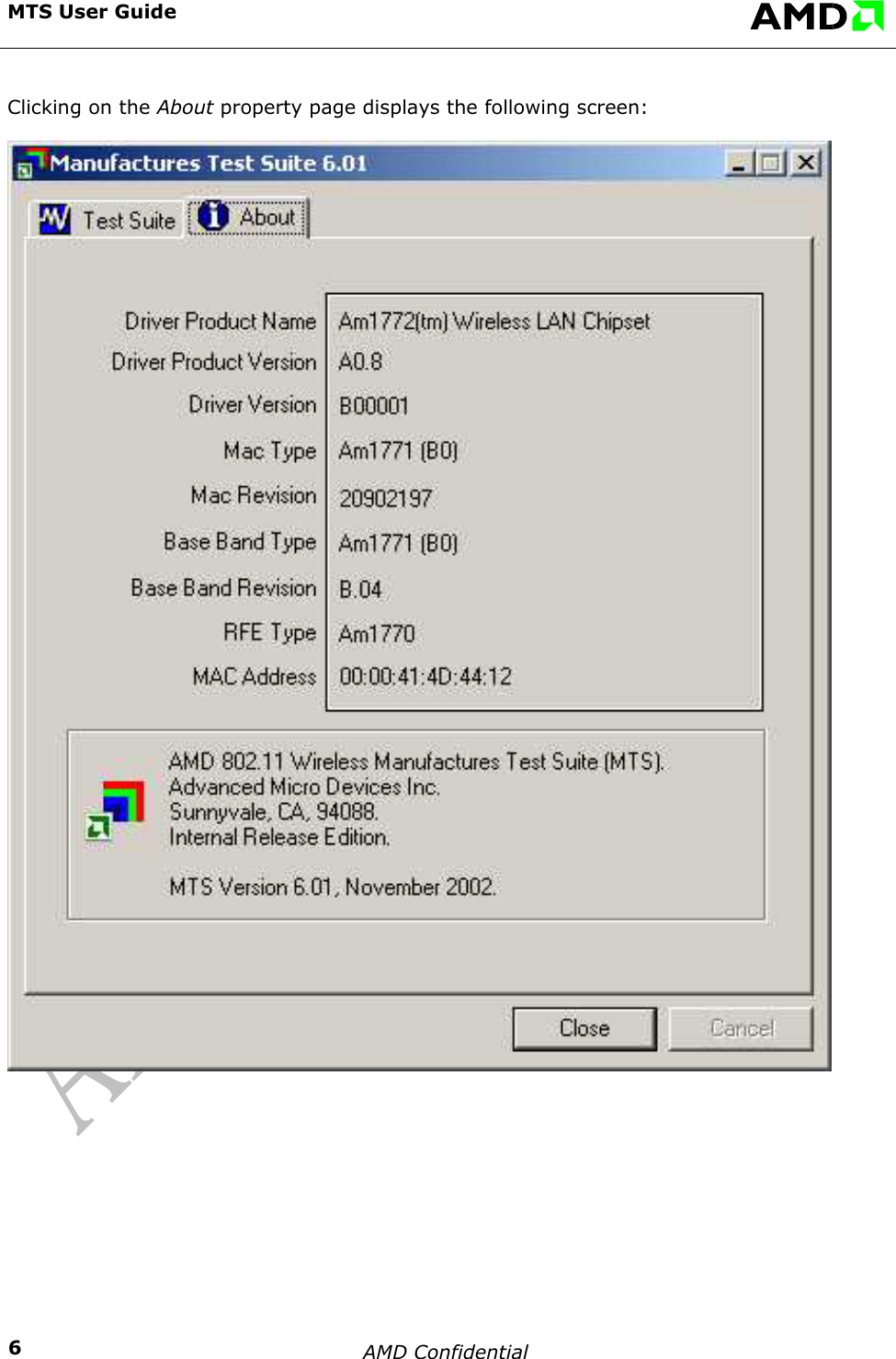

 MTS User Guide    AMD Confidential    6Clicking on the About property page displays the following screen:

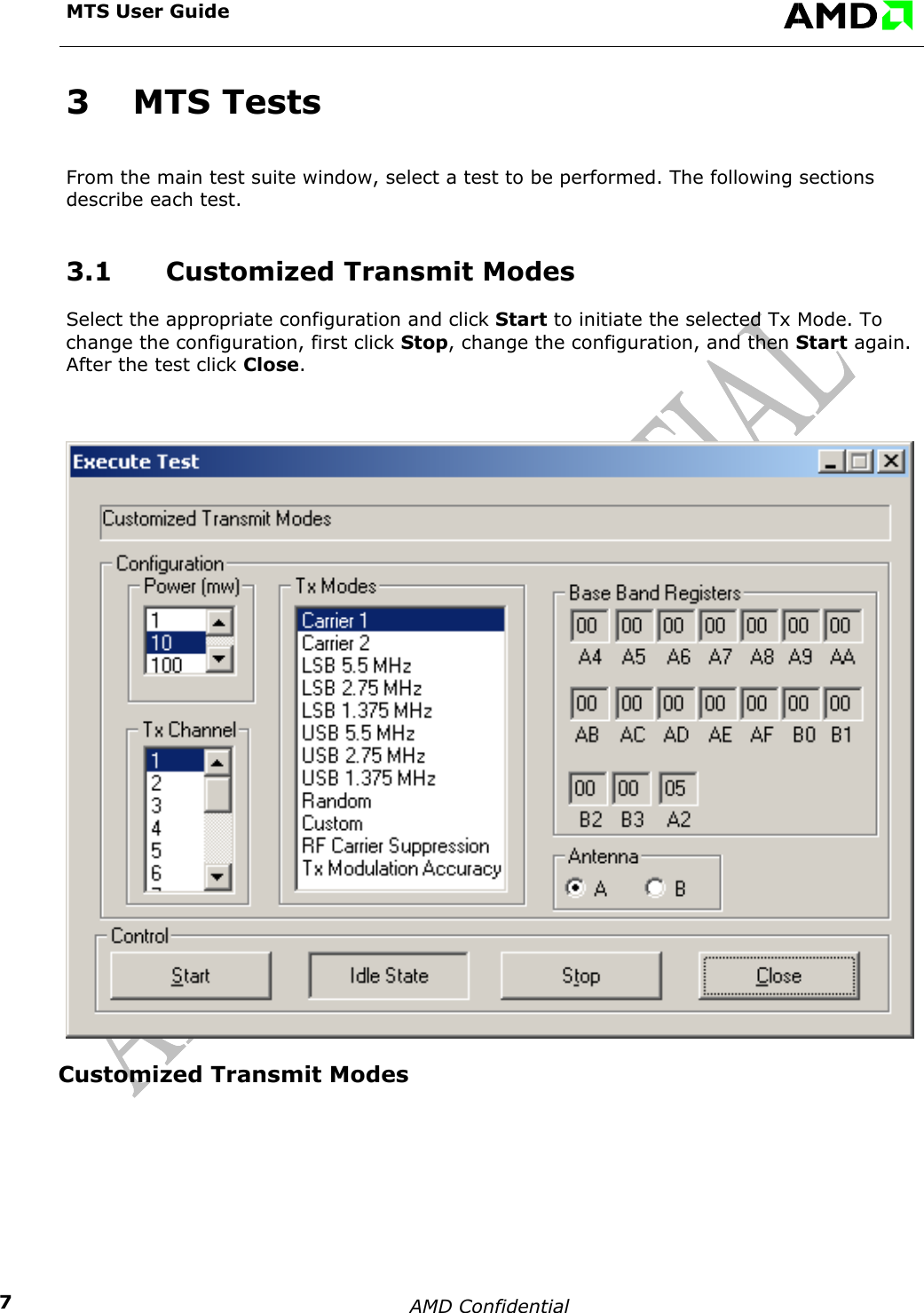

 MTS User Guide    AMD Confidential    73 MTS Tests From the main test suite window, select a test to be performed. The following sections describe each test. 3.1  Customized Transmit Modes Select the appropriate configuration and click Start to initiate the selected Tx Mode. To change the configuration, first click Stop, change the configuration, and then Start again. After the test click Close.  Customized Transmit Modes

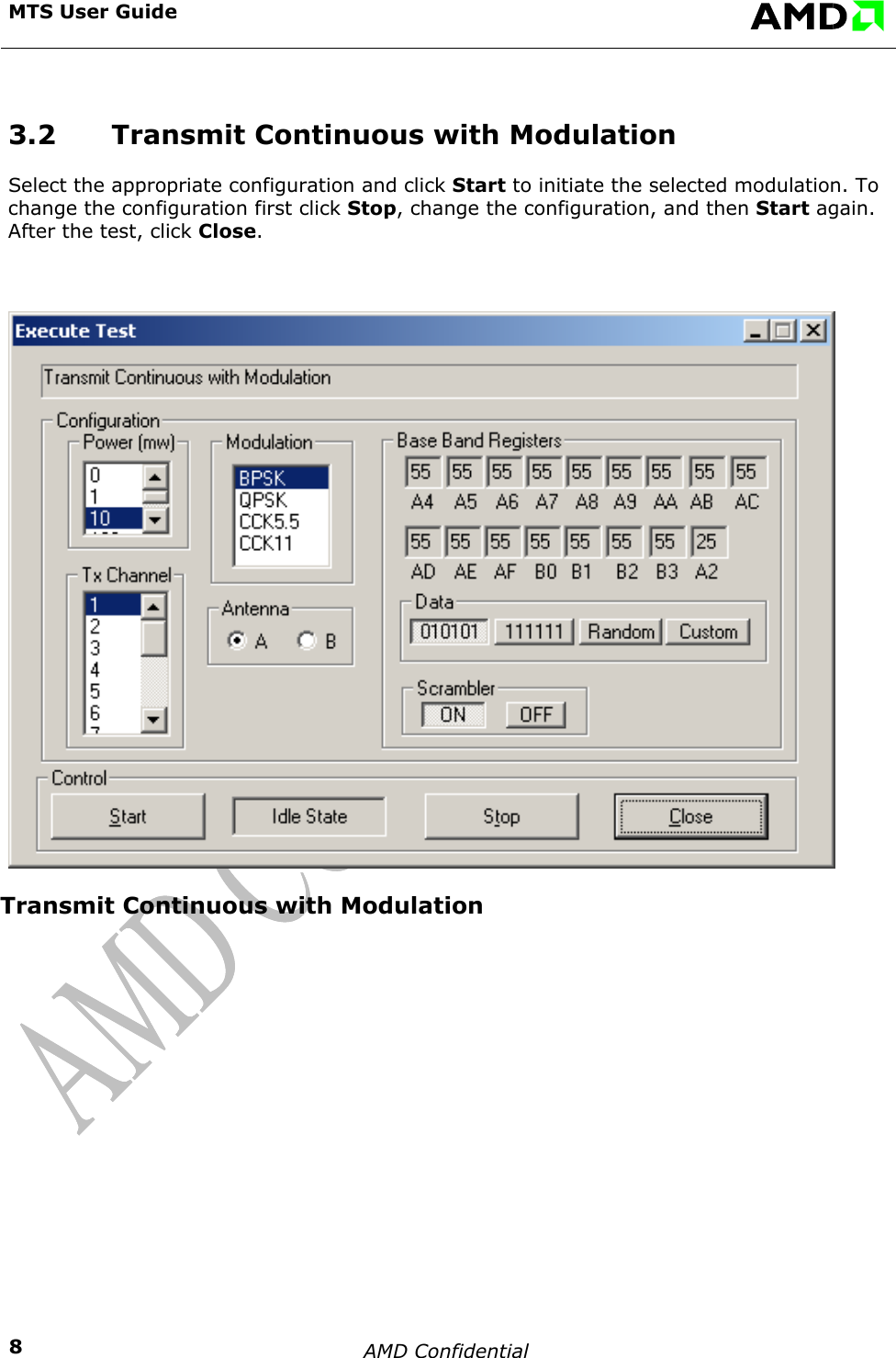

 MTS User Guide    AMD Confidential    83.2  Transmit Continuous with Modulation Select the appropriate configuration and click Start to initiate the selected modulation. To change the configuration first click Stop, change the configuration, and then Start again. After the test, click Close.  Transmit Continuous with Modulation

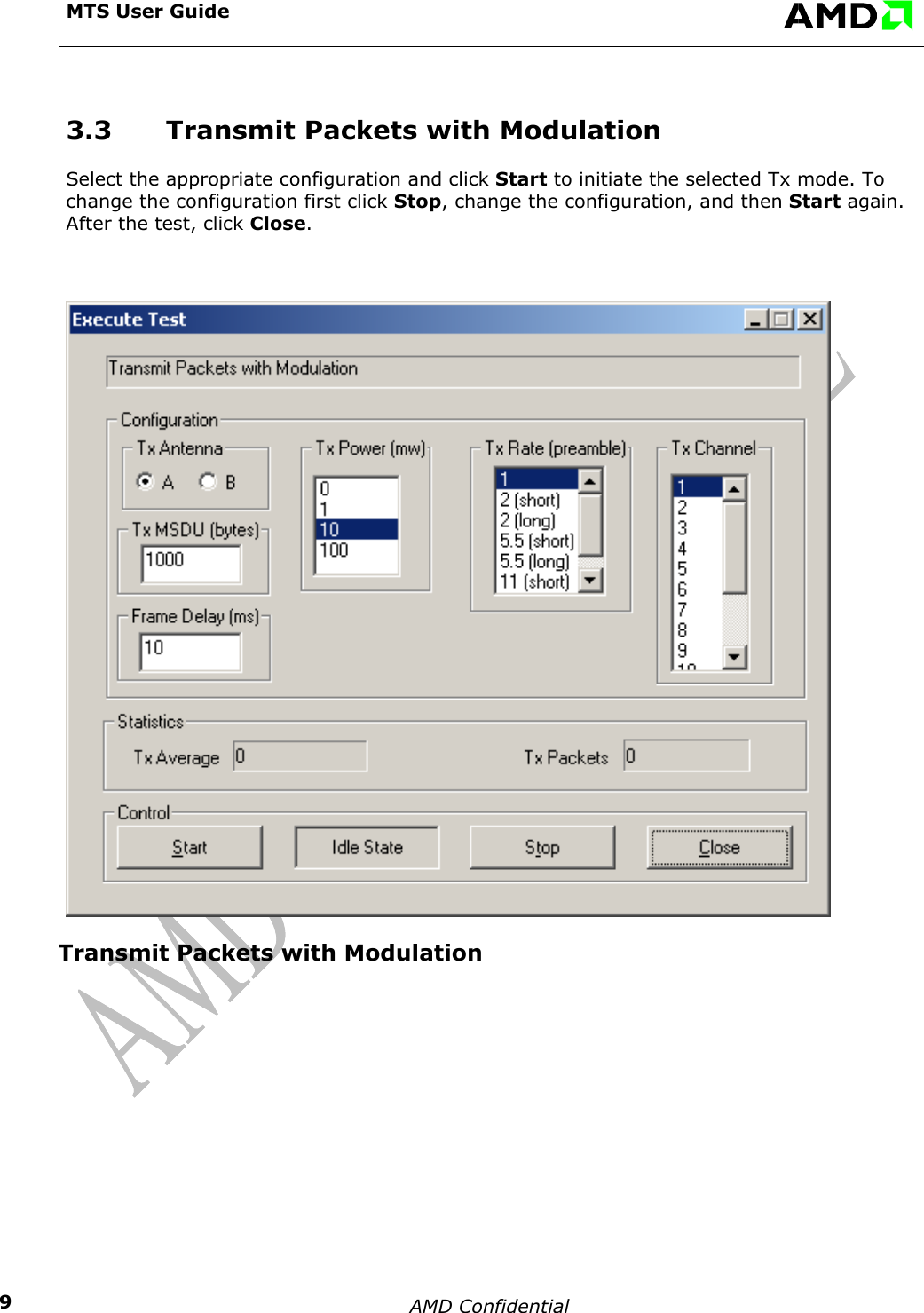

 MTS User Guide    AMD Confidential    93.3  Transmit Packets with Modulation Select the appropriate configuration and click Start to initiate the selected Tx mode. To change the configuration first click Stop, change the configuration, and then Start again. After the test, click Close.  Transmit Packets with Modulation

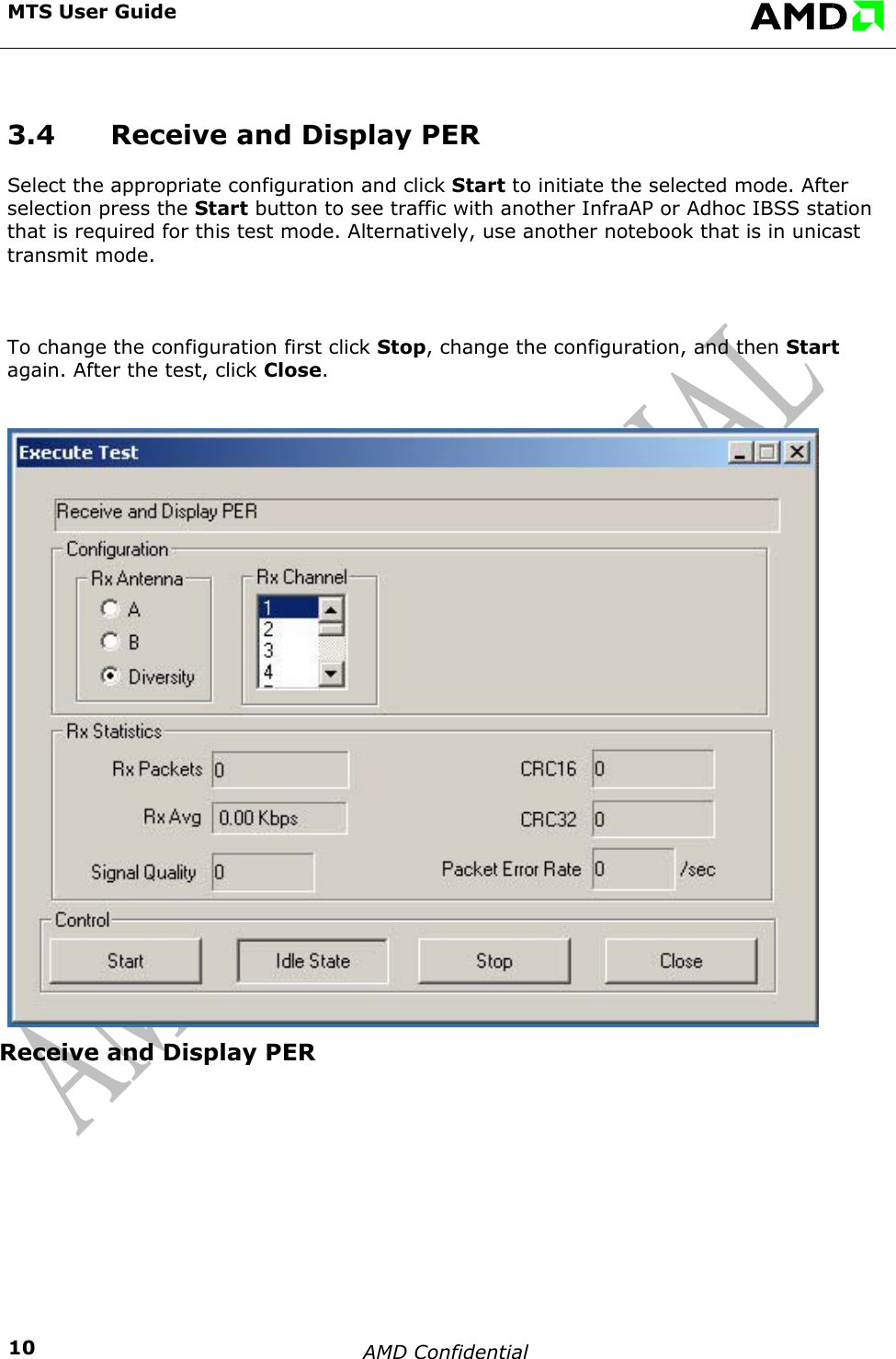

MTS User Guide    AMD Confidential    103.4  Receive and Display PER Select the appropriate configuration and click Start to initiate the selected mode. After selection press the Start button to see traffic with another InfraAP or Adhoc IBSS station that is required for this test mode. Alternatively, use another notebook that is in unicast transmit mode.  To change the configuration first click Stop, change the configuration, and then Start again. After the test, click Close. Receive and Display PER

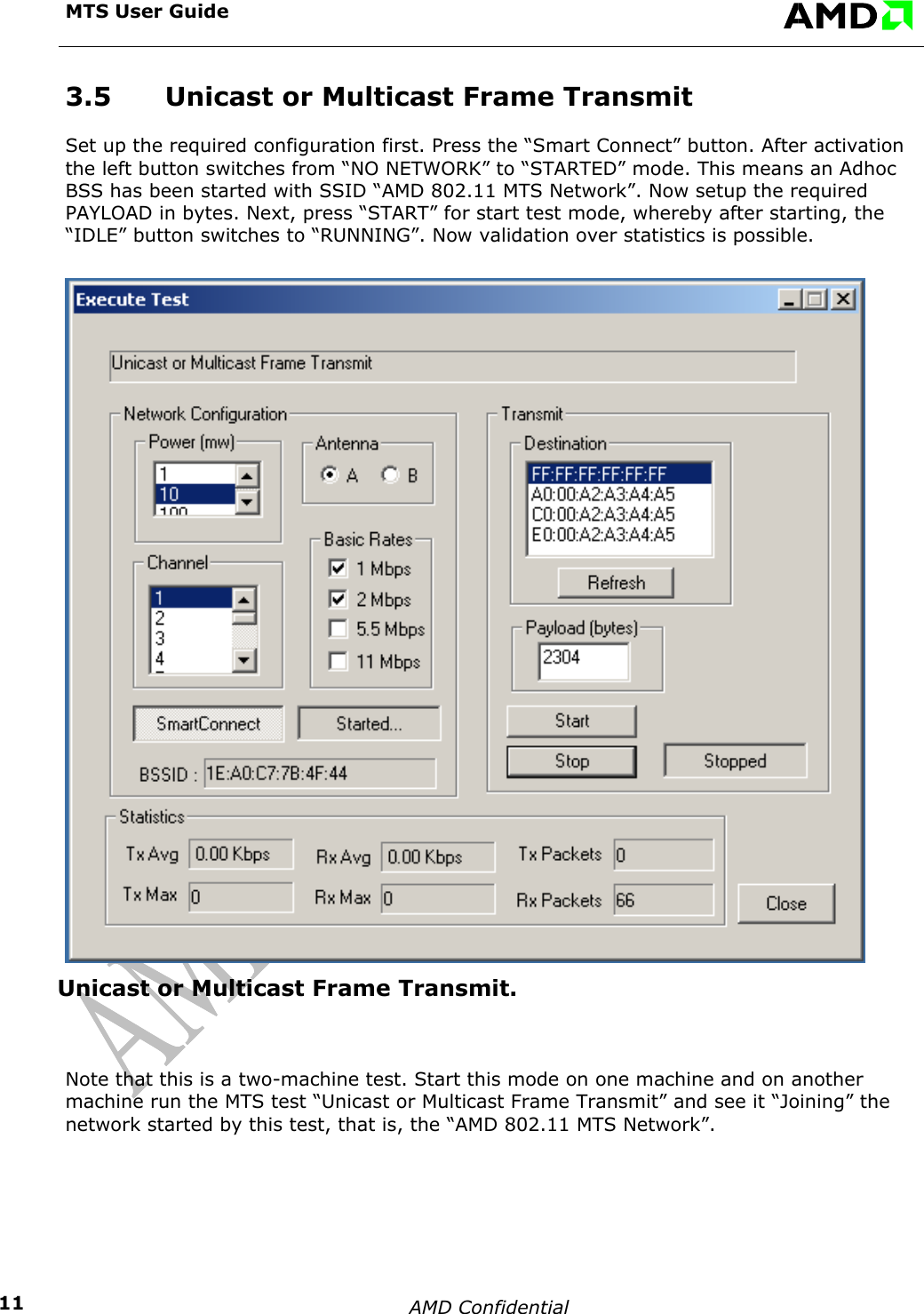

MTS User Guide    AMD Confidential    113.5  Unicast or Multicast Frame Transmit Set up the required configuration first. Press the “Smart Connect” button. After activation the left button switches from “NO NETWORK” to “STARTED” mode. This means an Adhoc BSS has been started with SSID “AMD 802.11 MTS Network”. Now setup the required PAYLOAD in bytes. Next, press “START” for start test mode, whereby after starting, the “IDLE” button switches to “RUNNING”. Now validation over statistics is possible. Unicast or Multicast Frame Transmit.  Note that this is a two-machine test. Start this mode on one machine and on another machine run the MTS test “Unicast or Multicast Frame Transmit” and see it “Joining” the network started by this test, that is, the “AMD 802.11 MTS Network”.

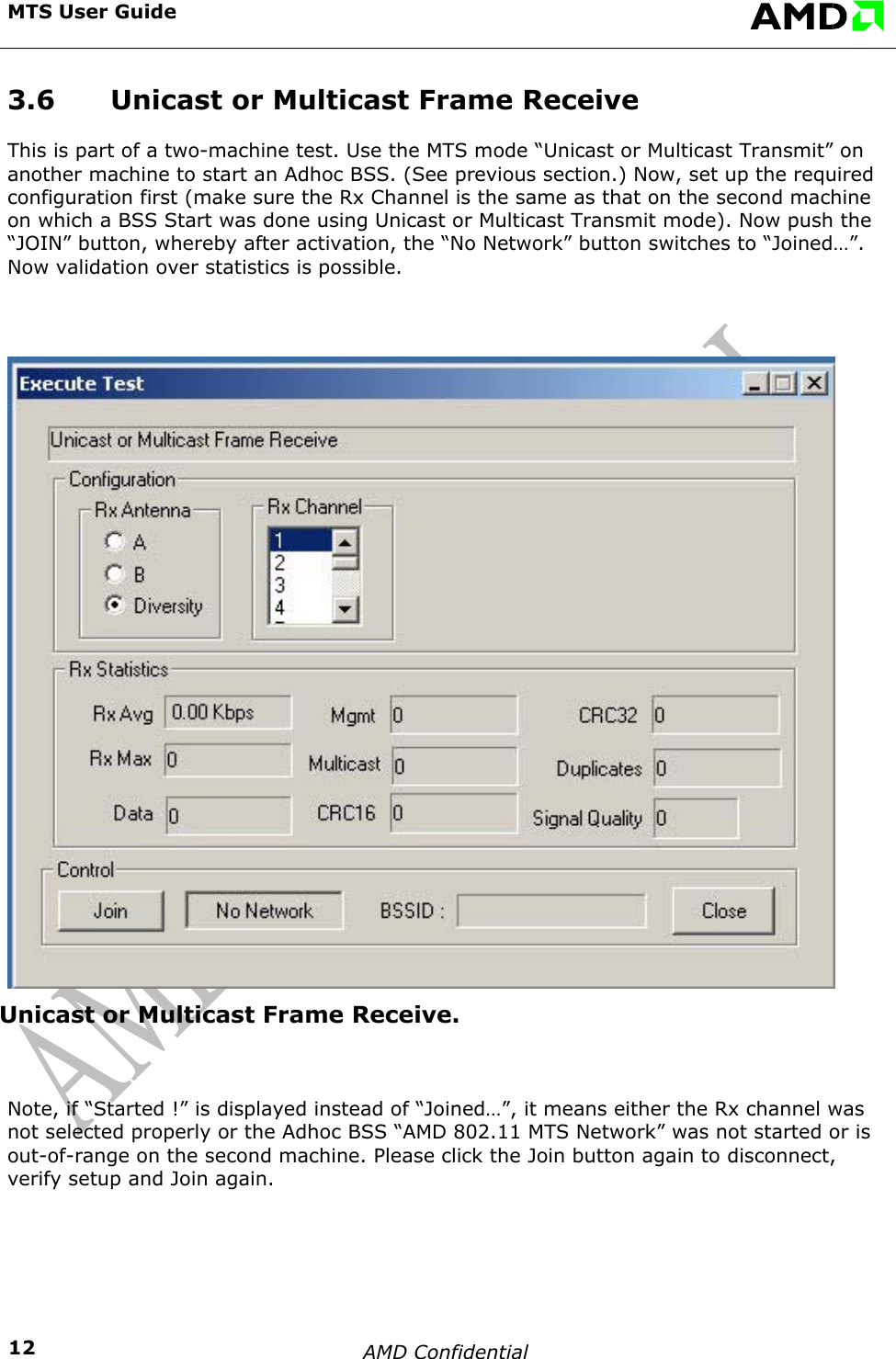

MTS User Guide    AMD Confidential    123.6  Unicast or Multicast Frame Receive This is part of a two-machine test. Use the MTS mode “Unicast or Multicast Transmit” on another machine to start an Adhoc BSS. (See previous section.) Now, set up the required configuration first (make sure the Rx Channel is the same as that on the second machine on which a BSS Start was done using Unicast or Multicast Transmit mode). Now push the “JOIN” button, whereby after activation, the “No Network” button switches to “Joined…”. Now validation over statistics is possible.  Unicast or Multicast Frame Receive.  Note, if “Started !” is displayed instead of “Joined…”, it means either the Rx channel was not selected properly or the Adhoc BSS “AMD 802.11 MTS Network” was not started or is out-of-range on the second machine. Please click the Join button again to disconnect, verify setup and Join again.

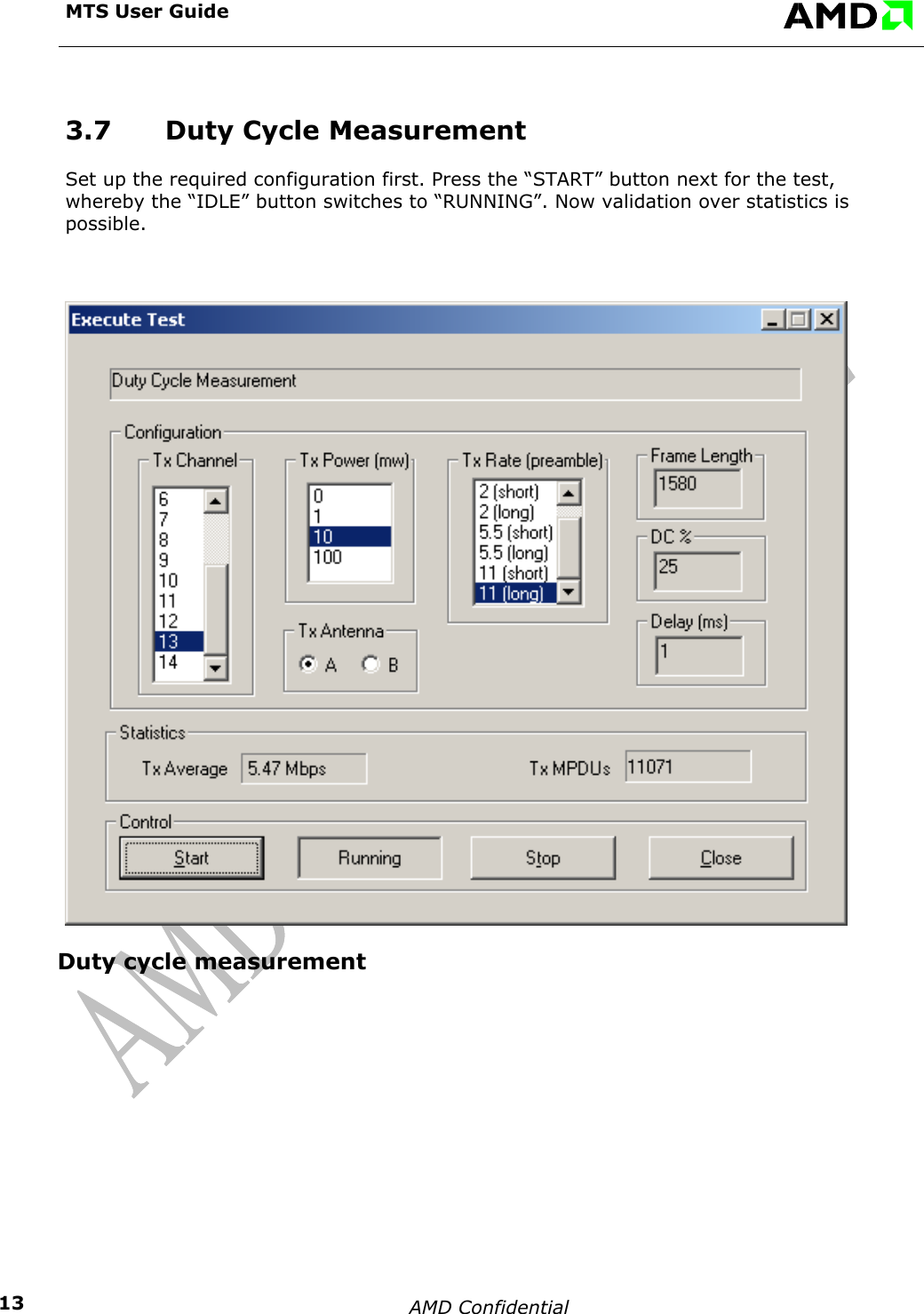

 MTS User Guide    AMD Confidential    133.7  Duty Cycle Measurement Set up the required configuration first. Press the “START” button next for the test, whereby the “IDLE” button switches to “RUNNING”. Now validation over statistics is possible.  Duty cycle measurement

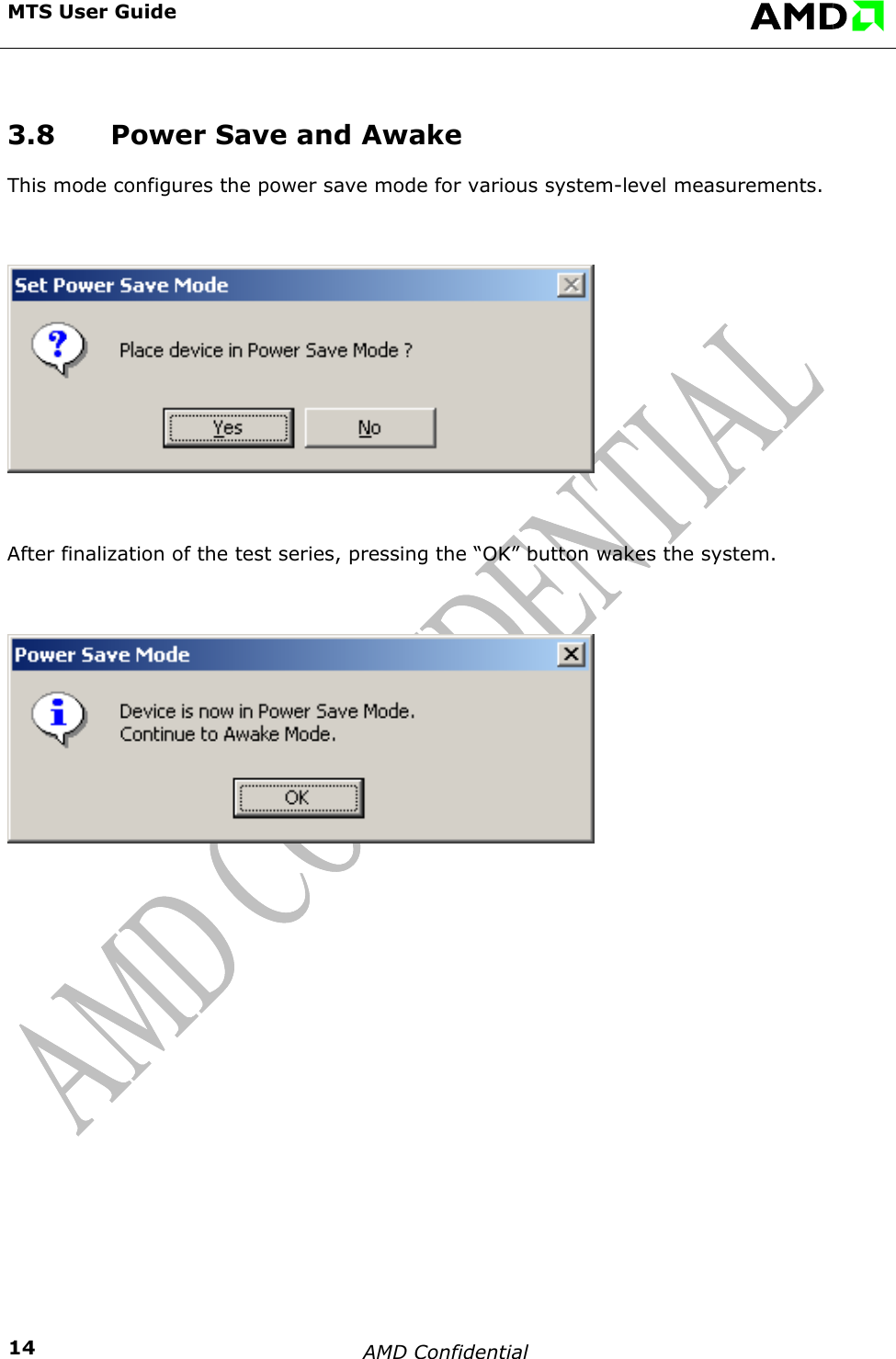

  MTS User Guide    AMD Confidential    143.8  Power Save and Awake This mode configures the power save mode for various system-level measurements.   After finalization of the test series, pressing the “OK” button wakes the system.
