Users Manual
RLX-IHW-OEM
Industrial Hotspot
802.11a, b, g
User Guide
September 06, 2007
Contents RLX-IHW-OEM ? 802.11a, b, g
Industrial Hotspot
ProSoft Technology, Inc. Page 2 of 6
September 6, 2007
Compliance Statement
The following statements must be included in the product documentation for the end device in
which the radio module is embedded:
*This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
CAUTION: Changes or modifications to this radio module not expressly approved by its
manufacturer may void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Product Labeling
This radio module is labeled with an FCC ID number and a Canadian Certification Number. If
this label is not visible when installed in an end-device, the outside of the device MUST also
display a label referring to the enclosed radio module. Use wording on the label similar to the
following:
"Transmitter Module FCC ID: OQ7IHW, Canada 3656AIHW".
OR
"This device contains Transmitter Module FCC ID: OQ7IHW, Canada 3656AIHW"
Radio Frequency Interference Requirements
For the channels in the frequency band 5.15 to 5.25 GHz operation is limited to indoor use only
due to FCC and Canada requirements.
Antenna spacing requirements for user safety
Contents RLX-IHW-OEM ? 802.11a, b, g
Industrial Hotspot
ProSoft Technology, Inc. Page 3 of 6
September 6, 2007
It is important to keep the radio’s antenna a safe distance from the user. To meet the
requirements of FCC part 2.1091 for radio frequency radiation exposure, the following
information must be provided to the end user:
“In order too comply with FCC RF exposure requirements, this device must be operated
in such a way that a minimum 20cm separation distance is maintained between the
antenna, and all persons, during normal operation.”
The installer of this radio equipment must ensure that the antenna is located or pointed such
that it does not emit RF fields in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for
successful communication.
Approved Antennas
Two antenna port connections (for diversity) are provided. The radio uses SMT Ultra Miniature
Coax Connector, Hirose, CL331-0471-0-10 (U.FL-R-SMT). An adaptor cable or interface board
is used to connect to the approved antennas.
The following antennas are approved for use with this module:
Frequency Bands
Type Gain Connector Freq Part#
Omni 2 SMA-RP 2.4,5.2,5.8 A2505S-OA
Omni 2 F-RP 2.4,5.2,5.8 -
Omni 2 RP-SMA 2.4 A2402S-OA
Omni 2 RP-SMA 2.4 A2402S-OS
Omni 2 RP-SMA 2.4 A2402S-OSLP
Omni 3 N 2.4 A2403NJ-OCD
Omni 4 N 2.4 A2404NBHB-O
Omni 4 N 2.4 A2404NBHW-O
Omni 4 N 2.4 A2404NJ-OC
Omni 5 RP-SMA 2.4 A2405S-OA
Omni 5 RP-SMA 2.4 A2405S-OM
Omni 5 RP-SMA 2.4 A2405S-OS
Omni 6 N 2.4 A2406NJ-OC
Omni 6 N 2.4 A2406NJ-OCD
Omni 6 N 5.8 A5006NJ-OC
Omni 6,8 N 2.4,5.8 A2506NJ-OC
Patch 8 N 2.4 A2408NJ-DP
Patch 8,9 N 2.4,5.8 A2508NJ-DP
Parabolic 29 N 5.8 A5829NJ-DB
Contents RLX-IHW-OEM ? 802.11a, b, g
Industrial Hotspot
ProSoft Technology, Inc. Page 4 of 6
September 6, 2007
Installation

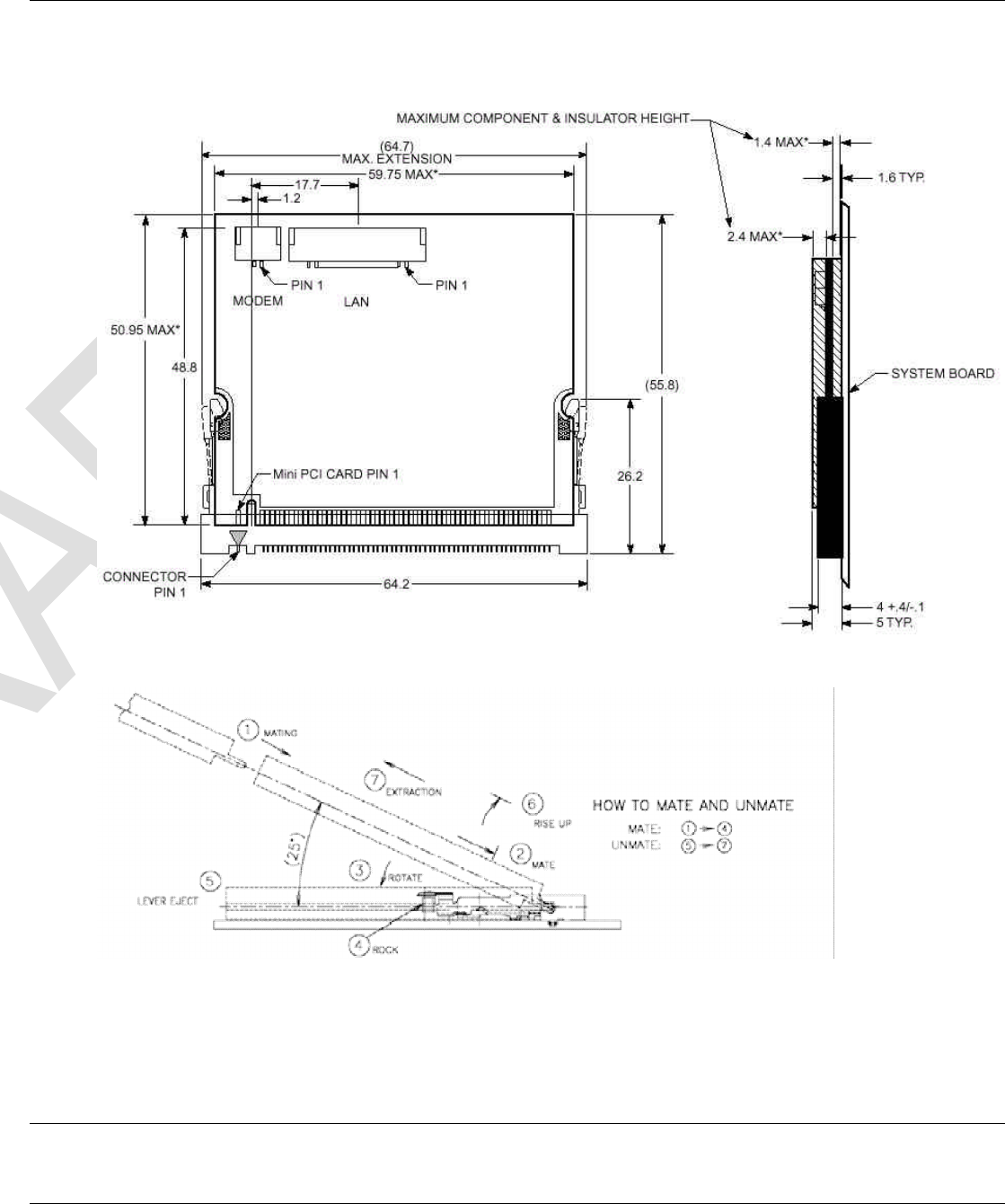

The Radiolinx IHW-OEM module fits into a MiniPCI connector. The diagram below shows the
dimensions of a MiniPCI TypeIIIA card.
The diagram below shows inseration and removal of the Mini-PCI card.
Digital connection is through Mini PCI type III defined by the Mini PCI Specification document
published by the PCI Special Interest Group. As a recommendation, the Molex 67315-0011 can
be used.
Pin Signal Pin Signal Pin Signal Pin Signal
Contents RLX-IHW-OEM ? 802.11a, b, g
Industrial Hotspot
ProSoft Technology, Inc. Page 5 of 6
September 6, 2007
1 TIP 2 RING 63 3.3V 64 FRAME#
Key Key
3 8PMJ-33, 4 4 8PMJ-13, 4 65 CLKRUN# 66 TRDY#
5 8PMJ-63, 4 6 8PMJ-23, 4 67 SERR# 68 STOP#
7 8PMJ-73, 4 8 8PMJ-43, 4 69 GROUND 70 3.3V
9 8PMJ-83, 4 10 8PMJ-53, 4 71 PERR# 72 DEVSEL#
11 LED1_GRNP
12 LED2_YELP 73 C/BE[1]# 74 GROUND
13 LED1_GRNN
14 LED2_YELN 75 AD[14] 76 AD[15]
15 CHSGND 16 RESERVED 77 GROUND 78 AD[13]
17 INTB# 18 5V 79 AD[12] 80 AD[11]
19 3.3V 20 INTA# 81 AD[10] 82 GROUND
21 RESERVED 22 RESERVED 83 GROUND 84 AD[09]
23 GROUND 24 3.3VAUX 85 AD[08] 86 C/BE[0]#
25 CLK 26 RST# 87 AD[07] 88 3.3V
27 GROUND 28 3.3V 89 3.3V 90 AD[06]
29 REQ# 30 GNT# 91 AD[05] 92 AD[04]
31 3.3V 32 GROUND 93 RESERVED 94 AD[02]
33 AD[31] 34 PME# 95 AD[03] 96 AD[00]
35 AD[29] 36 RESERVED 97 5V 98 RESERVED_WIP5
37 GROUND 38 AD[30] 99 AD[01] 100 RESERVED_WIP5
39 AD[27] 40 3.3V 101 GROUND 102 GROUND
41 AD[25] 42 AD[28] 103 AC_SYNC 104 M66EN
43 RESERVED 44 AD[26] 105 AC_SDATA_IN 106 AC_SDATA_OUT
45 C/BE[3]# 46 AD[24] 107 AC_BIT_CLK 108 AC_CODEC_ID0#
47 AD[23] 48 IDSEL 109 AC_CODEC_ID1# 110 AC_RESET#
49 GROUND 50 GROUND 111 MOD_AUDIO_MON 112 RESERVED
51 AD[21] 52 AD[22] 113 AUDIO_GND 114 GROUND
53 AD[19] 54 AD[20] 115 SYS_AUDIO_OUT 116 SYS_AUDIO_IN
55 GROUND 56 PAR 117 SYS_AUDIO_OUT
GND 118 SYS_AUDIO_IN
GND
57 AD[17] 58 AD[18] 119 AUDIO_GND 120 AUDIO_GND
59 C/BE[2]# 60 AD[16] 121 RESERVED 122 MPCIACT#
61 IRDY# 62 GROUND 123 VCC5VA 124 3.3VAUX
The signal CHSGND is a chassis ground contact and is connected on the Mini PCI Card via a
spring contact clip.
Technical Specifications
Radio Technology IEEE 802.11 a\b\g Turbo (DSSS and OFDM)
Operating Frequency 2412-2484 MHz and 4900-5900 MHz
Modulation Schemes OFDM with BPSK, QPSK, 16QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
RF Channel Availability United States: 11 channels (2412 to 2462 MHz)
Europe: 13 channels (2412 to 2472 MHz) Japan:13 channels
(2412 to 2472 MHz); channel 14 (2484 MHz)
United States: 12 channels (5180 to 5805 MHz)
Contents RLX-IHW-OEM ? 802.11a, b, g
Industrial Hotspot
ProSoft Technology, Inc. Page 6 of 6
September 6, 2007
Europe: 12 channels (5180 to 5805 MHz)
Japan:11 channels (4920 to 5230 MHz)
Data Rate OFDM: 54,36,24,18,12,9 and 6 Mbps
CCK: 11 and 5.5 Mbps
QPSK: 2 Mbps
BPSK: 1 Mbps
Media Access Protocol CSMA/CA with ACK
Transmitter RF Output
Power <20 dBm EIRP (typical) including antenna gain
Operating Voltage 3.3 Vdc (mini PCI slot of host computer)
Interface PC Card mini PCI
Device Driver Microsoft Windows 98SE/ME/NT/2000/XP
