Psion 8515BT VEHICLE-MOUNT COMPUTER w/ BLUETOOTH User Manual 8515 Vehicle Mount Computer

Psion Inc VEHICLE-MOUNT COMPUTER w/ BLUETOOTH 8515 Vehicle Mount Computer

Contents

INSTALLATION INSTRUCTIONS

Peripheral Devices & Accessories
Installing The MT34XX RAM Mounting Kit
Psion Teklogix 8515 Vehicle-Mount Computer User Manual
1. Select the best orientation for your specific application. Preferred orientations maintain
the centre of mass of the vehicle-mount assembly, directly over the centre of the base.

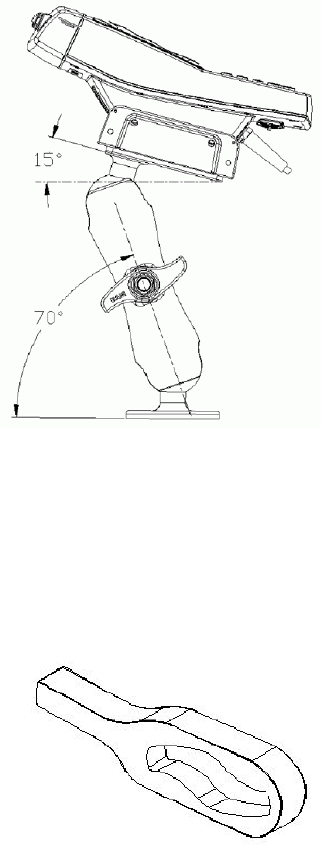

Orientation Of Vehicle-Mount Assembly
The tilt and rotation of the cradle can be adjusted by the operator. Keep in mind that if
the handscrew is loosened, the cradle can slip causing harm to the operator or damage to
equipment. Also note that under extreme vibration, the mount may slowly ‘settle’.
Occasional readjustment and tightening of the handscrew may be required. Psion Tek-
logix offers a tightening tool (P/N 9000594) which can be used to minimize settling.
Tightening Tool
Peripheral Devices & Accessories
Installing The MT34XX RAM Mounting Kit
Psion Teklogix 8515 Vehicle-Mount Computer User Manual
The platform on which you secure the vehicle-mount must be strong enough to support
5 kg. Never attach the mount to a plastic dash or a wooden platform without the appro-
priate backing plate and bracing. In addition, you must provide operator access at the
top, bottom, and sides of the unit.
Keyboard RAM Mount
RAM Mount Kit
You can install two vesa plates or one each of a vesa plate and a RAM ball end to the RAM
mount.
With the keyboard RAM ball end or vesa plate(s) installed on the RAM mount:
• Attach the RAM mount to a standard cradle (P/N 1008442) using the hardware included
with your kit.
• Attach the other end of the mount to almost any surface. The ball design allows both
ends of the RAM mount to be angled to suit the operator's needs.
2.Attaching the mounting bracket to the vehicle-mount: The kit provides four screws
and washers that are used to secure the mounting bracket to the vehicle-mount. Place
screw (D) through washer (C) and mounting bracket (B) and affix to the vehicle-mount
(A). Torque to 23 in-lbs.
RAM Mount Kit P/N 1008447
RAM Ball End
P/N 9001804
Vesa Plate
P/N 9001934
4 inch RAM Mount
P/N 9001932
