QUANSHENG ELECTRONICS TG-45UV Two Way Radio User Manual

Fujian Nanan Quansheng Electronics Co., Ltd. Two Way Radio

user manual

USER'S MANUALTwo way radioTG-45UVFCC ID:XBPTG-45UV
PRECAUTIONS BEFORE USINGPlease read the User's Manual before using. It gives you important information about how to operate the portable radio.Please put the radio and accessories where the children can not touch.Maintenance can only be performed by professional technicians.Please use the standard battery pack and charger in order not to destroy the radio.Please use the standard antenna,in order not to shorten the distance.Do not expose the radio to sunlight for a long period of time, nor put it near the heat, nor use it in a high temperature environment.Do not put it in extreme dust nor wet or on unsteady surfaces.Keep it dry. (Rain or moisture will erode the electronic board).Do not transmit when the antenna is not installed.If you find bad smell or smog,please turn off the radio immediately.And take the battery off the radio,then contact with QS agent.Thank you for purchasing this Radio. We believe this easy-to-use radio will provide reliable and dependable communication. QS Radio incorporates the latest advanced technology. As a result, we know that you will be pleased with the quality and features of this product. 45UV
CONTENTSFEATURESUHF/VHF dual band receive/transmitFM radio (65-108MHz)Large LCD displayHigh capacity Li-ion battery and smart chargerPC programmableFast MENU operation Emergency alarm functionSquelch level adjustableMulti power saving functionVoice prompt(Chinese or English)Reminding switchDual display of frequency and channelChannel name editChannel storingFrequency/Channel mode shiftMulti LCD backlight selectiveTime of backlight auto off selectiveVOX functionDual-watch operationReceive/Transmit code setting separatelyCable cloneCTCSS/DCS code search automaticallyFrequency deviation and offset direction settingMulti step frequencyBusy channel lockTime-out-timer(TOT)Multi display mode: channel/channel-frequency/channel nameMulti scan function selectiveChannel scan additiveMain/Sub channel shift1750Hz call toneReminding of repeater transferAuto-keylock128 channelsChannel delete functionResetDTMF functionPTT-IDCTCSS/DCSReverse functionStun/Kill/ReviveSingle call/Group call/Troop call0102020304040506-070809090910-121314-222323SUPPLIED ACCESSORIESREADY TO WORK CHARGING NOTES (1) CHARGING NOTES (2) INSTALLING ANTENNA INSTALLING BELT CLIP INSTALLING EXTERNAL SPEAKER/MICROPHONE ATTACHING THE BATTERY PACKDIAGRAM BASIC OPERATION LCD DISPLAY LCD ICON EXPLANATION SHORTCUT KEYSMENU FUNCTIONSFAST MENU OPERATION FLOWFUNCTION OPERATION AND DESCRIPTION SQUELCH LEVEL（SQL）

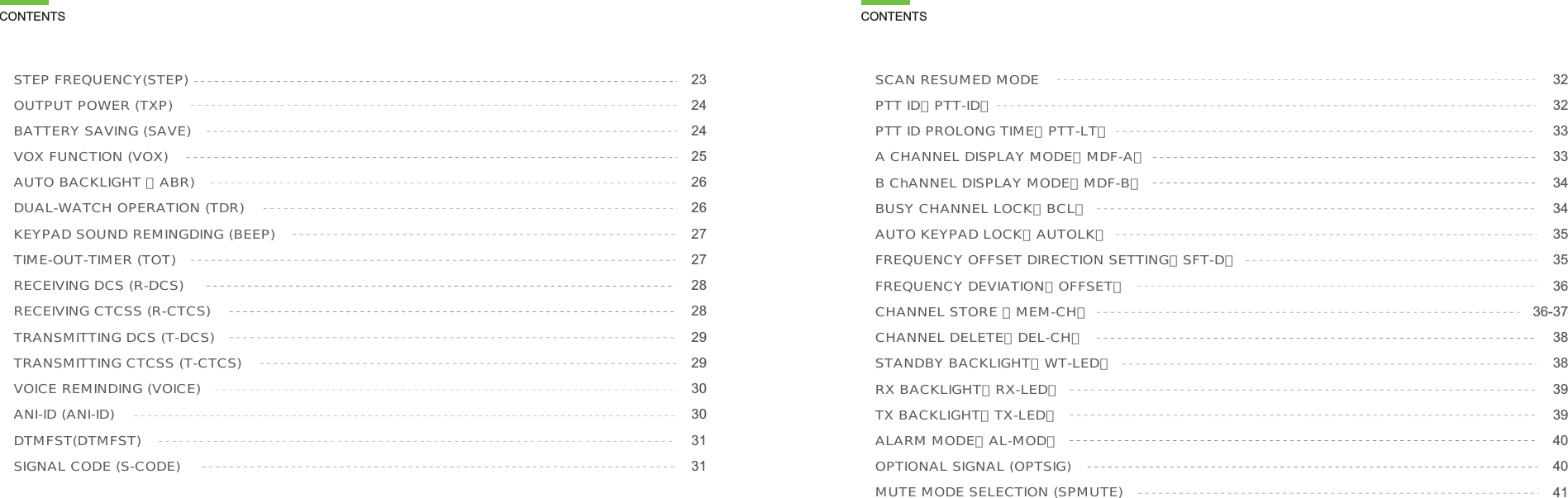

32323333343435353636-3738383939404041 SCAN RESUMED MODE PTT ID（PTT-ID） PTT ID PROLONG TIME（PTT-LT） A CHANNEL DISPLAY MODE（MDF-A） B ChANNEL DISPLAY MODE（MDF-B） BUSY CHANNEL LOCK（BCL） AUTO KEYPAD LOCK（AUTOLK） FREQUENCY OFFSET DIRECTION SETTING（SFT-D） FREQUENCY DEVIATION（OFFSET） CHANNEL STORE （MEM-CH） CHANNEL DELETE（DEL-CH） STANDBY BACKLIGHT（WT-LED） RX BACKLIGHT（RX-LED） TX BACKLIGHT（TX-LED） ALARM MODE（AL-MOD） OPTIONAL SIGNAL (OPTSIG) MUTE MODE SELECTION (SPMUTE)23242425262627272828292930303131 STEP FREQUENCY(STEP) OUTPUT POWER (TXP) BATTERY SAVING (SAVE) VOX FUNCTION (VOX) AUTO BACKLIGHT （ABR) DUAL-WATCH OPERATION (TDR) KEYPAD SOUND REMINGDING (BEEP) TIME-OUT-TIMER (TOT) RECEIVING DCS (R-DCS) RECEIVING CTCSS (R-CTCS) TRANSMITTING DCS (T-DCS) TRANSMITTING CTCSS (T-CTCS) VOICE REMINDING (VOICE) ANI-ID (ANI-ID) DTMFST(DTMFST) SIGNAL CODE (S-CODE)CONTENTS CONTENTS
48484949505051-5252-565758-5960 REVERSE FUNCTION（ R ） FREQUENCY SCANNING CHANNEL SCANNING AUTOMATIC SEARCH FM RADIO（FM） SEARCH CTCSS/DCS CODE CURSOR“▲” CONVERSION（A/B） STUN/KILL/REVIVE SINGLE CALII/GROUP CALL/TROOP CALLCTCSS TABLE LISTDCS TABLE LISTSPECIFICATONS4142424343444445454546464747474747TAIL TONE ELIMINATION（STE）TAIL TONE ELIMINATION WHEN THROUGH REPEATER（RP-SET）DELAY TIME OF TAIL TONE ELIMINATION WHEN THROUGH REPEATER（RPT-RL）DISPLAYS WHEN POWER ON（PONMSG）CALL END WARNING TONE（ROGER）DUAL-WATCH OPERATION（TDR-AB）RESET（RESET） VFO-MENU INITIALIZATION ALL-MENU AND CHANNEL INITIALIZATIONMANUALLY LOCK THE KEYPADSFM RADIO（FM）RAPID ALERT（ALARM）JACKLIGHTMONITOR（MON）CABLE CLONE（COPING）CHANNEL/FREQUENCY MODE CONVERSION（VF0/MR）TX 1750Hz CALL TONECONTENTS CONTENTS

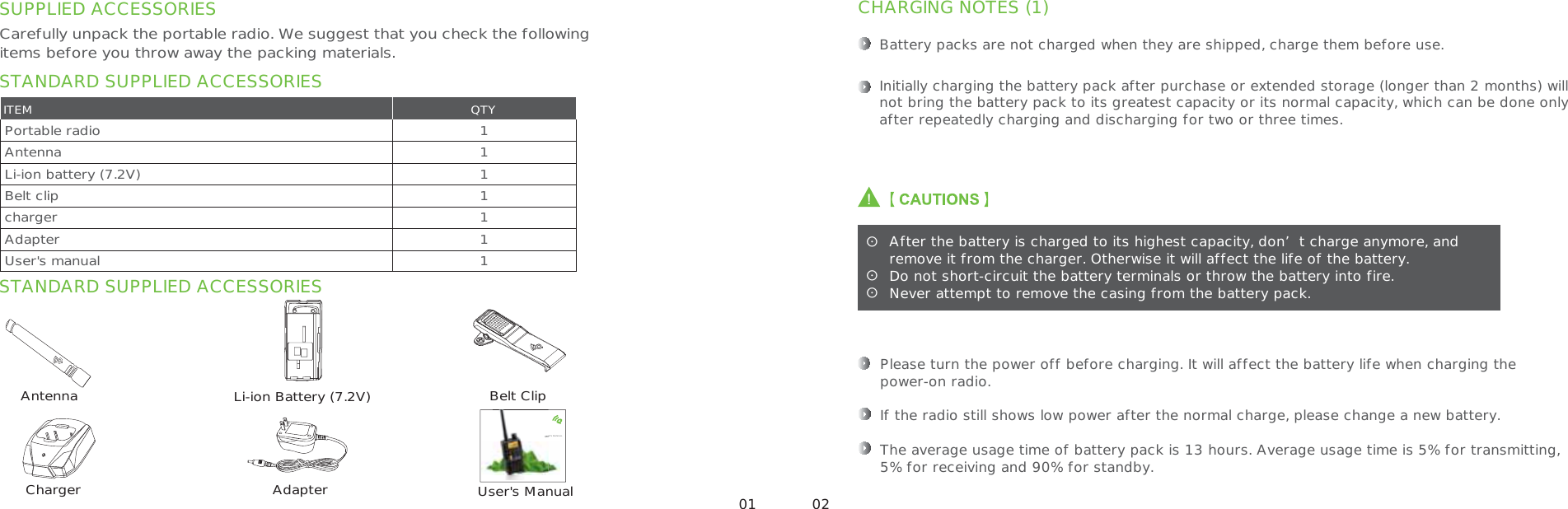

Battery packs are not charged when they are shipped, charge them before use.Initially charging the battery pack after purchase or extended storage (longer than 2 months) will not bring the battery pack to its greatest capacity or its normal capacity, which can be done only after repeatedly charging and discharging for two or three times.CHARGING NOTES (1)ʎʎʎAfter the battery is charged to its highest capacity, don’t charge anymore, and remove it from the charger. Otherwise it will affect the life of the battery. Do not short-circuit the battery terminals or throw the battery into fire.Never attempt to remove the casing from the battery pack.!Please turn the power off before charging. It will affect the battery life when charging the power-on radio.If the radio still shows low power after the normal charge, please change a new battery.The average usage time of battery pack is 13 hours. Average usage time is 5% for transmitting, 5% for receiving and 90% for standby.01 02SUPPLIED ACCESSORIESSTANDARD SUPPLIED ACCESSORIESSTANDARD SUPPLIED ACCESSORIESCarefully unpack the portable radio. We suggest that you check the following items before you throw away the packing materials.Antenna Li-ion Battery (7.2V) Belt ClipAdapter User's ManualChargerPortable radioAntennaLi-ion battery (7.2V)Belt clipcharger AdapterUser's manual1111111ITEM QTYUSER'S MANUAL

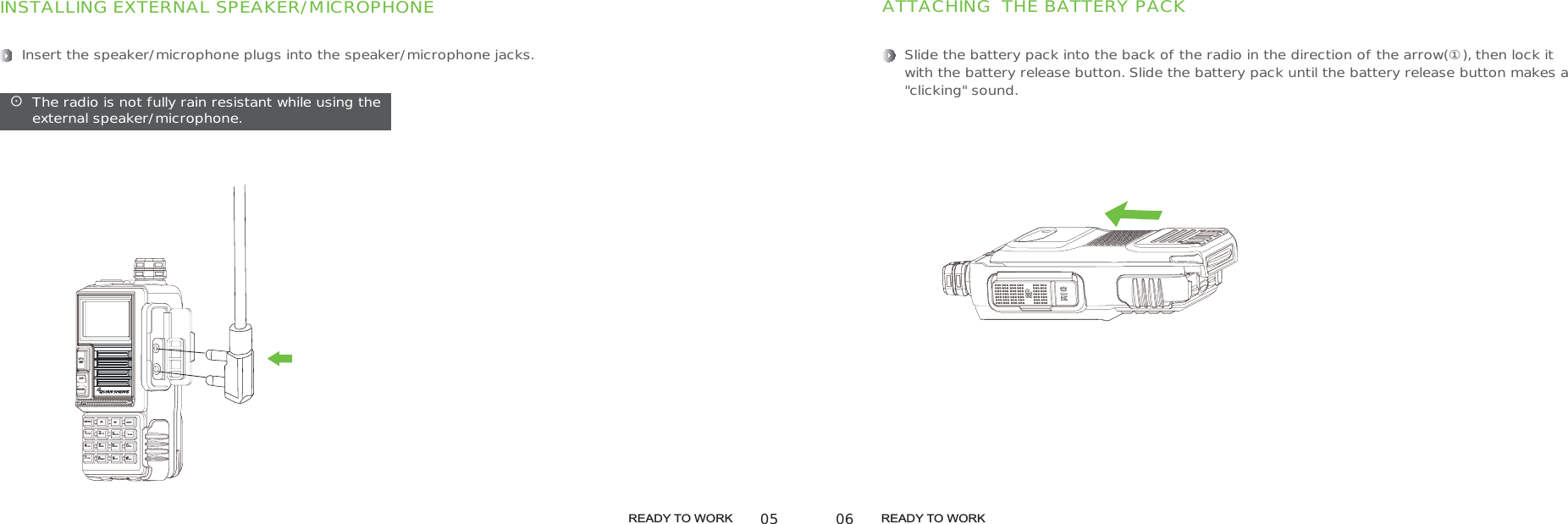

READY TO WORK READY TO WORKThe radio is not fully rain resistant while using the external speaker/microphone.ʎATTACHING THE BATTERY PACKINSTALLING EXTERNAL SPEAKER/MICROPHONEInsert the speaker/microphone plugs into the speaker/microphone jacks. Slide the battery pack into the back of the radio in the direction of the arrow(①), then lock it with the battery release button. Slide the battery pack until the battery release button makes a "clicking" sound.05 06MENU EXIT^^1STEP 2TXP 3SAVE0SQL6ABR5WN7TDR4VOX8BEEP 9TOT #*SCANBANDA/BVFO MR

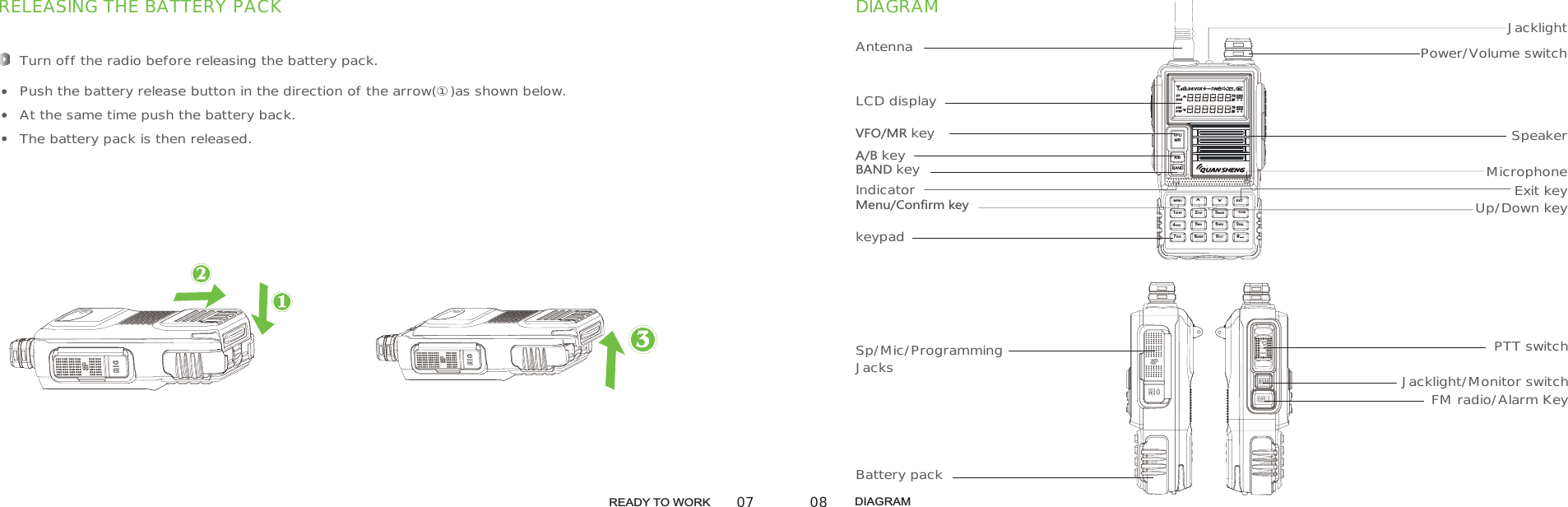

READY TO WORK DIAGRAMDIAGRAMTurn off the radio before releasing the battery pack.Push the battery release button in the direction of the arrow(①)as shown below.At the same time push the battery back.The battery pack is then released. RELEASING THE BATTERY PACKBAND keyIndicatorMenu/Confirm keykeypadAntennaLCD displayVFO/MR keyA/B keySp/Mic/ProgrammingJacksBattery packMicrophoneExit keyUp/Down keySpeakerJacklightPower/Volume switchPTT switchJacklight/Monitor switchFM radio/Alarm Key07 08MENU EXIT^^1STEP 2TXP 3SAVE0SQL6ABR5WN7TDR4VOX8BEEP 9TOT*#SCANVFOMRA/BBAND

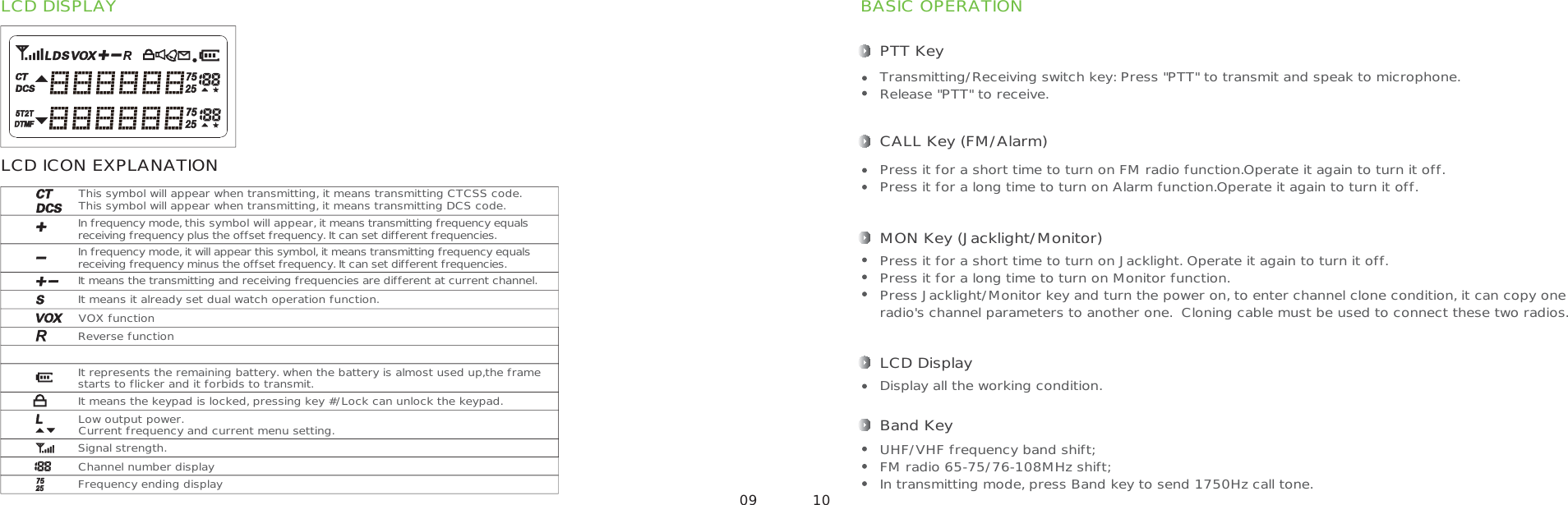

LCD DISPLAYLCD ICON EXPLANATIONThis symbol will appear when transmitting, it means transmitting CTCSS code. This symbol will appear when transmitting, it means transmitting DCS code.BASIC OPERATIONPTT KeyTransmitting/Receiving switch key: Press "PTT" to transmit and speak to microphone.Release "PTT" to receive.CALL Key (FM/Alarm)Press it for a short time to turn on FM radio function.Operate it again to turn it off.Press it for a long time to turn on Alarm function.Operate it again to turn it off.MON Key (Jacklight/Monitor)Press it for a short time to turn on Jacklight. Operate it again to turn it off.Press it for a long time to turn on Monitor function.Press Jacklight/Monitor key and turn the power on, to enter channel clone condition, it can copy oneradio's channel parameters to another one. Cloning cable must be used to connect these two radios.Band KeyUHF/VHF frequency band shift;FM radio 65-75/76-108MHz shift; In transmitting mode, press Band key to send 1750Hz call tone.LCD DisplayDisplay all the working condition.In frequency mode, this symbol will appear, it means transmitting frequency equals receiving frequency plus the offset frequency. It can set different frequencies.In frequency mode, it will appear this symbol, it means transmitting frequency equals receiving frequency minus the offset frequency. It can set different frequencies.It means the transmitting and receiving frequencies are different at current channel.It means it already set dual watch operation function.VOX functionReverse functionIt represents the remaining battery. when the battery is almost used up,the frame starts to flicker and it forbids to transmit.It means the keypad is locked, pressing key #/Lock can unlock the keypad.Low output power.Current frequency and current menu setting.Signal strength.Channel number display Frequency ending display09 10

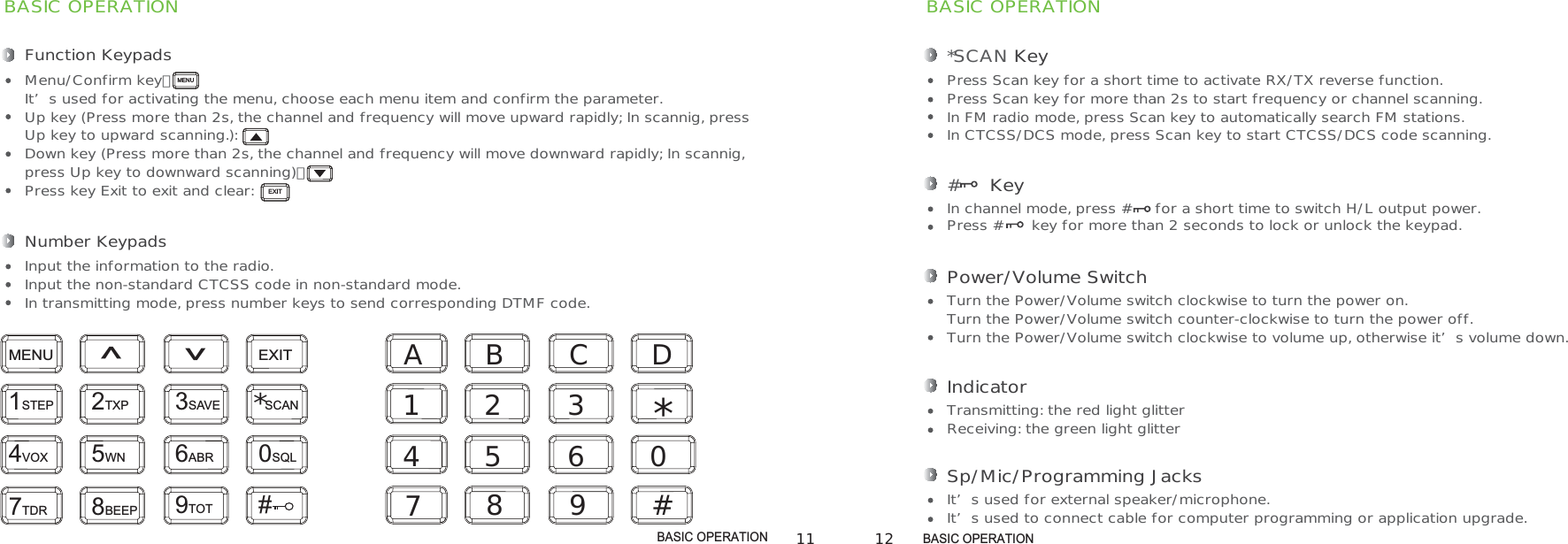

BASIC OPERATION BASIC OPERATIONBASIC OPERATIONFunction KeypadsMenu/Confirm key：It’s used for activating the menu, choose each menu item and confirm the parameter.Up key (Press more than 2s, the channel and frequency will move upward rapidly; In scannig, pressUp key to upward scanning.):Down key (Press more than 2s, the channel and frequency will move downward rapidly; In scannig, press Up key to downward scanning)：Press key Exit to exit and clear:Number KeypadsInput the information to the radio.Input the non-standard CTCSS code in non-standard mode.In transmitting mode, press number keys to send corresponding DTMF code. MENUEXITBASIC OPERATION*SCAN Key Press Scan key for a short time to activate RX/TX reverse function.Press Scan key for more than 2s to start frequency or channel scanning.In FM radio mode, press Scan key to automatically search FM stations.In CTCSS/DCS mode, press Scan key to start CTCSS/DCS code scanning.IndicatorTransmitting: the red light glitter Receiving: the green light glitterSp/Mic/Programming JacksIt’s used for external speaker/microphone. It’s used to connect cable for computer programming or application upgrade.# Key In channel mode, press # for a short time to switch H/L output power. Press # key for more than 2 seconds to lock or unlock the keypad.Power/Volume SwitchTurn the Power/Volume switch clockwise to turn the power on.Turn the Power/Volume switch counter-clockwise to turn the power off.Turn the Power/Volume switch clockwise to volume up, otherwise it’s volume down. 11 12SCANMENU EXIT^^1STEP 2TXP 3SAVE0SQL6ABR5WN7TDR4VOX8BEEP 9TOT #*ABCD123*4560789#

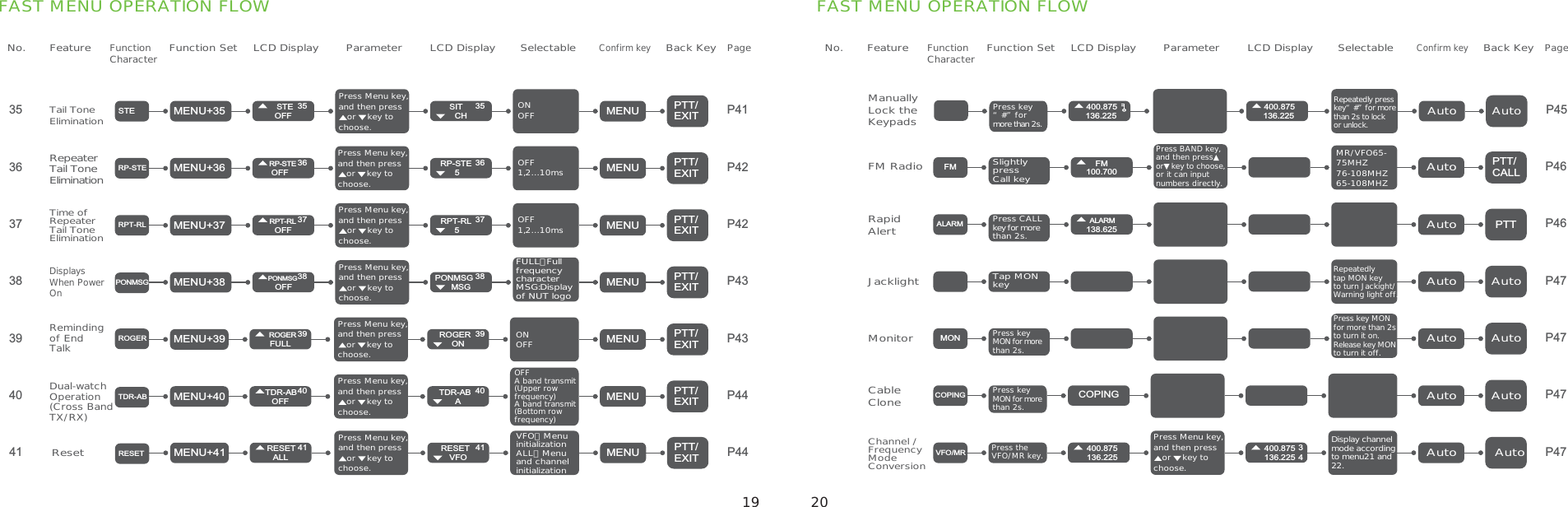

MENU FUNCTIONSFAST MENU OPERATION FLOW FAST MENU SETTING FAST MENU OPERATION FLOW1234560No. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageP22P23P24P24P25P25P26Menu No.MenuParameterMenu No.MenuParameterMenu No.MenuParameter SettingMenu No.MenuParameter Confirmʎ① In channel mode, the setting of following features is invalid: CTCSS/DCS, Wide/Narrow bandwidth, PTT-ID. Busy channel lock, Channel scan additive, Channel name edit.② High/Low power can only be changed by pressing fast key #.!NOTESquelch LevelStep FrequencyOutput PowerBattery SavingVOXChannelBandwidthAuto BacklightPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITMENUMENUMENUMENUMENUMENUPTT/EXITMENUMENU+0MENU+1MENU+3MENU+4MENU+5MENU+6MENU+20-9 levels0:Lowest9:Highest2.5/5.0/6.25/10.0/12.5/25.0KHZOFF：OFF１:１ ２:２３:３ ４:４HIGH: 6WLOW: 1WOFF: OFF10: Lowest Sensitivity1: HighestSensitivityW: 25.0KN: 12.5KOFF:1-5s0SQL51STEP20.5K2TXPHIGH3SAVE14VOXOFF5WNWIDE6ABROFF0SQL61STEP12.5K2TXPLOW3SAVE24VOX95WNNARR6ABRNARRSQLSTEPTXPSAVEVOXW/NABR1 Press Menu key;2 Press Menu key again;3 Press Up/Down key to select Menu No. 4 press Menu to confirm or EXIT key to exit(As picture below).Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.13 14

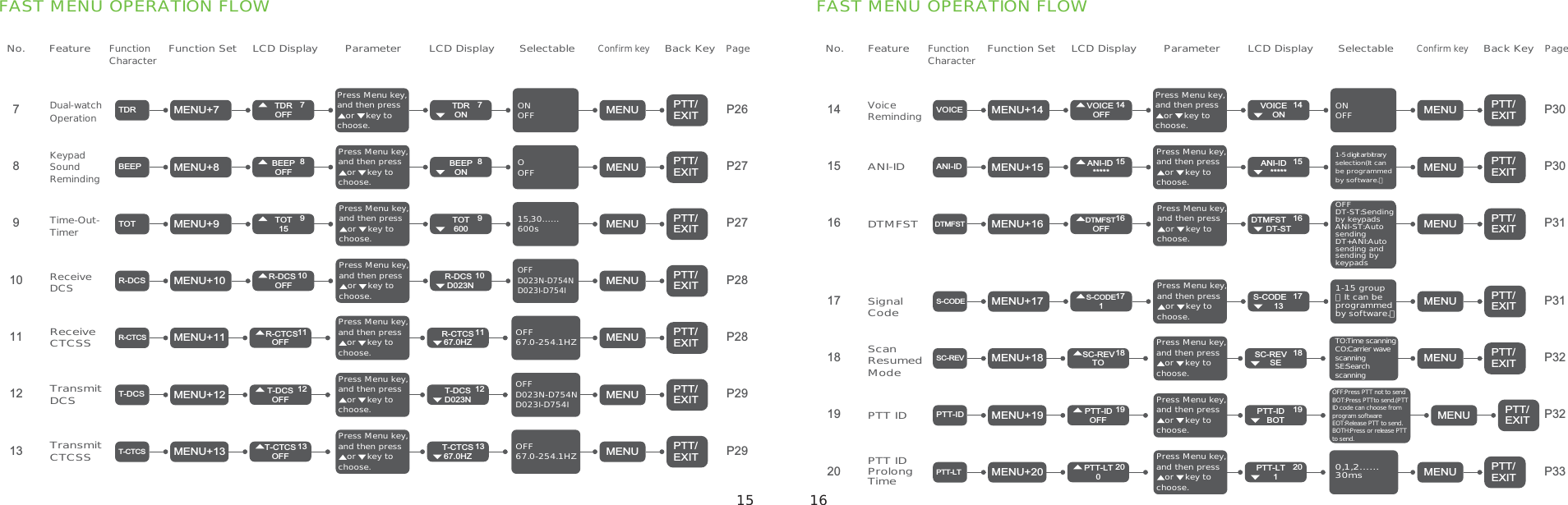

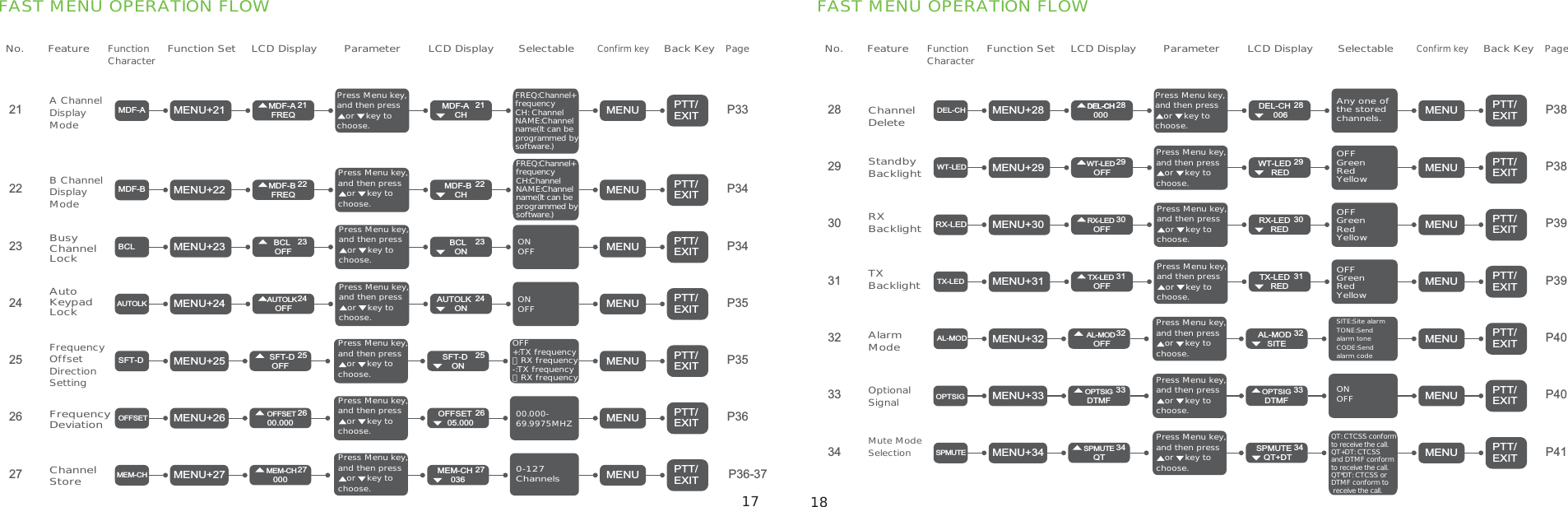

No. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageNo. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageFAST MENU OPERATION FLOW89101112137 P26P27P28P27P28P29P29Dual-watch OperationKeypad Sound RemindingTime-Out-TimerReceive DCSPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITMENUMENUMENUMENUMENUMENUPTT/EXITMENUMENU+7MENU+8MENU+10MENU+11MENU+12MENU+13MENU+9ONOFFOOFFOFFD023N-D754ND023I-D754I15,30……600sOFF67.0-254.1HZOFFD023N-D754ND023I-D754IOFF67.0-254.1HZ7TDROFF8BEEPOFF9TOT1510R-DCSOFF7TDRON8BEEPON9TOT60010R-DCSD023N11R-CTCSOFF12T-DCSOFF13T-CTCSOFF11R-CTCS67.0HZ12T-DCSD023N13T-CTCS67.0HZTDRBEEPTOTR-DCSR-CTCST-DCST-CTCSReceive CTCSSTransmit DCSTransmit CTCSSFAST MENU OPERATION FLOW15161718192014 P30P30P31P31P32P32P33Voice RemindingANI-IDDTMFSTSignal CodePTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITMENUMENUMENUMENUMENUMENUPTT/EXITMENUMENU+14MENU+15MENU+17MENU+18MENU+19MENU+20MENU+16ONOFF1-5 d igit arbitrary selection(It can be programmed by software.）1-15 group（It can be programmed by software.）OFFDT-ST:Sending by keypadsANI-ST:Auto sendingDT+ANI:Auto sending and sending by keypadsTO:Time scanningCO:Carrier wave scanningSE:Search scanningOFF:Press PTT not to sendBOT:Press PTTto send.(PTTID code can choose from program softwareEOT:Release PTT to send.BOTH:Press or release PTT to send.0,1,2……30ms14VOICEOFF15ANI-ID*****16DTMFSTOFF17S-CODE114VOICEON15ANI-ID*****16DTMFSTDT-ST17S-CODE1318SC-REVTO19PTT-IDOFF20PTT-LT018SC-REVSE19PTT-IDBOT20PTT-LT1VOICEANI-IDDTMFSTS-CODESC-REVPTT-IDPTT-LTScan Resumed ModePTT IDPTT ID Prolong TimePress Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.15 16
No. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageNo. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageFAST MENU OPERATION FLOW22232425262721 P33P34P35P34P35P36P36-37A Channel Display ModeB Channel Display ModeBusy Channel LockAuto Keypad LockPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITMENUMENUMENUMENUMENUMENUPTT/EXITMENUMENU+21MENU+22MENU+24MENU+25MENU+26MENU+27MENU+23FREQ:Channel+ frequencyCH: ChannelNAME:Channel name(It can be programmed by software.)FREQ:Channel+ frequencyCH:ChannelNAME:Channel name(It can be programmed by software.)ONOFFONOFFOFF+:TX frequency ＞RX frequency-:TX frequency＜RX frequency00.000-69.9975MHZ0-127 Channels21MDF-AFREQ22MDF-BFREQ23BCLOFF24AUTOLKOFF21MDF-ACH22MDF-BCH23BCLON24AUTOLKON25SFT-DOFF26OFFSET00.00027MEM-CH00025SFT-DON26OFFSET 05.00027MEM-CH036MDF-AMDF-BBCLAUTOLKSFT-DOFFSETMEM-CHFrequencyOffset DirectionSettingFrequencyDeviationChannel StoreFAST MENU OPERATION FLOW29303132333428 P38P38P39P39P40P40P41Channel DeleteStandby Backlight RX BacklightTX BacklightPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITMENUMENUMENUMENUMENUMENUPTT/EXITMENUMENU+28MENU+29MENU+31MENU+32MENU+33MENU+34MENU+30Any one of the stored channels.OFFGreenRedYellowOFFGreenRedYellowOFFGreenRedYellowSITE:Site alarmTONE:Send alarm toneCODE:Send alarm codeQT: CTCSS conformto receive the call.QT+DT: CTCSS and DTMF conformto receive the call.QT*DT: CTCSS orDTMF conform to receive the call.28DEL-CHDEL-CH00029WT-LEDOFF30RX-LEDOFF31TX-LEDOFF28DEL-CH00629WT-LEDRED30RX-LEDRED31TX-LEDRED32AL-MODOFF34SPMUTEQT QT+DT32AL-MODSITE34SPMUTEDEL-CHWT-LEDRX-LEDTX-LEDAL-MODSPMUTEAlarm ModeOptionalSignalMute Mode Selection Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose. 17 18OPTSIG33OPTSIGDTMF33OPTSIGDTMFONOFF
No. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageNo. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageFAST MENU OPERATION FLOW363738394035 P41P42P43P42P43P44P45Tail Tone EliminationRepeater Tail Tone EliminationTime of Repeater Tail Tone EliminationDisplays When Power OnReminding of End TalkPTT/EXITPTT/EXITPTT/EXITPTT/EXITPTT/EXITAutoMENUMENUMENUMENUMENUAutoPTT/EXITMENUMENU+35MENU+36MENU+38MENU+39MENU+40Press key“#”for more than 2s.MENU+37ONOFFOFF1,2…10msFULL：Full frequency characterMSG:Display of NUT logoOFF1,2…10msONOFFRepeatedly press key“#”for more than 2s to lock or unlock.35STEOFF36RP-STEOFF37RPT-RLOFF38PONMSGOFF35SITCH36RP-STE537RPT-RL538PONMSGMSG39ROGERFULL40TDR-ABOFF39ROGERON40TDR-ABASTERP-STERPT-RLPONMSGROGERTDR-ABDual-watchOperation(Cross BandTX/RX) Manually Lock the Keypads400.875136.225400.875136.225FAST MENU OPERATION FLOWP46P46P47P47P47P47FM RadioRapid AlertJacklightMonitorPTT/CALLPTTAutoAutoAutoAutoAutoAutoAutoAutoAutoAutoSlightly pressCall keyPress CALL key for more than 2s.Press key MON for more than 2s.Press key MON for more than 2s.Press the VFO/MR key.Tap MON keyMR/VFO65-75MHZ76-108MHZ65-108MHZPress key MON for more than 2s to turn it on.Release key MON to turn it off.Repeatedly tap MON keyto turn Jackight/Warning light off.Display channel mode according to menu21 and 22.FM100.700ALARM138.625COPING400.875136.225400.875136.225FMALARMMONCOPINGVFO/MRCable CloneChannel /Frequency Mode Conversion34Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.Press Menu key,and then press or key to choose.41 P44PTT/EXITMENUMENU+41VFO：Menu initializationALL：Menu and channel initialization41RESETALL41RESETVFORESETResetPress Menu key,and then press or key to choose.Press BAND key,and then press▲or▼key to choose, or it can input numbers directly. 19 20OFFA band transmit(Upper rowfrequency)A band transmit(Bottom rowfrequency)

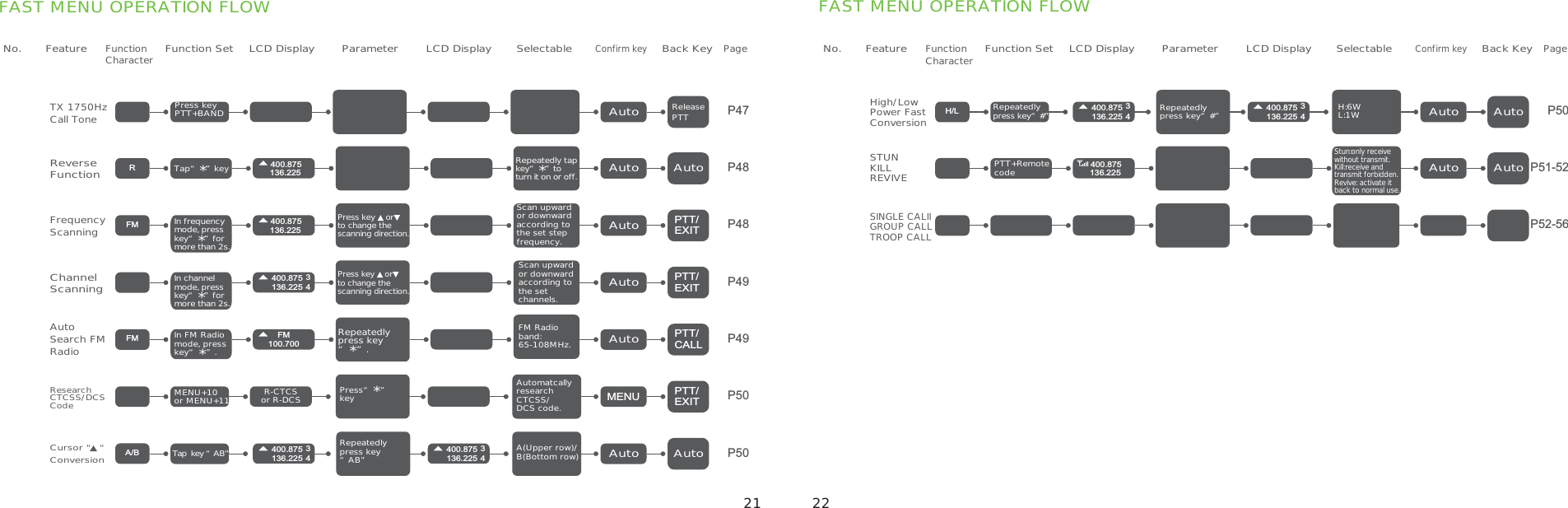

No. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageP47Release PTTAutoPress key PTT+BANDTX 1750Hz Call ToneFAST MENU OPERATION FLOWP50AutoAutoRepeatedly press key“#” H:6WL:1WH/LHigh/Low Power Fast Conversion400.875136.22534400.875136.22534Repeatedly press key“#”P48P48P49P49P50P50Reverse FunctionFrequency ScanningChannel ScanningAuto Search FM RadioAutoPTT/EXITPTT/CALLPTT/EXITAutoAutoAutoAutoMENUAutoPTT/EXITAutoTap“ ”keyIn frequency mode, press key“ ”for more than 2s.MENU+10or MENU+11Tap key “AB”In channel mode, press key“ ”for more than 2s.In FM Radio mode, press key“ ”. Repeatedly tap key“ ”to turn it on or off.Scan upward or downward according to the set stepfrequency.FM Radio band: 65-108MHz.Scan upward or downward according to the set channels.Automatcallyresearch CTCSS/DCS code.A(Upper row)/B(Bottom row)R-CTCSor R-DCSRA/BFMFMResearch CTCSS/DCS CodeCursor "▲" Conversion400.875136.225400.875136.225400.875136.22534400.875136.22534400.875136.22534FM100.700Press key ▲or▼to change the scanning direction.Press key ▲or▼to change the scanning direction.Repeatedly press key“ ”.Press“ ”keyRepeatedly press key“AB”*******No. FeatureFunctionCharacterrFunction Set LCD Display Parameter LCD DisplayConfirm keySelectable Back KeyPageFAST MENU OPERATION FLOWP51-52P52-56STUN KILL REVIVESINGLE CALII GROUP CALL TROOP CALLAutoAutoPTT+Remote codeStun:only receivewithout transmit. Kill:receive andtransmit forbidden.Revive: activate itback to normal use.400.875136.225 21 22

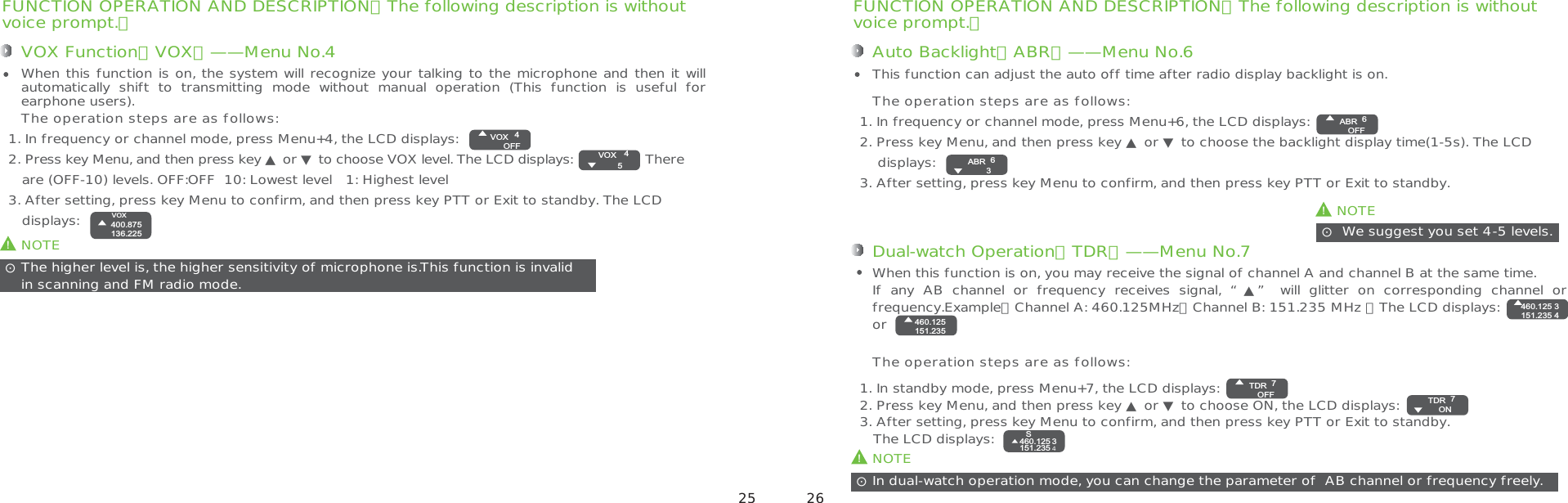

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Auto Backlight（ABR）——Menu No.61. In frequency or channel mode, press Menu+6, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose the backlight display time(1-5s). The LCD displays:3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function can adjust the auto off time after radio display backlight is on.The operation steps are as follows: We suggest you set 4-5 levels.ʎ!NOTE!NOTEIn dual-watch operation mode, you can change the parameter of AB channel or frequency freely.ʎDual-watch Operation（TDR）——Menu No.71. In standby mode, press Menu+7, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose ON, the LCD displays: 3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays: When this function is on, you may receive the signal of channel A and channel B at the same time.If any AB channel or frequency receives signal, “▲” will glitter on corresponding channel or frequency.Example：Channel A: 460.125MHz，Channel B: 151.235 MHz ，The LCD displays: orThe operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）VOX Function（VOX）——Menu No.41. In frequency or channel mode, press Menu+4, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose VOX level. The LCD displays: There are (OFF-10) levels. OFF:OFF 10: Lowest level 1: Highest level3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays:When this function is on, the system will recognize your talking to the microphone and then it will automatically shift to transmitting mode without manual operation (This function is useful for earphone users).The operation steps are as follows:!NOTEThe higher level is, the higher sensitivity of microphone is.This function is invalid in scanning and FM radio mode. ʎ4VOXOFF4VOX5400.875136.225VOX6ABROFF6ABR33460.125151.235 4460.125151.2357TDROFF 7TDR ON3460.125151.2354S 25 26

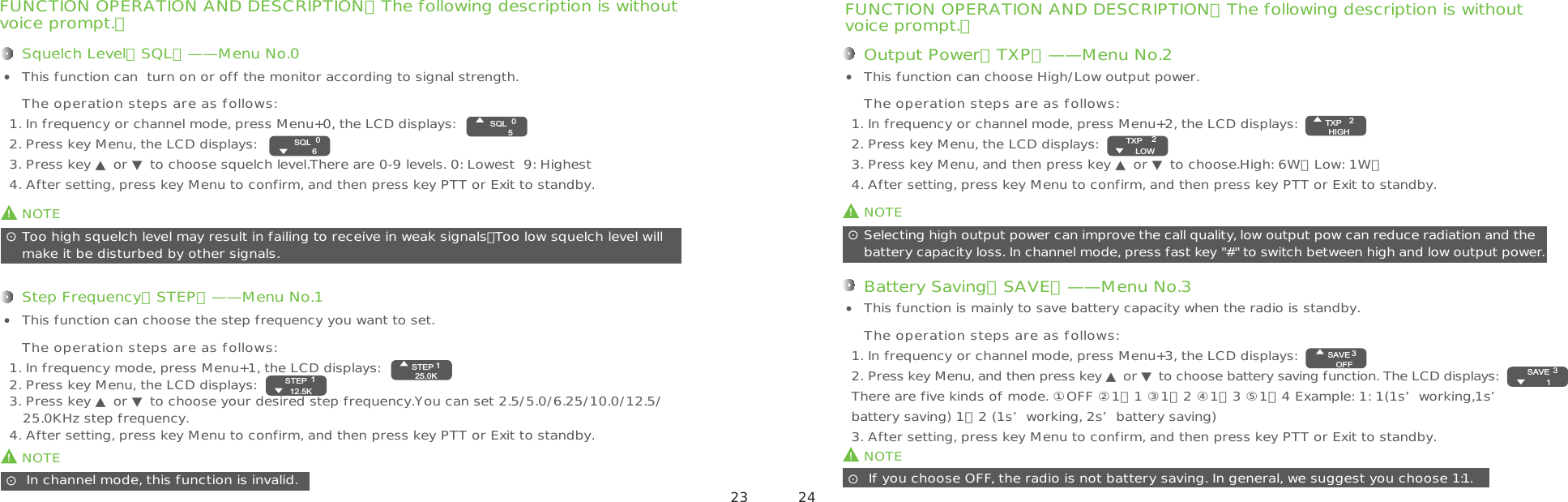

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Squelch Level（SQL）——Menu No.01. In frequency or channel mode, press Menu+0, the LCD displays:2. Press key Menu, the LCD displays:3. Press key ▲ or ▼ to choose squelch level.There are 0-9 levels. 0: Lowest 9: Highest4. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function can turn on or off the monitor according to signal strength.The operation steps are as follows:!NOTEToo high squelch level may result in failing to receive in weak signals，Too low squelch level willmake it be disturbed by other signals.ʎ!NOTE In channel mode, this function is invalid.ʎStep Frequency（STEP）——Menu No.11. In frequency mode, press Menu+1, the LCD displays:2. Press key Menu, the LCD displays:3. Press key ▲ or ▼ to choose your desired step frequency.You can set 2.5/5.0/6.25/10.0/12.5/ 25.0KHz step frequency.4. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function can choose the step frequency you want to set.The operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Output Power（TXP）——Menu No.21. In frequency or channel mode, press Menu+2, the LCD displays:2. Press key Menu, the LCD displays:3. Press key Menu, and then press key ▲ or ▼ to choose.High: 6W，Low: 1W，4. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function can choose High/Low output power.The operation steps are as follows:!NOTESelecting high output power can improve the call quality, low output pow can reduce radiation and the battery capacity loss. In channel mode, press fast key "#" to switch between high and low output power.ʎ!NOTE If you choose OFF, the radio is not battery saving. In general, we suggest you choose 1:1.ʎBattery Saving（SAVE）——Menu No.31. In frequency or channel mode, press Menu+3, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose battery saving function. The LCD displays: There are five kinds of mode. ①OFF ②1：1 ③1：2 ④1：3 ⑤1：4 Example: 1: 1(1s’working,1s’battery saving) 1：2 (1s’working, 2s’battery saving) 3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is mainly to save battery capacity when the radio is standby.The operation steps are as follows:0SQL50SQL61STEP25.0K1STEP12.5K2TXPHIGH2TXPLOW3SAVEOFF3SAVE1 23 24

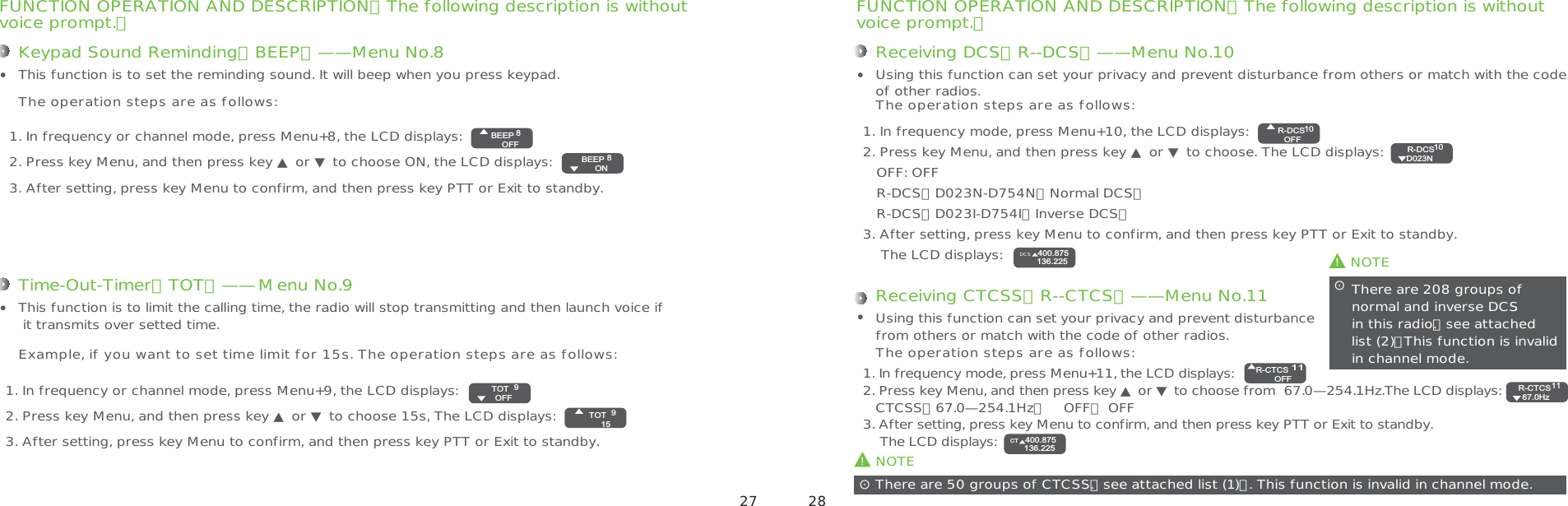

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Receiving DCS（R--DCS）——Menu No.101. In frequency mode, press Menu+10, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose. The LCD displays: OFF: OFF R-DCS：D023N-D754N（Normal DCS） R-DCS：D023I-D754I（Inverse DCS）3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays:Using this function can set your privacy and prevent disturbance from others or match with the code of other radios.The operation steps are as follows:NOTE! There are 208 groups of normal and inverse DCS in this radio.【see attached list (2)】This function is invalid in channel mode.ʎNOTE!There are 50 groups of CTCSS.【see attached list (1)】. This function is invalid in channel mode.ʎReceiving CTCSS（R--CTCS）——Menu No.111. In frequency mode, press Menu+11, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose from 67.0—254.1Hz.The LCD displays: CTCSS：67.0—254.1Hz， OFF： OFF3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays: Using this function can set your privacy and prevent disturbance from others or match with the code of other radios.The operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Keypad Sound Reminding（BEEP）——Menu No.81. In frequency or channel mode, press Menu+8, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose ON, the LCD displays: 3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is to set the reminding sound. It will beep when you press keypad.The operation steps are as follows:Time-Out-Timer（TOT）——Menu No.91. In frequency or channel mode, press Menu+9, the LCD displays: 2. Press key Menu, and then press key ▲ or ▼ to choose 15s, The LCD displays:3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is to limit the calling time, the radio will stop transmitting and then launch voice if it transmits over setted time.Example, if you want to set time limit for 15s. The operation steps are as follows:8BEEPOFF8BEEP ON9TOT159TOT OFF10R-DCSOFF10R-DCS D023N400.875136.225DCS11R-CTCSOFF11R-CTCS 67.0Hz400.875136.225CT 27 28

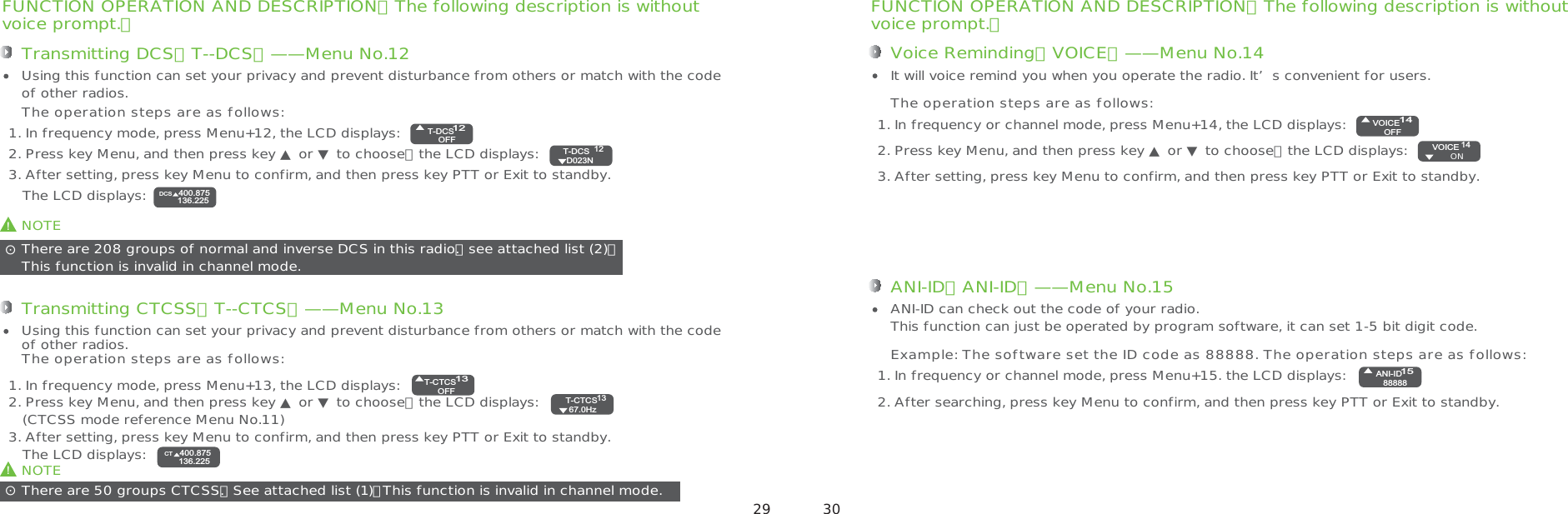

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Transmitting DCS（T--DCS）——Menu No.12Using this function can set your privacy and prevent disturbance from others or match with the code of other radios.!NOTEThere are 50 groups CTCSS.【See attached list (1)】This function is invalid in channel mode.ʎTransmitting CTCSS（T--CTCS）——Menu No.131. In frequency mode, press Menu+13, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: (CTCSS mode reference Menu No.11)3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays:Using this function can set your privacy and prevent disturbance from others or match with the code of other radios.The operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Voice Reminding（VOICE）——Menu No.14It will voice remind you when you operate the radio. It’s convenient for users.ANI-ID（ANI-ID）——Menu No.151. In frequency or channel mode, press Menu+15. the LCD displays:2. After searching, press key Menu to confirm, and then press key PTT or Exit to standby.ANI-ID can check out the code of your radio.This function can just be operated by program software, it can set 1-5 bit digit code.Example: The software set the ID code as 88888. The operation steps are as follows:1. In frequency or channel mode, press Menu+14, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays:3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.The operation steps are as follows:1. In frequency mode, press Menu+12, the LCD displays: 2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays:3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays:The operation steps are as follows:!NOTEThere are 208 groups of normal and inverse DCS in this radio.【see attached list (2)】 This function is invalid in channel mode. ʎ12T-DCSOFF12T-DCS D023N400.875136.225DCS13T-CTCSOFF13T-CTCS 67.0Hz400.875136.225CT14VOICEOFF14VOICE ON15ANI-ID88888 29 30

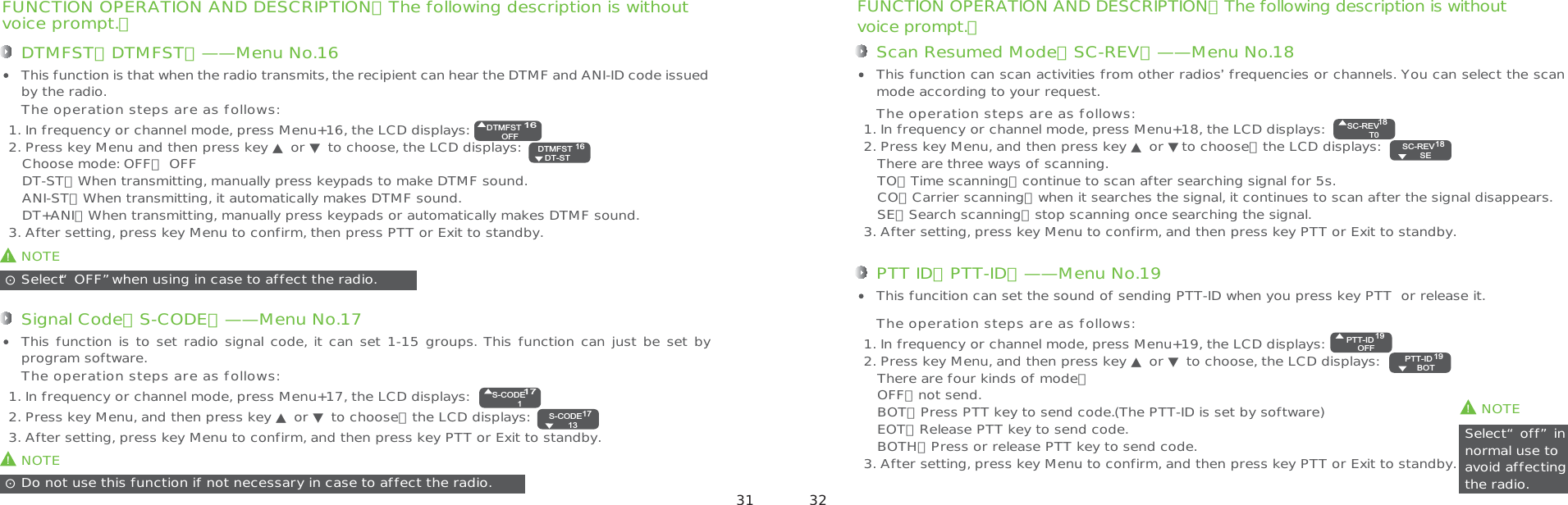

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Scan Resumed Mode（SC-REV）——Menu No.181. In frequency or channel mode, press Menu+18, the LCD displays: 2. Press key Menu, and then press key ▲ or ▼to choose，the LCD displays: There are three ways of scanning. TO：Time scanning，continue to scan after searching signal for 5s. CO：Carrier scanning，when it searches the signal, it continues to scan after the signal disappears. SE：Search scanning，stop scanning once searching the signal.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function can scan activities from other radios’ frequencies or channels. You can select the scan mode according to your request.The operation steps are as follows:!NOTESelect“off”in normal use toavoid affecting the radio.ʎPTT ID（PTT-ID）——Menu No.191. In frequency or channel mode, press Menu+19, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: There are four kinds of mode： OFF：not send. BOT：Press PTT key to send code.(The PTT-ID is set by software) EOT：Release PTT key to send code. BOTH：Press or release PTT key to send code.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This funcition can set the sound of sending PTT-ID when you press key PTT or release it.The operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）DTMFST（DTMFST）——Menu No.16This function is that when the radio transmits, the recipient can hear the DTMF and ANI-ID code issued by the radio.!NOTEDo not use this function if not necessary in case to affect the radio.ʎSignal Code（S-CODE）——Menu No.171. In frequency or channel mode, press Menu+17, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: 3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. This function is to set radio signal code, it can set 1-15 groups. This function can just be set by program software.The operation steps are as follows:1. In frequency or channel mode, press Menu+16, the LCD displays:2. Press key Menu and then press key ▲ or ▼ to choose, the LCD displays: Choose mode: OFF： OFF DT-ST：When transmitting, manually press keypads to make DTMF sound. ANI-ST：When transmitting, it automatically makes DTMF sound. DT+ANI：When transmitting, manually press keypads or automatically makes DTMF sound.3. After setting, press key Menu to confirm, then press PTT or Exit to standby.The operation steps are as follows:!NOTESelect“OFF”when using in case to affect the radio.ʎ16DTMFSTOFF16DTMFST DT-ST17S-CODE117S-CODE 13SC-REVT018SC-REV SE18PTT-IDOFF19PTT-ID BOT1931 32

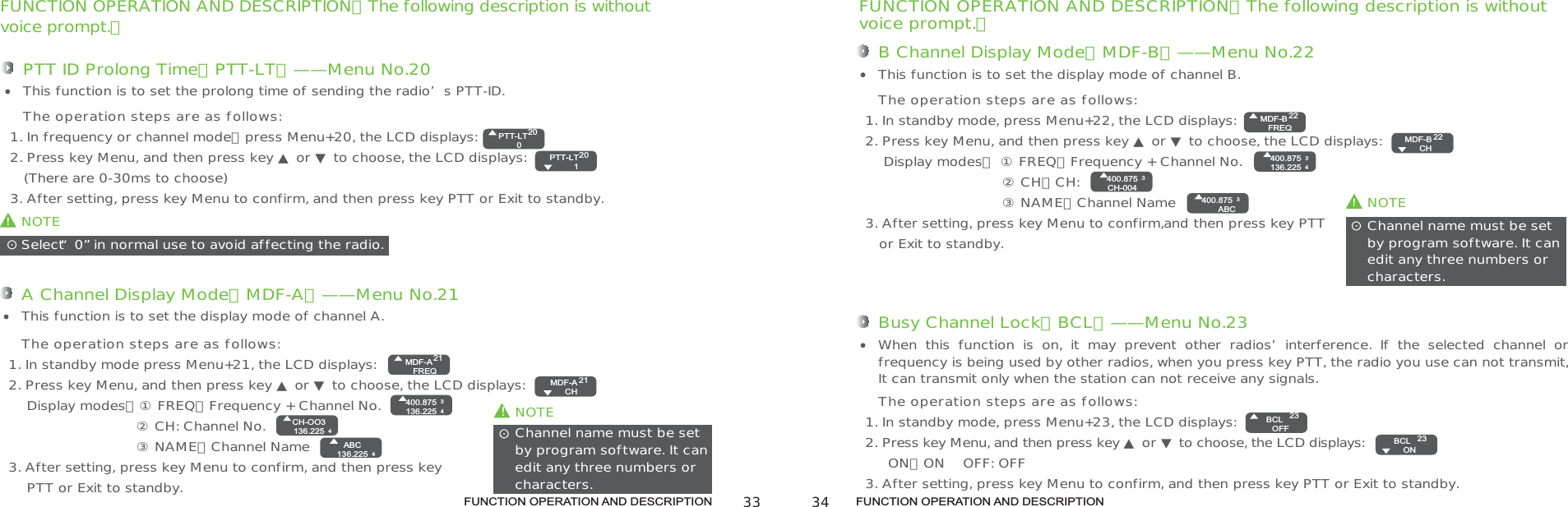

FUNCTION OPERATION AND DESCRIPTION FUNCTION OPERATION AND DESCRIPTIONFUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）PTT ID Prolong Time（PTT-LT）——Menu No.201. In frequency or channel mode，press Menu+20, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: (There are 0-30ms to choose)3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is to set the prolong time of sending the radio’s PTT-ID.The operation steps are as follows:!NOTESelect“0”in normal use to avoid affecting the radio.ʎ!NOTEChannel name must be setby program software. It can edit any three numbers orcharacters.ʎA Channel Display Mode（MDF-A）——Menu No.211. In standby mode press Menu+21, the LCD displays: 2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: Display modes：① FREQ：Frequency + Channel No. ② CH: Channel No. ③ NAME：Channel Name3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is to set the display mode of channel A.The operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）B Channel Display Mode（MDF-B）——Menu No.221. In standby mode, press Menu+22, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: Display modes： ① FREQ：Frequency + Channel No. ② CH：CH: ③ NAME：Channel Name 3. After setting, press key Menu to confirm,and then press key PTT or Exit to standby.This function is to set the display mode of channel B.The operation steps are as follows:!NOTEChannel name must be set by program software. It can edit any three numbers or characters.ʎBusy Channel Lock（BCL）——Menu No.231. In standby mode, press Menu+23, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: ON：ON OFF: OFF3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.When this function is on, it may prevent other radios’interference. If the selected channel or frequency is being used by other radios, when you press key PTT, the radio you use can not transmit, It can transmit only when the station can not receive any signals.The operation steps are as follows:PTT-LT02020PTT-LT 1MDF-AFREQ21MDF-A CH21ABC136.225 4400.875136.22534CH-OO3136.225 4MDF-BFREQ2222MDF-B CH400.875136.22534400.875CH-0043400.875ABC3BCLOFF23BCL ON23 33 34

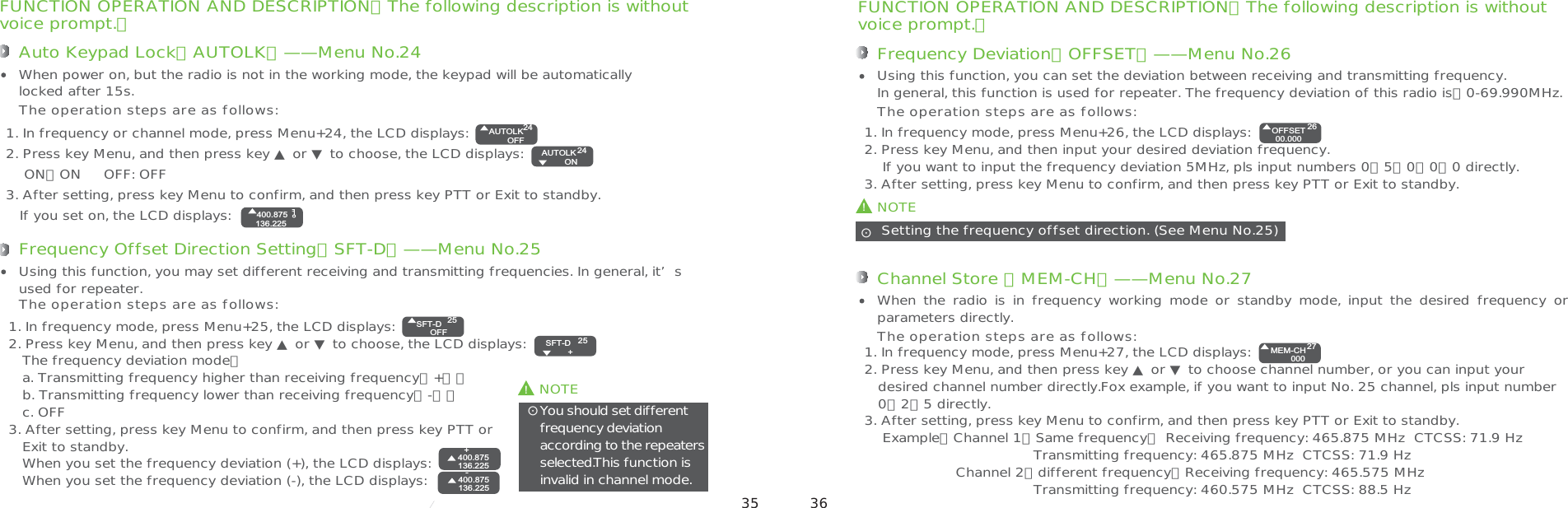

ʎFUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Auto Keypad Lock（AUTOLK）——Menu No.241. In frequency or channel mode, press Menu+24, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: ON：ON OFF: OFF3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. If you set on, the LCD displays: When power on, but the radio is not in the working mode, the keypad will be automaticallylocked after 15s.The operation steps are as follows:!NOTEYou should set different frequency deviationaccording to the repeatersselected.This function isinvalid in channel mode.ʎFrequency Offset Direction Setting（SFT-D）——Menu No.251. In frequency mode, press Menu+25, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: The frequency deviation mode： a. Transmitting frequency higher than receiving frequency（+）； b. Transmitting frequency lower than receiving frequency（-）； c. OFF3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. When you set the frequency deviation (+), the LCD displays: When you set the frequency deviation (-), the LCD displays: Using this function, you may set different receiving and transmitting frequencies. In general, it’s used for repeater.The operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Frequency Deviation（OFFSET）——Menu No.261. In frequency mode, press Menu+26, the LCD displays:2. Press key Menu, and then input your desired deviation frequency. If you want to input the frequency deviation 5MHz, pls input numbers 0、5、0、0、0 directly.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.Using this function, you can set the deviation between receiving and transmitting frequency. In general, this function is used for repeater. The frequency deviation of this radio is：0-69.990MHz.The operation steps are as follows:!NOTE Setting the frequency offset direction. (See Menu No.25)ʎChannel Store （MEM-CH）——Menu No.271. In frequency mode, press Menu+27, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose channel number, or you can input your desired channel number directly.Fox example, if you want to input No. 25 channel, pls input number 0、2、5 directly.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. Example：Channel 1（Same frequency） Receiving frequency: 465.875 MHz CTCSS: 71.9 Hz Transmitting frequency: 465.875 MHz CTCSS: 71.9 Hz Channel 2（different frequency）Receiving frequency: 465.575 MHz Transmitting frequency: 460.575 MHz CTCSS: 88.5 HzWhen the radio is in frequency working mode or standby mode, input the desired frequency or parameters directly. The operation steps are as follows:AUTOLKOFF24AUTOLK ON24400.875136.225SFT-DOFF2525SFT-D +400.875136.225+400.875136.225-OFFSET00.00026MEM-CH00027 35 36
!NOTEPls check the channel you store has the original channel or not,if does, you need to delete it before channel storing. (Channeldelete see Menu No.28)ʎa. In frequency mode, input number 4, 6, 5, 8, 7, 5.b. Press Menu+11, the LCD displays:c. Press key Menu, and then press key ▲ or ▼ to adjust to 71.9 Hz, the LCD displays:d. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.The LCD displays:e. Press key Menu+13, the LCD displays:f. Press key Menu, and then press key ▲ or ▼ to adjust to 71.9 Hz，the LCD displays:g. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays:h. Press Menu+27. the LCD displays:i. Press key Menu, and then press ▲ 001 channel or input number 0, 0, 1 directly, the LCD displays:j. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.k. Press key VFO/MR to channel mode, display modes see Menu No.21 and Menu No.22. First, storing channel 1：a. In frequency mode, input number 4, 6, 5, 5, 7, 5.b. Press Menu+13, the LCD displays:c. Press key Menu, and then press key ▲ or ▼ to adjust to 88.5 Hz，the LCD displays: d. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.After transmitting, the LCD displays:e. Press Menu+25, the LCD displays:f. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays:g. After setting, press key Menu to confirm, and then press key PTT or Exit to standby. The LCD displays: h. Press Menu+26, the LCD displays:i. Press key Menu, then input number: 0, 5, 0, 0, 0j. Press Menu+27, the LCD displays:k. Press key Menu, and then press key ▲ or ▼ to choose No.2 channel or input number 0,0, 2 directly. The LCD displays:L. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.M. Press key VFO/MR to channel mode, the LCD displays: Display modes see Menu No.21 and Menu No.22.Secondly,storing channel 2:(Transmitting frequency is 5MHz lower than receiving frequency.）FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Channel Delete（DEL-CH）——Menu No.281. In frequency or channel mode, the LCD displays:2. Press key Menu,and then press key ▲ or ▼ to adjust channel 002 or input number 0,0, 2 directly. The LCD displays:3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is used to delete channels and information of the radio.Example: Delete channel 2!NOTEPlease correctly choose the channel you want to delete in case to restorage and uncessary trouble.With display CH-*** means there is storage channel, and then can be deleted. ʎStandby Backlight（WT-LED）——Menu No.291. In frequency or channel mode, press Menu+29, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: There are four options: OFF YELLOW GREEN RED3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.You can choose the color of backlight when the radio is standby.The operation steps are as follows：11R-CTCSOFF 11R-CTCS71.9Hz465.875136.225CT13T-CTCSOFF13T-CTCS71.9Hz465.875136.225CTMEM-CH00027MEM-CH0012713T-CTCSOFF13T-CTCS88.5Hz465.875136.225CTSFT-DOFF2525SFT-D -OFFSET00.00026MEM-CH00027MEM-CH00227465.575136.225-DEL-CH00028DEL-CH00228WT-LEDOFF2929WT-LED RED 37 38

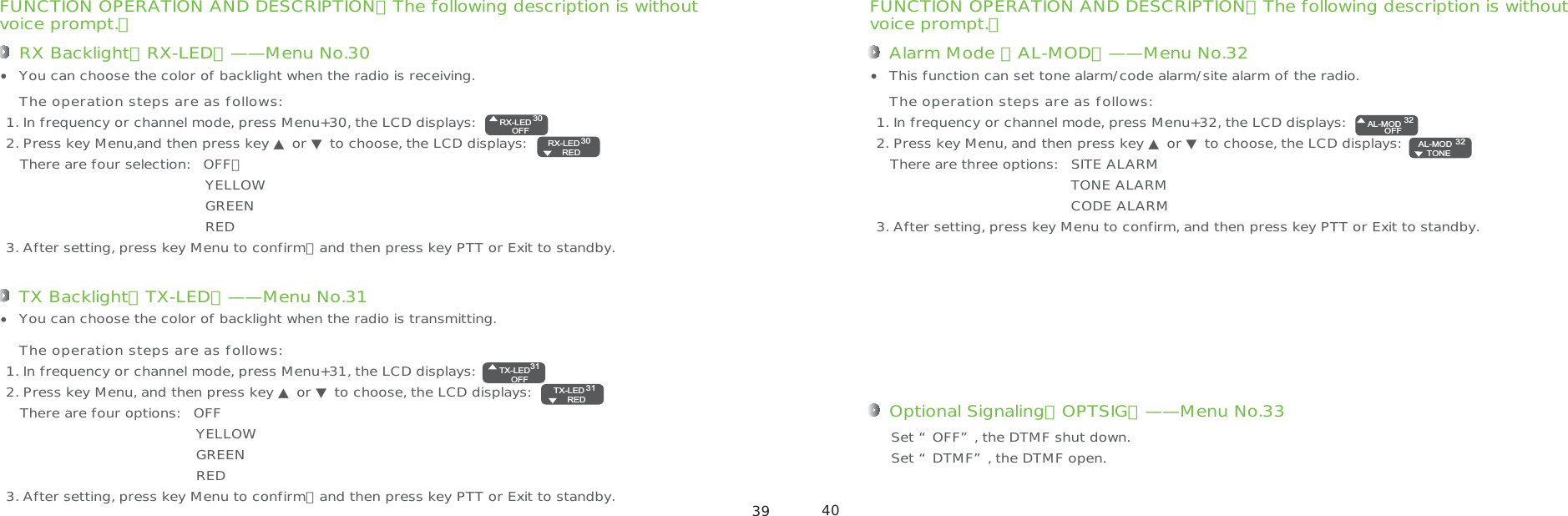

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）RX Backlight（RX-LED）——Menu No.301. In frequency or channel mode, press Menu+30, the LCD displays:2. Press key Menu,and then press key ▲ or ▼ to choose, the LCD displays: There are four selection: OFF： YELLOW GREEN RED3. After setting, press key Menu to confirm，and then press key PTT or Exit to standby.You can choose the color of backlight when the radio is receiving.The operation steps are as follows:TX Backlight（TX-LED）——Menu No.311. In frequency or channel mode, press Menu+31, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: There are four options: OFF YELLOW GREEN RED3. After setting, press key Menu to confirm，and then press key PTT or Exit to standby.You can choose the color of backlight when the radio is transmitting. The operation steps are as follows:FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Alarm Mode （AL-MOD）——Menu No.321. In frequency or channel mode, press Menu+32, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose, the LCD displays: There are three options: SITE ALARM TONE ALARM CODE ALARM3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function can set tone alarm/code alarm/site alarm of the radio.The operation steps are as follows:Optional Signaling（OPTSIG）——Menu No.33Set “OFF”, the DTMF shut down.Set “DTMF”, the DTMF open.RX-LEDOFF3030RX-LED REDTX-LEDOFF3131TX-LED REDAL-MODOFF3232AL-MOD TONE 39 40

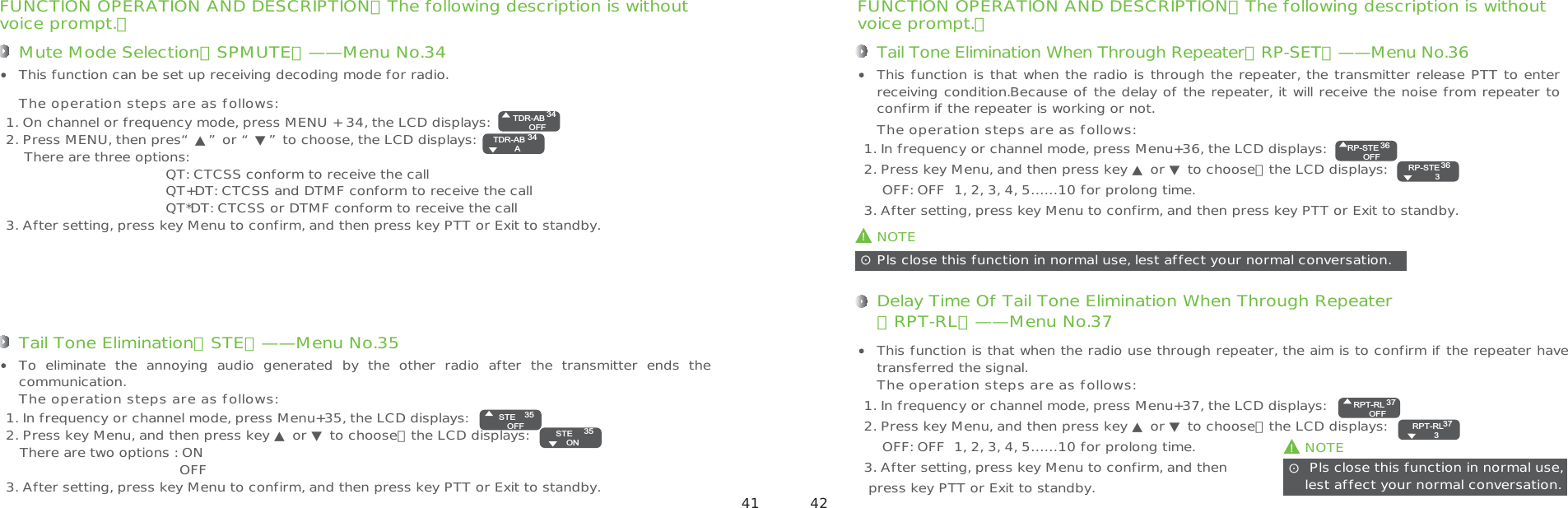

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Tail Tone Elimination When Through Repeater（RP-SET）——Menu No.361. In frequency or channel mode, press Menu+36, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: OFF: OFF 1, 2, 3, 4, 5……10 for prolong time.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is that when the radio is through the repeater, the transmitter release PTT to enter receiving condition.Because of the delay of the repeater, it will receive the noise from repeater to confirm if the repeater is working or not.The operation steps are as follows:!NOTEPls close this function in normal use, lest affect your normal conversation.ʎDelay Time Of Tail Tone Elimination When Through Repeater（RPT-RL）——Menu No.371. In frequency or channel mode, press Menu+37, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: OFF: OFF 1, 2, 3, 4, 5……10 for prolong time.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is that when the radio use through repeater, the aim is to confirm if the repeater have transferred the signal. The operation steps are as follows:!NOTE Pls close this function in normal use, lest affect your normal conversation. ʎFUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Mute Mode Selection（SPMUTE）——Menu No.341. On channel or frequency mode, press MENU + 34, the LCD displays:2. Press MENU, then pres“▲”or “▼”to choose, the LCD displays: There are three options: QT: CTCSS conform to receive the call QT+DT: CTCSS and DTMF conform to receive the call QT*DT: CTCSS or DTMF conform to receive the call3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function can be set up receiving decoding mode for radio.The operation steps are as follows:Tail Tone Elimination（STE）——Menu No.351. In frequency or channel mode, press Menu+35, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: There are two options : ON OFF3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.To eliminate the annoying audio generated by the other radio after the transmitter ends the communication. The operation steps are as follows:TDR-ABOFF3434TDR-AB ASTEOFF3535STE ONRP-STEOFF3636RP-STE 3RPT-RLOFF3737RPT-RL 3 41 42

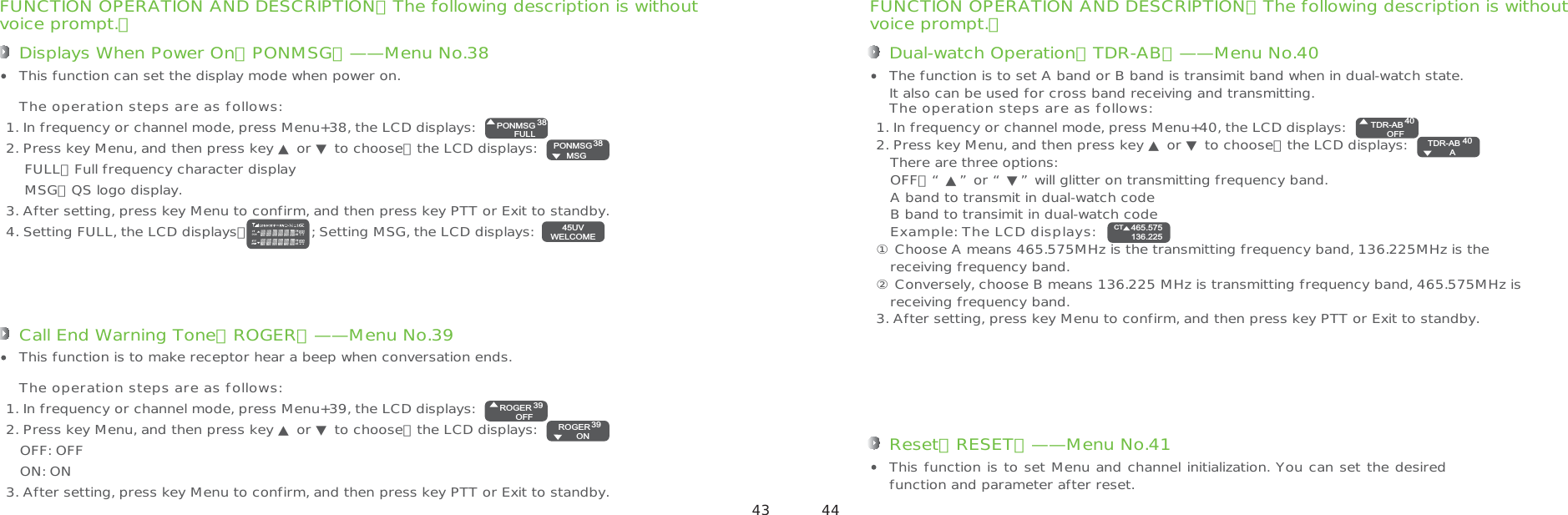

Reset（RESET）——Menu No.41This function is to set Menu and channel initialization. You can set the desired function and parameter after reset.FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Displays When Power On（PONMSG）——Menu No.381. In frequency or channel mode, press Menu+38, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: FULL：Full frequency character display MSG：QS logo display.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.4. Setting FULL, the LCD displays： ; Setting MSG, the LCD displays:This function can set the display mode when power on.The operation steps are as follows:Call End Warning Tone（ROGER）——Menu No.391. In frequency or channel mode, press Menu+39, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: OFF: OFF ON: ON3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.This function is to make receptor hear a beep when conversation ends.The operation steps are as follows:45UVWELCOMEFUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Dual-watch Operation（TDR-AB）——Menu No.401. In frequency or channel mode, press Menu+40, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose，the LCD displays: There are three options: OFF：“▲”or “▼”will glitter on transmitting frequency band. A band to transmit in dual-watch code B band to transimit in dual-watch code Example: The LCD displays:① Choose A means 465.575MHz is the transmitting frequency band, 136.225MHz is the receiving frequency band.② Conversely, choose B means 136.225 MHz is transmitting frequency band, 465.575MHz is receiving frequency band.3. After setting, press key Menu to confirm, and then press key PTT or Exit to standby.The function is to set A band or B band is transimit band when in dual-watch state.It also can be used for cross band receiving and transmitting.The operation steps are as follows:TDR-ABOFF4040TDR-AB A465.575136.225CTPONMSGFULL3838PONMSG MSGROGEROFF3939ROGER ON 43 44

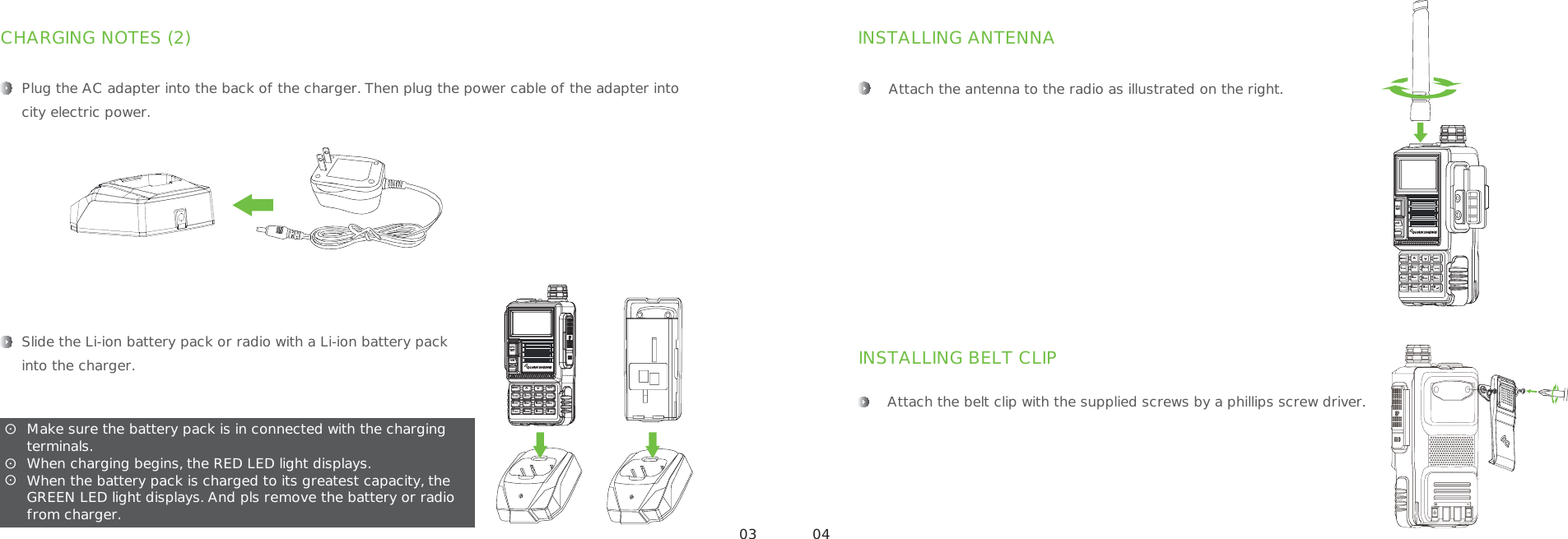

Plug the AC adapter into the back of the charger. Then plug the power cable of the adapter intocity electric power.Slide the Li-ion battery pack or radio with a Li-ion battery packinto the charger.CHARGING NOTES (2)Attach the antenna to the radio as illustrated on the right.INSTALLING BELT CLIPAttach the belt clip with the supplied screws by a phillips screw driver.INSTALLING ANTENNAʎʎʎMake sure the battery pack is in connected with the charging terminals.When charging begins, the RED LED light displays.When the battery pack is charged to its greatest capacity, the GREEN LED light displays. And pls remove the battery or radio from charger. 03 04SCANMENU EXIT^^1STEP 2TXP 3SAVE0SQL6ABR5WN7TDR4VOX8BEEP 9TOT #*BANDA/BVFO MRMENU EXIT^^1STEP 2TXP 3SAVE0SQL6ABR5WN7TDR4VOX8BEEP 9TOT #*SCANA/BVFO MRBAND

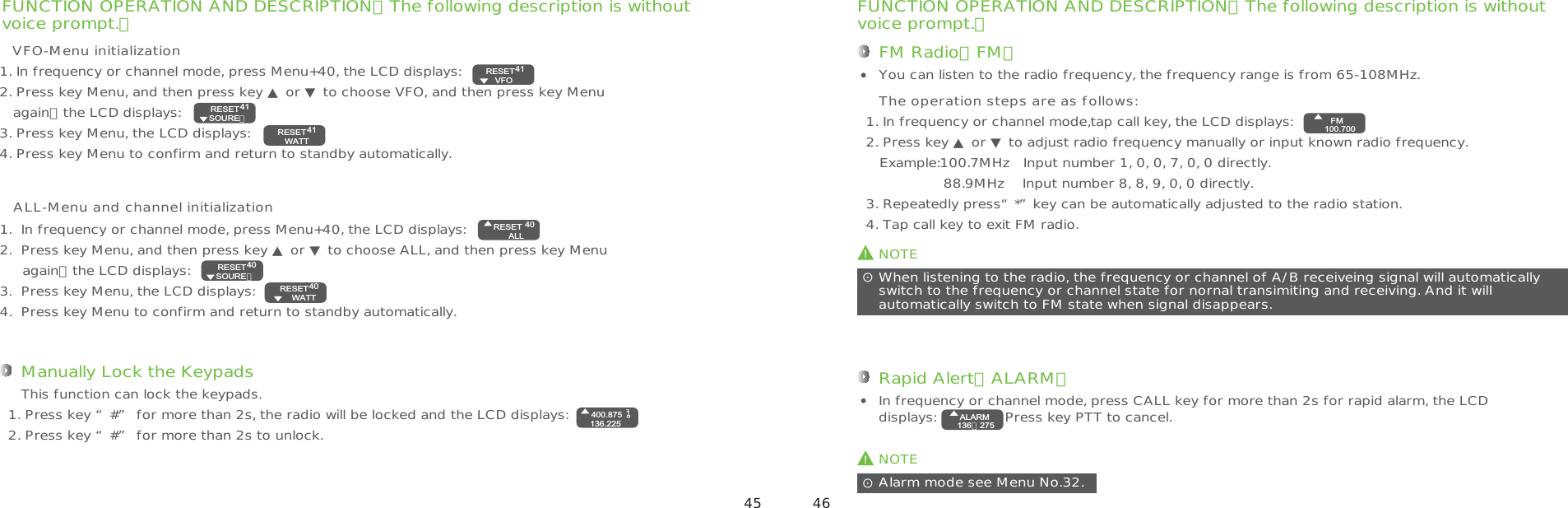

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.） FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）ALL-Menu and channel initializationManually Lock the Keypads1. Press key “#” for more than 2s, the radio will be locked and the LCD displays: 2. Press key “#” for more than 2s to unlock.This function can lock the keypads.40RESETSURE?1. In frequency or channel mode, press Menu+40, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose VFO, and then press key Menu again，the LCD displays:3. Press key Menu, the LCD displays:4. Press key Menu to confirm and return to standby automatically.VFO-Menu initialization41RESET VFO41RESET SOURE？41RESETWATTRESETALL401. In frequency or channel mode, press Menu+40, the LCD displays:2. Press key Menu, and then press key ▲ or ▼ to choose ALL, and then press key Menu again，the LCD displays:3. Press key Menu, the LCD displays:4. Press key Menu to confirm and return to standby automatically.RESETALL4040RESET SOURE？40RESETWATT400.875136.225!NOTEWhen listening to the radio, the frequency or channel of A/B receiveing signal will automaticallyswitch to the frequency or channel state for nornal transimiting and receiving. And it will automatically switch to FM state when signal disappears.ʎFM Radio（FM）You can listen to the radio frequency, the frequency range is from 65-108MHz.1. In frequency or channel mode,tap call key, the LCD displays:2. Press key ▲ or ▼ to adjust radio frequency manually or input known radio frequency. Example:100.7MHz Input number 1, 0, 0, 7, 0, 0 directly. 88.9MHz Input number 8, 8, 9, 0, 0 directly.3. Repeatedly press“*”key can be automatically adjusted to the radio station.4. Tap call key to exit FM radio.The operation steps are as follows:FM100.700ALARM136．275Rapid Alert（ALARM）In frequency or channel mode, press CALL key for more than 2s for rapid alarm, the LCD displays: Press key PTT to cancel.!NOTEAlarm mode see Menu No.32.ʎALARM136．275 45 46

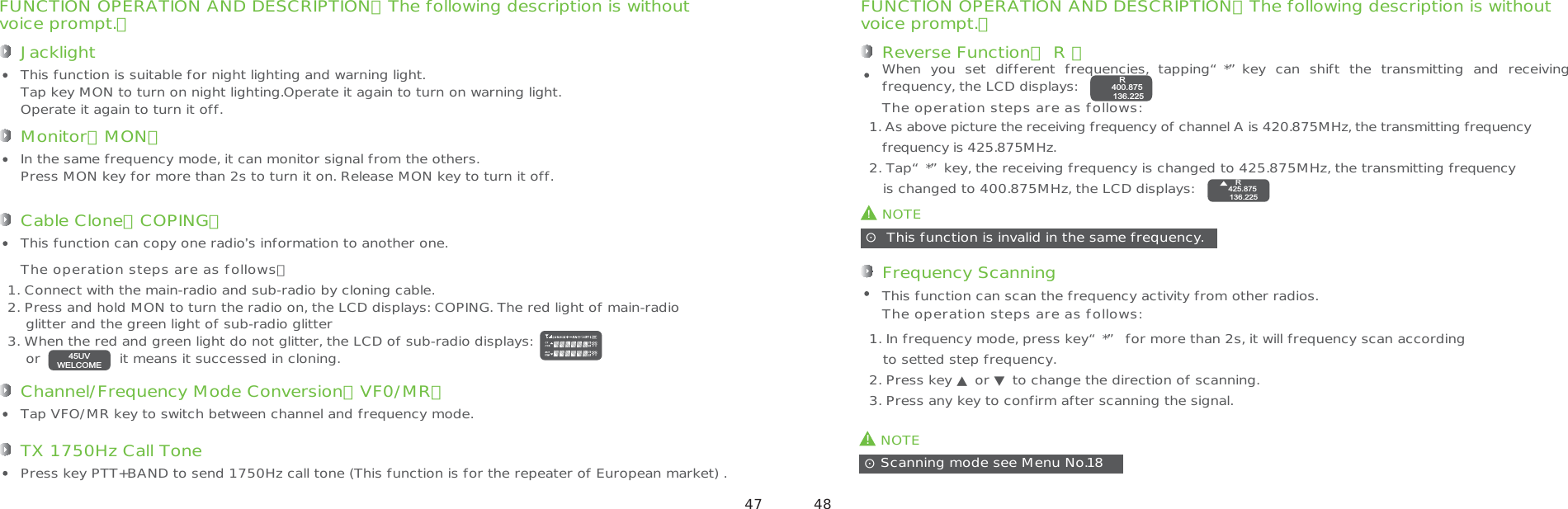

JacklightThis function is suitable for night lighting and warning light.Tap key MON to turn on night lighting.Operate it again to turn on warning light.Operate it again to turn it off.Monitor（MON）In the same frequency mode, it can monitor signal from the others.Press MON key for more than 2s to turn it on. Release MON key to turn it off.Channel/Frequency Mode Conversion（VF0/MR）Tap VFO/MR key to switch between channel and frequency mode.TX 1750Hz Call TonePress key PTT+BAND to send 1750Hz call tone (This function is for the repeater of European market) .FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Cable Clone（COPING）This function can copy one radio’s information to another one.1. Connect with the main-radio and sub-radio by cloning cable.2. Press and hold MON to turn the radio on, the LCD displays: COPING. The red light of main-radio glitter and the green light of sub-radio glitter 3. When the red and green light do not glitter, the LCD of sub-radio displays: or r it means it successed in cloning. The operation steps are as follows：FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Reverse Function（ R ）When you set different frequencies, tapping“*”key can shift the transmitting and receiving frequency, the LCD displays:1. As above picture the receiving frequency of channel A is 420.875MHz, the transmitting frequency frequency is 425.875MHz.2. Tap“*”key, the receiving frequency is changed to 425.875MHz, the transmitting frequency is changed to 400.875MHz, the LCD displays:The operation steps are as follows:This function can scan the frequency activity from other radios.The operation steps are as follows:!NOTE This function is invalid in the same frequency.ʎFrequency Scanning1. In frequency mode, press key“*” for more than 2s, it will frequency scan according to setted step frequency.2. Press key ▲ or ▼ to change the direction of scanning.3. Press any key to confirm after scanning the signal.!NOTEScanning mode see Menu No.18ʎ45UVWELCOME400.875136.225R425.875136.225R 47 48

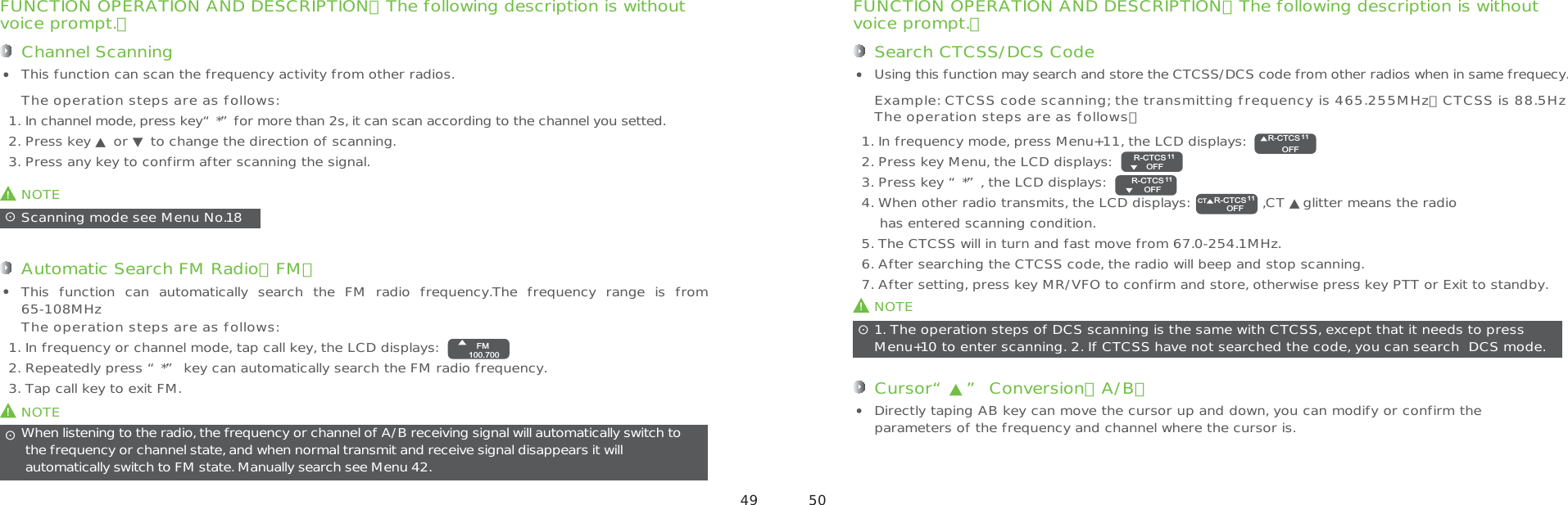

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Channel ScanningThis function can scan the frequency activity from other radios. 1. In channel mode, press key“*”for more than 2s, it can scan according to the channel you setted.2. Press key ▲ or ▼ to change the direction of scanning.3. Press any key to confirm after scanning the signal.The operation steps are as follows:!NOTEScanning mode see Menu No.18ʎFUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）Search CTCSS/DCS CodeUsing this function may search and store the CTCSS/DCS code from other radios when in same frequecy.Cursor“▲” Conversion（A/B）Directly taping AB key can move the cursor up and down, you can modify or confirm the parameters of the frequency and channel where the cursor is.1. In frequency mode, press Menu+11, the LCD displays:2. Press key Menu, the LCD displays:3. Press key “*”, the LCD displays: 4. When other radio transmits, the LCD displays: ,CT ▲glitter means the radio has entered scanning condition.5. The CTCSS will in turn and fast move from 67.0-254.1MHz.6. After searching the CTCSS code, the radio will beep and stop scanning.7. After setting, press key MR/VFO to confirm and store, otherwise press key PTT or Exit to standby. Example: CTCSS code scanning; the transmitting frequency is 465.255MHz，CTCSS is 88.5HzThe operation steps are as follows：!NOTE1. The operation steps of DCS scanning is the same with CTCSS, except that it needs to press Menu+10 to enter scanning. 2. If CTCSS have not searched the code, you can search DCS mode.ʎAutomatic Search FM Radio（FM）This function can automatically search the FM radio frequency.The frequency range is from 65-108MHz1. In frequency or channel mode, tap call key, the LCD displays:2. Repeatedly press “*” key can automatically search the FM radio frequency.3. Tap call key to exit FM.The operation steps are as follows:!NOTEWhen listening to the radio, the frequency or channel of A/B receiving signal will automatically switch to the frequency or channel state, and when normal transmit and receive signal disappears it will automatically switch to FM state. Manually search see Menu 42.ʎFM100.700R-CTCS 11OFFR-CTCSOFF11R-CTCSOFF11R-CTCSOFFCT 11 49 50
!NOTENote: You should close PTT-ID code sending when operate function of stun, kill or revive, it’s better to set the code mixed with ABCD*#.ʎFUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.） FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.）32 51 52Stun/Kill/ReviveThis function can remote control other radios in these status: only receive without transmit, receive and transmit forbidden, activate it back to normal use. Stun: only receive without transmit, Kill: receive and transmit forbidden, Revive: activate it back to normal use.1. Please click “Edit” in PC program software, then click “DTMF code”, finally fill custom 5 digit code (Stun/Kill/ Revive) in the parameter frame. There is “ troop call code” in option box and choose code “A” (troop call code is universal character of ANI code), finally write into radio. (Note: Troop call code can be ABCD*#) For example: Stun code AB*88 Kill code CD120 Revive code A8A8A2. The ANI code of sub-radio should be set by computer programming, please write user-defined ANI code in “ ID CODE”frame after press “Edit” and “DTMF” .(Details please refer to Menu 15 in page 30) Note: The ANI code of each radio is independent. For example: 1st sub-radio: 10026 2nd sub-radio: 10088 3rd sub-radio: 10033 4th sub-radio: 2223333. Open DTMF in menu 33 and confirm it. When DTMF is working, you should choose “QT” or “QT&DT” in menu 34 to realize normal talk. CTCSS and DCS also must stay the same.4. If you want to remote stun 2nd sub-radio, press PTT key of main-radio and input ANI code of 2nd sub-radio “10088” and stun code “AB*88” by keypad (Note: 10088AB*88), then the 2nd sub-radio can only receive without transmit. If you want to recover it in normal working, press PTT key of main-radio and input ANI code of 2nd sub-radio “10088”and revive code “A8A8A” by keypad (Note: 10088A8A8A), the 2nd sub-radio will return in normal use.5. If you want to remote stun 1st, 2nd, 3rd sub-radios at the same time, press PTT key of main-radio, then input firstThe radio has 19 keypads, including digit 0-9, *, # , function keys and ABCD letter keys. (Details please refer to digit keypads basic operation in page 11). Implementation step: press PTT to send both the ANI ID of sub-radio and remote code to realize the function, each code is 5 digits.Single call/Group call/Troop callThe function can realize single call, group call and troop call in same frequency by DTMF and PTT-ID.The radio has 19 keypads, including digit 0-9, *, # , function keys and ABCD letter keys. (Details please refer to digit keypads basic operation in page 11). Implementation step: please send own ANI code firstly, then send adverse ANI code, you should send two codes to activate communication, each code is 5 digits.Operating steps in frequency mode:Operating steps: three same digits of ANI code of 3 sub-radio and two digits of troop call “100AA” and stun code “A8A8A” by keypad (Note: 100AAAB*88), finally the sub-radios can only receive without transmit. If you want to recover them in normal working, press PTT key of main-radio and input first three same digits of ANI code of 3 sub-radio and two digits of troop call “100AA” and revive code “A8A8A” (Note: 100AAA8A8A), the sub-radios will return in normal use.6. If you want to stun all the sun-radios at the same time, press PTT key of main-radio, then input troop code “AAAAA” and stun code “AB*88” (Note: AAAAAAB*88), finally all the sub-radios can only receive without transmit. If you want to recover them in normal working, press PTT key of main-radio, then input troop call of sub-radios “AAAAA” and revive code “A8A8A” (Note: AAAAAA8A8A), finally all the sub-radios will return in normal use.7. In order the radio will be stunned or killed randomly, there is a “controlled” in the option box of DTMF in the software, if you select “√ ”, it mean the radio will be stunned or killed accordingly, if do not select “√ ”, it mean the radio can not be controlled to entry state of stun or kill.

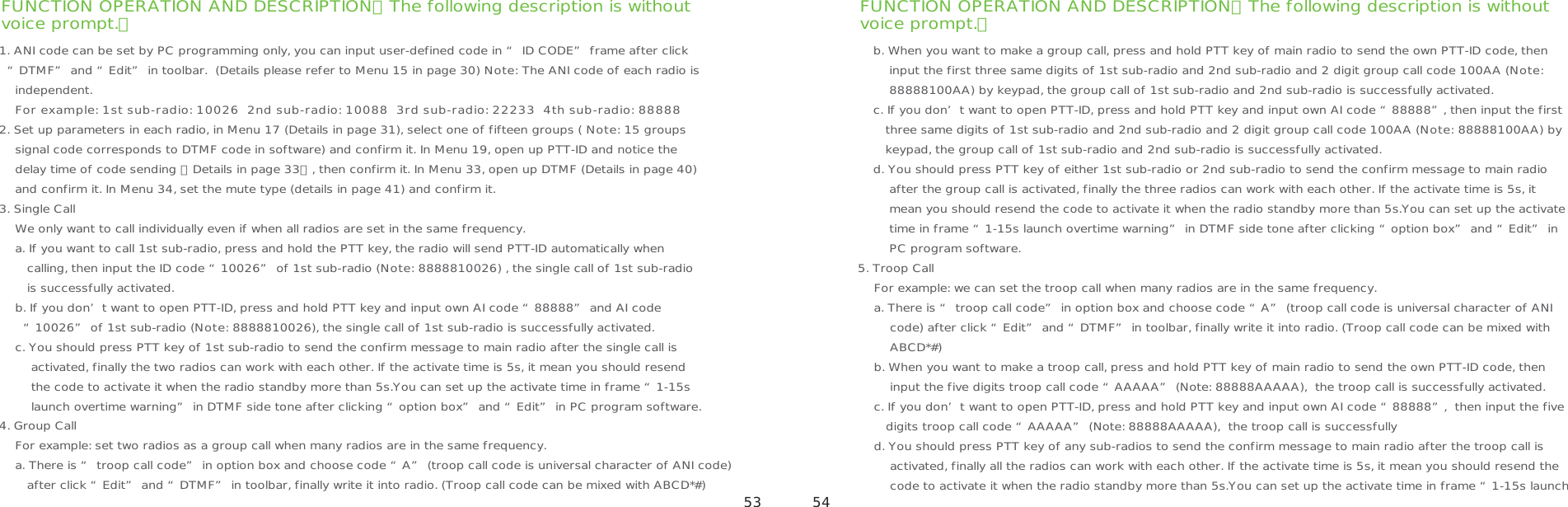

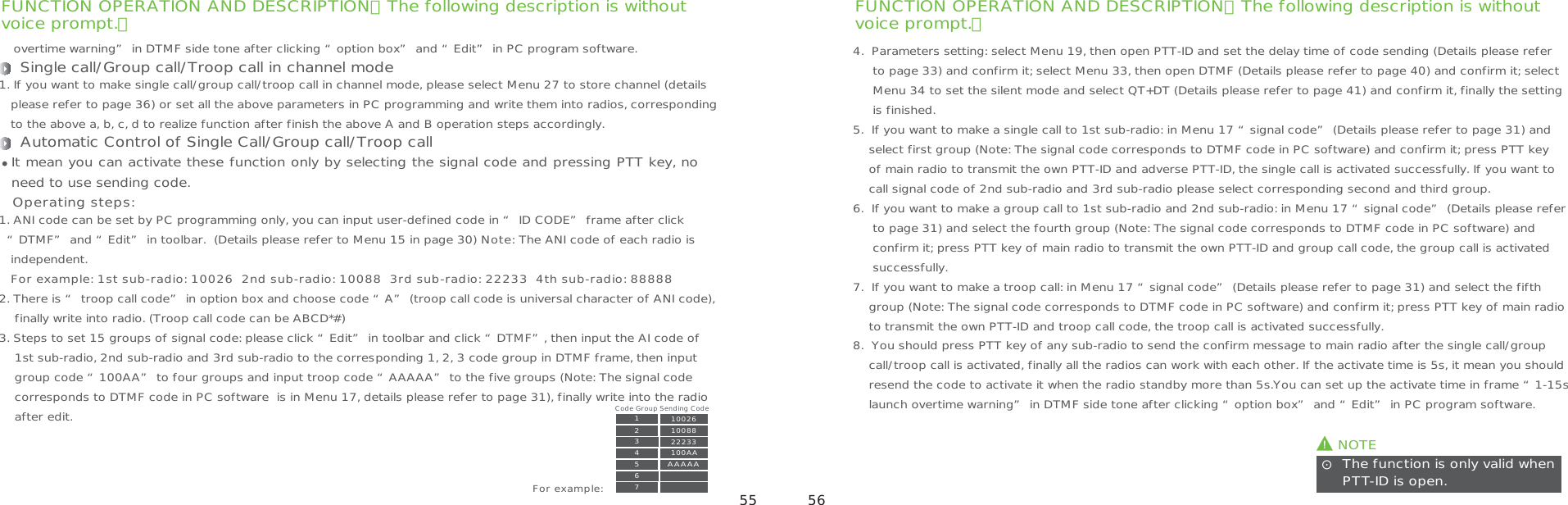

FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.） FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.） 53 541. ANI code can be set by PC programming only, you can input user-defined code in “ ID CODE” frame after click “DTMF” and “Edit” in toolbar. (Details please refer to Menu 15 in page 30) Note: The ANI code of each radio is independent. For example: 1st sub-radio: 10026 2nd sub-radio: 10088 3rd sub-radio: 22233 4th sub-radio: 888882. Set up parameters in each radio, in Menu 17 (Details in page 31), select one of fifteen groups ( Note: 15 groups signal code corresponds to DTMF code in software) and confirm it. In Menu 19, open up PTT-ID and notice the delay time of code sending （Details in page 33）, then confirm it. In Menu 33, open up DTMF (Details in page 40) and confirm it. In Menu 34, set the mute type (details in page 41) and confirm it.3. Single Call We only want to call individually even if when all radios are set in the same frequency. a. If you want to call 1st sub-radio, press and hold the PTT key, the radio will send PTT-ID automatically when calling, then input the ID code “10026” of 1st sub-radio (Note: 8888810026) , the single call of 1st sub-radio is successfully activated. b. If you don’t want to open PTT-ID, press and hold PTT key and input own AI code “88888” and AI code “10026” of 1st sub-radio (Note: 8888810026), the single call of 1st sub-radio is successfully activated. c. You should press PTT key of 1st sub-radio to send the confirm message to main radio after the single call is activated, finally the two radios can work with each other. If the activate time is 5s, it mean you should resend the code to activate it when the radio standby more than 5s.You can set up the activate time in frame “1-15s launch overtime warning” in DTMF side tone after clicking “option box” and “Edit” in PC program software.4. Group Call For example: set two radios as a group call when many radios are in the same frequency. a. There is “ troop call code” in option box and choose code “A” (troop call code is universal character of ANI code) after click “Edit” and “DTMF” in toolbar, finally write it into radio. (Troop call code can be mixed with ABCD*#) b. When you want to make a group call, press and hold PTT key of main radio to send the own PTT-ID code, then input the first three same digits of 1st sub-radio and 2nd sub-radio and 2 digit group call code 100AA (Note: 88888100AA) by keypad, the group call of 1st sub-radio and 2nd sub-radio is successfully activated.c. If you don’t want to open PTT-ID, press and hold PTT key and input own AI code “88888”, then input the first three same digits of 1st sub-radio and 2nd sub-radio and 2 digit group call code 100AA (Note: 88888100AA) by keypad, the group call of 1st sub-radio and 2nd sub-radio is successfully activated. d. You should press PTT key of either 1st sub-radio or 2nd sub-radio to send the confirm message to main radio after the group call is activated, finally the three radios can work with each other. If the activate time is 5s, it mean you should resend the code to activate it when the radio standby more than 5s.You can set up the activate time in frame “1-15s launch overtime warning” in DTMF side tone after clicking “option box” and “Edit” in PC program software. 5. Troop Call For example: we can set the troop call when many radios are in the same frequency. a. There is “ troop call code” in option box and choose code “A” (troop call code is universal character of ANI code) after click “Edit” and “DTMF” in toolbar, finally write it into radio. (Troop call code can be mixed with ABCD*#) b. When you want to make a troop call, press and hold PTT key of main radio to send the own PTT-ID code, then input the five digits troop call code “AAAAA” (Note: 88888AAAAA), the troop call is successfully activated. c. If you don’t want to open PTT-ID, press and hold PTT key and input own AI code “88888”, then input the five digits troop call code “AAAAA” (Note: 88888AAAAA), the troop call is successfully d. You should press PTT key of any sub-radios to send the confirm message to main radio after the troop call is activated, finally all the radios can work with each other. If the activate time is 5s, it mean you should resend the code to activate it when the radio standby more than 5s.You can set up the activate time in frame “1-15s launch
!NOTE The function is only valid when PTT-ID is open.ʎFUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.） FUNCTION OPERATION AND DESCRIPTION（The following description is withoutvoice prompt.） 55 56Single call/Group call/Troop call in channel modeAutomatic Control of Single Call/Group call/Troop call It mean you can activate these function only by selecting the signal code and pressing PTT key, no need to use sending code.1. ANI code can be set by PC programming only, you can input user-defined code in “ ID CODE” frame after click “DTMF” and “Edit” in toolbar. (Details please refer to Menu 15 in page 30) Note: The ANI code of each radio is independent. For example: 1st sub-radio: 10026 2nd sub-radio: 10088 3rd sub-radio: 22233 4th sub-radio: 888882. There is “ troop call code” in option box and choose code “A” (troop call code is universal character of ANI code), finally write into radio. (Troop call code can be ABCD*#)3. Steps to set 15 groups of signal code: please click “Edit” in toolbar and click “DTMF”, then input the AI code of 1st sub-radio, 2nd sub-radio and 3rd sub-radio to the corresponding 1, 2, 3 code group in DTMF frame, then input group code “100AA” to four groups and input troop code “AAAAA” to the five groups (Note: The signal code corresponds to DTMF code in PC software is in Menu 17, details please refer to page 31), finally write into the radio after edit.Operating steps:1. If you want to make single call/group call/troop call in channel mode, please select Menu 27 to store channel (details please refer to page 36) or set all the above parameters in PC programming and write them into radios, corresponding to the above a, b, c, d to realize function after finish the above A and B operation steps accordingly.4. Parameters setting: select Menu 19, then open PTT-ID and set the delay time of code sending (Details please refer to page 33) and confirm it; select Menu 33, then open DTMF (Details please refer to page 40) and confirm it; select Menu 34 to set the silent mode and select QT+DT (Details please refer to page 41) and confirm it, finally the setting is finished.5. If you want to make a single call to 1st sub-radio: in Menu 17 “signal code” (Details please refer to page 31) and select first group (Note: The signal code corresponds to DTMF code in PC software) and confirm it; press PTT key of main radio to transmit the own PTT-ID and adverse PTT-ID, the single call is activated successfully. If you want to call signal code of 2nd sub-radio and 3rd sub-radio please select corresponding second and third group.6. If you want to make a group call to 1st sub-radio and 2nd sub-radio: in Menu 17 “signal code” (Details please refer to page 31) and select the fourth group (Note: The signal code corresponds to DTMF code in PC software) and confirm it; press PTT key of main radio to transmit the own PTT-ID and group call code, the group call is activated successfully.7. If you want to make a troop call: in Menu 17 “signal code” (Details please refer to page 31) and select the fifth group (Note: The signal code corresponds to DTMF code in PC software) and confirm it; press PTT key of main radio to transmit the own PTT-ID and troop call code, the troop call is activated successfully.8. You should press PTT key of any sub-radio to send the confirm message to main radio after the single call/group call/troop call is activated, finally all the radios can work with each other. If the activate time is 5s, it mean you should resend the code to activate it when the radio standby more than 5s.You can set up the activate time in frame “1-15s launch overtime warning” in DTMF side tone after clicking “option box” and “Edit” in PC program software. overtime warning” in DTMF side tone after clicking “option box” and “Edit” in PC program software.Code Group Sending Code 1100262100883222334100AA5AAAAA67For example:

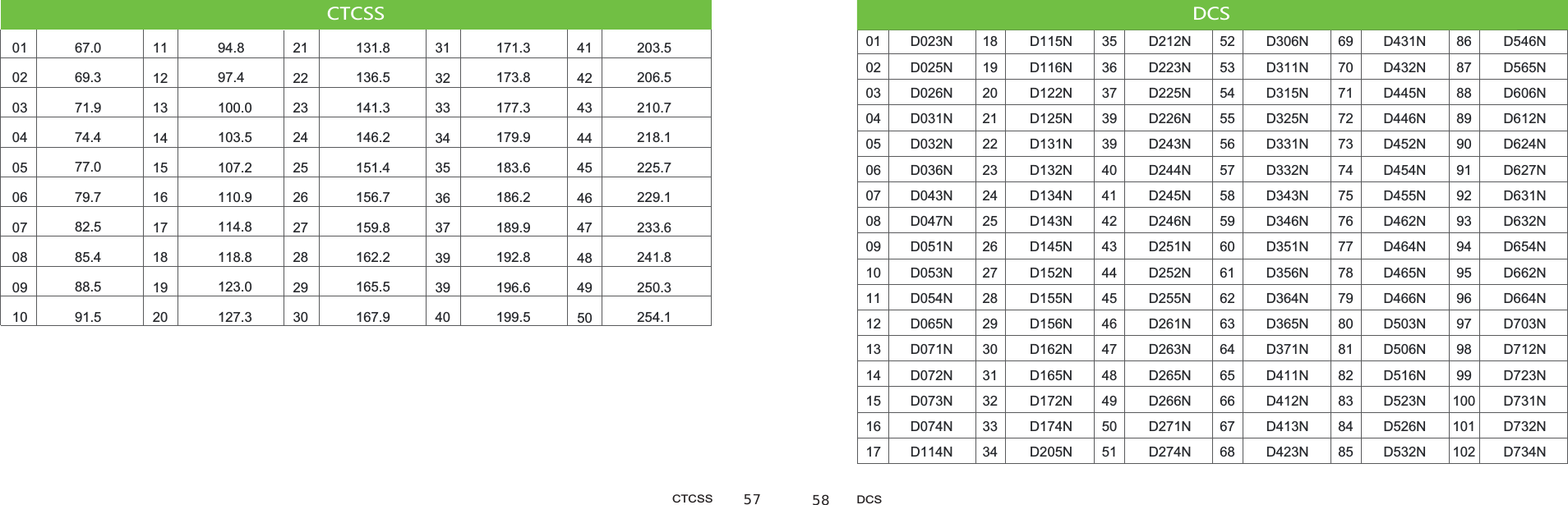

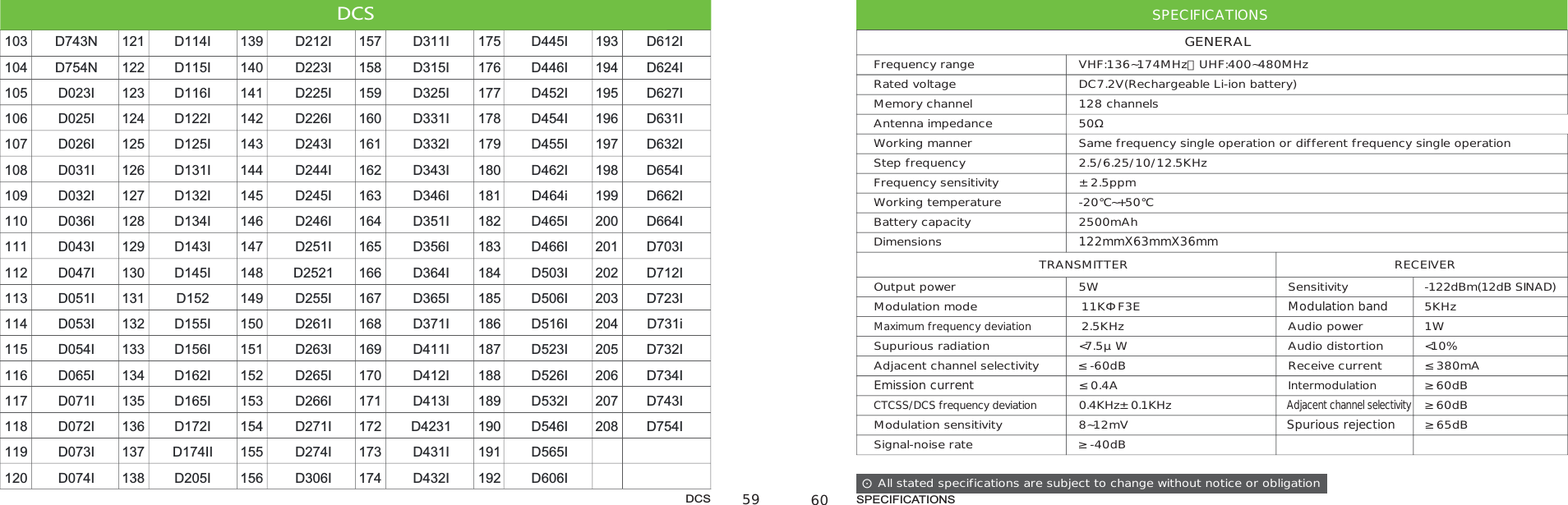

0102030405060708091011121314151617D023ND025ND026ND031ND032ND036ND043ND047ND051ND053ND054ND065ND071ND072ND073ND074ND114N1819202122232425262728293031323334D115ND116ND122ND125ND131ND132ND134ND143ND145ND152ND155ND156ND162ND165ND172ND174ND205N3536373939404142434445464748495051D212ND223ND225ND226ND243ND244ND245ND246ND251ND252ND255ND261ND263ND265ND266ND271ND274N5253545556575859606162636465666768D306ND311ND315ND325ND331ND332ND343ND346ND351ND356ND364ND365ND371ND411ND412ND413ND423N6970717273747576777879808182838485D431ND432ND445ND446ND452ND454ND455ND462ND464ND465ND466ND503ND506ND516ND523ND526ND532N8687888990919293949596979899100101102D546ND565ND606ND612ND624ND627ND631ND632ND654ND662ND664ND703ND712ND723ND731ND732ND734N67.069.371.974.477.079.782.585.488.591.594.897.4100.0103.5107.2110.9114.8118.8123.0127.3131.8136.5141.3146.2151.4156.7159.8162.2165.5167.9171.3173.8177.3179.9183.6186.2189.9192.8196.6199.5203.5206.5210.7218.1225.7229.1233.6241.8250.3254.10102030405060708091021222324252627282930111213141516171819203132333435363739394041424344454647484950CTCSS DCSCTCSS DCS 57 58
D743ND754ND023ID025ID026ID031ID032ID036ID043ID047ID051ID053ID054ID065ID071ID072ID073ID074I121122123124125126127128129130131132133134135136137138D114ID115ID116ID122ID125ID131ID132ID134ID143ID145ID152D155ID156ID162ID165ID172ID174IID205I139140141142143144145146147148149150151152153154155156D212ID223ID225ID226ID243ID244ID245ID246ID251ID2521D255ID261ID263ID265ID266ID271ID274ID306I157158159160161162163164165166167168169170171172173174D311ID315ID325ID331ID332ID343ID346ID351ID356ID364ID365ID371ID411ID412ID413ID4231D431ID432I175176177178179180181182183184185186187188189190191192D445ID446ID452ID454ID455ID462ID464iD465ID466ID503ID506ID516ID523ID526ID532ID546ID565ID606I193194195196197198199200201202203204205206207208D612ID624ID627ID631ID632ID654ID662ID664ID703ID712ID723ID731iD732ID734ID743ID754I103104105106107108109110111112113114115116117118119120GENERALRated voltageVHF:136~174MHz，UHF:400~480MHzFrequency rangeMemory channelAntenna impedanceWorking mannerStep frequencyFrequency sensitivityWorking temperatureBattery capacityDimensionsDC7.2V(Rechargeable Li-ion battery)128 channels50ΩSame frequency single operation or different frequency single operation2.5/6.25/10/12.5KHz±2.5ppm-20℃~+50℃2500mAh 122mmX63mmX36mmTRANSMITTER RECEIVERSensitivity -122dBm(12dB SINAD)Output powerSupurious radiationAdjacent channel selectivityEmission current Modulation sensitivity5W<7.5μW≤0.4A8~12mVModulation bandAudio powerAudio distortionReceive currentAdjacent channel selectivitySpurious rejection5KHz1W<10%≤380mA≥65dB DCSSPECIFICATIONSAll stated specifications are subject to change without notice or obligationʎDCS SPECIFICATIONS 59 6011KФF3E2.5KHzModulation modeMaximum frequency deviationCTCSS/DCS frequency deviationSignal-noise rate≤-60dB0.4KHz±0.1KHz≥-40dBIntermodulation≥60dB≥60dB

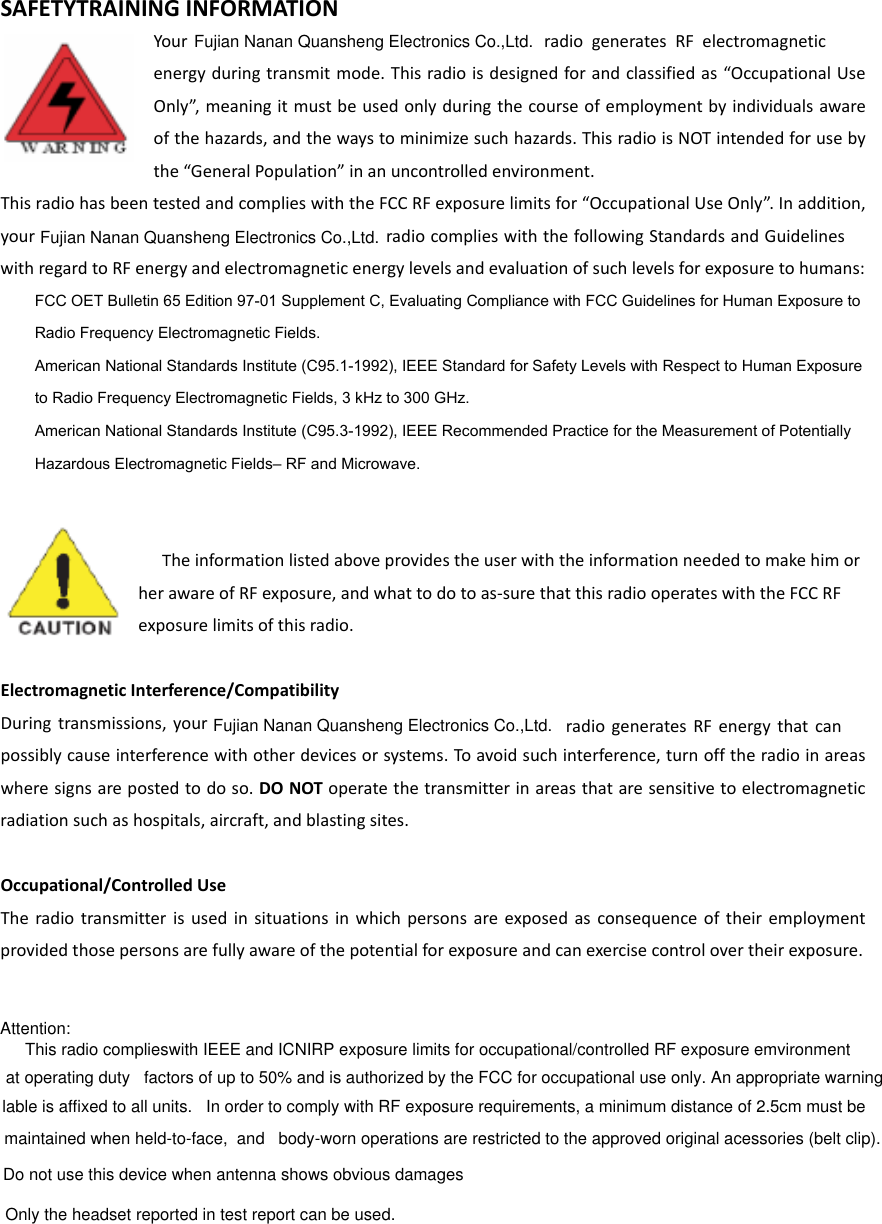

SAFETYTRAININGINFORMATIONYour  radiogeneratesRFelectromagneticenergyduringtransmitmode.Thisradioisdesignedforandclassifiedas“OccupationalUseOnly”,meaningitmustbeusedonlyduringthecourseofemploymentbyindividualsawareofthehazards,andthewaystominimizesuchhazards.ThisradioisNOTintendedforusebythe“GeneralPopulation”inanuncontrolledenvironment.ThisradiohasbeentestedandcomplieswiththeFCCRFexposurelimitsfor“OccupationalUseOnly”.Inaddition,your  radiocomplieswiththefollowingStandardsandGuidelineswithregardtoRFenergyandelectromagneticenergylevelsandevaluationofsuchlevelsforexposuretohumans: FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.  American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.  American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave. TheinformationlistedaboveprovidestheuserwiththeinformationneededtomakehimorherawareofRFexposure,andwhattodotoas‐surethatthisradiooperateswiththeFCCRFexposurelimitsofthisradio.ElectromagneticInterference/CompatibilityDuringtransmissions,your      radiogeneratesRFenergythatcanpossiblycauseinterferencewithotherdevicesorsystems.Toavoidsuchinterference,turnofftheradioinareaswheresignsarepostedtodoso.DONOToperatethetransmitterinareasthataresensitivetoelectromagneticradiationsuchashospitals,aircraft,andblastingsites.Occupational/ControlledUseTheradiotransmitterisusedinsituationsinwhichpersonsareexposedasconsequenceoftheiremploymentprovidedthosepersonsarefullyawareofthepotentialforexposureandcanexercisecontrolovertheirexposure.Attention: This radio complieswith IEEE and ICNIRP exposure limits for occupational/controlled RF exposure emvironment at operating duty factors of up to 50% and is authorized by the FCC for occupational use only. An appropriate warning lable is affixed to all units. In order to comply with RF exposure requirements, a minimum distance of 2.5cm must be maintained when held-to-face, and body-worn operations are restricted to the approved original acessories (belt clip). Do not use this device when antenna shows obvious damagesFujian Nanan Quansheng Electronics Co.,Ltd.Fujian Nanan Quansheng Electronics Co.,Ltd.Fujian Nanan Quansheng Electronics Co.,Ltd.Only the headset reported in test report can be used.
