Part 2
iDEN Add-On Filter Box
User’s Manual -16-
3. Hardware Installation
The installation procedure is as follows:
Check List of Items
Mounting
Grounding
RF Connection
Power up
3.1 Check List of Items
Index Items Q’ty
1 iDEN Add-On Filter Box 1
2 Power Cord 1
3 Screws for Mounting 4
Items

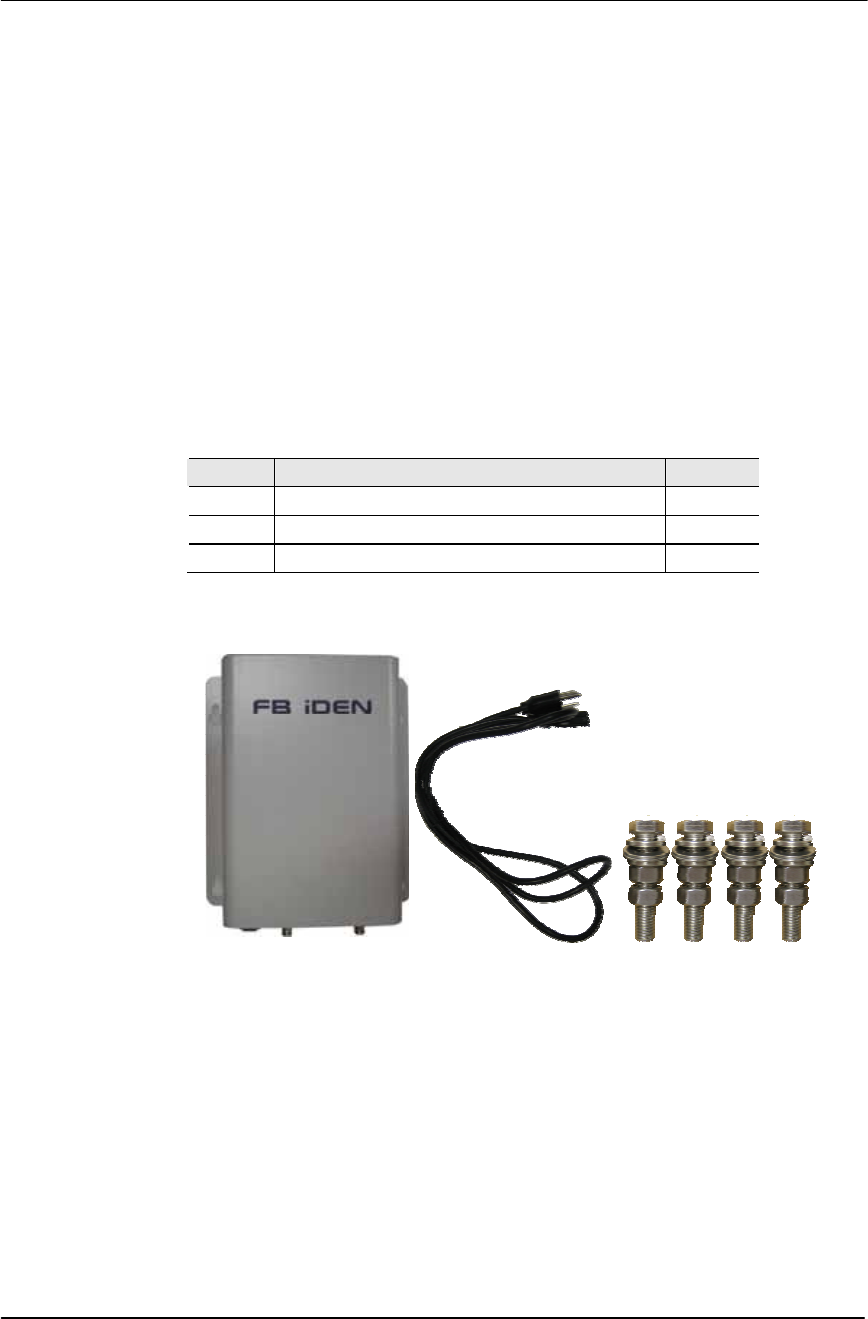

Figure 10. Items
1 2 3
iDEN Add-On Filter Box
User’s Manual -17-
3.2 Mounting
iDEN Add-On Filter Box is easy to mount using the assembled mounting
bracket, which has Ø9 holes for the provided 5/16" fixing screws.

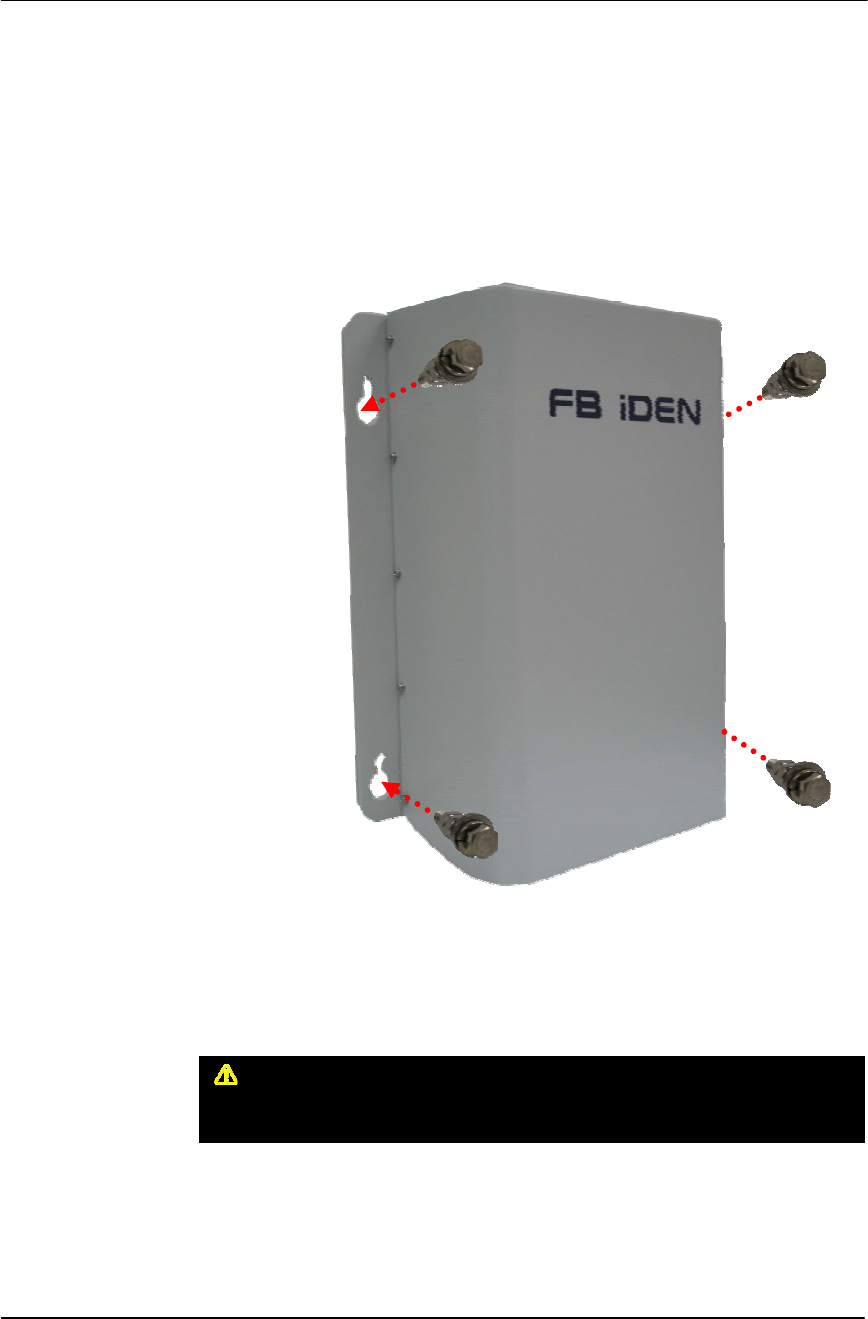

Figure 11. Mounting
3.3 Grounding
A screw at the bottom is intended for a building ground. Connect the ground
cable to the screw.
WARNING
Dangerously high voltages may occur and damage the equipment if the
e
q
ui
p
ment is not
g
rounded
p
ro
p
erl
y
.
iDEN Add-On Filter Box
User’s Manual -18-

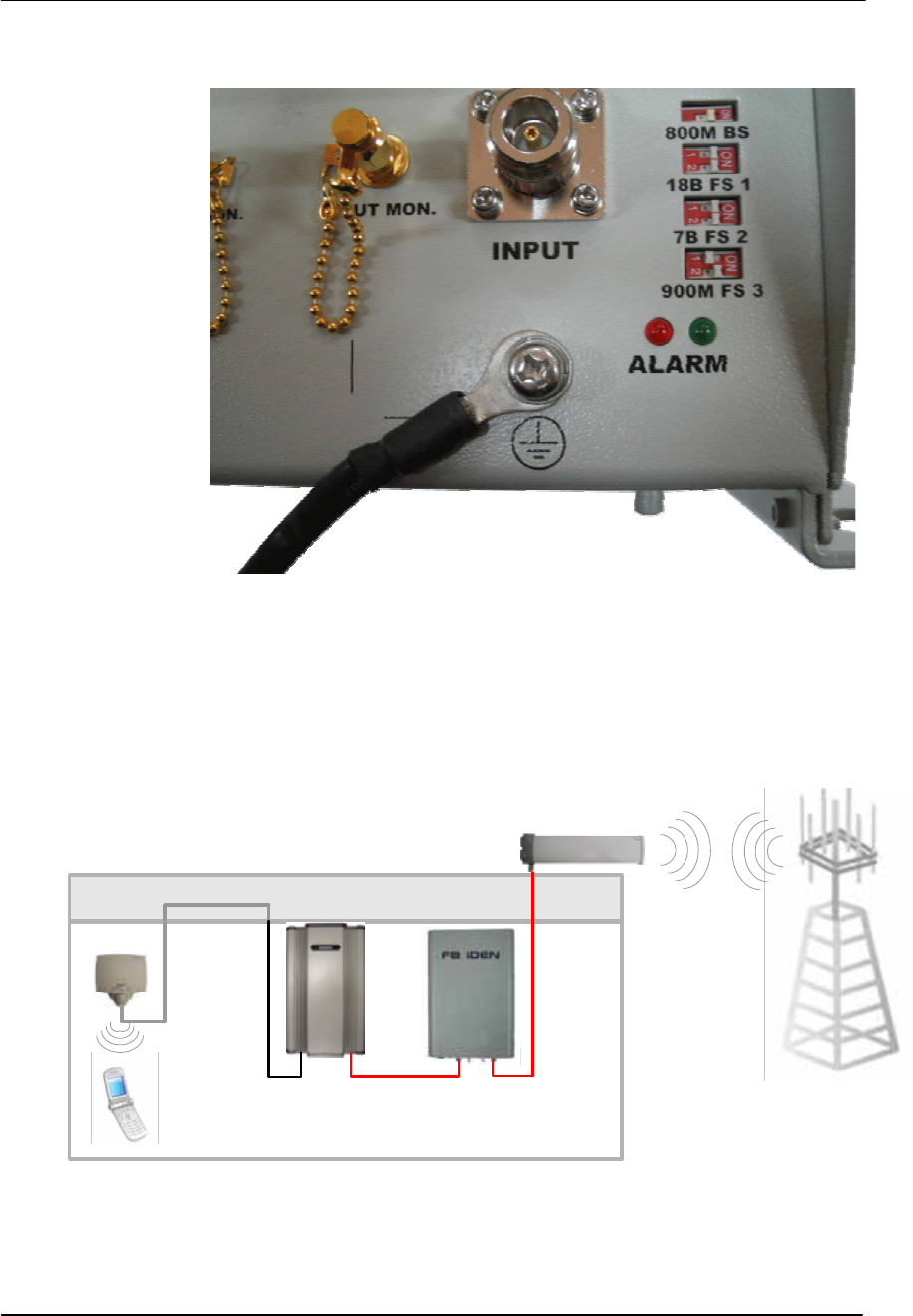

Figure 12. Grounding
3.4 RF Cable Connection
a. Connect a cable from a donor antenna to the Input Port.
b. Connect a cable from the Filtered Output Port to a repeater’s donor
port
Base Station
Service
Antenna
Mobile
iDEN Add- On Filter BoxRepeater
Input
Filtered
Output
DonorService
Donor Antenna
Figure 13. Configuration: RF Cable Connection
