R tron SNGATEMLT PCS Repeater Repote Monitor System User Manual

R-tron Inc. PCS Repeater Repote Monitor System

User Manual

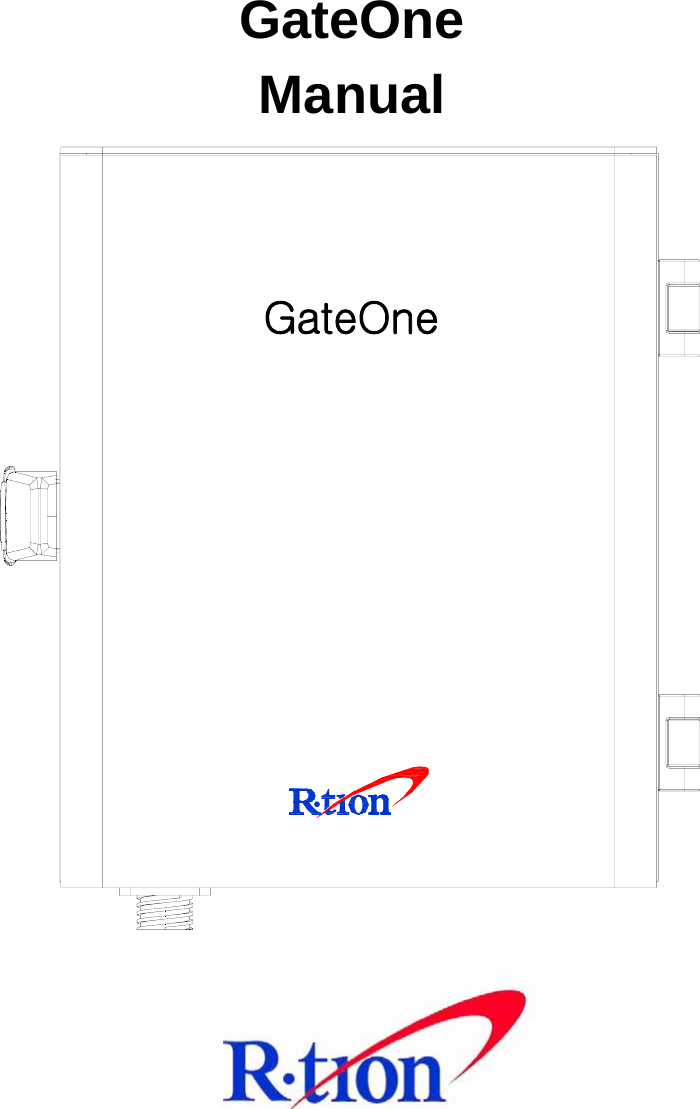

GateOne Manual GateOne

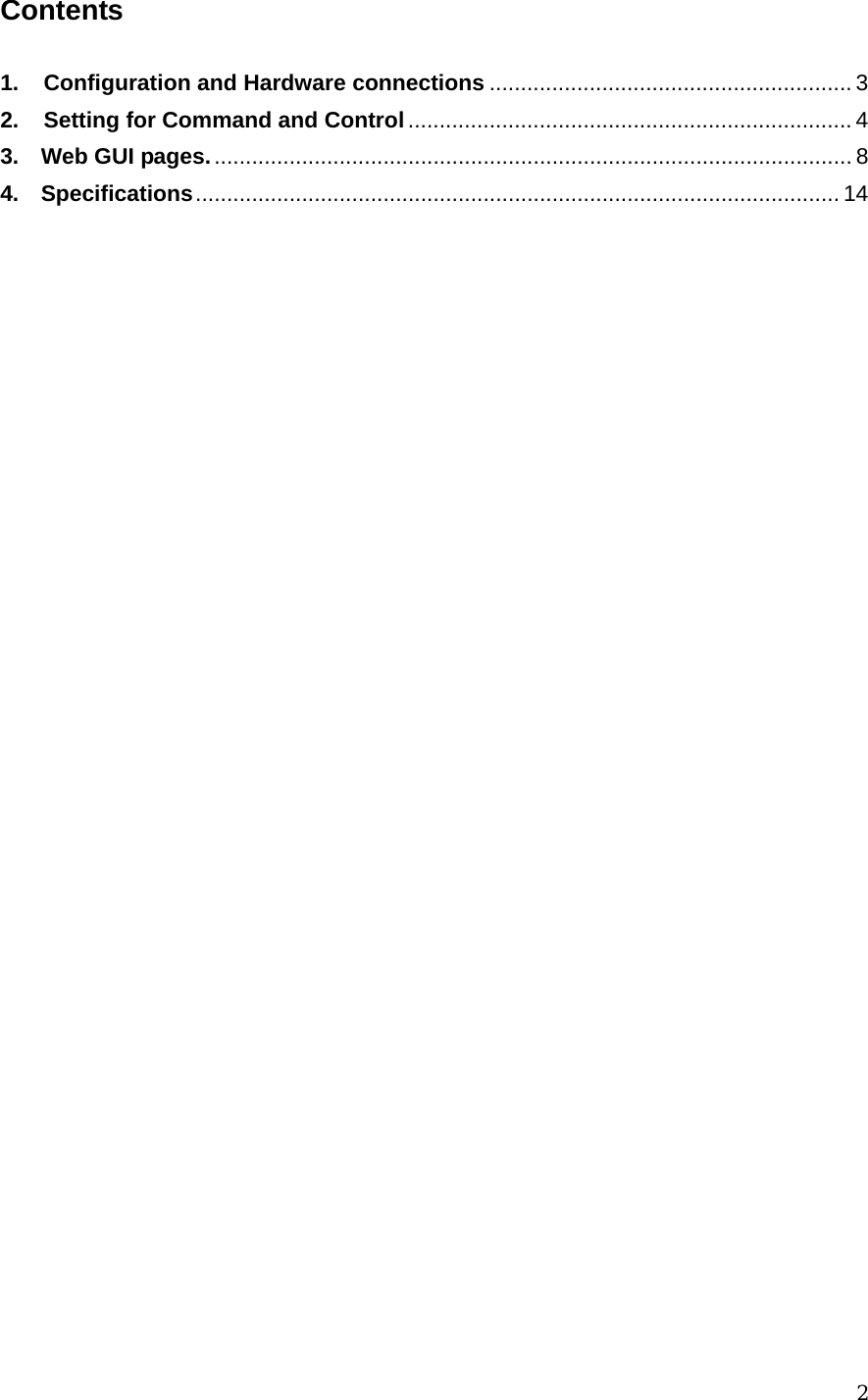

2Contents 1. Configuration and Hardware connections .......................................................... 3 2. Setting for Command and Control ....................................................................... 4 3. Web GUI pages. ...................................................................................................... 8 4. Specifications ....................................................................................................... 14

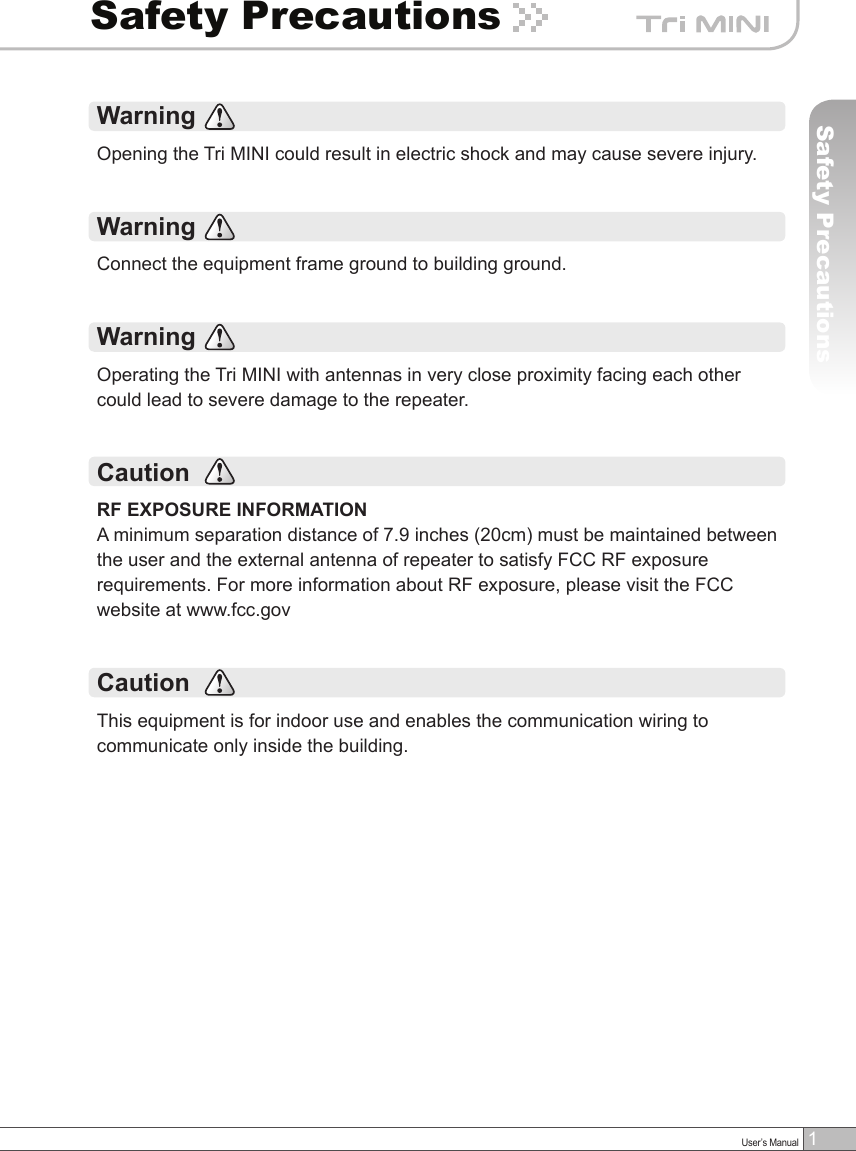

1 User’s ManualSafety PrecautionsSafety PrecautionsWarningOpening the Tri MINI could result in electric shock and may cause severe injury.WarningConnect the equipment frame ground to building ground.Warning Operating the Tri MINI with antennas in very close proximity facing each other could lead to severe damage to the repeater.CautionRF EXPOSURE INFORMATIONA minimum separation distance of 7.9 inches (20cm) must be maintained between the user and the external antenna of repeater to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.govCautionThis equipment is for indoor use and enables the communication wiring to communicate only inside the building.

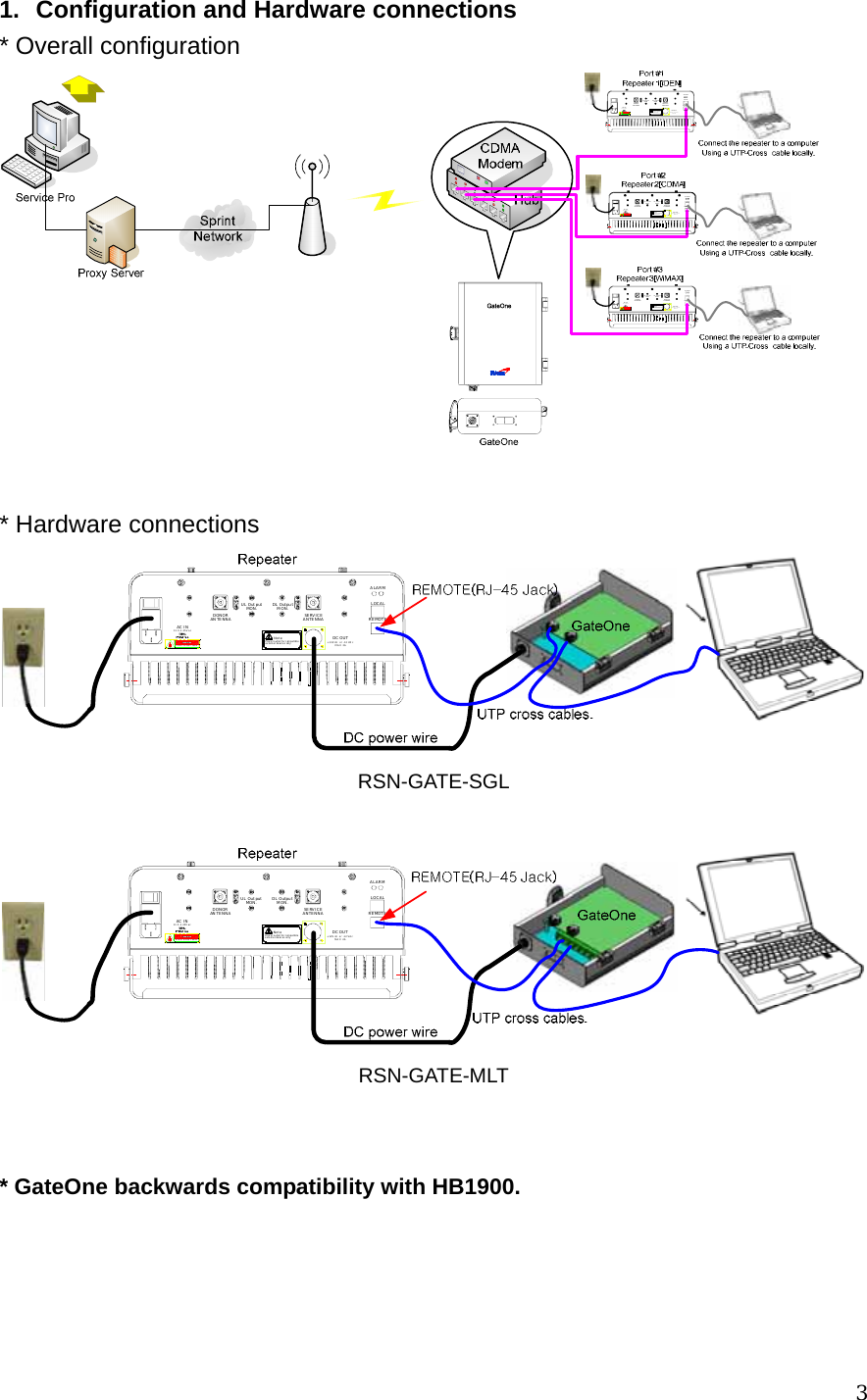

31. Configuration and Hardware connections * Overall configuration DONORANTE N N ADANGERRISK OF EL ECTRI C SHO CK110 -12 5V acAC I NSERVI C EANTENNADL OutputMON.UL OutputMON.Noteexternal devices onlyPower o utle t for compatibleDC OUT+12Vdc or -12 VdcMAX 2ALOCALREMOTEALARM DONORANTENNADANGERRISK OF EL ECTRI C SHO CK110 -1 25V acAC INSERVI CEANTENNADL OutputMON.UL OutputMON.Noteexternal devices onlyPower outl et for c ompatibleDC OUT+12V dc or -12 Vd cMAX 2ALOCALREMOTEALARM DONORANTENNADANGERRISK OF EL ECTRI C SHO CK110 -1 25V acAC INSERVI CEANTENNADL OutputMON.UL OutputMON.Noteexternal devices onlyPower outl et for c ompatibleDC OUT+12V dc or -12 Vd cMAX 2ALOCALREMOTEALARMGateOne * Hardware connections DONORAN TE NN ADA NGERR ISK O F EL ECTR I C SHO CK11 0 -1 25VacAC INSERVICEANTENNADL OutputMON.UL Out putMON.Not eexternal devices onlyPo we r outl et f or c ompatibleDC OUT+ 12V dc o r -12 Vd cMAX 2ALOCALREMOTEALARM RSN-GATE-SGL DONORAN TE NN ADA NGERR ISK O F EL ECTR I C SHO CK11 0 -1 25VacAC INSERVICEANTENNADL OutputMON.UL Out putMON.Not eexternal devices onlyPo we r outl et f or c ompatibleDC OUT+ 12V dc o r -12 Vd cMAX 2ALOCALREMOTEALARM RSN-GATE-MLT * GateOne backwards compatibility with HB1900.

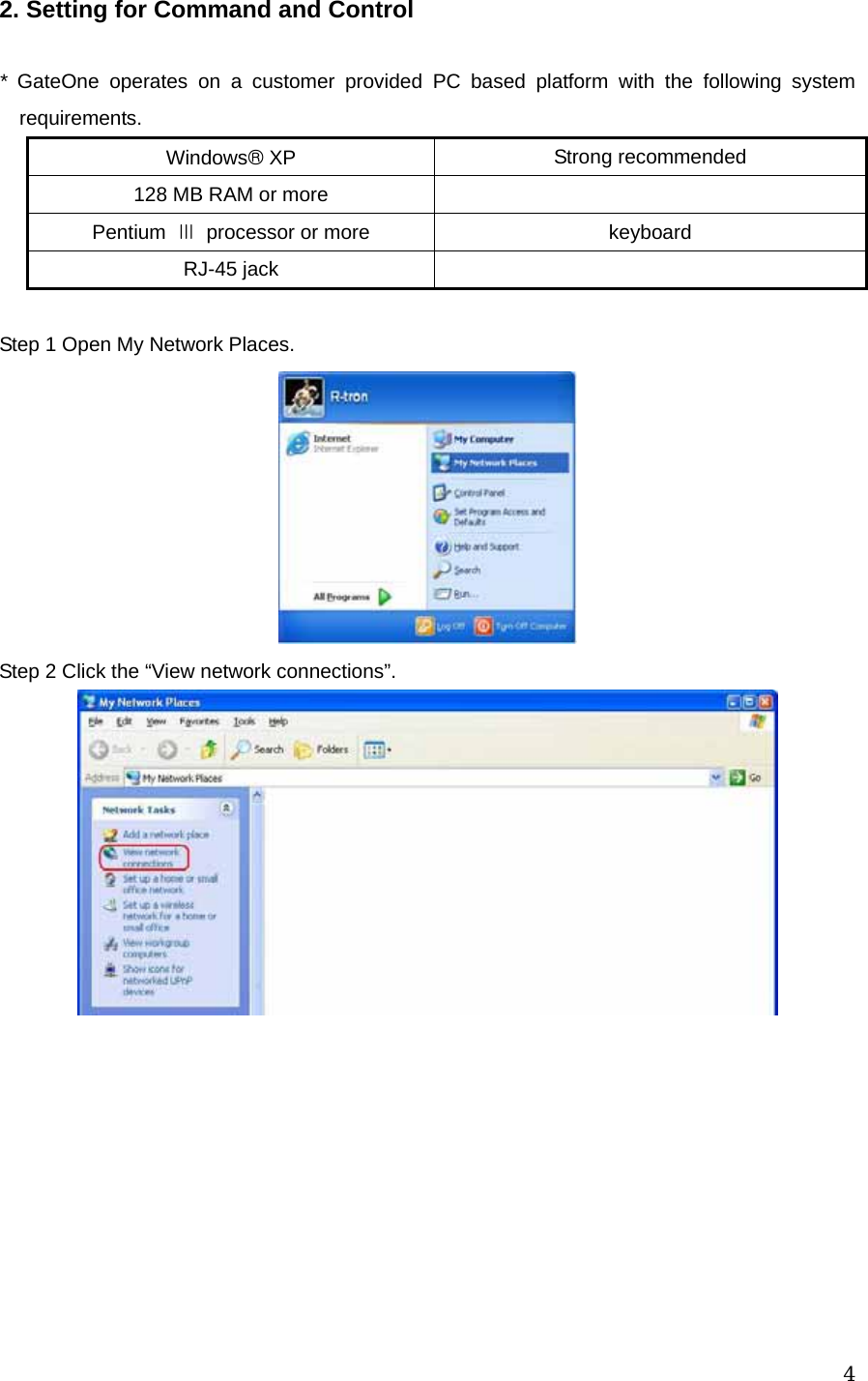

42. Setting for Command and Control * GateOne operates on a customer provided PC based platform with the following system requirements. Windows® XP Strong recommended 128 MB RAM or more Pentium Ⅲ processor or more keyboard RJ-45 jack Step 1 Open My Network Places. Step 2 Click the “View network connections”.

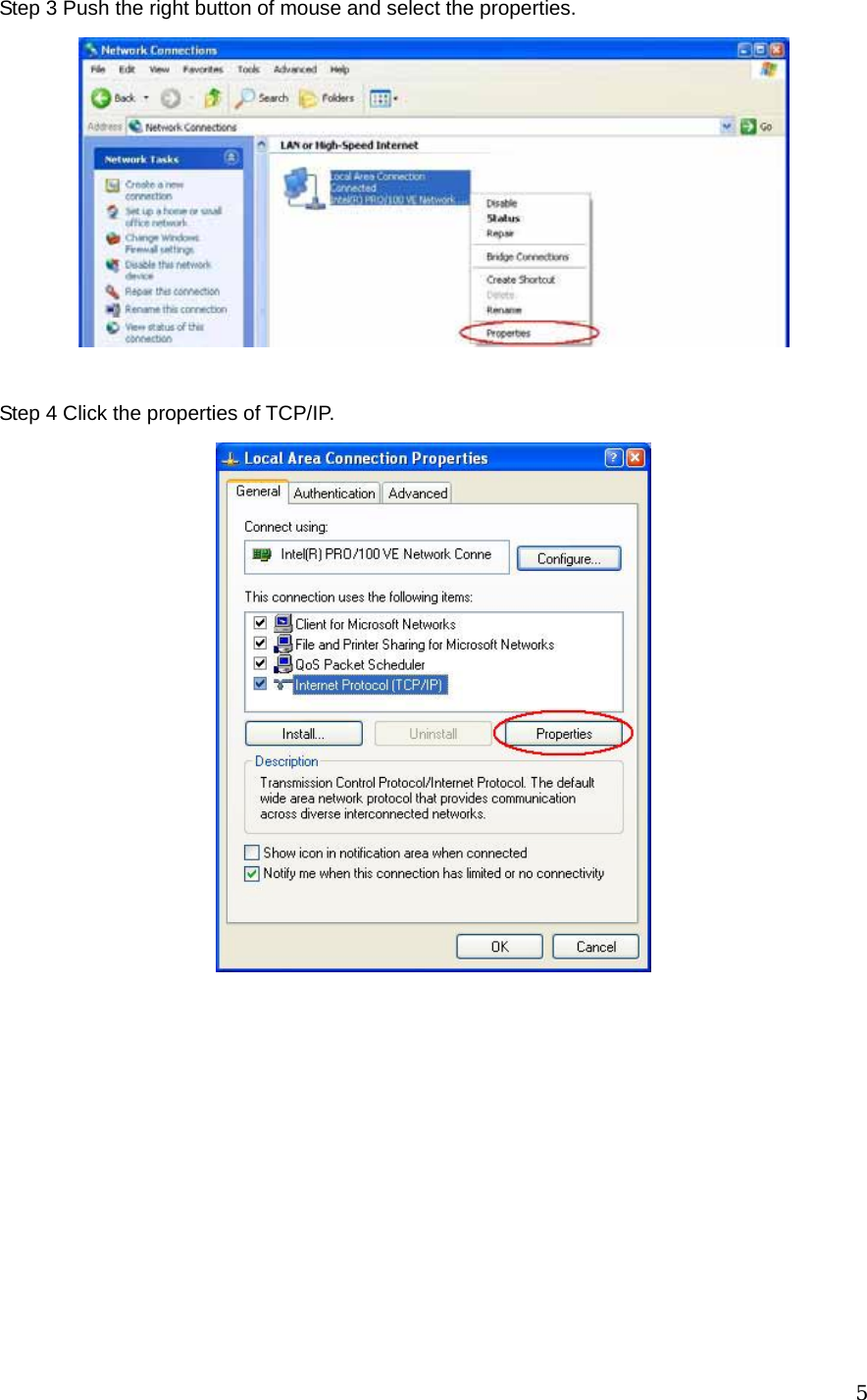

5Step 3 Push the right button of mouse and select the properties. Step 4 Click the properties of TCP/IP.

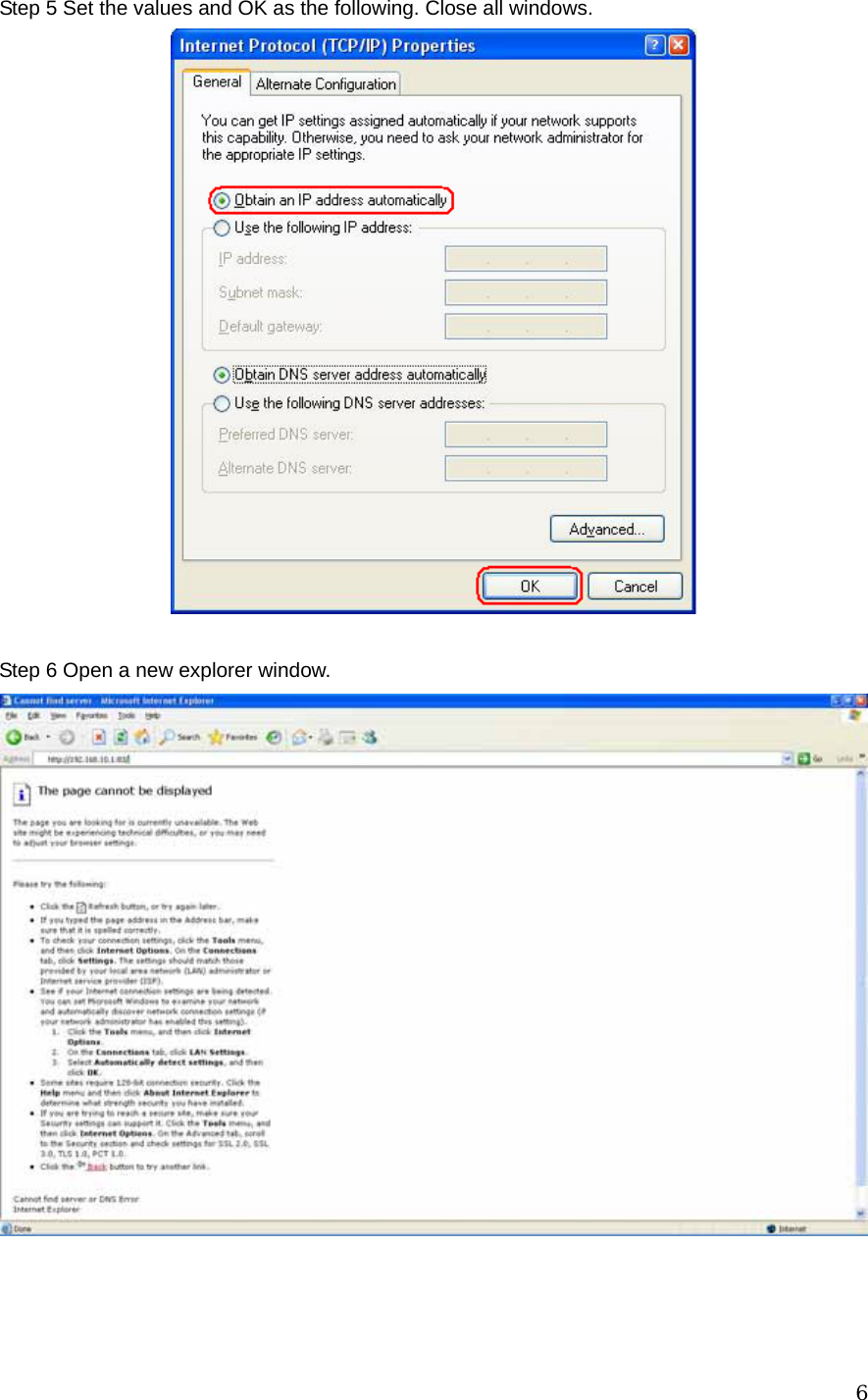

6Step 5 Set the values and OK as the following. Close all windows. Step 6 Open a new explorer window.

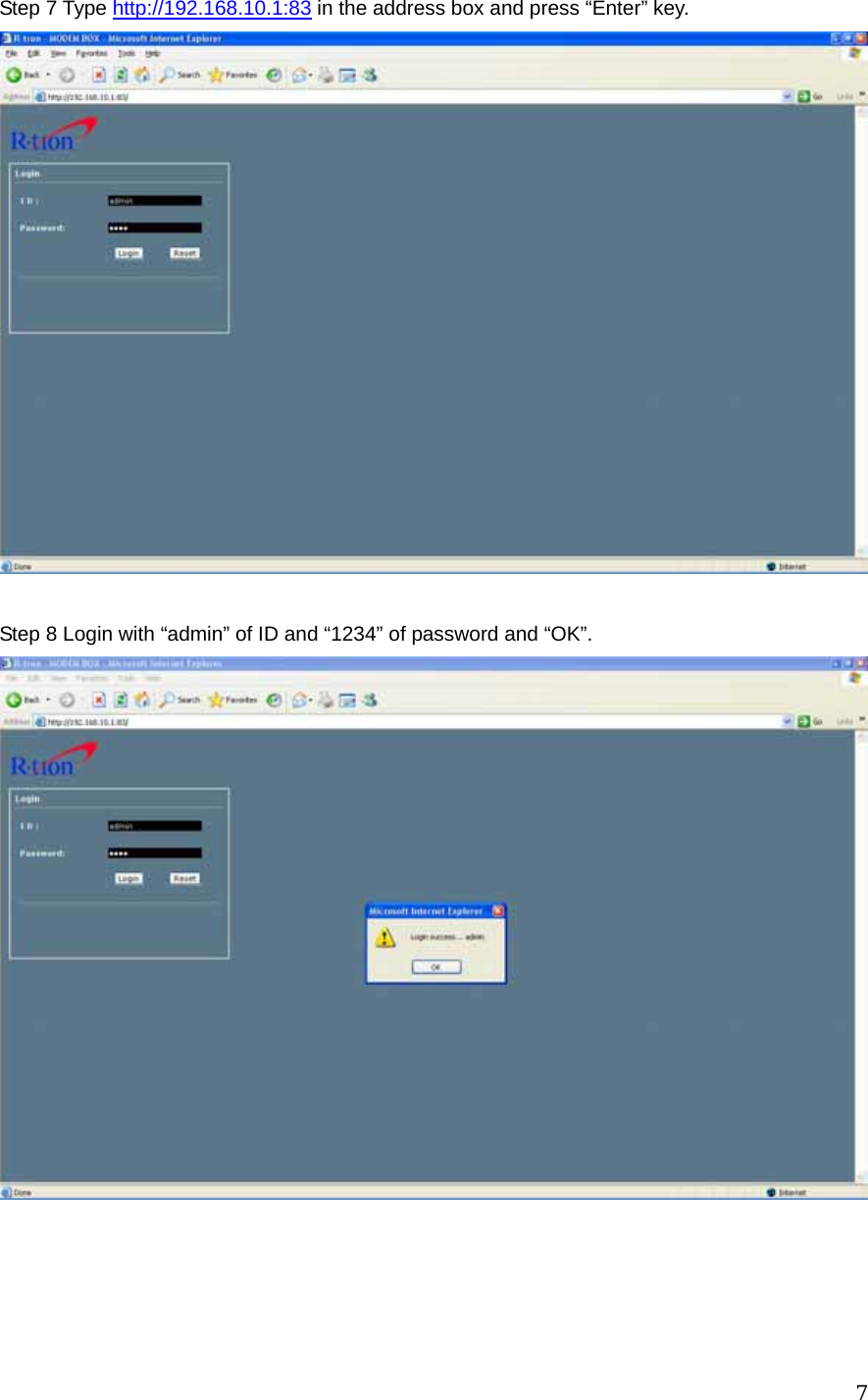

7Step 7 Type http://192.168.10.1:83 in the address box and press “Enter” key. Step 8 Login with “admin” of ID and “1234” of password and “OK”.

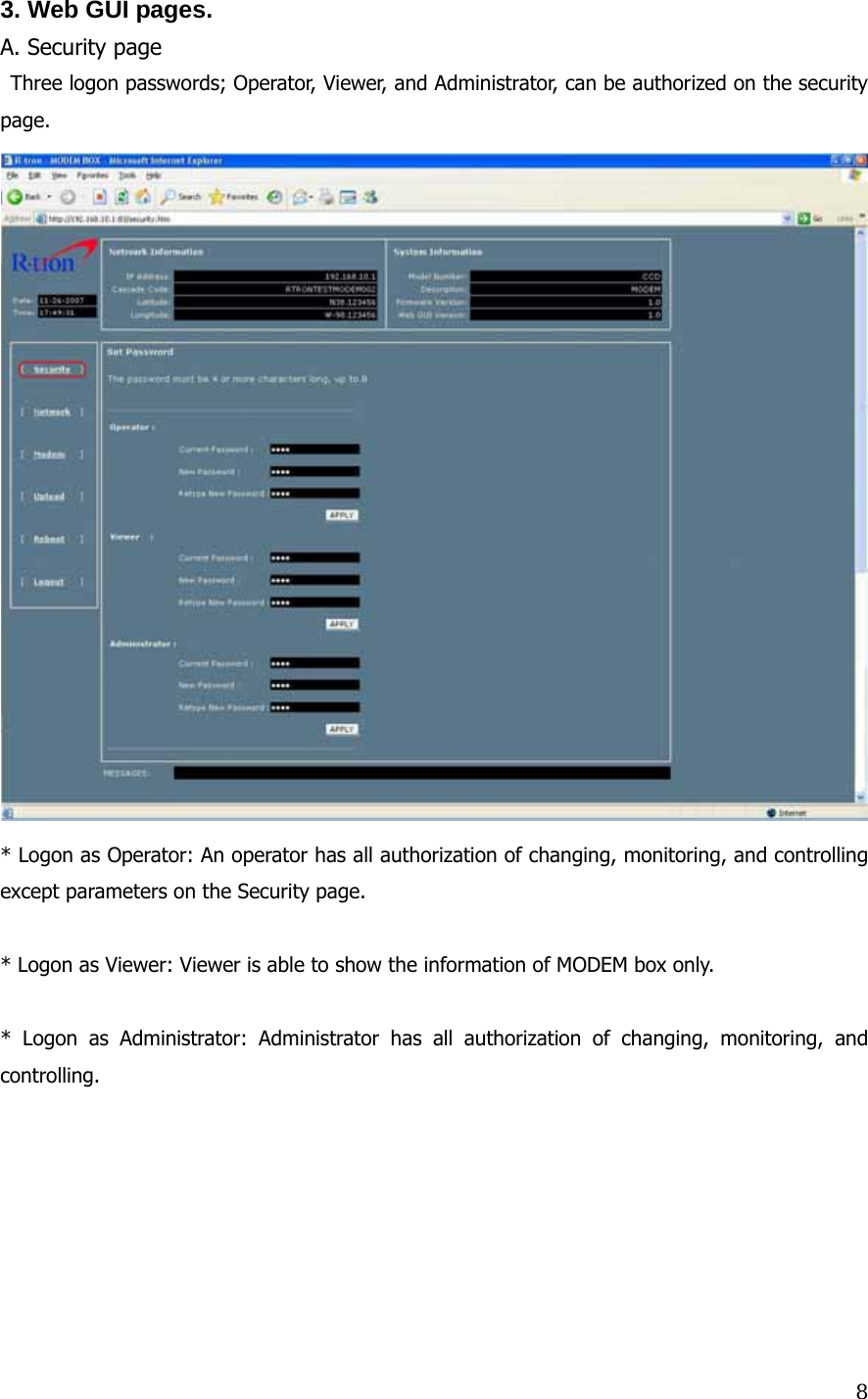

83. Web GUI pages. A. Security page Three logon passwords; Operator, Viewer, and Administrator, can be authorized on the security page. * Logon as Operator: An operator has all authorization of changing, monitoring, and controlling except parameters on the Security page. * Logon as Viewer: Viewer is able to show the information of MODEM box only. * Logon as Administrator: Administrator has all authorization of changing, monitoring, and controlling.

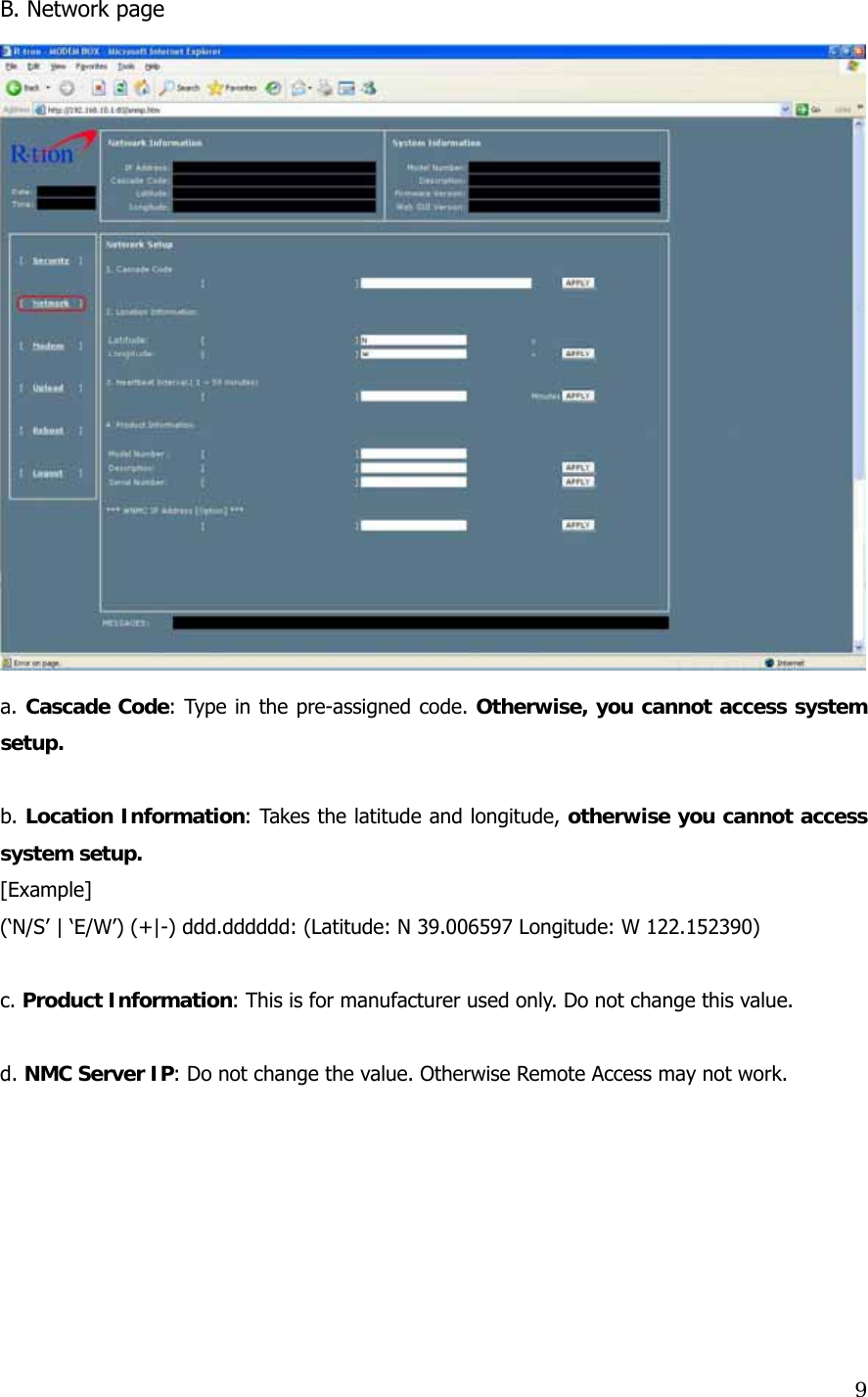

9B. Network page a. Cascade Code: Type in the pre-assigned code. Otherwise, you cannot access system setup. b. Location Information: Takes the latitude and longitude, otherwise you cannot access system setup. [Example] (‘Ν/S’ | ‘Ε/W’) (+|-) ddd.dddddd: (Latitude: N 39.006597 Longitude: W 122.152390) c. Product Information: This is for manufacturer used only. Do not change this value. d. NMC Server IP: Do not change the value. Otherwise Remote Access may not work.

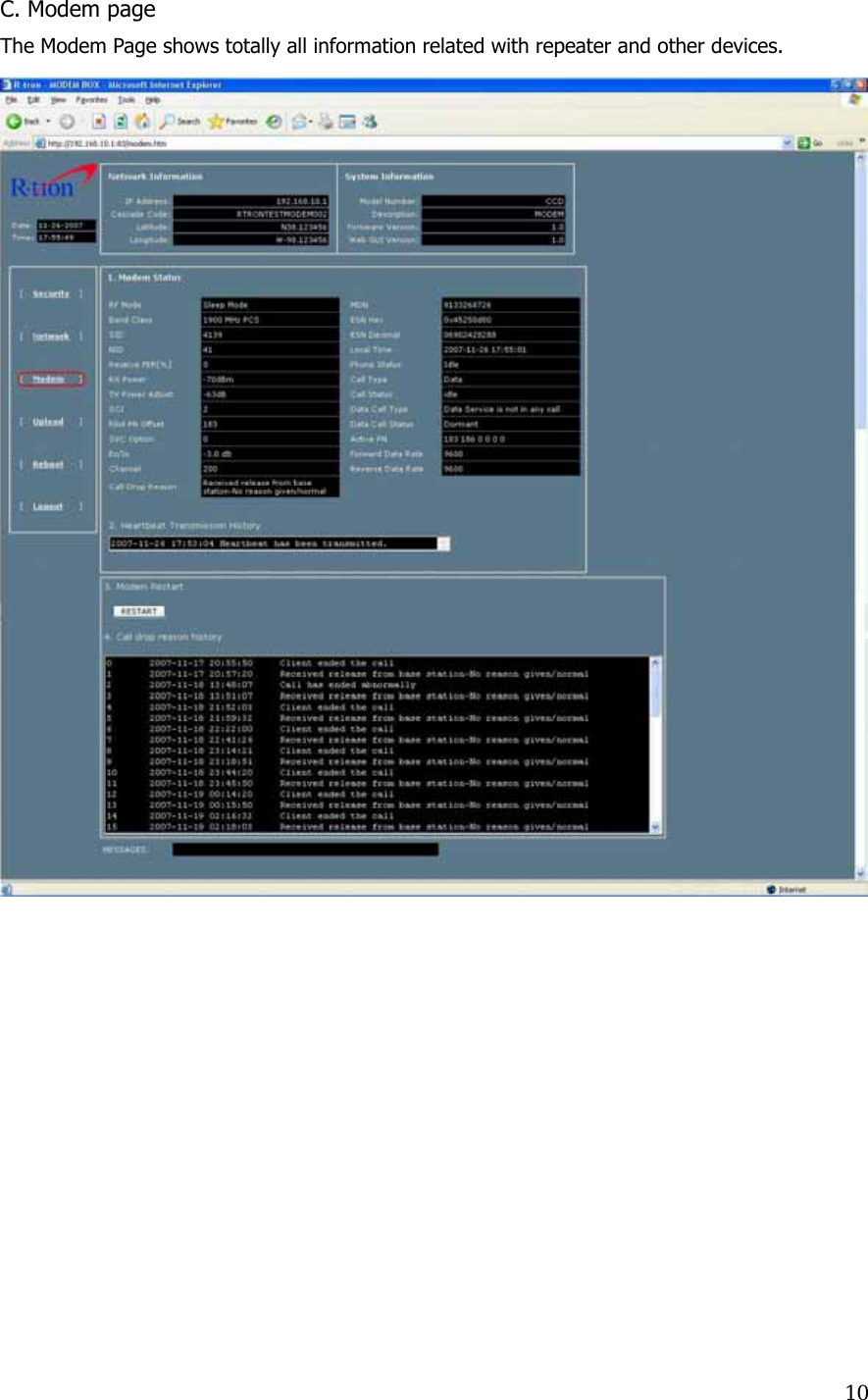

10C. Modem page The Modem Page shows totally all information related with repeater and other devices.

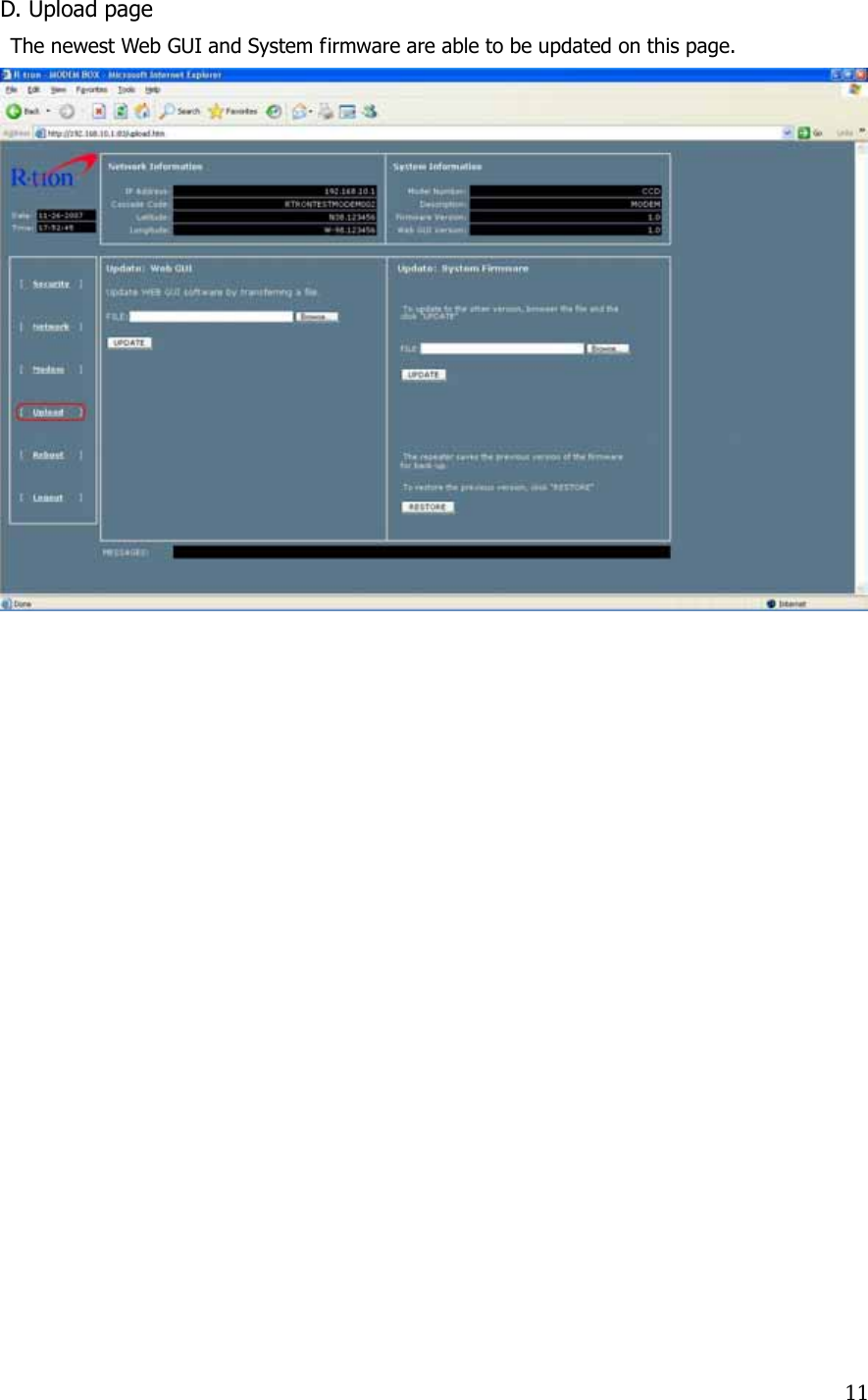

11D. Upload page The newest Web GUI and System firmware are able to be updated on this page.

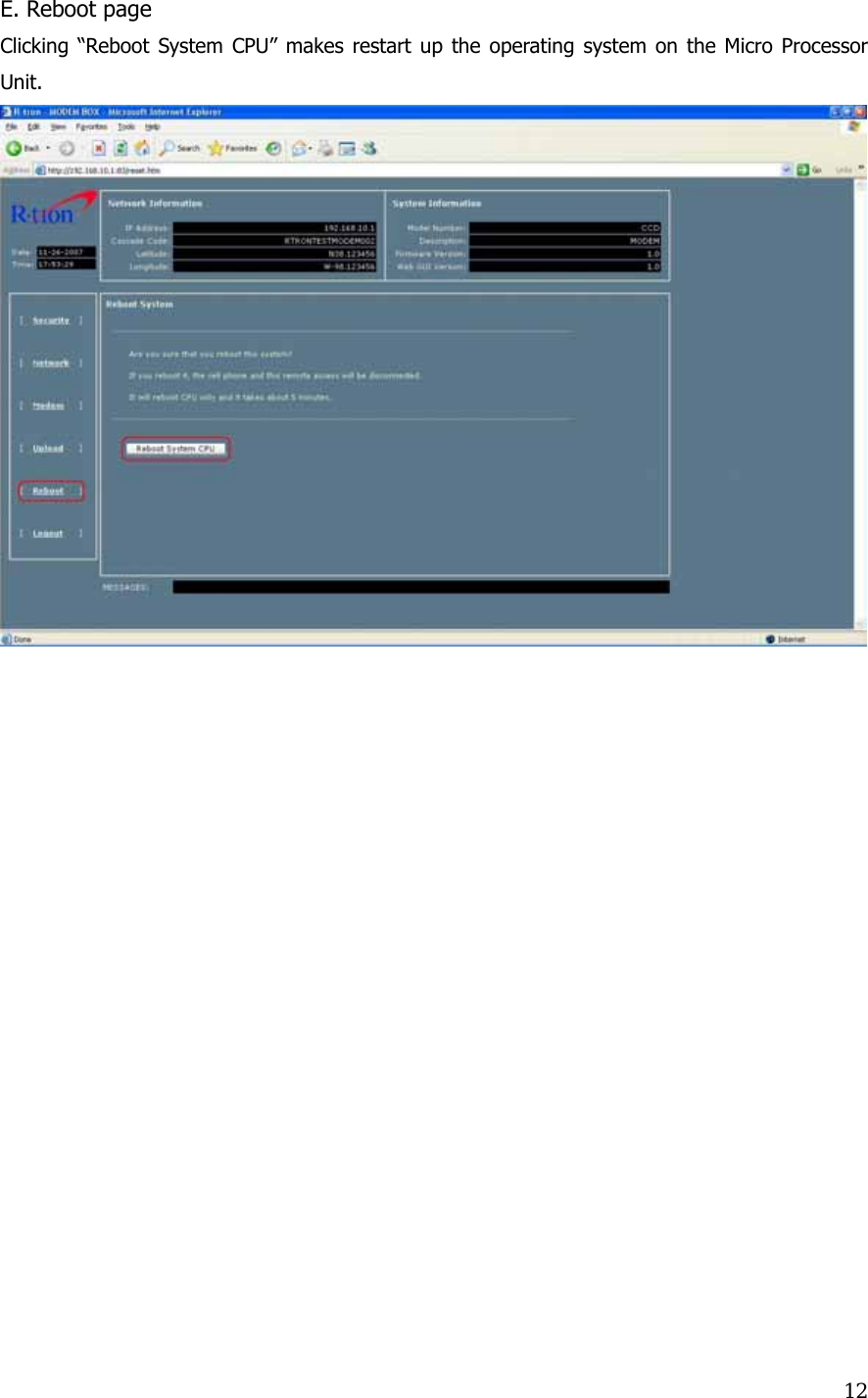

12E. Reboot page Clicking “Reboot System CPU” makes restart up the operating system on the Micro Processor Unit.

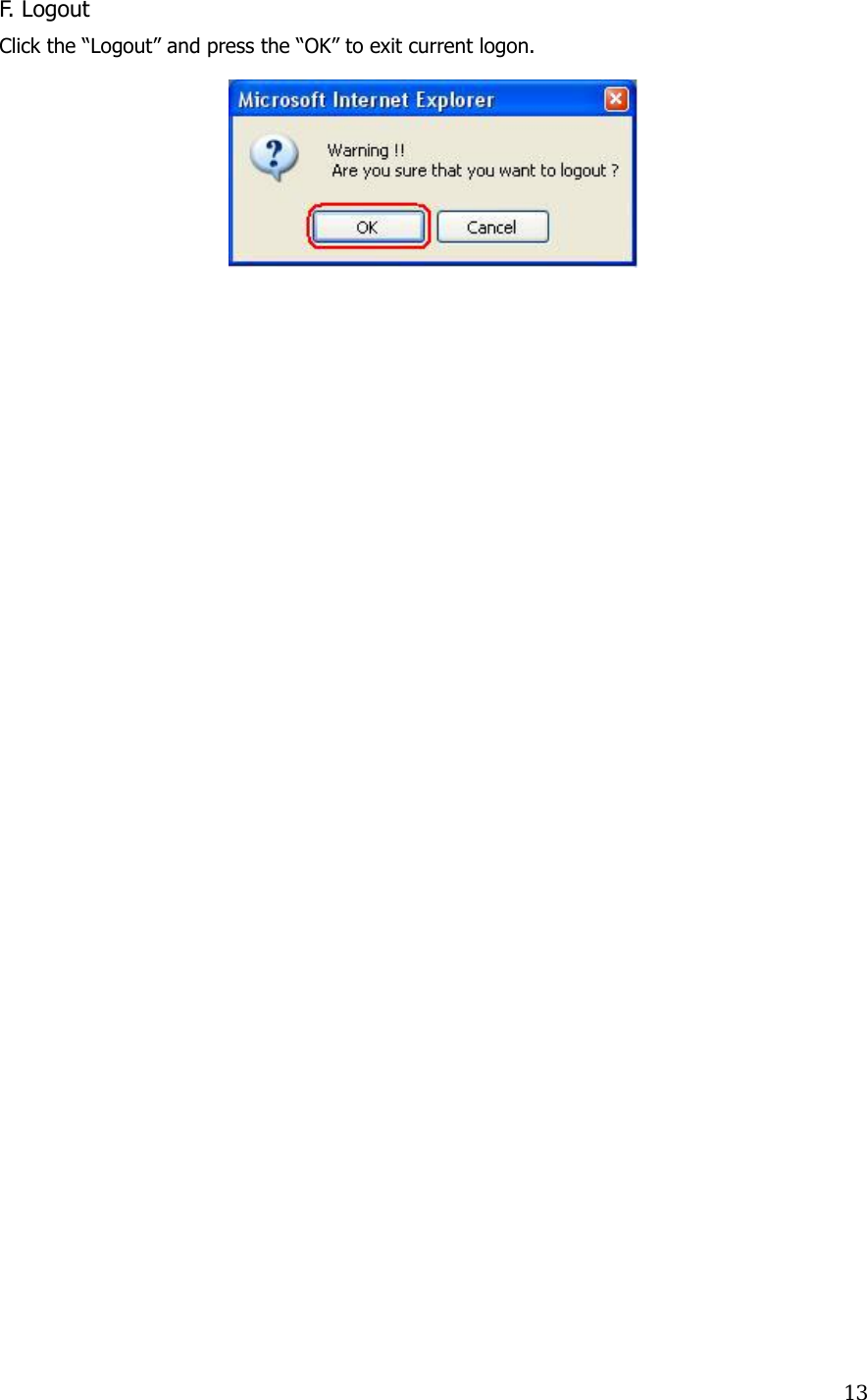

13F. L o g o u t Click the “Logout” and press the “OK” to exit current logon.

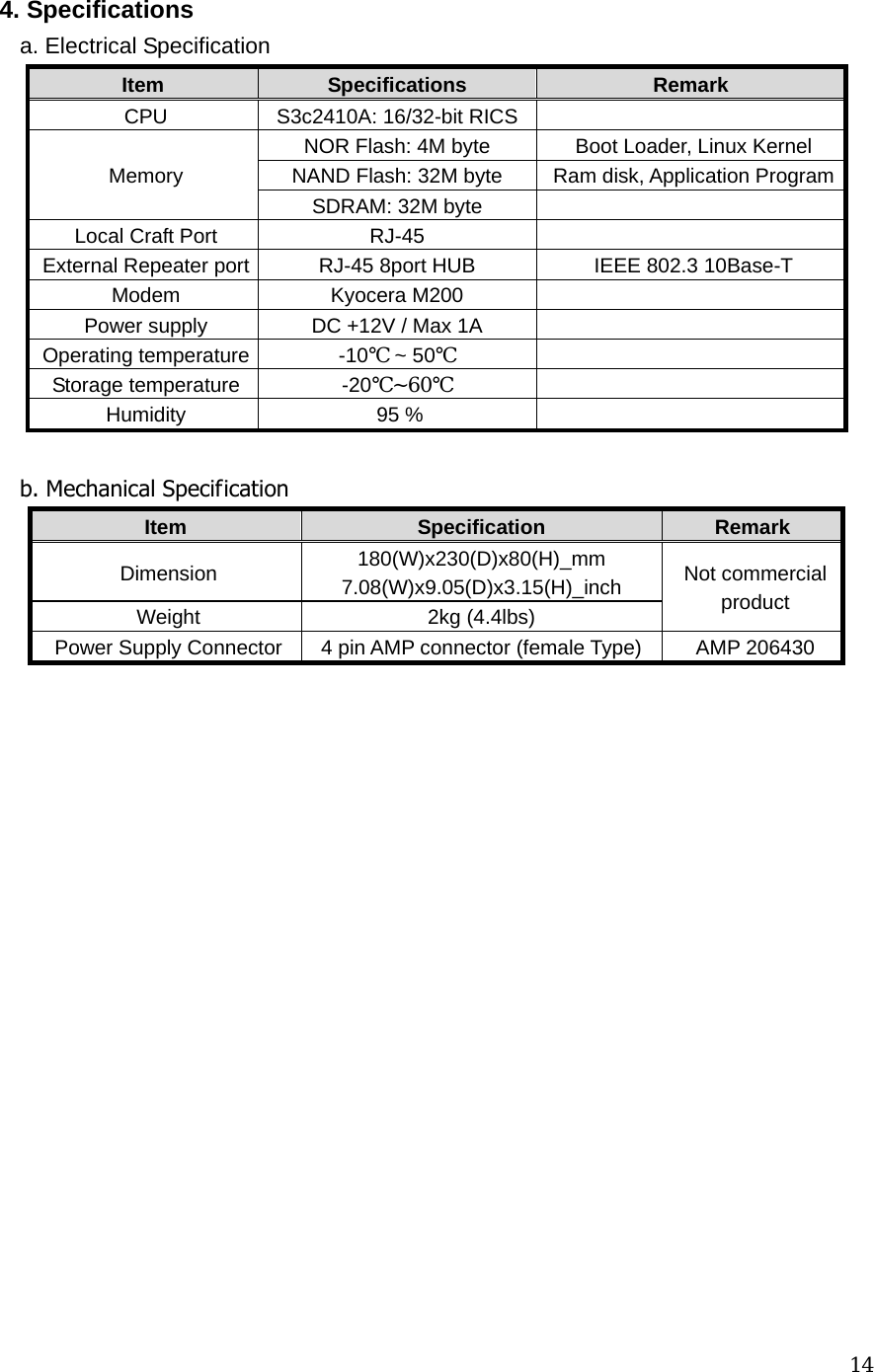

14 4. Specifications a. Electrical Specification Item Specifications Remark CPU S3c2410A: 16/32-bit RICS Memory NOR Flash: 4M byte Boot Loader, Linux Kernel NAND Flash: 32M byte Ram disk, Application Program SDRAM: 32M byte Local Craft Port RJ-45 External Repeater port RJ-45 8port HUB IEEE 802.3 10Base-T Modem Kyocera M200 Power supply DC +12V / Max 1A Operating temperature -10℃ ~ 50℃ Storage temperature -20℃~60℃ Humidity 95 % b. Mechanical Specification Item Specification Remark Dimension 180(W)x230(D)x80(H)_mm 7.08(W)x9.05(D)x3.15(H)_inch Not commercial product Weight 2kg (4.4lbs) Power Supply Connector 4 pin AMP connector (female Type) AMP 206430
