4. Operation

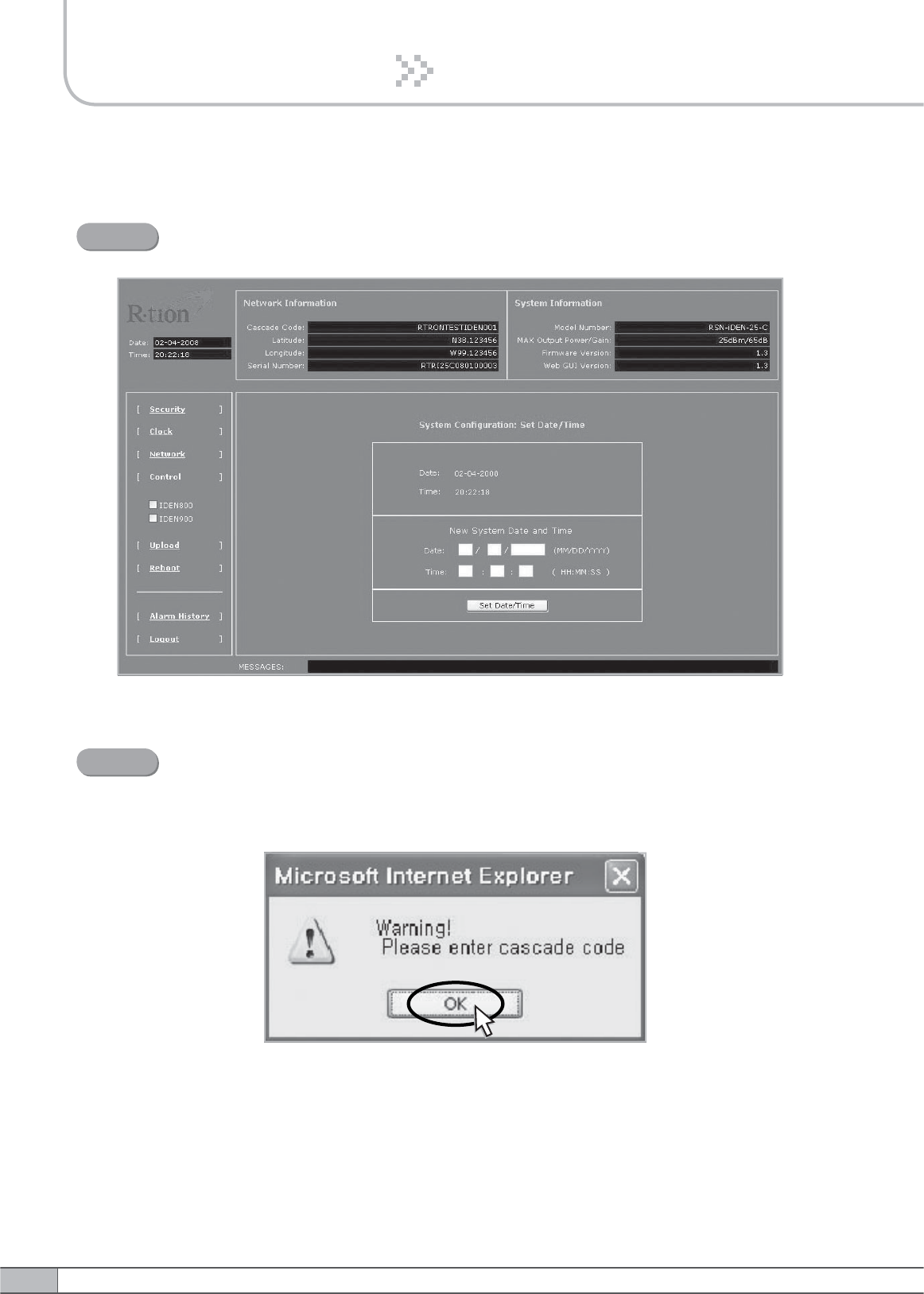

The login process is complete. The Initial screen will appear.
Step 4
In case of the initial login, you should input Cascade Code and Location
Information of Network Setup. Otherwise a warning pop-up window will
appear and you cannot access any of the menus.
Step 5
29
User’s Manual
4. Operation
Operator has no authorization to access this menu.
Click Clock in the left menu.

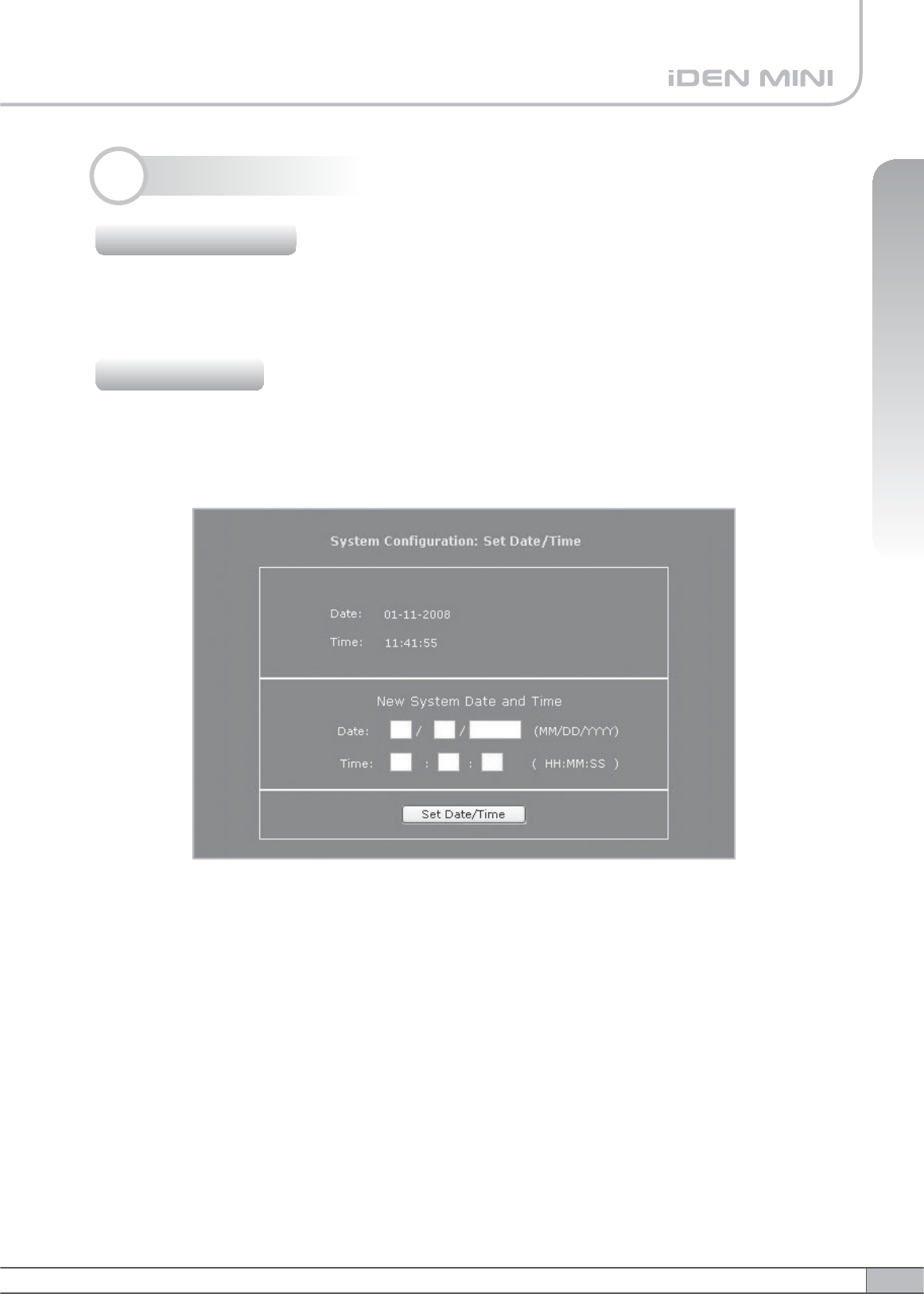

In this menu, you can set the date and the time.
Click Set Date/Time.
4.5 System Setup
4.5.1 Security
4.5.2 Clock
30
4. Operation
Click Network in the left menu.
4.5.3 Network

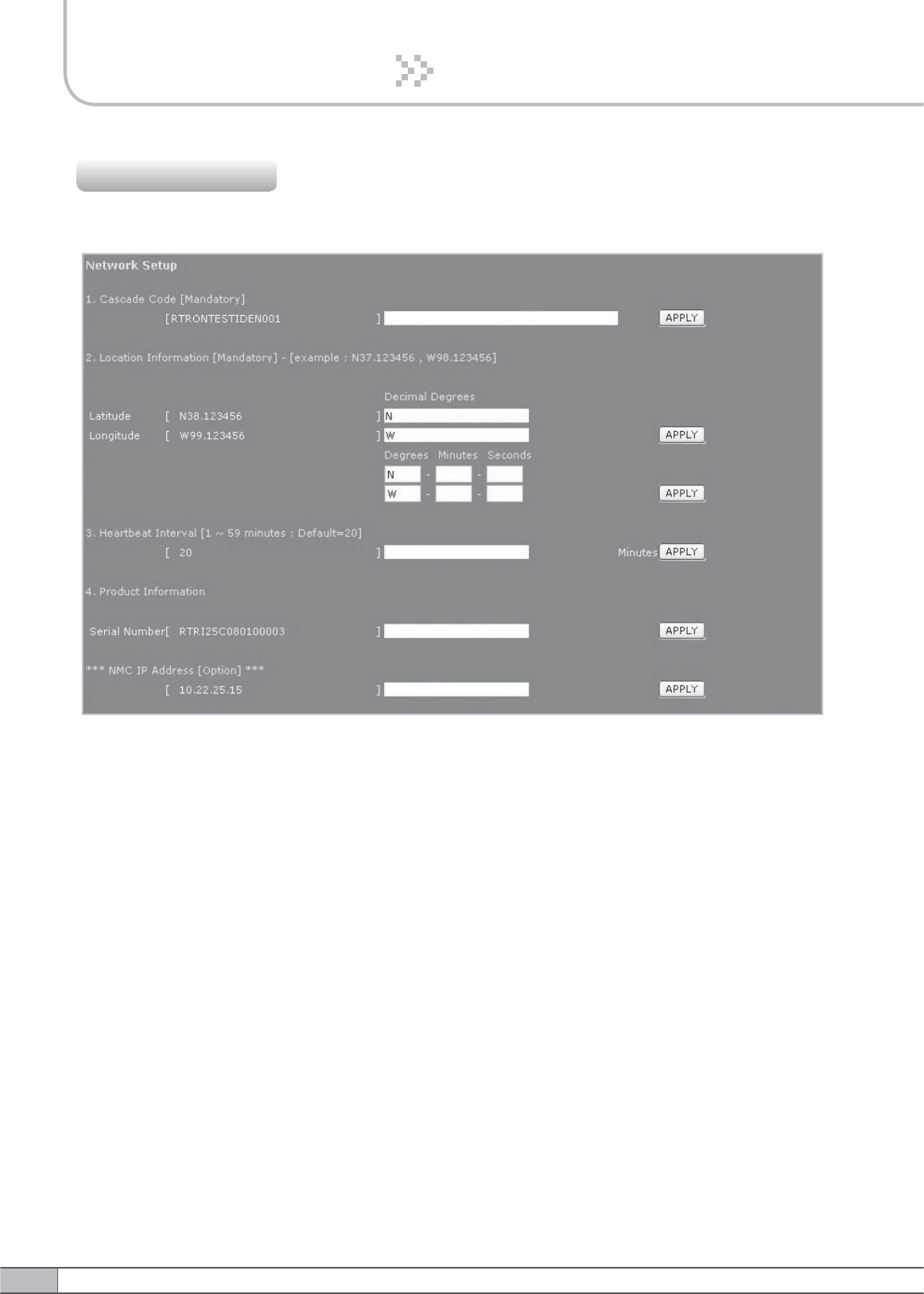

Network Setup
•Cascade Code: Type in the pre-assigned code. Otherwise, you cannot access
system setup.
•Location Information: Enter the latitude and longitude of a location, otherwise
you cannot access the system setup. You can input either Decimal Degrees or
Degrees-Minutes-Seconds.
[Example.]
(‘N/S ‘ | ‘E/W ‘) ddd.dddddd: (Latitude: N 39.006957 Longitude: W 94.532306)
•Heartbeat Interval: Sets the time to transmit the Heartbeat to NMC Server.
(Default value is 20 minutes. At the setup, temporarily reduce the value to 1
minute. After conforming heartbeat report, set the value back to 20 minutes.)
•Product Information: This is for manufacturer used only. DO NOT change this
value.
•Static IP for Remote Control: Connect to the External Monitoring Device for
Remote Access. Do not enter any value unless a static IP is assigned. DHCP
client.
•NMC Server IP:Do not change this value; otherwise, the Heartbeat
transmission or Remote Access may not work.
31
User’s Manual
4. Operation
User Note

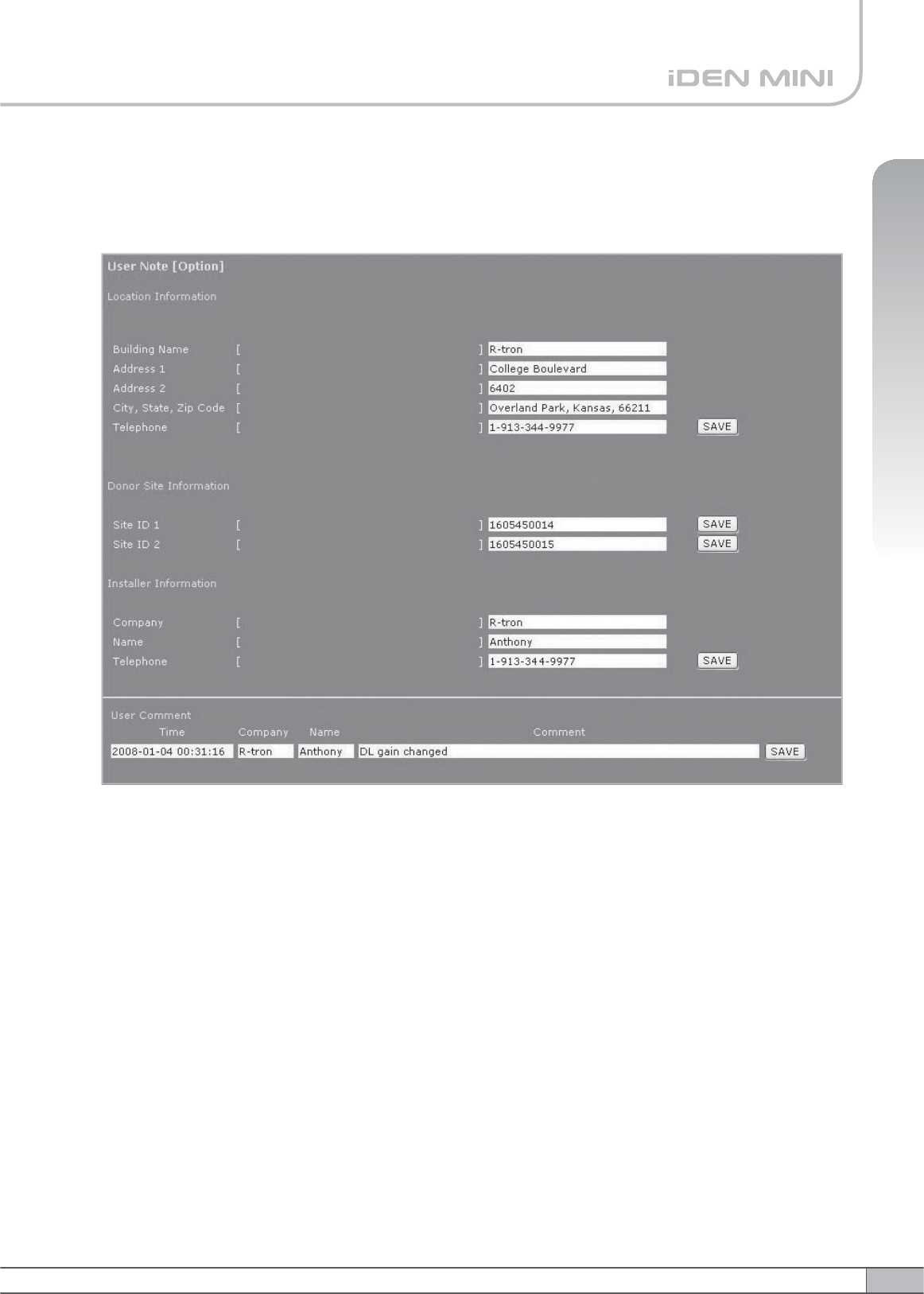

• Location Information: Type the location information such as the building name,
address, city, state, zip code and telephone, and then click SAVE to save the
information you provide.
•Donor Site Information: Type the base station’s ID, and then click SAVE to save
the information you provide.
• Installer Information: Type the installer information such as the company, name
and telephone, and then click SAVE to save the information you provide.
•User Comment: You can add comments. Up to 50 comments can be stored in the
memory. The length of characters for each comment is limited to 60 characters.
32
4. Operation

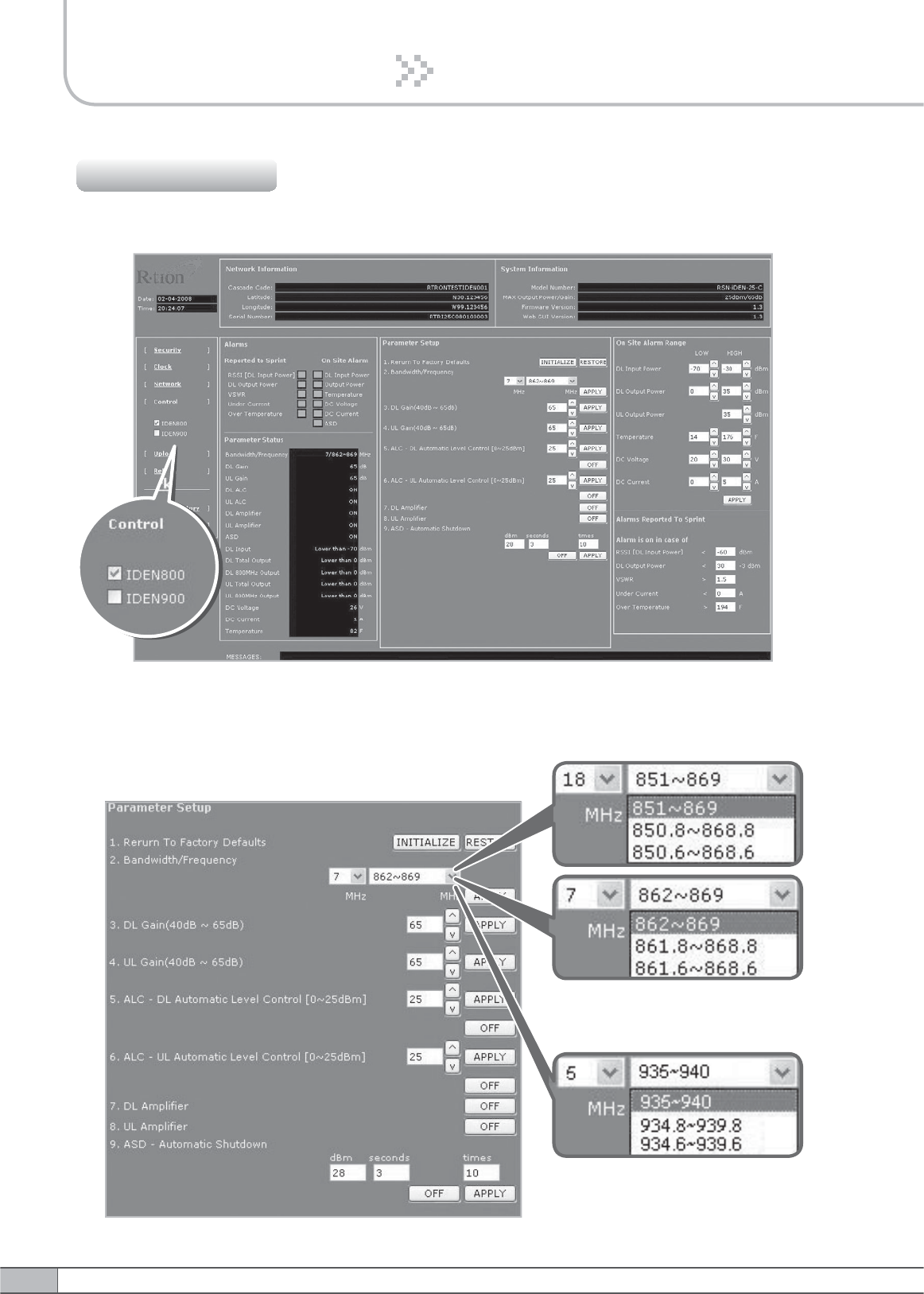

Check IDEN 800 or IDEN 900 in the left menu.
4.5.4 Control
Parameter Setup
< IDEN 900 >
< IDEN 800 >
33
User’s Manual
4. Operation
•Reset To Factory Defaults
- To reset the factory default, click INITIALIZE.
- To restore the previous settings, click RESTORE.
•Bandwidth/Frequency:
- For IDEN 800
If you select 18 MHz for bandwidth, the values of the frequency range are
aaa
If you select 7 MHz for bandwidth, the values of the frequency range is
aaa
- For IDEN 900
7KHYDOXHVRIWKHIUHTXHQF\UDQJHLVaaa
817MHz
18MHz-bandwidth
824MHz806MHz
862MHz
869MHz851MHz 901MHz896MHz
iDEN 800 iDEN 900
940MH
z
935MHz
7MHz-bandwidth
18MHz-bandwidth 5MHz-bandwidth 5MHz-bandwidth
7MHz-bandwidth
iDEN 800 UL iDEN 800 DL iDEN 900 UL iDEN 900 DLiDEN 800 UL iDEN 800 DL iDEN 900 UL iDEN 900 DL

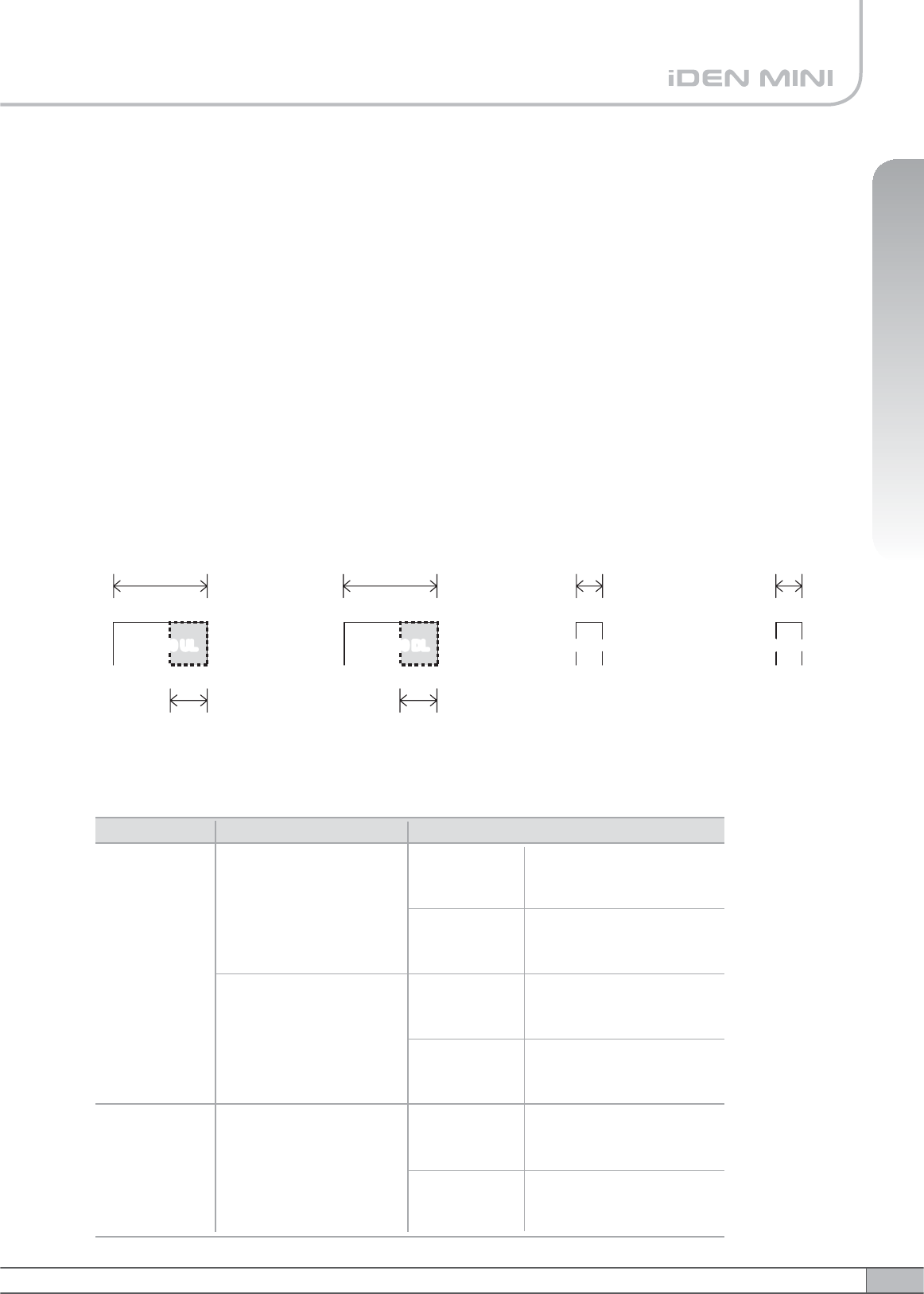

The Operating Bandwidth and Frequencies of iDEN
Mode Bandwidth
18MHz-bandwidth
iDEN 800
iDEN 900
Operating Frequency
Downlink
a0+]
a0+]
a0+]
Uplink
a0+]
a0+]
a0+]
7MHz-bandwidth
Downlink
a0+]
a0+]
a0+]
Uplink
a0+]
a0+]
a0+]
5MHz-bandwidth
Downlink
a0+]
a0+]
a0+]
Uplink
a0+]
a0+]
a0+]
34
4. Operation
•DL Gain: Type values between 40 and 65 and then click APPLY.
•UL Gain: Type values between 40 and 65 and then click APPLY.
Note
Please make sure DL Automatic Level Control,UL Automatic Level Control
are turned off before the gain setup. Otherwise, it may cause an error.
•DL Automatic Level Control: Type under 25 and then click APPLY and ON.
•UL Automatic Level Control: Type under 25 and then click APPLY and ON.
[Example]
For the repeater with 25dBm Maximum Output power, 65dB Maximum Gain /
20dB Gain control range, → If input signal is -35dBm and ALC is set as 25dBm,
the gain will be 60dB to adjust to the level.
If input signal is -45dBm, the output power will be 20dBm by the limitation of the
maximum gain even though the ALC is set as 25dBm.
•Automatic Shutdown: Type the desired values for dBm,seconds and times
and then click APPLY and ON. (e.g. 28 dBm, 3 seconds, 10 times)
[Example]
For the repeater with 25dBm Maximum Output power, 65dB Maximum Gain /
20dB Gain control range, Assuming ASD Level: 28dBm, ASD Time: 3seconds,
ASD Count: 10.
If the output power is 28dBm (ASD LEVEL) and higher, the repeater will
shutdown for 3 seconds (ASD TIME). If the shutdown occurs 10 times (ASD
COUNT), the 10th shutdown will be permanent.
35
User’s Manual
4. Operation

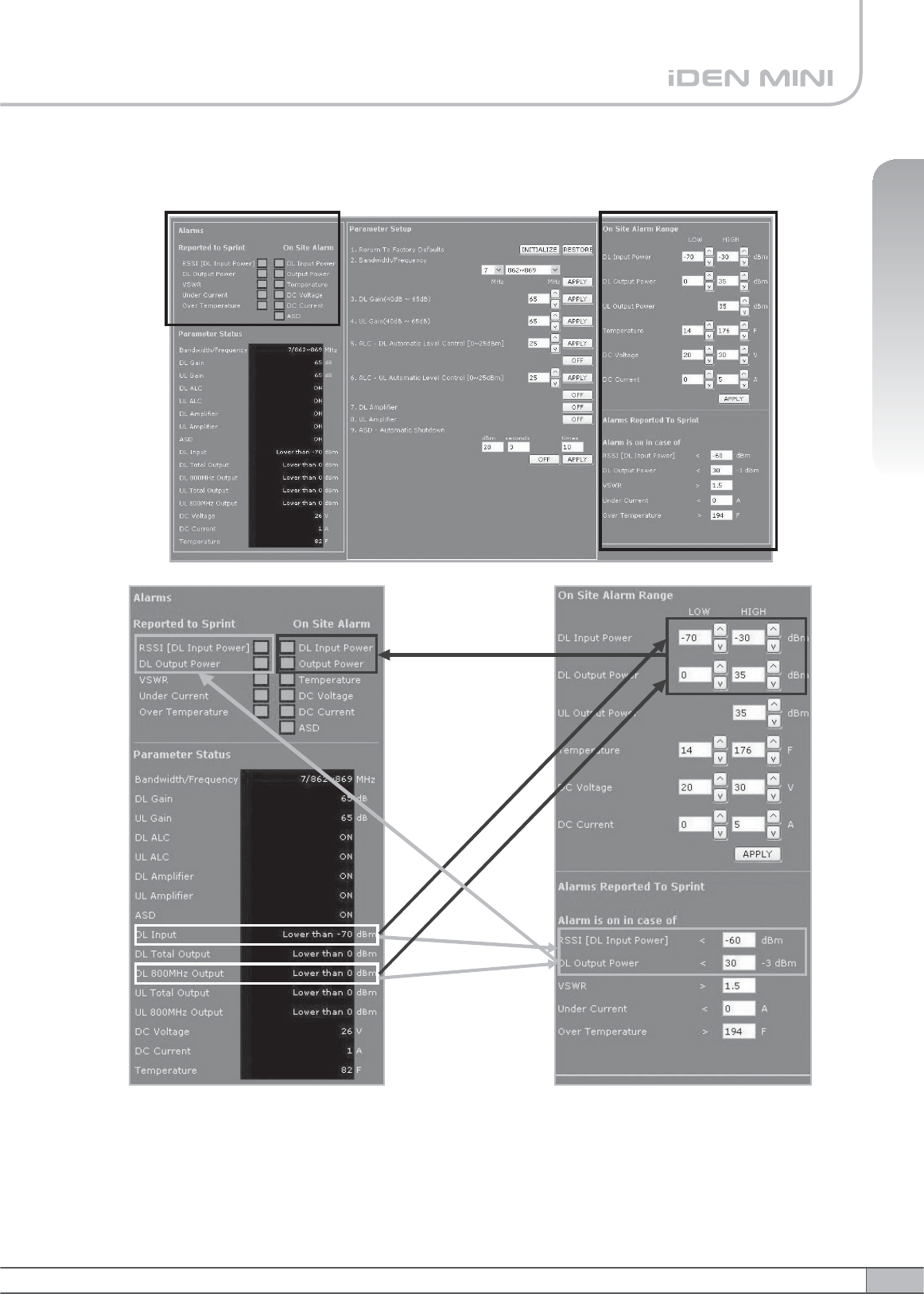

Alarms
< Alarm Status > < Alarm Range >
•Reported to Sprint : If an alarm occurs, the repeater will report directly to Sprint
as a SNMP Trap so the LED of ALARM on the repeater does not blink.
•On Site Alarm : If an alarm occurs, the alarm LED on the repeater will turn on.
Please refer to the troubleshooting section of this manual.
• No change of the values in the alarm range is recommended.
36
4. Operation

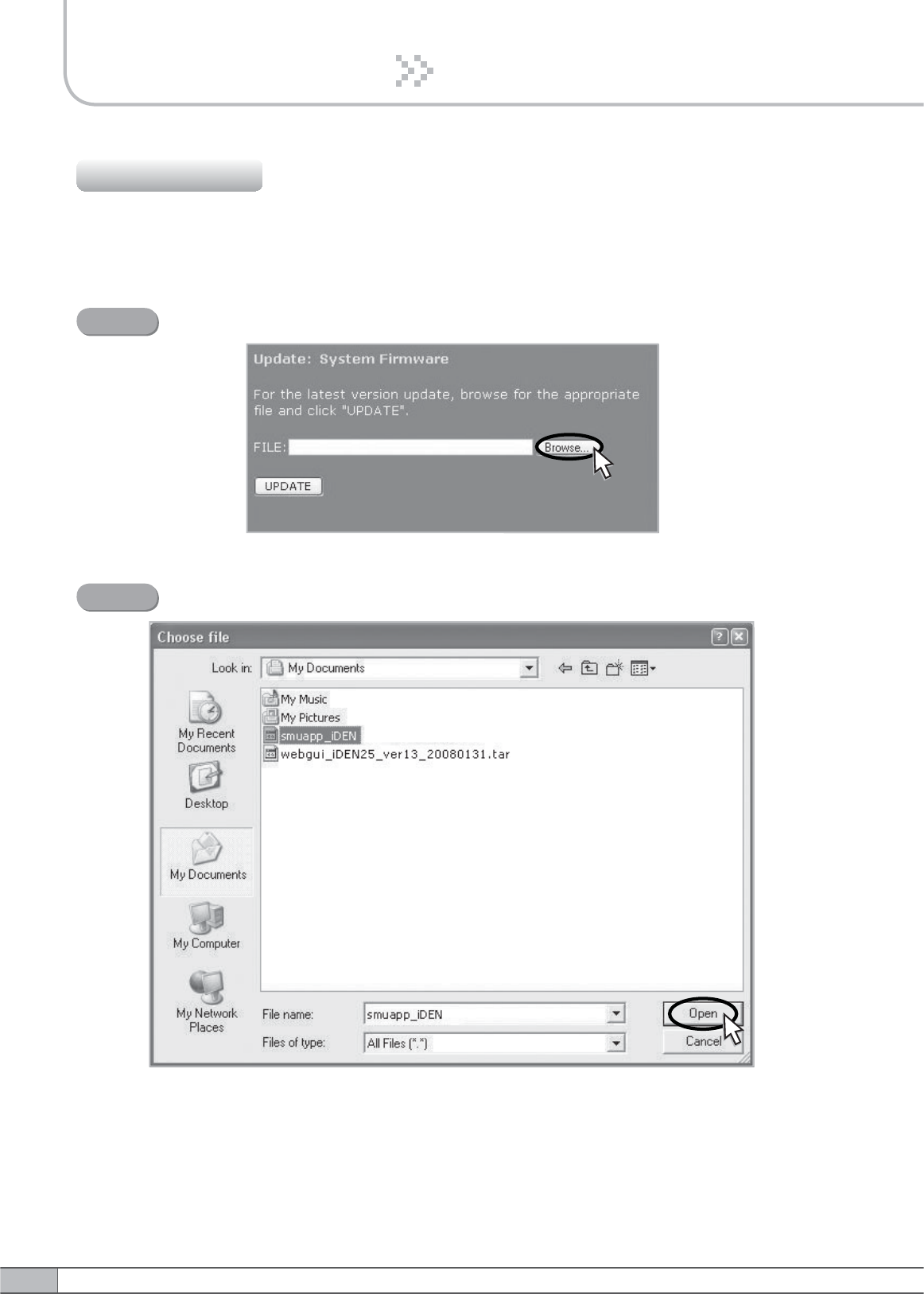

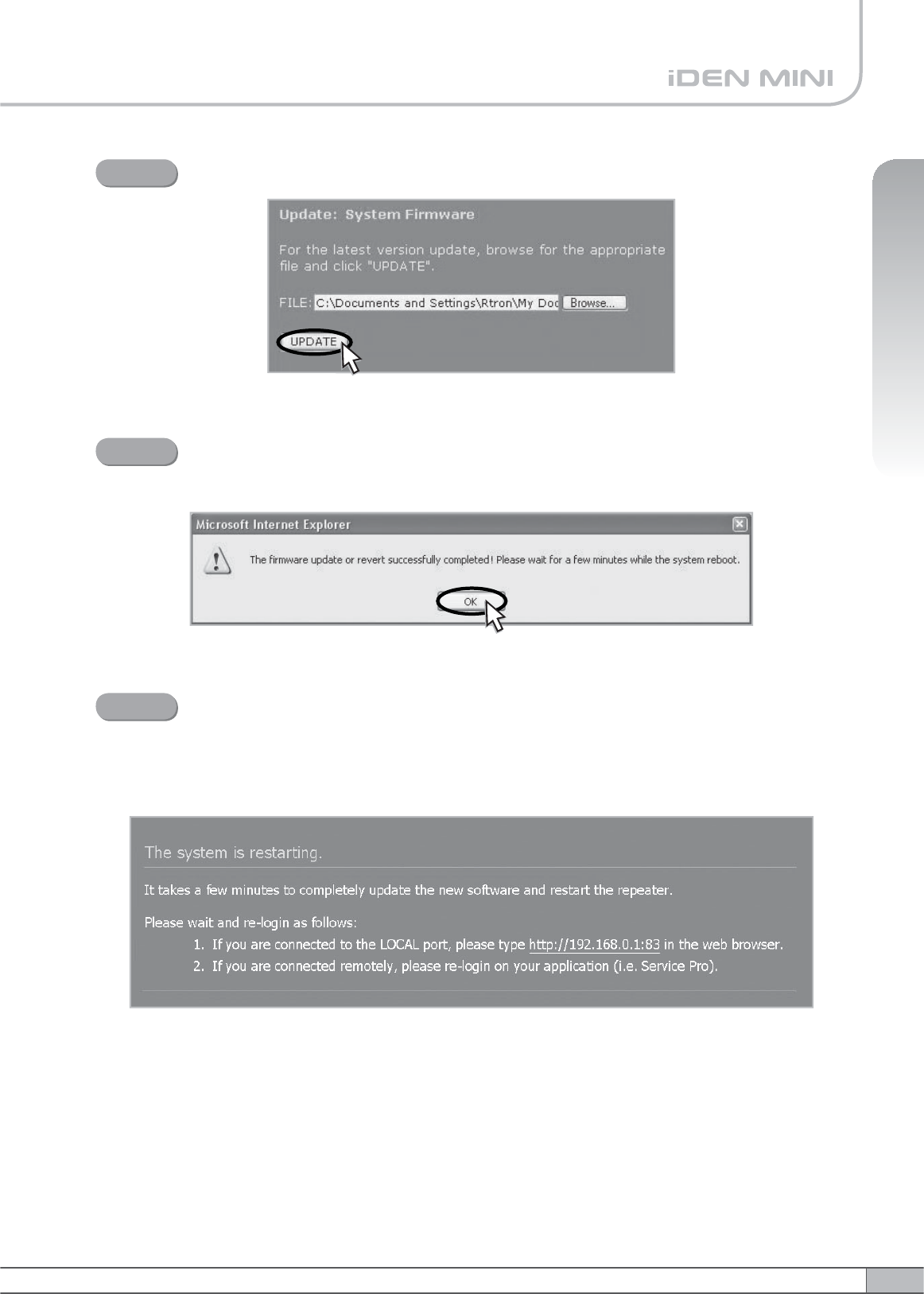

A pop-up window will appear. Select the firmware file and click Open.
Step 2
Click Upload in the left menu.
4.5.5.1 Update: System Firmware
4.5.5 Upload
Click Browse.
Step 1
37
User’s Manual
4. Operation
Click UPDATE.
Step 3

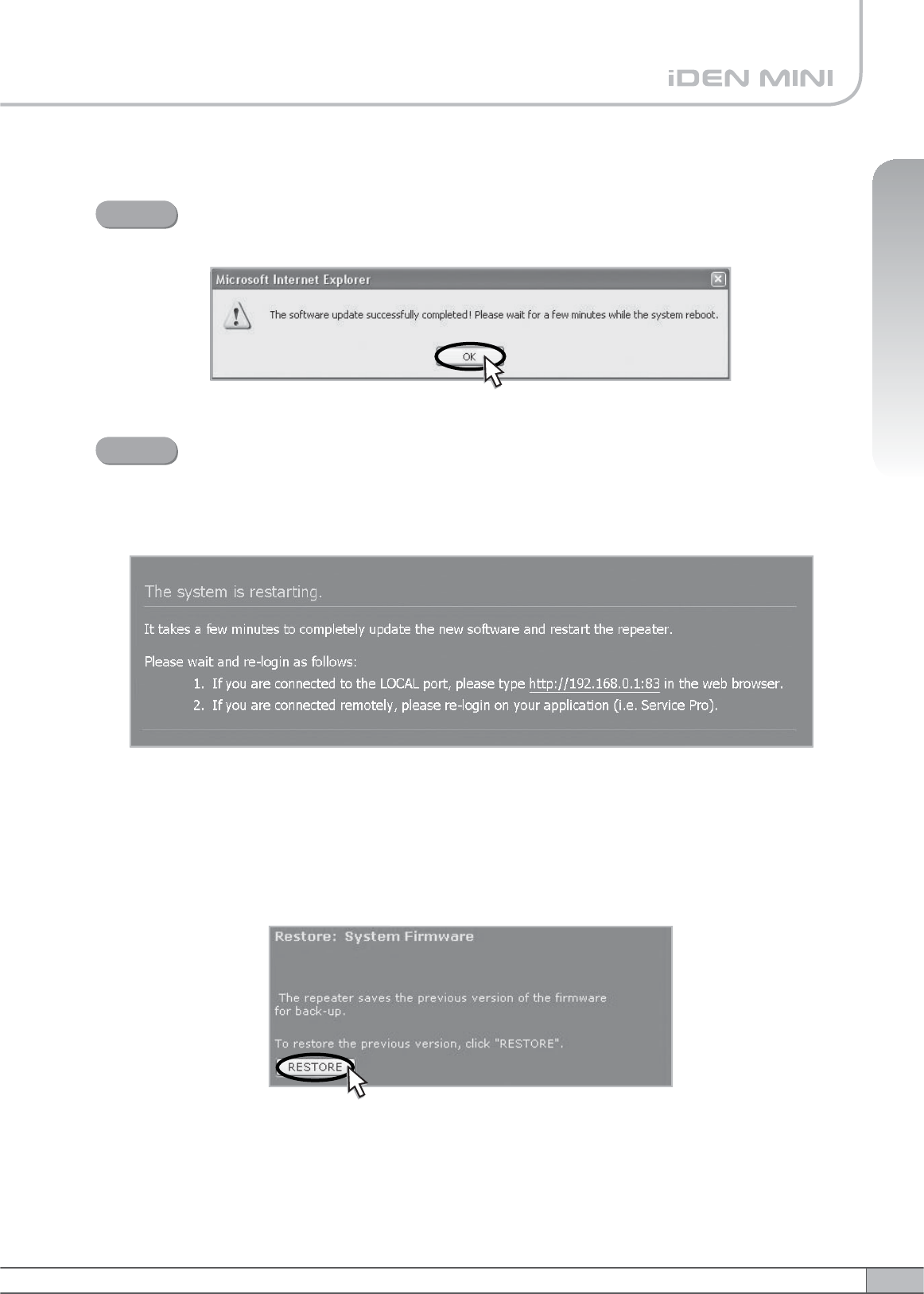

A pop-up window will appear after completing all the update processes.
Click OK to reboot the system.
Step 4
It will take a few minutes to update the new firmware.
If the system reboots, go to the login page and login again.
* Login page: http://192.168.0.1:83 (Local access)
A specified IP address on DHCP(Remote access).
Step 5
38
4. Operation

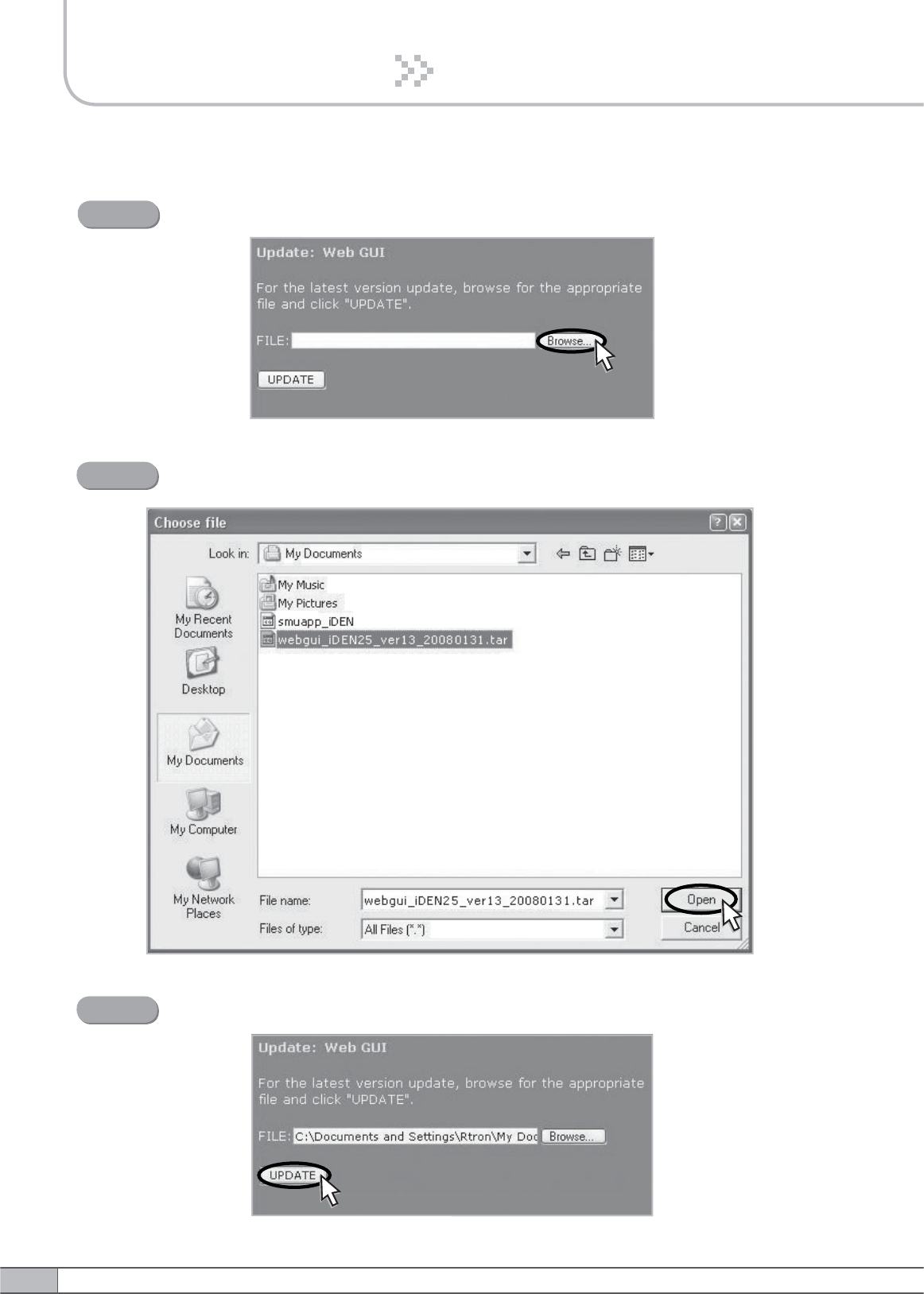

4.5.5.2 Update: Web GUI
Click Browse.
Step 1
A pop-up window will appear. Select the GUI file and click Open.
Step 2
Click UPDATE.
Step 3
39
User’s Manual
4. Operation
A pop-up window will appear after completing all the update processes.
Click OK to reboot the system.
Step 4
4.5.5.3 Restore
To restore the previous version, click RESTORE.
It will take a few minutes to update the new Web GUI.
If the system reboots, go to the login page and login again.
* Login page: http://192.168.0.1:83 (Local access)
A specified IP address on DHCP(Remote access).
Step 5
40
4. Operation

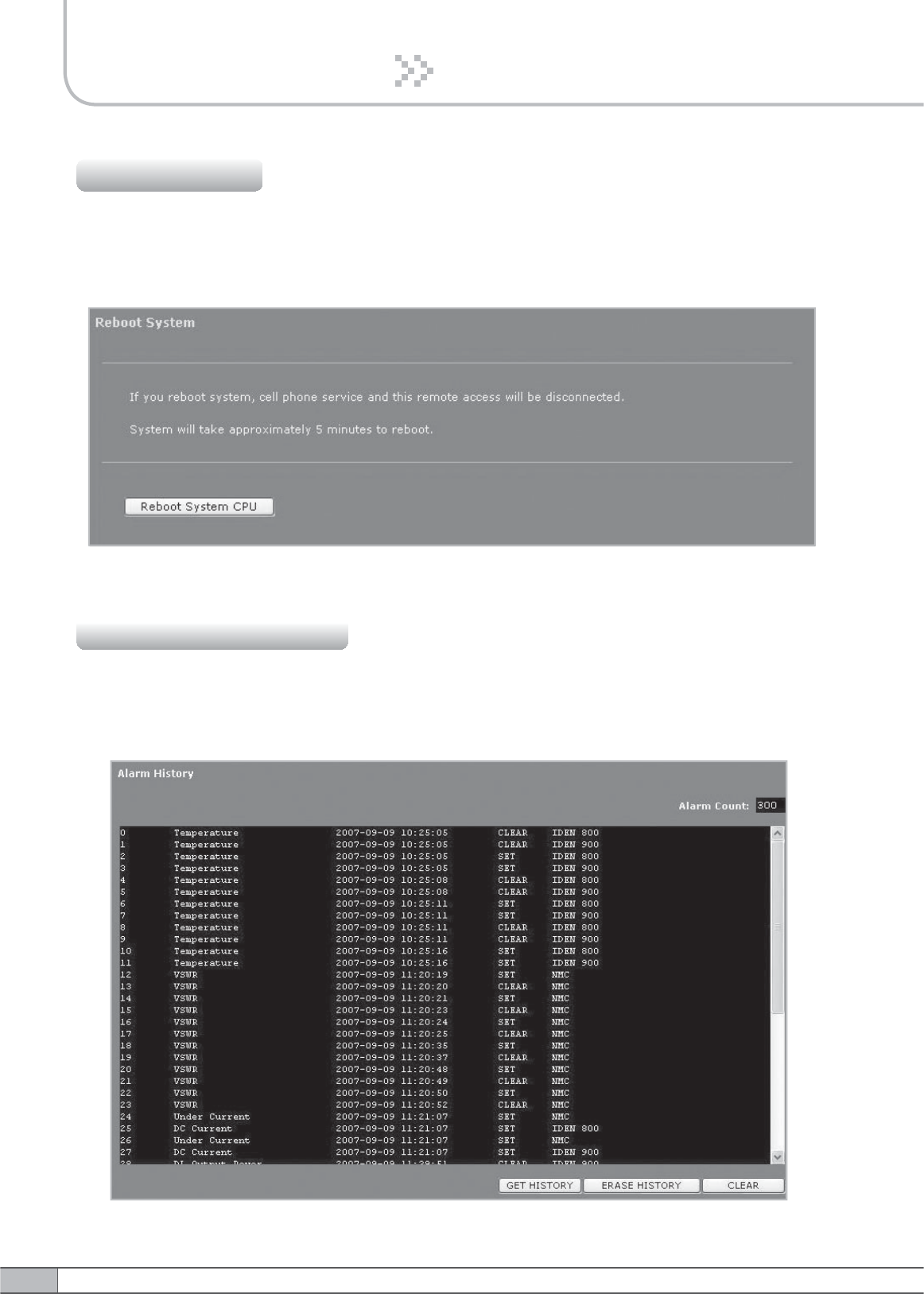

Click Reboot in the left menu.
In this menu, you can reboot the system.
4.5.6 Reboot
Click Alarm History in the left menu.
Click GET HISTORY, the history list of alarm issued will be displayed.
4.5.7 Alarm History
41
User’s Manual
4. Operation

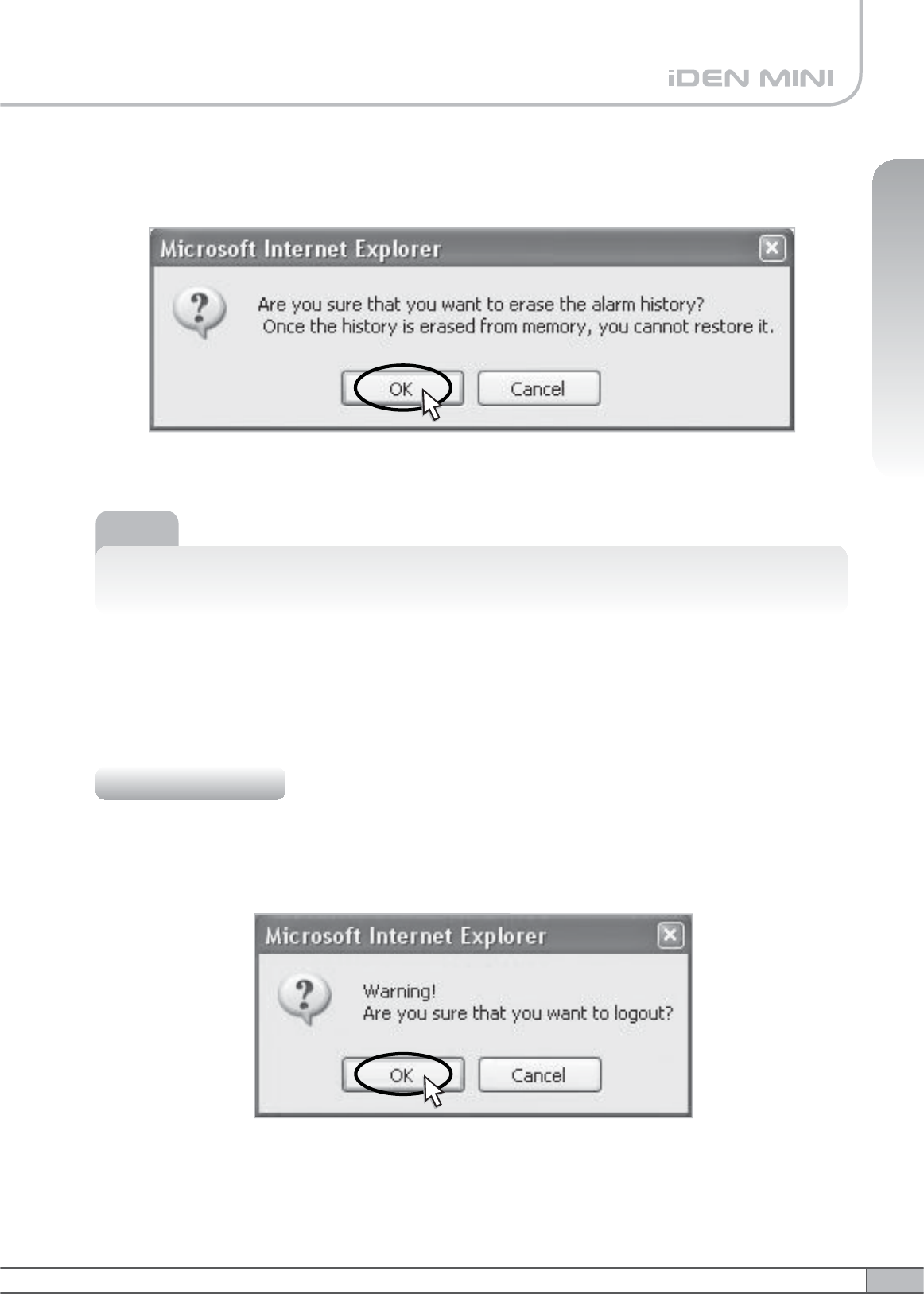

To erase the alarm history on the memory, click ERASE HISTORY.
A confirmation pop-up window will appear and click OK.
Note
Up to 300 alarm lists can be stored in the memory.
If you want to logout, click Logout in the left menu.
A warning pop-up window will appear and then click OK to logout.
4.5.8 Logout
To clear the alarm history on the screen, click CLEAR.

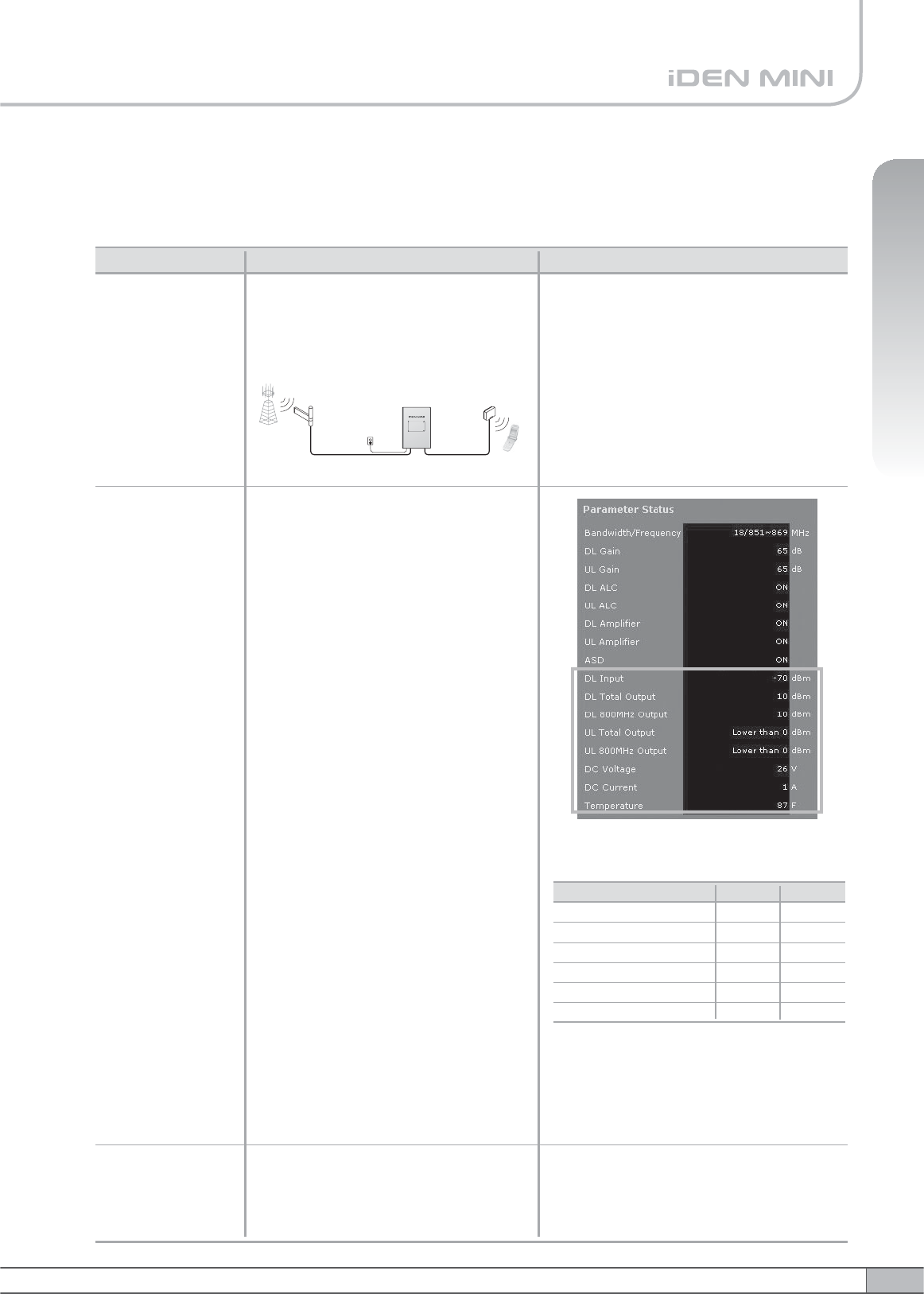

Problem Solution
Cause
Before contacting your service dealer, please make sure you refer to the following
guide. If the IDEN MINI does not work normally after completing the following
troubleshooting, please contact your local dealer or service center.
42
5. Troubleshooting

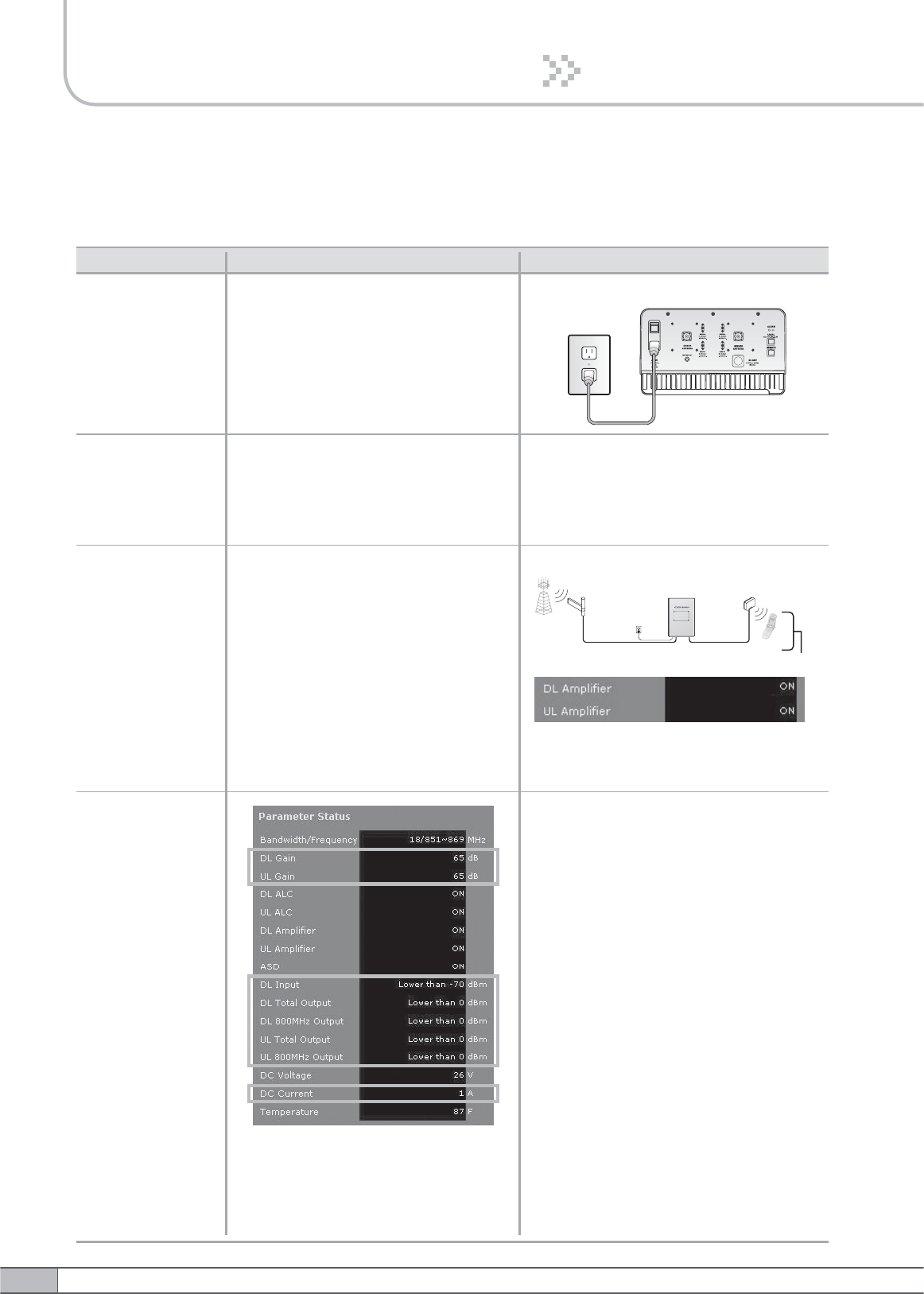

No LED On Check the power cord for secure
connection.
Cannot
communicate
with the
repeater.
Check if the LAN cable is connected
to the repeater and your computer,
or your computer to set IP address.
Or please disable and enable the
Local Area Connection.
The mobile
phone is not
working well.
Turn on the power.
or
Check if the DL Amplifier and the
UL Amplifier of Parameter Status
are displayed ON.
Repeater
Donor
Antenna
Plugged in an
AC outlet
Donor
Base Station
Server Mobile Statio
n
Server
Antenna
Not working well
Turn off the repeater.
Measure the isolation and verify
if the isolation between the donor
antenna and the server antenna is
enough for the repeater. Refer to the
note on page 15.
Oscillation
1. The values above are changed
randomly under operating of DL
ALC, UL ALC, and ASD.
2. DL Amplifier and UL Amplifier
are on and off iteratively.
Problem Solution
Cause
43
User’s Manual
5. Troubleshooting
Green LED
→ steady
Red LED
→ flashing
The red light
turns on.
Check the cable connection to the
server antenna and its VSWR.
Check if the value above is out of
range.
Repeater
Donor
Antenna
Plugged in an
AC outlet
Donor
Base Station
Server Mobile Station
Server
Antenna
Donor antenna connection
→ Good
Server antenna connection
→ Bad
Lower
-
-
-
14°F
20V
0A
DL Input Power
DL Output Power
UL Output Power
Temperature
DC Voltage
DC Current
Upper
-30dBm
30dBm
30dBm
176°F
30V
5A
If the Input Power or Output Power
is out of range, please contact
Technical Support.
Download site: www.r-tron.com
Toll Free: 888-31R-TRON
Red & green
LEDs are
flashing
irregularly.
Please contact Technical Support.
Download site: www.r-tron.com
Toll Free: 888-31R-TRON
Malfunction of PSU.
44
6. Specifications
Electrical Specifications
Parameter iDEN 800
DL & UL
Selectable Bandwidth
DL
UL
iDEN 900
In-band BW:18M
In-band BW:7.0M In-band BW:5M
18MHz-
bandwidth
Frequency
Selection
Roll off
Ripple
a0+]
a0+]
a0+]
7MHz-
bandwidth
a0+]
a0+]
a0+]
5MHz-
bandwidth
a0+]
a0+]
a0+]
18MHz-
bandwidth
a0+]
a0+]
a0+]
7MHz-
bandwidth
a0+]
a0+]
a0+]
5MHz-
bandwidth
a0+]
a0+]
a0+]
G%F
@Fedge+ / -500KHz
5dB Max.
12dB Max.
Power supply 9a9+]W\SLFDO
Operating temperature Û&aÛ&Û)aÛ)
Storage temperature Û&aÛ&Û)aÛ)
Consumption power :DGGLWLRQDO:
3dB (Typical)
Gain 40dB to 65dB
Output Power 25dBm
Delay 8.0µs Max.
VSWR
DL & UL
Input Range -30dBm Max.
DL & UL
DL & UL
DL & UL
DL & UL 1.5Max.
DL & UL G%F
@Fedge+ / -500KHz
UL Noise
Figure
80dB Gain
50dB Gain
45
User’s Manual
6. Specifications

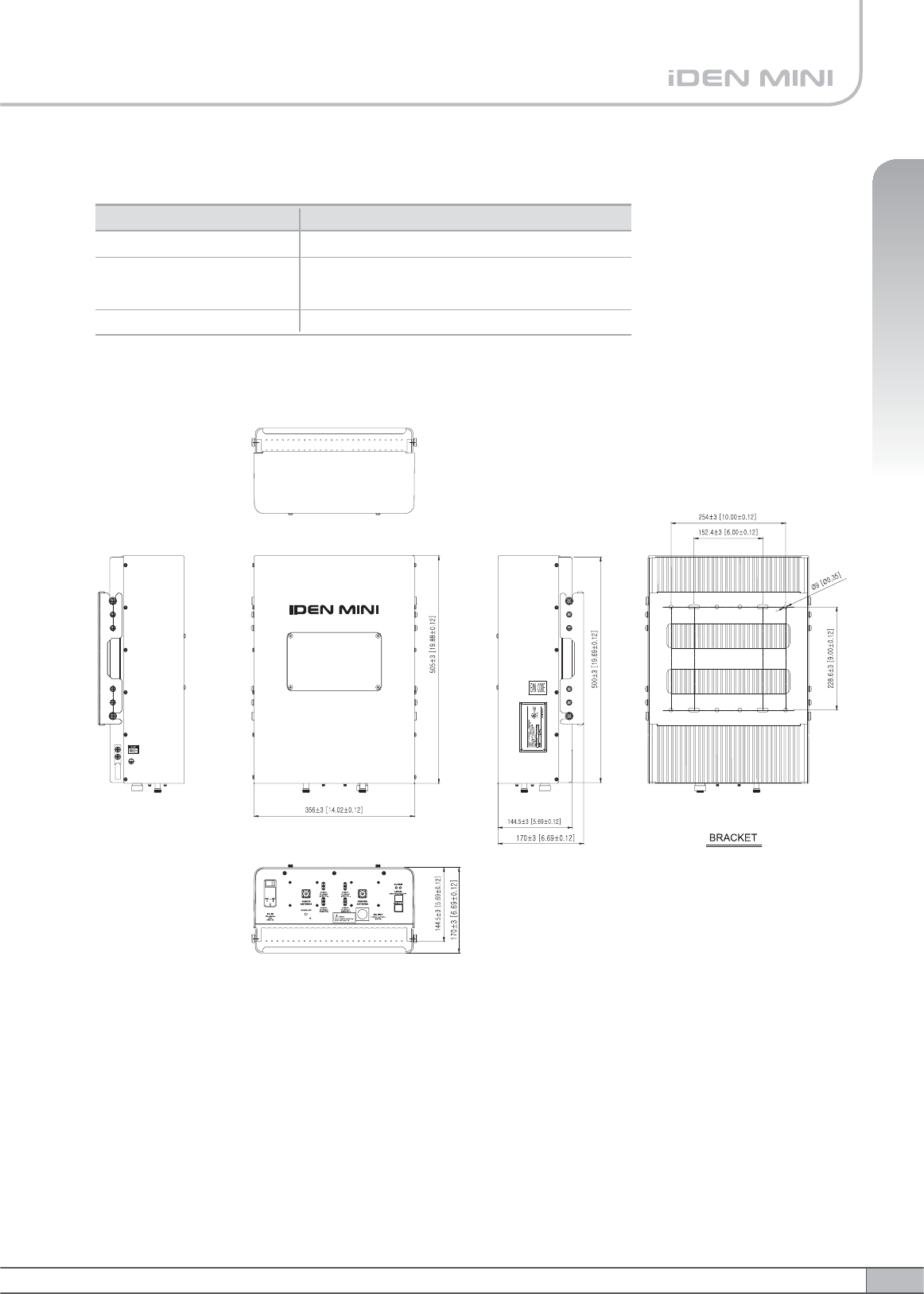

Mechanical Specifications
Parameter Specification
N-female x 2, SMA-female x 5
14.01 X 19.88 X 6.48 (Inch),
356 X 505 X 164.5 (mm)
22.78kg (50.22lbs)
RF connectors
Size
Weight
The specifications are subject to change without any prior notification.
6. Specifications
46
6. Specifications
LIMITED WARRANTY
This product, as supplied and distributed by R-tron, in the original carton, is
warranted by R-tron against manufacturing defects in materials and workmanship
for a limited warranty period of:
Five (5) Year Parts and Labor
This limited warranty begins on the original date of purchase, and is valid only on
products purchased and used in the United States. R-tron will repair or replace
this product, at our option and at no charge as stipulated herein, with new or
reconditioned parts or products if found to be defective during the limited warranty
period specified above. All replaced parts and products become the property of R-
tron and must be returned to R-tron. Replacement parts and products assume the
remaining original warranty.
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, and except to the extent otherwise expressly provided
for in this statement, use of this product, and shall not apply to the following,
including, but not limited to: damage which occurs in installation; applications and
uses for which this product was not intended; altered product or serial numbers;
cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning
or other acts of nature; use of products, equipment, systems, utilities, services,
parts, supplies, accessories, applications, installations, repairs, external wiring
or connectors not supplied or authorized by R-tron which damage this product
or result in service problems; or incorrect electrical line voltage, fluctuations and
surges; customer adjustments and failure to follow operating instruction. R-tron
does not warrant uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE
LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER
THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO
OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY
PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS
PRODUCT SHALL BE BINDING ON R-tron.
47
User’s Manual
6. Specifications
6. Specifications

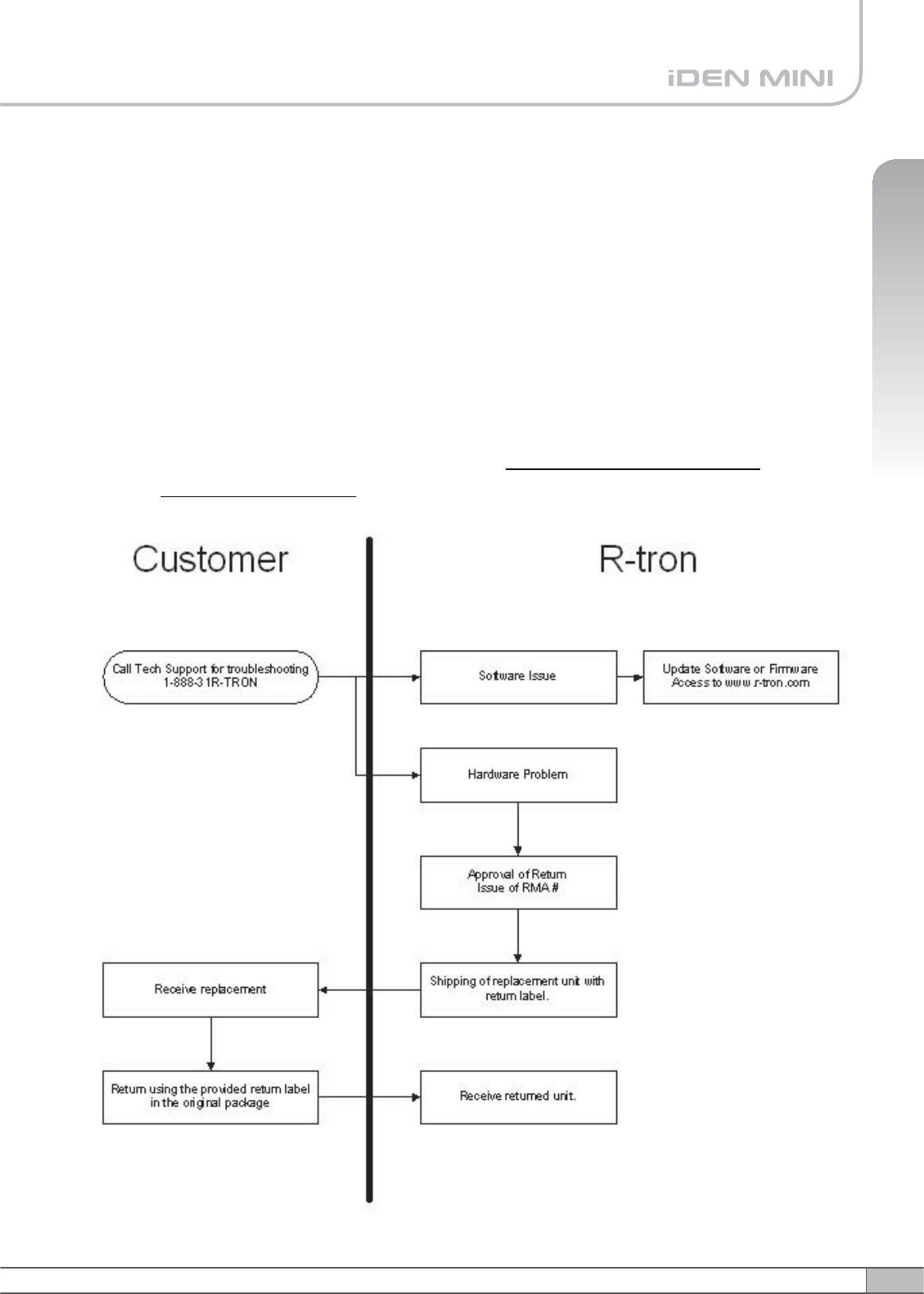

Return Material Authorization(RMA) Procedure
The return and exchange of products are not allowed without prior approval from
R-tron America, Inc.
Please follow the exchange procedure below.
1. Call Tech Support for troubleshooting.
2. If the device has a hardware problem, R-tron will replace it if it is within
warranty.
A RMA number will be issued for the return.
3. R-tron will ship the replacement and a return label will be provided.
4. The customer must return the product using the original packaging,
including accessories.
48
MENO
