iDEN MINI
User’s Manual -27-

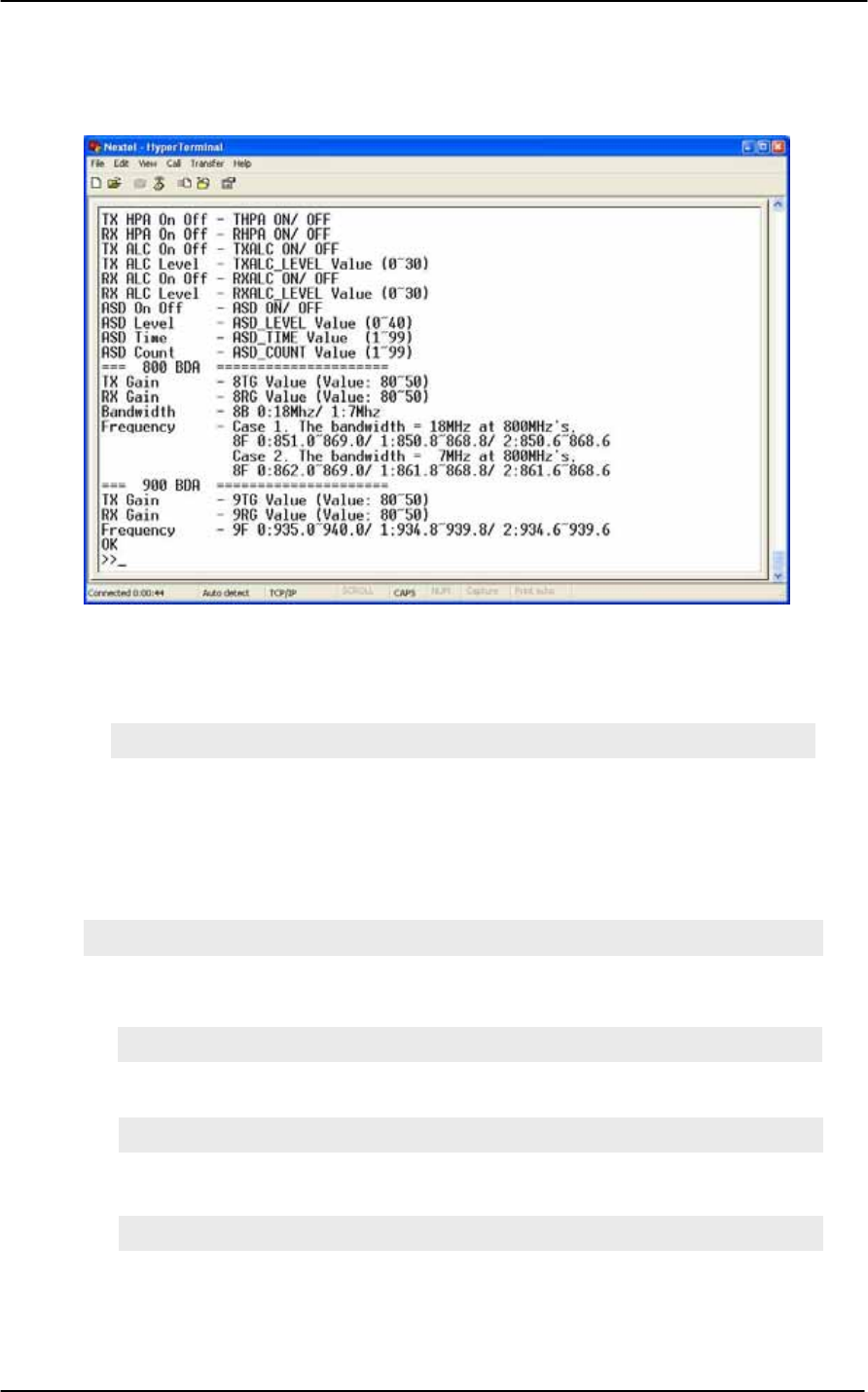

Step 2. Type “HELP” in and hit “Enter” key to look up the list of commands.
Step 3.
▶ To execute a command, “Enter” key must be hit.
▶ If the command is successful, “OK” is displayed but if not, “ERROR” is displayed.
▶ To reset a MCU (Main Control Unit), type “RESET” in.
Examples
1 Frequency Setup
1.1 iDEN 800,
1.1.1 If the bandwidth is 18MHz,
1.1.1.1 If the frequency range is 851.0MHz ~ 869.0MHz,
1.1.1.2 If the frequency range is 850.8MHz ~ 868.8MHz (200KHz shift),
1.1.1.3 If the frequency range is 850.6MHz ~ 868.6MHz (400KHz shift),
>>8B 0↵
Command: >>RESET↵
>>8F 0
↵
>>8F 1
↵
>>8F 2
↵
iDEN MINI
User’s Manual -28-
1.1.2 Otherwise, the bandwidth is 7MHz
1.1.2.1 If the frequency range is 862.0MHz ~ 869.0MHz,
1.1.2.2 If the frequency range is 861.8MHz ~ 868.8MHz (200KHz shift),
1.1.2.3 If the frequency range is 861.6MHz ~ 868.6MHz (400KHz shift),
1.2 iDEN 900 (5MHz fixed bandwidth→Bandwidth setup is not necessary),
1.2.1 If the frequency range is 935.0MHz ~ 940.0MHz,
1.2.2 If the frequency range is 934.8MHz ~ 939.8MHz (200KHz shift),
1.2.3 If the frequency range is 934.6MHz ~ 939.6MHz (400KHz shift),

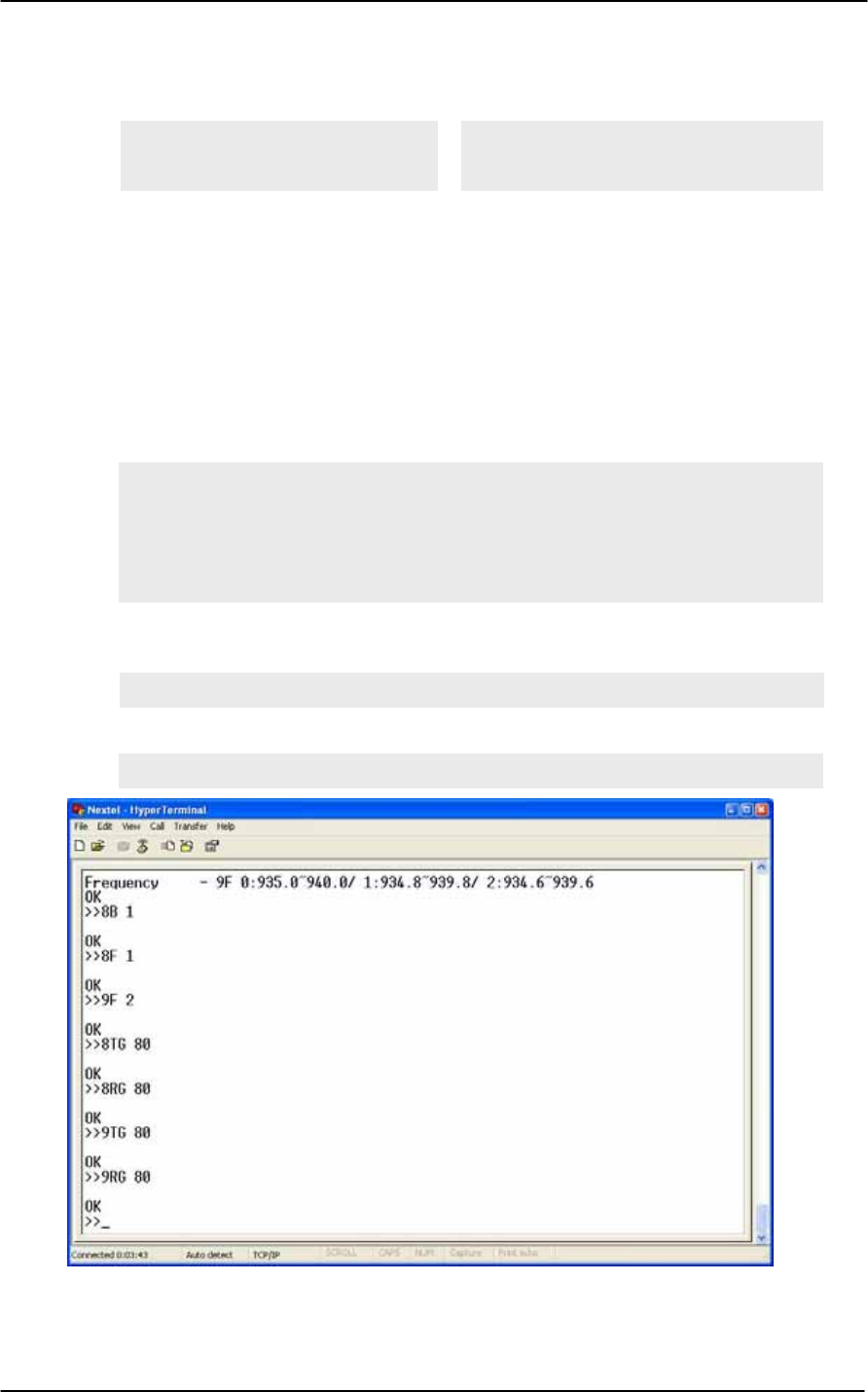

2 Gain Setup
2.1 iDEN 800
9 TX Gain: 80dB, RX Gain 80dB
2.2 iDEN 900
9 TX Gain: 80dB, RX Gain 80dB
* Please, turn off the ALC and ASD by the commands “TXALC OFF”, “RXALC OFF”,
and “ASD OFF” before the gain setup.
Factory defaults are specified in ALC ON and ASD ON.
While the ALC and ASD are on, the gain setup is not available and an Error
may be occurred.
>>8TG 80↵
>>8RG 80↵
>>9TG 80↵
>>9RG 80↵
>>8B 1↵
>>8F 0
↵
>>8F 1
↵
>>8F 2
↵
>>9F 0↵
>>9F 1↵
>>9F 2↵
iDEN MINI
User’s Manual -29-
3 ALC (Automatic Level Control) Level Setup: 30dBm
* ALC (Automatic Level Control) maintains the specific TX and RX output power by the
setup parameter. Do not set the ALC value over 30.
4 ASD* (Automatic Shut Down) Setup:
9 Level: 33dBm, Time: 3sec, Count: 10
5 Tx HPA On
6 Rx HPA On
<Specifying of the operating frequencies, bandwidth, and gains>
>>RHPA ON↵
>>TXALC_LEVEL 30↵
>>TXALC ON↵
>>RXALC_LEVEL 30
↵
>>RXALC ON↵
>>ASD_LEVEL 33↵
>>ASD_TIME 3↵
>>ASD_COUNT 10↵
>>ASD ON↵
* If the output power gets higher than “ASD_LEVEL”, the repeater will shut
down for “ASD_TIME” time and then turn on the amp and measure the
output power again. If this repeats “ASD_COUNT” times, the repeater will
shut down completely.
>>THPA ON↵
iDEN MINI
User’s Manual -30-

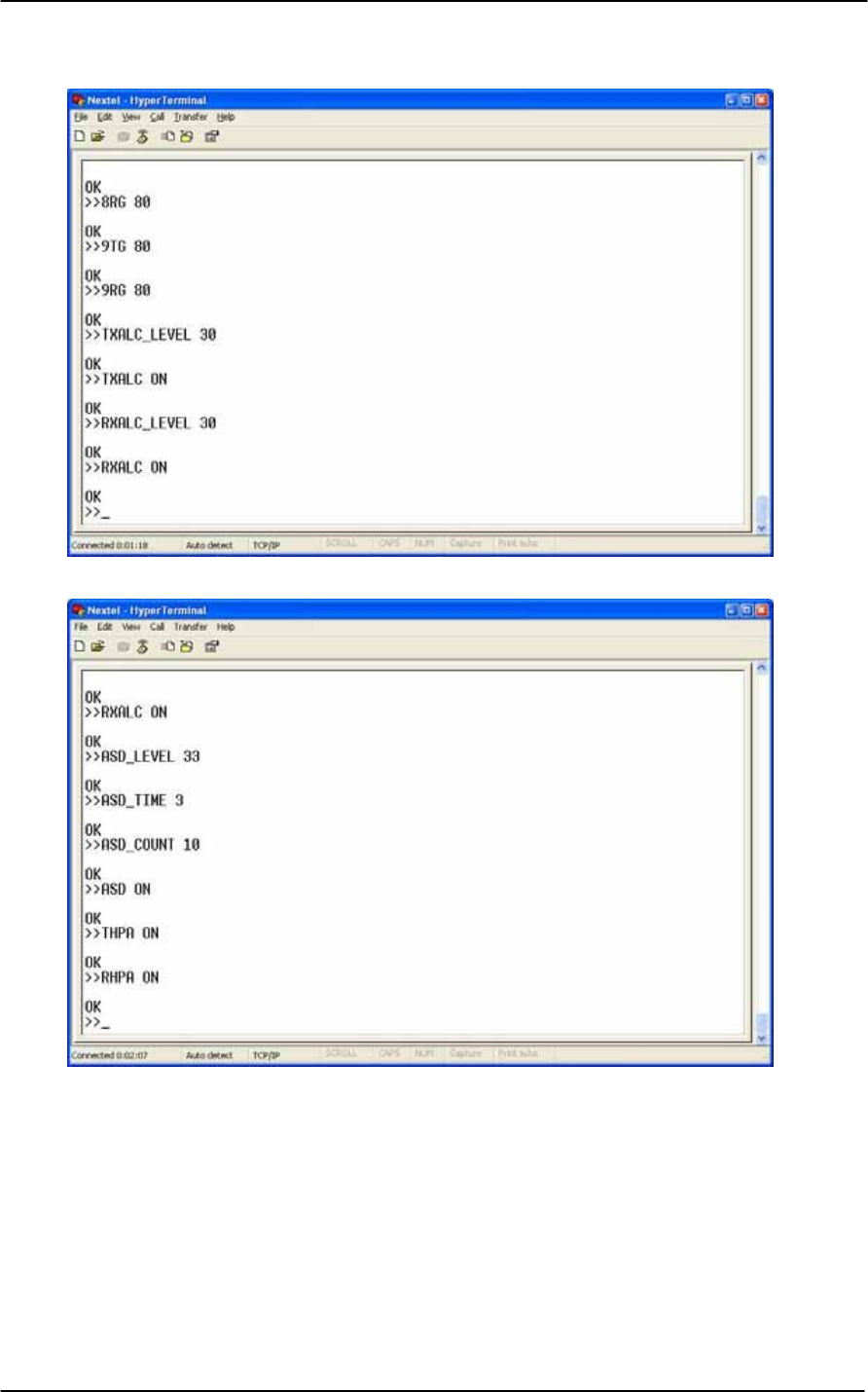

<Specifying of the ALCs>
<Setting of the ASD parameters>
iDEN MINI
User’s Manual -31-

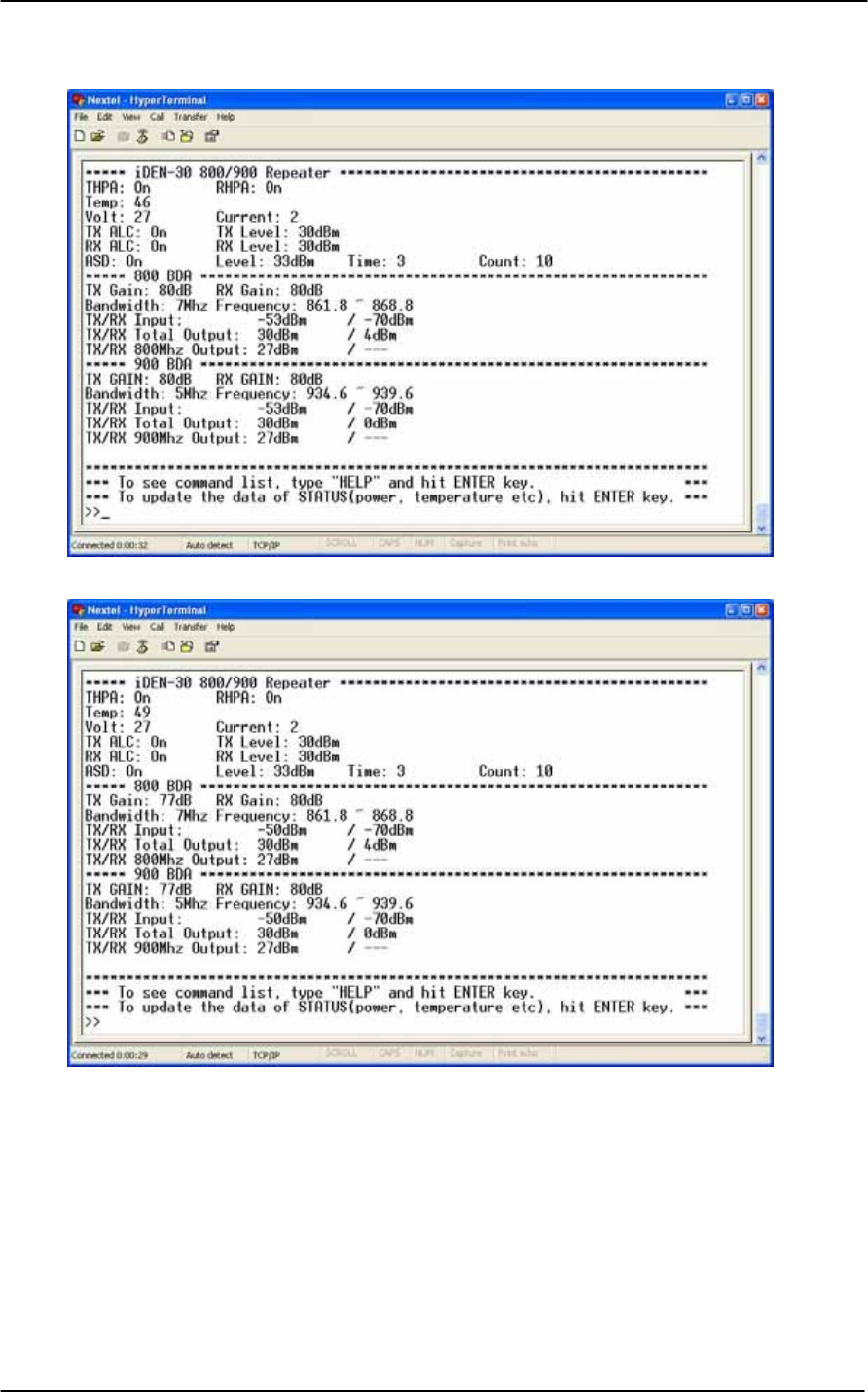

<The screenshot of the example setting>
<The screenshot of the ALC Operating>
The maximum output power for operating is +30 dBm on both Tx and Rx.
iDEN MINI
User’s Manual -32-

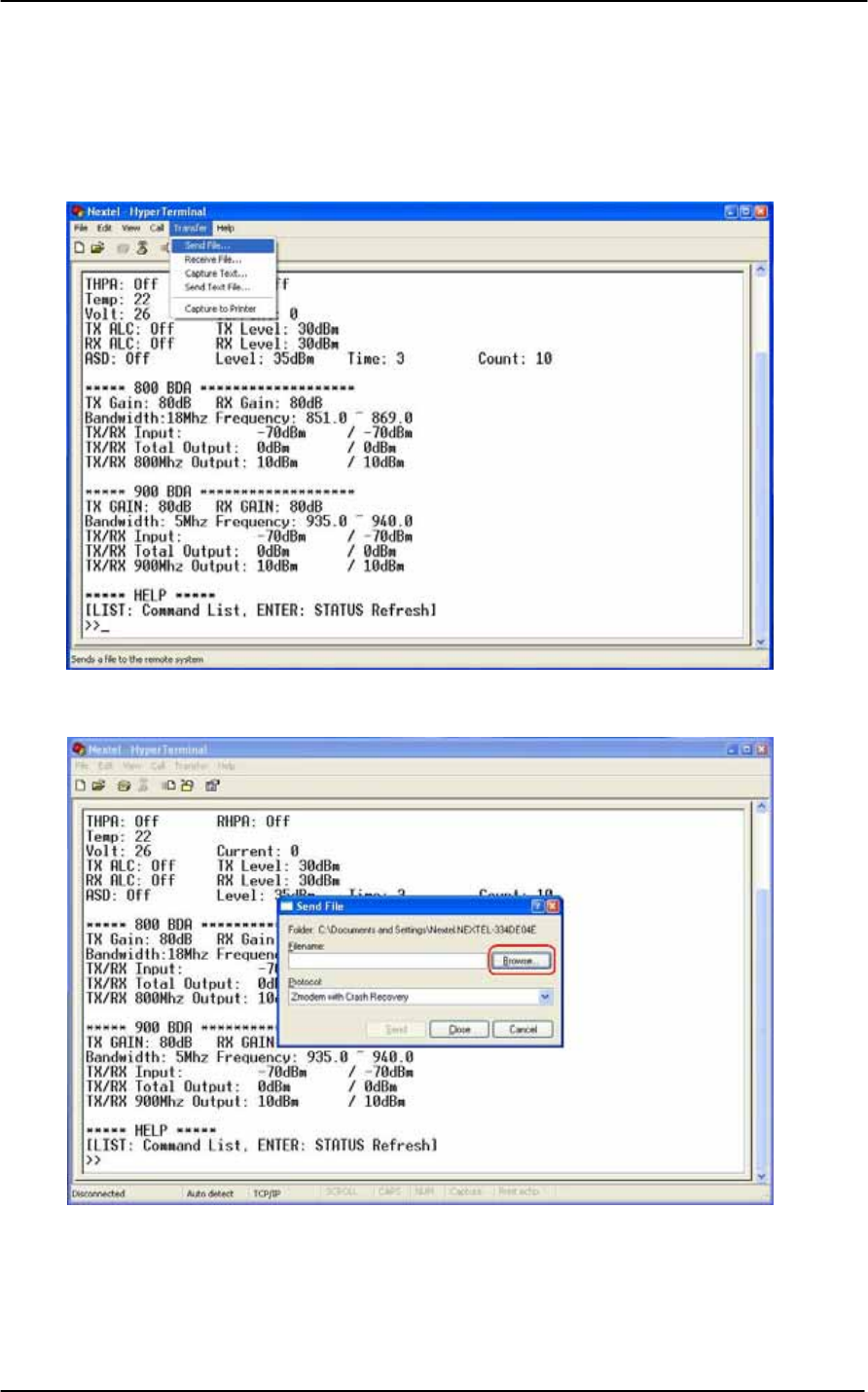

4.3 Downloading of the latest firmware
Step 1. Click the “Send File…” of Transfer menu.
Step 2. Browse the latest firmware file.
iDEN MINI
User’s Manual -33-

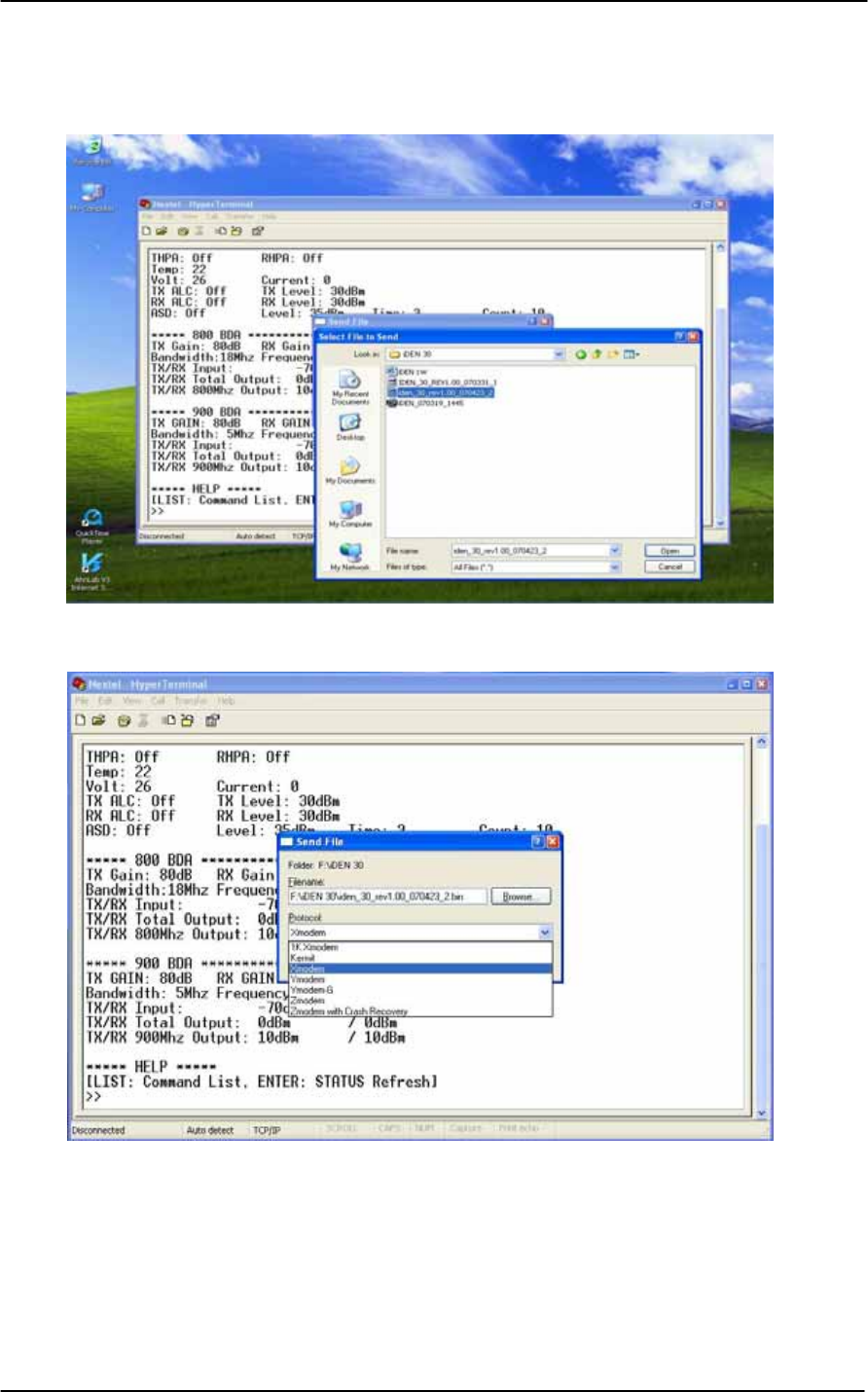

Step 3. Select file to send.
Step 4. Send the file on the “Xmodem” protocol.
iDEN MINI
User’s Manual -34-

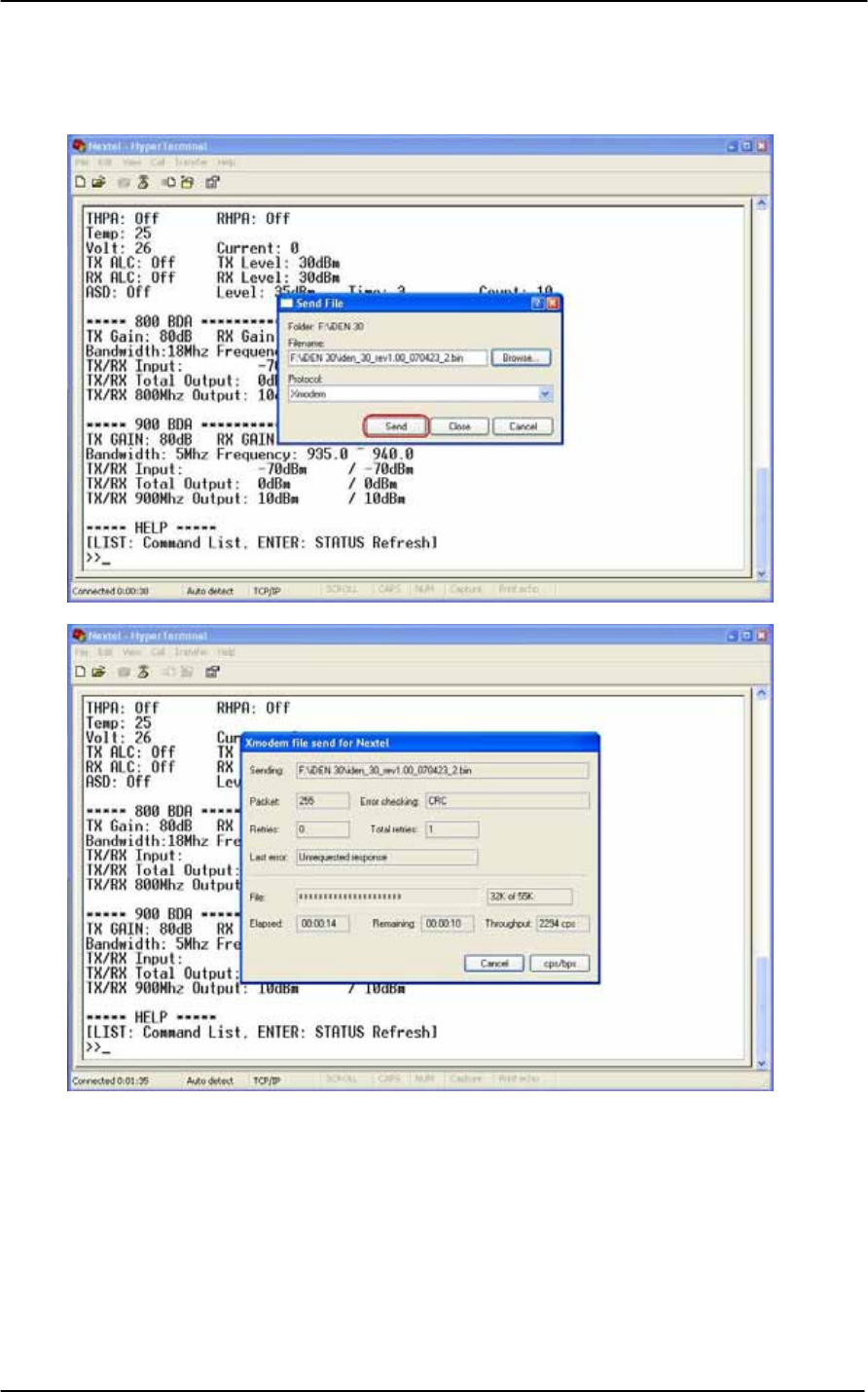

Step 5. Push the “Send” button.
<The screenshot of the Xmodem file send>
iDEN MINI
User’s Manual -35-
<The screenshot of firmware download completed>
Step 6. Type “VER” and hit the “Enter” key to check the version of firmware.
iDEN MINI
User’s Manual -36-
* Reference
The Operating Bandwidth & Frequencies
Bandwidth Operating Frequency
iDEN 800
18MHz-bandwidth
Downlink
851~869MHz
850.8~868.8MHz
850.6~868.6MHz
Uplink
806~824MHz
805.8~823.8MHz
805.6~823.6MHz
7MHz-bandwidth
Downlink
862~869MHz
861.8~868.8MHz
861.6~868.6MHz
Uplink
817~824MHz
816.8~823.8MHz
816.6~823.6MHz
iDEN 900 5MHz-bandwidth
Downlink
935~940MHz
934.8~939.8MHz
934.6~939.6MHz
Uplink
896~901MHz
895.8~900.8MHz
895.6~900.6MHz
Operating bandwidth and Frequencies of iDEN
iDEN MINI
User’s Manual -37-
5. Troubleshooting
5.1 RF Connection Check
Problem
Either the downlink output power or the uplink output power (=Input
Power to the repeater) is too weak.
Solution
Check if the following RF connections are loose:
1. The cable connection from the donor antenna to the donor
antenna port
2. The cable connection from the service antenna port to the
service antenna

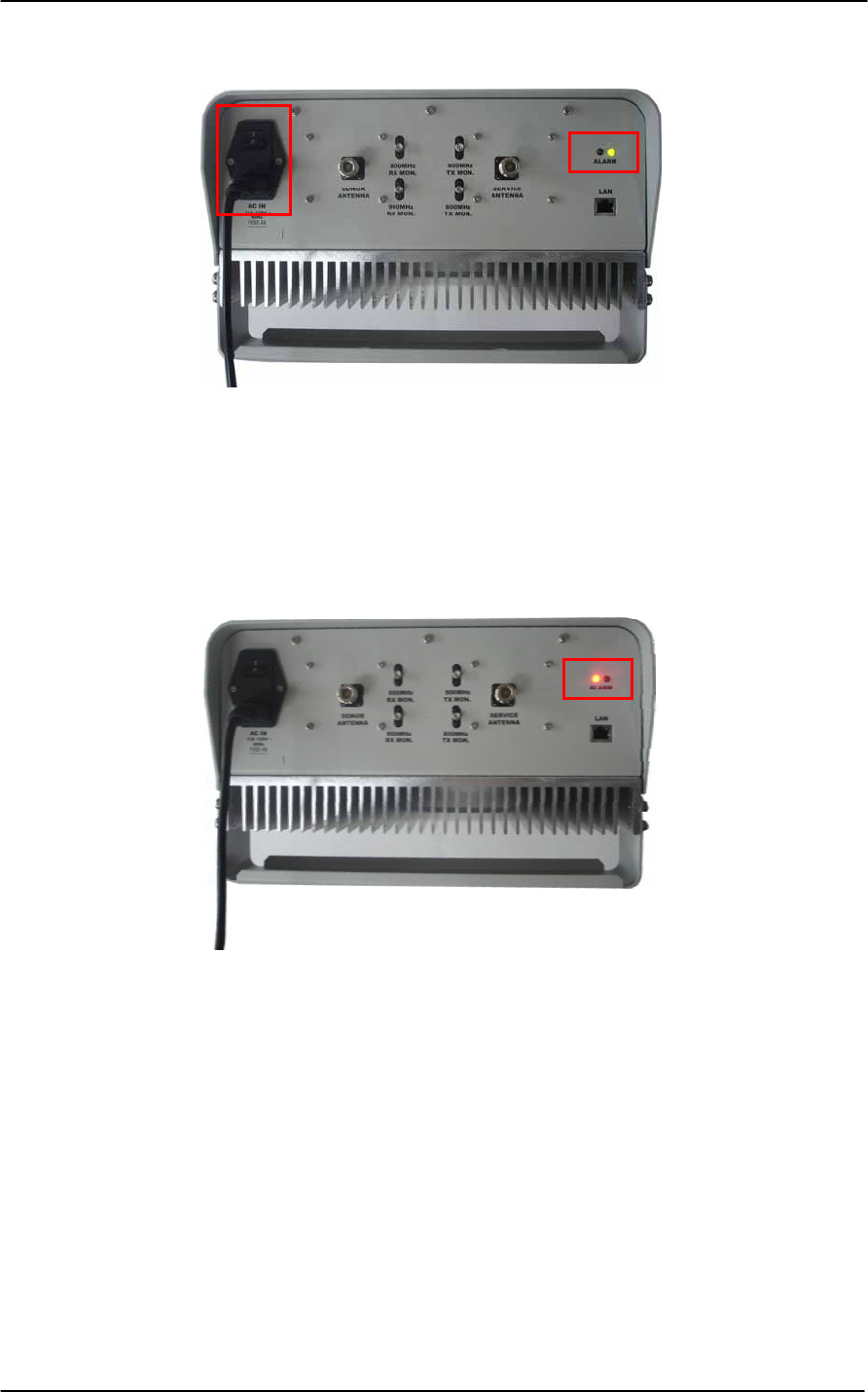

5.2 Power Connection
Problem
All LEDs at the bottom are turned off.
Figure 17. LEDs Off
Solution
Check if the power cord is connected correctly and the green LED at the
bottom is on.
iDEN MINI
User’s Manual -38-

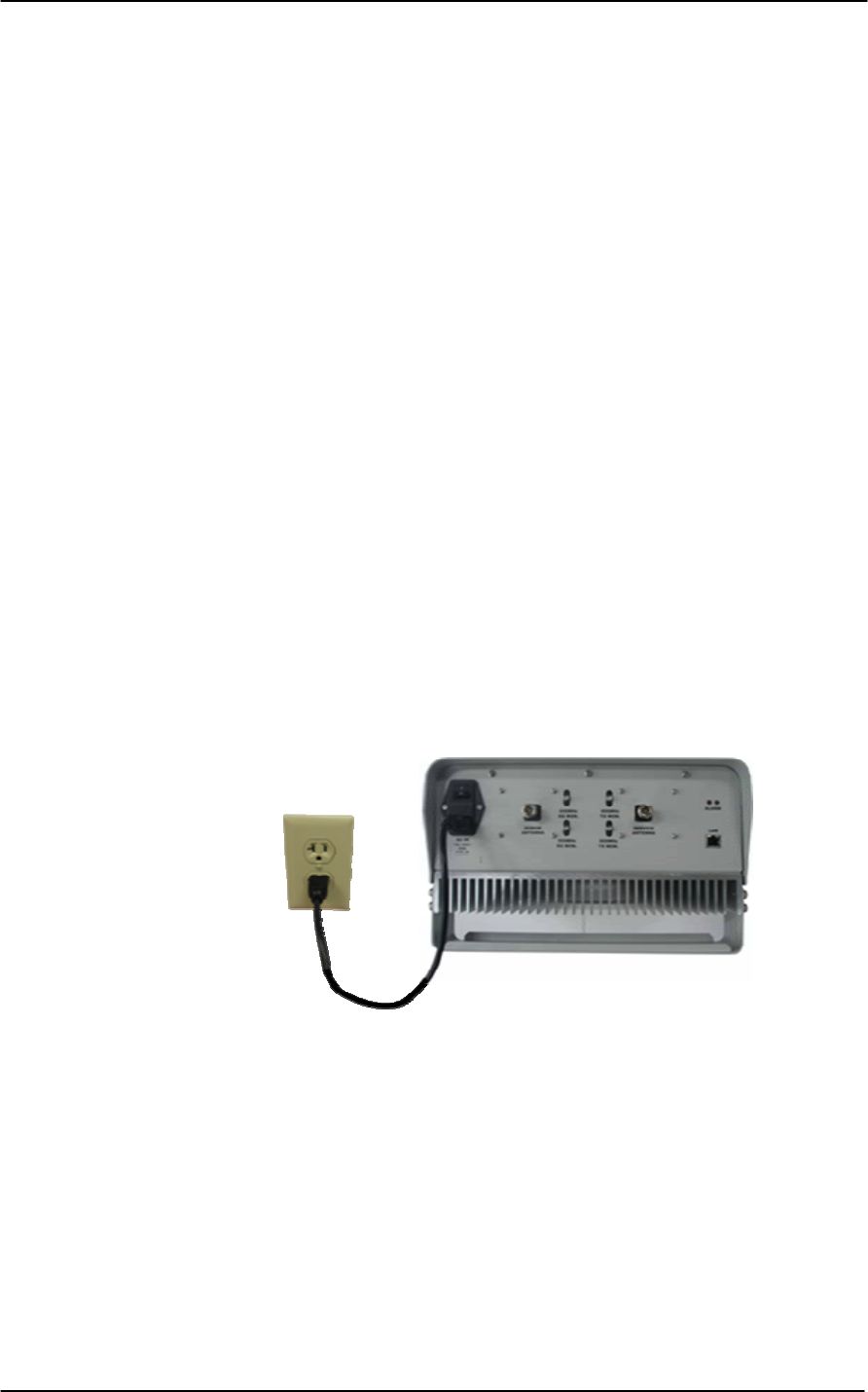

Figure 18. AC power cord Check
5.3 Red Light on the Alarm LED
Problem
Red light LED turns on the Alarm LED after applying AC power.
Figure 19. Red Light on Alarm LED
iDEN MINI
User’s Manual -39-
* Check points
The red LED can be turned on due to out of range as the following below:
Alarms Lower Upper
Tx Input -70dBm -30dBm
Tx/Rx Output 0dBm 35dBm
Temperature -10°C 80°C
DC Voltage 20V 30V
DC Current 0A 5A
Solution
If the red light LED is steady in the range of critical values, request a
technical support.
iDEN MINI
User’s Manual -40-
6. Glossary
6.1 ALC (Automatic Level Control)
* ALC feature prevents the repeater from exceeding its maximum output power,
by reducing the gain automatically.
ALC is used to adjust the gain to an appropriate level for a range of input signal
levels.
[Example]
[For the repeater with 30dBm Maximum Output power, 80dB Maximum Gain /30dB
Gain control range, ->
If input signal is -30Bm and ALC is set as 30dBm, the gain will be 60dB to adjust to
the level.
If input signal is -55dBm, the output power will be 25dBm by the limitation of the
maximum gain even though the ALC is set as 30dBm.]
6.2 ASD (Automatic Shutdown)
* Automatic shut down protects the repeater itself from the oscillation or excessive
input signal and eliminates any degradation to the network.
There are three parameters, ASD_LEVEL, ASD_TIME and ASD_COUNT.
If the output power gets higher than “ASD_LEVEL”, the repeater will shut down for
“ASD_TIME” time and then turn the amp back on and measure the output power
again. If this repeats “ASD_COUNT” times, the repeater will shut down completely.
[Example]
[For the repeater with 30dBm Maximum Output power, 80dB Maximum Gain /30dB
Gain control range,
Assuming ASD_ LEVEL: 35dBm, ASD_TIME: 3sec, ASD_COUNT: 3
If the output power is 35dBm [ASD_LEVEL] and higher for some reasons,
the repeater will have shut down for 3 seconds [ASD_TIME]. If this repeats 3 times
[ASD_COUNT], the repeater will shut down completely.]
