iDEN MINI
(RSN-iDEN-30)
User’s Manual
GG
G
G
R-tron Inc.
User’s Manual -2-
G
RF EXPOSURE INFORMATION
The antenna used for this transmitter must not exceed 7dBi and must be installed to
provide a minimum separation distance of 22cm from all persons.
CAUTION
This equipment is indoor use and all the communication
wirin
g
are limited to inside of the buildin
g
.
iDEN MINI
G
User’s Manual -3-
G
This document describes the specifications, installation and operation of iDEN MINI.
Hardware and software mentioned in this document are subject to continuous development and
improvement. Consequently, there may be minor discrepancies between the information in the
document and the performance and design of the product. Specifications, dimensions and other
statements mentioned in this document are subject to change without notice.
R-tron Inc. 6402 College Boulevard Overland Park, KS 66211
Phone: +1-913-344-9977, 1-888-31R-TRON Fax: +1-913-344-9988 Internet: www.r-tron.com
R-tron is registered trademarks of R-tron Inc. Other products and company names mentioned herein this
manual might be trade marks or trade names of their respective owners.
This document or parts of it may not be reproduced without the written permission of R-tron Inc.
Infringements will be prosecuted. All rights reserved
Copyright © R-tron Inc. 2000-2007
iDEN MINI
G
User’s Manual -4-
G
Contents
Abbreviations .................................................................................................................... 6G
1.GIntroduction ........................................................................................................ 7G
2.GDescription .......................................................................................................... 9G
2.1GSystem Specifications ................................................................................................. 9G
2.1.1.GElectrical Specifications .................................................................................... 9G
2.1.2.GMechanical Specifications .............................................................................. 10G
2.2GSub Unit Overview ..................................................................................................... 11G
G
2.2.1.GUDC Module ................................................................................................... 13G
2.2.2.GMultiplexer ...................................................................................................... 14G
2.2.3.GMCU (Main Control Unit) ................................................................................ 15G
2.2.4.GPower Supply ................................................................................................. 16G
2.2.5.GHPAs (High Power Amplifiers) ........................................................................ 17G
3.GHardware Installation .......................................................................................... 18G
3.1GCheck List of Items .................................................................................................... 18G
3.2GMounting .................................................................................................................... 19G
3.3GGrounding .................................................................................................................. 20G
3.4GRF Cable Connection ................................................................................................ 20G
3.5GPower Up ................................................................................................................... 21G
4.GCommand and Control through the Hyper Terminal ................................................22G
4.1 Setting for Command and Control through the Hyper Terminal ..................................... 22G
4.2 Command and Control through the Hyper Terminal ...................................................... 26G
4.3 Downloading of the latest firmware ................................................................................ 32G
5.GTroubleshooting .................................................................................................. 37G
5.1GRF Connection Check ............................................................................................... 37G
5.2GPower Connection ..................................................................................................... 37G
5.3GRed Light on the Alarm LED ...................................................................................... 38G
6.GGlossary .............................................................................................................40G
6.1GALC (Automatic Level Control) .................................................................................. 40G
6.2GASD (Automatic Shutdown) ....................................................................................... 40G
iDEN MINI
G
User’s Manual -5-
G
Figures
Figure 1.GR-tron iDEN MINI .................................................................................................... 7G
Figure 2.GOverview: Service .................................................................................................... 8G
Figure 3.GDimension of iDEN MINI ........................................................................................ 10G
Figure 4.GInternal View of iDEN MINI .................................................................................... 11G
Figure 5.GBlock Diagram ....................................................................................................... 12G
Figure 6.GUDC Module .......................................................................................................... 13G
Figure 7.GMultiplexer ............................................................................................................ 14G
Figure 8.GMain Control Unit .................................................................................................. 15G
Figure 9.GPower Supply ........................................................................................................ 16G
Figure 10.GHPA(High Power Amplifier) ..................................................................................... 17G
Figure 11.GItems ................................................................................................................... 18G
Figure 12.GMounting .............................................................................................................. 19G
Figure 13.GGrounding ............................................................................................................ 20G
Figure 14.GConfiguration: RF Cable Connection ........................................................................ 21G
Figure 15.GPower Cord Connection .......................................................................................... 21G
Figure 16.GLocal connection to the iDEN MINI .......................................................................... 22G
Figure 17.GLEDs Off ............................................................................................................... 37G
Figure 18.GAC power cord Check ............................................................................................. 38G
Figure 19.GRed Light on Alarm LED ......................................................................................... 38G
iDEN MINI
G
User’s Manual -6-
G
Abbreviations
Abbreviations used in this manual, in iDEN MINI.
AC Alternating Current
ALC Automatic Level Control
ANT Antenna
ASD Automatic Shutdown
CDMA Code Division Multiple Access
DC Direct Current
GND Grounding
GUI Graphic User Interface
iDEN Integrated Digital Enhanced Network
LED Light Emitting Diode
PSU Power Supply Unit
RF Radio Frequency
TEMP Temperature
VSWR Voltage Standing Wave Ratio
iDEN MINI
G
User’s Manual -7-
G
1. Introduction

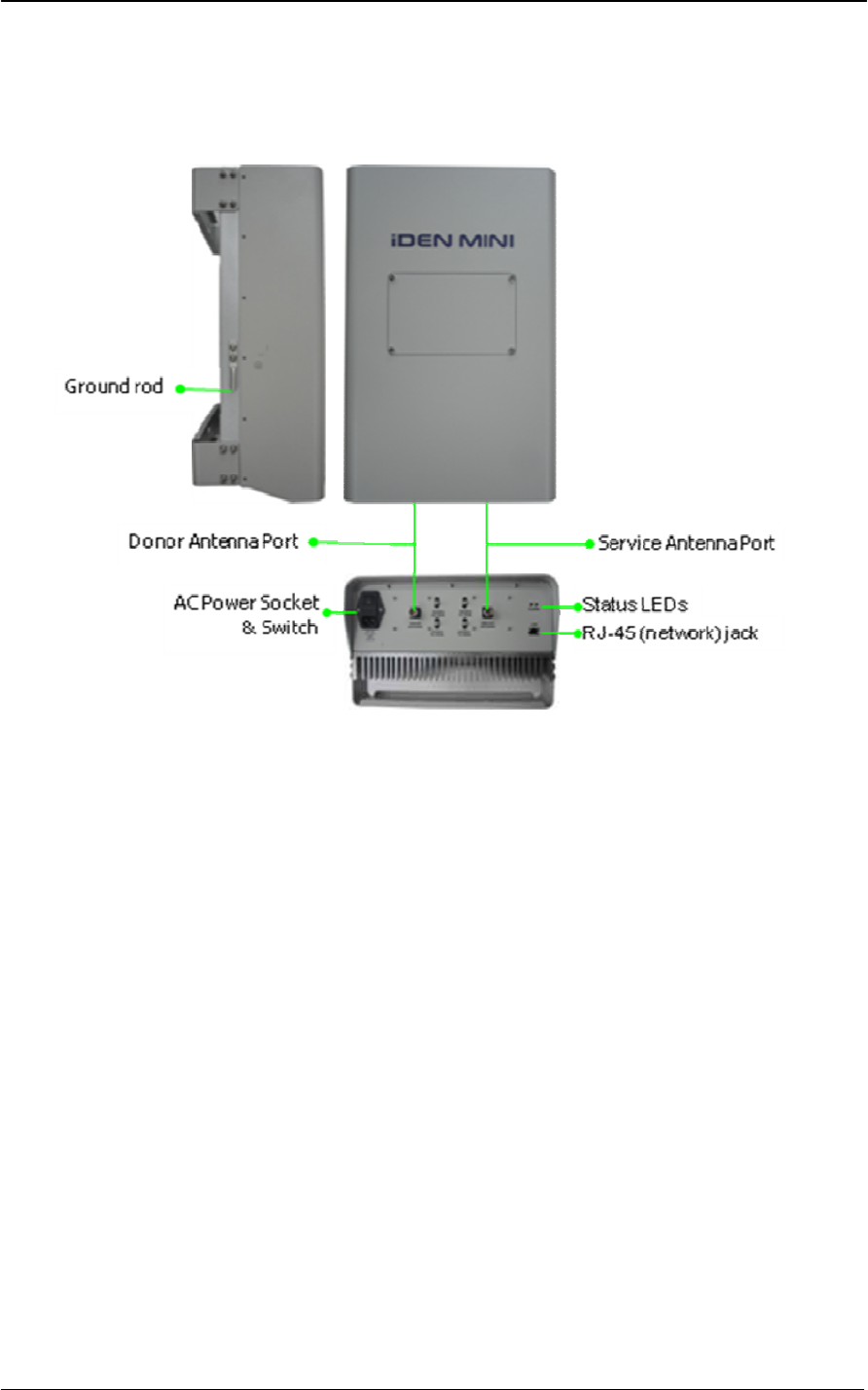

Figure 1. R-tron iDEN MINI
iDEN MINI repeater is used to fill out areas in iDEN mobile systems, such as base
station fringe areas, business and industrial buildings, etc.
iDEN MINI receives signals from a base station, amplifies and retransmits the
signals to mobile stations. Also it receives, amplifies and retransmits signals in the
opposite direction. Both directions are served simultaneously with the following
features:
7MHz or 18MHz-bandwidth service @ 800MHz’s
5MHz-bandwidth service @ 900MHz’s
Band Shifting @ 800MHz’s and 900MHz’s
Roll Offs: 65 dBc at 0.5MHz outside pass-band
iDEN MINI
G
User’s Manual -8-
G
.G
G

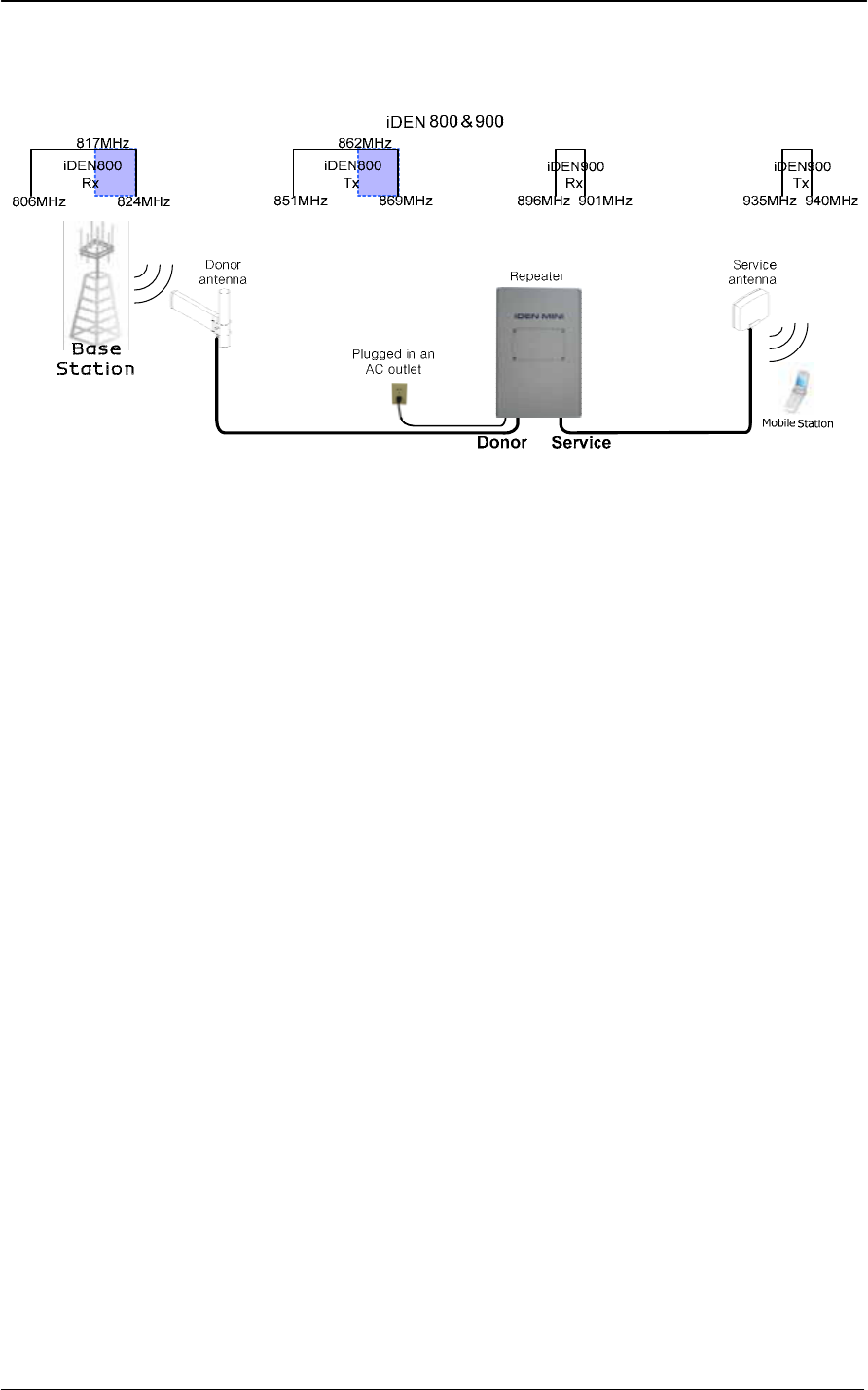

Figure 2. Overview: Service
iDEN MINI
G
User’s Manual -9-
G
2. Description
2.1 System Specifications
2.1.1. Electrical Specifications
Parameter iDEN 800 iDEN 900
Selectable
Bandwidth DL & UL In-band BW:18M
In-band BW:7.0M In-band BW:5M
Frequency
Selection
DL
18MHz-
bandwidth
851~869MHz
850.8~868.8MHz
850.6~868.6MHz
7MHz-
bandwidth
862~869MHz
861.8~868.8MHz
861.6~868.6MHz
5MHz-
bandwidth
935~940MHz
934.8~939.8MHz
934.6~939.6MHz
UL
18MHz-
bandwidth
806~824MHz
805.8~823.8MHz
805.6~823.6MHz
7MHz-
bandwidth
817~824MHz
816.8~823.8MHz
816.6~823.6MHz
5MHz-
bandwidth
896~901MHz
895.8~900.8MHz
895.6~900.6MHz
Roll off DL & UL ˺65dBc
@Fedge+/-500KHz
˺65dBc
@Fedge+/-500KHz
Gain ripple ·1.5dB (Typical)
Gain DL & UL 50dB to 80dB
Output
Power DL & UL 30dBm
Delay DL & UL 8.0µs Max.
VSWR DL & UL 1.5Max.
Rx
Noise Figure
5dB Max. (80dB Gain)
12dB Max. (50dB Gain)
Input Range DL & UL -30dBm Max.
Power supply 110V~125V, 60Hz typical
Operating temperature *-10¶j~50¶CVX[¶m¥XYY¶m
Storage temperature -20¶C~60¶C/-4¶F~140¶F
Consumption power 112.2W
iDEN MINI
G
User’s Manual -10-
G
2.1.2. Mechanical Specifications
Parameter Specification
RF connectors N-female x 2, SMA-female x 4
Size 20.87 X 14.01 X 8.66(Inch),
530 X 356 X 220(mm)
Weight 24kg (52.912lbs)
LAN
ALARM
AC IN
110 -125V ~
ڟڜکڢڠڭ
ڭڤڮڦٻڪڡٻڠڧڠڞگڭڤڞٻڮڣڪڞڦ
BRACKET
may not harmful interference.
RSN-iDEN-30
COMPLIES WITH PART 90, FCC RULES.
110 -125V ~ , 60Hz , 4A
:PRODUCT PART NUMBER
POWER :
FCC REG. NO. : STESNiDEN30
SERIAL NO. / DATE :
E258109
31CY
I.T.E
:MAKER
MADE I N KOREA
R-tron lnc.
Operation is subject to the condition that this device
This device complies with Part 15 of the FCC Rules.
800MHz
TX MON.
900MHz
RX MON.
DONOR
ANTENNA
SERVICE
ANTENNA
900MHz
TX MON.
800MHz
RX MON.

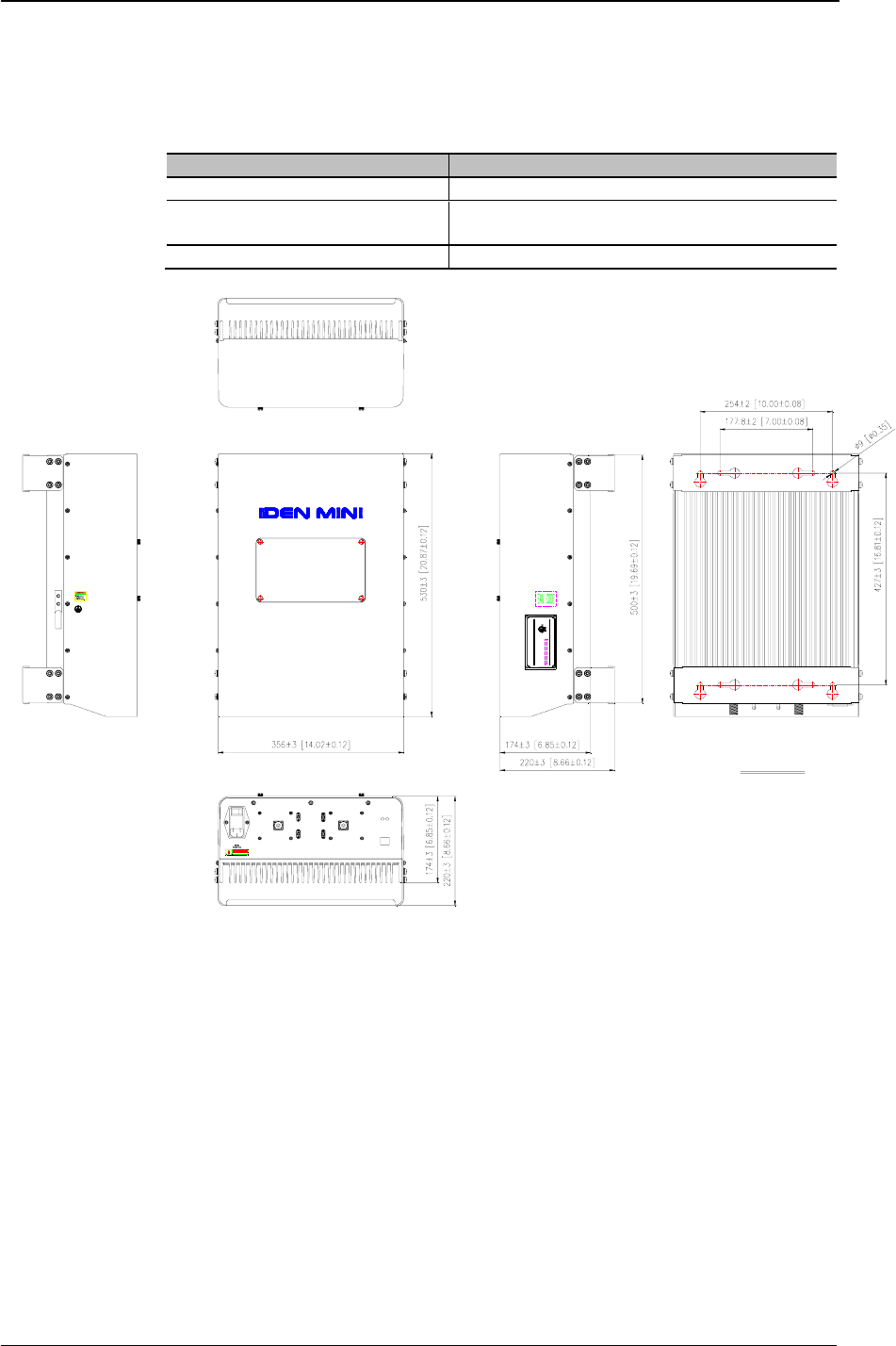

Figure 3. Dimension of iDEN MINI
iDEN MINI
G
User’s Manual -11-
G
2.2 Sub Unit Overview
iDEN MINI is composed of the following sub units:
UDC(Up Down Converter)
HPAs(High Power Amplifiers)
Multiplexer
Main Control Unit (MCU)
Power Supply Unit (PSU)
EMI Filter

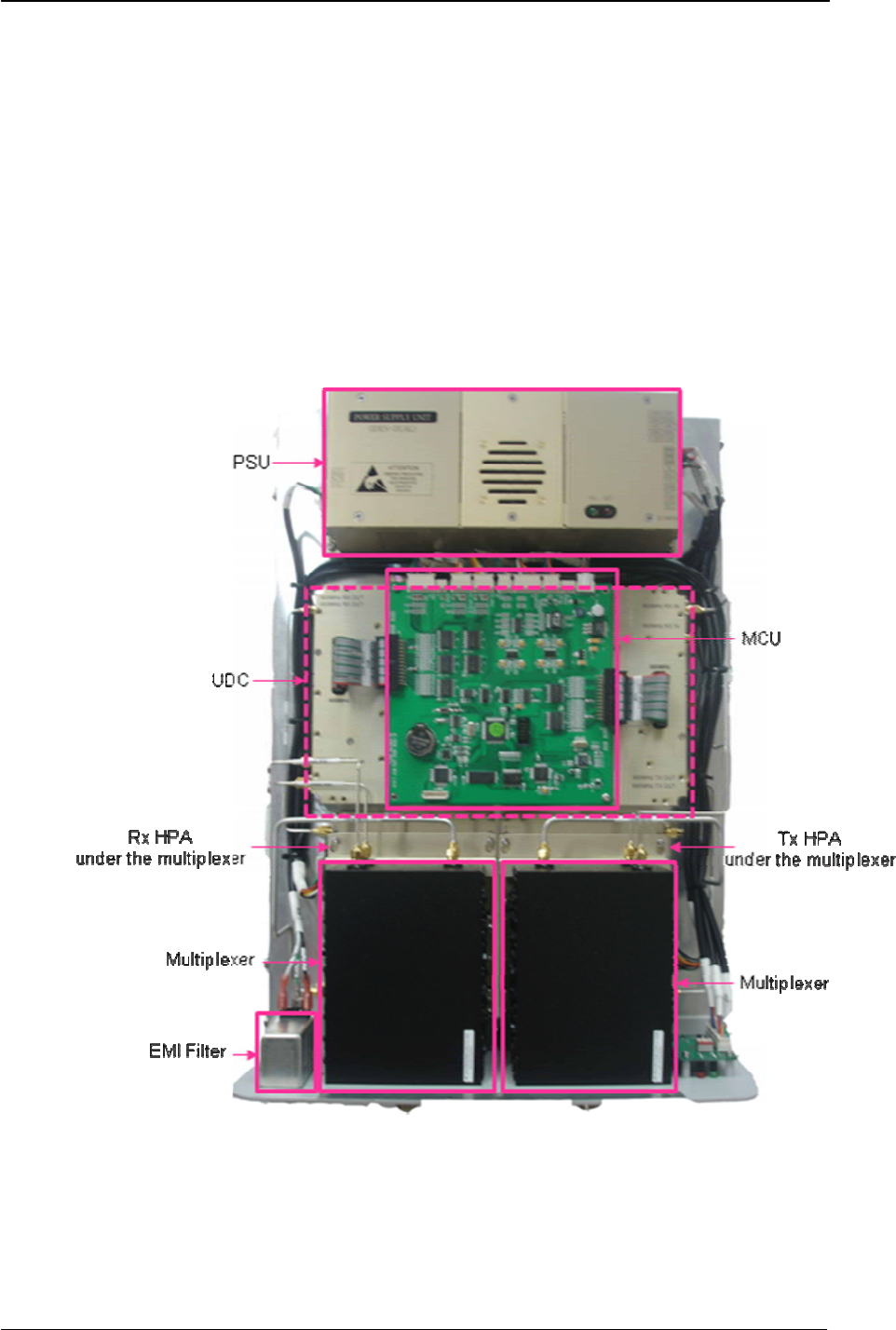

Figure 4. Internal View of iDEN MINI
iDEN MINI
G
User’s Manual -13-
G
2.2.1. UDC Module
The UDC Module is basically a bi-directional amplifier that sharply filters
out unwanted noise.
Figure 6. UDC Module
iDEN MINI
G
User’s Manual -14-
G
2.2.2. Multiplexer
A multiplexer is a device that combines two or more signals onto a
common channel or medium to increase its transmission efficiency.
Figure 7. Multiplexer
