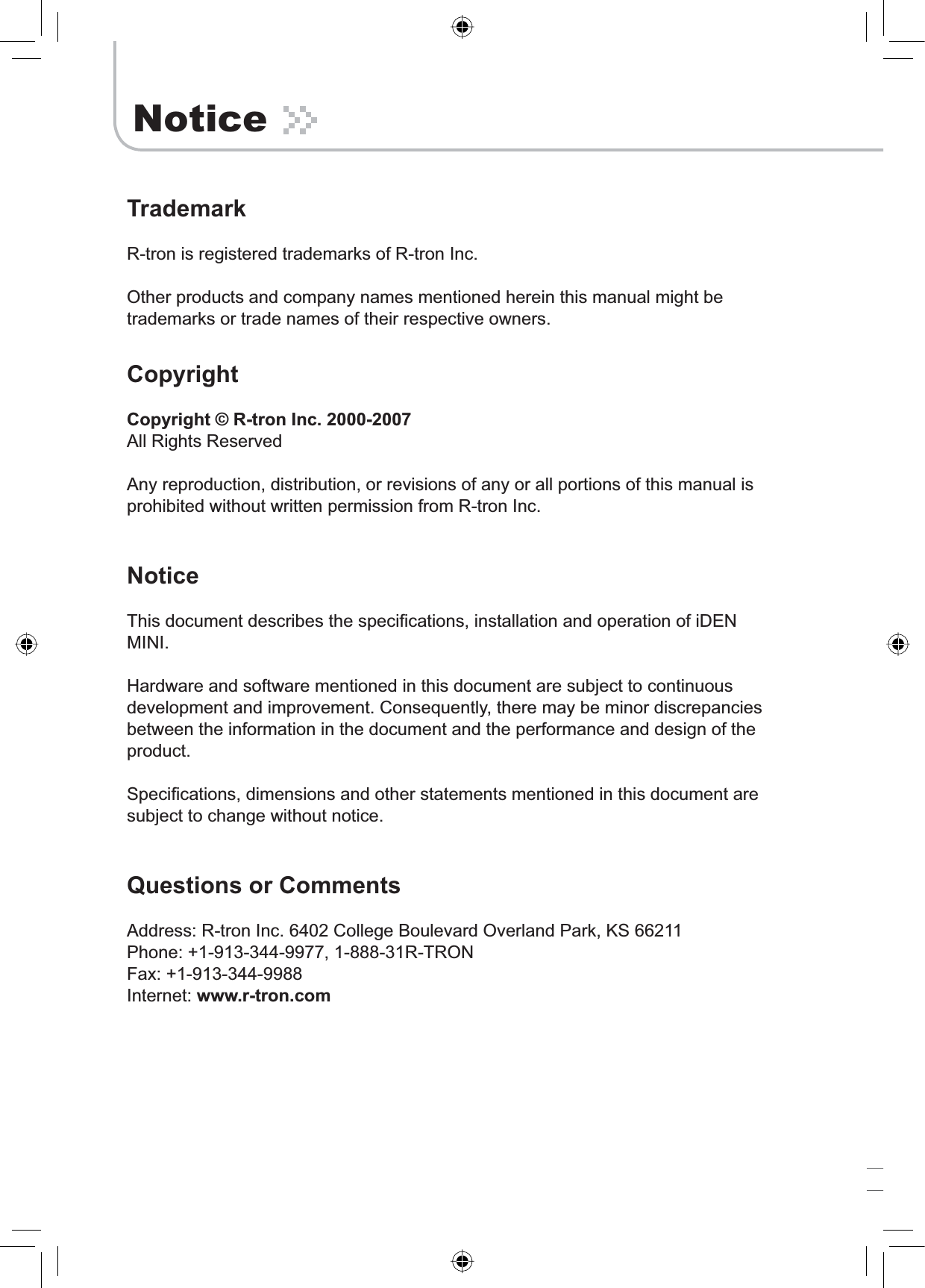

TrademarkR-tron is registered trademarks of R-tron Inc. Other products and company names mentioned herein this manual might be trademarks or trade names of their respective owners.CopyrightCopyright © R-tron Inc. 2000-2007All Rights ReservedAny reproduction, distribution, or revisions of any or all portions of this manual is prohibited without written permission from R-tron Inc.NoticeThis document describes the specifications, installation and operation of iDEN MINI.Hardware and software mentioned in this document are subject to continuous development and improvement. Consequently, there may be minor discrepancies between the information in the document and the performance and design of the product.Specifications, dimensions and other statements mentioned in this document are subject to change without notice.Questions or CommentsAddress: R-tron Inc. 6402 College Boulevard Overland Park, KS 66211Phone: +1-913-344-9977, 1-888-31R-TRON Fax: +1-913-344-9988 Internet: www.r-tron.comNotice

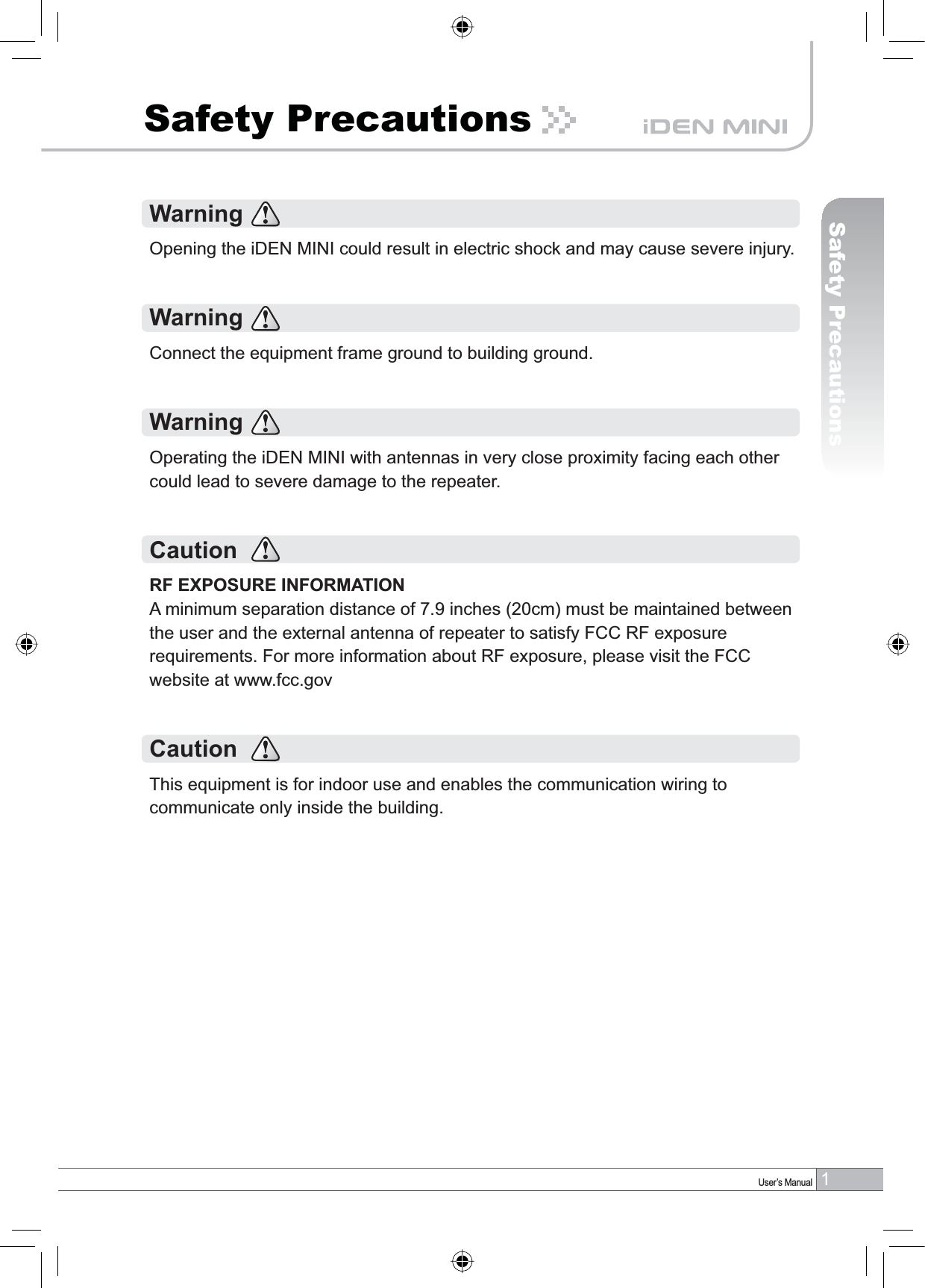

1User’s ManualSafety PrecautionsSafety PrecautionsWarningOpening the iDEN MINI could result in electric shock and may cause severe injury.WarningConnect the equipment frame ground to building ground.Warning Operating the iDEN MINI with antennas in very close proximity facing each other could lead to severe damage to the repeater.CautionRF EXPOSURE INFORMATIONA minimum separation distance of 7.9 inches (20cm) must be maintained between the user and the external antenna of repeater to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.govCautionThis equipment is for indoor use and enables the communication wiring to communicate only inside the building.

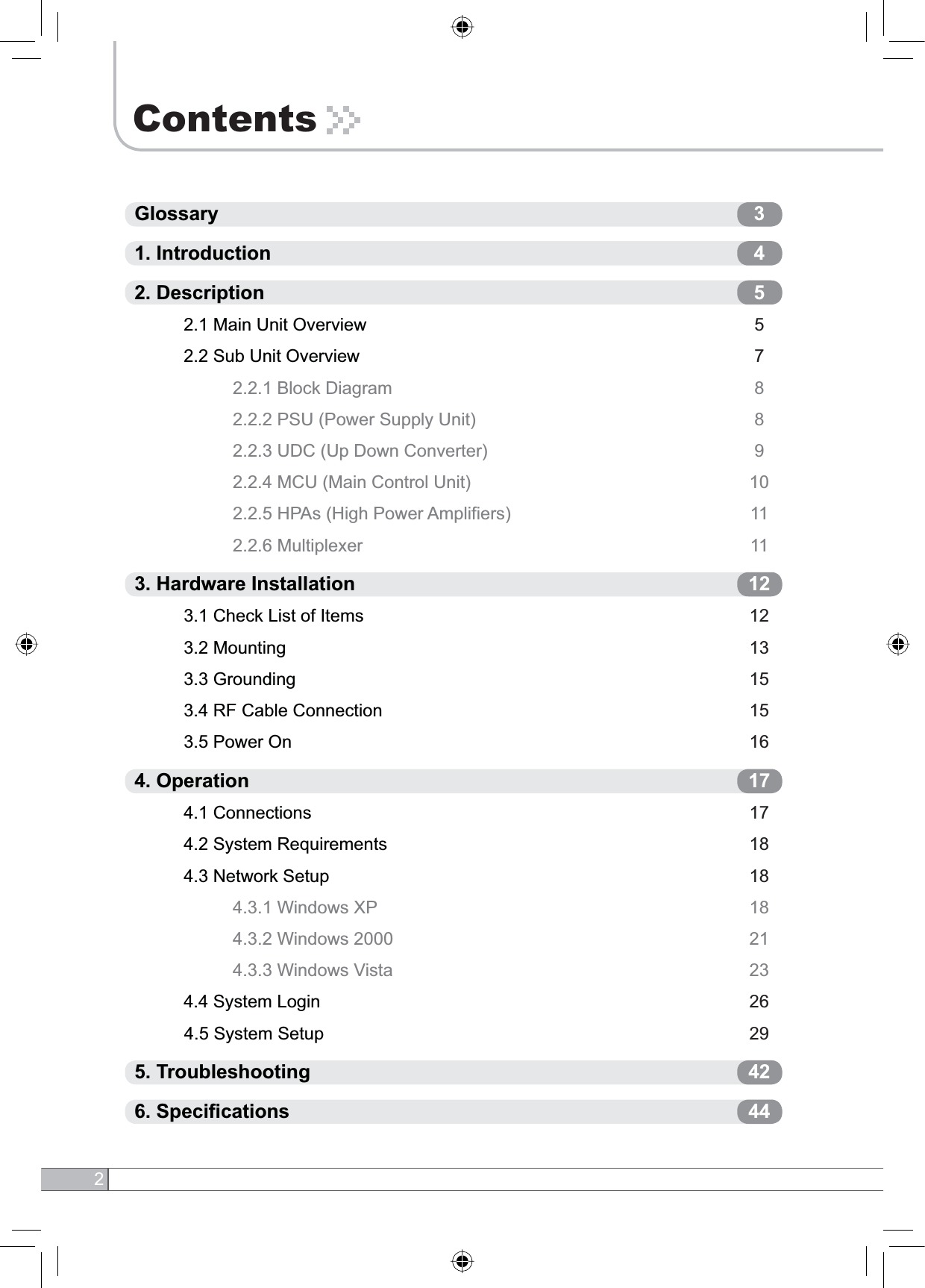

2ContentsGlossary1. Introduction2. Description 2.1 Main Unit Overview 2.2 Sub Unit Overview 2.2.1 Block Diagram 2.2.2 PSU (Power Supply Unit) 2.2.3 UDC (Up Down Converter) 2.2.4 MCU (Main Control Unit) 2.2.5 HPAs (High Power Amplifiers) 2.2.6 Multiplexer3. Hardware Installation 3.1 Check List of Items 3.2 Mounting 3.3 Grounding 3.4 RF Cable Connection 3.5 Power On4. Operation 4.1 Connections 4.2 System Requirements 4.3 Network Setup 4.3.1 Windows XP 4.3.2 Windows 2000 4.3.3 Windows Vista 4.4 System Login 4.5 System Setup5. Troubleshooting6. Specifications345578891011111212131515161717181818212326294244

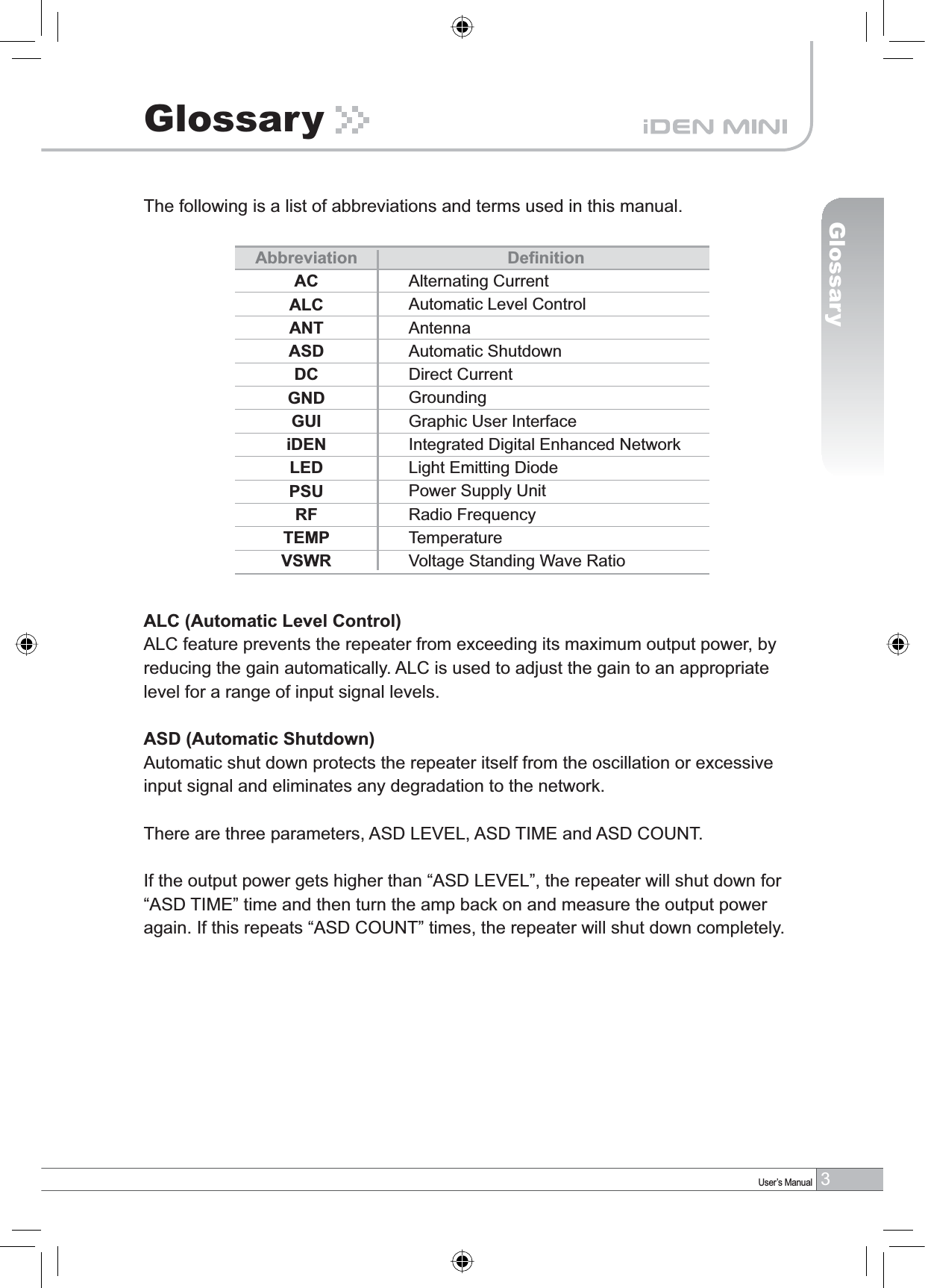

3User’s ManualGlossaryThe following is a list of abbreviations and terms used in this manual.GlossaryALC (Automatic Level Control)ALC feature prevents the repeater from exceeding its maximum output power, by reducing the gain automatically. ALC is used to adjust the gain to an appropriate level for a range of input signal levels. ASD (Automatic Shutdown)Automatic shut down protects the repeater itself from the oscillation or excessive input signal and eliminates any degradation to the network.There are three parameters, ASD LEVEL, ASD TIME and ASD COUNT.If the output power gets higher than “ASD LEVEL”, the repeater will shut down for“ASD TIME” time and then turn the amp back on and measure the output power again. If this repeats “ASD COUNT” times, the repeater will shut down completely.AbbreviationACALCANTASDDCGNDGUIiDENLEDPSURFTEMPVSWRDefinitionAlternating CurrentAutomatic Level ControlAntennaAutomatic ShutdownDirect Current GroundingGraphic User InterfaceIntegrated Digital Enhanced NetworkLight Emitting DiodePower Supply UnitRadio FrequencyTemperatureVoltage Standing Wave Ratio

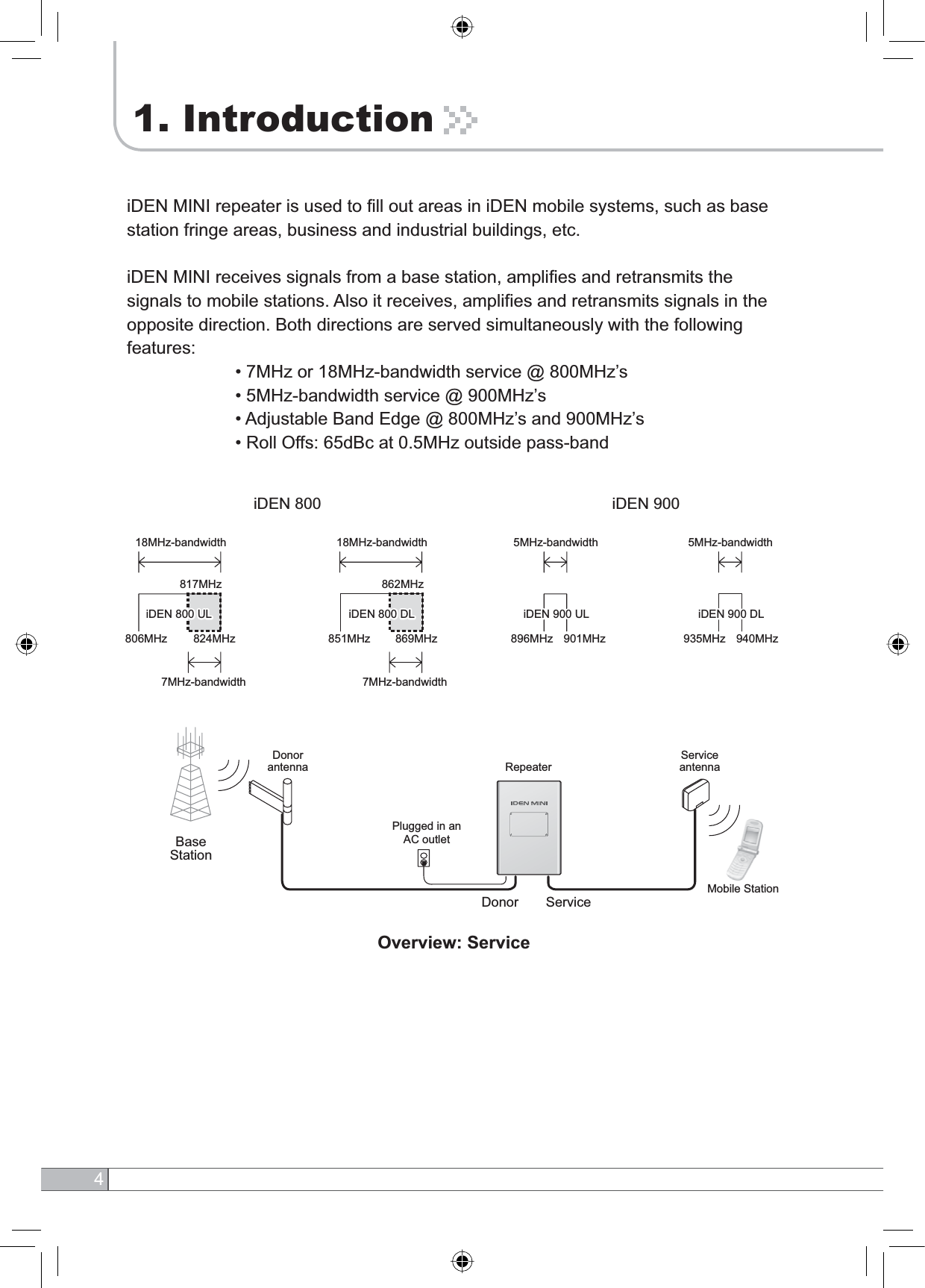

41. IntroductioniDEN MINI repeater is used to fill out areas in iDEN mobile systems, such as base station fringe areas, business and industrial buildings, etc.iDEN MINI receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously with the following features: • 7MHz or 18MHz-bandwidth service @ 800MHz’s • 5MHz-bandwidth service @ 900MHz’s • Adjustable Band Edge @ 800MHz’s and 900MHz’s • Roll Offs: 65dBc at 0.5MHz outside pass-bandOverview: Service817MHz18MHz-bandwidth824MHz806MHz862MHz869MHz851MHz 901MHz896MHzRepeaterDonorantennaPlugged in anAC outletDonoriDEN 800 iDEN 900BaseStationServiceMobile StationServiceantenna940MHz935MHz7MHz-bandwidth18MHz-bandwidth 5MHz-bandwidth 5MHz-bandwidth7MHz-bandwidthiDEN 800 UL iDEN 800 DL iDEN 900 UL iDEN 900 DLiDEN 800 UL iDEN 800 DL iDEN 900 UL iDEN 900 DL

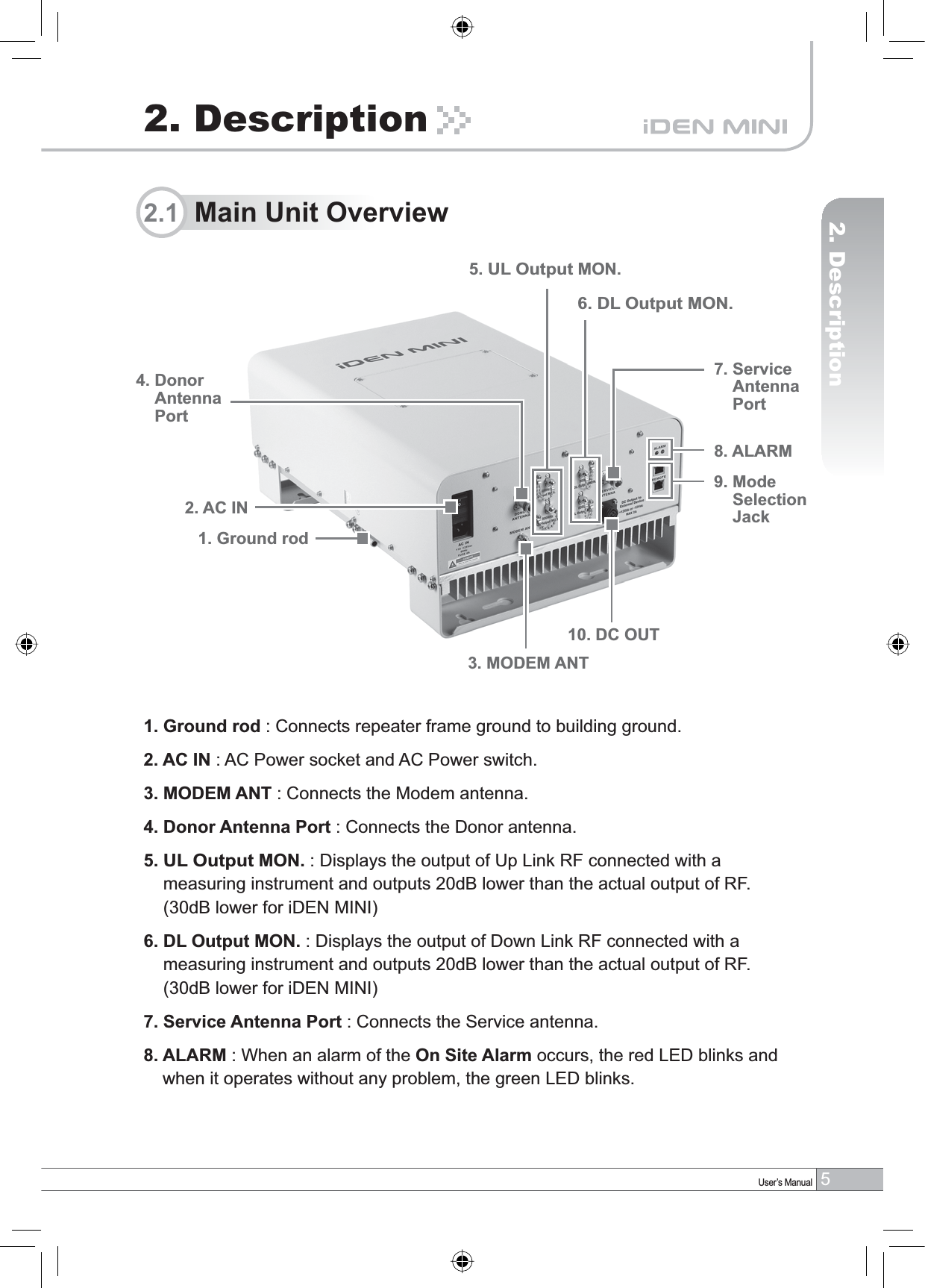

5User’s Manual2. Description1. Ground rod : Connects repeater frame ground to building ground.2. AC IN : AC Power socket and AC Power switch. 3. MODEM ANT : Connects the Modem antenna.4. Donor Antenna Port : Connects the Donor antenna.5.UL Output MON. : Displays the output of Up Link RF connected with a measuring instrument and outputs 20dB lower than the actual output of RF. (30dB lower for iDEN MINI)6. DL Output MON. : Displays the output of Down Link RF connected with a measuring instrument and outputs 20dB lower than the actual output of RF. (30dB lower for iDEN MINI)7. Service Antenna Port : Connects the Service antenna.8. ALARM : When an alarm of the On Site Alarm occurs, the red LED blinks and when it operates without any problem, the green LED blinks.2. Description2.1 Main Unit Overview1. Ground rod3. MODEM ANT10. DC OUT9. ModeSelectionJack2. AC IN4. DonorAntennaPort8. ALARM7. ServiceAntennaPort5.UL Output MON.6. DL Output MON.

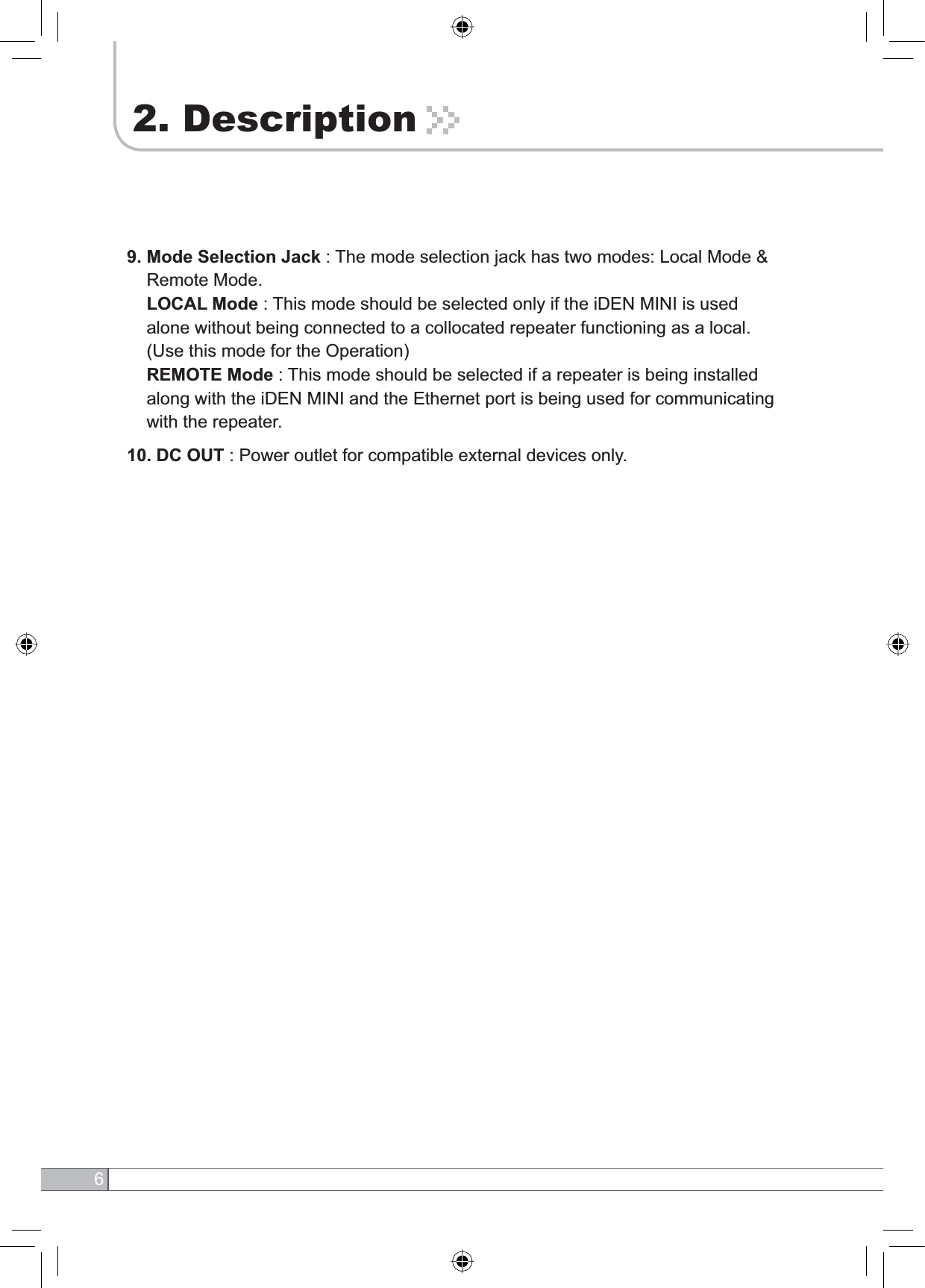

69. Mode Selection Jack : The mode selection jack has two modes: Local Mode & Remote Mode. LOCAL Mode : This mode should be selected only if the iDEN MINI is used alone without being connected to a collocated repeater functioning as a local. (Use this mode for the Operation)REMOTE Mode : This mode should be selected if a repeater is being installed along with the iDEN MINI and the Ethernet port is being used for communicating with the repeater.10. DC OUT : Power outlet for compatible external devices only.2. Description

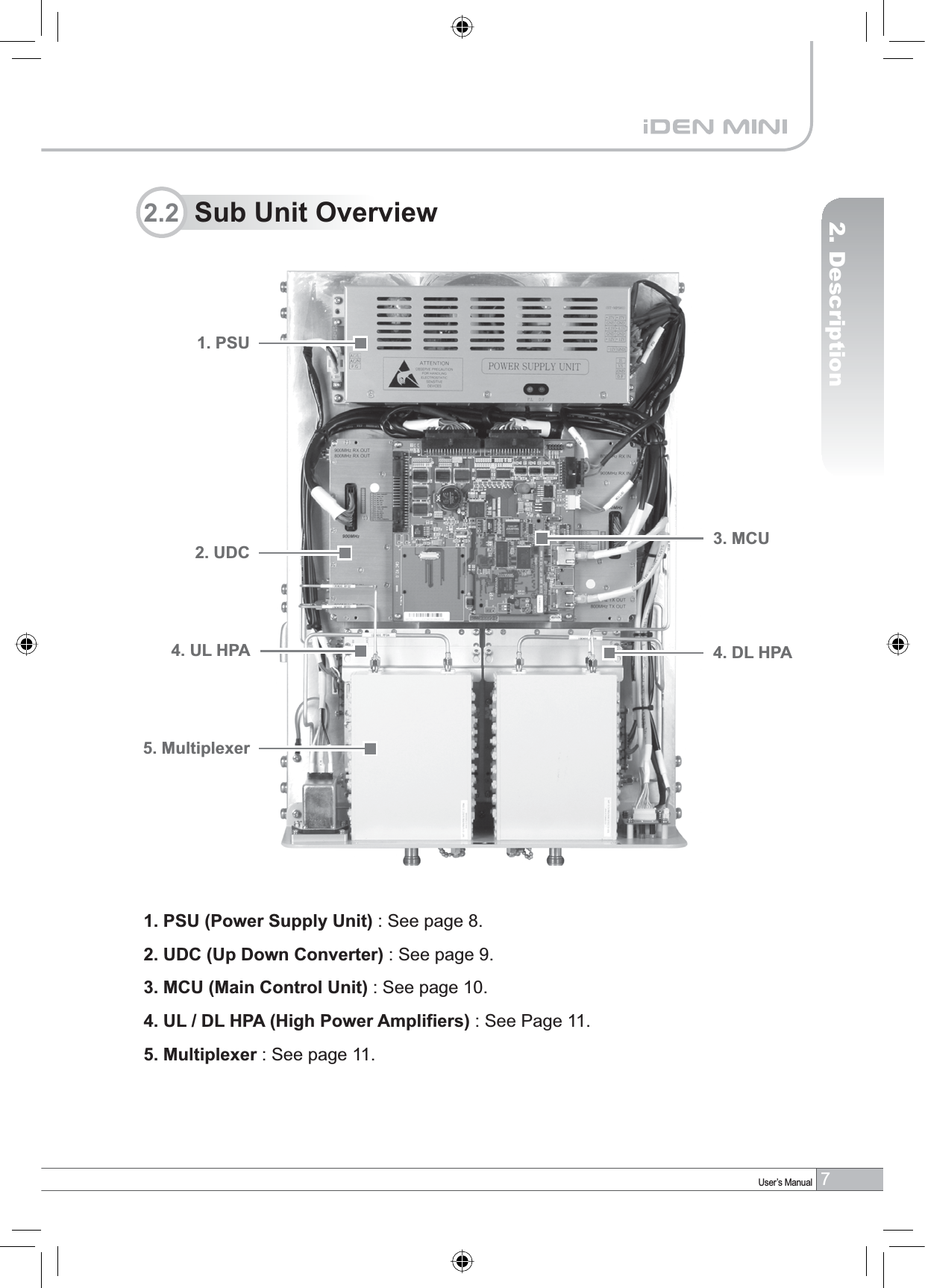

7User’s Manual2. Description1. PSU (Power Supply Unit) : See page 8.2. UDC (Up Down Converter) : See page 9.3. MCU (Main Control Unit) : See page 10.4. UL / DL HPA (High Power Amplifiers) : See Page 11.5. Multiplexer : See page 11. 2.2 Sub Unit Overview4. UL HPA2. UDC1. PSU3. MCU4. DL HPA5. Multiplexer

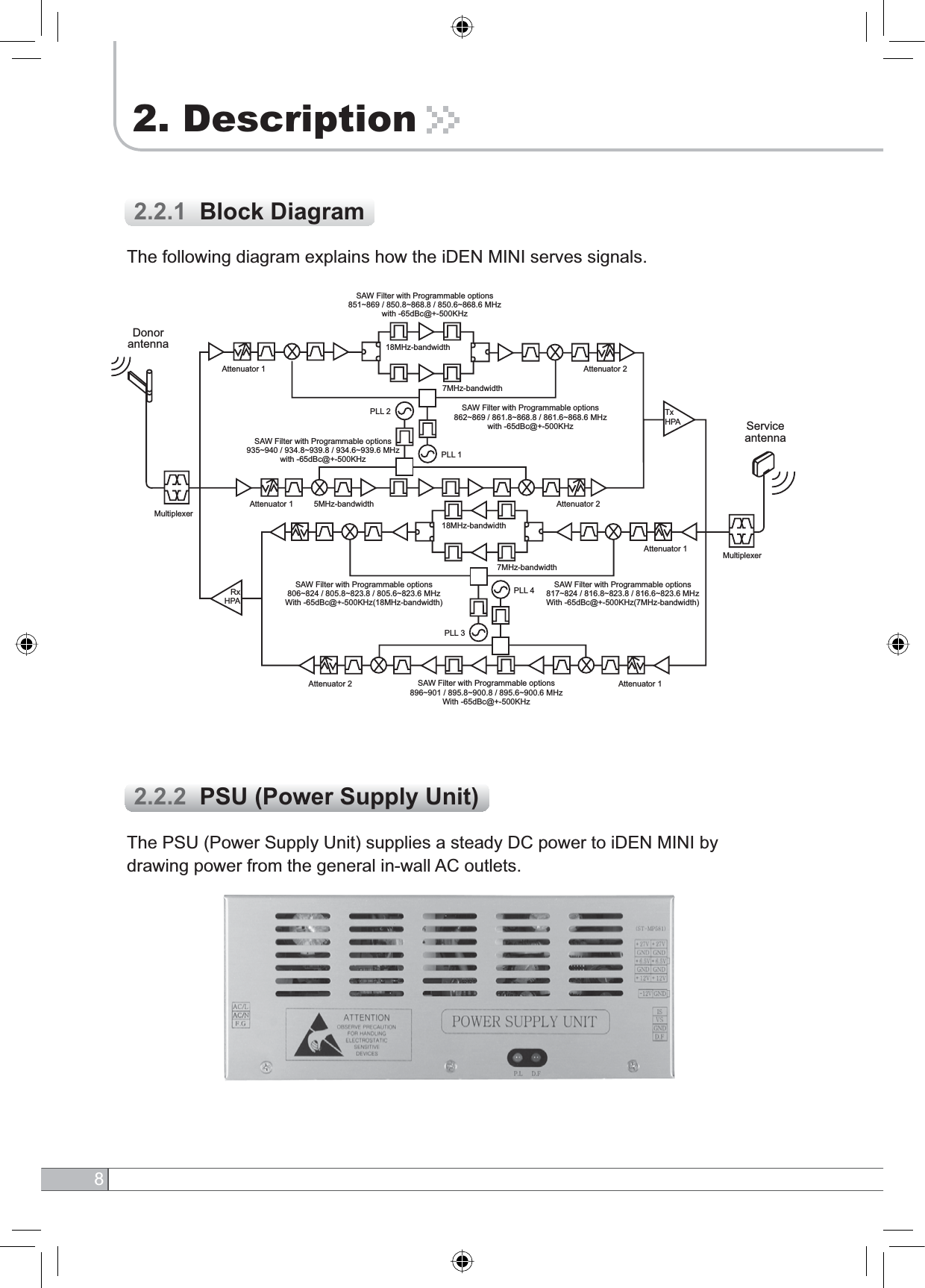

2.2.1 Block DiagramThe following diagram explains how the iDEN MINI serves signals.The PSU (Power Supply Unit) supplies a steady DC power to iDEN MINI by drawing power from the general in-wall AC outlets.DonorantennaMultiplexerMultiplexerAttenuator 1Attenuator 2Attenuator 2Attenuator 1Attenuator 1Attenuator 1Attenuator 2 SAW Filter with Programmable options896~901 / 895.8~900.8 / 895.6~900.6 MHzWith -65dBc@+-500KHzTxHPARxHPAServiceantennaSAW Filter with Programmable options851~869 / 850.8~868.8 / 850.6~868.6 MHzwith -65dBc@+-500KHz18MHz-bandwidth7MHz-bandwidthPLL 2PLL 1SAW Filter with Programmable options862~869 / 861.8~868.8 / 861.6~868.6 MHzwith -65dBc@+-500KHzSAW Filter with Programmable options935~940 / 934.8~939.8 / 934.6~939.6 MHzwith -65dBc@+-500KHz5MHz-bandwidth18MHz-bandwidth7MHz-bandwidthSAW Filter with Programmable options806~824 / 805.8~823.8 / 805.6~823.6 MHzWith -65dBc@+-500KHz(18MHz-bandwidth)PLL 3PLL 4 SAW Filter with Programmable options817~824 / 816.8~823.8 / 816.6~823.6 MHzWith -65dBc@+-500KHz(7MHz-bandwidth)2.2.2 PSU (Power Supply Unit)82. Description

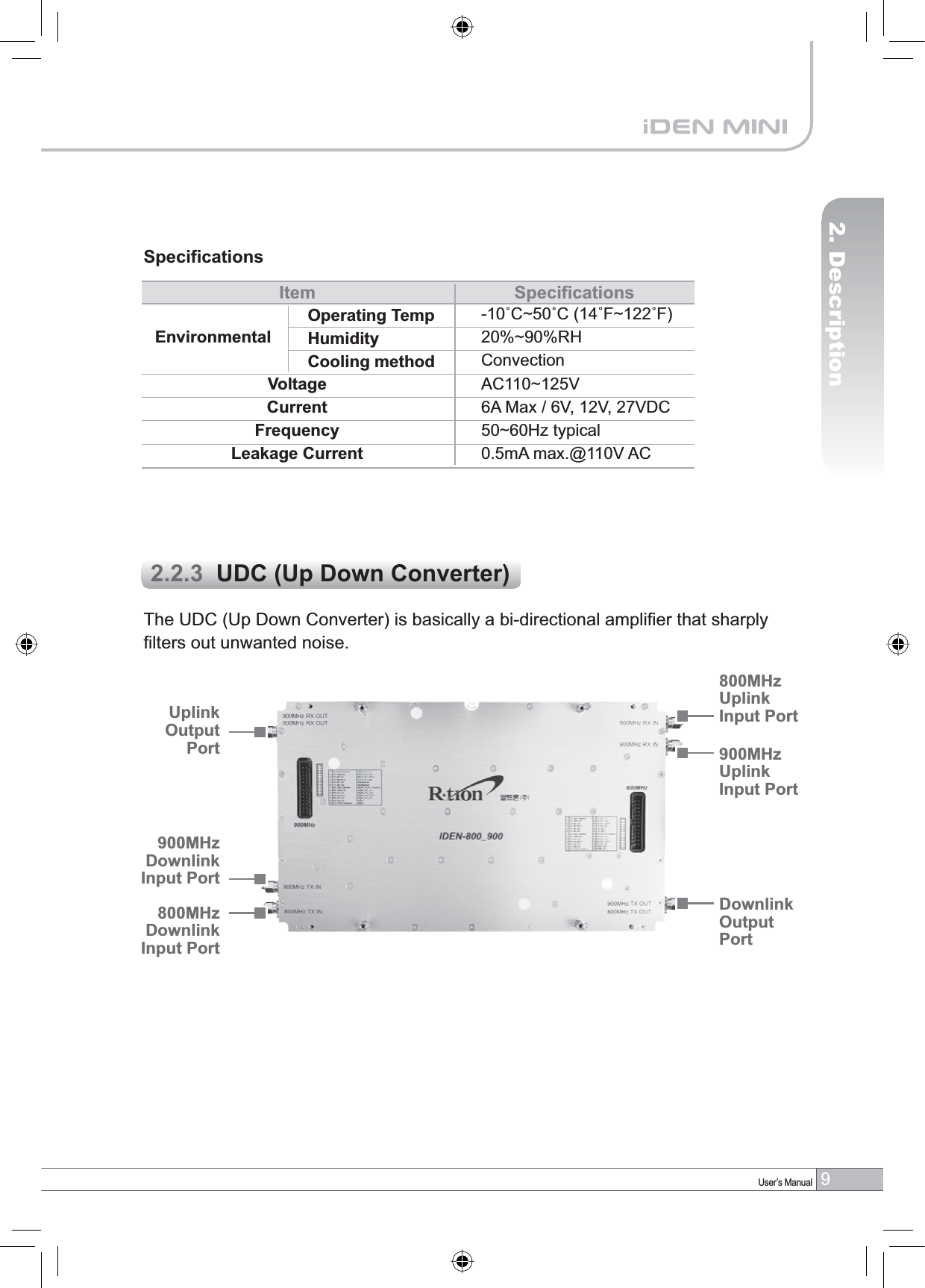

9User’s Manual2. DescriptionSpecificationsItem SpecificationsÛ&aÛ&Û)aÛ)20%~90%RHConvectionAC110~125V 6A Max / 6V, 12V, 27VDC 50~60Hz typical0.5mA max.@110V AC EnvironmentalOperating TempHumidityCooling methodVoltage CurrentFrequencyLeakage Current The UDC (Up Down Converter) is basically a bi-directional amplifier that sharply filters out unwanted noise.2.2.3 UDC (Up Down Converter)900MHzDownlinkInput PortUplinkOutputPort800MHzUplinkInput PortDownlinkOutputPort900MHzUplinkInput Port800MHzDownlinkInput Port

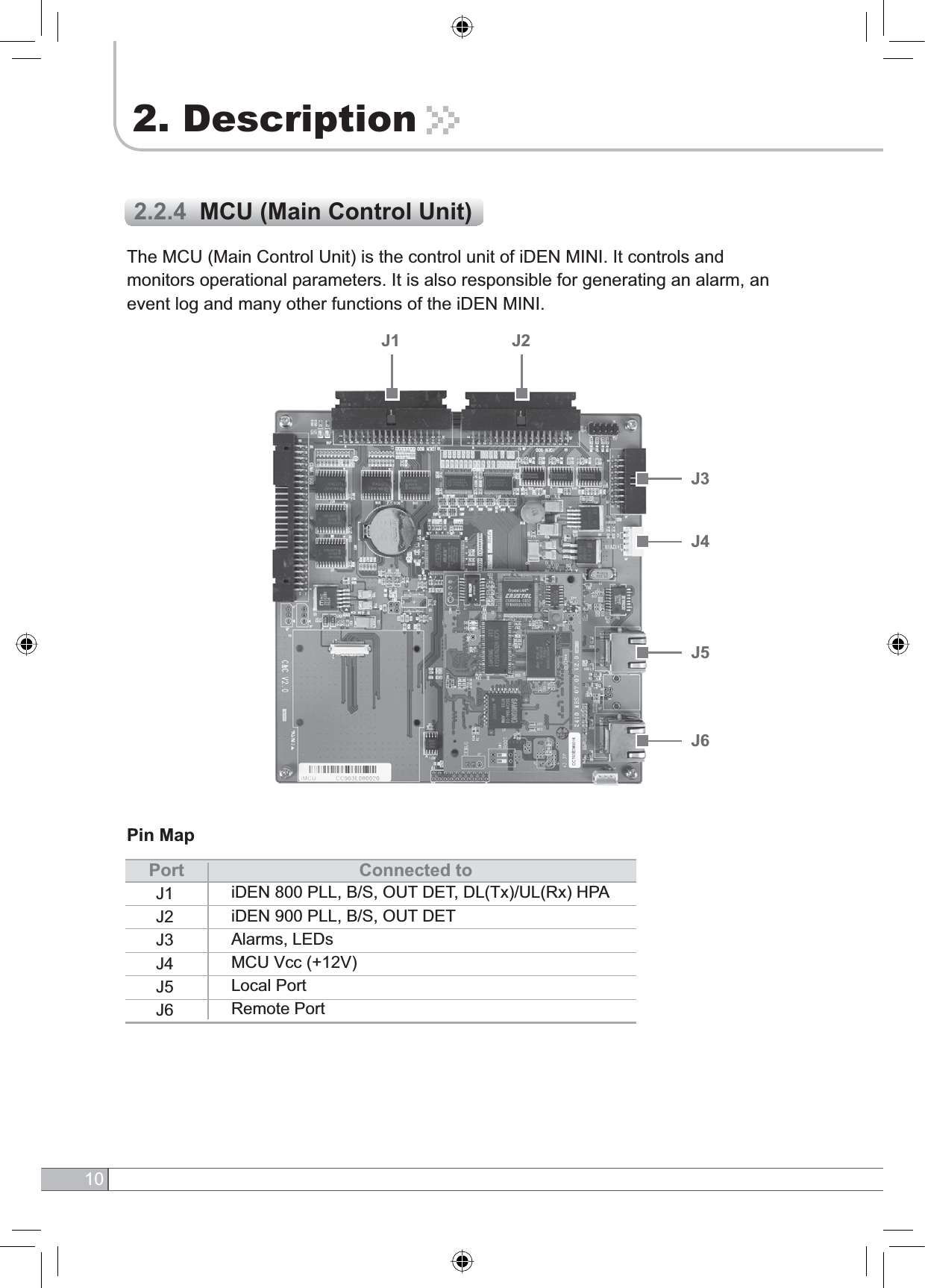

The MCU (Main Control Unit) is the control unit of iDEN MINI. It controls and monitors operational parameters. It is also responsible for generating an alarm, an event log and many other functions of the iDEN MINI.Pin MapPort Connected toiDEN 800 PLL, B/S, OUT DET, DL(Tx)/UL(Rx) HPA iDEN 900 PLL, B/S, OUT DET Alarms, LEDs MCU Vcc (+12V)Local PortRemote PortJ1J2J3J4J5J62.2.4 MCU (Main Control Unit)J3J4J5J6J1 J2102. Description

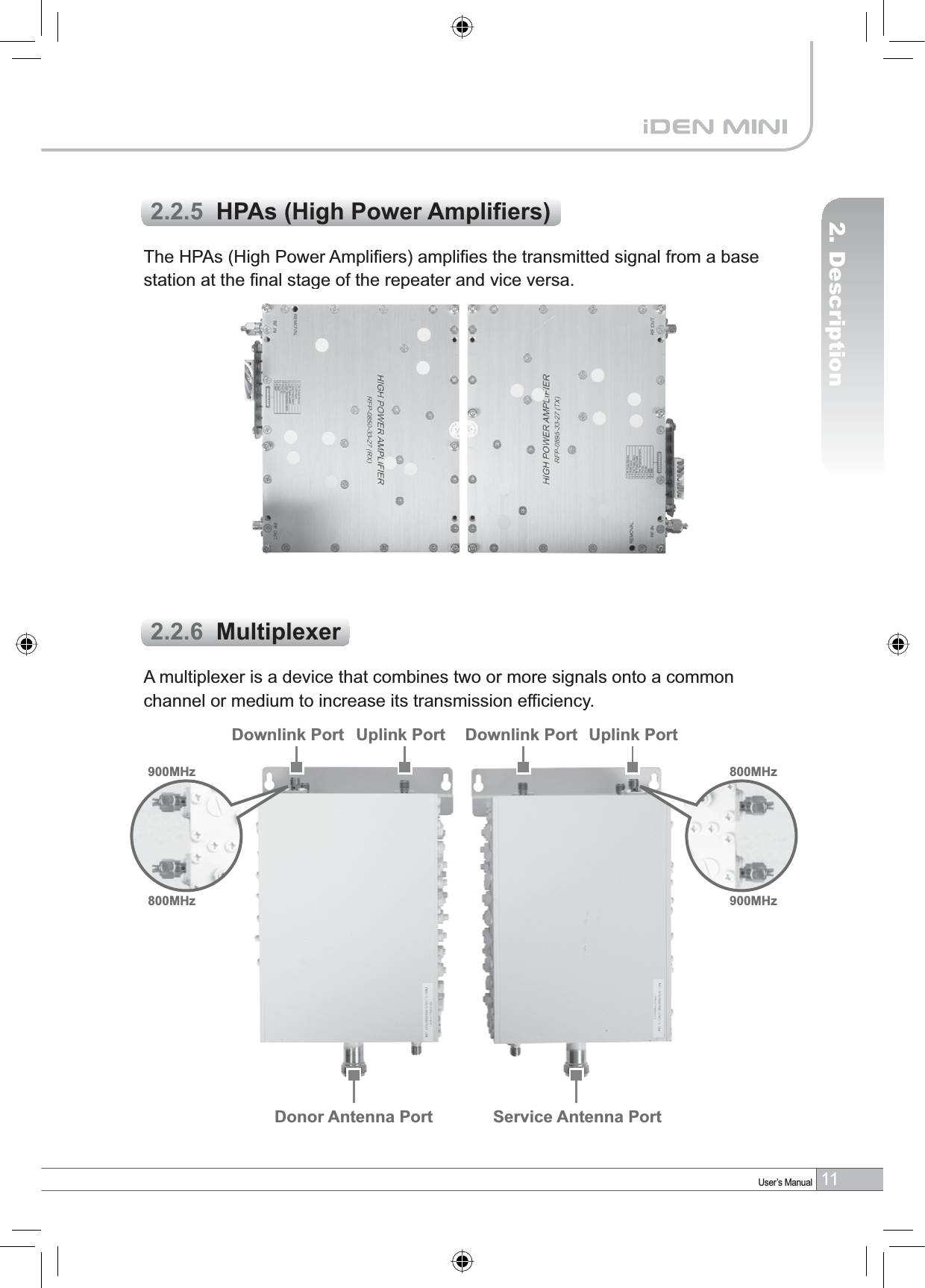

11User’s Manual2. DescriptionThe HPAs (High Power Amplifiers) amplifies the transmitted signal from a base station at the final stage of the repeater and vice versa.A multiplexer is a device that combines two or more signals onto a common channel or medium to increase its transmission efficiency.Donor Antenna PortDownlink Port Uplink Port Downlink Port Uplink PortService Antenna Port2.2.5 HPAs (High Power Amplifiers)2.2.6 Multiplexer900MHz800MHz800MHz900MHz

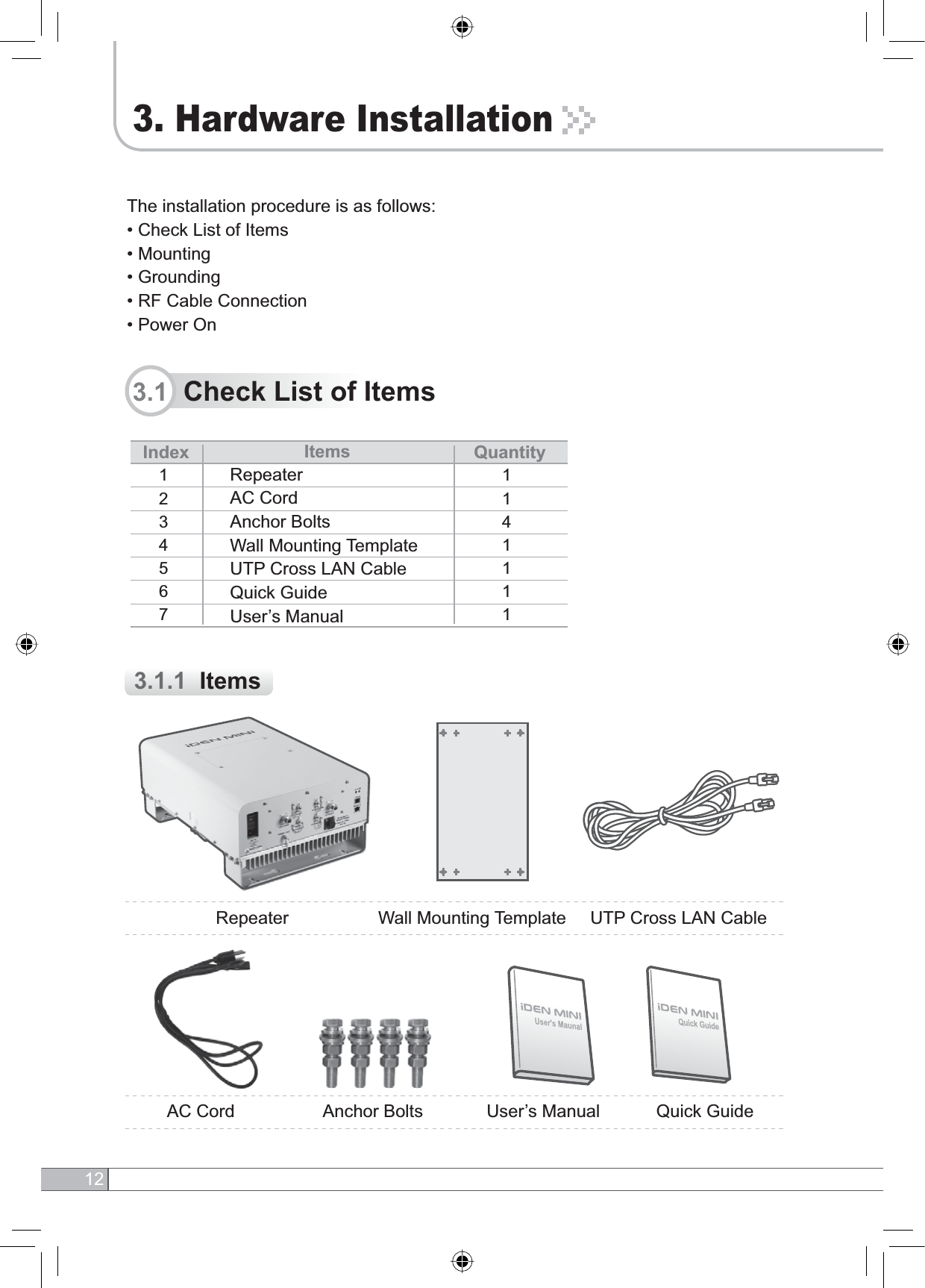

3. Hardware InstallationThe installation procedure is as follows:• Check List of Items• Mounting• Grounding• RF Cable Connection• Power On3.1 Check List of Items12RepeaterAC Cord Anchor BoltsWall Mounting Template UTP Cross LAN CableQuick GuideUser’s Manual3.1.1 ItemsIndex ItemsRepeaterAC CordAnchor BoltsWall Mounting TemplateUTP Cross LAN CableQuick GuideUser’s Manual1234567Quantity1141111

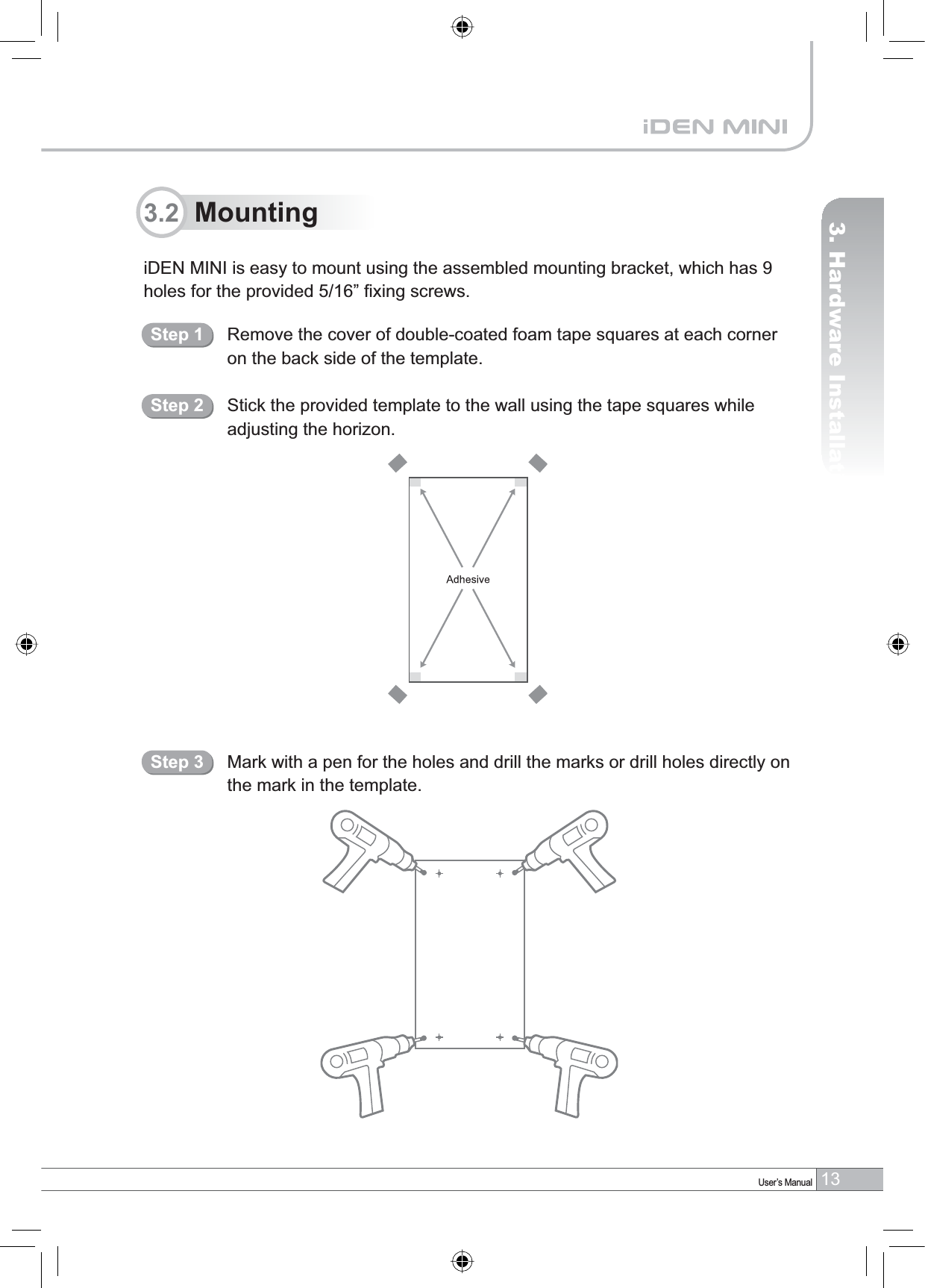

13User’s Manual3. Hardware InstallationiDEN MINI is easy to mount using the assembled mounting bracket, which has 9 holes for the provided 5/16” fixing screws.3.2 MountingRemove the cover of double-coated foam tape squares at each corner on the back side of the template.Stick the provided template to the wall using the tape squares while adjusting the horizon.Step 1Step 2Mark with a pen for the holes and drill the marks or drill holes directly on the mark in the template.Step 3

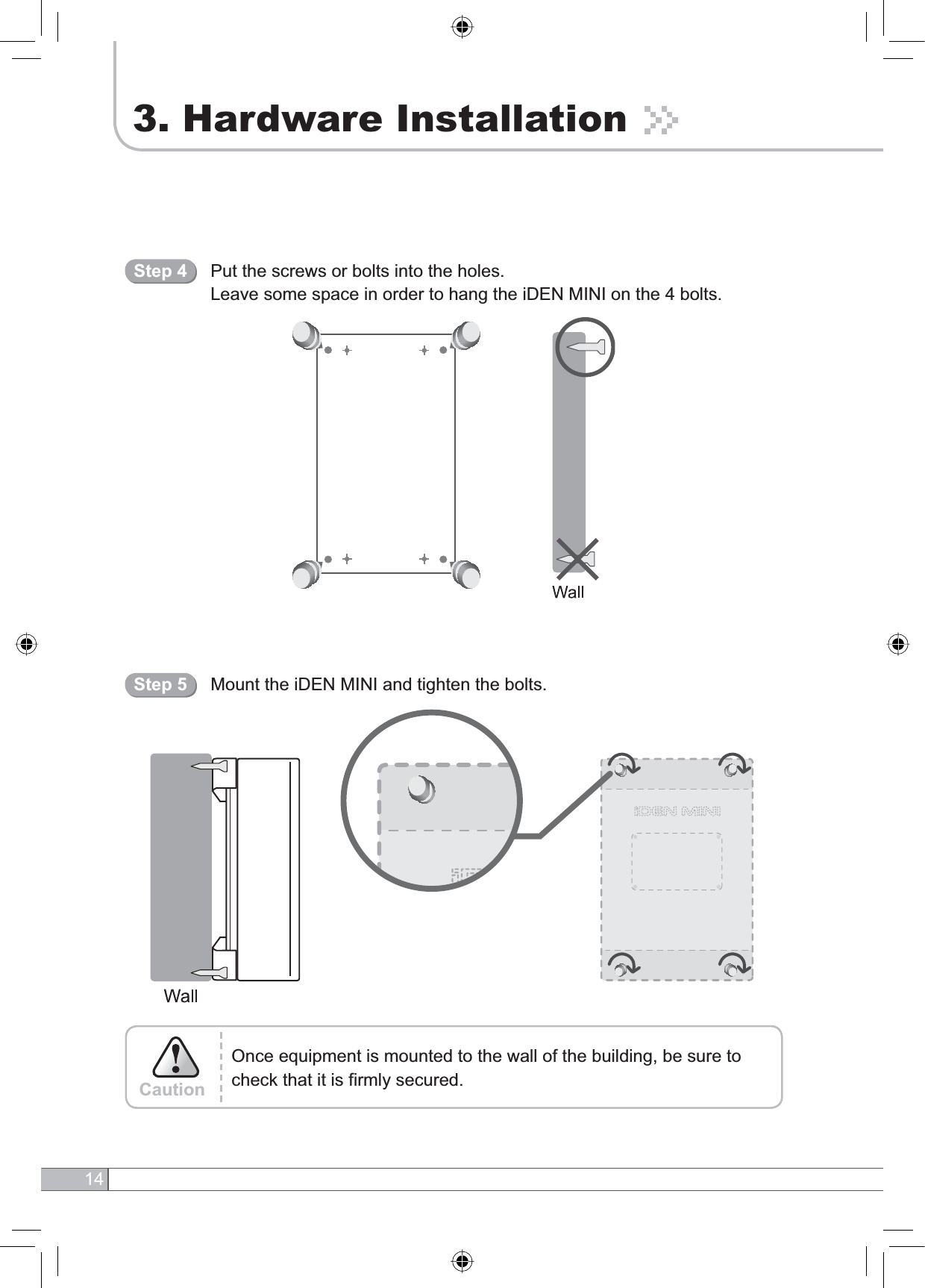

Once equipment is mounted to the wall of the building, be sure to check that it is firmly secured.Caution143. Hardware InstallationPut the screws or bolts into the holes.Leave some space in order to hang the iDEN MINI on the 4 bolts.Step 4Mount the iDEN MINI and tighten the bolts.Step 5

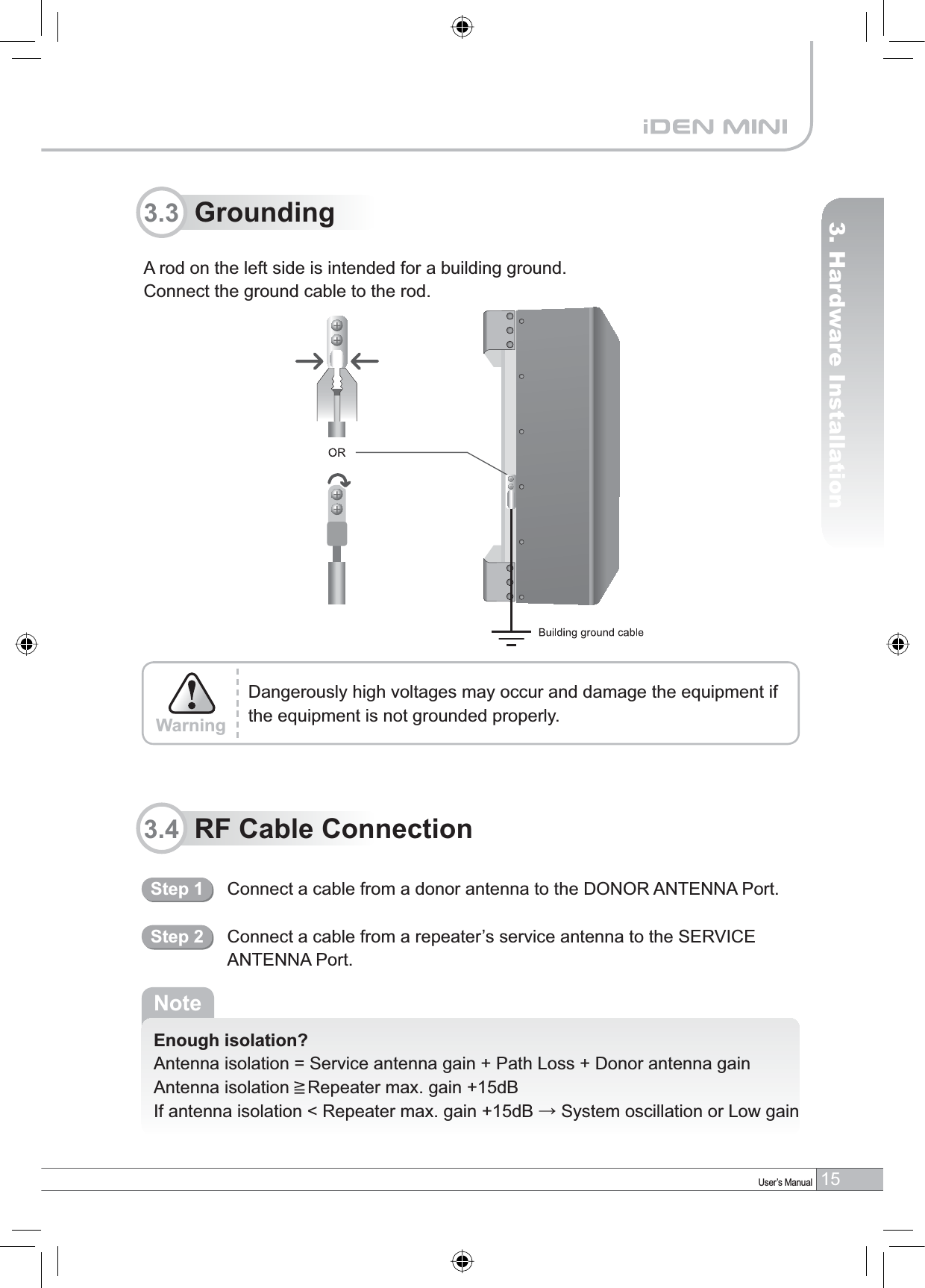

15User’s Manual3. Hardware InstallationA rod on the left side is intended for a building ground.Connect the ground cable to the rod.NoteEnough isolation?Antenna isolation = Service antenna gain + Path Loss + Donor antenna gainAntenna isolation Repeater max. gain +15dBIf antenna isolation < Repeater max. gain +15dB ĺ System oscillation or Low gainDangerously high voltages may occur and damage the equipment if the equipment is not grounded properly.Warning3.3 Grounding3.4 RF Cable ConnectionConnect a cable from a donor antenna to the DONOR ANTENNA Port.Connect a cable from a repeater’s service antenna to the SERVICE ANTENNA Port.Step 1Step 2

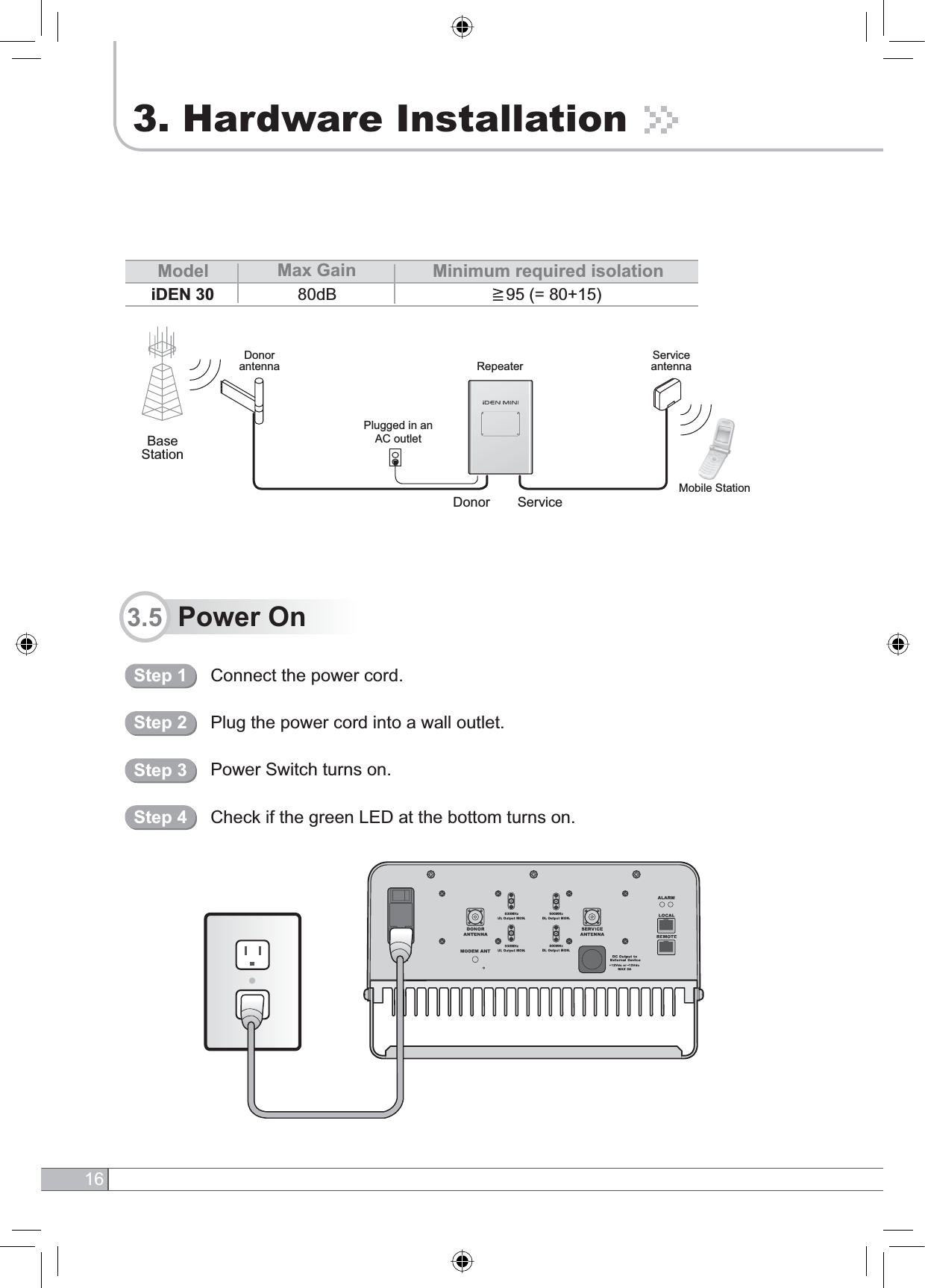

Model Max Gain80dBiDEN 30Minimum required isolation 95 (= 80+15)RepeaterDonorantennaPlugged in anAC outletDonorBaseStationServiceMobile StationServiceantenna3.5 Power On163. Hardware InstallationConnect the power cord.Plug the power cord into a wall outlet.Power Switch turns on.Check if the green LED at the bottom turns on.Step 1Step 2Step 3Step 4

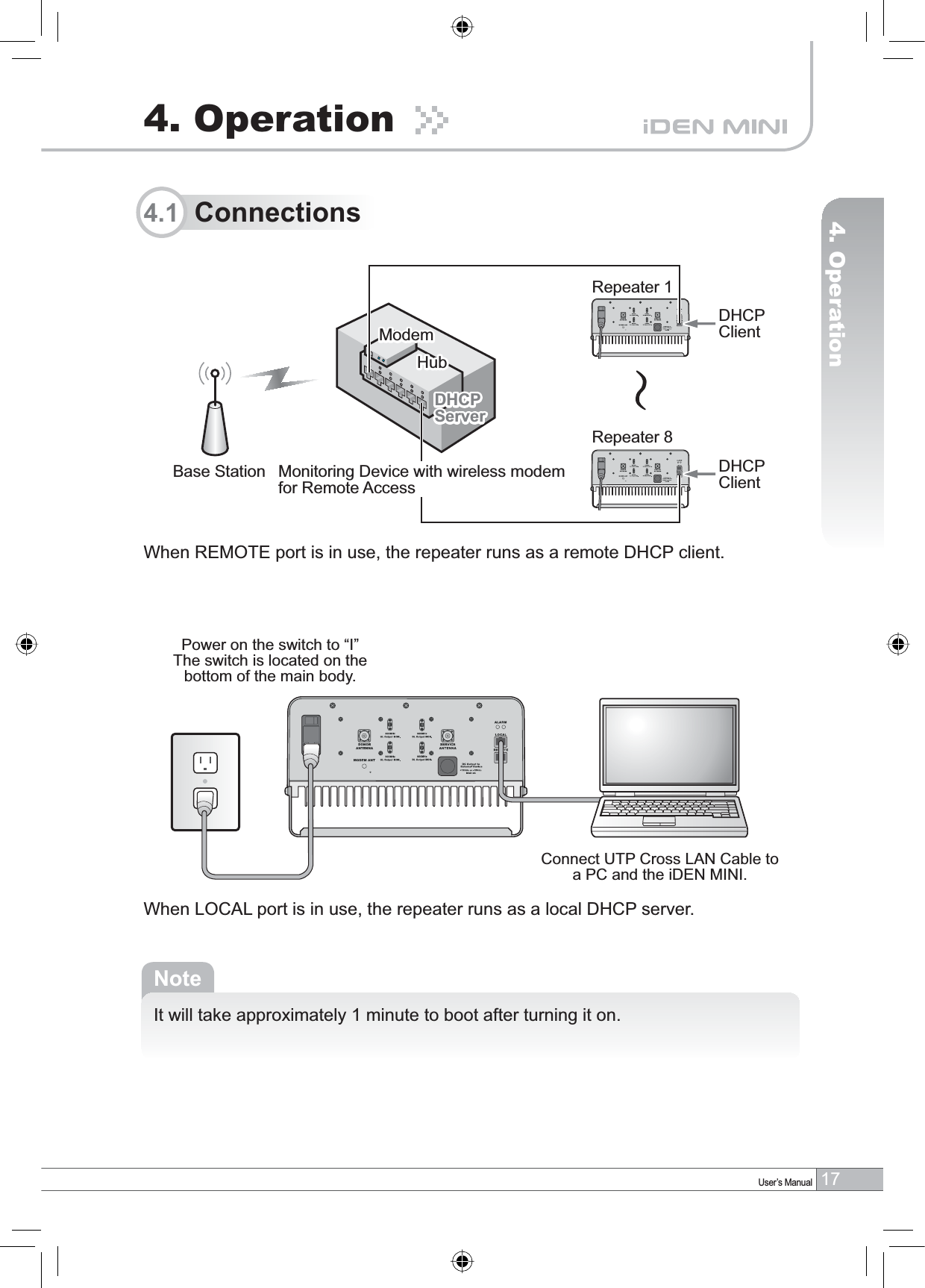

17User’s Manual4. Operation4. OperationPower on the switch to “I”The switch is located on the bottom of the main body.Connect UTP Cross LAN Cable to a PC and the iDEN MINI.NoteIt will take approximately 1 minute to boot after turning it on.4.1 ConnectionsRepeater 1DHCPClientRepeater 8DHCPClientModemModemHubHubDHCPServerDHCPServerBase Station Monitoring Device with wireless modemfor Remote AccessWhen REMOTE port is in use, the repeater runs as a remote DHCP client.When LOCAL port is in use, the repeater runs as a local DHCP server.

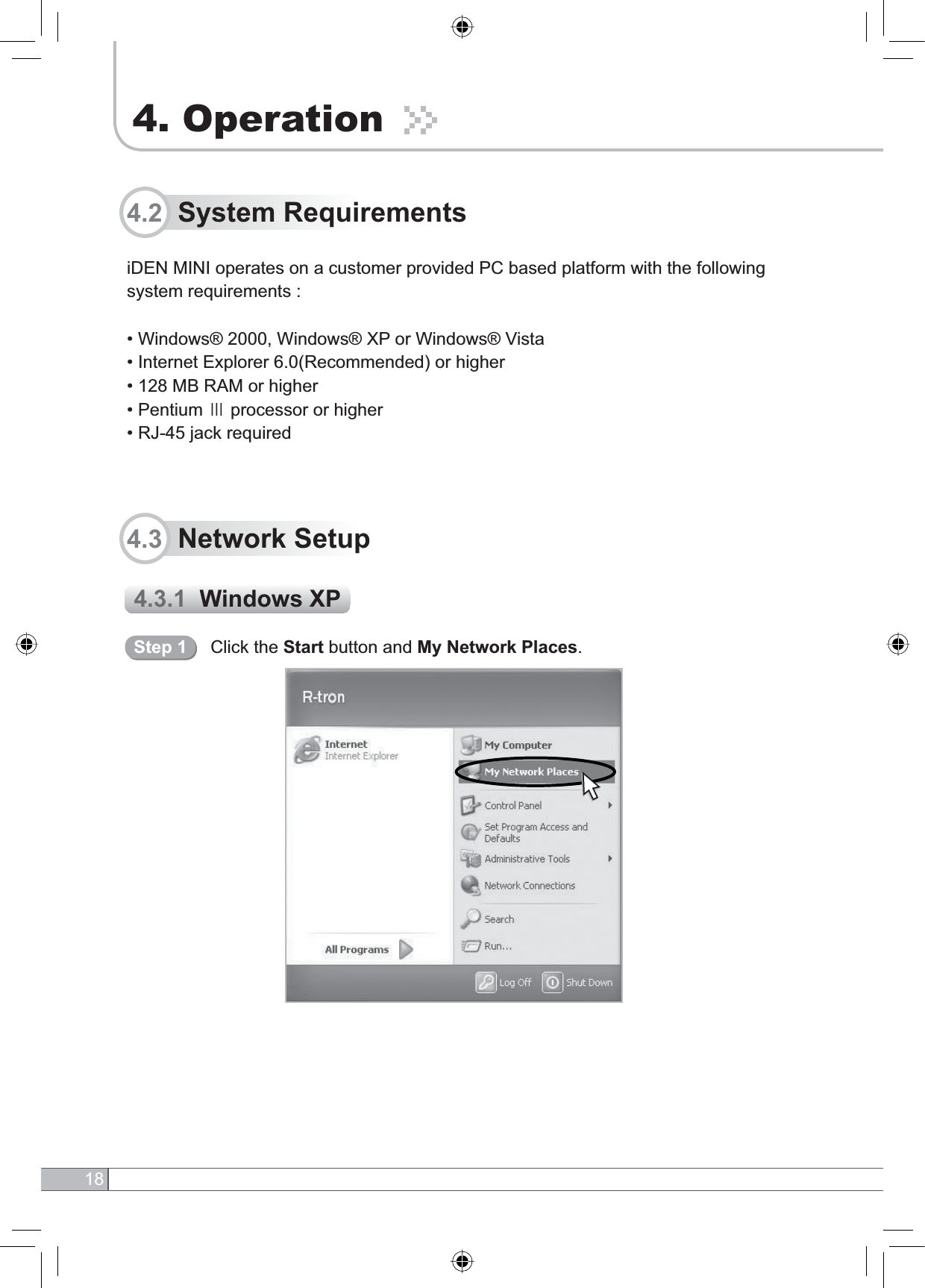

184. Operation4.3.1 Windows XP4.3 Network SetupiDEN MINI operates on a customer provided PC based platform with the following system requirements :• Windows® 2000, Windows® XP or Windows® Vista• Internet Explorer 6.0(Recommended) or higher• 128 MB RAM or higher• Pentium 䳯 processor or higher• RJ-45 jack required4.2 System RequirementsClick the Start button and My Network Places.Step 1

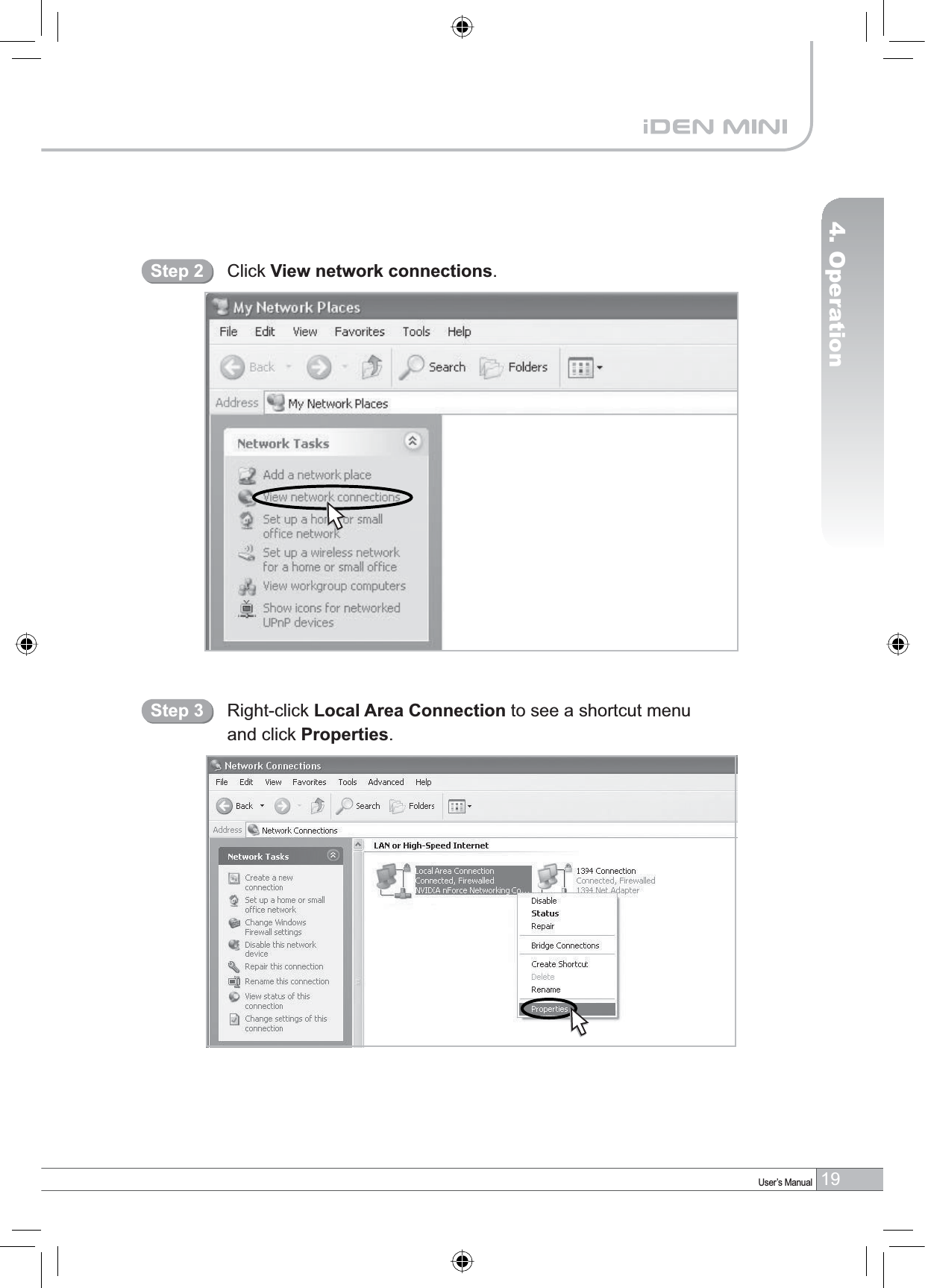

19User’s Manual4. OperationClick View network connections.Step 2Right-click Local Area Connection to see a shortcut menuand click Properties.Step 3

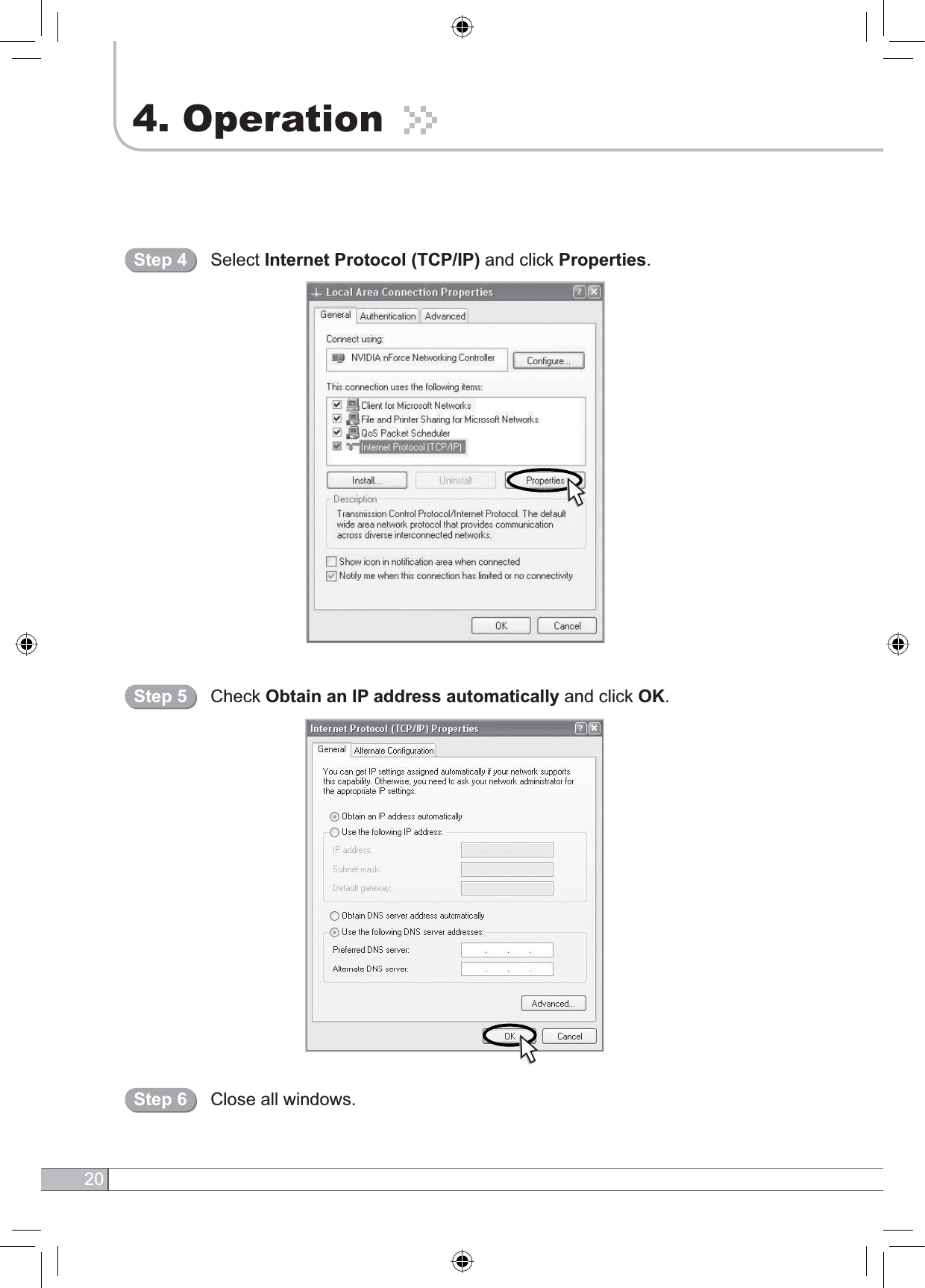

204. OperationSelect Internet Protocol (TCP/IP) and click Properties.Step 4Check Obtain an IP address automatically and click OK.Step 5Close all windows.Step 6

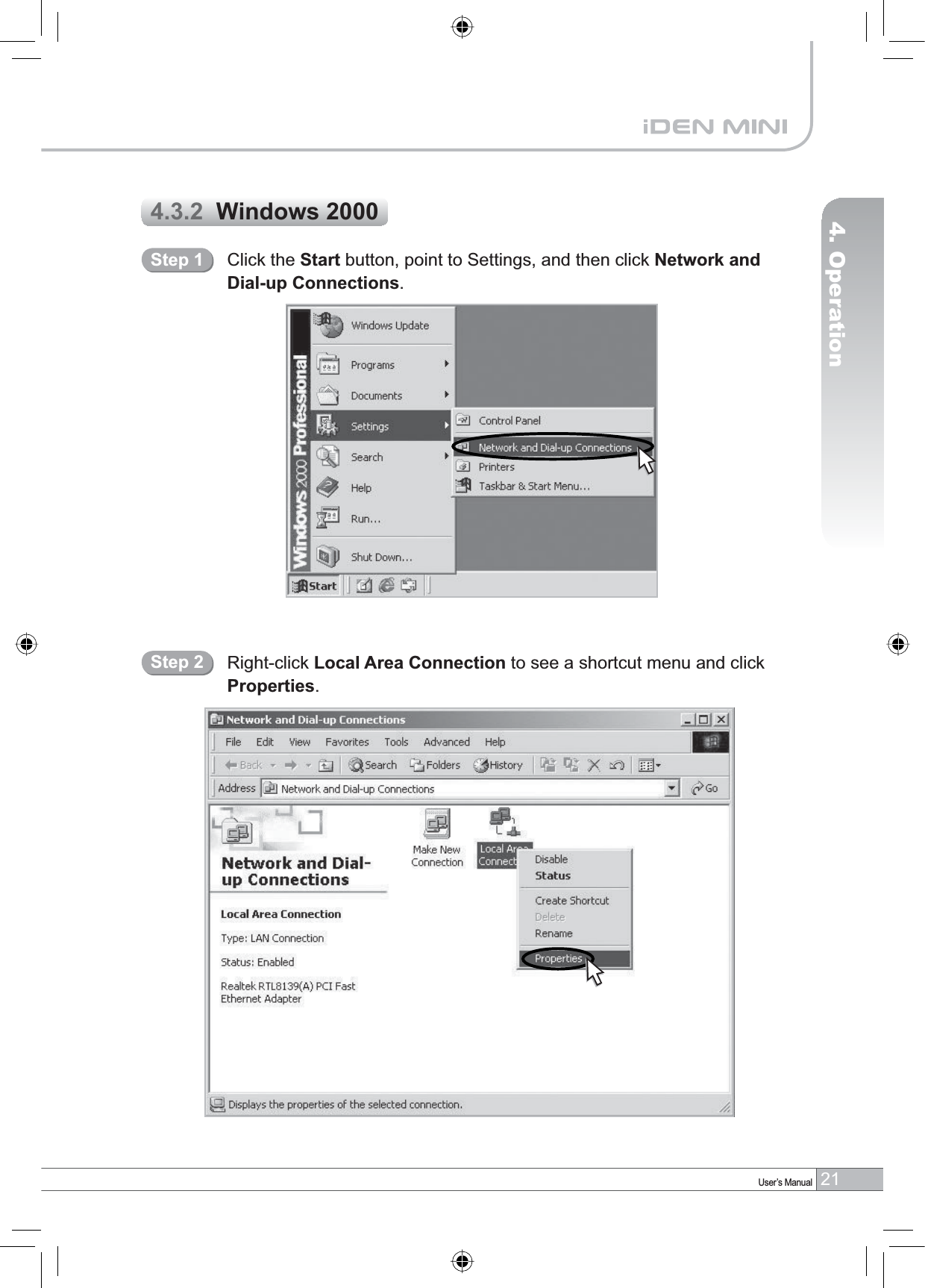

21User’s Manual4. Operation4.3.2 Windows 2000Click the Start button, point to Settings, and then click Network and Dial-up Connections.Step 1Right-click Local Area Connection to see a shortcut menu and click Properties.Step 2
