1
User’s Manual
Safety Precautions
Safety Precautions
Warning
Opening the iDEN MINI could result in electric shock and may cause severe injury.
Warning
Connect the equipment frame ground to building ground.
Warning
Operating the iDEN MINI with antennas in very close proximity facing each other
could lead to severe damage to the repeater.
Caution
RF EXPOSURE INFORMATION
A minimum separation distance of 7.9 inches (20cm) must be maintained between
the user and the external antenna of repeater to satisfy FCC RF exposure
requirements. For more information about RF exposure, please visit the FCC
website at www.fcc.gov
Caution
This equipment is for indoor use and enables the communication wiring to
communicate only inside the building.
2
Contents
Glossary
1. Introduction
2. Description
2.1 Main Unit Overview
2.2 Sub Unit Overview
2.2.1 Block Diagram
2.2.2 PSU (Power Supply Unit)
2.2.3 UDC (Up Down Converter)
2.2.4 MCU (Main Control Unit)
2.2.5 HPAs (High Power Amplifiers)
2.2.6 Multiplexer
3. Hardware Installation
3.1 Check List of Items
3.2 Mounting
3.3 Grounding
3.4 RF Cable Connection
3.5 Power On
4. Operation
4.1 Connections
4.2 System Requirements
4.3 Network Setup
4.3.1 Windows XP
4.3.2 Windows 2000
4.3.3 Windows Vista
4.4 System Login
4.5 System Setup
5. Troubleshooting
6. Specifications
3
4
5
5
7
8
8
9
10
11
11
12
12
13
15
15
16
17
17
18
18
18
21
23
26
29
42
44
3
User’s Manual
Glossary
The following is a list of abbreviations and terms used in this manual.
Glossary
ALC (Automatic Level Control)
ALC feature prevents the repeater from exceeding its maximum output power, by
reducing the gain automatically. ALC is used to adjust the gain to an appropriate
level for a range of input signal levels.
ASD (Automatic Shutdown)
Automatic shut down protects the repeater itself from the oscillation or excessive
input signal and eliminates any degradation to the network.
There are three parameters, ASD LEVEL, ASD TIME and ASD COUNT.
If the output power gets higher than “ASD LEVEL”, the repeater will shut down for
“ASD TIME” time and then turn the amp back on and measure the output power
again. If this repeats “ASD COUNT” times, the repeater will shut down completely.
Abbreviation
AC
ALC
ANT
ASD
DC
GND
GUI
iDEN
LED
PSU
RF
TEMP
VSWR
Definition
Alternating Current
Automatic Level Control
Antenna
Automatic Shutdown
Direct Current
Grounding
Graphic User Interface
Integrated Digital Enhanced Network
Light Emitting Diode
Power Supply Unit
Radio Frequency
Temperature
Voltage Standing Wave Ratio
4

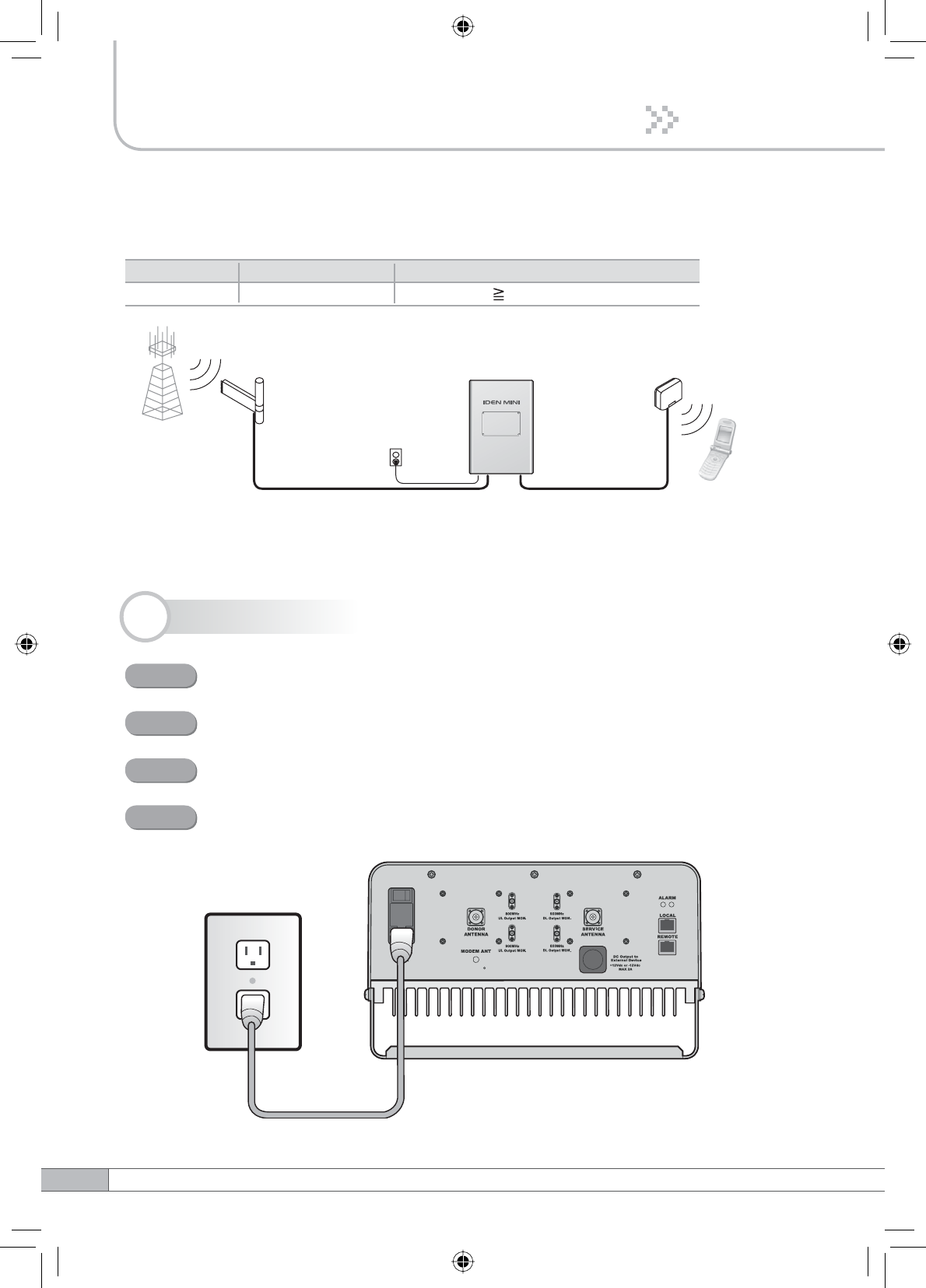

1. Introduction
iDEN MINI repeater is used to fill out areas in iDEN mobile systems, such as base
station fringe areas, business and industrial buildings, etc.
iDEN MINI receives signals from a base station, amplifies and retransmits the
signals to mobile stations. Also it receives, amplifies and retransmits signals in the
opposite direction. Both directions are served simultaneously with the following
features:
• 7MHz or 18MHz-bandwidth service @ 800MHz’s
• 5MHz-bandwidth service @ 900MHz’s
• Adjustable Band Edge @ 800MHz’s and 900MHz’s
• Roll Offs: 65dBc at 0.5MHz outside pass-band
Overview: Service
817MHz
18MHz-bandwidth
824MHz806MHz
862MHz
869MHz851MHz 901MHz896MHz
Repeater
Donor
antenna
Plugged in an
AC outlet
Donor
iDEN 800 iDEN 900
Base
Station
Service
Mobile Station
Service
antenna
940MHz935MHz
7MHz-bandwidth
18MHz-bandwidth 5MHz-bandwidth 5MHz-bandwidth
7MHz-bandwidth
iDEN 800 UL iDEN 800 DL iDEN 900 UL iDEN 900 DLiDEN 800 UL iDEN 800 DL iDEN 900 UL iDEN 900 DL
5
User’s Manual
2. Description

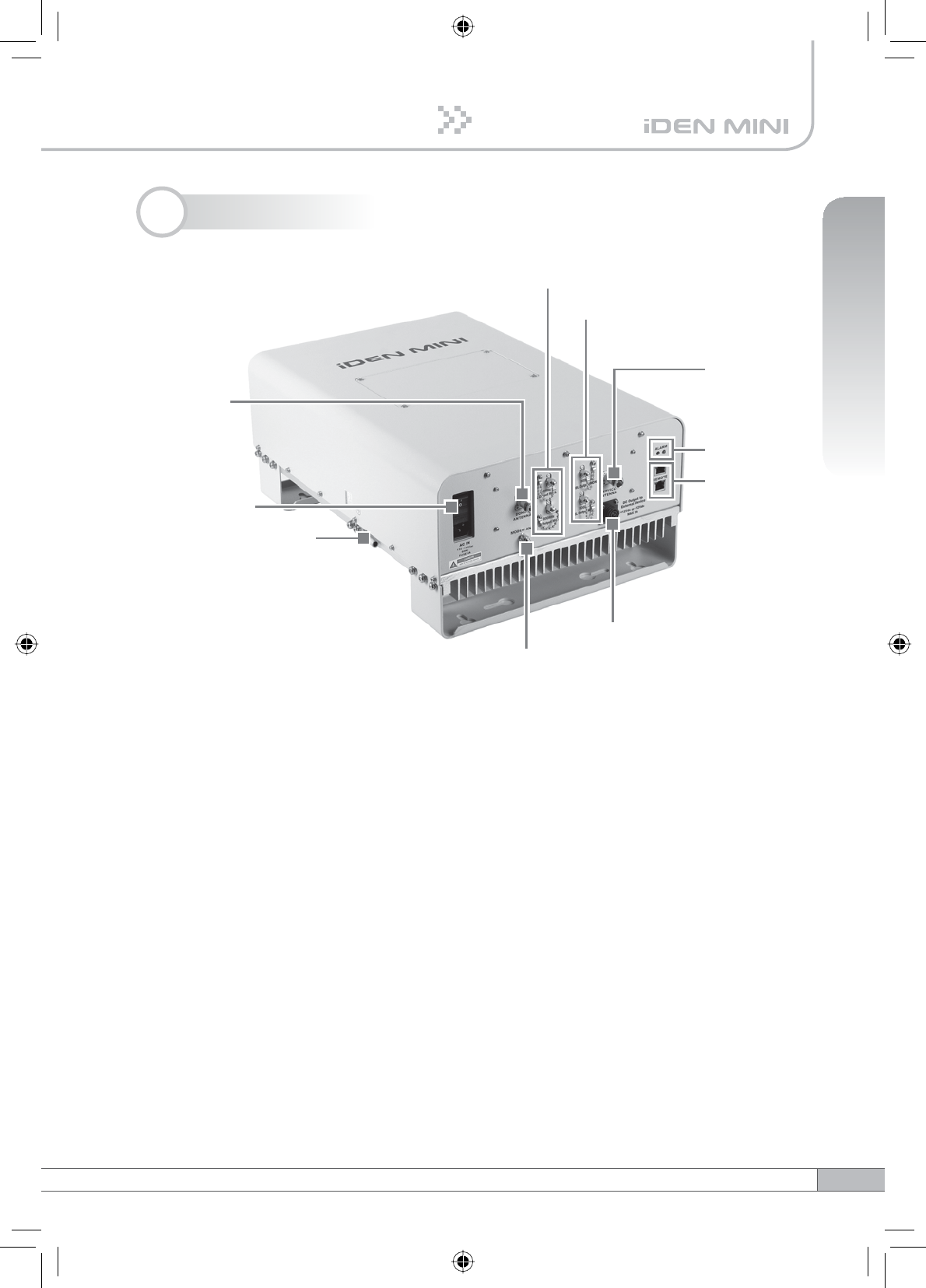

1. Ground rod : Connects repeater frame ground to building ground.
2. AC IN : AC Power socket and AC Power switch.
3. MODEM ANT : Connects the Modem antenna.
4. Donor Antenna Port : Connects the Donor antenna.
5.
UL Output
MON. : Displays the output of Up Link RF connected with a
measuring instrument and outputs 20dB lower than the actual output of RF.
(30dB lower for iDEN MINI)
6. DL Output MON. : Displays the output of Down Link RF connected with a
measuring instrument and outputs 20dB lower than the actual output of RF.
(30dB lower for iDEN MINI)
7. Service Antenna Port : Connects the Service antenna.
8. ALARM : When an alarm of the On Site Alarm occurs, the red LED blinks and
when it operates without any problem, the green LED blinks.
2. Description
2.1 Main Unit Overview
1. Ground rod
3. MODEM ANT
10. DC OUT
9. Mode
Selection
Jack
2. AC IN
4. Donor
Antenna
Port
8. ALARM
7. Service
Antenna
Port
5.
UL Output
MON.
6. DL Output MON.
6
9. Mode Selection Jack : The mode selection jack has two modes: Local Mode &
Remote Mode.
LOCAL Mode : This mode should be selected only if the iDEN MINI is used
alone without being connected to a collocated repeater functioning as a local.
(Use this mode for the Operation)
REMOTE Mode : This mode should be selected if a repeater is being installed
along with the iDEN MINI and the Ethernet port is being used for communicating
with the repeater.
10. DC OUT : Power outlet for compatible external devices only.
2. Description
7
User’s Manual
2. Description

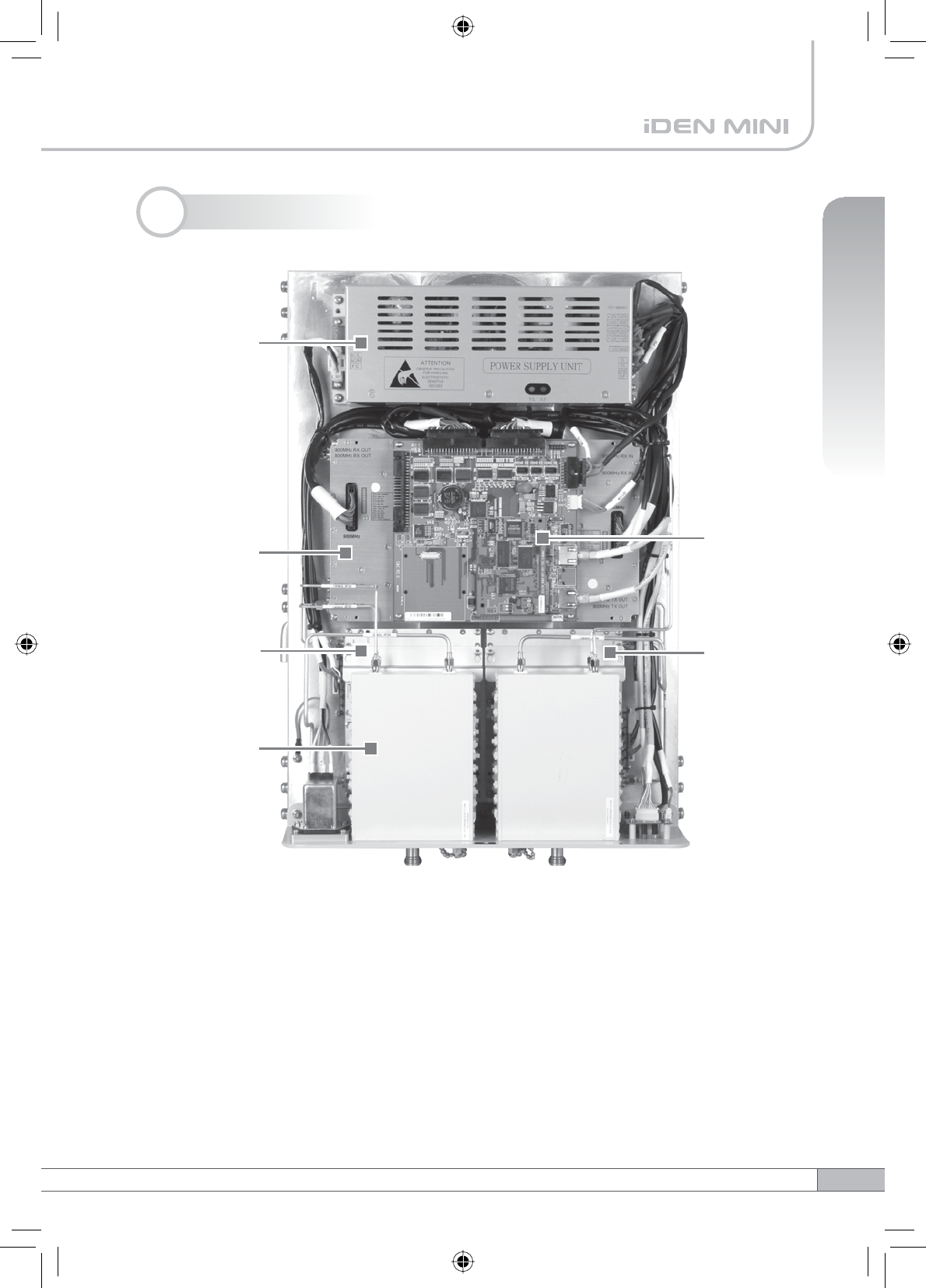

1. PSU (Power Supply Unit) : See page 8.
2. UDC (Up Down Converter) : See page 9.
3. MCU (Main Control Unit) : See page 10.
4. UL / DL HPA (High Power Amplifiers) : See Page 11.
5. Multiplexer : See page 11.
2.2 Sub Unit Overview
4. UL HPA
2. UDC
1. PSU
3. MCU
4. DL HPA
5. Multiplexer

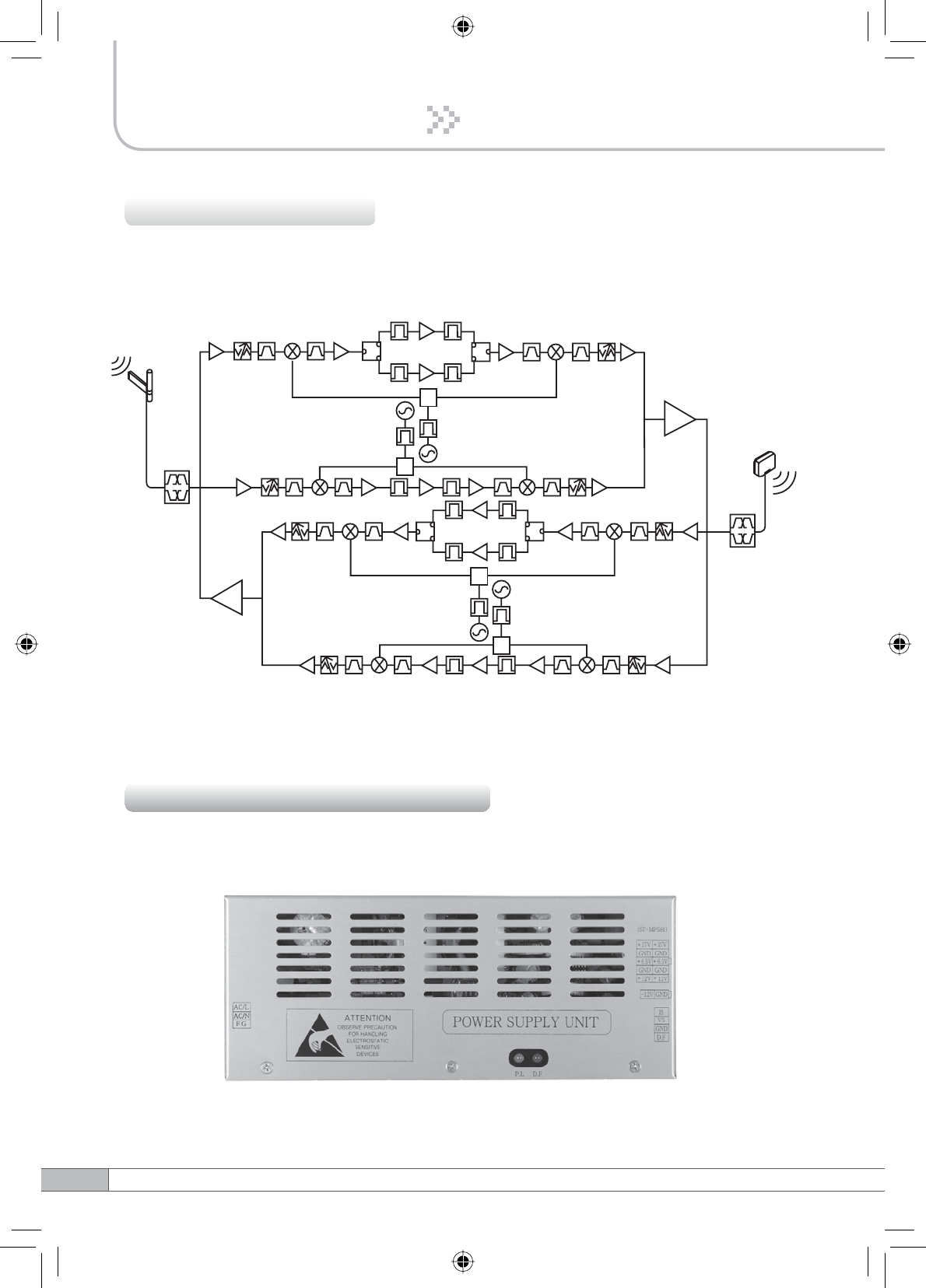

2.2.1 Block Diagram
The following diagram explains how the iDEN MINI serves signals.
The PSU (Power Supply Unit) supplies a steady DC power to iDEN MINI by
drawing power from the general in-wall AC outlets.
Donor
antenna
Multiplexer
Multiplexer
Attenuator 1
Attenuator 2
Attenuator 2Attenuator 1
Attenuator 1
Attenuator 1Attenuator 2 SAW Filter with Programmable options
896~901 / 895.8~900.8 / 895.6~900.6 MHz
With -65dBc@+-500KHz
Tx
HPA
Rx
HPA
Service
antenna
SAW Filter with Programmable options
851~869 / 850.8~868.8 / 850.6~868.6 MHz
with -65dBc@+-500KHz
18MHz-bandwidth
7MHz-bandwidth
PLL 2
PLL 1
SAW Filter with Programmable options
862~869 / 861.8~868.8 / 861.6~868.6 MHz
with -65dBc@+-500KHz
SAW Filter with Programmable options
935~940 / 934.8~939.8 / 934.6~939.6 MHz
with -65dBc@+-500KHz
5MHz-bandwidth
18MHz-bandwidth
7MHz-bandwidth
SAW Filter with Programmable options
806~824 / 805.8~823.8 / 805.6~823.6 MHz
With -65dBc@+-500KHz(18MHz-bandwidth)
PLL 3
PLL 4 SAW Filter with Programmable options
817~824 / 816.8~823.8 / 816.6~823.6 MHz
With -65dBc@+-500KHz(7MHz-bandwidth)
2.2.2 PSU (Power Supply Unit)
8
2. Description
9
User’s Manual
2. Description
Specifications
Item Specifications
Û&aÛ&Û)aÛ)
20%~90%RH
Convection
AC110~125V
6A Max / 6V, 12V, 27VDC
50~60Hz typical
0.5mA max.@110V AC
Environmental
Operating Temp
Humidity
Cooling method
Voltage
Current
Frequency
Leakage Current

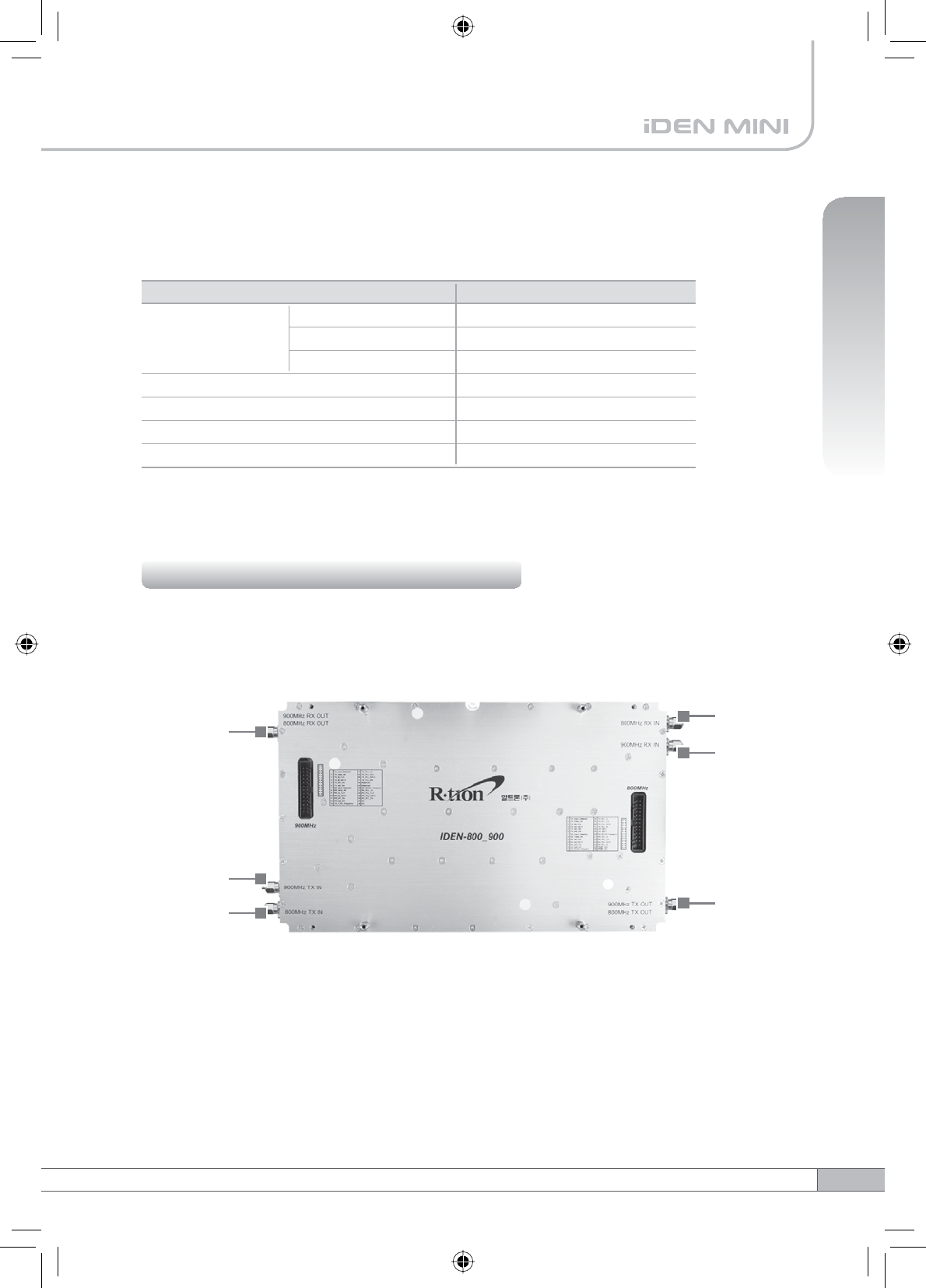

The UDC (Up Down Converter) is basically a bi-directional amplifier that sharply
filters out unwanted noise.
2.2.3 UDC (Up Down Converter)
900MHz
Downlink
Input Port
Uplink
Output
Port
800MHz
Uplink
Input Port
Downlink
Output
Port
900MHz
Uplink
Input Port
800MHz
Downlink
Input Port

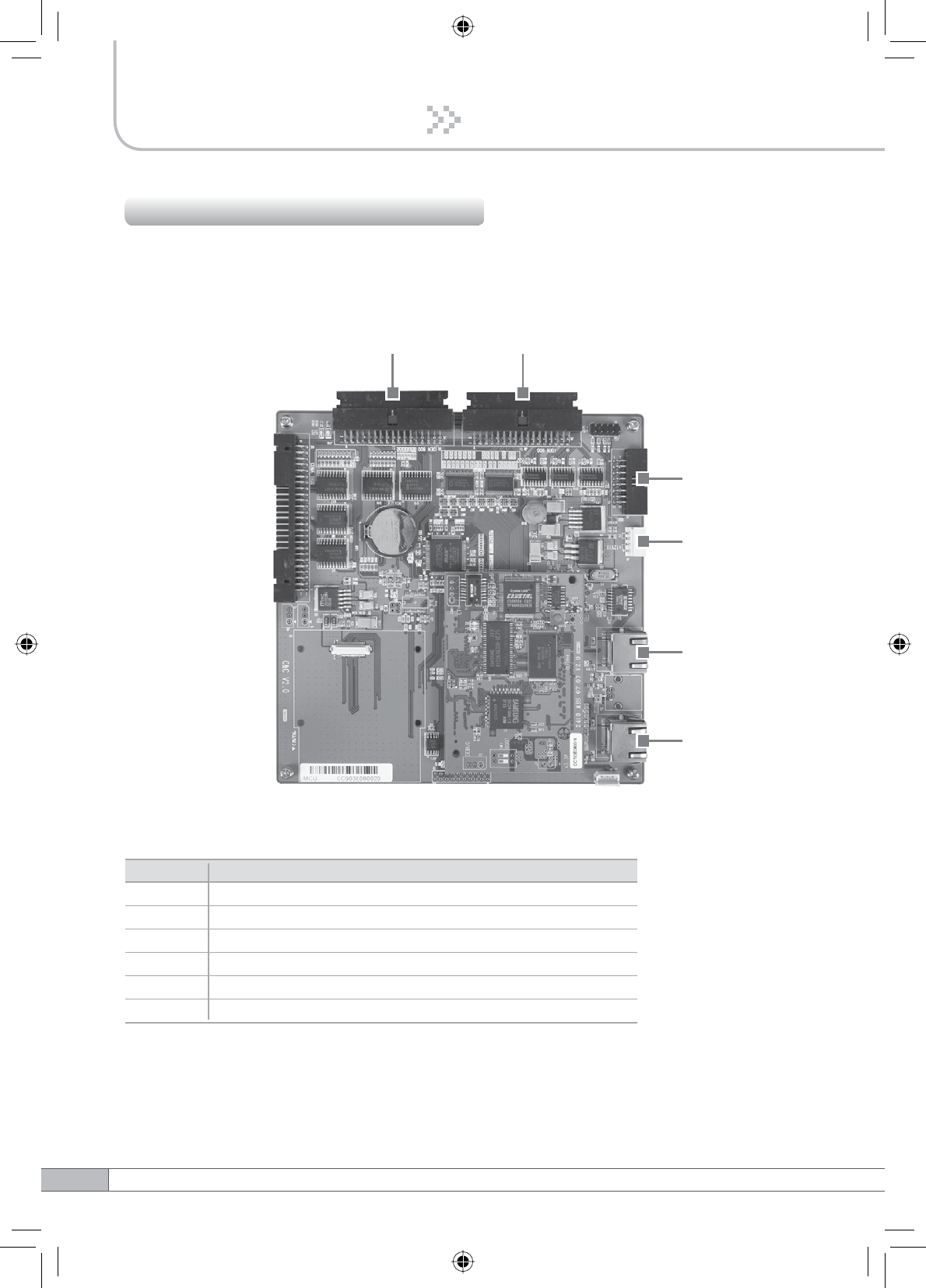

The MCU (Main Control Unit) is the control unit of iDEN MINI. It controls and
monitors operational parameters. It is also responsible for generating an alarm, an
event log and many other functions of the iDEN MINI.
Pin Map
Port Connected to
iDEN 800 PLL, B/S, OUT DET, DL(Tx)/UL(Rx) HPA
iDEN 900 PLL, B/S, OUT DET
Alarms, LEDs
MCU Vcc (+12V)
Local Port
Remote Port
J1
J2
J3
J4
J5
J6
2.2.4 MCU (Main Control Unit)
J3
J4
J5
J6
J1 J2
10
2. Description
11
User’s Manual
2. Description
The HPAs (High Power Amplifiers) amplifies the transmitted signal from a base
station at the final stage of the repeater and vice versa.
A multiplexer is a device that combines two or more signals onto a common
channel or medium to increase its transmission efficiency.
Donor Antenna Port
Downlink Port Uplink Port Downlink Port Uplink Port
Service Antenna Port
2.2.5 HPAs (High Power Amplifiers)
2.2.6 Multiplexer
900MHz
800MHz
800MHz
900MHz
3. Hardware Installation
The installation procedure is as follows:
• Check List of Items
• Mounting
• Grounding
• RF Cable Connection
• Power On

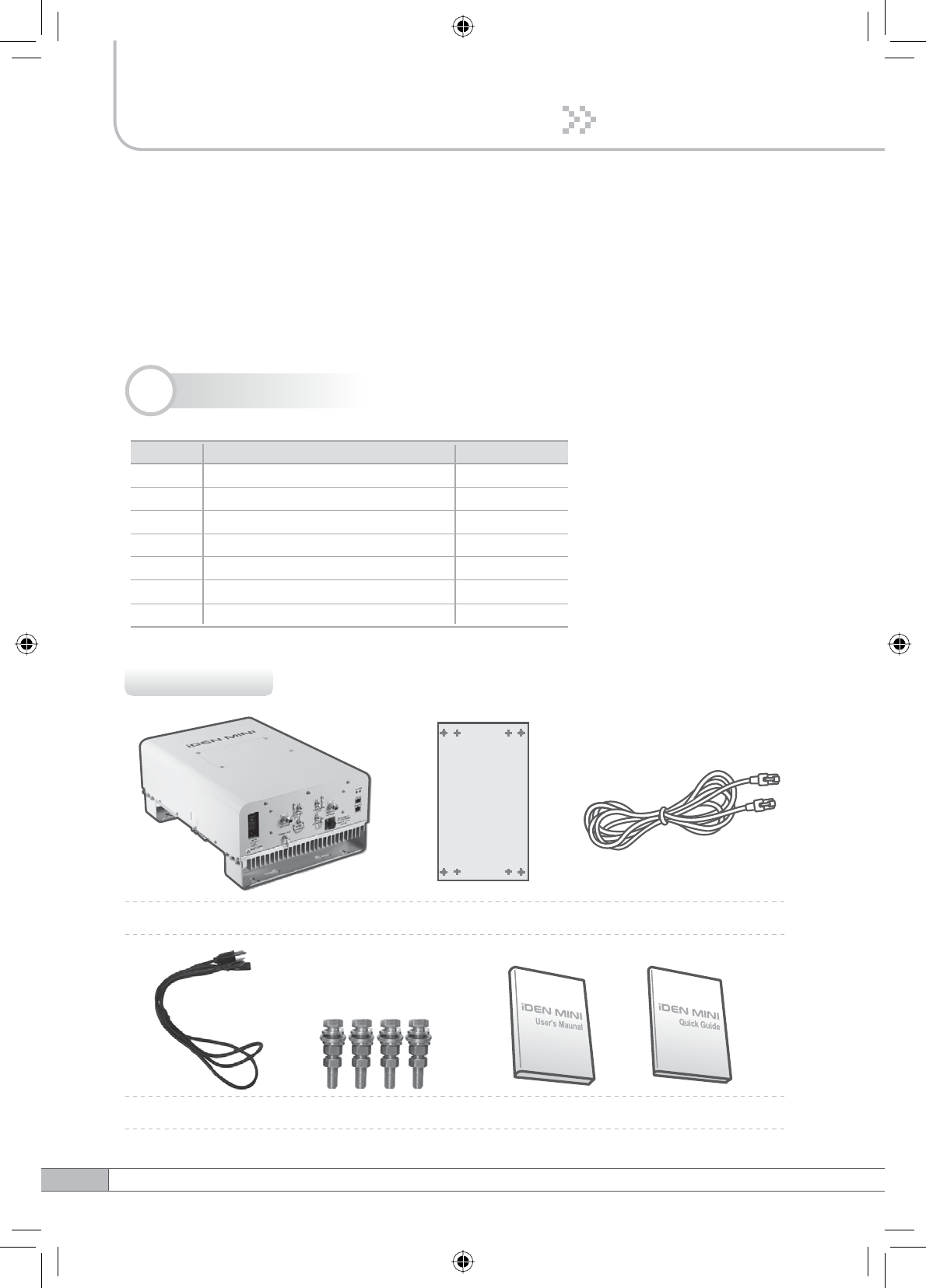

3.1 Check List of Items
12
Repeater
AC Cord Anchor Bolts
Wall Mounting Template UTP Cross LAN Cable
Quick GuideUser’s Manual
3.1.1 Items
Index Items
Repeater
AC Cord
Anchor Bolts
Wall Mounting Template
UTP Cross LAN Cable
Quick Guide
User’s Manual
1
2
3
4
5
6
7
Quantity
1
1
4
1
1
1
1
13
User’s Manual
3. Hardware Installation

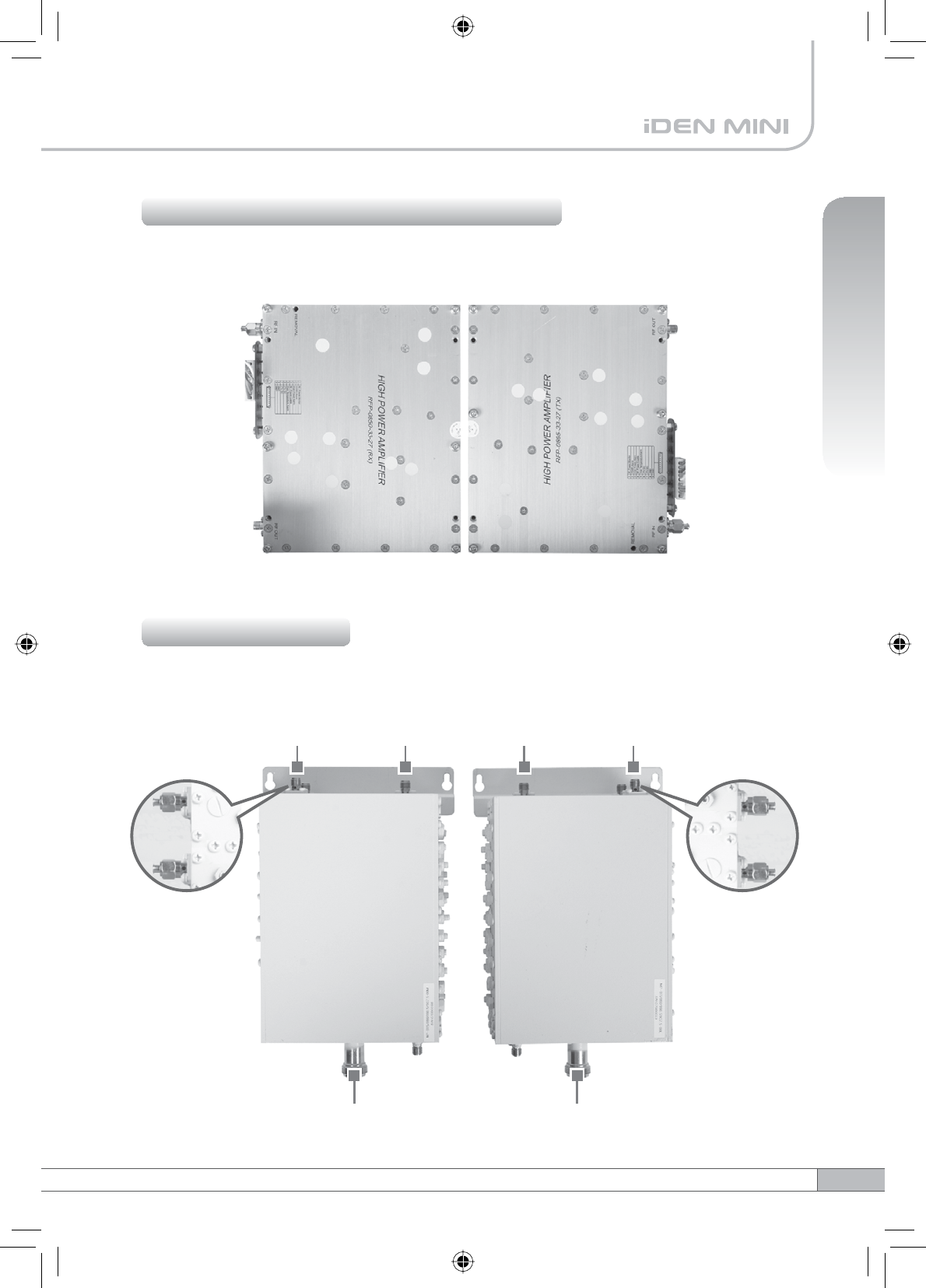

iDEN MINI is easy to mount using the assembled mounting bracket, which has 9
holes for the provided 5/16” fixing screws.
3.2 Mounting

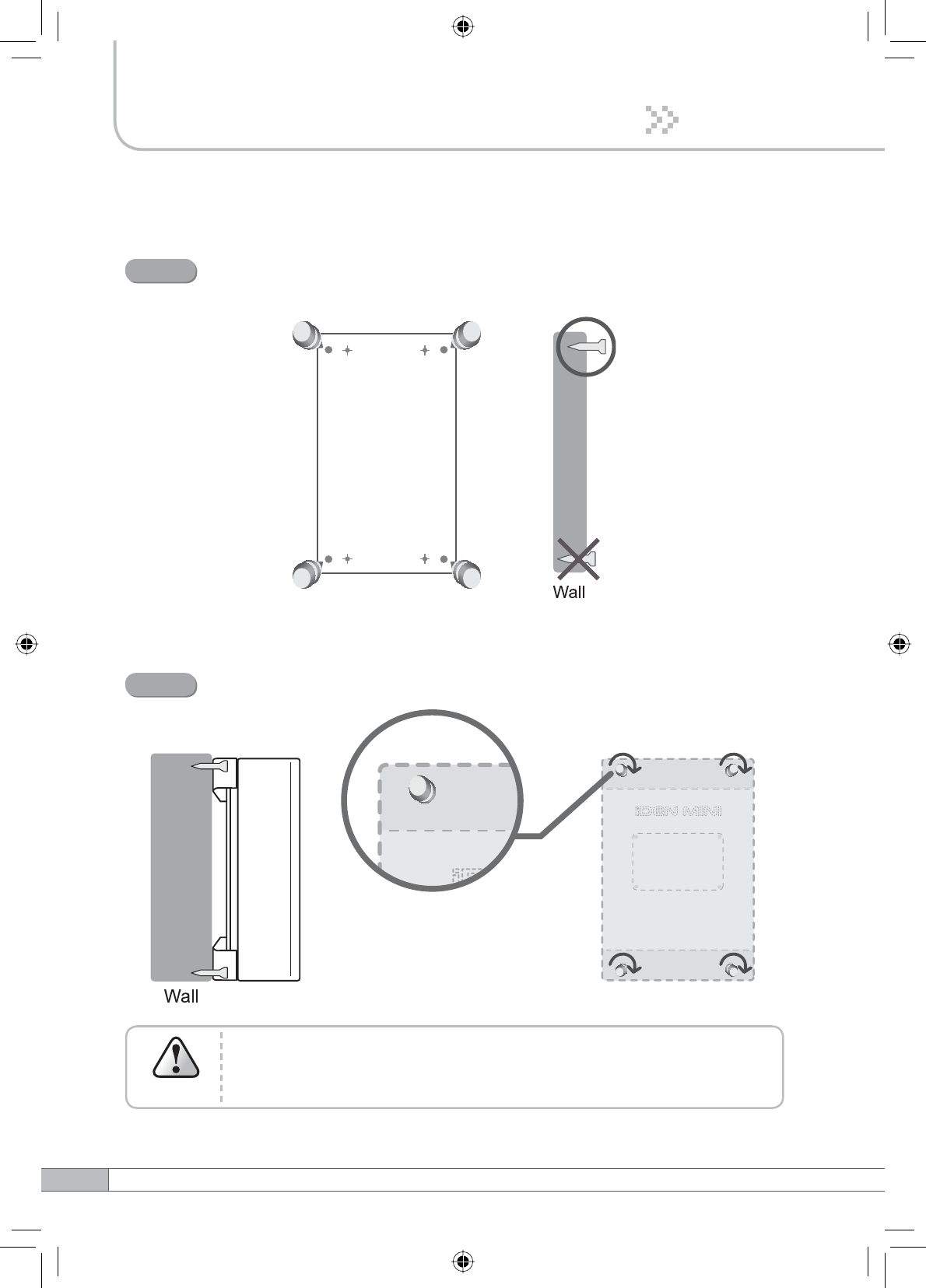

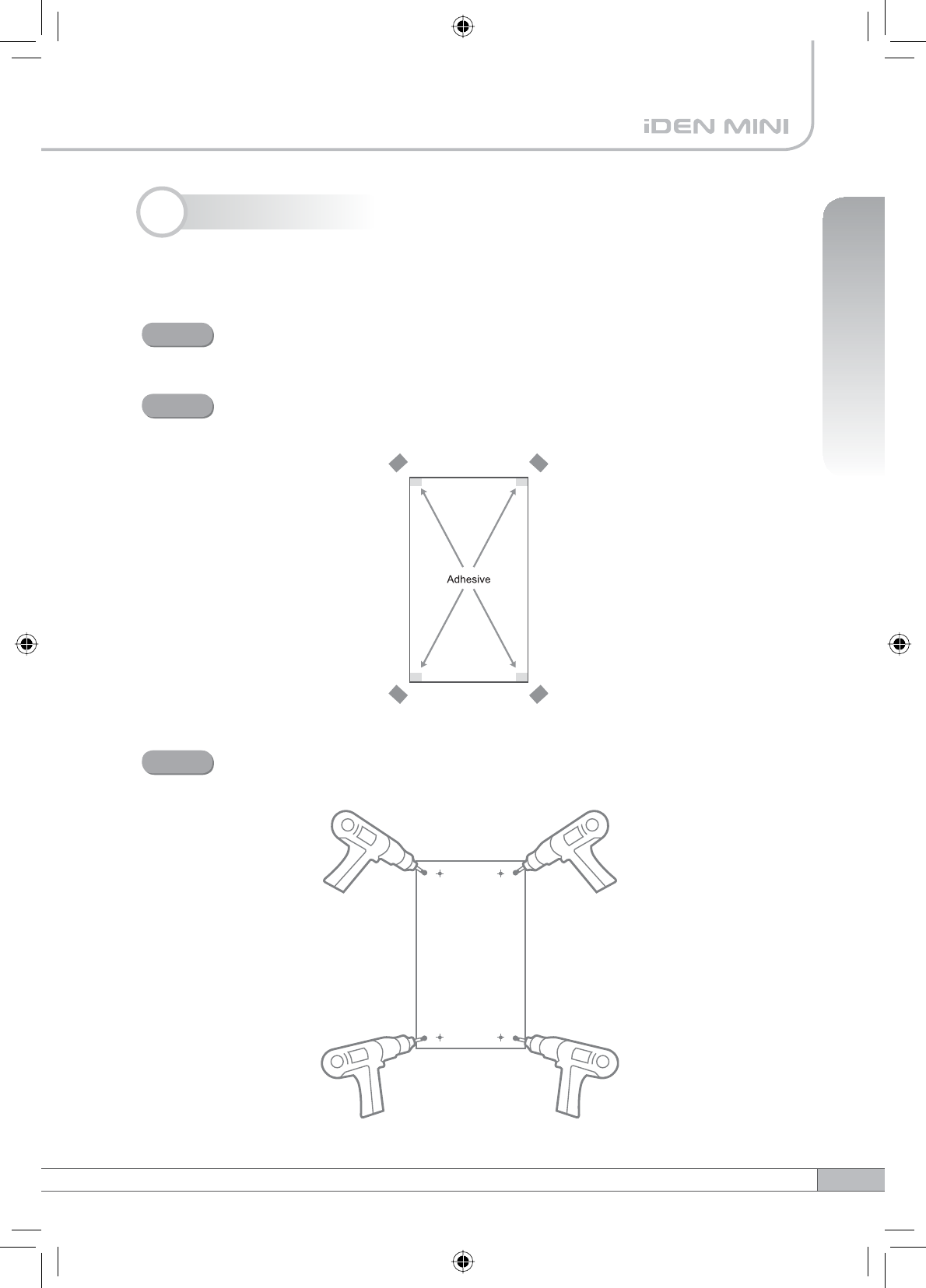

Remove the cover of double-coated foam tape squares at each corner
on the back side of the template.
Stick the provided template to the wall using the tape squares while
adjusting the horizon.
Step 1
Step 2
Mark with a pen for the holes and drill the marks or drill holes directly on
the mark in the template.
Step 3
Once equipment is mounted to the wall of the building, be sure to
check that it is firmly secured.
Caution
14
3. Hardware Installation
Put the screws or bolts into the holes.
Leave some space in order to hang the iDEN MINI on the 4 bolts.
Step 4
Mount the iDEN MINI and tighten the bolts.
Step 5
15
User’s Manual
3. Hardware Installation

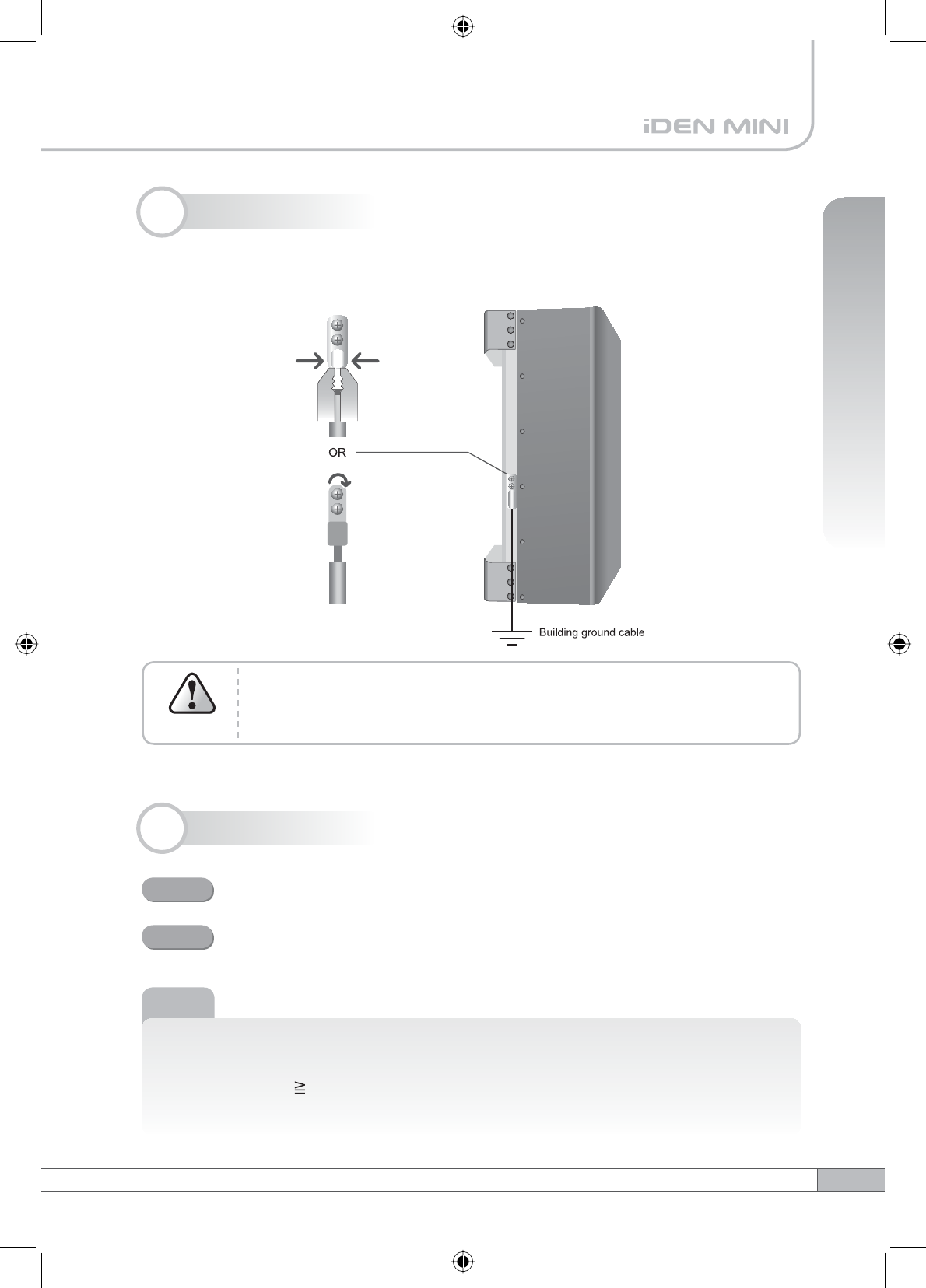

A rod on the left side is intended for a building ground.
Connect the ground cable to the rod.
Note
Enough isolation?

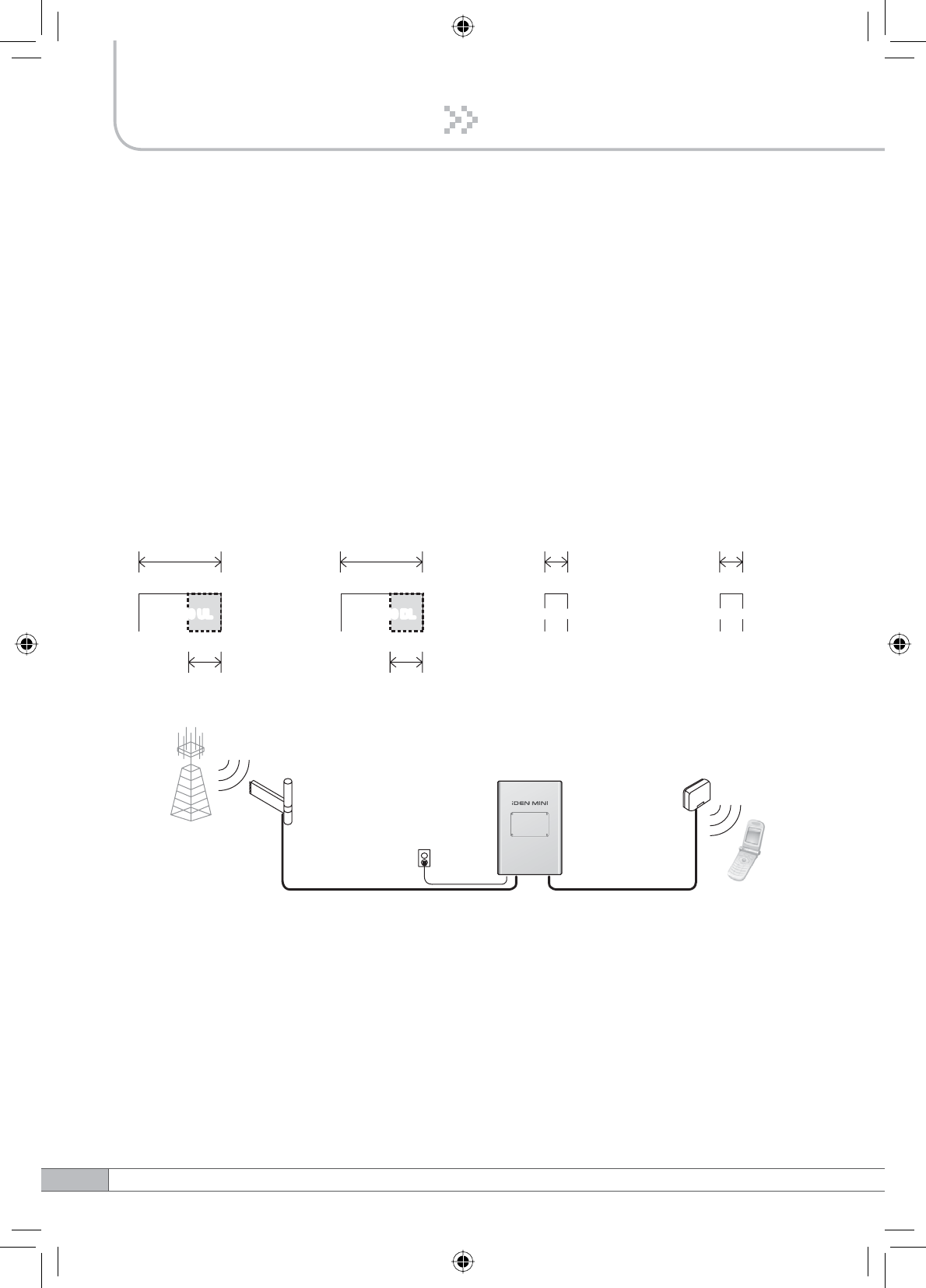

Antenna isolation = Service antenna gain + Path Loss + Donor antenna gain
Antenna isolation Repeater max. gain +15dB
If antenna isolation < Repeater max. gain +15dB ĺ System oscillation or Low gain
Dangerously high voltages may occur and damage the equipment if
the equipment is not grounded properly.
Warning
3.3 Grounding
3.4 RF Cable Connection
Connect a cable from a donor antenna to the DONOR ANTENNA Port.
Connect a cable from a repeater’s service antenna to the SERVICE
ANTENNA Port.
Step 1
Step 2
Model Max Gain
80dBiDEN 30
Minimum required isolation
95 (= 80+15)
Repeater
Donor
antenna
Plugged in an
AC outlet
Donor
Base
Station
Service
Mobile Station
Service
antenna
3.5 Power On
16
3. Hardware Installation
Connect the power cord.
Plug the power cord into a wall outlet.
Power Switch turns on.
Check if the green LED at the bottom turns on.
Step 1
Step 2
Step 3
Step 4
17
User’s Manual
4. Operation
4. Operation
Power on the switch to “I”
The switch is located on the
bottom of the main body.

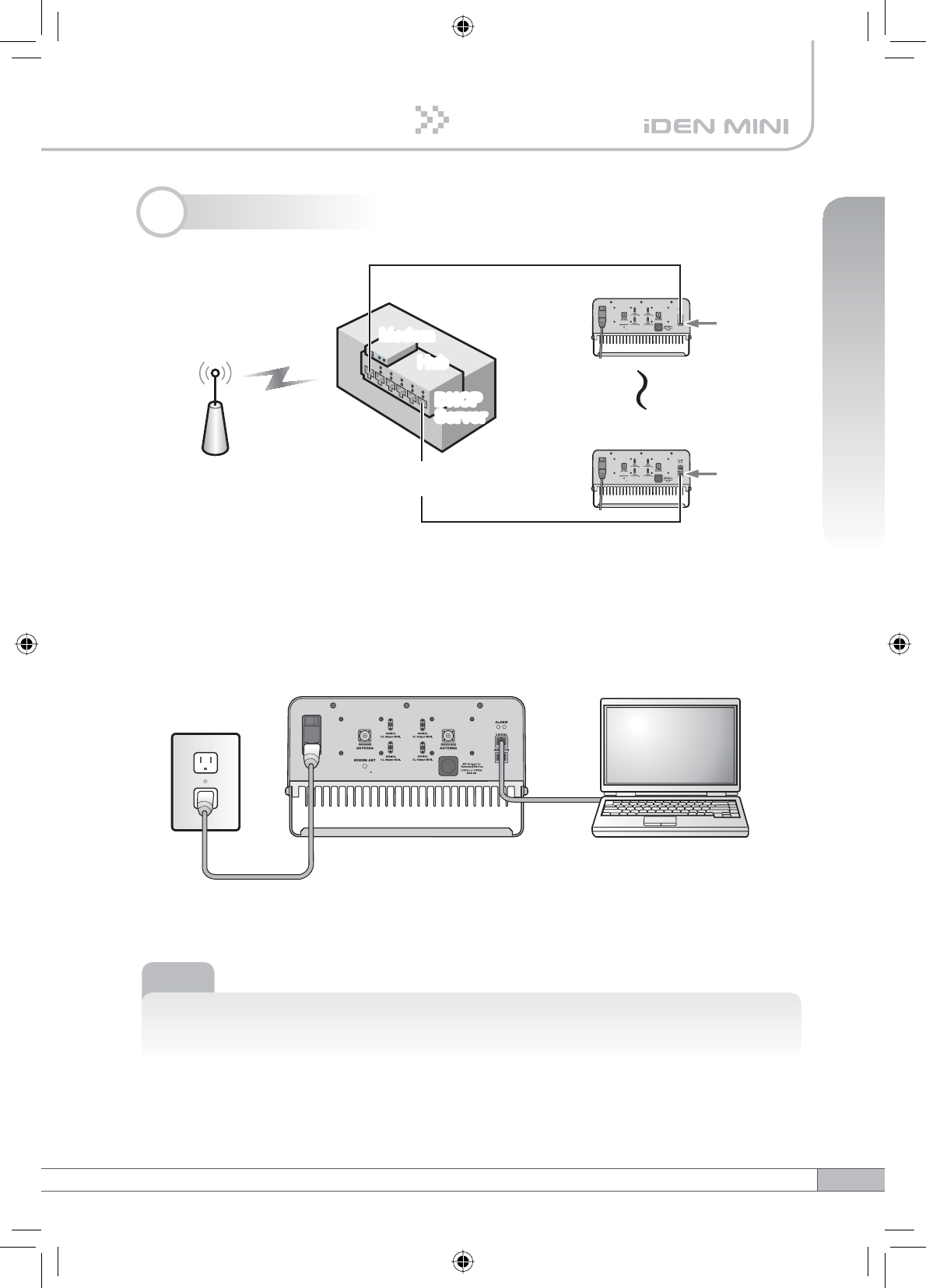

Connect UTP Cross LAN Cable to
a PC and the iDEN MINI.
Note
It will take approximately 1 minute to boot after turning it on.
4.1 Connections
Repeater 1
DHCP
Client
Repeater 8
DHCP
Client
ModemModem
Hub
Hub
DHCP
Server
DHCP
Server
Base Station Monitoring Device with wireless modem
for Remote Access
When REMOTE port is in use, the repeater runs as a remote DHCP client.
When LOCAL port is in use, the repeater runs as a local DHCP server.
18
4. Operation
4.3.1 Windows XP
4.3 Network Setup
iDEN MINI operates on a customer provided PC based platform with the following
system requirements :
• Windows® 2000, Windows® XP or Windows® Vista
• Internet Explorer 6.0(Recommended) or higher
• 128 MB RAM or higher
• Pentium 䳯 processor or higher
• RJ-45 jack required
4.2 System Requirements

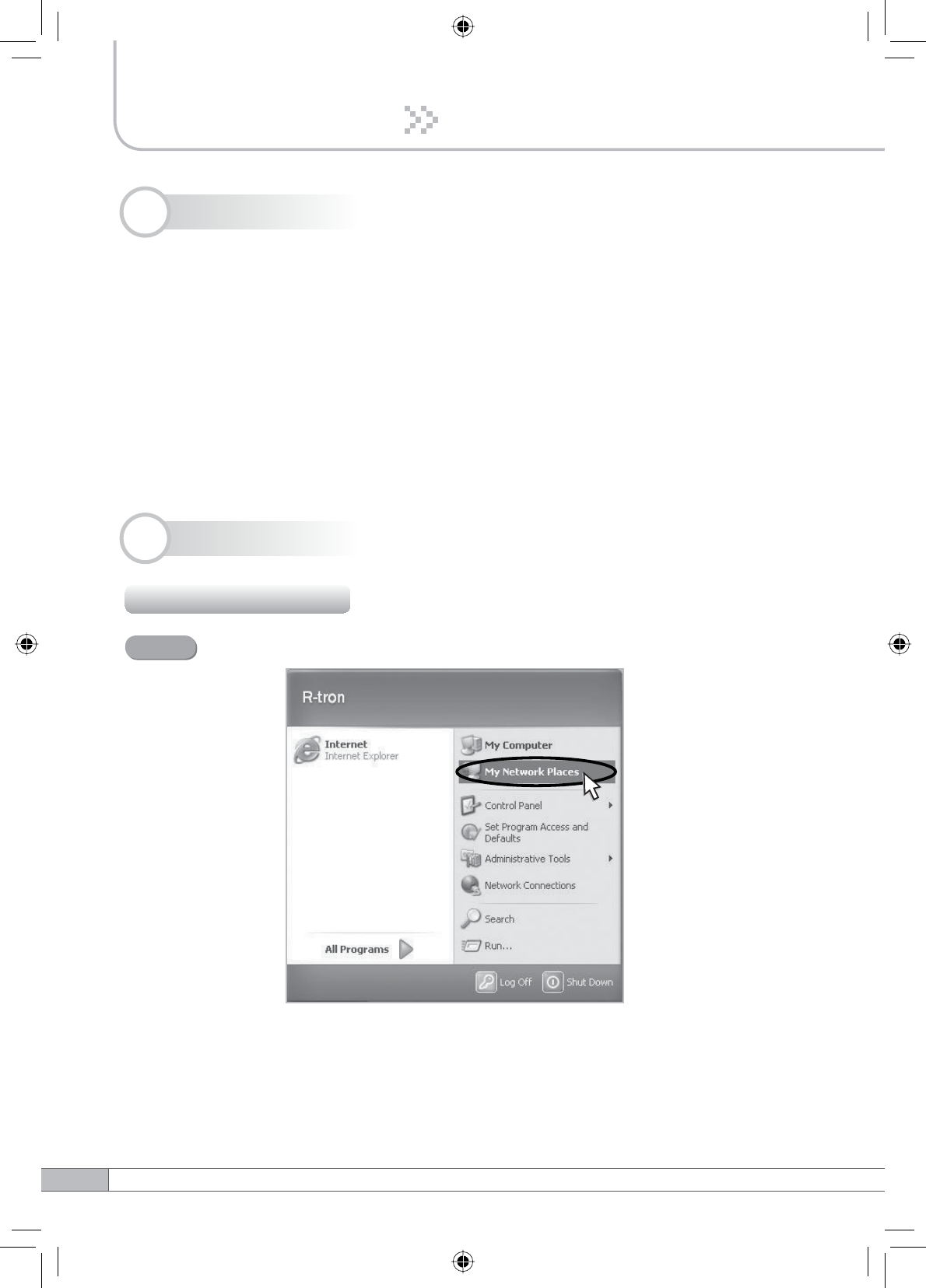

Click the Start button and My Network Places.
Step 1
19
User’s Manual
4. Operation

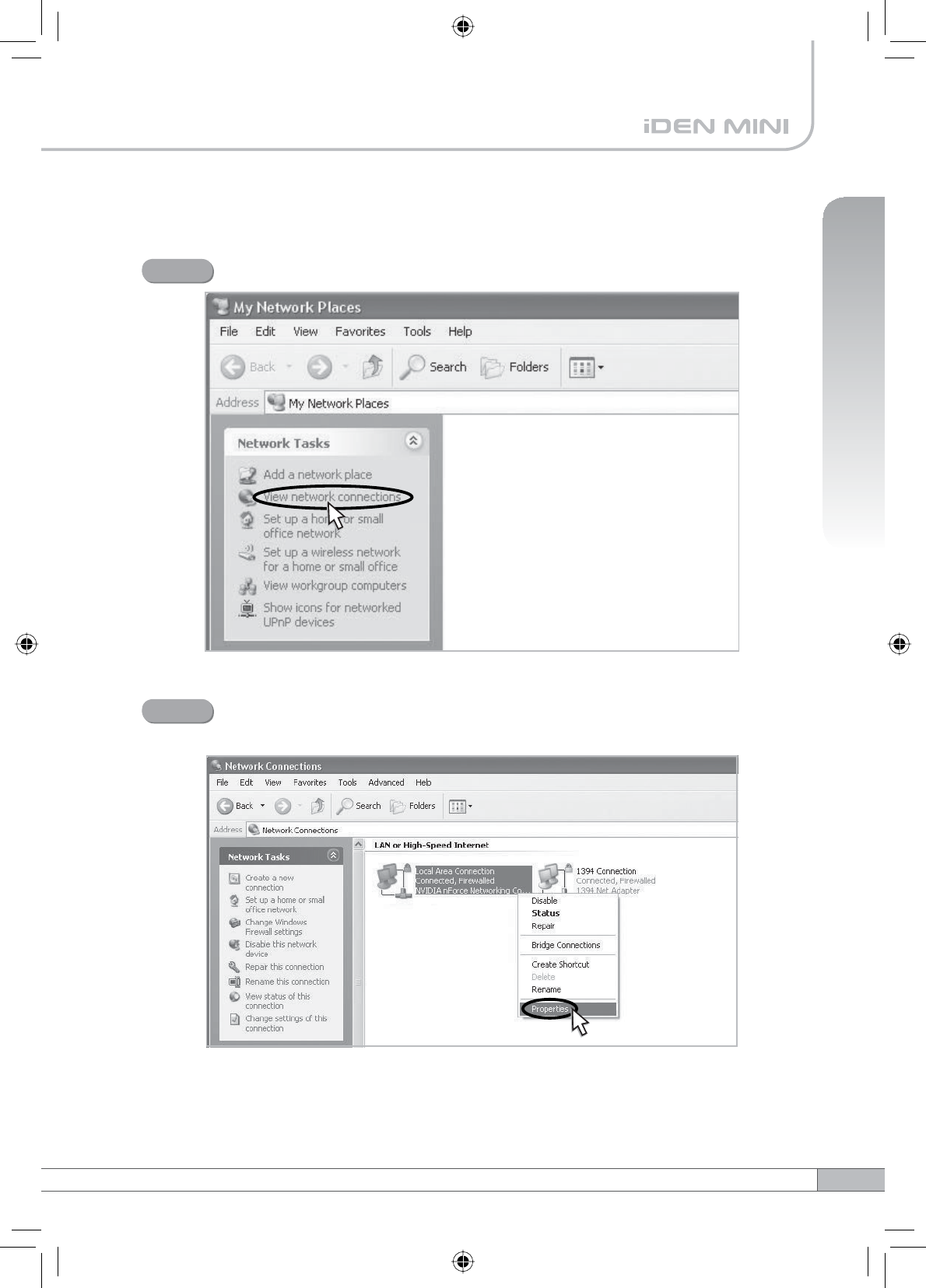

Click View network connections.
Step 2
Right-click Local Area Connection to see a shortcut menu
and click Properties.
Step 3
20
4. Operation

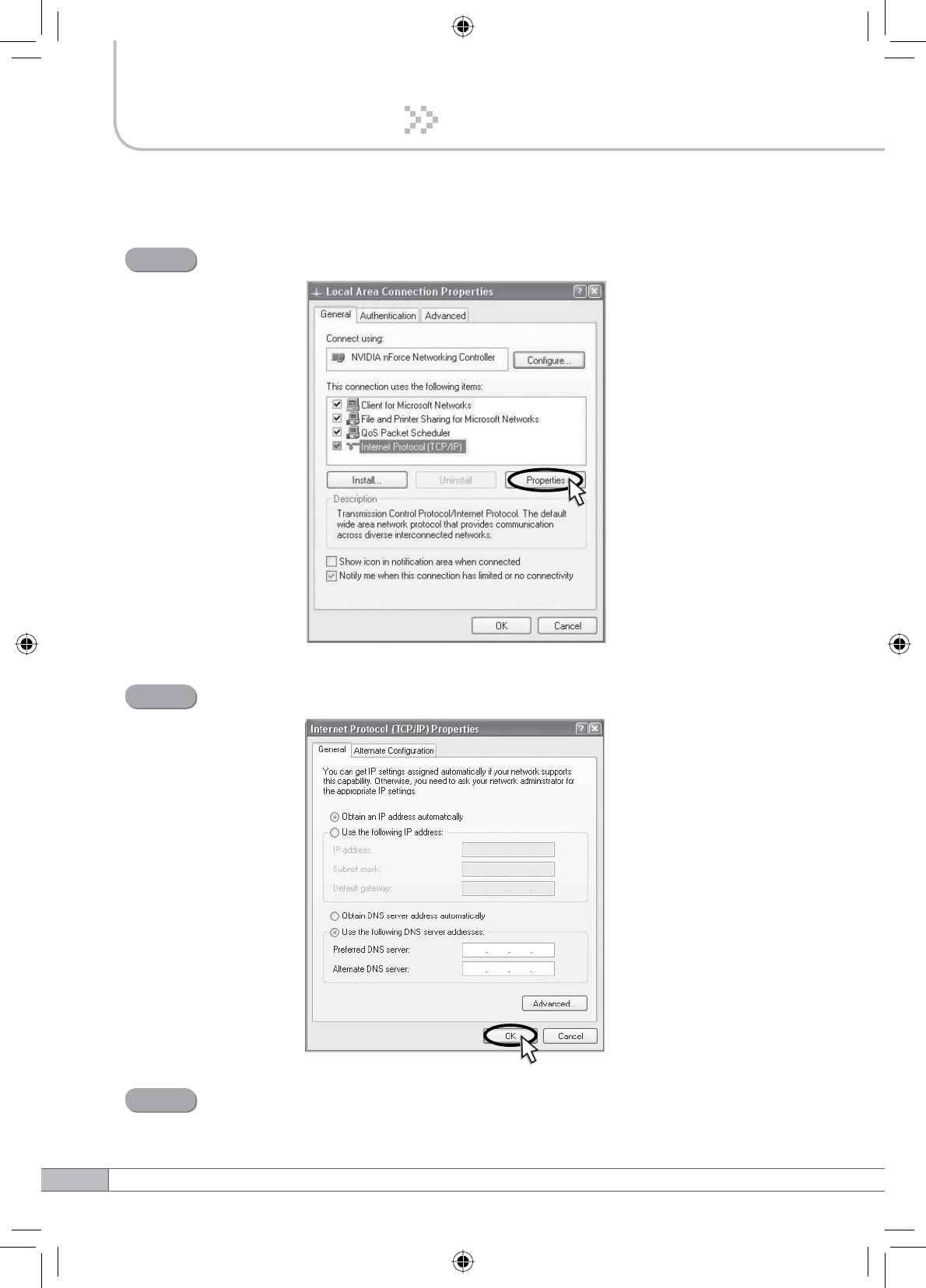

Select Internet Protocol (TCP/IP) and click Properties.
Step 4
Check Obtain an IP address automatically and click OK.
Step 5
Close all windows.
Step 6
21
User’s Manual
4. Operation
4.3.2 Windows 2000

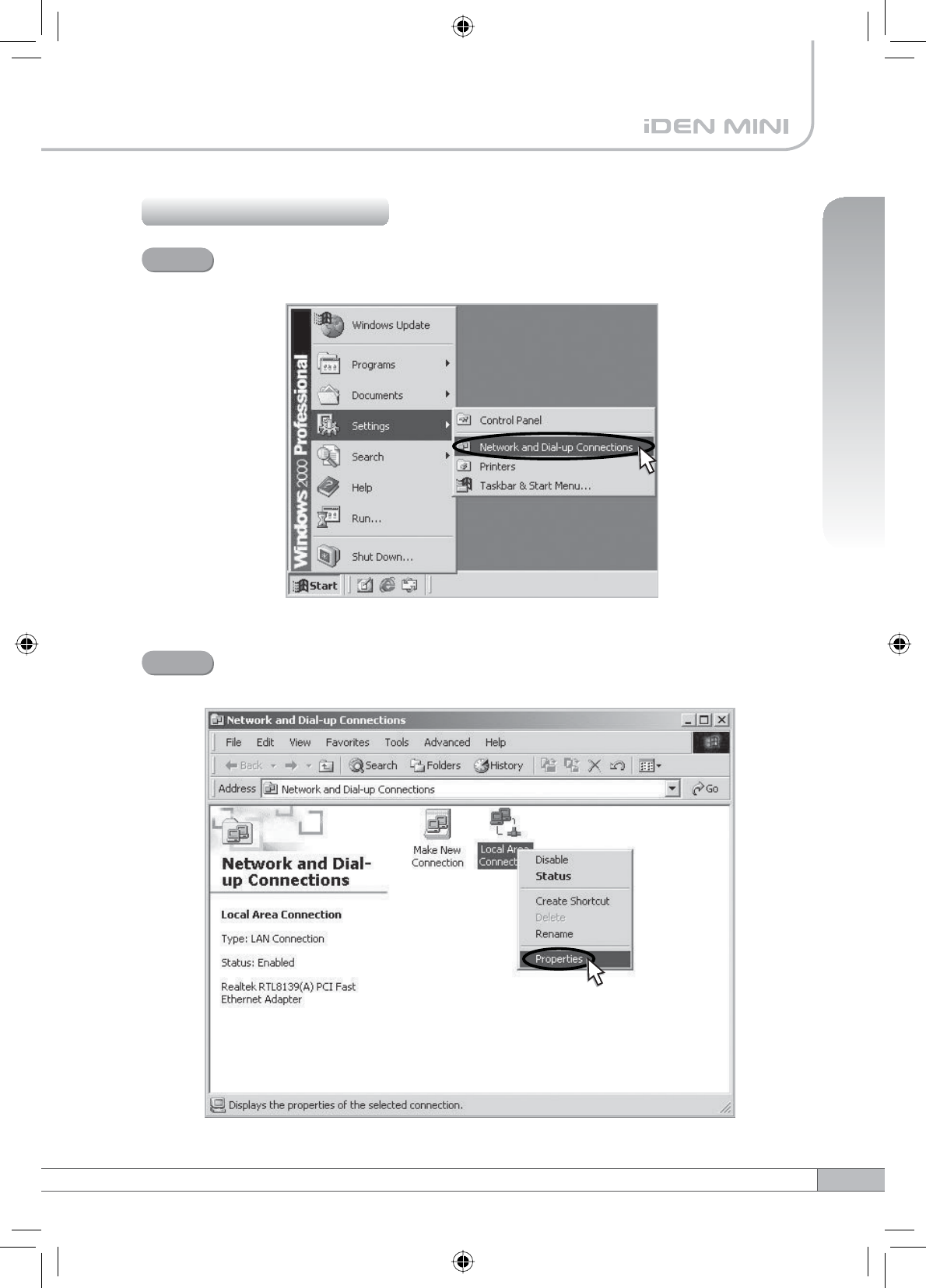

Click the Start button, point to Settings, and then click Network and
Dial-up Connections.
Step 1
Right-click Local Area Connection to see a shortcut menu and click
Properties.
Step 2
